I. Key Features

1. Superior Corrosion Resistance

Constructed from 304/316 stainless steel, capable of withstanding corrosive media such as acidic/alkaline solutions and organic solvents.
Specialized surface treatment processes extend the pump body's service life in harsh environments.

2. High-Efficiency, Energy-Saving Design

Hydrodynamically optimized impeller increases efficiency by over 15% compared to standard pumps.
Low NPSH (Net Positive Suction Head) design minimizes the risk of cavitation.

3. Smart Maintenance Capabilities

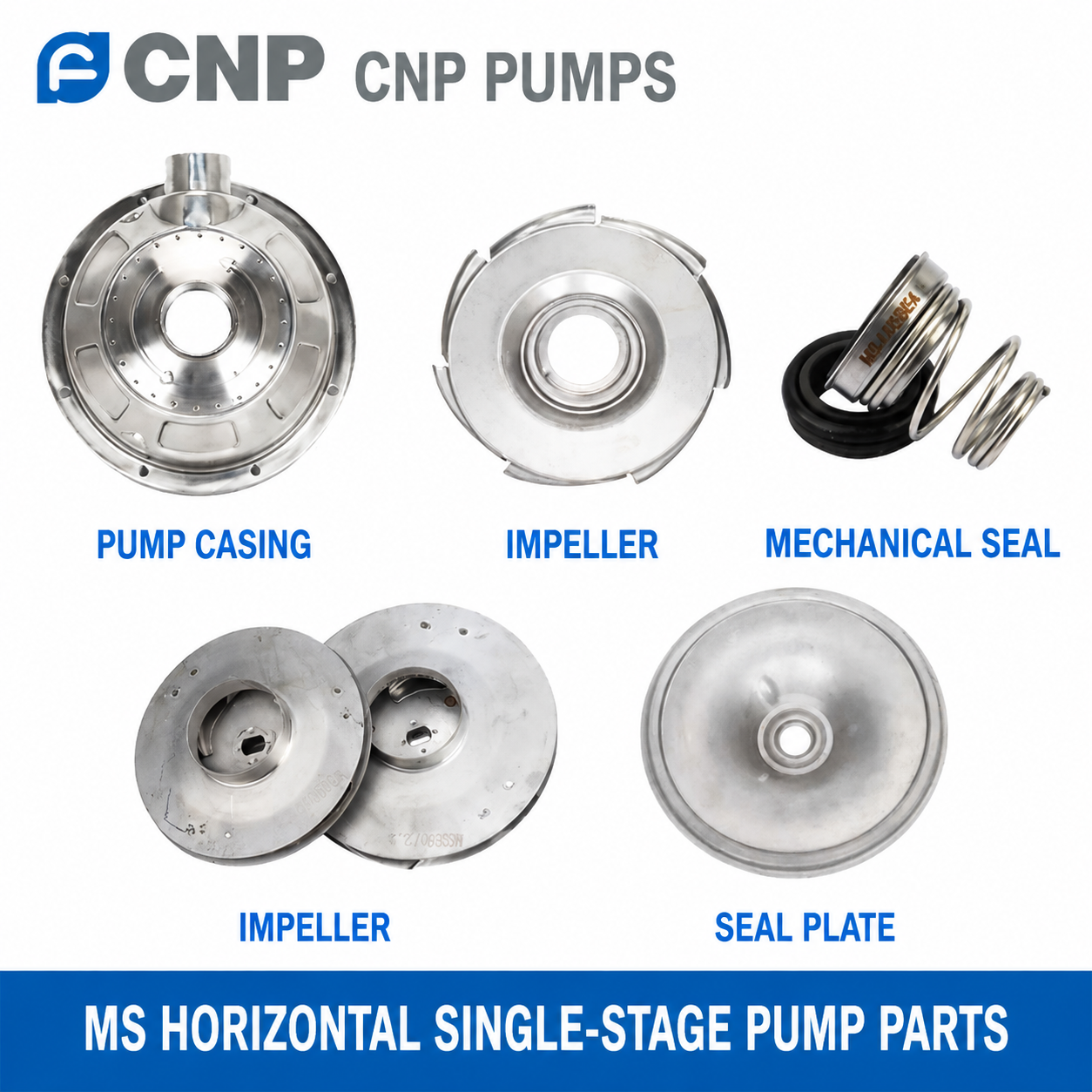

Modular structural design allows for rapid disassembly and assembly of key components.
Equipped with vibration monitoring interfaces to support intelligent operation and maintenance.

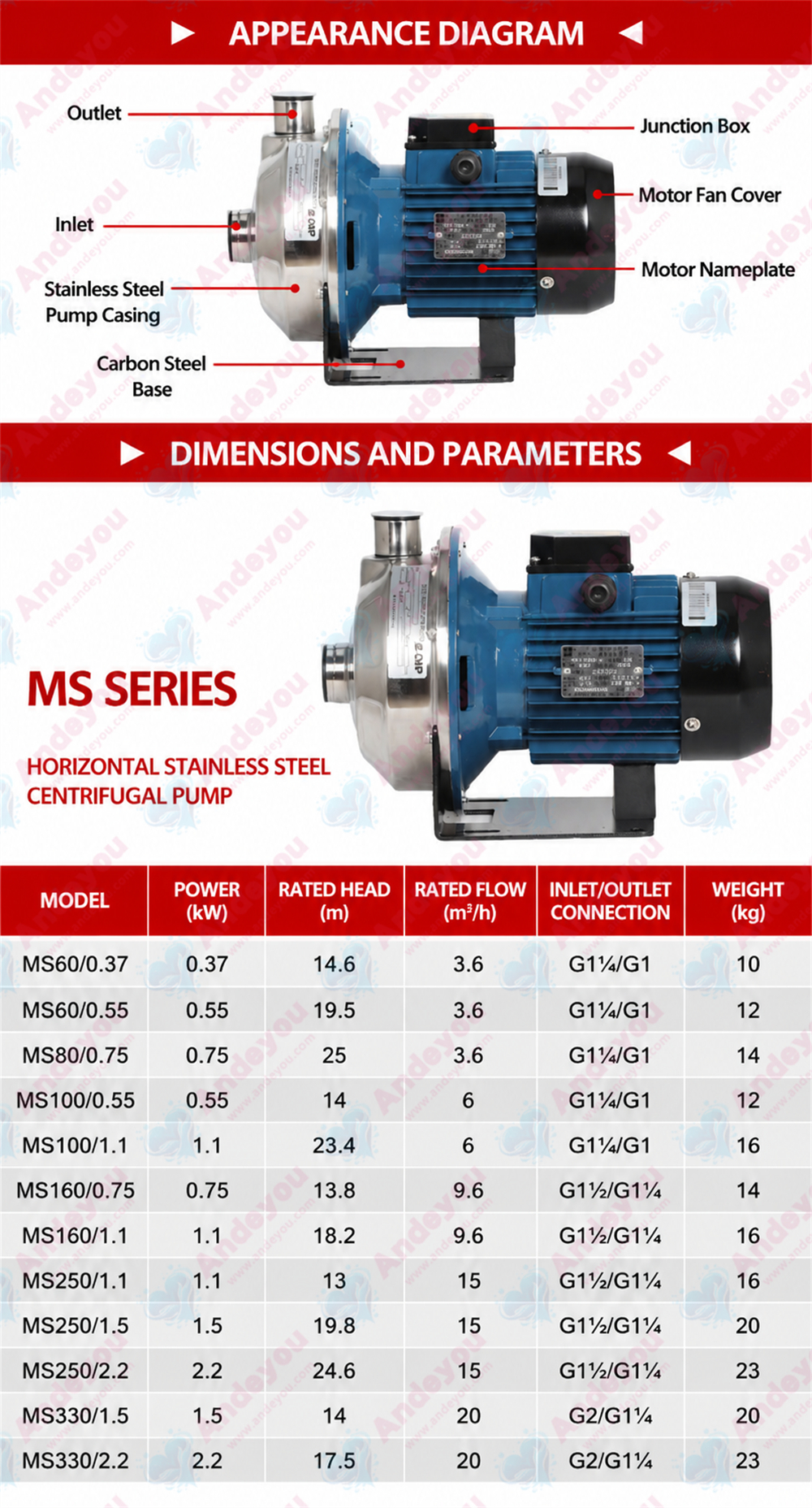

II. Technical Specifications

Flow Rate Range: 5–200 m³/h (customizable for higher flow rates)
Head Range: 10–80 m (customizable up to 100 m for special requirements)
Operating Temperature: -20°C to 120°C (high-temperature models up to 150°C)

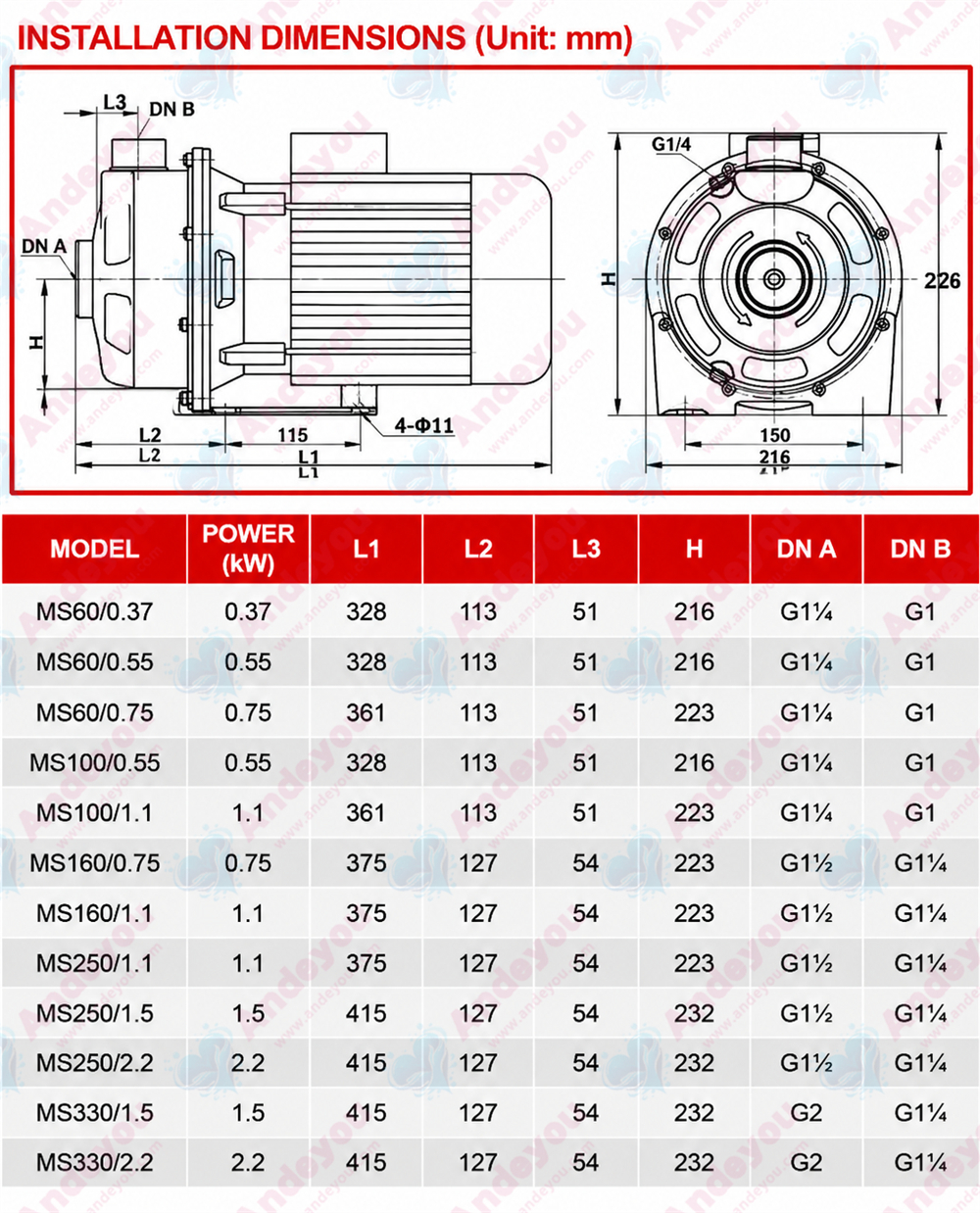

Inlet Diameter: DN32–DN150 (various flange standards available)

III. Detailed Application Scenarios

1. Chemical Industry Applications

Circulation systems for pickling lines
Precision transfer of electroplating solutions
Transfer of pesticide technical concentrates

2. Environmental Water Treatment Applications

High-pressure boosting for reverse osmosis (RO) systems
Cleaning systems for MBR membrane modules
Advanced treatment and reuse of industrial wastewater

3. Specialized Configurations for Food & Pharmaceuticals

Polished finish compliant with 3A sanitary standards
Compatible with CIP (Clean-in-Place) systems
Applications in aseptic filling lines
