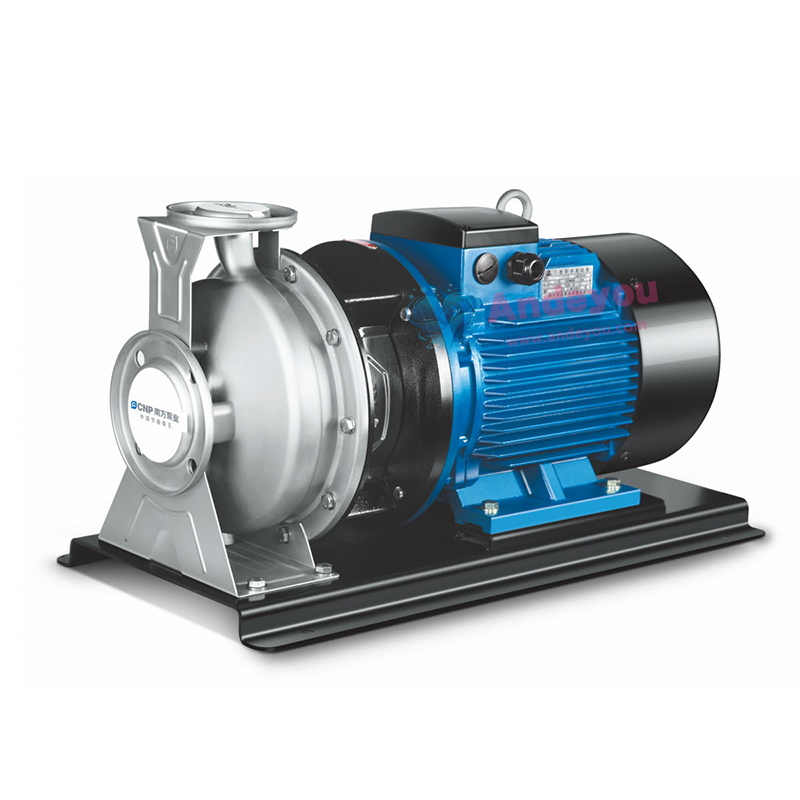

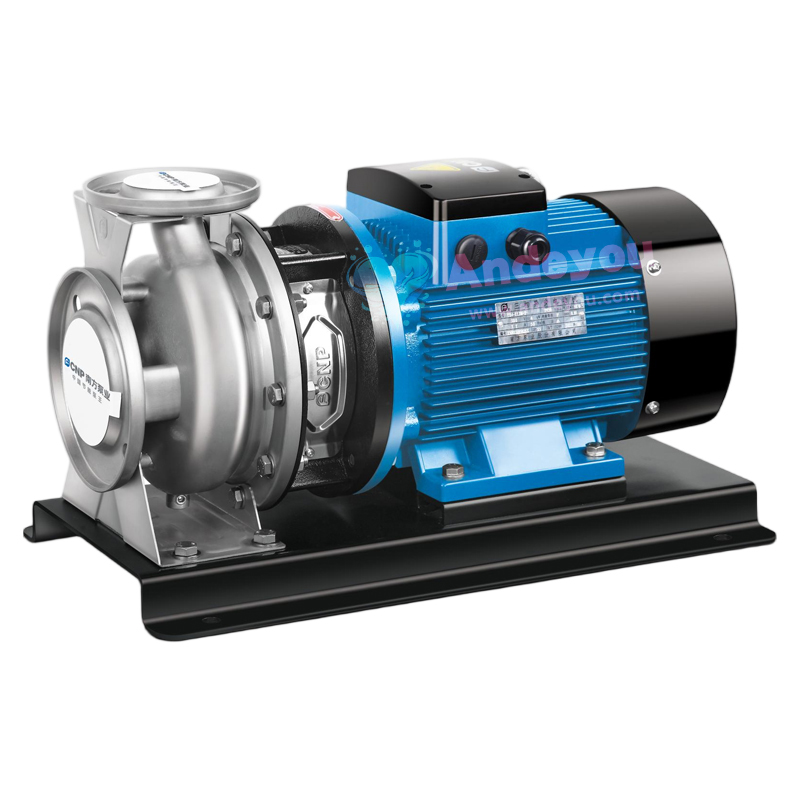

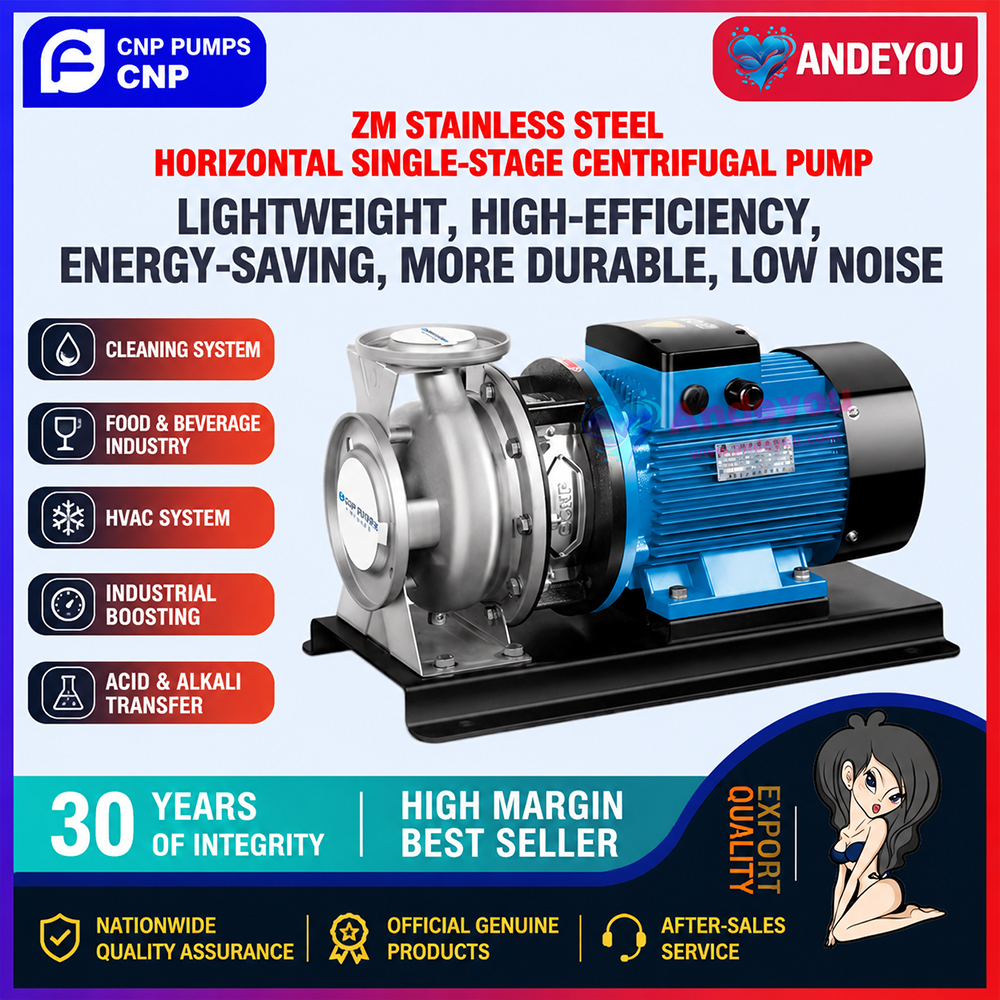

Nanfang ZM Stainless Steel Horizontal Single-Stage Centrifugal Pump

ZM50-32-125T/0.55 ZM50-32-125T/0.75 ZM50-32-125/0.75 ZM50-32-125/1.1 ZM50-32-125/1.5 ZM50-32-160/2.2 ZM50-32-160/3 ZM50-32-200/4 ZM50-32-200/5.5 ZM50-32-250/7.5 ZM50-32-250/9.2 ZM50-32-250/11 ZM65-40-125/1.1 ZM65-40-125/1.5 ZM65-40-125/2.2 ZM65-40-160/3 ZM65-40-160/4 ZM65-40-200/5.5 ZM65-40-200/7.5 ZM65-40-250/9.2 ZM65-40-250/11 ZM65-40-250/15 ZM65-50-125/2.2 ZM65-50-125/3 ZM65-50-125/4 ZM65-50-160/5.5 ZM65-50-160/7.5 ZM65-50-200/9.2

Nanfang Pump Industry (CNP) is a specialized manufacturer of ZM series stainless steel horizontal single-stage centrifugal pumps,offering industrial-grade,corrosion-resistant pumps suitable for applications in chemical processing,water treatment,HVAC,and more.Key features include 304/316 stainless steel construction,high energy efficiency,low-noise operation,and a range of power options.Customizable specifications include flow rates of 5–200 m³/h,heads of 10–80 m,and port sizes from DN25 toDN150

Product Consultation By telephone

Function

Parameters

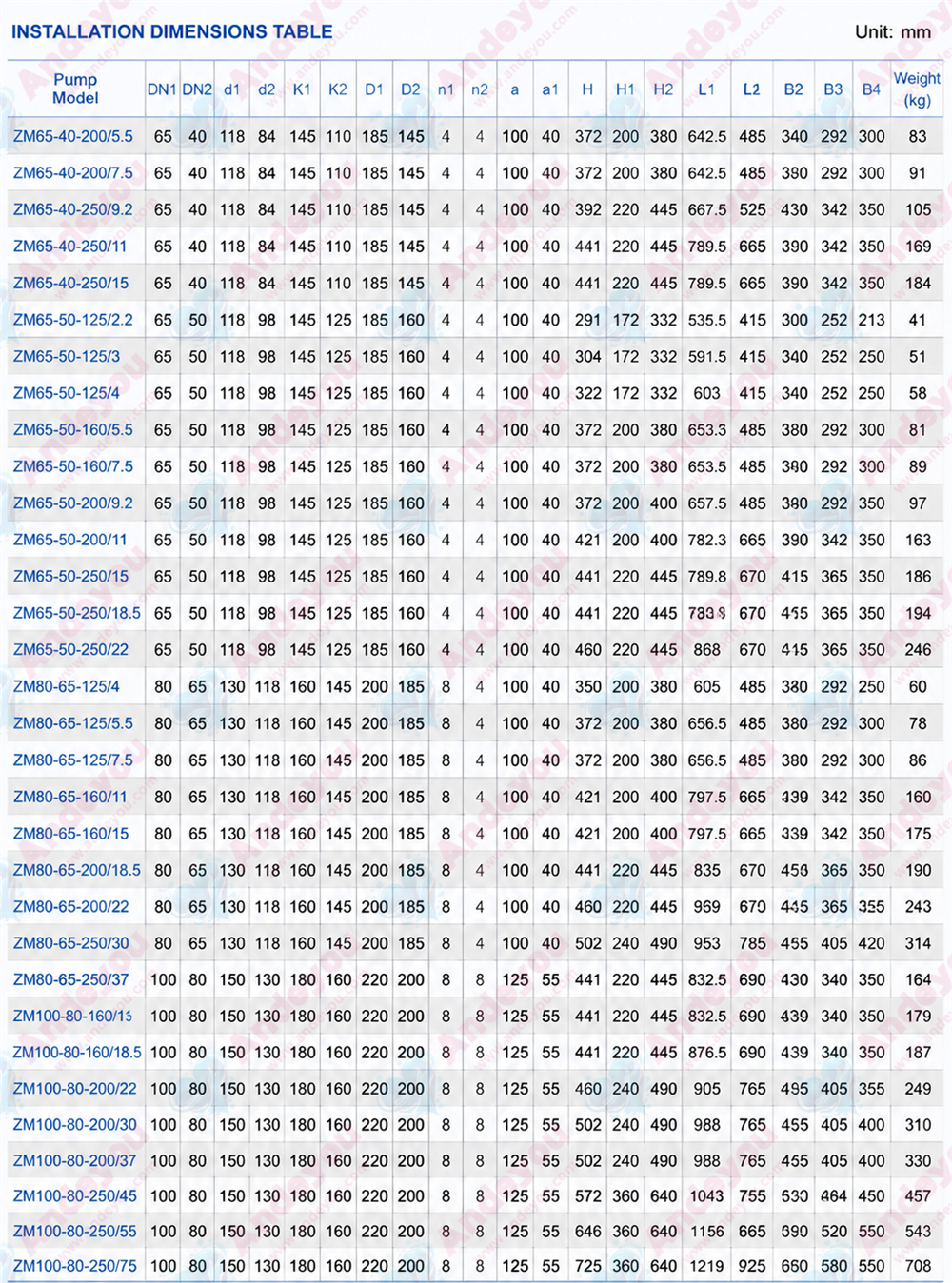

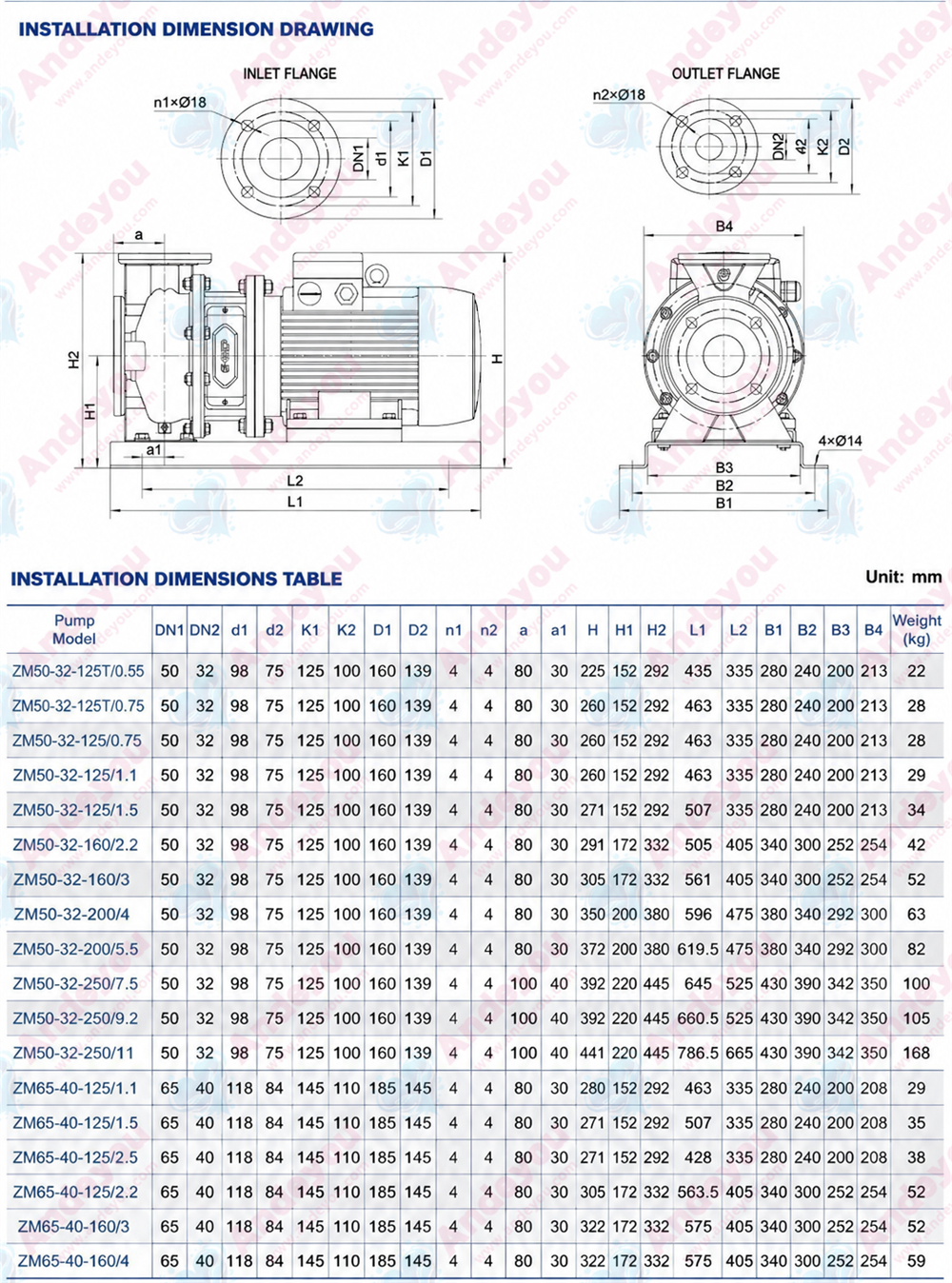

Size

Video Introduction

Function

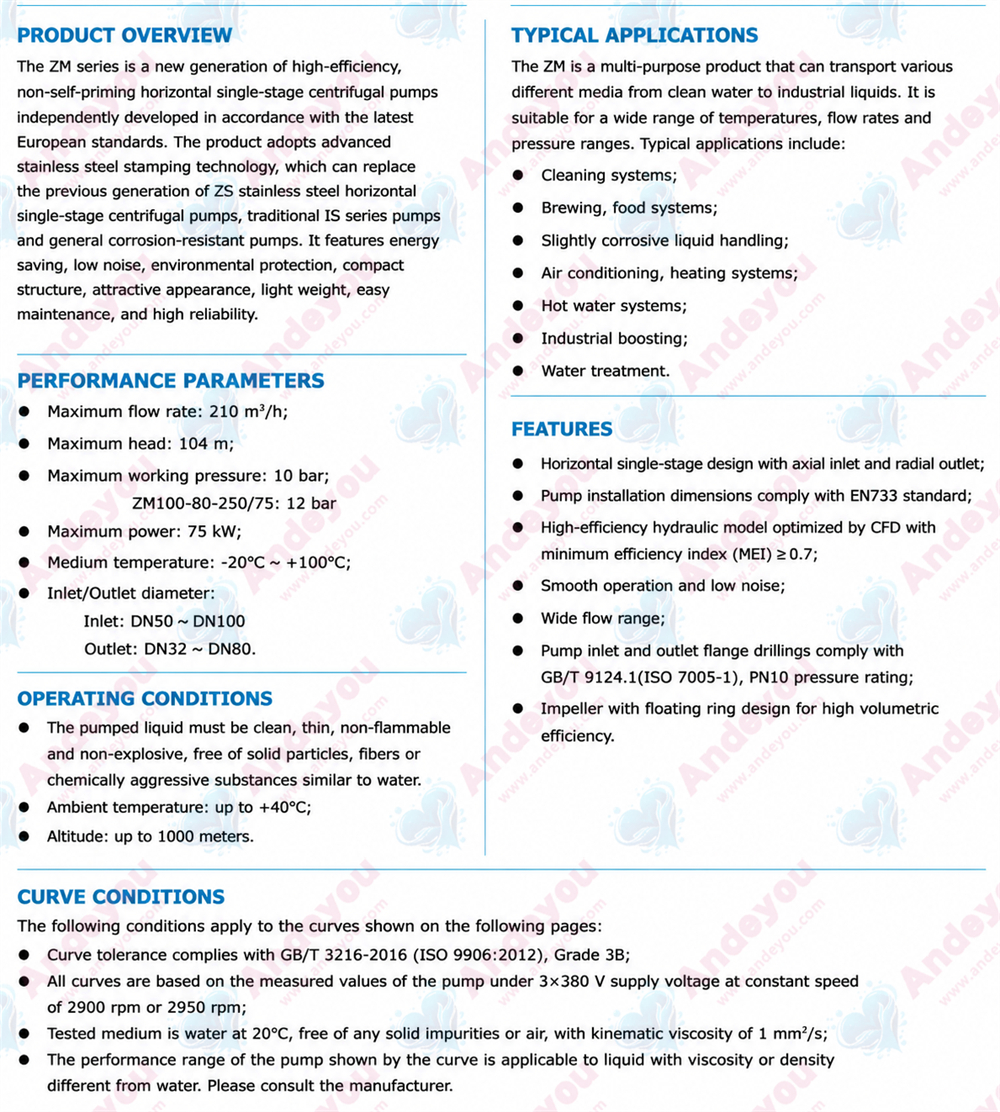

I. Product Features

High-Quality Materials: Manufactured from 304/316 stainless steel, offering excellent corrosion resistance; suitable for transporting corrosive liquids or high-purity media.
High Efficiency & Energy Saving: Optimized impeller and flow-path designs ensure high operational efficiency and reduced energy consumption, meeting industrial energy-saving standards.
Stable & Reliable: Features a mechanical seal design for superior leak prevention; operates smoothly with low noise, making it ideal for continuous, long-term operation.
Easy Maintenance: Horizontal design facilitates installation and routine servicing; key components allow for quick disassembly and replacement, minimizing downtime.
Versatile Configuration: Customizable options available for power, flow rate (5–200 m³/h), head (10–80 m), and port size (DN25–DN150).

II. Application Scenarios

Chemical Industry: Transporting corrosive chemical media such as acids, alkalis, and salt solutions; suitable for integration with reaction vessels and storage tanks.
Water Treatment: Used in sewage treatment, pure water transport, and circulating water systems; corrosion-resistant and compliant with environmental regulations.
HVAC: Serves as a cooling water circulation pump or boiler feed pump; capable of handling high-temperature and high-pressure conditions.
Food & Pharmaceutical: Meets sanitary standards; suitable for transporting clean fluids such as beverages, dairy products, and pharmaceutical solutions.
Industrial Water Supply: Suitable for factory water supply systems, fire-fighting water supply, and agricultural irrigation; meets high-flow rate requirements.

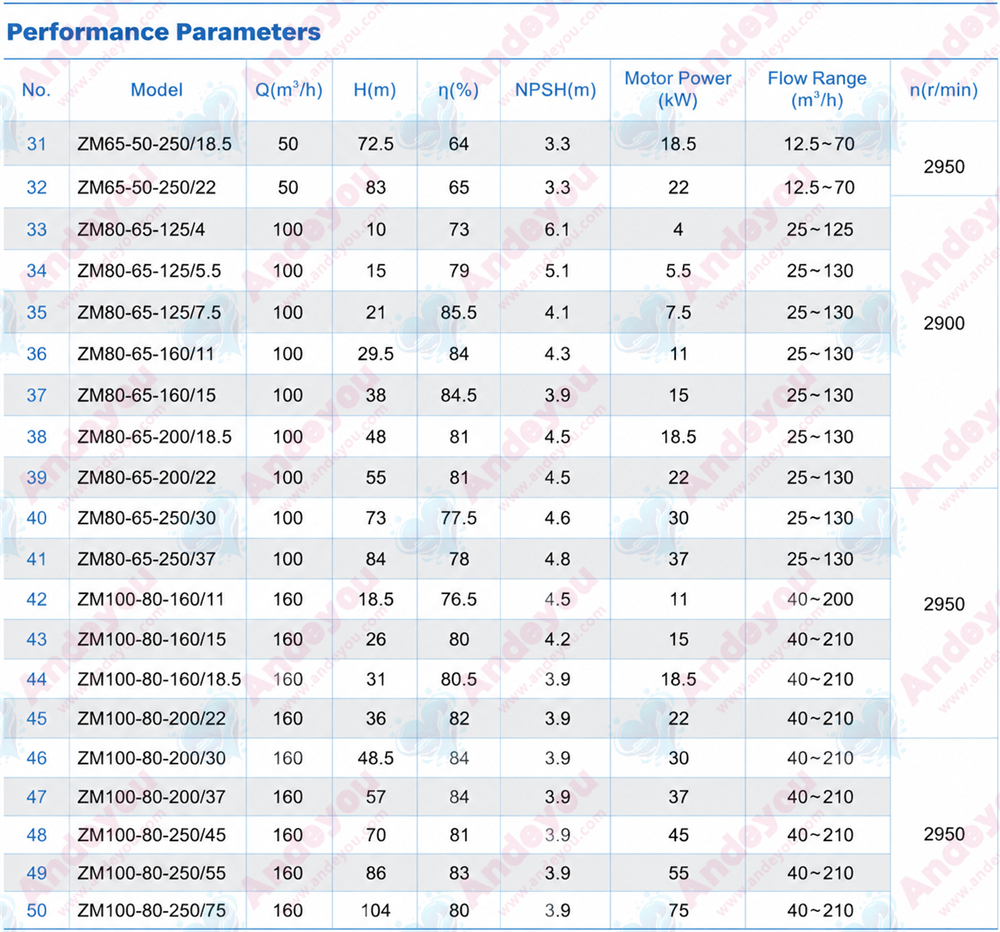

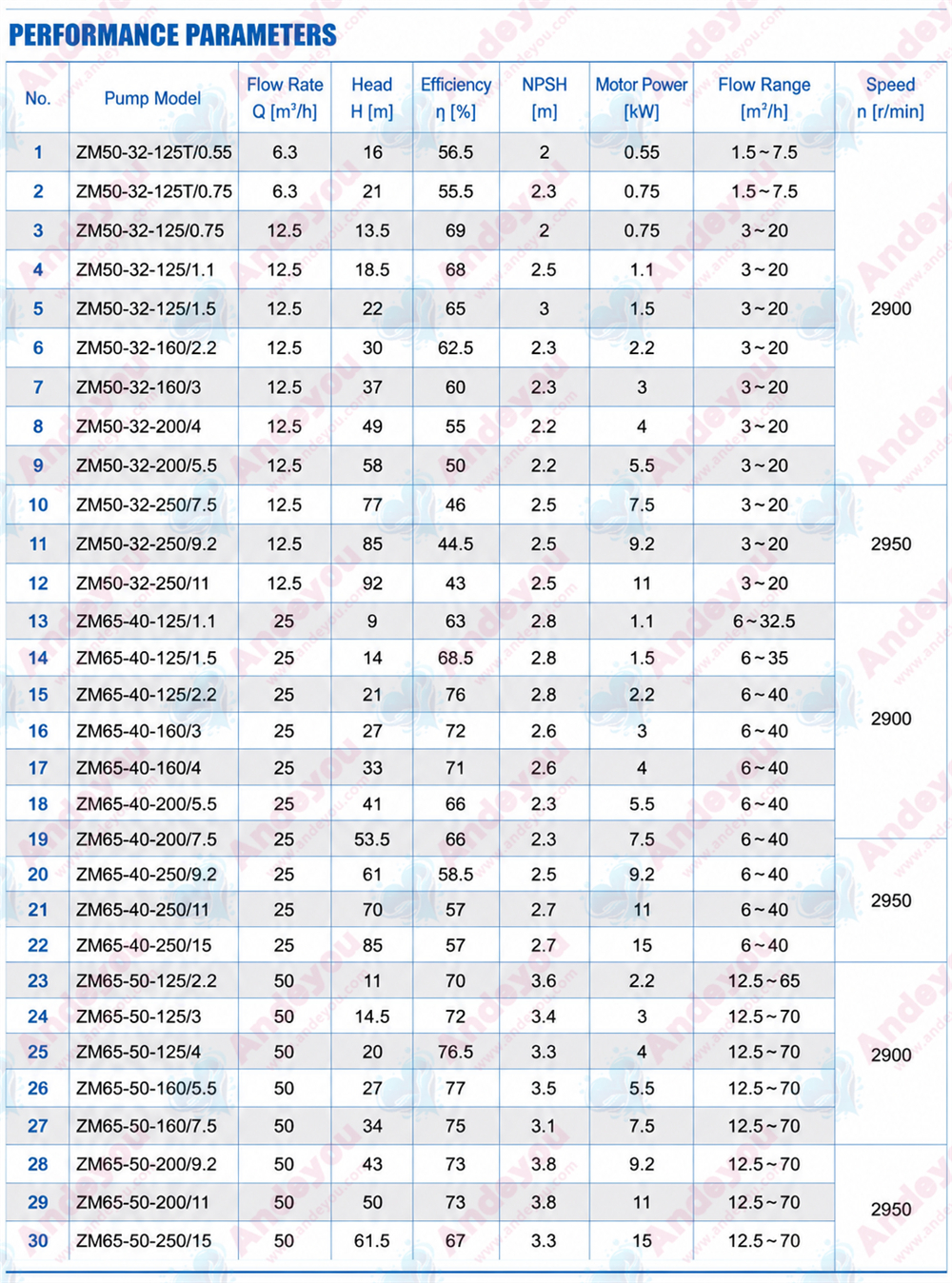

Parameters

model	Flow rate (m³/h)	Head (m)	Power (kW)	Rotational speed	caliber
ZM50-32-125T/0.55	6.3	16	0.55	2900	50×32
ZM50-32-125T/0.75	6.3	21	0.75	2900	50×32
ZM50-32-125/0.75	12.5	13.5	0.75	2900	50×32
ZM50-32-125/1.1	12.5	18.5	1.1	2900	50×32
ZM50-32-125/1.5	12.5	22	1.5	2900	50×32
ZM50-32-160/2.2	12.5	30	2.2	2900	50×32
ZM50-32-160/3	12.5	37	3	2900	50×32
ZM50-32-200/4	12.5	49	4	2900	50×32
ZM50-32-200/5.5	12.5	58	5.5	2900	50×32
ZM50-32-250/7.5	12.5	77	7.5	2950	50×32
ZM50-32-250/9.2	12.5	85	9.2	2950	50×32
ZM50-32-250/11	12.5	92	11	2950	50×32
ZM65-40-125/1.1	25	9	1.1	2900	65×40
ZM65-40-125/1.5	25	14	1.5	2900	65×40
ZM65-40-125/2.2	25	21	2.2	2900	65×40
ZM65-40-160/3	25	27	3	2900	65×40
ZM65-40-160/4	25	33	4	2900	65×40
ZM65-40-200/5.5	25	41	5.5	2900	65×40
ZM65-40-200/7.5	25	53.5	7.5	2900	65×40
ZM65-40-250/9.2	25	61	9.2	2950	65×40
ZM65-40-250/11	25	70	11	2950	65×40
ZM65-40-250/15	25	85	15	2950	65×40
ZM65-50-125/2.2	50	11	2.2	2900	65×50
ZM65-50-125/3	50	14.5	3	2900	65×50
ZM65-50-125/4	50	20	4	2900	65×50
ZM65-50-160/5.5	50	27	5.5	2900	65×50
ZM65-50-160/7.5	50	34	7.5	2900	65×50
ZM65-50-200/9.2	50	43	9.2	2950	65×50
ZM65-50-200/11	50	50	11	2950	65×50
ZM65-50-250/15	50	61.5	15	2950	65×50
ZM65-50-250/18.5	50	72.5	18.5	2950	65×50
ZM65-50-250/22	50	83	22	2950	65×50
ZM80-65-125/4	100	10	4	2900	80×65
ZM80-65-125/5.5	100	15	5.5	2900	80×65
ZM80-65-125/7.5	100	21	7.5	2900	80×65
ZM80-65-160/11	100	29.5	11	2900	80×65
ZM80-65-160/15	100	38	15	2900	80×65
ZM80-65-200/18.5	100	48	18.5	2950	80×65
ZM80-65-200/22	100	55	22	2950	80×65
ZM80-65-250/30	100	73	30	2950	80×65
ZM80-65-250/37	100	84	37	2950	80×65
ZM100-80-160/11	160	18.5	11	2950	100×80
ZM100-80-160/15	160	26	15	2950	100×80
ZM100-80-160/18.5	160	31	18.5	2950	100×80
ZM100-80-200/22	160	36	22	2950	100×80
ZM100-80-200/30	160	48.5	30	2950	100×80
ZM100-80-200/37	160	57	37	2950	100×80
ZM100-80-250/45	160	70	45	2950	100×80
ZM100-80-250/55	160	86	55	2950	100×80
ZM100-80-250/75	160	104	75	2950	100×80
