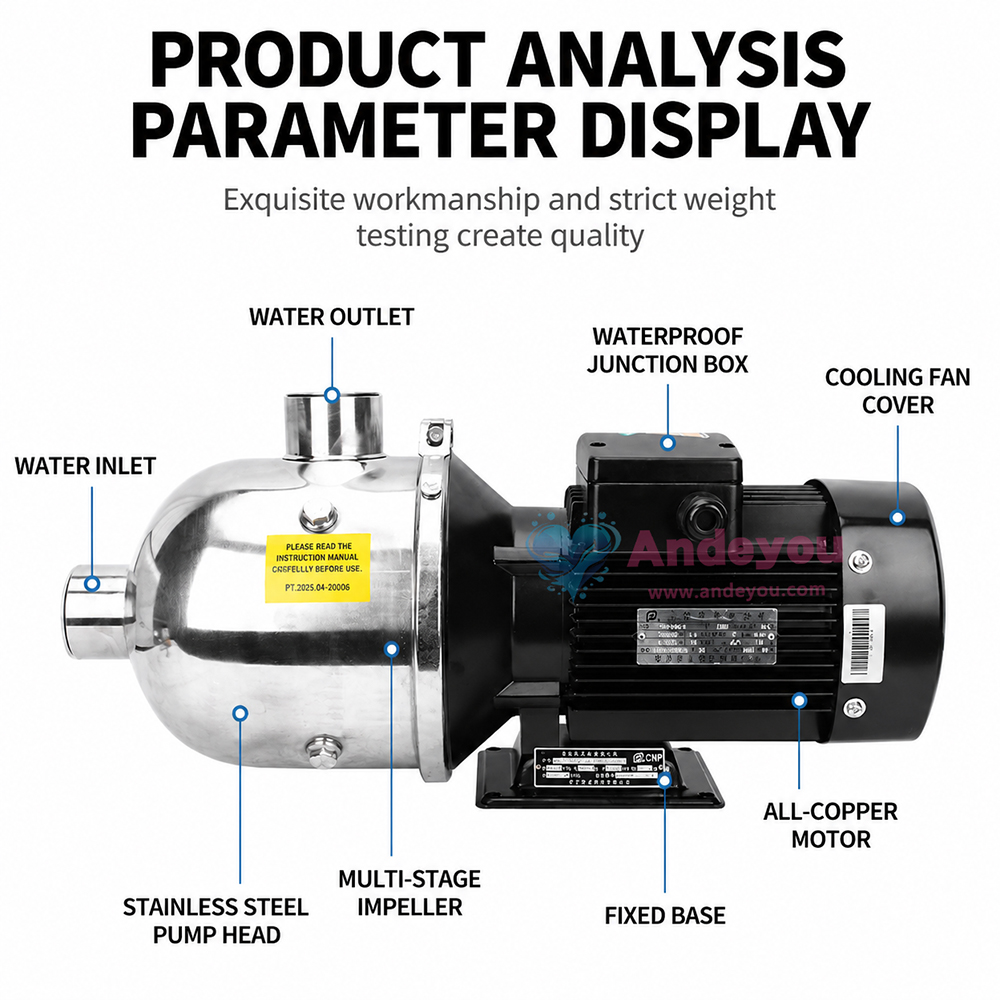

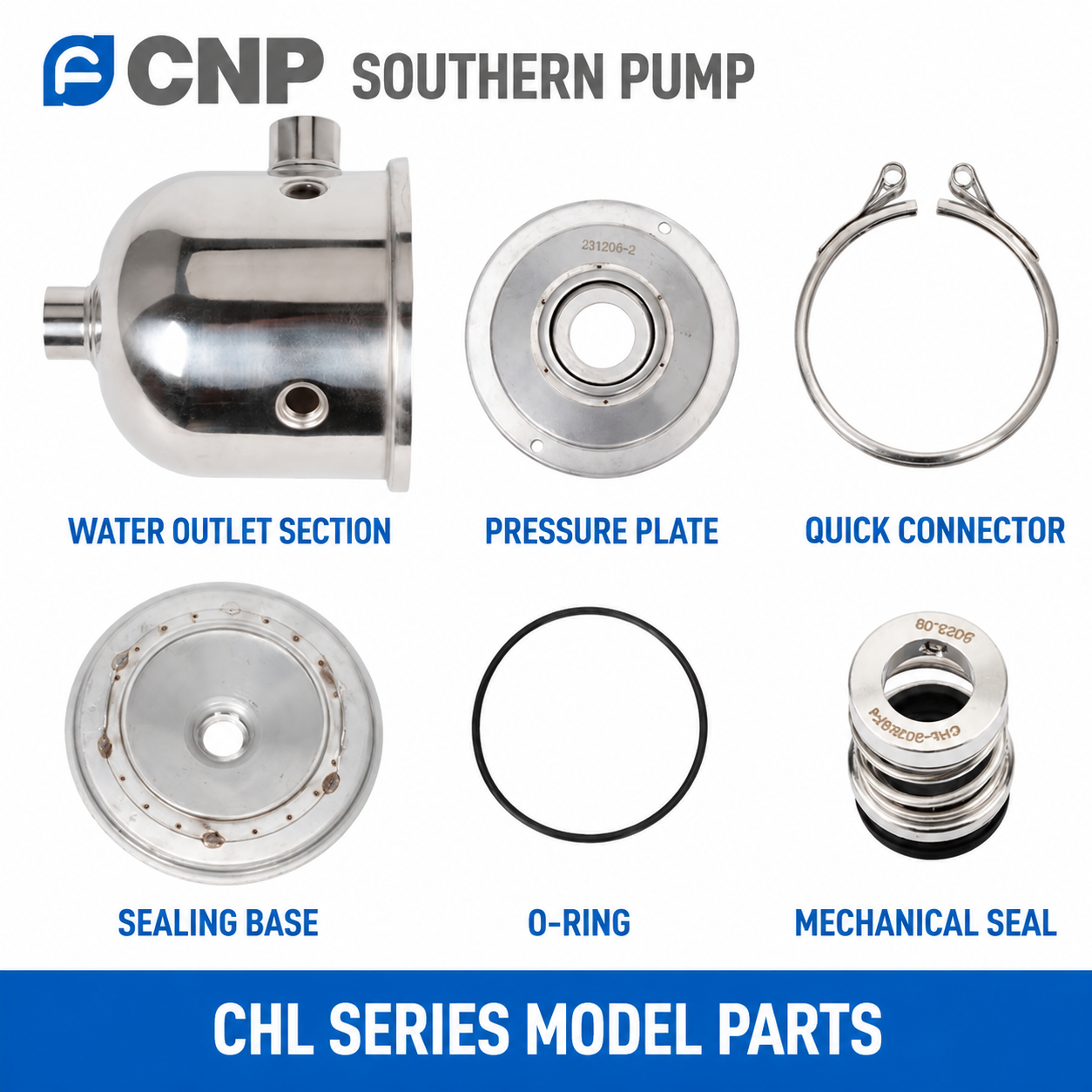

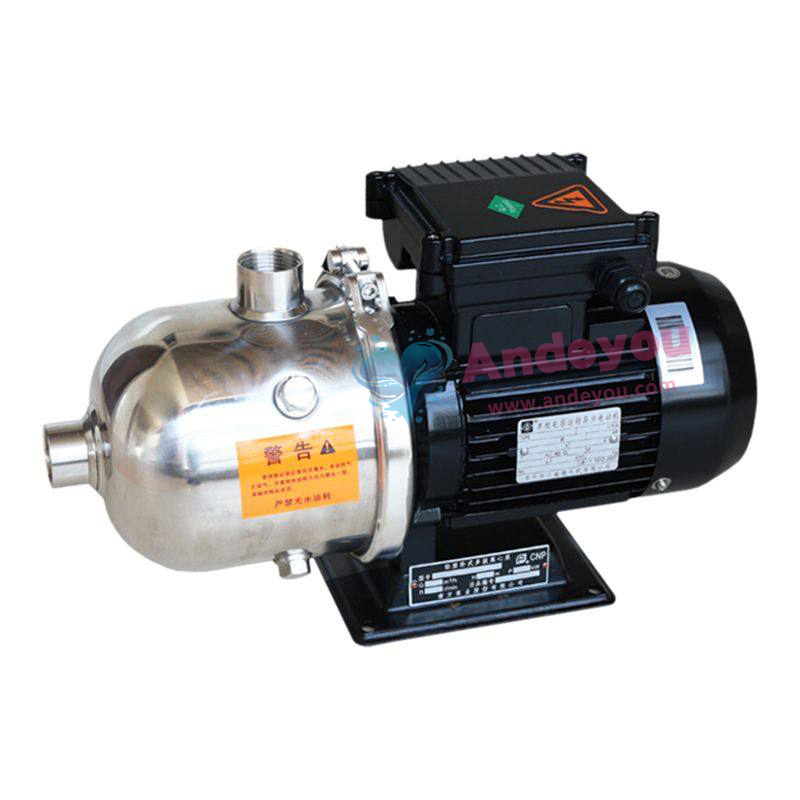

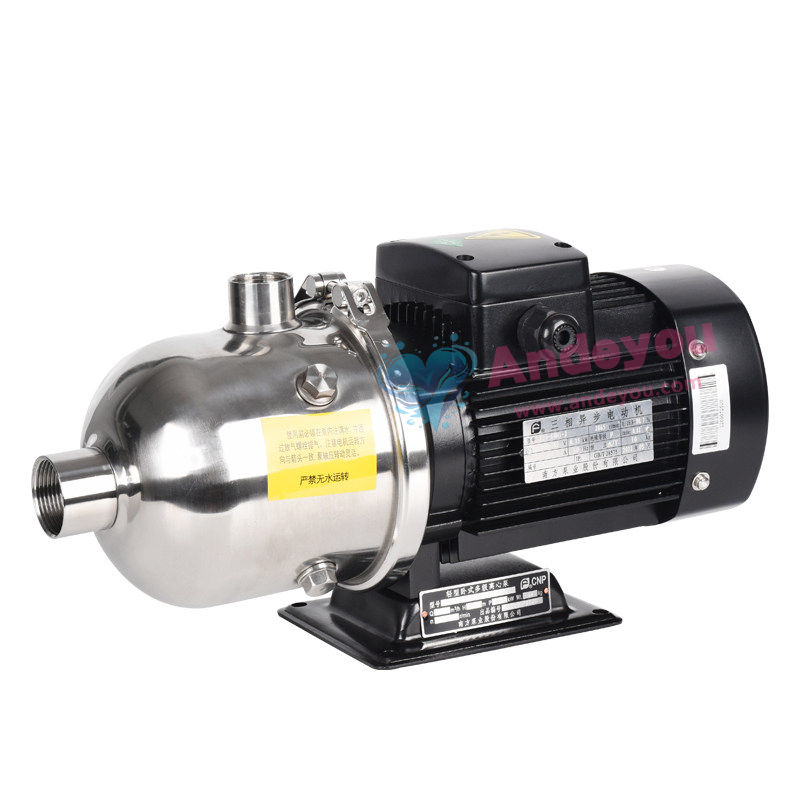

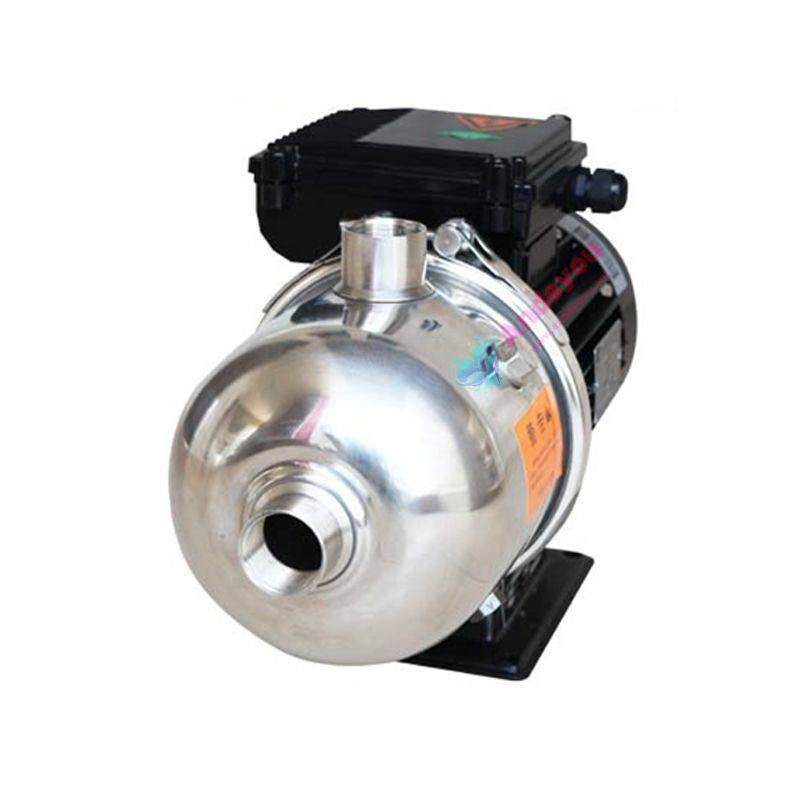

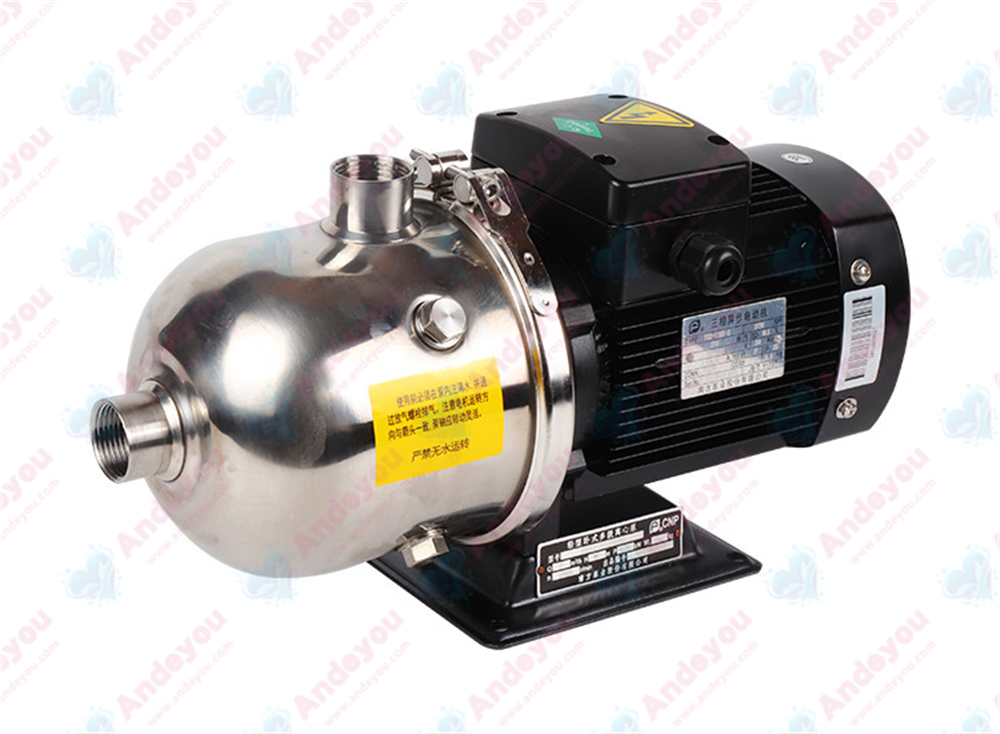

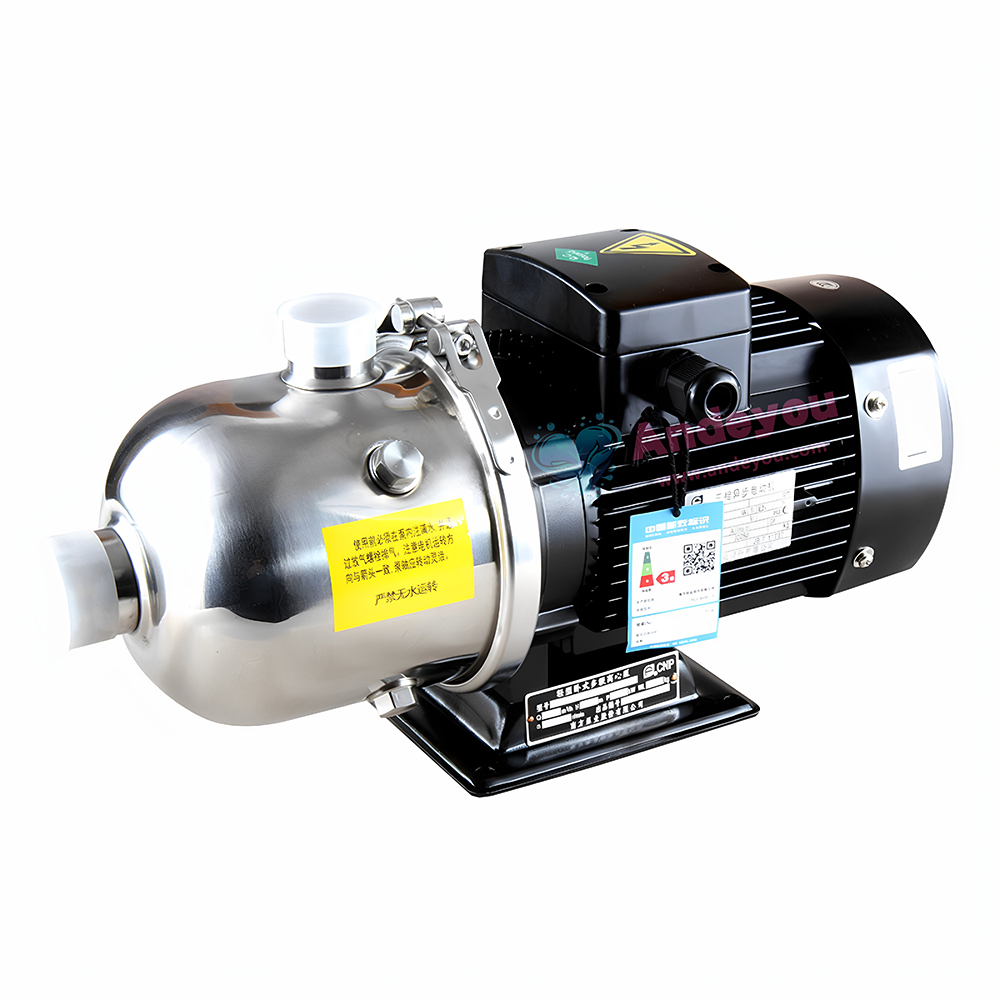

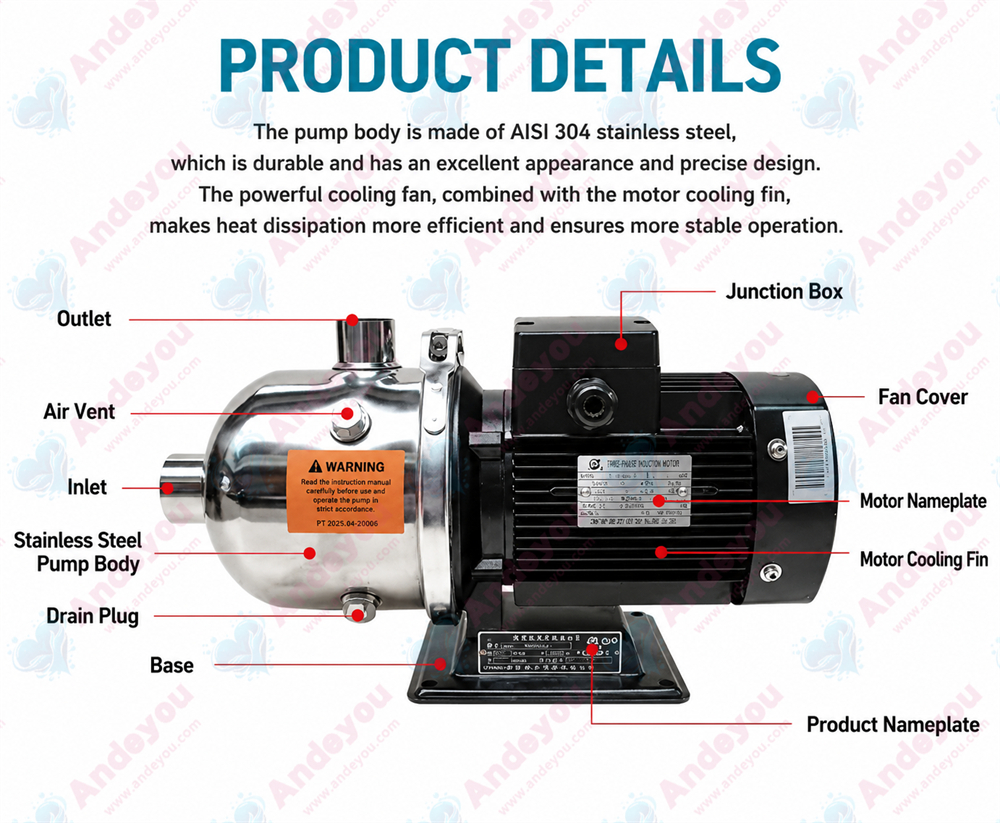

I. Pump Structure

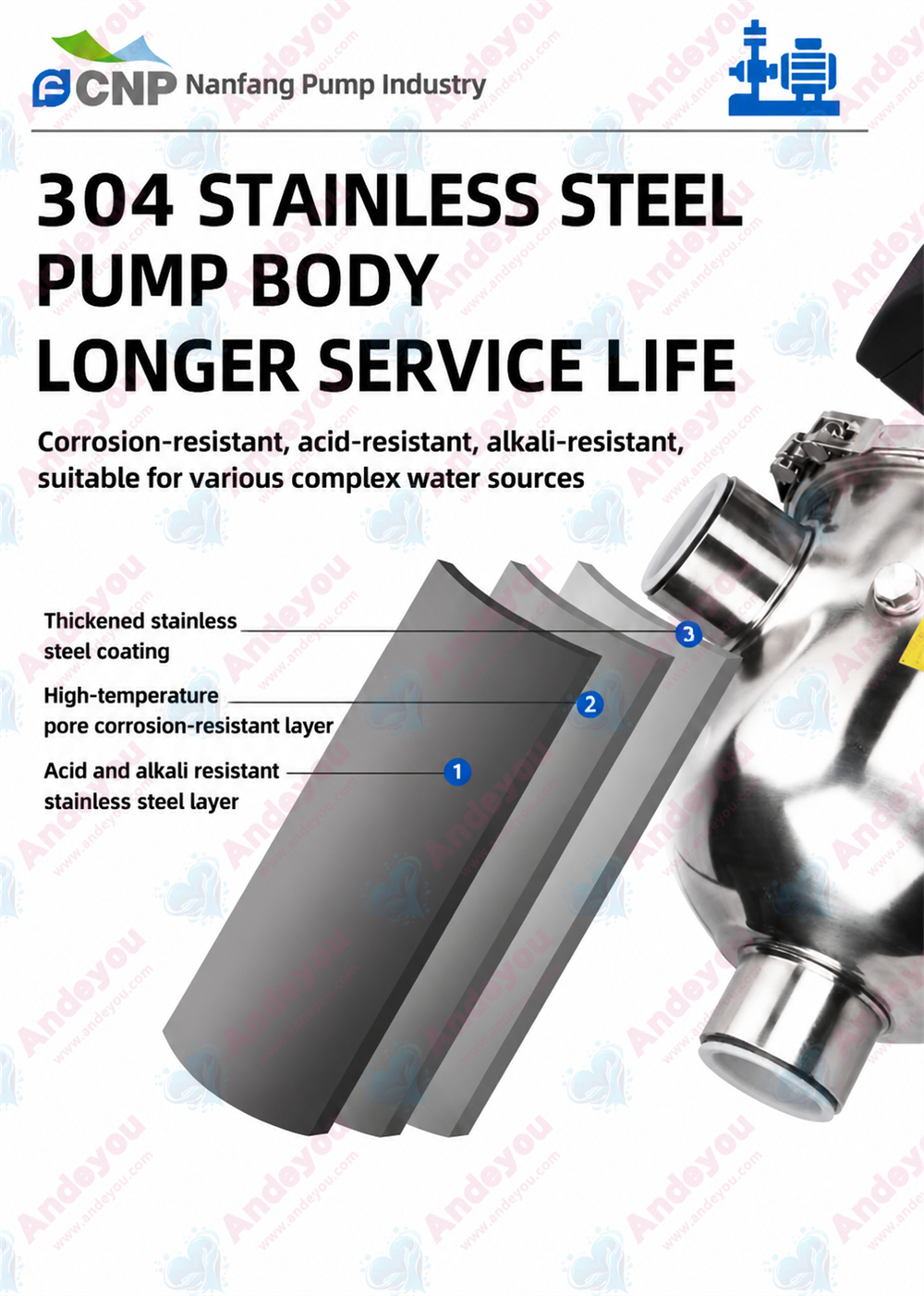

Constructed from high-quality stainless steel with excellent corrosion resistance

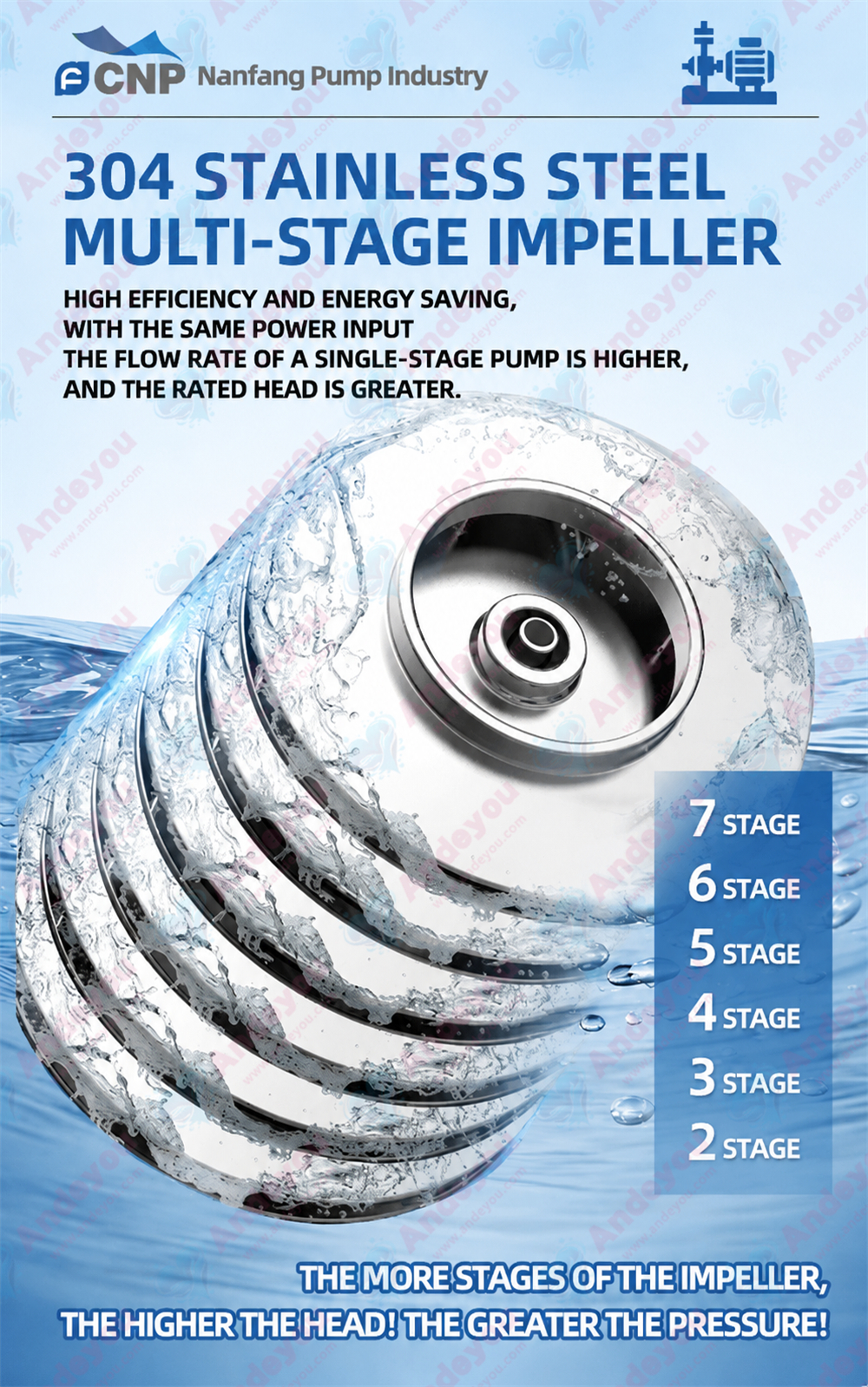

Horizontal, multi-stage, sectional design; compact structure for easy installation and maintenance
Mechanical seal design ensures leak-free, long-term operation

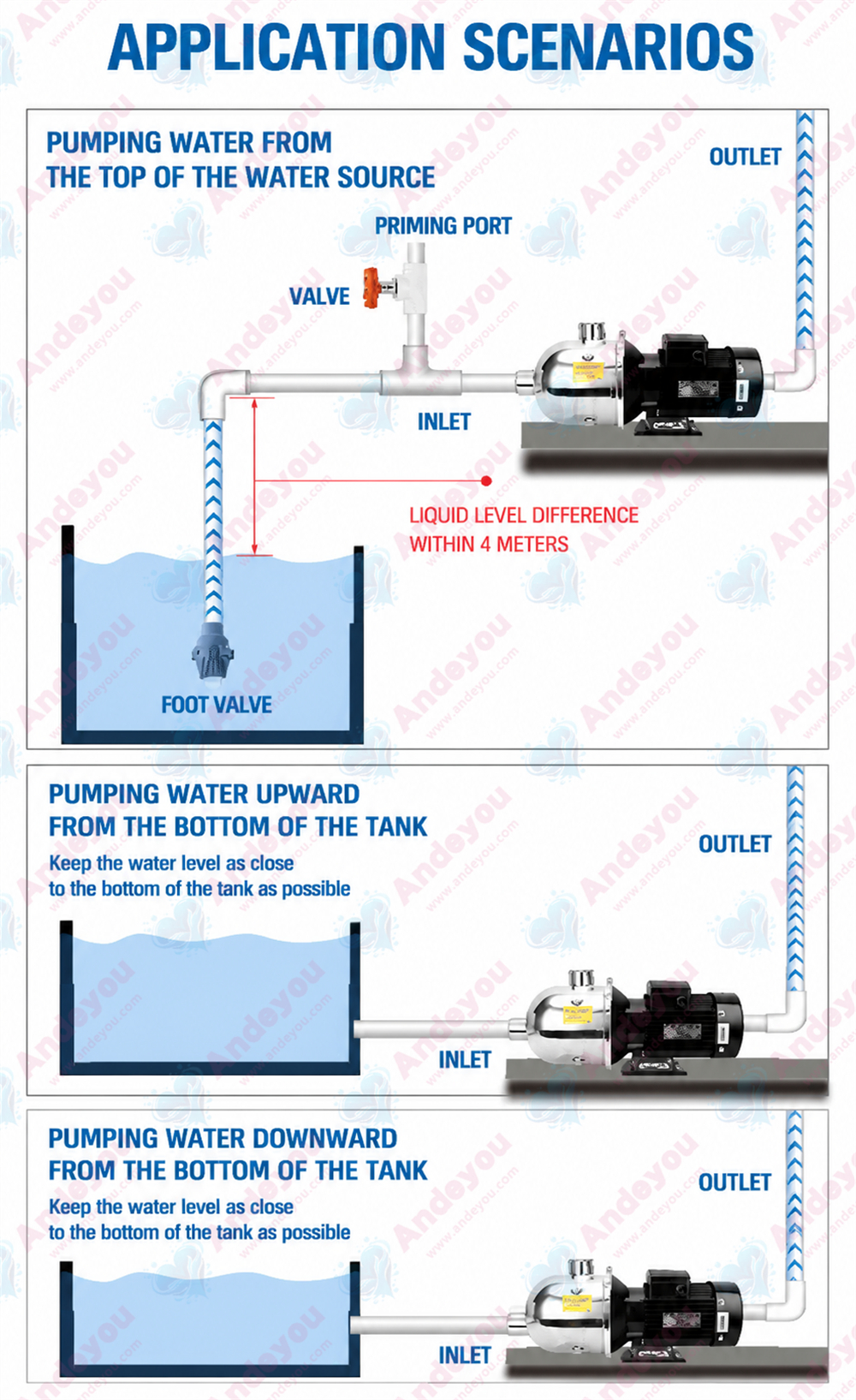

II. Product Applications

Industrial water supply systems (e.g., factory circulating water, cooling water transport)
Boiler feed water systems
Firefighting water supply systems

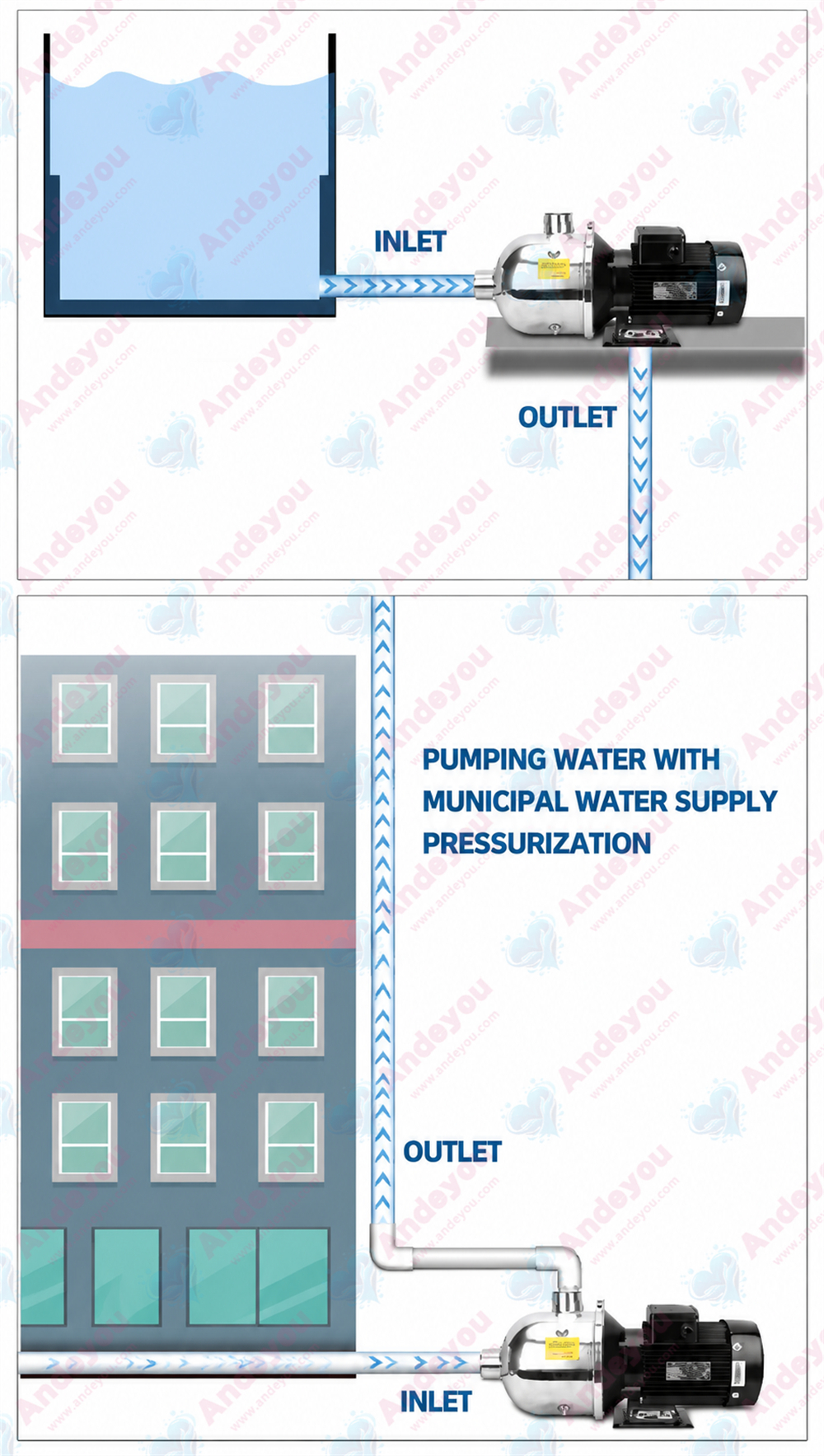

High-rise building pressure-boosting water supply
HVAC systems

III. Product Features

High Efficiency & Energy Saving: Optimized hydraulic model design ensures high operating efficiency
Low Noise: Smooth operation with minimal vibration and low noise levels
Long Service Life: Wear-resistant materials used for key components to extend lifespan
Easy Maintenance: Modular design allows for convenient disassembly and assembly

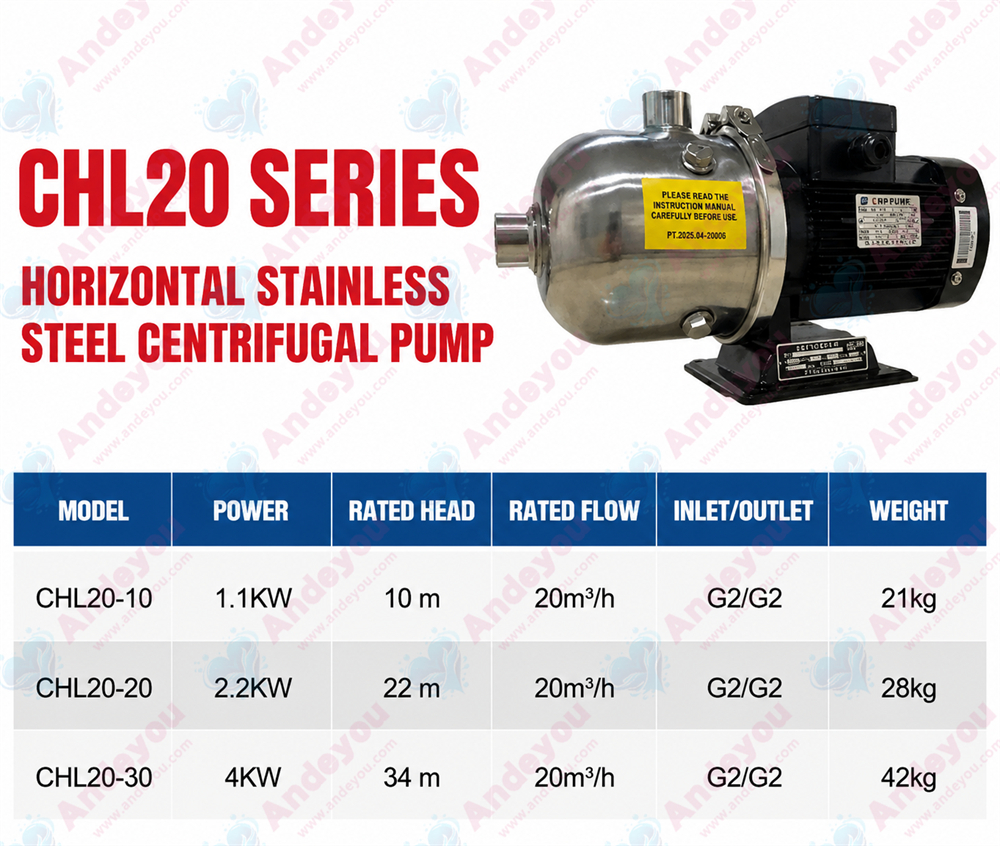

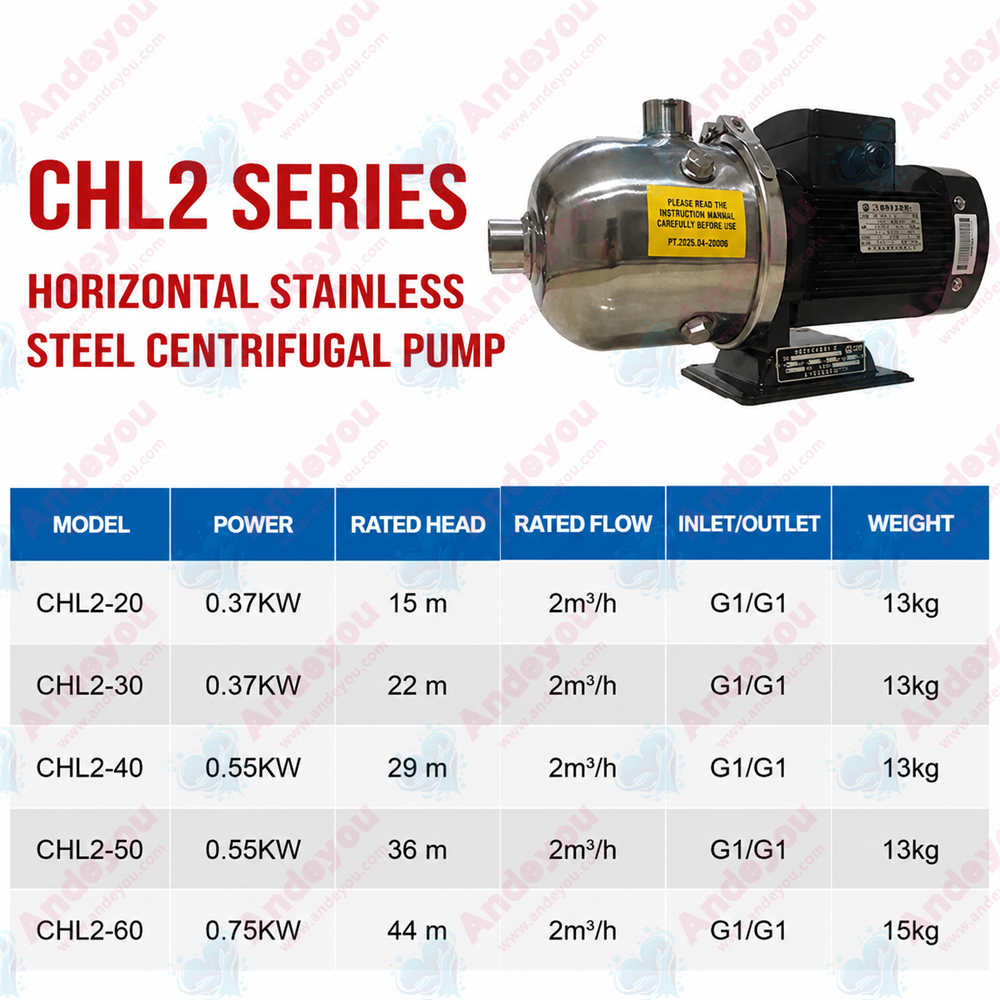

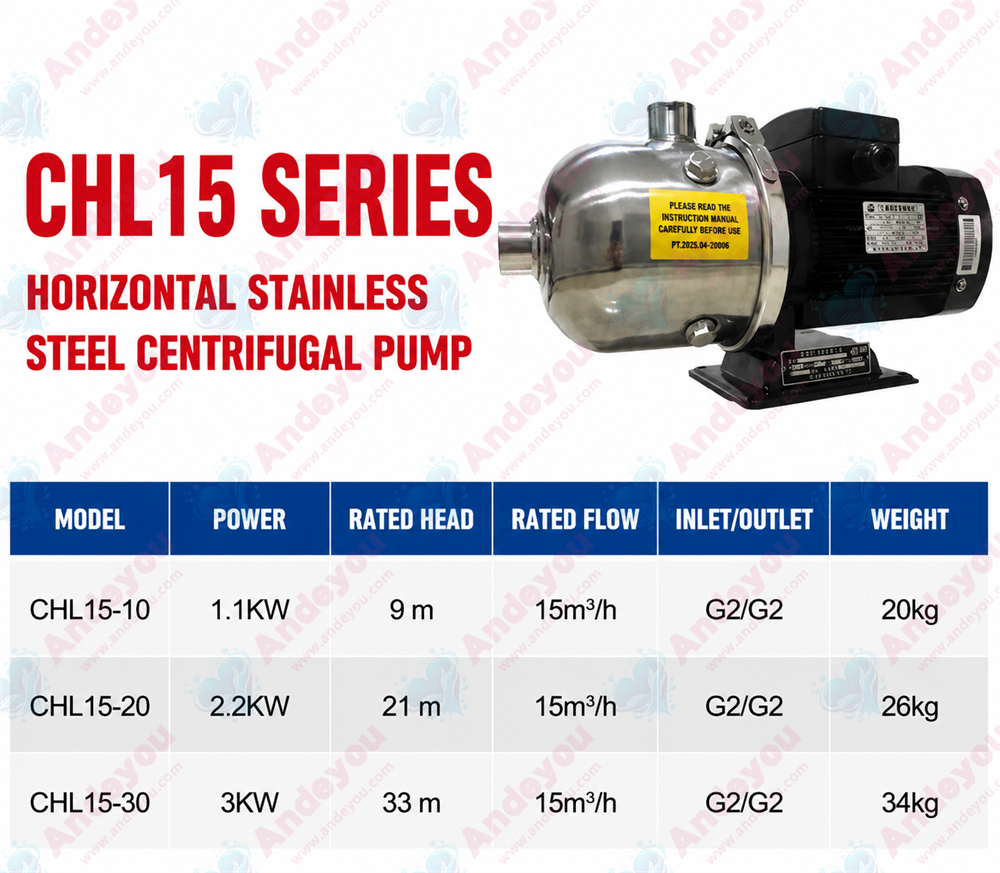

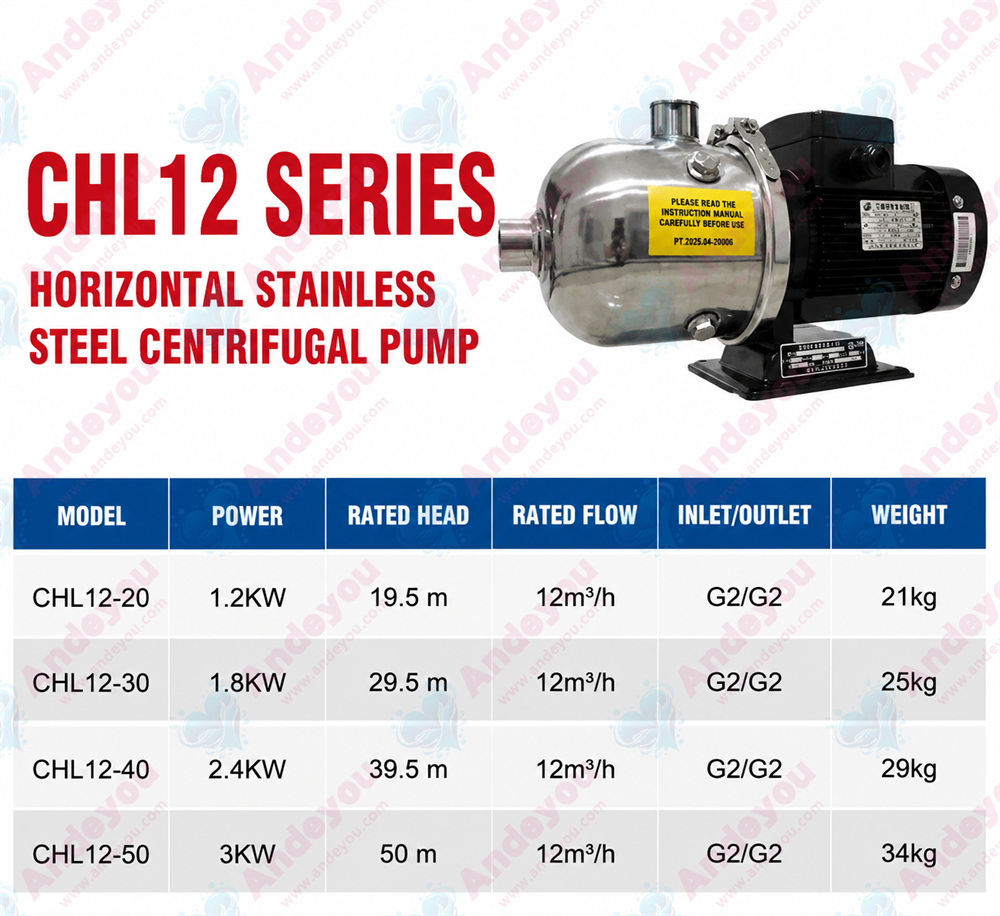

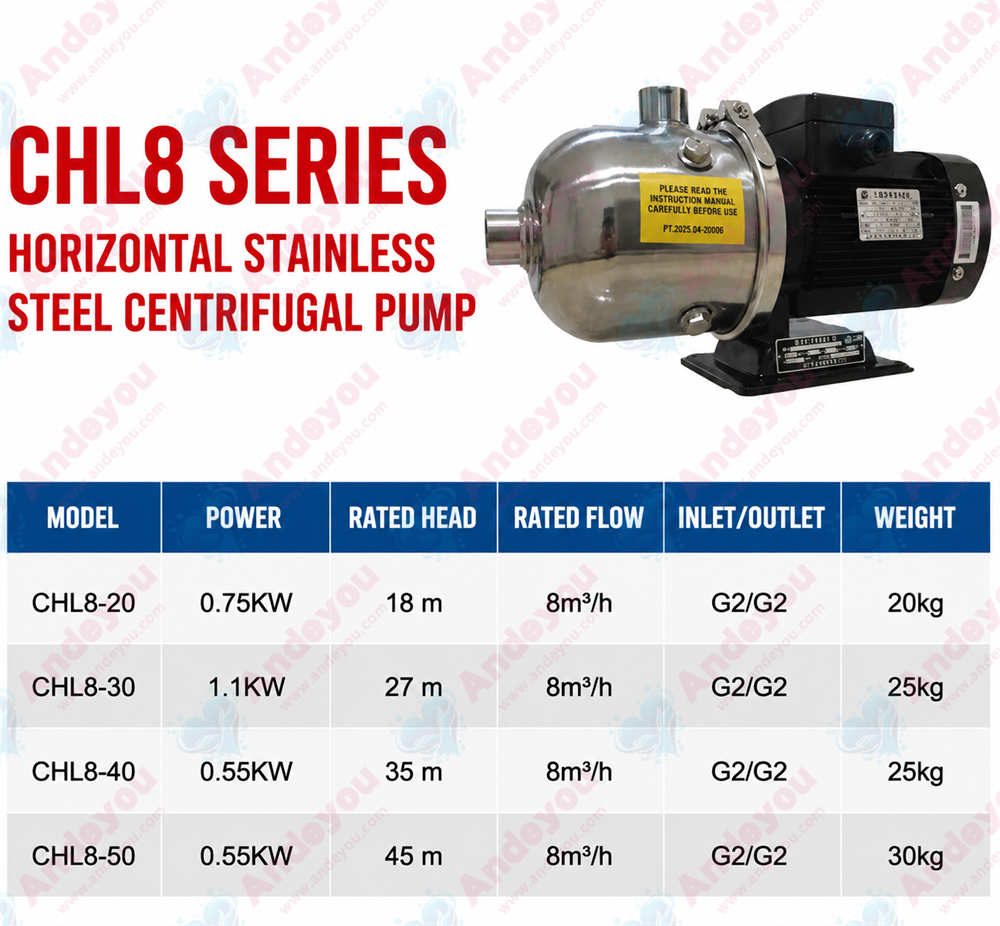

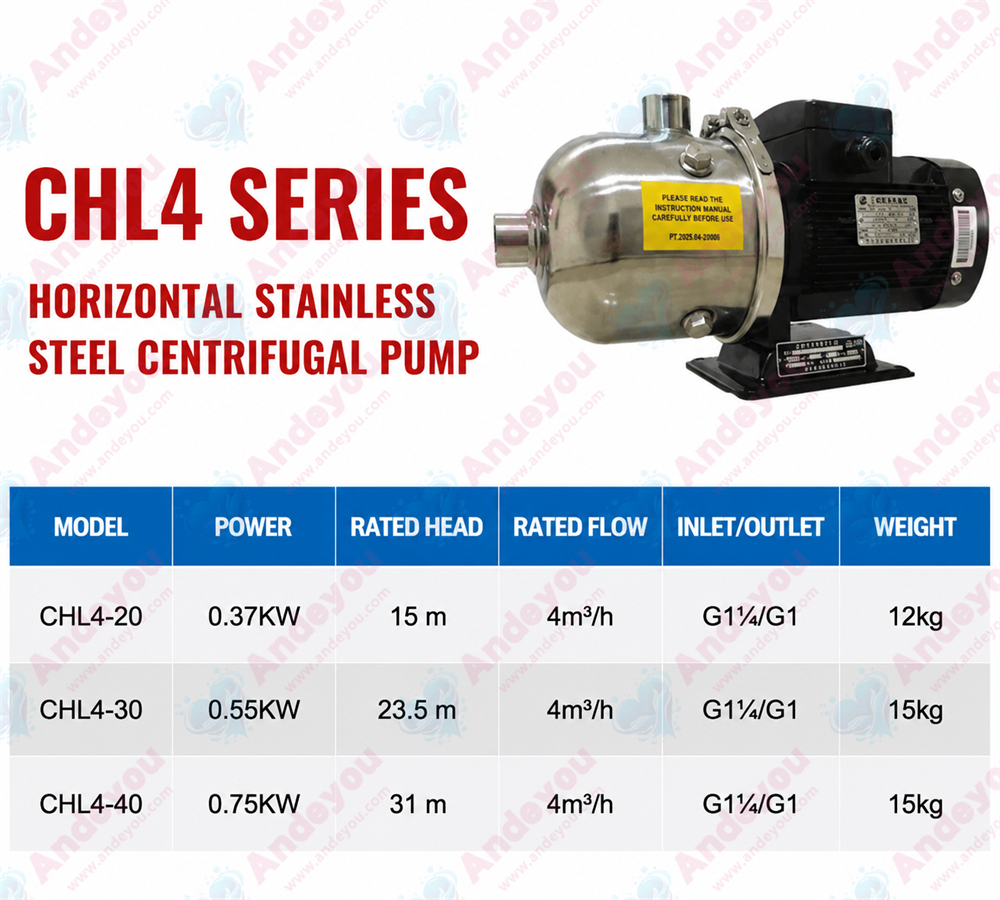

IV. Performance Parameters

Flow Rate Range: 5–120 m³/h
Head Range: Up to 240 meters
Working Pressure: ≤2.5 MPa
Medium Temperature: -15°C to +120°C

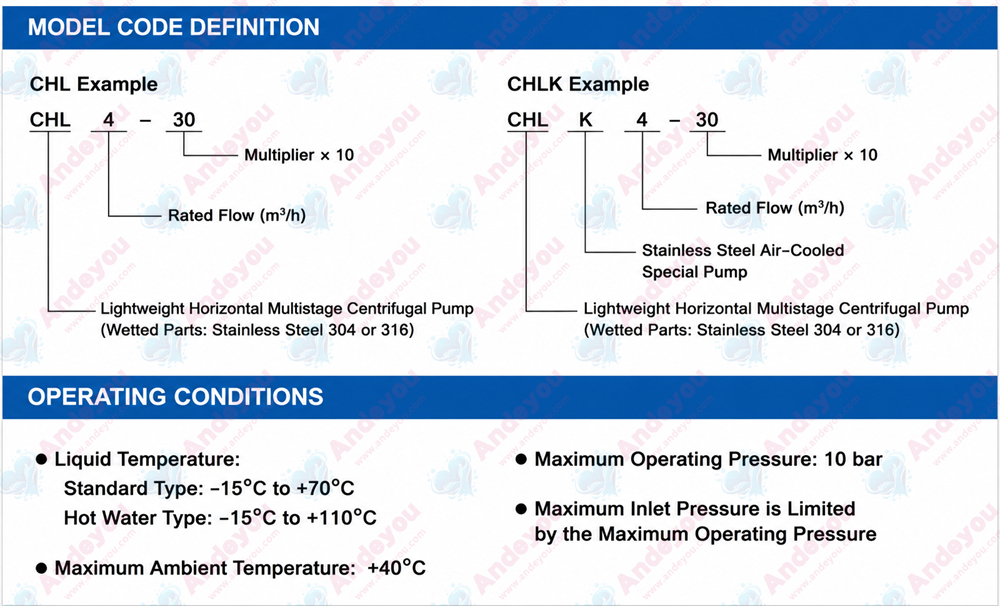

V. Operating Conditions

Suitable for clean water or liquids with physical and chemical properties similar to clean water
Medium pH Value: 6.5–8.5
Maximum Ambient Temperature: +40°C
Power Supply: 380V/50Hz (customizable upon request)
