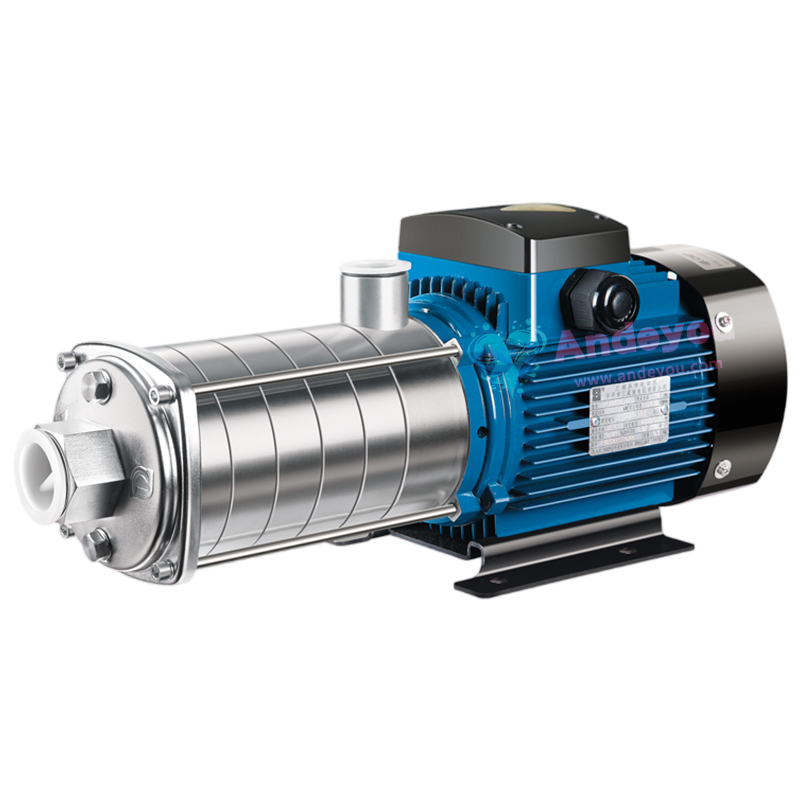

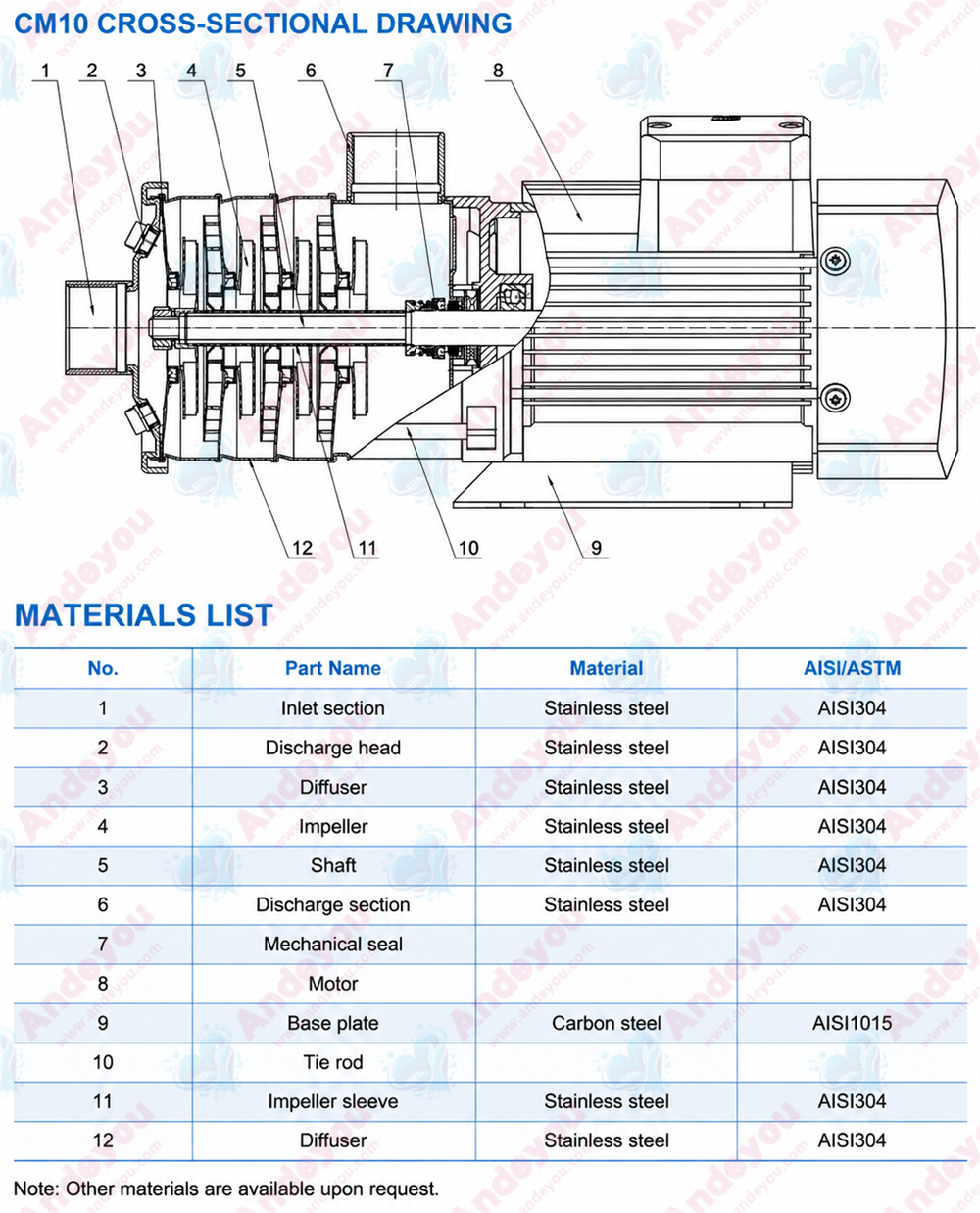

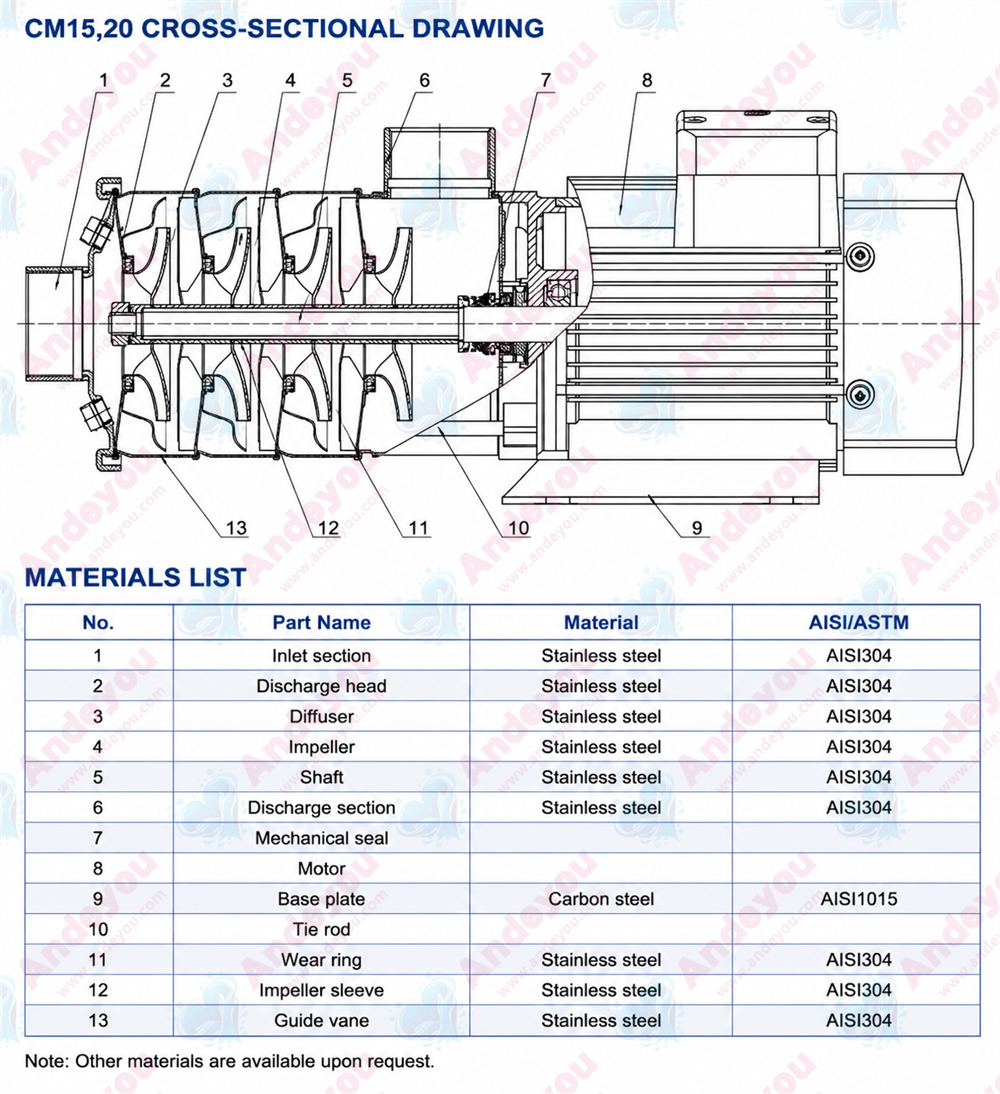

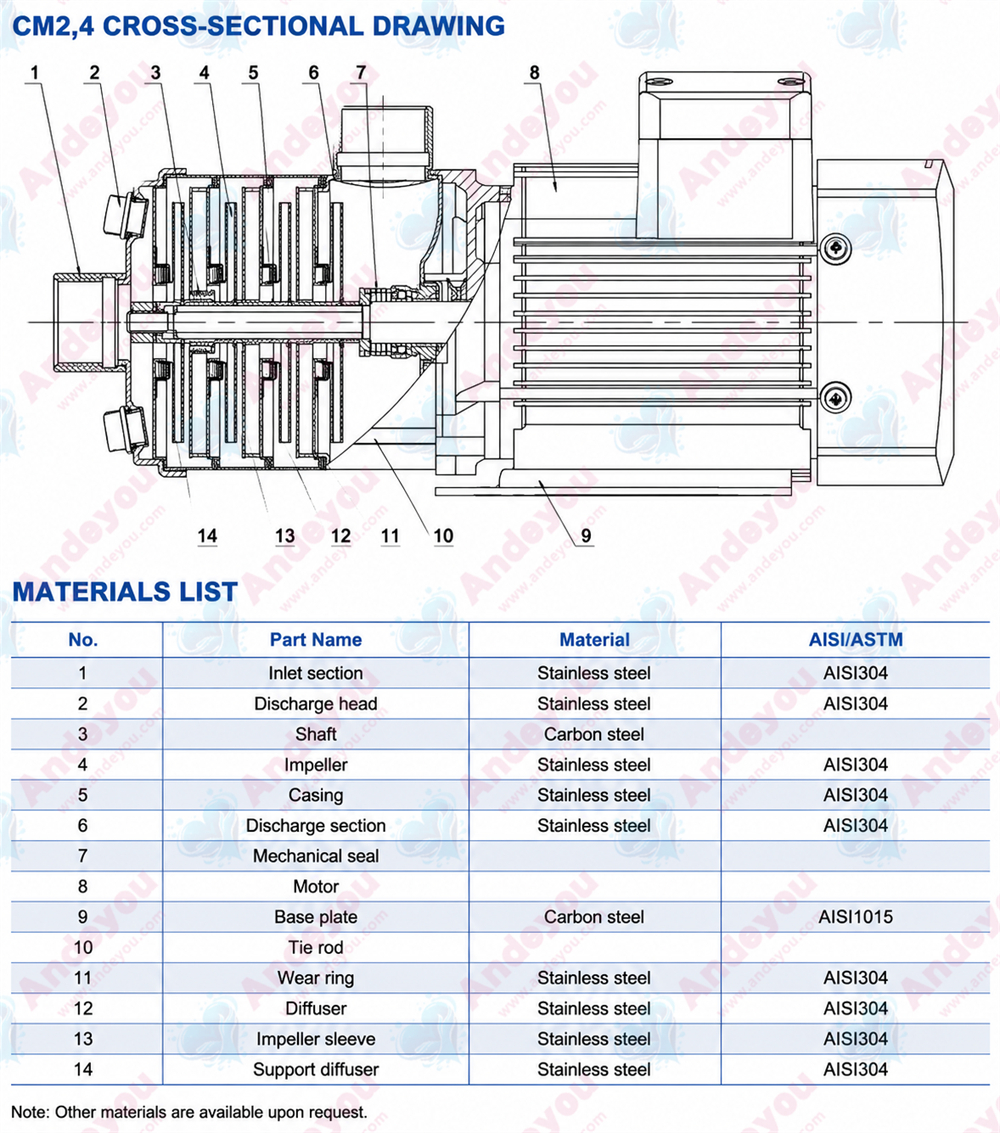

I. Pump Structure

Constructed from high-quality stainless steel; compact, modular design
Horizontal, multi-stage, sectional structure with in-line suction and discharge ports
Equipped with a mechanical seal to ensure stable, long-term operation

II. Product Applications

Industrial water supply systems (e.g., factory circulating water, cooling water)
Boiler feed water systems
Firefighting water supply systems
Municipal engineering and HVAC systems
Transport of corrosive liquids (chemical, pharmaceutical industries, etc.)

III. Product Features

High efficiency and energy savings: Optimized hydraulic model reduces energy consumption
Low-noise operation: Precision machining ensures minimal vibration and low noise levels
Strong corrosion resistance: Stainless steel material is compatible with various media
Easy maintenance: Modular design allows for convenient disassembly and assembly
Smart control: Optional intelligent monitoring system for real-time operational status tracking

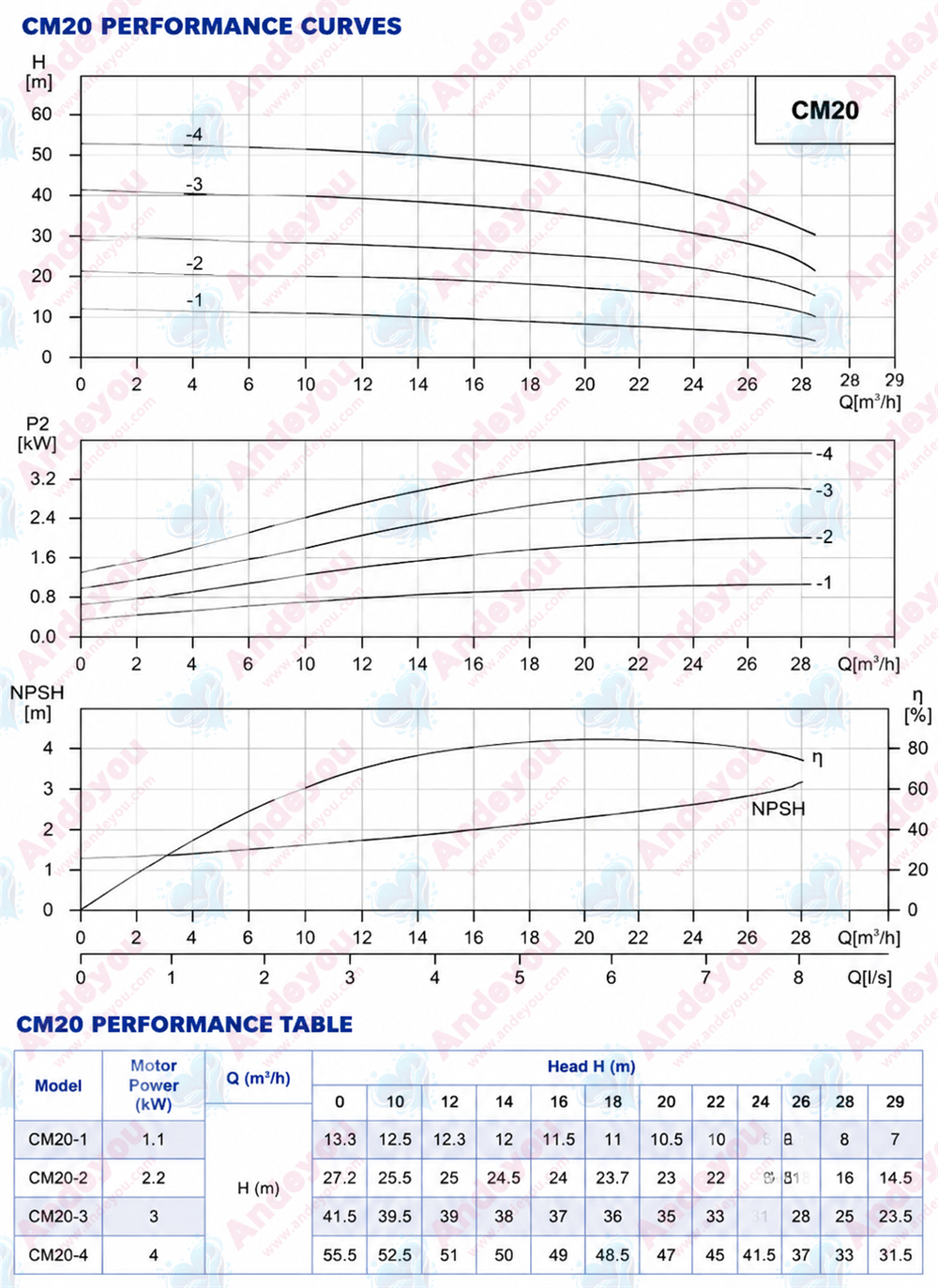

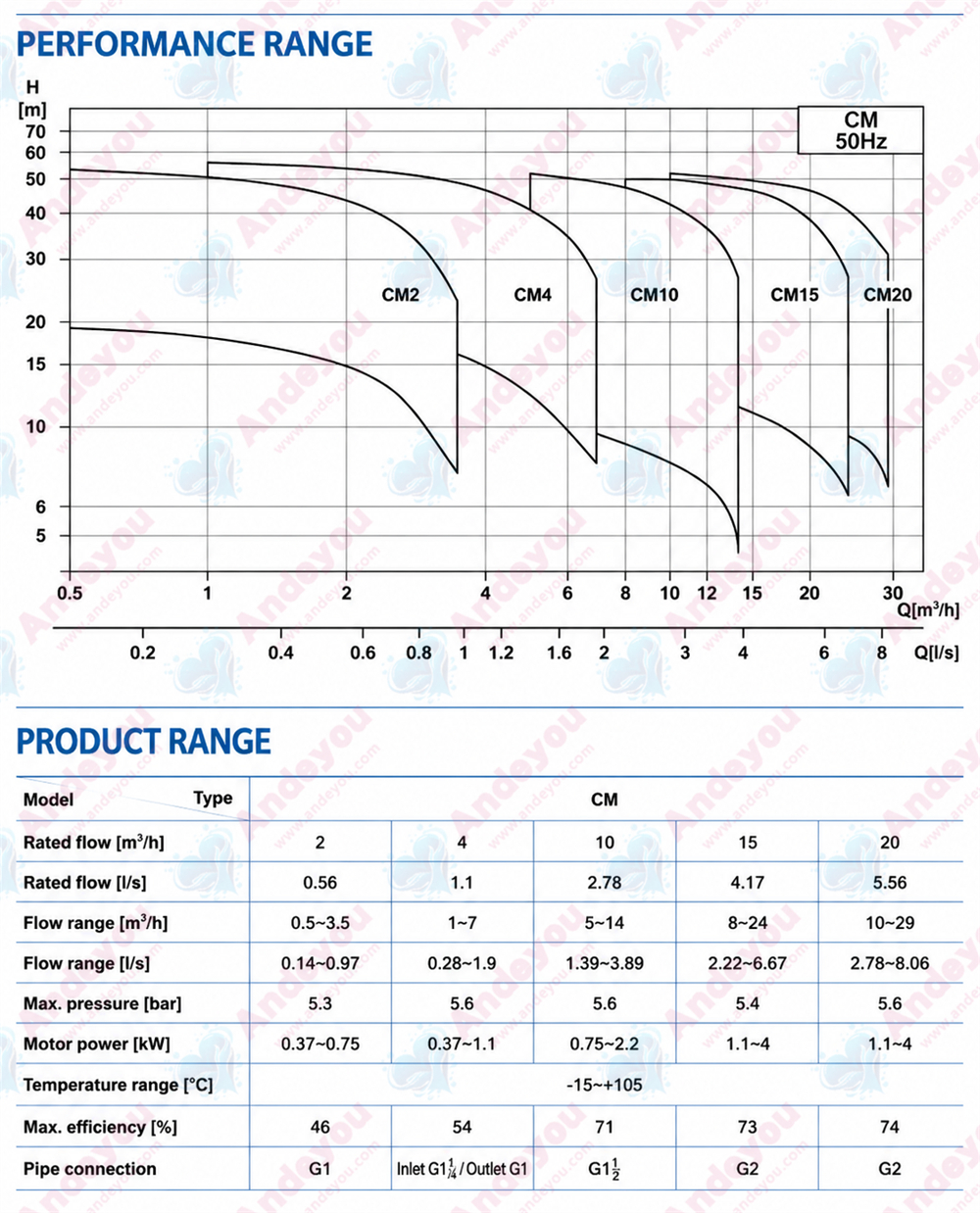

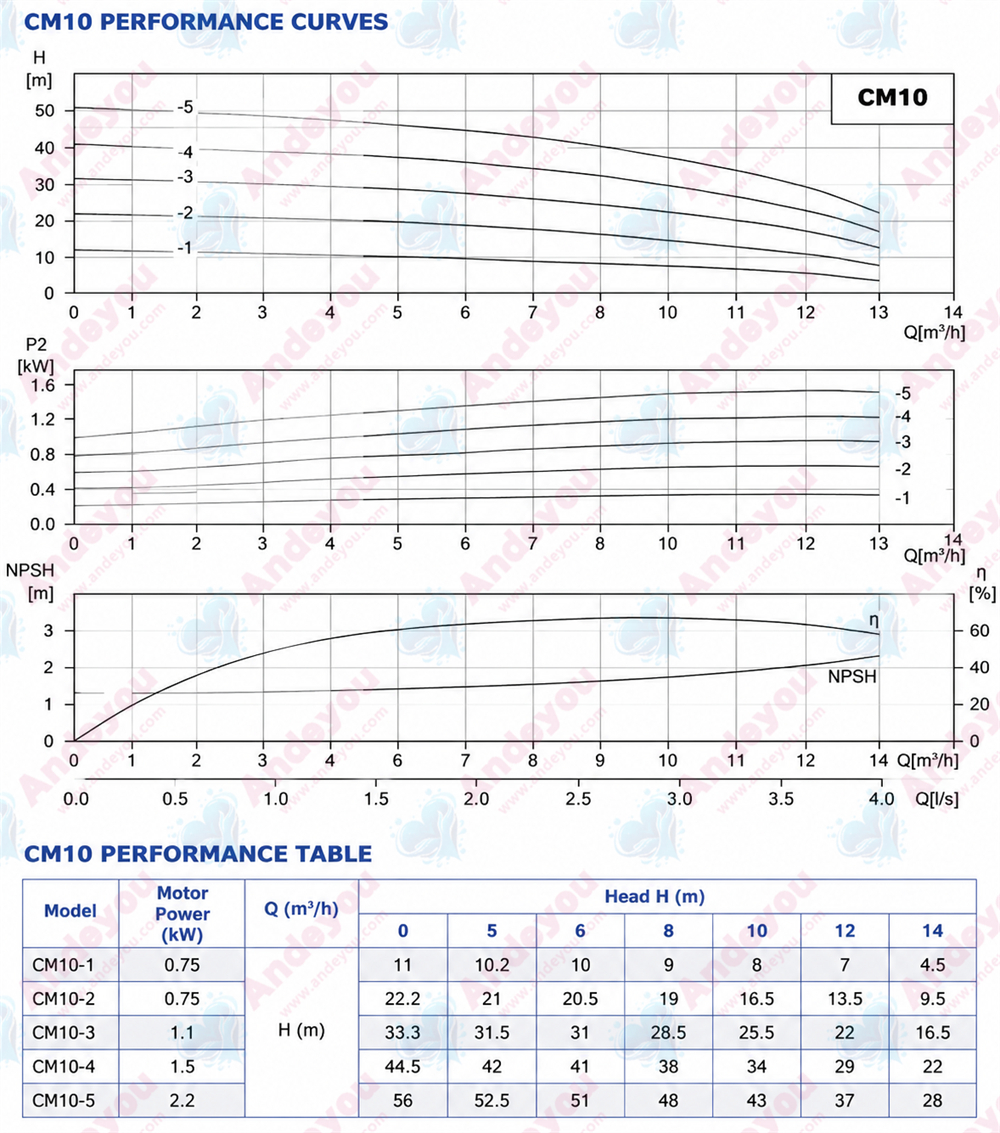

IV. Performance Parameters

Flow rate range: 5–600 m³/h
Head range: Up to 350 meters
Working pressure: ≤3.0 MPa
Medium temperature: -15°C to +120°C (customizable for special models)
Motor power: Matched to specific models to meet diverse requirements

V. Operating Conditions

Suitable for clean water or liquids with similar physical and chemical properties
Medium pH value: 6.5–8.5 (wider range possible with special materials)
Ambient temperature ≤40°C; relative humidity ≤95%
Avoid dry running; ensure proper functioning of lubrication and cooling systems
