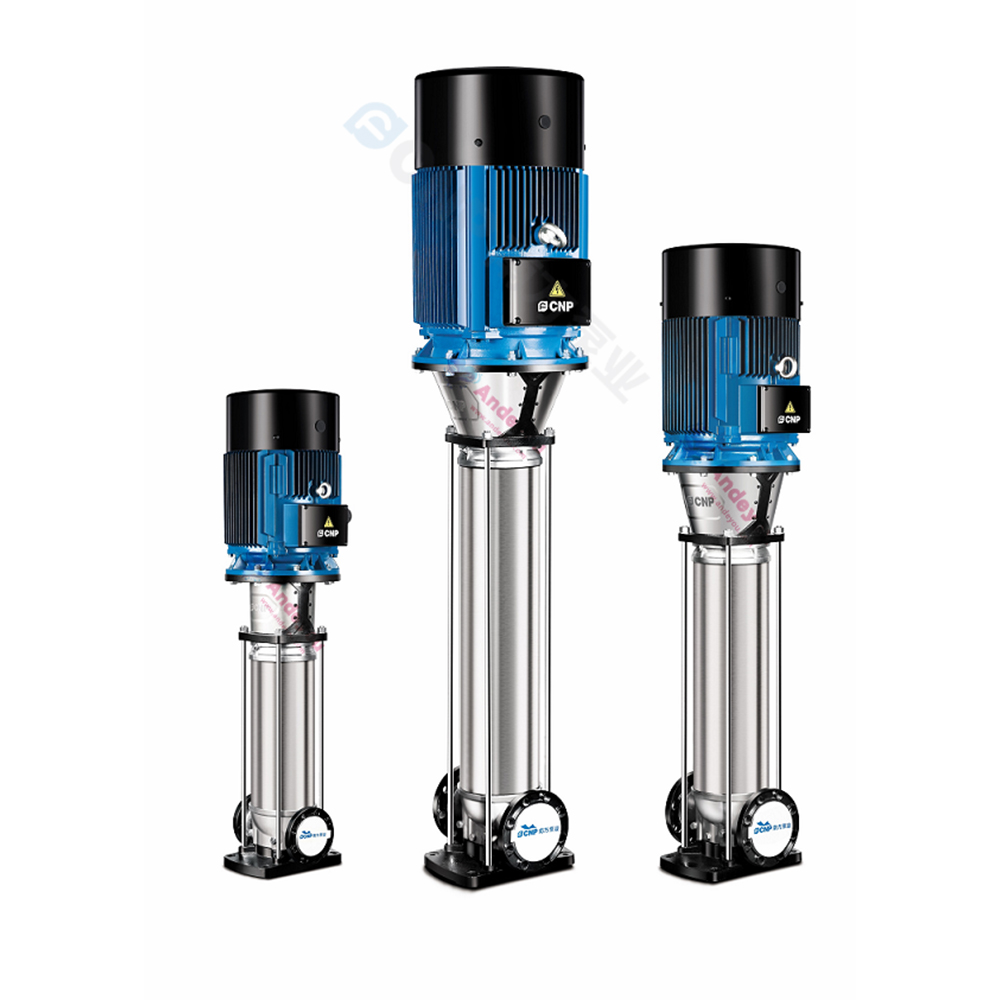

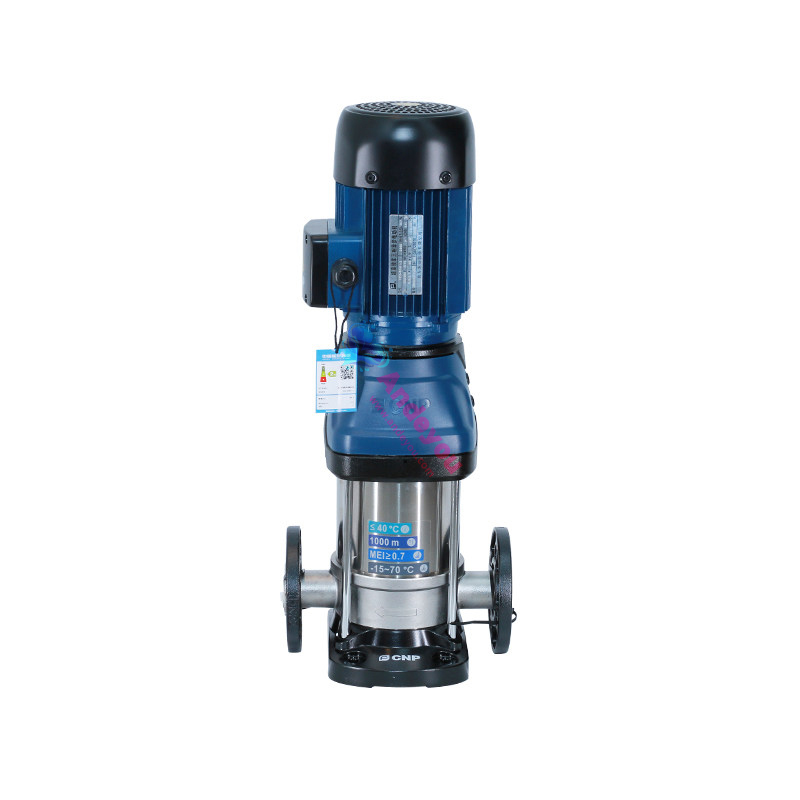

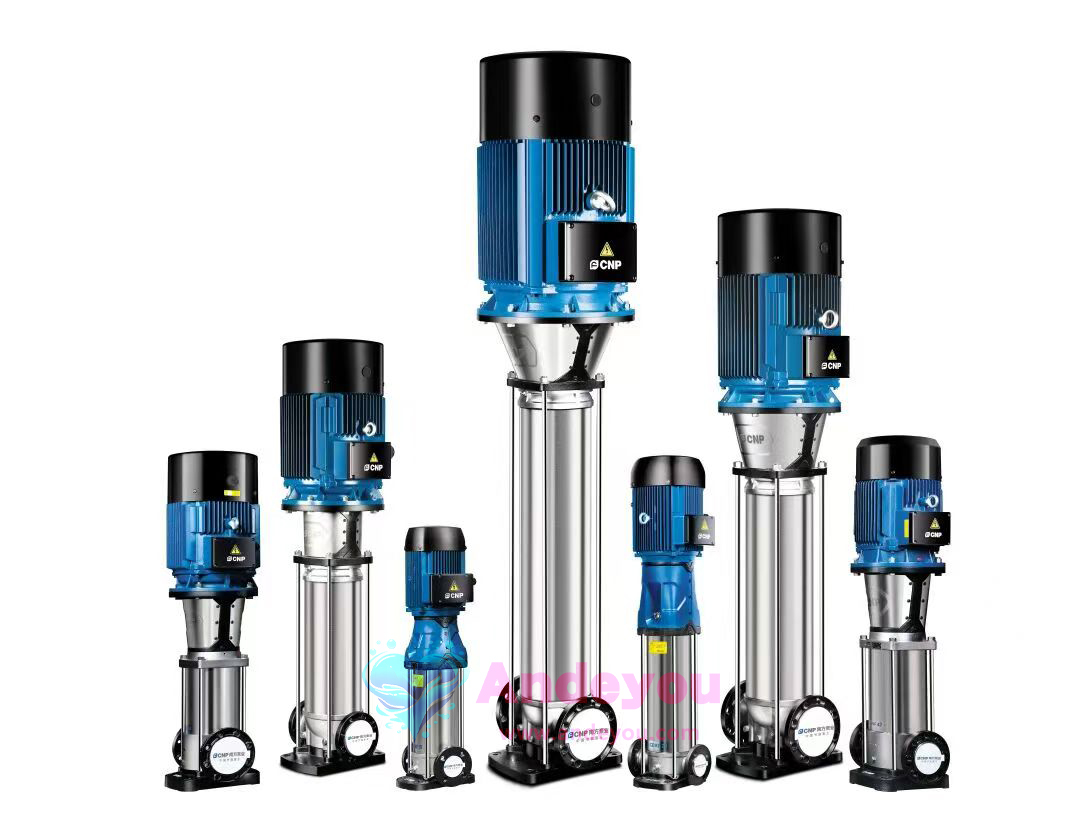

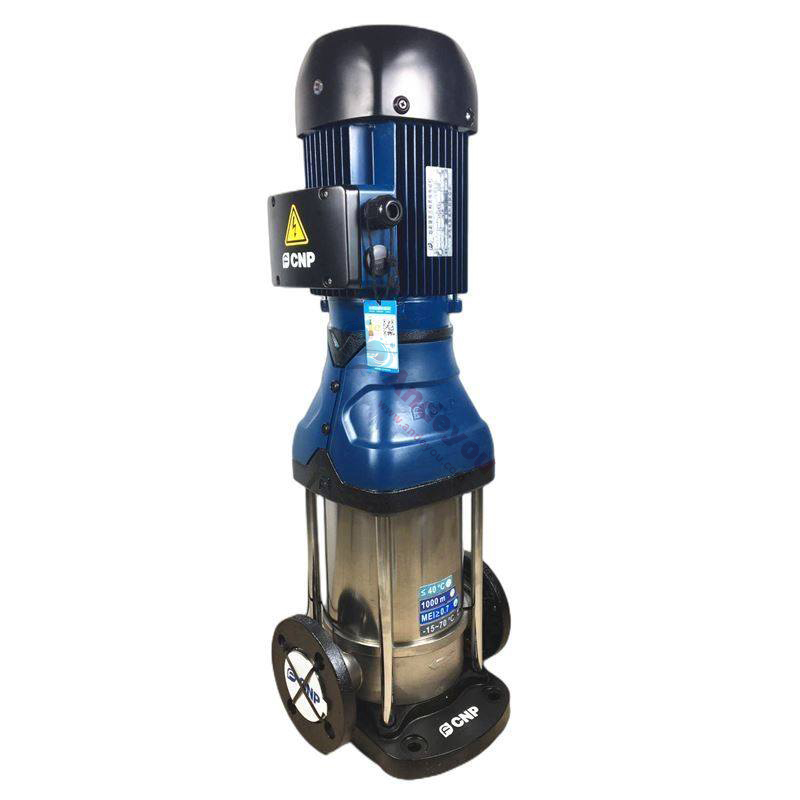

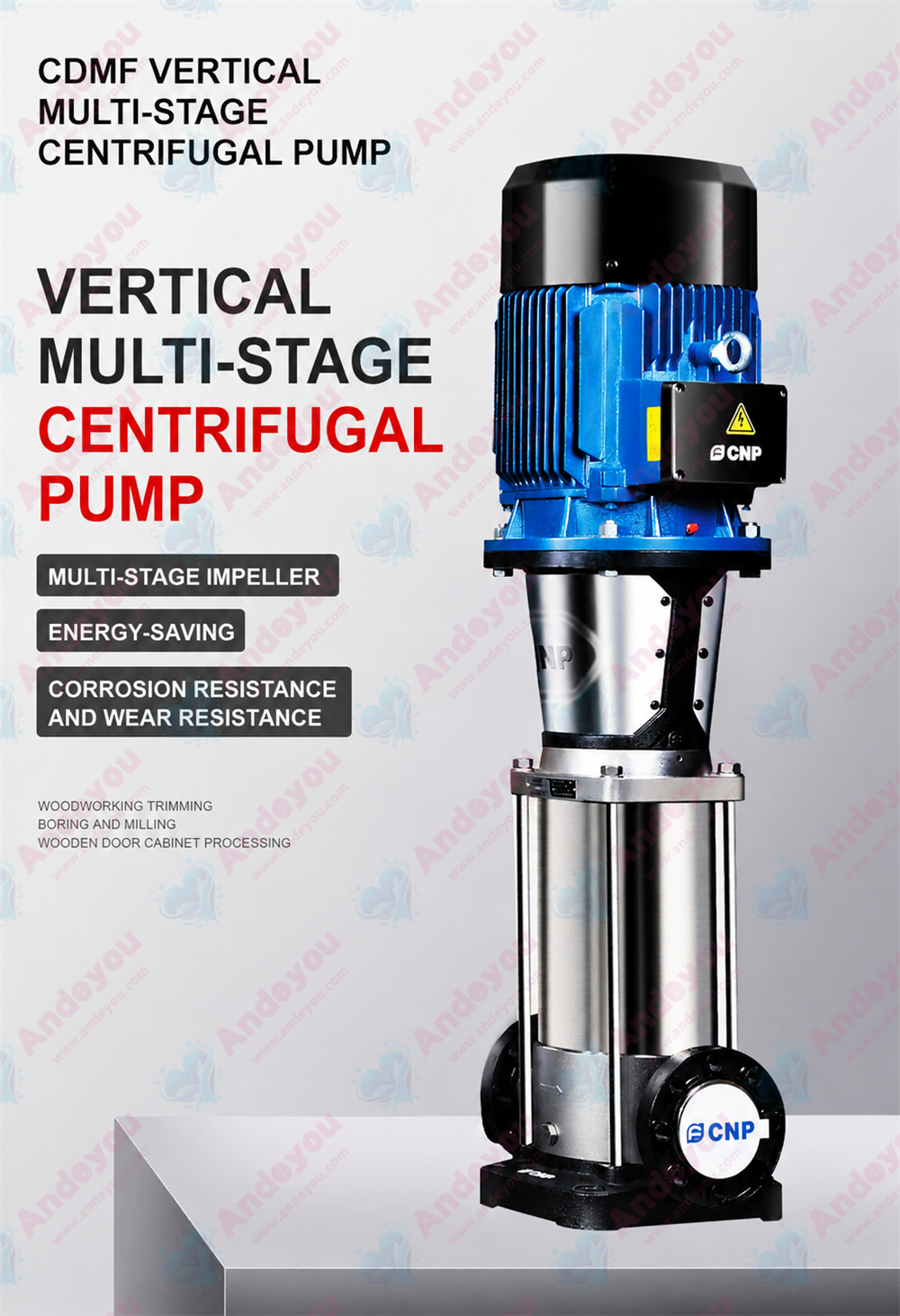

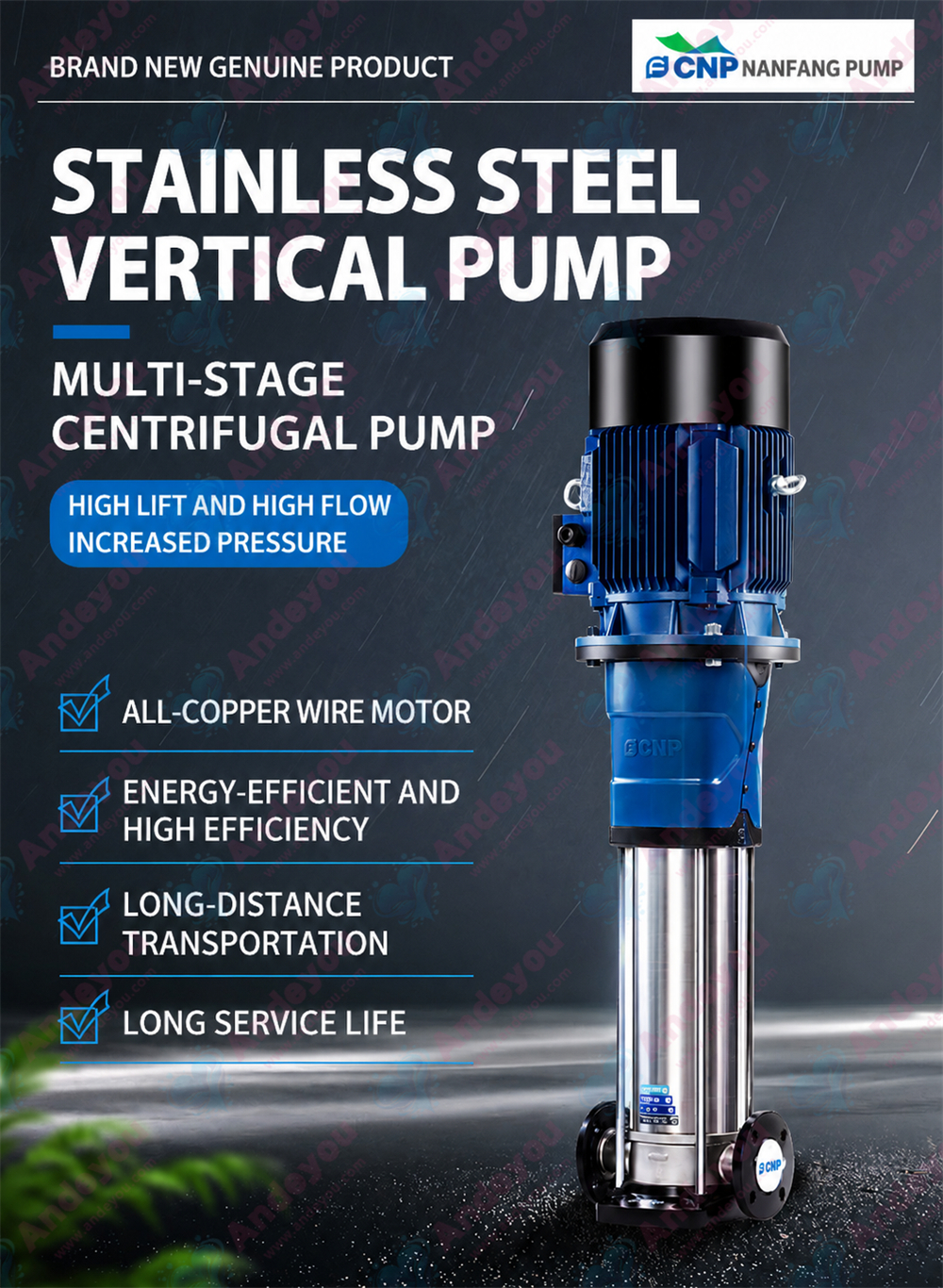

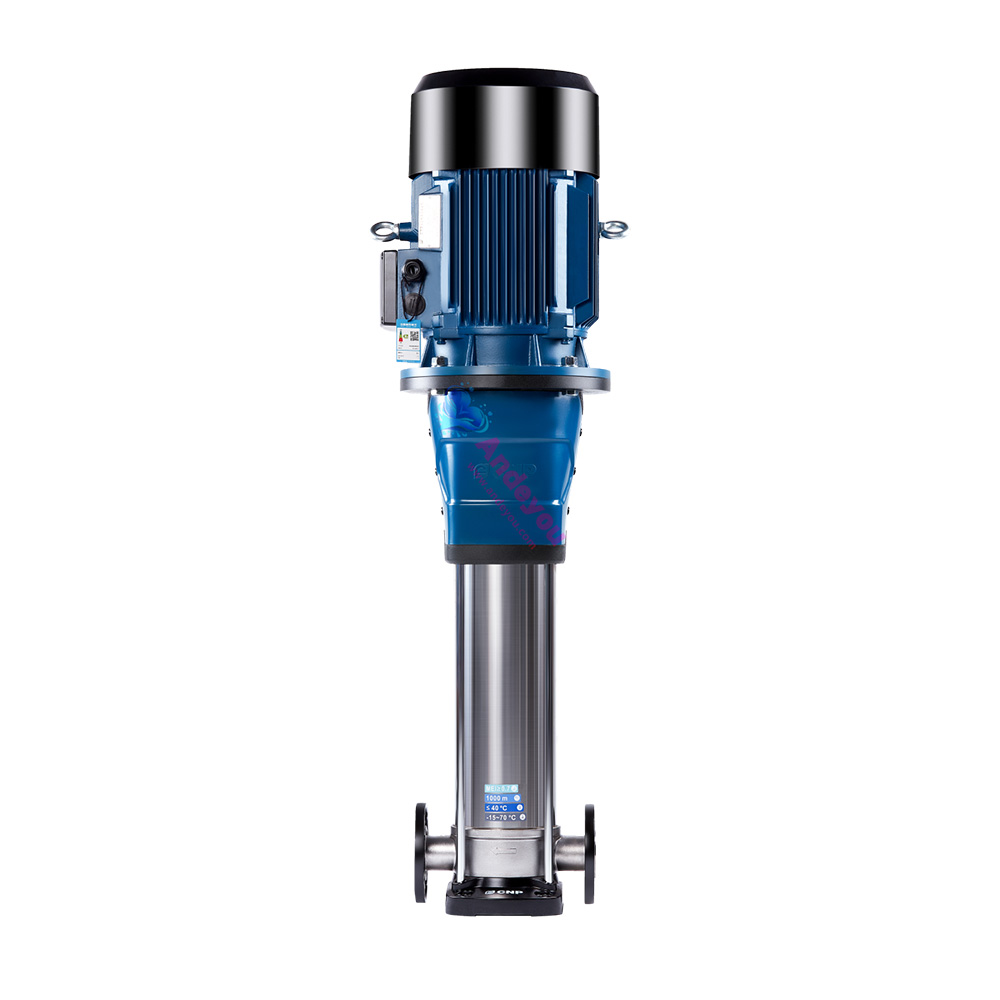

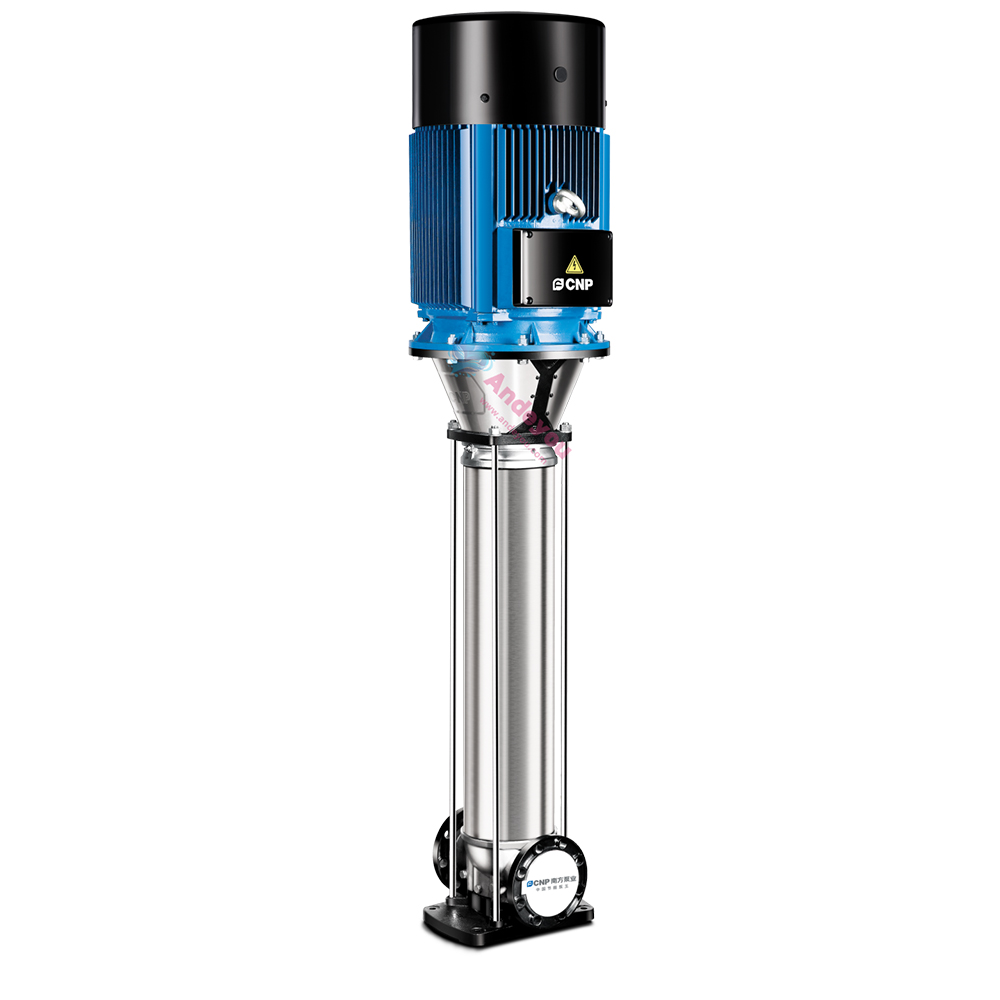

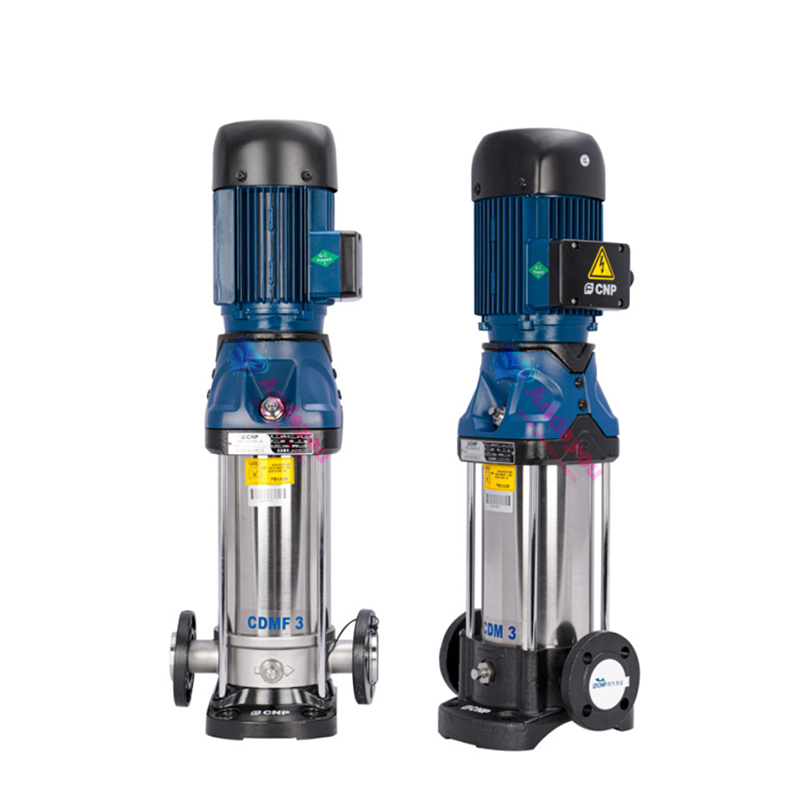

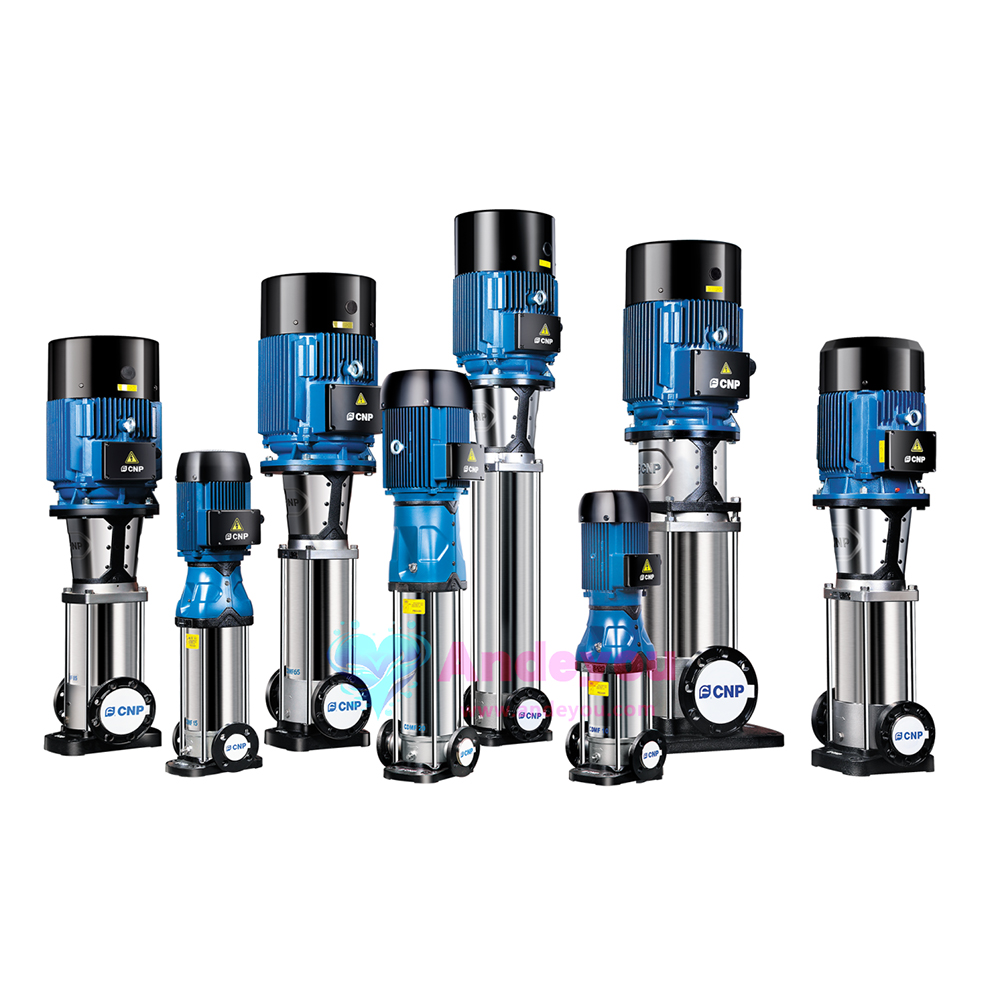

Nanfang CDM/CDMF Stainless Steel Vertical Multistage Centrifugal Pumps

CDM5-2 CDM5-3 CDM5-4 CDM5-5 CDM5-6 CDM5-7 CDM5-8 CDM5-9 CDM5-10 CDM5-11 CDM5-12 CDM5-13 CDM5-14 CDM5-15 CDM5-16 CDM5-17 CDM5-18 CDM5-19 CDM5-20 CDM5-21 CDM5-22 CDM5-23 CDM5-24 CDM5-25 CDM5-26 CDM5-27 CDM5-28 CDM5-29 CDM5-30 CDM5-31 CDM5-32 CDM5-33 CDM10-1 CDM10-2 CDM10-3 CDM10-4 CDM10-5 CDM10-6 CDM10-7 CDM10-8 CDM10-9

The Nanfang CDM/CDMF series stainless steel vertical multistage centrifugal pumps feature a high-efficiency,energy-saving design and are constructed from 304/316 stainless steel for superior corrosion resistance.They are suitable for applications such as industrial water supply,boiler feed systems,fire protection systems,and cleaning equipment.Key specifications include a flow rate of 5–240 m³/h,a head of 24–240 m,and an operating temperature range of -15°C to +120°C
Product Consultation By telephone
Function
Parameters
Size
Video Introduction

Function

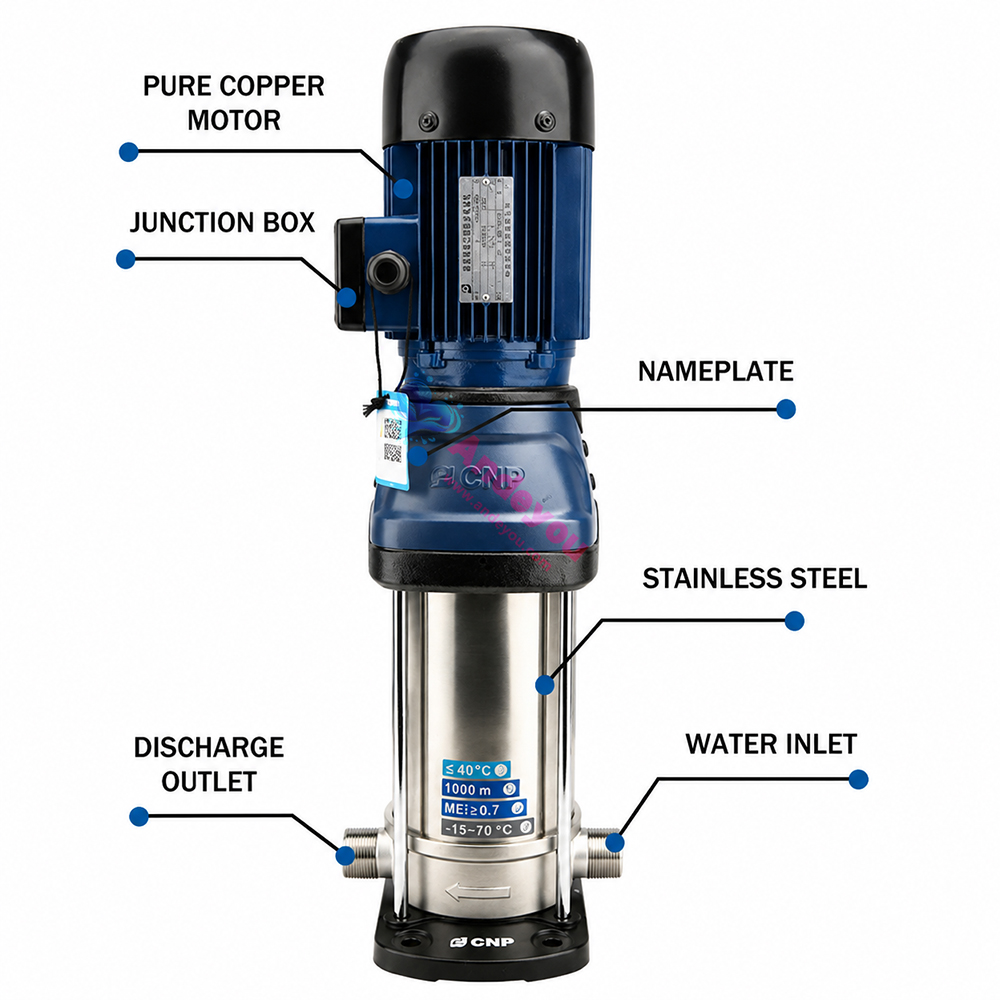

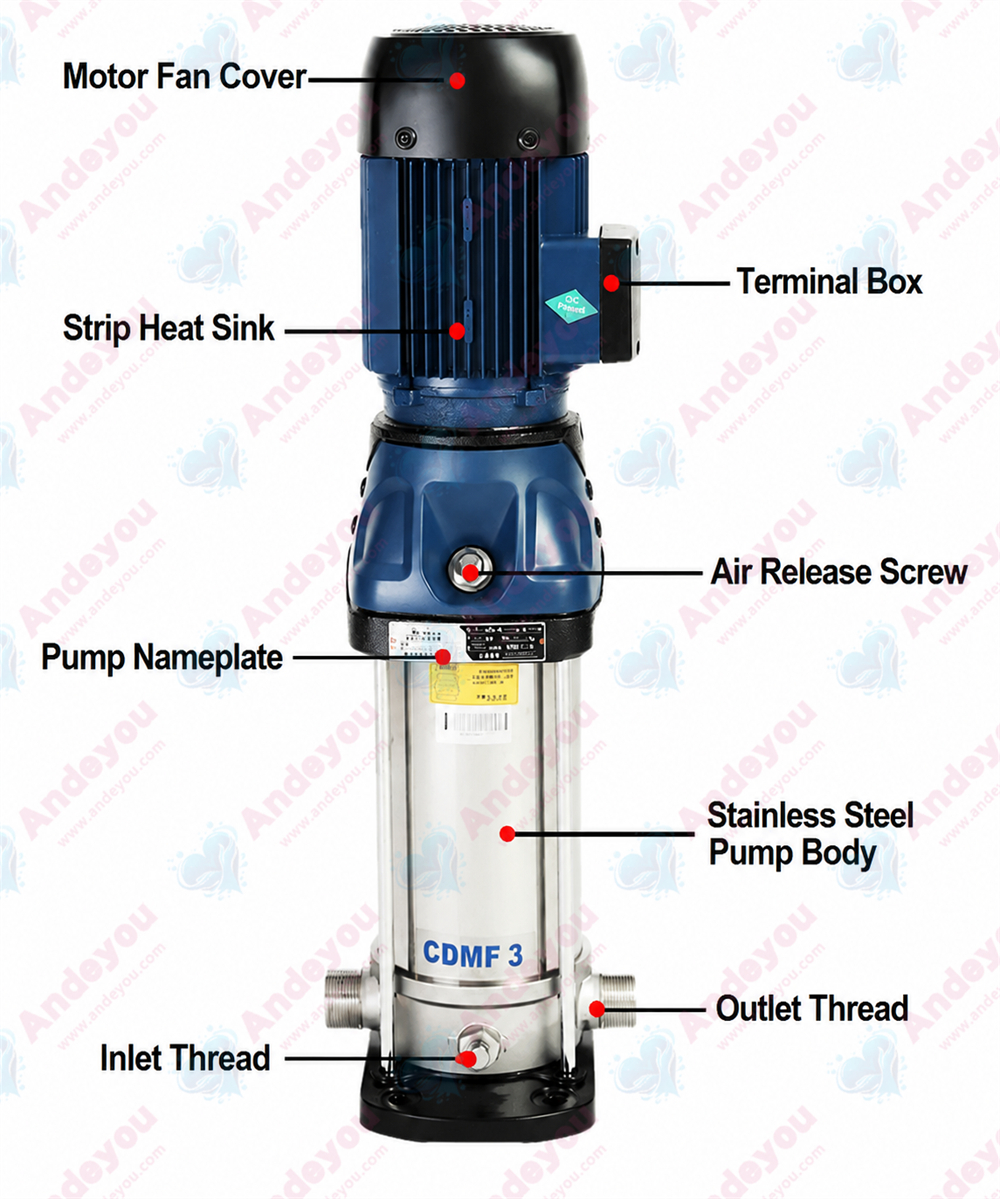

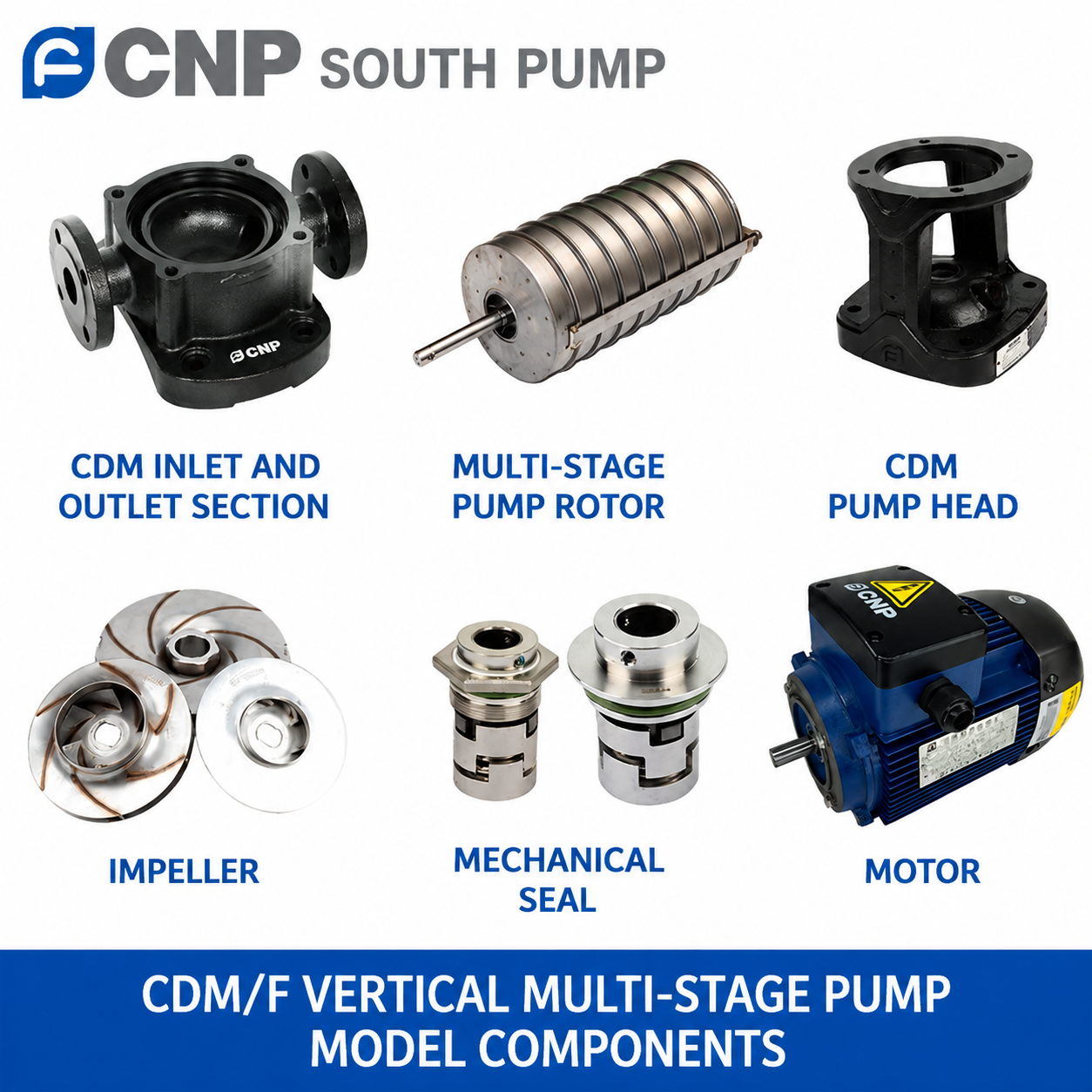

I. Pump Structure

Vertical, multi-stage, sectional design

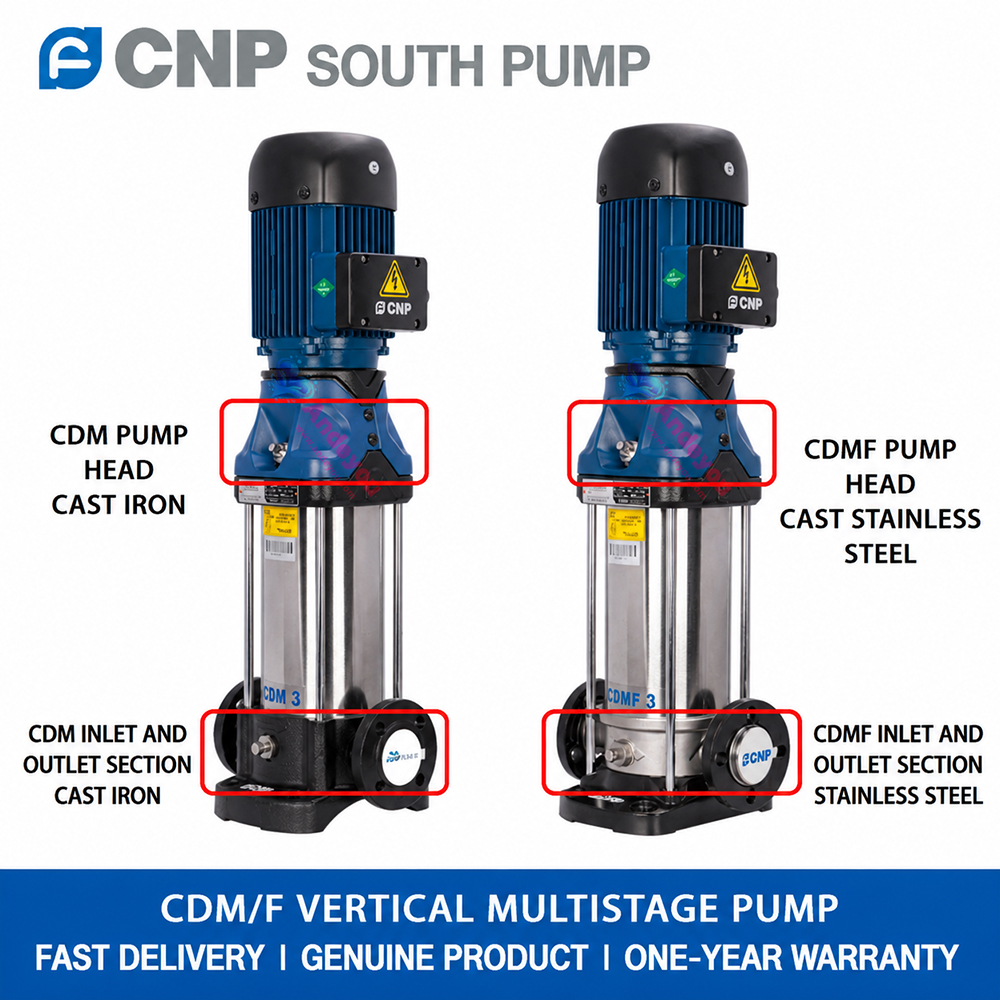

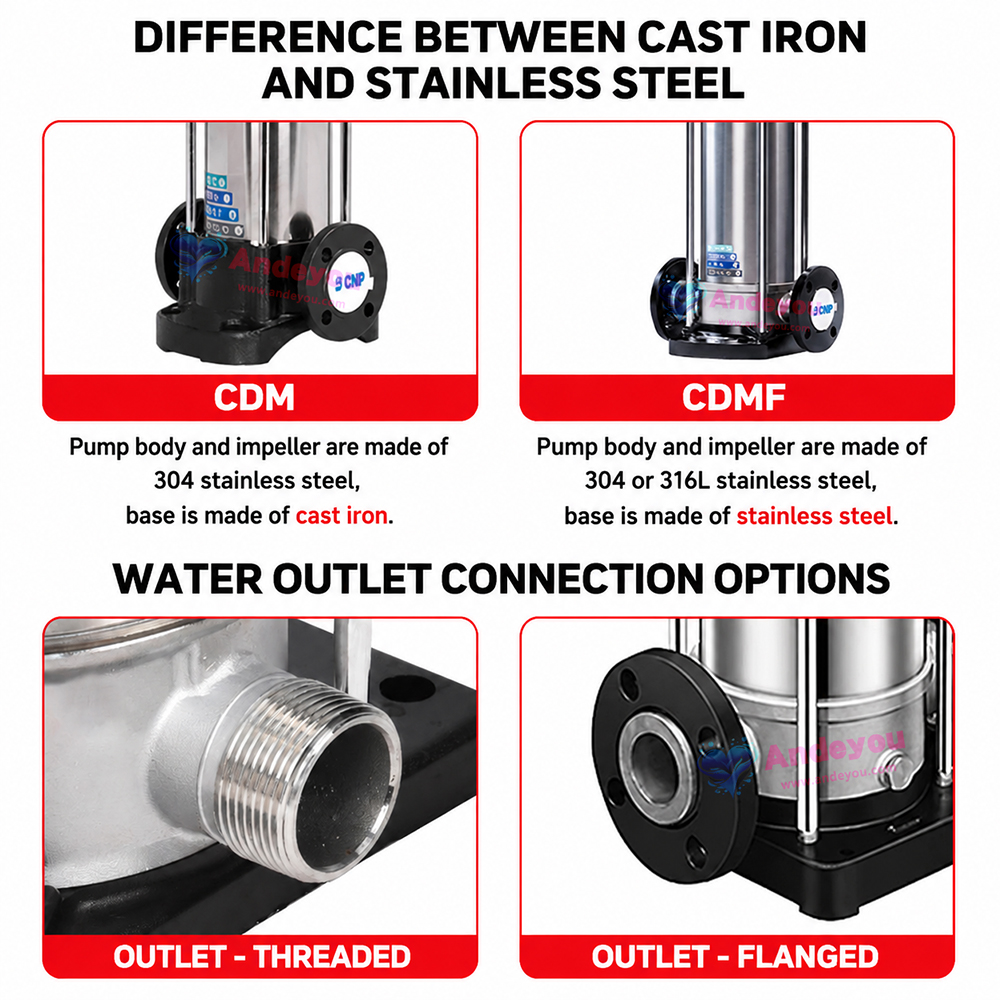

Wetted parts (pump casing, impellers, etc.) made of 304/316 stainless steel

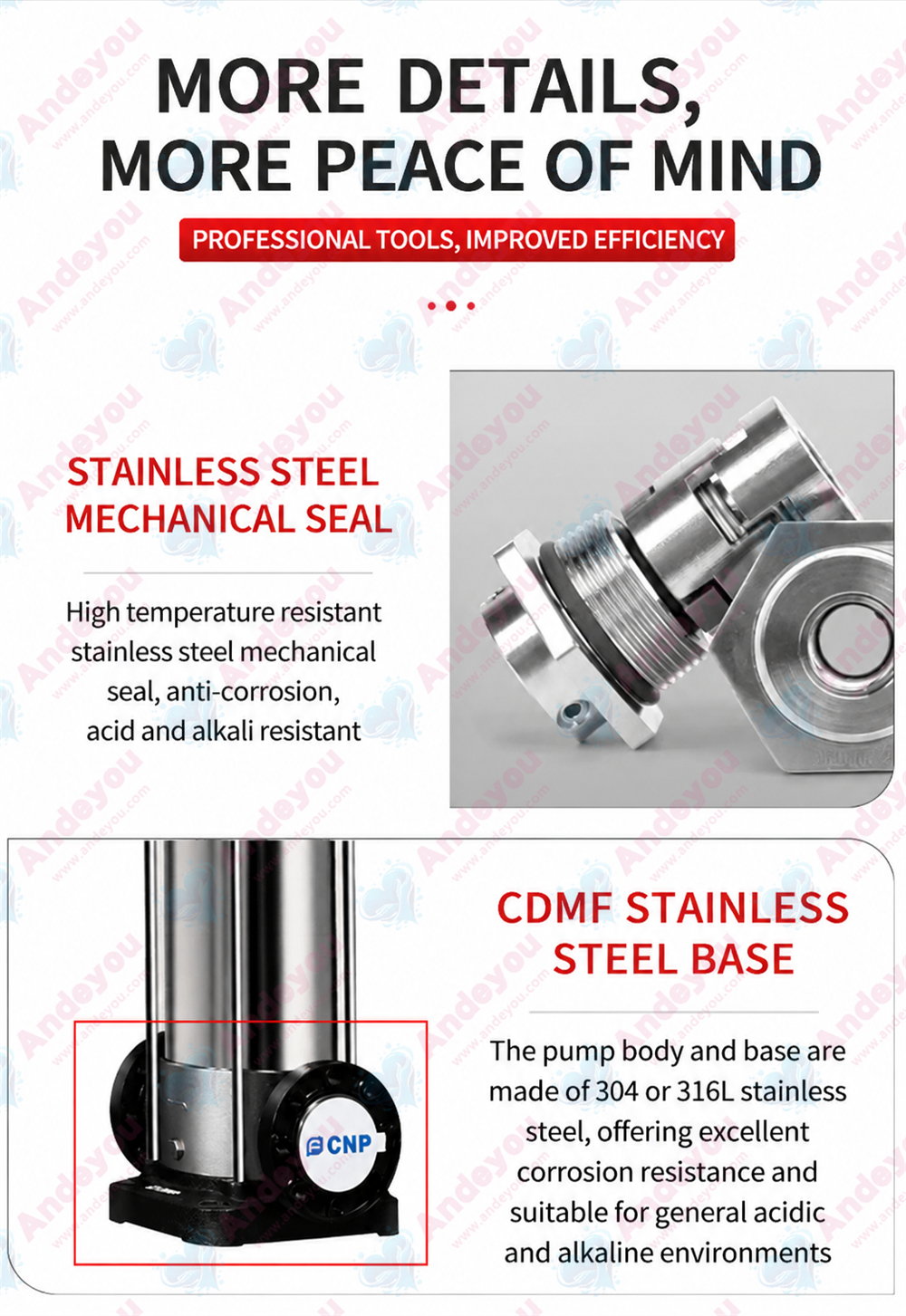

Equipped with mechanical seals to ensure long-term, leak-free operation
Modular design for easy maintenance and parts replacement

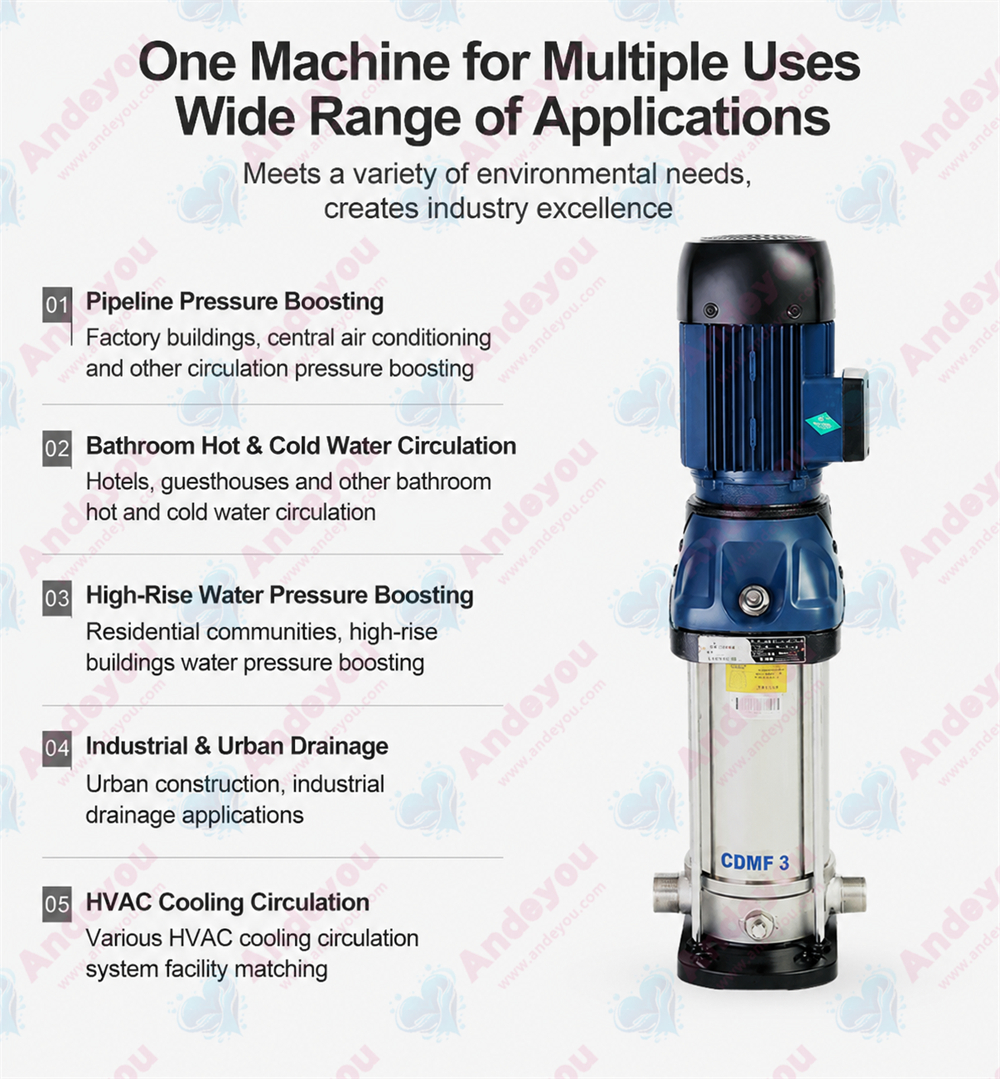

II. Product Applications

Industrial water supply systems (e.g., cooling circulation, process water)
Boiler feed water and high-pressure water supply systems
Firefighting pressure boosting systems
Cleaning equipment and environmental water treatment
Agricultural irrigation and landscape water supply

III. Product Features

High Efficiency & Energy Saving: Optimized hydraulic model; 10%–15% higher efficiency than standard pumps
Strong Corrosion Resistance: Stainless steel construction suitable for acidic and alkaline media (pH 4–10)
Low-Noise Operation: ≤75 dB(A); vibration levels comply with ISO standards
Compact & Lightweight: Small footprint; flexible installation
Long Service Life: Key components undergo anti-corrosion hardening treatment

IV. Performance Parameters

Flow Rate Range: 5–240 m³/h
Head Range: 24–240 m
Working Pressure: ≤2.5 MPa
Medium Temperature: -15°C to +120°C (high-temperature versions available upon request)
Motor Power: 1.5–160 kW (380 V/50 Hz)

V. Operating Conditions

Medium Requirements: Clean water or liquids with physical and chemical properties similar to clean water
Ambient Conditions: Temperature ≤40°C; humidity ≤95%
Restrictions: Dry running prohibited; minimum inlet pressure must be maintained

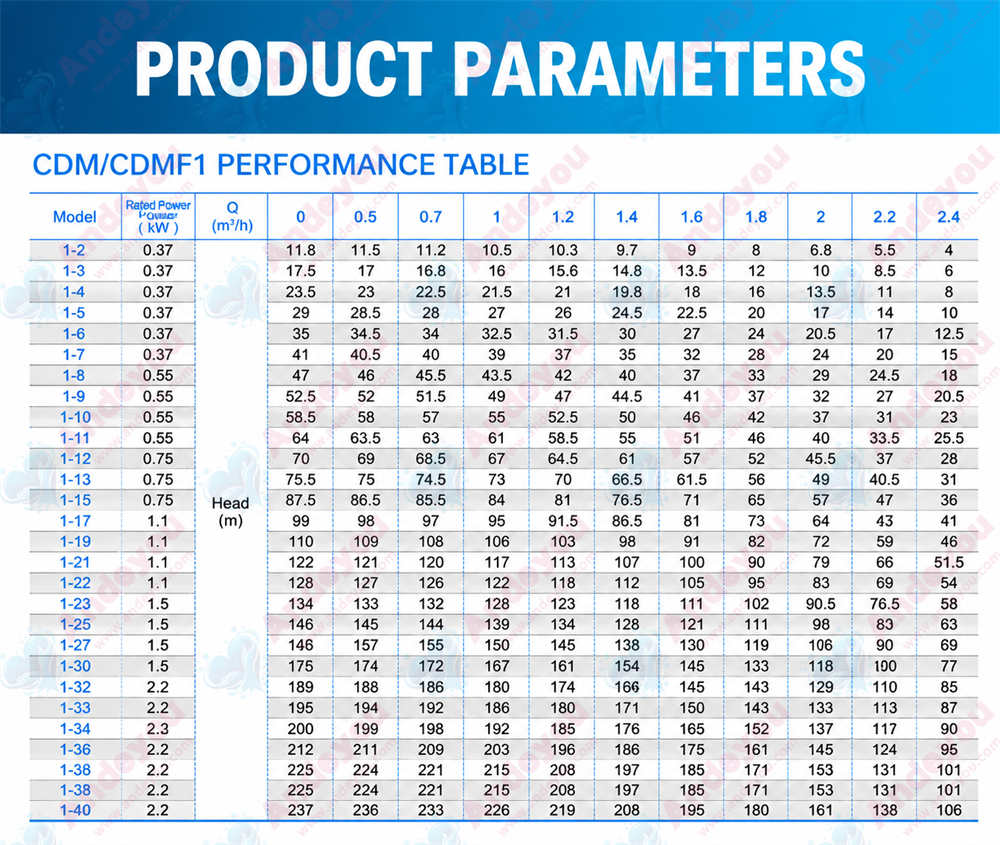

Parameters

model Flow rate (m³/h) Head (m) Power (kW) Rotational speed (rpm) caliber
CDM1-2 1 10.5 0.37 2900 DN25×25
CDM1-3 1 16 0.37 2900 DN25×25
CDM1-4 1 21.5 0.37 2900 DN25×25
CDM1-5 1 27 0.37 2900 DN25×25
CDM1-6 1 32.5 0.37 2900 DN25×25
CDM1-7 1 39 0.37 2900 DN25×25
CDM1-8 1 43.5 0.55 2900 DN25×25
CDM1-9 1 49 0.55 2900 DN25×25
CDM1-10 1 55 0.55 2900 DN25×25
CDM1-11 1 61 0.55 2900 DN25×25
CDM1-12 1 67 0.75 2900 DN25×25
CDM1-13 1 73 0.75 2900 DN25×25
CDM1-14 1 78 0.75 2900 DN25×25
CDM1-15 1 84 0.75 2900 DN25×25
CDM1-16 1 89 1.1 2900 DN25×25
CDM1-17 1 95 1.1 2900 DN25×25
CDM1-18 1 100 1.1 2900 DN25×25
CDM1-19 1 106 1.1 2900 DN25×25
CDM1-20 1 111 1.1 2900 DN25×25
CDM1-21 1 117 1.1 2900 DN25×25
CDM1-22 1 122 1.1 2900 DN25×25
CDM1-23 1 128 1.5 2900 DN25×25
CDM1-24 1 134 1.5 2900 DN25×25
CDM1-25 1 139 1.5 2900 DN25×25
CDM1-26 1 145 1.5 2900 DN25×25
CDM1-27 1 150 1.5 2900 DN25×25
CDM1-28 1 156 1.5 2900 DN25×25
CDM1-29 1 161 1.5 2900 DN25×25
CDM1-30 1 167 1.5 2900 DN25×25
CDM1-31 1 175 2.2 2900 DN25×25
CDM1-32 1 180 2.2 2900 DN25×25
CDM1-33 1 186 2.2 2900 DN25×25
CDM1-34 1 192 2.2 2900 DN25×25
CDM1-35 1 197 2.2 2900 DN25×25
CDM1-36 1 203 2.2 2900 DN25×25
CDM1-37 1 209 2.2 2900 DN25×25
CDM1-38 1 215 2.2 2900 DN25×25
CDM1-39 1 220 2.2 2900 DN25×25
CDM1-40 1 226 2.2 2900 DN25×25
CDM3-2 3 11 0.37 2900 DN25×25
CDM3-3 3 17 0.37 2900 DN25×25
CDM3-4 3 23 0.37 2900 DN25×25
CDM3-5 3 29 0.55 2900 DN25×25
CDM3-6 3 35 0.55 2900 DN25×25
CDM3-7 3 41 0.75 2900 DN25×25
CDM3-8 3 47 0.75 2900 DN25×25
CDM3-9 3 53 1.1 2900 DN25×25
CDM3-10 3 59 1.1 2900 DN25×25
CDM3-11 3 65 1.1 2900 DN25×25
CDM3-12 3 71 1.1 2900 DN25×25
CDM3-13 3 77 1.5 2900 DN25×25
CDM3-14 3 83 1.5 2900 DN25×25
CDM3-15 3 90 1.5 2900 DN25×25
CDM3-16 3 96 1.5 2900 DN25×25
CDM3-17 3 102 2.2 2900 DN25×25
CDM3-18 3 108 2.2 2900 DN25×25
CDM3-19 3 114 2.2 2900 DN25×25
CDM3-20 3 120 2.2 2900 DN25×25
CDM3-21 3 126 2.2 2900 DN25×25
CDM3-22 3 132 2.2 2900 DN25×25
CDM3-23 3 138 2.2 2900 DN25×25
CDM3-24 3 144 2.2 2900 DN25×25
CDM3-25 3 150 3 2900 DN25×25
CDM3-26 3 156 3 2900 DN25×25
CDM3-27 3 162 3 2900 DN25×25
CDM3-28 3 168 3 2900 DN25×25
CDM3-29 3 175 3 2900 DN25×25
CDM3-30 3 181 3 2900 DN25×25
CDM3-31 3 187 3 2900 DN25×25

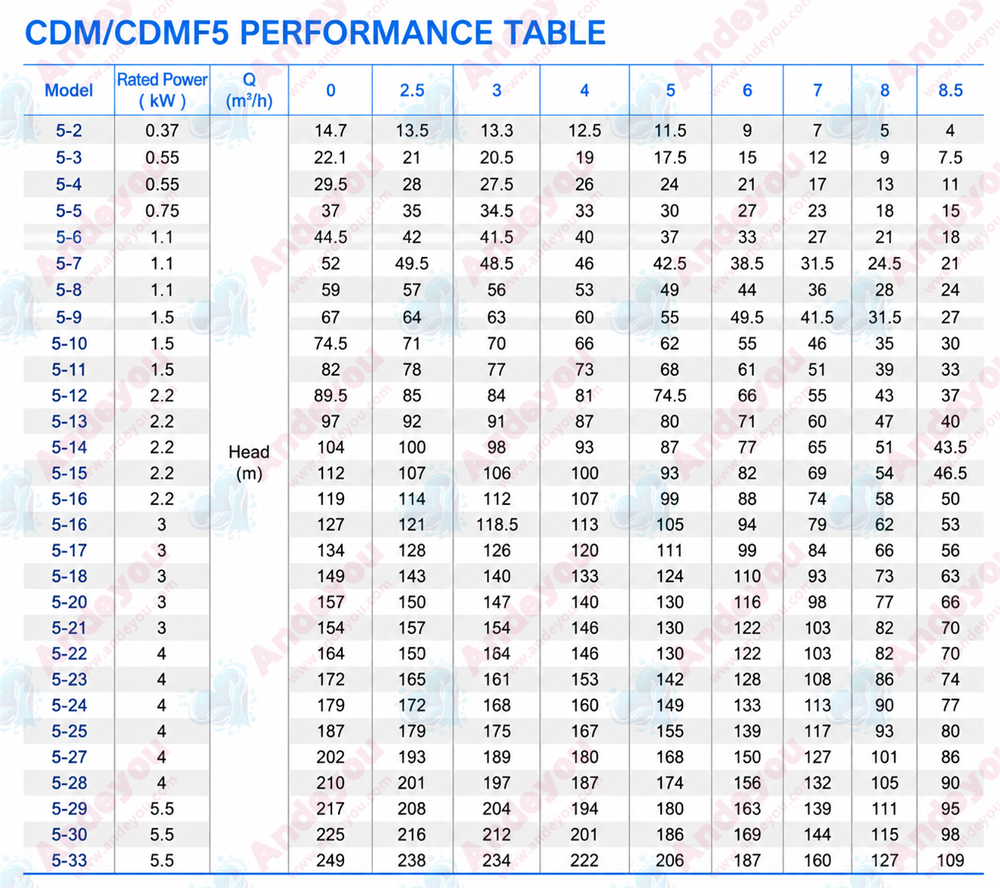

CDM5-2 5 11.5 0.37 2900 DN32×32
CDM5-3 5 17.5 0.55 2900 DN32×32
CDM5-4 5 24 0.55 2900 DN32×32
CDM5-5 5 30 0.75 2900 DN32×32
CDM5-6 5 37 1.1 2900 DN32×32
CDM5-7 5 42.5 1.1 2900 DN32×32
CDM5-8 5 49 1.1 2900 DN32×32
CDM5-9 5 55 1.5 2900 DN32×32
CDM5-10 5 62 1.5 2900 DN32×32
CDM5-11 5 68 1.5 2900 DN32×32
CDM5-12 5 74.5 2.2 2900 DN32×32
CDM5-13 5 80 2.2 2900 DN32×32
CDM5-14 5 87 2.2 2900 DN32×32
CDM5-15 5 93 2.2 2900 DN32×32
CDM5-16 5 99 2.2 2900 DN32×32
CDM5-17 5 105 3 2900 DN32×32
CDM5-18 5 111 3 2900 DN32×32
CDM5-19 5 118 3 2900 DN32×32
CDM5-20 5 124 3 2900 DN32×32
CDM5-21 5 130 3 2900 DN32×32
CDM5-22 5 136 4 2900 DN32×32
CDM5-23 5 142 4 2900 DN32×32
CDM5-24 5 149 4 2900 DN32×32
CDM5-25 5 155 4 2900 DN32×32
CDM5-26 5 161 4 2900 DN32×32
CDM5-27 5 168 4 2900 DN32×32
CDM5-28 5 174 4 2900 DN32×32
CDM5-29 5 180 5.5 2900 DN32×32
CDM5-30 5 186 5.5 2900 DN32×32
CDM5-31 5 193 5.5 2900 DN32×32
CDM5-32 5 200 5.5 2900 DN32×32
CDM5-33 5 206 5.5 2900 DN32×32

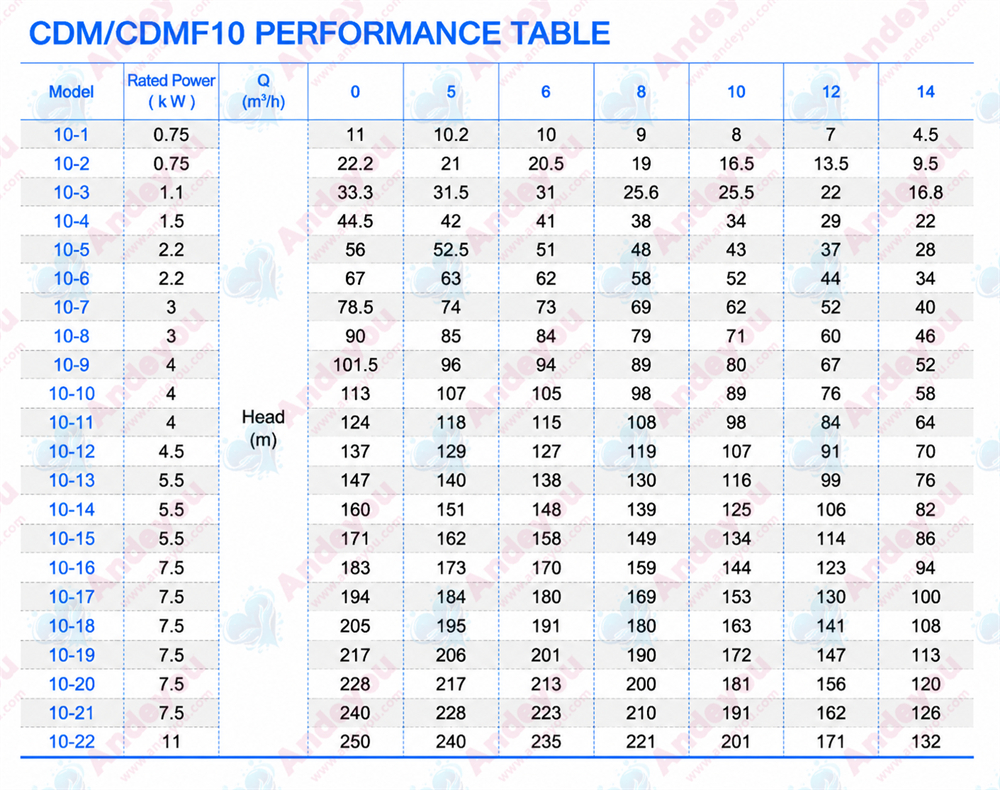

CDM10-1 10 8 0.75 2900 DN40×40
CDM10-2 10 16.5 0.75 2900 DN40×40
CDM10-3 10 25.5 1.1 2900 DN40×40
CDM10-4 10 34 1.5 2900 DN40×40
CDM10-5 10 43 2.2 2900 DN40×40
CDM10-6 10 52 2.2 2900 DN40×40
CDM10-7 10 62 3 2900 DN40×40
CDM10-8 10 71 3 2900 DN40×40
CDM10-9 10 80 4 2900 DN40×40
CDM10-10 10 89 4 2900 DN40×40
CDM10-11 10 98 4 2900 DN40×40
CDM10-12 10 107 4.5 2900 DN40×40
CDM10-13 10 116 5.5 2900 DN40×40
CDM10-14 10 125 5.5 2900 DN40×40
CDM10-15 10 134 5.5 2900 DN40×40
CDM10-16 10 144 7.5 2900 DN40×40
CDM10-17 10 153 7.5 2900 DN40×40
CDM10-18 10 163 7.5 2900 DN40×40
CDM10-19 10 172 7.5 2900 DN40×40
CDM10-20 10 181 7.5 2900 DN40×40
CDM10-21 10 191 7.5 2900 DN40×40
CDM10-22 10 201 11 2900 DN40×40
CDM15-1 15 11 1.1 2900 DN50×50
CDM15-2 15 22.5 2.2 2900 DN50×50
CDM15-3 15 34.5 3 2900 DN50×50
CDM15-4 15 47 4 2900 DN50×50
CDM15-5 15 58 4 2900 DN50×50
CDM15-6 15 69 5.5 2900 DN50×50
CDM15-7 15 81 5.5 2900 DN50×50
CDM15-8 15 93 7.5 2900 DN50×50
CDM15-9 15 106 7.5 2900 DN50×50
CDM15-10 15 118 11 2900 DN50×50
CDM15-11 15 130 11 2900 DN50×50
CDM15-12 15 142 11 2900 DN50×50
CDM15-13 15 152 11 2900 DN50×50
CDM15-14 15 165 11 2900 DN50×50
CDM15-15 15 178 15 2900 DN50×50
CDM15-16 15 189 15 2900 DN50×50
CDM15-17 15 201 15 2900 DN50×50
CDM15-18 15 213 15 2900 DN50×50
CDM20-1 20 10.5 1.1 2900 DN50×50
CDM20-2 20 23 2.2 2900 DN50×50
CDM20-3 20 35 4 2900 DN50×50
CDM20-4 20 47 5.5 2900 DN50×50
CDM20-5 20 58 5.5 2900 DN50×50
CDM20-6 20 70 7.5 2900 DN50×50
CDM20-7 20 82 7.5 2900 DN50×50
CDM20-8 20 95 11 2900 DN50×50
CDM20-9 20 107 11 2900 DN50×50
CDM20-10 20 119 11 2900 DN50×50
CDM20-11 20 131 15 2900 DN50×50
CDM20-12 20 143 15 2900 DN50×50
CDM20-13 20 155 15 2900 DN50×50
CDM20-14 20 168 15 2900 DN50×50
CDM20-15 20 180 18.5 2900 DN50×50
CDM20-16 20 193 18.5 2900 DN50×50
CDM20-17 20 205 18.5 2900 DN50×50

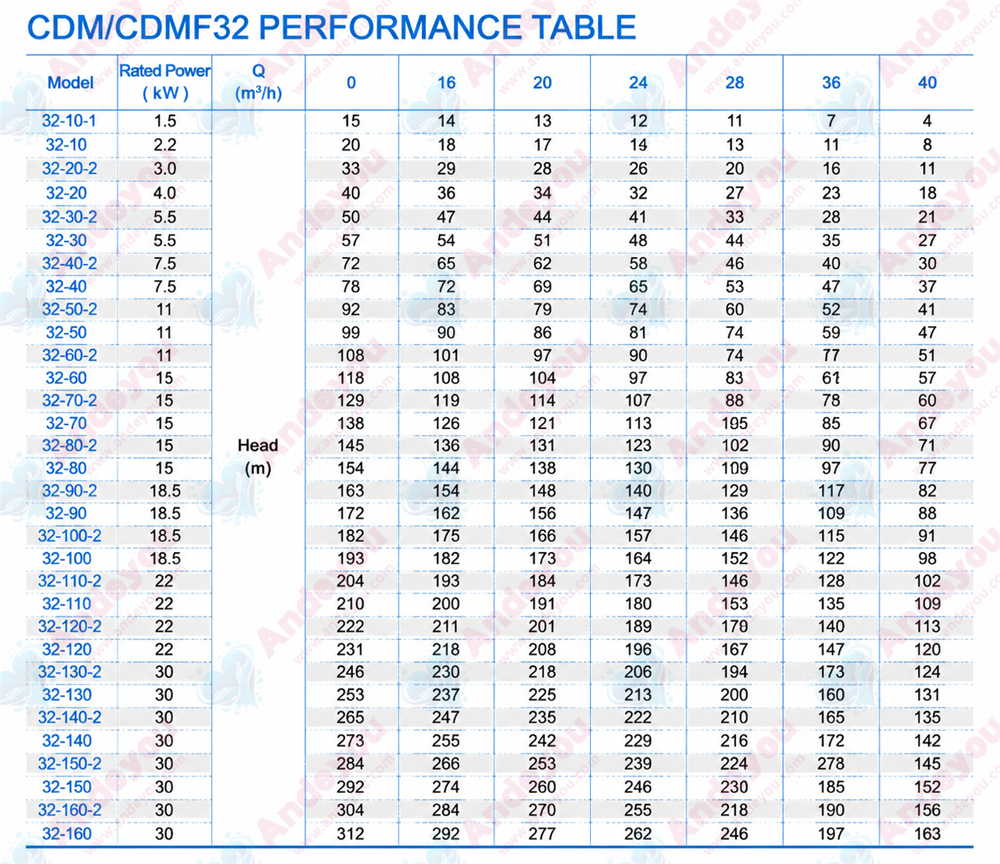

CDM32-1-1 32 9 1.5 2900 DN65×65
CDM32-1 32 13 2.2 2900 DN65×65
CDM32-2-2 32 20 3 2900 DN65×65
CDM32-2 32 27 4 2900 DN65×65
CDM32-3-2 32 33 5.5 2900 DN65×65
CDM32-3 32 40 5.5 2900 DN65×65
CDM32-4-2 32 46 7.5 2900 DN65×65
CDM32-4 32 53 7.5 2900 DN65×65
CDM32-5-2 32 60 11 2900 DN65×65
CDM32-5 32 67 11 2900 DN65×65
CDM32-6-2 32 74 11 2900 DN65×65
CDM32-6 32 81 11 2900 DN65×65
CDM32-7-2 32 88 15 2900 DN65×65
CDM32-7 32 95 15 2900 DN65×65
CDM32-8-2 32 102 15 2900 DN65×65
CDM32-8 32 109 15 2900 DN65×65
CDM32-9-2 32 117 18.5 2900 DN65×65
CDM32-9 32 124 18.5 2900 DN65×65
CDM32-10-2 32 131 18.5 2900 DN65×65
CDM32-10 32 138 18.5 2900 DN65×65
CDM32-11-2 32 146 22 2900 DN65×65
CDM32-11 32 153 22 2900 DN65×65
CDM32-12-2 32 160 22 2900 DN65×65
CDM32-12 32 167 22 2900 DN65×65
CDM32-13-2 32 174 30 2900 DN65×65
CDM32-13 32 181 30 2900 DN65×65
CDM32-14-2 32 189 30 2900 DN65×65
CDM32-14 32 196 30 2900 DN65×65
CDM32-15-2 32 203 30 2900 DN65×65
CDM32-15 32 210 30 2900 DN65×65
CDM32-16-2 32 218 30 2900 DN65×65
CDM32-16 32 225 30 2900 DN65×65

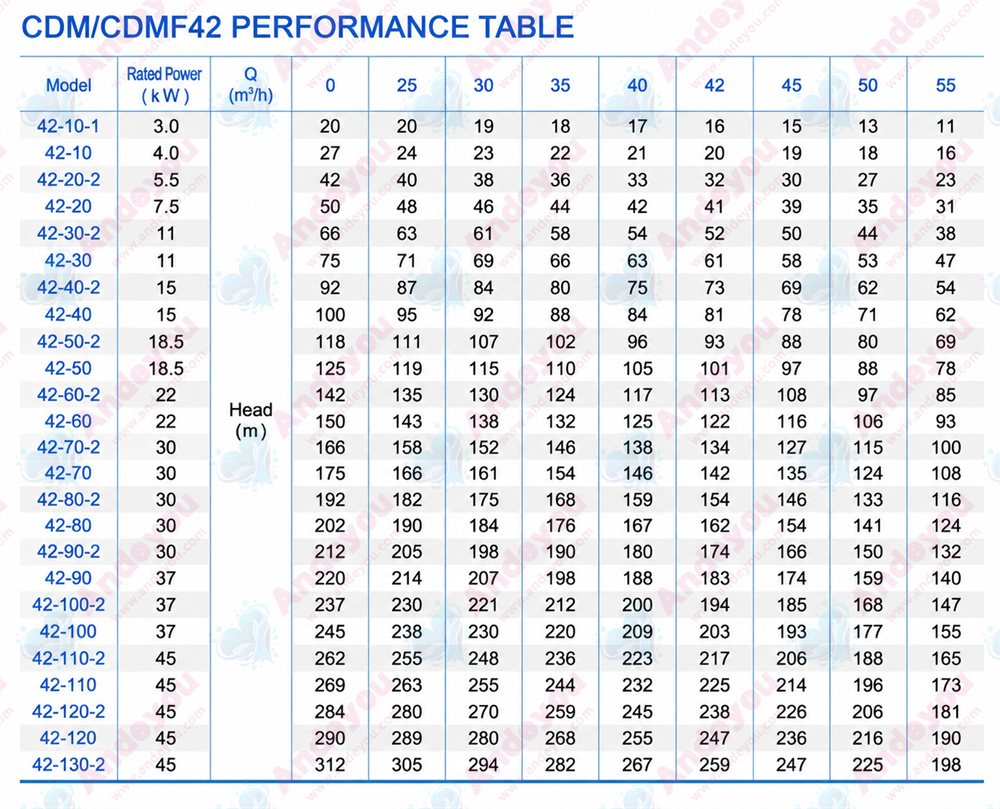

CDM42-1-1 42 16 3 2900 DN80×80
CDM42-1 42 20 4 2900 DN80×80
CDM42-2-2 42 32 5.5 2900 DN80×80
CDM42-2 42 41 7.5 2900 DN80×80
CDM42-3-2 42 52 11 2900 DN80×80
CDM42-3 42 61 11 2900 DN80×80
CDM42-4-2 42 73 15 2900 DN80×80
CDM42-4 42 81 15 2900 DN80×80
CDM42-5-2 42 93 18.5 2900 DN80×80
CDM42-5 42 101 18.5 2900 DN80×80
CDM42-6-2 42 113 22 2900 DN80×80
CDM42-6 42 122 22 2900 DN80×80
CDM42-7-2 42 134 30 2900 DN80×80
CDM42-7 42 142 30 2900 DN80×80
CDM42-8-2 42 154 30 2900 DN80×80
CDM42-8 42 162 30 2900 DN80×80
CDM42-9-2 42 174 30 2900 DN80×80
CDM42-9 42 183 37 2900 DN80×80
CDM42-10-2 42 194 37 2900 DN80×80
CDM42-10 42 203 37 2900 DN80×80
CDM42-11-2 42 217 45 2900 DN80×80
CDM42-11 42 225 45 2900 DN80×80
CDM42-12-2 42 238 45 2900 DN80×80
CDM42-12 42 247 45 2900 DN80×80
CDM42-13-2 42 259 45 2900 DN80×80

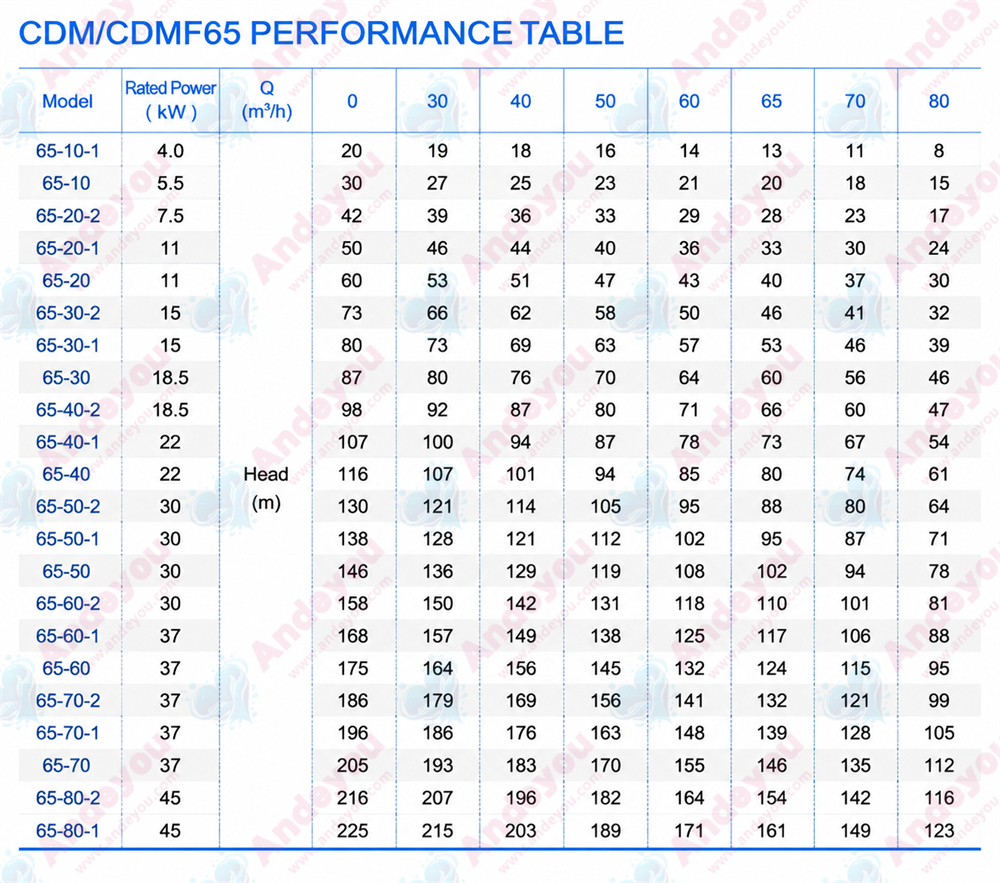

CDM65-1-1 65 13 4 2900 DN100×100
CDM65-1 65 20 5.5 2900 DN100×100
CDM65-2-2 65 26 7.5 2900 DN100×100
CDM65-2-1 65 33 11 2900 DN100×100
CDM65-2 65 40 11 2900 DN100×100
CDM65-3-2 65 46 15 2900 DN100×100
CDM65-3-1 65 53 15 2900 DN100×100
CDM65-3 65 60 18.5 2900 DN100×100
CDM65-4-2 65 66 18.5 2900 DN100×100
CDM65-4-1 65 73 22 2900 DN100×100
CDM65-4 65 80 22 2900 DN100×100
CDM65-5-2 65 88 30 2900 DN100×100
CDM65-5-1 65 95 30 2900 DN100×100
CDM65-5 65 102 30 2900 DN100×100
CDM65-6-2 65 110 30 2900 DN100×100
CDM65-6-1 65 117 37 2900 DN100×100
CDM65-6 65 124 37 2900 DN100×100
CDM65-7-2 65 132 37 2900 DN100×100
CDM65-7-1 65 139 37 2900 DN100×100
CDM65-7 65 146 45 2900 DN100×100
CDM65-8-2 65 154 45 2900 DN100×100
CDM65-8-1 65 161 45 2900 DN100×100
CDM85-1-1 85 14 5.5 2900 DN100×100
CDM85-1 85 20 7.5 2900 DN100×100
CDM85-2-2 85 30 11 2900 DN100×100
CDM85-2 85 41 15 2900 DN100×100
CDM85-3-2 85 52 18.5 2900 DN100×100
CDM85-3 85 64 22 2900 DN100×100
CDM85-4-2 85 75 30 2900 DN100×100
CDM85-4 85 86 30 2900 DN100×100
CDM85-5-2 85 98 37 2900 DN100×100
CDM85-5 85 110 37 2900 DN100×100
CDM85-6-2 85 122 45 2900 DN100×100
CDM85-6 85 134 45 2900 DN100×100
CDM95-1-1 95 15.5 5.5 2950 DN100×100
CDM95-1 95 22 7.5 2950 DN100×100
CDM95-2-2 95 31 11 2950 DN100×100
CDM95-2 95 45 15 2950 DN100×100
CDM95-3-2 95 54 18.5 2950 DN100×100
CDM95-3 95 68 22 2950 DN100×100
CDM95-4 95 91 30 2950 DN100×100
CDM95-5 95 114 37 2950 DN100×100
CDM95-6 95 137 45 2950 DN100×100
CDM95-7 95 160 55 2950 DN100×100
CDM95-8-2 95 167 55 2950 DN100×100
CDM120-1 120 18.5 11 2950 DN125×125
CDM120-2-2 120 28.5 15 2950 DN125×125
CDM120-2-1 120 34.5 18.5 2950 DN125×125
CDM120-2 120 40 22 2950 DN125×125
CDM120-3-2 120 49 30 2950 DN125×125
CDM120-3-1 120 55.5 30 2950 DN125×125
CDM120-3 120 61 30 2950 DN125×125
CDM120-4-2 120 69 37 2950 DN125×125
CDM120-4-1 120 76 37 2950 DN125×125
CDM120-4 120 81 45 2950 DN125×125
CDM120-5-2 120 90 45 2950 DN125×125
CDM120-5-1 120 97 45 2950 DN125×125
CDM120-5 120 101.5 55 2950 DN125×125
CDM120-6-2 120 110 55 2950 DN125×125
CDM120-6-1 120 118 55 2950 DN125×125
CDM120-6 120 123 75 2950 DN125×125
CDM120-7-2 120 130 75 2950 DN125×125
CDM120-7-1 120 137.5 75 2950 DN125×125
CDM120-7 120 145 75 2950 DN125×125
CDM125-1 125 24.5 11 2950 DN150×150
CDM125-2-2 125 33.5 15 2950 DN150×150
CDM125-2-1 125 41.5 18.5 2950 DN150×150
CDM125-2 125 50 22 2950 DN150×150
CDM125-3-1 125 67.5 30 2950 DN150×150
CDM125-3 125 76 37 2950 DN150×150
CDM125-4-2 125 84.5 37 2950 DN150×150
CDM125-4 125 101.5 45 2950 DN150×150
CDM125-5 125 127 55 2950 DN150×150
CDM125-6 125 152.5 75 2950 DN150×150
CDM125-7 125 178 75 2950 DN150×150
CDM125-8 125 203.5 90 2950 DN150×150
CDM125-9-2 125 210 90 2950 DN150×150
CDM125-9 125 229 110 2950 DN150×150
CDM125-10 125 254.5 110 2950 DN150×150
CDM150-1-1 150 12.5 11 2950 DN125×125
CDM150-1 150 18.5 15 2950 DN125×125
CDM150-2-2 150 27.5 18.5 2950 DN125×125
CDM150-2-1 150 35 22 2950 DN125×125
CDM150-2 150 40 30 2950 DN125×125
CDM150-3-2 150 49 30 2950 DN125×125
CDM150-3-1 150 56 37 2950 DN125×125
CDM150-3 150 63 37 2950 DN125×125
CDM150-4-2 150 70.5 45 2950 DN125×125
CDM150-4-1 150 77 45 2950 DN125×125
CDM150-4 150 84 55 2950 DN125×125
CDM150-5-2 150 92 55 2950 DN125×125
CDM150-5-1 150 99 75 2950 DN125×125
CDM150-5 150 106.5 75 2950 DN125×125
CDM150-6-2 150 112 75 2950 DN125×125
CDM150-6-1 150 120.5 75 2950 DN125×125
CDM150-6 150 130 75 2950 DN125×125
CDM155-1-1 155 18.5 11 2950 DN150×150
CDM155-1 155 27.5 15 2950 DN150×150
CDM155-2-2 155 37 22 2950 DN150×150
CDM155-2 155 55.5 30 2950 DN150×150
CDM155-3-2 155 65 37 2950 DN150×150
CDM155-3 155 83.5 45 2950 DN150×150
CDM155-4-1 155 102 55 2950 DN150×150
CDM155-5-2 155 120.5 75 2950 DN150×150
CDM155-5 155 139.5 75 2950 DN150×150
CDM155-6 155 167.5 90 2950 DN150×150
CDM155-7 155 195.5 110 2950 DN150×150
CDM155-8-2 155 202 110 2950 DN150×150
CDM200-1-B 200 20 18.5 2950 DN150×150
CDM200-1-A 200 24 22 2950 DN150×150
CDM200-1 200 34 30 2950 DN150×150
CDM200-2-2B 200 41 37 2950 DN150×150
CDM200-2-2A 200 49 45 2950 DN150×150
CDM200-2-A 200 59 55 2950 DN150×150
CDM200-2 200 69 55 2950 DN150×150
CDM200-3-2B 200 75 75 2950 DN150×150
CDM200-3-A-B 200 79 75 2950 DN150×150
CDM200-3-2A 200 84 75 2950 DN150×150
CDM200-3-B 200 89 75 2950 DN150×150
CDM200-3-A 200 93 75 2950 DN150×150
CDM200-3 200 103 90 2950 DN150×150
CDM200-4-2B 200 110 90 2950 DN150×150
CDM200-4-2A 200 118 110 2950 DN150×150
CDM200-4-A 200 128 110 2950 DN150×150
CDM200-4 200 138 110 2950 DN150×150

Size

Video Introduction

Message Inquiry

*
*
*
*
*
Submit
