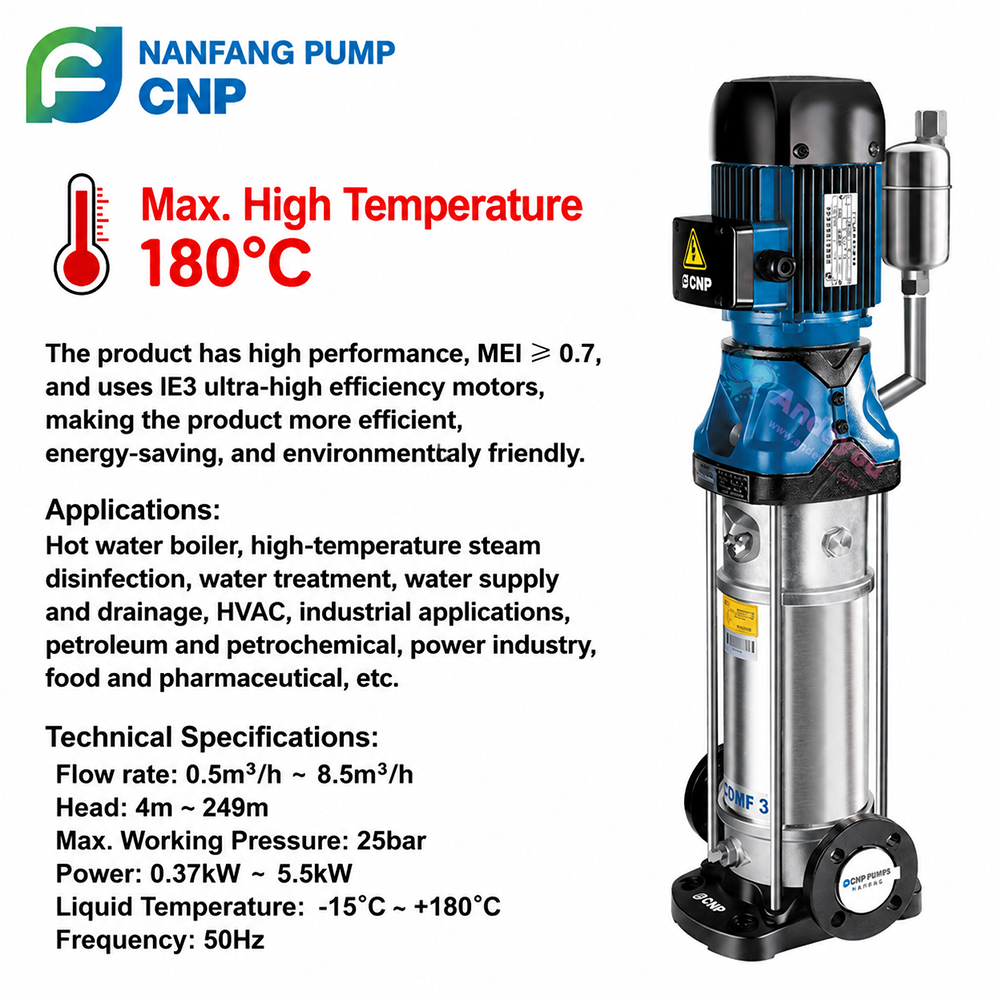

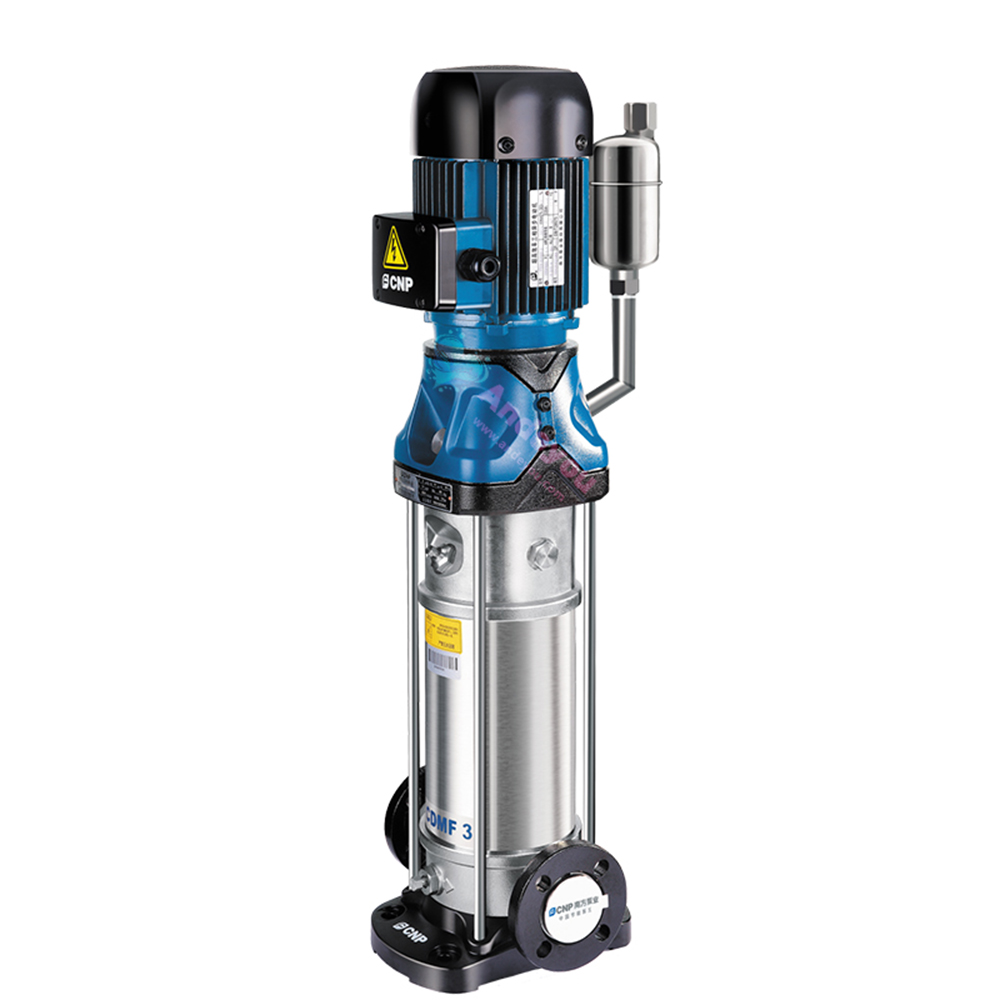

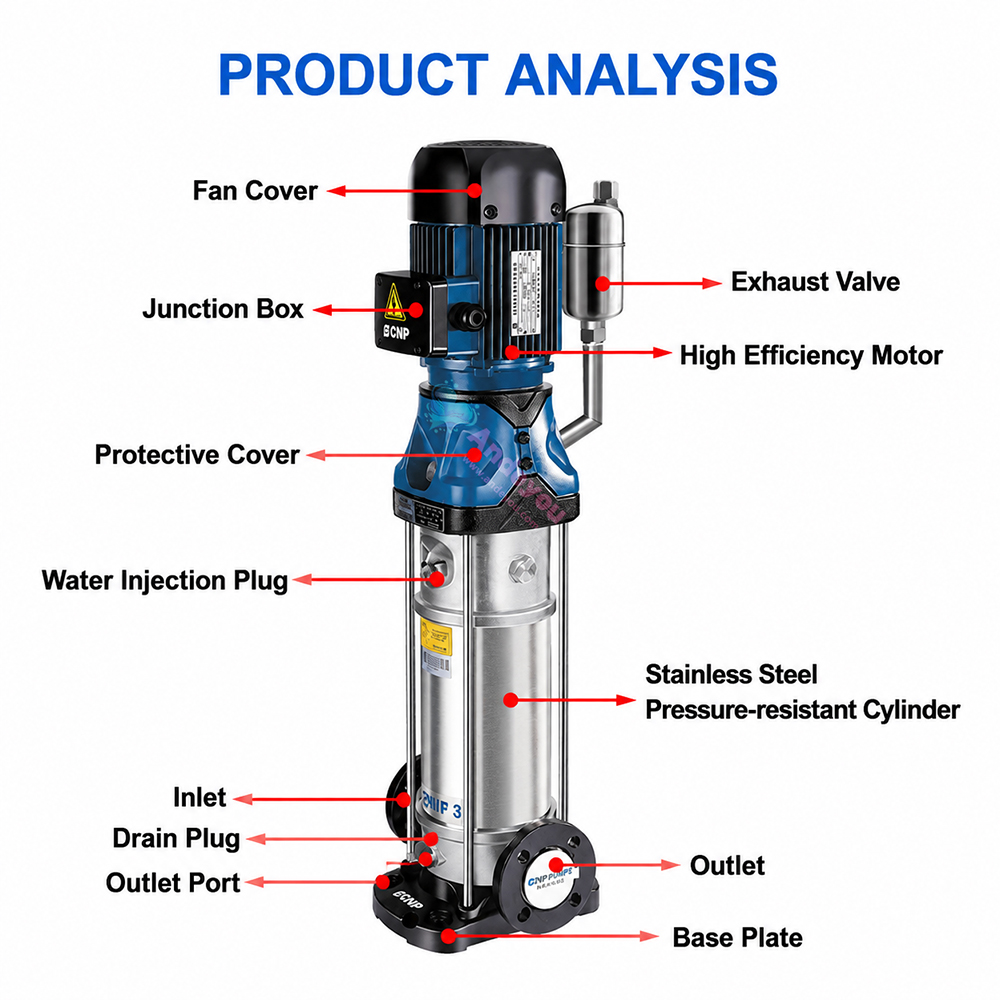

I. Pump Structure

Vertical multistage series design with a compact structure
Constructed primarily from high-quality stainless steel (304/316); resistant to high temperatures and corrosion
Mechanical seal design ensures reliable sealing under high-temperature conditions
Lightweight design facilitates easy installation and maintenance

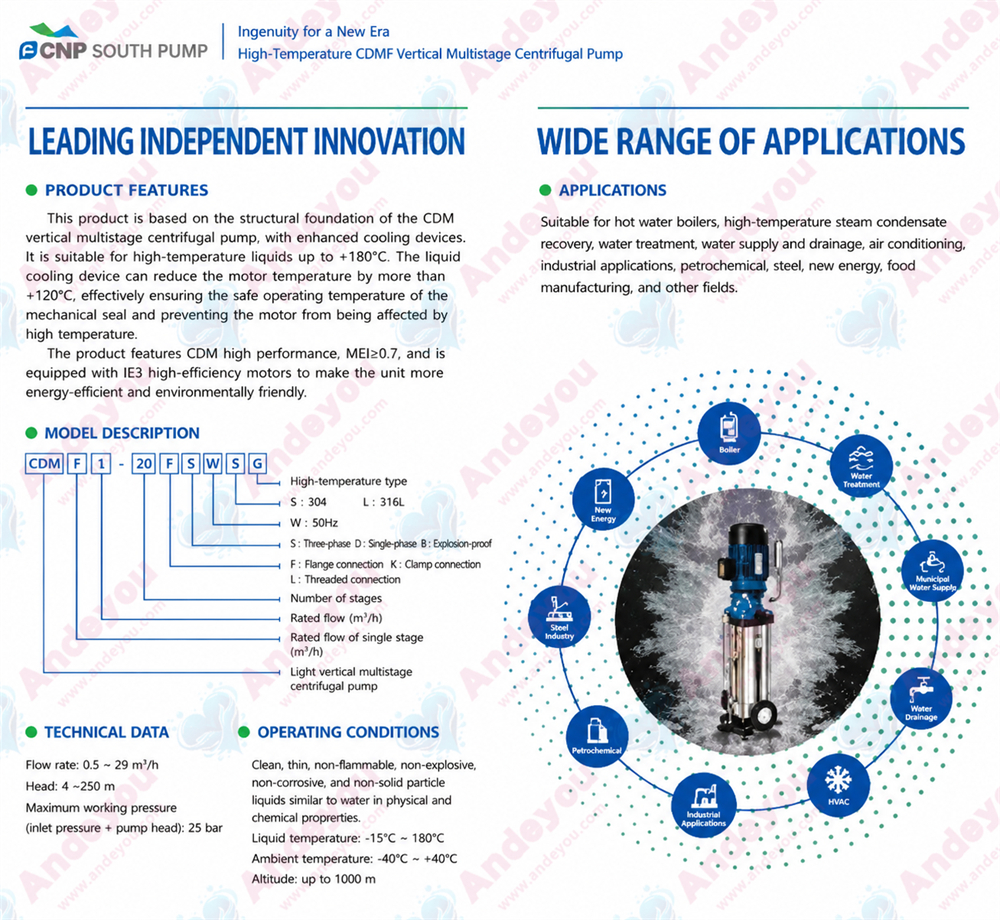

II. Product Features

Excellent high-temperature resistance; suitable for transporting high-temperature liquids
High-efficiency, energy-saving design with low operating costs
Low noise and vibration; smooth and reliable operation
Easy maintenance and long service life
Multiple material options available to suit various fluid requirements

III. Application Scenarios

Industrial boiler feed water systems
High-temperature hot water circulation systems
Industrial cleaning equipment
Heat exchange systems
Other high-temperature liquid transport applications

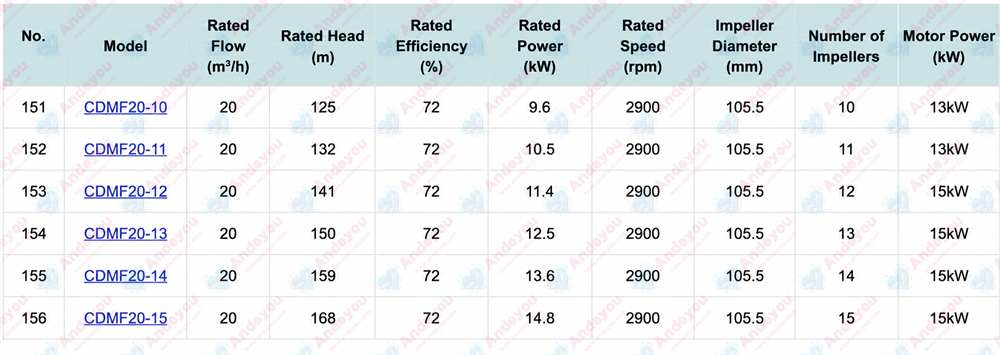

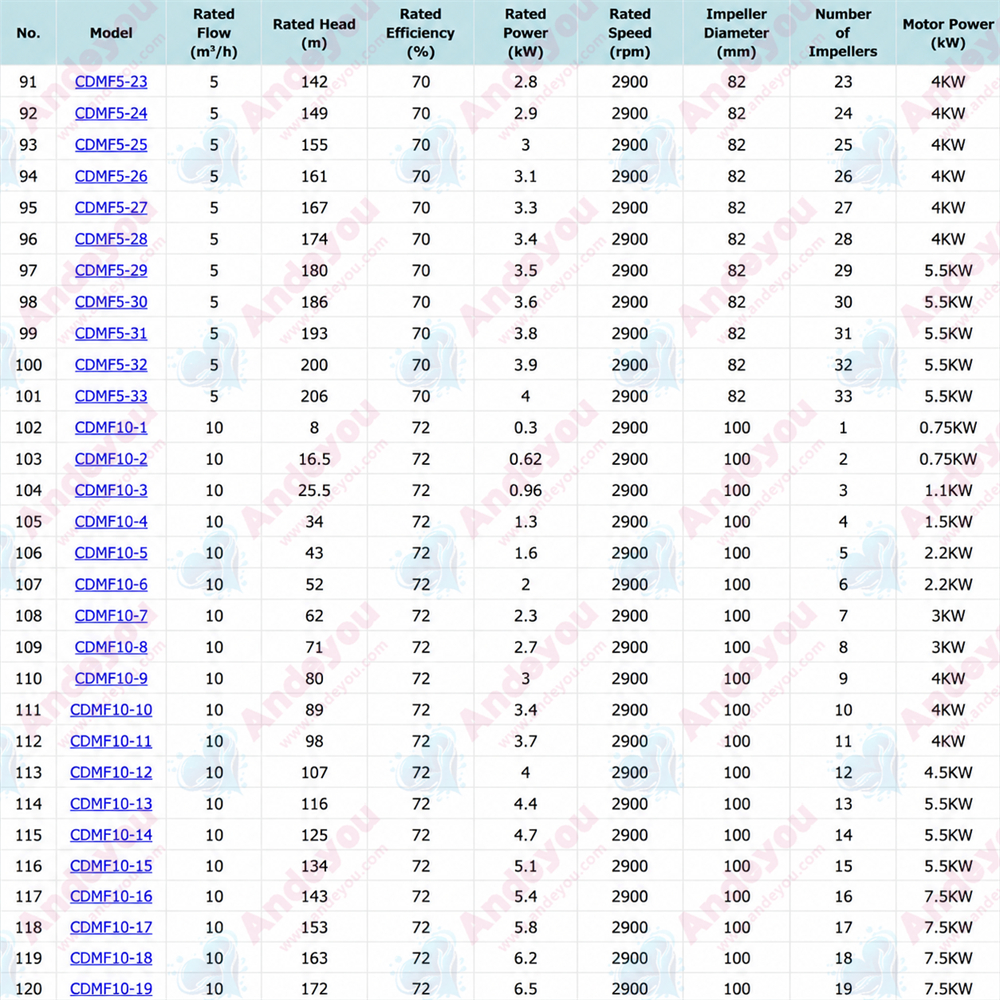

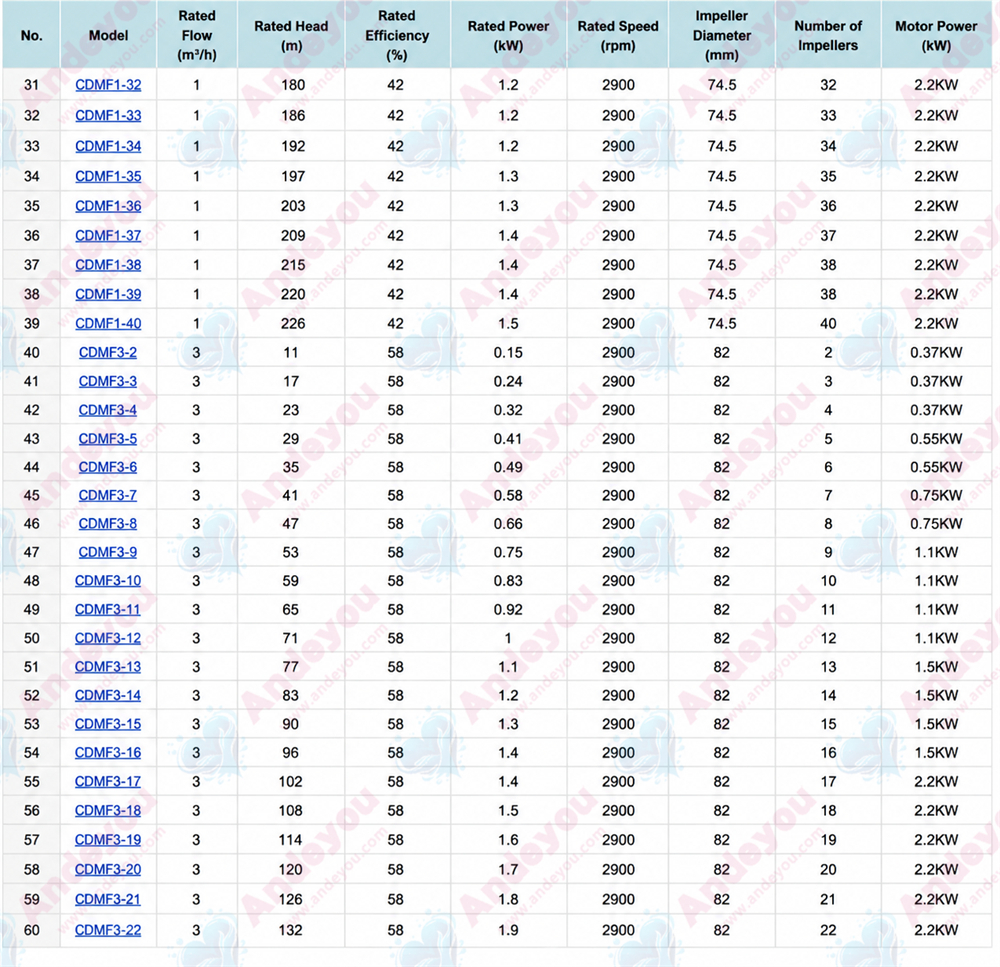

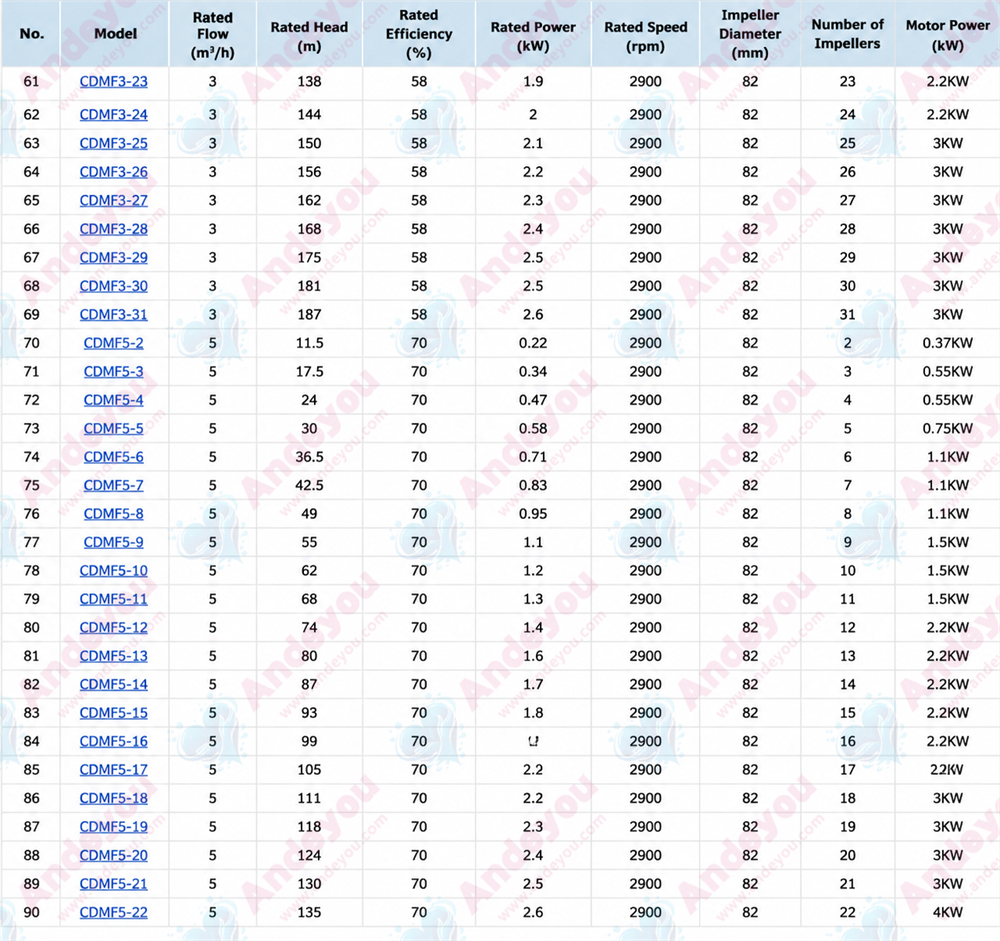

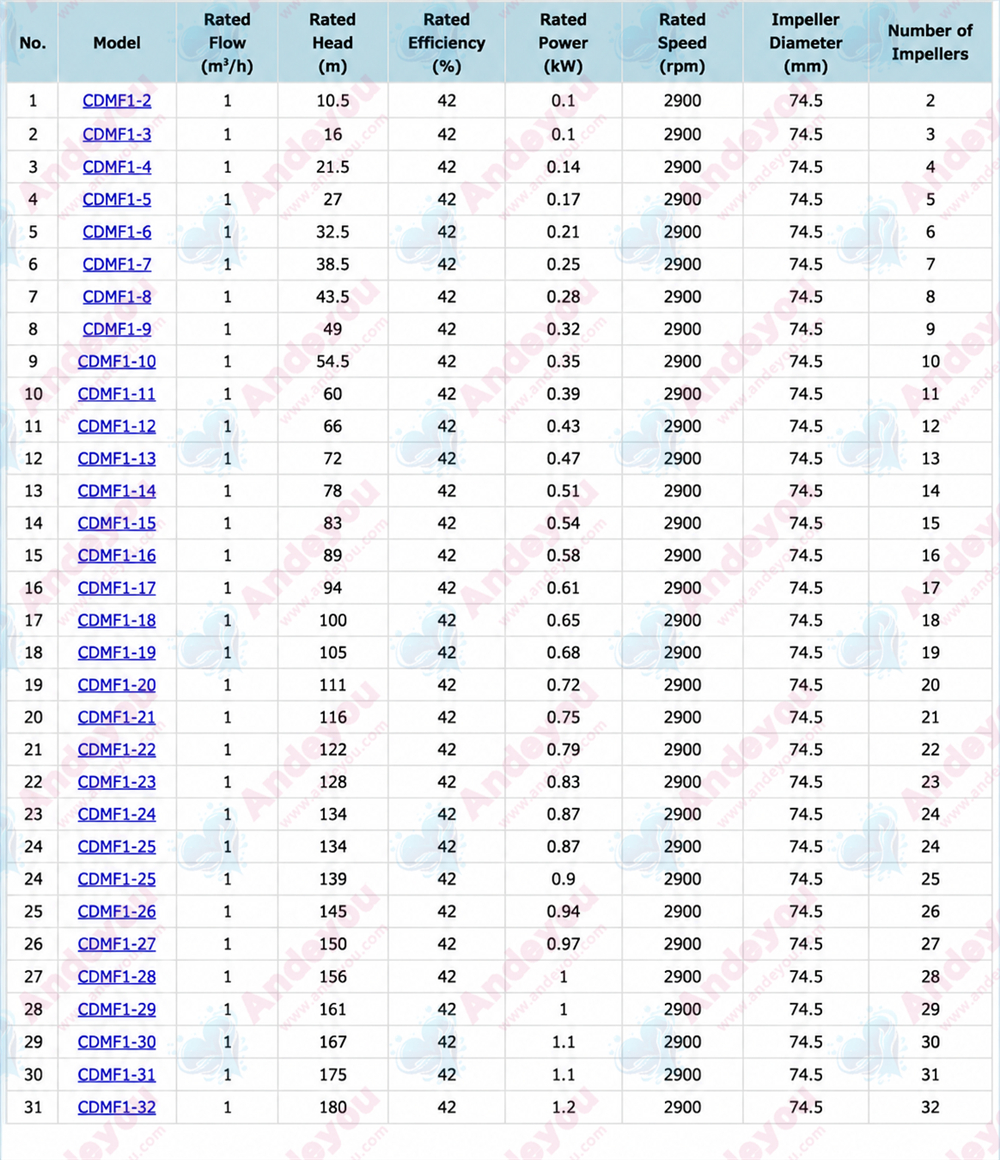

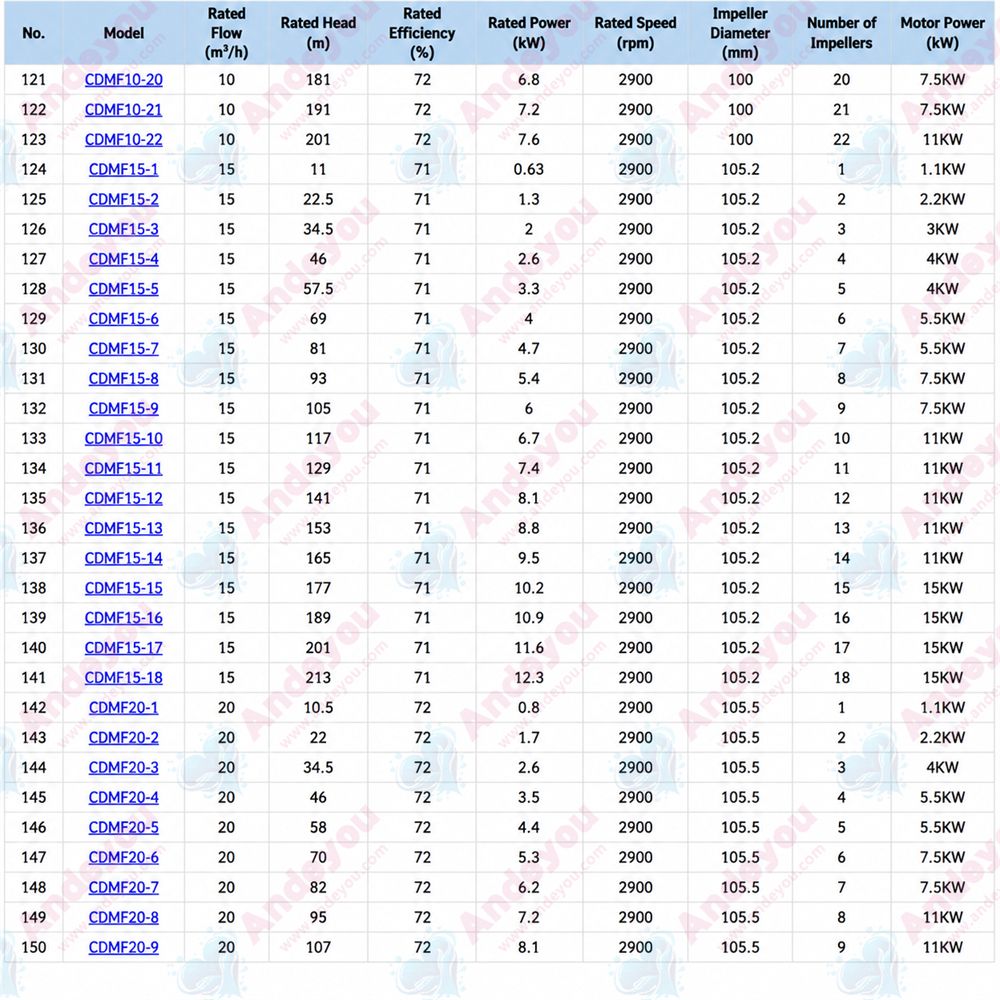

IV. Performance Parameters

Flow rate range: 1–100 m³/h
Head range: 10–300 m
Operating temperature: Up to 180°C
Working pressure: ≤2.5 MPa
Motor power: 0.75–75 kW

V. Operating Conditions

Medium temperature: -15°C to 180°C
Ambient temperature: ≤40°C
System pressure: ≤2.5 MPa
Medium pH value: 4–10
