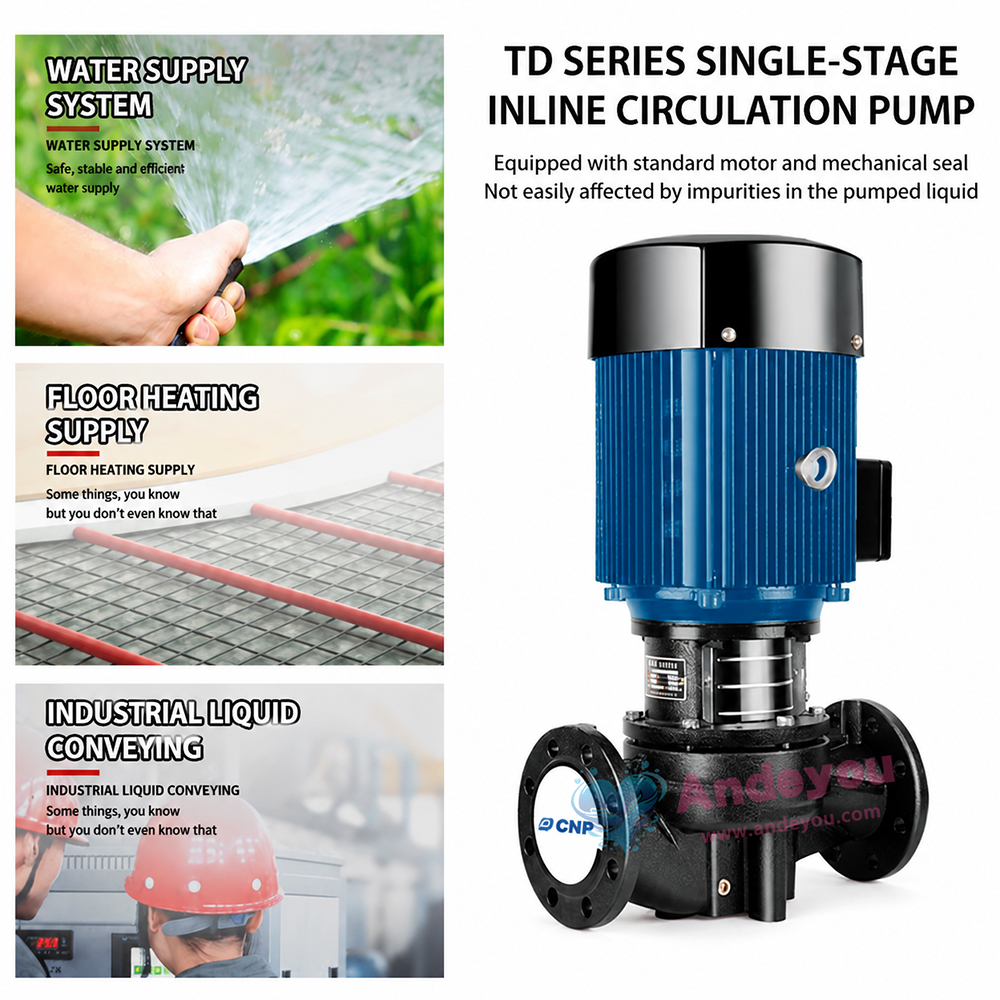

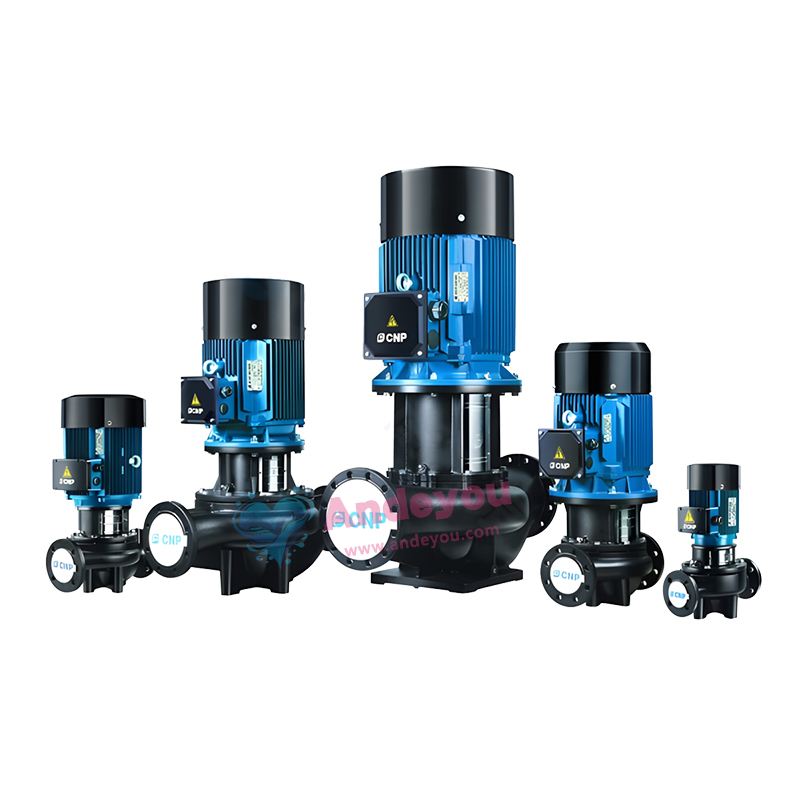

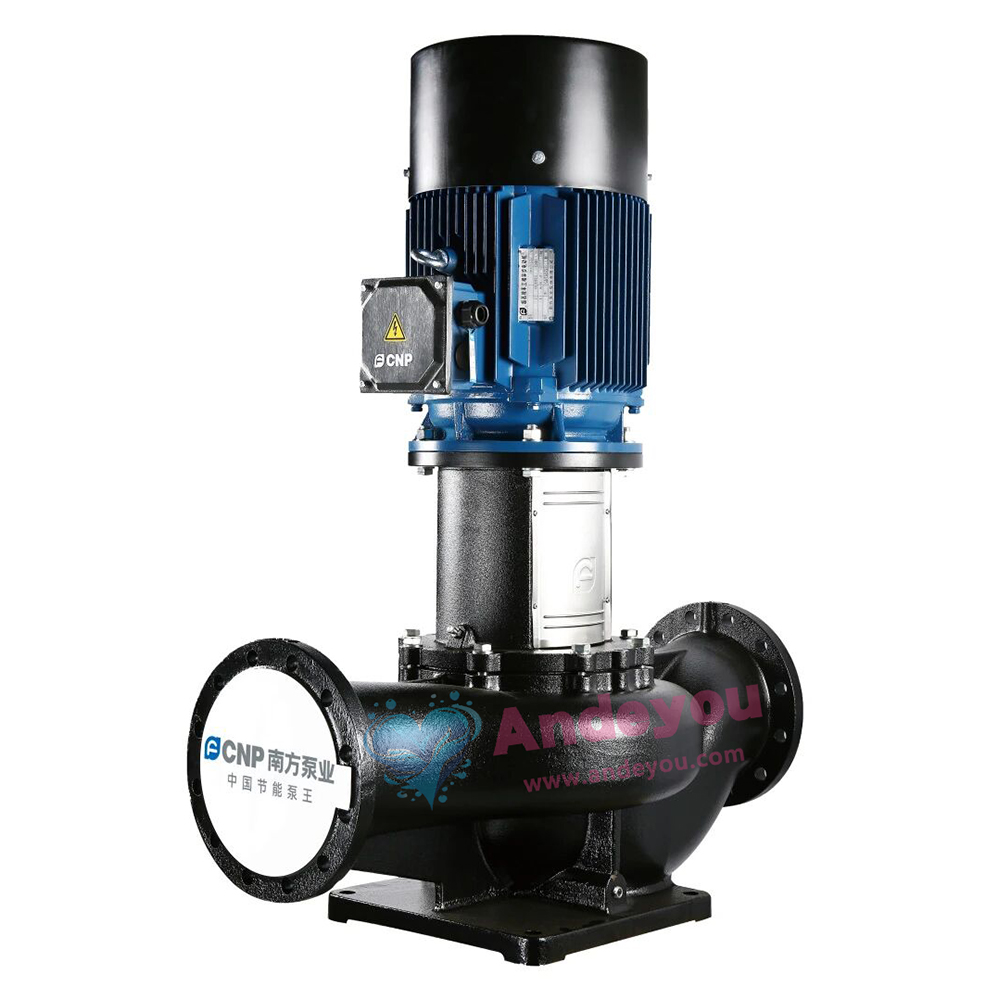

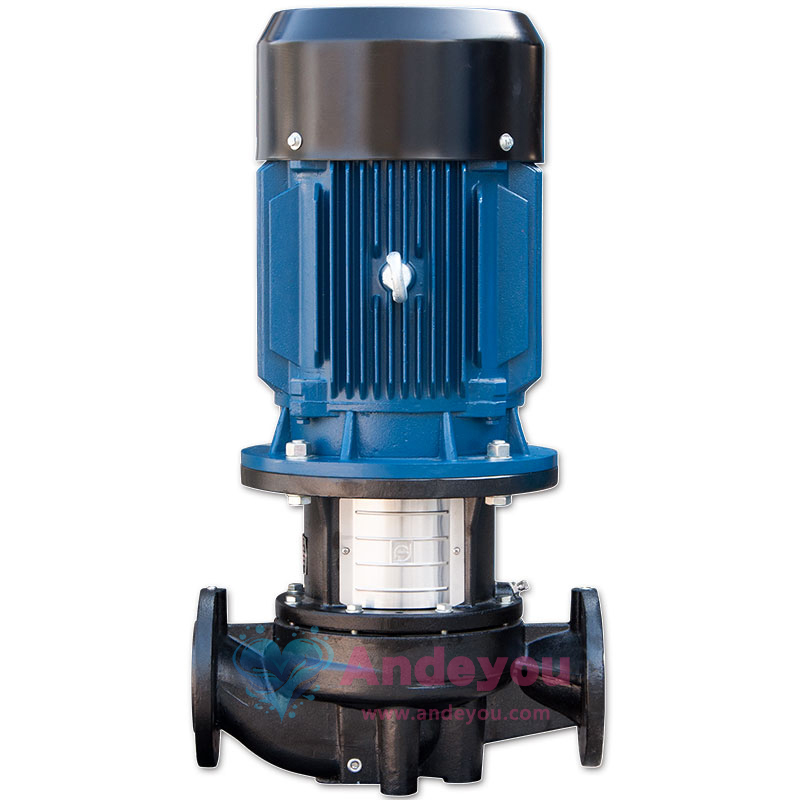

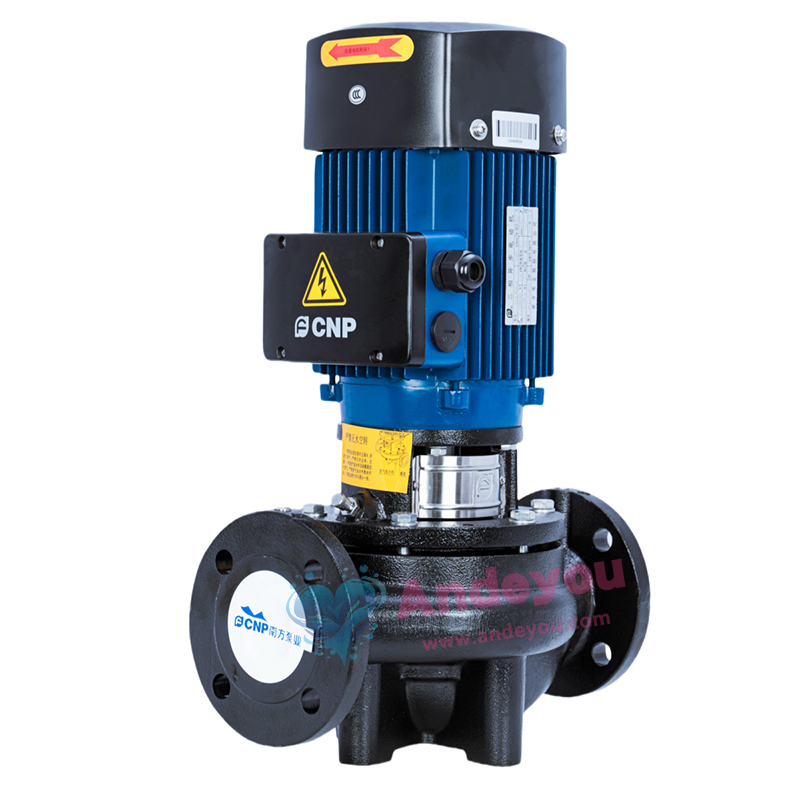

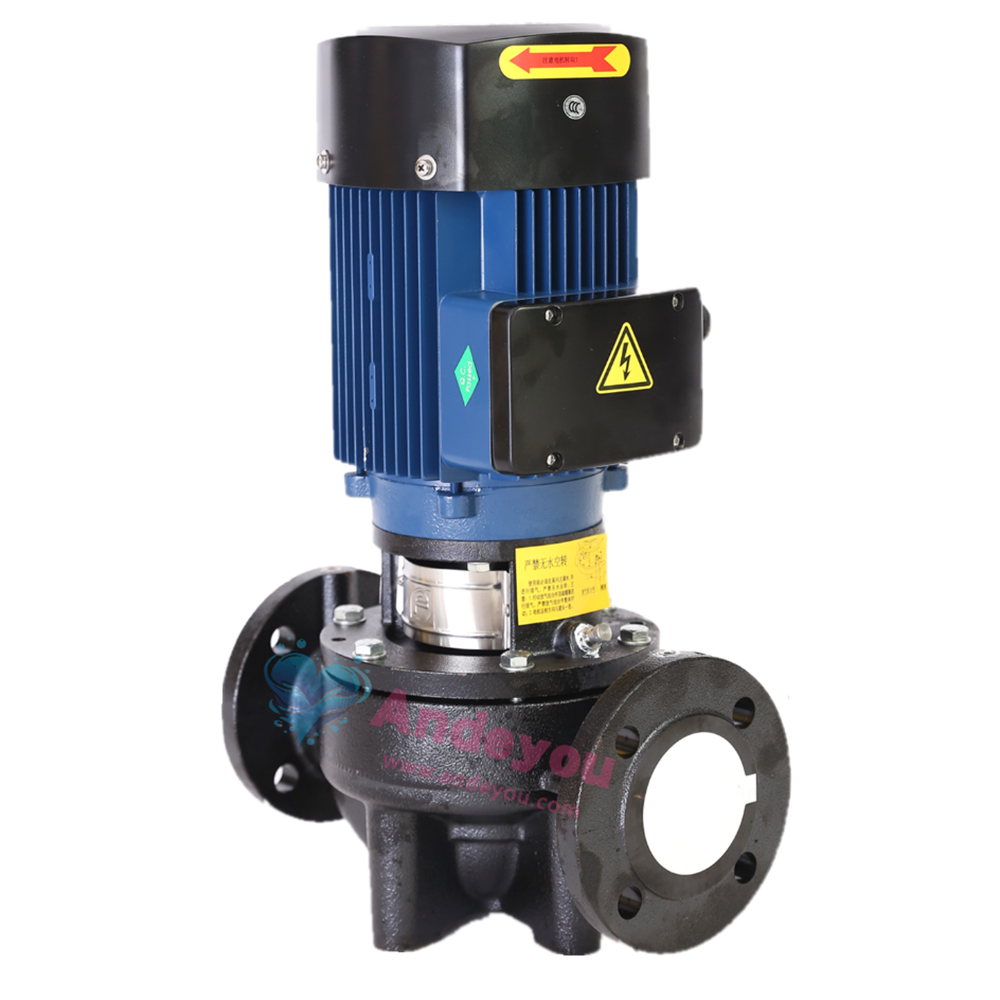

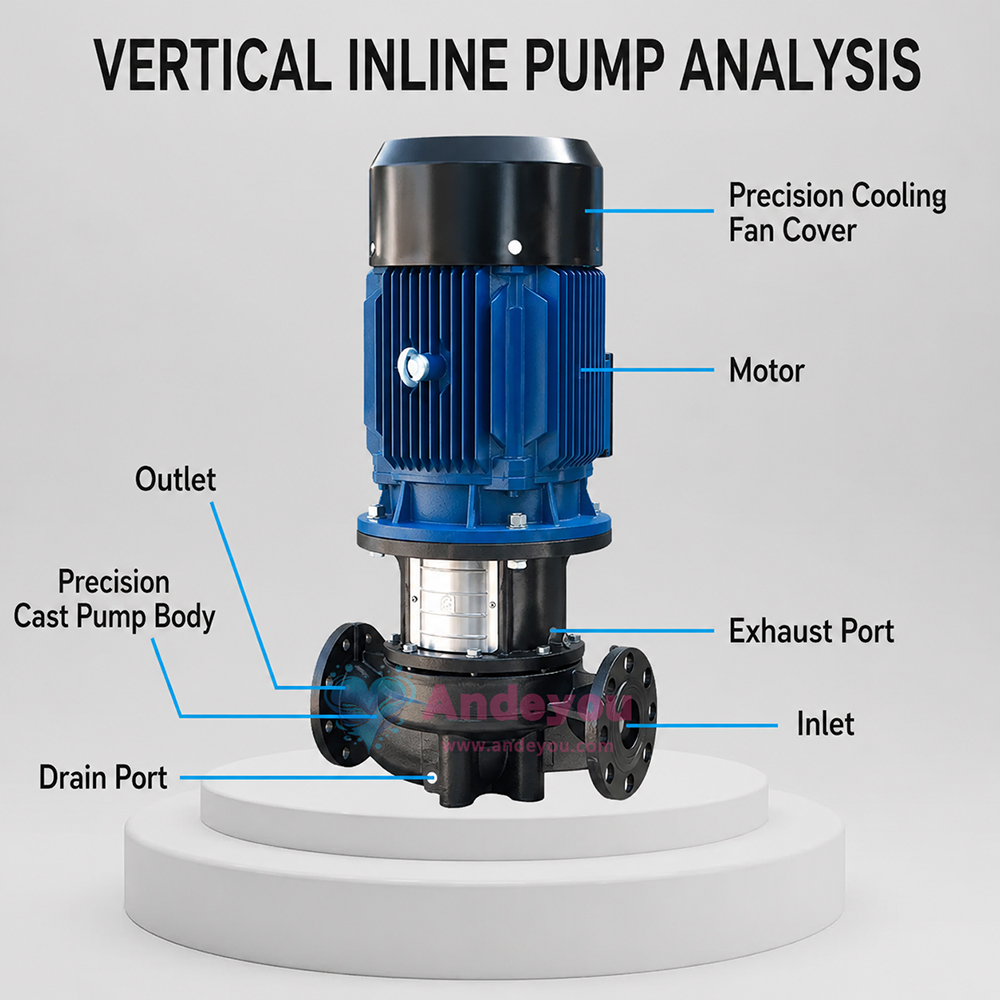

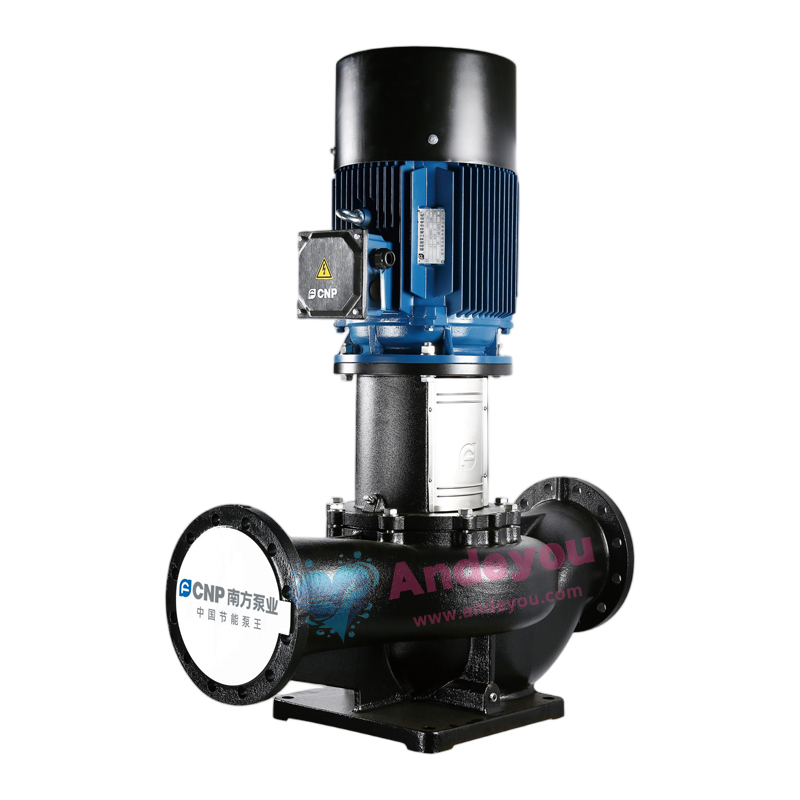

Nanfang TD Single-stage Vertical In-line Circulating Pump

TD32-18G/2、TD40-21G/2、TD40-30G/2、TD50-15G/2 TD50-18G/2 TD50-24G/2 TD50-28G/2 TD50-35G/2 TD50-40G/2 TD50-50G/2 TD50-60G/2 TD50-70G/2 TD50-81G/2 TD65-17.5/2 TD65-20G1/2 TD65-17/2 TD65-13.5/2 TD65-12/2 TD65-37G/2 TD65-48G/2 TD65-15G/2 TD65-20G/2 TD65-22G/2 TD65-30G/2 TD65-34G/2 TD65-41G/2 TD65-51G/2 TD65-61G/2 TD65-68G/2 TD65-85G/2 TD80-13G/2 TD80-18G/2 TD80-23G/2 TD80-29G/2 TD80-41G/2 TD80-48G/2 TD80-32G/2 TD80-38G/2 TD80-47G/2 TD80-54G/2

As a professional supplier of CNP Nanfang TD single-stage vertical in-line circulation pumps,we offer high-quality,energy-efficient pumps suitable for sectors such as HVAC and industrial circulation systems.These pumps feature a compact vertical single-stage design,ensuring smooth,efficient operation alongside low noise levels and eco-friendly energy efficiency.We provide a comprehensive range of models with options for customized selection

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

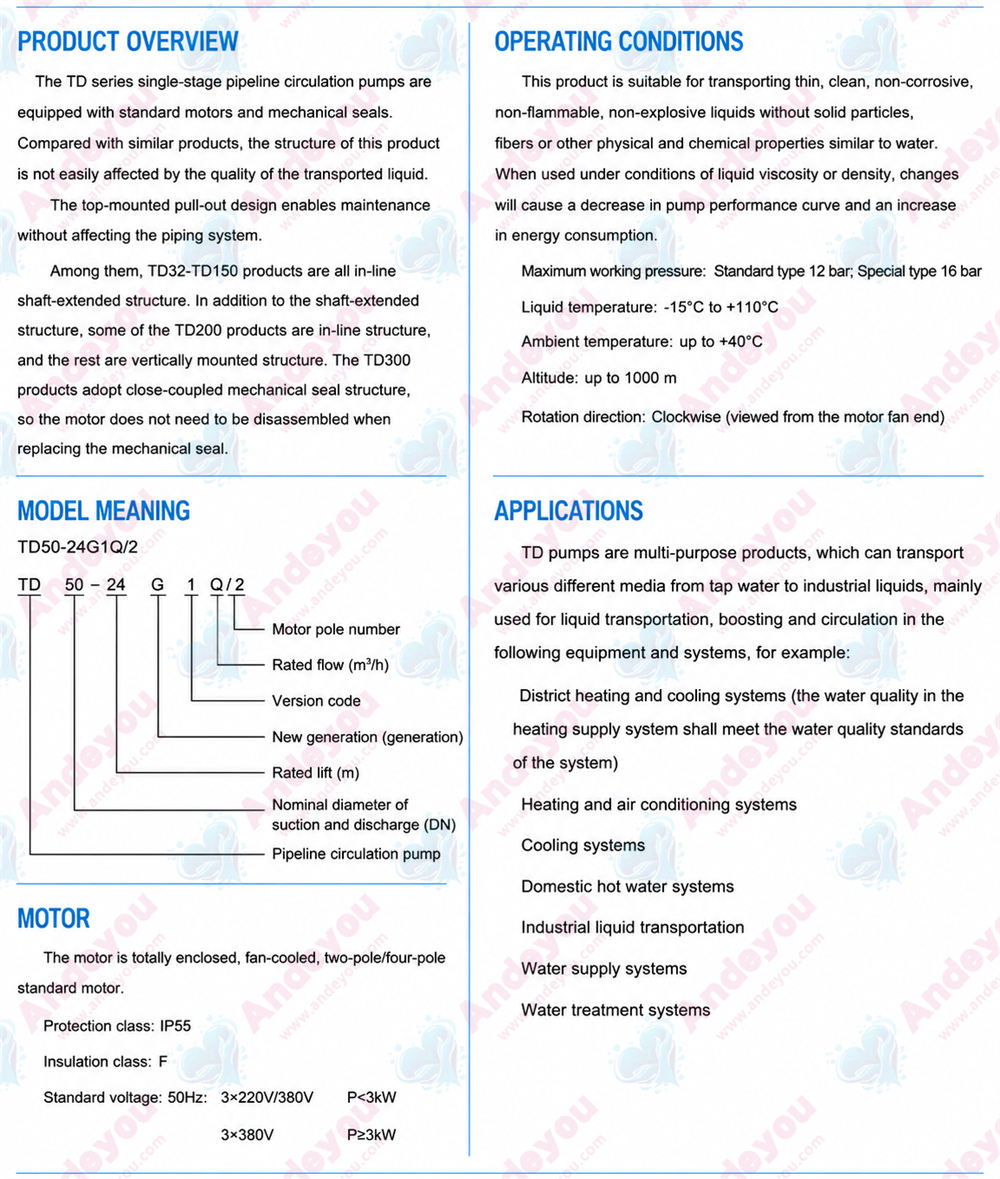

I. Product Overview

The CNP TD series single-stage vertical in-line circulation pump is a high-efficiency, energy-saving pump designed for applications such as HVAC systems, industrial circulation systems, and boiler feed water supply. It features a vertical single-stage structure, offering ease of installation and stable operation.

II. Key Features

1. High-Efficiency, Energy-Saving Design
Optimized hydraulic model increases efficiency by 10%–15% compared to standard pumps
Complies with national energy-saving certification standards

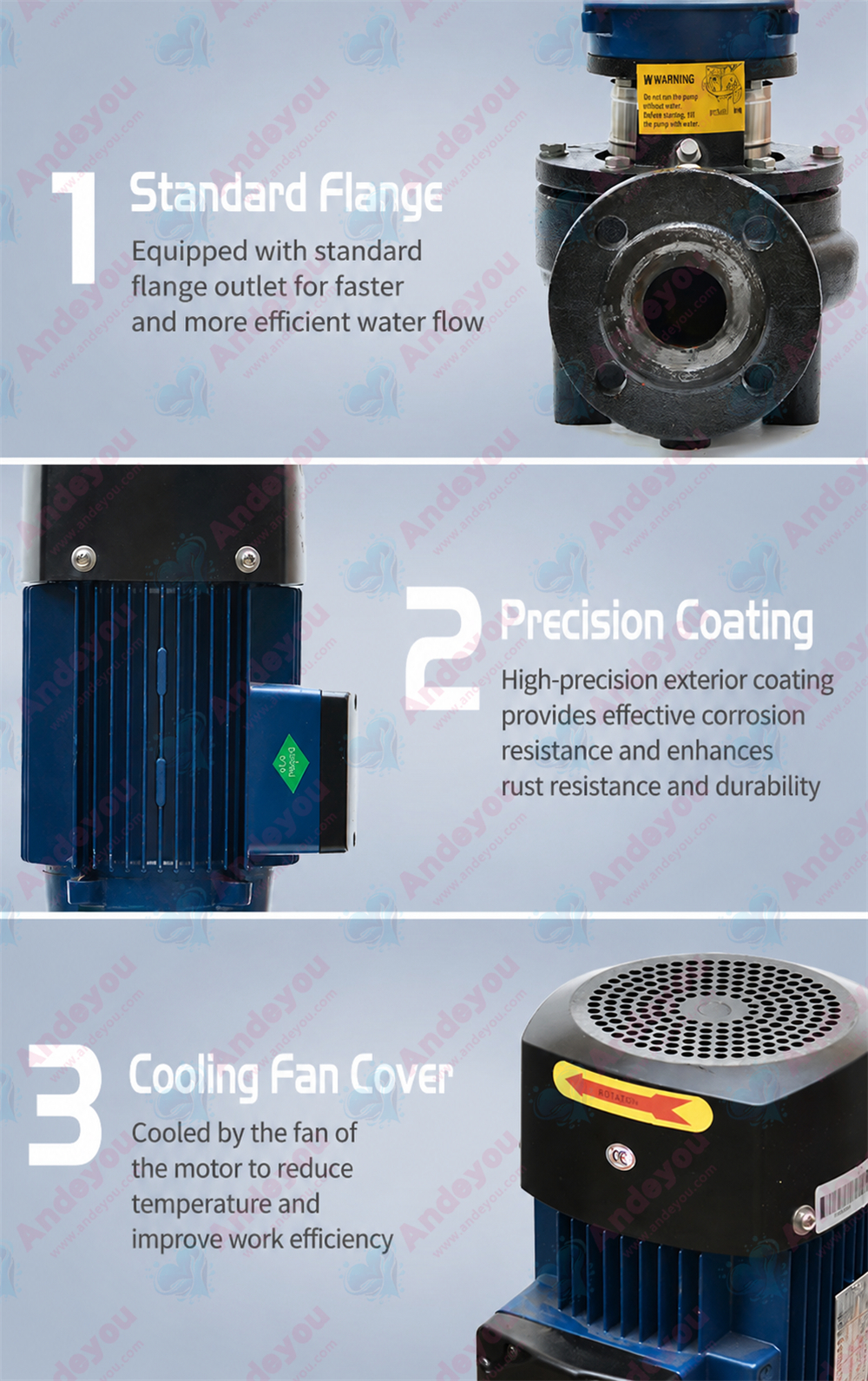

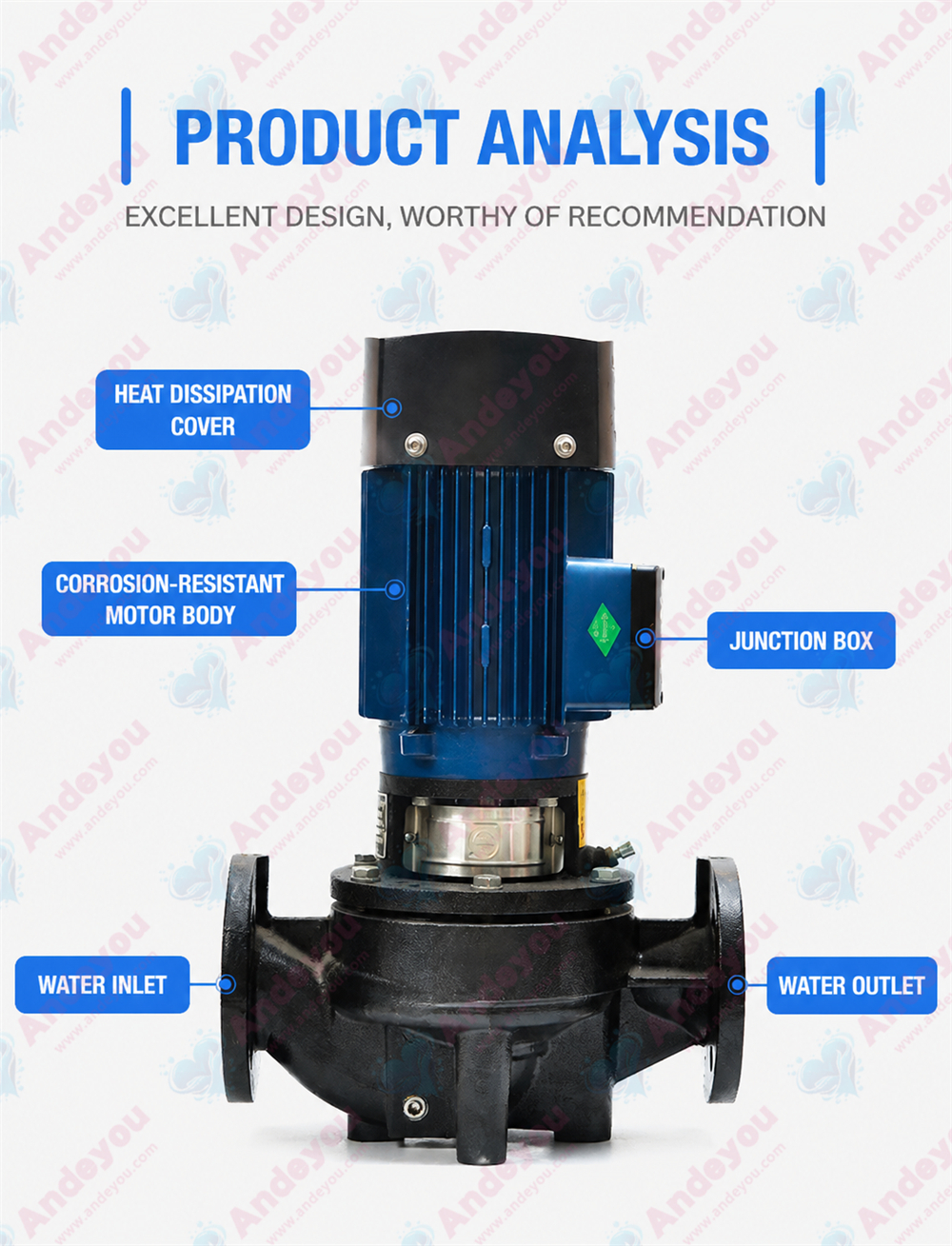

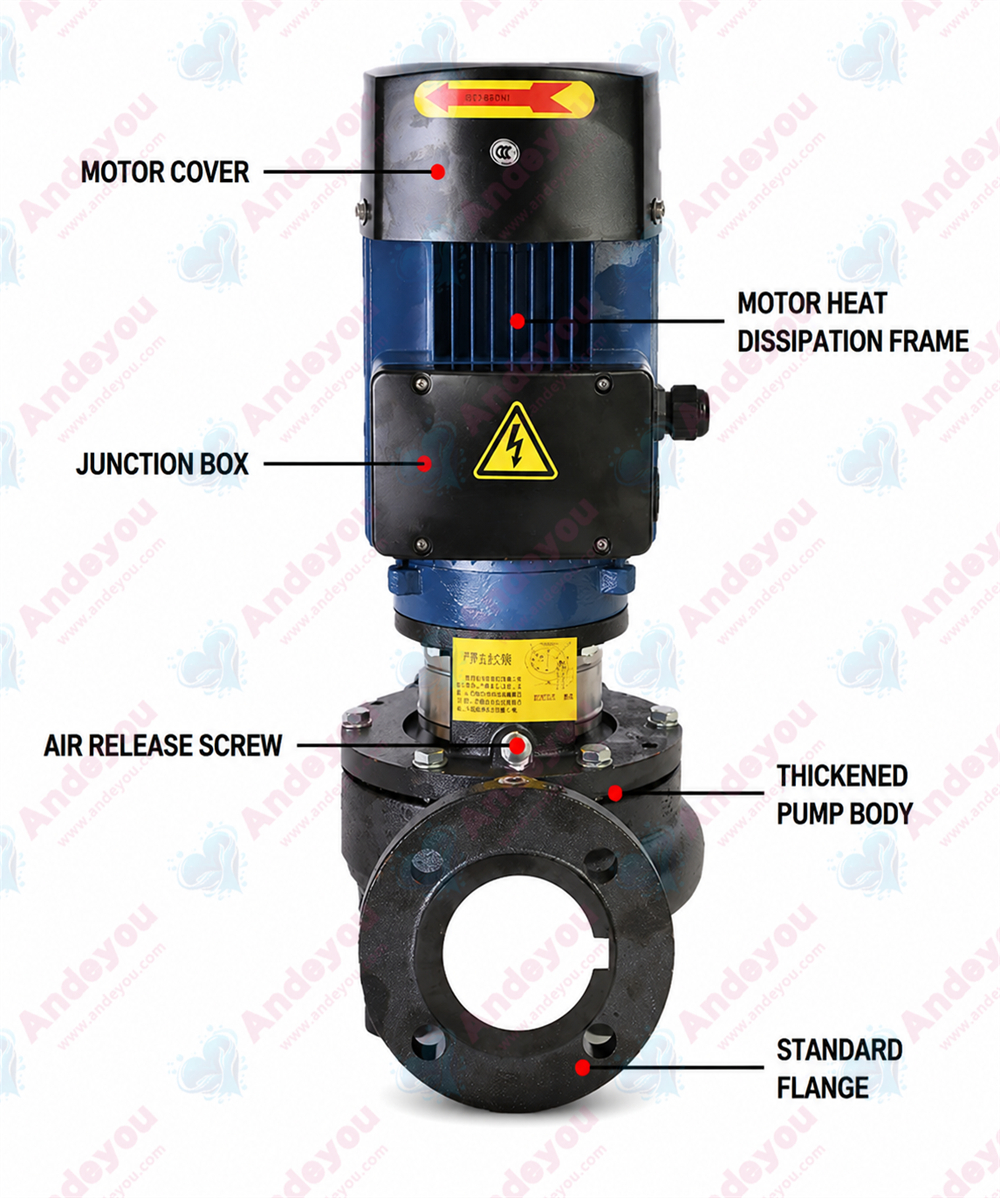

2. Compact Structure
Vertical in-line installation saves space
Direct-coupled motor and pump body design minimizes energy loss

3. Stable and Reliable Operation
Mechanical seal design ensures a leakage rate of less than 0.01 ml/h
Bearing service life exceeds 50,000 hours

4. Low-Noise Operation
Operating noise ≤ 65 dB(A)
Vibration-dampening base design

5. Wide Fluid Compatibility
Suitable for pumping clean water and liquids with similar physical and chemical properties
Operating temperature range: -15°C to +120°C

6. Smart Control Compatibility
Supports variable frequency speed control
Compatible with automated control systems

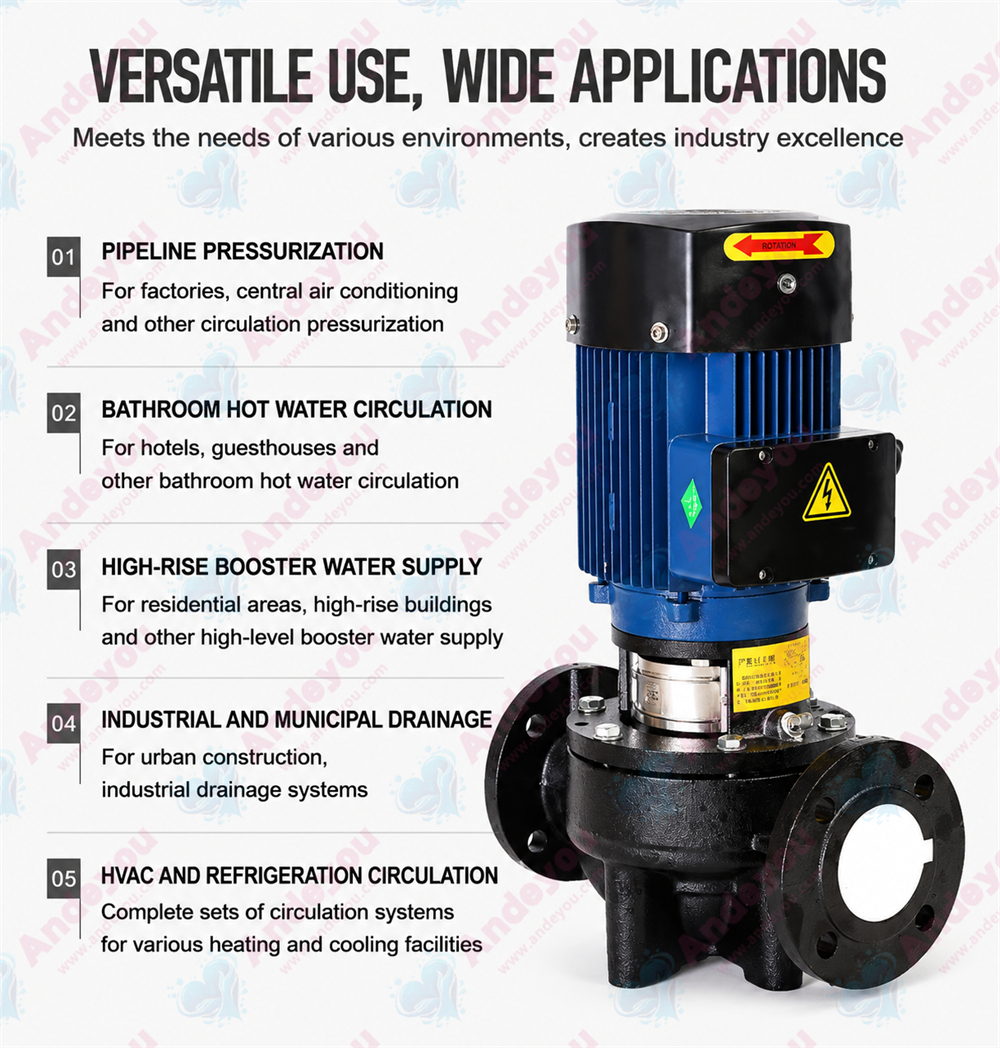

III. Typical Applications

Central air conditioning chilled/cooling water circulation
Heating system hot water circulation
Industrial process cooling systems
Boiler feed water and condensate recovery systems

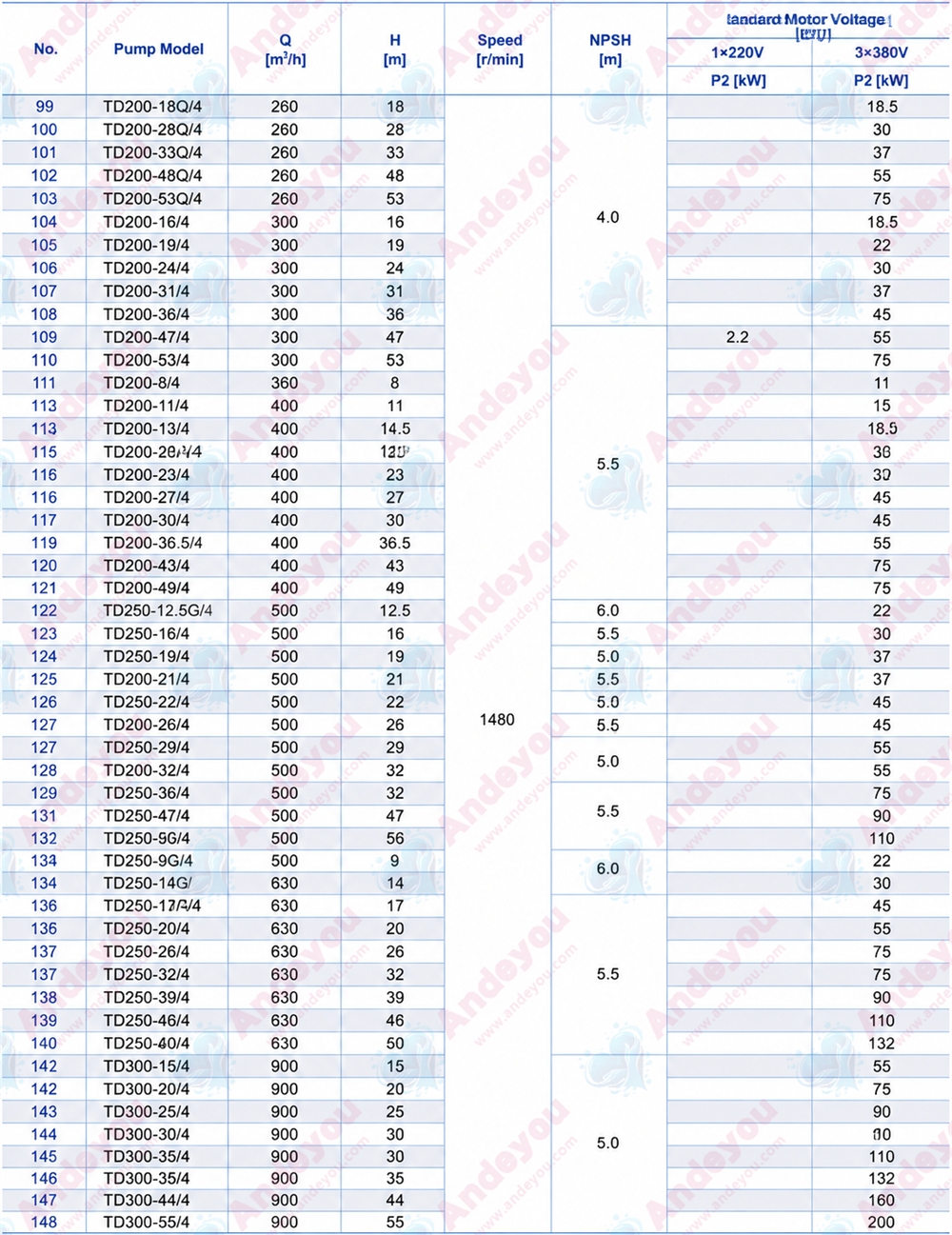

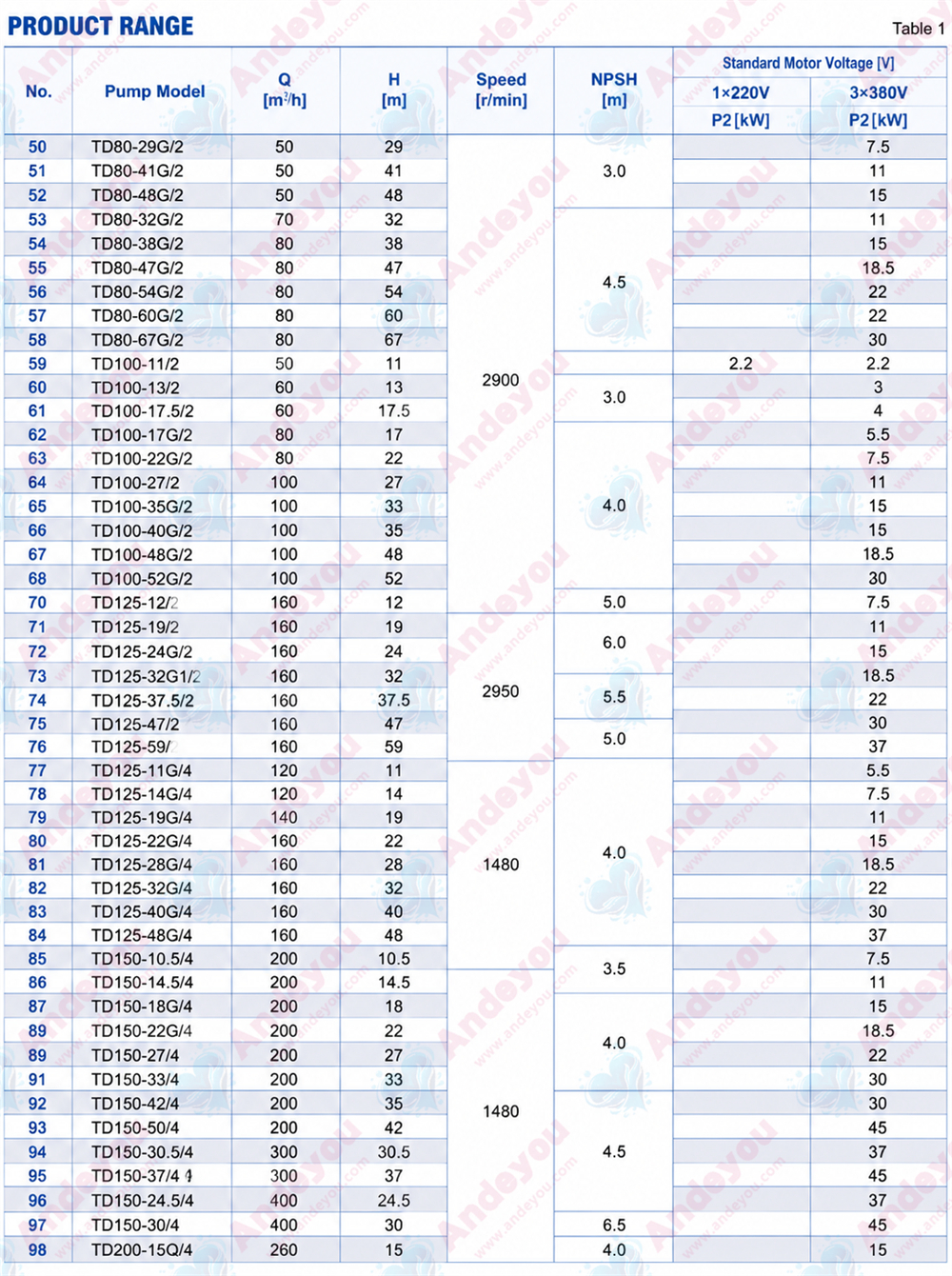

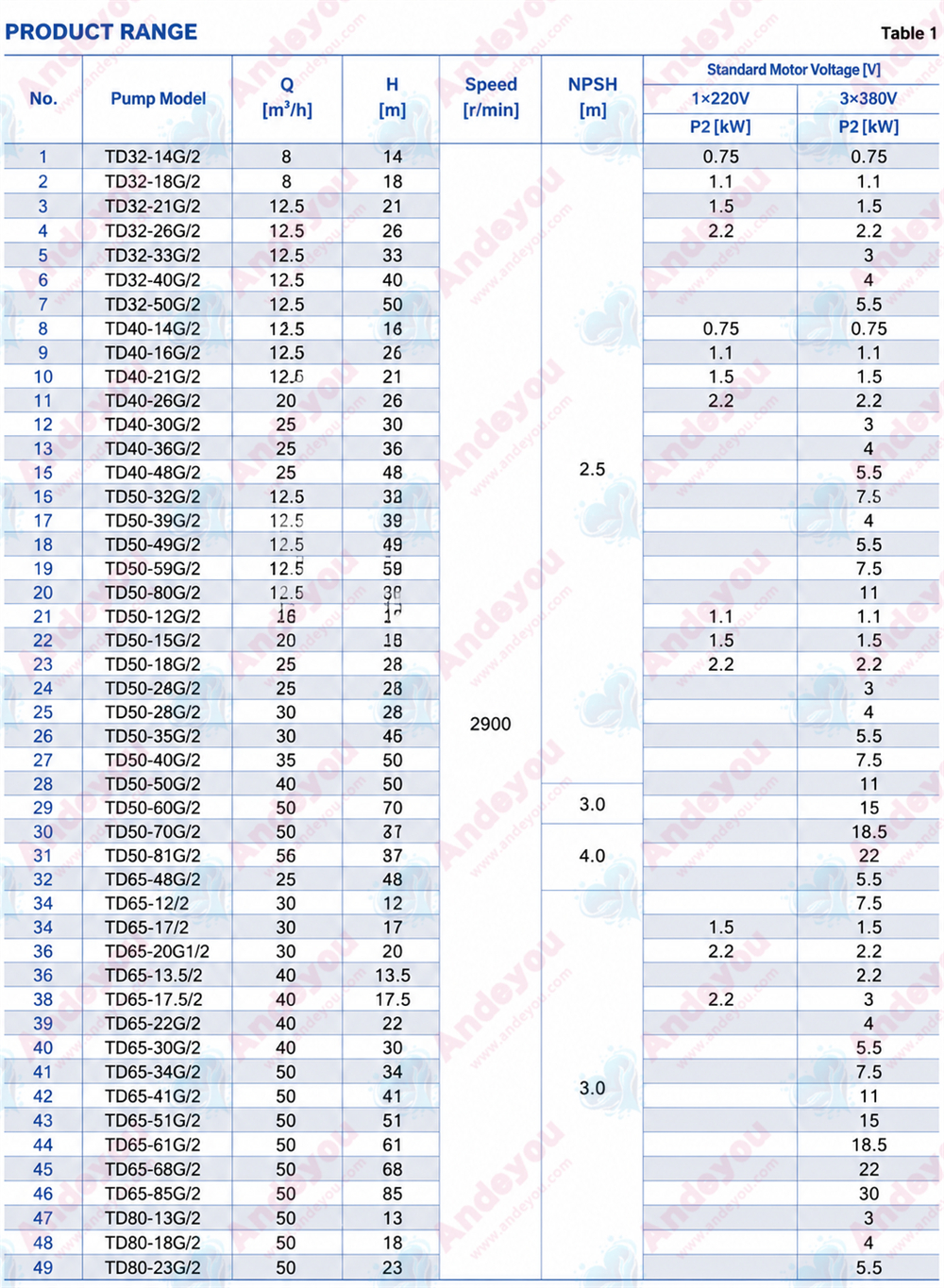

Parameters

model	Flow rate (m³/h)	Head (m)	Power (kW)	Rotational speed	caliber
TD32-14G/2	8	14	0.75	2900	32
TD32-18G/2	8	18	1.1	2900	32
TD32-21G/2	12.5	21	1.5	2900	32
TD32-26G/2	12.5	26	2.2	2900	32
TD32-33G/2	12.5	33	3	2900	32
TD32-40G/2	12.5	40	4	2900	32
TD32-50G/2	12.5	50	5.5	2900	32
TD40-14G/2	8	14	0.75	2900	40
TD40-16G/2	12.5	16	1.1	2900	40
TD40-21G/2	12.5	21	1.5	2900	40
TD40-20G/2	20	20	2.2	2900	40
TD40-26G/2	20	26	3	2900	40
TD40-30G/2	25	30	4	2900	40
TD40-36G/2	25	36	5.5	2900	40
TD40-48G/2	25	48	7.5	2900	40
TD50-32G/2	12.5	32	3	2900	50
TD50-39G/2	12.5	39	4	2900	50
TD50-49G/2	12.5	49	5.5	2900	50
TD50-59G/2	12.5	59	7.5	2900	50
TD50-80G/2	12.5	80	11	2900	50
TD50-12G/2	16	12	1.1	2900	50
TD50-15G/2	20	15	1.5	2900	50
TD50-18G/2	25	18	2.2	2900	50
TD50-24G/2	25	24	3	2900	50
TD50-28G/2	30	28	4	2900	50
TD50-35G/2	30	35	5.5	2900	50
TD50-40G/2	35	40	7.5	2900	50
TD50-50G/2	40	50	11	2900	50
TD50-60G/2	50	60	15	2900	50
TD50-70G/2	50	70	18.5	2900	50
TD50-81G/2	50	81	22	2900	50
TD65-17.5/2	40	17.5	3	2900	65
TD65-20G1/2	30	20	3	2900	65
TD65-17/2	30	17	2.2	2900	65
TD65-13.5/2	40	13.5	2.2	2900	65
TD65-12/2	30	12	1.5	2900	65
TD65-37G/2	25	37	5.5	2900	65
TD65-48G/2	25	48	7.5	2900	65
TD65-15G/2	30	15	2.2	2900	65
TD65-20G/2	30	20	3	2900	65
TD65-22G/2	40	22	4	2900	65
TD65-30G/2	40	30	5.5	2900	65
TD65-34G/2	50	34	7.5	2900	65
TD65-41G/2	50	41	11	2900	65
TD65-51G/2	50	51	15	2900	65
TD65-61G/2	50	61	18.5	2900	65
TD65-68G/2	50	68	22	2900	65
TD65-85G/2	50	85	30	2900	65
TD80-13G/2	50	13	3	2900	80
TD80-18G/2	50	18	4	2900	80
TD80-23G/2	50	23	5.5	2900	80
TD80-29G/2	50	29	7.5	2900	80
TD80-41G/2	50	41	11	2900	80
TD80-48G/2	50	48	15	2900	80
TD80-32G/2	70	32	11	2900	80
TD80-38G/2	80	38	15	2900	80
TD80-47G/2	80	47	18.5	2900	80
TD80-54G/2	80	54	22	2900	80
TD80-60G/2	80	60	22	2900	80
TD80-67G/2	80	67	30	2900	80
TD100-17.5/2	60	17.5	4	2900	100
TD100-13/2	60	13	3	2900	100
TD100-11/2	50	11	2.2	2900	100
TD100-9/2	50	9	2.2	2900	100
TD100-15/2	60	15	4	2900	100
TD100-17G/2	80	17	5.5	2900	100
TD100-22G/2	80	22	7.5	2900	100
TD100-27/2	100	27	11	2900	100
TD100-33/2	100	33	15	2900	100
TD100-35G/2	100	35	15	2900	100
TD100-40G/2	100	40	18.5	2900	100
TD100-48G/2	100	48	22	2900	100
TD100-52G/2	130	52	30	2900	100
TD125-11G/4	120	11	5.5	1450	125
TD125-14G/4	120	14	7.5	1450	125
TD125-19G/4	140	19	11	1480	125
TD125-22G/4	160	22	15	1480	125
TD125-28G/4	160	28	18.5	1480	125
TD125-32G/4	160	32	22	1480	125
TD125-40G/4	160	40	30	1480	125
TD125-48G/4	160	48	37	1480	125
TD125-12/2	160	12	7.5	2950	DN125
TD125-19/2	160	19	11	2950	DN125
TD125-24G/2	160	24	15	2950	DN125
TD125-32G1/2	160	32	18.5	2950	DN125
TD125-37.5/2	160	37.5	22	2950	DN125
TD125-47/2	160	47	30	2950	DN125
TD125-59/2	160	59	37	2950	DN125
TD150-14.5/4	200	14.5	11	1480	150
TD150-10.5/4	200	10.5	7.5	1480	150
TD150-12.5G/4	200	12.5	11	1480	150
TD150-18G/4	200	18	15	1480	150
TD150-22G/4	200	22	18.5	1480	150
TD150-27/4	200	27	22	1480	150
TD150-33/4	200	33	30	1480	150
TD150-35/4	200	35	30	1480	150
TD150-42/4	200	42	37	1480	150
TD150-50/4	200	50	45	1480	150
TD150-30.5/4	300	30.5	37	1480	150
TD150-37/4	300	37	45	1480	150
TD150-24.5/4	400	24.5	37	1480	150
TD150-30/4	400	30	45	1480	150
TD200-13/4	400	13	18.5	1480	200
TD200-11/4	400	11	15	1480	200
TD200-8/4	360	8	11	1480	200
TD200-15Q/4	260	15	15	1480	200
TD200-18Q/4	260	18	18.5	1480	200
TD200-28Q/4	260	28	30	1480	200
TD200-33Q/4	260	33	37	1480	200
TD200-48Q/4	260	48	55	1480	200
TD200-53Q/4	260	53	75	1480	200
TD200-16/4	300	16	18.5	1480	200
TD200-19/4	300	19	22	1480	200
TD200-24/4	300	24	30	1480	200
TD200-31/4	300	31	37	1480	200
TD200-36/4	300	36	45	1480	200
TD200-47/4	300	47	55	1480	200
TD200-53/4	300	53	75	1480	200
TD200-14.5/4	400	14.5	22	1480	200
TD200-20/4	400	20	30	1480	200
TD200-23/4	400	23	37	1480	200
TD200-27/4	400	27	45	1480	200
TD200-30/4	400	30	45	1480	200
TD200-36.5/4	400	36.5	55	1480	200
TD200-43/4	400	43	75	1480	200
TD200-49/4	400	49	75	1480	200
TD200-21/4	500	21	37	1480	200
TD200-26/4	500	26	45	1480	200
TD200-32/4	500	32	55	1480	200
TD250-14G/4	630	14	30	1480	250
TD250-12.5G/4	500	12.5	22	1480	250
TD250-9G/4	630	9	22	1480	250
TD250-16/4	500	16	30	1480	250
TD250-19/4	500	19	37	1480	250
TD250-22/4	500	22	45	1480	250
TD250-29/4	500	29	55	1480	250
TD250-36/4	500	36	75	1480	250
TD250-47/4	500	47	90	1480	250
TD250-56/4	500	56	110	1480	250
TD250-12.5/4	630	12.5	30	1480	250
TD250-14/4	630	14	37	1480	250
TD250-17/4	630	17	45	1480	250
TD250-20/4	630	20	55	1480	250
TD250-26/4	630	26	75	1480	250
TD250-32/4	630	32	75	1480	250
TD250-39/4	630	39	90	1480	250
TD250-46/4	630	46	110	1480	250
TD250-50/4	630	50	132	1480	250
TD300-15/4	900	15	55	1480	300
TD300-20/4	900	20	75	1480	300
TD300-25/4	900	25	90	1480	300
TD300-30/4	900	30	110	1480	300
TD300-35/4	900	35	132	1480	300
TD300-44/4	900	44	160	1480	300
TD300-55/4	900	55	200	1480	300
