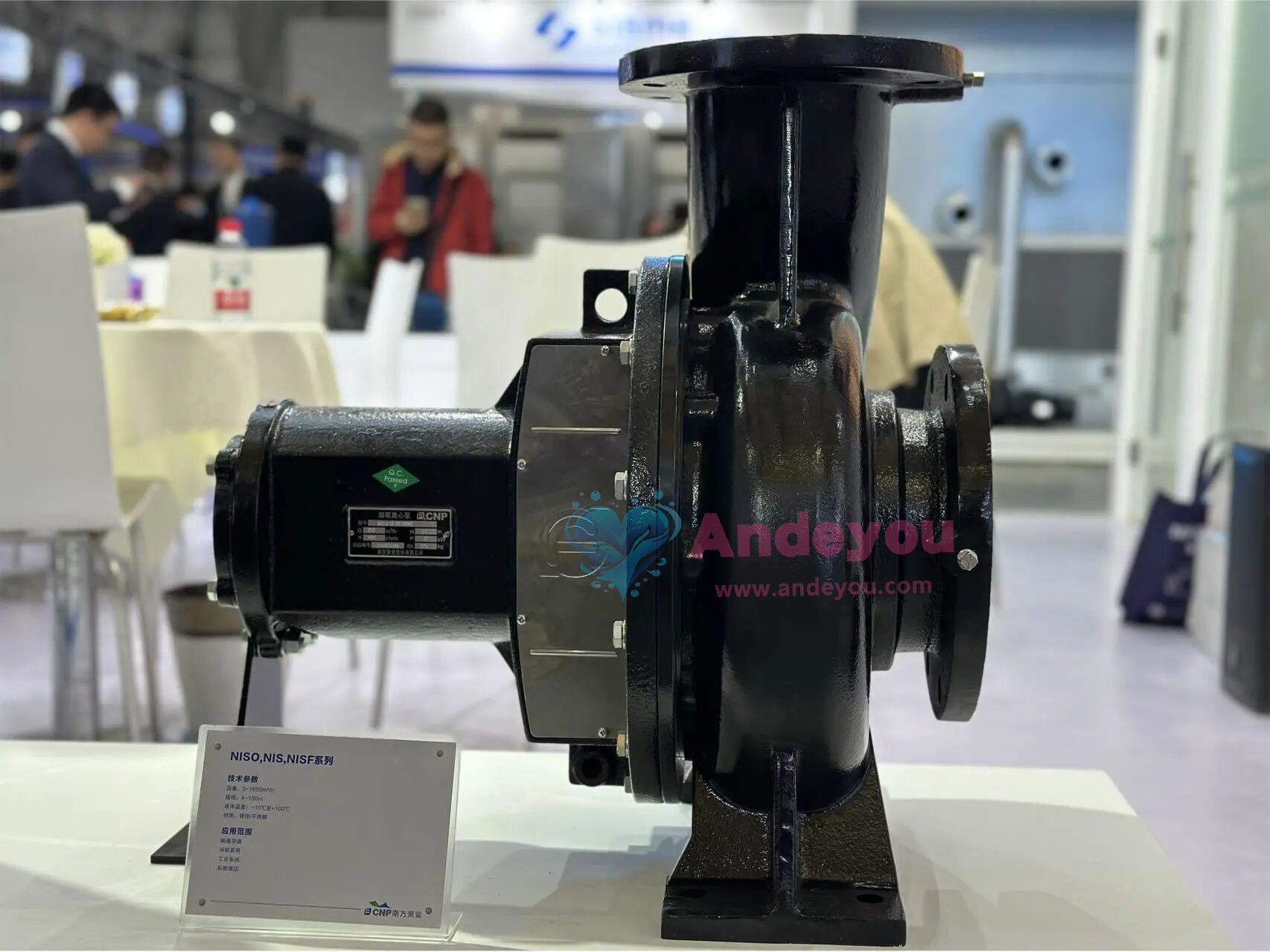

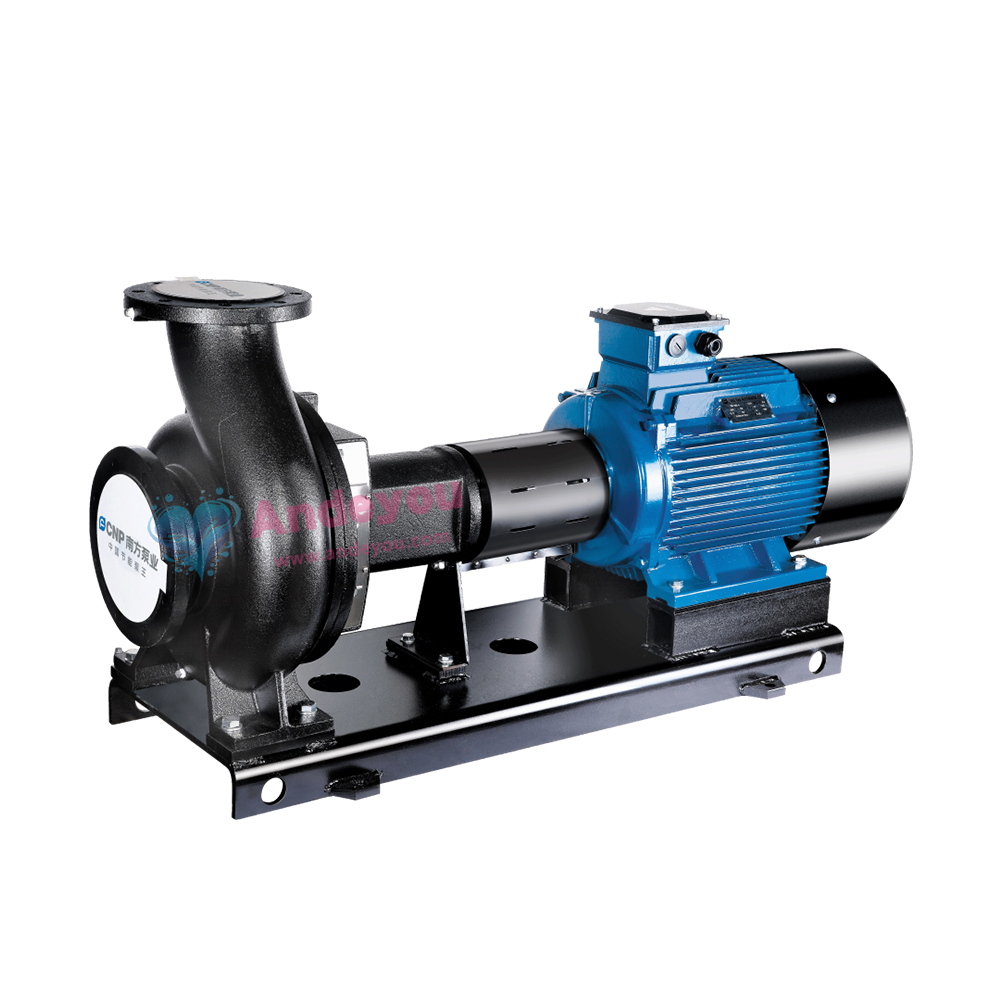

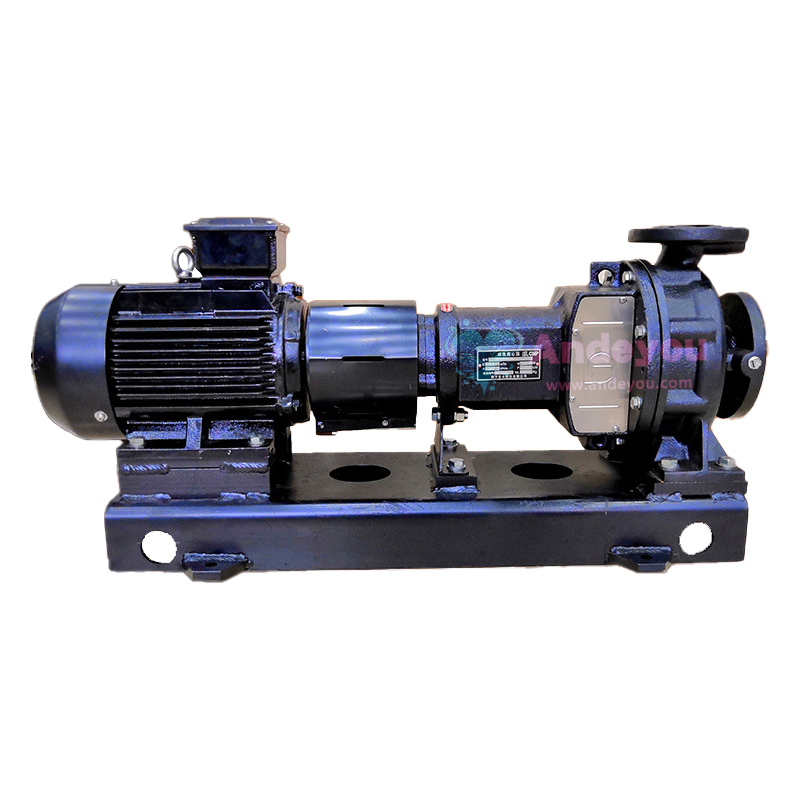

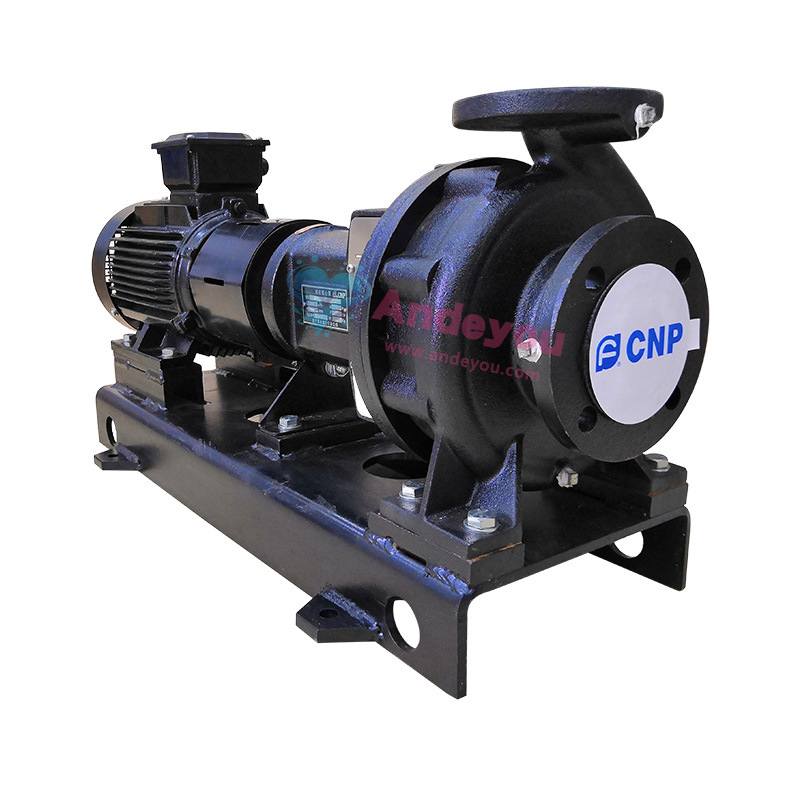

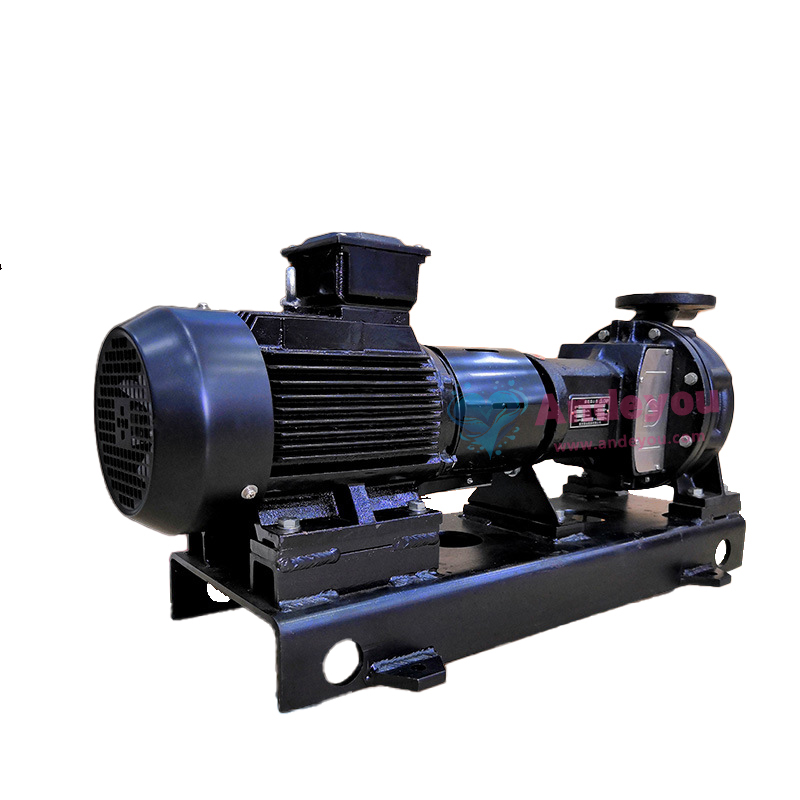

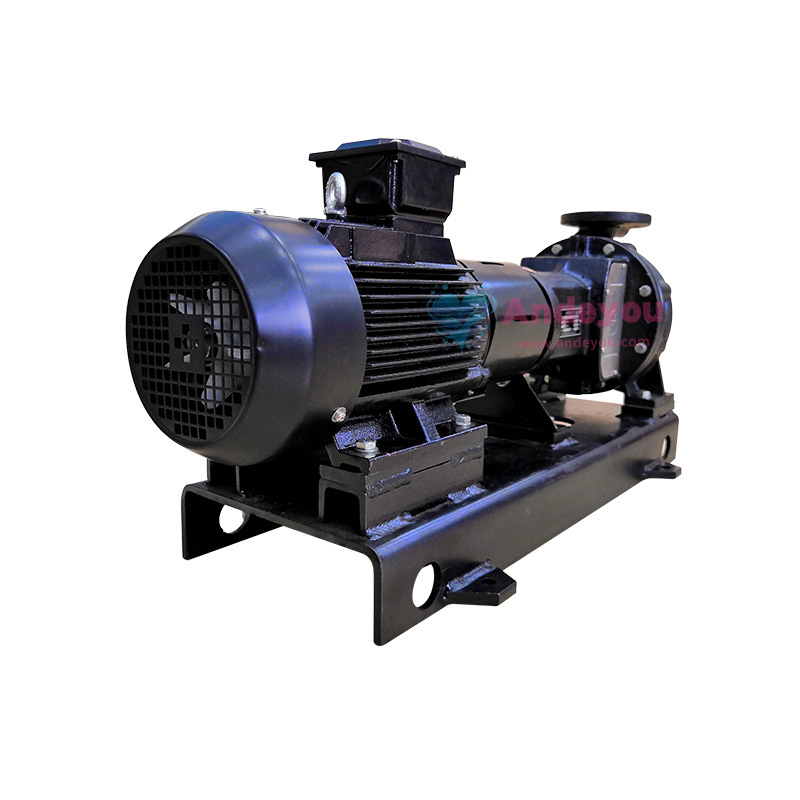

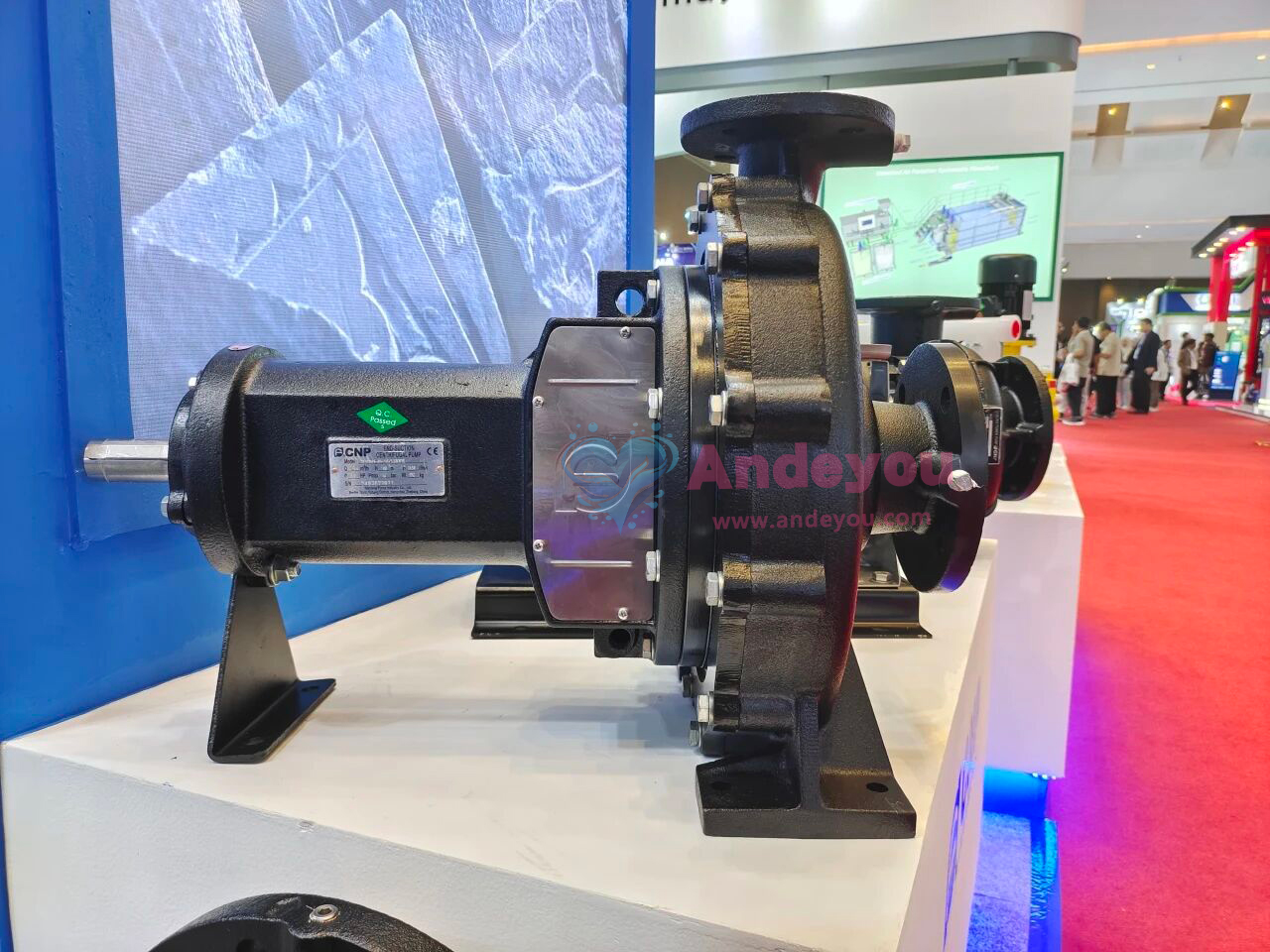

Nanfang NISO Single-Stage End-Suction Horizontal Pipeline Centrifugal Pump (Split-Coupled)

NISO50-32-160/0.55 NISO50-32-160/0.75 NISO50-32-160/3 NISO50-32-160/4 NISO50-32-160/5.5 NISO50-32-160G/2.2 NISO50-32-160G/3 NISO50-32-200/1.1 NISO50-32-200/1.5 NISO50-32-200/7.5 NISO50-32-200/11 NISO65-40-200/1.1 NISO65-40-200/1.5 NISO65-40-200/2.2 NISO65-40-200/7.5 NISO65-40-200/11 NISO65-40-200/15 NISO65-40-250/3 NISO65-40-250/18.5 NISO65-40-250/22

The CNP NISO series is a single-stage,end-suction,horizontal centrifugal pump (back-pull-out design) constructed from 304 or 316L stainless steel.Compliant with the ISO5199 standard,it is specifically designed for industries with stringent hygiene requirements,such as chemical processing,food production,and pharmaceuticals.Its back-pull-out structure facilitates easy maintenance.With a flow rate range of 5–2000 m³/h and a head of up to 125 meters
Product Consultation By telephone
Function
Parameters
Size
Video Introduction

Function

I. Pump Structure

Split Design: Separated pump body and motor structure, facilitating maintenance and component replacement.
Stainless Steel Material: Cast from 304/316L stainless steel; offers high corrosion resistance and suitability for sanitary-grade environments.
Mechanical Seal: Standard double-face mechanical seal (cartridge-style seal optional); provides excellent leak prevention.

II. Product Features

High Efficiency & Energy Saving: Optimized hydraulic model meeting GB/T13007 standards; offers over 15% energy savings compared to standard pumps.
Low-Noise Operation: ≤75dB(A); vibration reduced through dynamic balancing.
Wide Operating Range: Supports medium temperatures from -20°C to 120°C; allows for short-term dry-running protection.

III. Performance Parameters

Flow Rate Range: 5–2000 m³/h
Head Range: Up to 125 meters
Port Size Range: DN32–DN300
Pressure Rating: 1.6 MPa (2.5 MPa customization available)

IV. Application Scenarios

Chemical Industry: Transport of acid/alkali solutions and organic solvents.
Food & Pharmaceutical: CIP cleaning systems, aseptic fluid transfer.
HVAC Systems: Chilled water circulation, district heating.
Environmental Engineering: Wastewater treatment, seawater desalination pre-treatment.

V. Operating Conditions

Medium Requirements: No solid particles (solids content ≤0.1%), viscosity ≤50 mm²/s.
Ambient Temperature: -15°C to 40°C; humidity ≤95%.
Power Supply: 380V/50Hz (customizable to 660V or 60Hz).

Parameters

model Flow rate (m³/h) Head (m) Power (kW) Rotational speed caliber
NISO50-32-160/0.55 6.3 8.5 0.55 1450 50×32
NISO50-32-160/0.75 6.3 11 0.75 1450 50×32
NISO50-32-160/3 12.5 28 3 2900 50×32
NISO50-32-160/4 12.5 36 4 2900 50×32
NISO50-32-160/5.5 12.5 44 5.5 2900 50×32
NISO50-32-160G/2.2 12.5 34 2.2 2900 50×32
NISO50-32-160G/3 12.5 38 3 2900 50×32
NISO50-32-200/1.1 6.3 14 1.1 1450 50×32
NISO50-32-200/1.5 6.3 18 1.5 1450 50×32
NISO50-32-200/7.5 12.5 55 7.5 2900 50×32
NISO50-32-200/11 12.5 74 11 2950 50×32
NISO65-40-200/1.1 12.5 12 1.1 1450 65×40
NISO65-40-200/1.5 12.5 15 1.5 1450 65×40
NISO65-40-200/2.2 12.5 17.5 2.2 1450 65×40
NISO65-40-200/7.5 25 48 7.5 2900 65×40
NISO65-40-200/11 25 62 11 2950 65×40
NISO65-40-200/15 25 72 15 2950 65×40
NISO65-40-250/3 12.5 25 3 1450 65×40
NISO65-40-250/18.5 25 84 18.5 2950 65×40
NISO65-40-250/22 25 95 22 2950 65×40
NISO65-40-250/30 25 105 30 2950 65×40
NISO65-40-315/4 12.5 34 4 1450 65×40
NISO65-40-315/5.5 12.5 40 5.5 1450 65×40
NISO65-40-315/22 25 105 22 2950 65×40
NISO65-40-315/30 25 120 30 2950 65×40
NISO65-40-315/37 25 145 37 2950 65×40
NISO65-40-315/45 25 165 45 2950 65×40
NISO65-50-160/0.55 12.5 7 0.55 1450 65×50
NISO65-50-160/0.75 12.5 9 0.75 1450 65×50
NISO65-50-160/1.1 12.5 10.5 1.1 1450 65×50
NISO65-50-160/4 25 28 4 2900 65×50
NISO65-50-160/5.5 25 36 5.5 2900 65×50
NISO65-50-160/7.5 25 42 7.5 2900 65×50
NISO65-50-160G/3 25 27 3 2900 65×50
NISO65-50-160G/4 25 35 4 2900 65×50
NISO80-50-200/1.5 25 11 1.5 1450 80×50
NISO80-50-200/2.2 25 15 2.2 1450 80×50
NISO80-50-200/3 25 17.5 3 1450 80×50
NISO80-50-200/11 50 44 11 2950 80×50
NISO80-50-200/15 50 57 15 2950 80×50
NISO80-50-200/18.5 50 64 18.5 2950 80×50
NISO80-50-200/22 50 71 22 2950 80×50
NISO80-50-250/4 25 21 4 1450 80×50
NISO80-50-250/5.5 25 25 5.5 1450 80×50
NISO80-50-250/30 50 84 30 2950 80×50
NISO80-50-250/37 50 100 37 2950 80×50
NISO80-50-315/5.5 25 30 5.5 1450 80×50
NISO80-50-315/7.5 25 37 7.5 1450 80×50
NISO80-50-315/37 50 105 37 2950 80×50
NISO80-50-315/45 50 125 45 2950 80×50
NISO80-50-315/55 50 140 55 2950 80×50
NISO80-50-315/75 50 152 75 2950 80×50
NISO80-65-160/0.75 25 6 0.75 1450 80×65
NISO80-65-160/1.1 25 8 1.1 1450 80×65
NISO80-65-160/1.5 25 10.5 1.5 1450 80×65
NISO80-65-160/5.5 50 22 5.5 2900 80×65
NISO80-65-160/7.5 50 29 7.5 2900 80×65
NISO80-65-160/11 50 38 11 2950 80×65
NISO80-65-160/15 50 44 15 2950 80×65
NISO80-65-160G/5.5 50 28 5.5 2900 80×65
NISO80-65-160G/7.5 50 34 7.5 2900 80×65
NISO100-65-200/3 50 11.5 3 1450 100×65
NISO100-65-200/4 50 14 4 1450 100×65
NISO100-65-200/5.5 50 16 5.5 1450 100×65
NISO100-65-200/18.5 100 36 18.5 2950 100×65
NISO100-65-200/22 100 43 22 2950 100×65
NISO100-65-200/30 100 56 30 2950 100×65
NISO100-65-200/37 100 67 37 2950 100×65
NISO100-65-200G/18.5 100 42 18.5 2950 100×65
NISO100-65-200G/22 100 51 22 2950 100×65
NISO100-65-200G/30 100 67 30 2950 100×65
NISO100-65-200G/37 100 80 37 2950 100×65
NISO100-65-200G/3 50 13 3 1450 100×65
NISO100-65-200G/4 50 17.5 4 1450 100×65
NISO100-65-250/5.5 50 20 5.5 1450 100×65
NISO100-65-250/7.5 50 25 7.5 1450 100×65
NISO100-65-250/45 100 80 45 2950 100×65
NISO100-65-250/55 100 88 55 2950 100×65
NISO100-65-250/75 100 108 75 2950 100×65
NISO100-65-250G/45 100 103 45 2950 100×65
NISO100-65-250G/5.5 50 24 5.5 1450 100×65
NISO100-65-250G/55 100 116 55 2950 100×65
NISO100-65-250G/7.5 50 28 7.5 1450 100×65
NISO100-65-315/11 50 32 11 1480 100×65
NISO100-65-315/15 50 40 15 1480 100×65
NISO100-65-315/90 100 128 90 2950 100×65
NISO100-65-315/110 100 148 110 2950 100×65
NISO100-65-315G/11 50 40 11 1480 100×65
NISO100-65-315G/15 50 45 15 1480 100×65
NISO100-65-315G/75 100 140 75 2950 100×65
NISO100-65-315G/90 100 160 90 2950 100×65
NISO100-80-160/1.5 50 6.5 1.5 1450 100×80
NISO100-80-160/2.2 50 9 2.2 1450 100×80
NISO100-80-160/3 50 10.5 3 1450 100×80
NISO100-80-160/11 100 23 11 2950 100×80
NISO100-80-160/15 100 30 15 2950 100×80
NISO100-80-160/18.5 100 35 18.5 2950 100×80
NISO100-80-160/22 100 40 22 2950 100×80
NISO125-80-400/15 50 39 15 1480 125×80
NISO125-80-400/18.5 50 45 18.5 1480 125×80
NISO125-80-400/22 50 50 22 1480 125×80
NISO125-80-400/30 50 60 30 1480 125×80
NISO125-80-400/37 50 67 37 1480 125×80
NISO125-100-200/4 100 9 4 1450 125×100
NISO125-100-200/5.5 100 11.5 5.5 1450 125×100
NISO125-100-200/7.5 100 14 7.5 1450 125×100
NISO125-100-200/11 100 16.5 11 1480 125×100
NISO125-100-200/30 200 34 30 2950 125×100
NISO125-100-200/37 200 41 37 2950 125×100
NISO125-100-200/45 200 48 45 2950 125×100
NISO125-100-200/55 200 55 55 2950 125×100
NISO125-100-200/75 200 66 75 2950 125×100
NISO125-100-200(Q)/30 160 43 30 2950 125×100
NISO125-100-200(Q)/37 160 52 37 2950 125×100
NISO125-100-200G/30 200 35 30 2950 125×100
NISO125-100-200G/37 200 45 37 2950 125×100
NISO125-100-200G/45 200 54 45 2950 125×100
NISO125-100-200G/4 100 9.5 4 1450 125×100
NISO125-100-200G/5.5 100 13 5.5 1450 125×100
NISO125-100-200G/55 200 68 55 2950 125×100
NISO125-100-200G/7.5 100 18 7.5 1450 125×100
NISO125-100-200G/75 200 74 75 2950 125×100
NISO125-100-250/15 100 25 15 1480 125×100
NISO125-100-250/75 200 75 75 2950 125×100
NISO125-100-250/90 200 86 90 2950 125×100
NISO125-100-250/110 200 100 110 2950 125×100
NISO125-100-250G/11 100 25 11 1480 125×100
NISO125-100-250G/75 200 86 75 2950 125×100
NISO125-100-250G/90 200 102 90 2950 125×100
NISO125-100-315/11 100 23 11 1480 125×100
NISO125-100-315/18.5 100 32 18.5 1480 125×100
NISO125-100-315/22 100 36 22 1480 125×100
NISO125-100-315/30 100 40 30 1480 125×100
NISO125-100-315/90 200 93 90 2950 125×100
NISO125-100-315/110 200 108 110 2950 125×100
NISO125-100-315/132 200 124 132 2950 125×100
NISO125-100-315/160 200 144 160 2950 125×100
NISO125-100-315G/110 200 128 110 2950 125×100
NISO125-100-315G/132 200 150 132 2950 125×100
NISO125-100-315G/15 100 33 15 1480 125×100
NISO125-100-315G/160 200 160 160 2950 125×100
NISO125-100-315G/18.5 100 40 18.5 1480 125×100
NISO125-100-400/30 100 50 30 1480 125×100
NISO125-100-400/37 100 58 37 1480 125×100
NISO125-100-400/45 100 65 45 1480 125×100
NISO125-100-400G/30 100 55 30 1480 125×100
NISO125-100-400G/37 100 68 37 1480 125×100
NISO125-100-400G/45 100 72 45 1480 125×100
NISO150-125-250/11 200 12.5 11 1480 150×125
NISO150-125-250/15 200 16 15 1480 150×125
NISO150-125-250/18.5 200 20 18.5 1480 150×125
NISO150-125-250/22 200 24 22 1480 150×125
NISO150-125-250G/15 200 18 15 1480 150×125
NISO150-125-250G/18.5 200 23 18.5 1480 150×125
NISO150-125-250G/22 200 27 22 1480 150×125
NISO150-125-315/30 200 32 30 1480 150×125
NISO150-125-315/37 200 39 37 1480 150×125
NISO150-125-315(Q)/22 160 32 22 1480 150×125
NISO150-125-315(Q)/30 160 43 30 1480 150×125
NISO150-125-315G/30 200 36 30 1480 150×125
NISO150-125-315G/37 200 42 37 1480 150×125
NISO150-125-400/45 200 50 45 1480 150×125
NISO150-125-400/55 200 57 55 1480 150×125
NISO150-125-400/75 200 68 75 1480 150×125
NISO150-125-400(Q)/37 160 50 37 1480 150×125
NISO150-125-400G/45 200 54 45 1480 150×125
NISO150-125-400G/55 200 64 55 1480 150×125
NISO150-125-400G/75 200 71 75 1480 150×125
NISO200-150-250(Q)/11 300 9.5 11 1480 200×150
NISO200-150-250(Q)/15 300 12.5 15 1480 200×150
NISO200-150-250(Q)/18.5 300 16 18.5 1480 200×150
NISO200-150-250(Q)/22 300 20 22 1480 200×150
NISO200-150-250G/15 400 9 15 1480 200×150
NISO200-150-250G/18.5 400 12 18.5 1480 200×150
NISO200-150-250G/22 400 15.5 22 1480 200×150
NISO200-150-250G/30 400 20 30 1480 200×150
NISO200-150-315/37 400 23 37 1480 200×150
NISO200-150-315/45 400 27 45 1480 200×150
NISO200-150-315/55 400 32 55 1480 200×150
NISO200-150-315/75 400 38 75 1480 200×150
NISO200-150-315G/37 400 24 37 1480 200×150
NISO200-150-315G/45 400 29 45 1480 200×150
NISO200-150-315G/55 400 36 55 1480 200×150
NISO200-150-400/75 400 43 75 1480 200×150
NISO200-150-400/90 400 50 90 1480 200×150
NISO200-150-400/110 400 62 110 1480 200×150
NISO200-150-400G/110 400 63 110 1480 200×150
NISO200-150-400G/75 400 47 75 1480 200×150
NISO200-150-400G/90 400 56 90 1480 200×150
NISO250-200-250/22 500 12.5 22 1480 250×200
NISO250-200-250/30 500 16.5 30 1480 250×200
NISO250-200-250/37 630 17 37 1480 250×200
NISO250-200-250/45 630 20.5 45 1480 250×200
NISO250-200-315/37 500 20 37 1480 250×200
NISO250-200-315/45 500 23 45 1480 250×200
NISO250-200-315/55 630 24 55 1480 250×200
NISO250-200-315/75 630 32 75 1480 250×200
NISO250-200-400/90 630 37 90 1480 250×200
NISO250-200-400/110 630 44 110 1480 250×200
NISO250-200-400/132 630 53 132 1480 250×200
NISO250-200-400/160 630 60 160 1480 250×200
NISO300-250-250(Q)/37 800 11.5 37 1480 300×250
NISO300-250-250(Q)/45 800 15 45 1480 300×250
NISO300-250-250(Q)/55 800 18.5 55 1480 300×250
NISO300-250-250/45 1000 11 45 1480 300×250
NISO300-250-250/55 1000 14 55 1480 300×250
NISO300-250-250/75 1000 20.5 75 1480 300×250
NISO300-250-315(Q)/75 800 26 75 1480 300×250
NISO300-250-315/75 1000 20 75 1480 300×250
NISO300-250-315(Q)/90 800 32 90 1480 300×250
NISO300-250-315/90 1000 25 90 1480 300×250
NISO300-250-315(Q)/110 800 35 110 1480 300×250
NISO300-250-315/110 1000 31 110 1480 300×250
NISO300-250-400(Q)/110 800 38 110 1480 300×250
NISO300-250-400(Q)/132 800 45 132 1480 300×250
NISO300-250-400/132 1000 37 132 1480 300×250
NISO300-250-400(Q)/160 800 53 160 1480 300×250
NISO300-250-400/160 1000 45 160 1480 300×250
NISO300-250-400(Q)/200 800 63 200 1480 300×250
NISO300-250-400/200 1000 50 200 1480 300×250
NISO350-300-250/110 1200 26 110 1480 350×300
NISO350-300-250/132 1200 31 132 1480 350×300
NISO350-300-250/75 1200 17 75 1480 350×300
NISO350-300-250/90 1200 21.5 90 1480 350×300
NISO350-300-315/132 1200 32.5 132 1480 350×300
NISO350-300-315/160 1200 38.5 160 1480 350×300
NISO350-300-315/185 1200 44.5 185 1480 350×300
NISO350-300-315/200 1200 46 200 1480 350×300

Size

Video Introduction

Message Inquiry

*
*
*
*
*
Submit
