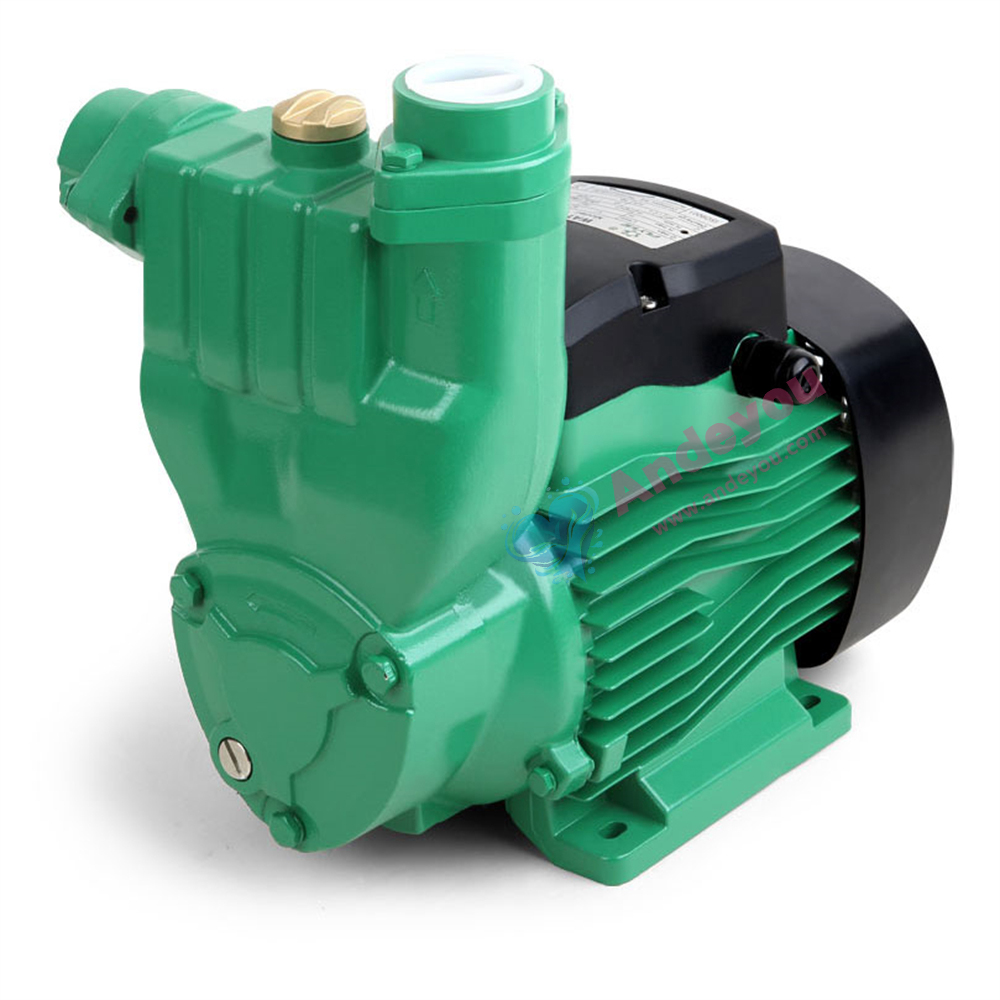

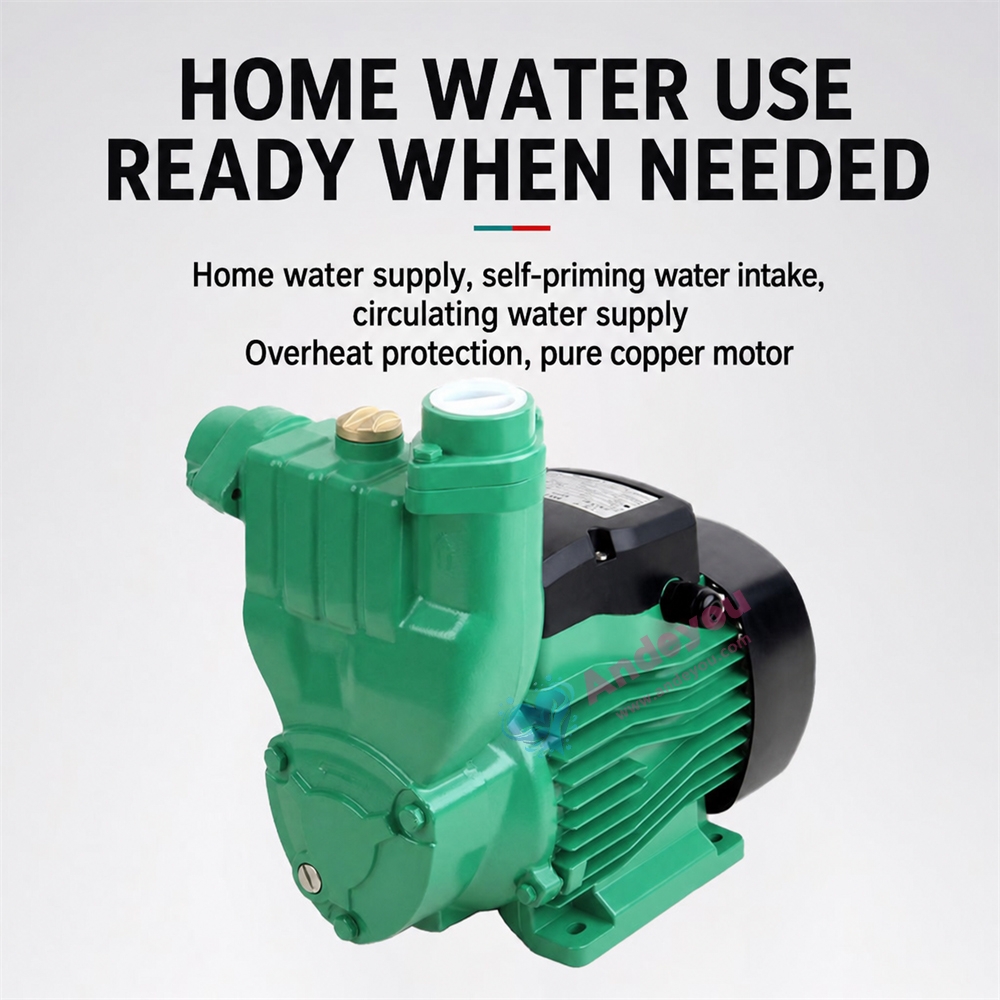

Feike WZB Self-Priming Pump

1WZB-15|1WZB-25

The self-priming pump is a highly efficient and practical piece of pumping equipment.It features unique self-priming capabilities,eliminating the need for manual priming upon initial startup; it automatically evacuates air from the suction line and draws in the liquid.With a compact structure and easy installation,it is widely used in applications such as residential water supply boosting,small-scale industrial water supply and drainage,and agricultural irrigation

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

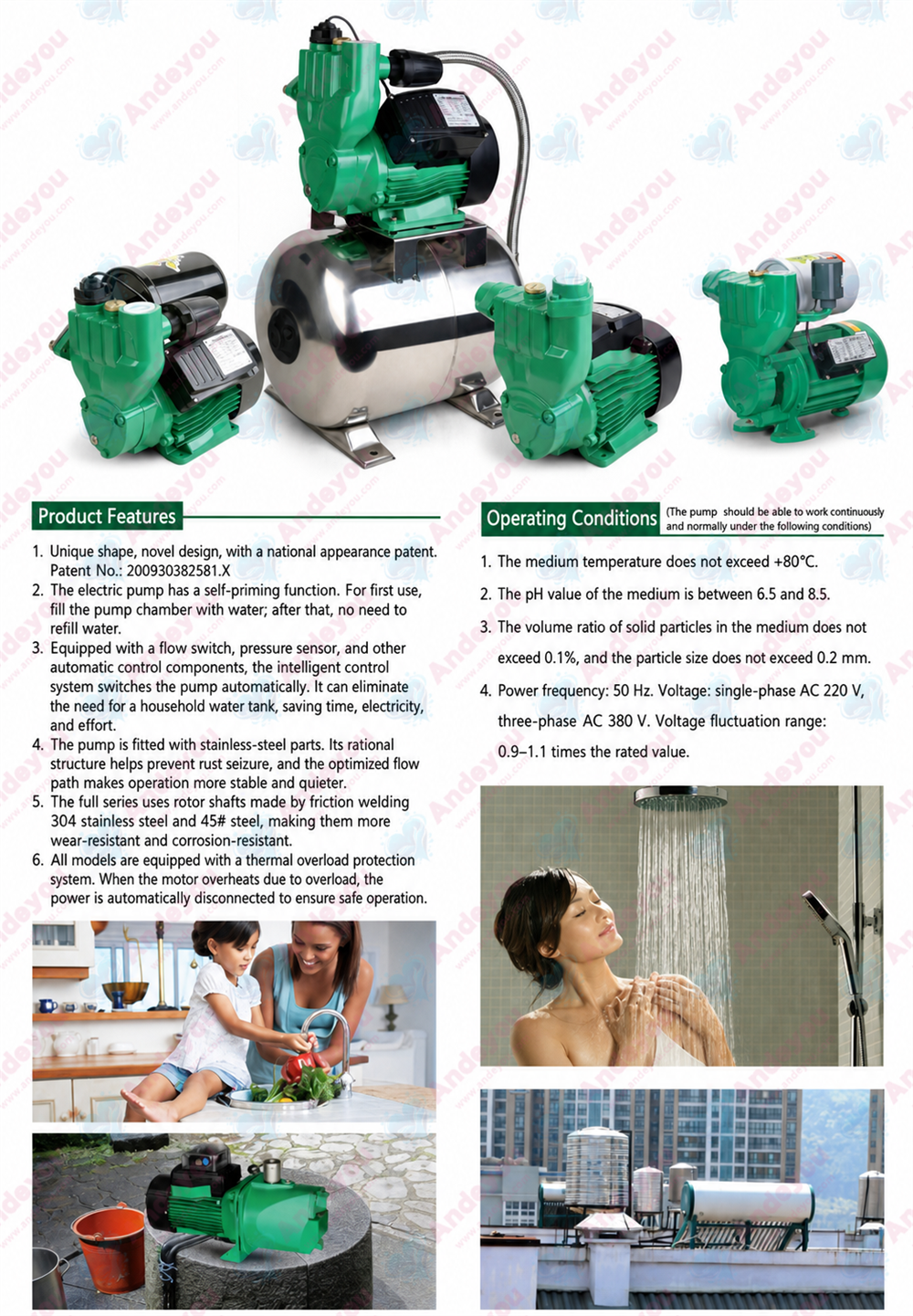

Operating Conditions:

1. Medium temperature: ≤ +80°C.

2. Medium pH value: 6.5–8.5.

3. Solid impurity content in the medium: ≤ 0.1% by volume; particle size: ≤ 0.2 mm.

4. Power supply: 50 Hz; single-phase AC 220 V or three-phase AC 380 V. Voltage fluctuation range: 0.9–1.1 times the rated value.

Applications:

Domestic water supply, underground water lifting, and water heater pressurization.

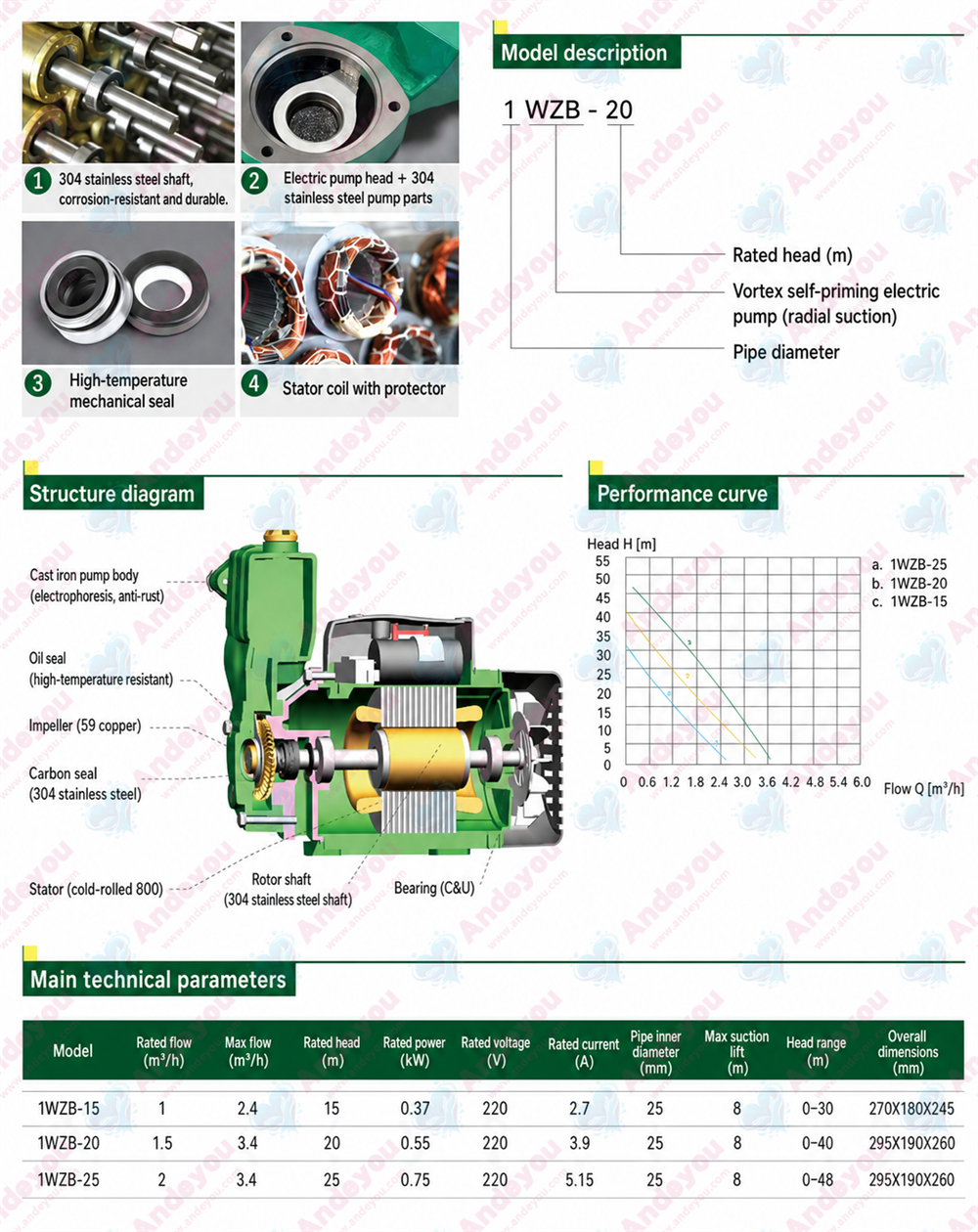

Parameters

Specifications and Model	Rated flow rate (m³/h)	Maximum flow rate (m³/h)	Rated head (m)	Rated Power (kW)	Rated voltage (V)	Rated current (A)	Pipe inner diameter (mm)	Maximum suction lift (m)
1WZB-15	1	2.4	15	0.37	220	2.7	25	8
1WZB-25	2	3.4	25	0.75	220	5.15	25	8

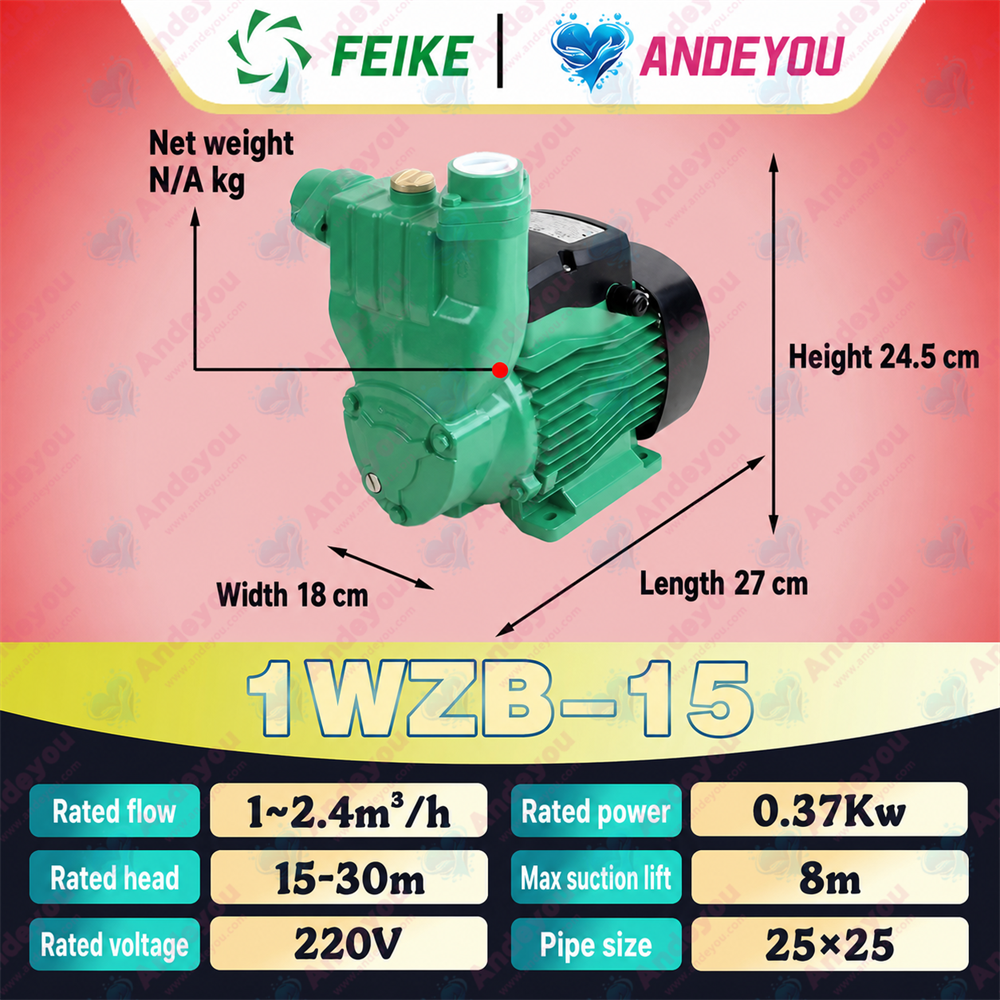

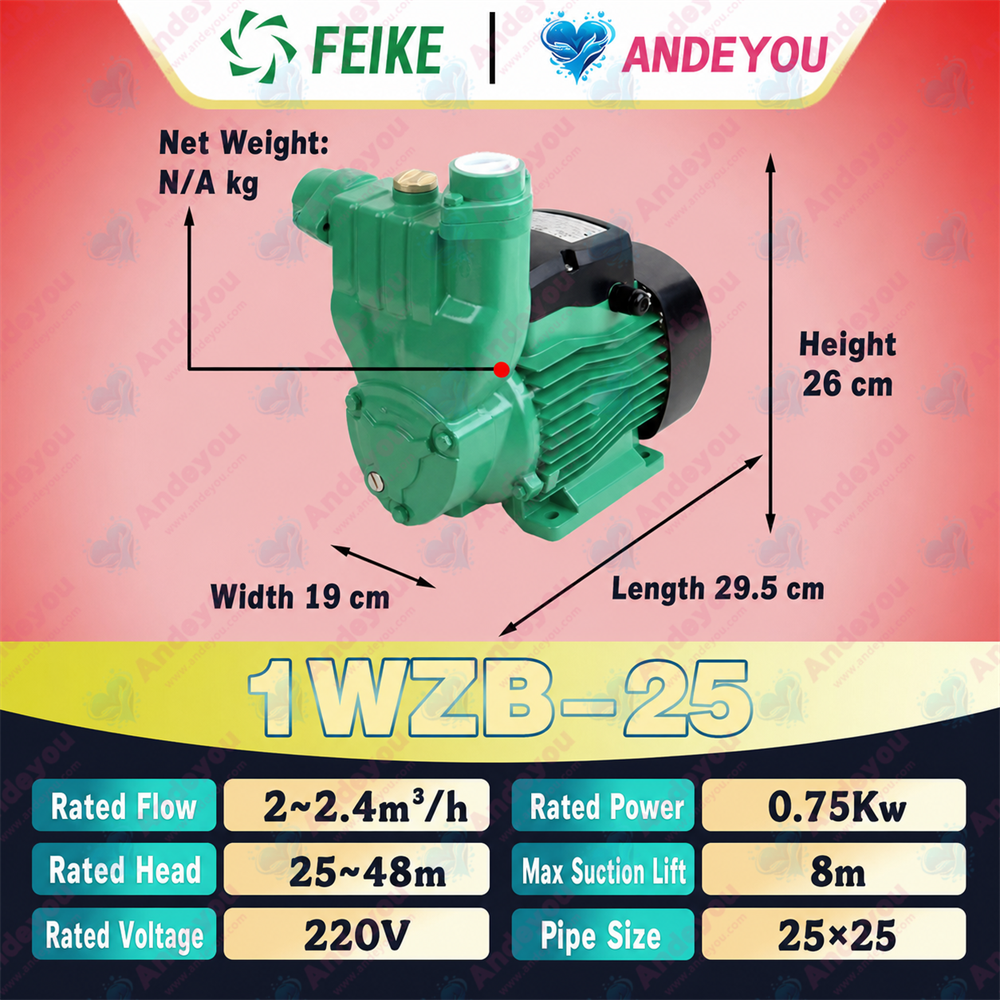

Size

Video Introduction
