Note: This model is designed for pressure switch control only; a flow switch is not included.

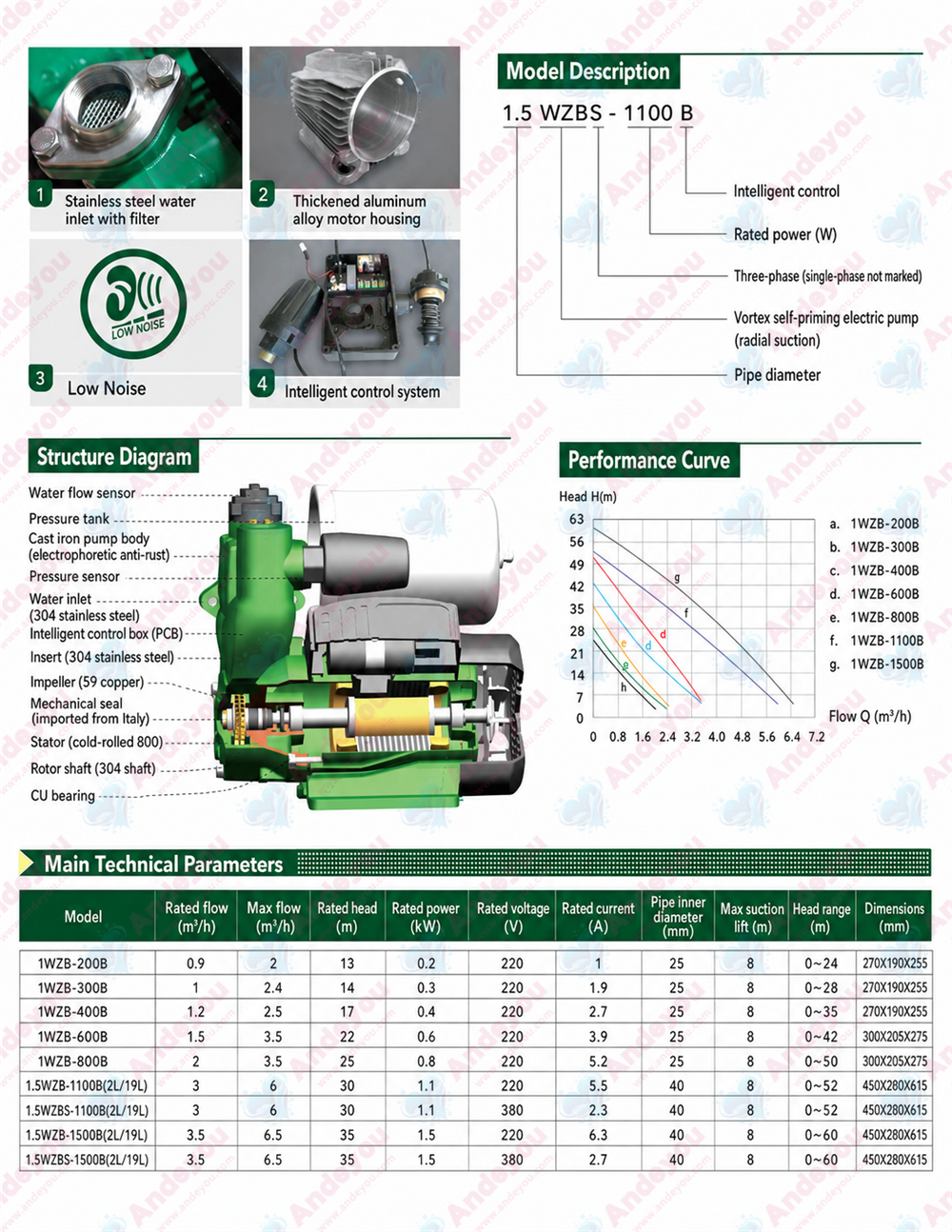

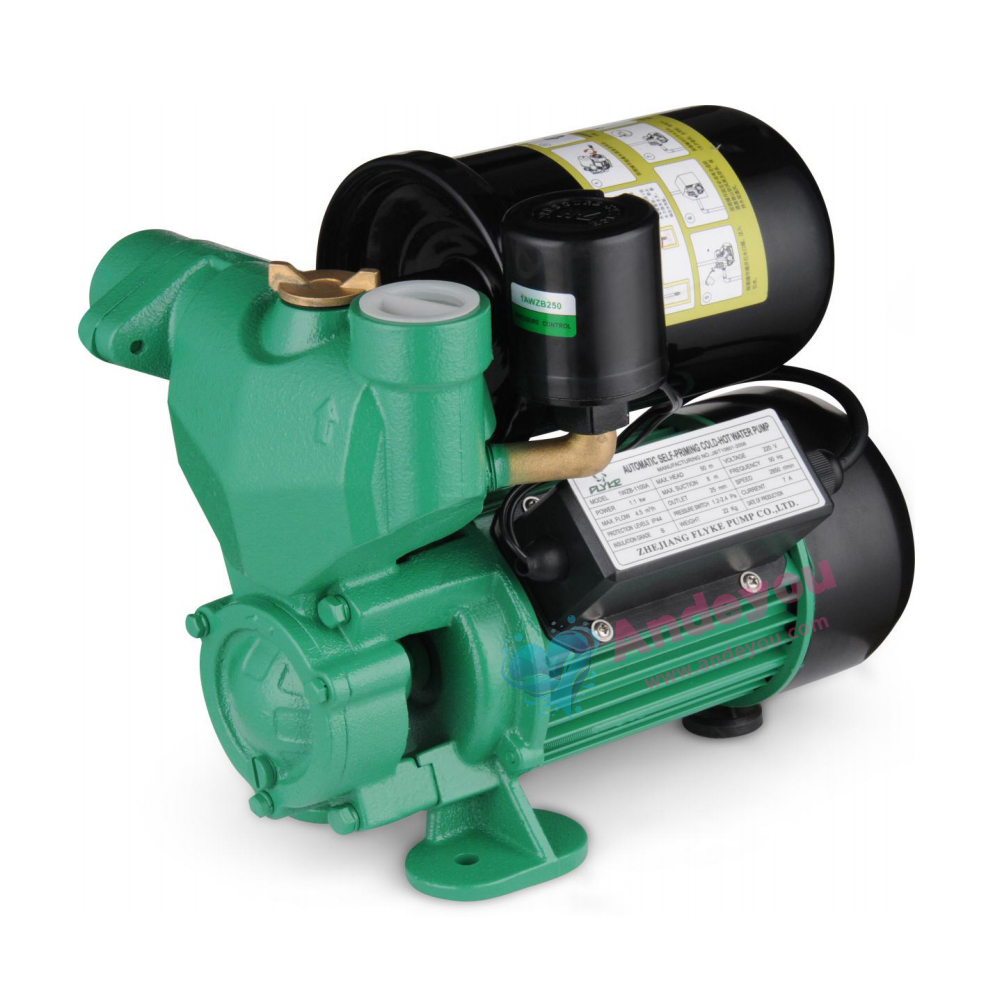

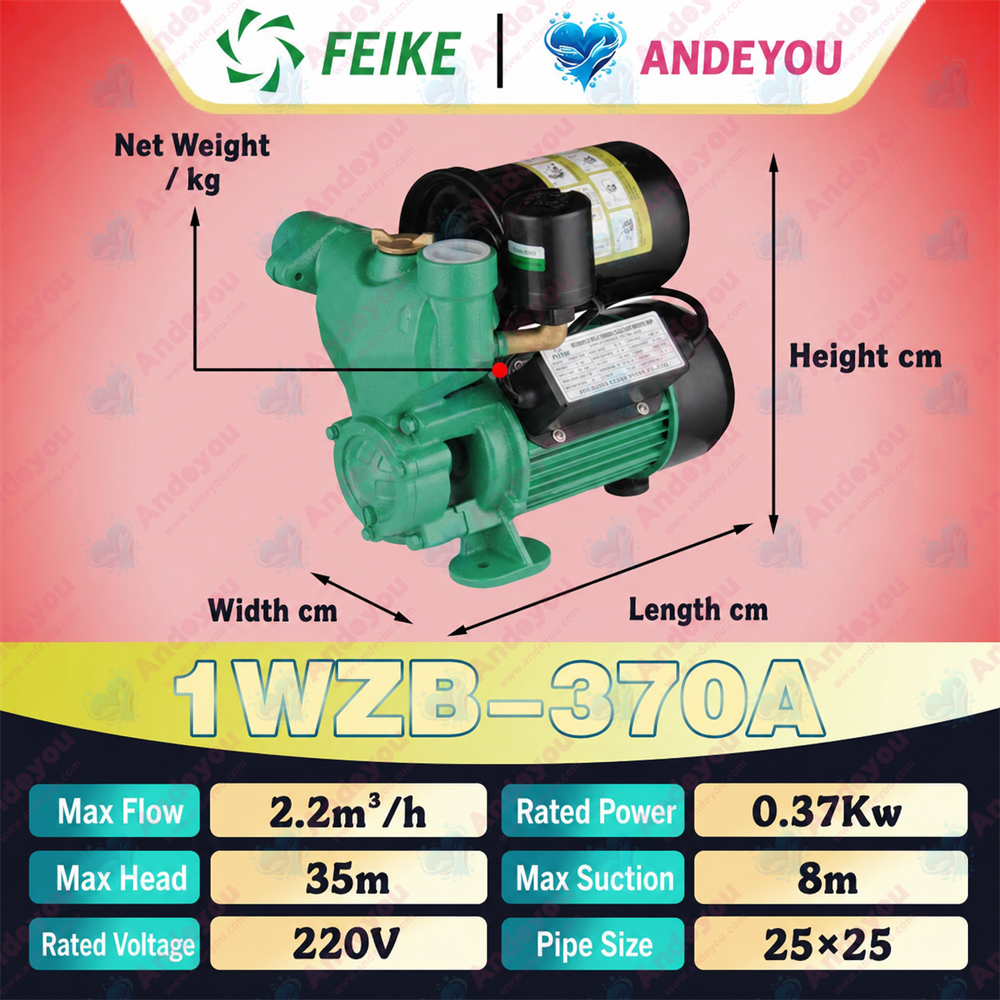

Product Construction:

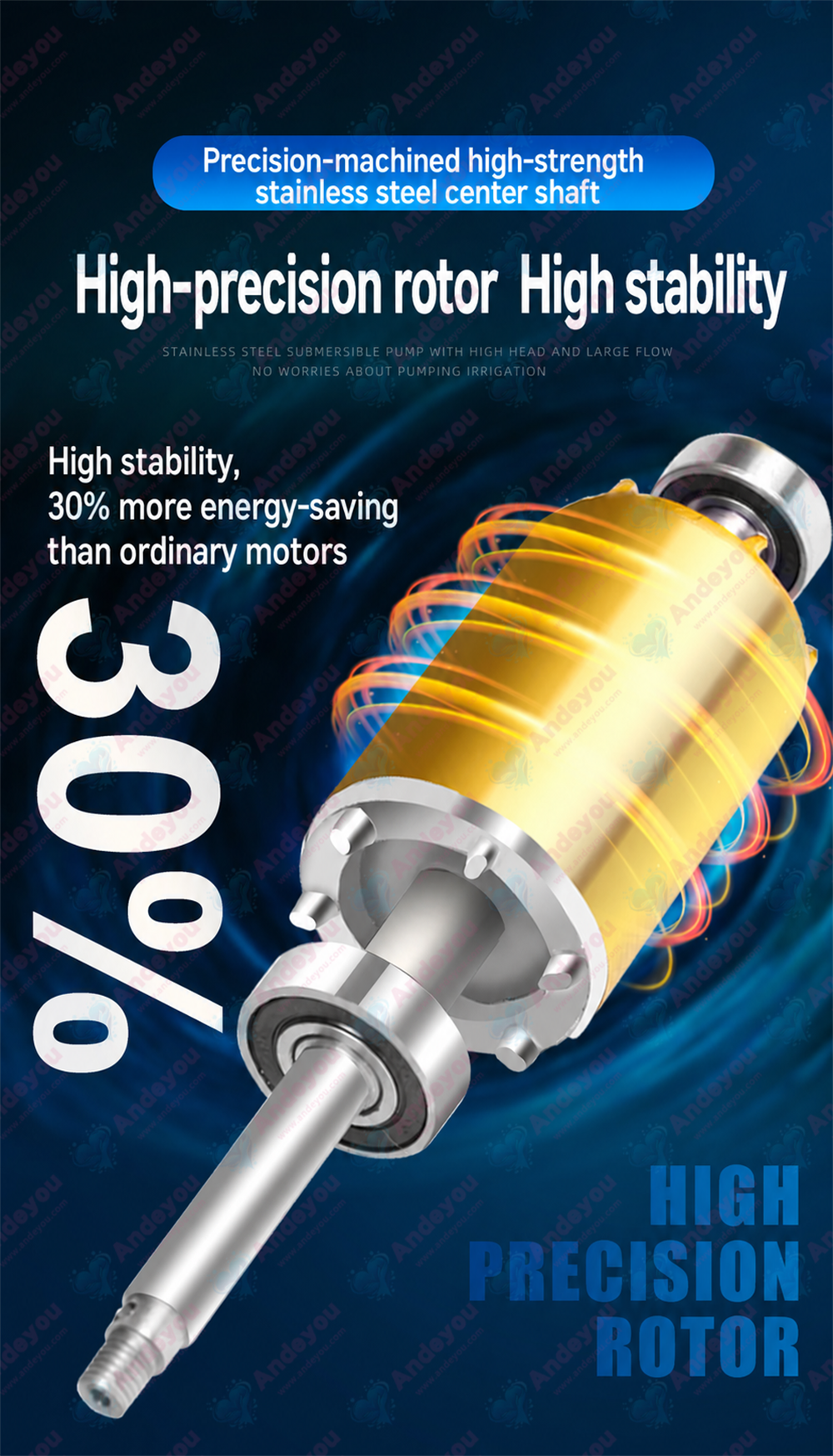

1. Durable 304 stainless steel shaft.

2. Electrophoretic pump head with 304 stainless steel insert.

3. High-temperature resistant mechanical seal.

4. H59 brass impeller.

5. Renben bearings.

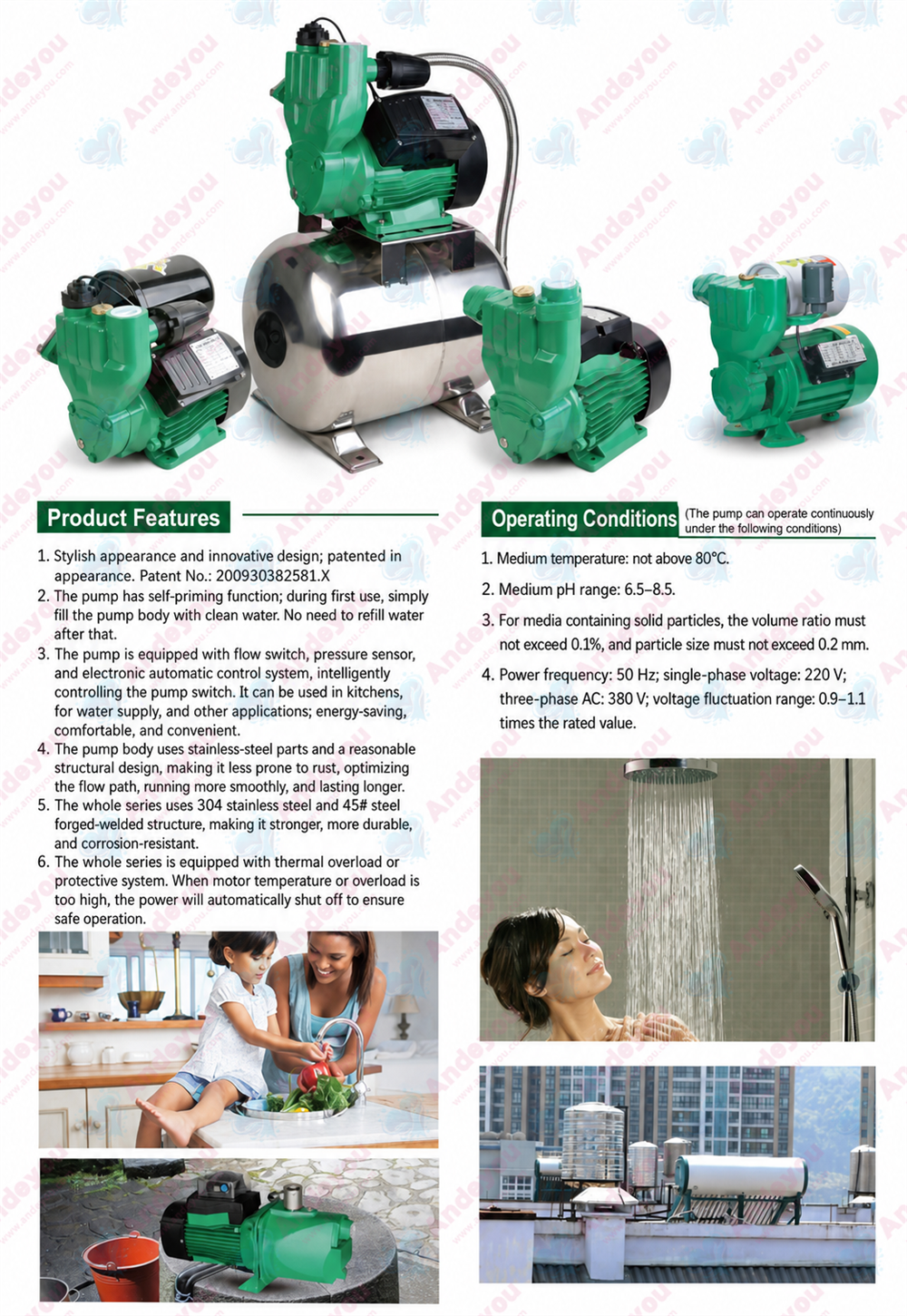

Operating Conditions:

1. Medium temperature: ≤ +80°C.

2. Medium pH value: 6.5–8.5.

3. Solid impurity content in the medium: ≤ 0.1% by volume; particle size: ≤ 0.2 mm.

4. Power supply: 50 Hz; Single-phase AC 220V or Three-phase AC 380V. Voltage fluctuation range: 0.9–1.1 times the rated value.

Applications:

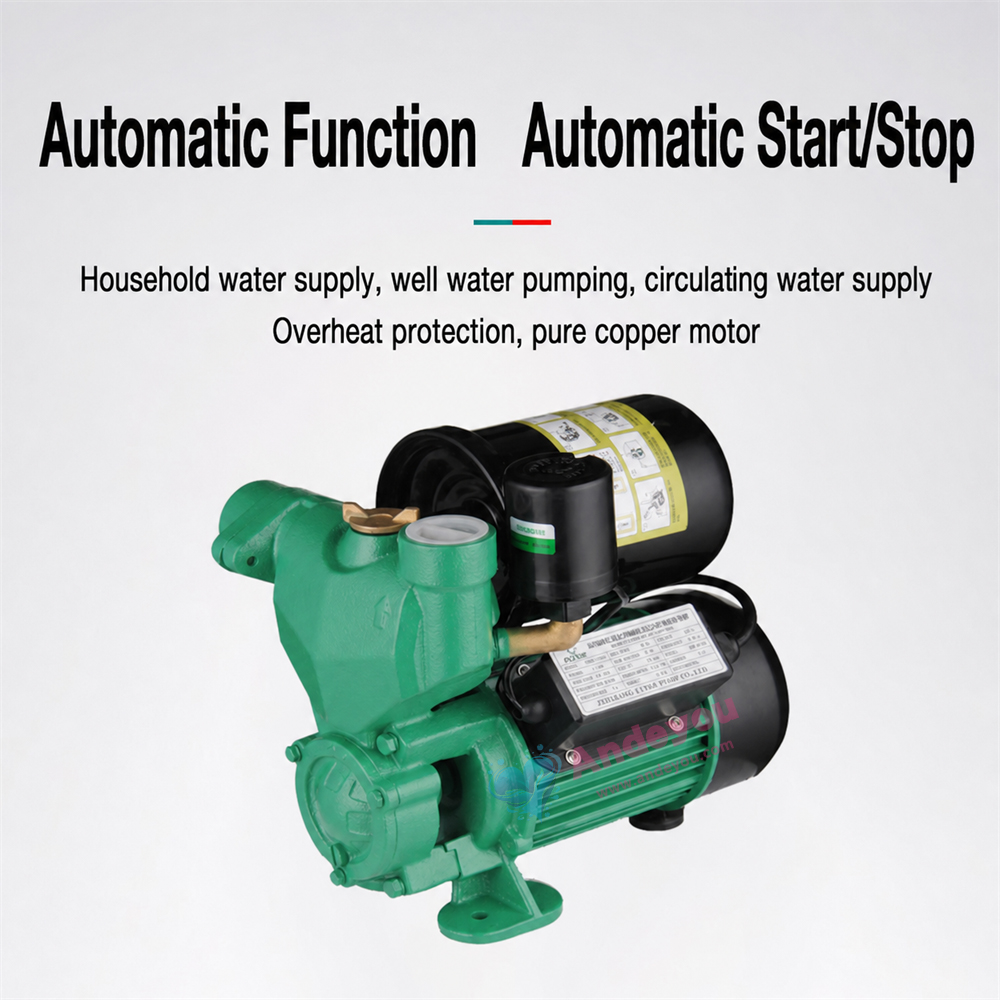

Domestic water supply, well water lifting, water heater pressurization, household water systems, and filling pressure tanks.
