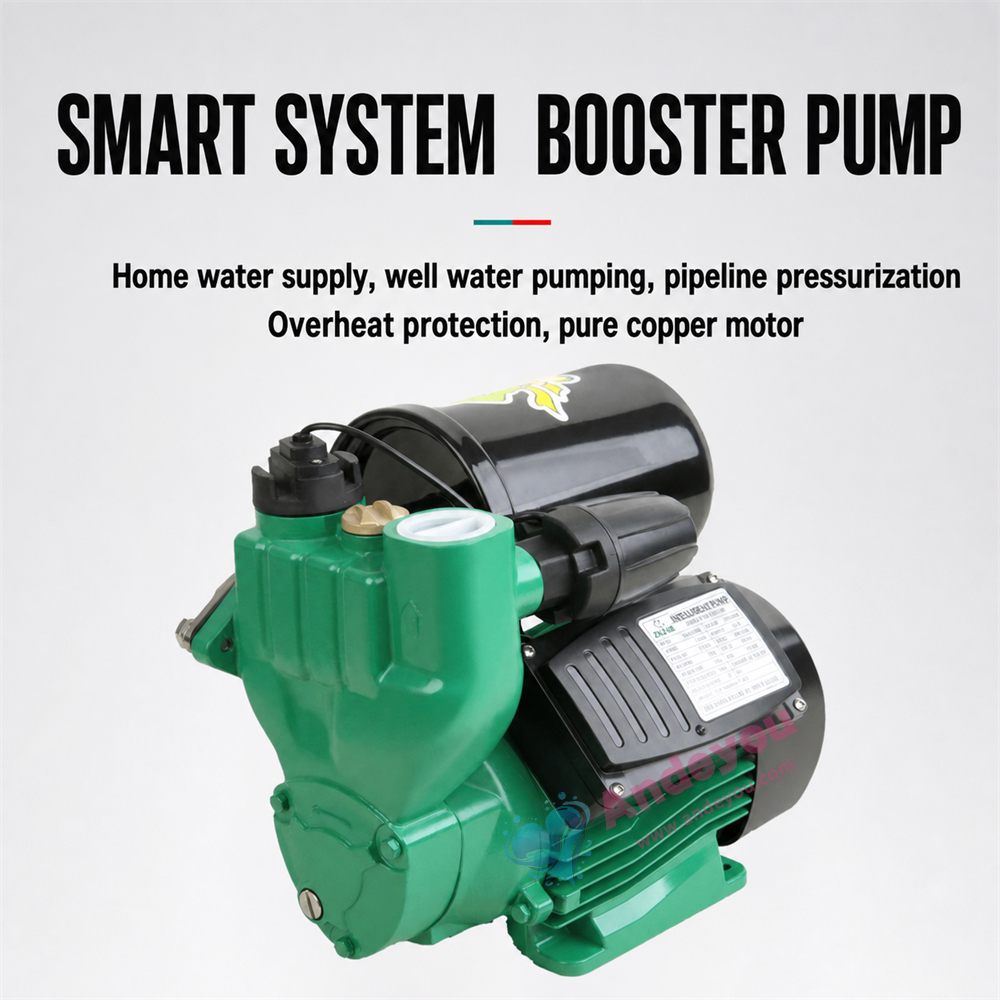

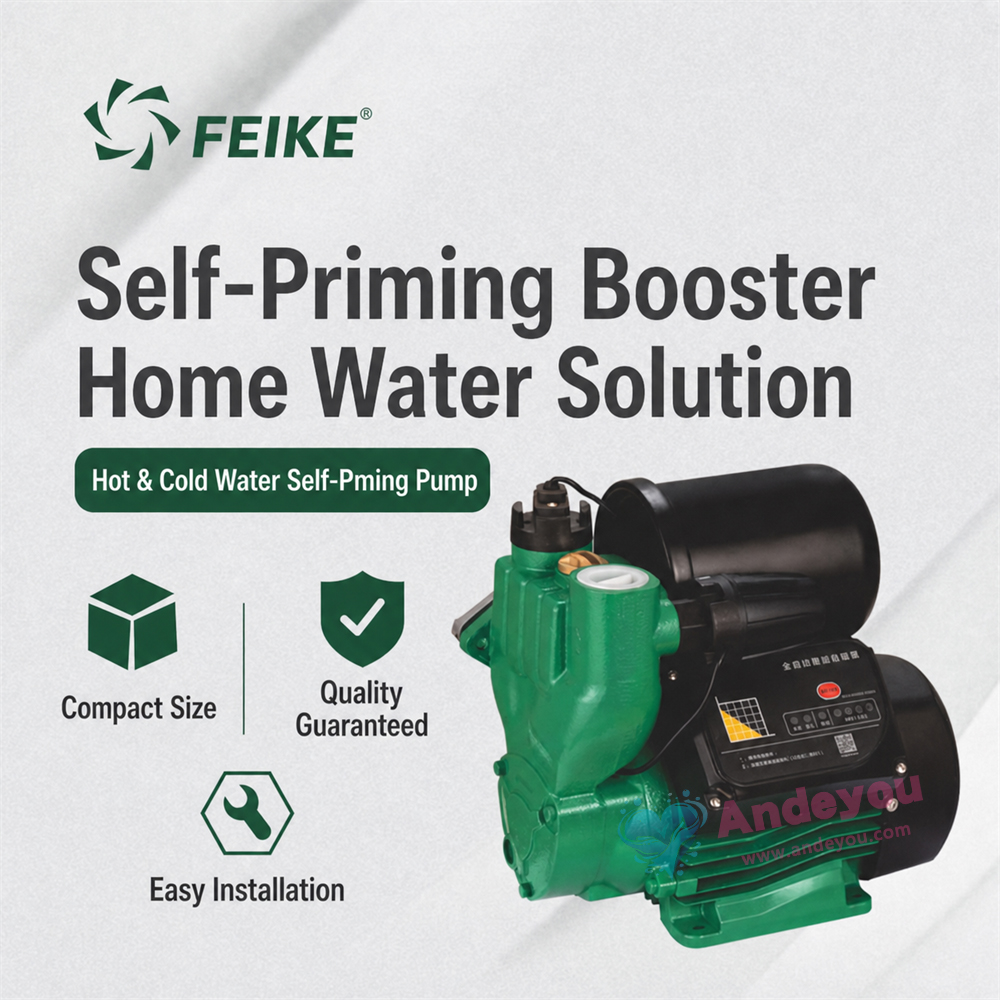

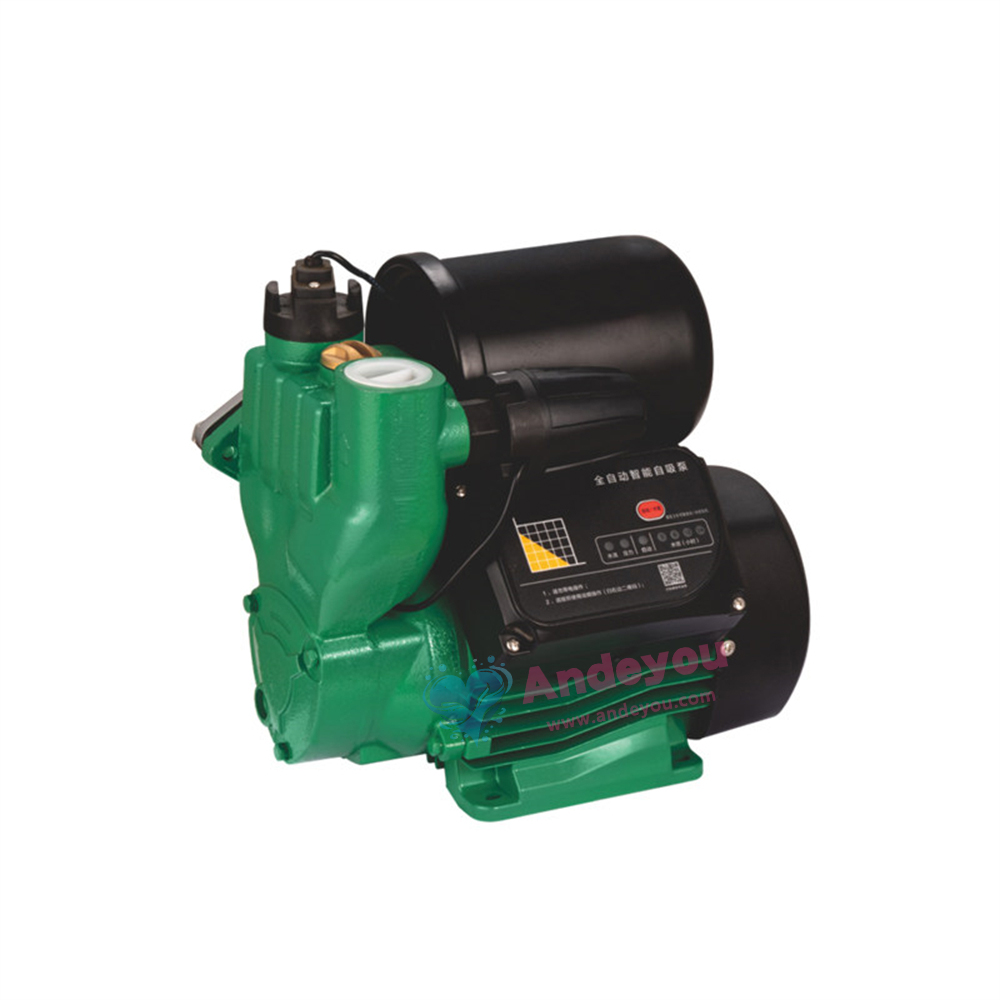

Feike WZB-B Intelligent Automatic Self-Priming Pump

1WZB-200B|1WZB-300B|1WZB-400B|1WZB-600B|1WZB-800B|1.5WZB-1100B(2L)|1.5WZB-1500B(2L)|1.5WZB-1100B(19L)|1.5WZB-1500B(19L)

The Feike intelligent self-priming pump is a highly efficient and convenient water pump.It features powerful self-priming capabilities,allowing for rapid,automatic water intake without the need for manual priming.Equipped with an intelligent control system,it automatically adjusts its operating status based on actual demand,ensuring energy efficiency and stable performance.Constructed from high-quality materials,the pump body is resistant to corrosion and wear

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

Product Features:

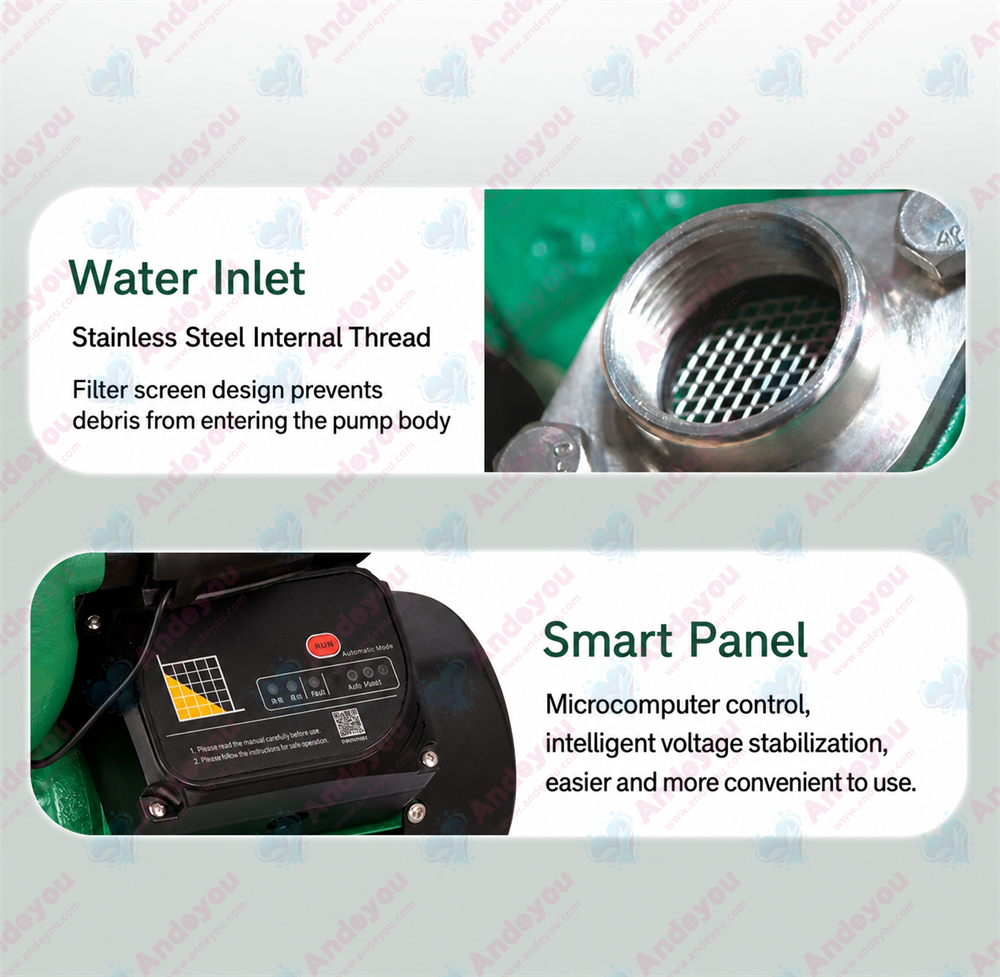

1. Stainless steel inlet with filter screen

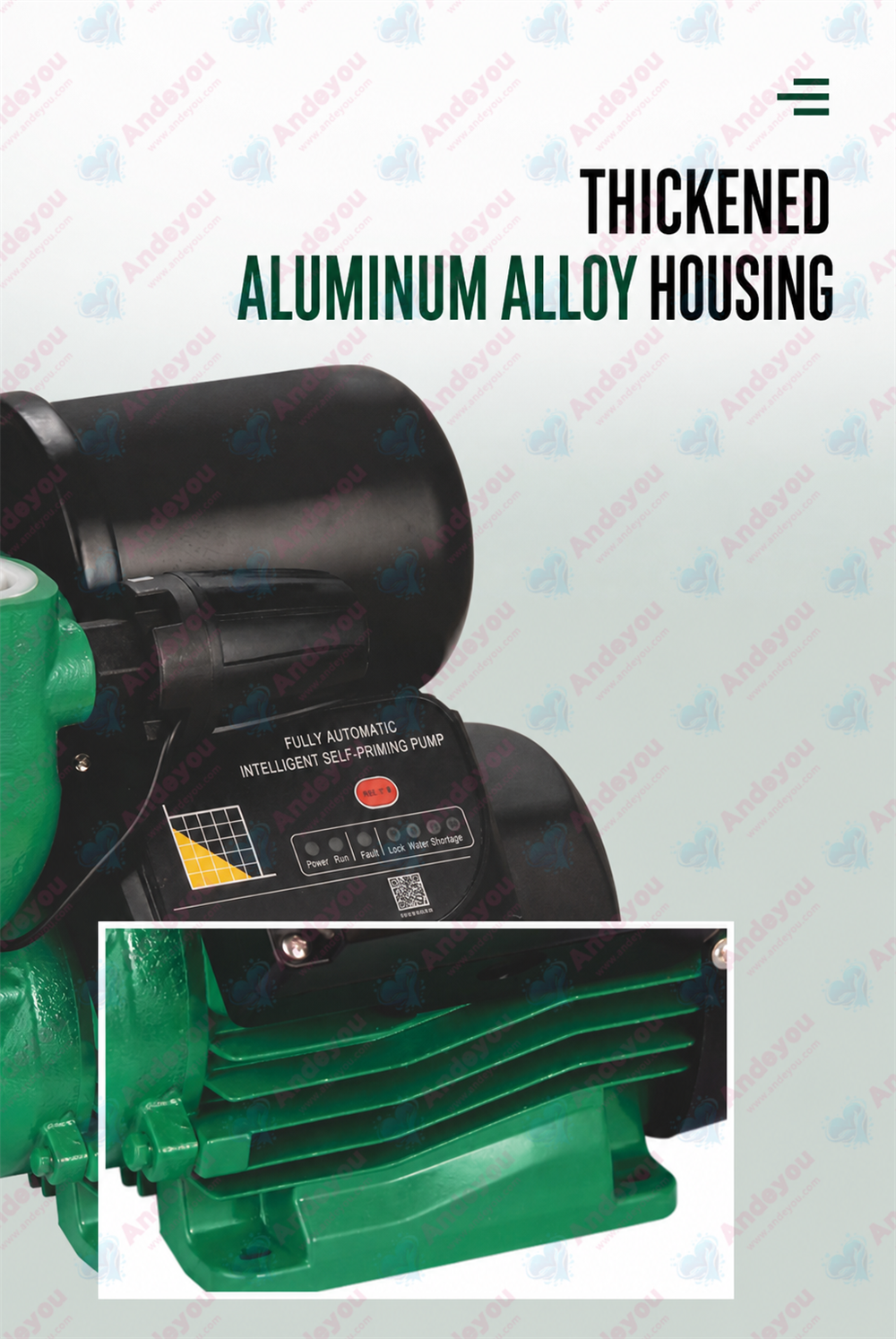

2. Thickened aluminum alloy motor housing

3. Low noise operation; no harsh, high-pitched sounds

4. Intelligent control system

5. Electrophoresis-treated pump head for rust prevention

6. Contact-type pressure sensor

7. 59-grade copper alloy impeller

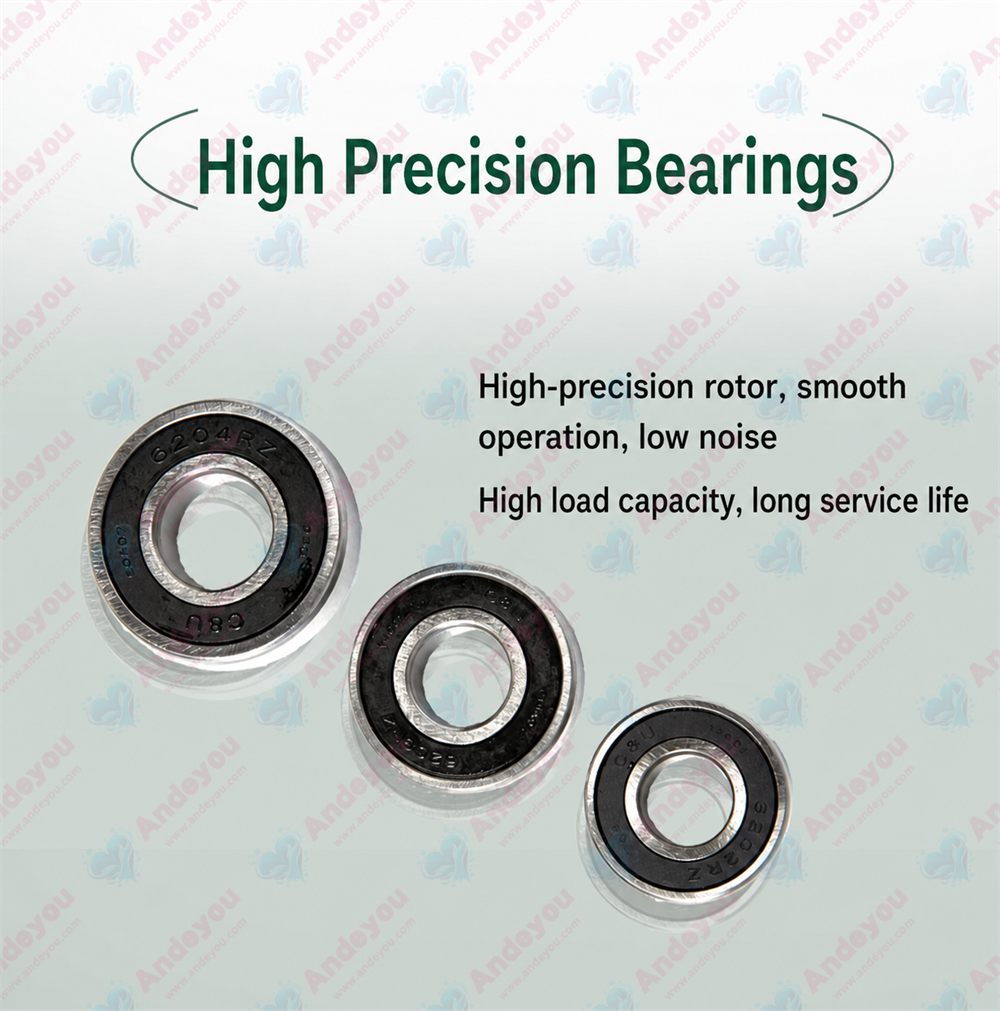

8. HRB (Renben) bearings

9. Mechanical seal (Italian-made)

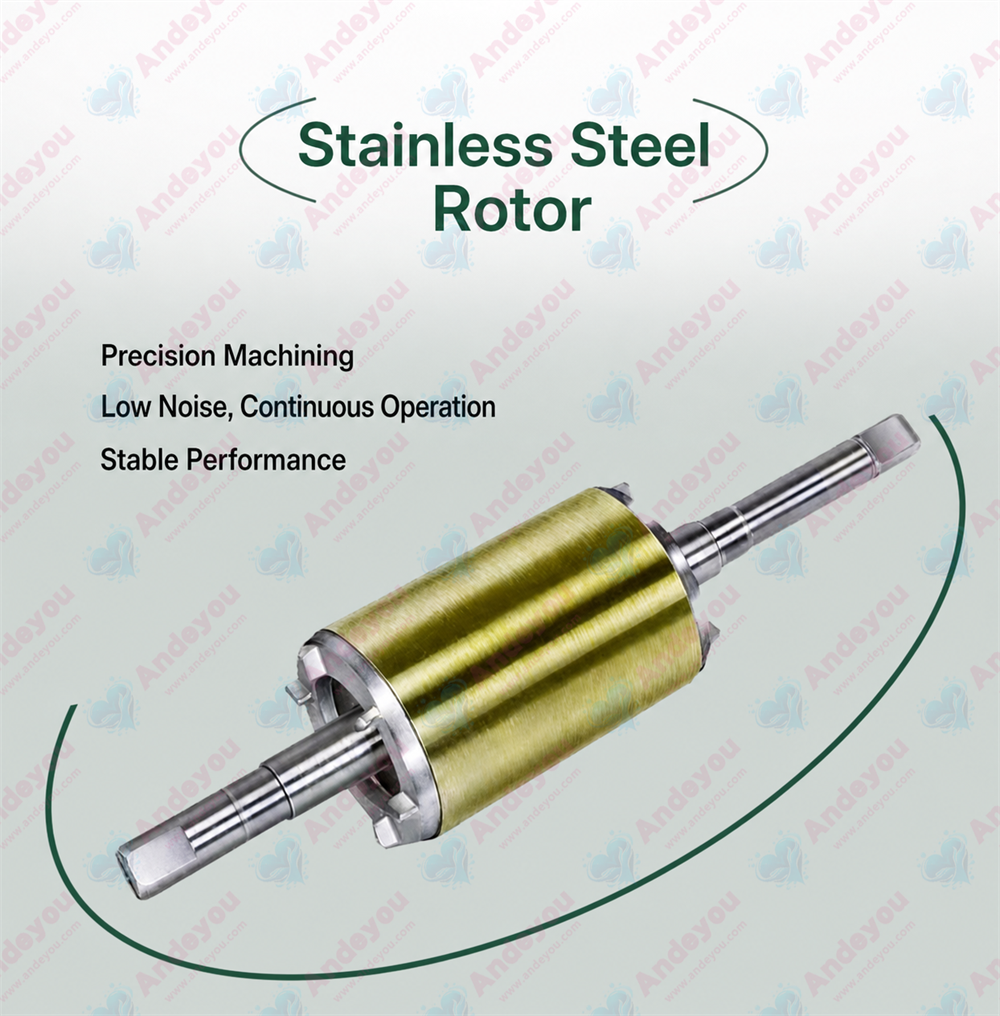

10. 304 stainless steel shaft

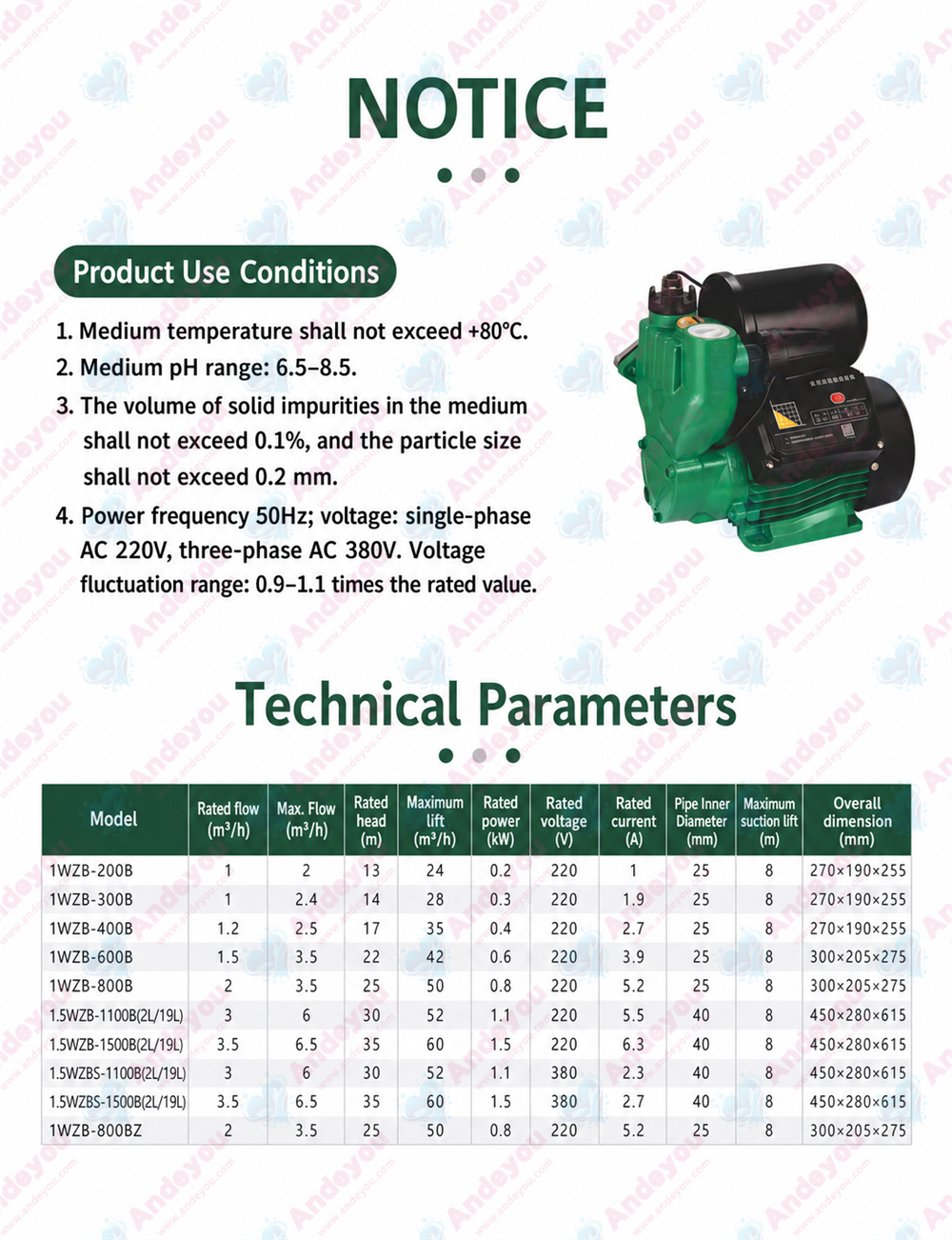

Operating Conditions:

1. Medium temperature: ≤ +80°C

2. Medium pH value: 6.5–8.5

3. Solid impurity content: ≤ 0.1% by volume; particle size: ≤ 0.2 mm

4. Power supply: 50Hz; Single-phase AC 220V or Three-phase AC 380V; voltage fluctuation range: 0.9–1.1 times the rated voltage

Applications:

Water heater boosting, solar water supply, well water pumping, high-rise building water boosting

Parameters

Specifications and Model	Rated flow rate (m³/h)	Maximum flow rate (m³/h)	Rated head (m)	Rated Power (kW)	Rated voltage (V)	Rated current (A)	Pipe inner diameter (mm)	Maximum suction lift (m)
1WZB-200B	1	2	13	0.2	220	0.99	25	8
1WZB-300B	1	2.4	14	0.3	220	1.9	25	8
1WZB-400B	1.2	2.5	17	0.4	220	2.7	25	8

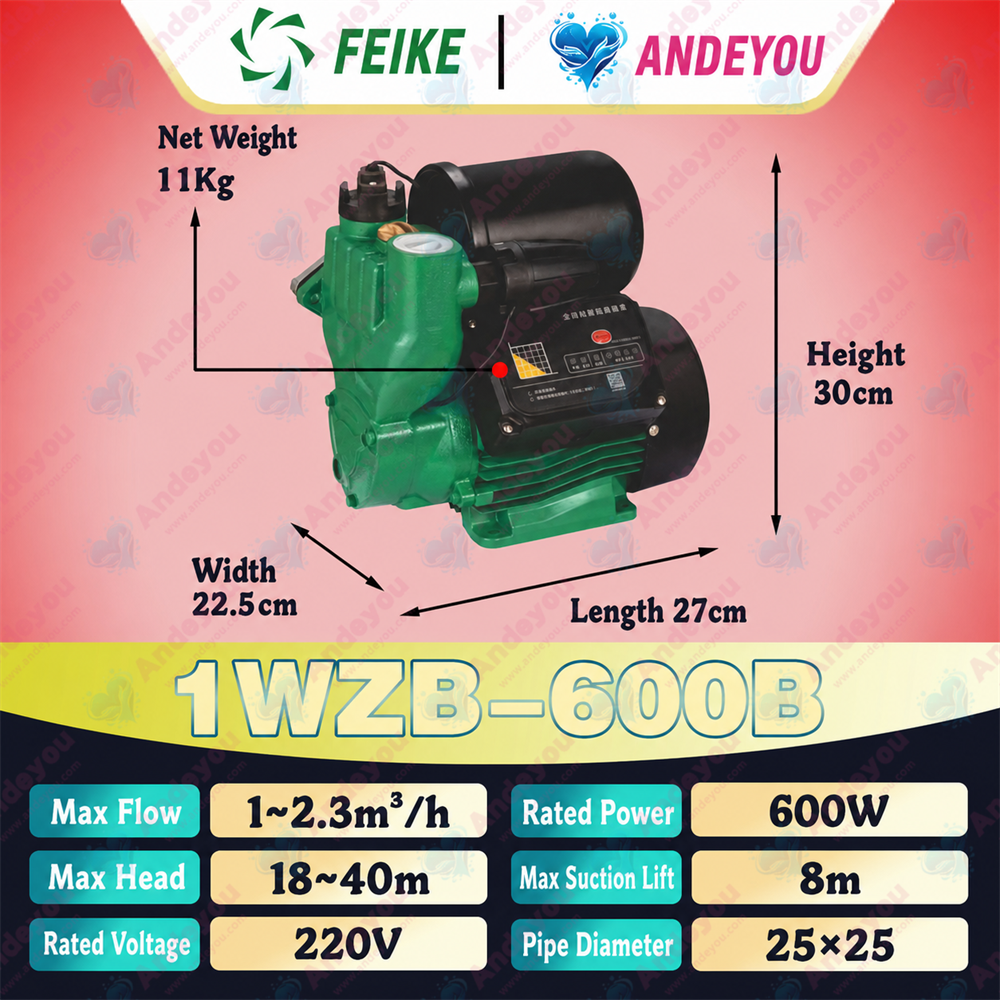

1WZB-600B	1.5	3.5	22	0.6	220	3.9	25	8

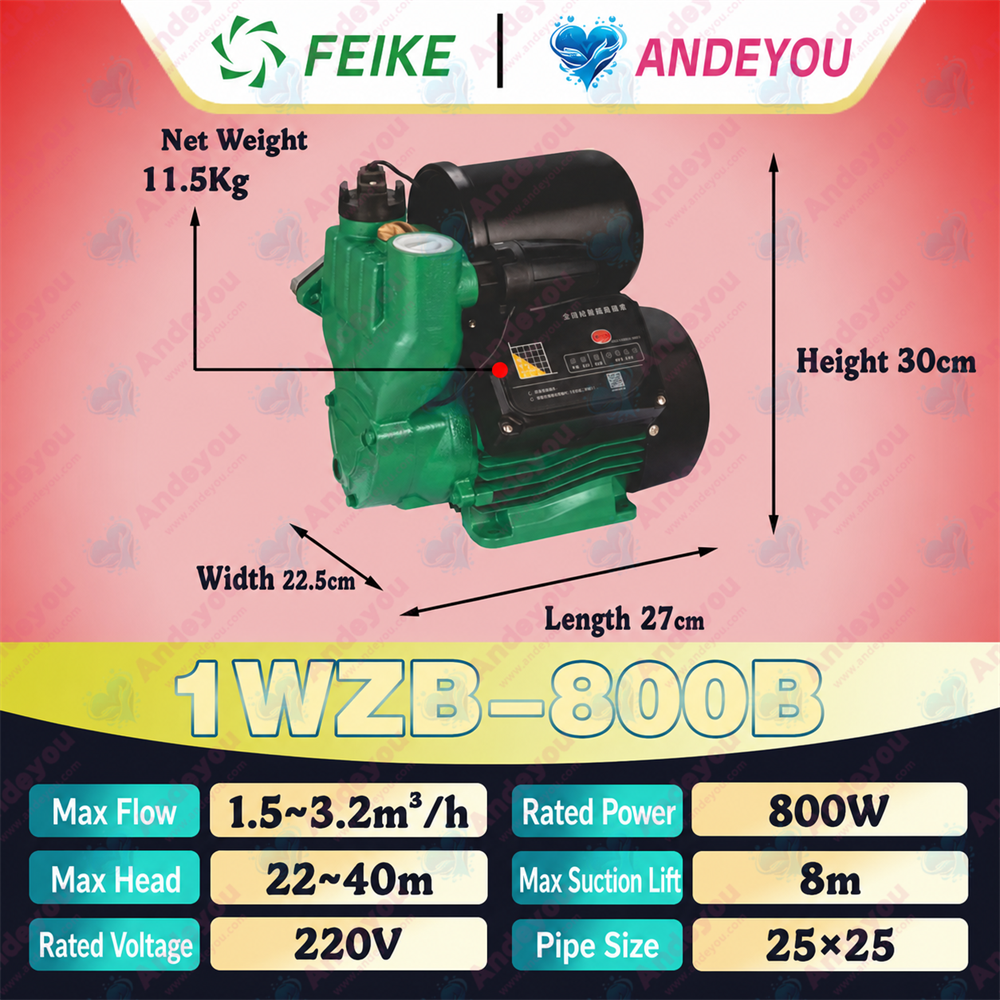

1WZB-800B	2	3.5	25	0.8	220	5.15	25	8

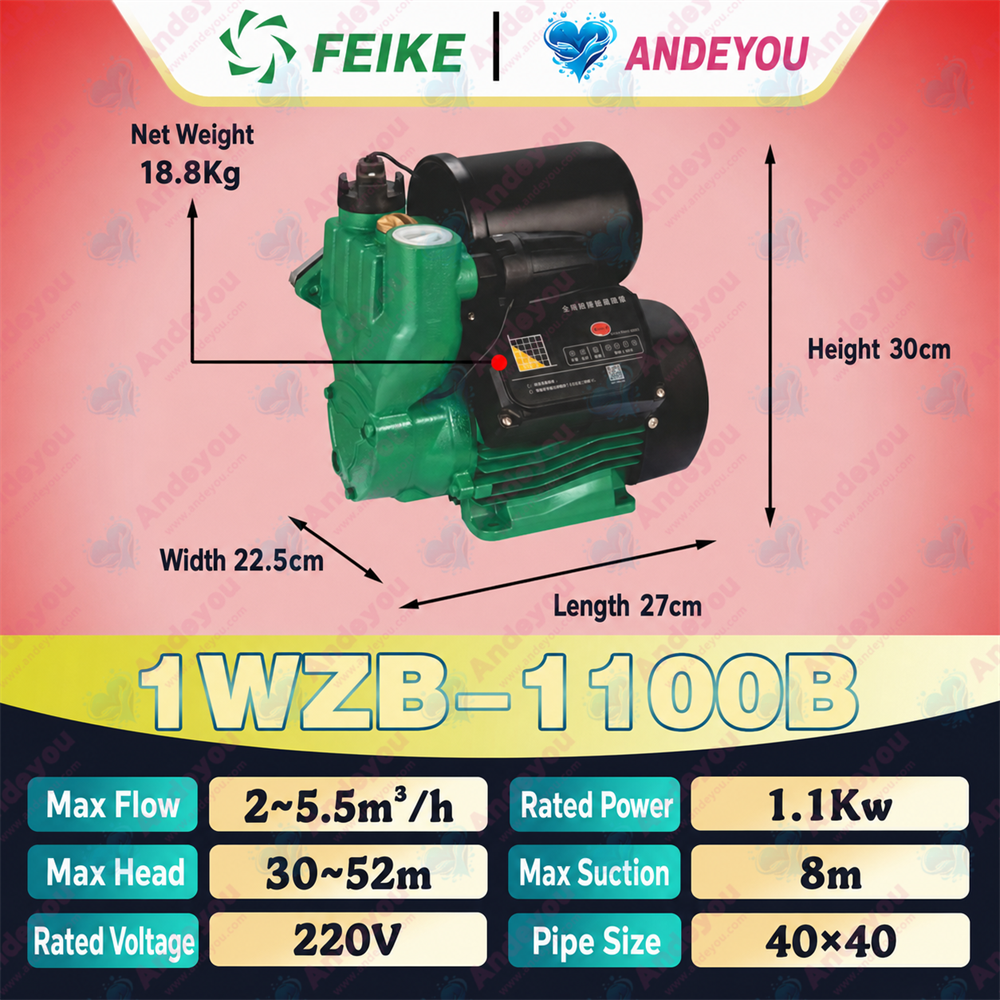

1.5WZB-1100B	3	6	30	1.1	220	5.5	40	8
1.5WZB-1500B	3.5	6.5	35	1.5	220	6.3	40	8
1.5WZB-1100B(19L大罐)	3	6	30	1.1	220	5.48	40	8
1.5WZB-1500B(19L大罐)	3.5	6.5	35	1.5	220	6.29	40	8
