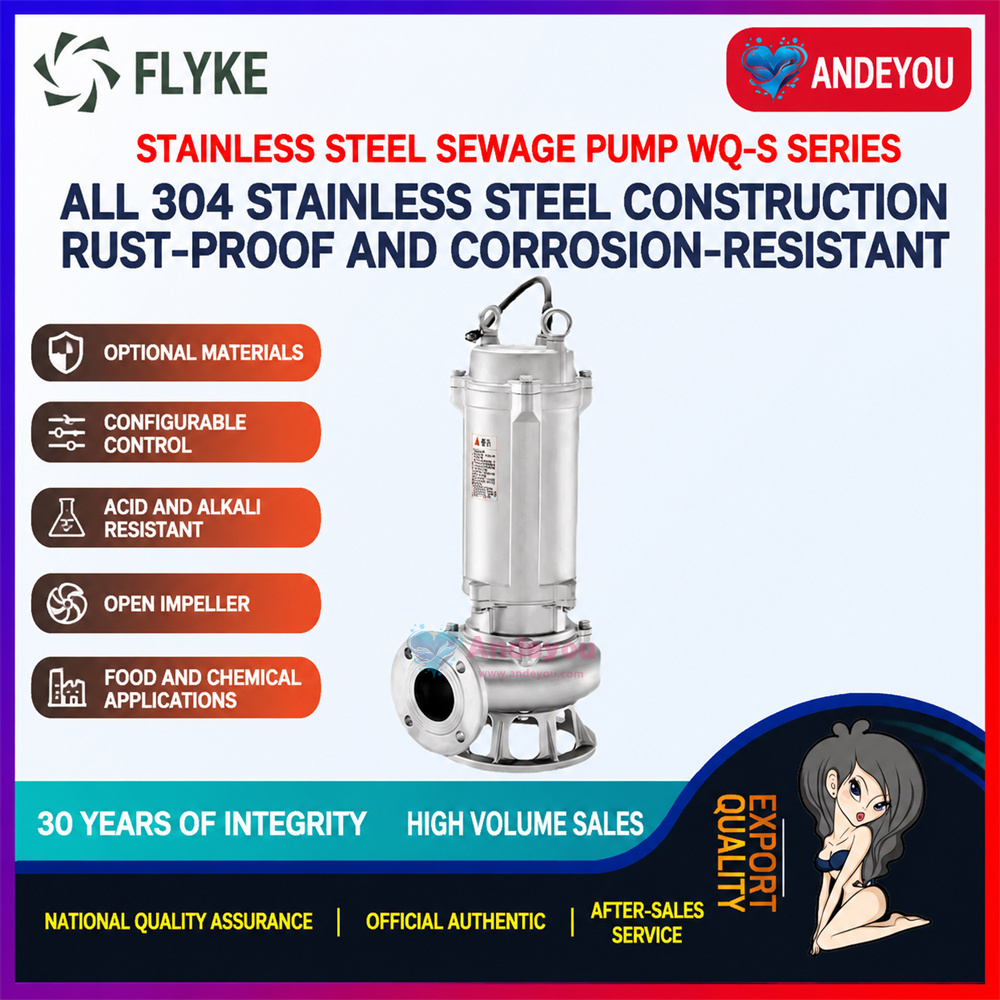

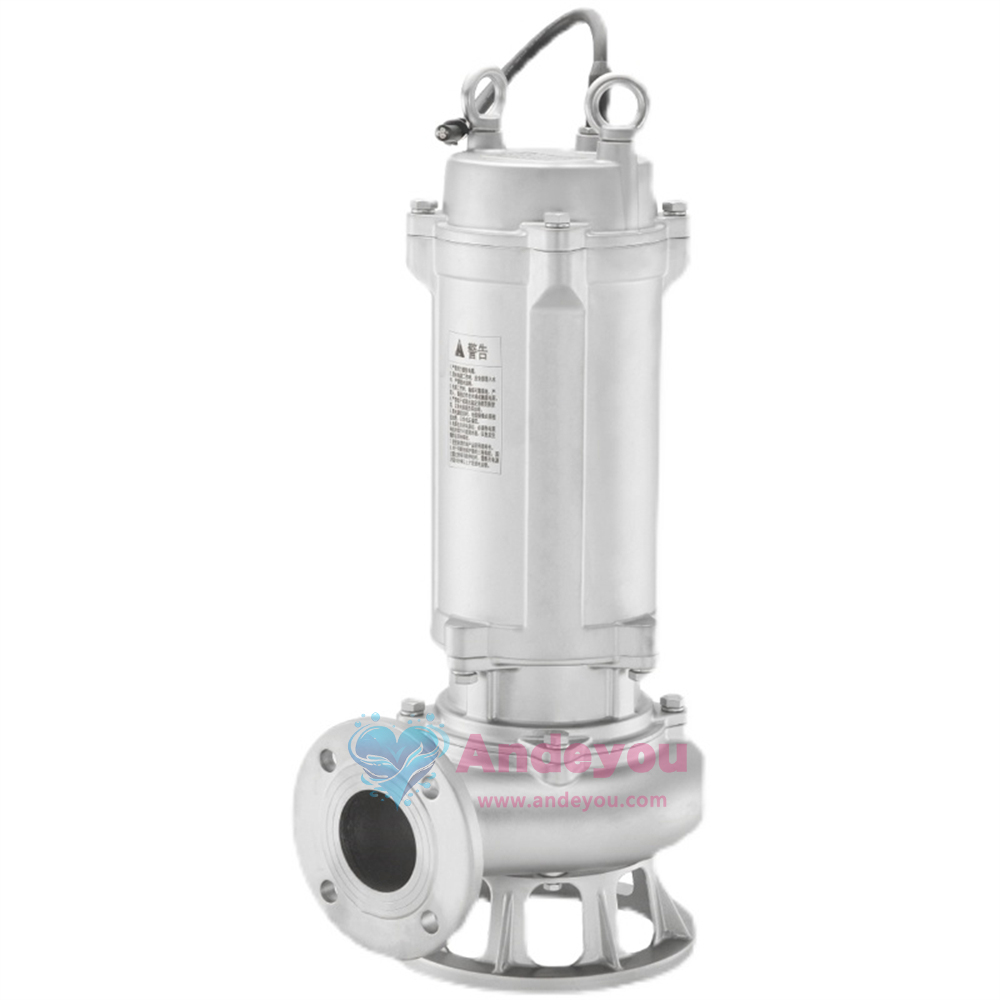

Feike WQ-S 304 Stainless Steel Submersible Sewage Pump for Engineering Applications

50WQ15-25-3S|65WQ25-20-3S|80WQ40-16-3S|100WQ50-13-3S|50WQ15-30-4S|65WQ25-25-4S|80WQ40-20-4S|100WQ50-16-4S|50WQ20-32-5.5S|65WQ30-25-5.5S|80WQ50-20-5.5S|100WQ80-13-5.5S|150WQ100-10-5.5S|50WQ20-40-7.5S|65WQ30-35-7.5S|80WQ50-25-7.5S|100WQ80-18-7.5S|150WQ100-15-7.5S|100WQ100-25-11S|150WQ180-11-11S|200WQ300-7-11S|150WQ100-30-15S|200WQ180-15-15S|200WQ250-11-15S|100WQ100-35-18.5S|150WQ180-20-18.5S|200WQ250-15-18.5S|250WQ500-7-18.5S|300WQ650-5-18.5S|100WQ100-40-22S

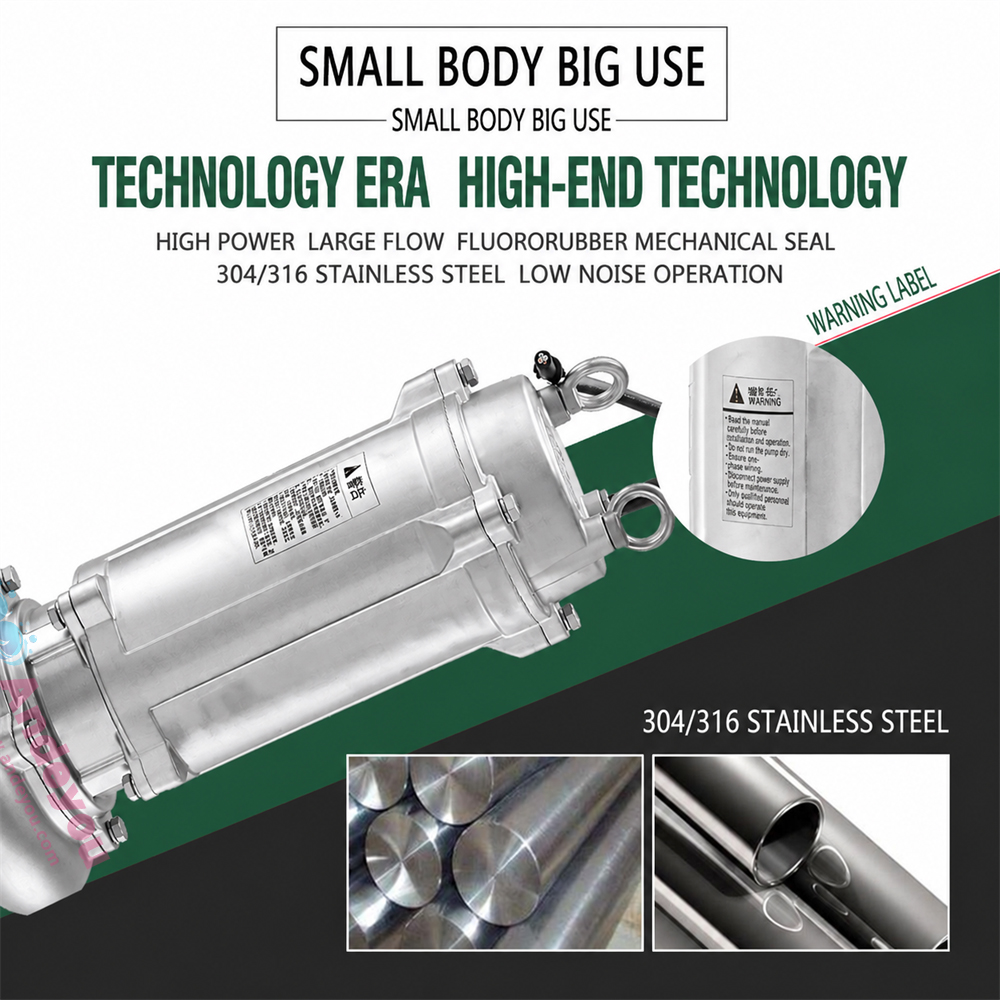

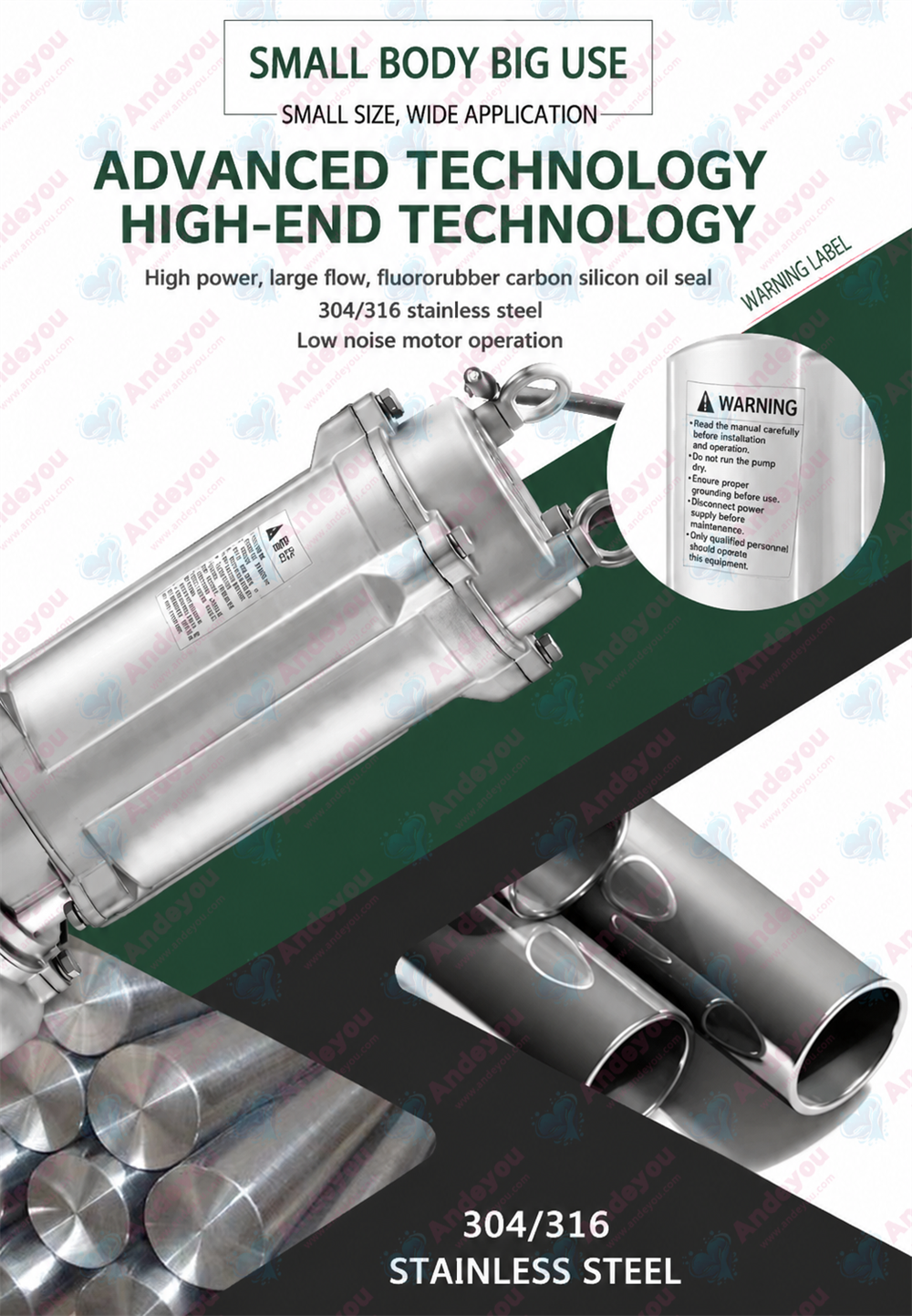

The Feike WQ-S 304 stainless steel submersible sewage pump is meticulously crafted from high-quality 304 stainless steel.It boasts powerful pumping capabilities,efficiently and reliably handling wastewater containing significant amounts of impurities and solid particles.Its superior sealing technology ensures safe,long-term underwater operation without the risk of leakage,while its compact structural design facilitates easy installation and maintenance.

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

Standard configuration is 304 stainless steel; please inquire if 316 stainless steel is required.

Customization available for larger models and specifications.

Operating Conditions:

1. Medium temperature: ≤ +40°C.

2. Medium pH value: 4–10.

3. Maximum medium density: 1.2 × 10³ kg/m³.

4. Power supply: 50 Hz frequency; single-phase AC 220V or three-phase AC 380V. Voltage fluctuation range: 0.9–1.1 times the rated voltage.

5. Submersion depth: ≤ 5m (measured from the center of the impeller flow channel).

Applications:

Food processing, chemical wastewater discharge, medical waste drainage, medical water handling, acidic/alkaline liquid discharge, and sewage treatment tank drainage.

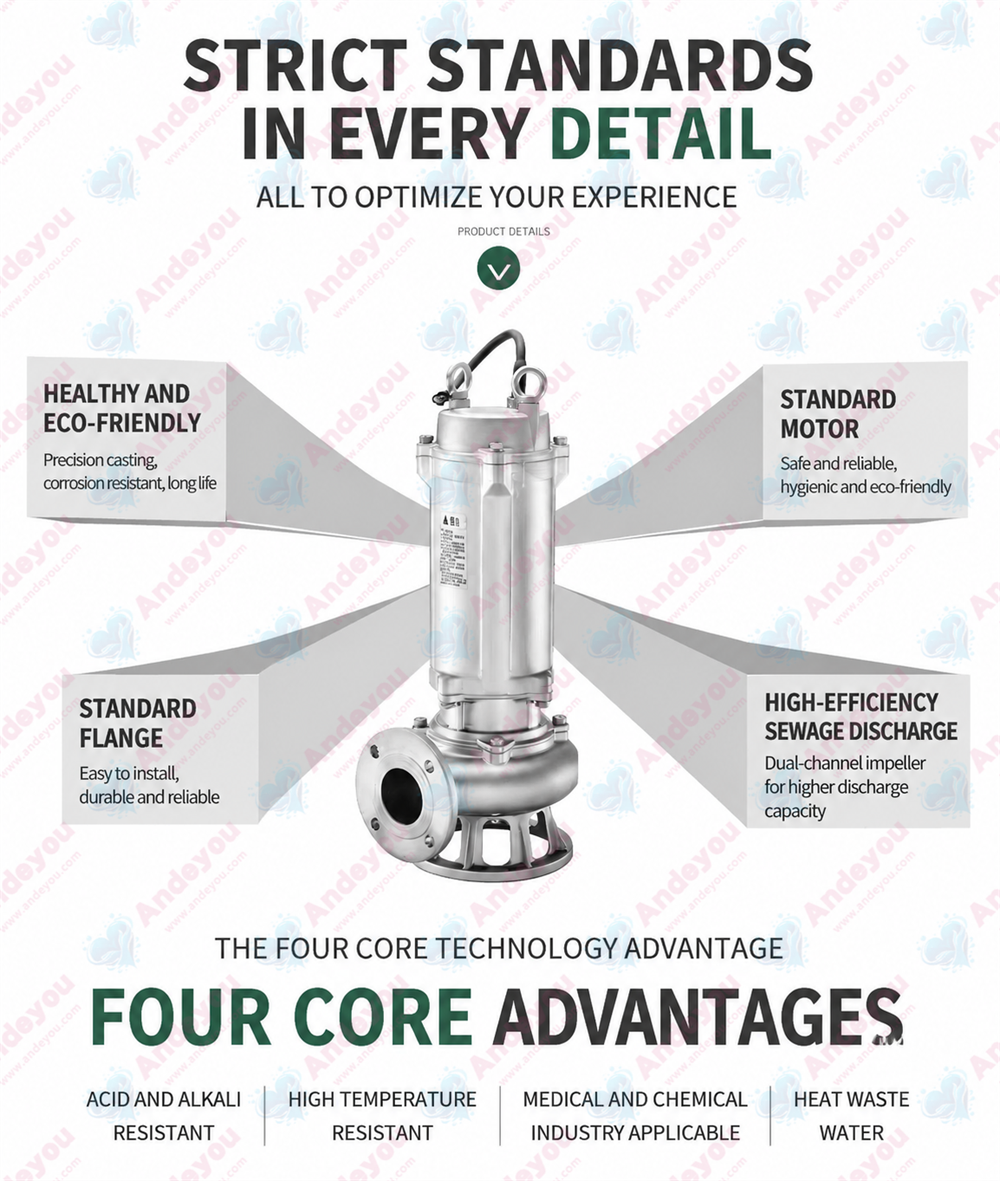

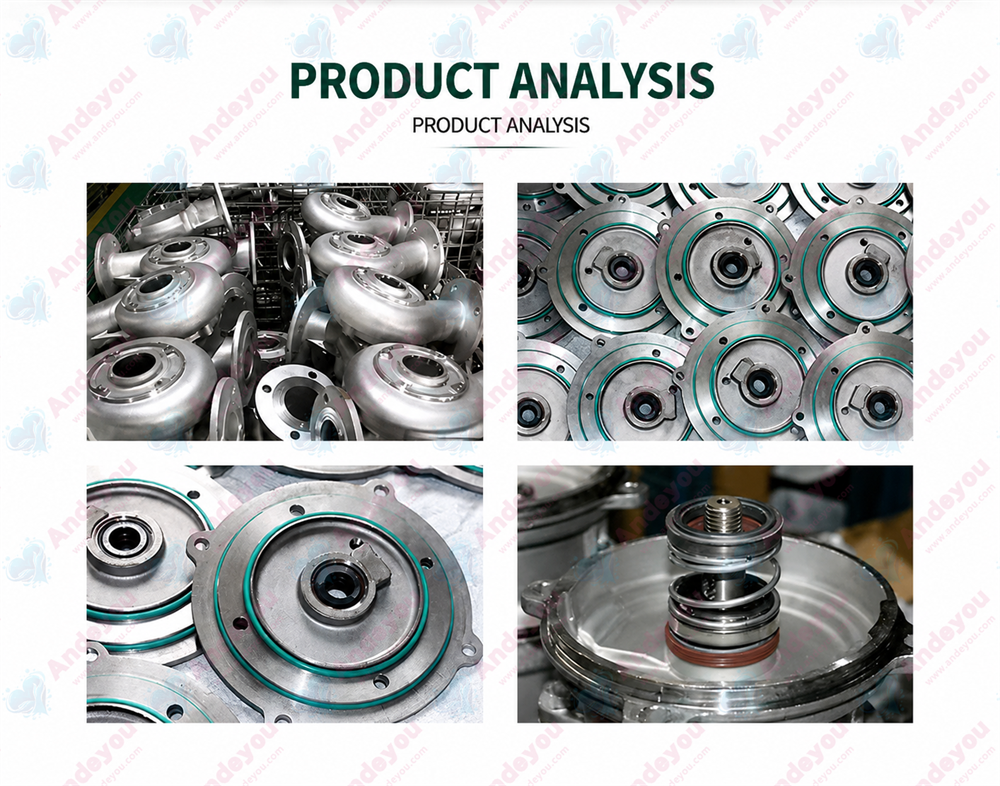

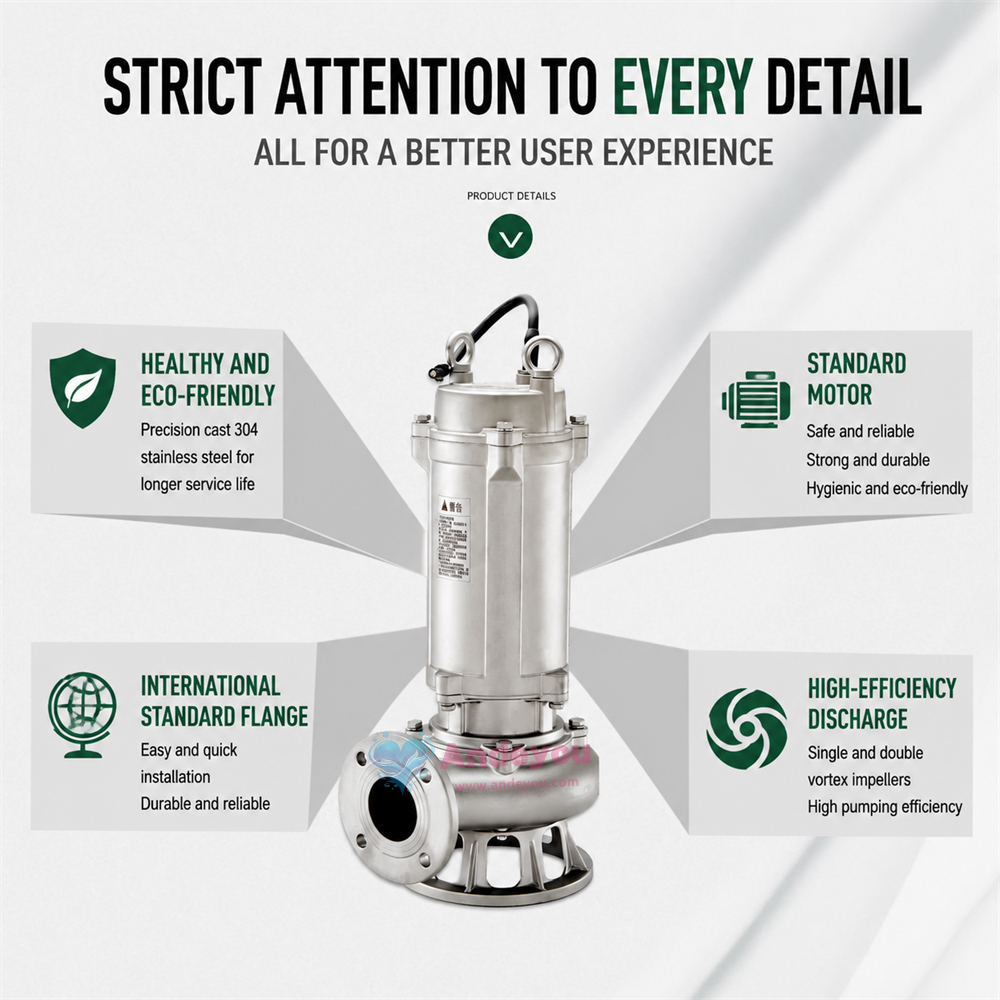

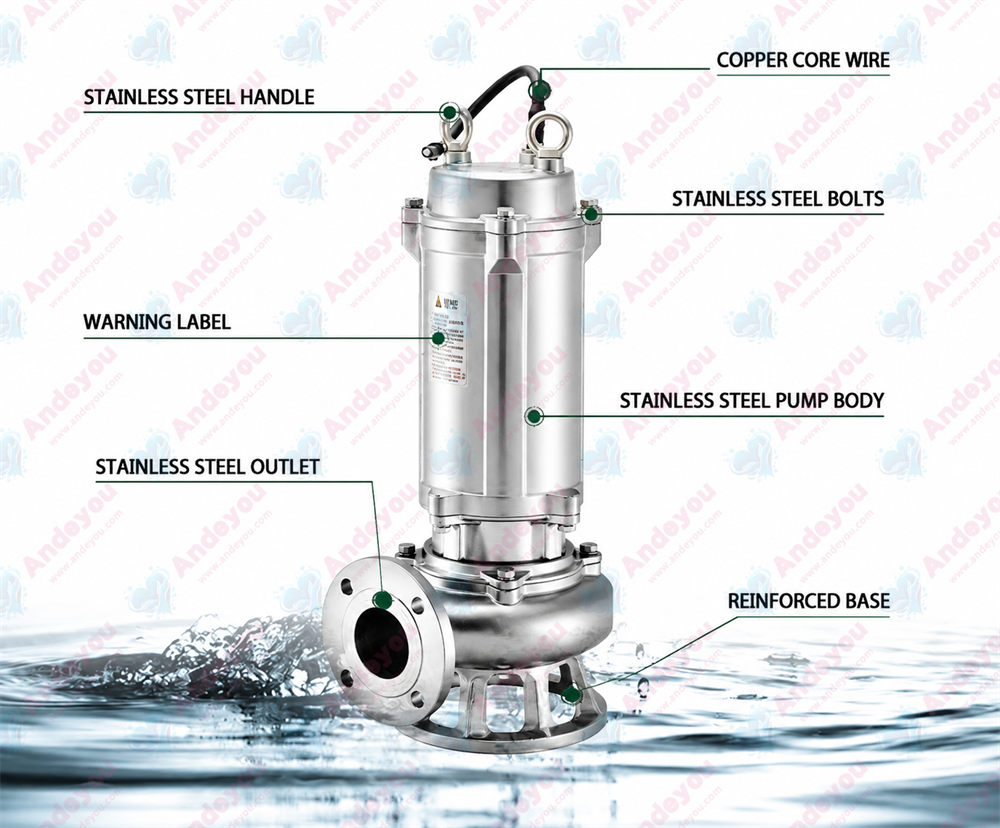

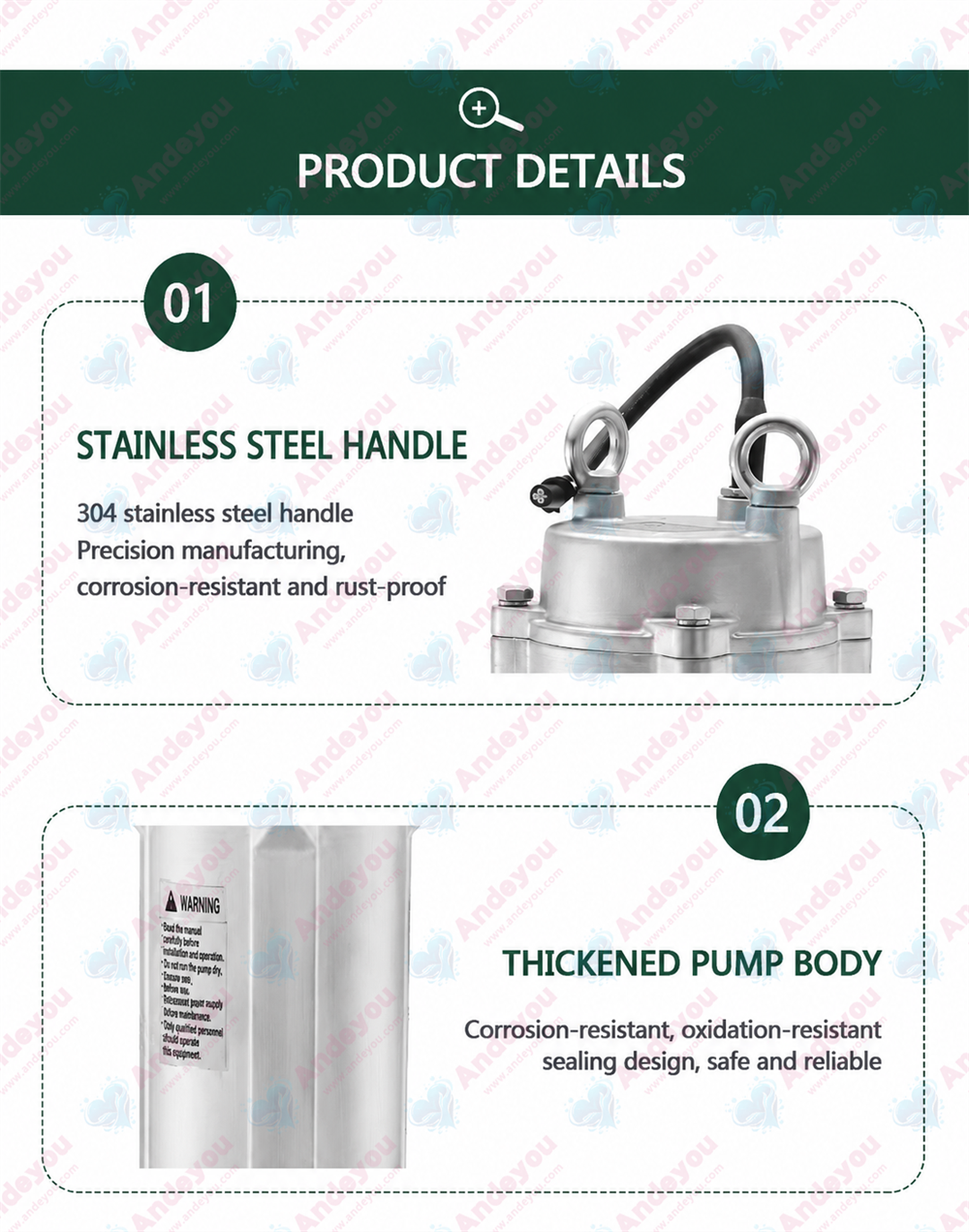

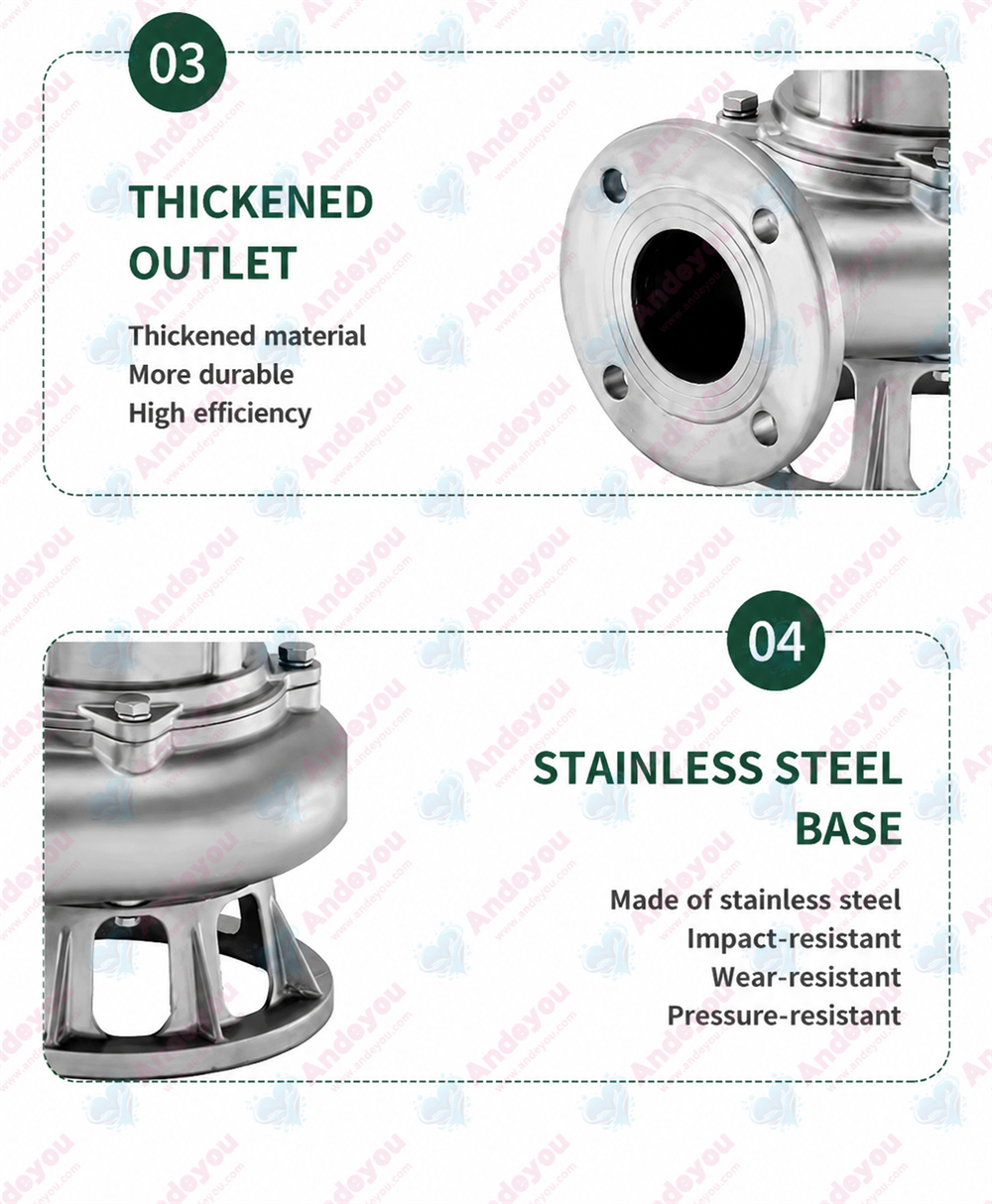

Components:

1. Open-type 304/316 impeller: High solids-handling capability.

2. Precision-cast 304/316 pump head: Corrosion-resistant and durable.

3. Fluororubber mechanical seal: Enhanced corrosion resistance.

4. Thickened 304/316 motor housing flange: Sturdy and corrosion-resistant.

5. Full fluororubber sealing: Resistant to acids, alkalis, and high temperatures.

6. Thickened 304 stainless steel components: Precision finish and durable structure.

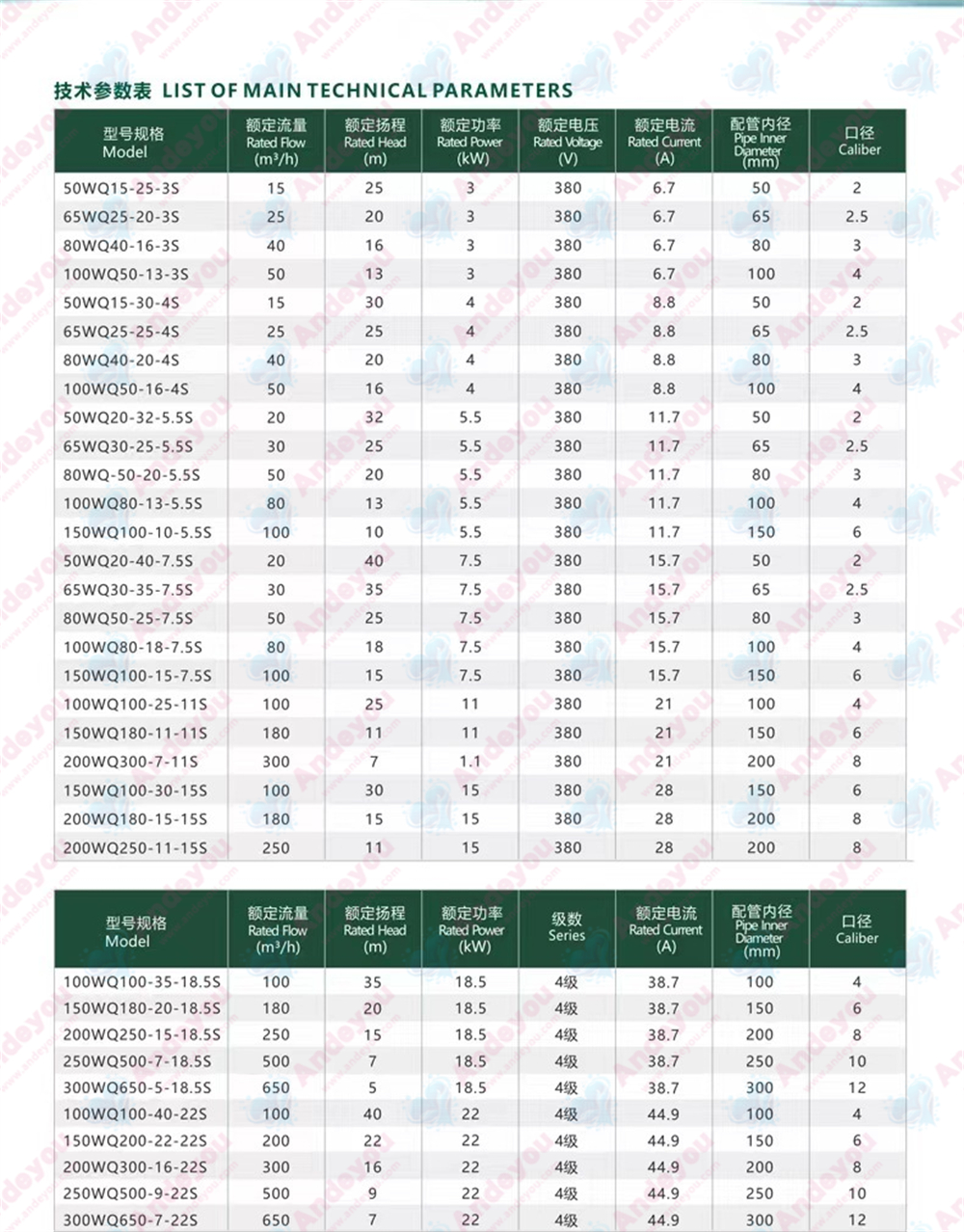

Parameters

Specifications and Model	Rated flow rate (m³/h)	Rated head (m)	Rated Power (kW)	Rated voltage (V)	Rated current (A)	Pipe inner diameter (m)
50WQ15-25-3S	15	25	3	380	6.7	51
65WQ25-20-3S	25	20	3	380	6.7	65
80WQ40-16-3S	40	40	3	380	6.7	76
100WQ50-13-3S	50	50	3	380	6.7	102
50WQ15-30-4S	16	15	4	380	8.8	51
65WQ25-25-4S	25	25	4	380	8.8	65
80WQ40-20-4S	40	40	4	380	8.8	76
100WQ50-16-4S	50	50	4	380	8.8	102
50WQ20-32-5.5S	30	20	5.5	380	11.7	51
65WQ30-25-5.5S	30	30	5.5	380	11.7	65
80WQ50-20-5.5S	50	50	5.5	380	11.7	76
100WQ80-13-5.5S	80	80	5.5	380	11.7	102
150WQ100-10-5.5S	100	100	5.5	380	11.7	152
50WQ20-40-7.5S	20	40	7.5	380	15.7	51
65WQ30-35-7.5S	30	35	7.5	380	15.7	65
80WQ50-25-7.5S	50	25	7.5	380	15.7	76
100WQ80-18-7.5S	80	18	7.5	380	15.7	102
150WQ100-15-7.5S	100	15	7.5	380	15.7	152
100WQ100-25-11S	100	25	11	380	21	100
150WQ180-11-11S	180	11	11	380	21	150
200WQ300-7-11S	300	7	11	380	21	200
150WQ100-30-15S	100	30	15	380	28	150
200WQ180-15-15S	180	15	15	380	28	200
200WQ250-11-15S	250	11	15	380	28	200
100WQ100-35-18.5S	100	35	18.5	380	38.7	100
150WQ180-20-18.5S	180	20	18.5	380	38.7	150
200WQ250-15-18.5S	250	15	18.5	380	38.7	200
250WQ500-7-18.5S	500	7	18.5	380	38.7	250
300WQ650-5-18.5S	650	5	18.5	380	38.7	300
100WQ100-40-22S	100	40	22	380	44.9	100
150WQ200-22-22S	200	22	22	380	44.9	150
200WQ300-16-22S	300	16	22	380	44.9	200
250WQ500-9-22S	500	9	22	380	44.9	250
300WQ650-7-22S	650	7	22	380	44.9	300
