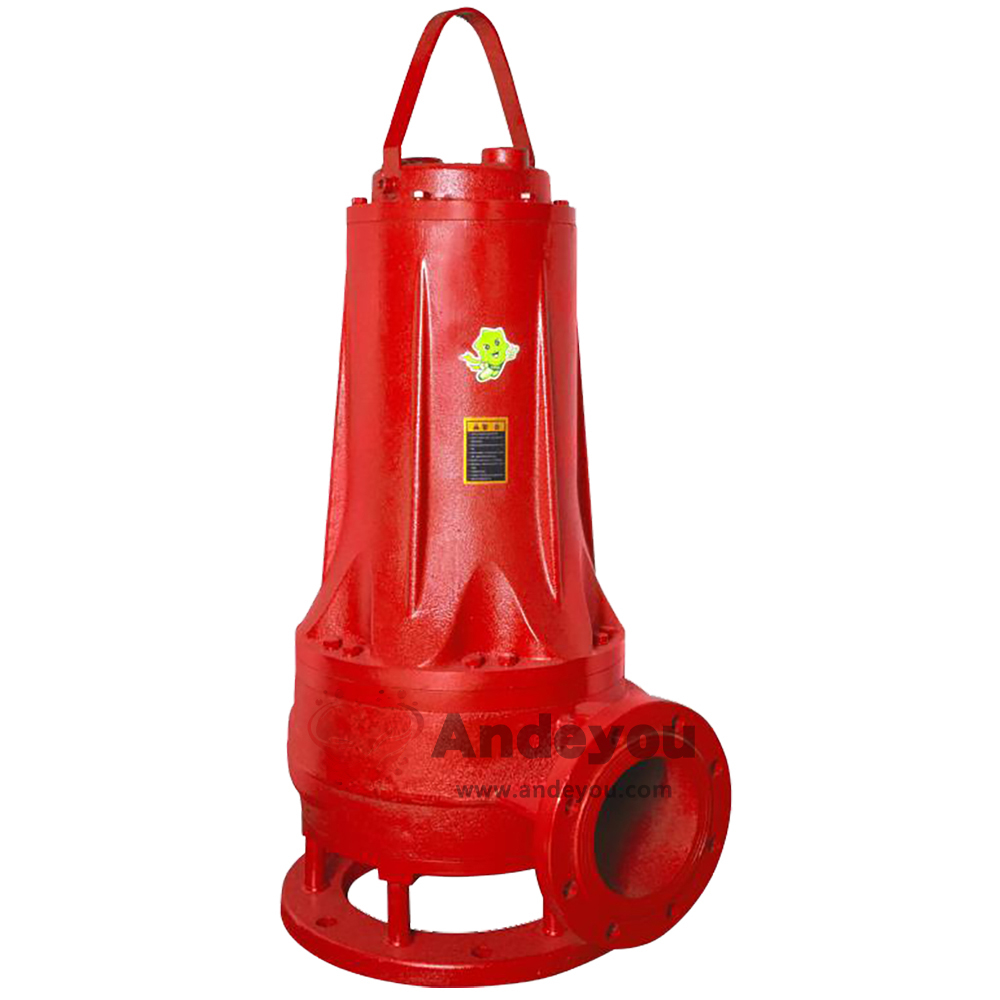

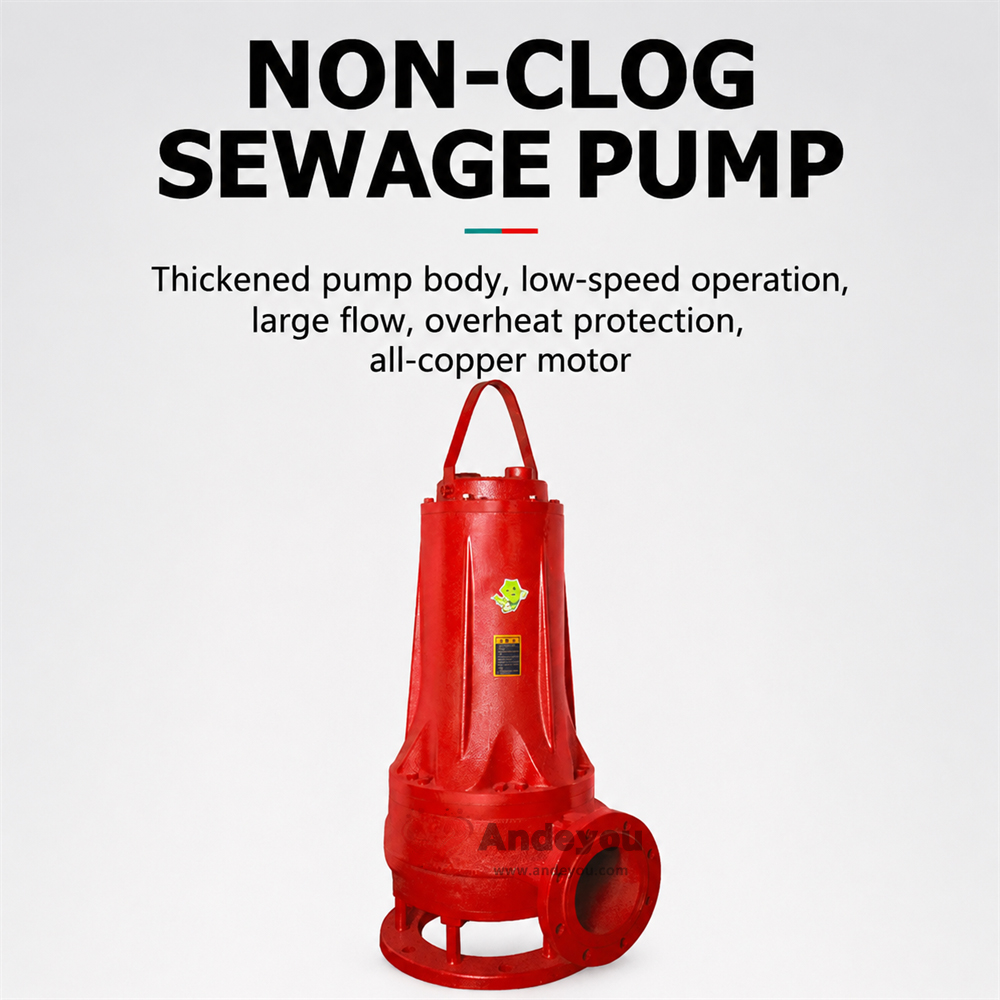

Feike ASWQ Engineering-Grade Submersible Cutting Sewage Pump

80ASWQ60-30-11|100ASWQ80-25-11|150ASWQ100-20-11|150ASWQ120-15-11|200ASWQ180-11-11|80ASWQ60-40-15|100ASWQ80-35-15|150ASWQ100-30-15|150ASWQ120-25-15|200ASWQ180-15-15|80ASWQ60-45-18.5|100ASWQ80-40-18.5|150ASWQ100-36-18.5|200ASWQ180-18-18.5|80ASWQ60-50-22|100ASWQ80-45-22|150ASWQ100-40-22|200ASWQ200-20-22

The Feike ASWQ heavy-duty cutting submersible sewage pump is specifically designed for large-scale sewage projects.Constructed from high-strength materials,it is robust,durable,and wear-resistant.Its advanced cutting system precisely and efficiently shreds solid debris in the sewage—easily handling materials such as fibers,branches,and plastics—thereby effectively preventing pump clogging
Product Consultation By telephone
Function
Parameters
Size
Video Introduction

Function

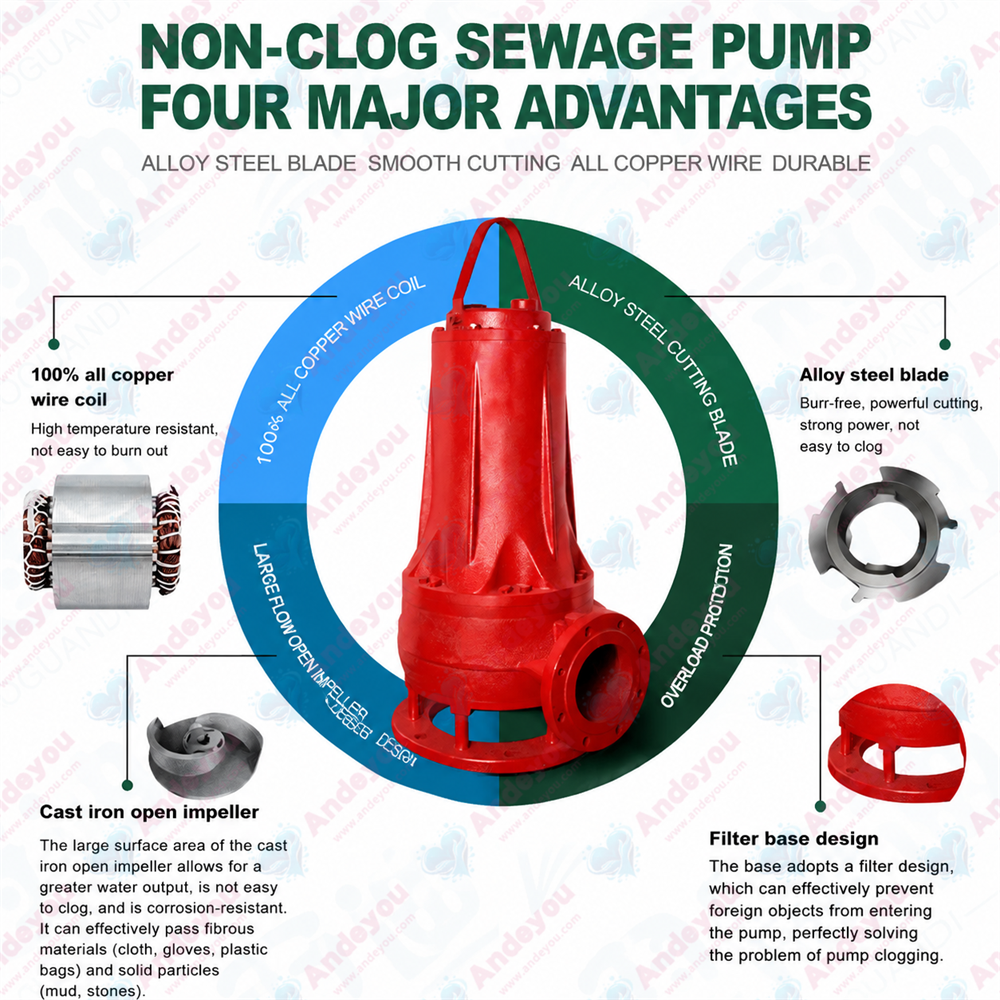

Key Components:

1. All-copper motor: High-temperature resistant and burnout-proof.

2. Open-type dual-channel impeller: Resistant to clogging.

3. Alloy steel cutting blade: Powerful cutting capability.

Applications:

Industrial construction, municipal environmental protection, agricultural irrigation and drainage, river dredging, wastewater treatment plants, and fish pond dredging.

Parameters

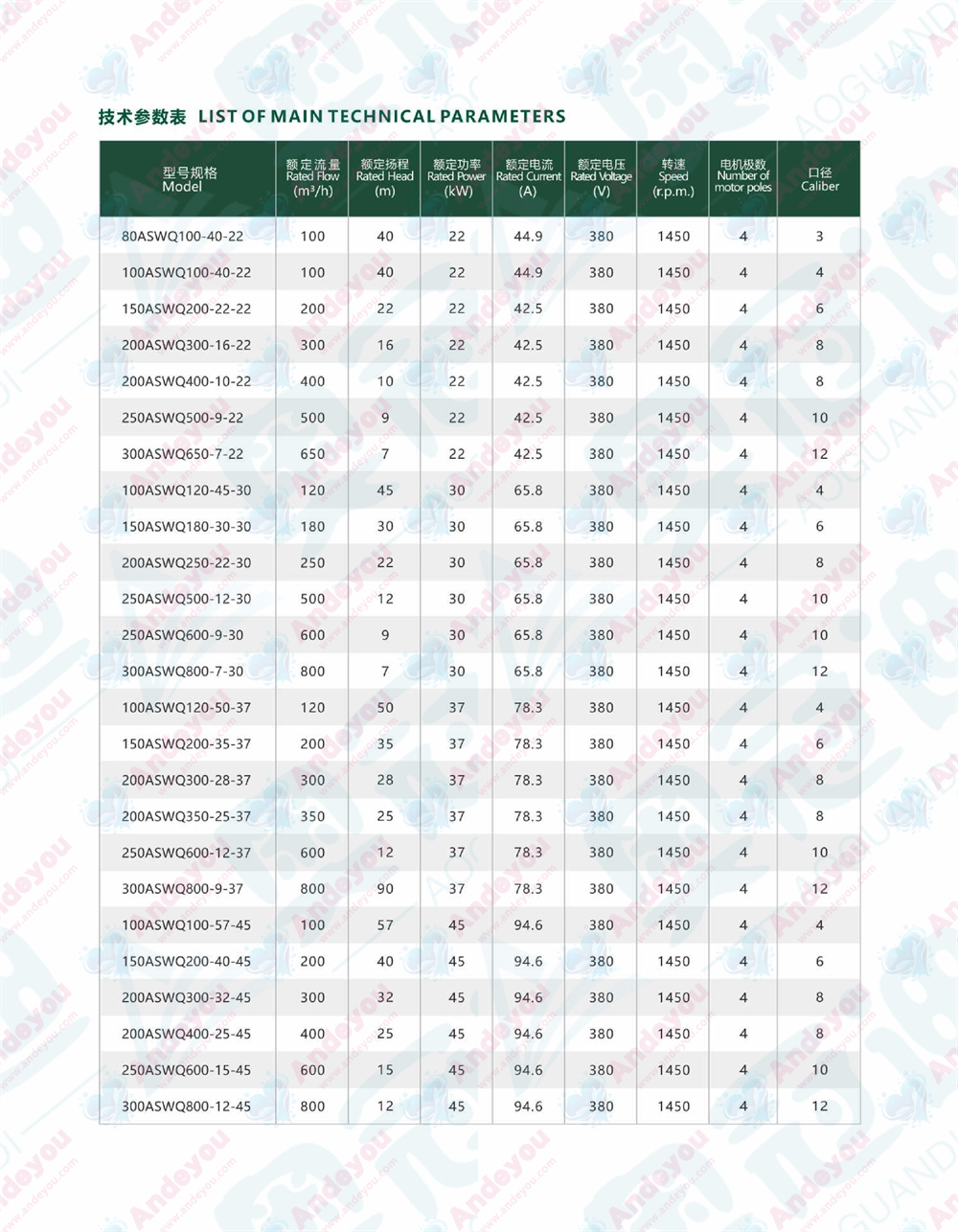

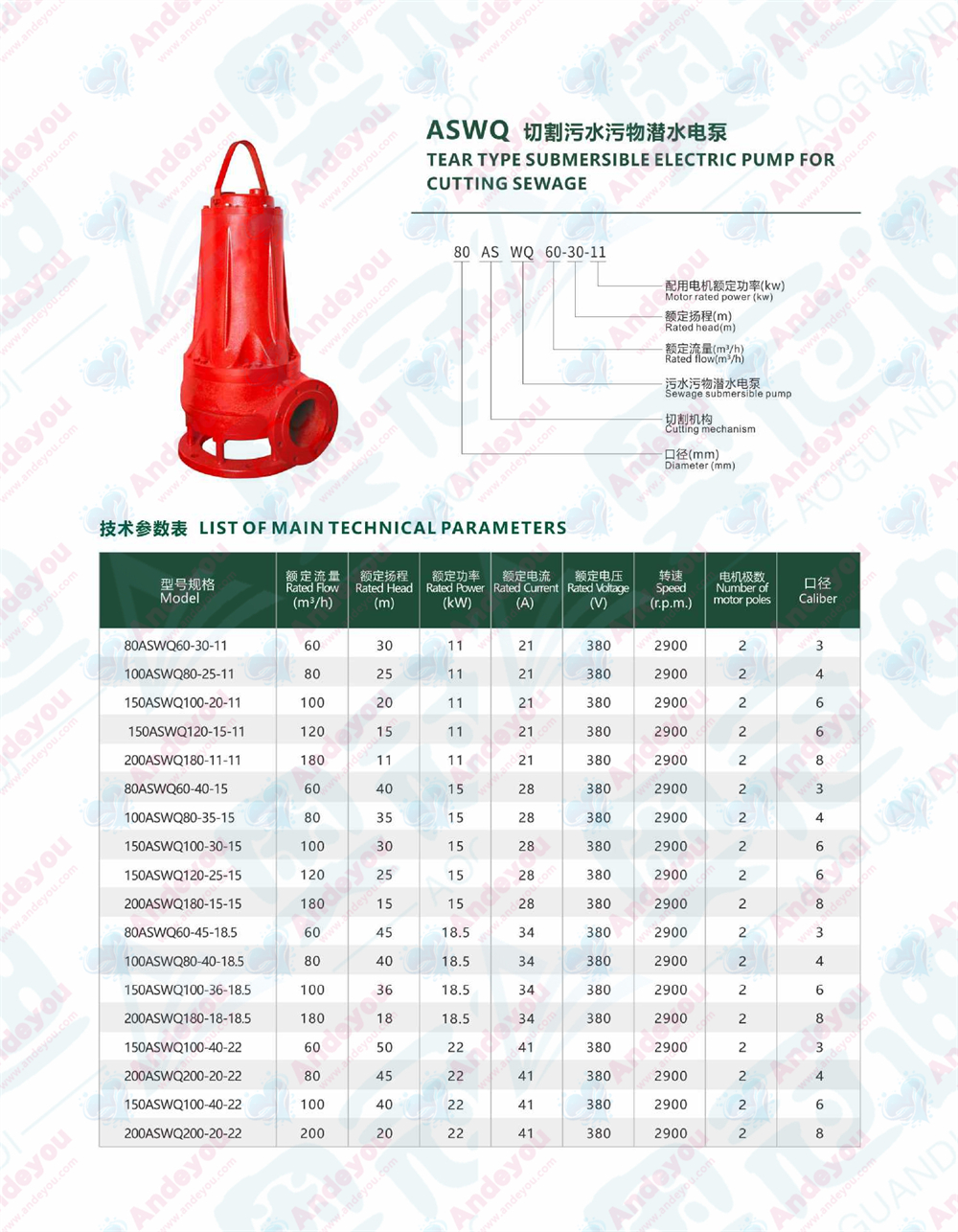

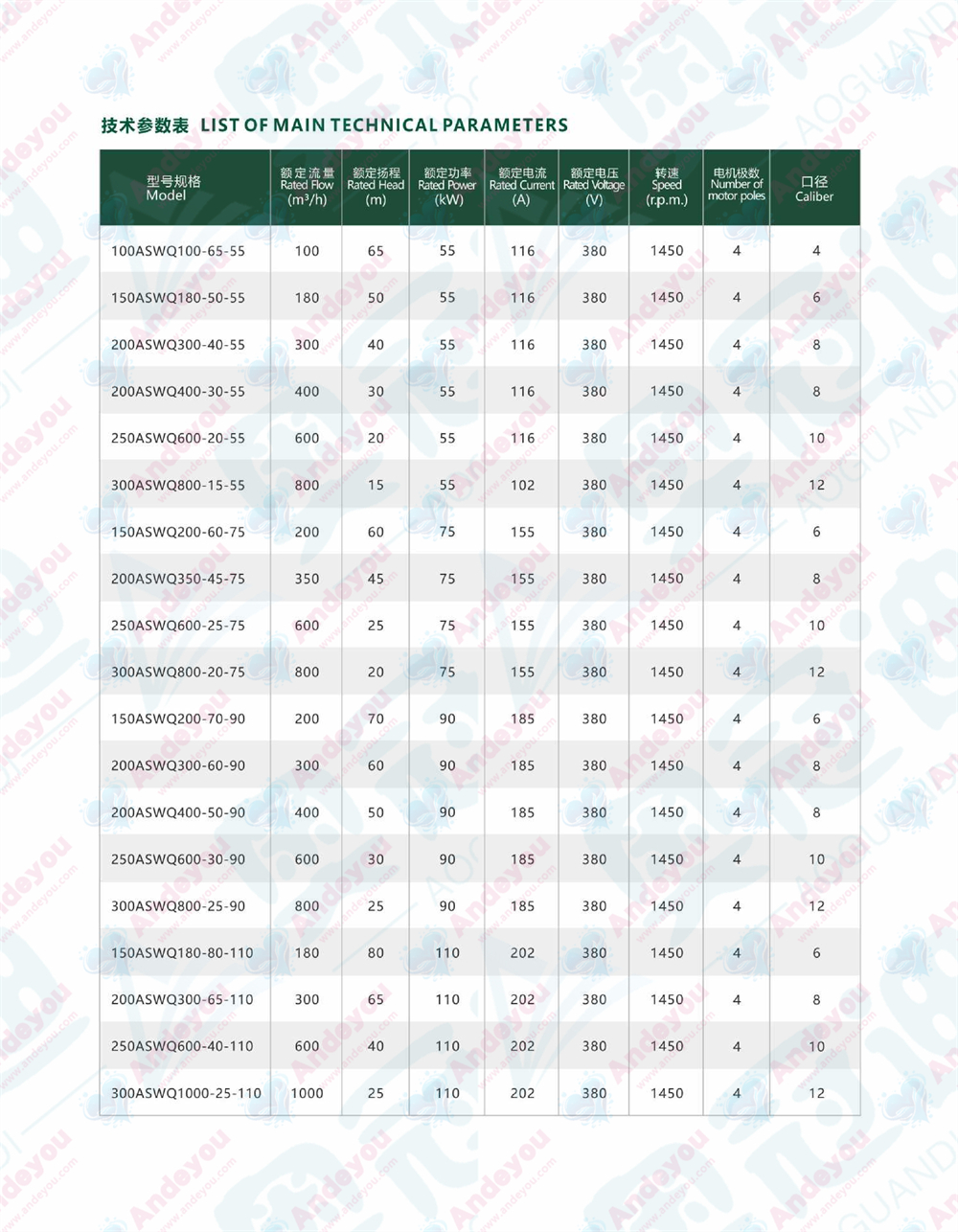

Specifications and Model Rated flow rate (m³/h) Rated head (m) Rated Power (kW) Rated voltage (V) Rotational speed (r/min) Piping inner diameter (inch)
80ASWQ60-30-11 60 30 11 380 2800 3
100ASWQ80-25-11 80 25 11 380 2800 4
150ASWQ100-20-11 100 20 11 380 2800 6
150ASWQ120-15-11 120 15 11 380 2800 6
200ASWQ180-11-11 180 11 11 380 2800 8
80ASWQ60-40-15 60 40 15 380 2800 3
100ASWQ80-35-15 80 35 15 380 2800 4
150ASWQ100-30-15 100 30 15 380 2800 6
150ASWQ120-25-15 120 25 15 380 2800 6
200ASWQ180-15-15 180 15 15 380 2800 8
80ASWQ60-45-18.5 60 45 18.5 380 2800 3
100ASWQ80-40-18.5 80 40 18.5 380 2800 4
150ASWQ100-36-18.5 100 36 18.5 380 2800 6
200ASWQ180-18-18.5 180 18 18.5 380 2800 8
80ASWQ60-50-22 60 50 22 380 2800 3
100ASWQ80-45-22 80 45 22 380 2800 4
150ASWQ100-40-22 100 40 22 380 2800 6
200ASWQ200-20-22 200 20 22 380 2800 8
80ASWQ80-13-5.5 80 13 5.5 380 1450 3
100ASWQ110-10-5.5 110 10 5.5 380 1450 4
150ASWQ150-7-5.5 150 7 5.5 380 1450 6
80ASWQ80-20-7.5 80 20 7.5 380 1450 3
100ASWQ100-15-7.5 100 15 7.5 380 1450 4
150ASWQ145-9-7.5 145 9 7.5 380 1450 6
200ASWQ250-6-7.5 250 6 7.5 380 1450 8
80ASWQ100-25-11 100 25 11 380 1450 3
100ASWQ100-25-11 100 25 11 380 1450 4
150ASWQ180-11-11 180 11 11 380 1450 6
200ASWQ300-7-11 300 7 11 380 1450 8
250ASWQ400-5-11 400 5 11 380 1450 10
80ASWQ100-30-15 100 30 15 380 1450 3
100ASWQ100-30-15 100 30 15 380 1450 4
150ASWQ200-15-15 200 15 15 380 1450 6
200ASWQ250-11-15 250 5 15 380 1450 8
250ASWQ50--5-15 500 35 15 380 1450 10
80ASWQ100-35-18.5 100 35 18.5 380 1450 3
100ASWQ100-35-18.5 100 35 18.5 380 1450 4
150ASWQ180-20-18.5 180 20 18.5 380 1450 6
200ASWQ250-15-18.5 250 15 18.5 380 1450 8
200ASWQ350-10-18.5 350 10 18.5 380 1450 8
250ASWQ500-7-18.5 500 7 18.5 380 1450 10
300ASWQ650-5-18.5 650 2 18.5 380 1450 12
80ASWQ100-40-22 100 40 22 380 1450 3
100ASWQ100-40-22 100 40 22 380 1450 4
150ASWQ200-22-22 200 22 22 380 1450 6
200ASWQ30-16-22 300 16 22 380 1450 8
200ASWQ400-10-22 400 10 22 380 1450 8
250ASWQ500-9-22 500 9 22 380 1450 10
300ASWQ650-7-22 650 7 22 380 1450 12
100ASWQ120-45-30 120 45 30 380 1450 4
150ASWQ180-30-30 180 30 30 380 1450 6
200ASWQ250-22-30 250 22 30 380 1450 8
250ASWQ500-12-30 500 12 30 380 1450 10
250ASWQ600-9-30 600 9 30 380 1450 10
300ASWQ800-7-30 800 7 30 380 1450 12
100ASWQ120-50-37 120 50 37 380 1450 4
150ASWQ200-35-37 200 35 37 380 1450 6
200ASWQ300-28-37 300 28 37 380 1450 8
200ASWQ350-25-37 350 25 37 380 1450 8
250ASWQ600-12-37 600 12 37 380 1450 10
300ASWQ800-9-37 800 90 37 380 1450 12
100ASWQ100-57-45 100 57 45 380 1450 4
150ASWQ200-40-45 200 40 45 380 1450 6
200ASWQ300-32-45 300 32 45 380 1450 8
200ASWQ400-25-45 400 25 45 380 1450 8
250ASWQ600-15-45 600 15 45 380 1450 10
300ASWQ80--12-45 800 12 45 380 1450 12
100ASWQ100-65-55 100 65 55 380 1450 4
150ASWQ180-50-55 180 50 55 380 1450 6
200ASWQ300-40-55 300 40 55 380 1450 8
200ASWQ400-30-55 400 30 55 380 1450 8
250ASWQ600-20-55 600 20 55 380 1450 10
300ASWQ800-15-55 800 15 55 380 1450 12
150ASWQ200-60-75 200 60 75 380 1450 6
200ASWQ350-45-75 350 45 75 380 1450 8
250ASWQ600-25-75 600 25 75 380 1450 10
300ASWQ800-20-75 800 20 75 380 1450 12
150ASWQ200-70-90 200 70 90 380 1450 6
200ASWQ300-60-90 300 60 90 380 1450 8
200ASWQ400-50-90 400 50 90 380 1450 8
250ASWQ600-30-90 600 30 90 380 1450 10
300ASWQ800-25-90 800 25 90 380 1450 12
150ASWQ180-80-110 180 80 110 380 1450 6
200ASWQ300-65-110 300 65 110 380 1450 8
250ASWQ600-40-110 600 40 110 380 1450 10
300ASWQ1000-25-110 1000 25 110 380 1450 12
