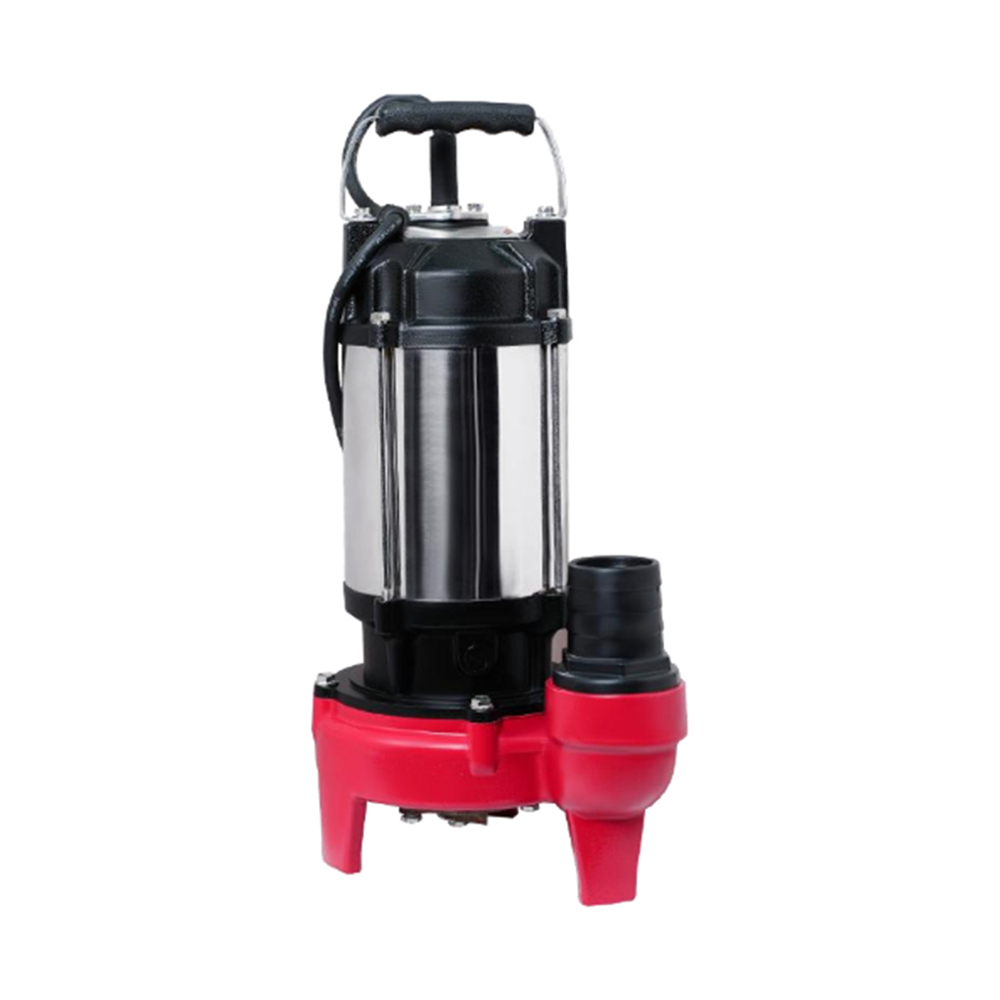

Feike WQD-BG Small Submersible Sewage Pump with Cutter

WQD5-7-0.37BG|WQD8-8-0.55BG|WQD10-10-0.75BG|WQD15-9-1.1BG

The Feike WQD-BG is a compact yet powerful submersible sewage pump equipped with a cutting mechanism.Constructed from high-quality materials,it offers excellent durability and corrosion resistance.Its unique cutting system effectively handles debris such as hair,fibers,and small solid particles found in sewage,preventing pump blockages and ensuring smooth discharge.Featuring superior sealing,it operates reliably while fully submerged,offering low noise levels and energy efficiency.

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

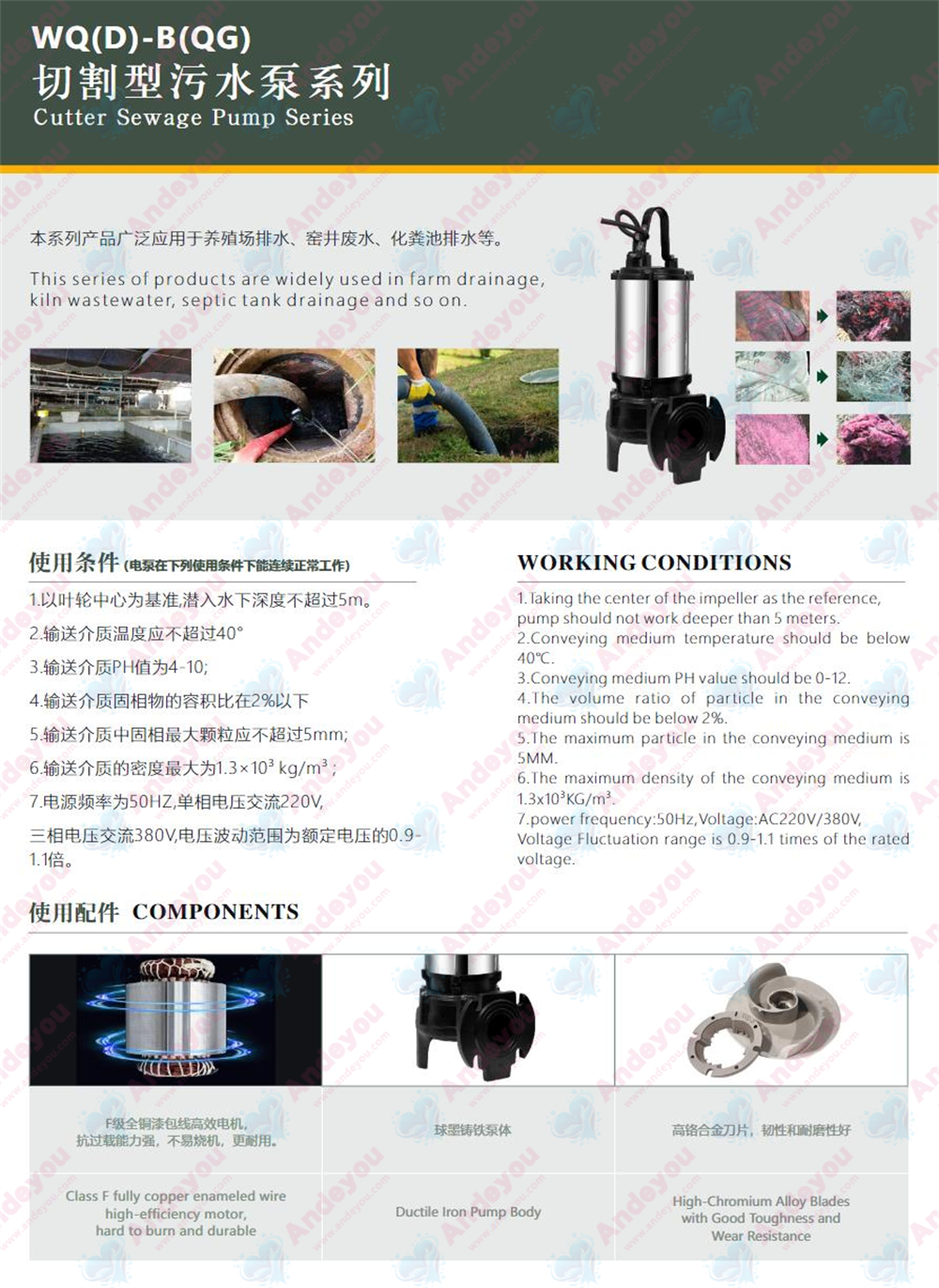

Operating Conditions:

1. Submersion depth: Maximum of 5m (measured from the center of the impeller).

2. Medium temperature: Maximum of 40°C.

3. pH value of the medium: 4–10.

4. Volumetric ratio of solid matter in the medium: Less than 2%.

5. Maximum solid particle size in the medium: 5mm.

6. Maximum density of the medium: 1.2 × 10³ kg/m³.

7. Power supply: 50Hz frequency; single-phase AC 220V or three-phase AC 380V; voltage fluctuation range: 0.9–1.1 times the rated voltage.

Applications:

Aquaculture wastewater discharge, sump/manhole drainage, septic tank cleaning, and sewer drainage.

Components:

1. All-copper, high-efficiency motor: Features strong overload resistance, is less prone to burnout, and offers enhanced durability.

2. HRB (Renben) bearings: High load capacity, long service life, and smooth operation.

3. Alloy blades: Rust-resistant with excellent toughness and wear resistance.

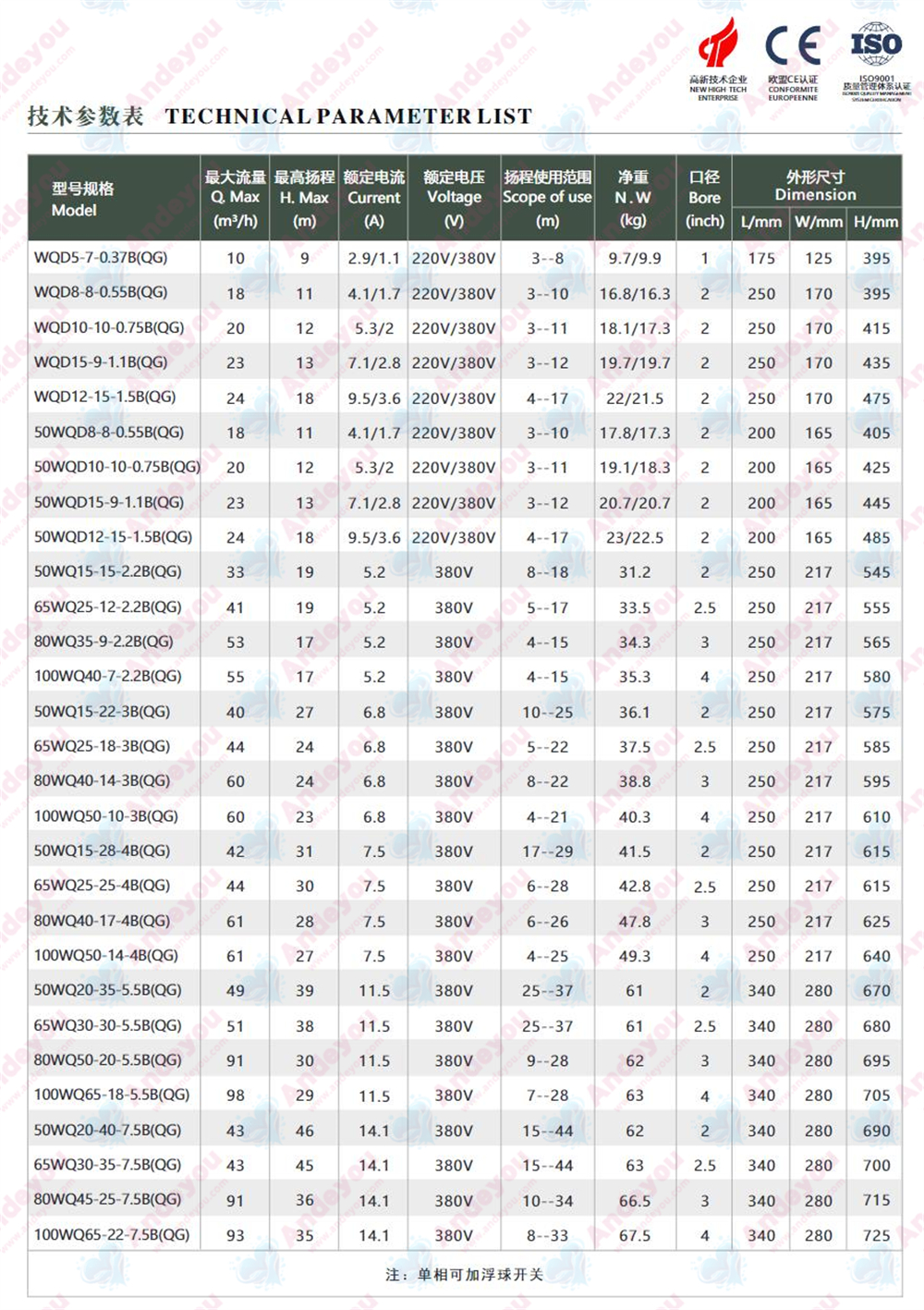

Parameters

Specifications and Model	Rated flow rate	Rated head	Rated power	Rated voltage	Piping inner diameter
WQD5-7-0.37BG	5	7	0.37	220/380	25
WQD8-8-0.55BG	8	8	0.55	220/380	51
WQD10-10-0.75BG	10	10	0.75	220/380	51
WQD15-9-1.1BG	15	9	1.1	220/380	51
WQD12-15-1.5BG	12	15	1.5	220/380	50
50WQ15-15-2.2BG	15	15	2.2	380	50
65WQ25-12-2.2BG	25	12	2.2	380	65
80WQ35-9-2.2BG	35	9	2.2	380	80
100WQ40-7-2.2BG	40	7	2.2	380	100
50WQ15-22-3BG	15	22	3	380	50
65WQ25-18-3BG	25	18	3	380	65
80WQ40-14-3BG	40	14	3	380	80
100WQ50-10-3BG	50	10	3	380	100
65WQ25-25-4BG	25	25	4	380	65
80WQ40-17-4BG	40	17	4	380	80
100WQ50-14-4BG	50	14	4	380	100
50WQ20-35-5.5BG	20	35	5.5	380	50
65WQ30-30-5.5BG	30	30	5.5	380	65
80WQ50-20-5.5BG	50	20	5.5	380	80
100WQ65-18-5.5BG	65	18	5.5	380	100
50WQ20-40-7.5BG	20	40	7.5	380	50
65WQ30-35-7.5BG	30	35	7.5	380	65
80WQ45-25-7.5BG	45	25	7.5	380	80
100WQ65-22-7.5BG	65	22	7.5	380	100
