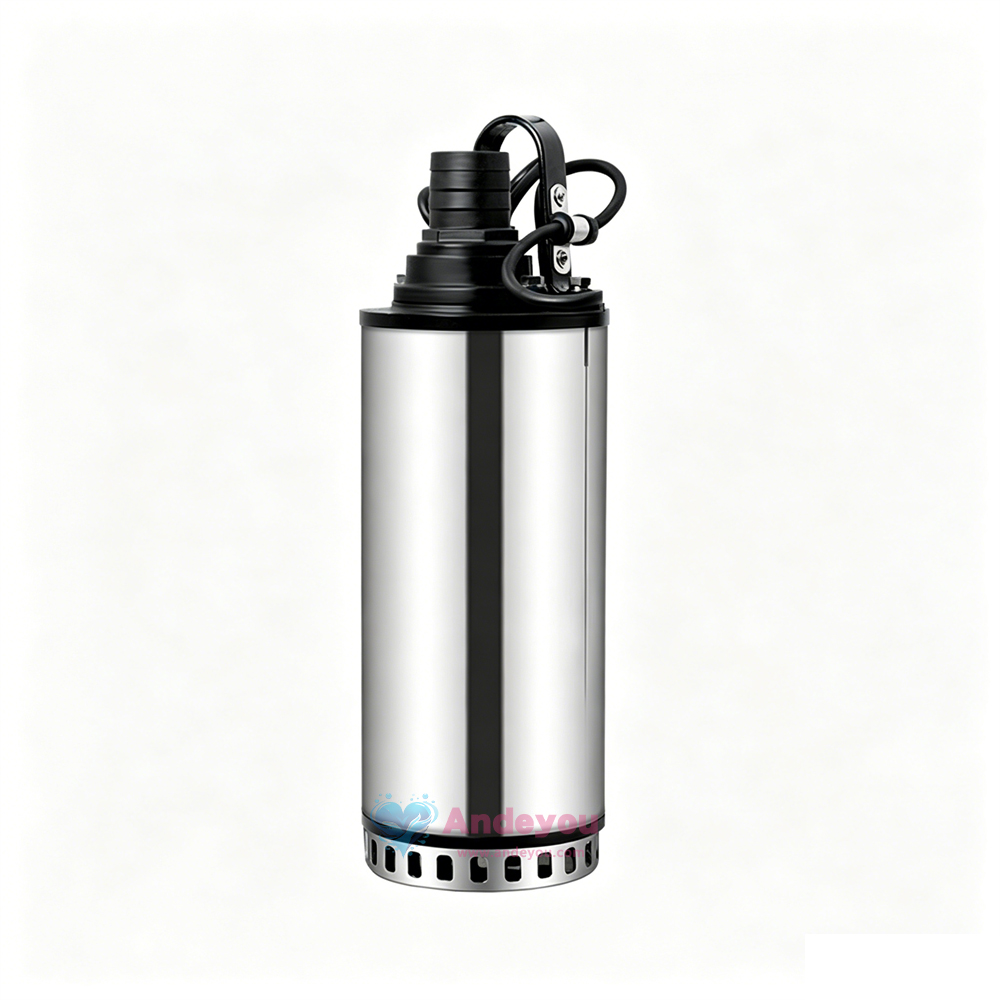

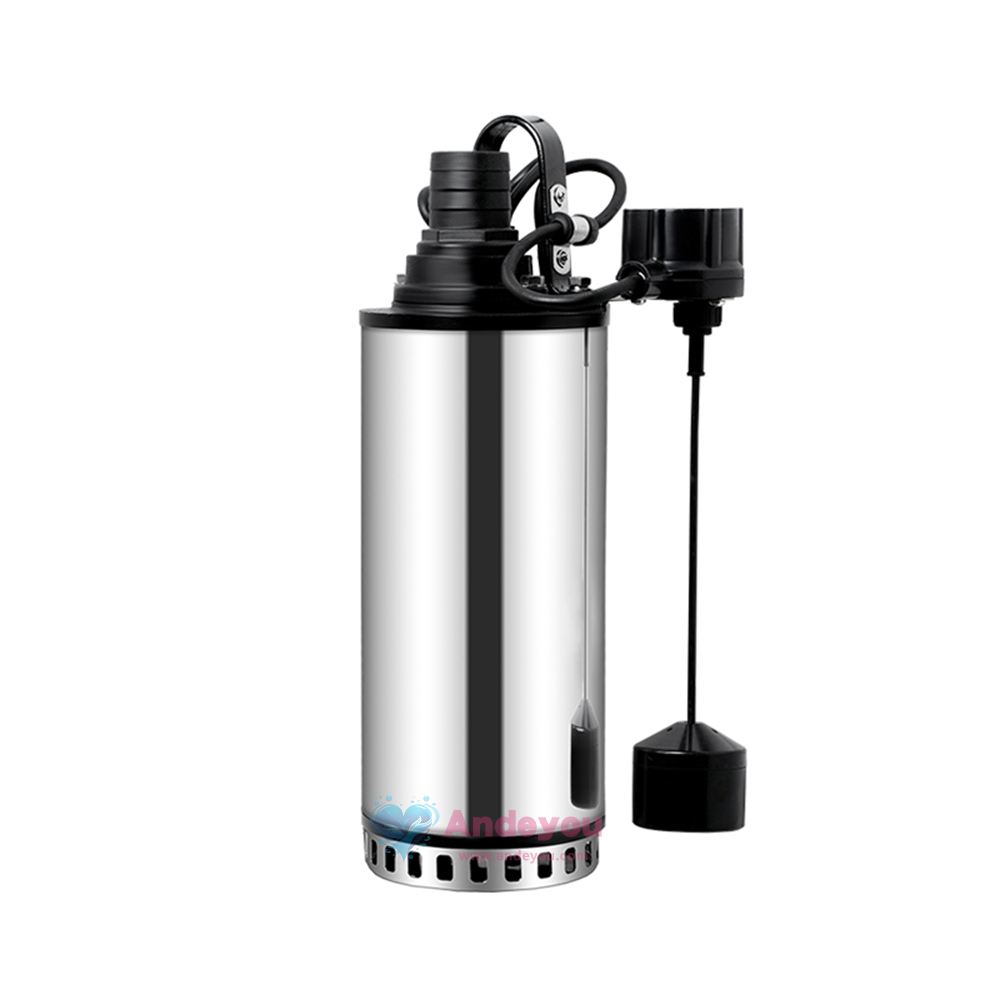

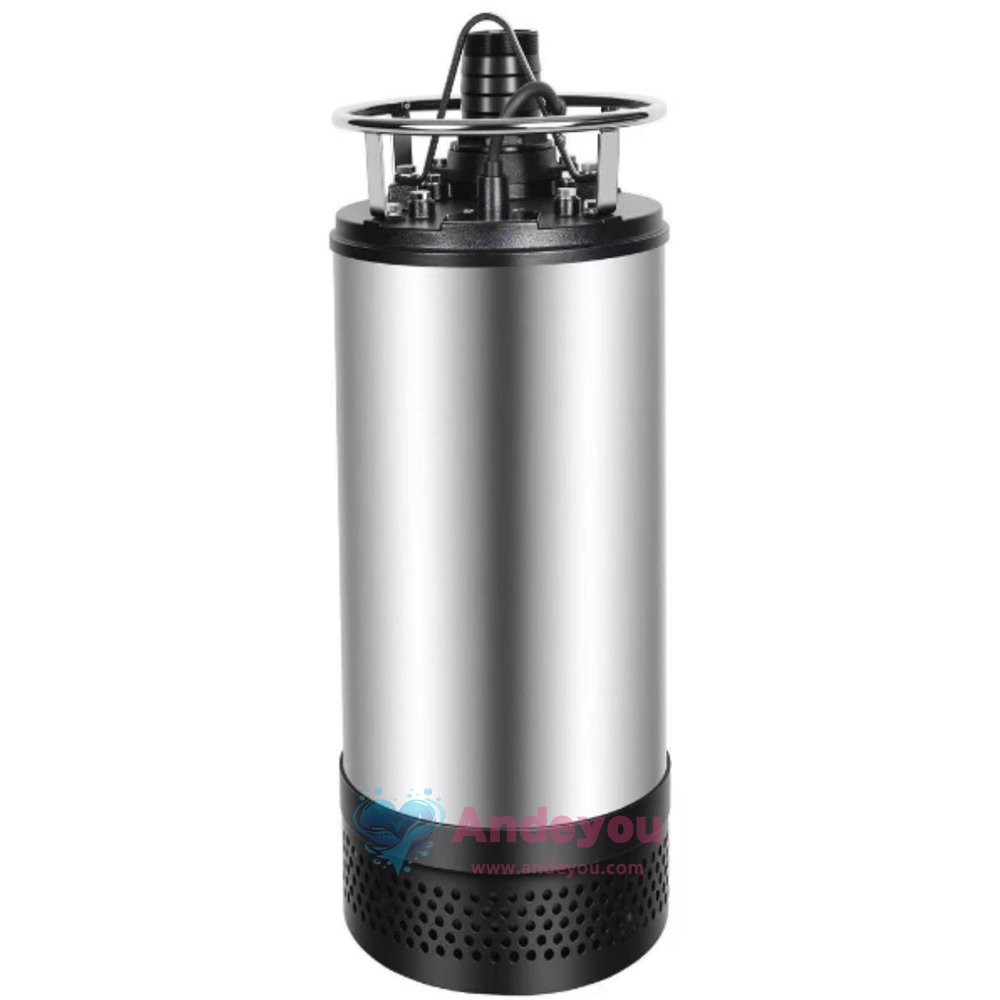

Feike WQD-N Bottom-Suction Submersible Sewage Pump

WQD8-8-0.55N|WQD5-15-0.75N|WQD10-10-0.75N|WQD15-9-1.1N|WQD8-8-0.55NF|WQD5-15-0.75NF|WQD10-10-0.75NF|WQD15-9-1.1NF

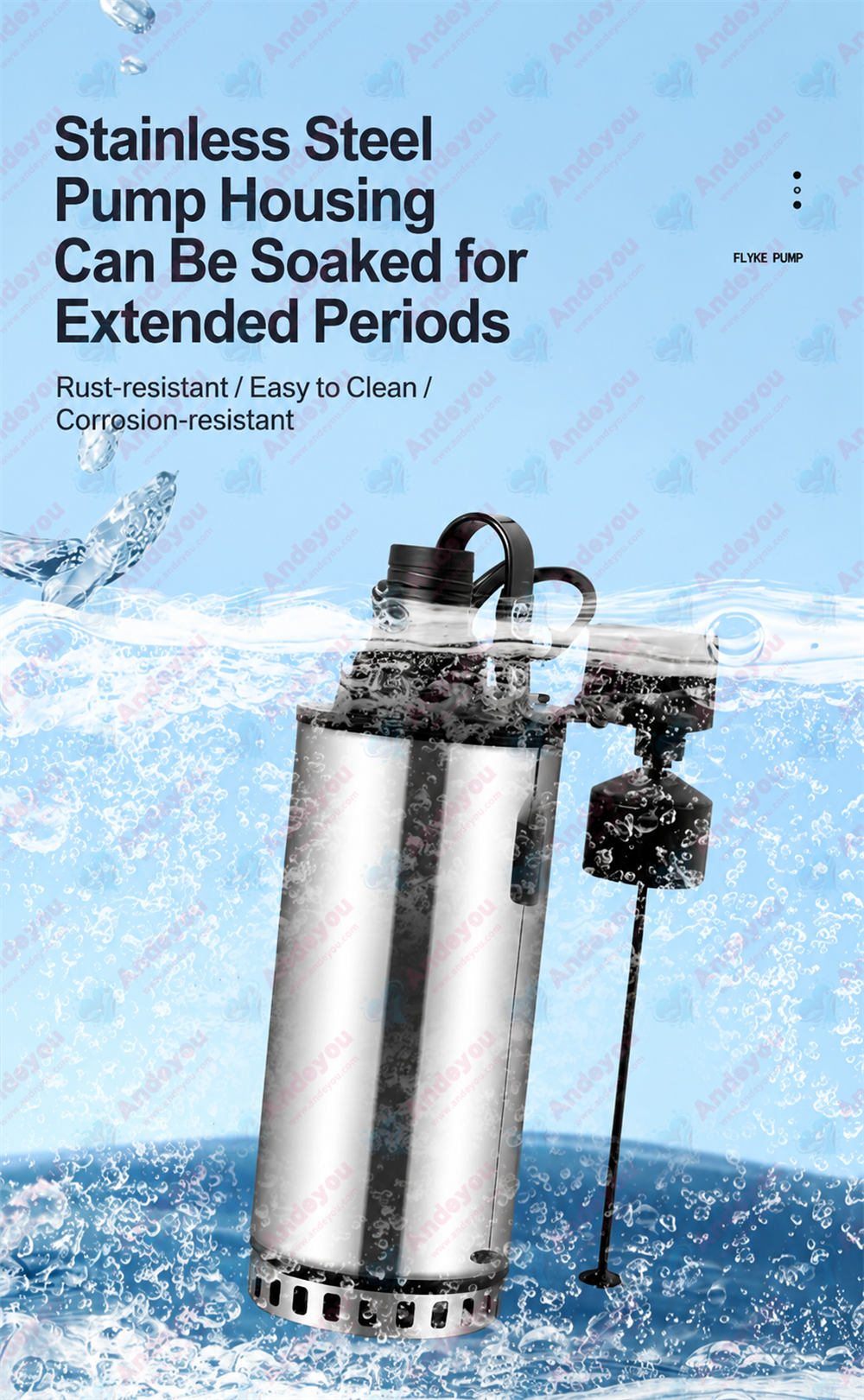

The Feike WQD-N bottom-suction submersible sewage pump is engineered for high-efficiency sewage discharge.Its unique bottom-suction design effectively draws in various types of bottom-settled debris and viscous sewage,significantly reducing the risk of clogging.Constructed from premium materials,the pump is robust,durable,and corrosion-resistant.It features a powerful drive system that delivers stable performance with high head and high flow rates.

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

Operating Conditions:

1. Medium temperature: ≤ +40°C.

2. pH value of the medium: 4–10.

3. Maximum density of the medium: 1.2 × 10³ kg/m³.

4. Power supply: 50 Hz frequency; single-phase AC 220V or three-phase AC 380V. Voltage fluctuation range: 0.9–1.1 times the rated value.

5. Submersion depth: ≤ 5m (measured from the center of the impeller flow passage).

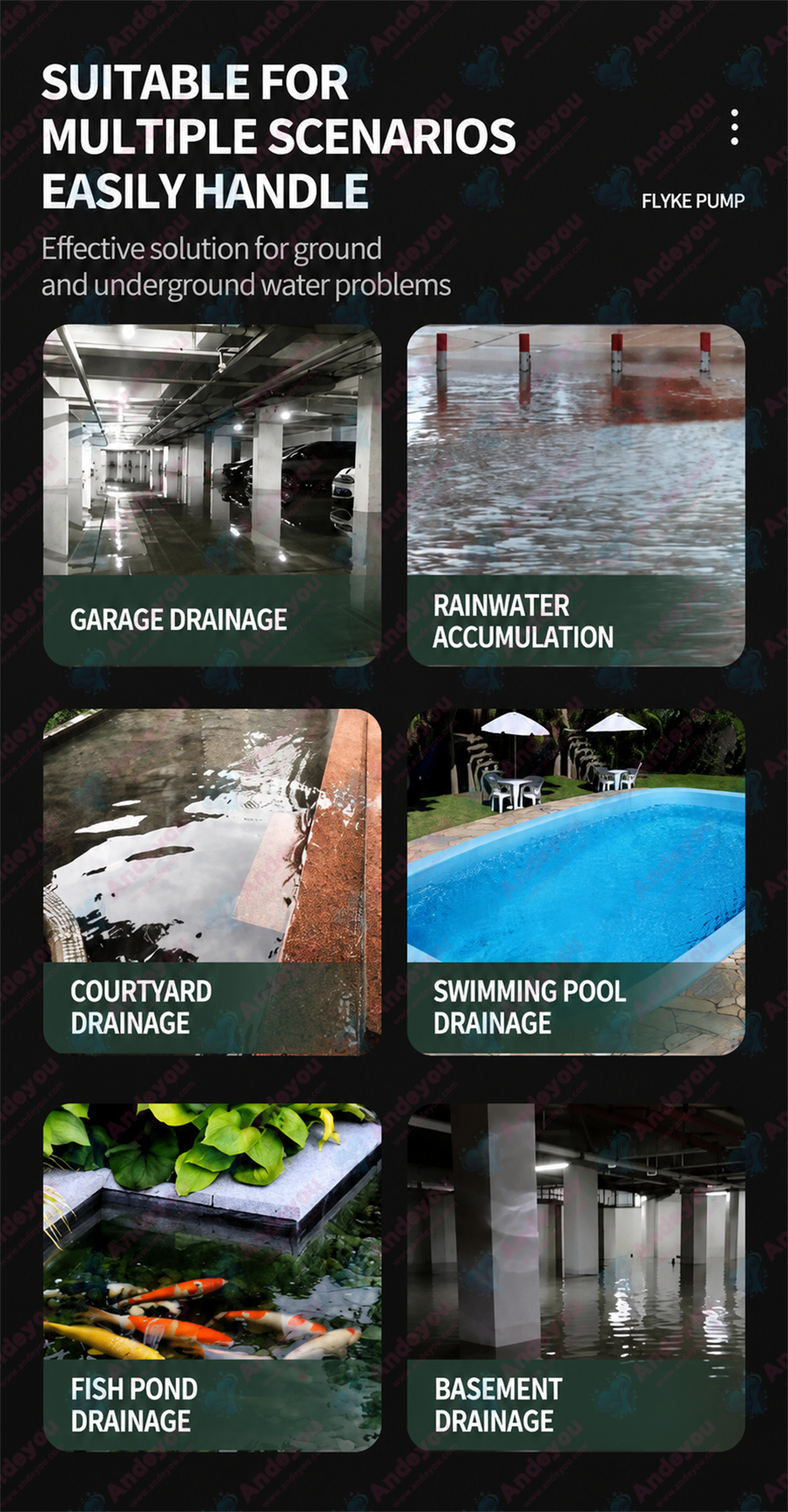

Applications:

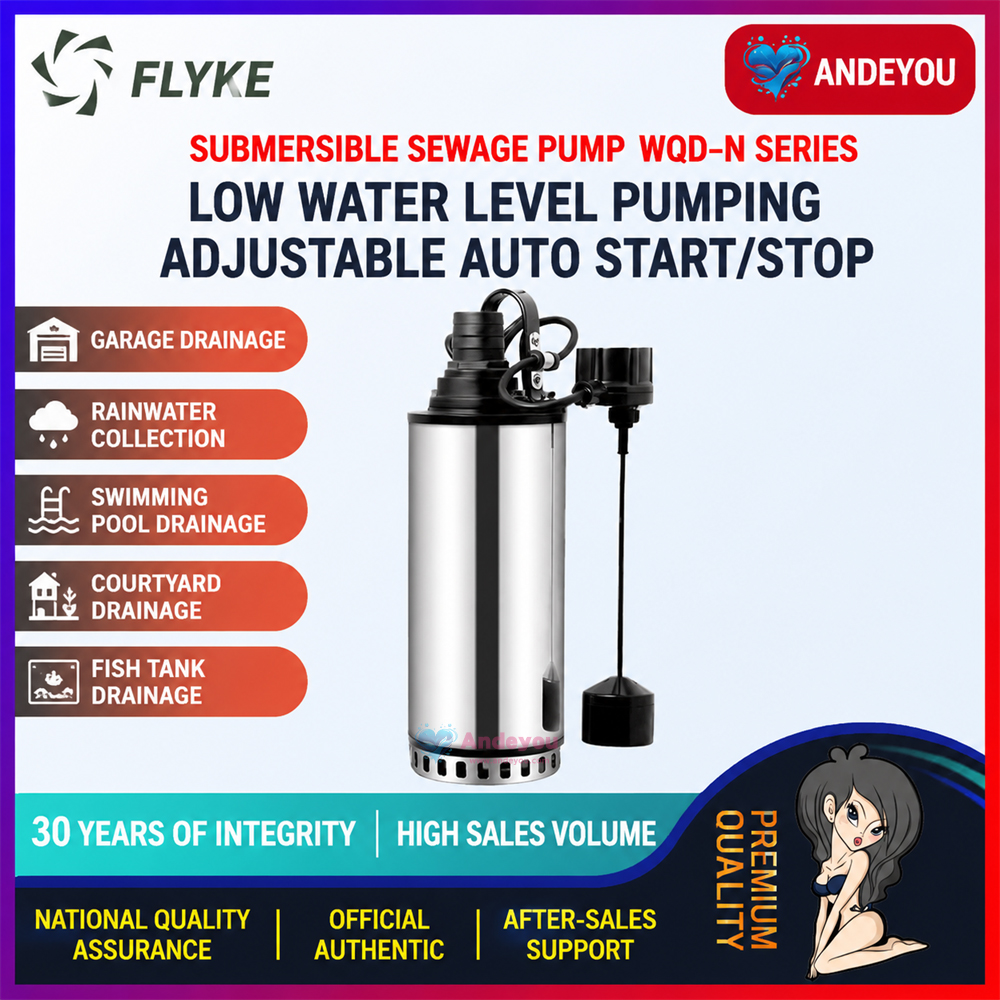

Draining garages, fish ponds, basements, and areas in front of the property.

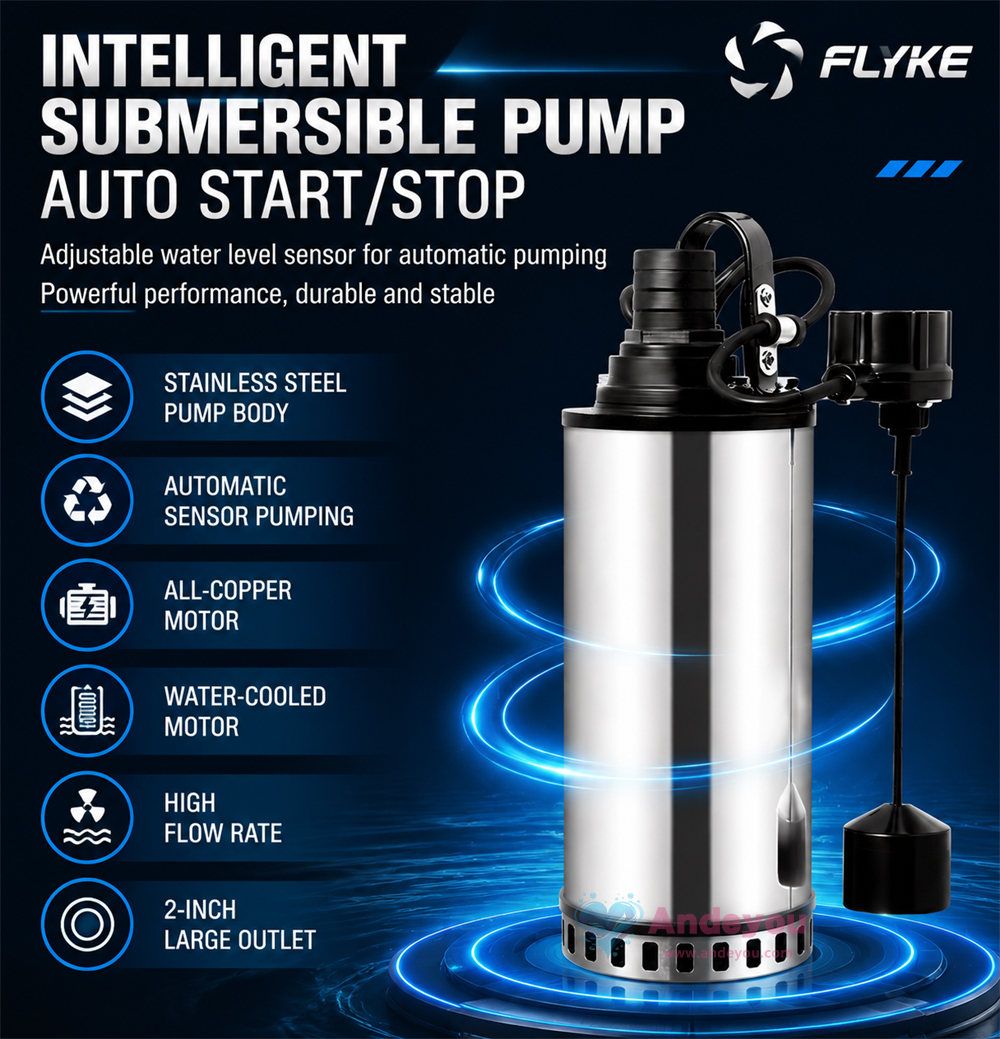

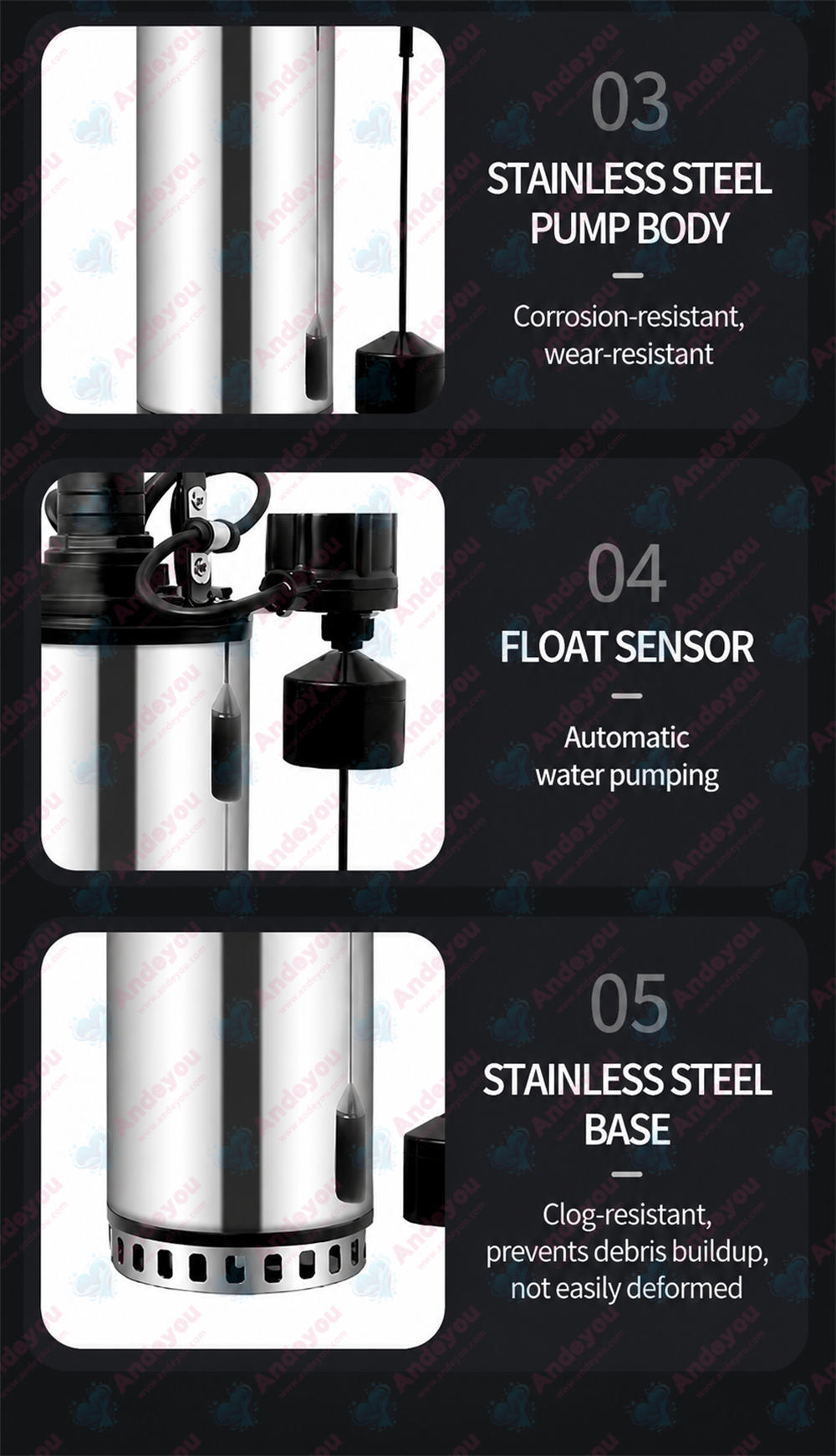

Features & Accessories:

1. Low-level intake via a bottom-plate strainer/grille.

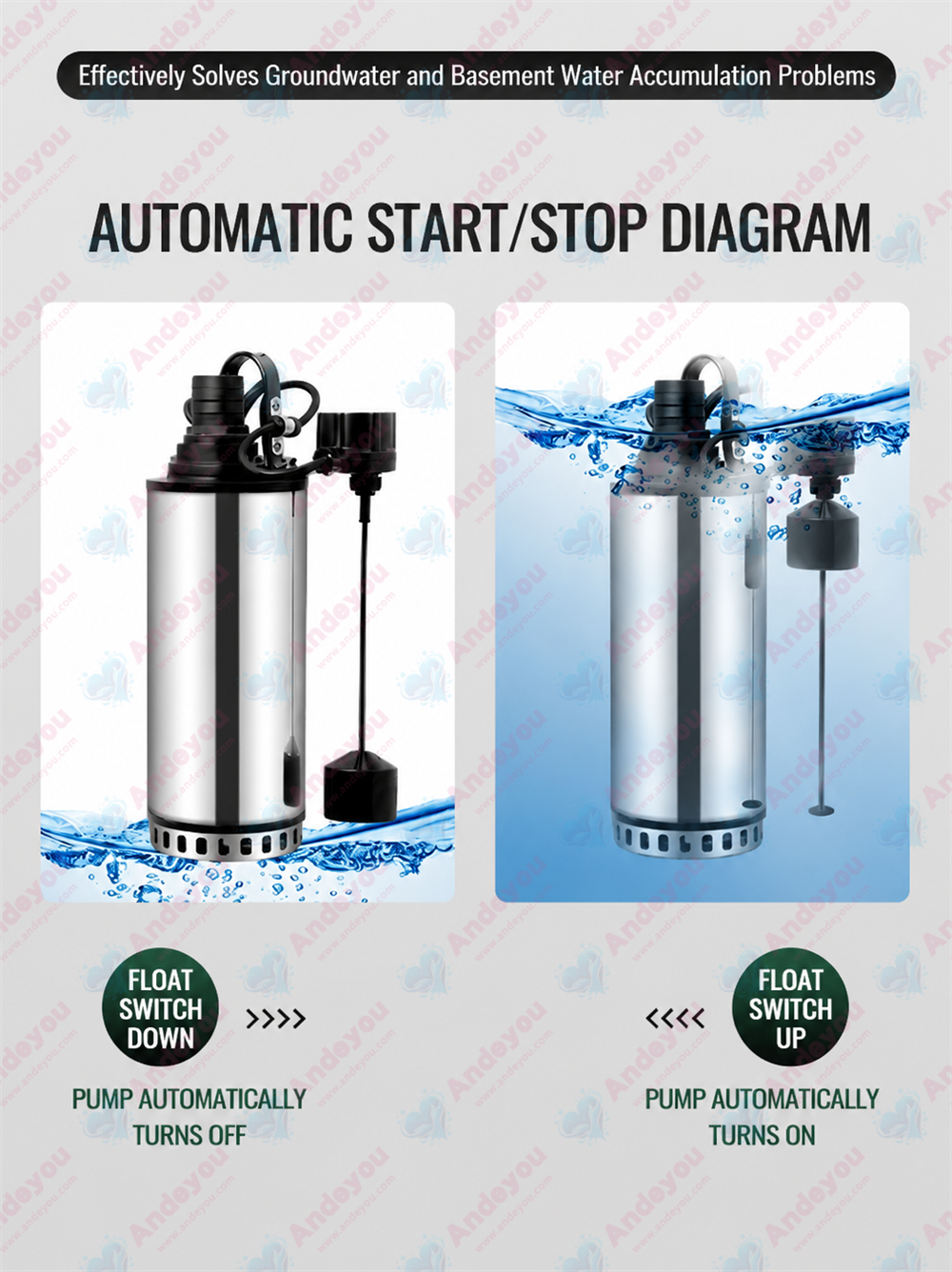

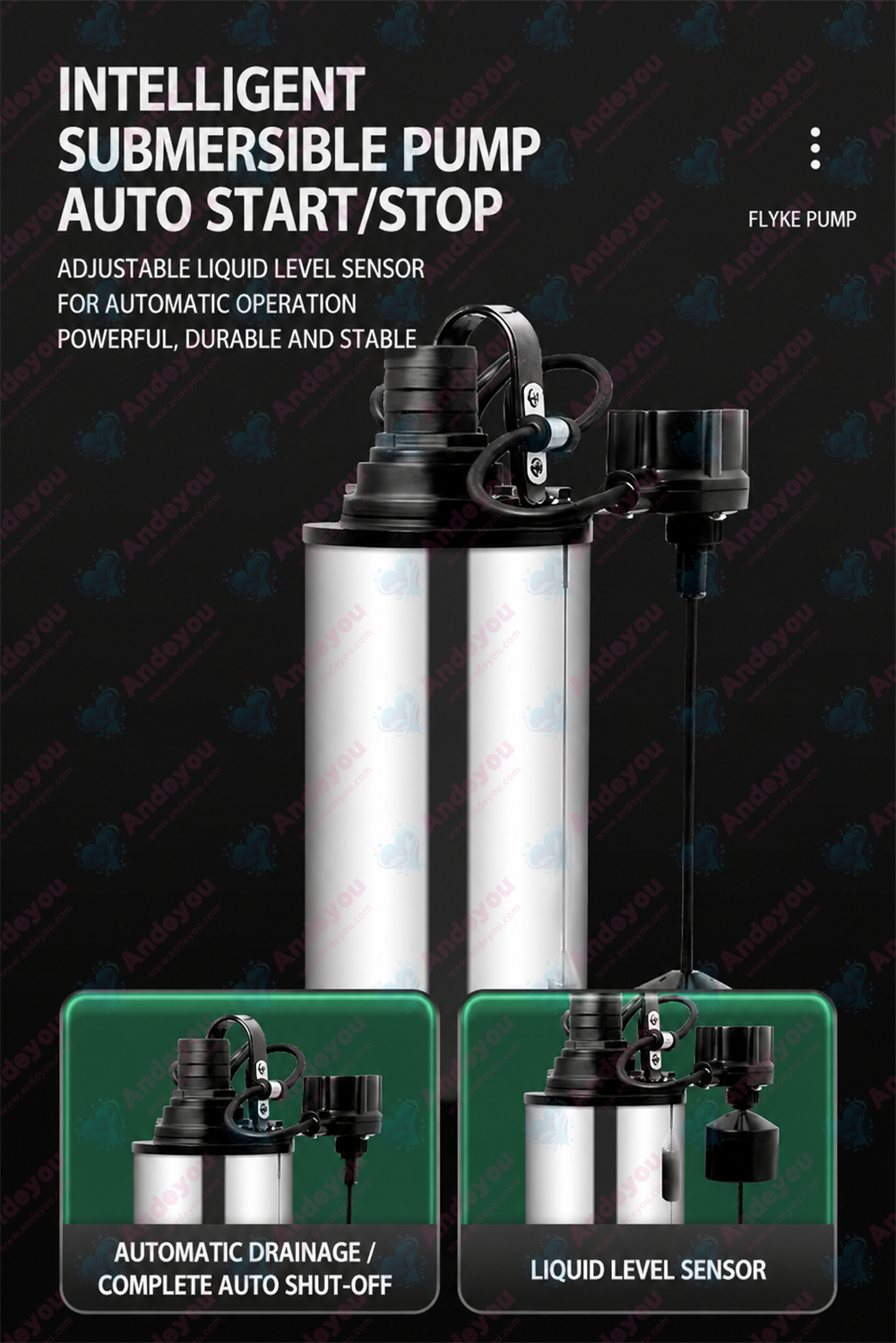

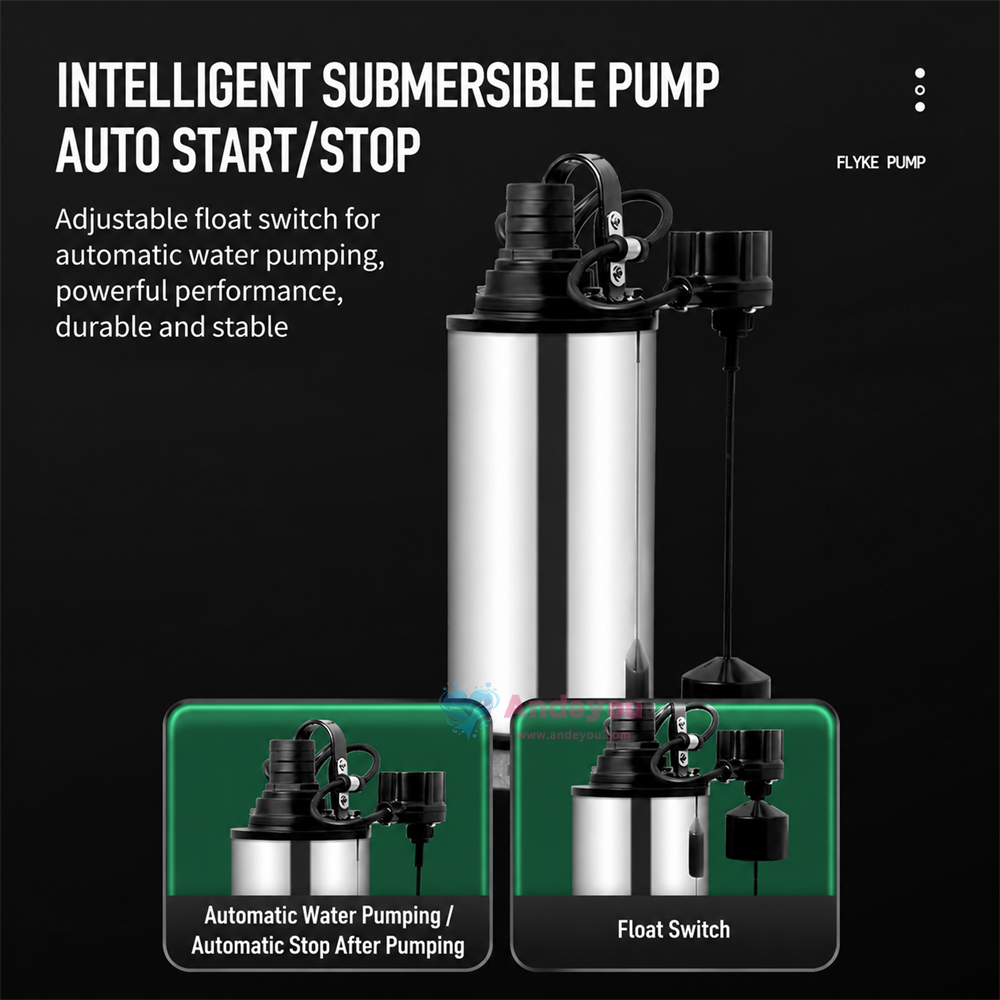

2. Liquid level switch control for automatic start/stop.

3. Water-cooled motor; capable of continuous operation even when partially exposed above the water surface.

Parameters

Specifications and Model	Rated flow rate	Maximum flow rate	Rated head	Maximum head	Rated power	Rated voltage	Piping inner diameter

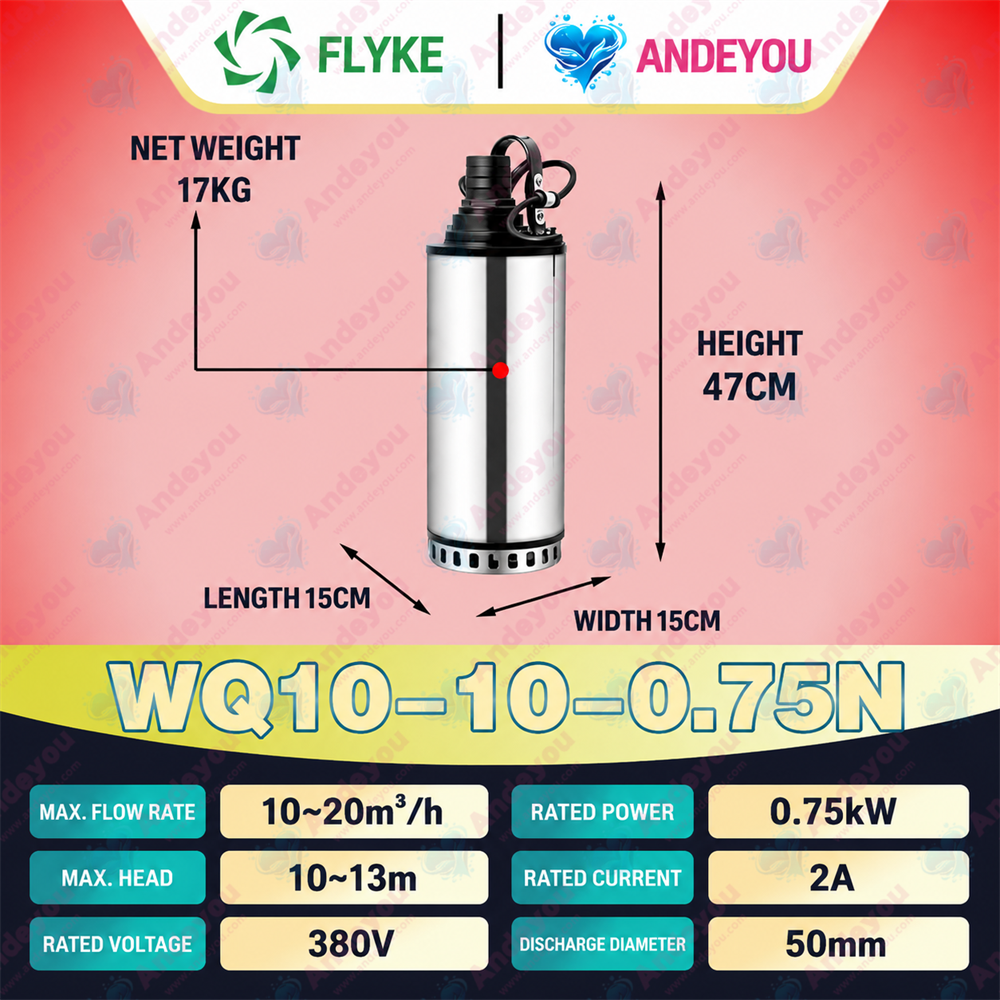

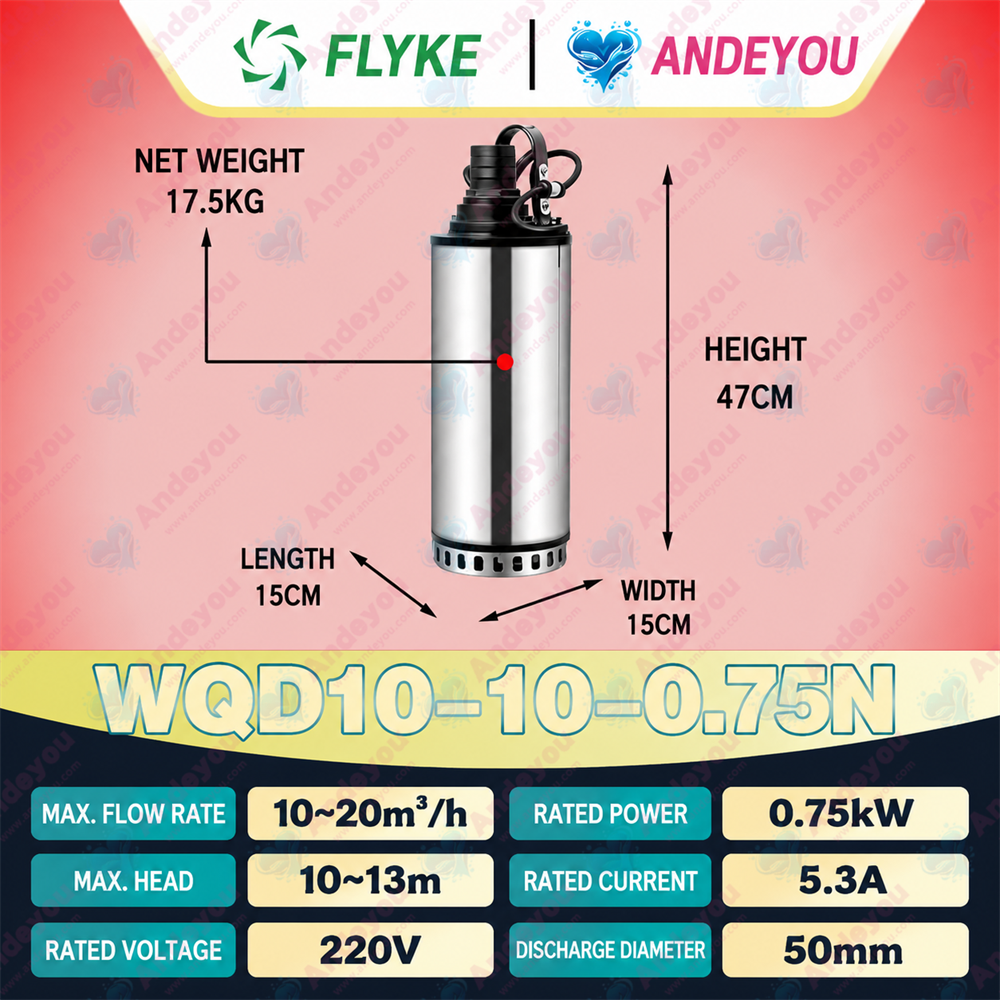

WQD10-10-0.75N	10	20	10	13	0.75	220/380	51

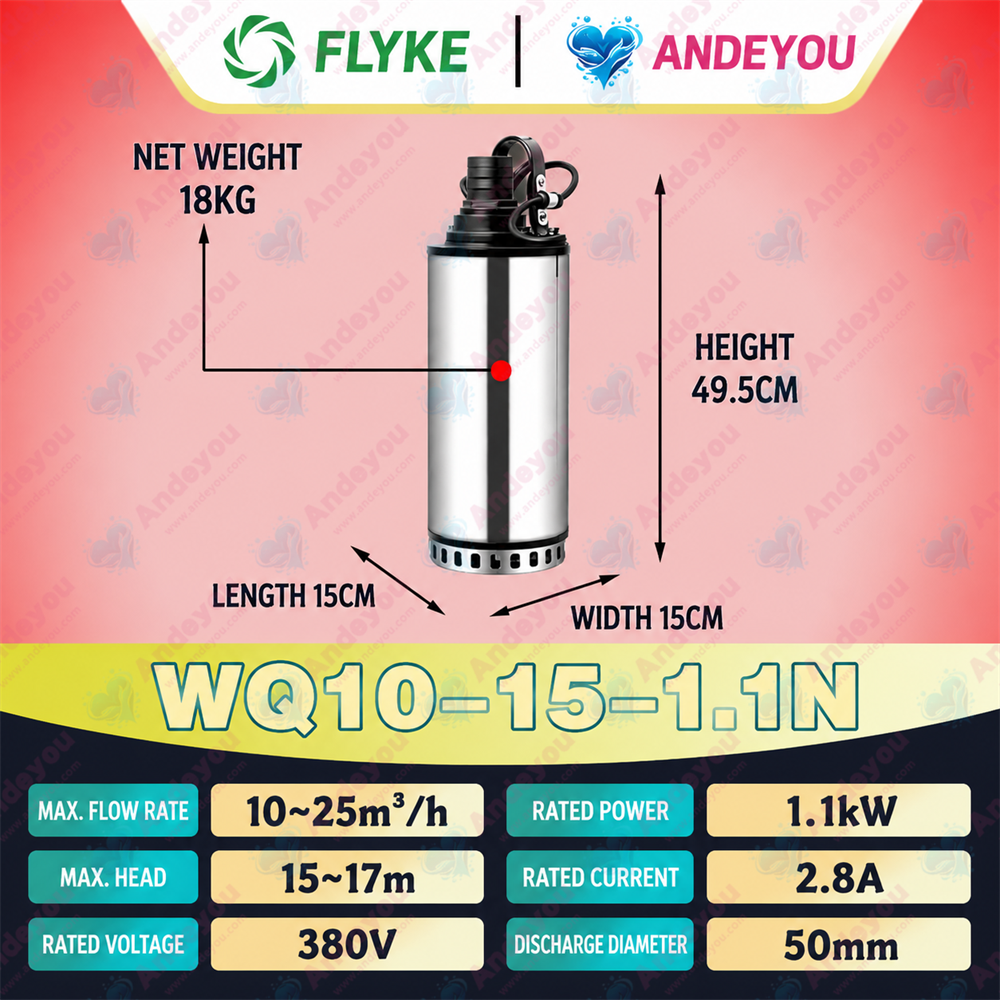

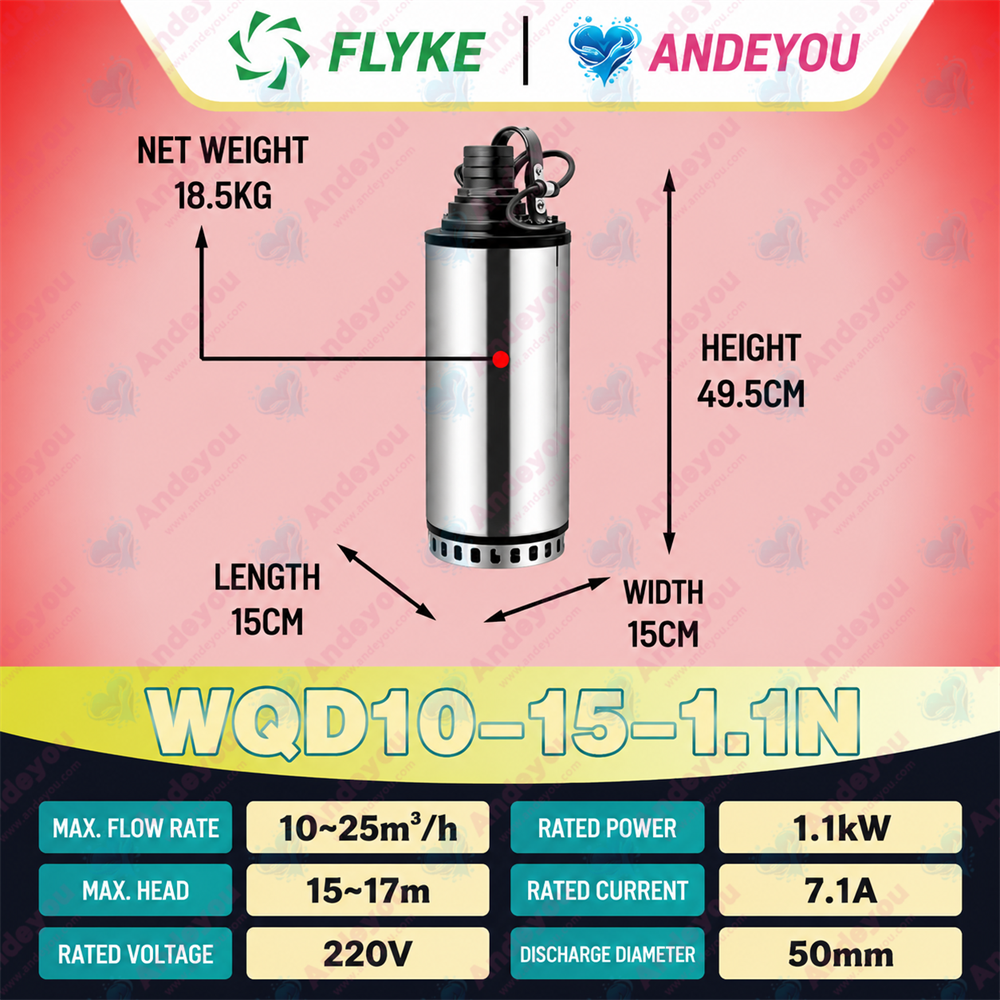

WQD10-15-1.1N	10	25	15	17	1.1	220/380	51

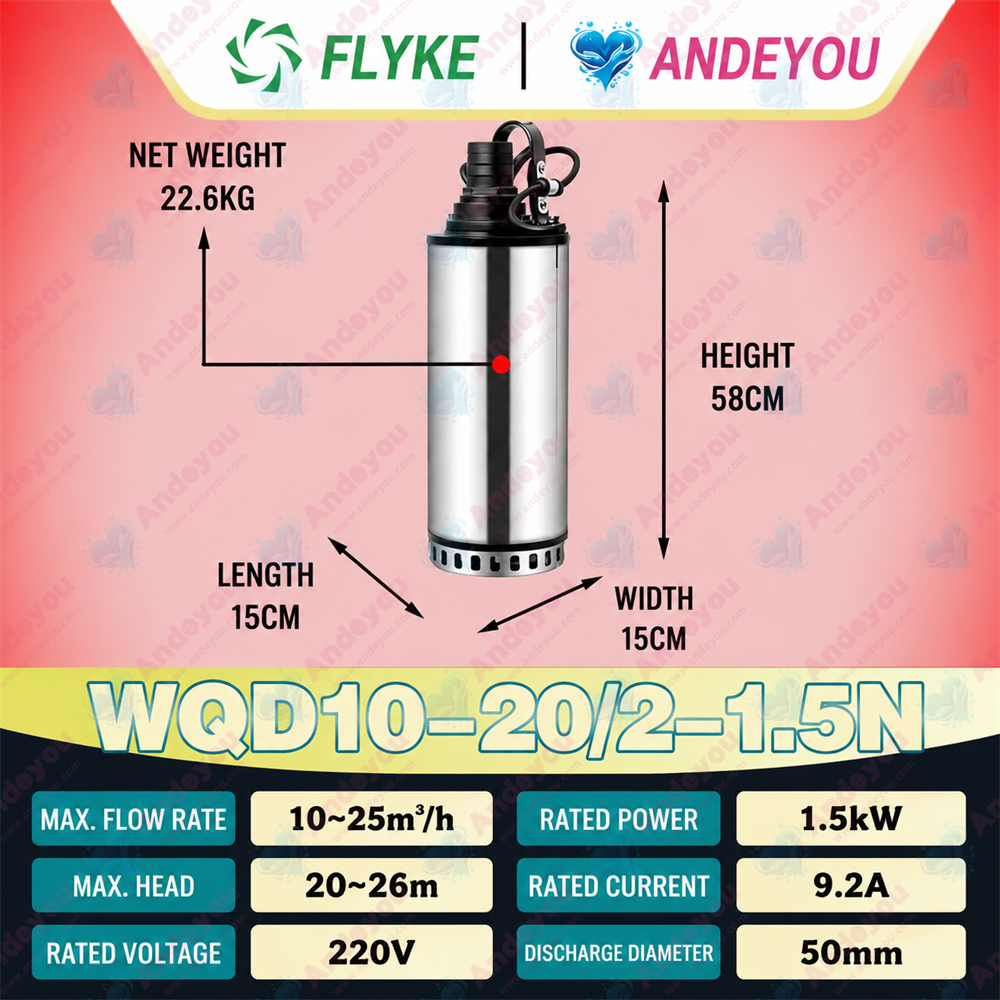

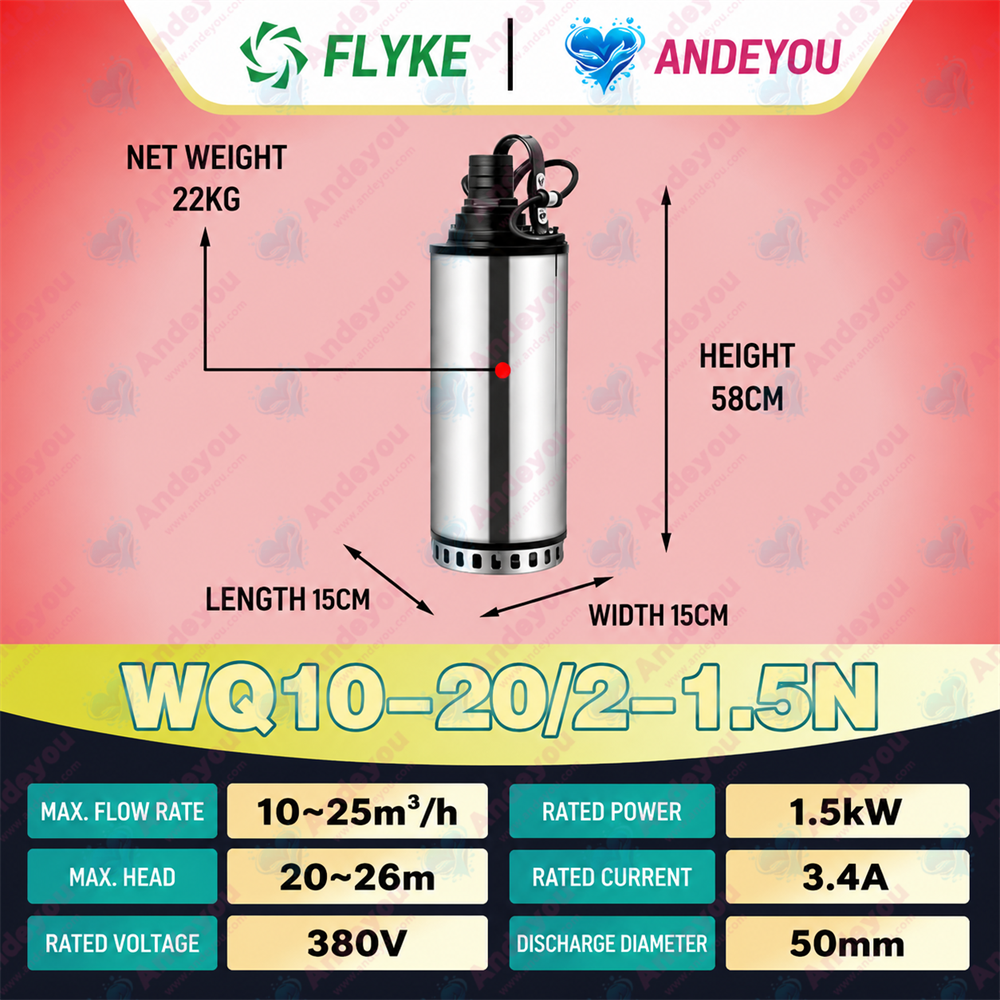

WQD10-20/2-1.5N	10	25	20	26	1.5	220/380	51

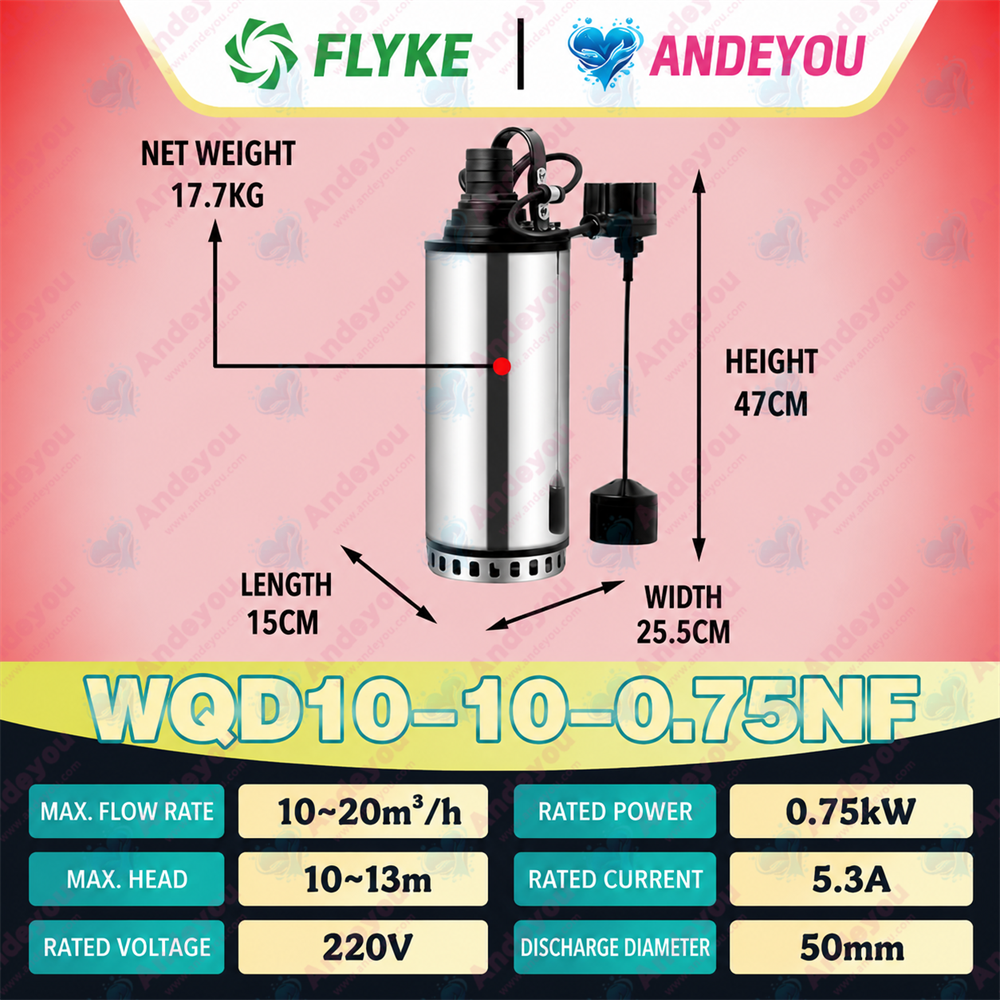

WQD10-10-0.75NF	10	20	10	13	0.75	220	51
WQD10-10-0.75NZ	10	20	10	13	0.75	220	51

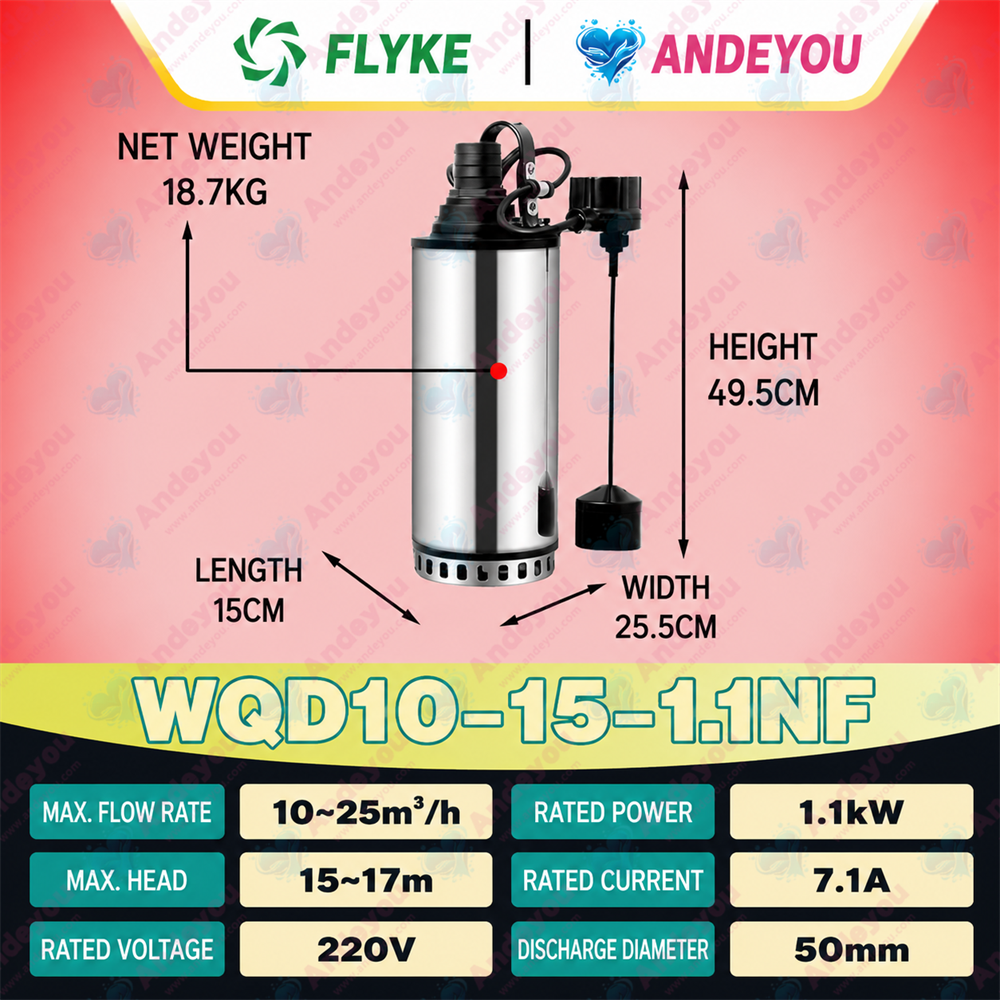

WQD10-15-1.1NF	10	25	15	17	1.1	220	51
WQD10-20/2-1.5NF	10	25	20	26	1.5	220	51

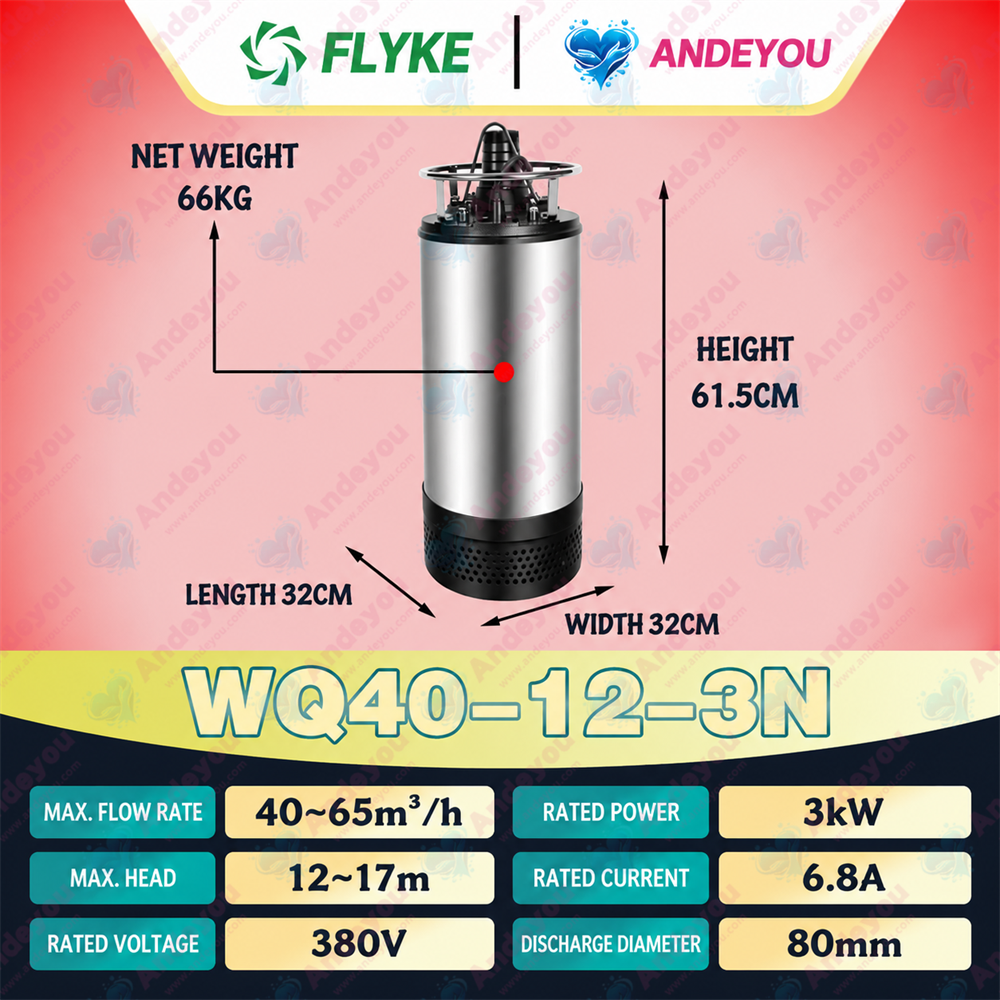

WQ40-12-3N	40	65	12	17	3	380	80

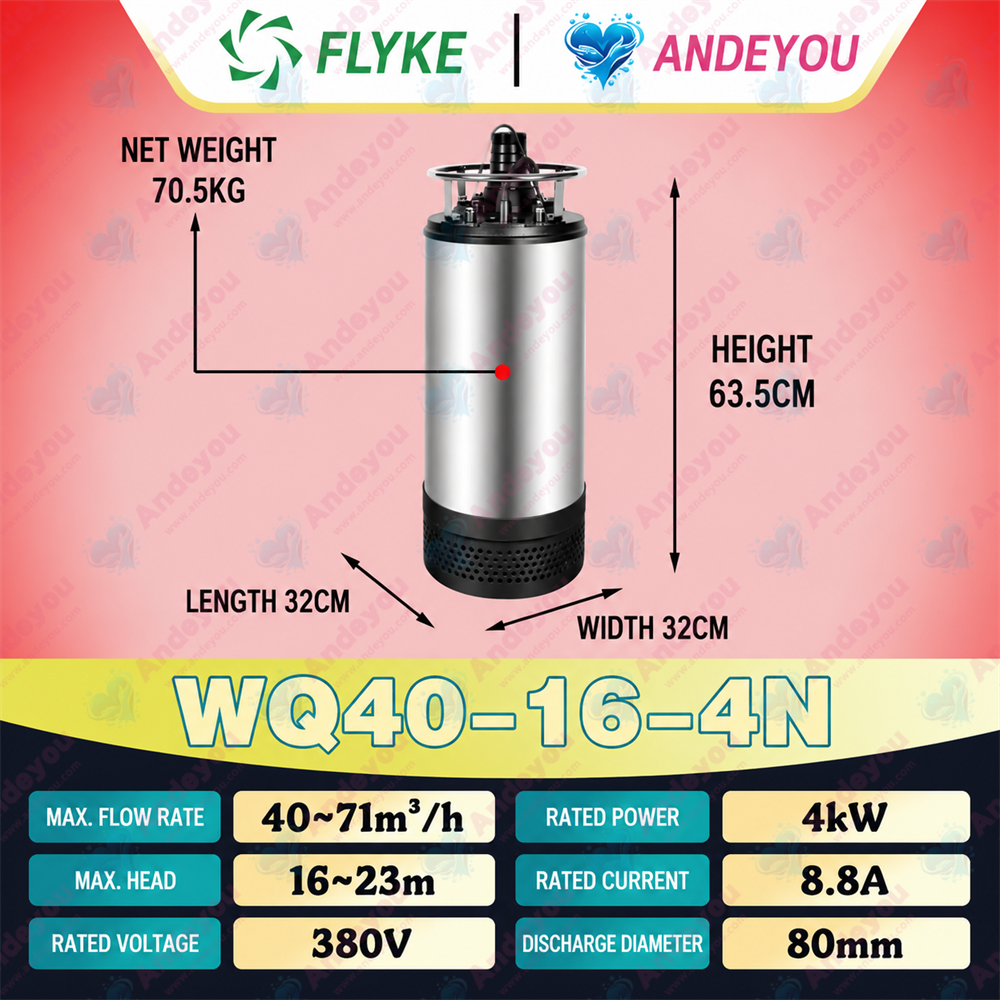

WQ40-16-4N	40	71	16	23	4	380	80

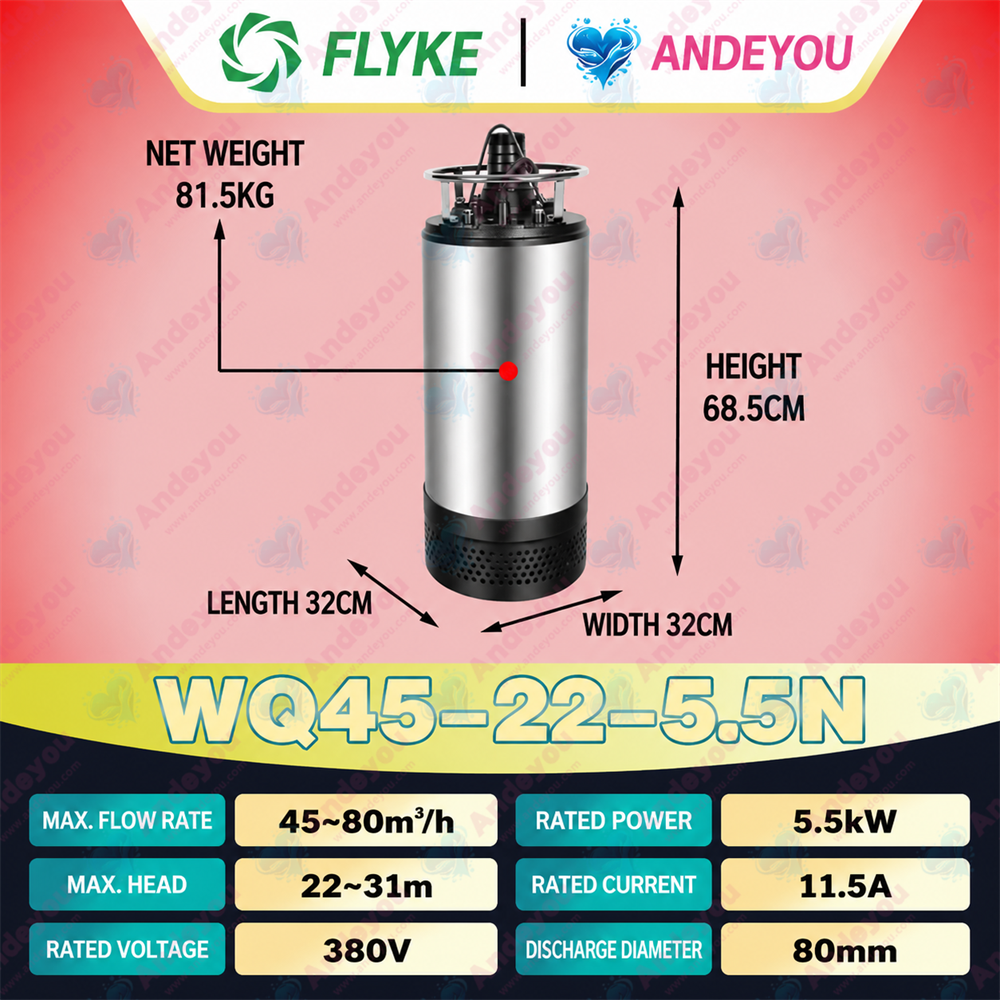

WQ45-22-5.5N	45	80	22	31	5.5	380	80

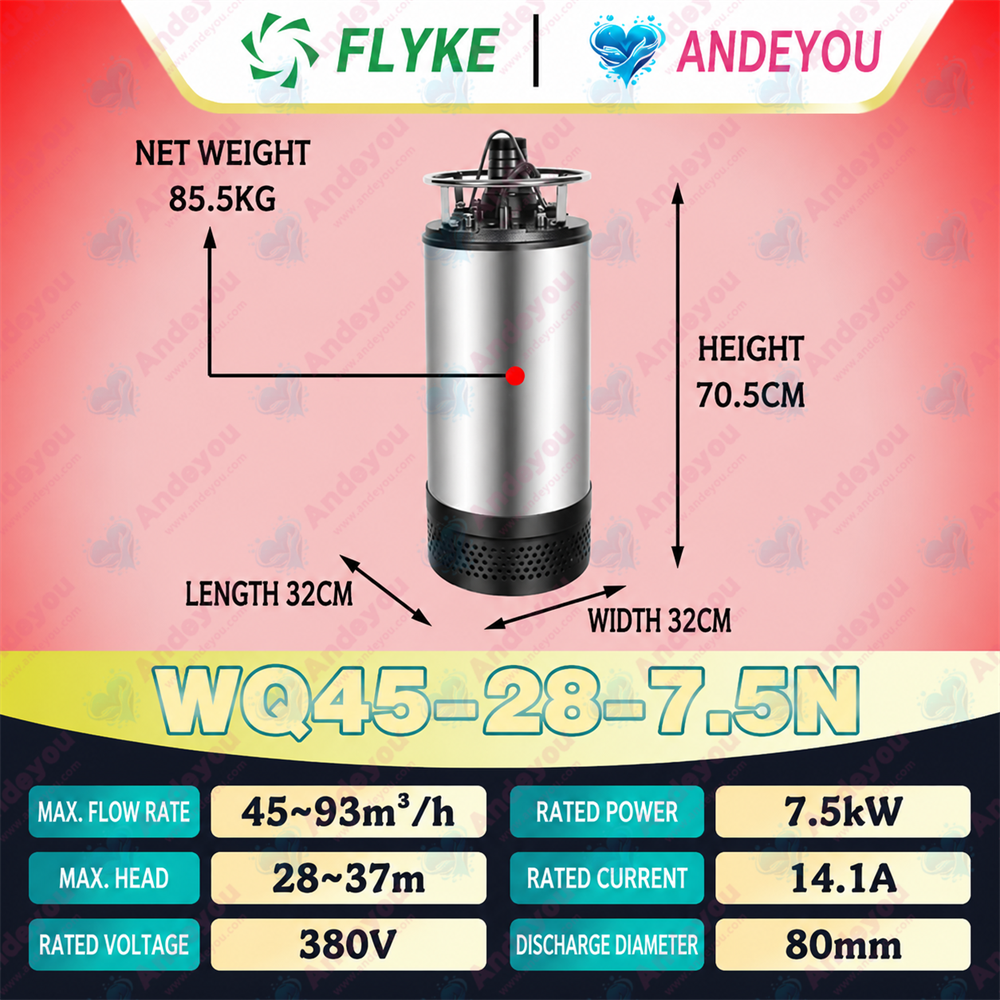

WQ45-28-7.5N	45	93	28	37	7.5	380	80

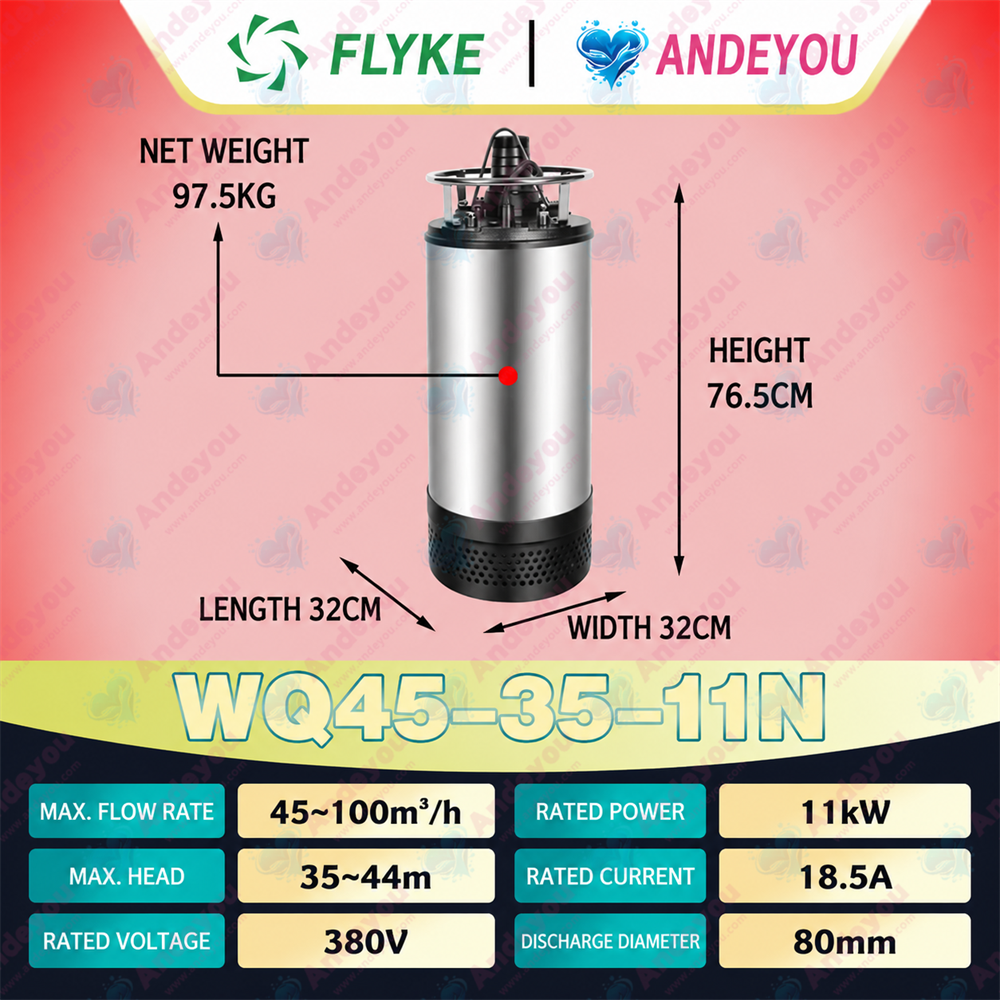

WQ45-35-11N	45	100	35	44	11	380	80
