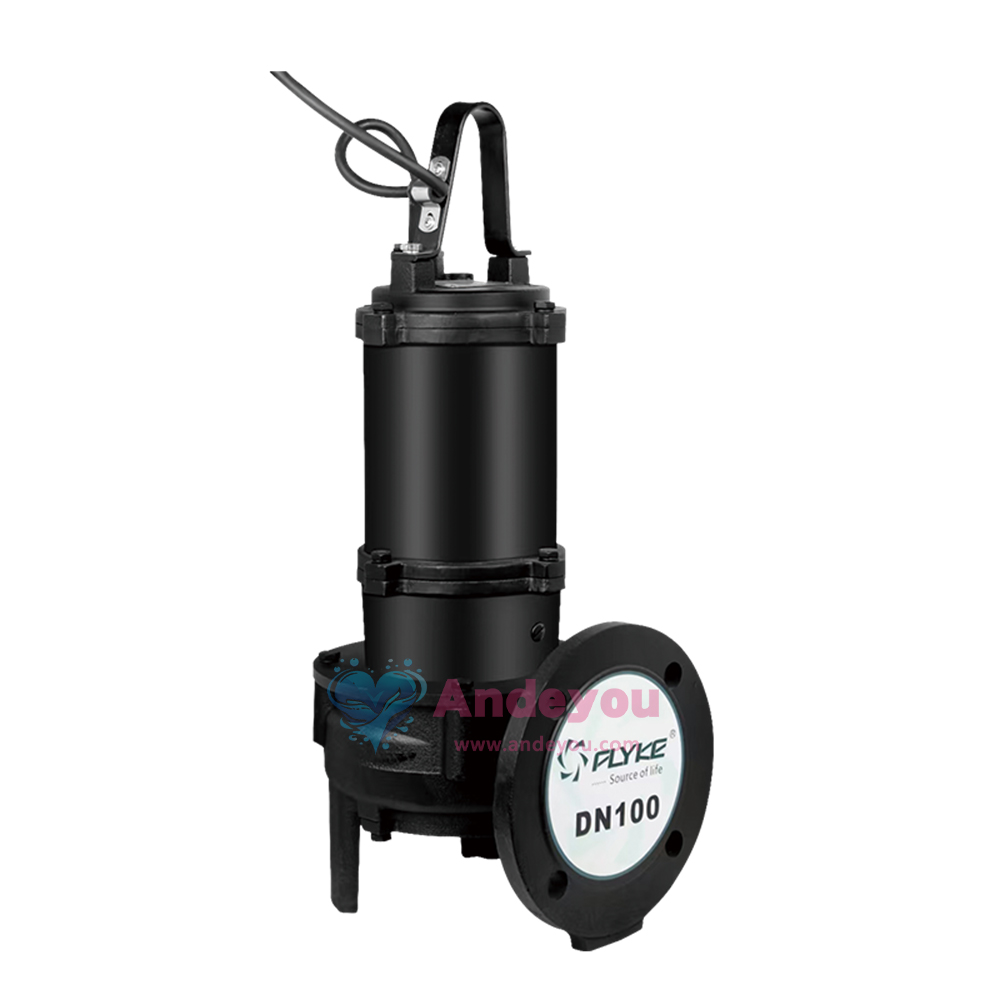

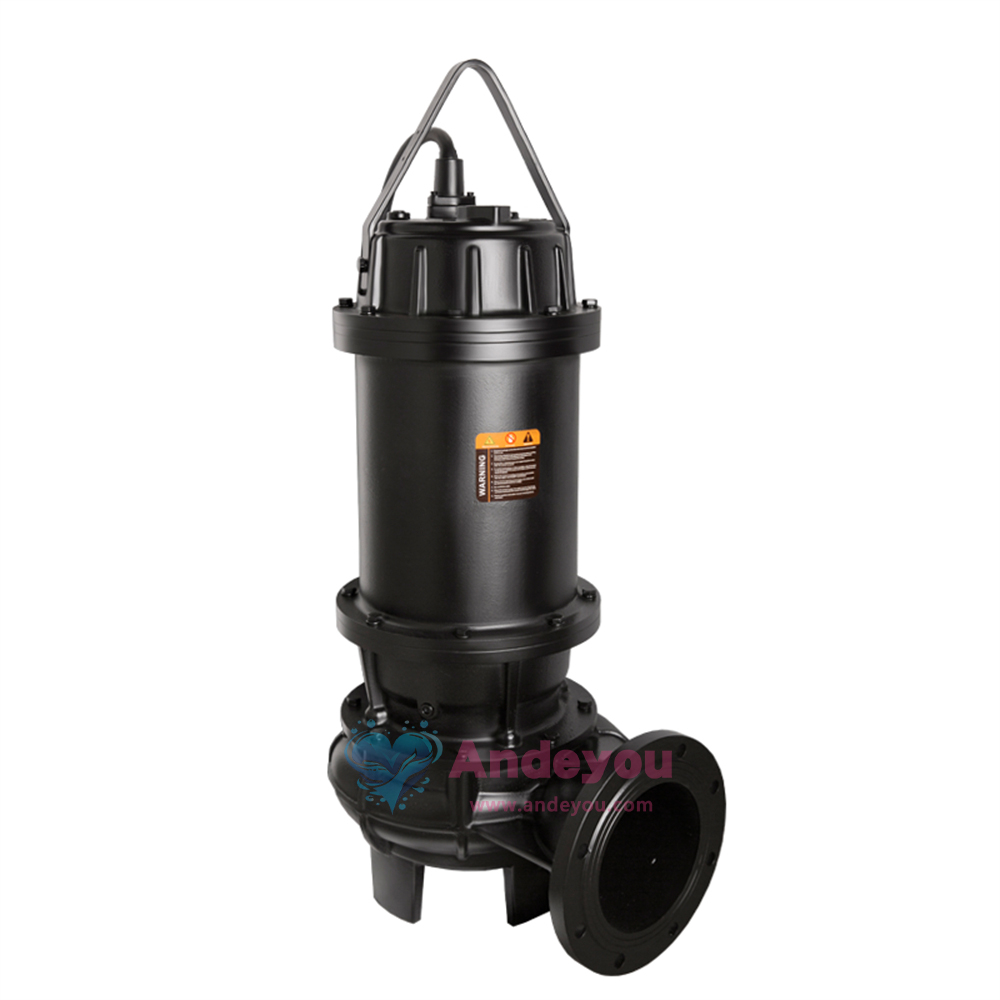

Feike WQ Engineering Submersible Sewage Pump

WQ15-30-3|WQ25-20-3|WQ43-13-3|WQ50-10-3|WQ60-10-4|WQ25-26-4|WQ40-16-4|WQ15-40-5.5|WQ30-30-5.5|WQ65-15-5.5|WQ45-22-7.5|WQ65-20-7.5|WQ80-15-7.5|WQ100-10-7.5|65WQ30-40-11|80WQ45-35-11|100WQ100-25-11|150WQ150-12-11|200WQ220-8-11|65WQ30-55-15|80WQ45-50-15|100WQ100-30-15|150WQ150-20-15|200WQ220-12-15|65WQ30-65-18.5|80WQ60-45-18.5|100WQ100-35-18.5|150WQ150-25-18.5|200WQ200-15-18.5|65WQ30-75-22|80WQ65-50-22|100WQ100-40-22|150WQ150-30-22|200WQ200-20-22

The Feike WQ submersible sewage pump delivers exceptional performance,serving as a powerful tool for sewage handling.Engineered with advanced technology and premium materials,it is robust,durable,and corrosion-resistant.Its powerful drive system ensures outstanding pumping capabilities,allowing it to efficiently handle sewage containing solid particles,fibers,and other impurities while effectively preventing clogging.

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

Operating Conditions:

1. Medium temperature: ≤ +40°C.

2. Medium pH value: 4–10.

3. Maximum medium density: 1.2 × 10³ kg/m³.

4. Power supply: 50Hz, 3-phase AC 380V; voltage fluctuation range: 0.9–1.1 times the rated value.

5. Submergence depth: ≤ 5m (measured from the center of the impeller channel).

Product Features:

1. Wide voltage range for safe operation.

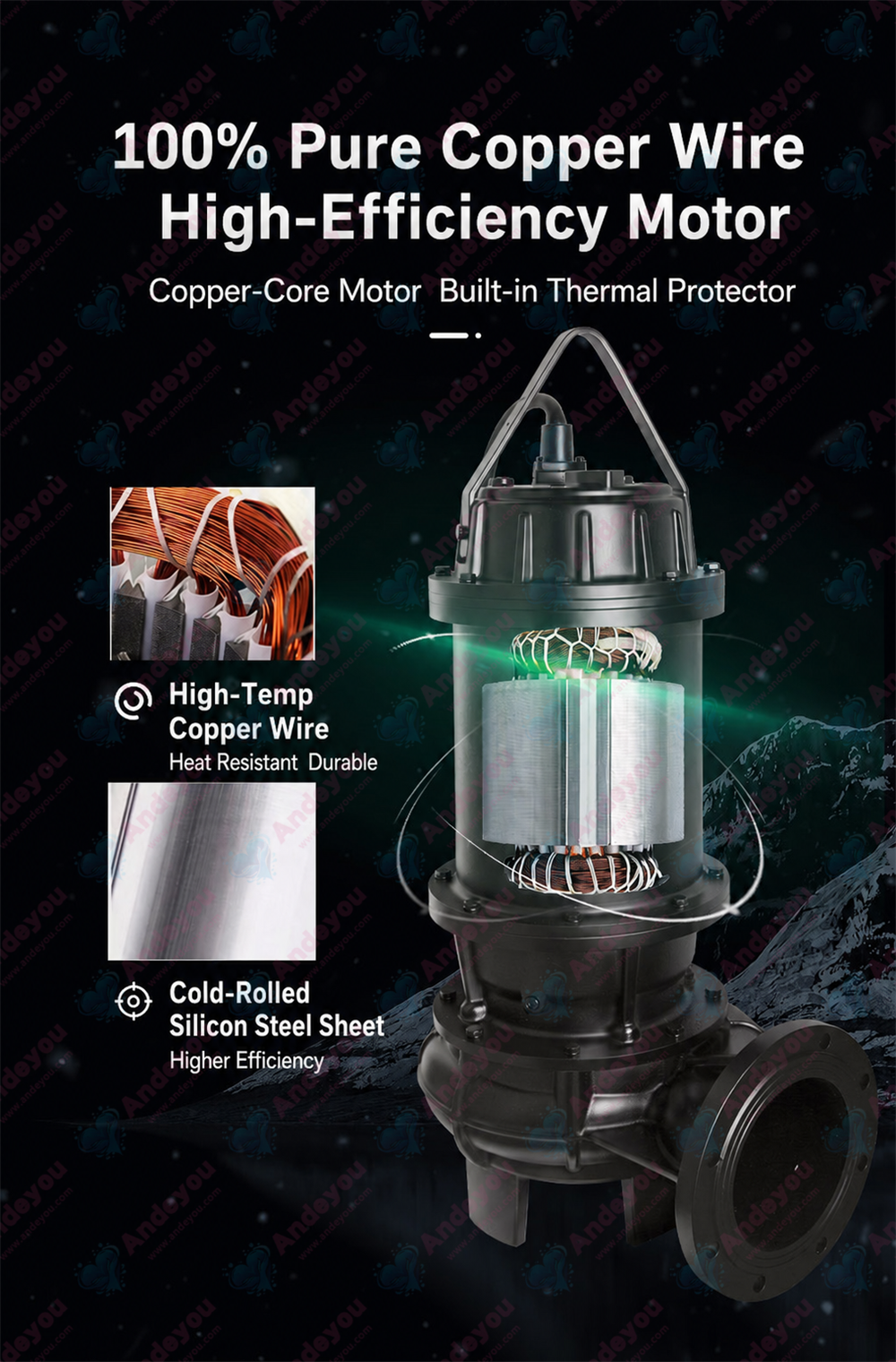

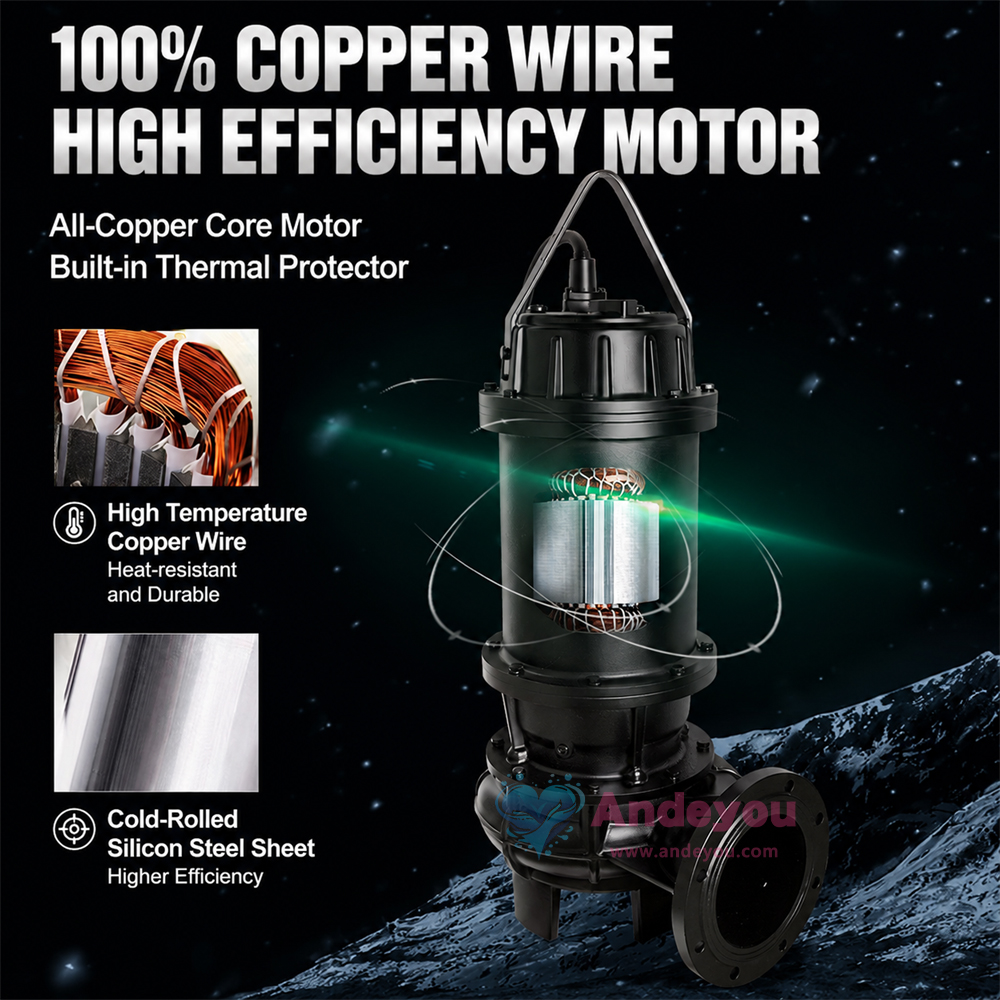

2. All-copper motor for high efficiency and energy savings.

3. High head and high flow rate; energy-efficient.

4. Overload protection to prevent motor burnout.

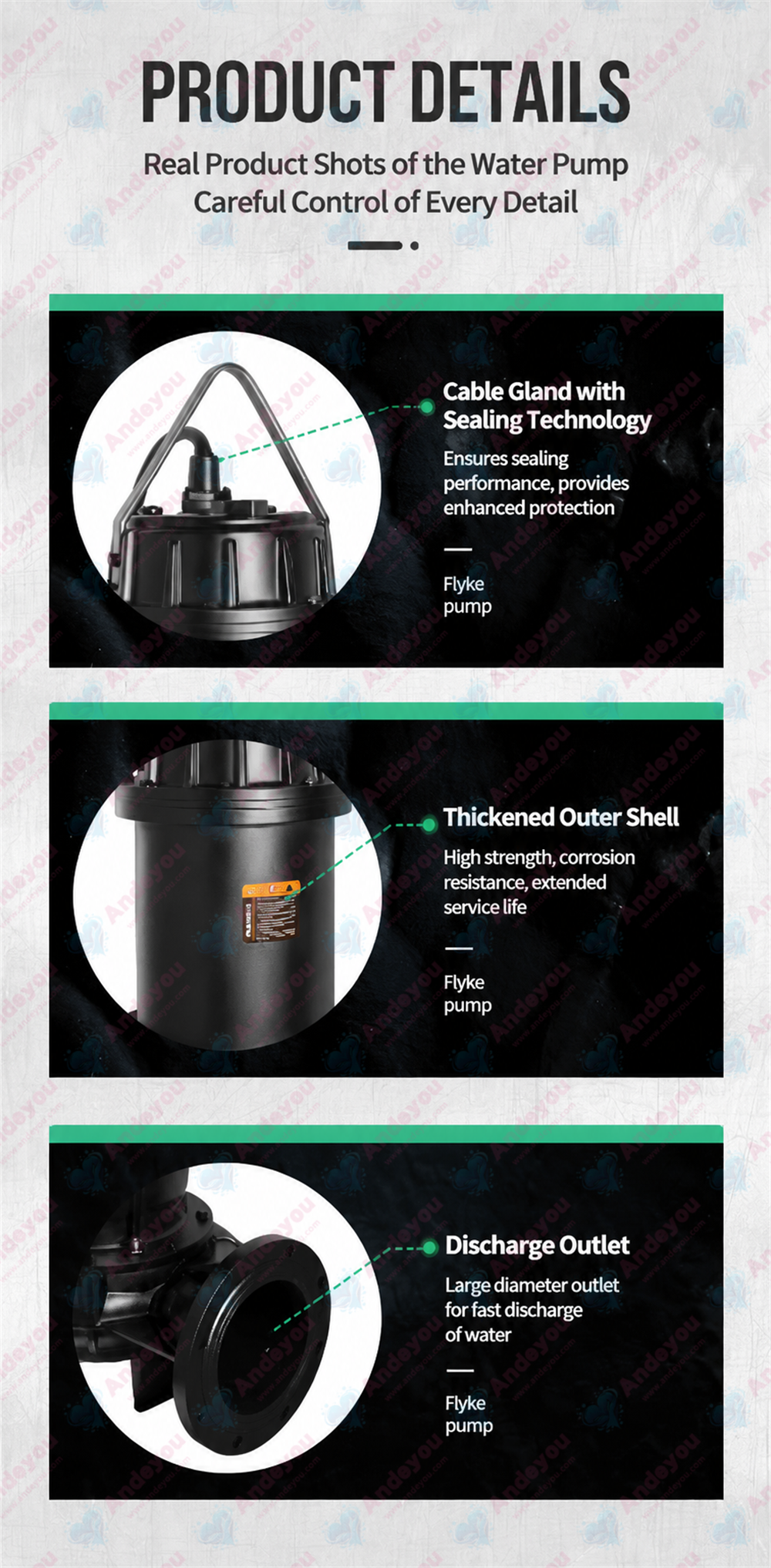

5. Thickened casing; impact-resistant and durable.

6. National Standard (GB) flange; convenient and durable.

Applications:

Industrial construction, municipal environmental protection, agricultural irrigation, flood drainage, subway station drainage, office building drainage.

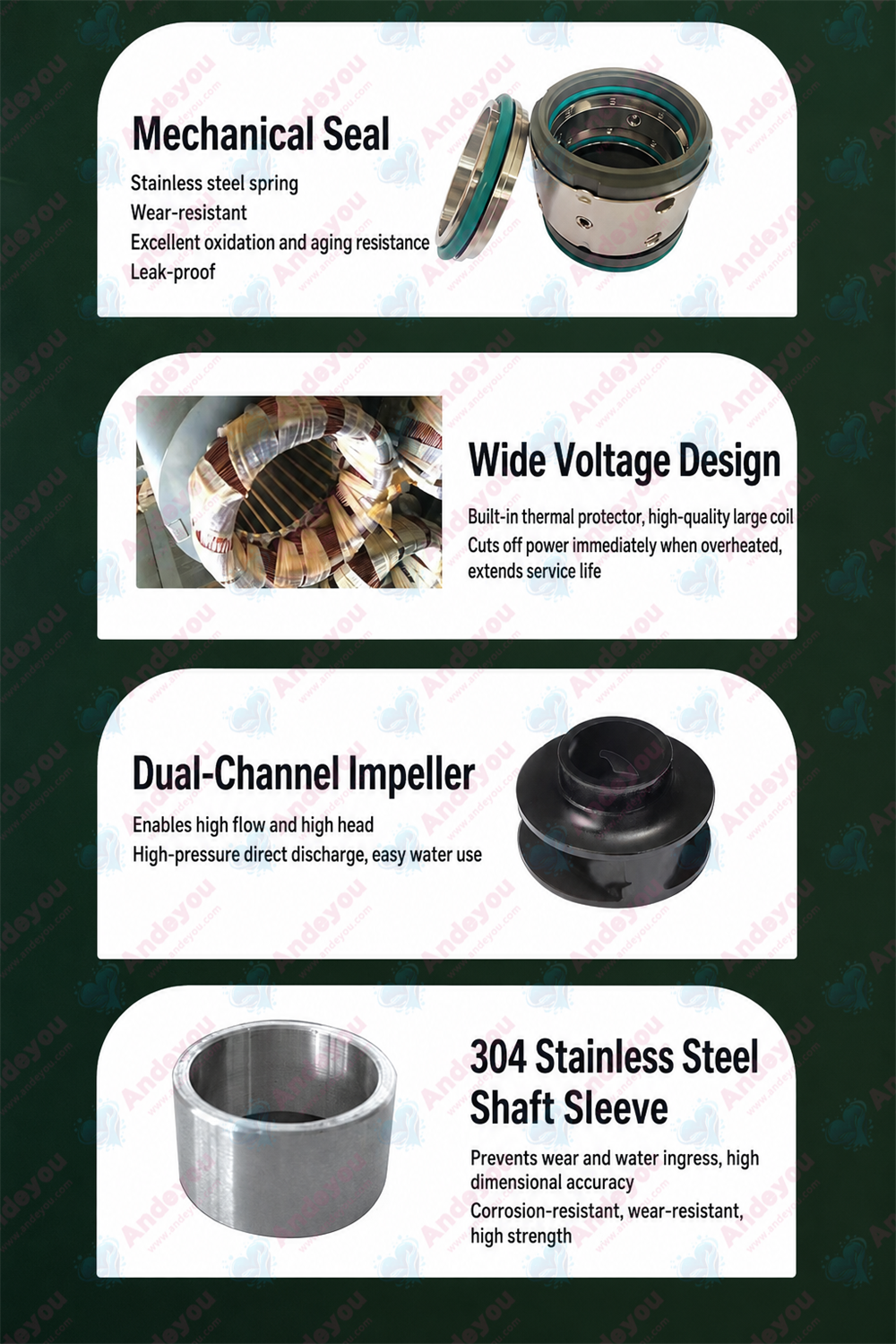

Components:

1. Dual-channel ductile iron impeller; durable and wear-resistant.

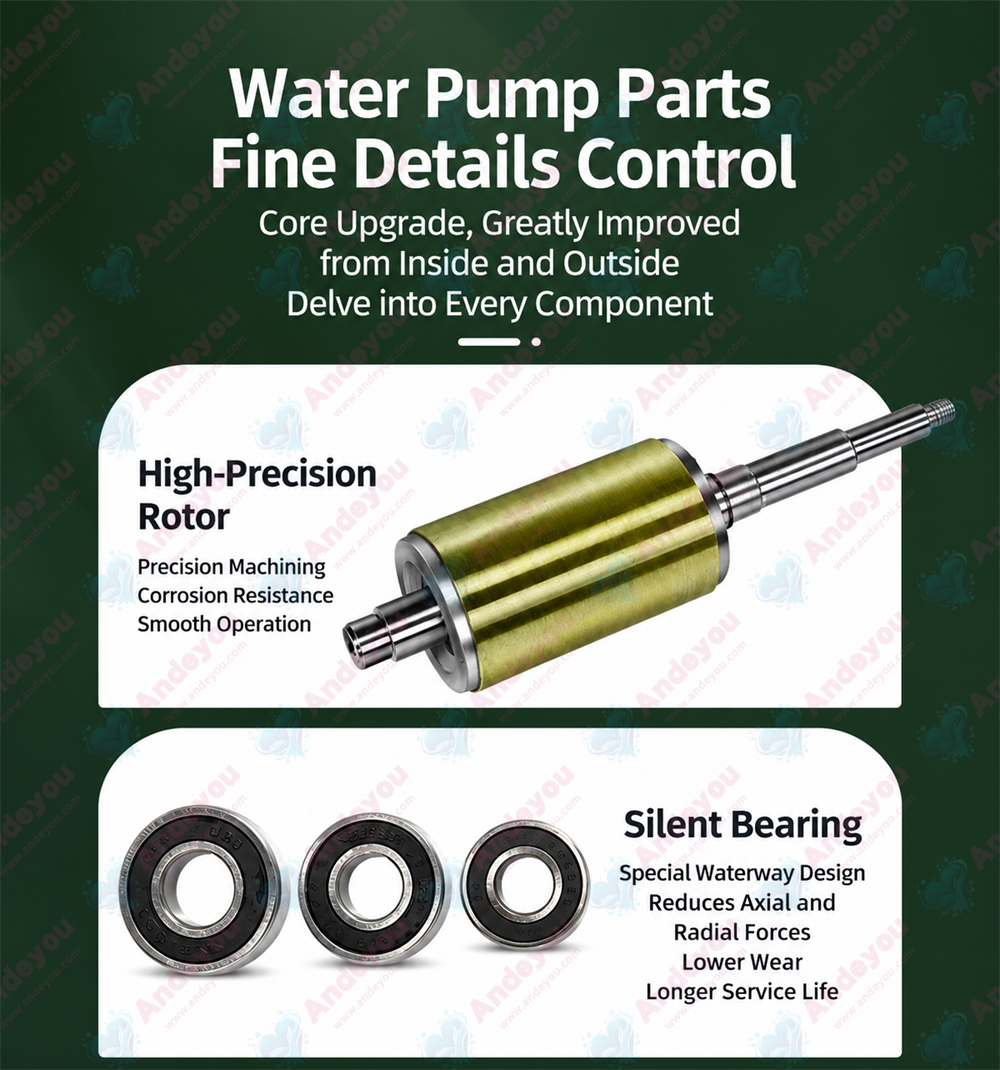

2. High-carbon steel rotor; wear-resistant and durable.

3. National Standard (GB) flange; convenient and durable.

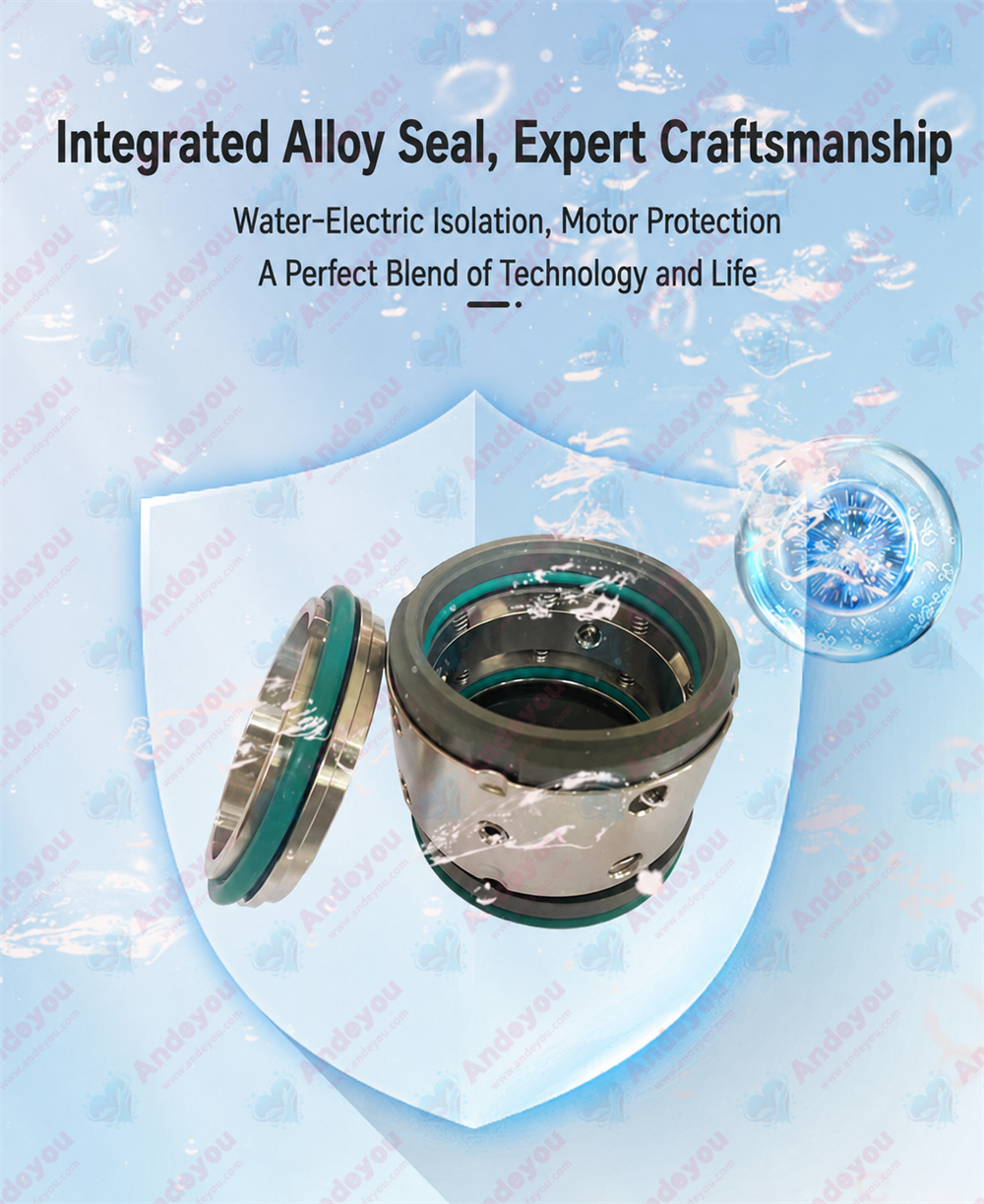

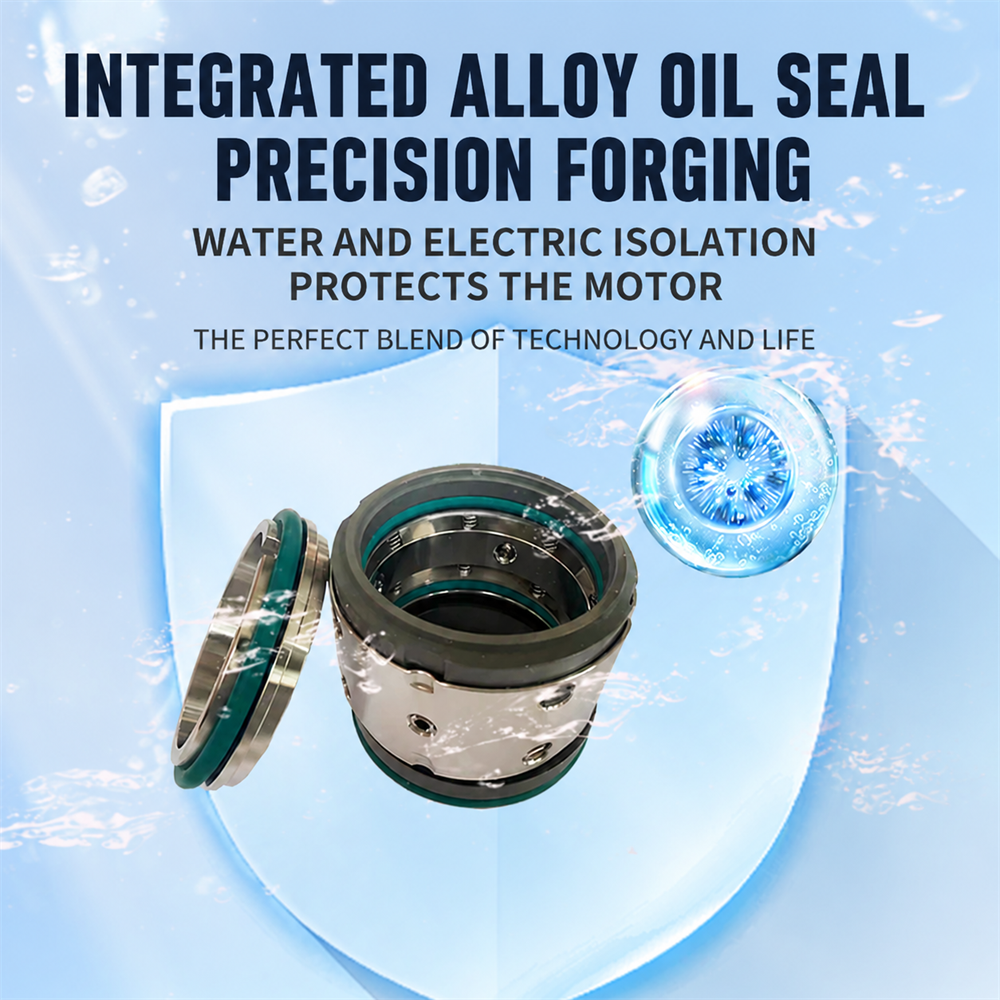

4. Dual mechanical seal design (internal and external); pressure-resistant, sand-proof, and leak-proof.

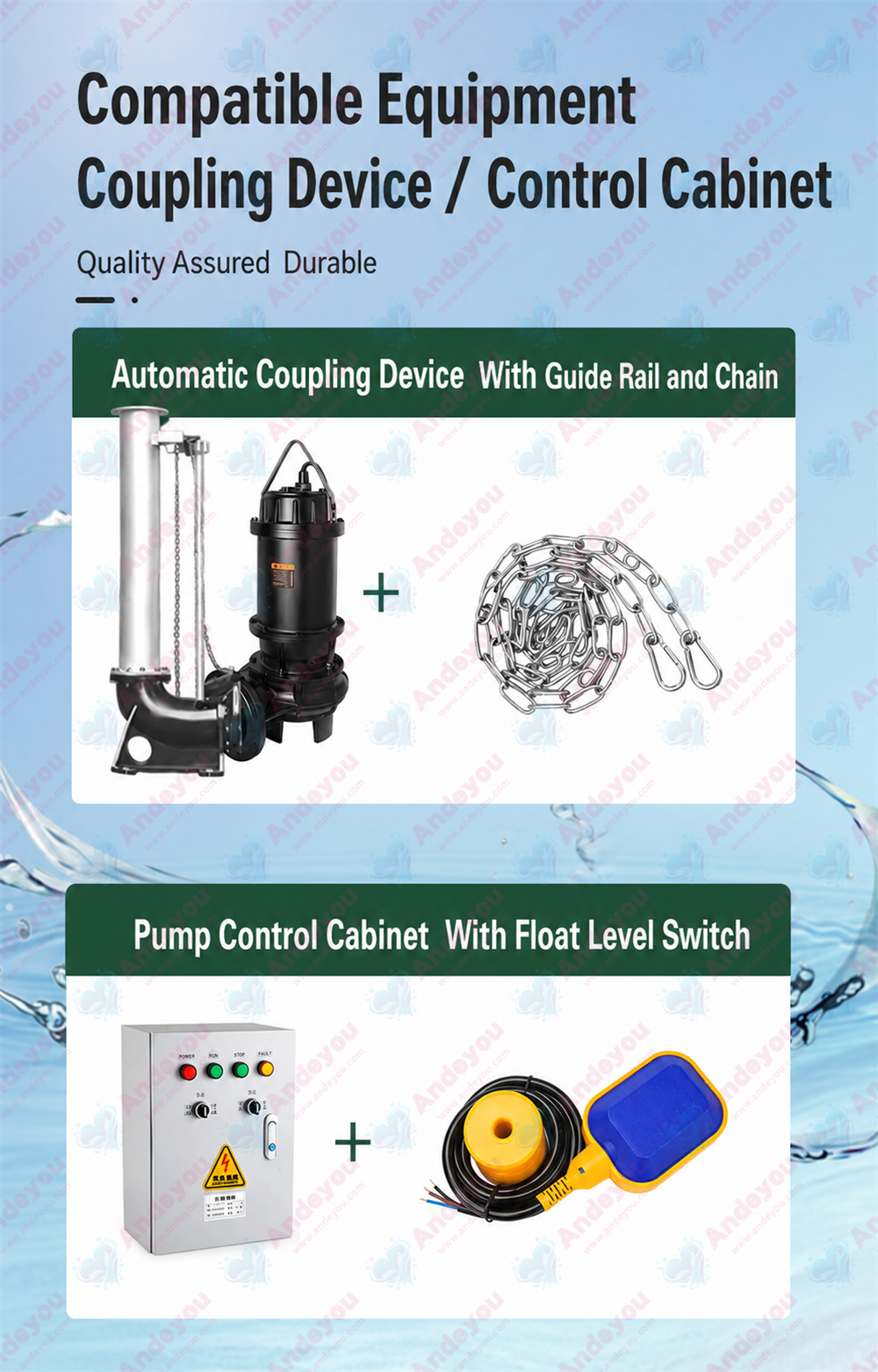

5. Optional accessories available (e.g., auto-coupling lifting devices).

6. Wide-voltage design with built-in thermal protector; automatic power cut-off upon overheating.

In-house R&D and Manufacturing:

Includes casting (sand molding), grinding, machining, and inspection.

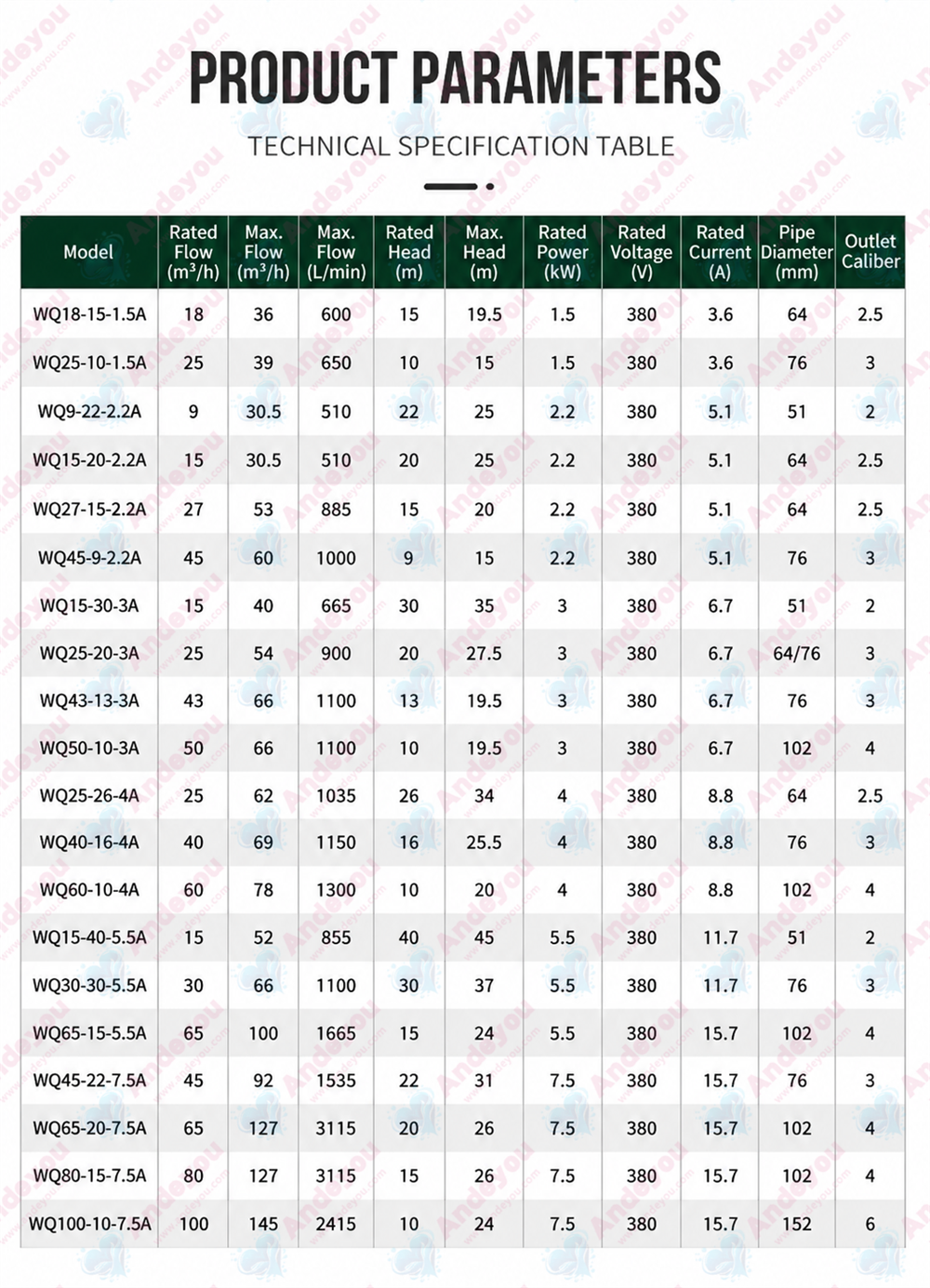

Parameters

Specifications and Model	Rated flow rate (m³/h)	Rated head (m)	Rated Power (kW)	Rated voltage (V)	Rated current (A)	Pipe inner diameter (mm)
WQ25-10-1.5	25	10	1.5	380	3.58	76
WQ18-15-1.5	18	15	1.5	380	3.58	64
WQ9-22-2.2	9	22	2.2	380	5.11	51
WQ15-20-2.2	15	20	2.2	380	5.11	64
WQ27-15-2.2	27	15	2.2	380	5.11	64
WQ45-9-2.2	45	9	2.2	380	5.11	76
WQ15-30-3	15	30	3	380	6.67	51
WQ25-20-3	25	20	3	380	6.67	64/76
WQ43-13-3	43	13	3	380	6.67	76
WQ50-10-3	50	10	3	380	6.67	102
WQ60-10-4	60	10	4	380	8.8	102
WQ25-26-4	25	26	4	380	8.8	64
WQ40-16-4	40	16	4	380	8.8	76
WQ15-40-5.5	15	40	5.5	380	11.7	51
WQ30-30-5.5	30	30	5.5	380	11.7	76
WQ65-15-5.5	65	15	5.5	380	11.7	102
WQ45-22-7.5	45	22	7.5	380	15.7	76
WQ65-20-7.5	65	20	7.5	380	15.7	102
WQ80-15-7.5	80	15	7.5	380	15.7	102
WQ100-10-7.5	100	10	7.5	380	15.7	152
65WQ30-40-11	30	40	11	380	21	65
80WQ45-35-11	45	35	11	380	21	80
100WQ100-25-11	100	25	11	380	21	100
150WQ150-12-11	150	12	11	380	21	150
200WQ220-8-11	220	8	11	380	21	200
65WQ30-55-15	30	55	15	380	28	65
80WQ45-50-15	45	50	15	380	28	80
100WQ100-30-15	100	30	15	380	28	100
150WQ150-20-15	150	20	15	380	28	150
200WQ220-12-15	220	12	15	380	28	200
65WQ30-65-18.5	30	65	18.5	380	34	65
80WQ60-45-18.5	60	45	18.5	380	34	80
100WQ100-35-18.5	100	35	18.5	380	34	100
150WQ150-25-18.5	150	25	18.5	380	34	150
200WQ200-15-18.5	200	15	18.5	380	34	200
65WQ30-75-22	30	75	22	380	41	65
80WQ65-50-22	65	50	22	380	41	80
100WQ100-40-22	100	40	22	380	41	100
150WQ150-30-22	150	30	22	380	41	150
200WQ200-20-22	200	20	22	380	41	200
