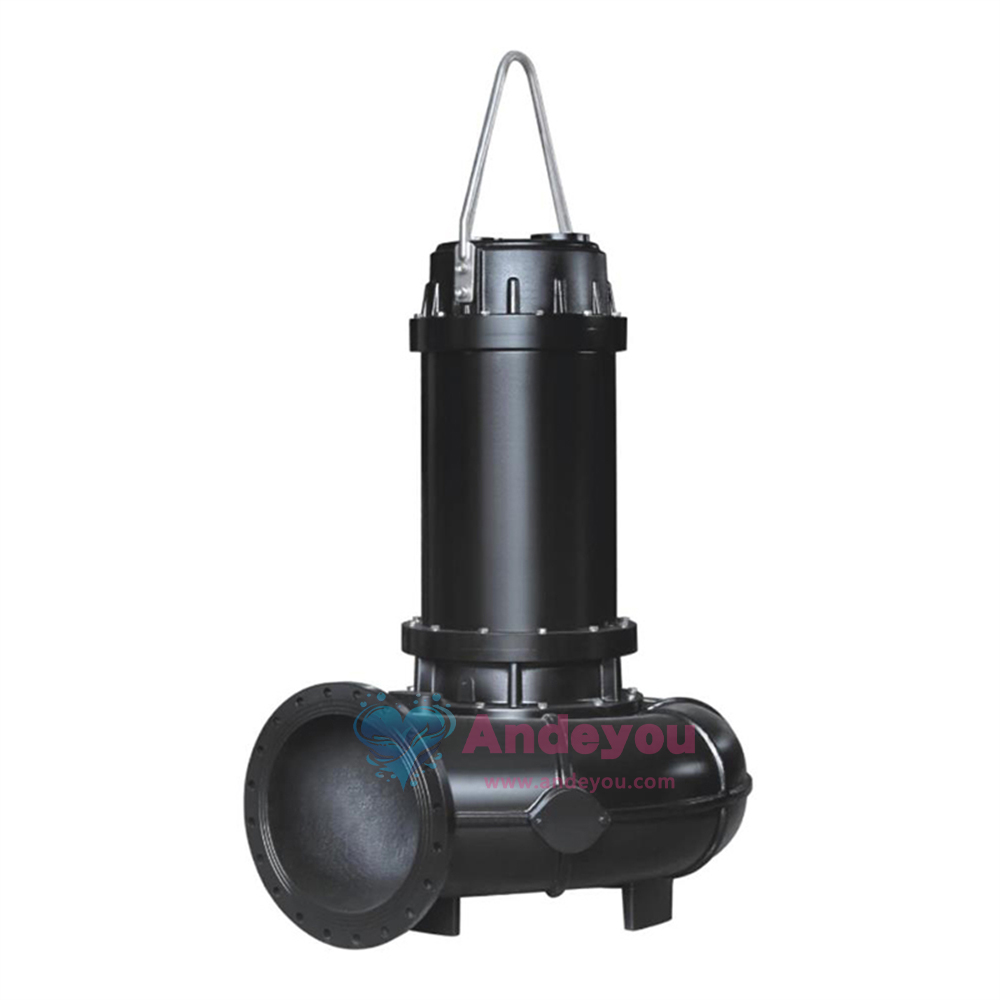

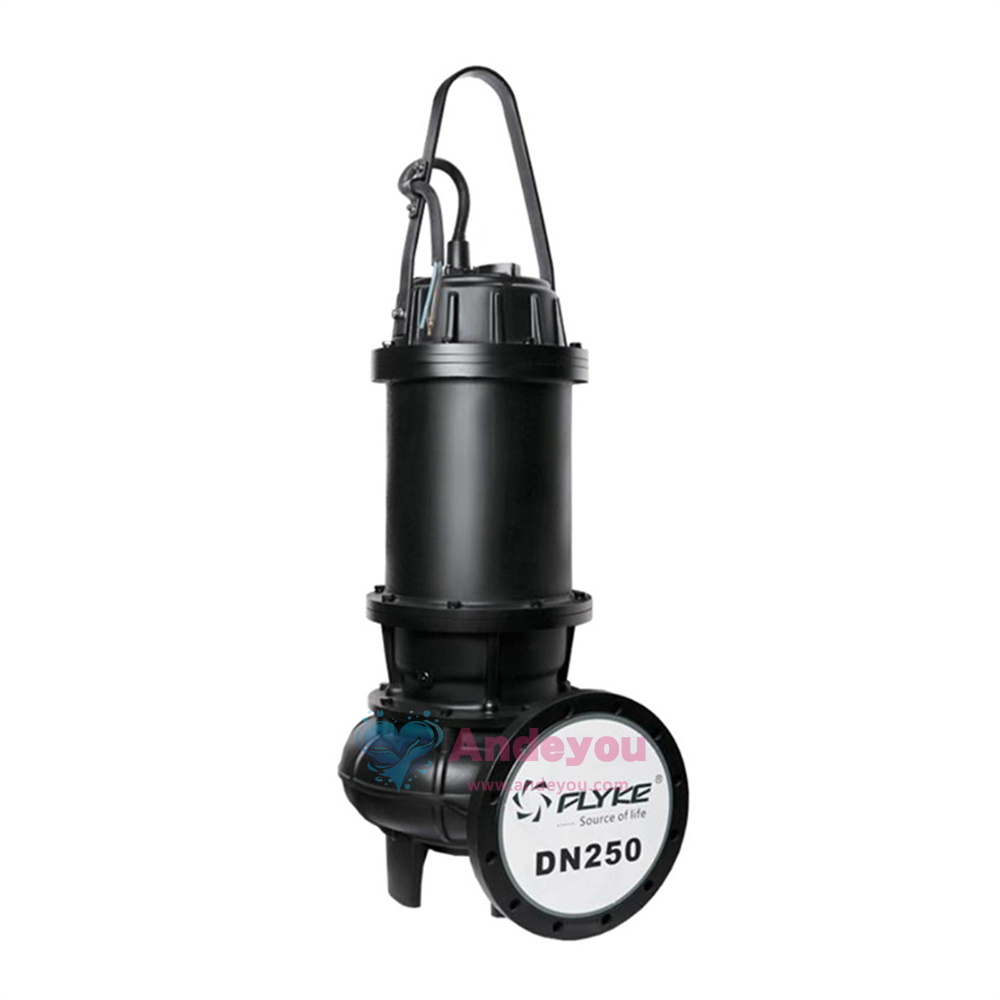

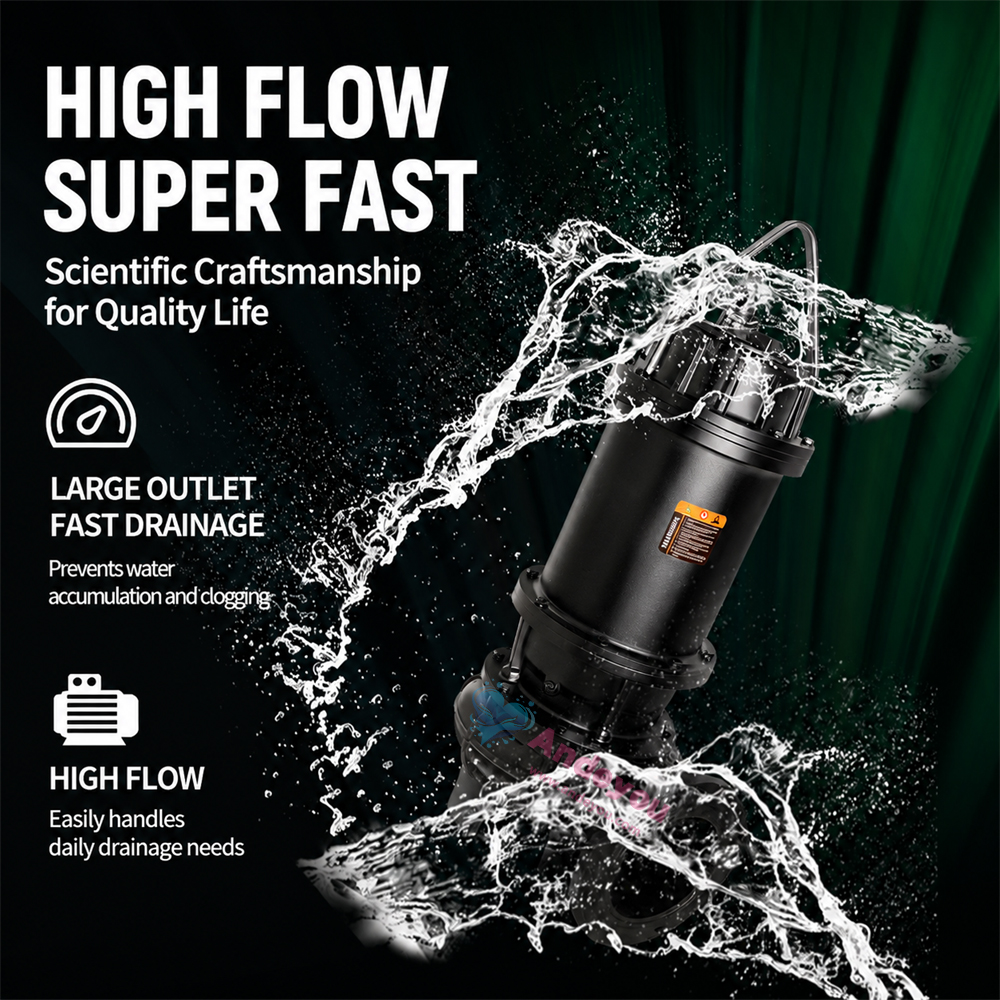

Feike WQ Low-Speed ​​Engineering Submersible Sewage Pump (4, 6, and 8-pole)

100WQ110-10-5.5|200WQ400-5-11|150WQ200-15-15|250WQ500-7-18.5|200WQ400-10-22|250WQ600-9-30|300WQ800-9-37|250WQ600-15-45|350WQ1100-10-55|500WQ2000-8-75|400WQ1800-12-90

The Feike WQ low-speed engineering submersible sewage pump (available in 4,6,and 8-pole configurations) is specifically designed to meet the drainage needs of large-scale engineering projects.Featuring a unique low-speed design,it operates smoothly with minimal noise,effectively reducing equipment wear and extending service life.It boasts powerful sewage handling capabilities,easily managing wastewater containing significant amounts of solid particles and impurities without the risk of clogging.
Product Consultation By telephone
Function
Parameters
Size
Video Introduction

Function

Operating Conditions:

1. Medium temperature: ≤ +40°C.

2. Medium pH value: 4–10.

3. Maximum medium density: 1.2 × 10³ kg/m³.

4. Power supply: 50Hz, 3-phase AC 380V; voltage fluctuation range: 0.9–1.1 times the rated value.

5. Submergence depth: ≤ 5m (measured from the center of the impeller flow passage).

Product Features:

1. Wide voltage range for safe operation.

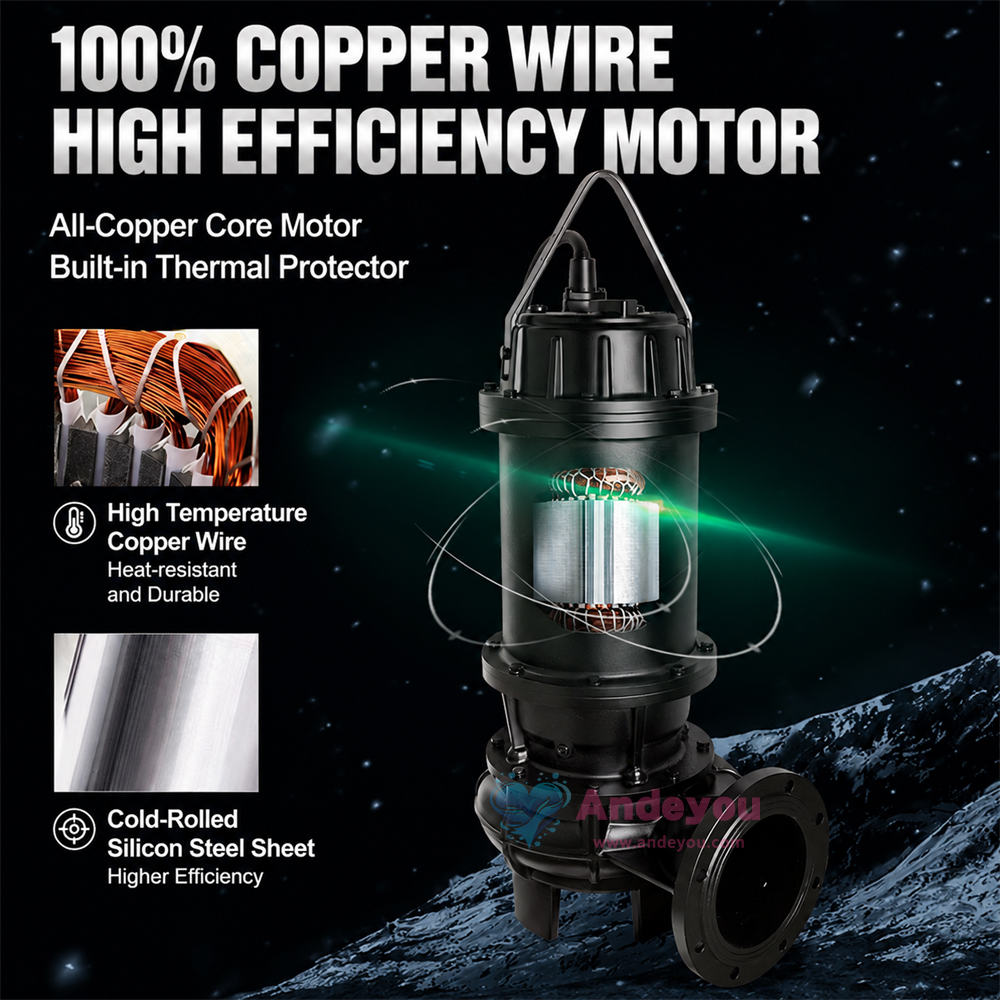

2. All-copper motor for high efficiency and energy savings.

3. High head and high flow rate; energy-efficient.

4. Overload protection to prevent motor burnout.

5. Thickened casing; impact-resistant and wear-resistant.

6. National standard (GB) flange; convenient and durable.

Applications:

Industrial construction, municipal environmental protection, agricultural irrigation, flood drainage, subway station drainage, office building drainage, urban pipeline networks.

Components:

1. Dual-channel ductile iron impeller; durable and wear-resistant.

2. High-carbon steel rotor; wear-resistant and durable.

3. National standard (GB) flange; convenient and durable.

4. Dual mechanical seal design (internal and external); pressure-resistant, sand-proof, and leak-proof.

5. Optional accessories available, such as coupling lifting devices.

6. Comprehensive motor protection design (including thermal/overheat protection).

In-house R&D and Manufacturing:

Includes casting (sand molding), grinding, machining, and inspection.

Parameters

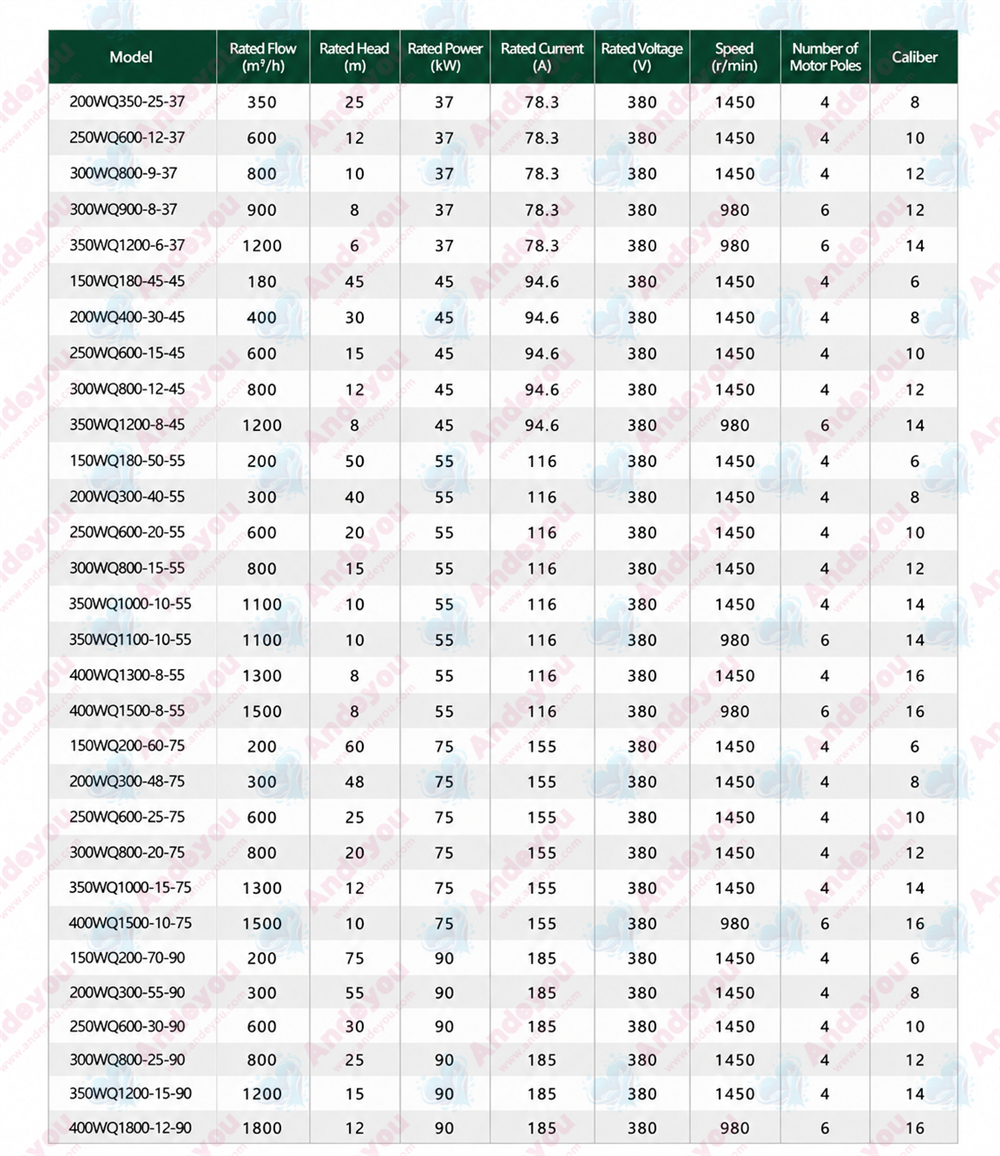

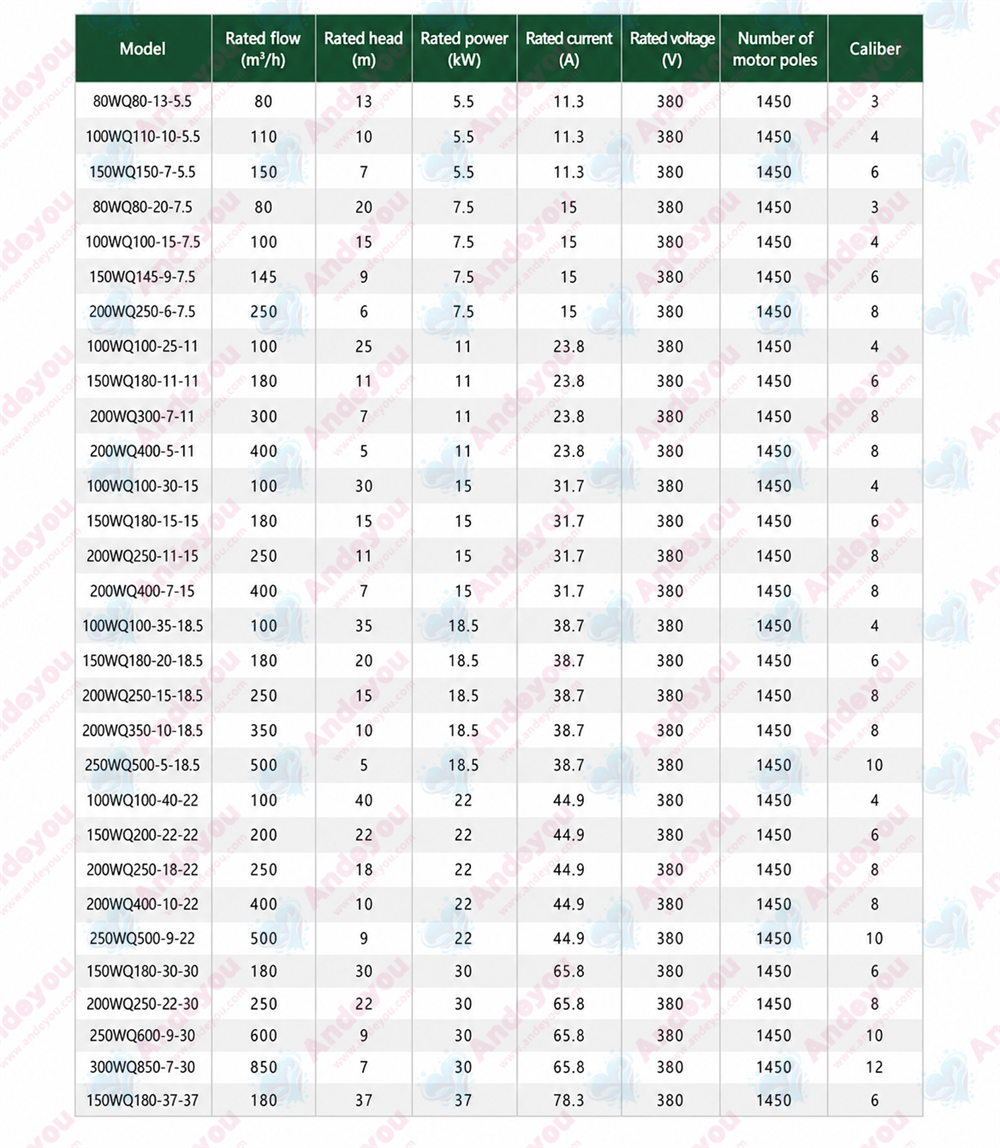

Specifications and Model Rated flow rate (m³/h) Rated head (m) Rated Power (kW) Rated current (A) Rated voltage (V) Rotational speed (r/min) Overall dimensions (mm) Number of motor poles Pipe Diameter (inches)
80WQ80-13-5.5 80 13 5.5 11.26 380 1450 810*580 4 3
100WQ110-10-5.5 110 10 5.5 11.26 380 1450 810*610 4 4
150WQ150-7-5.5 150 7 5.5 11.26 380 1450 820*640 4 6
80WQ80-20-7.5 80 20 7.5 15 380 1450 860*580 4 3
100WQ100-15-7.5 100 15 7.5 15 380 1450 860*610 4 4
150WQ145-9-7.5 145 9 7.5 15 380 1450 870*640 4 6
200WQ250-6-7.5 250 6 7.5 15 380 1450 880*740 4 8
100WQ100-25-11 100 25 11 23.8 380 1450 945*680 4 4
150WQ180-11-11 180 11 11 23.8 380 1450 960*780 4 6
200WQ300-7-11 300 7 11 23.8 380 1450 1005*970 4 8
200WQ400-5-11 400 5 11 23.8 380 1450 1005*970 4 8
100WQ100-30-15 100 30 15 31.7 380 1450 980*680 4 4
150WQ200-15-15 180 15 15 31.7 380 1450 1000*780 4 6
200WQ250-11-15 250 11 15 31.7 380 1450 1040*970 4 8
200WQ400-7-15 400 7 15 31.7 380 1450 1040*970 4 8
100WQ100-35-18.5 100 35 18.5 38.7 380 1450 1060*680 4 4
150WQ180-20-18.5 180 20 18.5 38.7 380 1450 1110*780 4 6
200WQ250-15-18.5 250 15 18.5 38.7 380 1450 1110*970 4 8
200WQ350-10-18.5 350 10 18.5 38.7 380 1450 1110*970 4 8
250WQ500-7-18.5 500 5 18.5 38.7 380 1450 1110*970 4 10
100WQ100-40-22 100 40 22 44.9 380 1450 1060*680 4 4
150WQ200-22-22 200 22 22 44.9 380 1450 1110*780 4 6
200WQ250-18-22 250 18 22 44.9 380 1450 1110*970 4 8
200WQ400-10-22 400 10 22 44.9 380 1450 1110*970 4 8
250WQ500-9-22 500 9 22 44.9 380 1450 1190*1150 4 10
150WQ180-30-30 180 30 30 65.8 380 1450 1330*810 4 6
200WQ250-22-30 250 22 30 65.8 380 1450 1280*1010 4 8
250WQ600-9-30 600 9 30 65.8 380 1450 1360*1230 4 10
300WQ850-7-30 850 7 30 65.8 380 1450 1430*750 4 12
150WQ180-37-37 180 37 37 78.3 380 1450 1330*810 4 6
200WQ350-25-37 350 25 37 78.3 380 1450 1280*1010 4 8
250WQ600-12-37 600 12 37 78.3 380 1450 1360*1230 4 10
300WQ800-9-37 800 10 37 78.3 380 1450 1430*750 4 12
300WQ900-8-37 900 8 37 78.3 380 980 1430*750 6 12
350WQ1200-6-37 1200 6 37 78.3 380 980 1430*750 6 14
150WQ180-45-45 180 45 45 94.6 380 1450 1330*810 4 6
200WQ400-30-45 400 30 45 94.6 380 1450 1280*1010 4 8
250WQ600-15-45 600 15 45 94.6 380 1450 1360*1230 4 10
300WQ800-12-45 800 12 45 94.6 380 1450 1430*750 4 12
350WQ1200-8-45 1200 8 45 94.6 380 980 1430*750 6 14
150WQ180-50-55 200 50 55 116 380 1450 1500*1020 4 6
200WQ300-40-55 300 40 55 116 380 1450 1500*1150 4 8
250WQ600-20-55 600 20 55 116 380 1450 1610*1280 4 10
300WQ800-15-55 800 15 55 116 380 1450 1615*1330 4 12
350WQ1000-10-55 1100 10 55 116 380 1450 1615*1330 4 14
350WQ1100-10-55 1100 10 55 116 380 980   6
400WQ1300-8-55 1300 8 55 116 380 1450   4 16
400WQ1500-8-55 1500 8 55 116 380 980   6 16
500WQ2200-5-55 2200 5 55 116 380 980   6 20
100WQ120-75-75 120 75 75 155 380 1450   4 4
150WQ200-60-75 200 60 75 155 380 1450 1580*1020 4 6
200WQ300-48-75 300 48 75 155 380 1450 1580*1150 4 8
250WQ600-25-75 600 25 75 155 380 1450 1690*1280 4 10
300WQ800-20-75 800 20 75 155 380 1450 1695*1330 4 12
350WQ1000-15-75 1300 12 75 155 380 1450 1695*780 4 14
350WQ1500-12-75 1500 12 75 155 380 980   6 14
400WQ1300-13-75 1300 13 75 155 380 1450   4 16
400WQ1700-10-75 1700 10 75 155 380 980   6 16
500WQ2000-8-75 2000 8 75 155 380 980   6 20
500WQ2700-6-75 2700 6 75 155 380 740   8 20
100WQ120-85-90 120 85 90 185 380 1450   4 4
150WQ200-70-90 200 75 90 185 380 1450 1580*1020 4 6
200WQ300-55-90 300 55 90 185 380 1450 1580*1150 4 8
250WQ600-30-90 600 30 90 185 380 1450 1690*1280 4 10
300WQ800-25-90 800 25 90 185 380 1450 1695*1330 4 12
350WQ1200-15-90 1200 15 90 185 380 1450 1695*780 4 14
350WQ1200-18-90 1200 18 90 185 380 980   6 14
400WQ1300-16-90 1300 16 90 185 380 1450   4 16
400WQ1800-12-90 1800 12 90 185 380 980 1700*920 6 16
500WQ2000-10-90 2000 10 90 185 380 980   6 20
500WQ2500-8-90 2500 8 90 185 380 740   8 20
600WQ3000-6-90 3000 6 90 185 380 740   8 24
600WQ3000-6-90 3000 6 90 185 380 740   8 24
100WQ100-100-110 100 100 110 202 380 1450   4 4
150WQ180-80-110 180 80 110 202 380 1450   4 6
200WQ300-65-110 300 65 110 202 380 1450   4 8
250WQ600-40-110 600 40 110 202 380 1450   4 10
300WQ1000-25-110 1000 25 110 202 380 1450   4 12
350WQ1300-20-110 1300 20 110 202 380 1450   4 14
350WQ1600-16-110 1600 16 110 202 380 980   6 14
400WQ1500-17-110 1500 17 110 202 380 1450   4 16
400WQ1800-15-110 1800 15 110 202 380 980   6 16
500WQ2500-10-110 2500 10 110 202 380 980   6 20
500WQ3000-8-110 3000 8 110 202 380 740   8 20
600WQ3200-7-110 3200 7 110 202 380 980   6 24
600WQ3800-6-110 3800 6 110 202 380 740   8 24
300WQ800-36-132 800 36 132 240 380 1450   4 12
350WQ1100-28-132 1100 28 132 240 380 1450   4 14
350WQ1500-20-132 1500 20 132 240 380 980   6 14
400WQ1700-16-132 1700 16 132 240 380 1450   4 16
400WQ2000-15-132 2000 15 132 240 380 980   6 16
500WQ2800-10-132 2800 10 132 240 380 980   6 20
500WQ3100-10-132 3100 10 132 255 380 740   8 20
600WQ3700-8-132 3700 8 132 240 380 980   6 24
600WQ4000-8-132 4000 8 132 255 380 740   8 24
150WQ220-100-160 220 100 160 288 380 1450   4 6
200WQ400-85-160 400 85 160 288 380 1450   4 8
250WQ600-60-160 600 60 160 288 380 1450   4 10
300WQ800-40-160 800 40 160 288 380 1450   4 12
350WQ1000-35-160 1000 35 160 288 380 1450   4 14
350WQ1200-35-160 1200 35 160 288 380 980   6 14
400WQ1600-20-160 1600 20 160 288 380 1450   4 16
400WQ1600-22-160 1600 22 160 288 380 980   6 16
500WQ2600-16-160 2600 16 160 288 380 980   6 20
500WQ3000-14-160 3000 14 160 308 380 740   8 20
600WQ3700-10-160 3700 10 160 288 380 980   6 24
600WQ4000-10-160 4000 10 160 308 380 740   8 24
150WQ200-110-185 220 110 185 330 380 1450   4 6
200WQ400-90-185 400 90 185 330 380 1450   4 8
250WQ600-70-185 600 70 185 330 380 1450   4 10
300WQ900-40-185 900 40 185 330 380 1450   4 12
350WQ1100-38-185 1100 38 185 330 380 1450   4 14
400WQ1600-25-185 1600 25 185 330 380 1450   4 16
400WQ2000-20-185 2000 20 185 330 380 980   6 16
500WQ3000-15-185 3000 15 185 330 380 980   6 20
600WQ3700-12-185 3700 12 185 330 380 980   6 24
250WQ750-75-200 750 75 200 360 380 1450   4 10
300WQ1000-45-200 1000 45 200 360 380 1450   4 12
350WQ1300-35-200 1300 35 200 360 380 1450   4 14
400WQ1500-30-200 1500 30 200 360 380 1450   4 16
400WQ2300-22-200 2300 22 200 360 380 980   6 16
500WQ3500-15-200 3500 15 200 360 380 980   6 20
600WQ4500-12-200 4500 12 200 360 380 980   6 24
300WQ1200-45-250 1200 45 250 445 380 1450   4 12
350WQ1500-36-250 1500 36 250 445 380 1450   4 14
400WQ1800-30-250 1800 30 250 445 380 1450   4 16
400WQ2200-28-250 2200 28 250 445 380 980   6 16
500WQ3000-21-250 3000 21 250 445 380 980   6 20
600WQ4000-18-250 4000 18 250 445 380 980   6 24
300WQ1000-55-315 1000 55 315 548 380 1450   4 12
350WQ1500-45-315 1500 45 315 548 380 1450   4 14
400WQ2000-36-315 2000 36 315 548 380 1450   4 16
500WQ3500-25-315 3500 25 315 548 380 980   6 20
600WQ4500-20-315 4500 20 315 548 380 980   6 24
500WQ3000-35-400 3000 35 400 607 380 980   6 20
600WQ5000-22-400 5000 22 400 607 380 980   6 24
500WQ4000-32-550 4000 32 550 835 380 980   6 20
600WQ5500-25-550 5500 25 550 835 380 980   6 24
