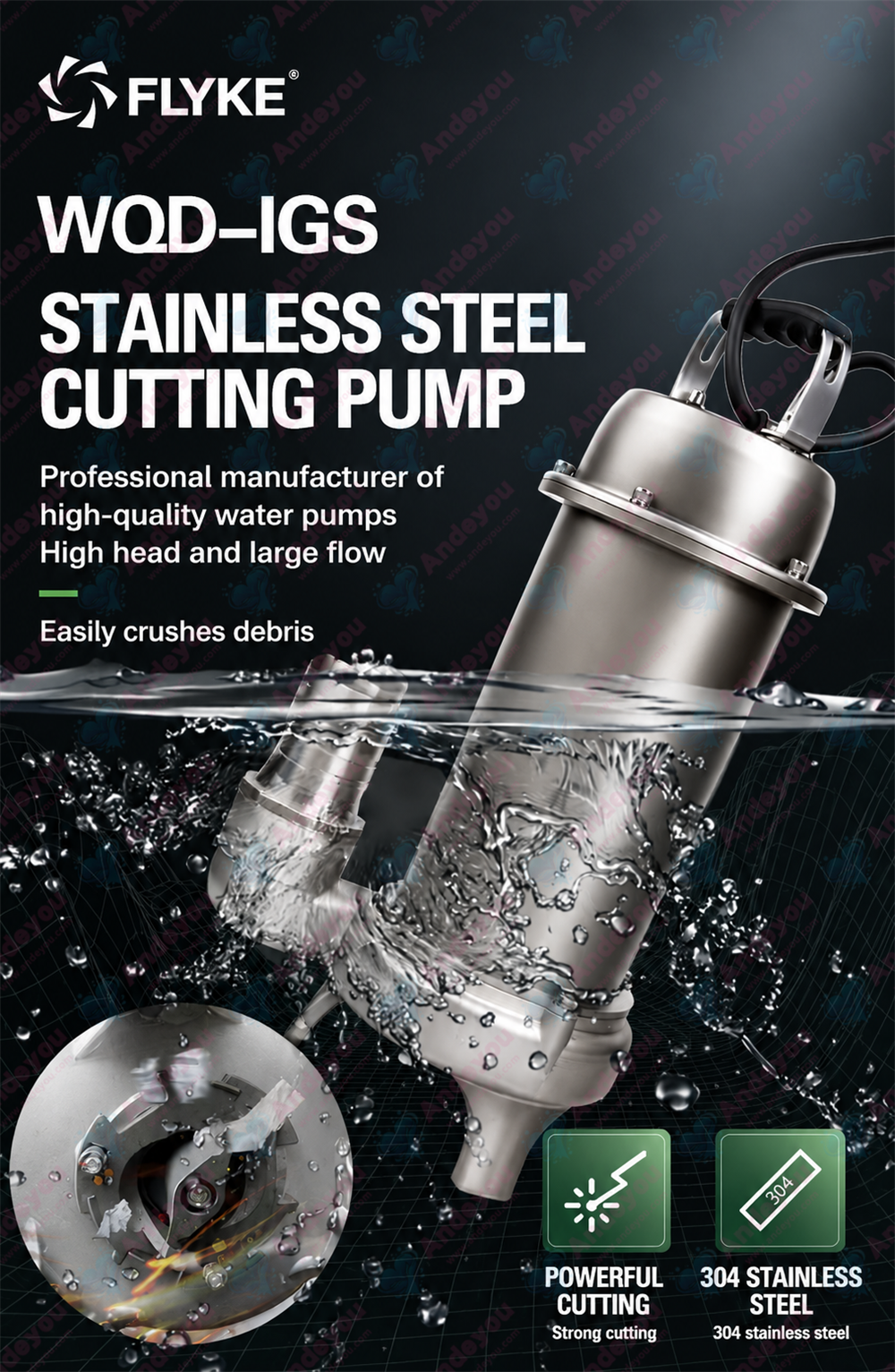

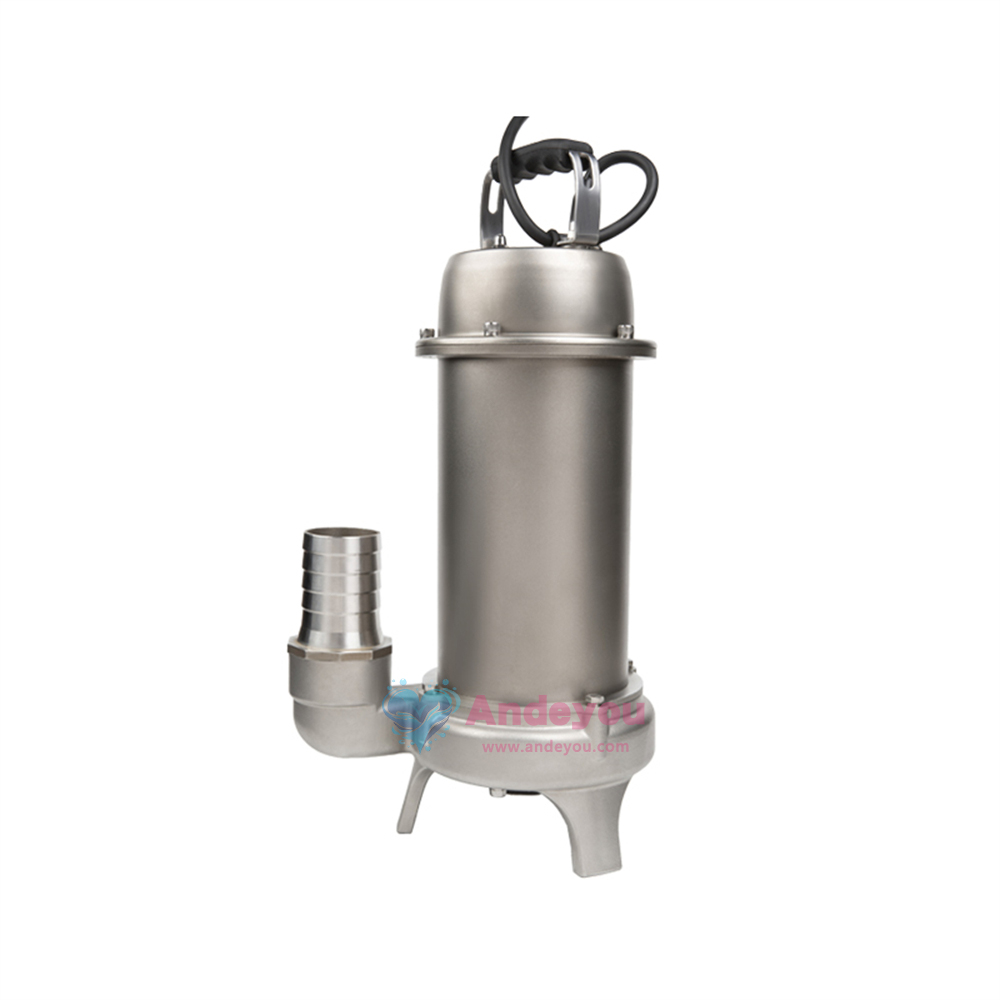

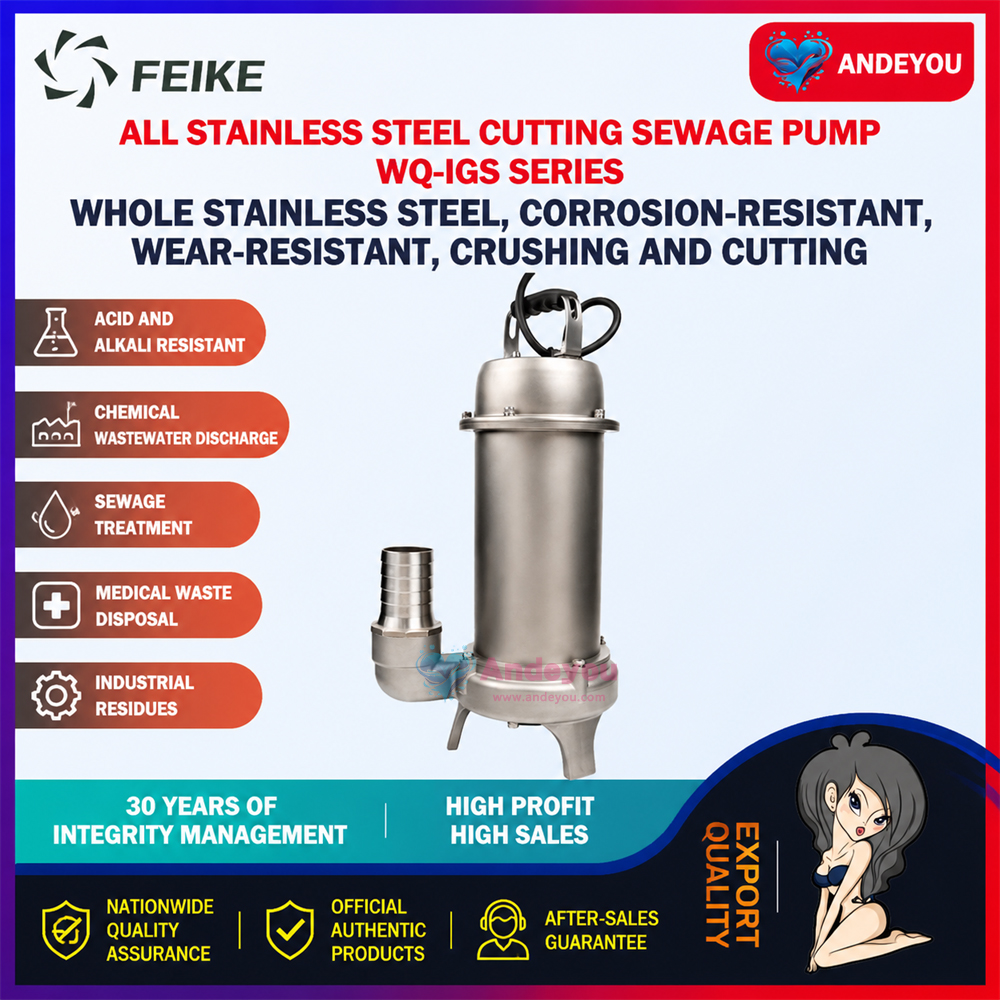

Flyke WQD-IGS 304 Stainless Steel Submersible Sewage Pump with Shredding Cutter Blade

WQD10-10-1.1IGS|WQD15-9-1.5IGS|WQ10-10-1.1IGS|WQ15-9-1.5IGS

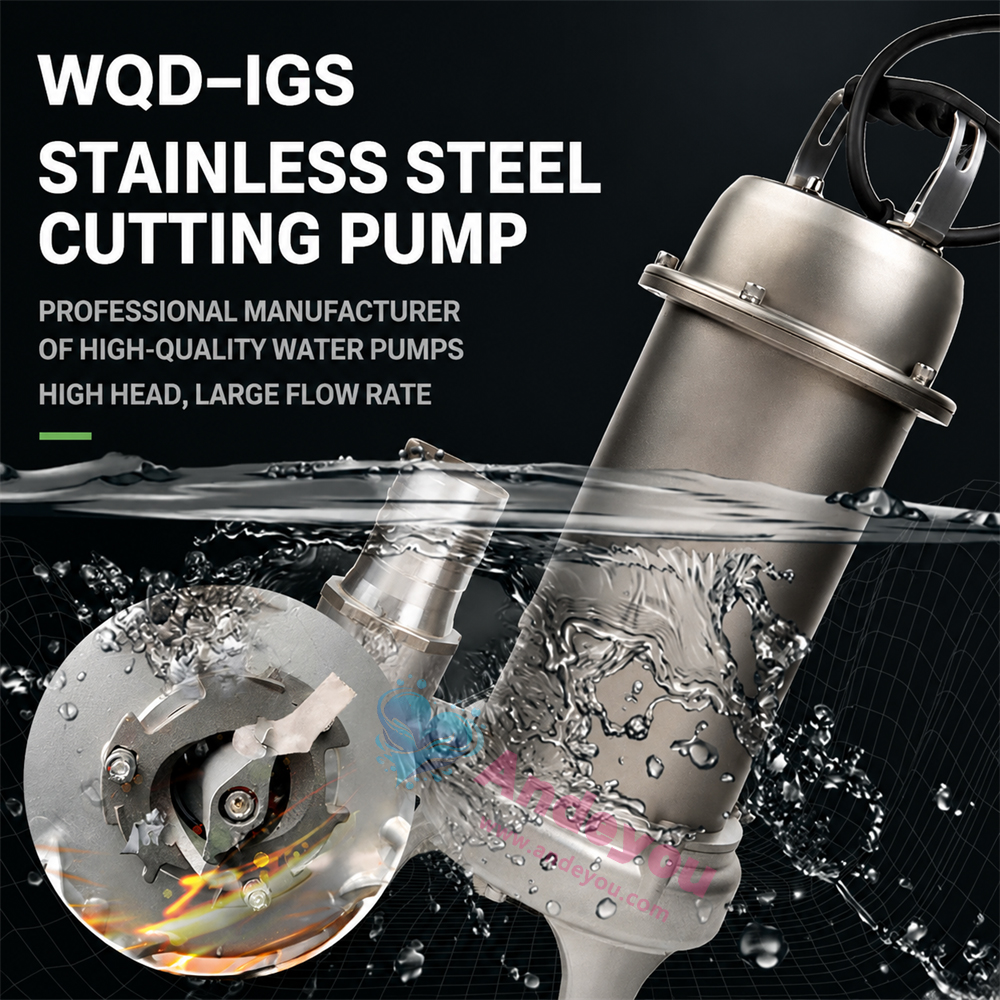

The Feike WQD-IGS stainless steel (304) submersible sewage pump features a rugged,corrosion-resistant body constructed from 304 stainless steel.Its distinctive blade-based shredding technology powerfully pulverizes various types of debris found in sewage—such as fabric strips,fibers,and twigs—thereby significantly enhancing pumping efficiency and effectively preventing clogs.With excellent sealing capabilities for safe underwater operation,this pump is widely used in municipal sewage management

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

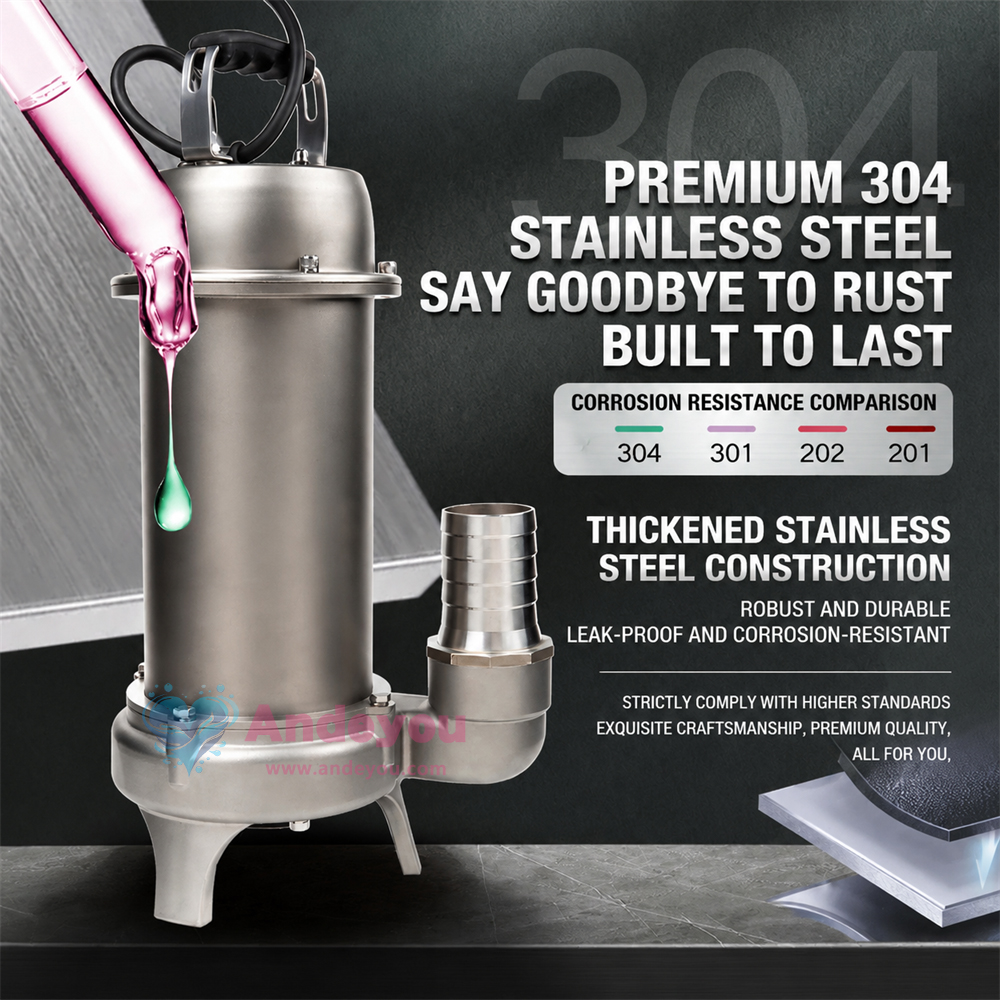

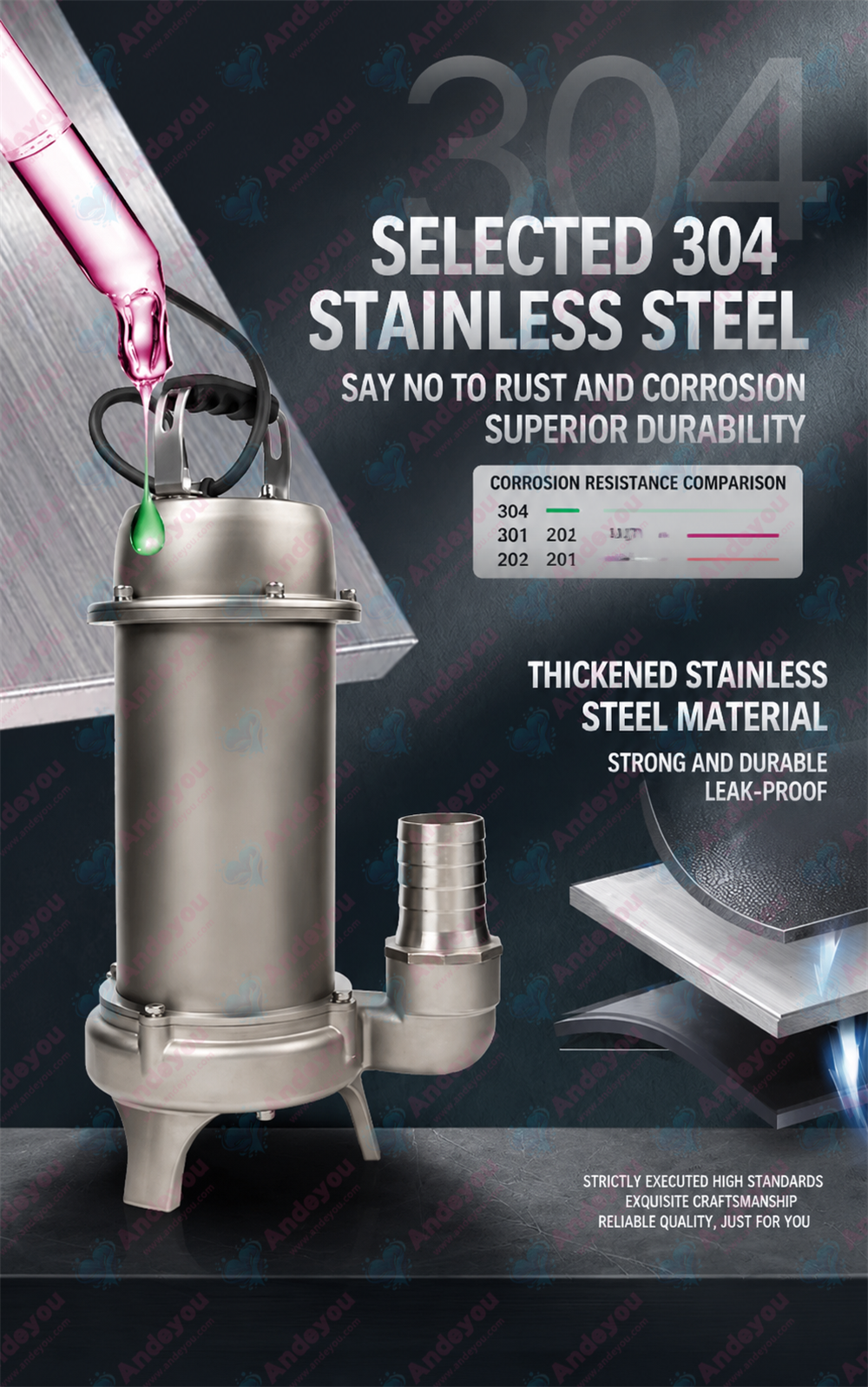

Constructed entirely of stainless steel to resist corrosion; 304 stainless steel is standard (please inquire if 316 stainless steel is required).

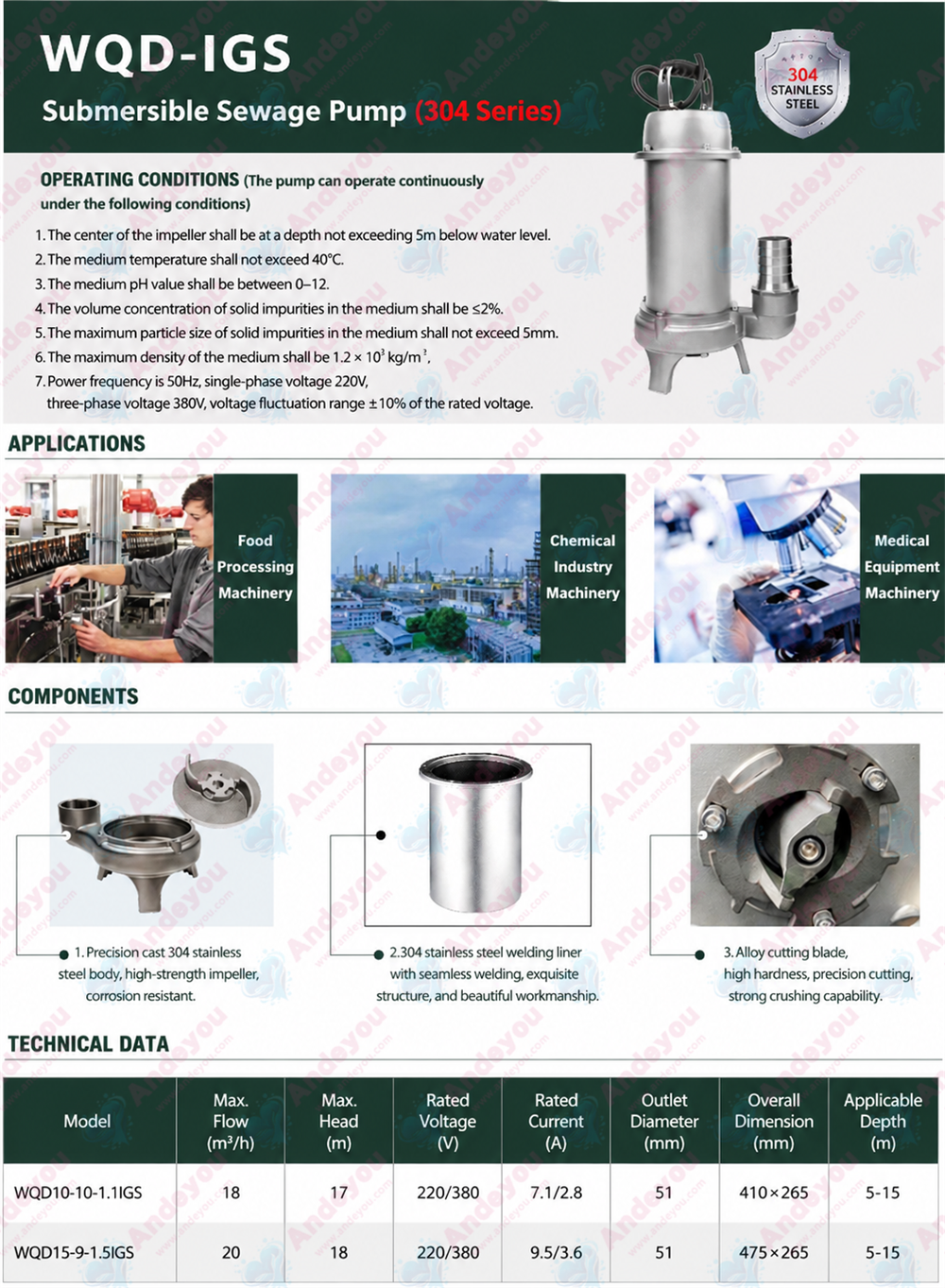

Operating Conditions:

1. Submersion depth: Maximum 5m (measured from the center of the impeller).

2. Medium temperature: Maximum 40°C.

3. pH range of the medium: 0–12.

4. Volumetric ratio of solids in the medium: Below 2%.

5. Maximum solid particle size in the medium: 5mm.

6. Maximum density of the medium: 1.2 × 10³ kg/m³.

7. Power supply: 50Hz frequency; single-phase 220V AC or three-phase 380V AC; voltage fluctuation range: 0.9–1.1 times the rated voltage.

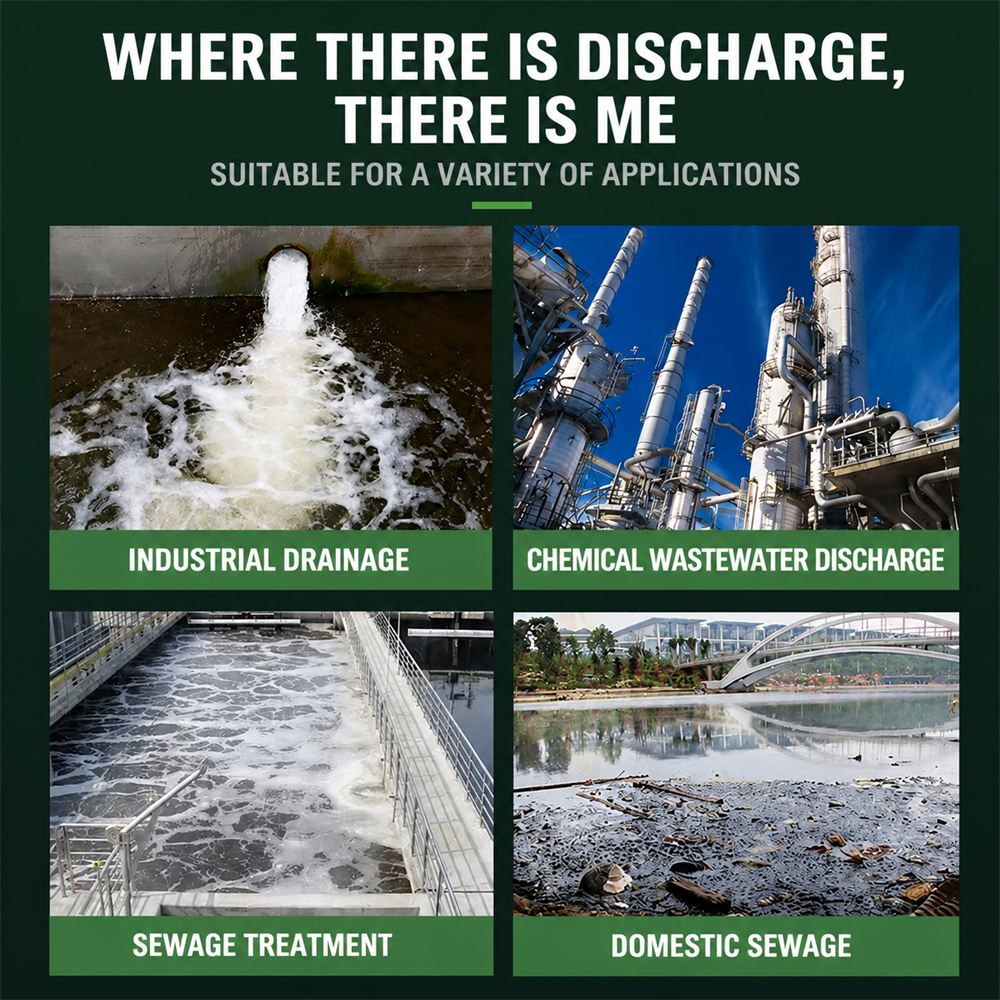

Applications:

Food processing, chemical industry, medical sector, and water treatment.

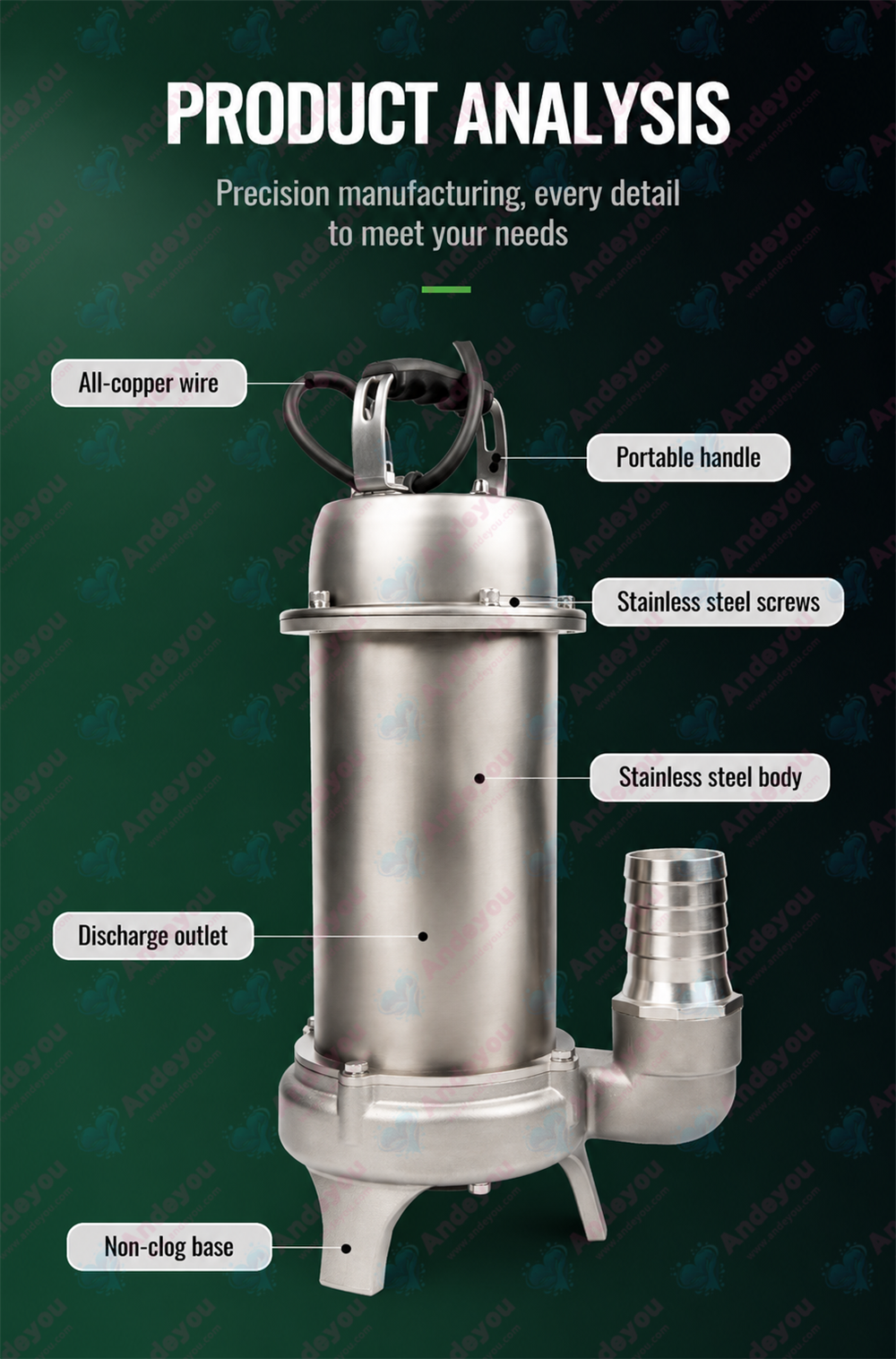

Components:

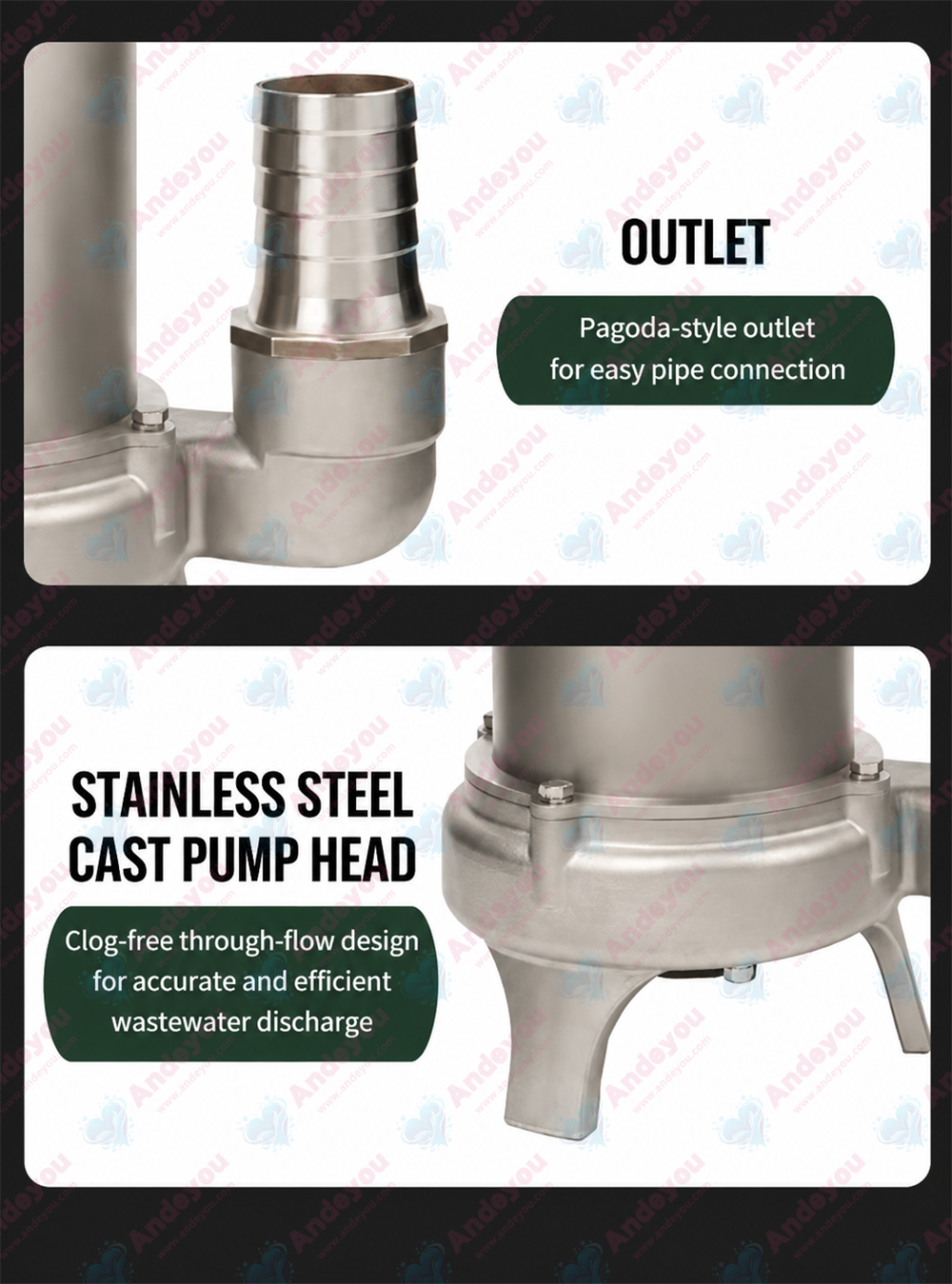

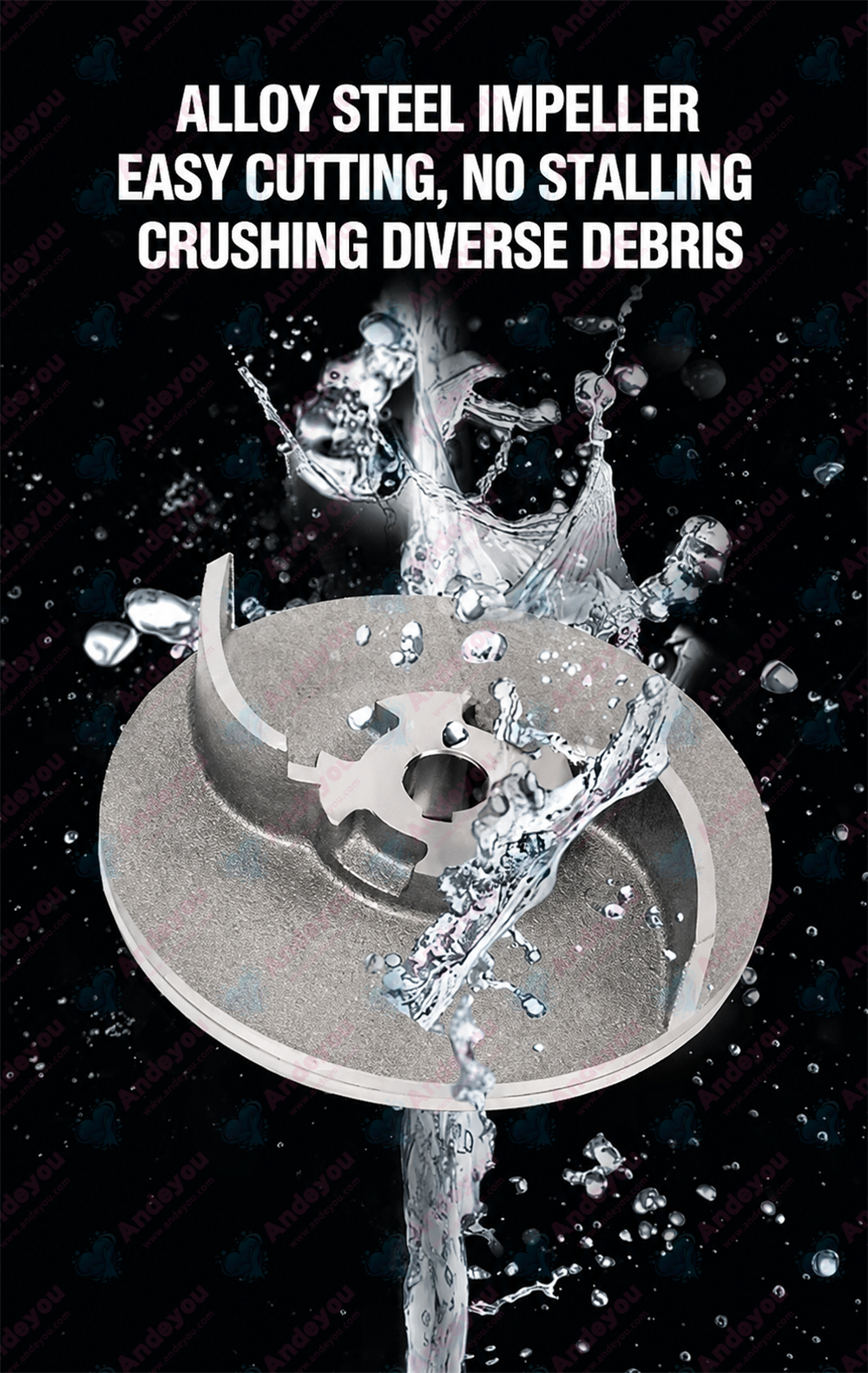

1. Precision-cast 304 stainless steel pump body and impeller; high strength and corrosion resistance.

2. Welded 304 stainless steel flange and seamless pipe assembly; refined structure and high-quality finish.

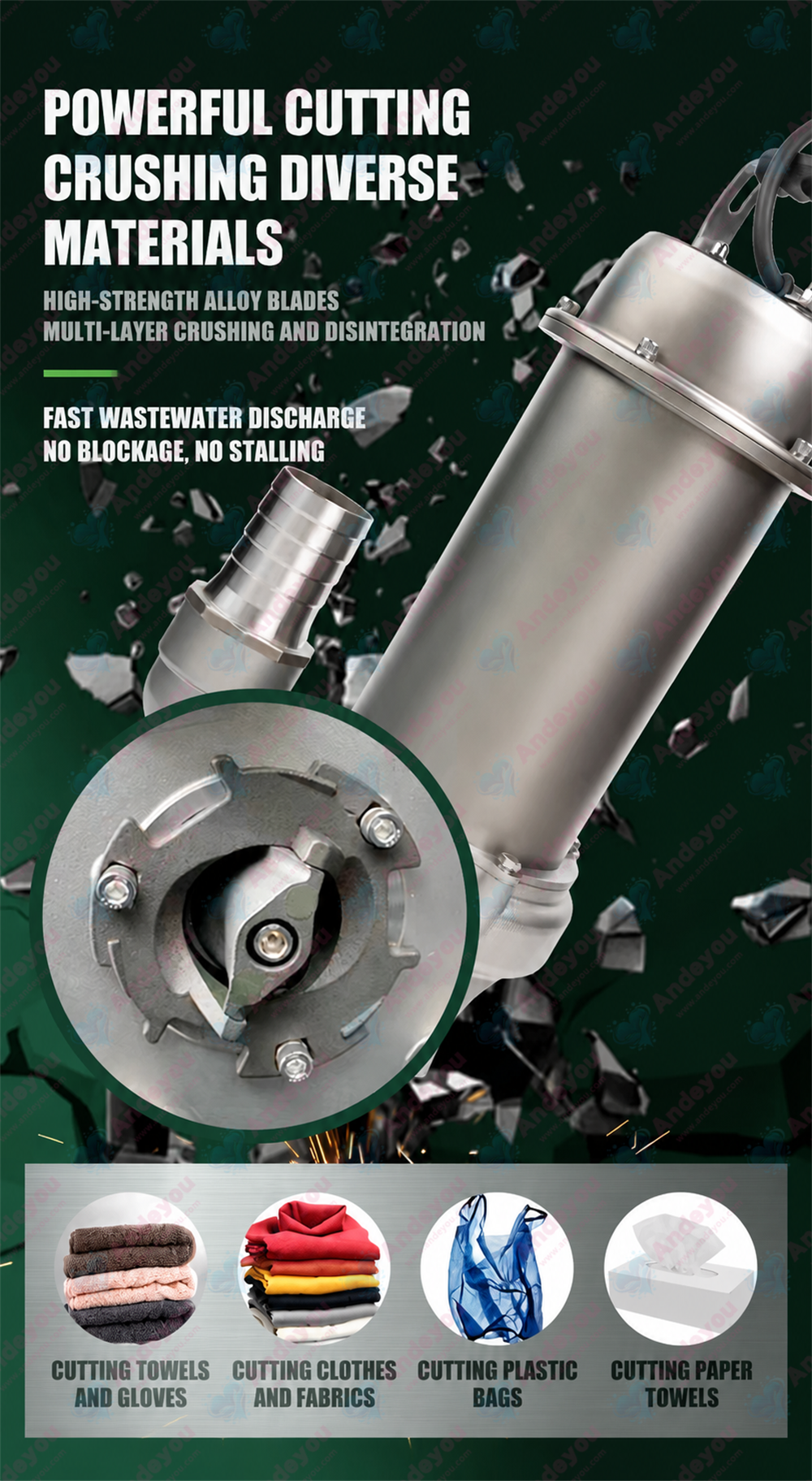

3. Alloy cutting blades; high-hardness, military-grade material for sharp cutting performance.

Parameters

Model	Rated flow rate (m³/h)	Maximum flow rate (m³/h)	Rated head (m)	Maximum head (m)	Rated power (kW)	Rated voltage (V)	Rated current (A)	Pipe inner diameter (mm)	Head operating range (m)

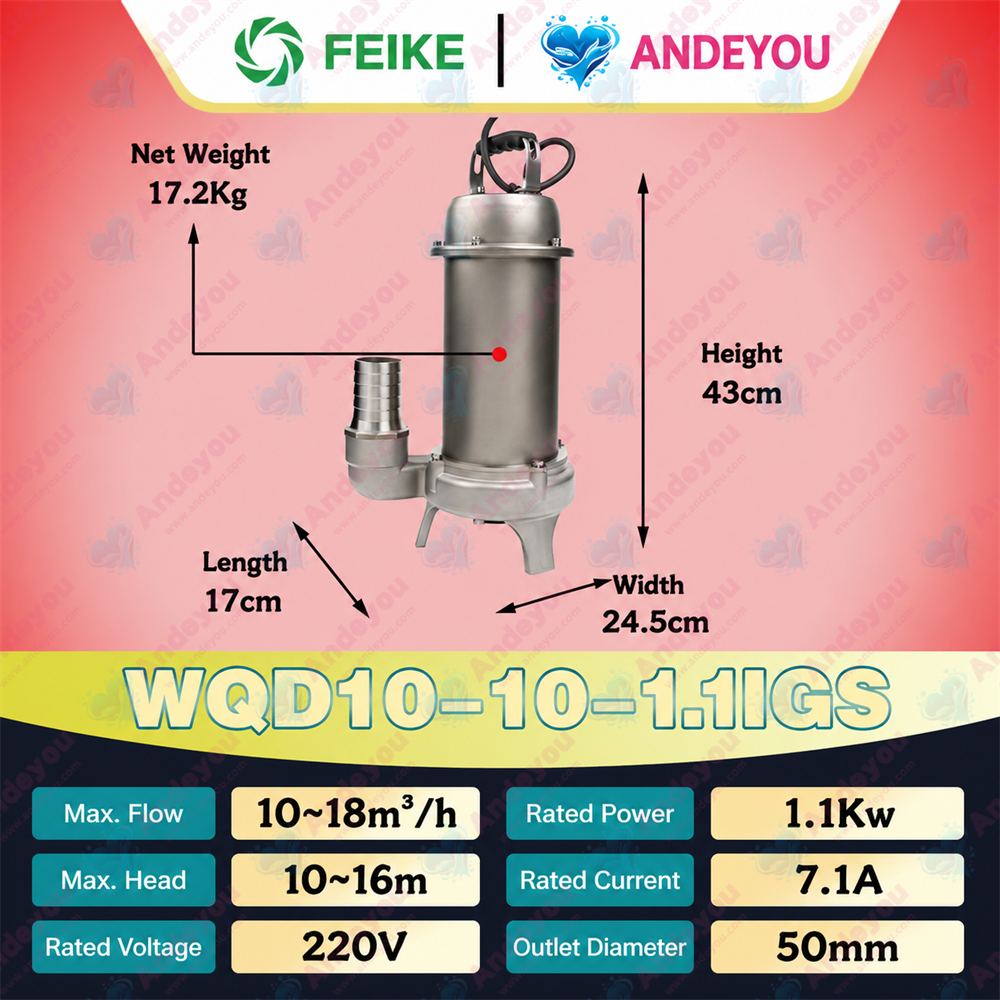

WQD10-10-1.1IGS	10	18	10	17	1.1	220	7.1	51	5-15

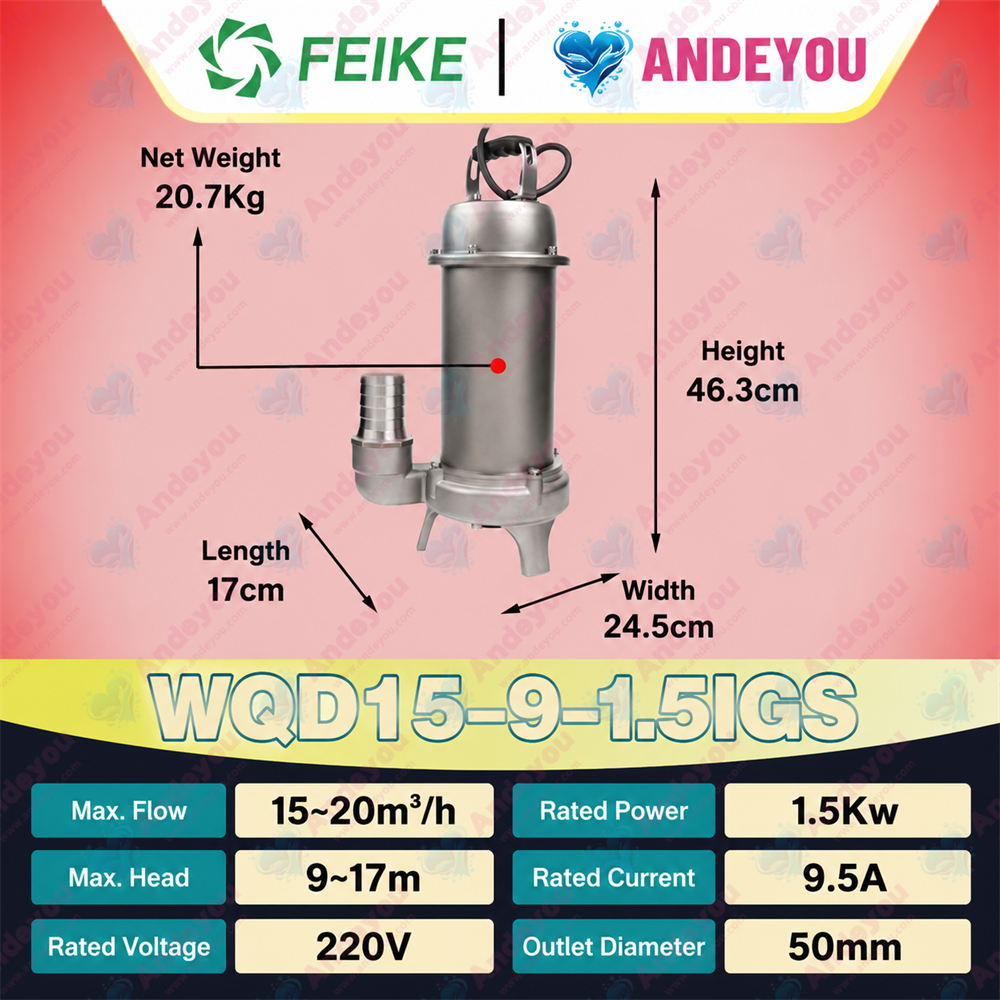

WQD15-9-1.5IGS	15	20	9	18	1.5	220	9.5	51	5-15

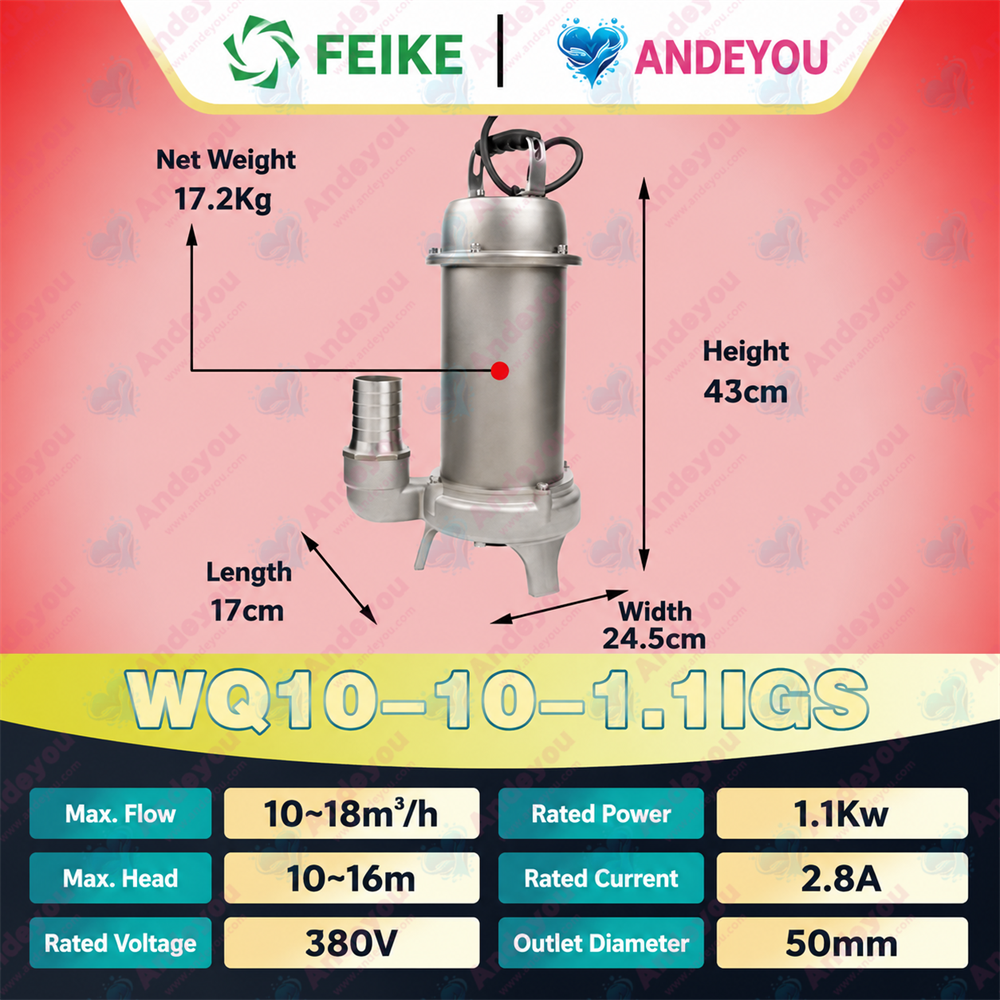

WQ10-10-1.1IGS	10	18	10	17	1.1	380	2.8	51	5-15

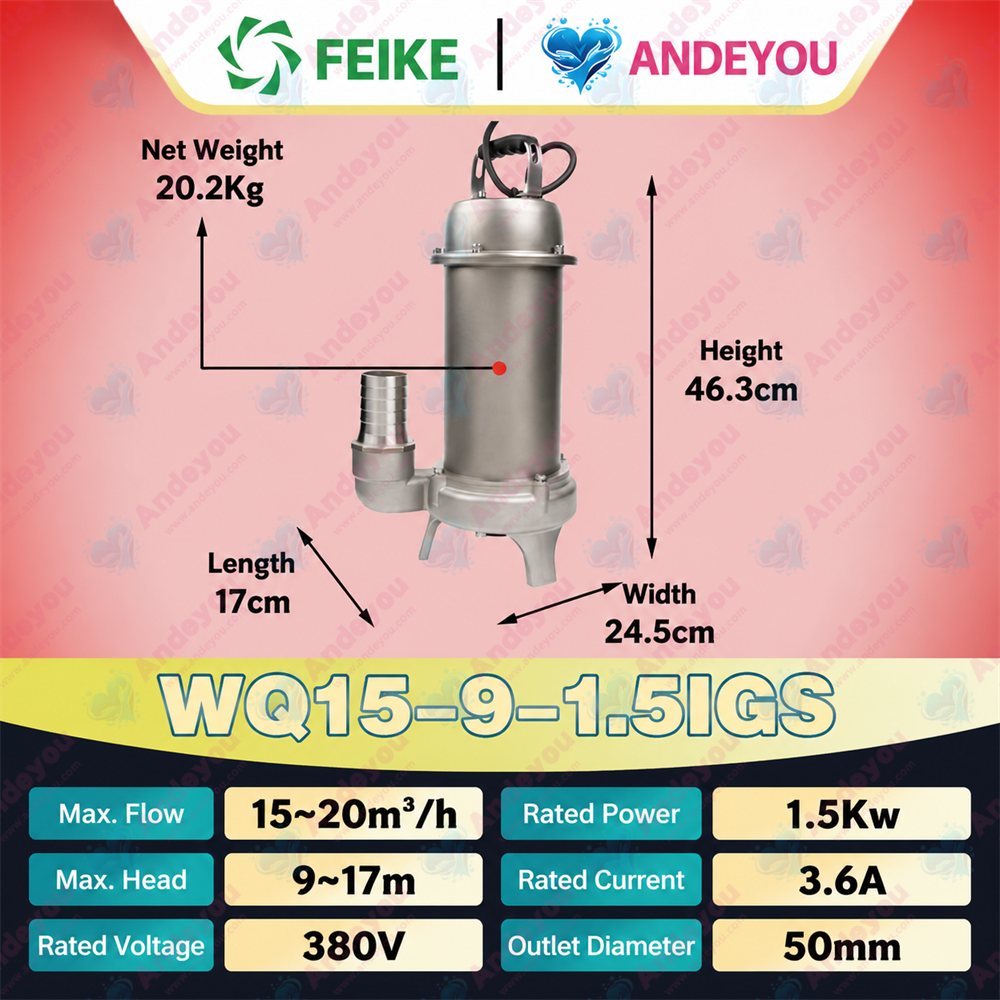

WQ15-9-1.5IGS	15	20	9	18	1.5	380	3.6	51	5-15
