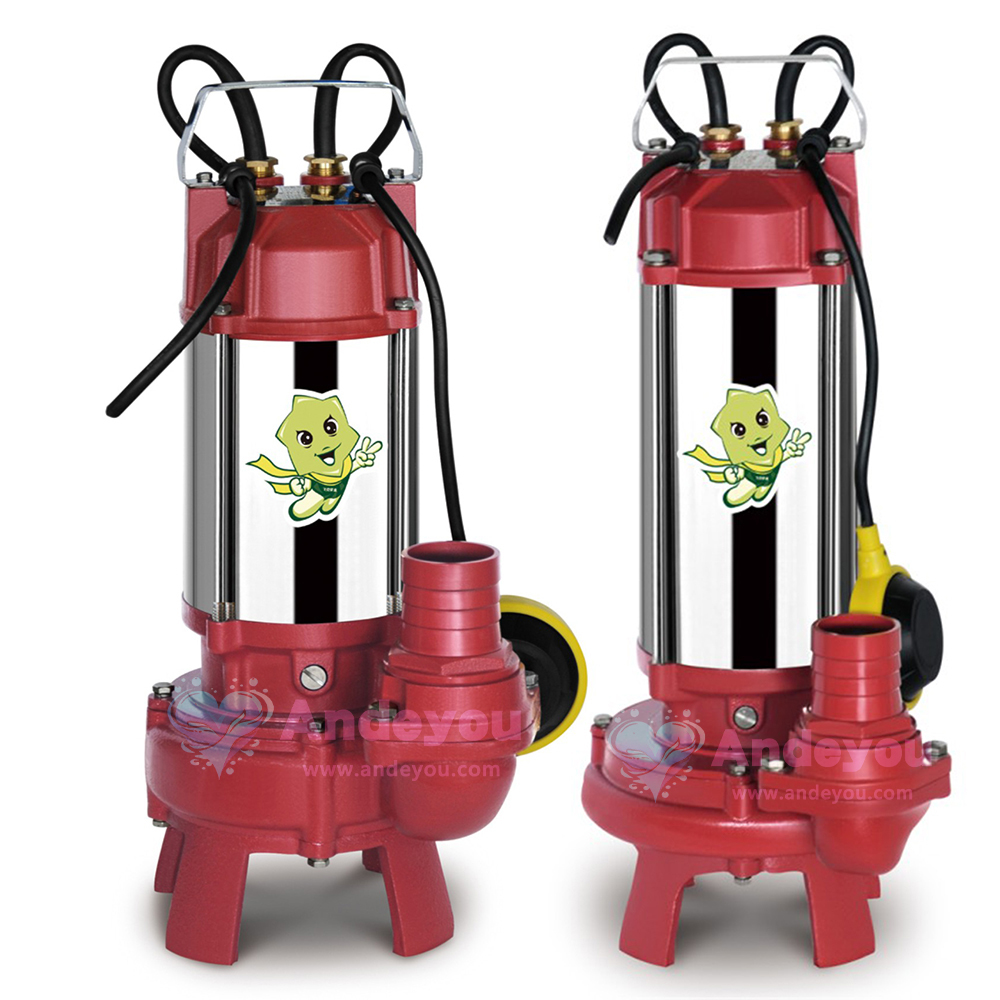

Flyke WQ-IG Submersible Sewage Pump with Cutter Blade

WQD10-7-0.75IG|WQD10-11-1.1IG|WQD15-11-1.5IG|WQD8-18-2.2IG|WQD15-15-2.2IG|WQD10-7-0.75IG(Z)|WQD10-11-1.1IG(Z)|WQD15-11-1.5IG(Z)|WQD8-18-2.2IG(Z)|WQD15-15-2.2IG(Z)|WQ10-11-1.1IG|WQ15-11-1.5IG|WQ8-18-2.2IG|WQ15-15-2.2IG|50WQD10-7-0.75IG|50WQD10-11-1.1IG|65WQD15-7-1.1IG|50WQD15-10-1.5IG|65WQD25-12-2.2|80WQD35-8-2.2IG|50WQD10-7-0.75IG|50WQD10-11-1.1IG|65WQD15-7-1.1IG|50WQD15-10-1.5IG|65WQD25-12-2.2|80WQD35-8-2.2IG

The Feike WQ-IG submersible sewage pump with shredding and cutting capabilities utilizes advanced technology to effectively shred and cut materials such as long fibers,bags,straps,grass,and cloth strips found in sewage,ensuring smooth discharge.It handles large solid particles with ease,offering high discharge capacity and clog-free operation.Featuring advanced hydraulic performance and a compact structure,the pump is easy to install and relocate,eliminating the need for a dedicated pump house.

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

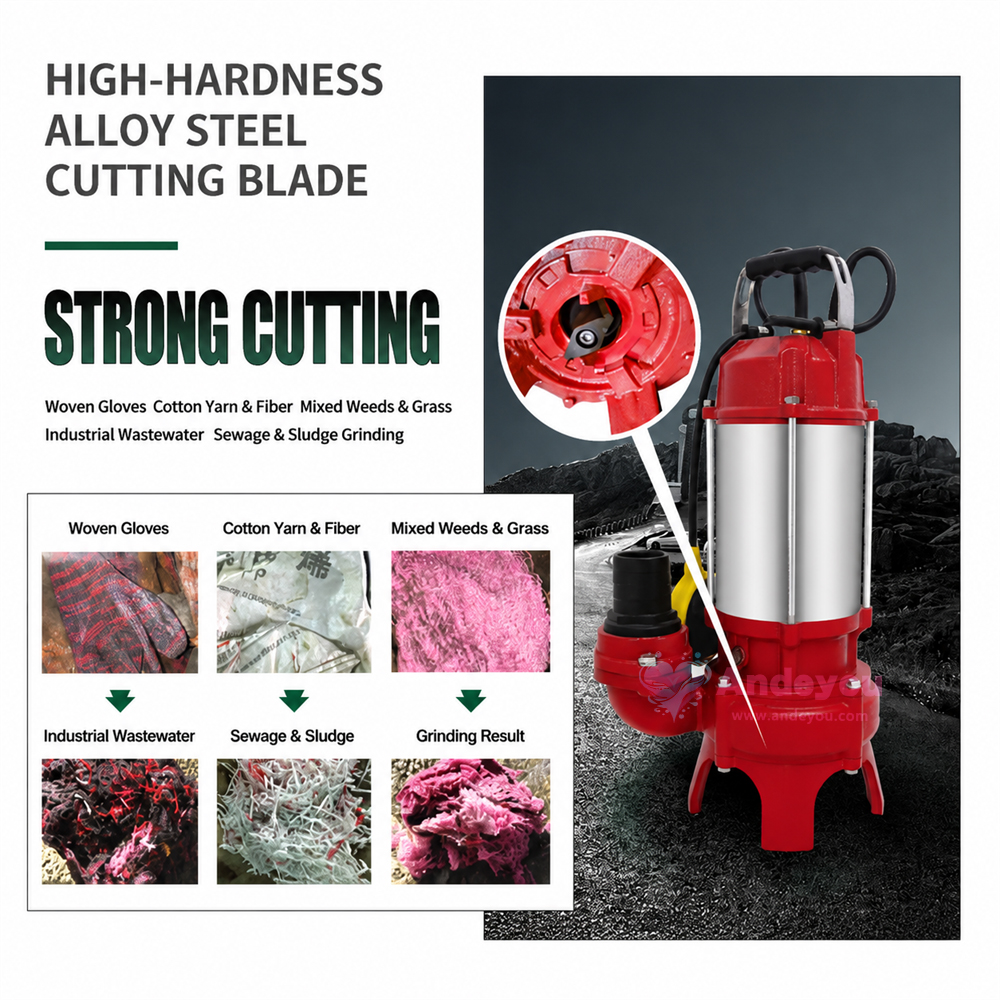

Powerful Cutting Action! High-hardness alloy steel cutting blade (handles cotton gloves, clothing, towels, debris, weeds, industrial wastewater, and sewage shredding).

Operating Conditions:

1. Submergence depth: Up to 5m (measured from the center of the impeller).

2. Medium temperature: ≤ 40°C.

3. pH value of medium: 4–10.

4. Volumetric ratio of solids in the medium: < 2%.

5. Maximum solid particle size: ≤ 5mm.

6. Maximum density of medium: 1.2 × 10³ kg/m³.

7. Power supply: 50Hz; Single-phase AC 220V or Three-phase AC 380V; Voltage fluctuation range: 0.9–1.1 times the rated voltage.

Application Scenarios:

Industrial drainage, livestock farm drainage, septic tank drainage, food service/catering wastewater discharge, sewage containing hair or textile waste.

Key Components:

1. Open-type impeller: Superior solids-handling capability.

2. Stainless steel shaft: Wear-resistant and durable; prevents corrosion-related shaft damage.

3. Cutting blade: Exceptionally sharp for trouble-free cutting.

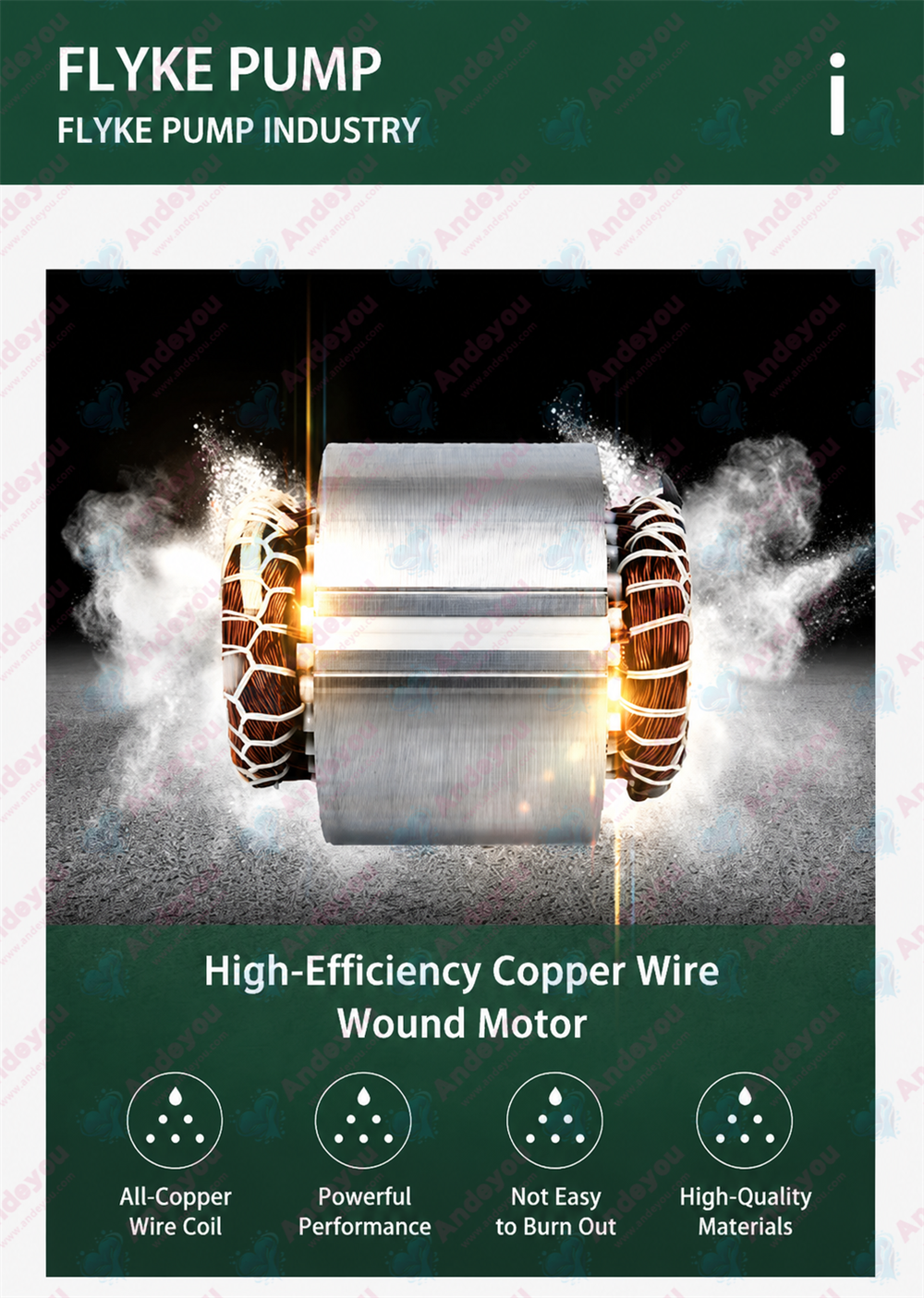

4. High-efficiency motor with all-copper enameled wire: Strong overload resistance, burn-out resistant, and highly durable.

5. Renben bearings: High load capacity, long service life, and smooth operation.

6. Unobstructed flow base design: Convenient and practical.

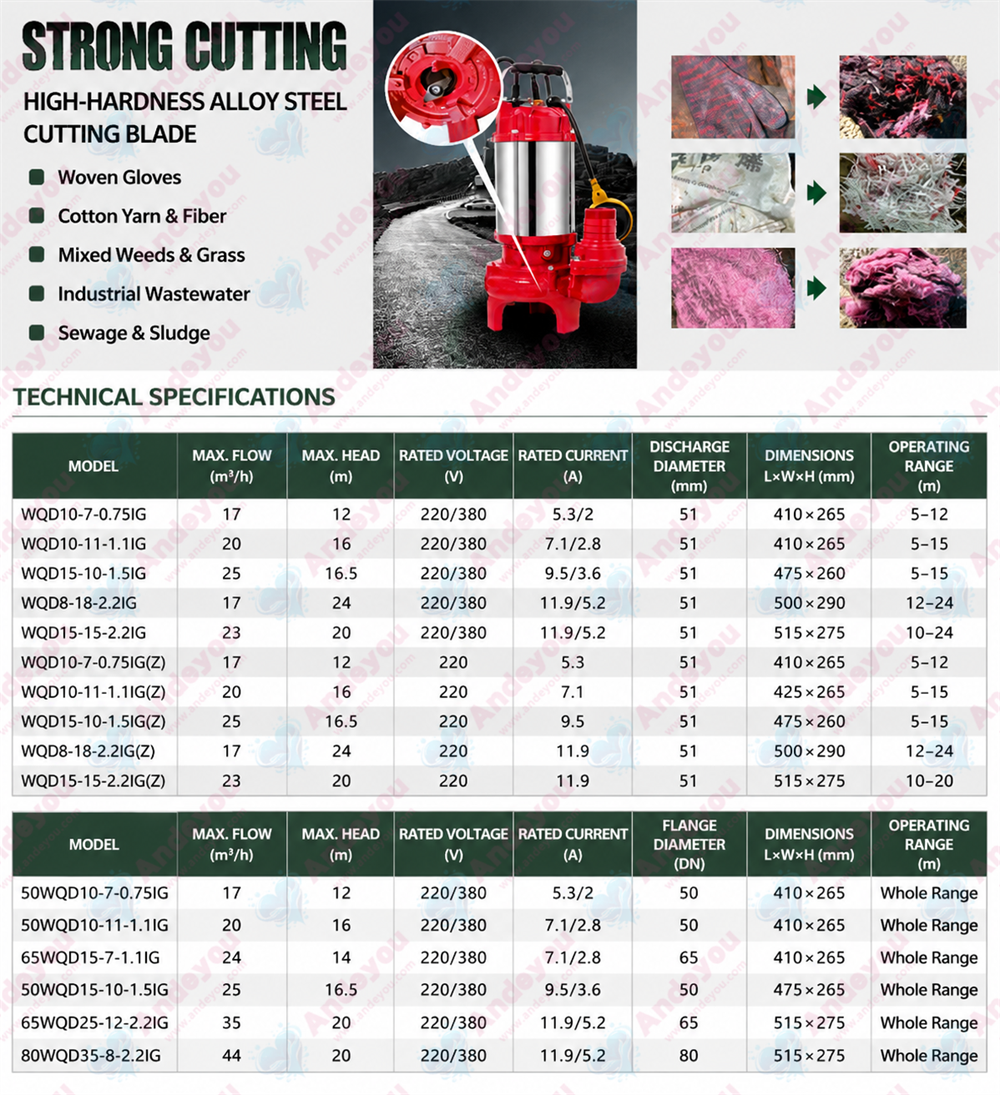

Parameters

Model	Rated flow rate (m³/h)	Maximum flow rate (m³/h)	Rated head (m)	Maximum head (m)	Rated power (kW)	Rated voltage (V)	Rated current (A)	Pipe inner diameter (mm)	Head operating range (m)
WQD10-7-0.75IG	10	17	7	12	0.75	220	5.3	51	5-12
WQD10-11-1.1IG	10	17	11	16.5	1.1	220	7.02	51	0-16.5
WQD15-11-1.5IG	15	23	11	17.5	1.5	220	9.44	51	0-17.5
WQD8-18-2.2IG	8	17	18	24	2.2	220	11.9	51	0-24
WQD15-15-2.2IG	15	23	15	20	2.2	220	11.9	51	0-20
WQD10-7-0.75IGZ(Automatic float ball)	10	17	7	12	0.75	220	5.3	51	5-12
WQD10-11-1.1IGZ(Automatic float ball)	10	17	11	16.5	1.1	220	7.02	51	0-16.5
WQD15-11-1.5IGZ(Automatic float ball)	15	23	11	17.5	1.5	220	9.44	51	0-17.5
WQD8-18-2.2IGZ(Automatic float ball)	8	17	18	24	2.2	220	11.9	51	0-24
WQD15-15-2.2IGZ(Automatic float ball)	15	23	15	20	2.2	220	11.9	51	0-20
WQ10-11-1.1IG	10	17	11	16.5	1.1	380	2.74	51	0-16.5
WQ15-11-1.5IG	15	23	11	17.5	1.5	380	3.58	51	0-17.5
WQ8-18-2.2IG	8	17	18	24	2.2	380	5.11	51	0-24
WQ15-15-2.2IG	15	23	15	20	2.2	380	5.11	51	0-20
50WQD10-7-0.75IG(Flanged type)	10	17	7	12	0.75	220	5.3	50	全扬程
50WQD10-11-1.1IG(Flanged type)	10	20	11	16	1.1	220	7.1	50	全扬程
65WQD15-7-1.1IG(Flanged type)	15	24	7	14	1.1	220	7.1	65	全扬程
50WQD15-10-1.5IG(Flanged type)	15	25	10	16.5	1.5	220	9.5	50	全扬程
65WQD25-12-2.2IG(Flanged type)	25	35	12	20	2.2	220	11.9	50	全扬程
80WQD35-8-2.2IG(Flanged type)	35	44	8	20	2.2	220	11.9	80	全扬程
50WQD10-7-0.75IG(Flanged type)	10	17	7	12	0.75	380	2	50	全扬程
50WQD10-11-1.1IG(Flanged type)	10	20	11	16	1.1	380	2.8	50	全扬程
65WQD15-7-1.1IG(Flanged type)	15	24	7	14	1.1	380	2.8	65	全扬程
50WQD15-10-1.5IG(Flanged type)	15	25	10	16.5	1.5	380	3.6	50	全扬程
65WQD25-12-2.2IG(Flanged type)	25	35	12	20	2.2	380	5.2	50	全扬程
80WQD35-8-2.2IG(Flanged type)	35	44	8	20	2.2	380	5.2	80	全扬程
