I. Core Impeller Design Advantages

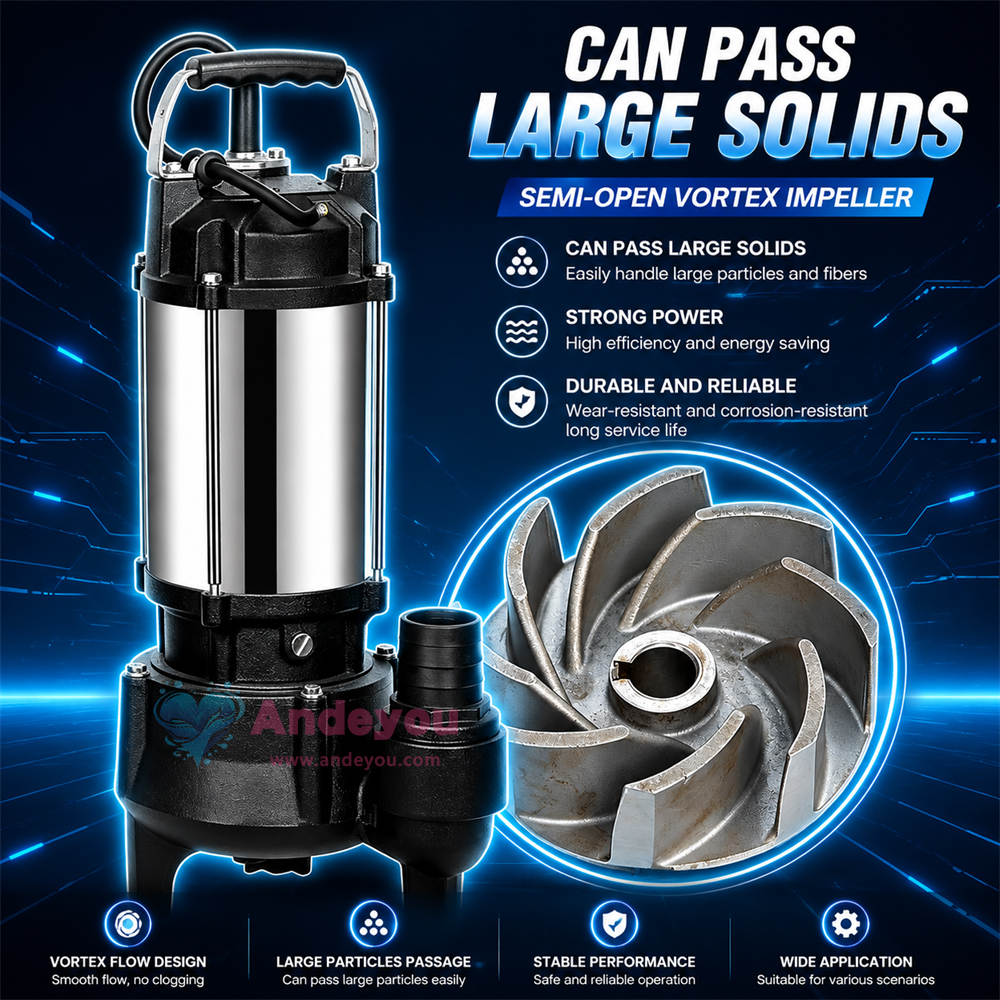

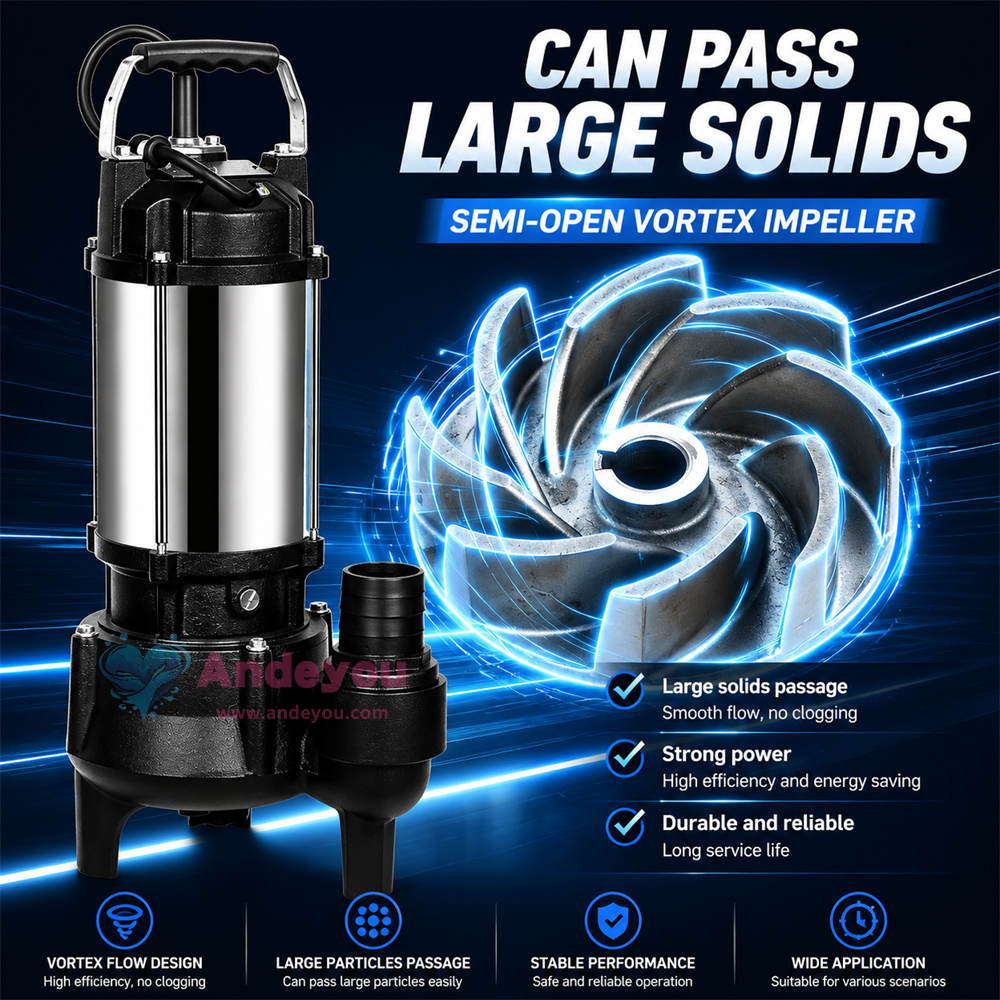

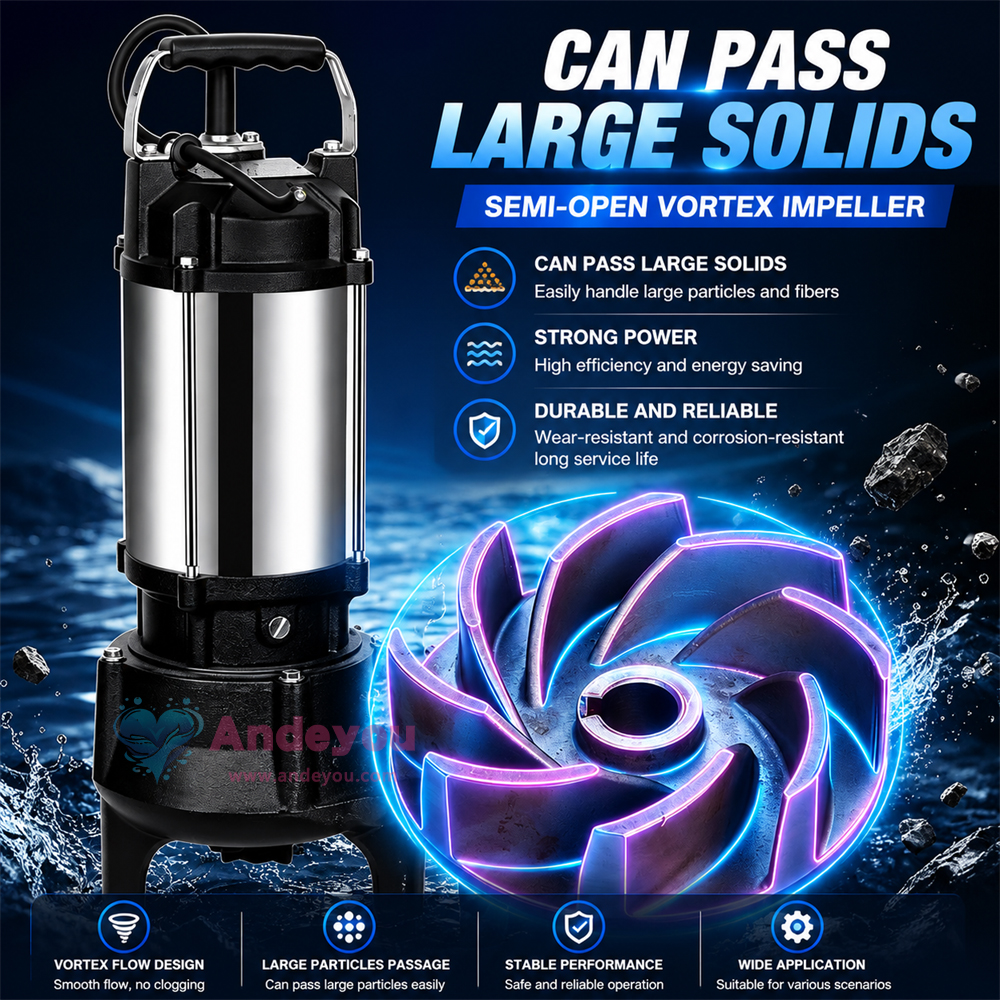

Featuring a vortex-style impeller design with wide, open flow passages—unlike the narrow channels of traditional closed impellers—this unit smoothly handles long fibrous materials (up to five times the pump inlet diameter) and solid particles (up to approximately 50% of the inlet diameter). This structural design fundamentally prevents clogging caused by debris such as rags, plastic, hair, and sediment, significantly reducing the need for maintenance and boosting sewage discharge efficiency by over 30%. Each impeller undergoes rigorous dynamic and static balancing tests before leaving the factory, ensuring low vibration and noise levels; combined with an optimized volute casing design, the unit delivers higher operational efficiency and lower energy consumption.

II. Specialized Structural Heat Dissipation Design

The outer casing is constructed from 304 stainless steel, offering excellent thermal conductivity to rapidly dissipate heat generated during motor operation. This ensures stable temperatures during prolonged, continuous use and prevents motor burnout due to overheating. Additionally, the stainless steel housing is rust- and corrosion-resistant, extending the equipment's service life.

The pump's core body is made of high-strength cast iron, providing superior pressure resistance and operational stability. It is suitable for most standard sewage applications and offers enhanced structural integrity.

III. Installation and Connection Design

The unit utilizes a standard flange connection for a secure, highly sealed interface, making it ideal for integration with standard piping systems while minimizing the risk of leakage. It supports both fixed automatic coupling and portable installation modes; the dual-guide-rail coupling design facilitates easy maintenance and repair, allowing for convenient servicing without the need to dismantle the entire pump assembly.

IV. Core Durable Component Configuration

Bearing System: Utilizes precision bearings offering high rotational accuracy, minimal wear, and low vibration; ensures long-term, stable equipment operation at the core level, with a continuous service life exceeding 8,000 hours.

Sealing and Protection: Features a tandem double mechanical seal made of silicon carbide alloy, paired with oil- and corrosion-resistant fluororubber seals; this dual-layer protection prevents media ingress into the motor chamber. The cable utilizes a specialized leak-proof sealing structure, ensuring no leakage risk during prolonged underwater operation.

Motor and Protection System: Employs a high-quality copper-winding motor (compliant with national standards); features Class F insulation and supports a water-jacketed external circulation cooling system.

V. Applicable Scenarios and Media

Suitable for applications such as municipal sewage discharge, construction site drainage, sludge transport in wastewater treatment plants, handling metallurgical and mining waste residue/wastewater, paper industry fibrous wastewater, and rural biogas digester irrigation/discharge. Capable of transporting sewage media with temperatures ≤40°C and pH levels of 4–10, including media containing sand, gravel, fibers, and solid impurities; a stainless-steel housing version is also available to meet requirements for transporting mildly corrosive sewage.
