Feike QDXS 304 Stainless Steel Submersible Pump

QDX3-10-0.25S|QDX3-14-0.37S|QDX3-18-0.55S|QDX3-24-0.75S|QDX6-18-0.75S|QDX10-13-0.75S|QDX15-14-1.1S|QDX40-6-1.1S|QDX15-18-1.5S|QDX40-8-1.5S|QDX3-10-0.25S(Z)|QDX3-14-0.37S(Z)|QDX3-18-0.55S(Z)|QDX3-24-0.75S(Z)|QDX6-18-0.75S(Z)|QDX10-13-0.75S(Z)|QDX15-14-1.1S(Z)|QDX40-6-1.1S(Z)|QDX15-18-1.5S(Z)|QDX40-8-1.5S(Z)

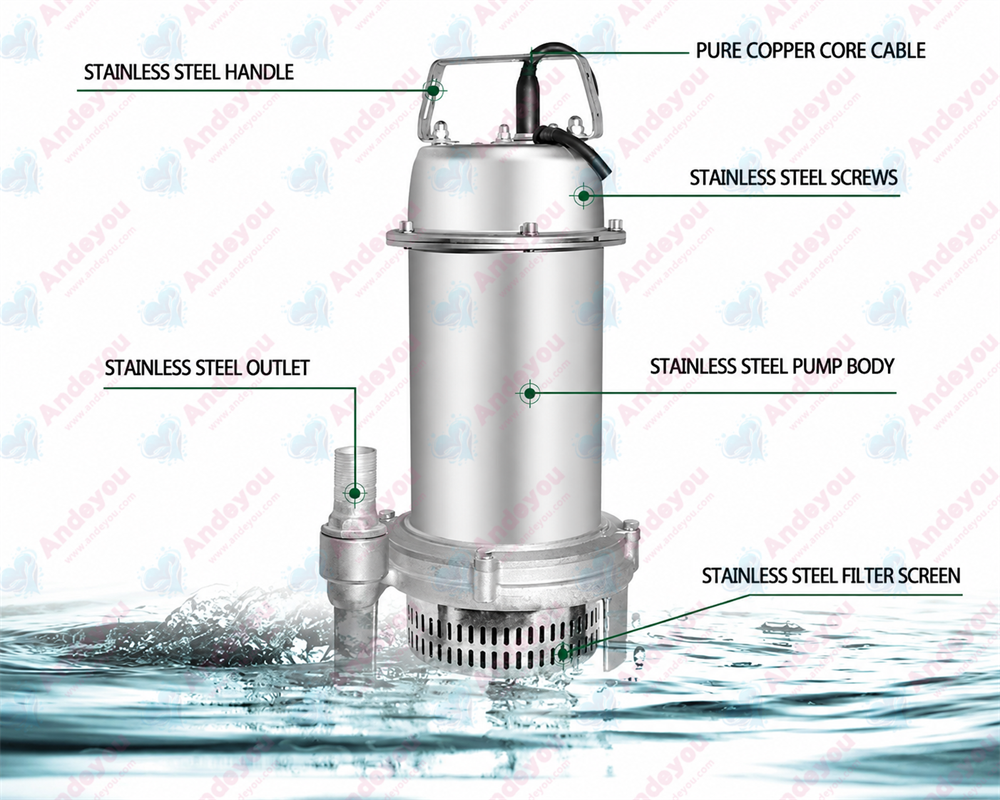

The Feike QDX-S 304 stainless steel submersible pump is constructed from high-quality 304 stainless steel,offering excellent corrosion resistance and suitability for diverse,complex aquatic environments.Combining water pumping and drainage capabilities,it effectively handles fluids containing fine particles and impurities.It operates with low noise and minimal vibration,ensuring high stability.Its compact design facilitates easy installation and portability

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

Operating Conditions:

1. Medium temperature: not exceeding +40°C.

2. pH value of the medium: between 6.5 and 8.5.

3. Solid impurities in the medium: volume ratio not exceeding 0.1%, and particle size not exceeding 0.2 mm.

4. Power supply: 50 Hz frequency; single-phase AC 220 V or three-phase AC 380 V. Voltage fluctuation range: 0.9 to 1.1 times the rated value.

5. Submergence depth: not exceeding 5 m (measured from the center of the impeller flow passage).

6. Pump head: not lower than 60% of the rated head.

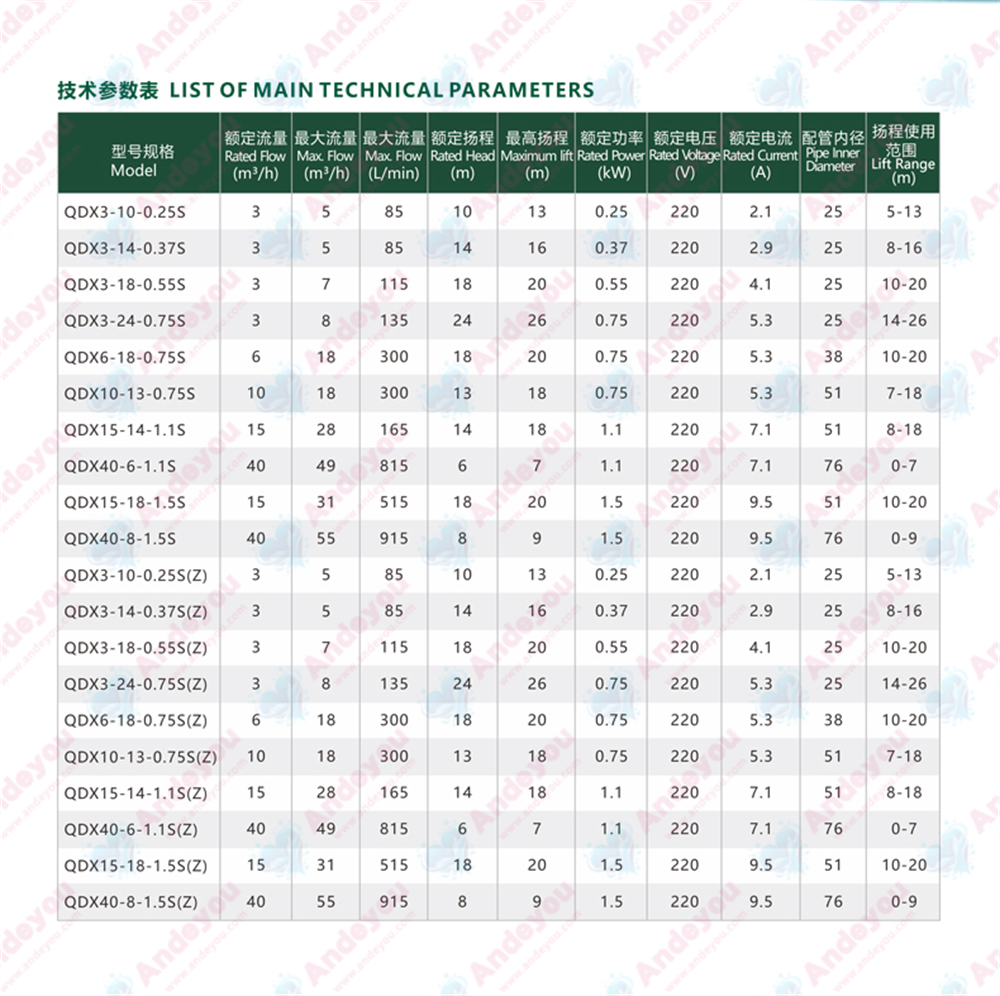

Parameters

Specifications and Model	Rated flow rate (m³/h)	Maximum flow rate (m³/h)	Rated head (m)	Rated Power (kW)	Rated voltage (V)	Rated current (A)	Pipe inner diameter (mm)	Head operating range (m)
QDX3-10-0.25S	3	5	10	0.25	220	2.1	25	5-13
QDX3-14-0.37S	3	5	14	0.37	220	2.9	25	8-16
QDX3-18-0.55S	3	7	18	0.55	220	4.1	25	10-20
QDX3-24-0.75S	3	8	24	0.75	220	5.3	25	14-26
QDX6-18-0.75S	6	18	18	0.75	220	5.3	38	10-20
QDX10-13-0.75S	10	18	13	0.75	220	5.3	51	7-18
QDX15-14-1.1S	15	28	14	1.1	220	7.1	51	8-18
QDX40-6-1.1S	40	49	6	1.1	220	7.1	76	0-7
QDX15-18-1.5S	15	31	18	1.5	220	9.5	51	10-20
QDX40-8-1.5S	40	55	8	1.5	220	9.5	76	0-9

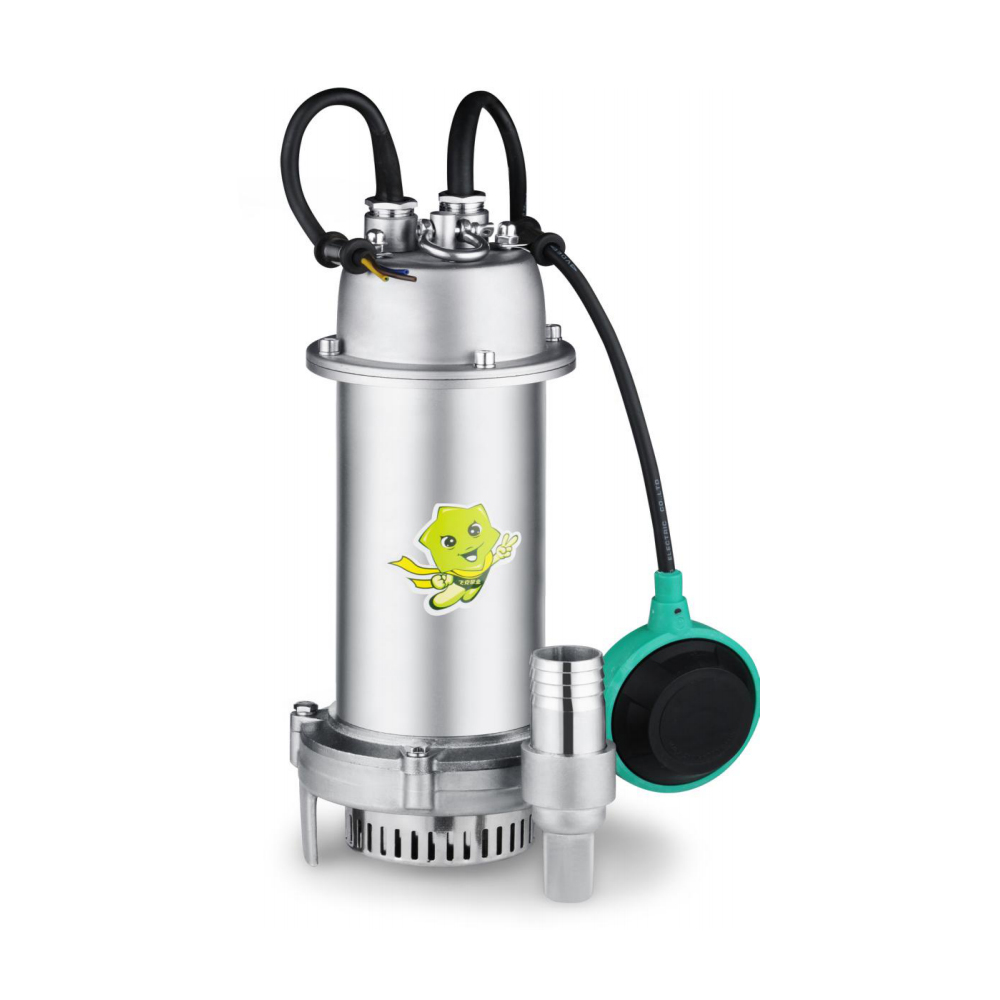

QDX3-10-0.25SZ(Automatic float ball)	3	5	10	0.25	220	2.1	25	5-13
QDX3-14-0.37SZ(Automatic float ball)	3	5	14	0.37	220	2.9	25	8-16
QDX3-18-0.55SZ(Automatic float ball)	3	7	18	0.55	220	4.1	25	10-20
QDX3-24-0.75SZ(Automatic float ball)	3	8	24	0.75	220	5.3	25	14-26
QDX6-18-0.75SZ(Automatic float ball)	6	18	18	0.75	220	5.3	38	10-20
QDX10-13-0.75SZ(Automatic float ball)	10	18	13	0.75	220	5.3	51	7-18
QDX15-14-1.1SZ(Automatic float ball)	15	28	14	1.1	220	7.1	51	8-18
QDX40-6-1.1SZ(Automatic float ball)	40	49	6	1.1	220	7.1	76	0-7
QDX15-18-1.5SZ(Automatic float ball)	15	31	18	1.5	220	9.5	51	10-20
QDX40-8-1.5SZ(Automatic float ball)	40	55	8	1.5	220	9.5	76	0-9
