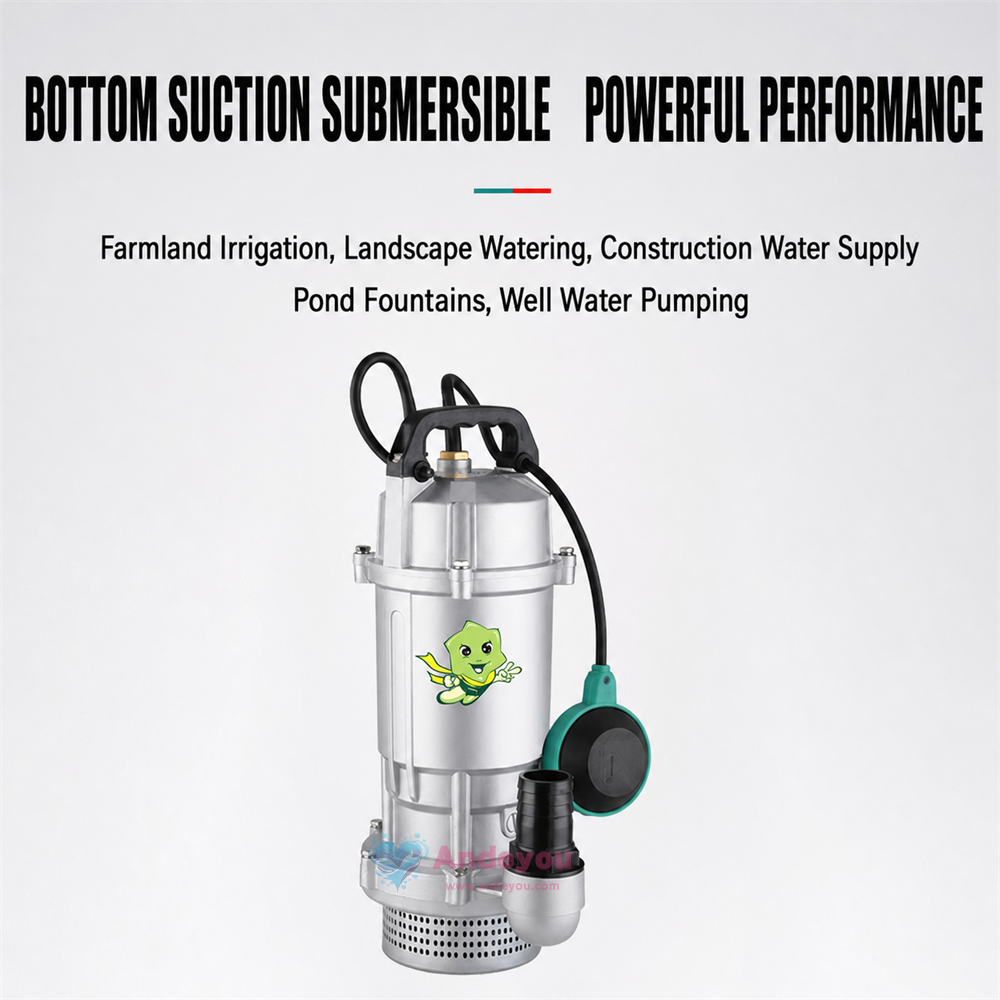

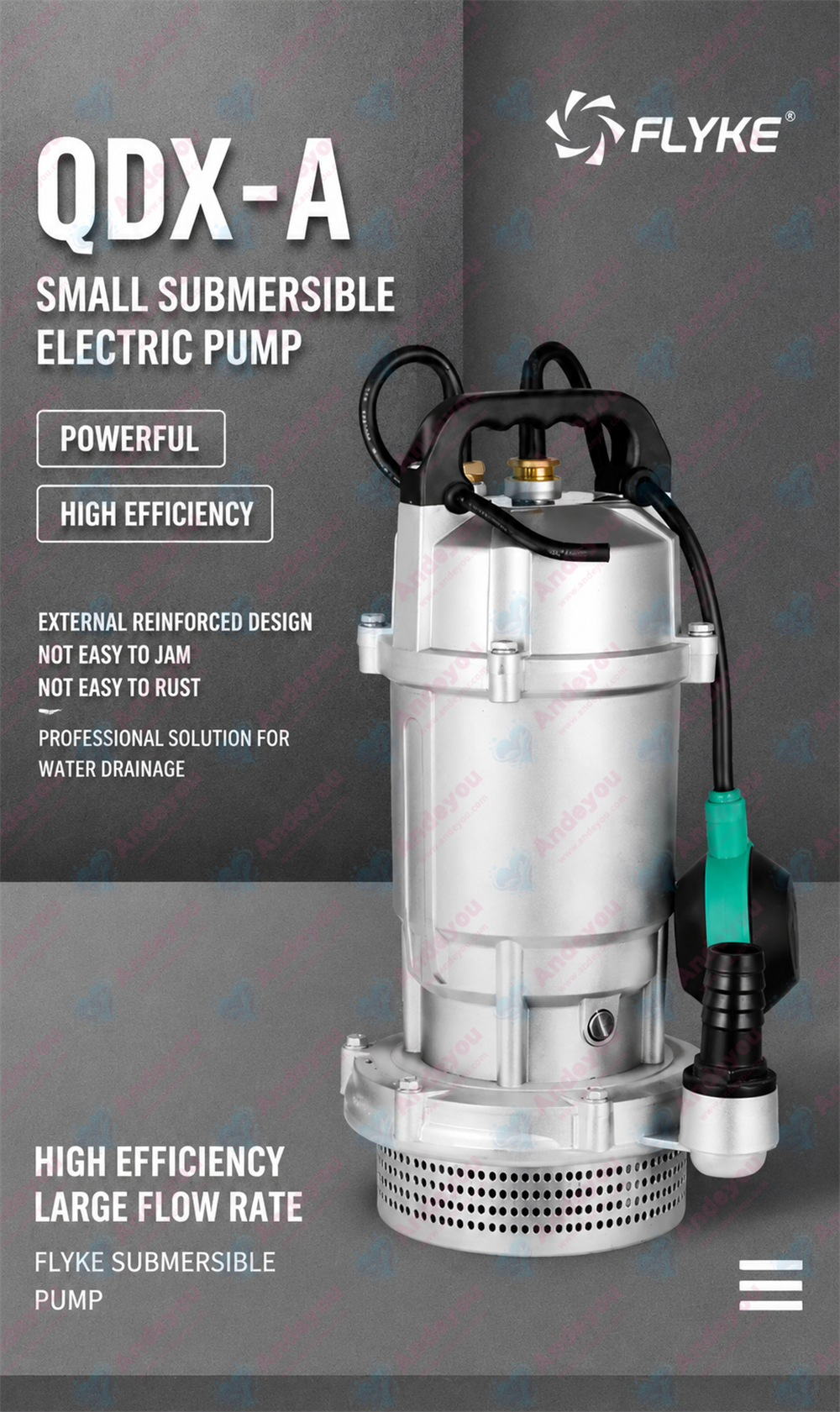

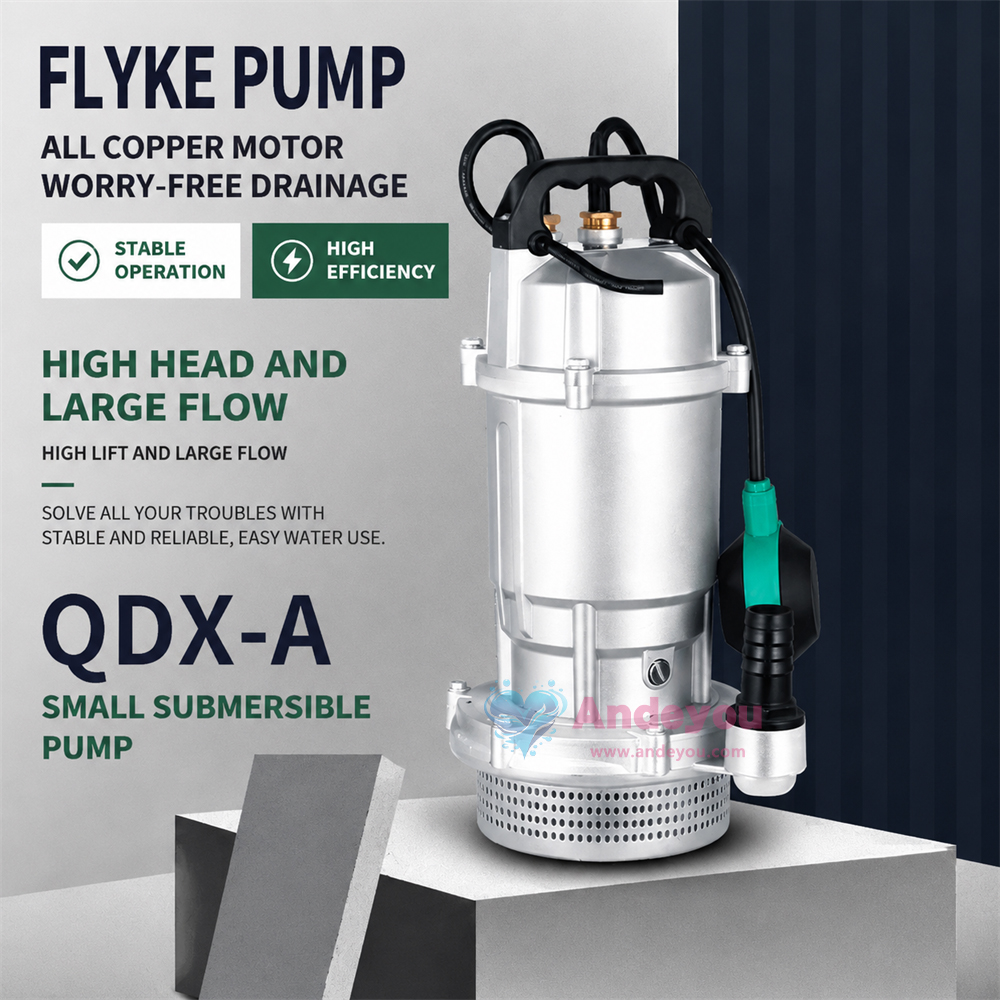

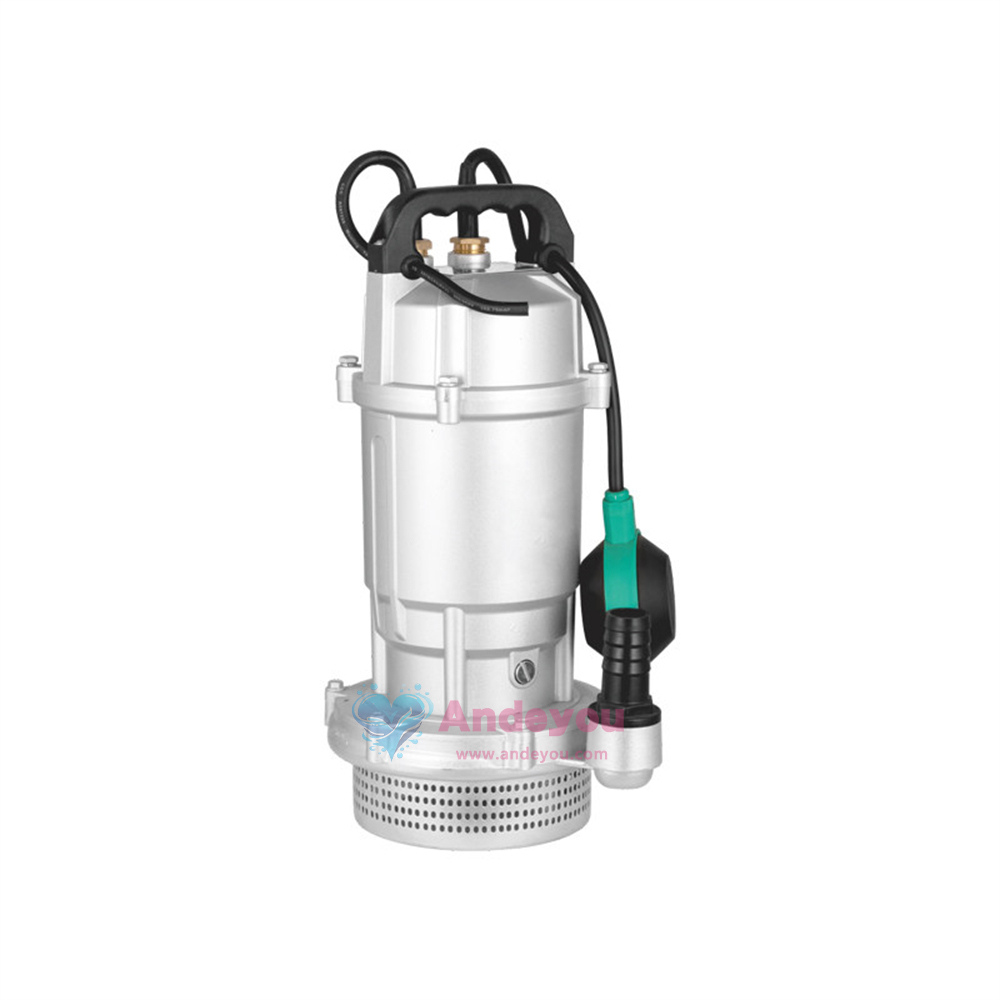

Feike QDX-A Aluminum-Casing Submersible Pump

QDX1.5-16-0.37A|QDX1.5-25-0.55A|QDX1.5-32-0.75A|QDX10-16-0.75A|QDX14-16-1.1A|QDX40-9-1.5A|QDX10-20-1.1A|QDX10-28-1.5A|QDX15-18-1.5A|QDX10-32-2.2A

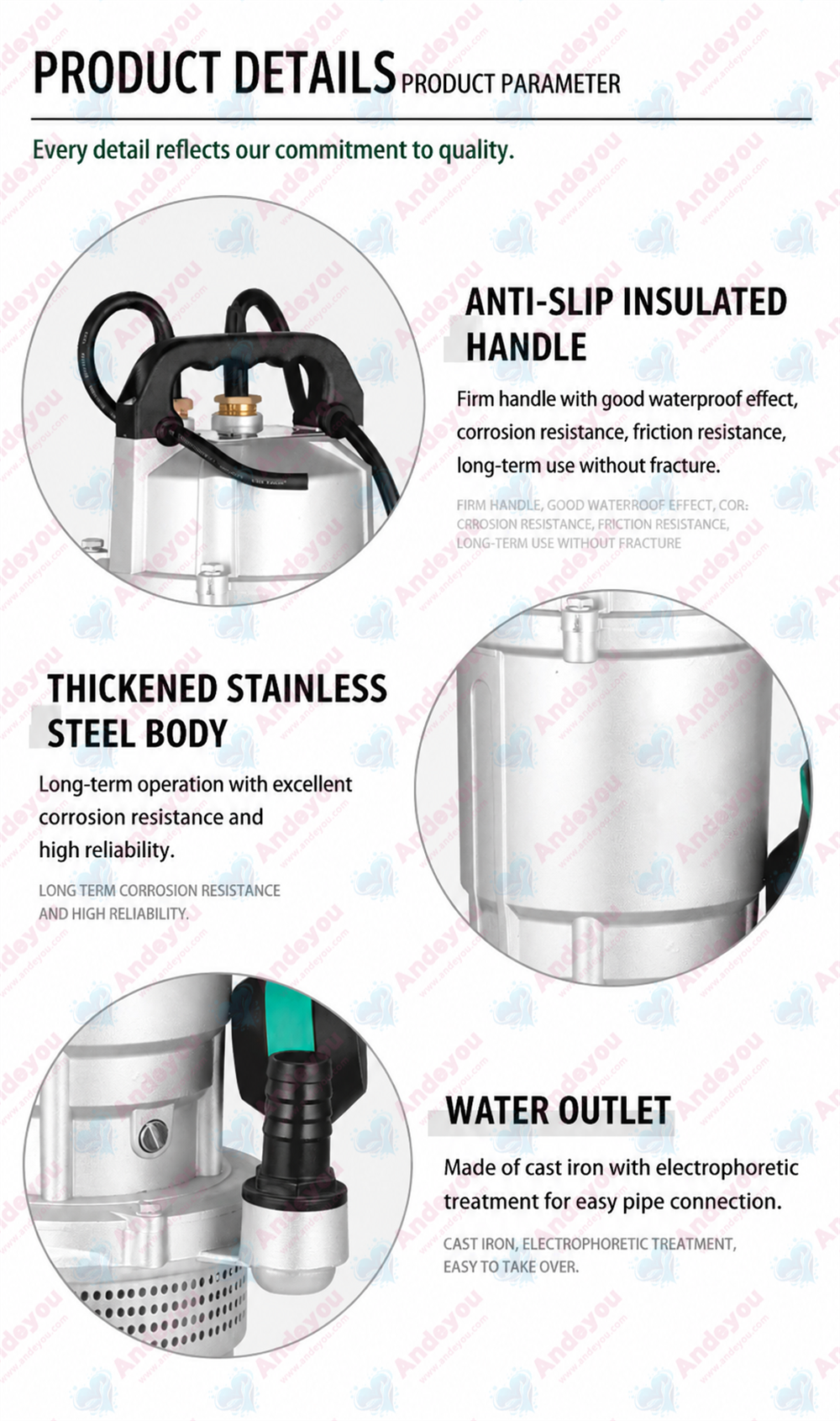

The Feike QDX-A aluminum-cased submersible pump features a refined design; its aluminum housing ensures excellent heat dissipation and a lightweight profile,making it easy to transport and operate.Engineered with precision,the pump delivers stable,high-efficiency motor performance,enabling rapid extraction of water from wells,rivers,and other sources—ideal for applications such as agricultural irrigation,garden watering,and domestic water supply.

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

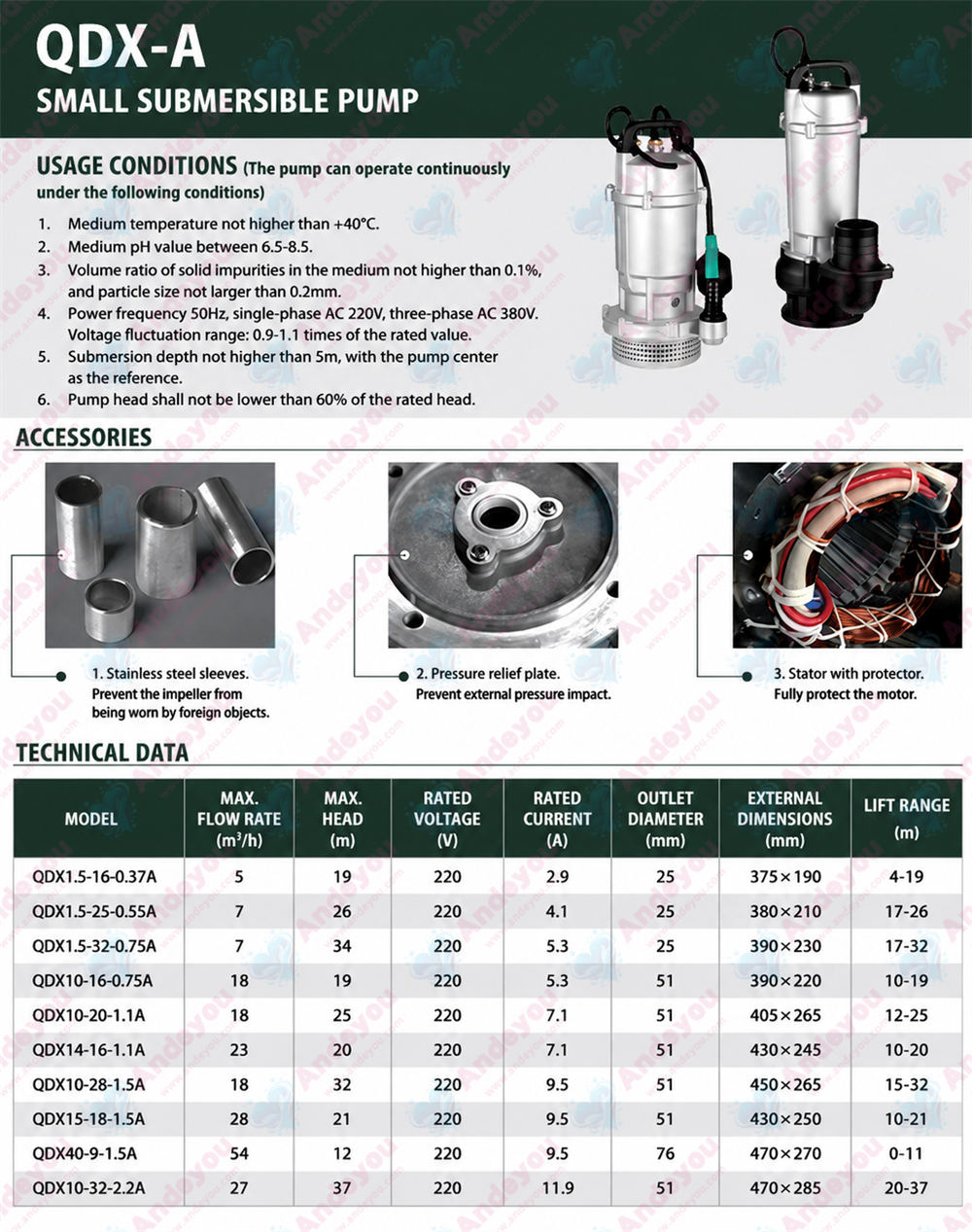

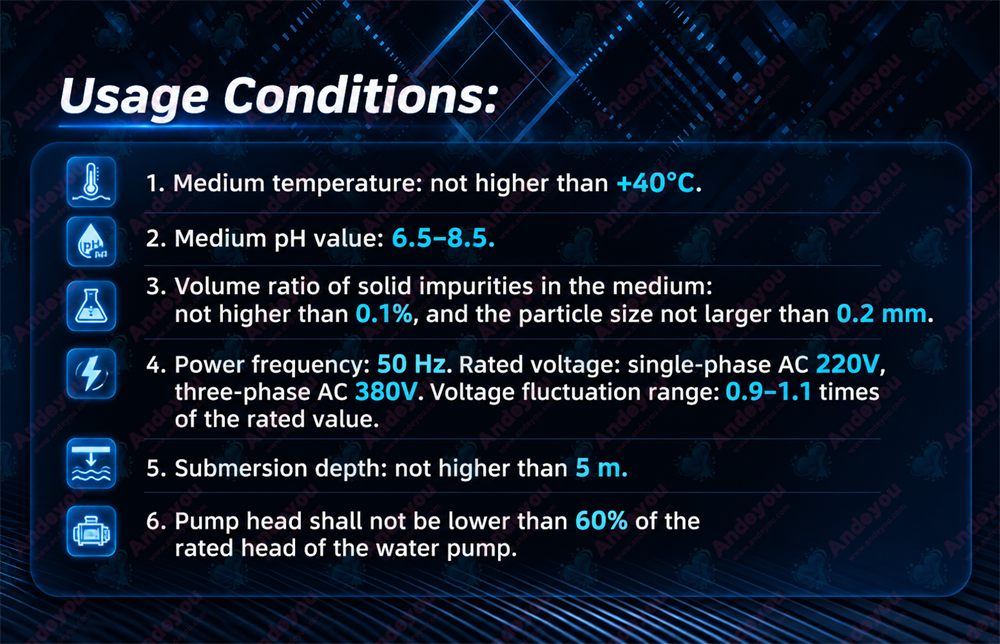

Operating Conditions:

1. Medium temperature: Not exceeding +40°C.

2. pH value of the medium: 6.5–8.5.

3. Solid impurities in the medium: Volume ratio not exceeding 0.1%; particle size not exceeding 0.2 mm.

4. Power supply: Frequency of 50 Hz; voltage of single-phase AC 220 V or three-phase AC 380 V. Voltage fluctuation range: 0.9–1.1 times the rated value.

5. Submergence depth: Not exceeding 5 m (measured from the center of the impeller flow passage).

6. Pump head: Not lower than 60% of the rated head.

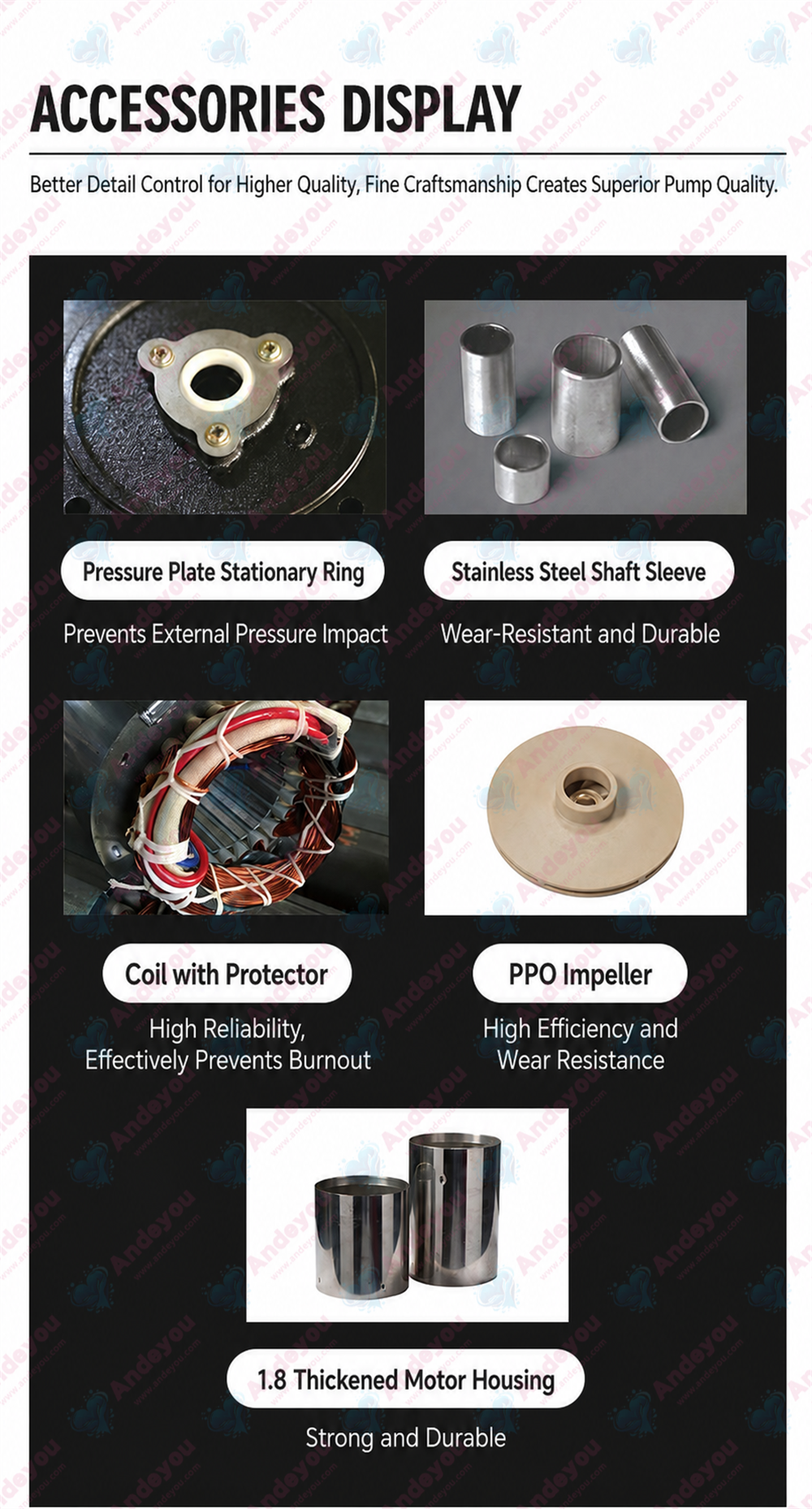

Components:

1. Stainless steel shaft sleeve: Prevents wear on the oil seal.

2. Stationary ring with pressure plate: Protects against external pressure shocks.

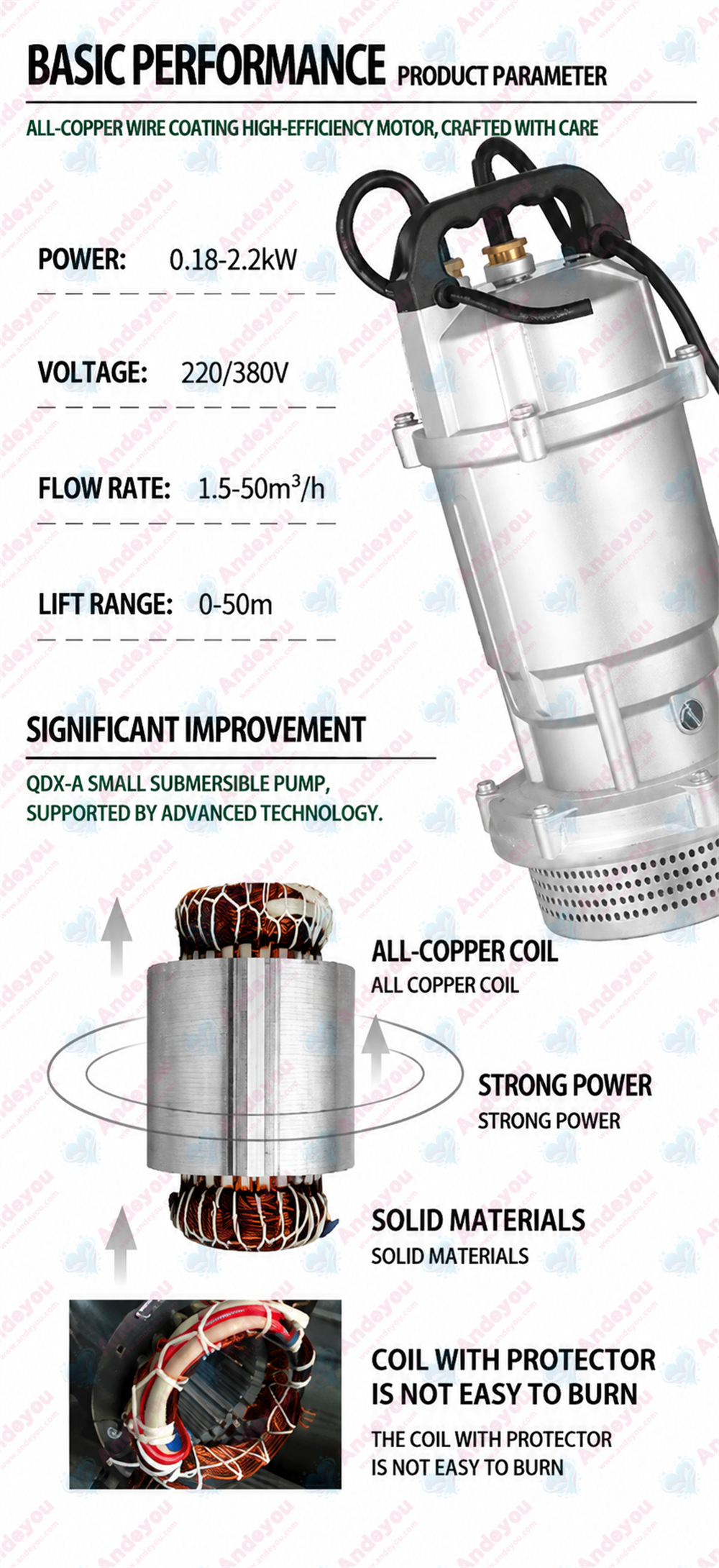

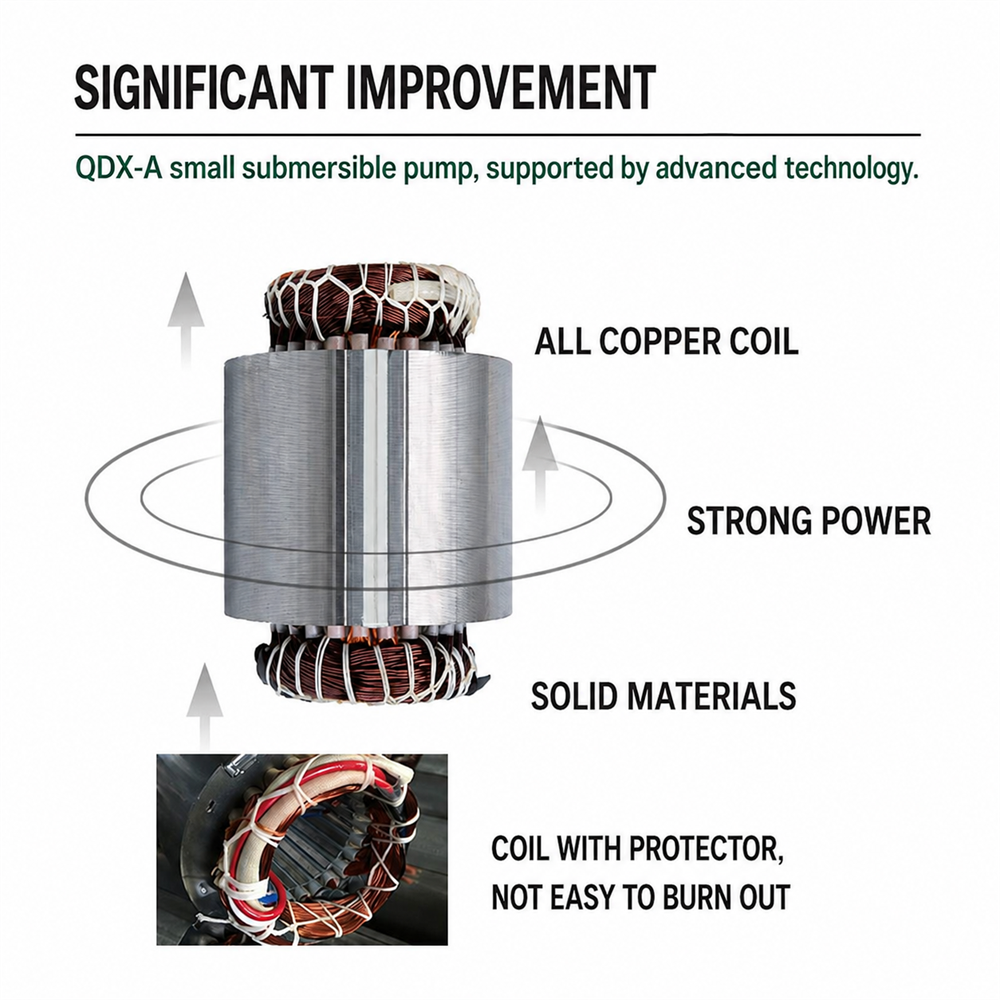

3. Coil with protector: Provides comprehensive motor protection.

Parameters

Specifications and Model	Rated flow rate (m³/h)	Maximum flow rate (m³/h)	Rated head (m)	Rated Power (kW)	Rated voltage (V)	Rated current (A)	Pipe inner diameter (mm)	Head operating range (m)
QDX1.5-16-0.37A	1.5	5	16	0.37	220	2.87	25	4-19
QDX1.5-25-0.55A	1.5	7	25	0.55	220	4.07	25	17-26
QDX1.5-32-0.75A	1.5	7	32	0.75	220/380	5.24/1.99	25	17-32
QDX10-16-0.75A	10	18	16	0.75	220/380	5.24/1.99	51	10-19
QDX14-16-1.1A	14	23	16	1.1	220/380	7.02/2.76	51	14-20
QDX40-9-1.5A	40	54	9	1.5	220/380	7.5/3.58	76	0-11
QDX10-20-1.1A	10	18	20	1.1	220	7.1	51	12-25
QDX10-28-1.5A	10	18	28	1.5	220	9.5	51	15-32
QDX15-18-1.5A	15	28	18	1.5	220	9.5	51	10-21
QDX10-32-2.2A	10	27	32	2.2	220	11.9	51	20-37
