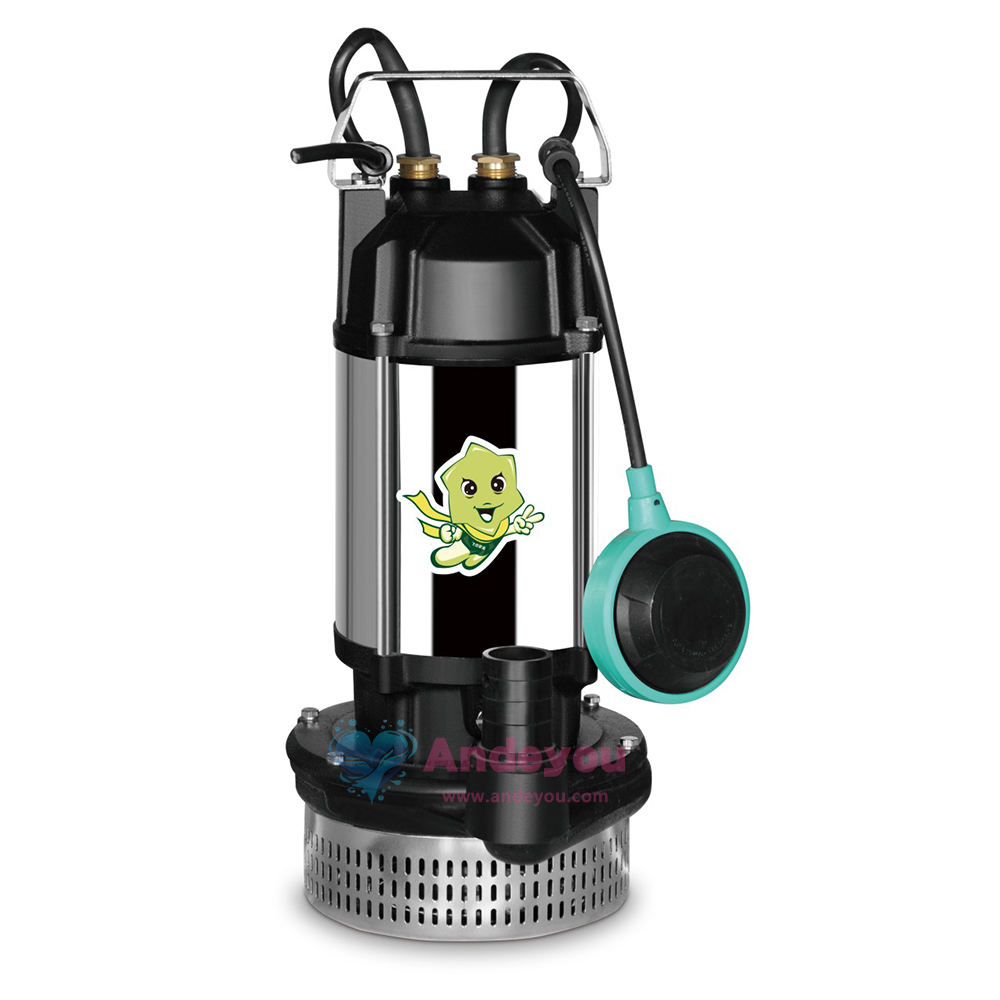

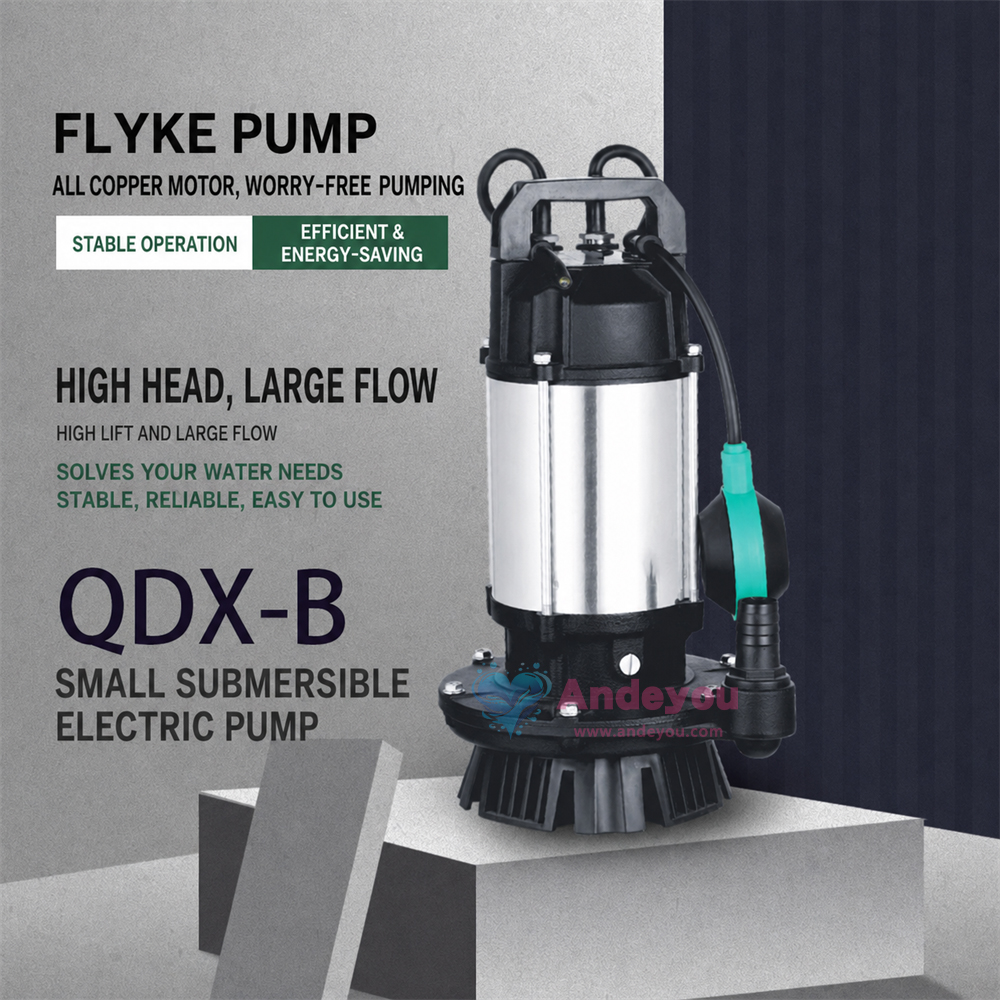

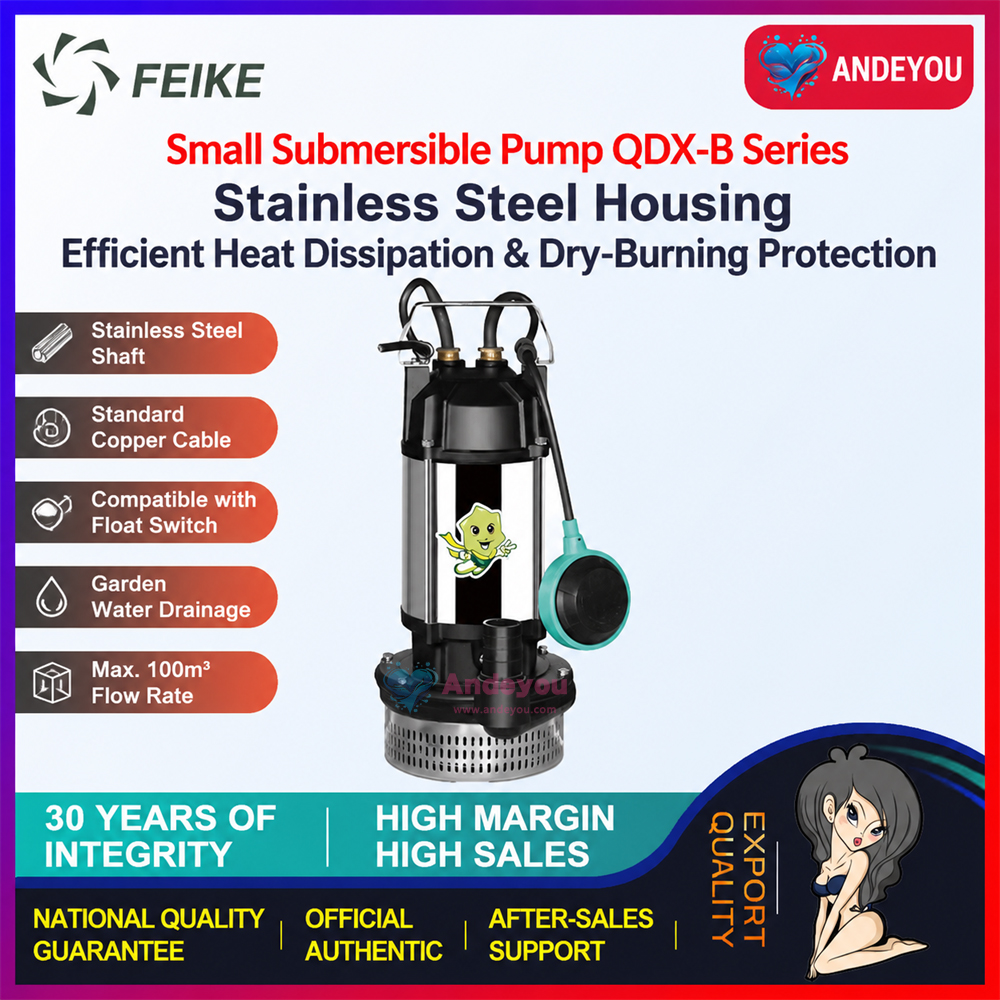

Feike QDX-B Small Submersible Pump

QDX3-12-0.25B|QDX1.5-16-0.37B|QDX1.5-25-0.55B|QDX3-18-0.55B|QDX10-12-0.55B|QDX1.5-32-0.75B|QDX3-24-0.75B|QDX8-18-0.75B|QDX10-16-0.75B|QDX15-10-0.75B|QDX30-6-0.75B|QDX3-30-1.1B|QDX6-24-1.1B|QDX10-20-1.1B|QDX14-16-1.1B|QDX15-15-1.1B|QDX40-6-1.1B|QDX10-28-1.5B|QDX15-18-1.5B|QDX25-12-1.5B|QDX40-9-1.5B|QDX6-32-1.5B|QDX50-7-1.5B|QDX10-32-2.2B|QDX40-12-2.2B|QDX60-9-2.2B|QDX100-5-2.2B

The Feike QDX-B compact submersible pump packs powerful performance into a small,streamlined design.Crafted from high-quality materials,it offers exceptional durability and corrosion resistance.Its stable motor efficiently pumps water from various sources—such as wells and rainwater—meeting everyday needs like garden irrigation and water changes for small aquaculture ponds.Featuring a tightly sealed structure that effectively prevents leaks

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

Operating Conditions:

1. Medium temperature: ≤ +40°C.

2. pH value of the medium: 6.5–8.5.

3. Solid impurity content in the medium: ≤ 0.1% by volume; particle size: ≤ 0.2 mm.

4. Power supply: 50 Hz; voltage: single-phase AC 220V or three-phase AC 380V. Voltage fluctuation range: 0.9–1.1 times the rated value.

5. Submergence depth: ≤ 5 m (measured from the center of the impeller flow passage).

6. Pump head: Not less than 60% of the rated head.

Applications:

Fish farming, agricultural irrigation, construction sites.

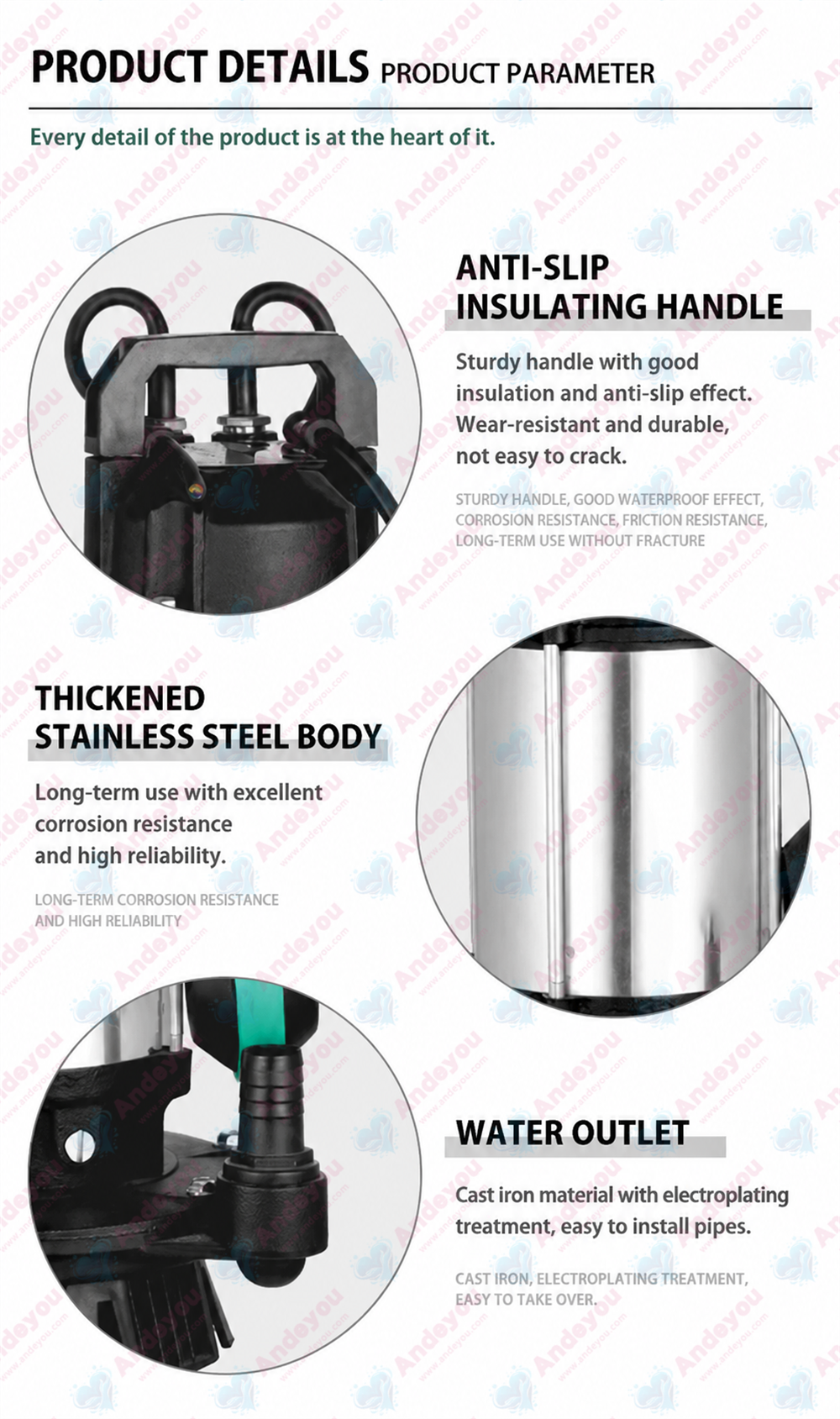

Components & Features:

1. Wear-resistant 304 stainless steel impeller.

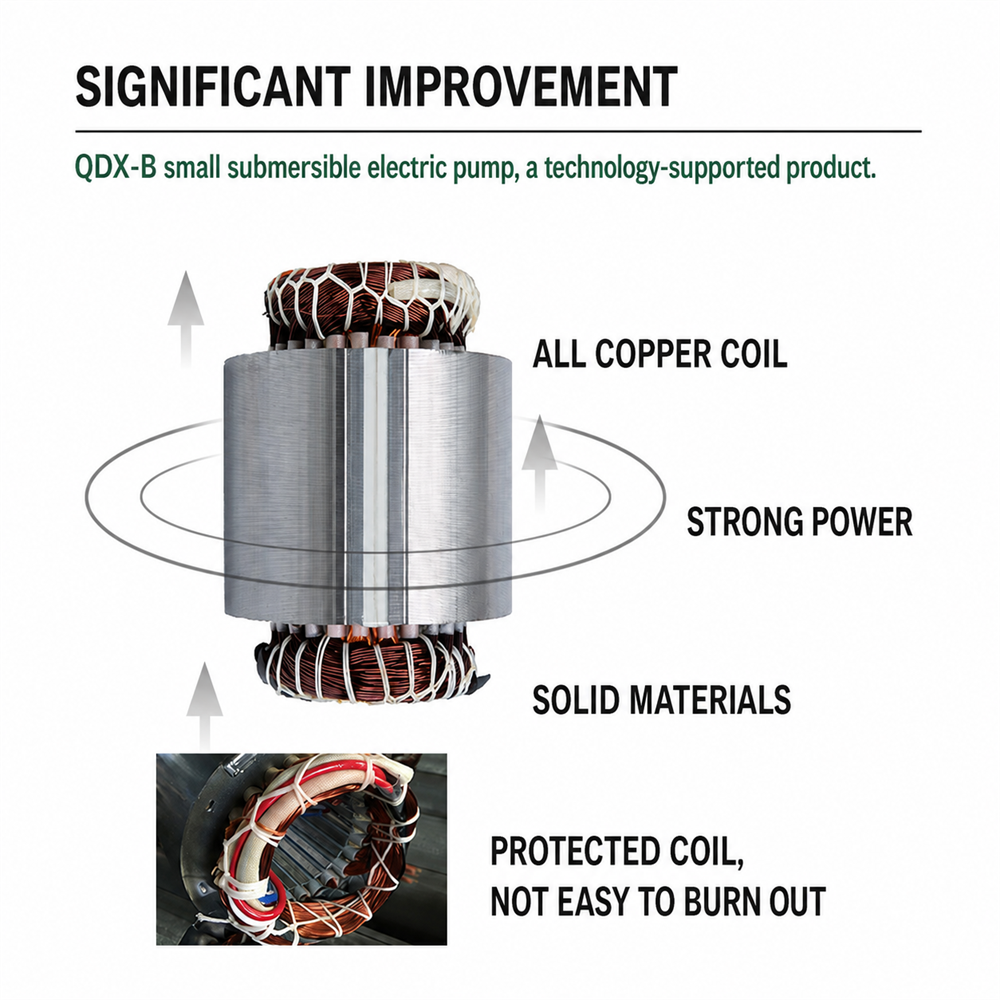

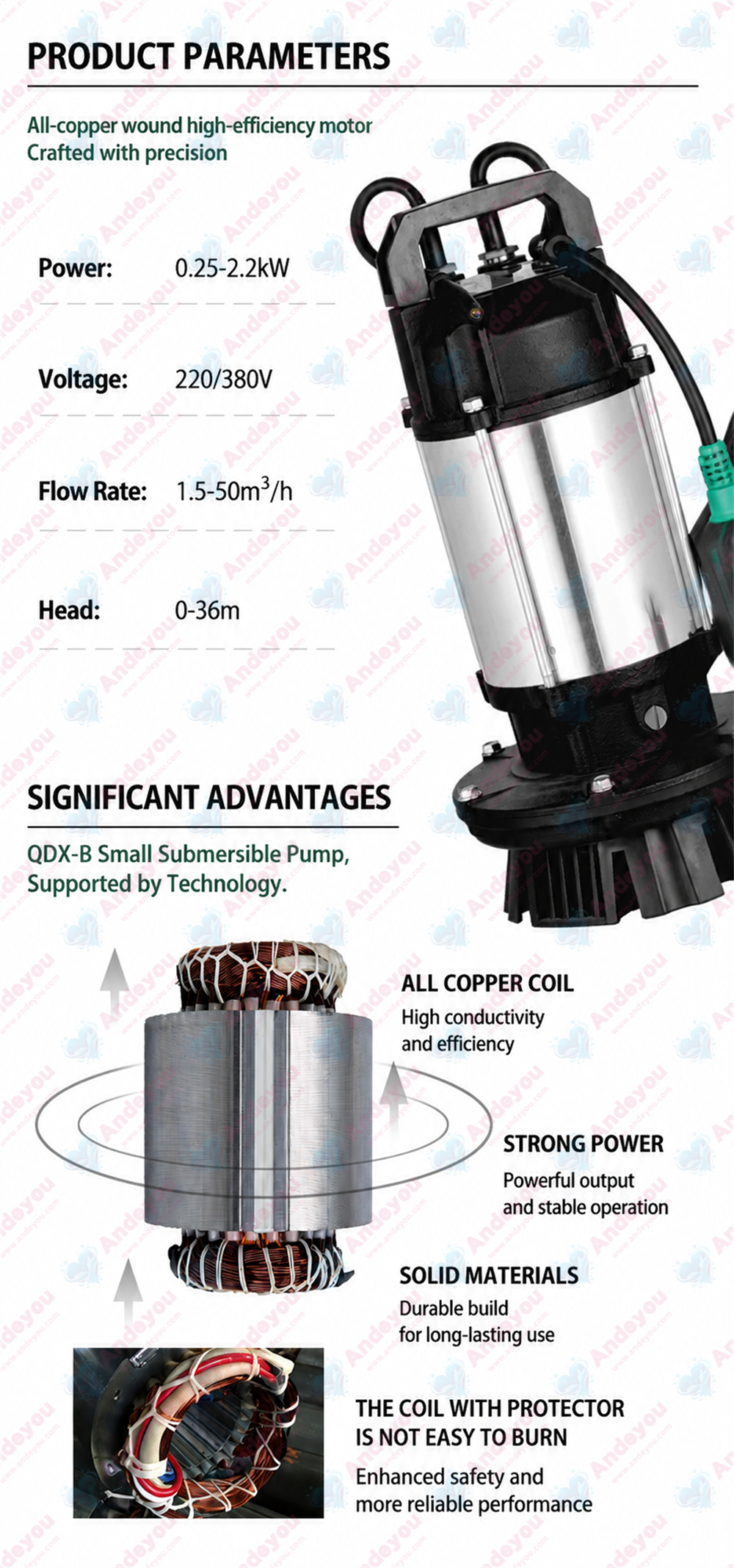

2. Motor winding with built-in protector for comprehensive motor protection.

3. Thickened stainless steel motor housing: sturdy, durable, and offers excellent heat dissipation.

4. Waterproof cable entry design to prevent water ingress at the wire connection point.

5. 304 stainless steel shaft sleeve to prevent water ingress caused by shaft seal wear.

6. Stationary ring with retaining plate to withstand external pressure impacts.

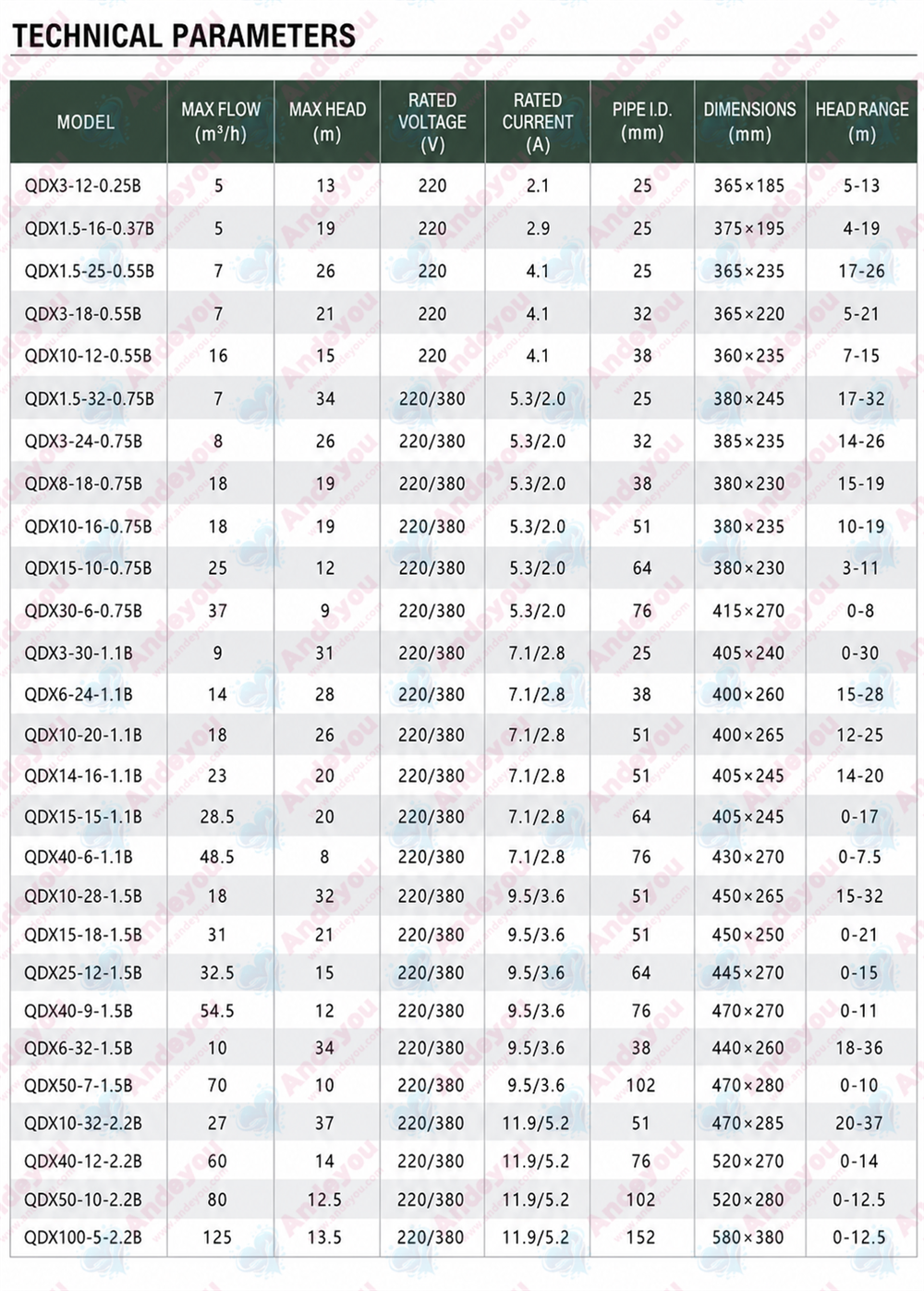

Parameters

Specifications and Model	Rated flow rate (m³/h)	Maximum flow rate (m³/h)	Rated head (m)	Rated Power (kW)	Rated voltage (V)	Rated current (A)	Pipe inner diameter (mm)	Head operating range (m)
QDX3-12-0.25B	3	5	12	0.25	220	2.1	25	5-13
QDX1.5-16-0.37B	1.5	5	16	0.37	220	2.87	25	4-19
QDX1.5-25-0.55B	1.5	7	25	0.55	220	4.07	25	17-26
QDX3-18-0.55B	3	7	18	0.55	220	4.07	32	5-21
QDX10-12-0.55B	10	16	12	0.55	220	4.07	38	7-15
QDX1.5-32-0.75B	1.5	7	32	0.75	220/380	5.24/1.99	25	17-32
QDX3-24-0.75B	3	8	24	0.75	220/380	5.24/1.99	32	14-26
QDX8-18-0.75B	8	18	18	0.75	220/380	5.24/1.99	38	15-19
QDX10-16-0.75B	10	18	16	0.75	220/380	5.24/1.99	51	10-19
QDX15-10-0.75B	15	25	10	0.75	220/380	5.24/1.99	64	3-11
QDX30-6-0.75B	30	37	6	0.75	220/380	5.24/1.99	76	0-8
QDX3-30-1.1B	3	9	30	1.1	220/380	7.02/2.74	25	0-30
QDX6-24-1.1B	6	14	24	1.1	220/380	7.02/2.74	38	15-28
QDX10-20-1.1B	10	18	20	1.1	220/380	7.1/2.8	51	12-25
QDX14-16-1.1B	14	23	16	1.1	220/380	7.02/2.74	51	14-20
QDX15-15-1.1B	15	28.5	15	1.1	220/380	7.02/2.74	64	0-17
QDX40-6-1.1B	40	48.5	6	1.1	220/380	7.02/2.74	76	0-7.5
QDX10-28-1.5B	10	18	28	1.5	220/380	9.5/3.6	51	15-32
QDX15-18-1.5B	15	31	18	1.5	220/380	7.5/3.58	64	0-21
QDX25-12-1.5B	25	32.5	12	1.5	220/380	7.5/3.58	64	0-15
QDX40-9-1.5B	40	54.5	9	1.5	220/380	7.5/3.58	76	0-11
QDX6-32-1.5B	6	10	32	1.5	220/380	7.5/3.58	38	18-36
QDX50-7-1.5B	50	70	7	1.5	220/380	7.5/3.58	102	0-7.5
QDX10-32-2.2B	10	27	32	2.2	220/380	11.9/5.11	51	20-37
QDX40-12-2.2B	40	60	12	2.2	220/380	11.9/5.11	76	0-14
QDX60-9-2.2B	60	80	9	2.2	220/380	11.9/5.11	102	0-12.5
QDX100-5-2.2B	100	125	5	2.2	220/380	11.9/5.11	152	0-12.5
