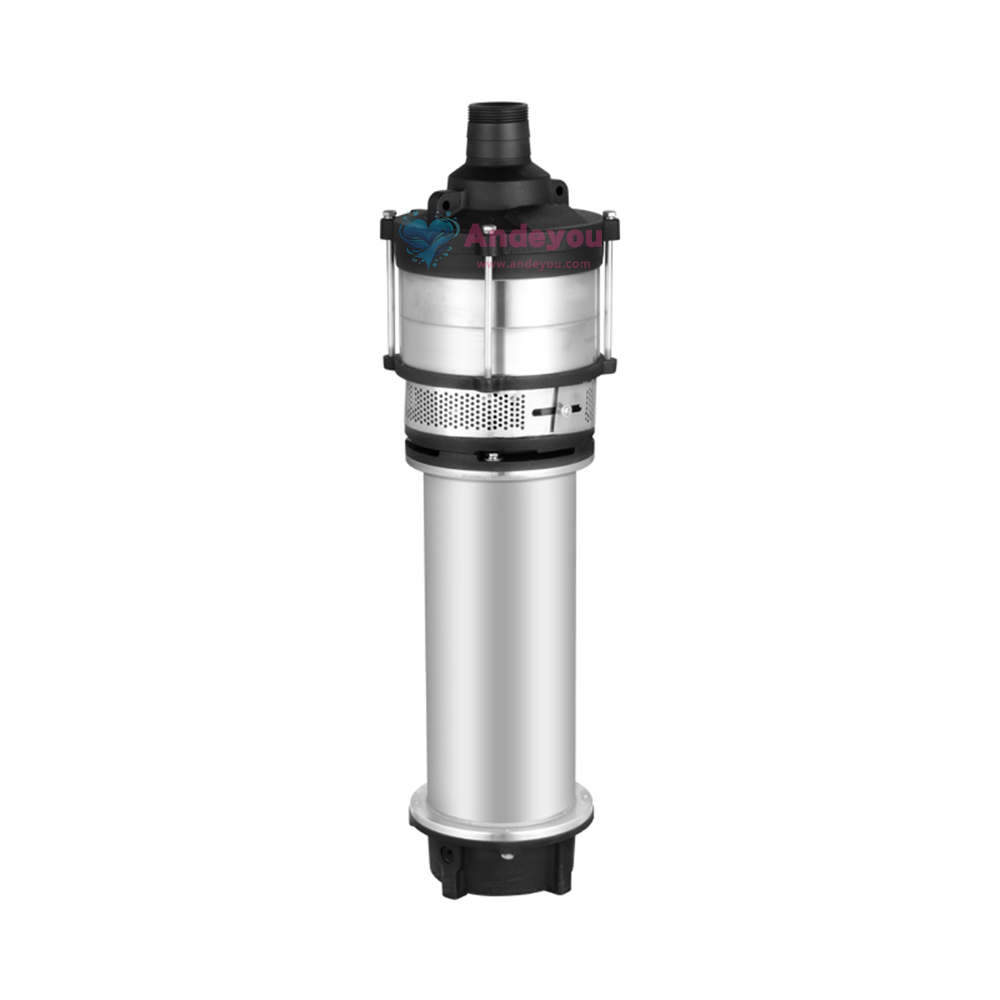

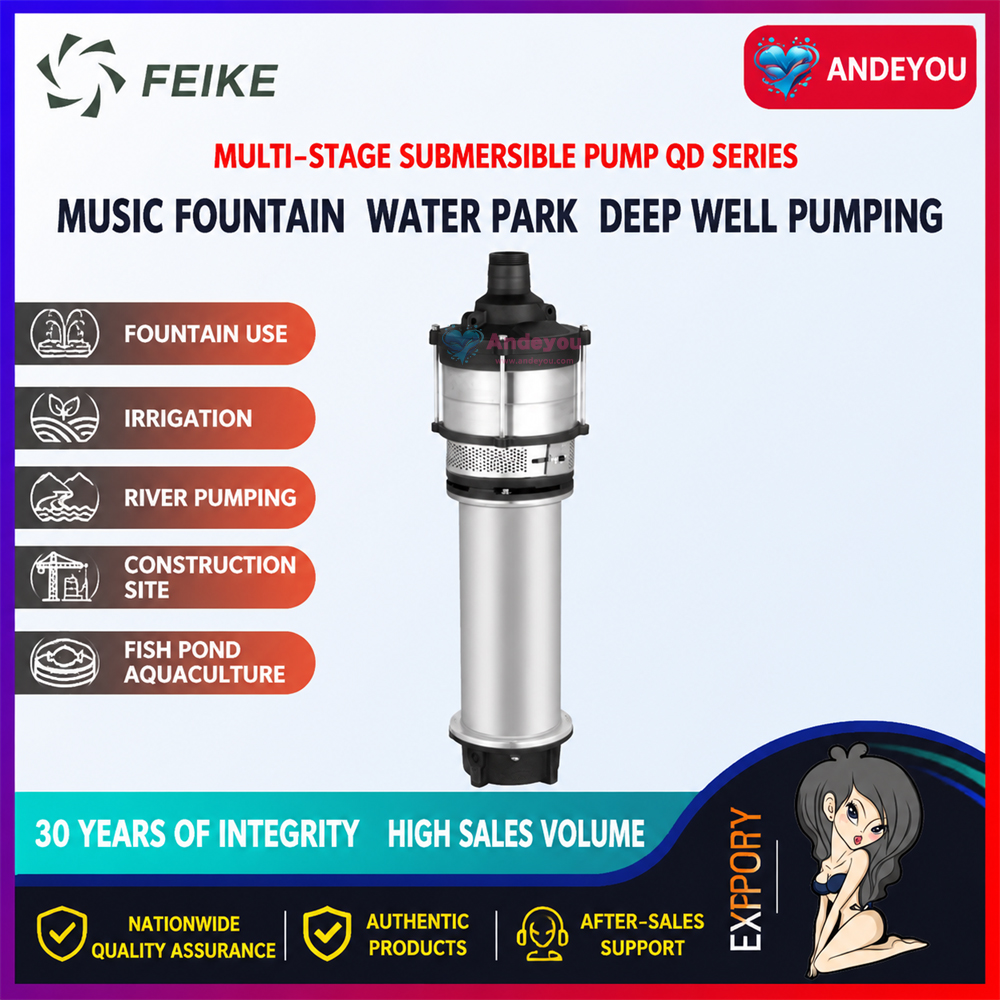

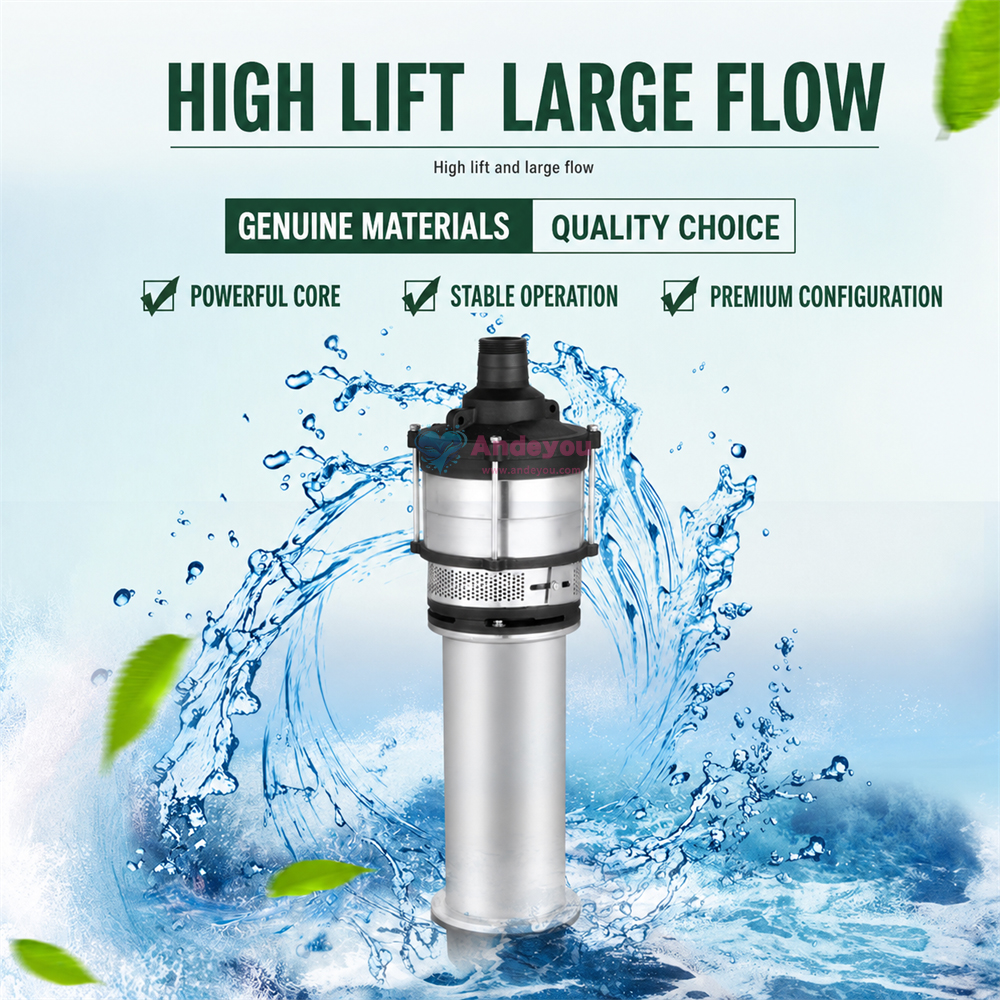

Feike QD Dry-Type Submersible Pump

QD6-22/2-0.75|QD3-30/2-0.75|QD3-45/3-1.1|QD6-32/3-1.1|QD3-55/4-1.5|QD6-43/4-1.5|QD10-26/2-1.5|QD10-30/3-1.5|QD15-20/2-1.5|QD3-82/5-1.8|QD12-34/3-1.8|QD3-96/6-2.2|QD10-40/3-2.2|QD15-30/3-2.2|QD20-20/3-2.2|QD10-50/4-3|Q10-50/4-3|QD15-40/4-3|Q15-40/4-3|QD20-30/4-3

The Feike QD dry-type submersible pump is a high-performance tool designed for efficient water drainage.Featuring a unique dry-type motor design,it effectively prevents direct contact between the motor and water,thereby significantly enhancing safety and stability while extending the motor's service life.Built with a robust structure and premium materials,the pump offers excellent wear and corrosion resistance.Capable of rapidly and efficiently removing sewage and accumulated water

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

Operating Conditions:

1. Medium temperature: ≤ +40°C.

2. pH value of the medium: 6.5–8.5.

3. Solid impurity content in the medium: ≤ 0.1% by volume; particle size: ≤ 0.2 mm.

4. Power supply: 50 Hz; voltage: single-phase AC 220V or three-phase AC 380V. Voltage fluctuation range: 0.9–1.1 times the rated value.

5. Submergence depth: ≤ 5 m (measured from the center of the impeller flow passage).

6. Operating head: ≥ 60% of the rated head.

Applications:

Farmland irrigation, river water pumping, construction sites, fish pond desilting.

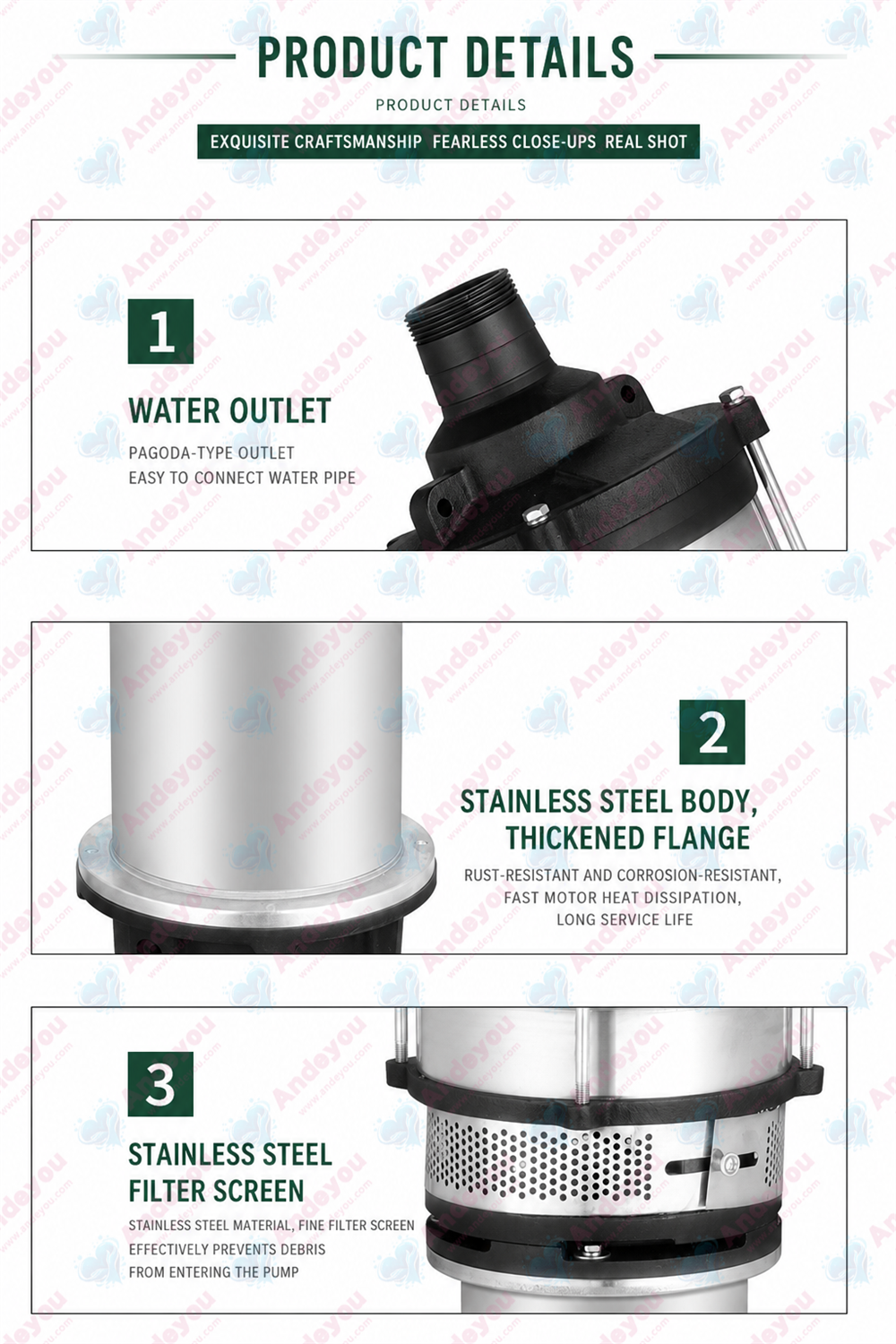

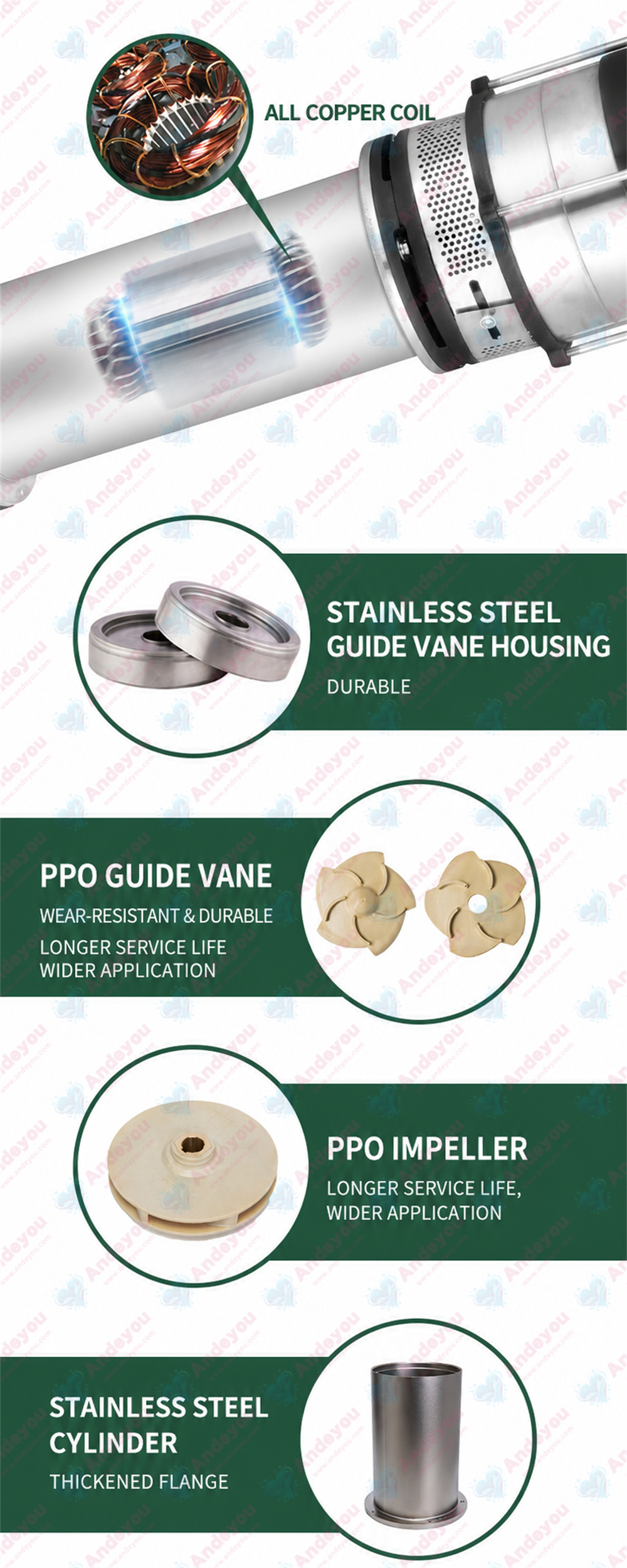

Components:

1. Stainless steel guide vane casing: durable and long-lasting.

2. PRO engineering plastic guide vanes: wear-resistant and durable.

3. PRO impeller: long service life.

4. 304 stainless steel thickened welded flange and seamless steel pipe pump casing.

5. External sand-proof oil seal: wear-resistant and durable.

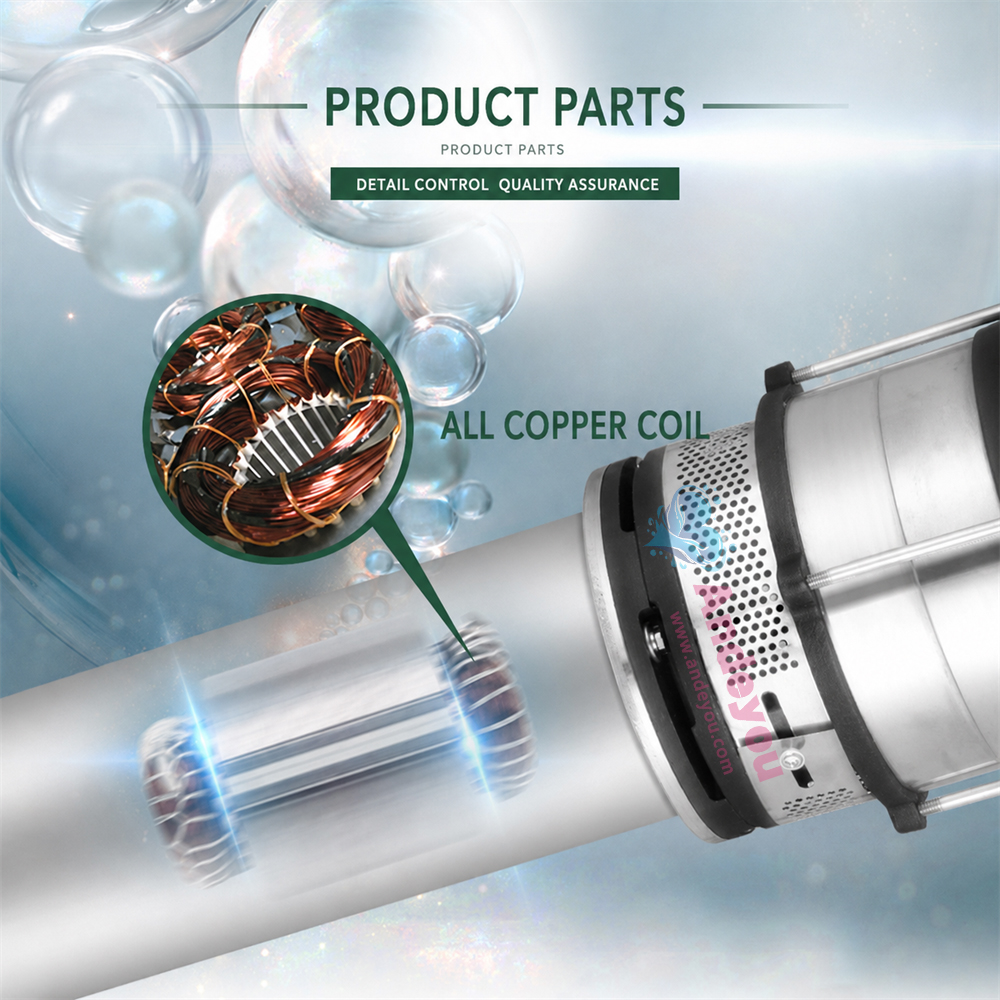

6. All-copper motor: high efficiency, strong overload resistance, burn-out resistant, and highly durable.

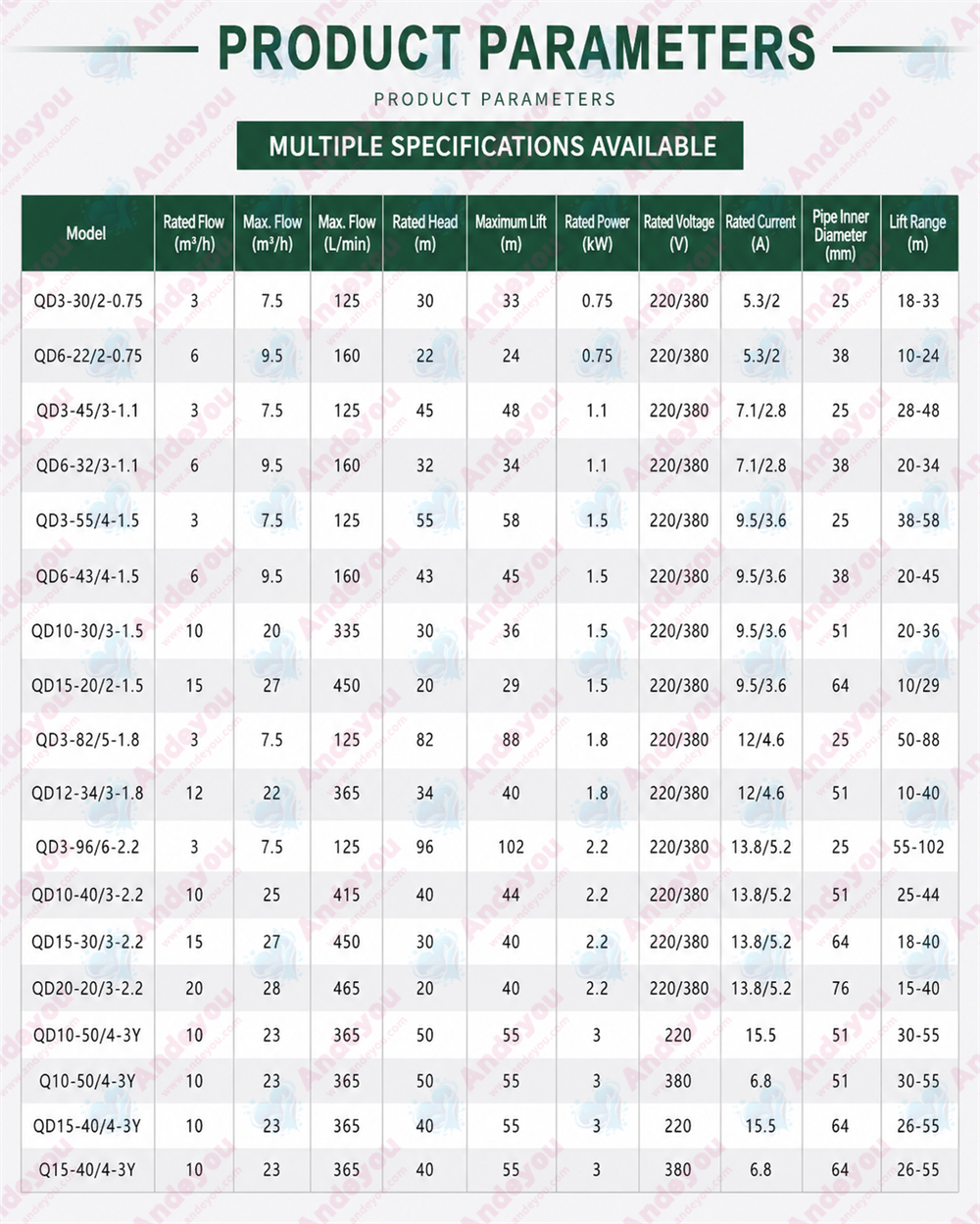

Parameters

Specifications and Model	Rated flow rate (m³/h)	Maximum flow rate (m³/h)	Rated head (m)	Rated Power (kW)	Rated Voltage (V)	Rated current (A)	Pipe inner diameter (mm)	Head operating range (m)
QD6-22/2-0.75	6	9.5	22	0.75	220/380	5.24/1.99	38	10-24
QD3-30/2-0.75	3	7.5	30	0.75	220/380	5.24/1.99	25	0-33
QD3-45/3-1.1	3	7.5	45	1.1	220/380	7.02/2.74	25	0-47
QD6-32/3-1.1	6	9.5	32	1.1	220/380	7.02/2.74	38	20-35
QD3-55/4-1.5	3	7.5	55	1.5	220/380	9.44/3.58	25	0-65
QD6-43/4-1.5	6	9.5	43	1.5	220/380	9.44/3.58	38	20-37
QD10-26/2-1.5	10	20	26	1.5	220/380	9.44/3.58	51	0-30
QD10-30/3-1.5	10	20	30	1.5	220/380	9.44/3.58	51	20-36
QD15-20/2-1.5	15	22	20	1.5	220/380	9.44/3.58	64	0-29
QD3-82/5-1.8	3	7.5	82	1.8	220/380	12/4.6	25	50-88
QD12-34/3-1.8	12	22	34	1.8	220/380	12/4.6	51	10-40
QD3-96/6-2.2	3	7.5	96	2.2	220/380	13.8/5.2	25	55-102
QD10-40/3-2.2	10	22	40	2.2	220/380	13.8/5.11	51	0-43
QD15-30/3-2.2	15	22	28	2.2	220/380	13.8/5.11	64	0-40
QD20-20/3-2.2	20	28	20	2.2	220/380	13.8/5.2	76	15-40
QD10-50/4-3	10	23	50	3	220/380	15.5	51	30-55
QD15-40/4-3	10	23	40	3	220/380	15.5	64	26-55
QD20-30/4-3	20	28	30	3	220/380	15.5/6.8	76	18-50
