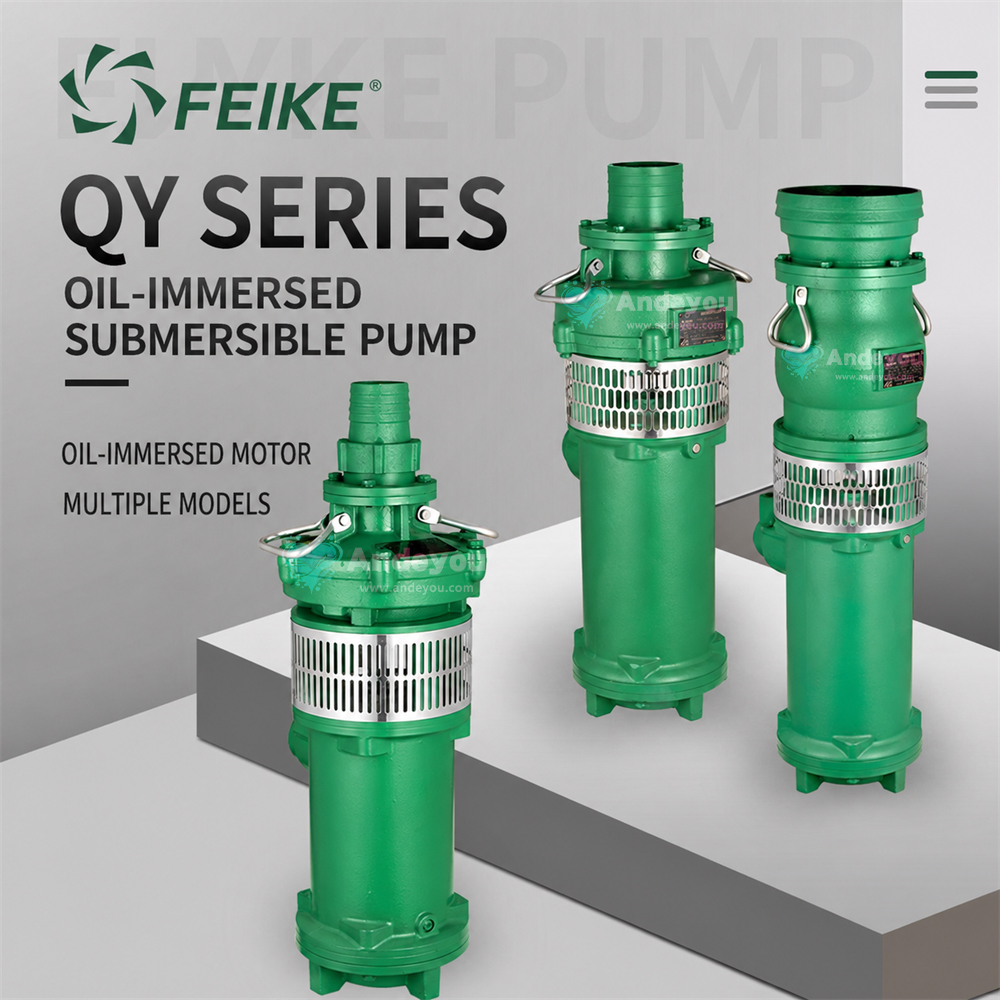

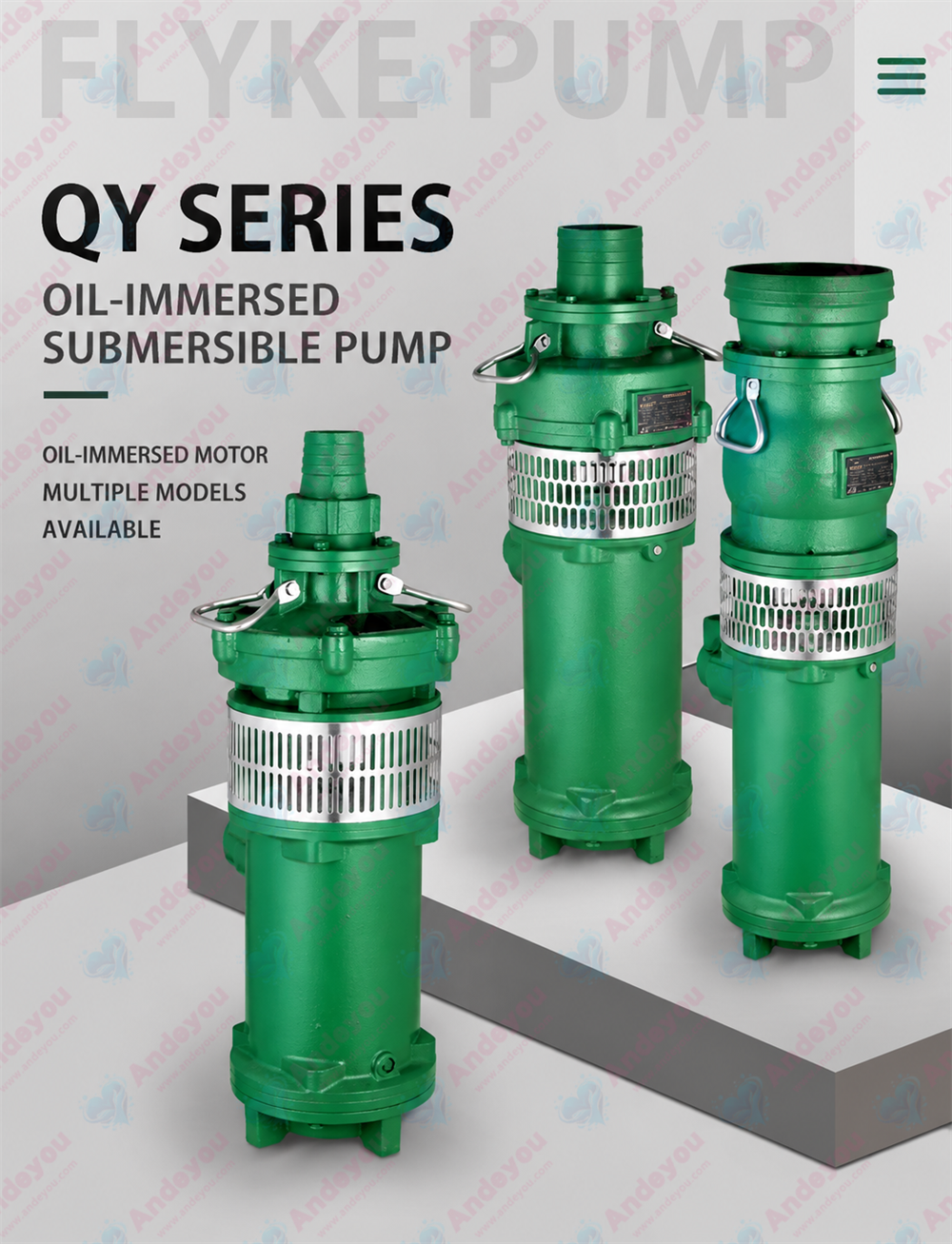

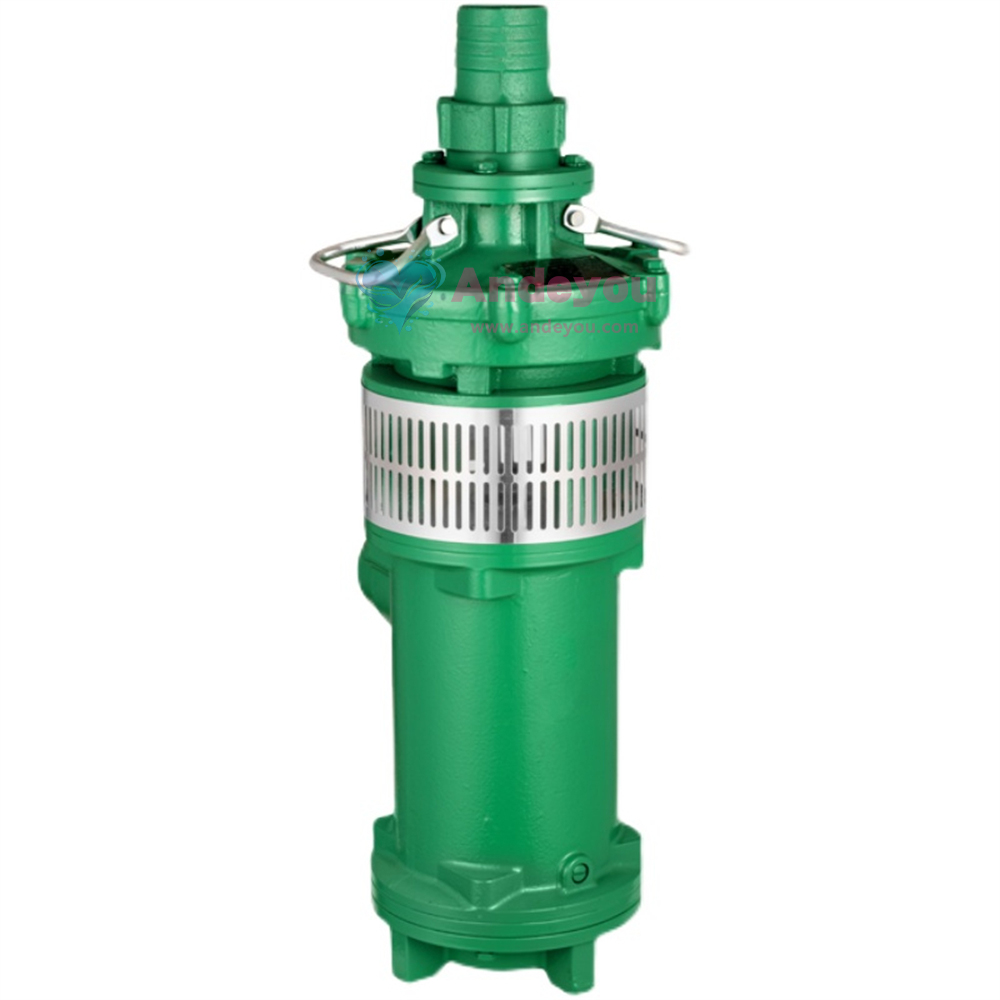

Feike QY Oil-Filled Submersible Pump

QY15-26-2.2|QY25-17-2.2|QY40-12-2.2|QY65-7-2.2|QY100-4.5-2.2|QY10-54/3-3|QY15-36-3|QY25-26-3|QY40-16-3|QY65-10-3|QY160-4-3|QY100-6-3|QY10-60/2-4|QY15-48/2-4|QY25-34/2-4|QY40-21-4|QY65-14-4|QY100-9-4|QY25-40-5.5|QY40-28-5.5|QY65-18-5.5|QY160-8-5.5|QY200-5-5.5|QY25-50/2-7.5|QY40-38-7.5|QY65-25-7.5|QY160-11-7.5|QY200-8-7.5|QY40-53/2-11|QY65-37/2-11|QY160-15-11|QY200-12-11

The Feike QY oil-filled submersible pump offers reliable performance and versatile applications.Featuring an oil-filled motor design,it delivers superior heat dissipation and insulation,ensuring stable operation and an extended service life.With excellent sealing,the pump operates fully submerged and handles diverse water qualities and working conditions with ease.

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

Operating Conditions:

1. Medium temperature: ≤ +40°C.

2. pH value of the medium: 6.5–8.5.

3. Solid impurity content in the medium: ≤ 0.1% by volume; particle size: ≤ 0.2 mm.

4. Power supply: 50 Hz; voltage: single-phase AC 220V or three-phase AC 380V. Voltage fluctuation range: 0.9–1.1 times the rated value.

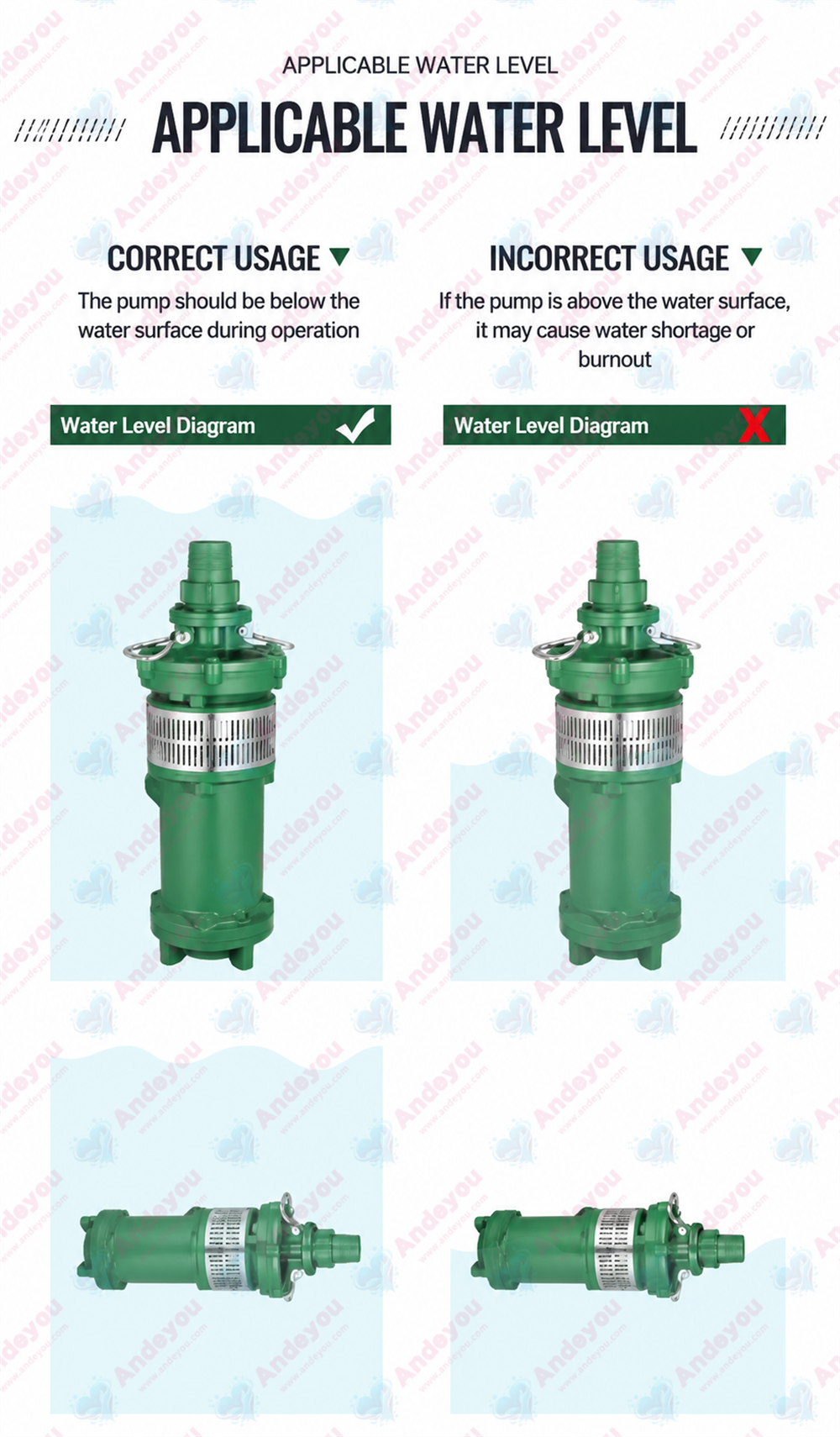

5. Submergence depth: ≤ 5 m (measured from the center of the impeller flow passage).

6. Operating head: ≥ 60% of the rated head.

Applications:

Farmland irrigation, river water pumping, fountain landscaping, fish pond water supply, urban construction water supply, aquaculture.

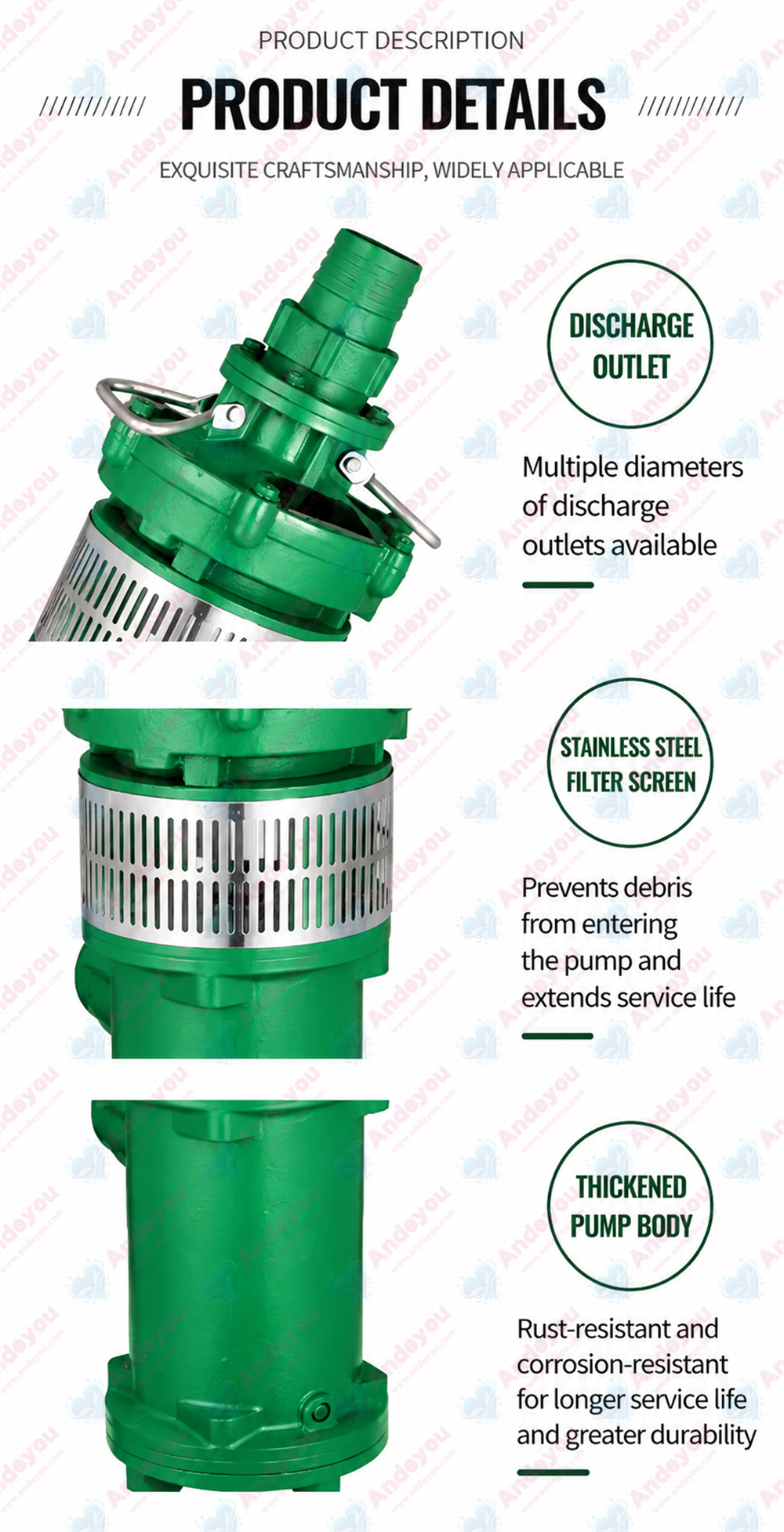

Features & Components:

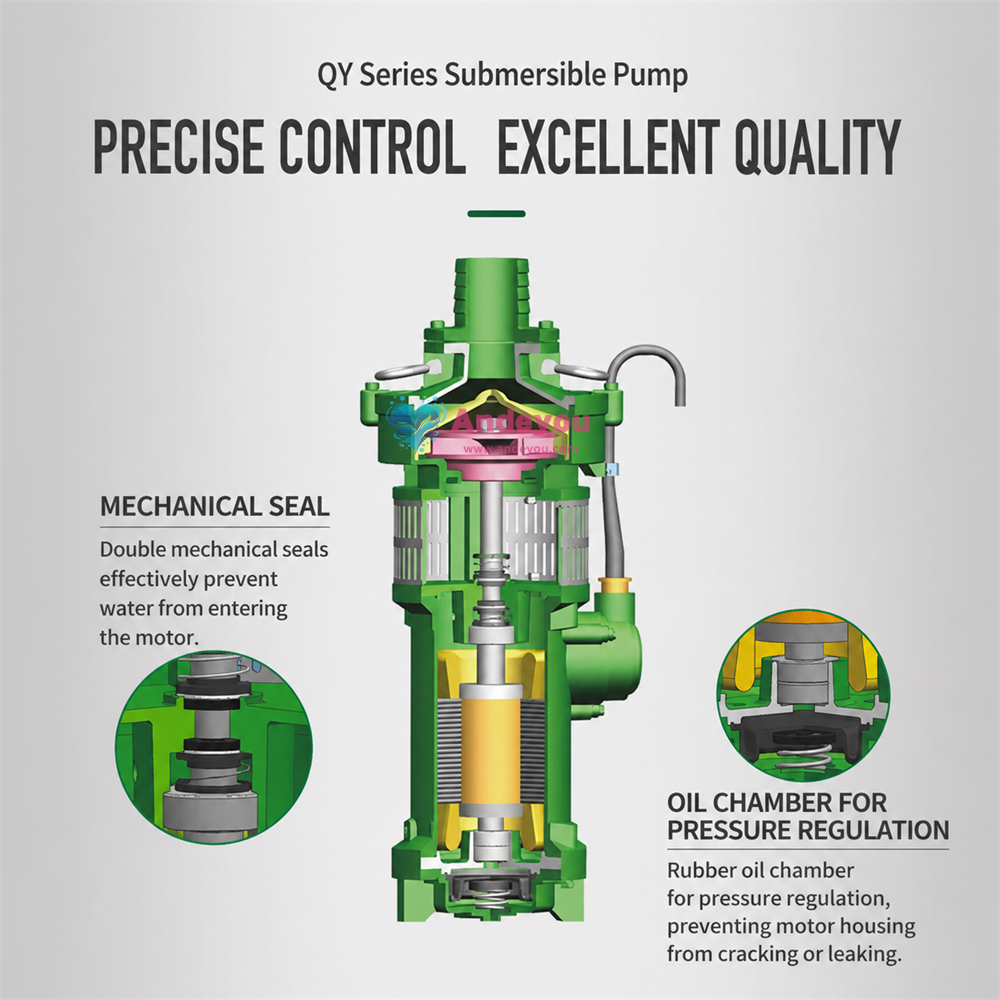

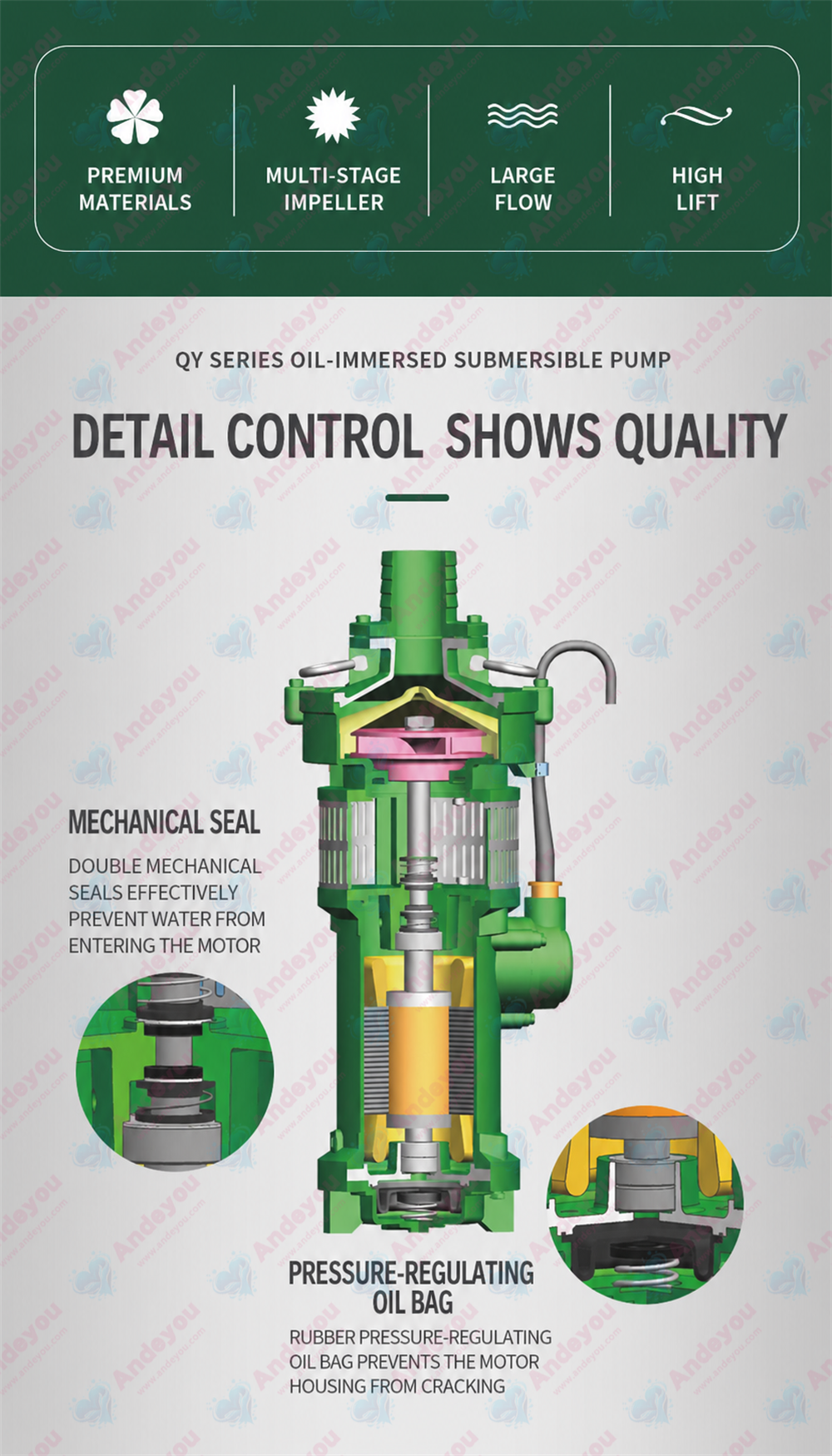

1. Dual mechanical seal design (inner and outer) for sand resistance and pressure tolerance.

2. Pressure-regulating oil bladder installed at the bottom of the motor to balance internal and external pressure.

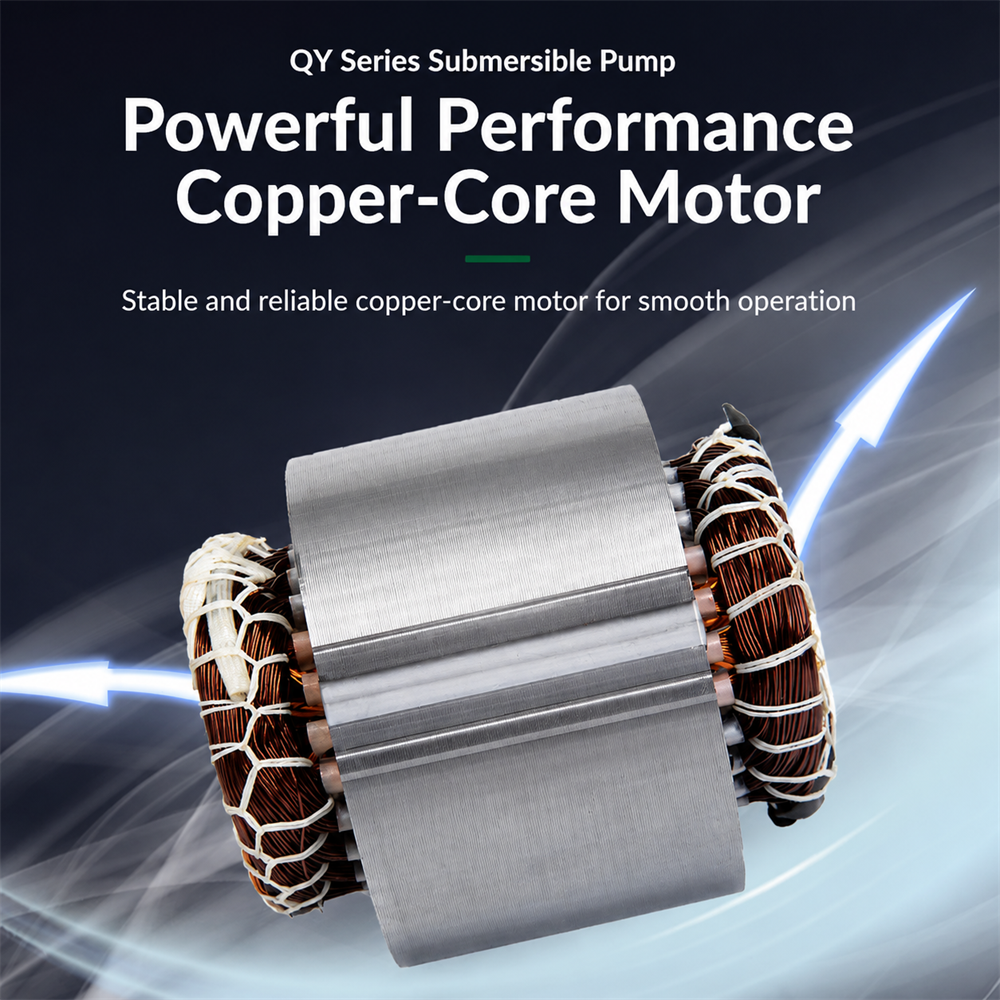

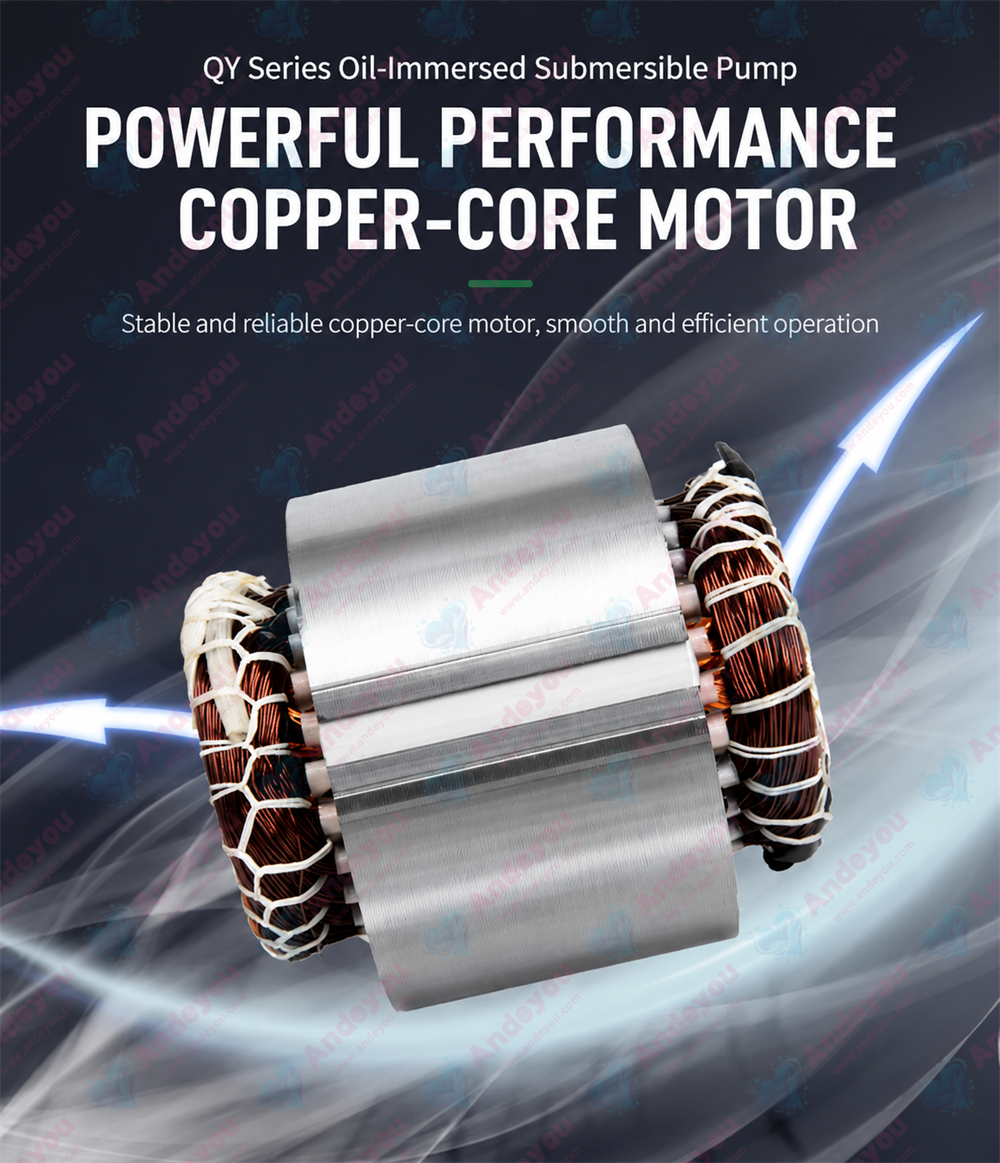

3. High-efficiency all-copper motor with strong overload capacity; resistant to burnout and highly durable.

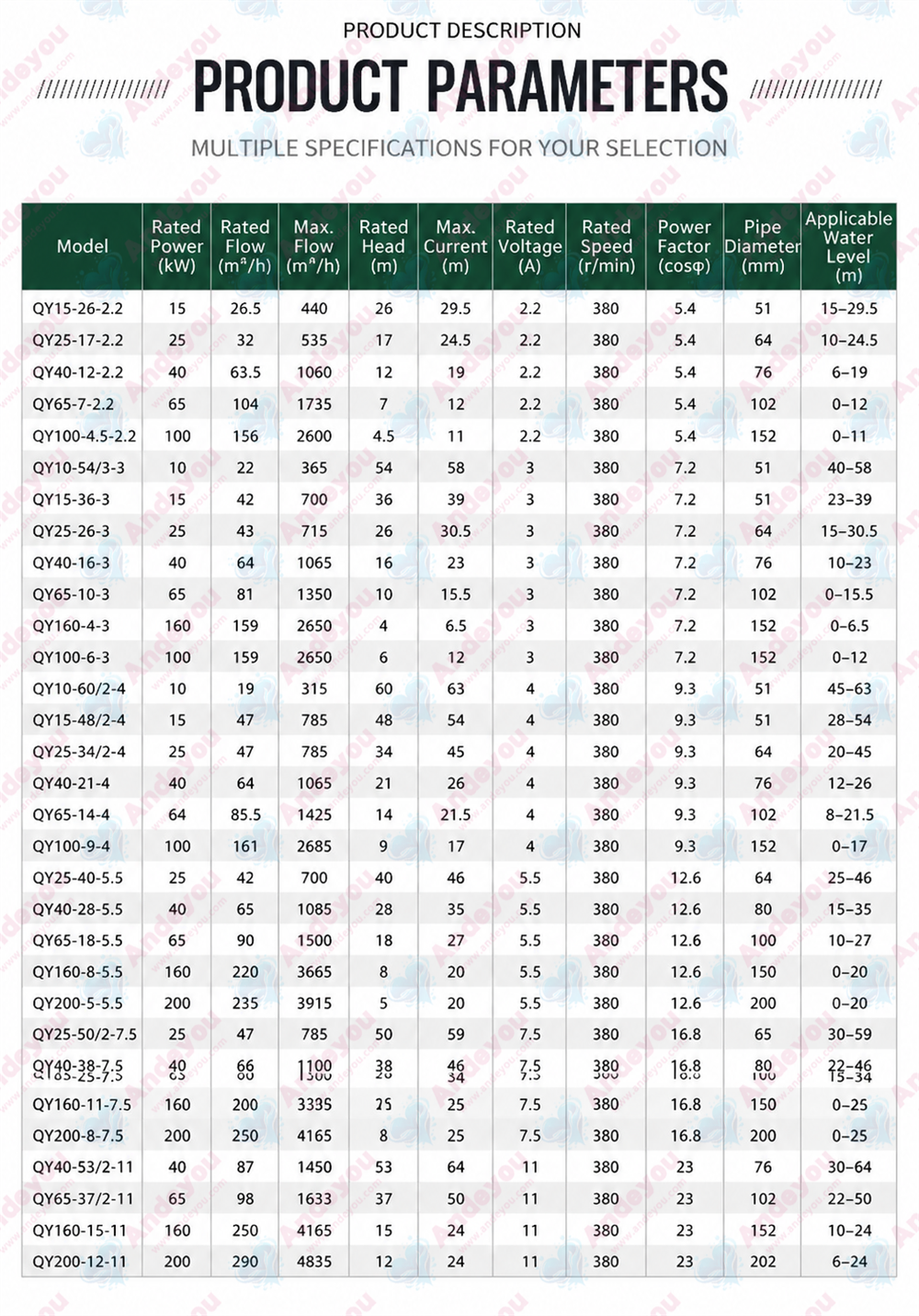

Parameters

Specifications and Model	Rated flow rate (m³/h)	Maximum flow rate (m³/h)	Rated head (m)	Rated Power (kW)	Rated voltage (V)	Rated current (A)	Pipe inner diameter (mm)	Head operating range (m)
QY15-26-2.2	15	26.5	26	2.2	380	5.4	51	0-29.5
QY25-17-2.2	25	32	17	2.2	380	5.4	64	0-24.5
QY40-12-2.2	40	63.5	12	2.2	380	5.4	76	0-19
QY65-7-2.2	65	104	7	2.2	380	5.4	102	0-12
QY100-4.5-2.2	100	156	4.5	2.2	380	5.4	152	0-11
QY10-54/3-3	10	22	54	3	380	7.2	51	40-58
QY15-36-3	15	42	36	3	380	7.2	51	23-39
QY25-26-3	25	43	26	3	380	7.2	64	0-30.5
QY40-16-3	40	64	16	3	380	7.2	76	0-23
QY65-10-3	65	81	10	3	380	7.2	102	0-15.5
QY160-4-3	160	159	4	3	380	7.2	152	0-6.5
QY100-6-3	100	159	6	3	380	7.2	152	0-12
QY10-60/2-4	10	19	60	4	380	9.3	51	45-63
QY15-48/2-4	15	47	48	4	380	9.3	51	全扬程
QY25-34/2-4	25	47	34	4	380	9.3	64	0-45
QY40-21-4	40	64	21	4	380	9.3	76	0-26
QY65-14-4	64	85.5	14	4	380	9.3	102	0-21.5
QY100-9-4	100	161	9	4	380	9.3	152	0-17
QY25-40-5.5	25	42	40	5.5	380	12.6	64	Total head
QY40-28-5.5	40	65	28	5.5	380	12.6	80	Total head
QY65-18-5.5	65	90	18	5.5	380	12.6	100	Total head
QY160-8-5.5	160	220	8	5.5	380	12.6	150	Total head
QY200-5-5.5	200	235	5	5.5	380	12.6	200	Total head
QY25-50/2-7.5	25	47	50	7.5	380	16.8	65	Total head
QY40-38-7.5	40	66	38	7.5	380	16.8	80	Total head
QY65-25-7.5	65	90	25	7.5	380	16.8	100	Total head
QY160-11-7.5	160	200	11	7.5	380	16.8	150	Total head
QY200-8-7.5	200	250	8	7.5	380	16.8	200	Total head
QY40-53/2-11	40	87	53	11	380	23	76	64
QY65-37/2-11	65	98	37	11	380	23	102	50
QY160-15-11	160	250	15	11	380	23	152	24
QY200-12-11	200	290	12	11	380	23	202	24
