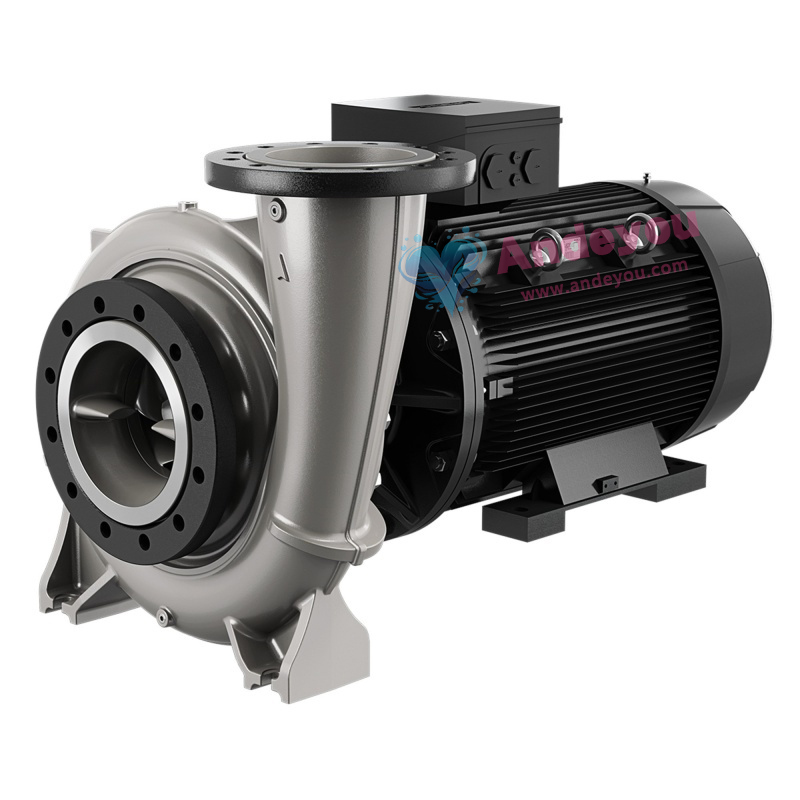

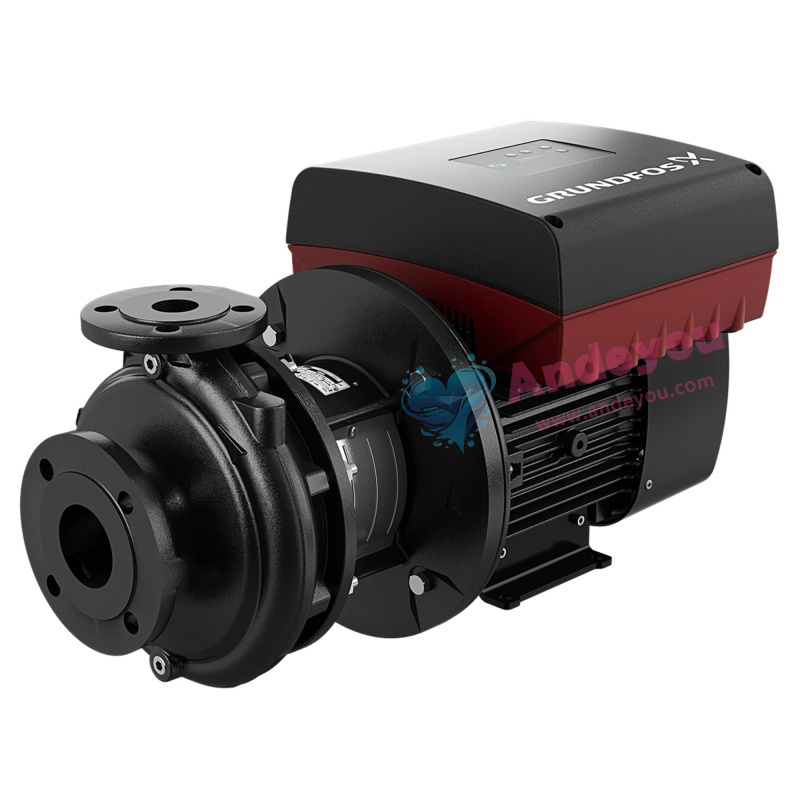

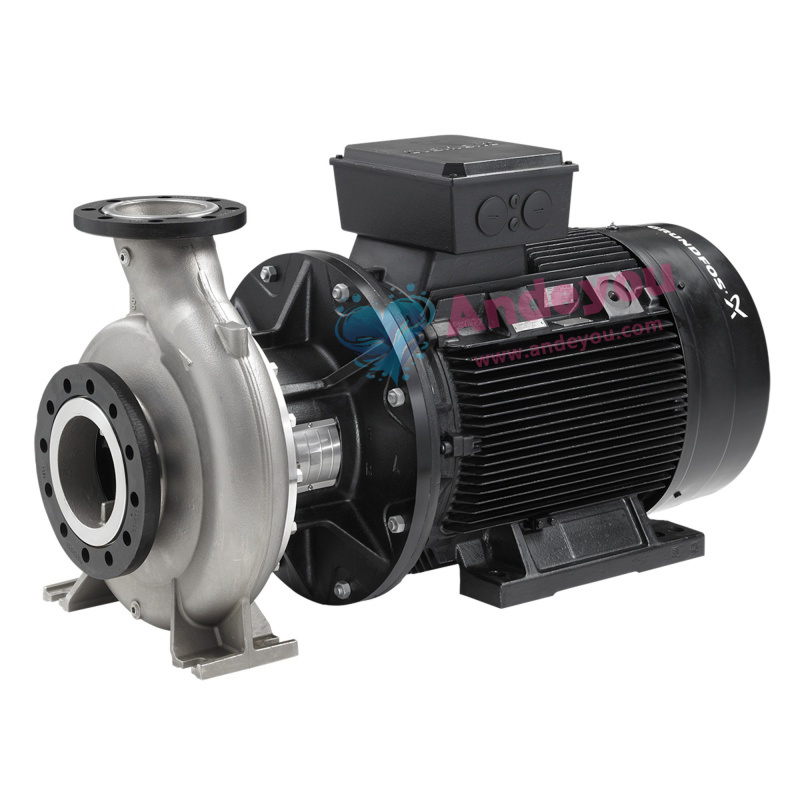

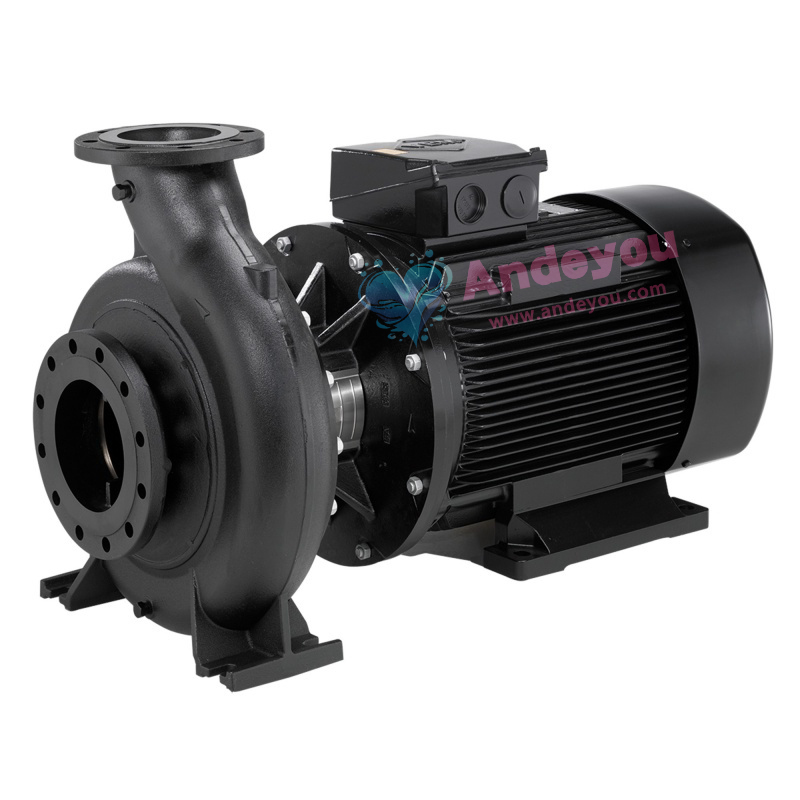

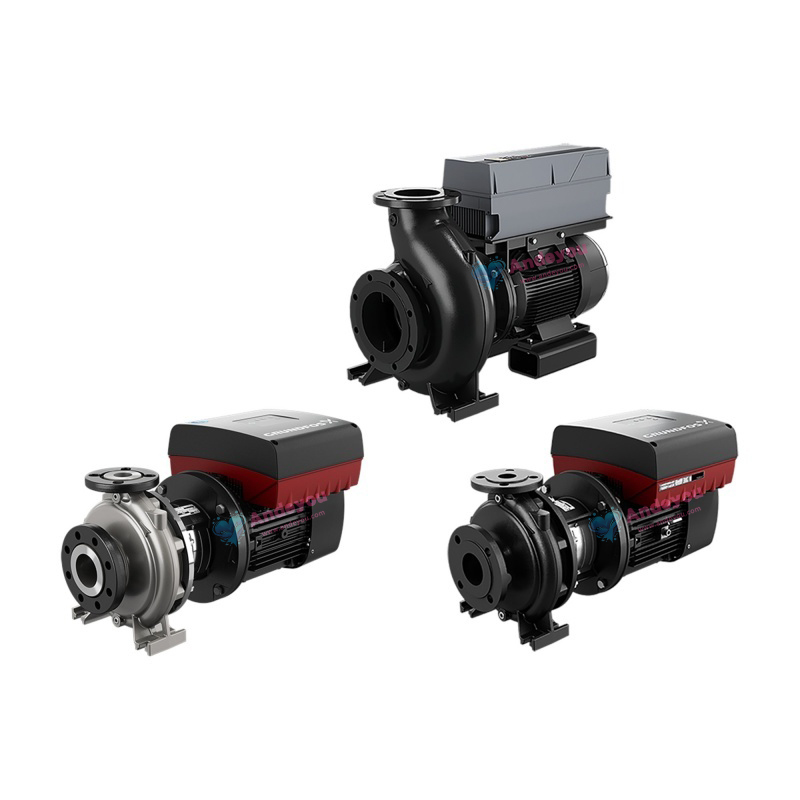

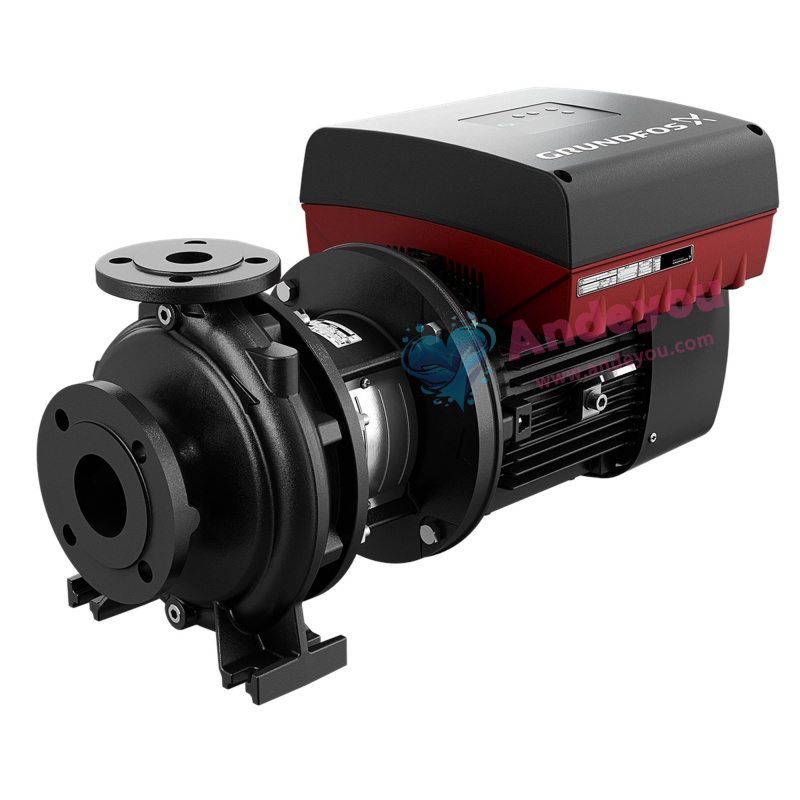

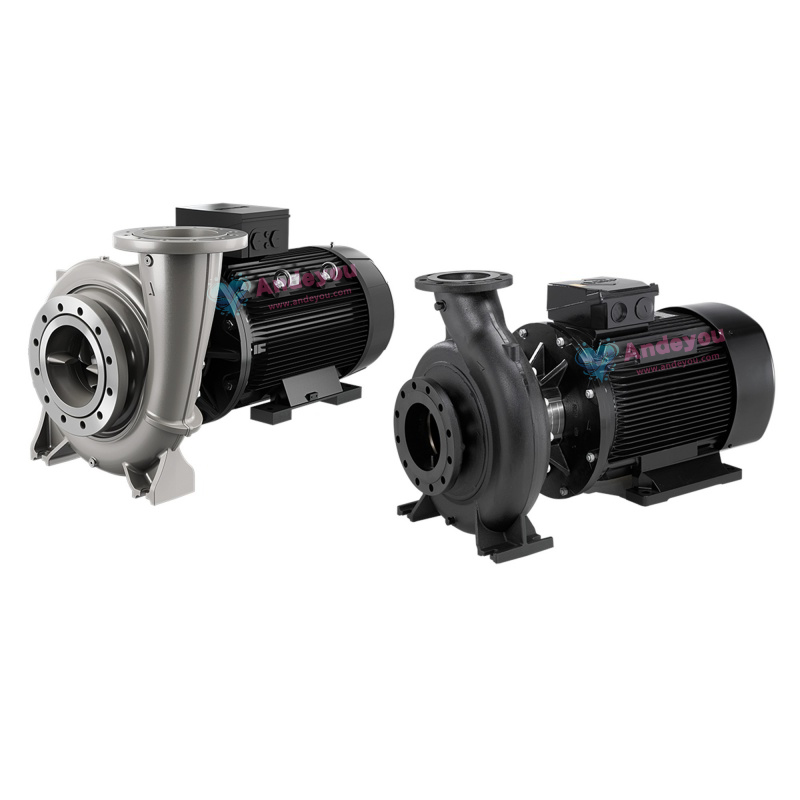

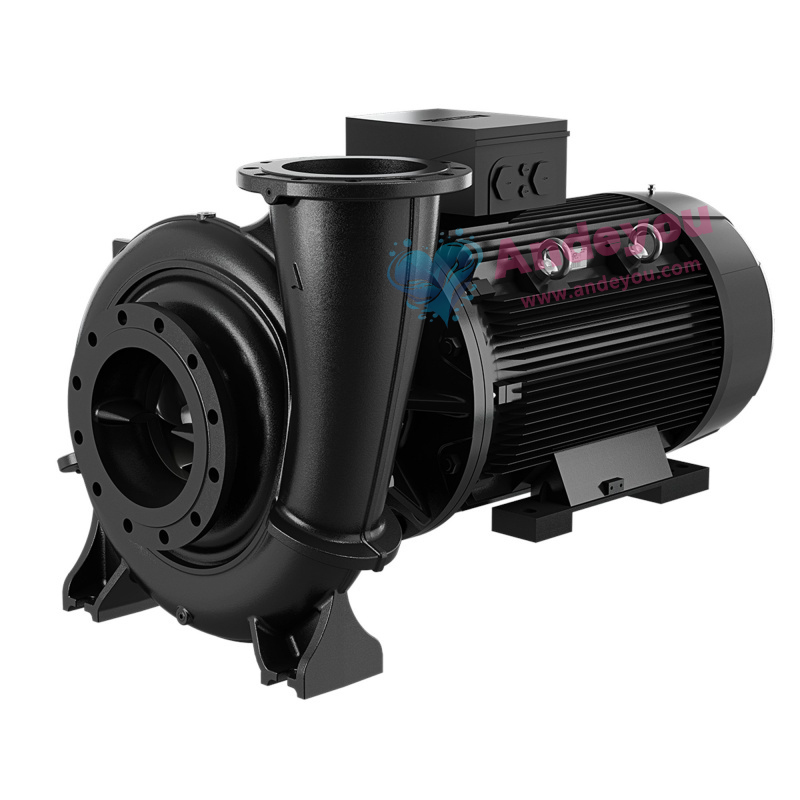

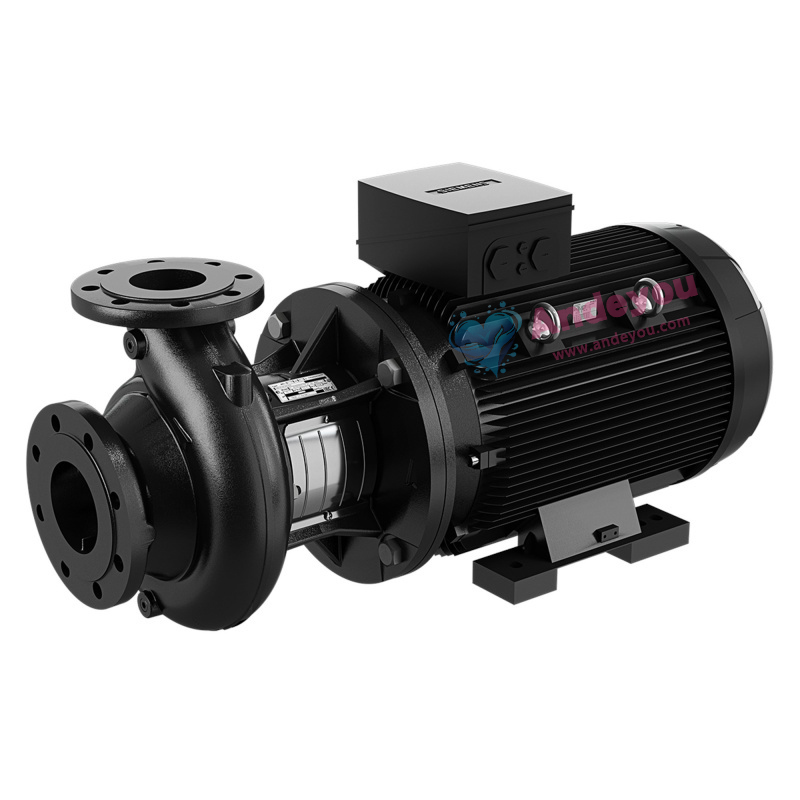

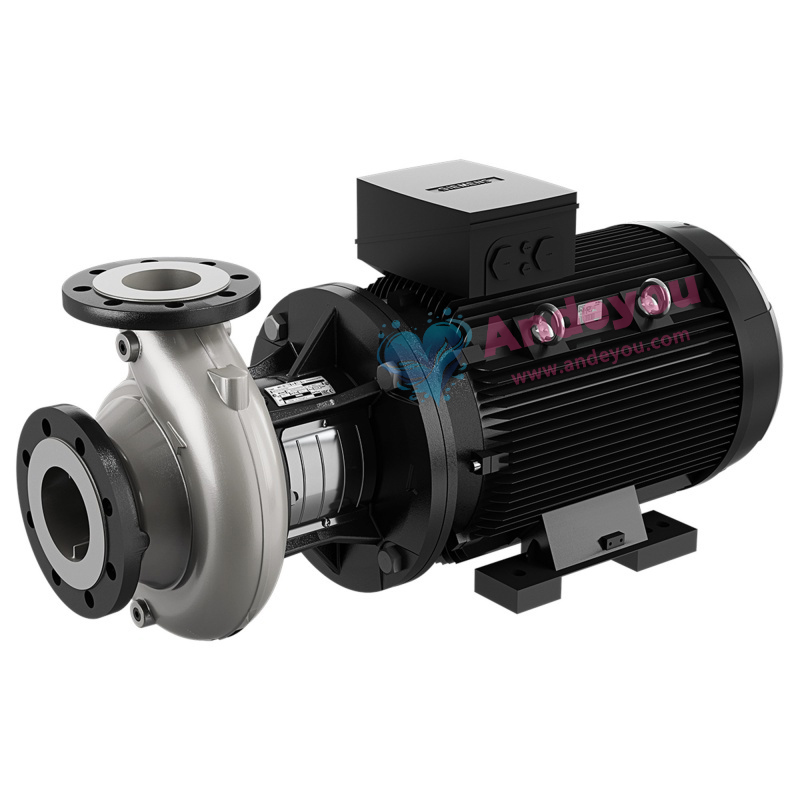

Grundfos NBG Horizontal Single-Stage End-Suction Pump (Close-Coupled)

NBG 50-32-125.1/100、NBG 50-32-125/130、NBG 50-32-160/177、NBG 50-32-200/206、NBG 50-32-250/244、NBG 65-40-200/219、NBG 65-40-250/260、NBG 65-40-315/305、NBG 65-40-315/334、NBG 65-40-315/344、NBG 65-50-125/127、NBG 65-50-160/158、NBG 65-50-160/177、NBG 80-50-200/198、NBG 80-50-200/219、NBG 80-50-250/254、NBG 80-50-315/300、NBG 80-65-125/135、NBG 80-65-125/144、NBG 80-65-160/167

The Grundfos NBG is a horizontal,single-stage,end-suction pump compliant with ISO 2858/5199 standards.It offers flow rates of 2–1,300 m³/h and heads of 2–250 m,featuring IE3/IE5 energy efficiency.Options include direct-coupled MGE variable-speed drives or external CUE drives.Designed for back-pull-out maintenance without disturbing piping,it is available in various materials (cast iron/stainless steel) with EPDM or FKM mechanical seals.
Product Consultation By telephone
Function
Parameters
Size
Video Introduction

Function

GRUNDFOS NBG Horizontal In-line Single-Stage End-Suction Pump (Direct-Connect)

High-Efficiency and Energy-Saving Design

Utilizing an optimized impeller hydraulic model, the efficiency reaches up to 89.4% (2-stage model), meeting ISO 9906 Annex A standards and significantly reducing operating energy consumption.

Diverse configuration options

Suitable for various media needs, including cast iron and stainless steel.
Supports multiple flange standards (DIN/ANSI/JIS) and pressure ratings (PN10–PN40) to meet global installation specifications.
Options for standard or heavy-duty bearing brackets to accommodate varying load conditions.

Flexible Sealing Solutions

Standard configuration includes a cartridge mechanical seal, with optional dual-seal arrangement or packing seal (cast iron models only), ensuring reliable leak protection.
Shaft seal diameters range from 42 mm to 55 mm to suit diverse operating conditions.

Modular Structure Design

The pump body and motor are directly connected, reducing maintenance points and supporting quick disassembly (the minimum pull-back distance X of the bearing bracket is marked on the drawing).
Available with foot-mounted pump casings or baseplate mounting; compatible with horizontal or vertical piping layouts.

Extended performance range

Covering flow rates of 8-1400 m³/h, with a maximum head of 200m (2-pole model), and supporting 50Hz multi-pole speed control (2/4/6 poles).
New models are fully compatible with existing installation dimensions, simplifying system upgrades and retrofits.

Intelligent Compatibility

Supports variable frequency motor drive (built-in inverter option), adapts to IE2 energy efficiency motors, and has reserved sensor interfaces.

Stringent Standards Certification

Designed to meet EN 733 and ISO 2858 standards, with a pressure rating up to PN40 (stainless steel).

Typical application scenarios: industrial circulation systems, HVAC, water supply pressurization, heat exchange stations and other fields that require efficient and stable fluid delivery.

Parameters

model

Voltage/

Frequency

 Flow rate (m³/h) Head (m) Power (kW) Efficiency class caliber
NBG 50-32-125.1/100 380V/50Hz 14.96 9.886 0.75 IE3 50×32
NBG 50-32-125.1/100 380V/50Hz 14.94 9.851 0.75 IE3 50×32
NBG 50-32-125.1/100 380V/50Hz 15.04 9.99 0.75 IE4 50×32
NBG 50-32-125.1/110 380V/50Hz 17.15 12.09 1.1 IE4 50×32
NBG 50-32-125.1/110 380V/50Hz 17 11.88 1.1 IE3 50×32
NBG 50-32-125.1/110 380V/50Hz 17.03 11.92 1.1 IE3 50×32
NBG 50-32-125.1/121 220V/50Hz 9.5 3.74 0.25 IE4 50×32
NBG 50-32-125.1/121 380V/50Hz 19.73 15.75 1.5 IE4 50×32
NBG 50-32-125.1/121 380V/50Hz 19.7 15.7 1.5 IE3 50×32
NBG 50-32-125.1/121 380V/50Hz 9.2 3.507 0.25 IE3 50×32
NBG 50-32-125.1/121 380V/50Hz 19.5 15.38 1.5 IE3 50×32
NBG 50-32-125.1/139 380V/50Hz 10.62 4.946 0.25 IE3 50×32
NBG 50-32-125.1/139 380V/50Hz 10.97 5.275 0.25 IE4 50×32
NBG 50-32-125.1/140 380V/50Hz 11.04 5.072 0.37 IE3 50×32
NBG 50-32-125.1/140 380V/50Hz 11.36 5.371 0.37 IE4 50×32
NBG 50-32-125.1/140 380V/50Hz 23.4 22.6 2.2 IE3 50×32
NBG 50-32-125.1/140 380V/50Hz 23.16 22.14 2.2 IE3 50×32
NBG 50-32-125.1/140 380V/50Hz 23.36 22.52 2.2 IE4 50×32
NBG 50-32-125/106 380V/50Hz 20.13 10.91 1.1 IE4 50×32
NBG 50-32-125/106 380V/50Hz 19.95 10.72 1.1 IE3 50×32
NBG 50-32-125/106 380V/50Hz 19.99 10.76 1.1 IE3 50×32
NBG 50-32-125/115 380V/50Hz 10.34 3.057 0.25 IE3 50×32
NBG 50-32-125/115 220V/50Hz 10.67 3.261 0.25 IE4 50×32
NBG 50-32-125/115 380V/50Hz 22.7 13 1.5 IE3 50×32
NBG 50-32-125/115 380V/50Hz 22.47 12.73 1.5 IE3 50×32
NBG 50-32-125/115 380V/50Hz 22.74 13.04 1.5 IE4 50×32
NBG 50-32-125/130 380V/50Hz 25.14 18.41 2.2 IE3 50×32
NBG 50-32-125/130 380V/50Hz 25.36 18.74 2.2 IE4 50×32
NBG 50-32-125/130 220V/50Hz 12.14 4.603 0.25 IE4 50×32
NBG 50-32-125/130 380V/50Hz 25.4 18.8 2.2 IE3 50×32
NBG 50-32-125/130 380V/50Hz 11.76 4.316 0.25 IE3 50×32
NBG 50-32-125/142 380V/50Hz 12.94 5.344 0.37 IE3 50×32
NBG 50-32-125/142 220V/50Hz 13.32 5.658 0.37 IE4 50×32
NBG 50-32-125/142 380V/50Hz 28.1 23.56 3 IE3 50×32
NBG 50-32-125/142 380V/50Hz 28.1 23.56 3 IE3 50×32
NBG 50-32-125/142 380V/50Hz 28.1 23.56 3 IE4 50×32
NBG 50-32-160.1/137 380V/50Hz 7.4 4.136 0.25 IE3 50×32
NBG 50-32-160.1/137 220V/50Hz 7.64 4.412 0.25 IE4 50×32
NBG 50-32-160.1/139 380V/50Hz 15.9 19.4 1.5 IE3 50×32
NBG 50-32-160.1/139 380V/50Hz 15.74 19 1.5 IE3 50×32
NBG 50-32-160.1/139 380V/50Hz 15.93 19.47 1.5 IE4 50×32
NBG 50-32-160.1/155 380V/50Hz 19.17 24.32 2.2 IE4 50×32
NBG 50-32-160.1/155 380V/50Hz 19 23.9 2.2 IE3 50×32
NBG 50-32-160.1/155 380V/50Hz 19.2 24.4 2.2 IE3 50×32
NBG 50-32-160.1/155 380V/50Hz 8.82 5.305 0.25 IE3 50×32
NBG 50-32-160.1/155 220V/50Hz 9.11 5.658 0.25 IE4 50×32
NBG 50-32-160.1/169 380V/50Hz 20.47 32.02 3 IE4 50×32
NBG 50-32-160.1/169 380V/50Hz 20.47 32.02 3 IE3 50×32
NBG 50-32-160.1/169 380V/50Hz 20.47 32.02 3 IE3 50×32
NBG 50-32-160.1/172 380V/50Hz 10.37 7.065 0.37 IE3 50×32
NBG 50-32-160.1/172 220V/50Hz 10.67 7.481 0.37 IE4 50×32
NBG 50-32-160.1/177 380V/50Hz 11.26 7.96 0.55 IE3 50×32
NBG 50-32-160.1/177 220V/50Hz 11.38 8.129 0.55 IE4 50×32
NBG 50-32-160.1/177 380V/50Hz 22.73 34.81 4 IE3 50×32
NBG 50-32-160.1/177 380V/50Hz 22.58 34.34 4 IE3 50×32
NBG 50-32-160.1/177 380V/50Hz 22.62 34.45 4 IE4 50×32
NBG 50-32-160/134 380V/50Hz 9.96 4.226 0.25 IE3 50×32
NBG 50-32-160/134 220V/50Hz 10.28 4.508 0.25 IE4 50×32
NBG 50-32-160/139 380V/50Hz 23.1 19.9 2.2 IE3 50×32
NBG 50-32-160/139 380V/50Hz 22.86 19.49 2.2 IE3 50×32
NBG 50-32-160/139 380V/50Hz 23.06 19.83 2.2 IE4 50×32
NBG 50-32-160/151 380V/50Hz 25.19 24.47 3 IE4 50×32
NBG 50-32-160/151 380V/50Hz 25.19 24.47 3 IE3 50×32
NBG 50-32-160/151 380V/50Hz 25.19 24.47 3 IE3 50×32
NBG 50-32-160/154 380V/50Hz 12.37 5.706 0.37 IE3 50×32
NBG 50-32-160/154 220V/50Hz 12.73 6.042 0.37 IE4 50×32
NBG 50-32-160/163 380V/50Hz 29.2 28.6 4 IE3 50×32
NBG 50-32-160/163 380V/50Hz 29.25 28.7 4 IE4 50×32
NBG 50-32-160/163 380V/50Hz 29.4 28.99 4 IE3 50×32
NBG 50-32-160/170 380V/50Hz 14.49 7.672 0.55 IE3 50×32
NBG 50-32-160/170 220V/50Hz 14.65 7.835 0.55 IE4 50×32
NBG 50-32-160/173 380V/50Hz 14.69 8.248 0.75 IE3 50×32
NBG 50-32-160/173 380V/50Hz 14.95 8.541 0.75 IE4 50×32
NBG 50-32-160/177 380V/50Hz 33.34 35.32 5.5 IE3 50×32
NBG 50-32-160/177 380V/50Hz 33.23 35.08 5.5 IE3 50×32
NBG 50-32-160/177 380V/50Hz 33.34 35.32 5.5 IE4 50×32
NBG 50-32-200.1/172 380V/50Hz 18.16 27.89 3 IE3 50×32
NBG 50-32-200.1/172 380V/50Hz 18.16 27.89 3 IE3 50×32
NBG 50-32-200.1/172 380V/50Hz 18.16 27.89 3 IE4 50×32
NBG 50-32-200.1/175 380V/50Hz 8.57 6.612 0.37 IE3 50×32
NBG 50-32-200.1/175 220V/50Hz 8.81 7.001 0.37 IE4 50×32
NBG 50-32-200.1/188 380V/50Hz 20.1 34.96 4 IE4 50×32
NBG 50-32-200.1/188 380V/50Hz 20.21 35.32 4 IE3 50×32
NBG 50-32-200.1/188 380V/50Hz 20.07 34.84 4 IE3 50×32
NBG 50-32-200.1/196 220V/50Hz 10.79 9.011 0.55 IE4 50×32
NBG 50-32-200.1/196 380V/50Hz 10.67 8.823 0.55 IE3 50×32
NBG 50-32-200.1/205 380V/50Hz 22.33 43.69 5.5 IE4 50×32
NBG 50-32-200.1/205 380V/50Hz 22.33 43.69 5.5 IE3 50×32
NBG 50-32-200.1/205 380V/50Hz 22.25 43.39 5.5 IE3 50×32
NBG 50-32-200.1/207 380V/50Hz 10.77 10.55 0.75 IE3 50×32
NBG 50-32-200.1/207 380V/50Hz 22.83 44.4 7.5 IE4 50×32
NBG 50-32-200.1/207 380V/50Hz 10.96 10.92 0.75 IE4 50×32
NBG 50-32-200.1/207 380V/50Hz 22.76 44.1 7.5 IE3 50×32
NBG 50-32-200.1/207 380V/50Hz 22.72 43.95 7.5 IE3 50×32
NBG 50-32-200/176 380V/50Hz 27.78 30.22 4 IE3 50×32
NBG 50-32-200/176 380V/50Hz 27.59 29.8 4 IE3 50×32
NBG 50-32-200/176 380V/50Hz 27.64 29.91 4 IE4 50×32
NBG 50-32-200/184 220V/50Hz 14.15 8.325 0.55 IE4 50×32
NBG 50-32-200/184 380V/50Hz 14 8.152 0.55 IE3 50×32
NBG 50-32-200/190 380V/50Hz 29.7 37.97 5.5 IE3 50×32
NBG 50-32-200/190 380V/50Hz 29.6 37.72 5.5 IE3 50×32
NBG 50-32-200/190 380V/50Hz 29.7 37.97 5.5 IE4 50×32
NBG 50-32-200/197 380V/50Hz 15.57 10.07 0.75 IE3 50×32
NBG 50-32-200/197 380V/50Hz 15.85 10.43 0.75 IE4 50×32
NBG 50-32-200/206 380V/50Hz 33.85 46.75 7.5 IE4 50×32
NBG 50-32-200/206 380V/50Hz 33.67 46.28 7.5 IE3 50×32
NBG 50-32-200/206 380V/50Hz 33.73 46.43 7.5 IE3 50×32
NBG 50-32-200/216 380V/50Hz 19.03 12.41 1.1 IE4 50×32
NBG 50-32-200/216 380V/50Hz 18.97 12.33 1.1 IE3 50×32
NBG 50-32-200/219 380V/50Hz 19.33 12.81 1.5 IE4 50×32
NBG 50-32-200/219 380V/50Hz 36.15 55.59 11 IE3 50×32
NBG 50-32-200/219 380V/50Hz 36.09 55.4 11 IE3 50×32
NBG 50-32-200/219 380V/50Hz 36.15 55.59 11 IE4 50×32
NBG 50-32-200/219 380V/50Hz 19.27 12.72 1.5 IE3 50×32
NBG 50-32-250/199 380V/50Hz 18.99 42.26 5.5 IE3 50×32
NBG 50-32-250/199 380V/50Hz 18.93 41.97 5.5 IE3 50×32
NBG 50-32-250/199 380V/50Hz 18.99 42.26 5.5 IE4 50×32
NBG 50-32-250/206 380V/50Hz 8.72 10.93 0.75 IE3 50×32
NBG 50-32-250/206 380V/50Hz 8.87 11.32 0.75 IE4 50×32
NBG 50-32-250/219 380V/50Hz 21.61 50.62 7.5 IE3 50×32
NBG 50-32-250/219 380V/50Hz 21.65 50.79 7.5 IE3 50×32
NBG 50-32-250/219 380V/50Hz 21.72 51.14 7.5 IE4 50×32
NBG 50-32-250/236 380V/50Hz 11.22 14.79 1.1 IE3 50×32
NBG 50-32-250/236 380V/50Hz 11.26 14.9 1.1 IE4 50×32
NBG 50-32-250/244 380V/50Hz 25.29 66 11 IE4 50×32
NBG 50-32-250/244 380V/50Hz 25.29 66 11 IE3 50×32
NBG 50-32-250/244 380V/50Hz 25.24 65.78 11 IE3 50×32
NBG 50-32-250/257 380V/50Hz 12.36 18.67 1.5 IE4 50×32
NBG 50-32-250/257 380V/50Hz 12.31 18.54 1.5 IE3 50×32
NBG 50-32-250/262 380V/50Hz 13.15 19.43 2.2 IE4 50×32
NBG 50-32-250/262 380V/50Hz 26.97 79.24 15 IE3 50×32
NBG 50-32-250/262 380V/50Hz 26.97 79.24 15 IE3 50×32
NBG 50-32-250/262 380V/50Hz 27.01 79.51 15 IE4 50×32
NBG 50-32-250/262 380V/50Hz 13.01 19.04 2.2 IE3 50×32
NBG 65-40-200/172 380V/50Hz 42.64 29.81 5.5 IE3 65×40
NBG 65-40-200/172 380V/50Hz 42.49 29.6 5.5 IE3 65×40
NBG 65-40-200/172 380V/50Hz 42.64 29.81 5.5 IE4 65×40
NBG 65-40-200/177 380V/50Hz 20.66 7.576 0.75 IE3 65×40
NBG 65-40-200/177 380V/50Hz 21.03 7.846 0.75 IE4 65×40
NBG 65-40-200/188 380V/50Hz 48.25 35.97 7.5 IE3 65×40
NBG 65-40-200/188 380V/50Hz 48.33 36.09 7.5 IE3 65×40
NBG 65-40-200/188 380V/50Hz 48.5 36.34 7.5 IE4 65×40
NBG 65-40-200/198 380V/50Hz 25.32 9.961 1.1 IE3 65×40
NBG 65-40-200/198 380V/50Hz 25.41 10.03 1.1 IE4 65×40
NBG 65-40-200/206 380V/50Hz 55.85 45.17 11 IE4 65×40
NBG 65-40-200/206 380V/50Hz 55.76 45.02 11 IE3 65×40
NBG 65-40-200/206 380V/50Hz 55.85 45.17 11 IE3 65×40
NBG 65-40-200/217 380V/50Hz 28.4 12.43 1.5 IE3 65×40
NBG 65-40-200/217 380V/50Hz 28.5 12.51 1.5 IE4 65×40
NBG 65-40-200/219 380V/50Hz 29.2 12.62 2.2 IE3 65×40
NBG 65-40-200/219 380V/50Hz 29.5 12.89 2.2 IE4 65×40
NBG 65-40-200/219 380V/50Hz 60.32 52.21 15 IE3 65×40
NBG 65-40-200/219 380V/50Hz 60.32 52.21 15 IE3 65×40
NBG 65-40-200/219 380V/50Hz 60.42 52.39 15 IE4 65×40
NBG 65-40-250/211 380V/50Hz 50.27 51.98 11 IE4 65×40
NBG 65-40-250/211 380V/50Hz 50.18 51.8 11 IE3 65×40
NBG 65-40-250/211 380V/50Hz 50.27 51.98 11 IE3 65×40
NBG 65-40-250/219 380V/50Hz 25.13 13.41 1.5 IE3 65×40
NBG 65-40-250/219 380V/50Hz 25.21 13.51 1.5 IE4 65×40
NBG 65-40-250/230 380V/50Hz 57.79 61.36 15 IE3 65×40
NBG 65-40-250/230 380V/50Hz 57.79 61.36 15 IE3 65×40
NBG 65-40-250/230 380V/50Hz 57.88 61.57 15 IE4 65×40
NBG 65-40-250/242 380V/50Hz 28.5 16.67 2.2 IE3 65×40
NBG 65-40-250/242 380V/50Hz 28.8 17.02 2.2 IE4 65×40
NBG 65-40-250/245 380V/50Hz 64.68 68.55 18.5 IE3 65×40
NBG 65-40-250/245 380V/50Hz 64.79 68.79 18.5 IE3 65×40
NBG 65-40-250/245 380V/50Hz 64.79 68.79 18.5 IE4 65×40
NBG 65-40-250/255 380V/50Hz 65.51 78.54 22 IE3 65×40
NBG 65-40-250/255 380V/50Hz 65.51 78.54 22 IE3 65×40
NBG 65-40-250/255 380V/50Hz 65.62 78.81 22 IE4 65×40
NBG 65-40-250/260 380V/50Hz 67.59 83.49 30 IE4 65×40
NBG 65-40-250/260 380V/50Hz 32.41 19.94 3 IE4 65×40
NBG 65-40-250/260 380V/50Hz 32.08 19.53 3 IE3 65×40
NBG 65-40-250/260 380V/50Hz 67.37 82.93 30 IE3 65×40
NBG 65-40-315/273 380V/50Hz 39.77 71.81 22 IE3 65×40
NBG 65-40-315/273 380V/50Hz 39.77 71.81 22 IE3 65×40
NBG 65-40-315/273 380V/50Hz 39.84 72.06 22 IE4 65×40
NBG 65-40-315/283 380V/50Hz 19.76 19.13 3 IE3 65×40
NBG 65-40-315/283 380V/50Hz 19.97 19.53 3 IE4 65×40
NBG 65-40-315/298 380V/50Hz 45.32 85.74 30 IE3 65×40
NBG 65-40-315/298 380V/50Hz 45.47 86.32 30 IE4 65×40
NBG 65-40-315/305 380V/50Hz 22.2 22.4 4 IE3 65×40
NBG 65-40-315/305 380V/50Hz 22.12 22.25 4 IE4 65×40
NBG 65-40-315/318 380V/50Hz 48.89 102.3 37 IE3 65×40
NBG 65-40-315/318 380V/50Hz 49.22 103.7 37 IE4 65×40
NBG 65-40-315/334 380V/50Hz 24.97 29.1 5.5 IE3 65×40
NBG 65-40-315/334 380V/50Hz 25.06 29.3 5.5 IE4 65×40
NBG 65-40-315/336 380V/50Hz 52.16 120.4 45 IE3 65×40
NBG 65-40-315/336 380V/50Hz 52.51 122.1 45 IE4 65×40
NBG 65-40-315/344 380V/50Hz 47.36 138.7 45 IE3 65×40
NBG 65-40-315/344 380V/50Hz 47.68 140.5 45 IE4 65×40
NBG 65-40-315/344 380V/50Hz 23.16 34.57 7.5 IE3 65×40
NBG 65-40-315/344 380V/50Hz 23.24 34.81 7.5 IE4 65×40
NBG 65-50-125/105 380V/50Hz 37.2 10 1.5 IE3 65×50
NBG 65-50-125/105 380V/50Hz 36.82 9.794 1.5 IE3 65×50
NBG 65-50-125/105 380V/50Hz 37.26 10.04 1.5 IE4 65×50
NBG 65-50-125/116 380V/50Hz 19.91 2.878 0.25 IE3 65×50
NBG 65-50-125/116 220V/50Hz 20.57 3.069 0.25 IE4 65×50
NBG 65-50-125/116 380V/50Hz 42.5 12.5 2.2 IE3 65×50
NBG 65-50-125/116 380V/50Hz 42.06 12.24 2.2 IE3 65×50
NBG 65-50-125/116 380V/50Hz 42.43 12.46 2.2 IE4 65×50
NBG 65-50-125/127 380V/50Hz 45.05 16.11 3 IE3 65×50
NBG 65-50-125/127 380V/50Hz 45.05 16.11 3 IE3 65×50
NBG 65-50-125/127 380V/50Hz 45.05 16.11 3 IE4 65×50
NBG 65-50-125/130 380V/50Hz 21.98 3.985 0.37 IE3 65×50
NBG 65-50-125/130 220V/50Hz 22.62 4.22 0.37 IE4 65×50
NBG 65-50-125/139 380V/50Hz 44.33 21.62 4 IE4 65×50
NBG 65-50-125/139 380V/50Hz 43.72 21.03 4 IE3 65×50
NBG 65-50-125/139 380V/50Hz 44.56 21.84 4 IE3 65×50
NBG 65-50-125/142 220V/50Hz 24.64 5.387 0.55 IE4 65×50
NBG 65-50-125/142 380V/50Hz 45.97 22.66 5.5 IE4 65×50
NBG 65-50-125/142 380V/50Hz 24.38 5.275 0.55 IE3 65×50
NBG 65-50-125/142 380V/50Hz 45.81 22.51 5.5 IE3 65×50
NBG 65-50-125/142 380V/50Hz 45.97 22.66 5.5 IE3 65×50
NBG 65-50-160/134 380V/50Hz 14.85 4.801 0.37 IE3 65×50
NBG 65-50-160/134 220V/50Hz 15.28 5.083 0.37 IE4 65×50
NBG 65-50-160/144 380V/50Hz 39.4 23.89 4 IE3 65×50
NBG 65-50-160/144 380V/50Hz 39.13 23.56 4 IE3 65×50
NBG 65-50-160/144 380V/50Hz 39.2 23.64 4 IE4 65×50
NBG 65-50-160/151 380V/50Hz 17.63 6.713 0.55 IE3 65×50
NBG 65-50-160/151 380V/50Hz 17.81 6.856 0.55 IE4 65×50
NBG 65-50-160/158 380V/50Hz 44.46 29.7 5.5 IE3 65×50
NBG 65-50-160/158 380V/50Hz 44.3 29.5 5.5 IE3 65×50
NBG 65-50-160/158 380V/50Hz 44.46 29.7 5.5 IE4 65×50
NBG 65-50-160/162 380V/50Hz 21.54 7.672 0.75 IE3 65×50
NBG 65-50-160/162 380V/50Hz 21.92 7.945 0.75 IE4 65×50
NBG 65-50-160/172 380V/50Hz 48.4 36.85 7.5 IE4 65×50
NBG 65-50-160/172 380V/50Hz 48.23 36.6 7.5 IE3 65×50
NBG 65-50-160/172 380V/50Hz 48.15 36.47 7.5 IE3 65×50
NBG 65-50-160/177 380V/50Hz 22.15 9.961 1.1 IE3 65×50
NBG 65-50-160/177 380V/50Hz 50.57 39.29 11 IE3 65×50
NBG 65-50-160/177 380V/50Hz 50.49 39.16 11 IE3 65×50
NBG 65-50-160/177 380V/50Hz 50.57 39.29 11 IE4 65×50
NBG 65-50-160/177 380V/50Hz 22.22 10.03 1.1 IE4 65×50
NBG 80-50-200/171 380V/50Hz 31.28 8.285 1.1 IE3 80×50
NBG 80-50-200/171 380V/50Hz 31.39 8.342 1.1 IE4 80×50
NBG 80-50-200/181 380V/50Hz 70.78 38.67 11 IE4 80×50
NBG 80-50-200/181 380V/50Hz 70.66 38.54 11 IE3 80×50
NBG 80-50-200/181 380V/50Hz 70.78 38.67 11 IE3 80×50
NBG 80-50-200/188 380V/50Hz 35.16 10.26 1.5 IE3 80×50
NBG 80-50-200/188 380V/50Hz 35.28 10.33 1.5 IE4 80×50
NBG 80-50-200/198 380V/50Hz 81.31 46.35 15 IE3 80×50
NBG 80-50-200/198 380V/50Hz 81.31 46.35 15 IE3 80×50
NBG 80-50-200/198 380V/50Hz 81.44 46.51 15 IE4 80×50
NBG 80-50-200/210 380V/50Hz 88.76 52.8 18.5 IE3 80×50
NBG 80-50-200/210 380V/50Hz 88.76 52.8 18.5 IE4 80×50
NBG 80-50-200/210 380V/50Hz 44.15 12.99 22 IE4 80×50
NBG 80-50-200/210 380V/50Hz 43.7 12.72 2.2 IE3 80×50
NBG 80-50-200/210 380V/50Hz 88.61 52.62 18.5 IE3 80×50
NBG 80-50-200/219 380V/50Hz 45.16 14.2 3 IE4 80×50
NBG 80-50-200/219 380V/50Hz 93.74 58.46 22 IE4 80×50
NBG 80-50-200/219 380V/50Hz 93.59 58.26 22 IE3 80×50
NBG 80-50-200/219 380V/50Hz 44.69 13.91 3 IE3 80×50
NBG 80-50-200/219 380V/50Hz 93.59 58.26 22 IE3 80×50
NBG 80-50-250/205 380V/50Hz 70.66 47.28 15 IE3 80×50
NBG 80-50-250/205 380V/50Hz 70.78 47.44 15 IE4 80×50
NBG 80-50-250/205 380V/50Hz 70.66 47.28 15 IE3 80×50
NBG 80-50-250/221 380V/50Hz 35.16 13.71 2.2 IE3 80×50
NBG 80-50-250/221 380V/50Hz 35.52 14 2.2 IE4 80×50
NBG 80-50-250/222 380V/50Hz 73.22 57.75 18.5 IE3 80×50
NBG 80-50-250/222 380V/50Hz 73.09 57.56 18.5 IE3 80×50
NBG 80-50-250/222 380V/50Hz 73.22 57.75 18.5 IE4 80×50
NBG 80-50-250/233 380V/50Hz 79.17 63.65 22 IE4 80×50
NBG 80-50-250/233 380V/50Hz 79.04 63.43 22 IE3 80×50
NBG 80-50-250/233 380V/50Hz 79.04 63.43 22 IE3 80×50
NBG 80-50-250/241 380V/50Hz 39.92 16.37 3 IE3 80×50
NBG 80-50-250/241 380V/50Hz 40.34 16.72 3 IE4 80×50
NBG 80-50-250/254 380V/50Hz 91.35 75.11 30 IE3 80×50
NBG 80-50-250/254 380V/50Hz 91.66 75.62 30 IE4 80×50
NBG 80-50-250/263 380V/50Hz 97.72 81.1 37 IE4 80×50
NBG 80-50-250/263 380V/50Hz 97.07 80.01 37 IE3 80×50
NBG 80-50-250/263 380V/50Hz 46.64 19.27 4 IE4 80×50
NBG 80-50-250/263 380V/50Hz 46.8 19.4 4 IE3 80×50
NBG 80-50-315/267 380V/50Hz 70.22 87.62 30 IE3 80×50
NBG 80-50-315/267 380V/50Hz 70.46 88.21 30 IE4 80×50
NBG 80-50-315/277 380V/50Hz 36 22.7 4 IE3 80×50
NBG 80-50-315/277 380V/50Hz 35.88 22.54 4 IE4 80×50
NBG 80-50-315/285 380V/50Hz 76.86 100.3 37 IE3 80×50
NBG 80-50-315/285 380V/50Hz 77.38 101.7 37 IE4 80×50
NBG 80-50-315/300 380V/50Hz 82.78 111.6 45 IE3 80×50
NBG 80-50-315/300 380V/50Hz 83.34 113.1 45 IE4 80×50
NBG 80-50-315/303 380V/50Hz 42.49 27.48 5.5 IE3 80×50
NBG 80-50-315/303 380V/50Hz 42.64 27.66 5.5 IE4 80×50
NBG 80-50-315/321 380V/50Hz 90.12 131.5 55 IE3 80×50
NBG 80-50-315/321 380V/50Hz 90.43 132.4 55 IE4 80×50
NBG 80-50-315/331 380V/50Hz 47.32 32.75 7.5 IE3 80×50
NBG 80-50-315/331 380V/50Hz 47.49 32.97 7.5 IE4 80×50
NBG 80-50-315/344 380V/50Hz 50.86 37.25 11 IE4 80×50
NBG 80-50-315/344 380V/50Hz 50.69 37 11 IE3 80×50
NBG 80-65-125/111 380V/50Hz 61.61 11.88 3 IE3 80×65
NBG 80-65-125/111 380V/50Hz 61.61 11.88 3 IE3 80×65
NBG 80-65-125/111 380V/50Hz 61.61 11.88 3 IE4 80×65
NBG 80-65-125/112 380V/50Hz 27.89 2.898 0.37 IE3 80×65
NBG 80-65-125/112 220V/50Hz 28.69 3.069 0.37 IE4 80×65
NBG 80-65-125/121 380V/50Hz 69.71 14.8 4 IE3 80×65
NBG 80-65-125/121 380V/50Hz 69.24 14.6 4 IE3 80×65
NBG 80-65-125/121 380V/50Hz 69.36 14.65 4 IE4 80×65
NBG 80-65-125/125 380V/50Hz 32.42 4.124 0.55 IE3 80×65
NBG 80-65-125/125 220V/50Hz 32.76 4.211 0.55 IE4 80×65
NBG 80-65-125/135 380V/50Hz 75.98 19.8 5.5 IE3 80×65
NBG 80-65-125/135 380V/50Hz 75.72 19.67 5.5 IE3 80×65
NBG 80-65-125/135 380V/50Hz 75.98 19.8 5.5 IE4 80×65
NBG 80-65-125/138 380V/50Hz 42.11 4.699 0.75 IE3 80×65
NBG 80-65-125/138 380V/50Hz 37.97 5.164 0.75 IE4 80×65
NBG 80-65-125/144 380V/50Hz 80.75 23.12 7.5 IE3 80×65
NBG 80-65-125/144 380V/50Hz 81.03 23.27 7.5 IE4 80×65
NBG 80-65-125/144 380V/50Hz 80.61 23.04 7.5 IE3 80×65
NBG 80-65-125/144 380V/50Hz 46.84 5.363 1.1 IE4 80×65
NBG 80-65-125/144 380V/50Hz 46.68 5.326 1.1 IE3 80×65
NBG 80-65-160/131 380V/50Hz 31.14 4.603 0.55 IE3 80×65
NBG 80-65-160/131 220V/50Hz 31.47 4.701 0.55 IE4 80×65
NBG 80-65-160/136 380V/50Hz 69.81 20.82 5.5 IE3 80×65
NBG 80-65-160/136 380V/50Hz 69.58 20.68 5.5 IE3 80×65
NBG 80-65-160/136 380V/50Hz 69.81 20.82 5.5 IE4 80×65
NBG 80-65-160/139 380V/50Hz 34.47 5.179 0.75 IE3 80×65
NBG 80-65-160/139 380V/50Hz 35.08 5.363 0.75 IE4 80×65
NBG 80-65-160/150 380V/50Hz 77.2 25.56 7.5 IE3 80×65
NBG 80-65-160/150 380V/50Hz 77.59 25.83 7.5 IE4 80×65
NBG 80-65-160/150 380V/50Hz 77.33 25.65 7.5 IE3 80×65
NBG 80-65-160/158 380V/50Hz 40.02 7.5 1.1 IE3 80×65
NBG 80-65-160/158 380V/50Hz 40.16 7.25 1.1 IE4 80×65
NBG 80-65-160/167 380V/50Hz 88.76 33.62 11 IE3 80×65
NBG 80-65-160/167 380V/50Hz 88.61 33.51 11 IE3 80×65
NBG 80-65-160/167 380V/50Hz 88.76 33.62 11 IE4 80×65
NBG 80-65-160/175 380V/50Hz 44.89 9.074 1.5 IE3 80×65
NBG 80-65-160/175 380V/50Hz 45.04 9.137 1.5 IE4 80×65
NBG 80-65-160/177 380V/50Hz 94.85 38.78 15 IE4 80×65
NBG 80-65-160/177 380V/50Hz 94.69 38.64 15 IE3 80×65
NBG 80-65-160/177 380V/50Hz 45.88 9.369 2.2 IE3 80×65
NBG 80-65-160/177 380V/50Hz 46.36 9.566 2.2 IE4 80×65
NBG 80-65-160/177 380V/50Hz 94.69 38.64 15 IE3 80×65
NBG 100-65-200/162 380V/50Hz 89.52 30.52 11 IE3 100×65
NBG 100-65-200/162 380V/50Hz 89.67 30.63 11 IE4 100×65
NBG 100-65-200/162 380V/50Hz 89.67 30.63 11 IE3 100×65
NBG 100-65-200/170 380V/50Hz 45.68 8.087 1.5 IE3 100×65
NBG 100-65-200/170 380V/50Hz 45.84 8.144 1.5 IE4 100×65
NBG 100-65-200/177 380V/50Hz 94.79 37.62 15 IE3 100×65
NBG 100-65-200/177 380V/50Hz 94.79 37.62 15 IE3 100×65
NBG 100-65-200/177 380V/50Hz 94.95 37.74 15 IE4 100×65
NBG 100-65-200/189 380V/50Hz 52.93 10.06 2.2 IE3 100×65
NBG 100-65-200/189 380V/50Hz 53.48 10.27 2.2 IE4 100×65
NBG 100-65-200/190 380V/50Hz 110.7 43.31 18.5 IE3 100×65
NBG 100-65-200/190 380V/50Hz 110.5 43.17 18.5 IE3 100×65
NBG 100-65-200/190 380V/50Hz 100.3 45.07 18.5 IE4 100×65
NBG 100-65-200/198 380V/50Hz 118 47.81 22 IE3 100×65
NBG 100-65-200/198 380V/50Hz 118 47.81 22 IE3 100×65
NBG 100-65-200/198 380V/50Hz 118.2 47.97 22 IE4 100×65
NBG 100-65-200/205 380V/50Hz 60.21 12.69 3 IE4 100×65
NBG 100-65-200/205 380V/50Hz 59.59 12.43 3 IE3 100×65
NBG 100-65-200/217 380V/50Hz 118.1 60.84 30 IE3 100×65
NBG 100-65-200/217 380V/50Hz 118.5 61.25 30 IE4 100×65
NBG 100-65-200/219 380V/50Hz 65.1 14.5 4 IE3 100×65
NBG 100-65-200/219 380V/50Hz 64.88 14.4 4 IE4 100×65
NBG 100-65-200/219 380V/50Hz 120 61.78 37 IE3 100×65
NBG 100-65-200/219 380V/50Hz 120.8 62.62 37 IE4 100×65
NBG 100-65-250/215 380V/50Hz 52.08 13.19 3 IE4 100×65
NBG 100-65-250/215 380V/50Hz 51.54 12.92 3 IE3 100×65
NBG 100-65-250/223 380V/50Hz 124 60.1 30 IE4 100×65
NBG 100-65-250/223 380V/50Hz 123.6 59.7 30 IE3 100×65
NBG 100-65-250/232 380V/50Hz 62.1 15.8 4 IE3 100×65
NBG 100-65-250/232 380V/50Hz 61.89 15.69 4 IE4 100×65
NBG 100-65-250/238 380V/50Hz 134.4 68.55 37 IE3 100×65
NBG 100-65-250/238 380V/50Hz 135.3 69.48 37 IE4 100×65
NBG 100-65-250/251 380V/50Hz 144.5 76.47 45 IE3 100×65
NBG 100-65-250/251 380V/50Hz 145.5 77.51 45 IE4 100×65
NBG 100-65-250/254 380V/50Hz 70.48 19.36 5.5 IE3 100×65
NBG 100-65-250/254 380V/50Hz 70.72 19.5 5.5 IE4 100×65
NBG 100-65-250/269 380V/50Hz 156.9 89.26 55 IE3 100×65
NBG 100-65-250/269 380V/50Hz 157.4 89.86 55 IE4 100×65
NBG 100-65-250/270 380V/50Hz 161 89.75 75 IE4 100×65
NBG 100-65-250/270 380V/50Hz 75.78 22.87 7.5 IE4 100×65
NBG 100-65-250/270 380V/50Hz 160.5 89.15 75 IE3 100×65
NBG 100-65-250/270 380V/50Hz 75.52 22.71 7.5 IE3 100×65
NBG 100-65-315/261 380V/50Hz 62.63 20.28 5.5 IE3 100×65
NBG 100-65-315/261 380V/50Hz 62.84 20.42 5.5 IE4 100×65
NBG 100-65-315/272 380V/50Hz 143.9 91.78 55 IE3 100×65
NBG 100-65-315/272 380V/50Hz 144.4 92.39 55 IE4 100×65
NBG 100-65-315/282 380V/50Hz 70.38 24.94 7.5 IE3 100×65
NBG 100-65-315/282 380V/50Hz 70.62 25.11 7.5 IE4 100×65
NBG 100-65-315/295 380V/50Hz 166.6 109.2 75 IE3 100×65
NBG 100-65-315/295 380V/50Hz 167.2 109.9 75 IE4 100×65
NBG 100-65-315/308 380V/50Hz 181.9 120.4 90 IE4 100×65
NBG 100-65-315/308 380V/50Hz 181.3 119.6 90 IE3 100×65
NBG 100-65-315/314 380V/50Hz 87.29 31.04 11 IE3 100×65
NBG 100-65-315/314 380V/50Hz 87.58 31.25 11 IE4 100×65
NBG 100-65-315/320 380V/50Hz 91.65 32.07 15 IE3 100×65
NBG 100-65-315/320 380V/50Hz 91.96 32.28 15 IE4 100×65
NBG 100-65-315/320 380V/50Hz 197.7 130.2 110 IE3 100×65
NBG 100-65-315/320 380V/50Hz 197.7 130.2 110 IE4 100×65
NBG 100-80-125/120 380V/50Hz 51.32 2.973 0.55 IE3 100×80
NBG 100-80-125/120 220V/50Hz 51.86 3.036 0.55 IE4 100×80
NBG 100-80-125/120-110 380V/50Hz 74.77 12.86 4 IE3 100×80
NBG 100-80-125/120-110 380V/50Hz 74.26 12.69 4 IE3 100×80
NBG 100-80-125/120-110 380V/50Hz 74.38 12.73 4 IE4 100×80
NBG 100-80-125/125 380V/50Hz 99.58 14.8 5.5 IE3 100×80
NBG 100-80-125/125 380V/50Hz 99.92 14.9 5.5 IE4 100×80
NBG 100-80-125/125 380V/50Hz 99.92 14.9 5.5 IE3 100×80
NBG 100-80-125/130 380V/50Hz 52.82 3.972 0.75 IE4 100×80
NBG 100-80-125/130 380V/50Hz 51.9 3.836 0.75 IE3 100×80
NBG 100-80-125/136 380V/50Hz 108.7 18.59 7.5 IE3 100×80
NBG 100-80-125/136 380V/50Hz 108.8 18.66 7.5 IE3 100×80
NBG 100-80-125/136 380V/50Hz 109.2 18.78 7.5 IE4 100×80
NBG 100-80-125/142 380V/50Hz 61.57 5.03 1.1 IE3 100×80
NBG 100-80-125/142 380V/50Hz 61.79 5.065 1.1 IE4 100×80
NBG 100-80-125/144 380V/50Hz 126.7 20.83 11 IE3 100×80
NBG 100-80-125/144 380V/50Hz 126.5 20.76 11 IE3 100×80
NBG 100-80-125/144 380V/50Hz 126.7 20.83 11 IE4 100×80
NBG 100-80-160/135 380V/50Hz 45.54 4.469 0.75 IE4 100×80
NBG 100-80-160/135 380V/50Hz 44.75 4.316 0.75 IE3 100×80
NBG 100-80-160/143 380V/50Hz 101.8 20.51 7.5 IE3 100×80
NBG 100-80-160/143 380V/50Hz 102.4 20.72 7.5 IE4 100×80
NBG 100-80-160/143 380V/50Hz 102 20.58 7.5 IE3 100×80
NBG 100-80-160/149 380V/50Hz 51.82 5.661 1.1 IE4 100×80
NBG 100-80-160/149 380V/50Hz 51.64 5.622 1.1 IE3 100×80
NBG 100-80-160/157 380V/50Hz 103.6 27.23 11 IE3 100×80
NBG 100-80-160/157 380V/50Hz 103.4 27.13 11 IE3 100×80
NBG 100-80-160/157 380V/50Hz 103.6 27.23 11 IE4 100×80
NBG 100-80-160/165 380V/50Hz 57.6 7.397 1.5 IE3 100×80
NBG 100-80-160/165 380V/50Hz 57.8 7.448 1.5 IE4 100×80
NBG 100-80-160/173 380V/50Hz 115.4 34.74 15 IE3 100×80
NBG 100-80-160/173 380V/50Hz 115.4 34.74 15 IE3 100×80
NBG 100-80-160/173 380V/50Hz 115.6 34.86 15 IE4 100×80
NBG 100-80-160/177 380V/50Hz 118.8 36.61 18.5 IE3 100×80
NBG 100-80-160/177 380V/50Hz 118.8 36.61 18.5 IE4 100×80
NBG 100-80-160/177 380V/50Hz 63.56 8.778 2.2 IE3 100×80
NBG 100-80-160/177 380V/50Hz 64.22 8.961 2.2 IE4 100×80
NBG 100-80-160/177 380V/50Hz 118.6 36.49 18.5 IE3 100×80
NBG 125-80-160/146 380V/50Hz 85.01 4.668 1.5 IE4 125×80
NBG 125-80-160/146 380V/50Hz 84.71 4.635 1.5 IE3 125×80
NBG 125-80-160/147-127 380V/50Hz 163.5 16.71 11 IE4 125×80
NBG 125-80-160/147-127 380V/50Hz 163.2 16.65 11 IE3 125×80
NBG 125-80-160/147-127 380V/50Hz 163.5 16.71 11 IE3 125×80
NBG 125-80-160/151 380V/50Hz 181.8 20.52 15 IE4 125×80
NBG 125-80-160/151 380V/50Hz 181.5 20.45 15 IE3 125×80
NBG 125-80-160/151 380V/50Hz 181.5 20.45 15 IE3 125×80
NBG 125-80-160/161 380V/50Hz 191.9 25.06 18.5 IE4 125×80
NBG 125-80-160/161 380V/50Hz 191.6 24.98 18.5 IE3 125×80
NBG 125-80-160/161 380V/50Hz 191.9 25.06 18.5 IE3 125×80
NBG 125-80-160/161 380V/50Hz 93.32 6.243 2.2 IE4 125×80
NBG 125-80-160/161 380V/50Hz 92.36 6.115 2.2 IE3 125×80
NBG 125-80-160/167 380V/50Hz 200.4 27.73 22 IE3 125×80
NBG 125-80-160/167 380V/50Hz 200.4 27.73 22 IE3 125×80
NBG 125-80-160/167 380V/50Hz 200.7 27.83 22 IE4 125×80
NBG 125-80-160/175 380V/50Hz 100.3 7.693 3 IE3 125×80
NBG 125-80-160/175 380V/50Hz 101.4 7.854 3 IE4 125×80
NBG 125-80-160/177 380V/50Hz 103 8 4 IE3 125×80
NBG 125-80-160/177 380V/50Hz 102.6 7.945 4 IE4 125×80
NBG 125-80-160/177 380V/50Hz 213.3 32.82 30 IE3 125×80
NBG 125-80-160/177 380V/50Hz 214 33.04 30 IE4 125×80
NBG 125-80-200/164 380V/50Hz 72.89 7.002 2.2 IE3 125×80
NBG 125-80-200/164 380V/50Hz 73.65 7.149 2.2 IE4 125×80
NBG 125-80-200/171 380V/50Hz 160.5 31.98 22 IE3 125×80
NBG 125-80-200/171 380V/50Hz 160.8 32.08 22 IE4 125×80
NBG 125-80-200/171 380V/50Hz 160.5 31.98 22 IE3 125×80
NBG 125-80-200/179 380V/50Hz 82.23 8.58 3 IE3 125×80
NBG 125-80-200/179 380V/50Hz 83.09 8.76 3 IE4 125×80
NBG 125-80-200/188 380V/50Hz 182 40.53 30 IE3 125×80
NBG 125-80-200/188 380V/50Hz 182.6 40.8 30 IE4 125×80
NBG 125-80-200/196 380V/50Hz 91.5 10.9 4 IE3 125×80
NBG 125-80-200/196 380V/50Hz 91.18 10.82 4 IE4 125×80
NBG 125-80-200/200 380V/50Hz 199.8 46.57 37 IE3 125×80
NBG 125-80-200/200 380V/50Hz 186.8 48.15 37 IE4 125×80
NBG 125-80-200/211 380V/50Hz 212.3 53.24 45 IE3 125×80
NBG 125-80-200/211 380V/50Hz 213.7 53.96 45 IE4 125×80
NBG 125-80-200/214 380V/50Hz 104 13.58 5.5 IE3 125×80
NBG 125-80-200/214 380V/50Hz 104.4 13.68 5.5 IE4 125×80
NBG 125-80-200/222 380V/50Hz 229.2 60.72 55 IE4 125×80
NBG 125-80-200/222 380V/50Hz 105 14.9 7.5 IE4 125×80
NBG 125-80-200/222 380V/50Hz 228.4 60.31 55 IE3 125×80
NBG 125-80-200/222 380V/50Hz 105.7 14.9 7.5 IE3 125×80
NBG 125-80-250/220 380V/50Hz 187.5 60.61 45 IE4 125×80
NBG 125-80-250/220 380V/50Hz 186.3 59.8 45 IE3 125×80
NBG 125-80-250/225 380V/50Hz 91.93 15.51 5.5 IE3 125×80
NBG 125-80-250/225 380V/50Hz 92.24 15.62 5.5 IE4 125×80
NBG 125-80-250/234 380V/50Hz 203.1 68.7 55 IE3 125×80
NBG 125-80-250/234 380V/50Hz 203.8 69.16 55 IE4 125×80
NBG 125-80-250/244 380V/50Hz 99.58 19.16 7.5 IE3 125×80
NBG 125-80-250/244 380V/50Hz 99.92 19.29 7.5 IE4 125×80
NBG 125-80-250/257 380V/50Hz 233 84.37 75 IE4 125×80
NBG 125-80-250/257 380V/50Hz 232.2 83.8 75 IE3 125×80
NBG 125-80-250/270 380V/50Hz 119.9 23.12 11 IE3 125×80
NBG 125-80-250/270 380V/50Hz 249.6 92.93 90 IE3 125×80
NBG 125-80-250/270 380V/50Hz 120.3 23.28 11 IE4 125×80
NBG 125-80-250/270 380V/50Hz 250.4 93.56 90 IE4 125×80
NBG 125-80-315/278 380V/50Hz 221.5 103.2 90 IE3 125×80
NBG 125-80-315/278 380V/50Hz 222.3 103.9 90 IE4 125×80
NBG 125-80-315/280 380V/50Hz 107.7 24.46 11 IE3 125×80
NBG 125-80-315/280 380V/50Hz 108 24.63 11 IE4 125×80
NBG 125-80-315/295 380V/50Hz 243.5 113.8 110 IE4 125×80
NBG 125-80-315/295 380V/50Hz 243.5 113.8 110 IE3 125×80
NBG 125-80-315/305 380V/50Hz 126.2 29.6 15 IE4 125×80
NBG 125-80-315/305 380V/50Hz 125.8 29.39 15 IE3 125×80
NBG 125-80-315/310 380V/50Hz 263.4 126.8 132 IE3 125×80
NBG 125-80-315/310 380V/50Hz 263.4 126.8 132 IE4 125×80
NBG 125-80-315/320 380V/50Hz 138.2 32.38 18.5 IE3 125×80
NBG 125-80-315/320 380V/50Hz 138.6 32.6 18.5 IE4 125×80
NBG 125-80-315/328 380V/50Hz 288.6 143.7 160 IE4 125×80
NBG 125-80-315/328 380V/50Hz 288.6 143.7 160 IE3 125×80
NBG 125-80-315/334 380V/50Hz 147.5 35.8 22 IE4 125×80
NBG 125-80-315/334 380V/50Hz 147 35.56 22 IE3 125×80
NBG 125-80-400/347 380V/50Hz 114 35.97 18.5 IE3 125×80
NBG 125-80-400/347 380V/50Hz 114.4 36.22 18.5 IE4 125×80
NBG 125-80-400/365 380V/50Hz 124.5 39.67 22 IE3 125×80
NBG 125-80-400/365 380V/50Hz 124.9 39.94 22 IE4 125×80
NBG 125-80-400/365 380V/50Hz 124.5 39.67 22 IE3 125×80
NBG 125-80-400/397 380V/50Hz 149.1 46.99 30 IE4 125×80
NBG 125-80-400/397 380V/50Hz 148.1 46.35 30 IE3 125×80
NBG 125-80-400/419 380V/50Hz 162.6 53.24 37 IE4 125×80
NBG 125-80-400/419 380V/50Hz 162.6 53.24 37 IE3 125×80
NBG 125-80-400/438 380V/50Hz 175.9 59.18 45 IE4 125×80
NBG 125-80-400/438 380V/50Hz 175.9 59.18 45 IE3 125×80
NBG 125-100-160/160-140 380V/50Hz 113.2 4.833 2.2 IE3 125×100
NBG 125-100-160/160-140 380V/50Hz 114.4 4.934 2.2 IE4 125×100
NBG 125-100-160/160-140 220V/50Hz 65.8 2.16 0.55 IE4 125×100
NBG 125-100-160/160-154 380V/50Hz 243.2 20.97 18.5 IE3 125×100
NBG 125-100-160/160-154 380V/50Hz 243.6 21.04 18.5 IE4 125×100
NBG 125-100-160/167 380V/50Hz 228.2 26.27 22 IE4 125×100
NBG 125-100-160/167 380V/50Hz 227.9 26.18 22 IE3 125×100
NBG 125-100-160/169 380V/50Hz 72.66 2.617 0.75 IE4 125×100
NBG 125-100-160/169 380V/50Hz 73.8 2.7 0.75 IE3 125×100
NBG 125-100-160/169 380V/50Hz 116.2 6.411 3 IE3 125×100
NBG 125-100-160/169 380V/50Hz 117.4 6.545 3 IE4 125×100
NBG 125-100-160/176 380V/50Hz 84.6 3.1 1.1 IE3 125×100
NBG 125-100-160/176 380V/50Hz 120.2 7.051 4 IE4 125×100
NBG 125-100-160/176 380V/50Hz 83.29 3.005 1.1 IE4 125×100
NBG 125-100-160/176 380V/50Hz 244.7 29.69 30 IE3 125×100
NBG 125-100-160/176 380V/50Hz 120.6 7.1 4 IE3 125×100
NBG 125-100-160/176 380V/50Hz 245.5 29.89 30 IE4 125×100
NBG 125-100-200/170 380V/50Hz 268.8 28.13 30 IE3 125×100
NBG 125-100-200/170 380V/50Hz 269.8 28.32 30 IE4 125×100
NBG 125-100-200/177 380V/50Hz 128.7 8 4 IE3 125×100
NBG 125-100-200/177 380V/50Hz 128.3 7.945 4 IE4 125×100
NBG 125-100-200/181 380V/50Hz 285.3 33.65 37 IE3 125×100
NBG 125-100-200/181 380V/50Hz 287.2 34.11 37 IE4 125×100
NBG 125-100-200/182 380V/50Hz 89 3.8 1.1 IE3 125×100
NBG 125-100-200/182 380V/50Hz 87.62 3.683 1.1 IE4 125×100
NBG 125-100-200/192 380V/50Hz 300.7 39.9 45 IE3 125×100
NBG 125-100-200/192 380V/50Hz 302.7 40.44 45 IE4 125×100
NBG 125-100-200/193 380V/50Hz 93.53 4.408 1.5 IE4 125×100
NBG 125-100-200/193 380V/50Hz 94.5 4.5 1.5 IE3 125×100
NBG 125-100-200/193 380V/50Hz 94.5 4.5 1.5 IE3 125×100
NBG 125-100-200/195 380V/50Hz 146.7 10.34 5.5 IE3 125×100
NBG 125-100-200/195 380V/50Hz 147.2 10.41 5.5 IE4 125×100
NBG 125-100-200/203 380V/50Hz 323.2 46.26 55 IE3 125×100
NBG 125-100-200/203 380V/50Hz 324.3 46.57 55 IE4 125×100
NBG 125-100-200/210 380V/50Hz 160.8 12.67 7.5 IE3 125×100
NBG 125-100-200/210 380V/50Hz 161.4 12.76 7.5 IE4 125×100
NBG 125-100-200/214 380V/50Hz 110 5.3 2.2 IE3 125×100
NBG 125-100-200/214 380V/50Hz 110 5.3 2.2 IE3 125×100
NBG 125-100-200/214 380V/50Hz 108.9 5.191 2.2 IE4 125×100
NBG 125-100-200/219 380V/50Hz 173.4 13.88 11 IE3 125×100
NBG 125-100-200/219 380V/50Hz 122.1 5.86 3 IE3 125×100
NBG 125-100-200/219 380V/50Hz 122.8 5.92 3 IE3 125×100
NBG 125-100-200/219 220V/50Hz 122.1 5.86 3 IE4 125×100
NBG 125-100-200/219 380V/50Hz 174 13.97 11 IE4 125×100
NBG 125-100-200/219 380V/50Hz 357.8 55.69 75 IE3 125×100
NBG 125-100-200/219 380V/50Hz 359 56.07 75 IE4 125×100
NBG 125-100-250/205 380V/50Hz 246.2 47.51 55 IE3 125×100
NBG 125-100-250/205 380V/50Hz 247 47.83 55 IE4 125×100
NBG 125-100-250/215 380V/50Hz 137.5 12.98 7.5 IE3 125×100
NBG 125-100-250/215 380V/50Hz 138 13.07 7.5 IE4 125×100
NBG 125-100-250/216 380V/50Hz 97.7 5.6 2.2 IE3 125×100
NBG 125-100-250/216 380V/50Hz 96.69 5.485 2.2 IE4 125×100
NBG 125-100-250/229 380V/50Hz 302 61.78 75 IE3 125×100
NBG 125-100-250/229 380V/50Hz 303 62.19 75 IE4 125×100
NBG 125-100-250/236 380V/50Hz 107 7.349 3 IE3 125×100
NBG 125-100-250/236 220V/50Hz 106.4 7.274 3 IE4 125×100
NBG 125-100-250/242 380V/50Hz 311.8 71.11 90 IE3 125×100
NBG 125-100-250/242 380V/50Hz 312.8 71.59 90 IE4 125×100
NBG 125-100-250/245 380V/50Hz 161.7 17.78 11 IE3 125×100
NBG 125-100-250/245 380V/50Hz 162.2 17.9 11 IE4 125×100
NBG 125-100-250/258 380V/50Hz 324.4 81.83 110 IE3 125×100
NBG 125-100-250/258 380V/50Hz 324.4 81.83 110 IE4 125×100
NBG 125-100-250/260 380V/50Hz 111.7 8.778 4 IE3 125×100
NBG 125-100-250/260 380V/50Hz 111.2 8.689 4 IE4 125×100
NBG 125-100-250/274 380V/50Hz 345.4 91.87 132 IE3 125×100
NBG 125-100-250/274 380V/50Hz 119.5 9.799 5.5 IE3 125×100
NBG 125-100-250/274 380V/50Hz 118.9 9.699 5.5 IE4 125×100
NBG 125-100-250/274 380V/50Hz 174.3 22.3 15 IE3 125×100
NBG 125-100-250/274 380V/50Hz 174.9 22.46 15 IE4 125×100
NBG 125-100-250/274 380V/50Hz 345.4 91.87 132 IE4 125×100
NBG 125-100-315/269 380V/50Hz 297.8 90.18 110 IE3 125×100
NBG 125-100-315/269 380V/50Hz 297.8 90.18 110 IE4 125×100
NBG 125-100-315/272 380V/50Hz 99.11 10.1 4 IE3 125×100
NBG 125-100-315/272 380V/50Hz 98.61 10 4 IE4 125×100
NBG 125-100-315/279 380V/50Hz 155.1 23.95 15 IE3 125×100
NBG 125-100-315/279 380V/50Hz 155.6 24.11 15 IE4 125×100
NBG 125-100-315/284 380V/50Hz 319.8 101.4 132 IE4 125×100
NBG 125-100-315/284 380V/50Hz 319.8 101.4 132 IE3 125×100
NBG 125-100-315/295 380V/50Hz 167.6 27.03 18.5 IE3 125×100
NBG 125-100-315/295 380V/50Hz 168.2 27.22 18.5 IE4 125×100
NBG 125-100-315/301 380V/50Hz 111.8 12.53 5.5 IE4 125×100
NBG 125-100-315/301 380V/50Hz 112.4 12.66 5.5 IE3 125×100
NBG 125-100-315/301 380V/50Hz 345.7 115 160 IE3 125×100
NBG 125-100-315/301 380V/50Hz 345.7 115 160 IE4 125×100
NBG 125-100-315/301 380V/50Hz 111.8 12.53 5.5 IE3 125×100
NBG 125-100-315/312 380V/50Hz 178.9 30.73 22 IE3 125×100
NBG 125-100-315/312 380V/50Hz 178.9 30.73 22 IE3 125×100
NBG 125-100-315/312 380V/50Hz 179.5 30.94 22 IE4 125×100
NBG 125-100-315/322 380V/50Hz 380.7 133.2 200 IE3 125×100
NBG 125-100-315/322 380V/50Hz 380.7 133.2 200 IE4 125×100
NBG 125-100-315/326 380V/50Hz 125.9 15.16 7.5 IE3 125×100
NBG 125-100-315/326 380V/50Hz 125.3 15 7.5 IE3 125×100
NBG 125-100-315/326 380V/50Hz 124 14.7 7.5 IE4 125×100
NBG 125-100-315/334 380V/50Hz 130.3 15.72 11 IE3 125×100
NBG 125-100-315/334 380V/50Hz 129.7 15.56 11 IE4 125×100
NBG 125-100-315/334 380V/50Hz 196.7 35.36 30 IE3 125×100
NBG 125-100-315/334 380V/50Hz 130.3 15.72 11 IE3 125×100
NBG 125-100-315/334 380V/50Hz 198 35.84 30 IE4 125×100
NBG 125-100-400/334 380V/50Hz 176.9 33.42 22 IE4 125×100
NBG 125-100-400/334 380V/50Hz 176.3 33.2 22 IE3 125×100
NBG 125-100-400/340 380V/50Hz 116.5 15.41 7.5 IE3 125×100
NBG 125-100-400/340 380V/50Hz 115.3 15.1 7.5 IE4 125×100
NBG 125-100-400/360 380V/50Hz 189 40.21 30 IE4 125×100
NBG 125-100-400/360 380V/50Hz 187.8 39.67 30 IE3 125×100
NBG 125-100-400/375 380V/50Hz 209.2 43.86 37 IE4 125×100
NBG 125-100-400/375 380V/50Hz 209.2 43.86 37 IE3 125×100
NBG 125-100-400/380 380V/50Hz 131.4 20 11 IE4 125×100
NBG 125-100-400/380 380V/50Hz 132 20.21 11 IE3 125×100
NBG 125-100-400/395 380V/50Hz 211.3 49.9 45 IE4 125×100
NBG 125-100-400/395 380V/50Hz 211.3 49.9 45 IE3 125×100
NBG 125-100-400/415 380V/50Hz 147.6 24.5 15 IE4 125×100
NBG 125-100-400/415 380V/50Hz 147.6 24.5 15 IE3 125×100
NBG 125-100-400/415 380V/50Hz 215.1 56.85 55 IE4 125×100
NBG 125-100-400/415 380V/50Hz 214.3 56.47 55 IE3 125×100
NBG 150-125-200/176-150 380V/50Hz 135.7 2.841 1.5 IE4 150×125
NBG 150-125-200/176-150 380V/50Hz 137.1 2.9 1.5 IE3 150×125
NBG 150-125-200/176-154 380V/50Hz 384.9 28.44 45 IE3 150×125
NBG 150-125-200/176-154 380V/50Hz 387.5 28.83 45 IE4 150×125
NBG 150-125-200/176-154 380V/50Hz 208.6 6.941 5.5 IE4 150×125
NBG 150-125-200/176-154 380V/50Hz 207.9 6.894 5.5 IE3 150×125
NBG 150-125-200/196-166 380V/50Hz 420 37.86 55 IE3 150×125
NBG 150-125-200/196-166 380V/50Hz 421.4 38.12 55 IE4 150×125
NBG 150-125-200/196-174 380V/50Hz 234.8 8.82 7.5 IE3 150×125
NBG 150-125-200/196-174 380V/50Hz 235.6 8.881 7.5 IE4 150×125
NBG 150-125-200/196-182 380V/50Hz 150.7 4.114 2.2 IE4 150×125
NBG 150-125-200/196-182 380V/50Hz 152.3 4.2 2.2 IE3 150×125
NBG 150-125-200/205 380V/50Hz 492.4 43.32 75 IE3 150×125
NBG 150-125-200/205 380V/50Hz 494.1 43.61 75 IE4 150×125
NBG 150-125-200/215 380V/50Hz 168.5 5.206 3 IE3 150×125
NBG 150-125-200/215 380V/50Hz 167.7 5.153 3 IE4 150×125
NBG 150-125-200/219 380V/50Hz 259.5 12.23 11 IE3 150×125
NBG 150-125-200/219 380V/50Hz 260.4 12.31 11 IE4 150×125
NBG 150-125-200/219 380V/50Hz 535.6 49.3 90 IE3 150×125
NBG 150-125-200/219 380V/50Hz 537.4 49.63 90 IE4 150×125
NBG 150-125-200/224 380V/50Hz 553.8 52.37 110 IE3 150×125
NBG 150-125-200/224 380V/50Hz 553.8 52.37 110 IE4 150×125
NBG 150-125-200/226 380V/50Hz 181 5.961 4 IE4 150×125
NBG 150-125-200/226 380V/50Hz 274.4 13.45 15 IE4 150×125
NBG 150-125-200/226 380V/50Hz 182 6.022 4 IE3 150×125
NBG 150-125-200/226 380V/50Hz 273.5 13.36 15 IE3 150×125
NBG 150-125-250/216 380V/50Hz 145.6 5.658 3 IE3 150×125
NBG 150-125-250/216 220V/50Hz 145.6 5.658 3 IE4 150×125
NBG 150-125-250/216 380V/50Hz 146.4 5.716 3 IE3 150×125
NBG 150-125-250/220 380V/50Hz 221 13.16 11 IE3 150×125
NBG 150-125-250/220 380V/50Hz 221.8 13.24 11 IE4 150×125
NBG 150-125-250/221 380V/50Hz 475.6 53.39 90 IE3 150×125
NBG 150-125-250/221 380V/50Hz 477.2 53.75 90 IE4 150×125
NBG 150-125-250/232 380V/50Hz 163.7 6.635 4 IE3 150×125
NBG 150-125-250/232 380V/50Hz 162.8 6.567 4 IE4 150×125
NBG 150-125-250/235 380V/50Hz 513.1 62.3 110 IE4 150×125
NBG 150-125-250/235 380V/50Hz 513.1 62.3 110 IE3 150×125
NBG 150-125-250/236 380V/50Hz 239.3 15.62 15 IE3 150×125
NBG 150-125-250/236 380V/50Hz 240.1 15.73 15 IE4 150×125
NBG 150-125-250/248 380V/50Hz 553.6 70.85 132 IE3 150×125
NBG 150-125-250/248 380V/50Hz 553.6 70.85 132 IE4 150×125
NBG 150-125-250/249 380V/50Hz 255.5 17.68 18.5 IE3 150×125
NBG 150-125-250/249 380V/50Hz 256.3 17.8 18.5 IE4 150×125
NBG 150-125-250/253 380V/50Hz 183.9 8.083 5.5 IE4 150×125
NBG 150-125-250/253 380V/50Hz 184.9 8.166 5.5 IE3 150×125
NBG 150-125-250/253 380V/50Hz 183.9 8.083 5.5 IE3 150×125
NBG 150-125-250/261 380V/50Hz 600.3 80.14 160 IE3 150×125
NBG 150-125-250/261 380V/50Hz 600.3 80.14 160 IE4 150×125
NBG 150-125-250/262 380V/50Hz 272.7 19.94 22 IE3 150×125
NBG 150-125-250/262 380V/50Hz 272.7 19.94 22 IE3 150×125
NBG 150-125-250/262 380V/50Hz 273.6 20.08 22 IE4 150×125
NBG 150-125-250/269 380V/50Hz 635.6 85.95 200 IE4 150×125
NBG 150-125-250/269 380V/50Hz 635.6 85.95 200 IE3 150×125
NBG 150-125-250/269 380V/50Hz 311.3 21.25 30 IE4 150×125
NBG 150-125-250/269 380V/50Hz 309.2 20.97 30 IE3 150×125
NBG 150-125-250/269 380V/50Hz 201 9.2 7.5 IE4 150×125
NBG 150-125-250/269 380V/50Hz 203.1 9.391 7.5 IE3 150×125
NBG 150-125-250/269 380V/50Hz 204.1 9.487 7.5 IE3 150×125
NBG 150-125-315/262 380V/50Hz 382.2 82.15 132 IE3 150×125
NBG 150-125-315/262 380V/50Hz 382.2 82.15 132 IE4 150×125
NBG 150-125-315/275 380V/50Hz 127.6 10.2 5.5 IE3 150×125
NBG 150-125-315/275 380V/50Hz 128.3 10.31 5.5 IE3 150×125
NBG 150-125-315/275 380V/50Hz 197.1 22.82 18.5 IE3 150×125
NBG 150-125-315/275 380V/50Hz 127.6 10.2 5.5 IE4 150×125
NBG 150-125-315/275 380V/50Hz 197.8 22.97 18.5 IE4 150×125
NBG 150-125-315/277 380V/50Hz 408 95.03 160 IE4 150×125
NBG 150-125-315/277 380V/50Hz 408 95.03 160 IE3 150×125
NBG 150-125-315/290 380V/50Hz 210.5 26 22 IE3 150×125
NBG 150-125-315/290 380V/50Hz 211.2 26.18 22 IE4 150×125
NBG 150-125-315/290 380V/50Hz 210.5 26 22 IE3 150×125
NBG 150-125-315/297 380V/50Hz 143.3 12.37 7.5 IE3 150×125
NBG 150-125-315/297 380V/50Hz 142.6 12.25 7.5 IE3 150×125
NBG 150-125-315/297 380V/50Hz 141.1 12 7.5 IE4 150×125
NBG 150-125-315/297 380V/50Hz 445.2 112.1 200 IE3 150×125
NBG 150-125-315/297 380V/50Hz 445.2 112.1 200 IE4 150×125
NBG 150-125-315/317 380V/50Hz 238.4 32.19 30 IE4 150×125
NBG 150-125-315/317 380V/50Hz 236.8 31.76 30 IE3 150×125
NBG 150-125-315/335 380V/50Hz 169.4 15.82 11 IE3 150×125
NBG 150-125-315/335 380V/50Hz 169.4 15.82 11 IE3 150×125
NBG 150-125-315/335 380V/50Hz 168.6 15.66 11 IE4 150×125
NBG 150-125-315/336 380V/50Hz 262.2 35.94 37 IE3 150×125
NBG 150-125-315/336 380V/50Hz 262.2 35.94 37 IE4 150×125
NBG 150-125-315/338 380V/50Hz 174.9 16.02 15 IE4 150×125
NBG 150-125-315/338 380V/50Hz 265.8 36.26 45 IE4 150×125
NBG 150-125-315/338 380V/50Hz 265.8 36.26 45 IE3 150×125
NBG 150-125-315/338 380V/50Hz 174.9 16.02 15 IE3 150×125
NBG 150-125-315/338 380V/50Hz 174 15.86 15 IE3 150×125
NBG 150-125-400/345 380V/50Hz 220.5 38.03 37 IE3 150×125
NBG 150-125-400/345 380V/50Hz 220.5 38.03 37 IE4 150×125
NBG 150-125-400/351 380V/50Hz 145.3 17.66 11 IE3 150×125
NBG 150-125-400/351 380V/50Hz 145.3 17.66 11 IE3 150×125
NBG 150-125-400/351 380V/50Hz 144.5 17.48 11 IE3 150×125
NBG 150-125-400/368 380V/50Hz 238.8 43.76 45 IE3 150×125
NBG 150-125-400/368 380V/50Hz 238.8 43.76 45 IE4 150×125
NBG 150-125-400/384 380V/50Hz 170.7 21.13 15 IE4 150×125
NBG 150-125-400/384 380V/50Hz 169.9 20.91 15 IE3 150×125
NBG 150-125-400/384 380V/50Hz 170.7 21.13 15 IE3 150×125
NBG 150-125-400/392 380V/50Hz 265.4 50.11 55 IE3 150×125
NBG 150-125-400/392 380V/50Hz 266.3 50.45 55 IE4 150×125
NBG 150-125-400/410 380V/50Hz 187.6 23.89 18.5 IE3 150×125
NBG 150-125-400/410 380V/50Hz 189 24.23 18.5 IE3 150×125
NBG 150-125-400/410 380V/50Hz 188 23.99 18.5 IE4 150×125
NBG 150-125-400/433 380V/50Hz 308.3 60.72 75 IE4 150×125
NBG 150-125-400/433 380V/50Hz 307.2 60.31 75 IE4 150×125
NBG 150-125-400/433 380V/50Hz 308.3 60.72 75 IE3 150×125
NBG 150-125-400/434 380V/50Hz 195 26.34 22 IE4 150×125
NBG 150-125-400/434 380V/50Hz 197 26.88 22 IE3 150×125
NBG 150-125-400/438 380V/50Hz 196.7 27.29 30 IE3 150×125
NBG 150-125-400/438 380V/50Hz 195.1 26.85 30 IE3 150×125
NBG 150-125-400/438 380V/50Hz 195.7 27.02 30 IE4 150×125
NBG 150-125-400/438 380V/50Hz 287.7 62.51 90 IE3 150×125
NBG 150-125-400/438 380V/50Hz 286.8 62.09 90 IE4 150×125
NBG 150-125-500/406 380V/50Hz 232.7 53.18 55 IE4 150×125
NBG 150-125-500/421 380V/50Hz 166.7 24.91 18.5 IE4 150×125
NBG 150-125-500/421 380V/50Hz 167.6 25.16 18.5 IE3 150×125
NBG 150-125-500/445 380V/50Hz 181.6 28.23 22 IE3 150×125
NBG 150-125-500/445 380V/50Hz 179.7 27.66 22 IE4 150×125
NBG 150-125-500/447 380V/50Hz 270 64.2 75 IE3 150×125
NBG 150-125-500/447 380V/50Hz 269.1 63.77 75 IE4 150×125
NBG 150-125-500/473 380V/50Hz 294.3 71.38 90 IE3 150×125
NBG 150-125-500/473 380V/50Hz 293.3 70.9 90 IE4 150×125
NBG 150-125-500/493 380V/50Hz 207.2 34.17 30 IE3 150×125
NBG 150-125-500/493 380V/50Hz 205.5 33.62 30 IE3 150×125
NBG 150-125-500/493 380V/50Hz 206.1 33.82 30 IE4 150×125
NBG 150-125-500/500 380V/50Hz 322.7 78.67 110 IE4 150×125
NBG 150-125-500/500 380V/50Hz 322.7 78.67 110 IE3 150×125
NBG 150-125-500/524 380V/50Hz 224.5 37.92 37 IE3 150×125
NBG 150-125-500/524 380V/50Hz 222.3 37.15 37 IE4 150×125
NBG 150-125-500/526 380V/50Hz 325.2 88.49 132 IE3 150×125
NBG 150-125-500/526 380V/50Hz 325.2 88.49 132 IE4 150×125
NBG 150-125-500/546 380V/50Hz 226.8 41.77 45 IE3 150×125
NBG 150-125-500/546 380V/50Hz 224.5 40.93 45 IE4 150×125
NBG 150-125-500/548 380V/50Hz 342.8 95.56 160 IE3 150×125
NBG 150-125-500/548 380V/50Hz 342.8 95.56 160 IE4 150×125
NBG 150-125-500/548 380V/50Hz 226.1 41.24 55 IE4 150×125
NBG 150-125-500/548 380V/50Hz 228.4 42.08 55 IE3 150×125
NBG 200-150-200/210-154 380V/50Hz 374.6 5.272 7.5 IE3 200×150
NBG 200-150-200/210-154 380V/50Hz 375.8 5.308 7.5 IE4 200×150
NBG 200-150-200/210-168 380V/50Hz 230.5 2.6 2.2 IE3 200×150
NBG 200-150-200/210-168 380V/50Hz 230.5 2.6 2.2 IE3 200×150
NBG 200-150-200/210-168 380V/50Hz 228.1 2.547 2.2 IE4 200×150
NBG 200-150-200/216-176 380V/50Hz 758.4 27.58 75 IE3 200×150
NBG 200-150-200/216-176 380V/50Hz 760.9 27.77 75 IE4 200×150
NBG 200-150-200/218-200 220V/50Hz 248.3 3.334 3 IE4 200×150
NBG 200-150-200/218-200 380V/50Hz 249.6 3.368 3 IE3 200×150
NBG 200-150-200/218-200 380V/50Hz 248.3 3.334 3 IE3 200×150
NBG 200-150-200/218-202 380V/50Hz 785.1 29.26 90 IE3 200×150
NBG 200-150-200/218-202 380V/50Hz 787.8 29.46 90 IE4 200×150
NBG 200-150-200/218-208 380V/50Hz 382.6 7.914 11 IE3 200×150
NBG 200-150-200/218-208 380V/50Hz 383.9 7.968 11 IE4 200×150
NBG 200-150-200/224 380V/50Hz 263.7 4.185 4 IE3 200×150
NBG 200-150-200/224 380V/50Hz 262.4 4.142 4 IE4 200×150
NBG 200-150-200/224 380V/50Hz 402.5 9.25 15 IE3 200×150
NBG 200-150-200/224 380V/50Hz 403.8 9.313 15 IE4 200×150
NBG 200-150-200/224 380V/50Hz 829.6 37.06 110 IE3 200×150
NBG 200-150-200/224 380V/50Hz 831.8 37.26 110 IE4 200×150
NBG 200-150-200/224 380V/50Hz 829.6 37.06 110 IE4 200×150
NBG 200-150-250/226-214 380V/50Hz 375.2 10.18 15 IE3 200×150
NBG 200-150-250/226-214 380V/50Hz 376.5 10.24 15 IE4 200×150
NBG 200-150-250/226-220 380V/50Hz 636.7 46.36 132 IE4 200×150
NBG 200-150-250/226-220 380V/50Hz 636.7 46.36 132 IE3 200×150
NBG 200-150-250/230 380V/50Hz 339.7 12.44 18.5 IE3 200×150
NBG 200-150-250/230 380V/50Hz 340.9 12.52 18.5 IE4 200×150
NBG 200-150-250/235 380V/50Hz 239.1 6.163 5.5 IE4 200×150
NBG 200-150-250/235 380V/50Hz 709.8 53.96 160 IE3 200×150
NBG 200-150-250/235 380V/50Hz 709.8 53.96 160 IE4 200×150
NBG 200-150-250/235 380V/50Hz 240.4 6.226 5.5 IE3 200×150
NBG 200-150-250/242 380V/50Hz 349.6 14.9 22 IE3 200×150
NBG 200-150-250/242 380V/50Hz 350.7 15 22 IE4 200×150
NBG 200-150-250/250 380V/50Hz 832.3 62.41 200 IE3 200×150
NBG 200-150-250/250 380V/50Hz 832.3 62.41 200 IE4 200×150
NBG 200-150-250/252 380V/50Hz 269.2 7.349 7.5 IE3 200×150
NBG 200-150-250/252 380V/50Hz 266.5 7.2 7.5 IE4 200×150
NBG 200-150-250/262 380V/50Hz 416.7 19.01 30 IE3 200×150
NBG 200-150-250/262 380V/50Hz 419.5 19.27 30 IE4 200×150
NBG 200-150-250/275 380V/50Hz 441.6 22.09 37 IE4 200×150
NBG 200-150-250/275 380V/50Hz 441.6 22.09 37 IE3 200×150
NBG 200-150-250/282 380V/50Hz 311.7 10.31 11 IE3 200×150
NBG 200-150-250/282 380V/50Hz 310.1 10.2 11 IE4 200×150
NBG 200-150-250/282 380V/50Hz 464.4 23.23 45 IE3 200×150
NBG 200-150-250/282 380V/50Hz 464.4 23.23 45 IE4 200×150
NBG 200-150-315.2/244 380V/50Hz 707 60.08 160 IE3 200×150
NBG 200-150-315.2/244 380V/50Hz 707 60.08 160 IE4 200×150
NBG 200-150-315.2/250 380V/50Hz 365 15.93 22 IE3 200×150
NBG 200-150-315.2/250 380V/50Hz 366.2 16.04 22 IE4 200×150
NBG 200-150-315.2/259 380V/50Hz 250.7 7.8 7.5 IE4 200×150
NBG 200-150-315.2/259 380V/50Hz 253.3 7.962 7.5 IE3 200×150
NBG 200-150-315.2/262 380V/50Hz 757.7 72.86 200 IE3 200×150
NBG 200-150-315.2/262 380V/50Hz 757.7 72.86 200 IE4 200×150
NBG 200-150-315.2/275 380V/50Hz 405.5 20.45 30 IE3 200×150
NBG 200-150-315.2/275 380V/50Hz 408.3 20.73 30 IE4 200×150
NBG 200-150-315.2/293 380V/50Hz 294.6 10.62 11 IE3 200×150
NBG 200-150-315.2/293 380V/50Hz 293.1 10.51 11 IE4 200×150
NBG 200-150-315.2/294 380V/50Hz 437 24.27 37 IE3 200×150
NBG 200-150-315.2/294 380V/50Hz 437 24.27 37 IE4 200×150
NBG 200-150-315.2/314 380V/50Hz 480.3 27.61 45 IE3 200×150
NBG 200-150-315.2/314 380V/50Hz 480.3 27.61 45 IE4 200×150
NBG 200-150-315.2/328 380V/50Hz 335.1 13.06 15 IE3 200×150
NBG 200-150-315.2/328 380V/50Hz 335.1 13.06 15 IE4 200×150
NBG 200-150-315.2/334 380V/50Hz 531.5 30.63 55 IE3 200×150
NBG 200-150-315.2/334 380V/50Hz 533.3 30.84 55 IE4 200×150
NBG 200-150-315.2/342 380V/50Hz 360.4 14.54 18.5 IE3 200×150
NBG 200-150-315.2/342 380V/50Hz 358.6 14.39 18.5 IE4 200×150
NBG 200-150-315.2/342 380V/50Hz 554.9 32.63 75 IE3 200×150
NBG 200-150-315.2/342 380V/50Hz 553 32.41 75 IE4 200×150
NBG 200-150-315/275 380V/50Hz 461.4 20.52 37 IE4 200×150
NBG 200-150-315/275 380V/50Hz 461.4 20.52 37 IE3 200×150
NBG 200-150-315/280 380V/50Hz 311.3 9.391 11 IE3 200×150
NBG 200-150-315/280 380V/50Hz 311.3 9.391 11 IE3 200×150
NBG 200-150-315/280 380V/50Hz 309.7 9.295 11 IE4 200×150
NBG 200-150-315/291 380V/50Hz 488.2 23.44 45 IE3 200×150
NBG 200-150-315/291 380V/50Hz 488.2 23.44 45 IE4 200×150
NBG 200-150-315/305 380V/50Hz 340 11.32 15 IE3 200×150
NBG 200-150-315/305 380V/50Hz 341.8 11.43 15 IE3 200×150
NBG 200-150-315/305 380V/50Hz 341.8 11.43 15 IE4 200×150
NBG 200-150-315/310 380V/50Hz 527.1 27.19 55 IE3 200×150
NBG 200-150-315/310 380V/50Hz 528.9 27.38 55 IE4 200×150
NBG 200-150-315/322 380V/50Hz 366.3 13.01 18.5 IE3 200×150
NBG 200-150-315/322 380V/50Hz 368.9 13.2 18.5 IE3 200×150
NBG 200-150-315/322 380V/50Hz 367 13.06 18.5 IE4 200×150
NBG 200-150-315/336 380V/50Hz 591.11 33.37 75 IE3 200×150
NBG 200-150-315/336 380V/50Hz 591.1 33.37 75 IE4 200×150
NBG 200-150-315/336 380V/50Hz 589.1 33.14 75 IE4 200×150
NBG 200-150-315/337 380V/50Hz 394.4 14.79 22 IE3 200×150
NBG 200-150-315/337 380V/50Hz 390.4 14.49 22 IE4 200×150
NBG 200-150-315/338 380V/50Hz 593.2 33.67 90 IE4 200×150
NBG 200-150-315/338 380V/50Hz 392.3 14.76 30 IE3 200×150
NBG 200-150-315/338 380V/50Hz 393.5 14.85 30 IE4 200×150
NBG 200-150-315/338 380V/50Hz 595.2 33.9 90 IE3 200×150
NBG 200-150-315/338 380V/50Hz 395.5 15 30 IE3 200×150
NBG 200-150-400/343 380V/50Hz 388.9 36.36 55 IE3 200×150
NBG 200-150-400/343 380V/50Hz 390.2 36.6 55 IE4 200×150
NBG 200-150-400/357 380V/50Hz 269.2 17.56 18.5 IE4 200×150
NBG 200-150-400/357 380V/50Hz 268.6 17.48 18.5 IE3 200×150
NBG 200-150-400/357 380V/50Hz 270.5 17.74 18.5 IE3 200×150
NBG 200-150-400/375 380V/50Hz 441.4 44.98 75 IE3 200×150
NBG 200-150-400/375 380V/50Hz 439.9 44.68 75 IE4 200×150
NBG 200-150-400/375 380V/50Hz 441.4 44.98 75 IE4 200×150
NBG 200-150-400/375 380V/50Hz 290.4 20 22 IE3 200×150
NBG 200-150-400/375 380V/50Hz 287.4 19.6 22 IE4 200×150
NBG 200-150-400/394 380V/50Hz 475.5 50.37 90 IE3 200×150
NBG 200-150-400/394 380V/50Hz 473.9 50.03 90 IE4 200×150
NBG 200-150-400/408 380V/50Hz 332.1 23.41 30 IE4 200×150
NBG 200-150-400/408 380V/50Hz 333.7 23.65 30 IE3 200×150
NBG 200-150-400/408 380V/50Hz 331 23.26 30 IE3 200×150
NBG 200-150-400/412 380V/50Hz 520.5 55.65 110 IE3 200×150
NBG 200-150-400/412 380V/50Hz 520.5 55.65 110 IE4 200×150
NBG 200-150-400/430 380V/50Hz 369.4 25.88 37 IE3 200×150
NBG 200-150-400/430 380V/50Hz 367.6 25.62 37 IE4 200×150
NBG 200-150-400/430 380V/50Hz 371.3 26.15 37 IE3 200×150
NBG 200-150-400/431 380V/50Hz 571.11 61.35 132 IE3 200×150
NBG 200-150-400/431 380V/50Hz 571.1 61.35 132 IE4 200×150
NBG 200-150-400/438 380V/50Hz 588.1 63.67 160 IE4 200×150
NBG 200-150-400/438 380V/50Hz 387.6 26.77 45 IE3 200×150
NBG 200-150-400/438 380V/50Hz 388.4 26.88 45 IE3 200×150
NBG 200-150-400/438 380V/50Hz 384.4 26.34 45 IE4 200×150
NBG 200-150-400/438 380V/50Hz 588.1 63.67 160 IE3 200×150
NBG 200-150-500/457 380V/50Hz 299.4 31.04 37 IE3 200×150
NBG 200-150-500/457 380V/50Hz 296.3 30.42 37 IE4 200×150
NBG 200-150-500/457 380V/50Hz 297.8 30.72 37 IE3 200×150
NBG 200-150-500/459 380V/50Hz 460.4 70.54 132 IE3 200×150
NBG 200-150-500/459 380V/50Hz 460.4 70.54 132 IE4 200×150
NBG 200-150-500/483 380V/50Hz 321.8 34.34 45 IE3 200×150
NBG 200-150-500/483 380V/50Hz 322.4 34.48 45 IE3 200×150
NBG 200-150-500/483 380V/50Hz 319.2 33.79 45 IE4 200×150
NBG 200-150-500/489 380V/50Hz 495.4 80.04 160 IE4 200×150
NBG 200-150-500/489 380V/50Hz 495.4 80.04 160 IE3 200×150
NBG 200-150-500/513 380V/50Hz 333.4 39.2 55 IE4 200×150
NBG 200-150-500/513 380V/50Hz 336.8 40 55 IE3 200×150
NBG 200-150-500/513 380V/50Hz 336.1 39.84 55 IE3 200×150
NBG 200-150-500/521 380V/50Hz 524.1 93.87 200 IE3 200×150
NBG 200-150-500/521 380V/50Hz 524.1 93.87 200 IE4 200×150
NBG 200-150-500/548 380V/50Hz 347 45.94 75 IE3 200×150
NBG 200-150-500/548 380V/50Hz 343.5 45.01 75 IE4 200×150
NBG 250-200-400/280 380V/50Hz 399.6 22.82 37 IE3 250×200
NBG 250-200-400/280 380V/50Hz 399.6 22.82 37 IE4 250×200
NBG 250-200-400/296 380V/50Hz 435.9 26.46 45 IE3 250×200
NBG 250-200-400/296 380V/50Hz 435.9 26.46 45 IE4 250×200
NBG 250-200-400/308 380V/50Hz 308.2 12.86 15 IE4 250×200
NBG 250-200-400/308 380V/50Hz 306.7 12.73 15 IE3 250×200
NBG 250-200-400/308 380V/50Hz 308.2 12.86 15 IE3 250×200
NBG 250-200-400/312 380V/50Hz 478 30.21 55 IE4 250×200
NBG 250-200-400/312 380V/50Hz 476.4 30 55 IE3 250×200
NBG 250-200-400/328 380V/50Hz 343.2 14.64 18.5 IE3 250×200
NBG 250-200-400/328 380V/50Hz 345.7 14.85 18.5 IE3 250×200
NBG 250-200-400/328 380V/50Hz 343.9 14.7 18.5 IE4 250×200
NBG 250-200-400/344 380V/50Hz 537.1 37.8 75 IE3 250×200
NBG 250-200-400/344 380V/50Hz 537.1 37.8 75 IE4 250×200
NBG 250-200-400/344 380V/50Hz 535.3 37.55 75 IE4 250×200
NBG 250-200-400/348 380V/50Hz 359 16.84 22 IE4 250×200
NBG 250-200-400/348 380V/50Hz 362.6 17.19 22 IE3 250×200
NBG 250-200-400/364 380V/50Hz 590.1 41.71 90 IE3 250×200
NBG 250-200-400/364 380V/50Hz 588.2 41.43 90 IE4 250×200
NBG 250-200-400/384 380V/50Hz 408.4 20.21 30 IE4 250×200
NBG 250-200-400/384 380V/50Hz 407.2 20.09 30 IE3 250×200
NBG 250-200-400/384 380V/50Hz 410.5 20.42 30 IE3 250×200
NBG 250-200-400/392 380V/50Hz 629.5 46.78 110 IE3 250×200
NBG 250-200-400/392 380V/50Hz 629.5 46.78 110 IE4 250×200
NBG 250-200-400/404 380V/50Hz 668.6 49.63 132 IE4 250×200
NBG 250-200-400/404 380V/50Hz 439.4 22.19 37 IE3 250×200
NBG 250-200-400/404 380V/50Hz 437.2 21.96 37 IE3 250×200
NBG 250-200-400/404 380V/50Hz 434.9 21.74 37 IE4 250×200
NBG 250-200-400/404 380V/50Hz 668.6 49.63 132 IE3 250×200
NBG 250-200-450/355 380V/50Hz 287.6 16.98 18.5 IE3 250×200
NBG 250-200-450/355 380V/50Hz 288.2 17.05 18.5 IE4 250×200
NBG 250-200-450/355 380V/50Hz 289.7 17.22 18.5 IE3 250×200
NBG 250-200-450/367 380V/50Hz 458.3 43.61 75 IE3 250×200
NBG 250-200-450/367 380V/50Hz 456.8 43.32 75 IE4 250×200
NBG 250-200-450/371 380V/50Hz 316.3 18.85 22 IE3 250×200
NBG 250-200-450/371 380V/50Hz 313.1 18.48 22 IE4 250×200
NBG 250-200-450/391 380V/50Hz 509.7 47.41 90 IE4 250×200
NBG 250-200-450/391 380V/50Hz 511.4 47.73 90 IE3 250×200
NBG 250-200-450/407 380V/50Hz 358.8 23.12 30 IE3 250×200
NBG 250-200-450/407 380V/50Hz 356 22.75 30 IE3 250×200
NBG 250-200-450/407 380V/50Hz 357 22.89 30 IE4 250×200
NBG 250-200-450/415 380V/50Hz 550.8 53.64 1110 IE3 250×200
NBG 250-200-450/415 380V/50Hz 550.8 53.64 110 IE4 250×200
NBG 250-200-450/431 380V/50Hz 382.4 24.95 37 IE3 250×200
NBG 250-200-450/431 380V/50Hz 384.4 25.21 37 IE3 250×200
NBG 250-200-450/431 380V/50Hz 380.5 24.7 37 IE4 250×200
NBG 250-200-450/435 380V/50Hz 601.8 58.6 132 IE3 250×200
NBG 250-200-450/435 380V/50Hz 601.8 58.6 132 IE4 250×200
NBG 250-200-450/451 380V/50Hz 409.3 27.46 45 IE4 250×200
NBG 250-200-450/451 380V/50Hz 413.4 28.02 45 IE3 250×200
NBG 250-200-450/451 380V/50Hz 412.6 27.91 45 IE3 250×200
NBG 250-200-450/455 380V/50Hz 658.5 64.1 160 IE3 250×200
NBG 250-200-450/455 380V/50Hz 658.5 64.1 160 IE4 250×200
NBG 300-250-350/266 380V/50Hz 748.9 13.65 37 IE3 300×250
NBG 300-250-350/266 380V/50Hz 748.9 13.65 37 IE4 300×250
NBG 300-250-350/277 380V/50Hz 475 7.043 11 IE3 300×250
NBG 300-250-350/277 380V/50Hz 475 7.043 11 IE3 300×250
NBG 300-250-350/277 380V/50Hz 472.6 6.971 11 IE4 300×250
NBG 300-250-350/294 380V/50Hz 750.2 18.54 45 IE3 300×250
NBG 300-250-350/294 380V/50Hz 750.2 18.54 45 IE4 300×250
NBG 300-250-350/306 380V/50Hz 523.3 8.778 15 IE3 300×250
NBG 300-250-350/306 380V/50Hz 523.3 8.778 15 IE4 300×250
NBG 300-250-350/306 380V/50Hz 520.7 8.689 15 IE3 300×250
NBG 300-250-350/318 380V/50Hz 799.6 21.77 55 IE3 300×250
NBG 300-250-350/318 380V/50Hz 802.3 21.92 55 IE4 300×250
NBG 300-250-350/330 380V/50Hz 542.4 10.37 18.5 IE3 300×250
NBG 300-250-350/330 380V/50Hz 546.3 10.52 18.5 IE3 300×250
NBG 300-250-350/330 380V/50Hz 543.6 10.41 18.5 IE4 300×250
NBG 300-250-350/362 380V/50Hz 875.5 27.48 75 IE4 300×250
NBG 300-250-350/362 380V/50Hz 878.5 27.66 75 IE3 300×250
NBG 300-250-350/366 380V/50Hz 601.4 12.29 22 IE3 300×250
NBG 300-250-350/366 380V/50Hz 595.3 12.04 22 IE4 300×250
NBG 300-250-350/370 380V/50Hz 914.7 28.74 90 IE4 300×250
NBG 300-250-350/370 380V/50Hz 917.7 28.93 90 IE3 300×250
NBG 300-250-400/281 380V/50Hz 613.4 18.02 45 IE3 300×250
NBG 300-250-400/281 380V/50Hz 613.4 18.02 45 IE4 300×250
NBG 300-250-400/289 380V/50Hz 429.2 8.386 15 IE3 300×250
NBG 300-250-400/289 380V/50Hz 431.4 8.472 15 IE3 300×250
NBG 300-250-400/289 380V/50Hz 431.4 8.472 15 IE4 300×250
NBG 300-250-400/301 380V/50Hz 602.3 24.02 55 IE4 300×250
NBG 300-250-400/313 380V/50Hz 422.1 11.65 18.5 IE3 300×250
NBG 300-250-400/313 380V/50Hz 419.1 11.49 18.5 IE3 300×250
NBG 300-250-400/313 380V/50Hz 420 11.53 18.5 IE4 300×250
NBG 300-250-400/329 380V/50Hz 471.5 12.81 22 IE3 300×250
NBG 300-250-400/329 380V/50Hz 466.8 12.56 22 IE4 300×250
NBG 300-250-400/329 380V/50Hz 708.2 29.04 75 IE3 300×250
NBG 300-250-400/329 380V/50Hz 705.8 28.84 75 IE4 300×250
NBG 300-250-400/349 380V/50Hz 732 34.61 90 IE4 300×250
NBG 300-250-400/349 380V/50Hz 734.4 34.85 90 IE3 300×250
NBG 300-250-400/361 380V/50Hz 520.2 16.46 30 IE3 300×250
NBG 300-250-400/361 380V/50Hz 516 16.19 30 IE3 300×250
NBG 300-250-400/361 380V/50Hz 517.6 16.29 30 IE4 300×250
NBG 300-250-400/365 380V/50Hz 812.3 38.54 110 IE3 300×250
NBG 300-250-400/365 380V/50Hz 812.3 38.54 110 IE4 300×250
NBG 300-250-400/365 380V/50Hz 812.8 38.59 110 IE4 300×250
NBG 300-250-400/381 380V/50Hz 544.5 18.66 37 IE3 300×250
NBG 300-250-400/381 380V/50Hz 541.7 18.48 37 IE4 300×250
NBG 300-250-400/381 380V/50Hz 547.3 18.85 37 IE3 300×250
NBG 300-250-400/385 380V/50Hz 850.3 44.67 132 IE3 300×250
NBG 300-250-400/385 380V/50Hz 850.3 44.67 132 IE4 300×250
NBG 300-250-400/401 380V/50Hz 616.2 20.64 45 IE3 300×250
NBG 300-250-400/401 380V/50Hz 617.5 20.73 45 IE3 300×250
NBG 300-250-400/401 380V/50Hz 611.2 20.31 45 IE4 300×250
NBG 300-250-400/405 380V/50Hz 896.4 50.58 160 IE4 300×250
NBG 300-250-400/405 380V/50Hz 896.4 50.58 160 IE3 300×250
NBG 300-250-450/313 380V/50Hz 390.5 12.3 18.5 IE3 300×250
NBG 300-250-450/313 380V/50Hz 391.3 12.35 18.5 IE4 300×250
NBG 300-250-450/313 380V/50Hz 393.3 12.48 18.5 IE3 300×250
NBG 300-250-450/325 380V/50Hz 426.1 13.54 22 IE3 300×250
NBG 300-250-450/325 380V/50Hz 421.8 13.27 22 IE4 300×250
NBG 300-250-450/325 380V/50Hz 641 30.73 75 IE3 300×250
NBG 300-250-450/325 380V/50Hz 638.9 30.52 75 IE4 300×250
NBG 300-250-450/341 380V/50Hz 654.3 36.08 90 IE4 300×250
NBG 300-250-450/341 380V/50Hz 656.5 36.32 90 IE3 300×250
NBG 300-250-450/357 380V/50Hz 467.4 17.81 30 IE3 300×250
NBG 300-250-450/357 380V/50Hz 463.7 17.53 30 IE3 300×250
NBG 300-250-450/357 380V/50Hz 465.1 17.63 30 IE4 300×250
NBG 300-250-450/361 380V/50Hz 717.9 41.39 110 IE4 300×250
NBG 300-250-450/361 380V/50Hz 717.9 41.39 110 IE3 300×250
NBG 300-250-450/377 380V/50Hz 507.4 20.21 37 IE3 300×250
NBG 300-250-450/377 380V/50Hz 504.9 20 37 IE3 300×250
NBG 300-250-450/377 380V/50Hz 502.3 19.8 37 IE4 300×250
NBG 300-250-450/381 380V/50Hz 783.8 46.46 132 IE3 300×250
NBG 300-250-450/381 380V/50Hz 783.3 46.46 132 IE4 300×250
NBG 300-250-450/397 380V/50Hz 550.3 22.15 45 IE4 300×250
NBG 300-250-450/397 380V/50Hz 554.8 22.51 45 IE3 300×250
NBG 300-250-450/397 380V/50Hz 555.9 22.6 45 IE3 300×250
NBG 300-250-450/401 380V/50Hz 844.9 51.74 160 IE3 300×250
NBG 300-250-450/401 380V/50Hz 844.9 51.74 160 IE4 300×250
NBG 300-250-450/433 380V/50Hz 591.3 25.62 55 IE3 300×250
NBG 300-250-450/433 380V/50Hz 592.5 25.73 55 IE3 300×250
NBG 300-250-450/433 380V/50Hz 586.5 25.21 55 IE4 300×250
NBG 300-250-450/445 380V/50Hz 927.6 60.29 200 IE3 300×250
NBG 300-250-450/445 380V/50Hz 927.6 60.29 200 IE4 300×250
NBG 300-250-500/409 380V/50Hz 496.9 21.95 45 IE4 300×250
NBG 300-250-500/409 380V/50Hz 501.9 22.4 45 IE3 300×250
NBG 300-250-500/409 380V/50Hz 500.9 22.3 45 IE3 300×250
NBG 300-250-500/417 380V/50Hz 791.3 52.58 160 IE3 300×250
NBG 300-250-500/417 380V/50Hz 791.3 52.58 160 IE4 300×250
NBG 300-250-500/437 380V/50Hz 545.2 25.52 55 IE3 300×250
NBG 300-250-500/437 380V/50Hz 540.8 25.11 55 IE4 300×250
NBG 300-250-500/437 380V/50Hz 546.3 25.62 55 IE3 300×250
NBG 300-250-500/445 380V/50Hz 852.5 60.08 200 IE3 300×250
NBG 300-250-500/445 380V/50Hz 852.5 60.08 200 IE4 300×250
NBG 300-250-500/485 380V/50Hz 618.9 30.32 75 IE4 300×250
NBG 300-250-500/485 380V/50Hz 625.2 30.94 75 IE3 300×250
NBG 300-250-500/525 380V/50Hz 666.6 35.73 90 IE3 300×250
NBG 300-250-500/525 380V/50Hz 666.6 35.73 90 IE4 300×250

Size

Video Introduction

Message Inquiry

*
*
*
*
*
Submit
