I. Product Series Overview
The Sololift2 series includes 5 core models, designed for different wastewater disposal scenarios:
WC Series (WC-1/WC-3/CWC-3): Specifically designed for toilet wastewater containing toilet paper, equipped with a squeegee system.

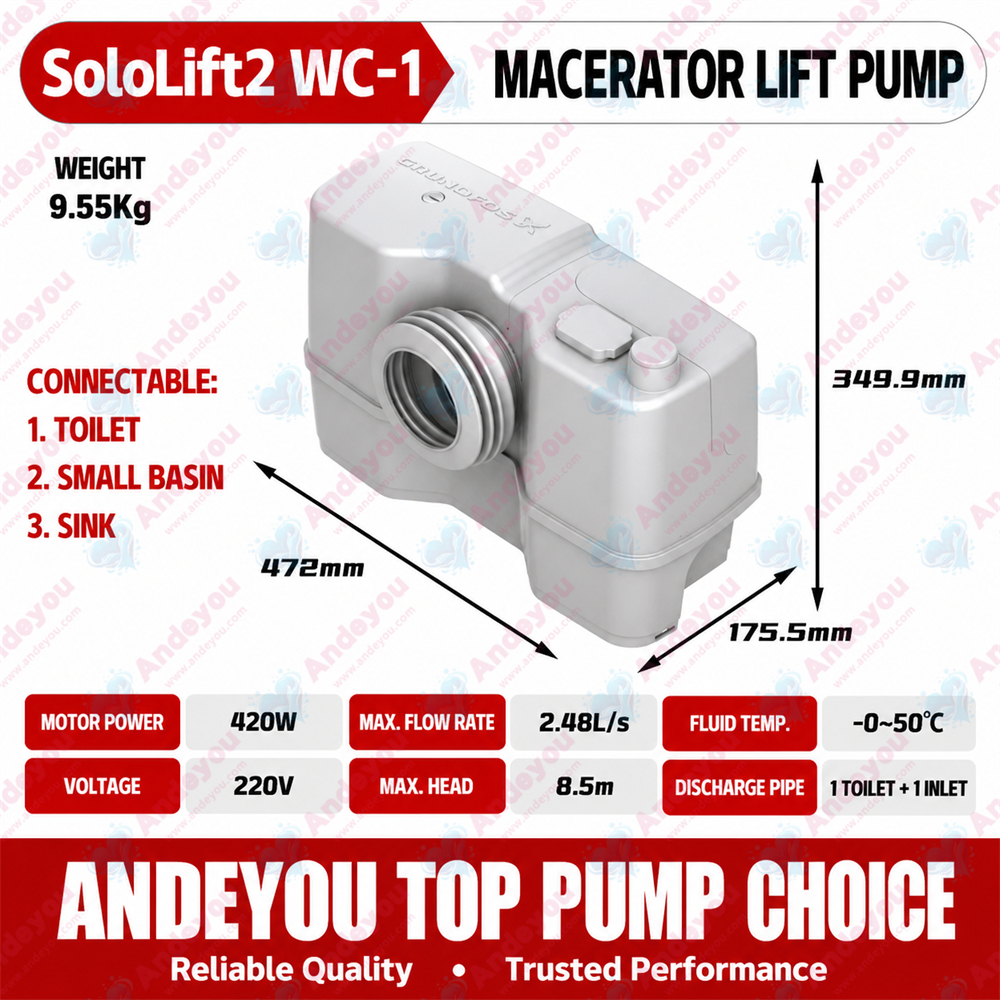

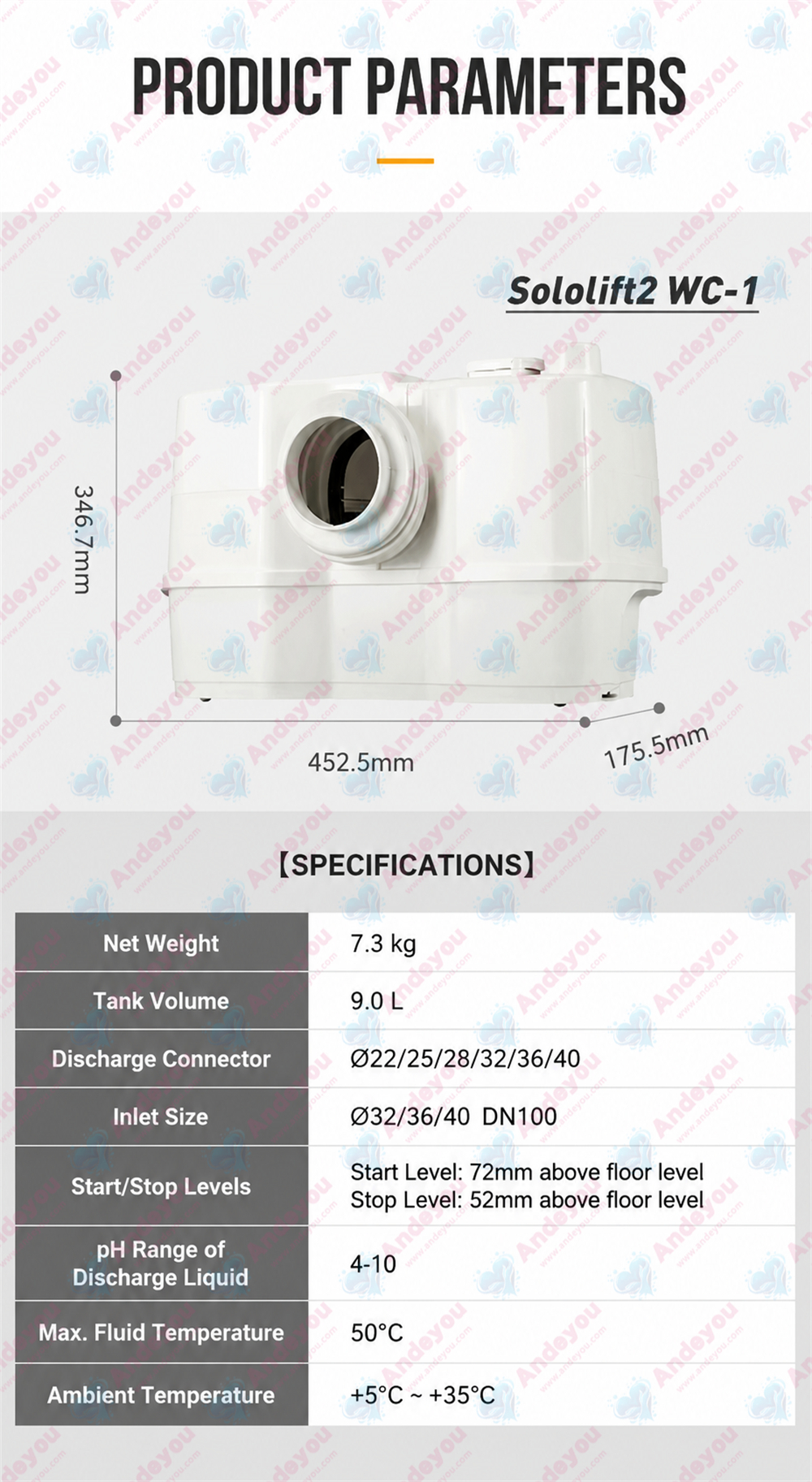

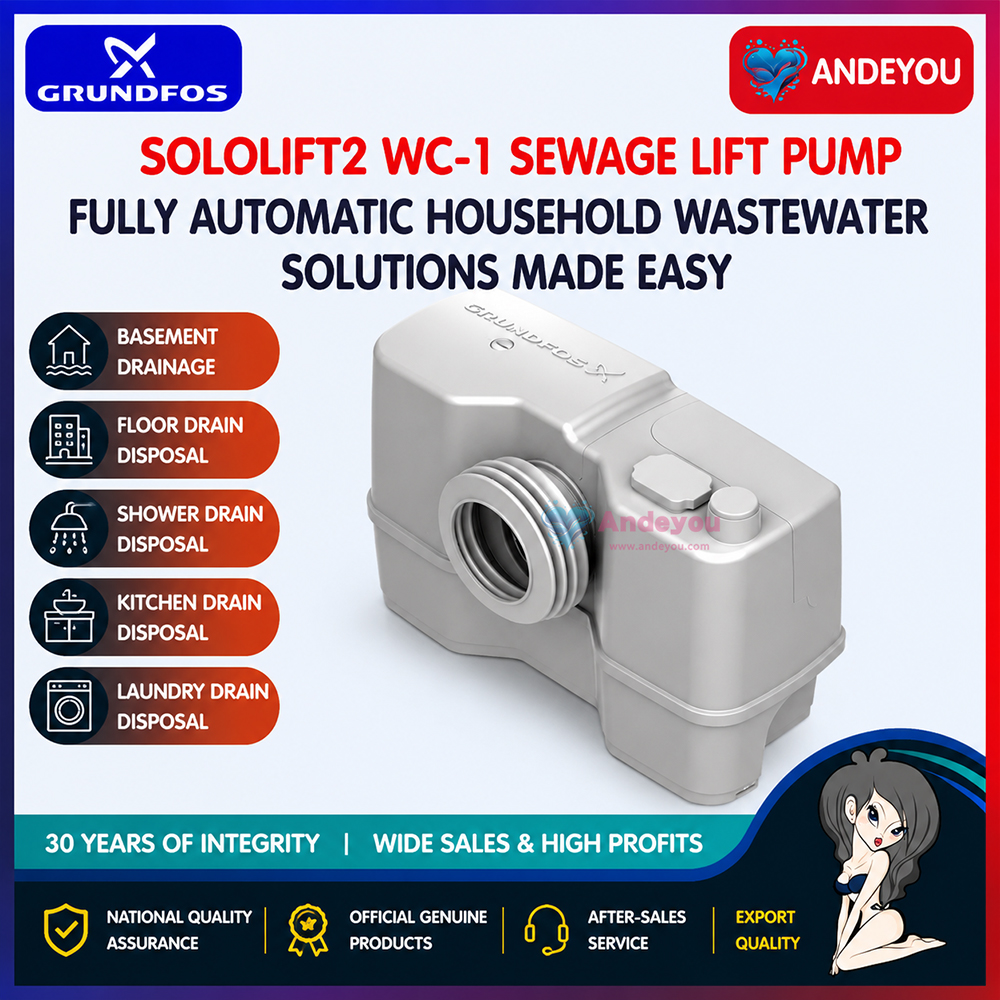

WC-1: Single fixture connection (e.g., toilet + sink)

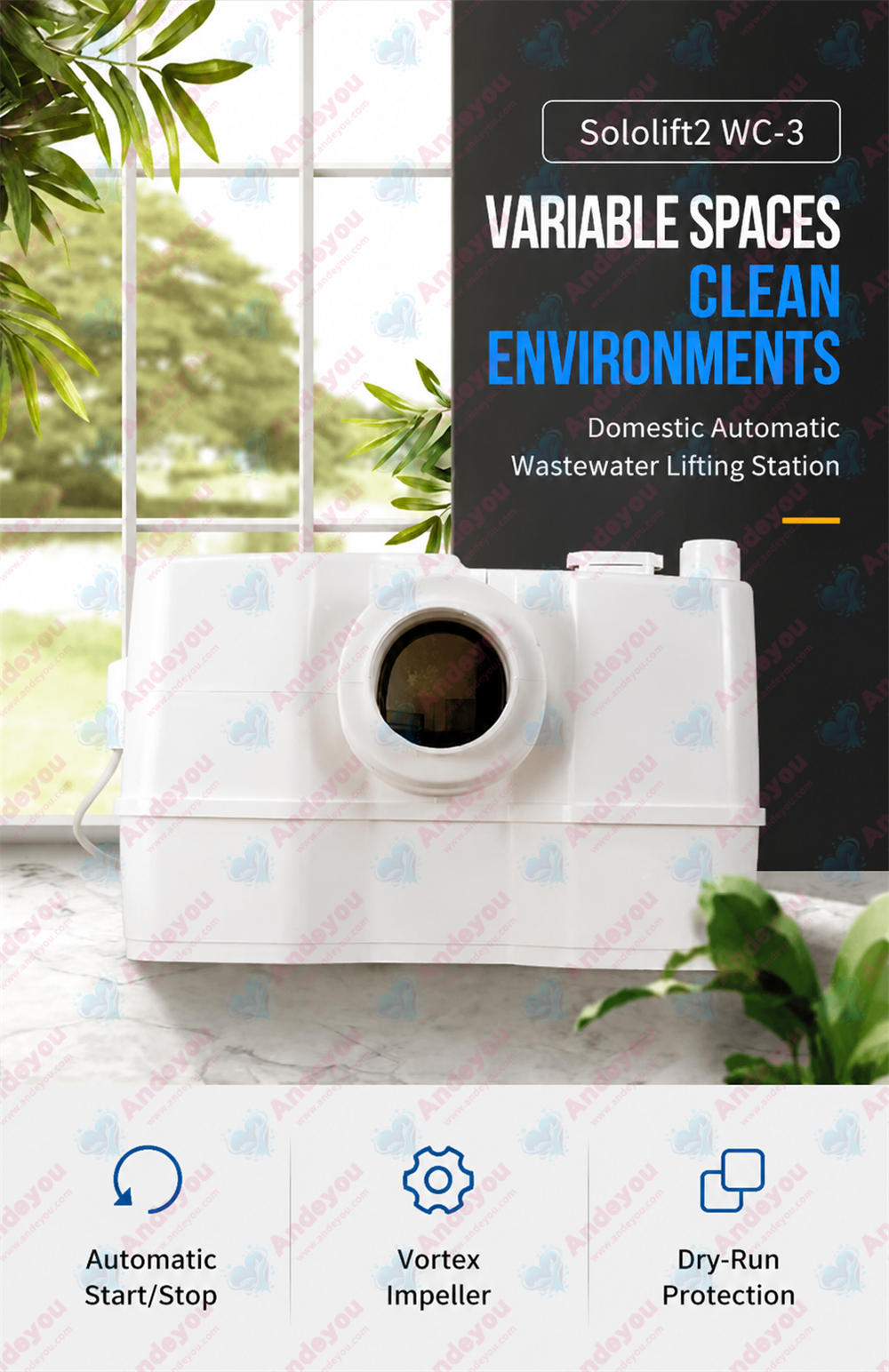

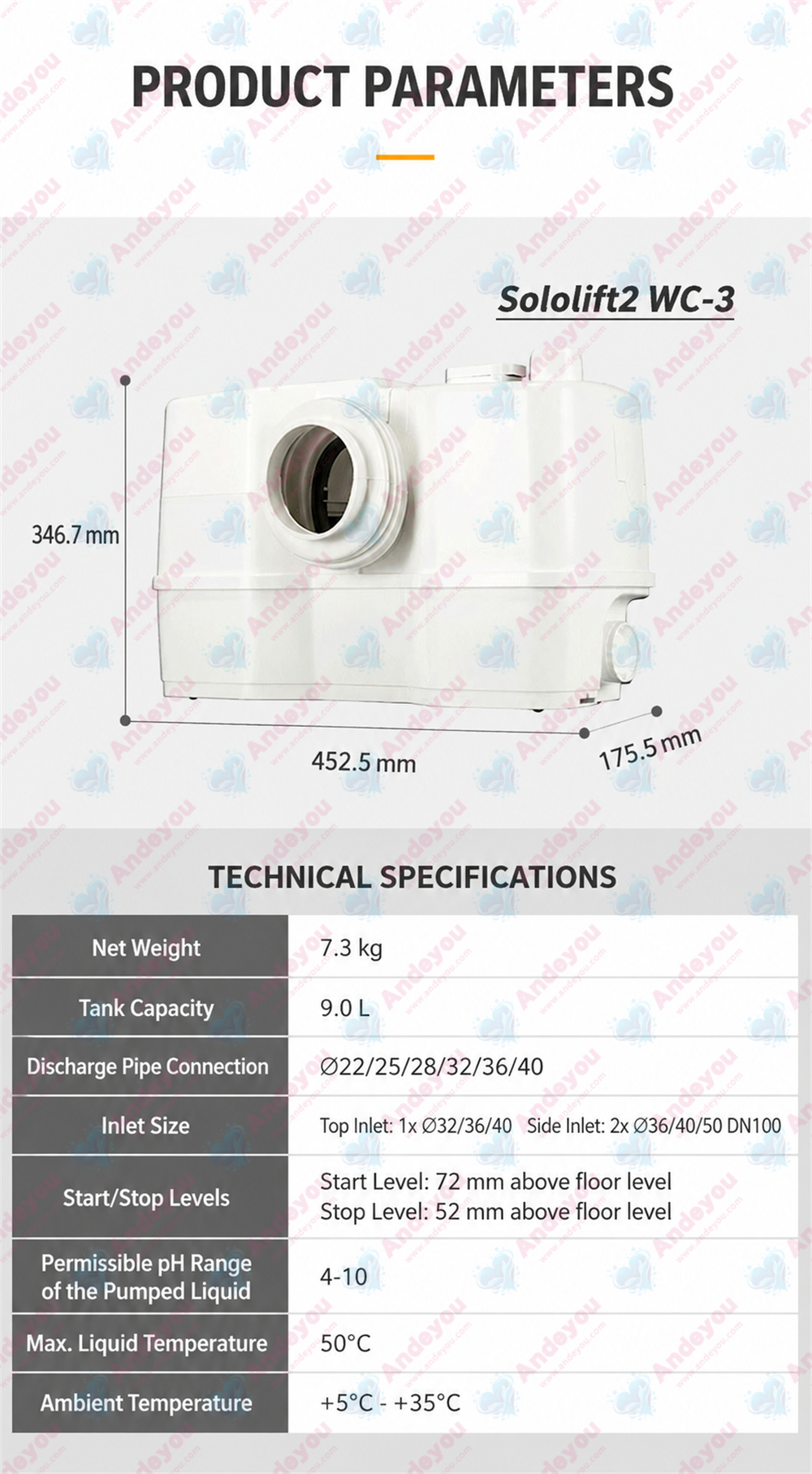

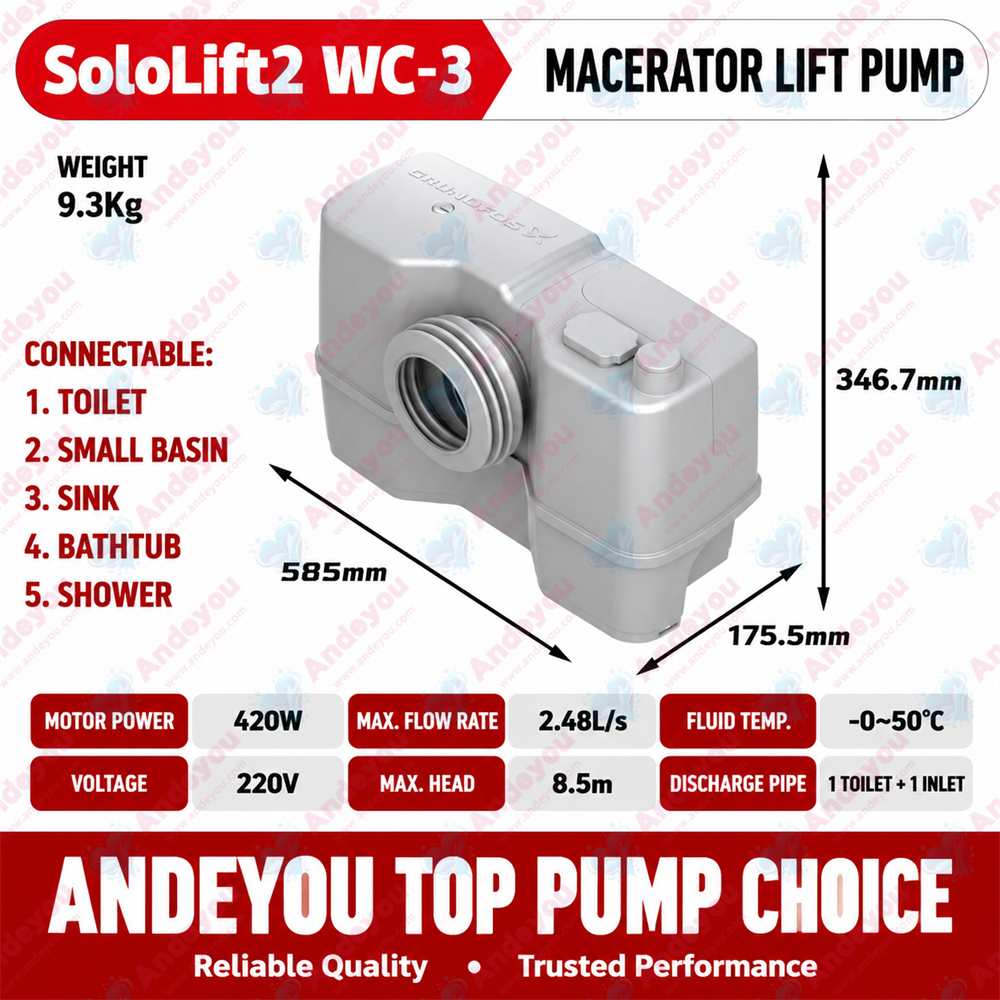

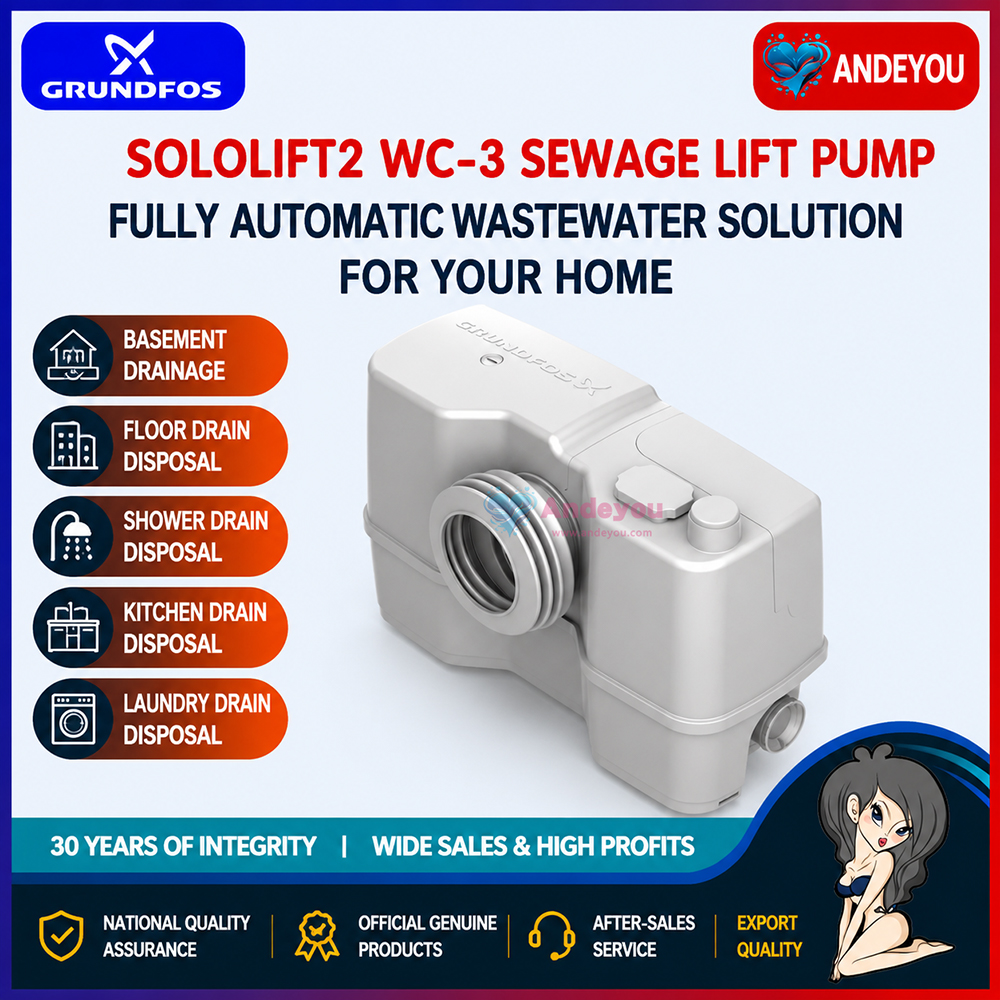

WC-3: Multiple fixture connection (can connect to toilet/urinal, etc.)

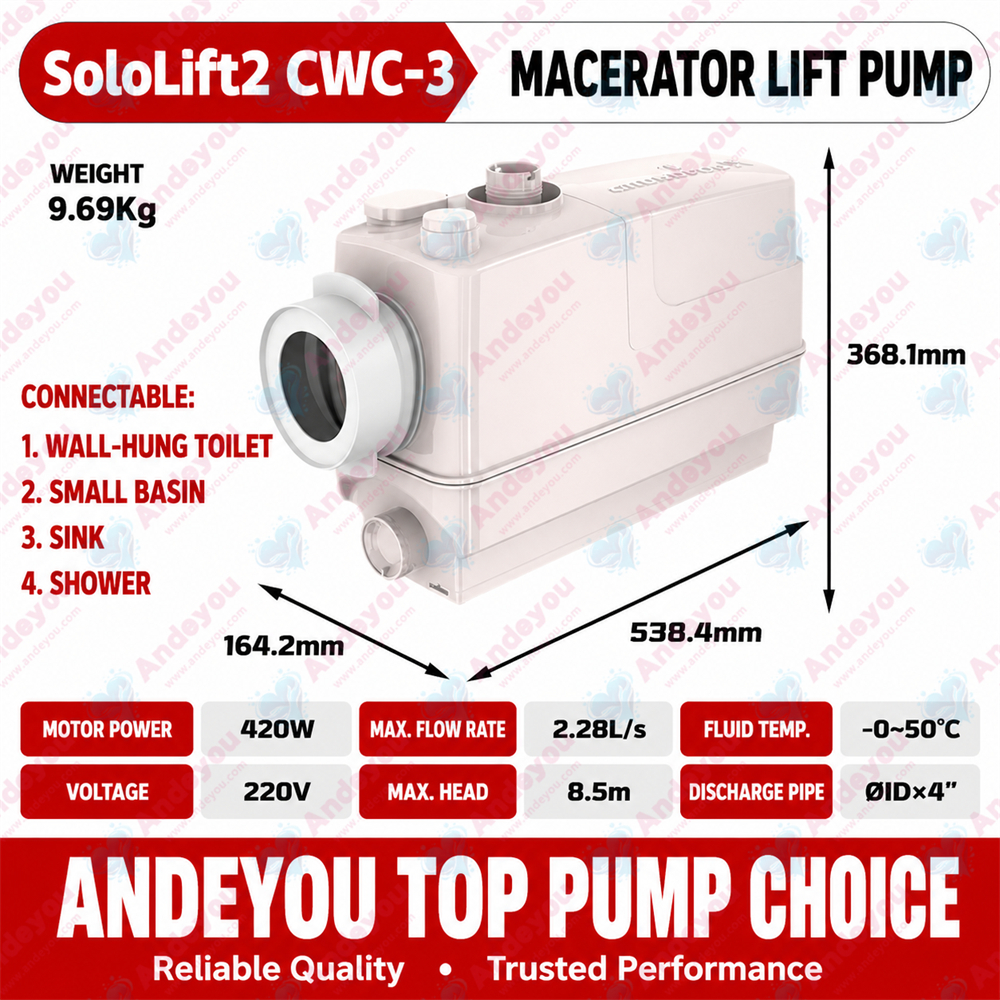

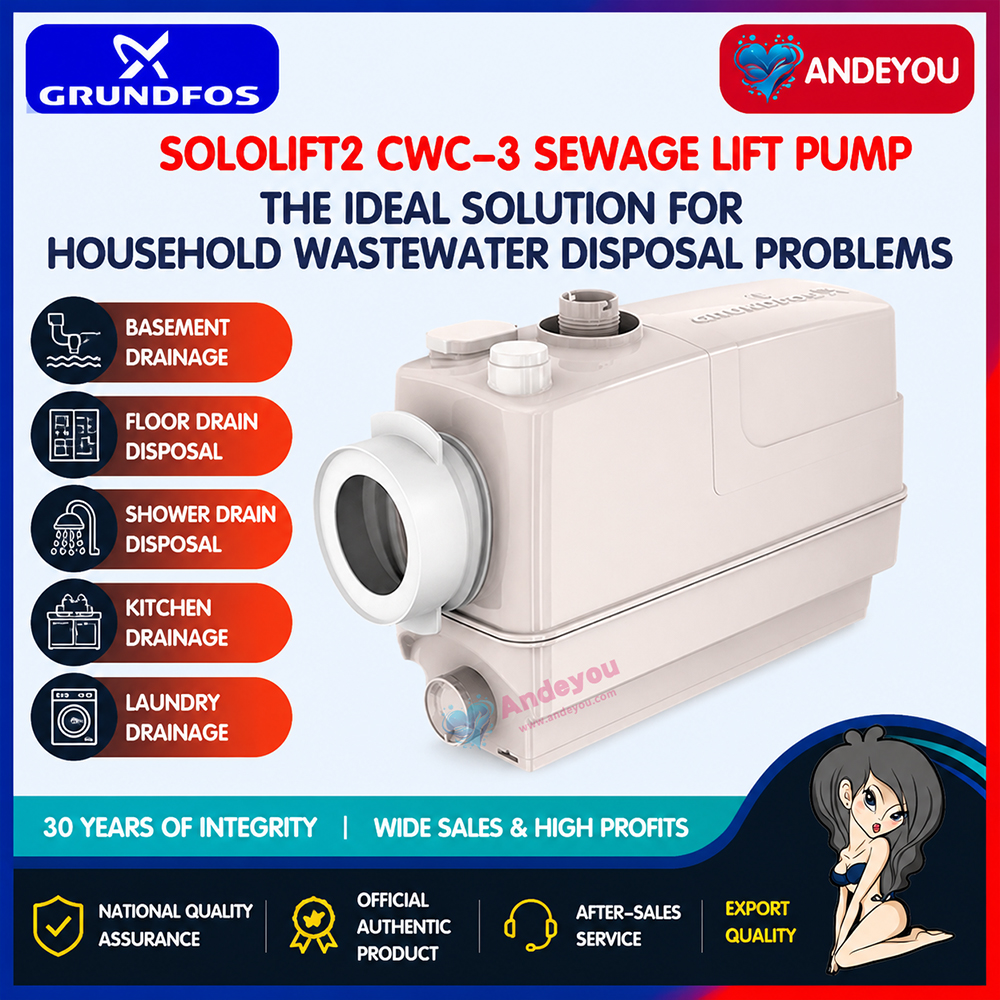

CWC-3: Compact wall-mounted design
Grey Water Series (C-3/D-2): Treats grey water from showers/laundry with no solid impurities.

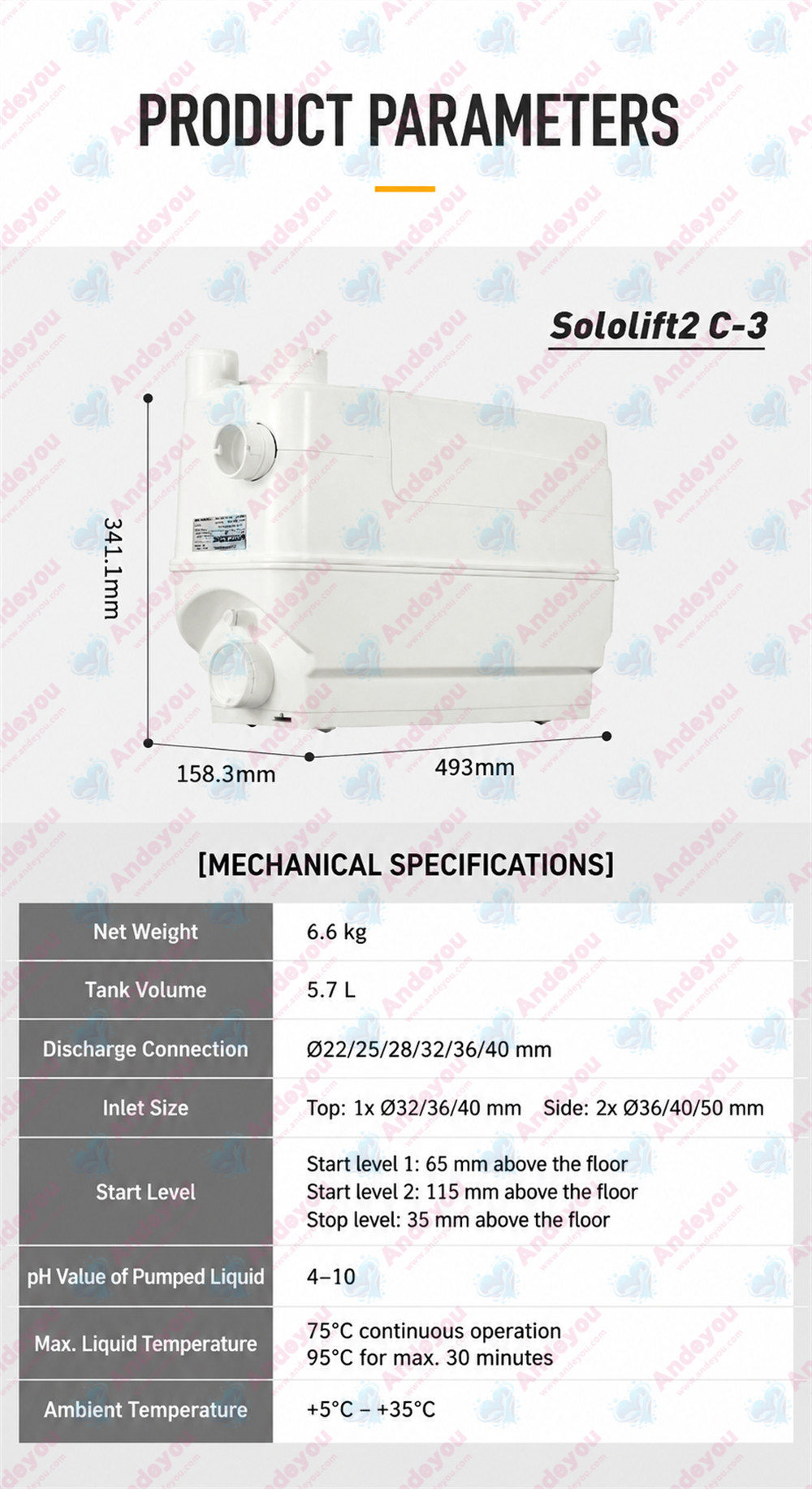

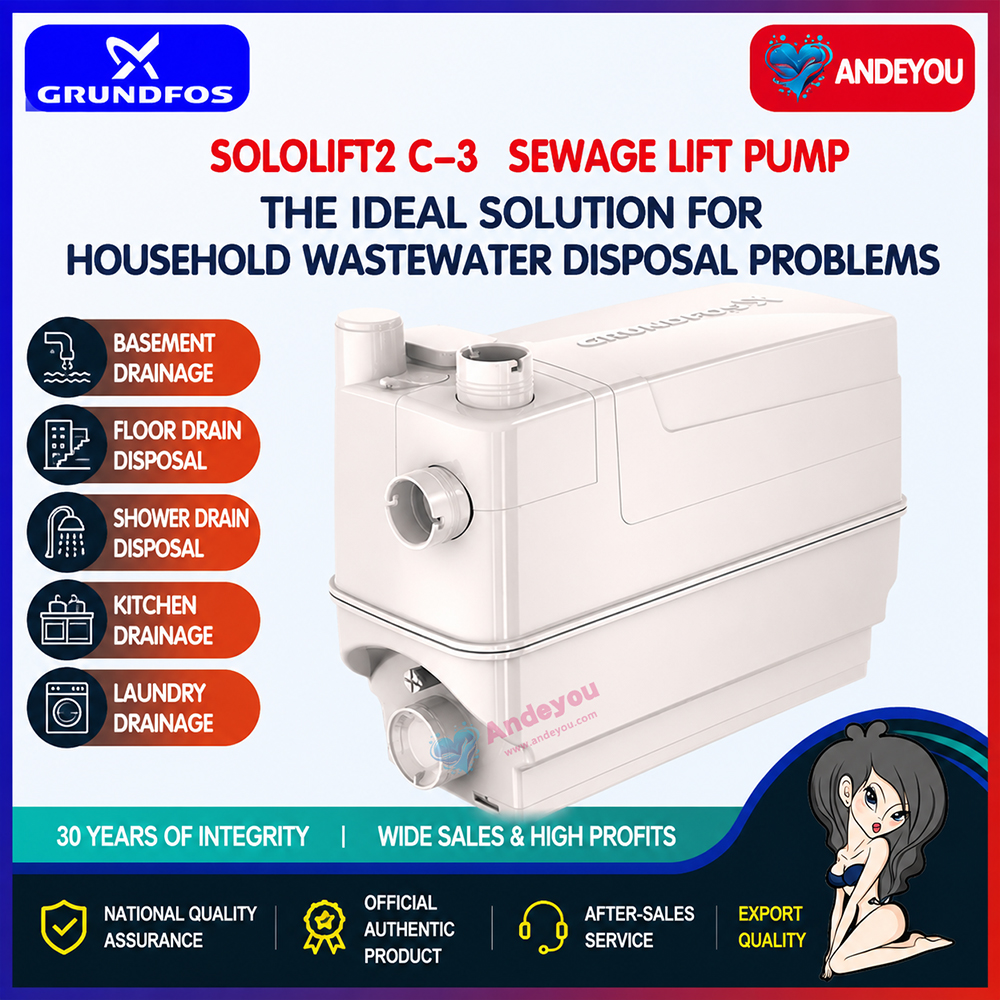

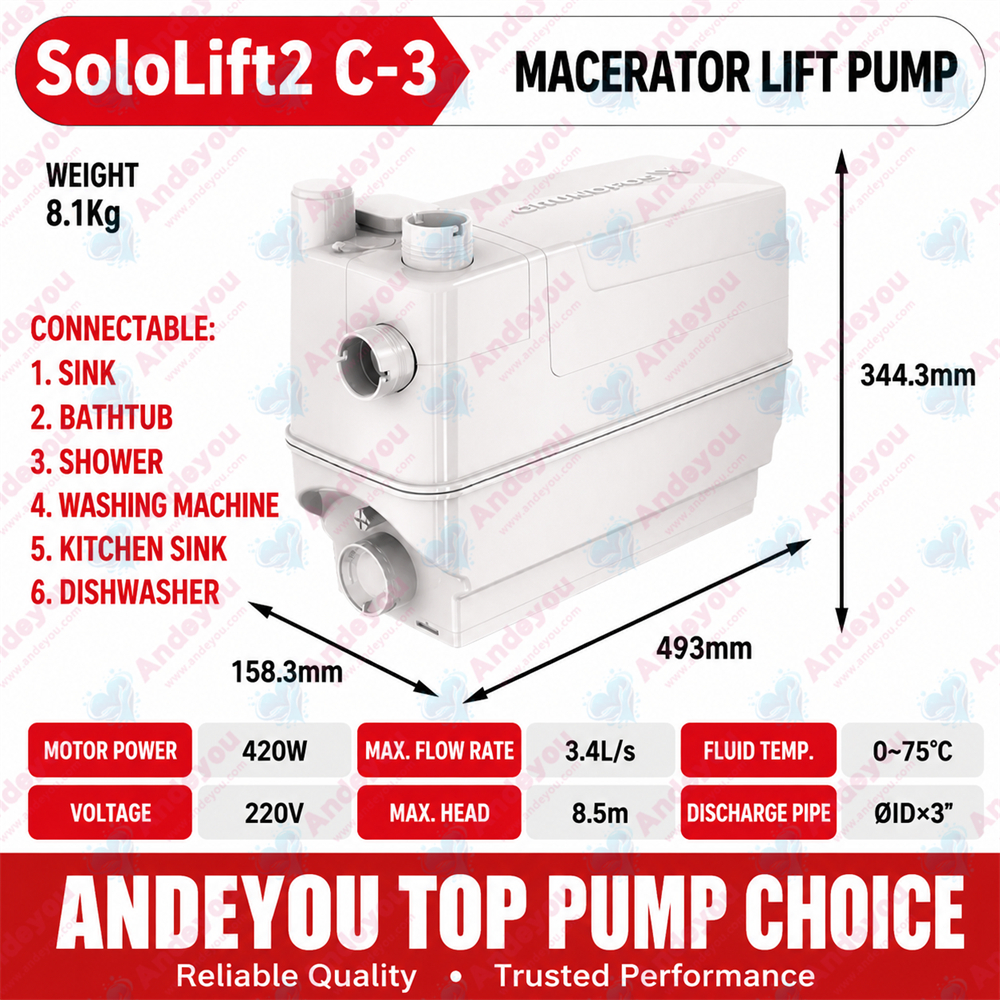

C-3: High temperature resistant up to 90℃, suitable for washing machine/dishwasher drainage.

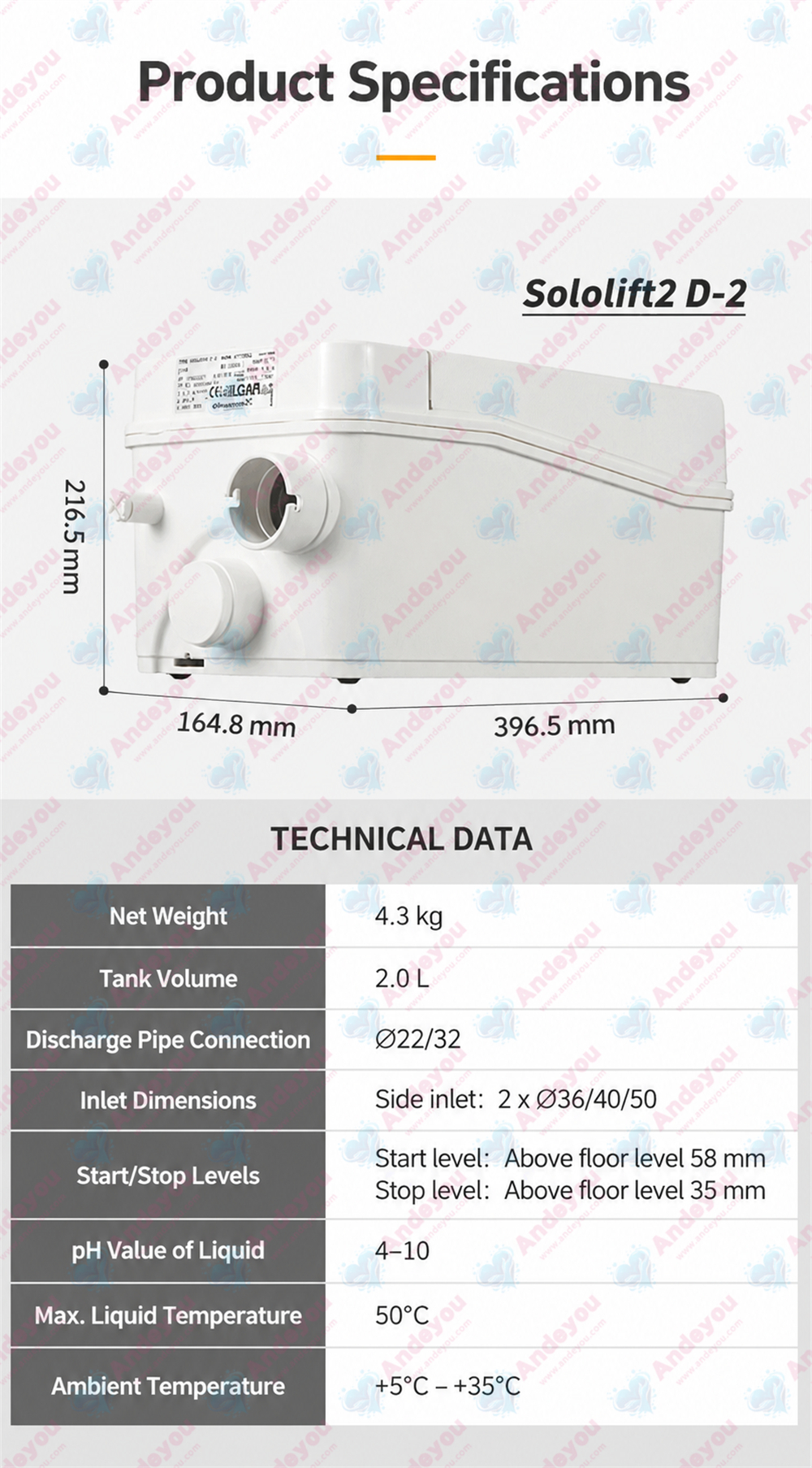

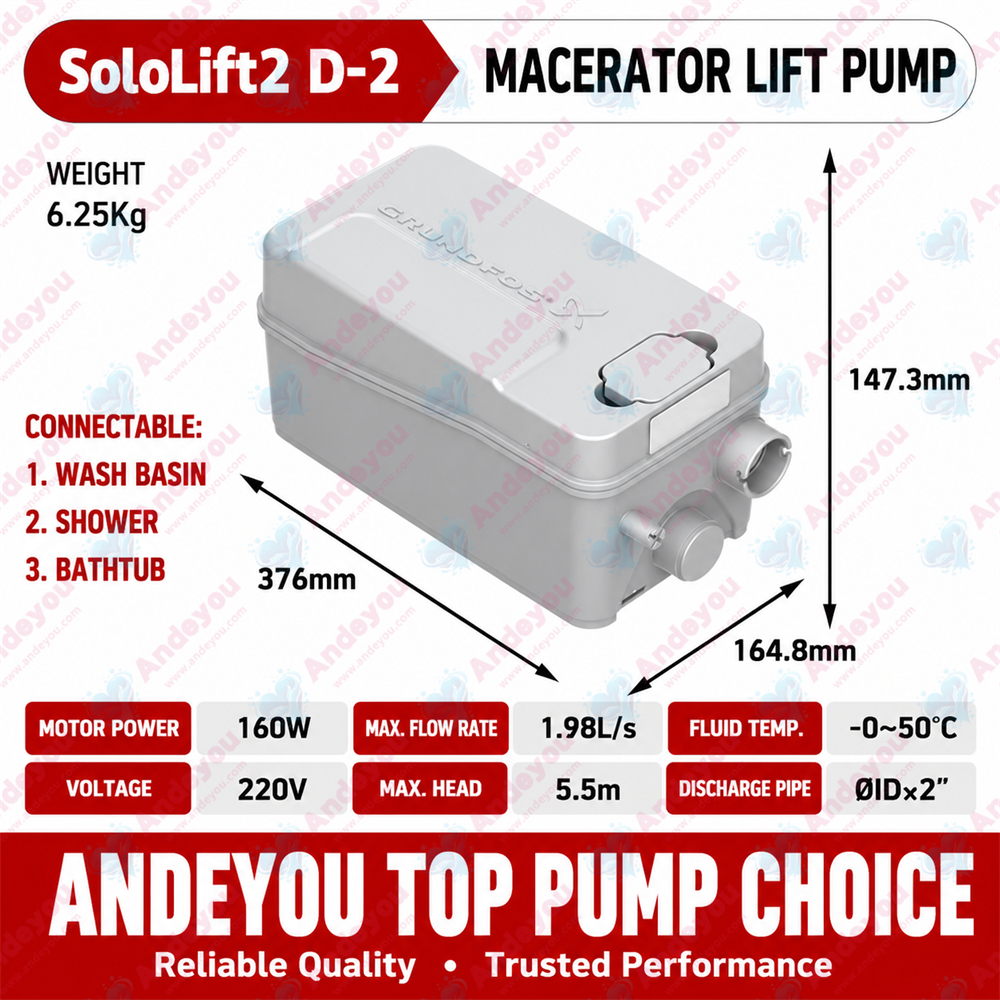

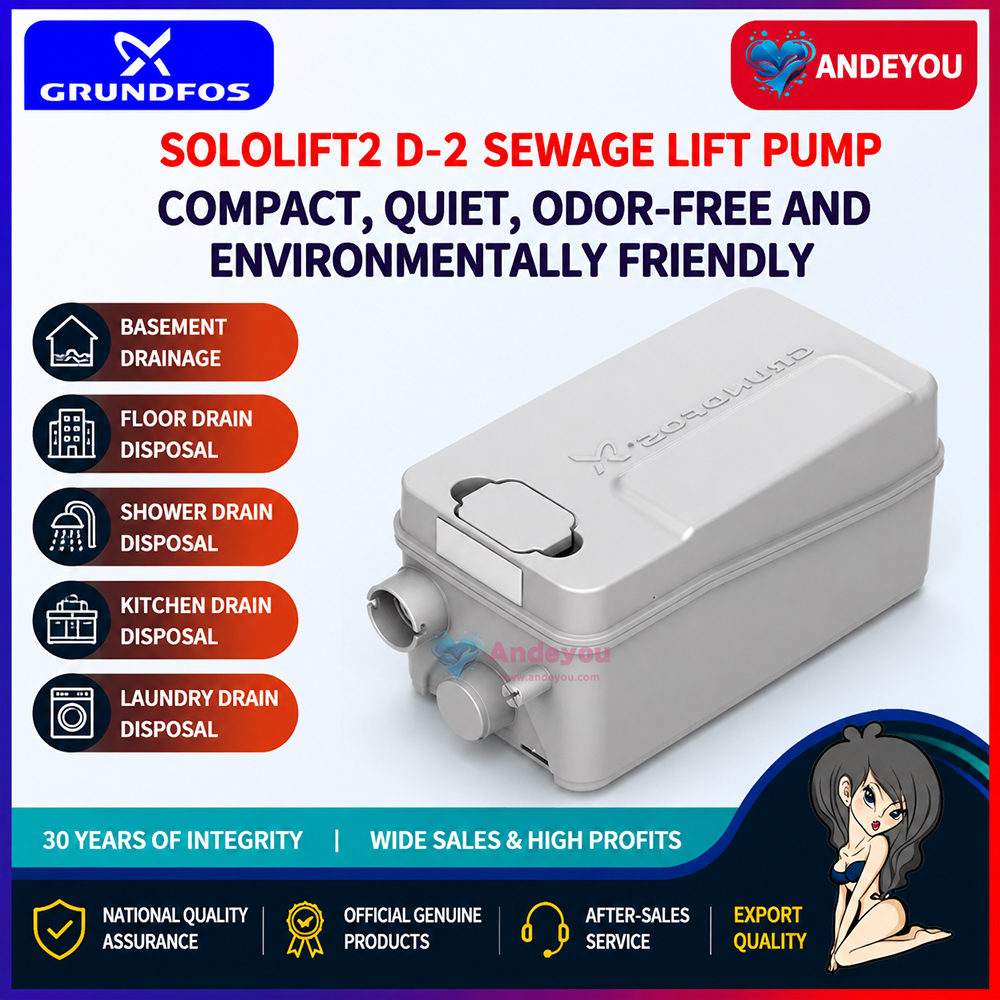

D-2: Ultra-compact. Designed for concealed installation
II. Core Technical Features
High-Efficiency Drainage System

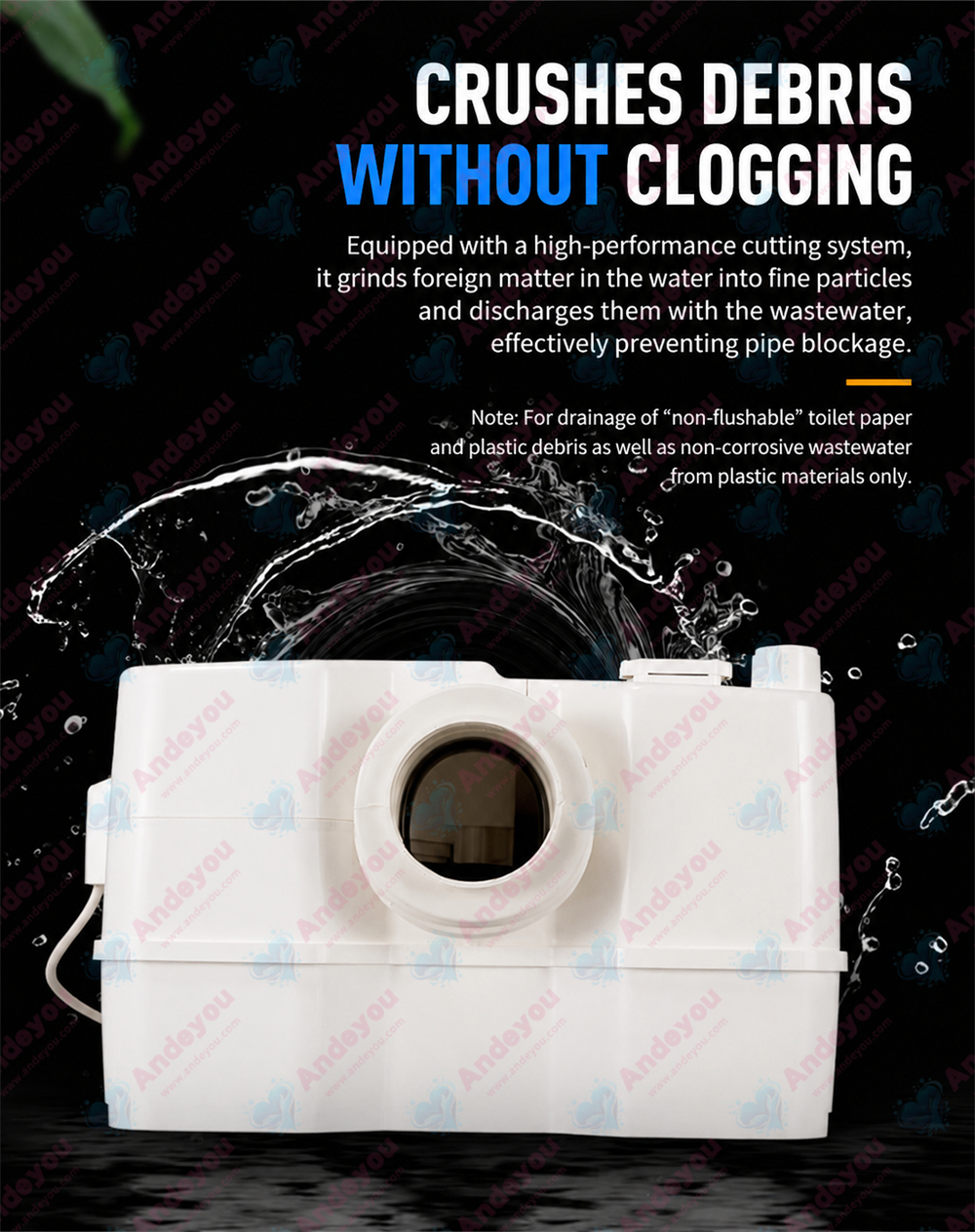

Niper Technology: The WC series is equipped with a stainless steel shredder to shred solid debris such as toilet paper (10-20mm diameter)
Large Flow Rate Design: Up to 185 liters/minute (C-3 model), with a head of up to 8.8 meters
Intelligent Control

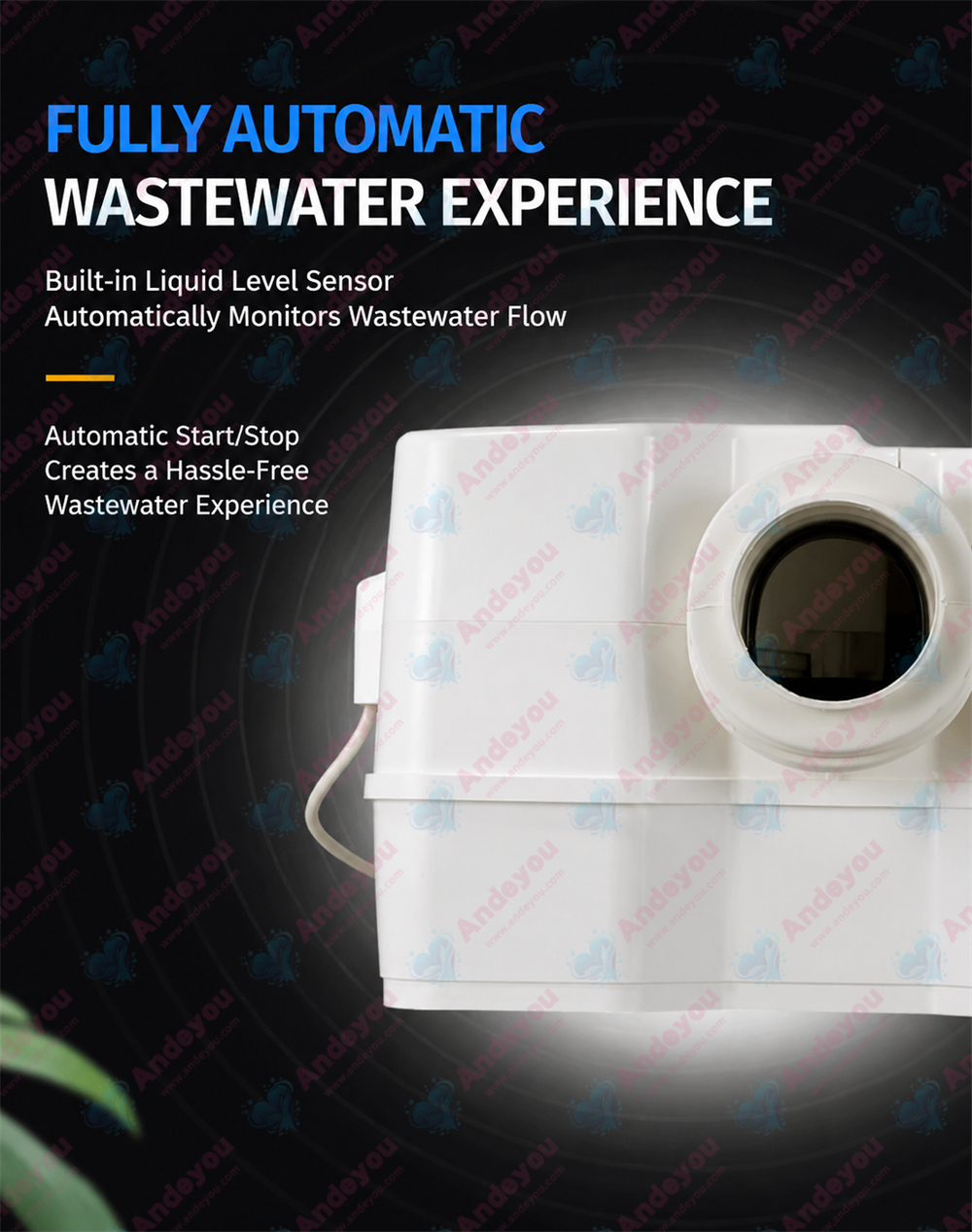

Pressure Switch Control: Automatic start/stop based on liquid level (adjustable starting liquid level 52-115mm)
Dual Liquid Level Mode: Switchable to adapt to different drainage needs of shower rooms/washing machines
Reliable Protection
Triple shaft seal + V-ring seal (motor)

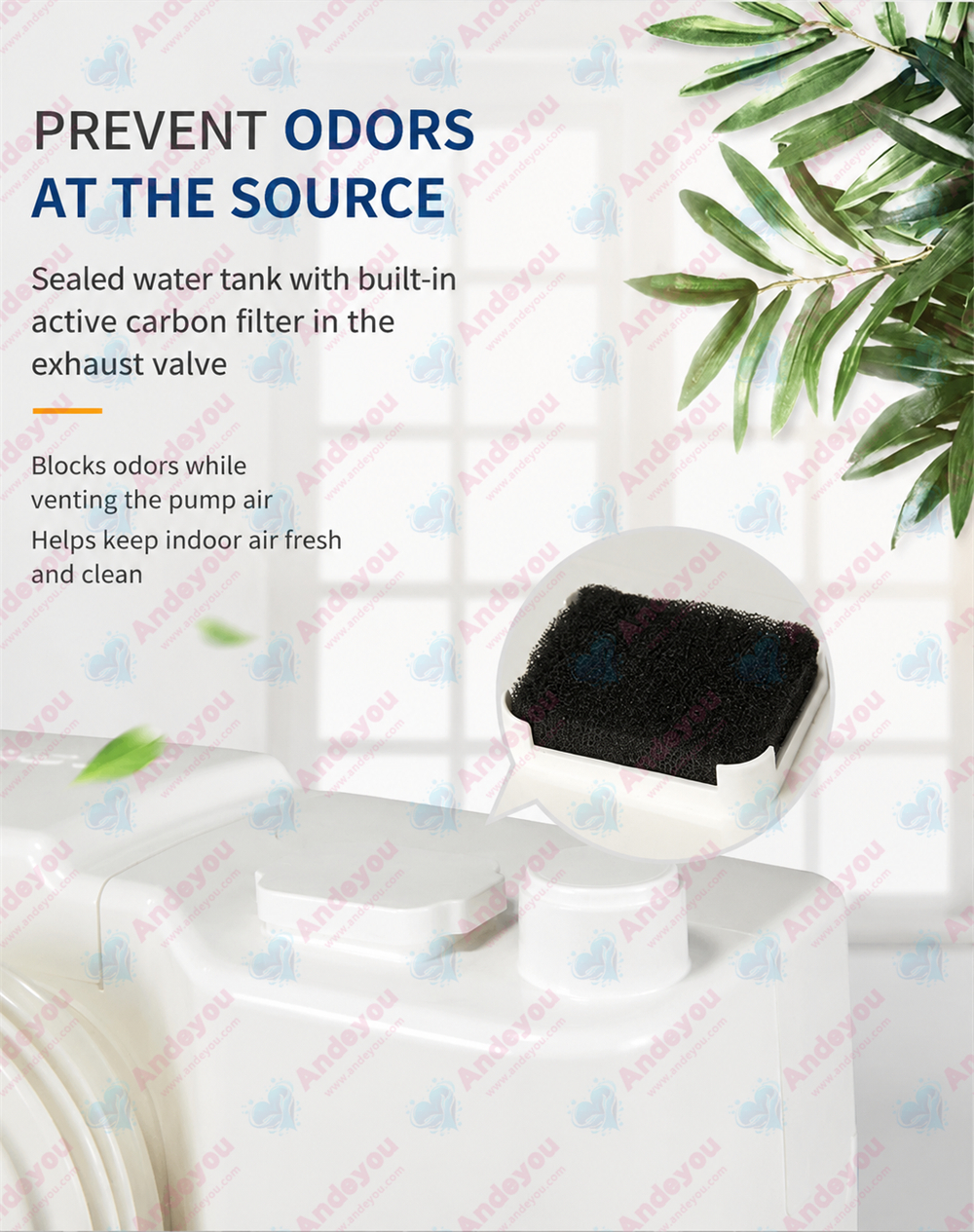

Carbon-fired exhaust valve with overcurrent protection

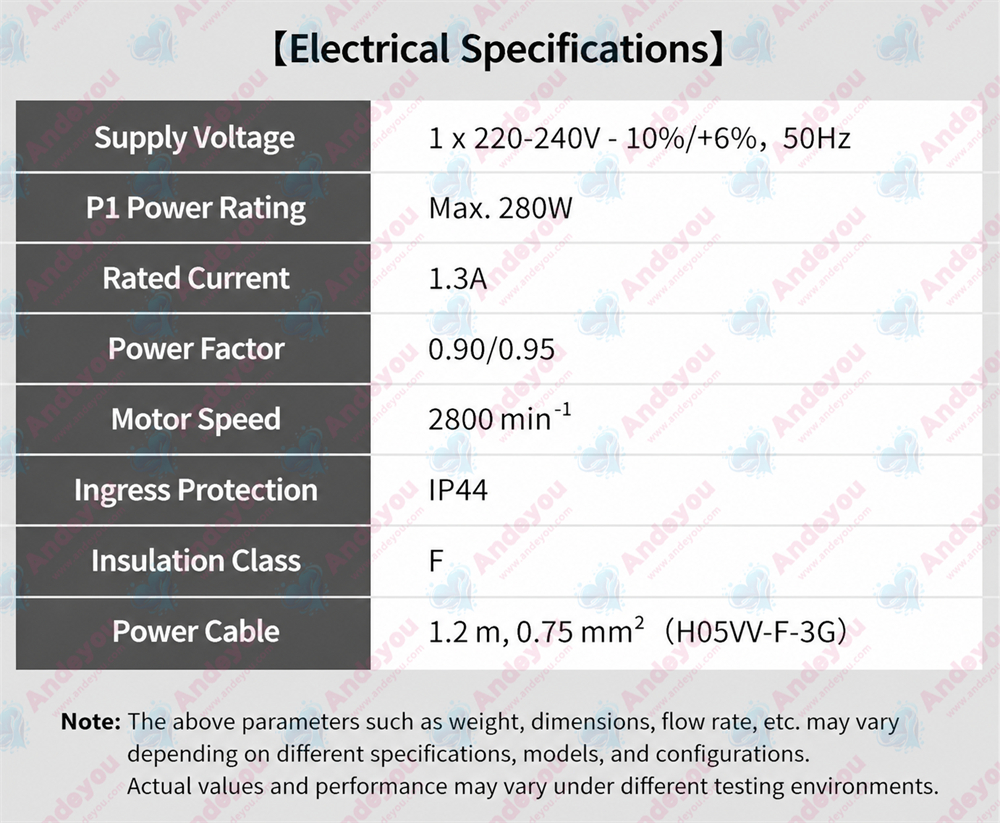

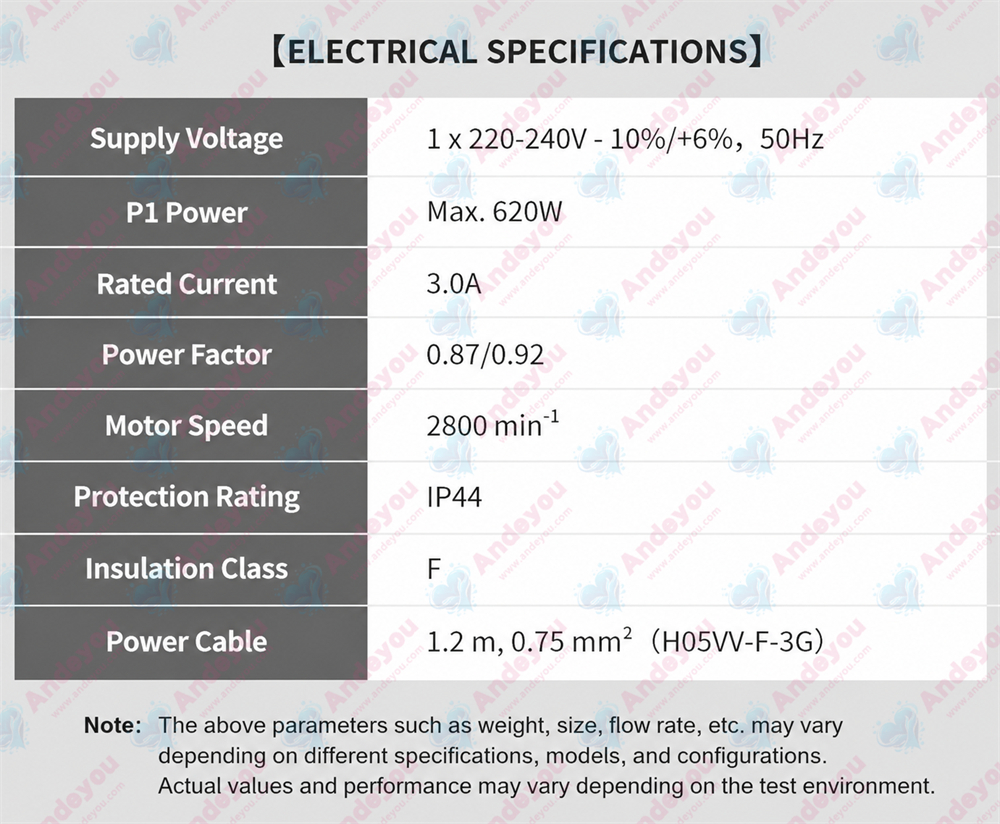

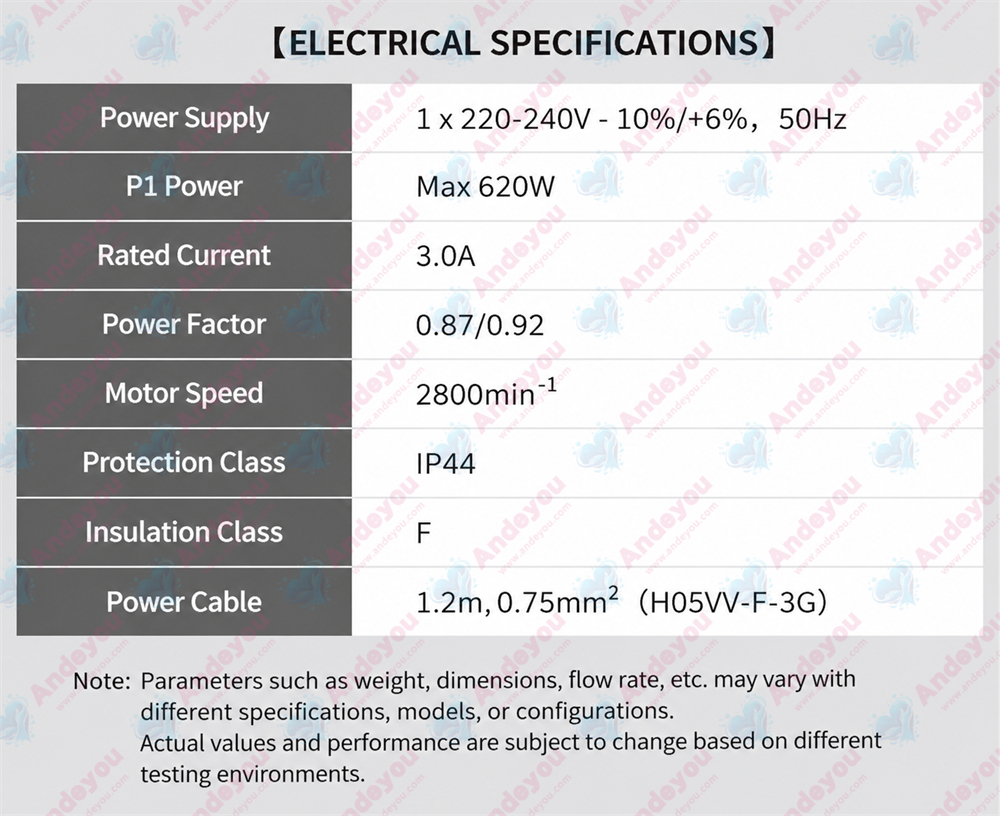

IP44 protection rating, insulation, etc. Grade F
III. Installation and Maintenance Advantages
Modular Design

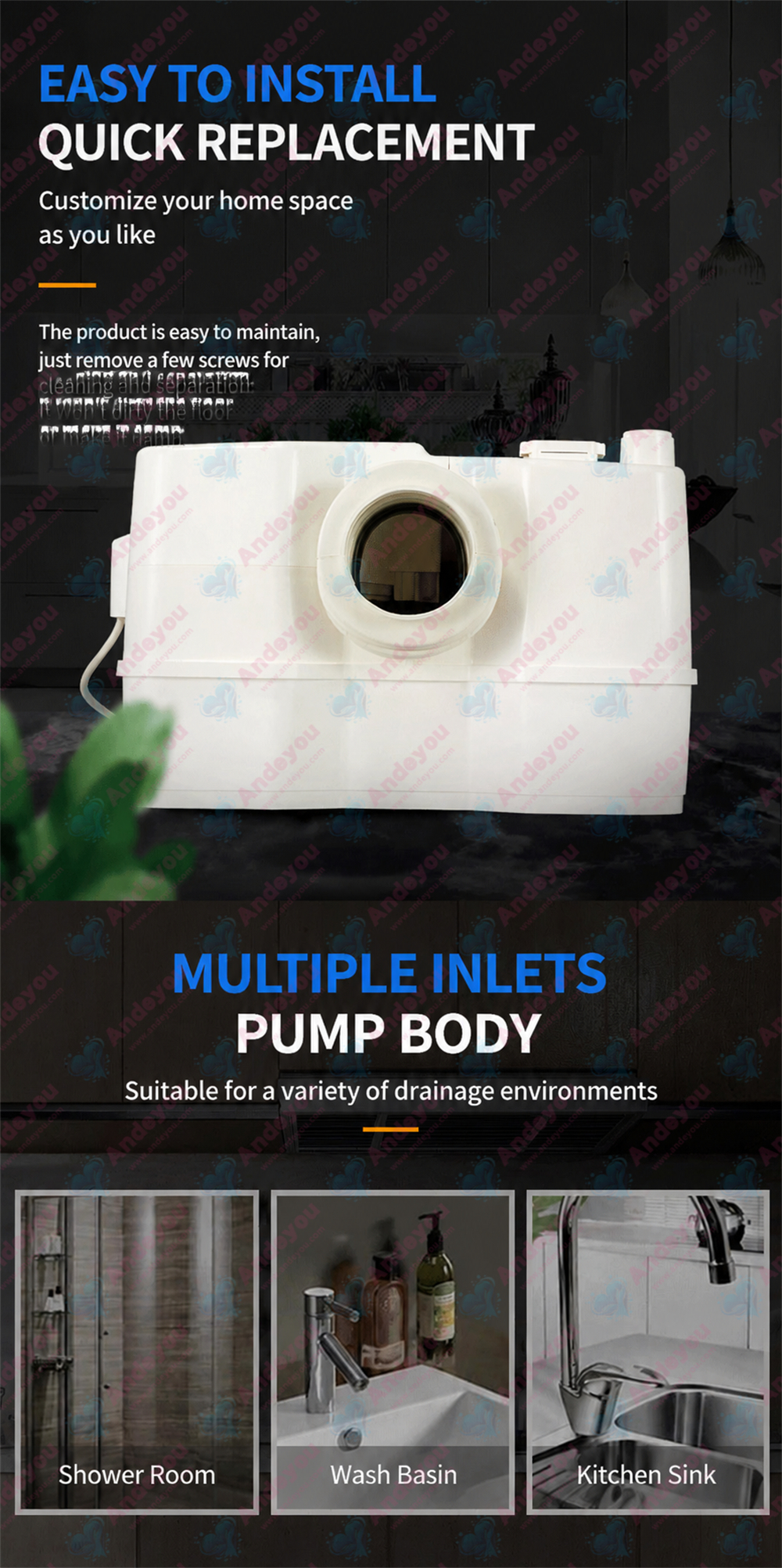

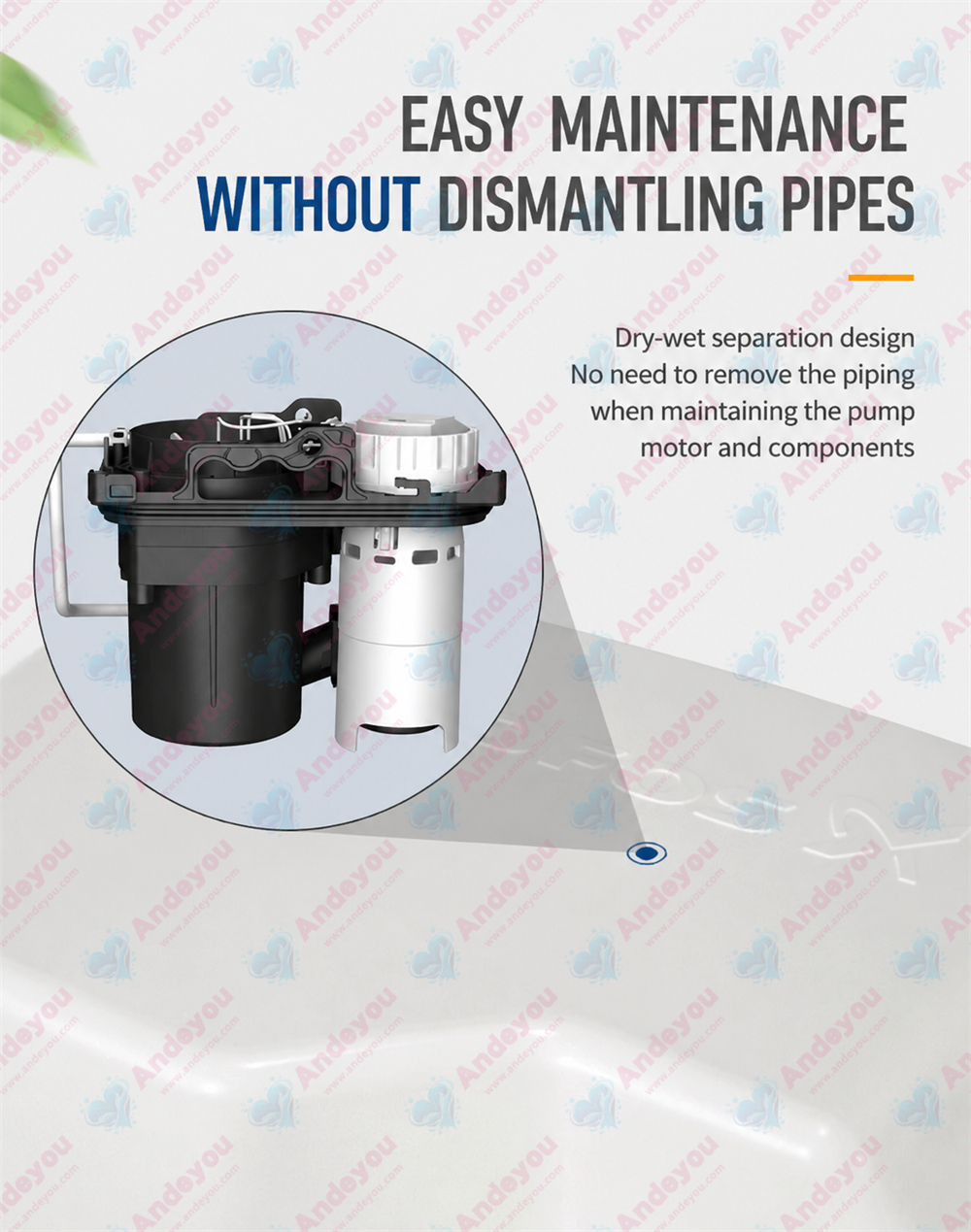

Integrated Pump and Motor Unit: Quick disassembly and maintenance without pipe removal
Dry Contact Structure: Key components do not come into contact with sewage
Flexible Adaptability

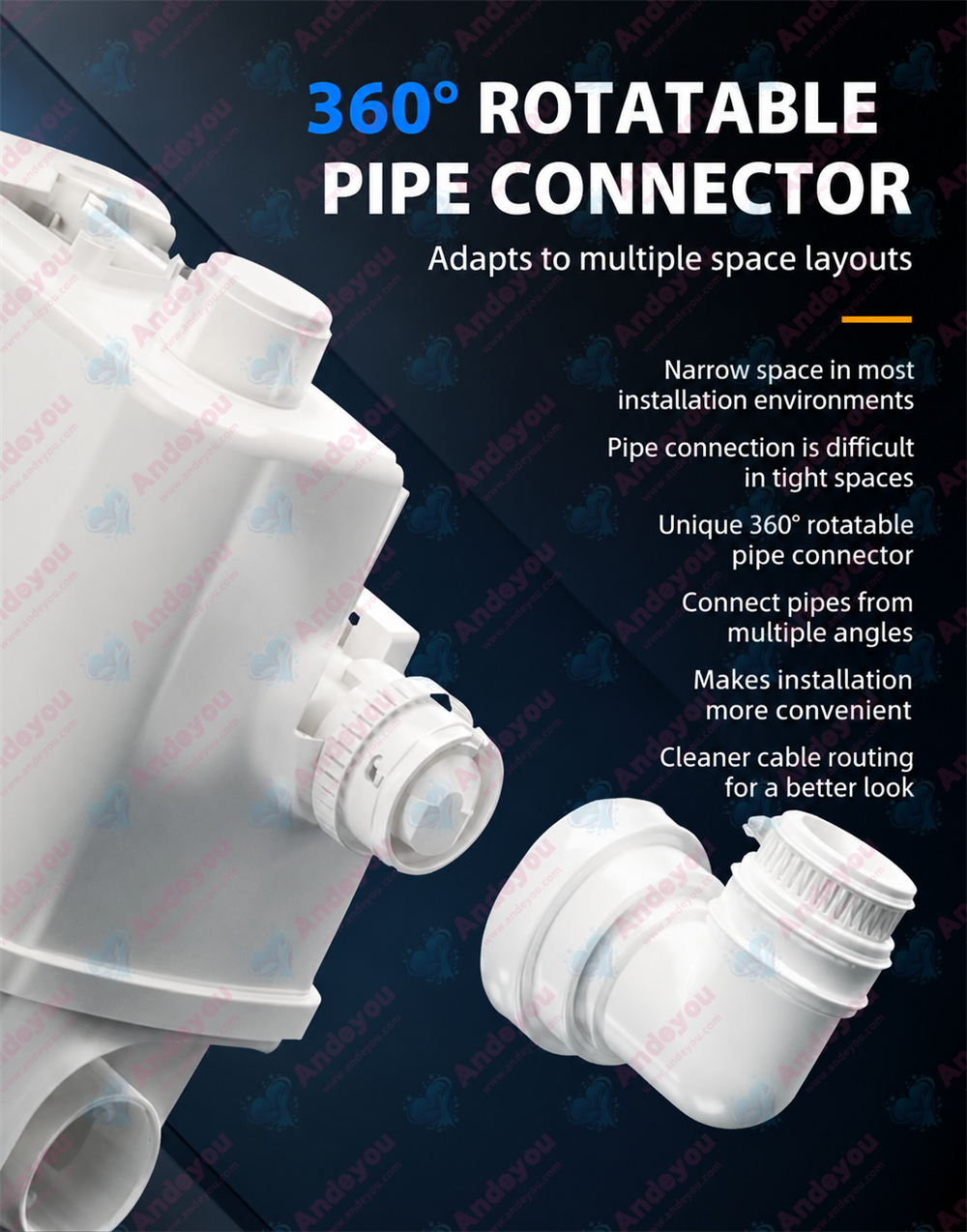

360° Rotatable Drain Outlet: Supports horizontal/vertical installation

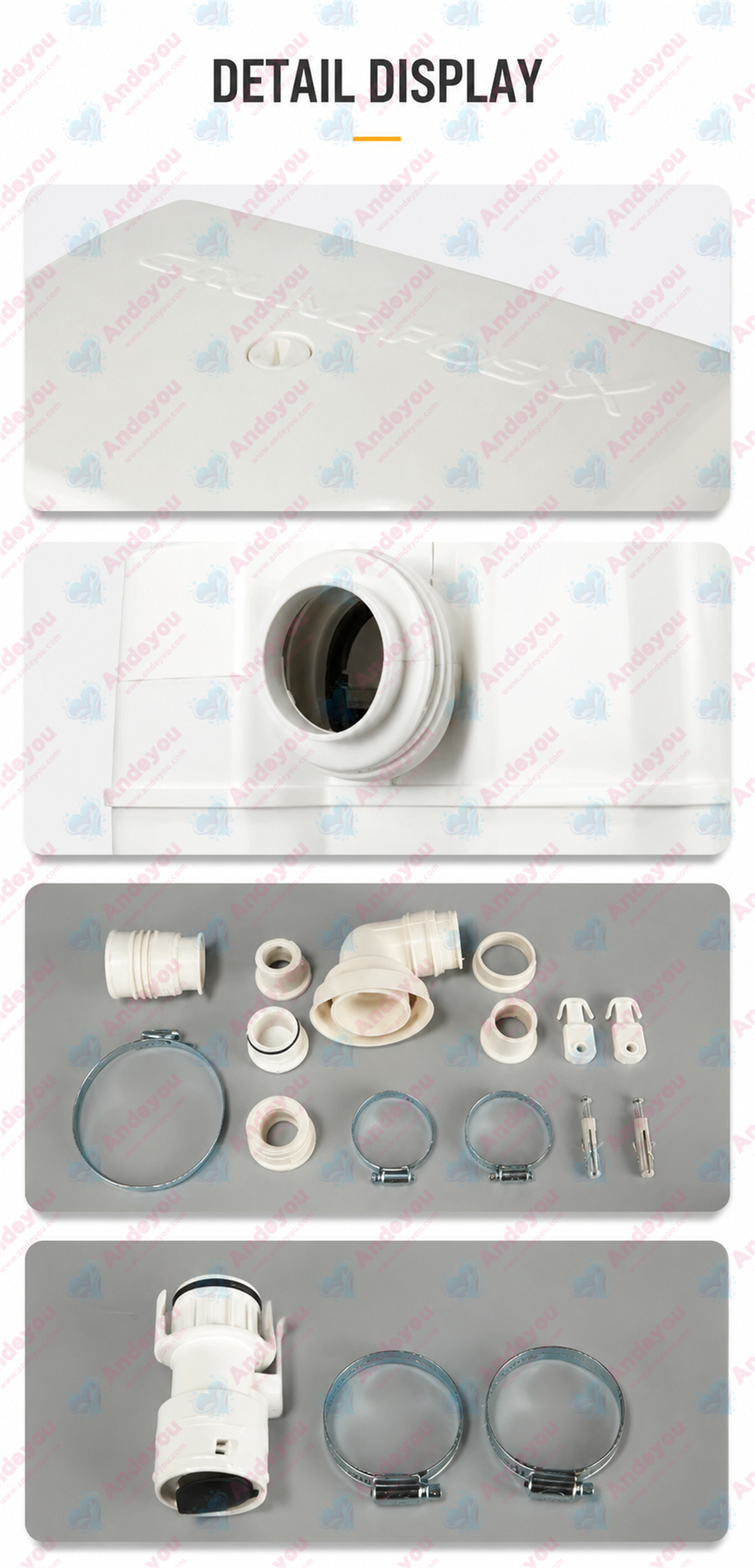

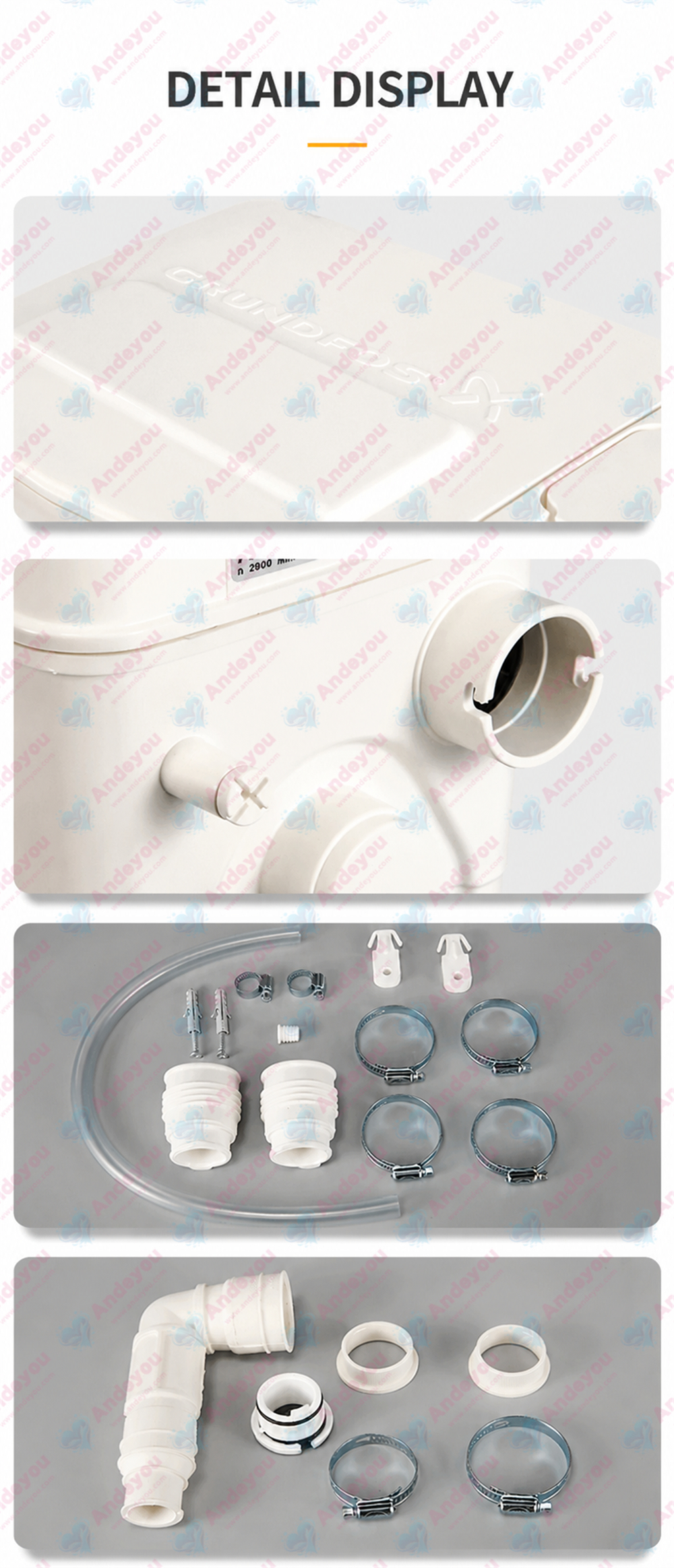

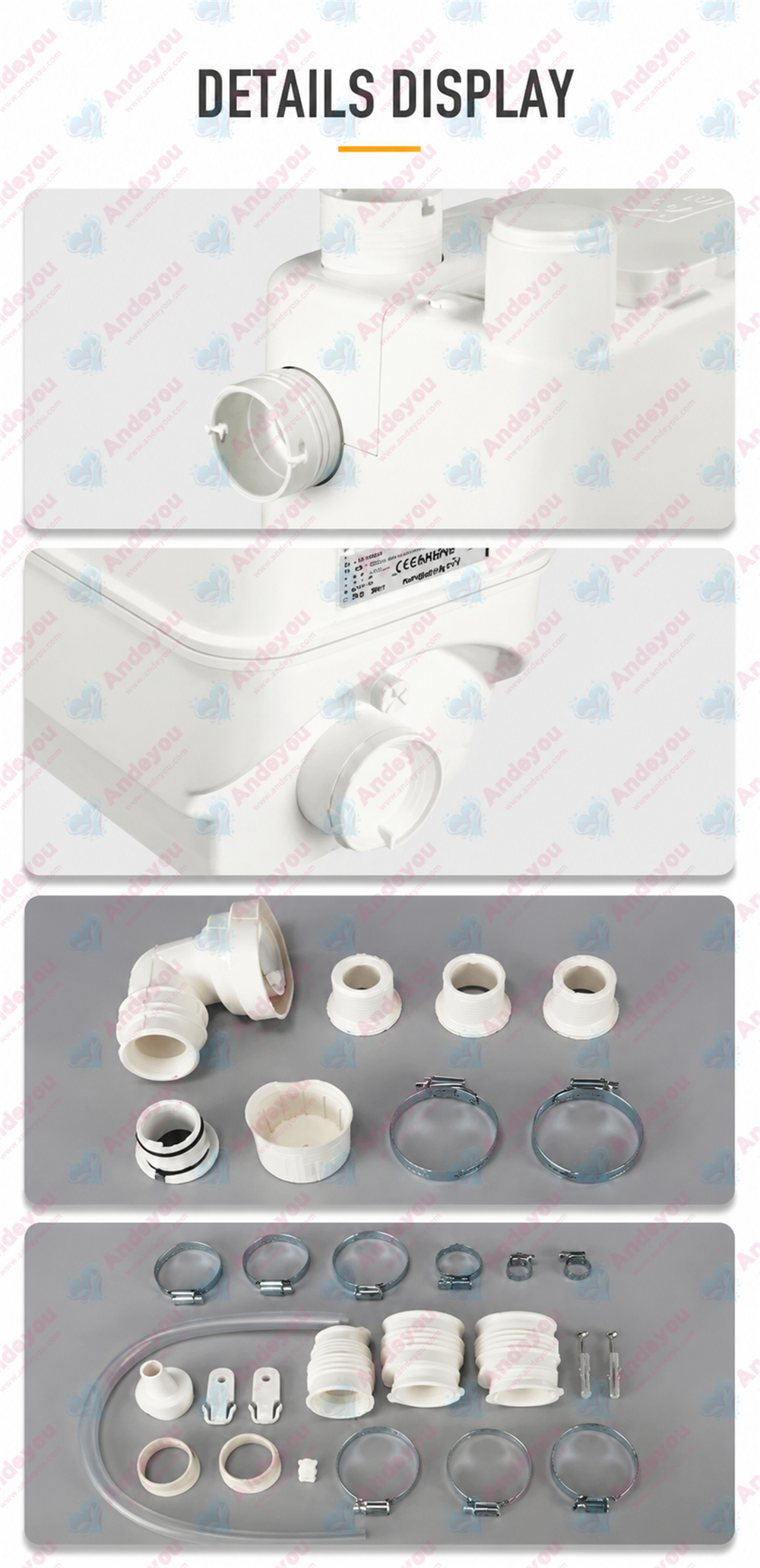

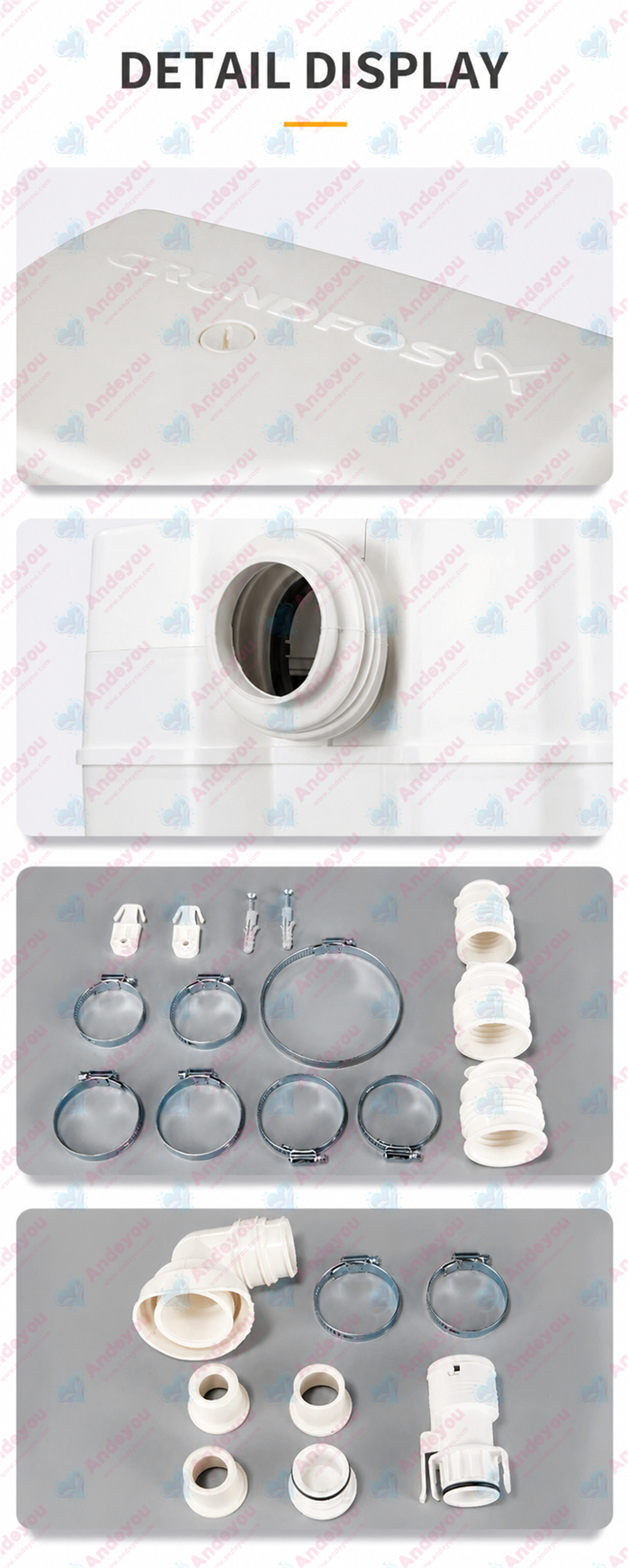

Multi-Specification Adapters: Compatible with ∅22-50mm pipe diameters
Universal Interface: Compatible with older Sololift+ models and other brands
Low Maintenance Design

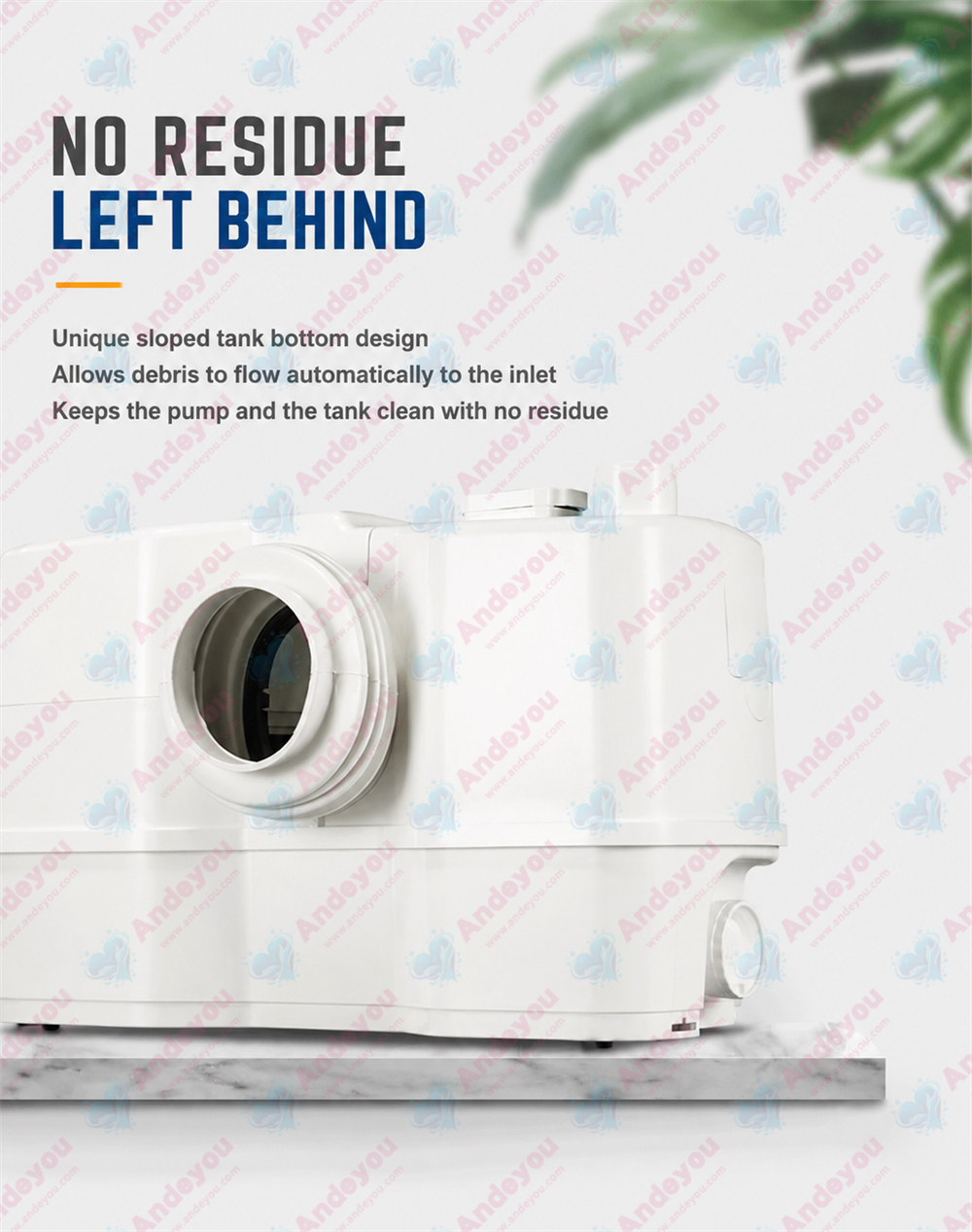

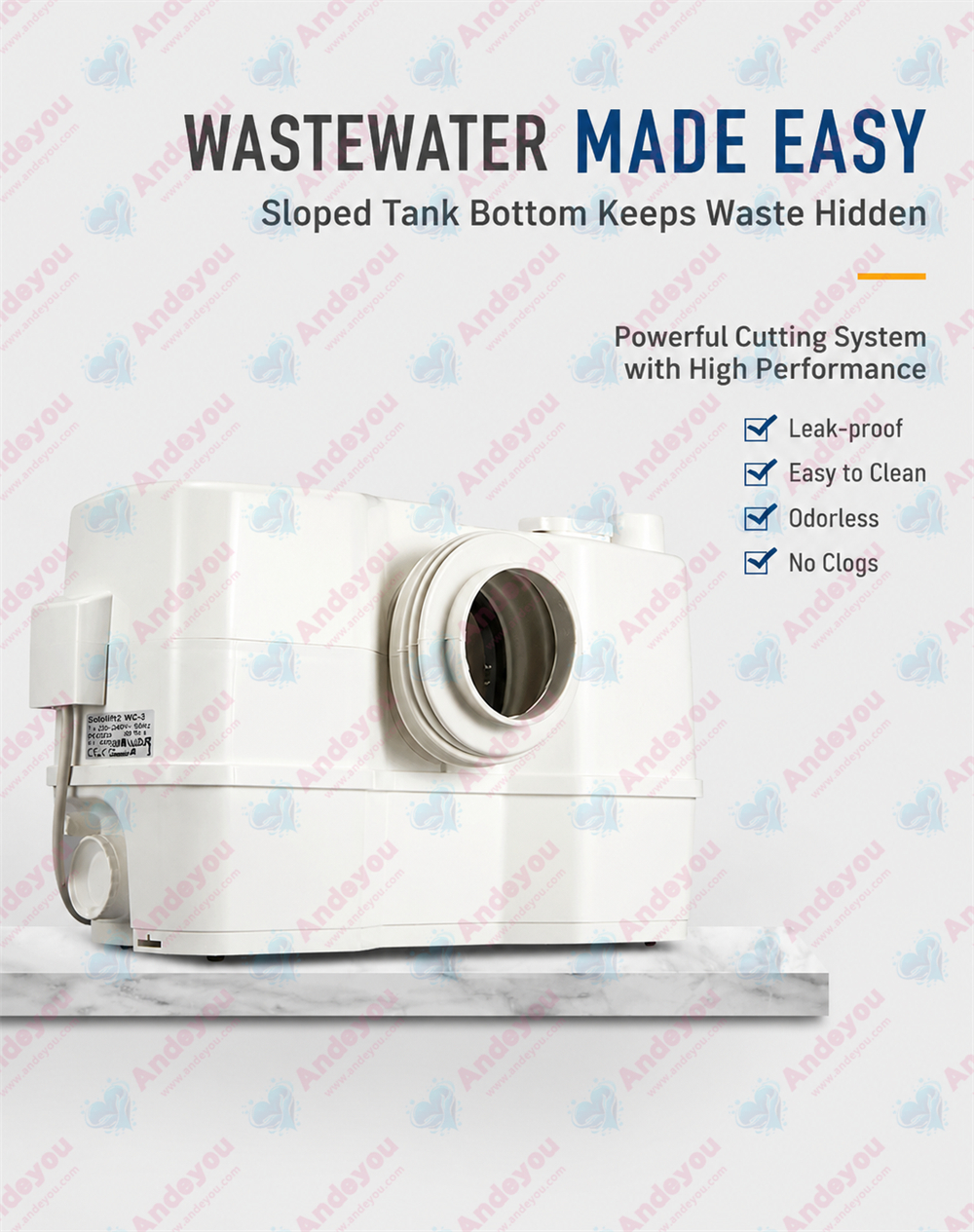

Sloping Tank Base Plate: Reduces sedimentation
External Anti-Clog Adjustment: Unblocking without opening the cover

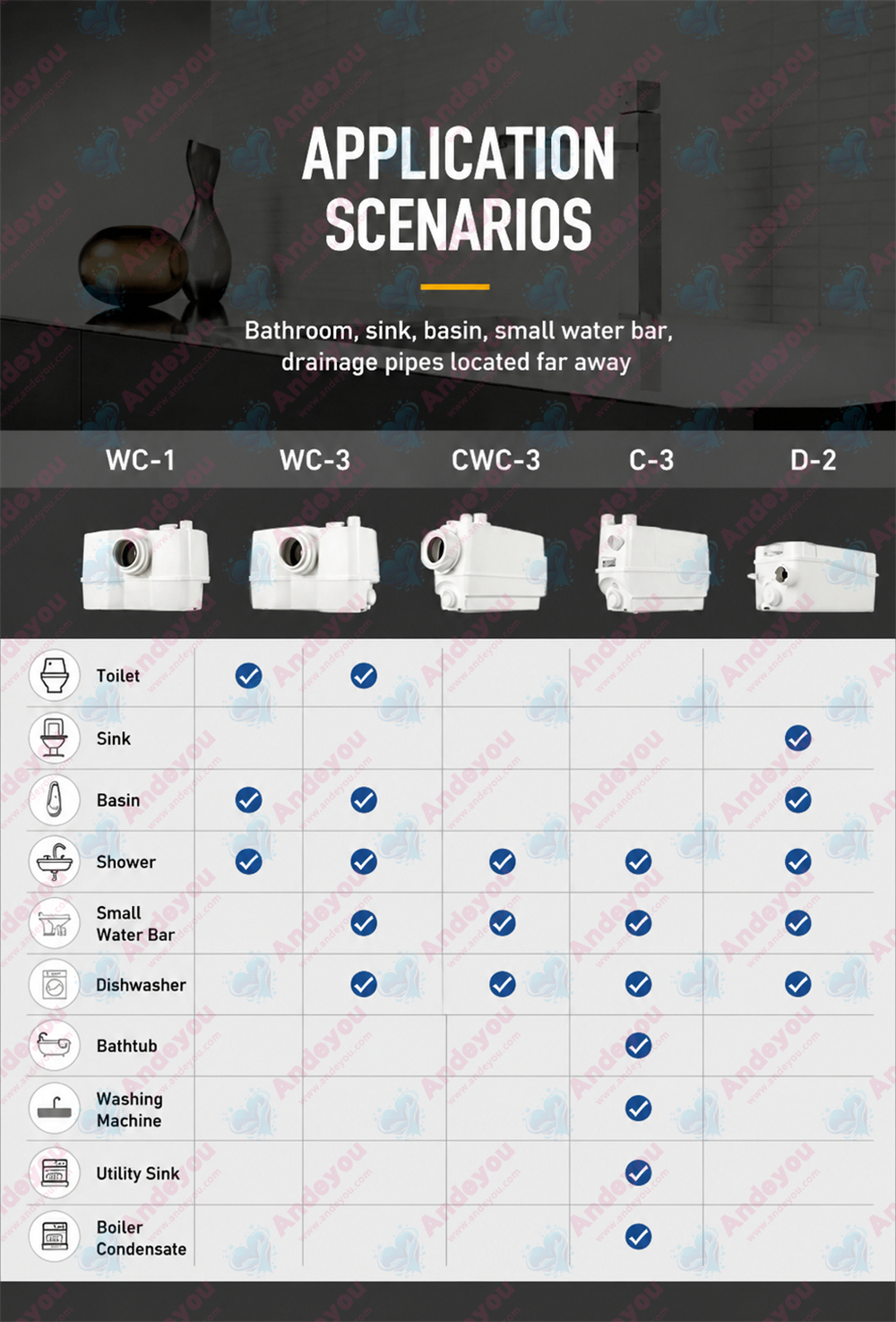

IV. Typical Application Scenarios
Basement Renovation
Solving problems with toilets/showers below the drainage network Bathroom Sewage Drainage
Saving on Pipe Slope Construction Costs
Commercial Spaces
Hotel New Toilet Installation (Compliant with EN12050 Standard)
Office Tea Room Drainage
Special Environments
Resort House Portable Bathrooms
Old Building Renovation (When Drainage Slope Cannot Be Modified)
V. Certifications and Safety
Compliant with EN12050-2/3 Standards
Certified by VDE/EMV/TUV and other international standards
Optional Fault Alarm (97dB Buzzer Alarm)
Through its compact design, intelligent control, and modular structure, the Sololift2 series achieves a "zero-maintenance" concept, making it particularly suitable for the flexible drainage needs of modern homes and commercial spaces. All models have passed 50Hz voltage testing and are compatible with Chinese power grid standards.
