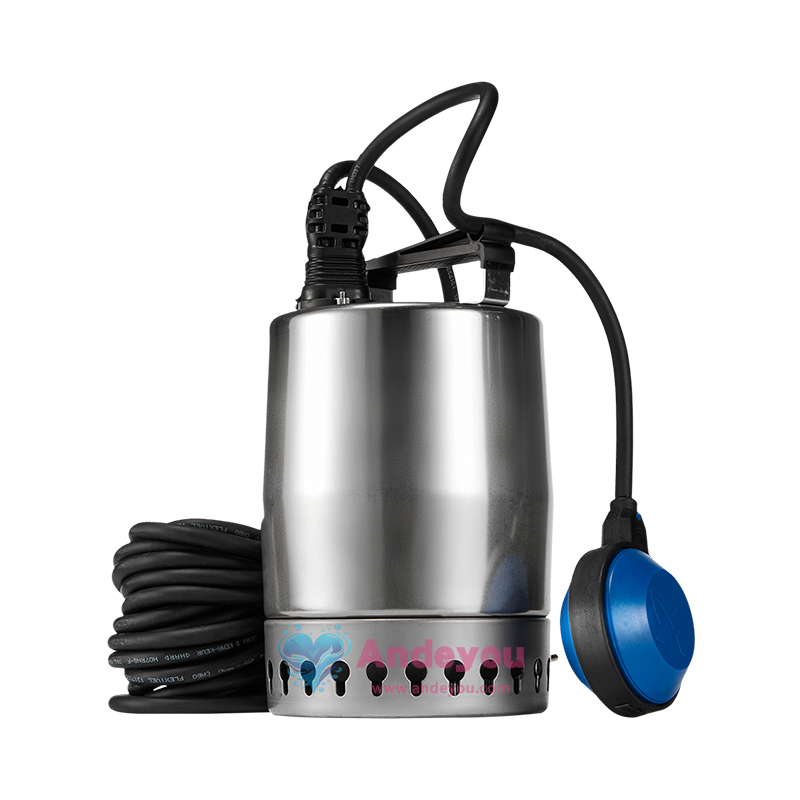

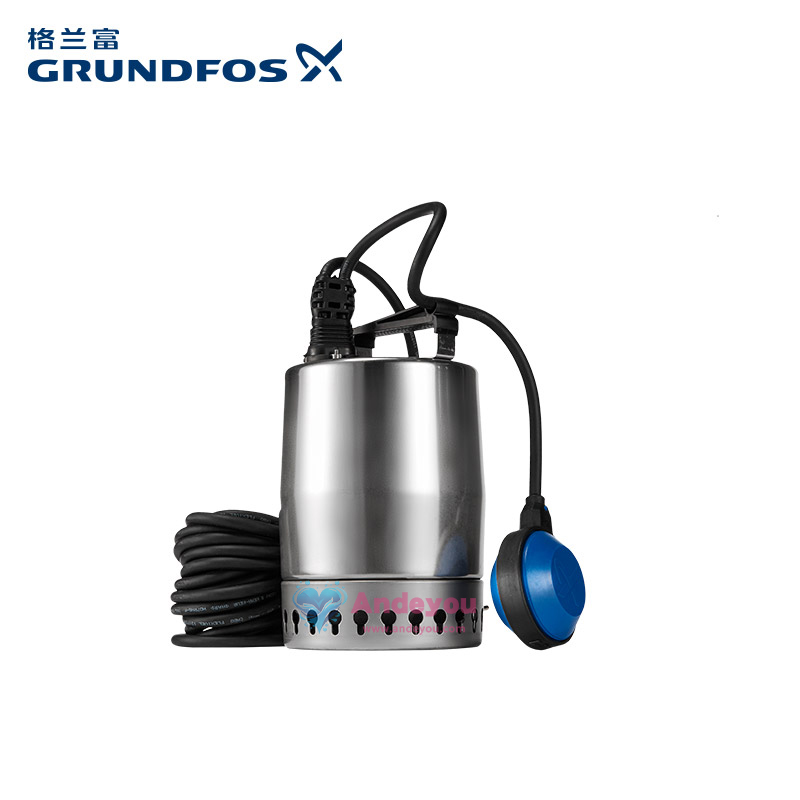

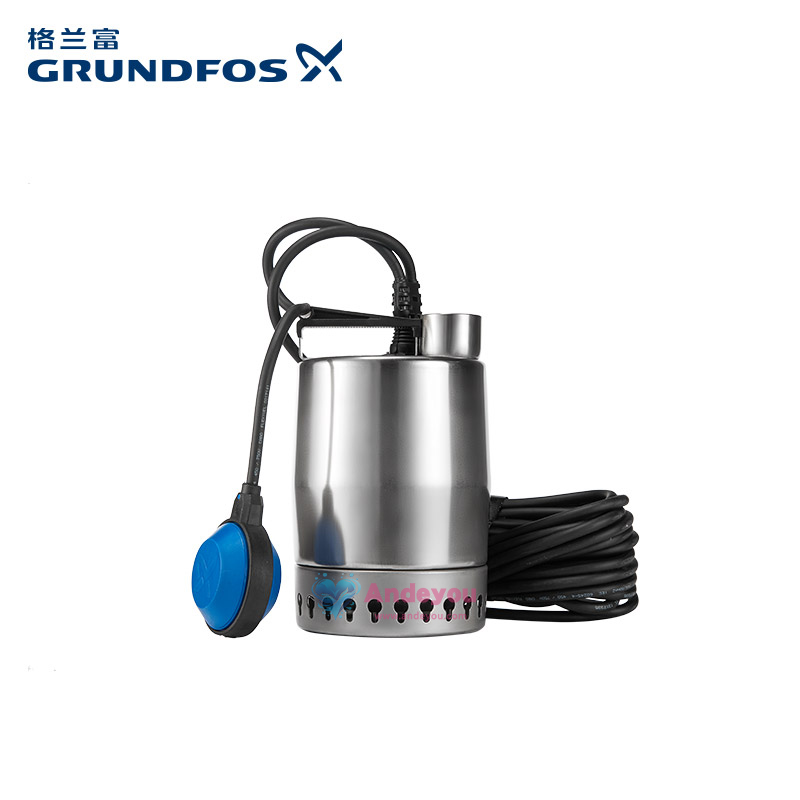

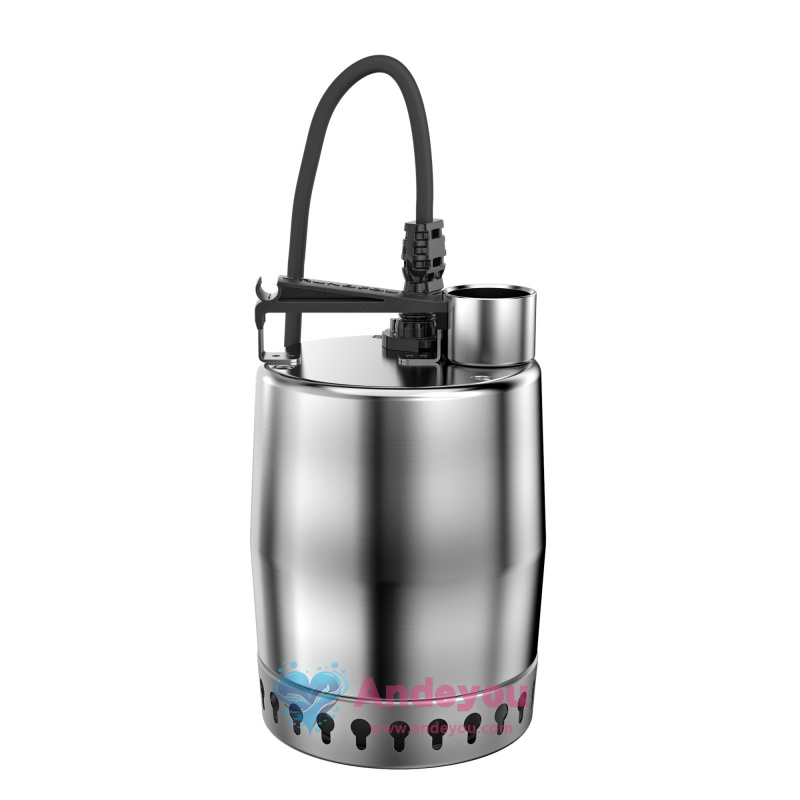

Grundfos KP Stainless Steel Submersible Pump

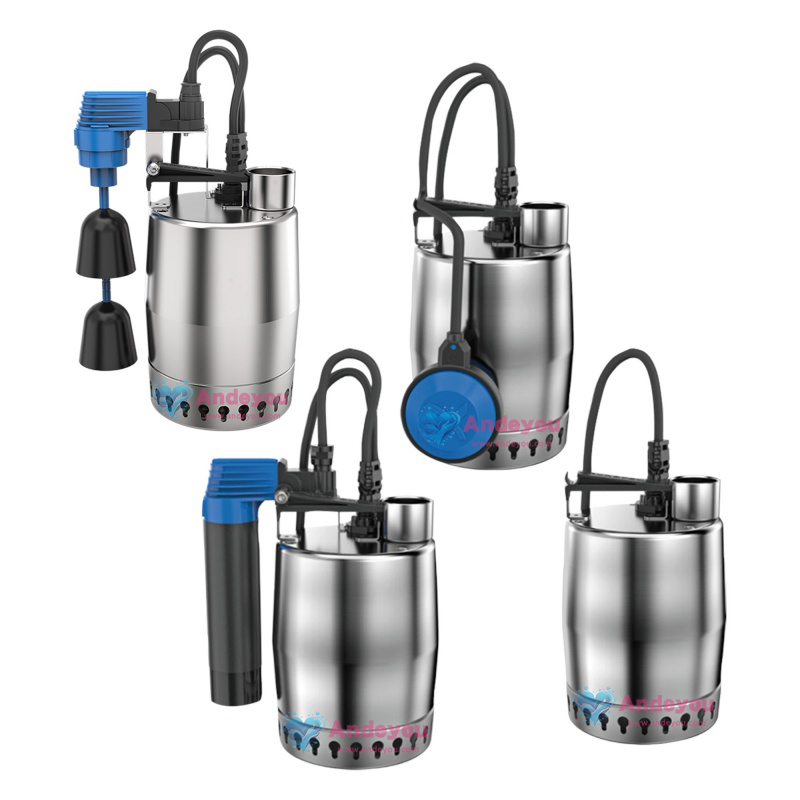

UNILIFT KP.150.A.1 UNILIFT KP.150.AV.1 UNILIFT KP.150.M.1 UNILIFT KP.250.A.1 UNILIFT KP.250.AV.1 UNILIFT KP.250.M.1 UNILIFT KP.250.M.3 UNILIFT KP.350.A.1 UNILIFT KP.350.AV.1 UNILIFT KP.350.M.1 UNILIFT KP.350.M.3

The Grundfos KP series stainless steel submersible pumps are designed for applications such as sewage discharge and industrial drainage.Constructed from high-quality stainless steel,they offer excellent corrosion resistance and a long service life.Featuring a high-efficiency motor design that promotes energy conservation and environmental sustainability,these pumps are suitable for use in construction,municipal infrastructure,and agriculture.
Function
Parameters
Size
Video Introduction

Function

Corrosion-resistant material

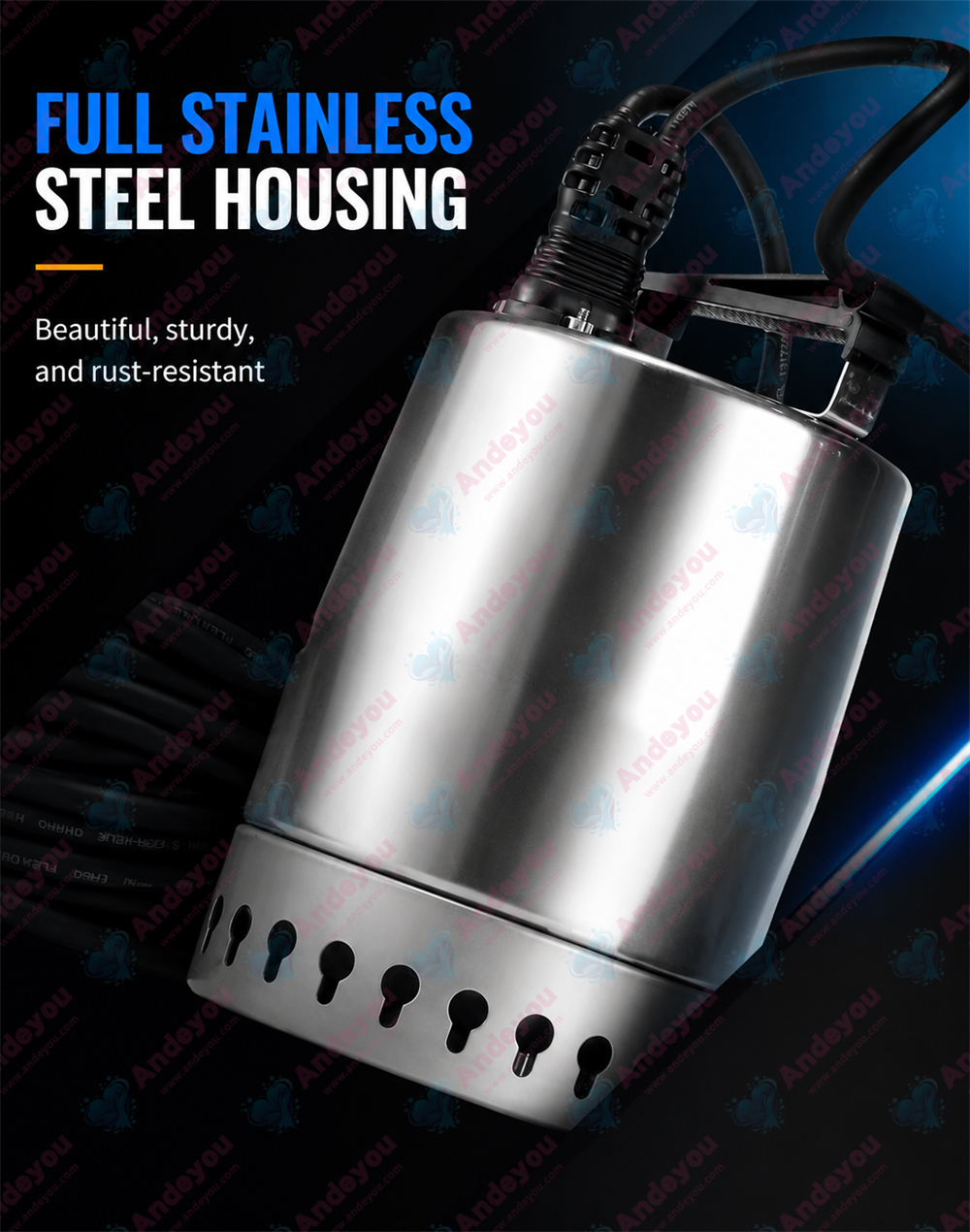

Made of high-quality stainless steel (AISI 304/316), suitable for corrosive media environments such as sewage and industrial wastewater.

High-efficiency design

Equipped with a high-efficiency motor, it operates in an energy-saving manner, reduces energy costs, and meets environmental protection standards.

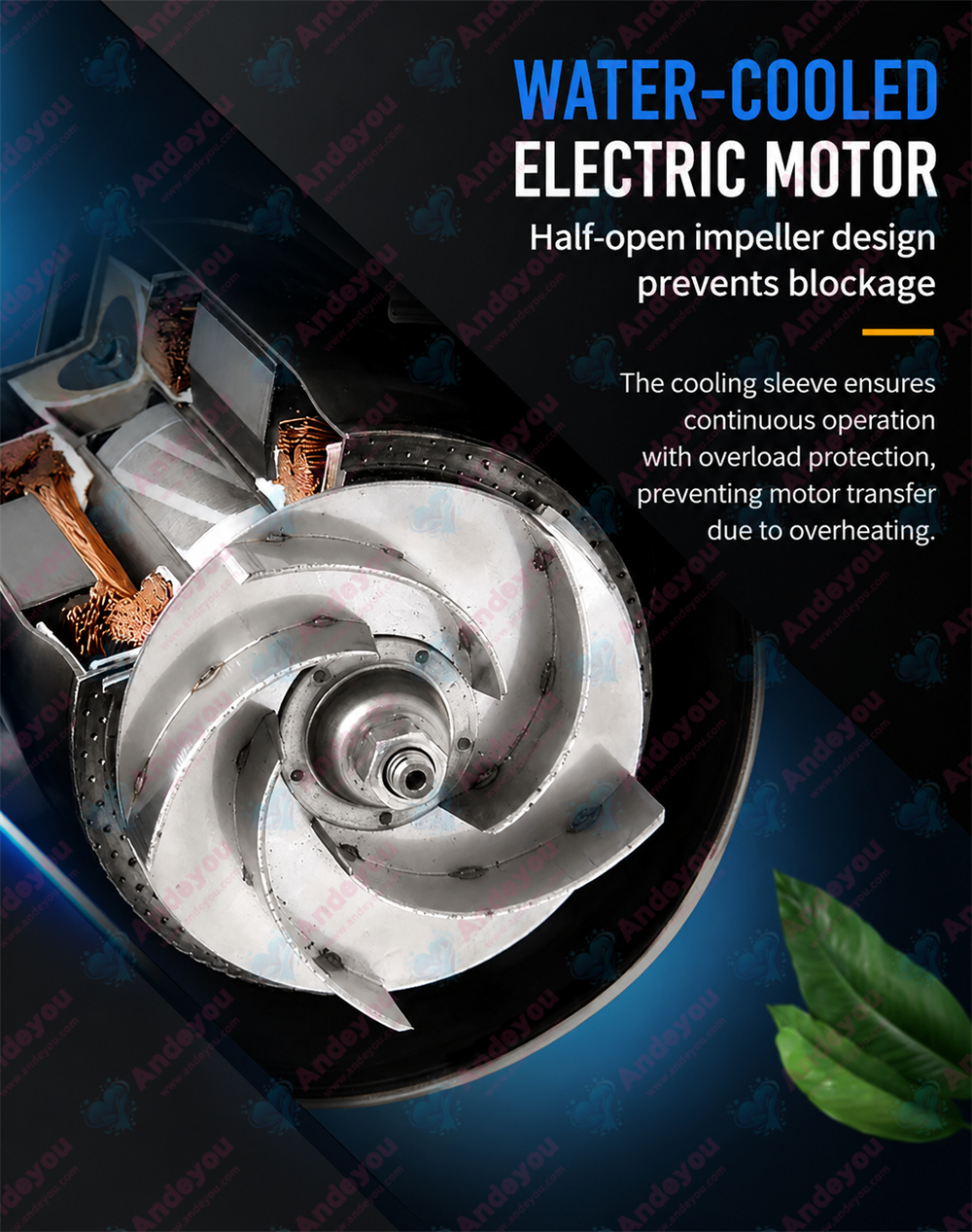

Waterproof and clog-proof structure

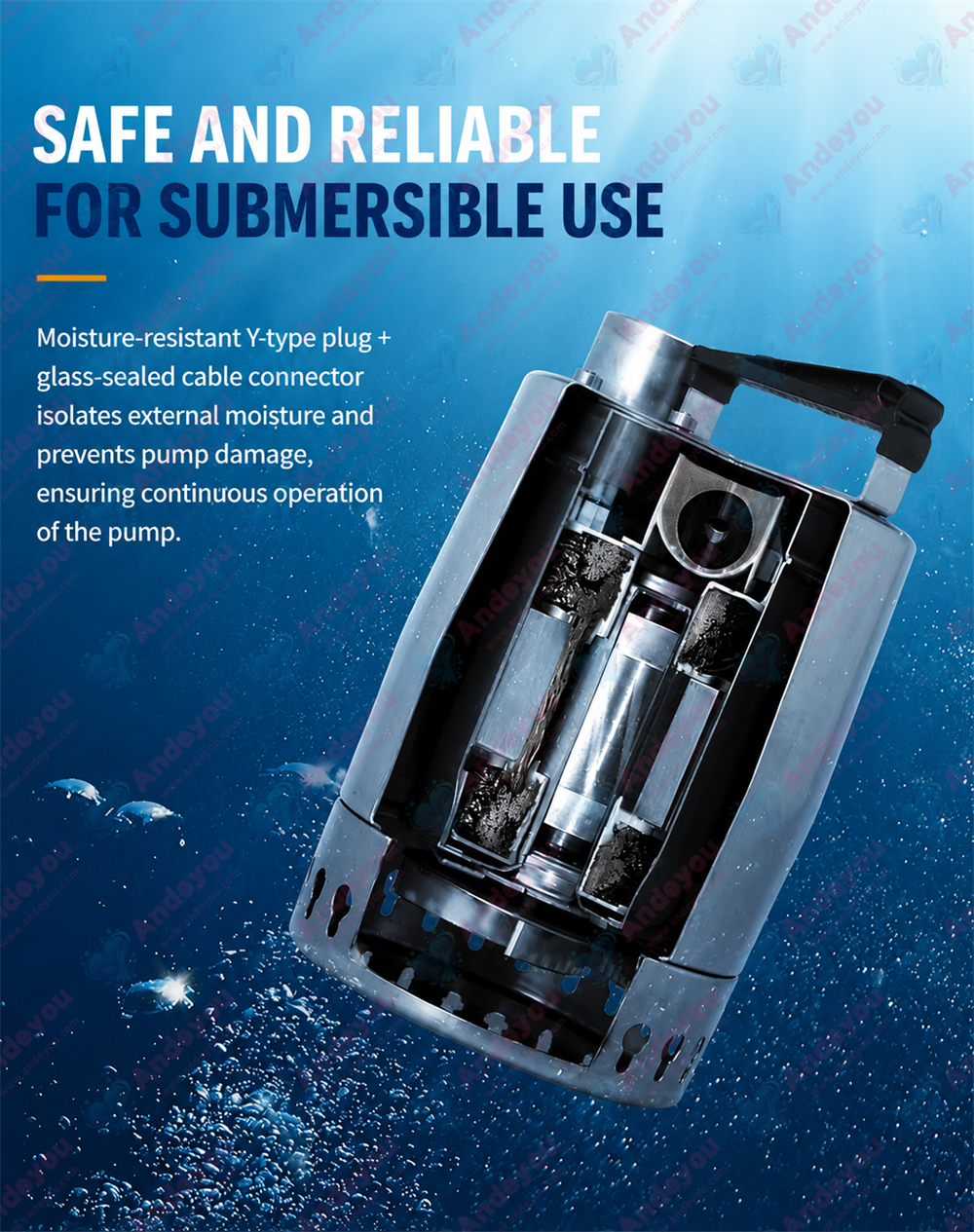

Fully enclosed design, IP68 waterproof rating, built-in anti-clogging impeller, capable of handling wastewater containing solid particles.

Diverse Models

Covering KP, AP, CC series, etc., offering different flow rates (up to 50m³/h) and head (up to 40m) to suit various scenarios such as construction, municipal, and agriculture.

Easy Maintenance

Modular design allows for quick disassembly of key components, reducing downtime.

Stable and Reliable

Built-in overheat protection and automatic start/stop function ensure stable operation over long periods.

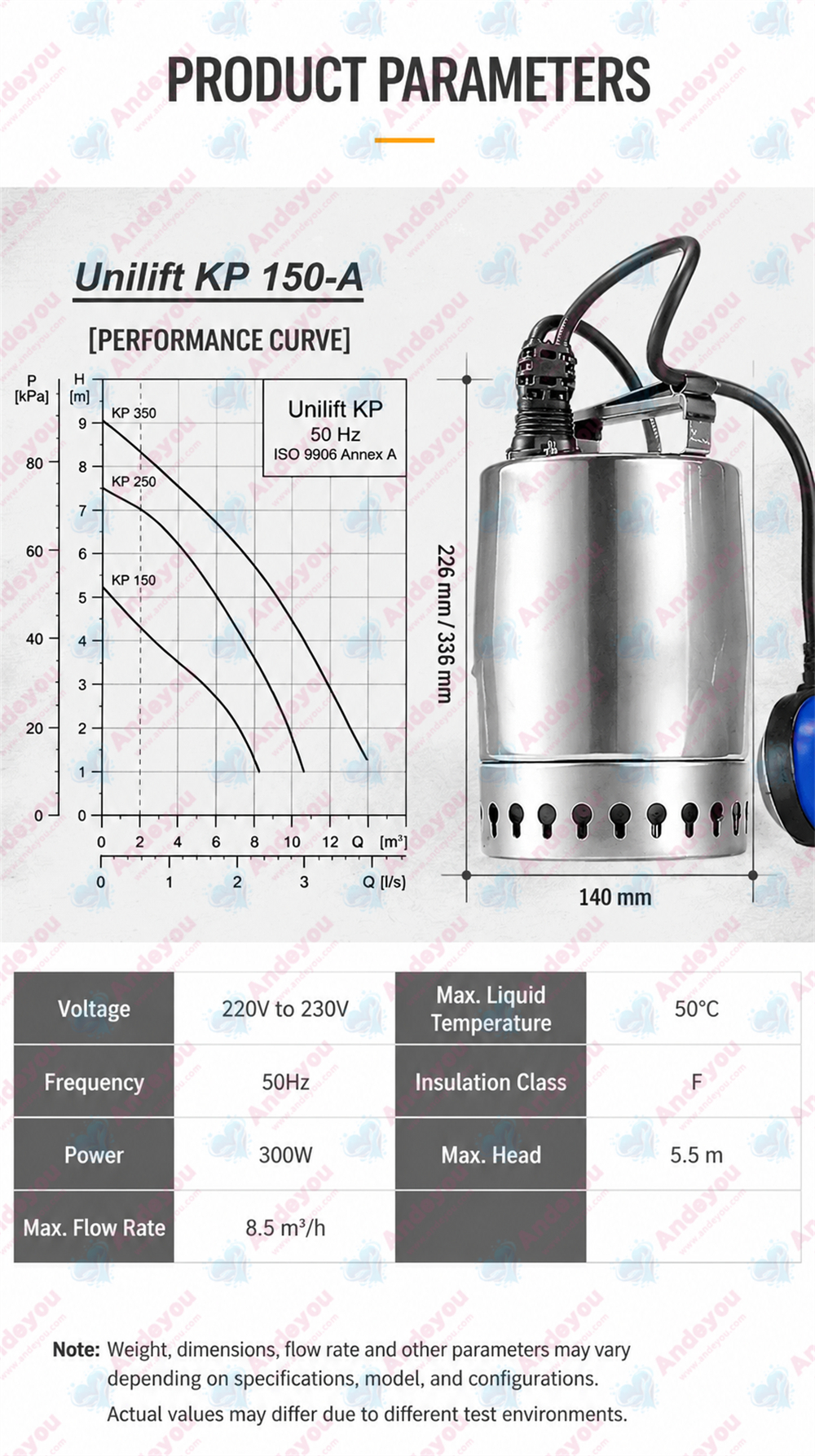

Parameters

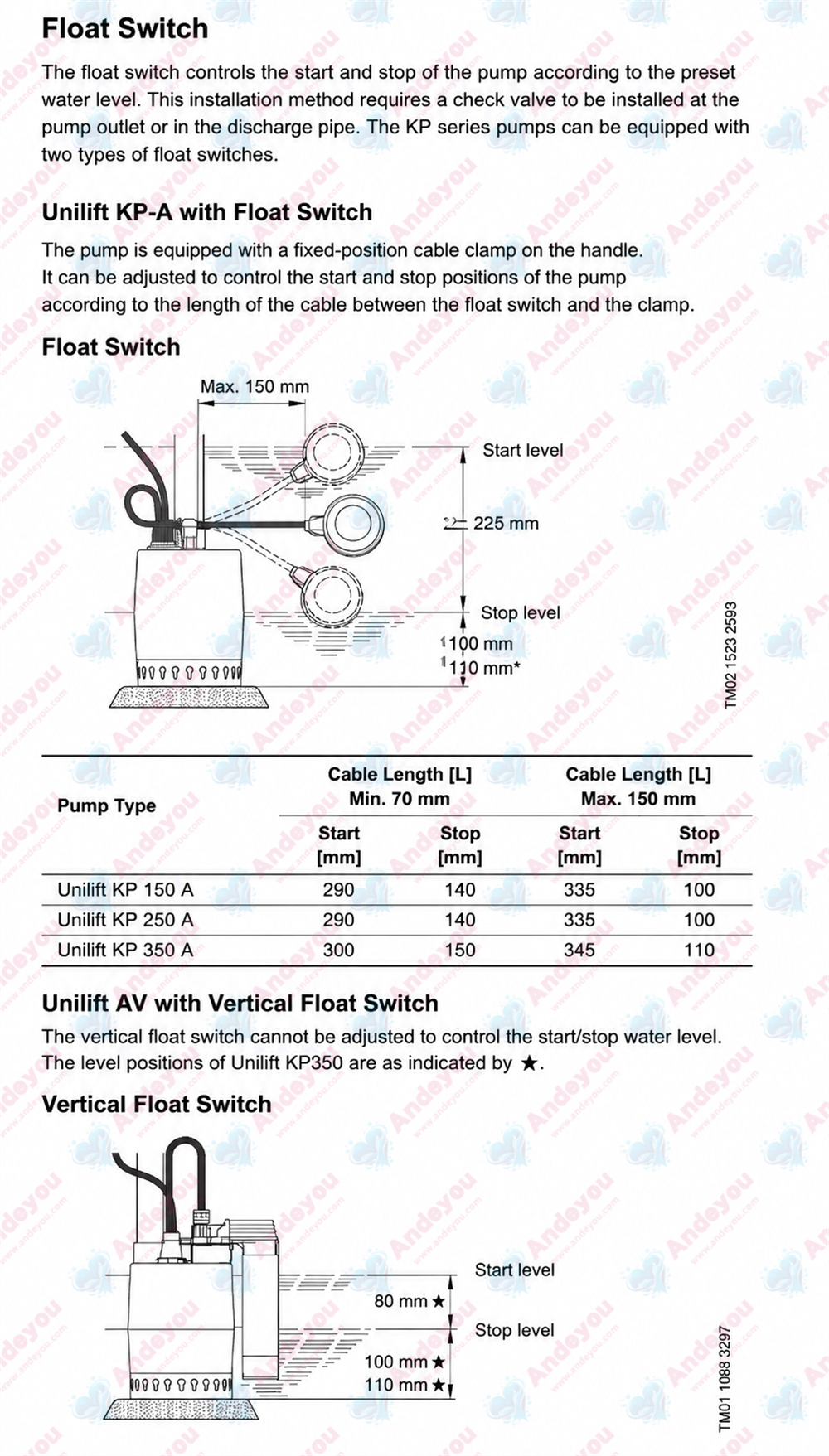

model Voltage/Frequency Flow rate (m³/h) Head (m) Maximum particle size (mm) Power (kW) caliber Control method

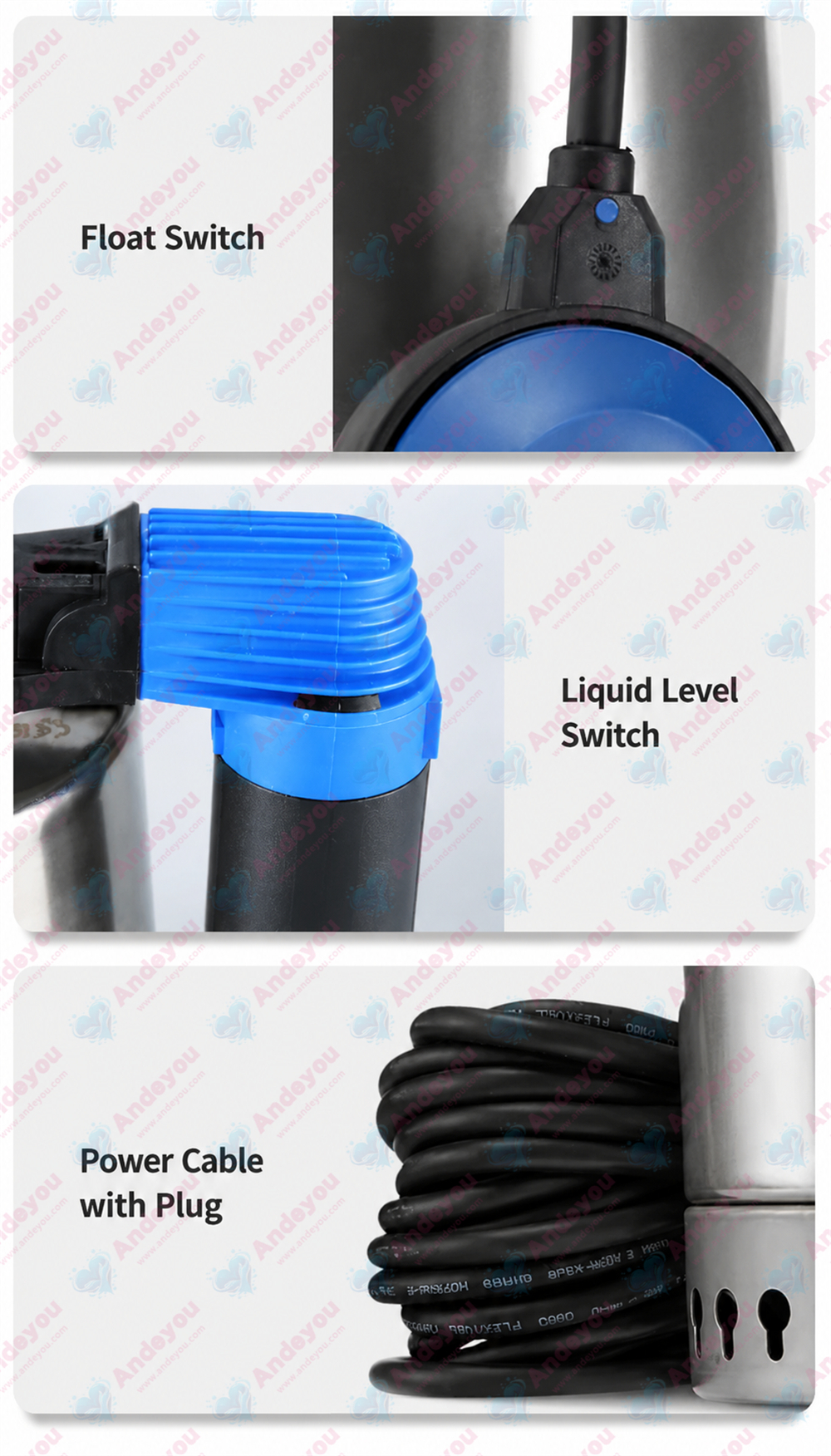

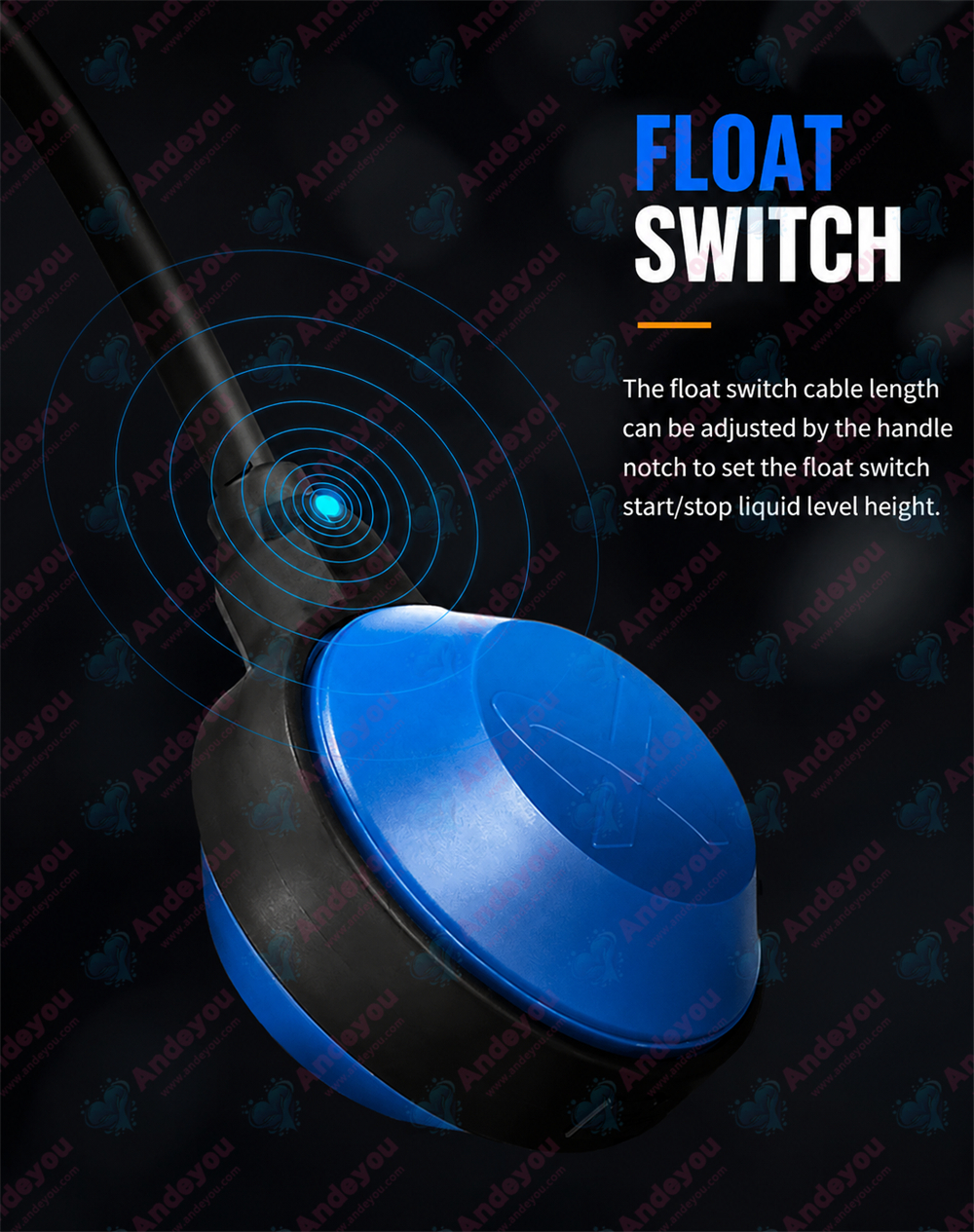

UNILIFT KP.150.A.1 220V/50Hz 2.36 2.94-5.5 10 0.15 1 1/4 Liquid level float

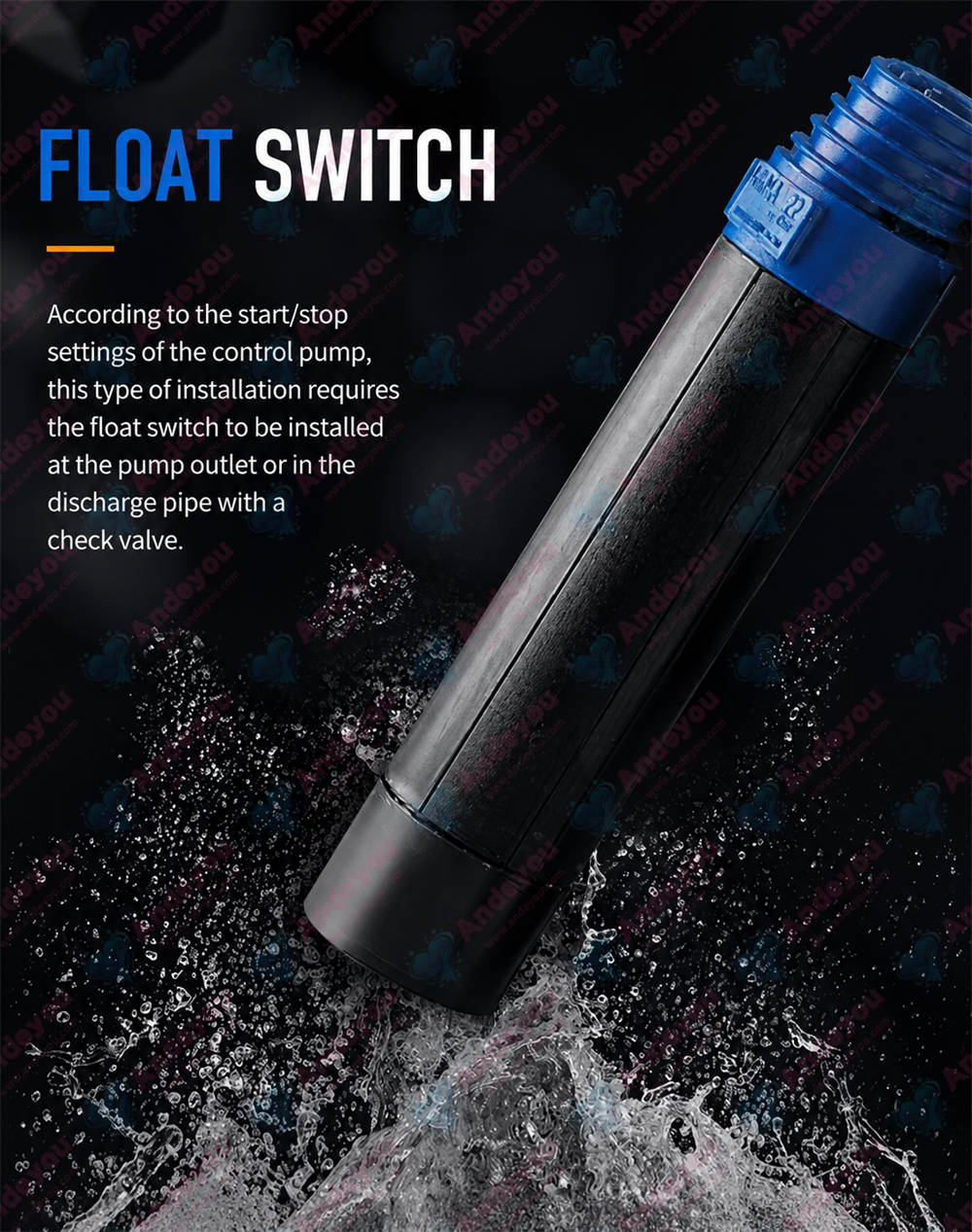

UNILIFT KP.150.AV.1 220V/50Hz 2.36 2.94-5.5 10 0.15 1 1/4 Water level switch
UNILIFT KP.150.M.1 220V/50Hz 2.36 2.94-5.5 10 0.15 1 1/4

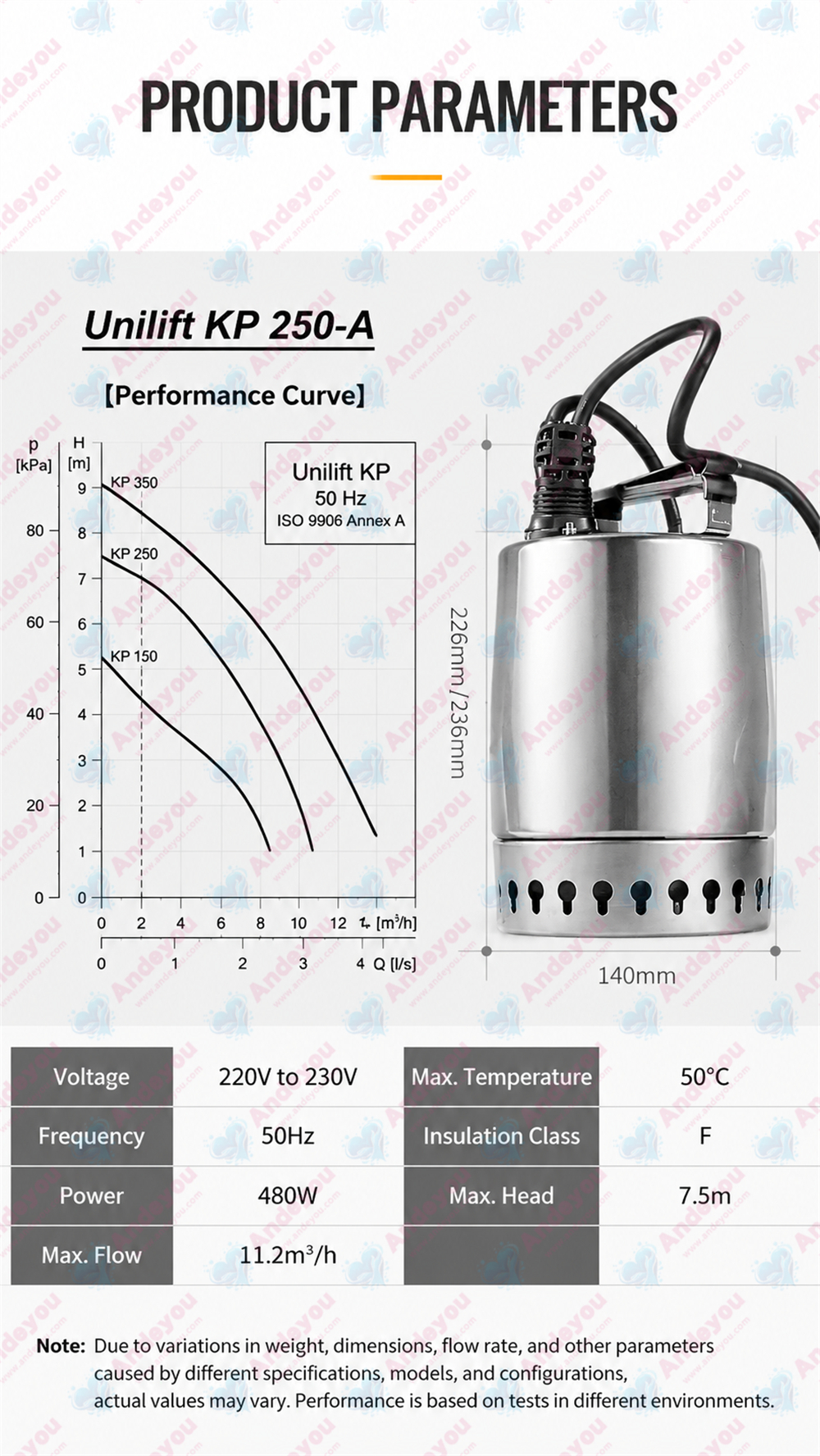

UNILIFT KP.250.A.1 220V/50Hz 3.11 5.12-7.5 10 0.25 1 1/4 Liquid level float
UNILIFT KP.250.AV.1 220V/50Hz 3.11 5.12-7.5 10 0.25 1 1/4 Water level switch
UNILIFT KP.250.M.1 220V/50Hz 3.11 5.12-7.5 10 0.25 1 1/4
UNILIFT KP.250.M.3 380V/50Hz 3.33 4.47-8 10 0.25 1 1/4

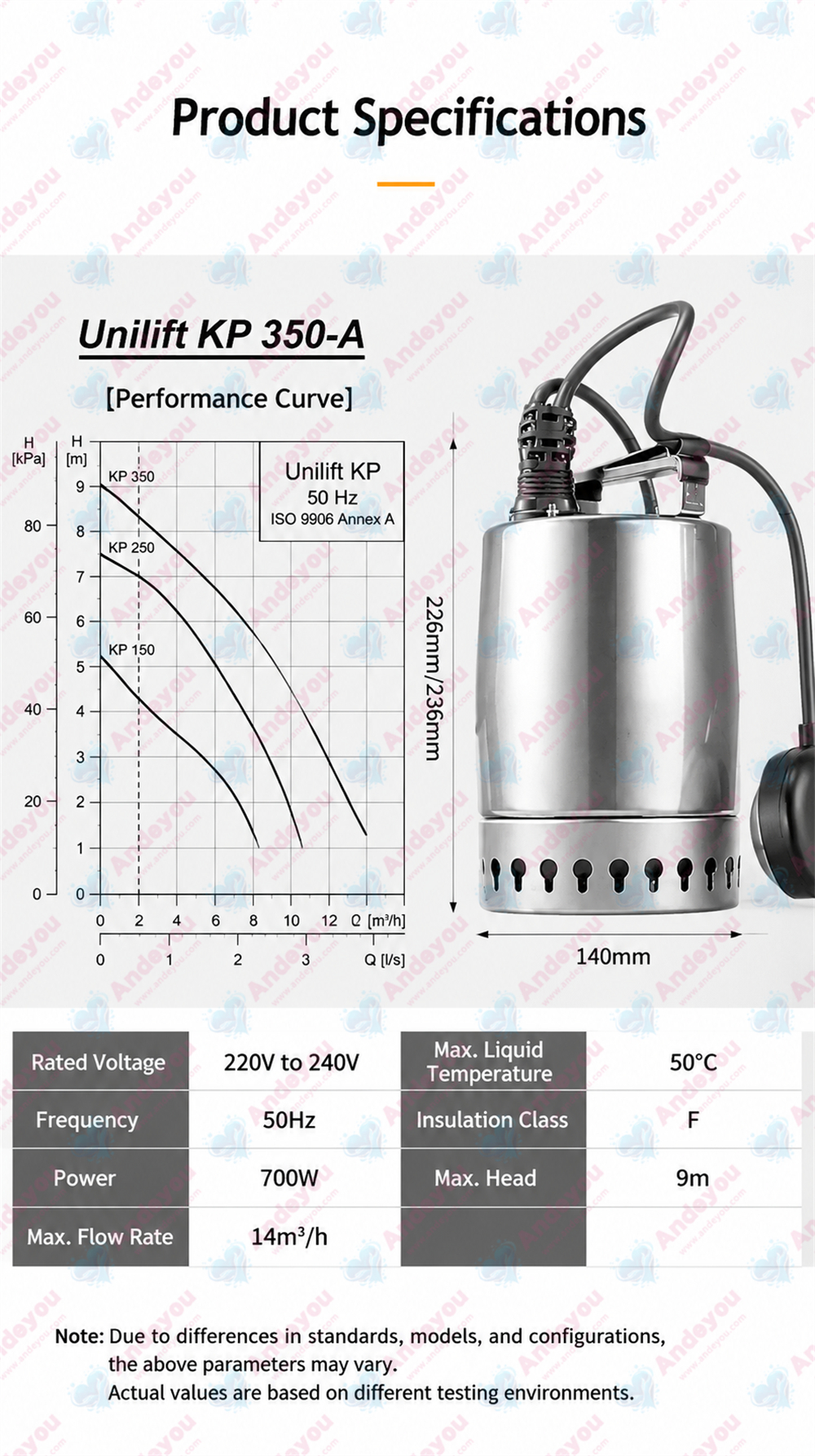

UNILIFT KP.350.A.1 220V/50Hz 3.89 5.84-9 10 0.35 1 1/4 Liquid level float
UNILIFT KP.350.AV.1 220V/50Hz 3.89 5.84-9 10 0.35 1 1/4 Water level switch
UNILIFT KP.350.M.1 220V/50Hz 3.89 5.84-9 10 0.35 1 1/4
UNILIFT KP.350.M.3 380V/50Hz 3.89 5.36-9 10 0.35 1 1/4
