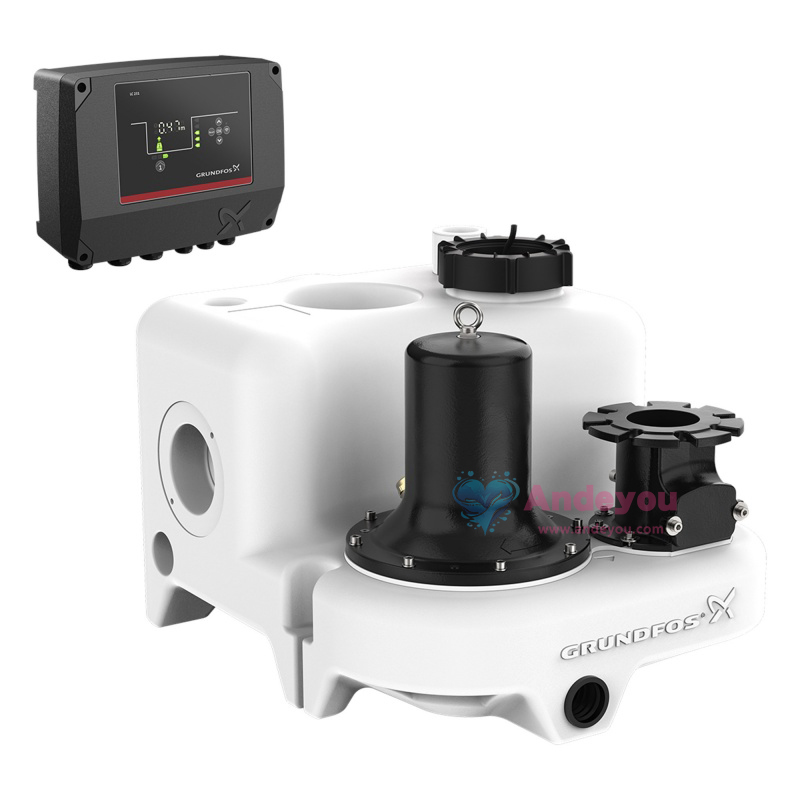

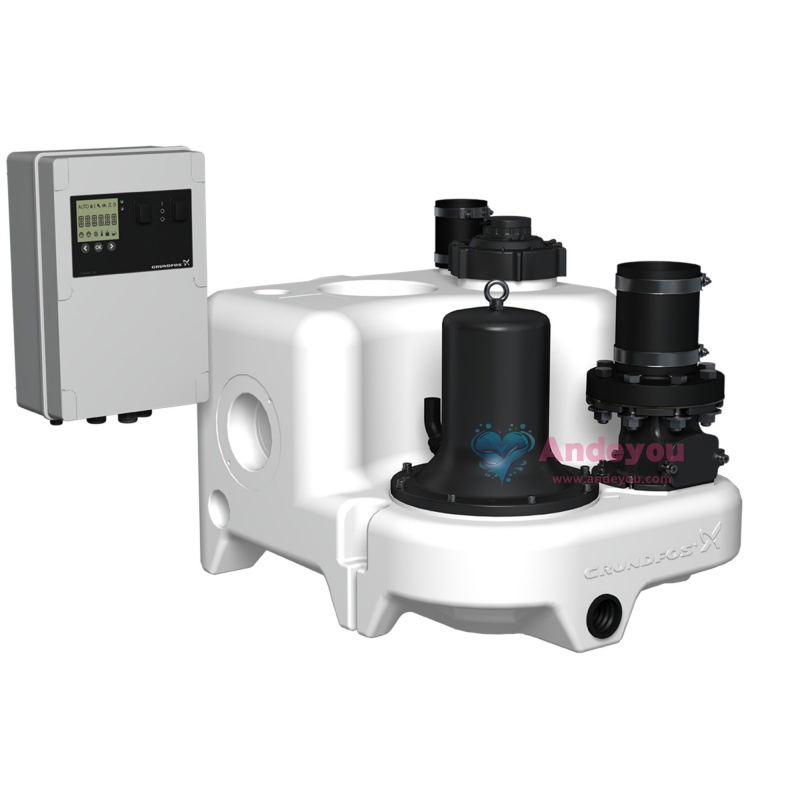

Grundfos MULTILIFT M Sewage Lifting Station (93L)

M.12.1.4、M.12.3.4、M.15.1.4、M.15.3.4、M.22.3.4、M.24.3.2、M.32.3.2、M.38.3.2

The Grundfos Multilift M sewage lifting station is designed specifically for single-family homes,featuring a large 93-liter tank to efficiently handle domestic wastewater.It utilizes quiet operation technology and a clog-resistant design to ensure reliable,long-term discharge.Suitable for applications such as basements and bathrooms,its compact structure saves space while allowing for easy installation and maintenance.

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

Grundfos MULTILIFT M Sewage Lifting Station (93L Tank)

Large Capacity, High Efficiency Treatment

Designed with a 93L tank, this system provides a stable and efficient solution for discharging domestic sewage (such as from bathrooms, kitchens, and laundry rooms) into single households.

Quiet Operation Technology

Utilizing a low-noise motor and optimized water flow design, the equipment operates quietly, making it suitable for home environments.

Anti-clogging design

Built-in cutting system or vortex impeller effectively crushes solid impurities, preventing pipe blockage and reducing maintenance frequency.

Compact Design and Easy Installation

Its small size makes it suitable for installation in confined spaces such as basements and bathrooms. It also features quick-connect interfaces to simplify the installation process.

High Durability and Protection

IP68 waterproof rating, corrosion-resistant material, can still operate stably after long-term immersion, extending service life.

Intelligent Control (Some Models)

Optional liquid level sensor or automatic start/stop function to achieve automatic discharge of sewage when the tank is full, without manual intervention.

Environmentally friendly and energy-saving

High-efficiency motor design with low energy consumption, meeting the energy-saving needs of modern families.

Parameters

model	Voltage/Frequency	Flow rate (L/s)	Head (m)	Maximum particle size (mm)	Power (kW)	Outlet diameter	Rotational speed (r/min)	Cabinet capacity (L)	Length × Width × Height
M.12.1.4	220V/50Hz	5.5-13.9	6.2-8.3	50	1.4	DN80	1400	92	740580551
M.12.3.4	380V/50Hz	5.5-13.9	6.4-8.5	50	1.5	DN80	1400	92	740580551
M.15.1.4	220V/50Hz	5.5-13.9	6.9-9.2	50	1.6	DN80	1400	92	740580551
M.15.3.4	380V/50Hz	5.5-15.3	7.2-9.4	50	1.7	DN80	1400	92	740580551
M.22.3.4	380V/50Hz	5.5-16.7	8.6-10.4	50	2.5	DN80	1400	92	740580551
M.24.3.2	380V/50Hz	5.5-14.4	10.4-14.9	50	2.7	DN80	2800	92	740580551
M.32.3.2	380V/50Hz	5.5-16.7	13.9-18.5	50	3.4	DN80	2800	92	740580551
M.38.3.2	380V/50Hz	5.5-16.7	15.9-20.8	50	3.8	DN80	2800	92	740580551
