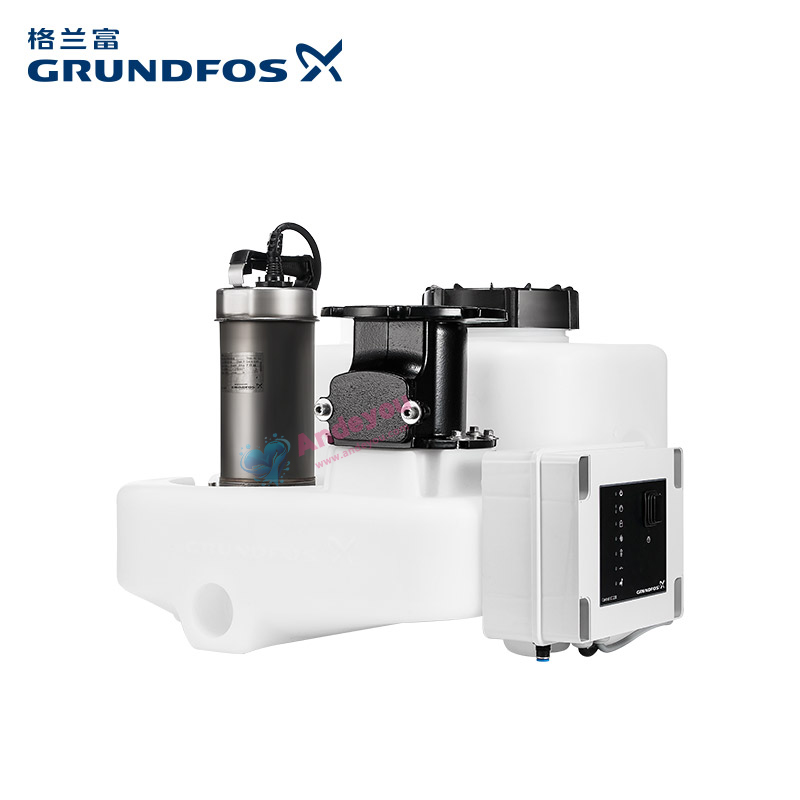

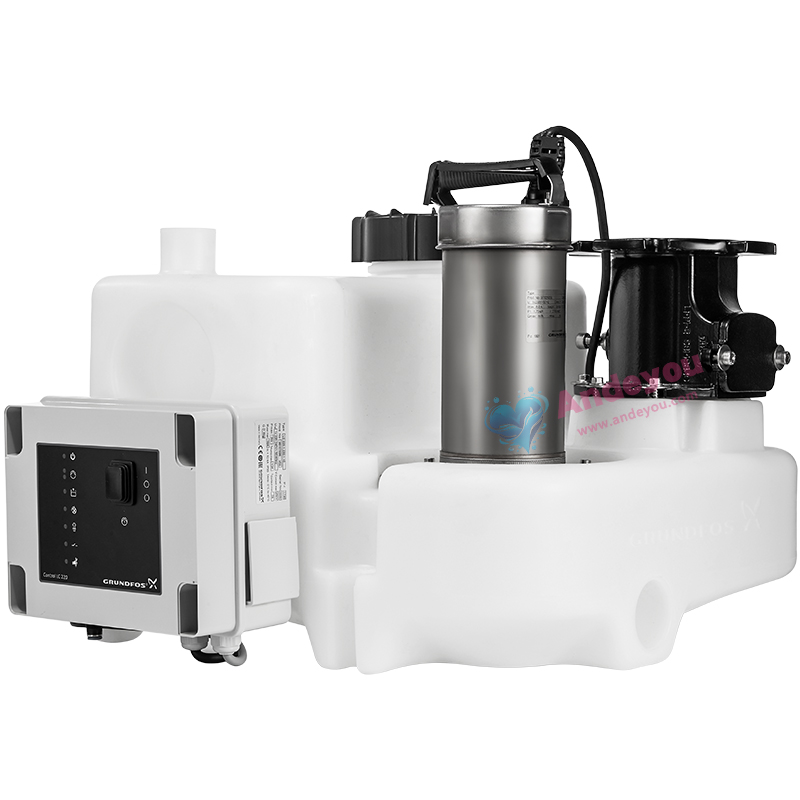

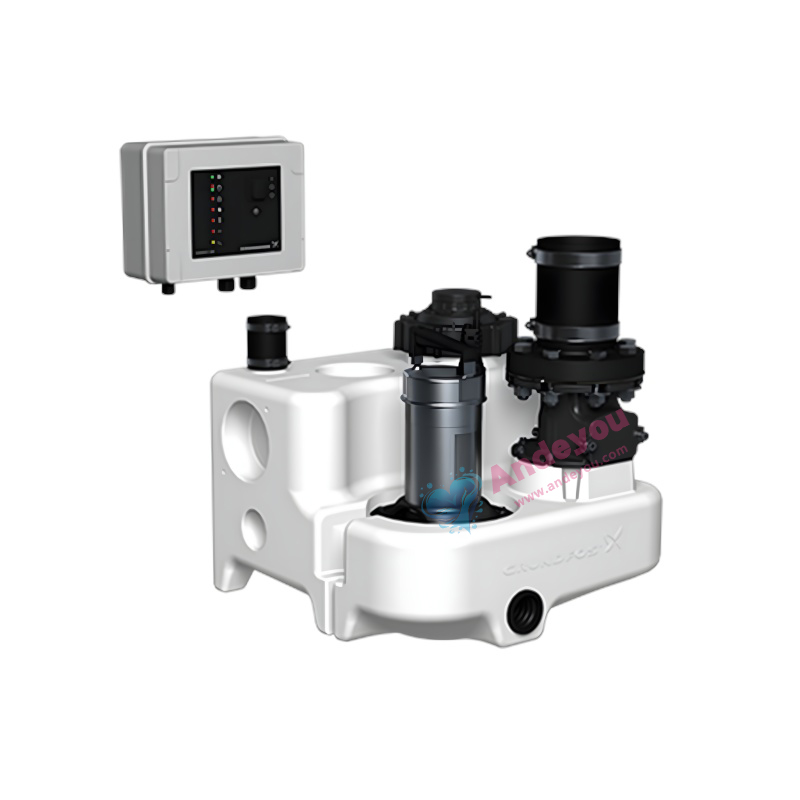

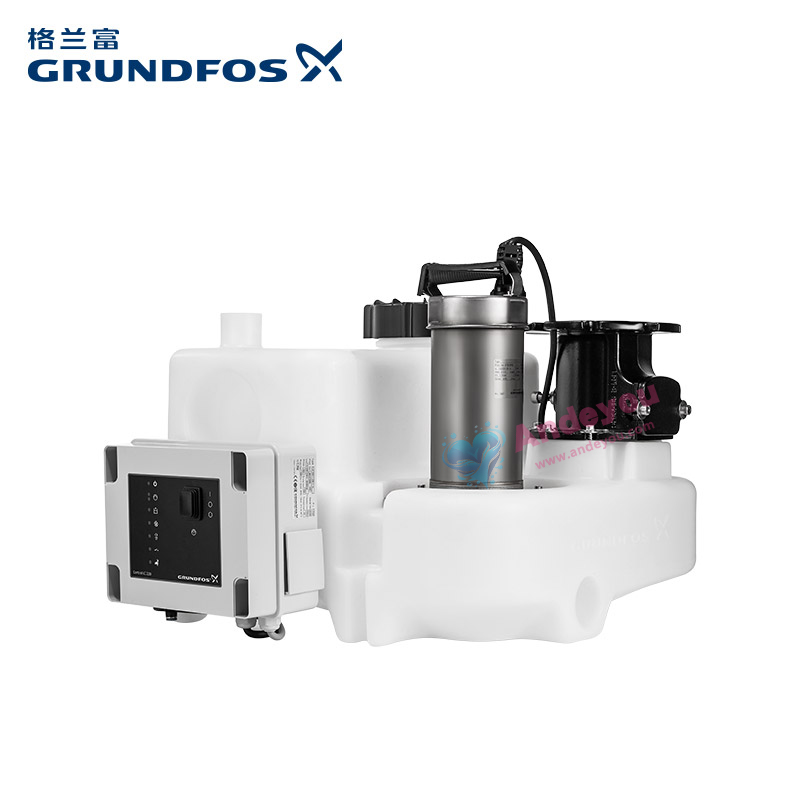

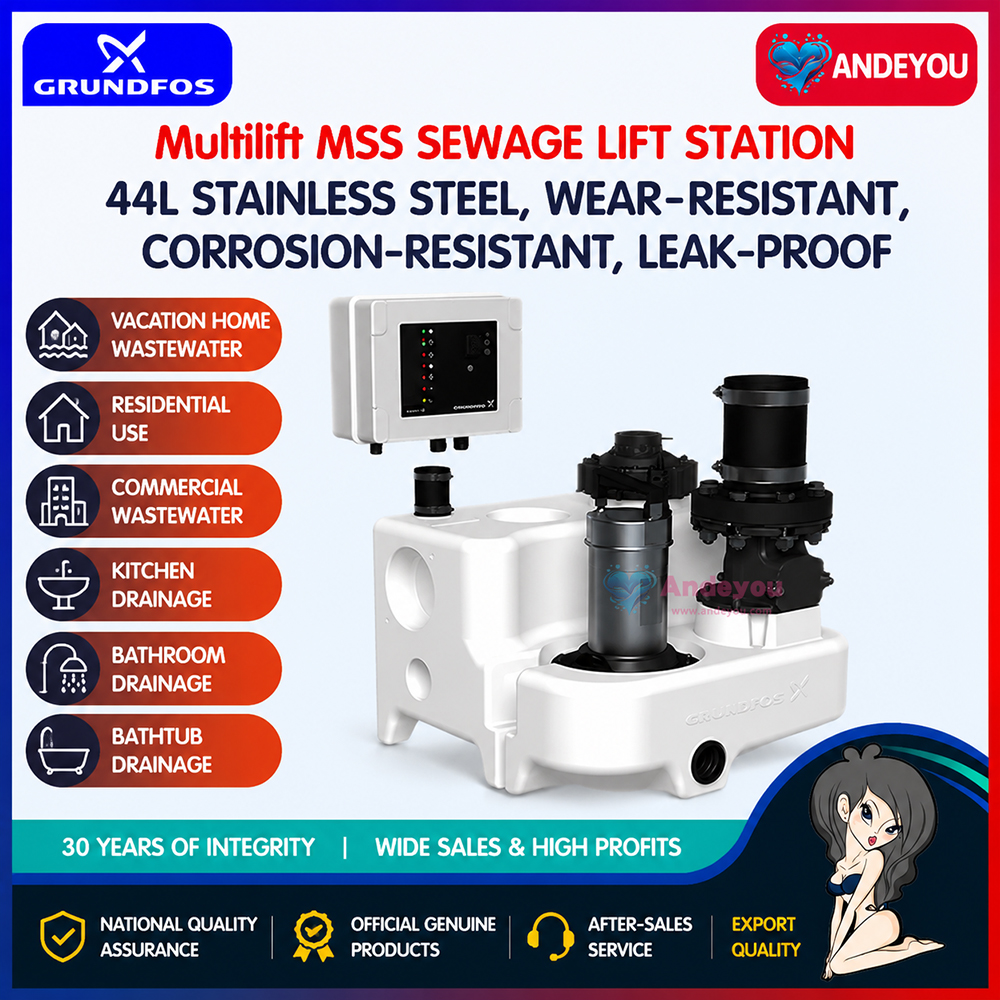

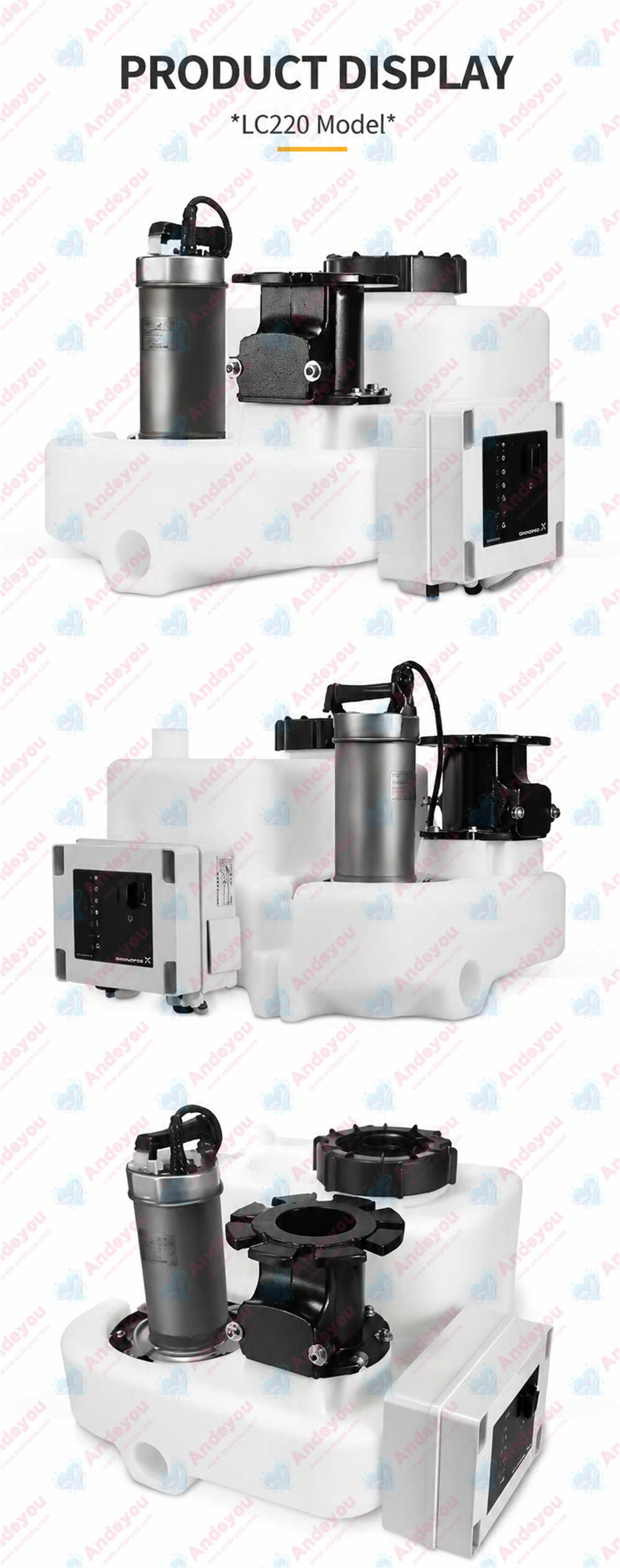

Grundfos Multilift MSS Lifting Station (44L)

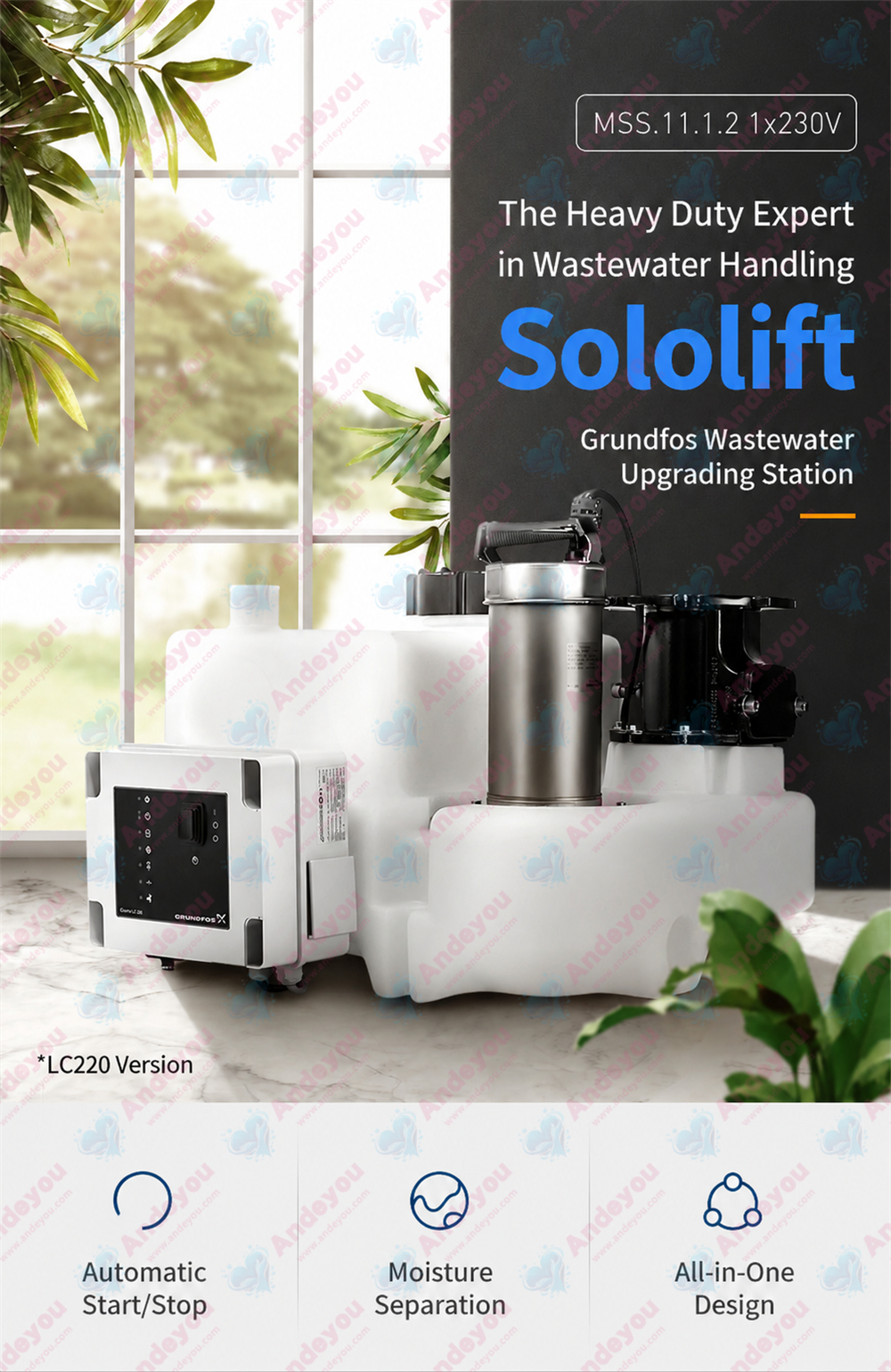

MSS.11.1.2 MSS.11.1.2

The Grundfos Multilift MSS lifting station is designed specifically for single-family homes,featuring a compact 44-liter tank that efficiently handles domestic wastewater (such as drainage from bathrooms and kitchens).It utilizes quiet operation technology and an anti-clogging cutting system to ensure reliable discharge,making it suitable for installation in confined areas like basements.With an IP68 waterproof rating,high durability,and easy maintenance
Function
Parameters
Size
Video Introduction

Function

GRUNDFOS Multilift MSS Sewage Lifting Station (44L Tank)

Compact and Efficient Design

The 44L tank capacity is optimized for domestic wastewater from single-family homes (e.g., bathrooms, kitchens, laundry rooms); its compact size makes it ideal for installations where space is limited.

Quiet Operation Technology

Features a low-noise motor and optimized hydraulic design to ensure quiet operation, preventing disruption to household life.

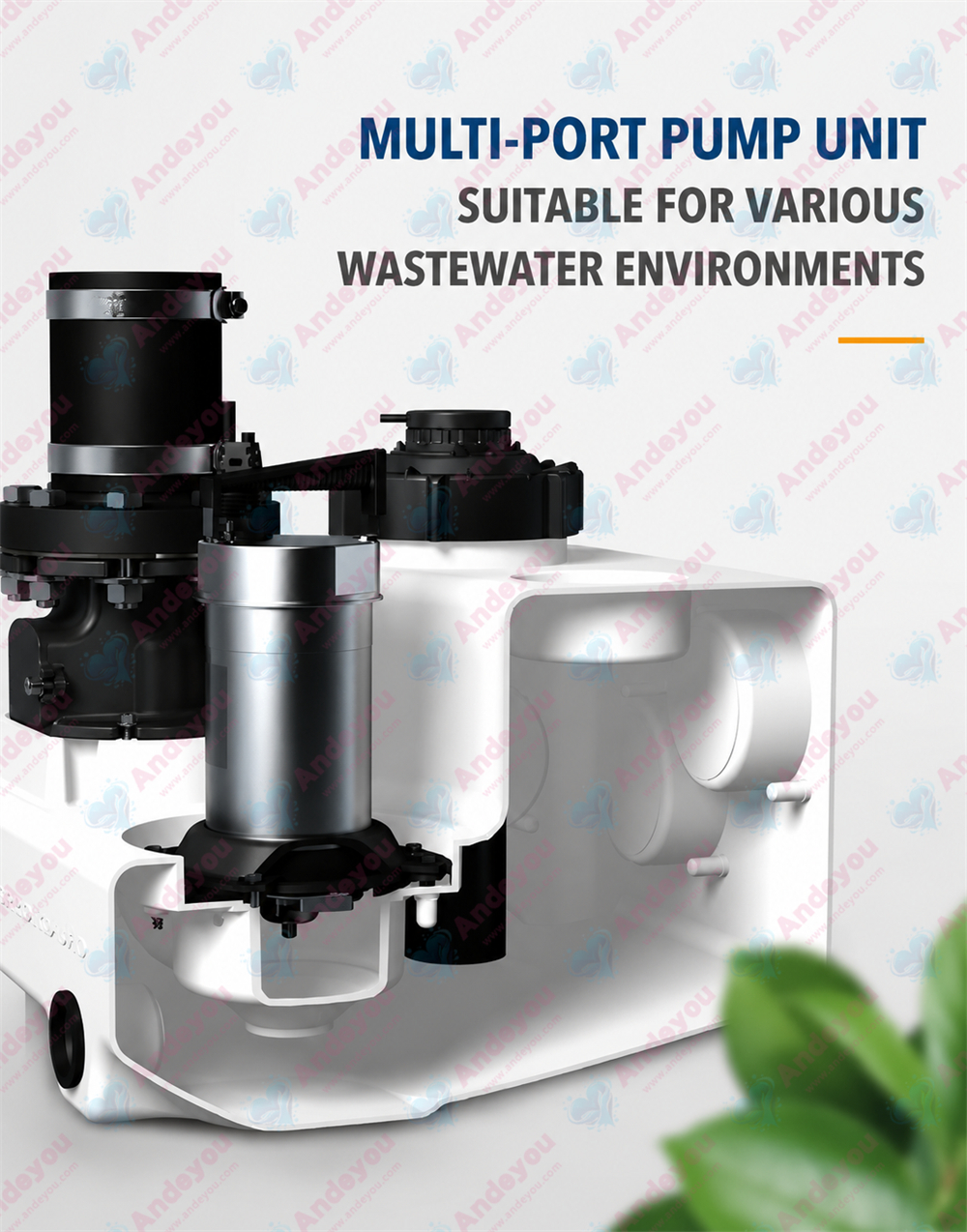

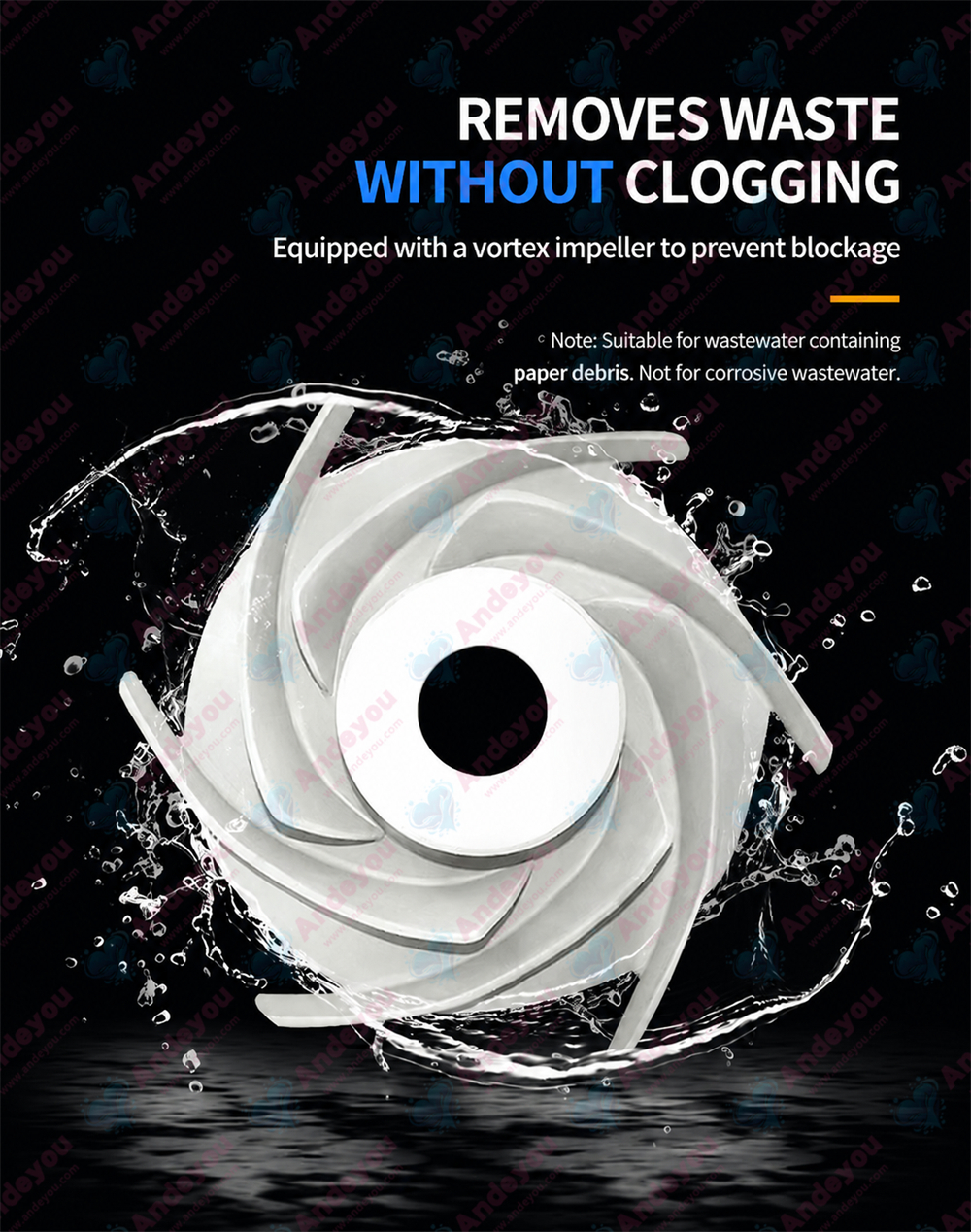

Anti-Clogging System

Equipped with a high-efficiency vortex impeller, significantly reducing the risk of pipe blockages.

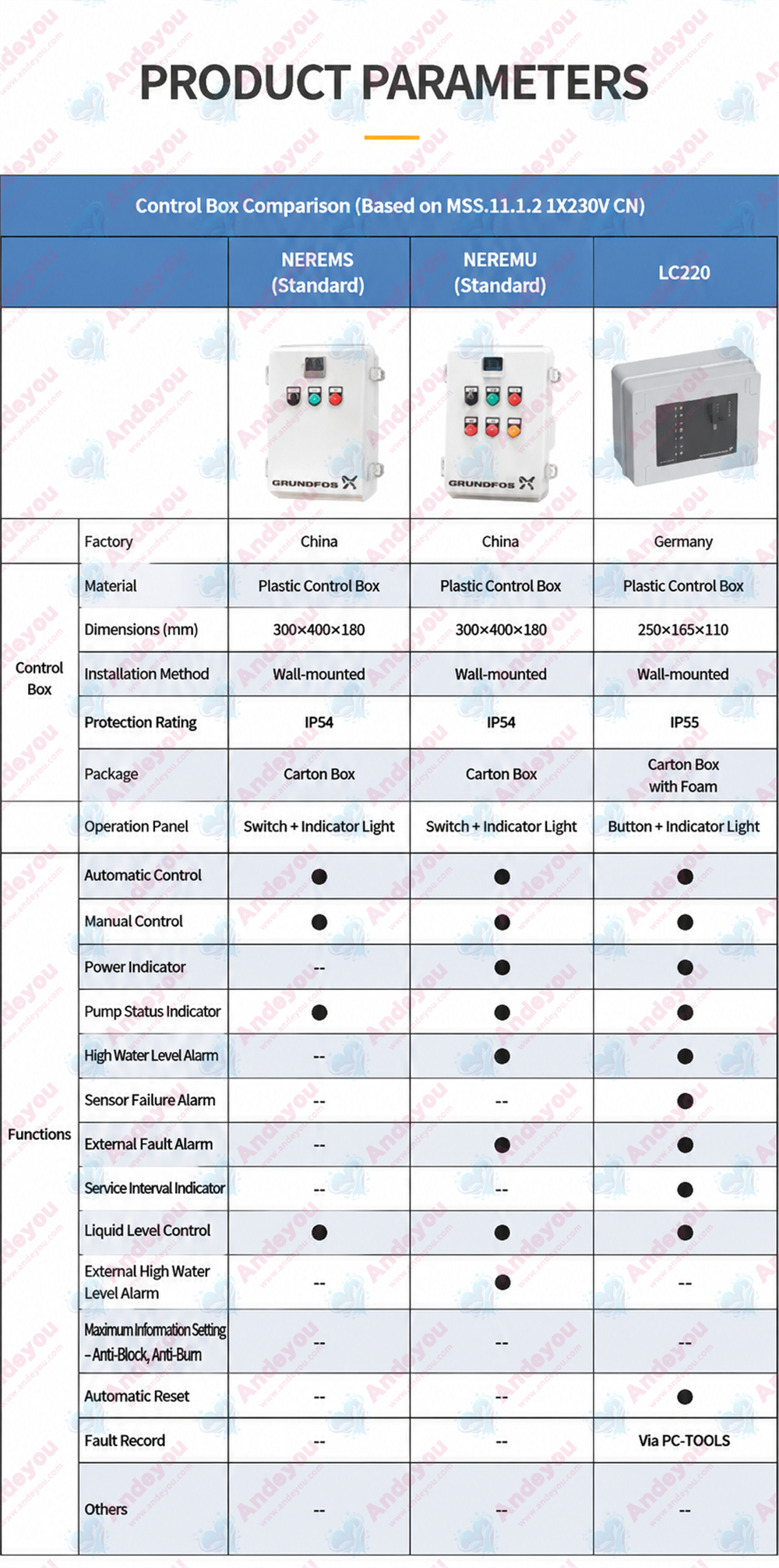

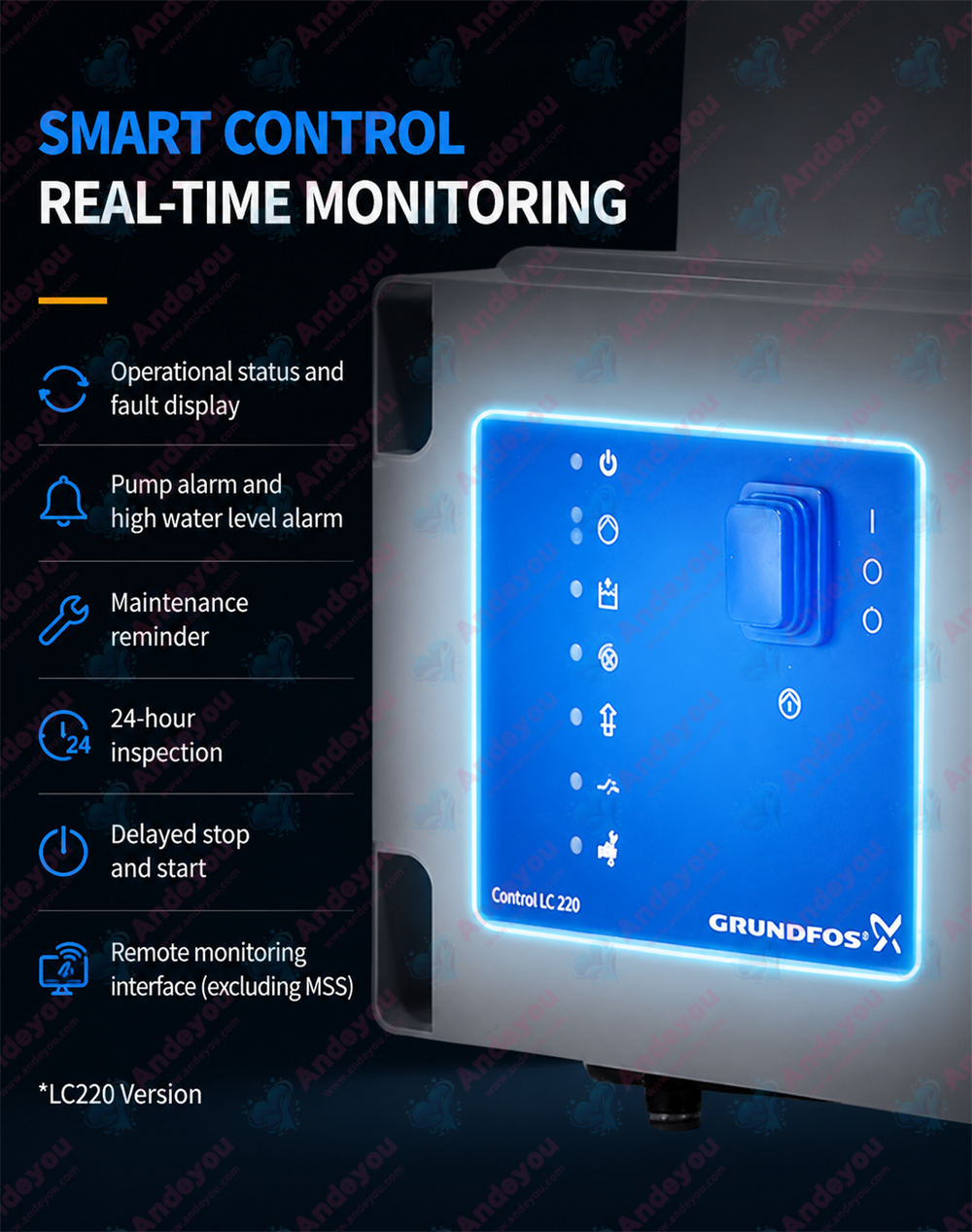

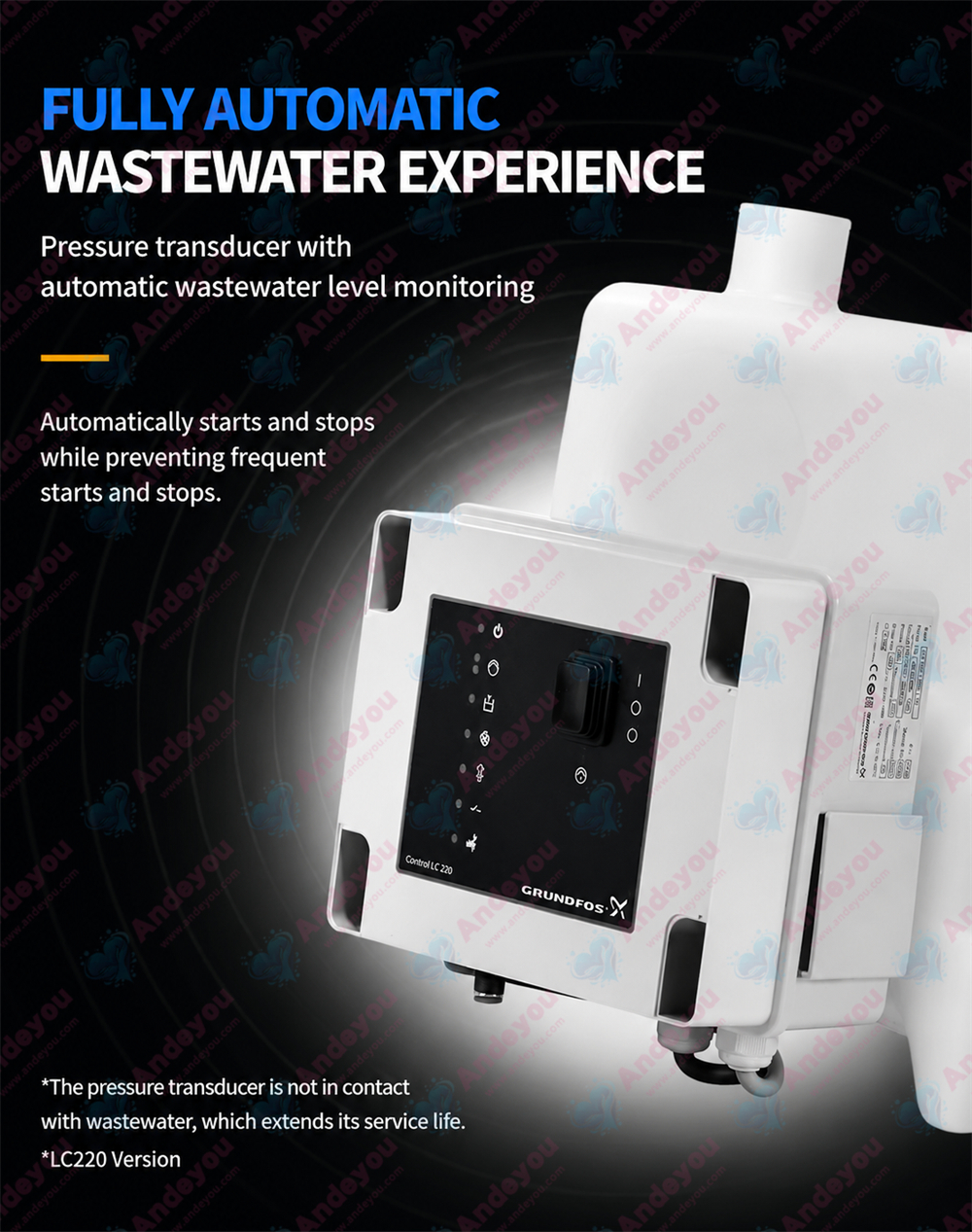

Smart Control Functions

Supports automatic start/stop and liquid level sensing; the system automatically initiates drainage when the tank is full, requiring no manual intervention and ensuring ease of use.

Highly Durable Construction

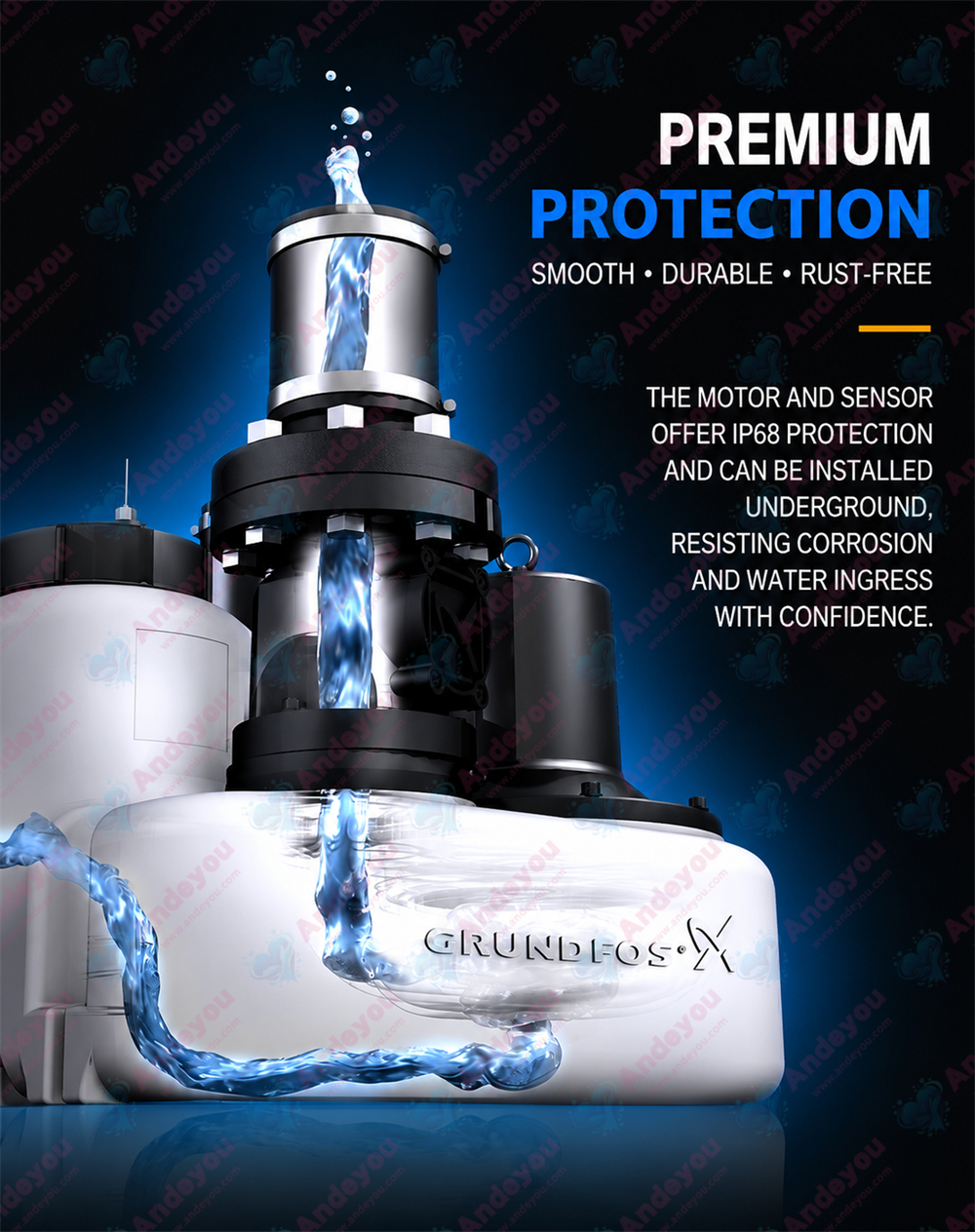

Boasts an IP68 waterproof rating and corrosion-resistant materials, ensuring stable operation even during prolonged submersion and extending service life.

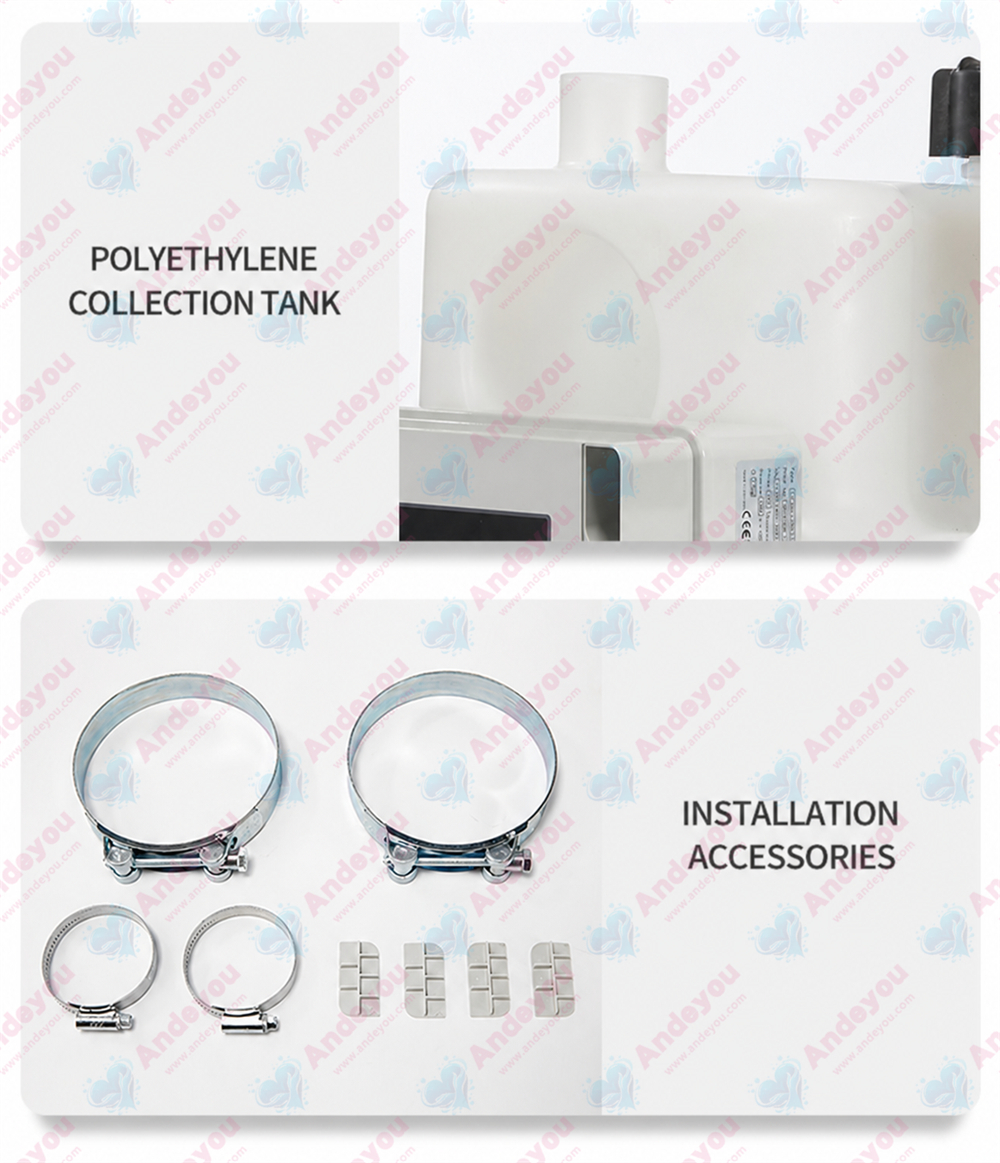

Easy Installation and Maintenance

Modular design with quick-connect interfaces simplifies installation, while the access hatch facilitates routine maintenance.

Energy-Efficient and Eco-Friendly

High-efficiency motor meets energy-saving standards, reducing long-term operating costs.

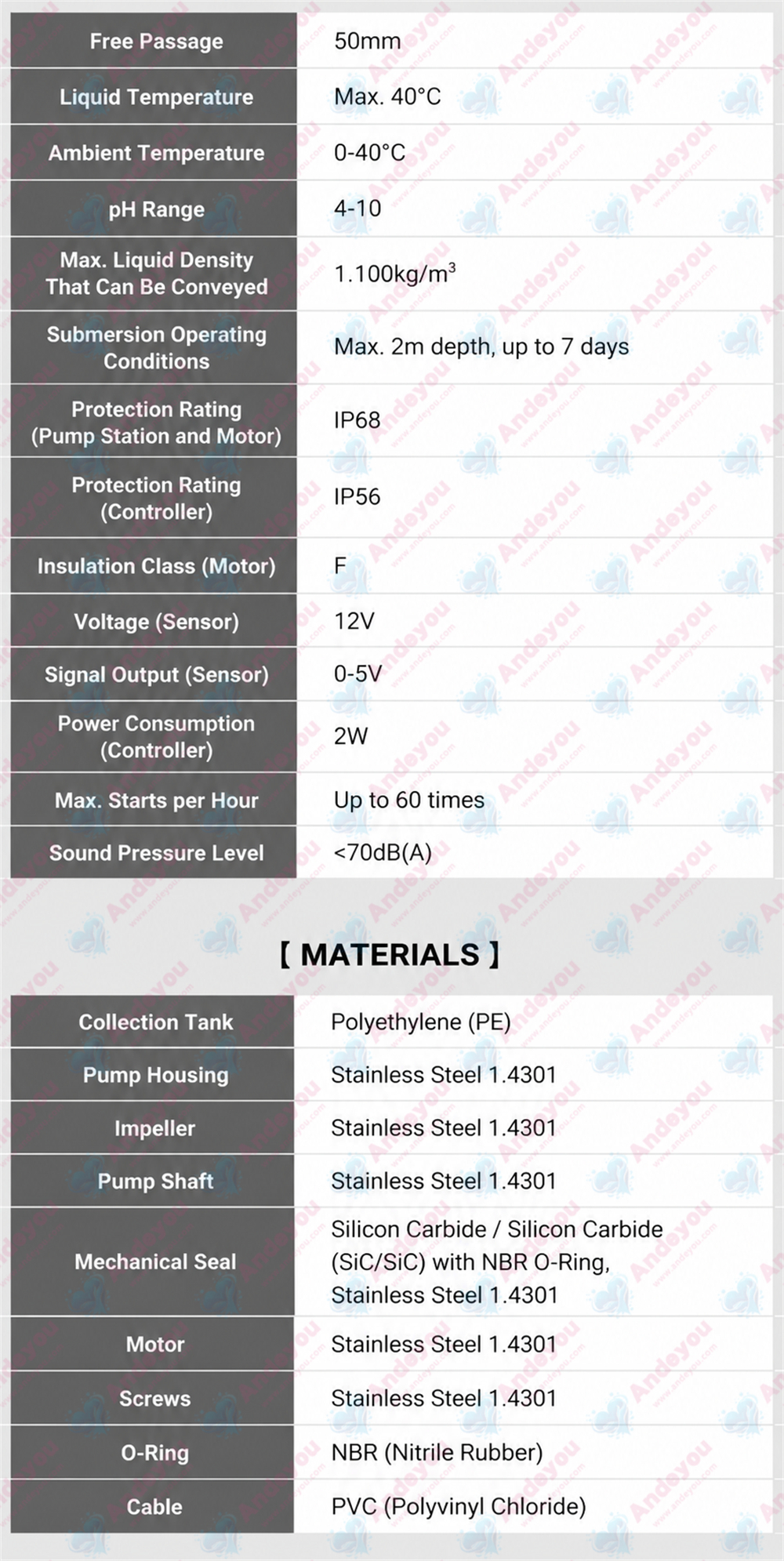

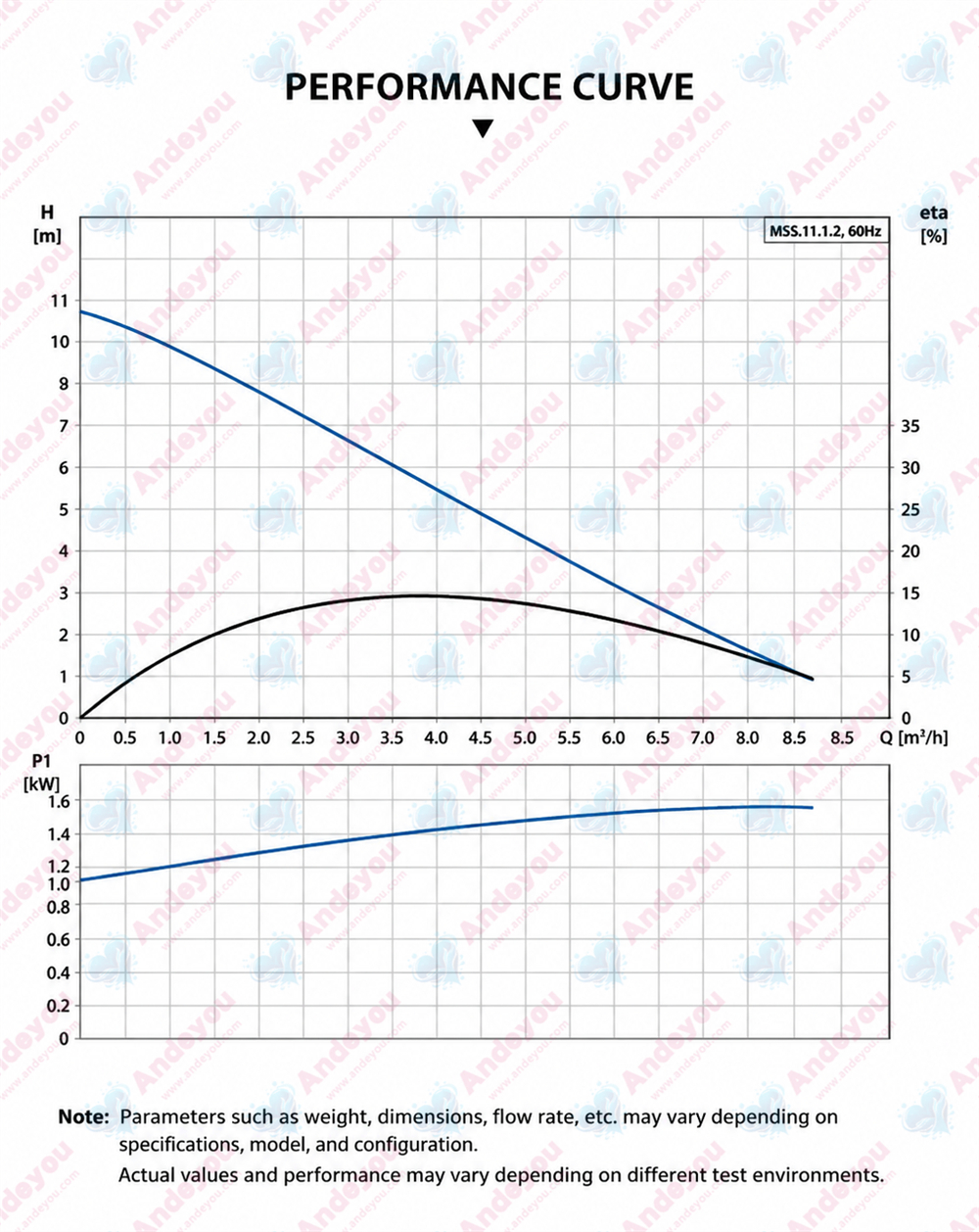

Parameters

model Voltage/Frequency Flow rate (L/s) Head (m) Maximum particle size (mm) Power (kW) caliber Rotational speed (r/min) Cabinet capacity (L) Length × Width × Height
MSS.11.1.2 220V/50Hz 5.5-8.61 4.1-10.4 40 1.1 DN80 2800 44 522*510*460
MSS.11.1.2 220V/50Hz 5.5-8.61 4.1-10.4 40 1.1 DN80 2800 44 522*510*460

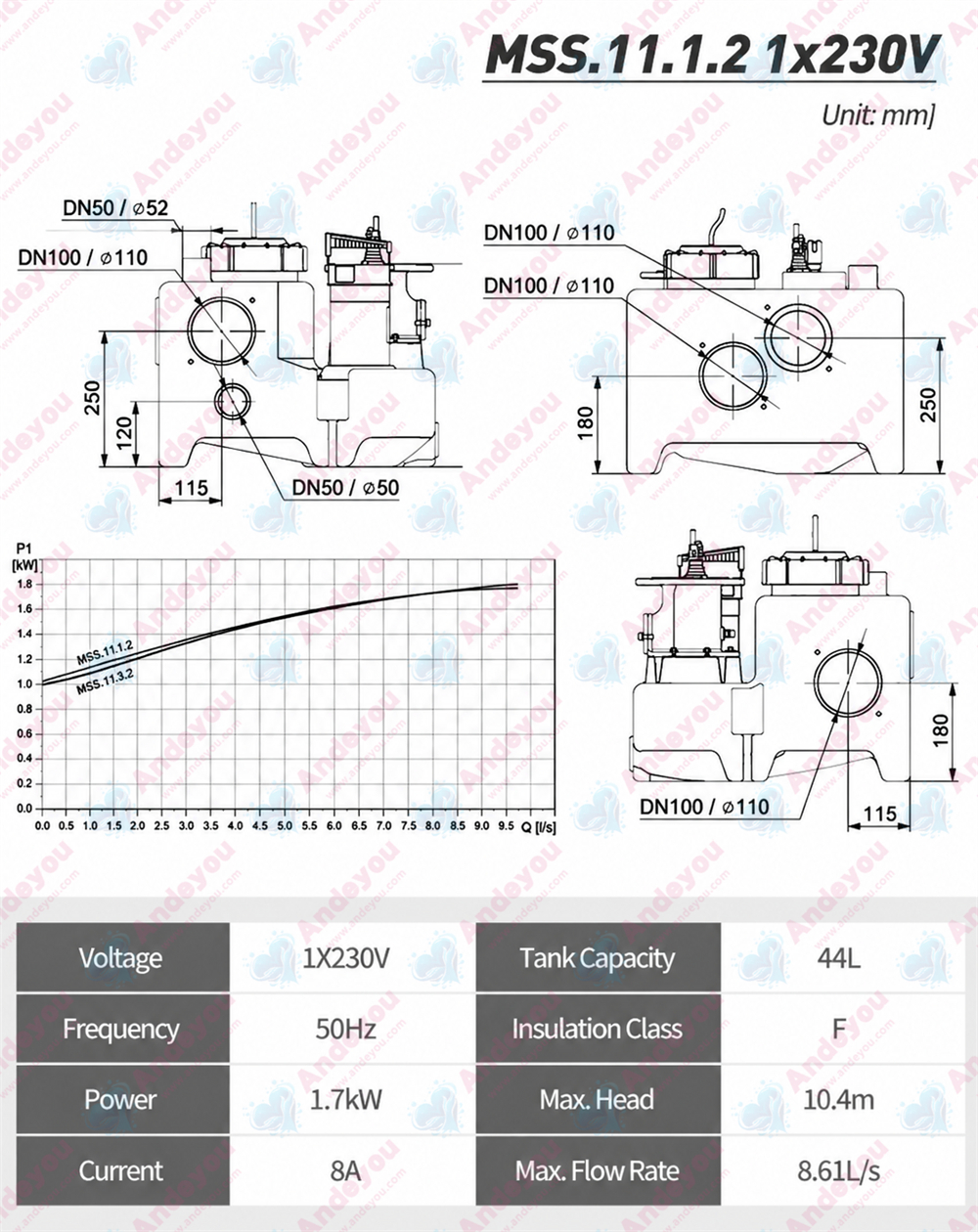

Size
