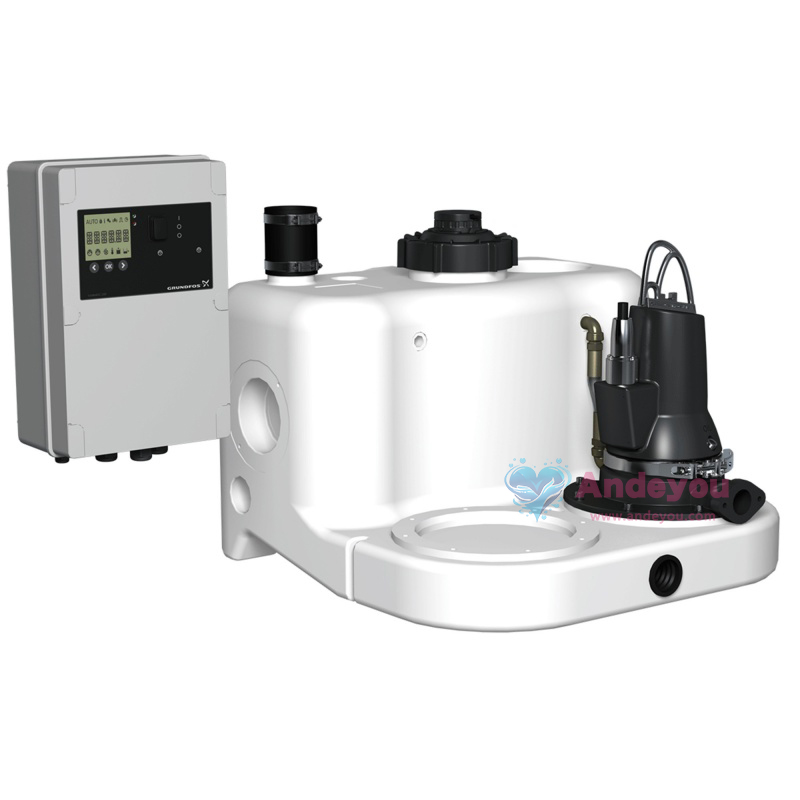

Grundfos Multilift MOG Single-Pump Grinder Lifting Station (93L)

MOG.09.1.2、MOG.09.3.2、MOG.12.1.2、MOG.12.3.2、MOG.15.3.2、MOG.26.3.2、MOG.31.3.2、MOG.40.3.2

The Grundfos Multilift MOG is a grinder-equipped sewage lifting station designed specifically for residential wastewater.Featuring a large 93-liter tank,it is ideal for handling wastewater from bathrooms and kitchens in settings such as villas and basements.Its built-in,high-efficiency grinding system pulverizes impurities like toilet paper and fibers,effectively preventing pipe blockages.An IP68 waterproof rating and corrosion-resistant materials ensure long-term,reliable operation
Product Consultation By telephone
Function
Parameters
Size
Video Introduction

Function

Grundfos Multilift MOG Single-Pump Grinder Lifting Station (93L Tank for Single-Family Wastewater)

High-Efficiency Grinding System

Equipped with a powerful grinder unit capable of pulverizing solid debris such as toilet paper, fibers, and feminine hygiene products; effectively prevents pipe blockages and is ideally suited for residential wastewater discharge needs.

93L Large-Capacity Tank

Designed specifically for single-family use; accommodates daily wastewater storage requirements, reduces frequent pump cycling, and extends equipment service life.

Smart Automatic Control

Features a built-in level sensor for automatic start/stop operation; requires no manual intervention and ensures stable, reliable performance.

Quiet and Energy-Efficient Design

Utilizes low-noise motor technology suitable for home environments; high-efficiency motor reduces energy consumption and meets environmental standards.

IP68 Waterproof and Corrosion-Resistant

Fully sealed structure made from corrosion-resistant materials; capable of continuous operation while submerged in wastewater, adapting well to complex residential drainage environments.

Compact and Easy to Install

Compact footprint makes it suitable for space-constrained areas like basements and bathrooms, offering flexible installation options.

Convenient Maintenance

Features a quick-release grinder assembly and an accessible inspection port, simplifying routine cleaning and maintenance.

Parameters

model

Voltage/

Frequency

 Flow rate (L/s) Head (m) Maximum particle size (mm) Power (kW) caliber Rotational speed (r/min) Cabinet capacity (L) Length × Width × Height
MOG.09.1.2 220V/50Hz 0.889-4.1 12.1-14.4 50 0.9 DN32 2800 93 726*712*551
MOG.09.3.2 380V/50Hz 0.889-4.4 12.3-14.4 50 0.9 DN32 2800 93 726*712*551
MOG.12.1.2 220V/50Hz 0.889-5 18.4-20.5 50 1.2 DN32 2800 93 726*712*551
MOG.12.3.2 380V/50Hz 0.889-5 18.8-20.7 50 1.2 DN32 2800 93 726*712*551
MOG.15.3.2 380V/50Hz 0.889-5.2 24-25.8 50 1.5 DN32 2800 93 726*712*551
MOG.26.3.2 380V/50Hz 0.889-5.19 31.4-33.8 50 2.6 DN32 2800 93 726*712*551
MOG.31.3.2 380V/50Hz 0.889-5.11 34.9-37 50 3.1 DN32 2800 93 726*712*551
MOG.40.3.2 380V/50Hz 0.889-4.67 43.7-45.7 50 4 DN32 2800 93 726*712*551
