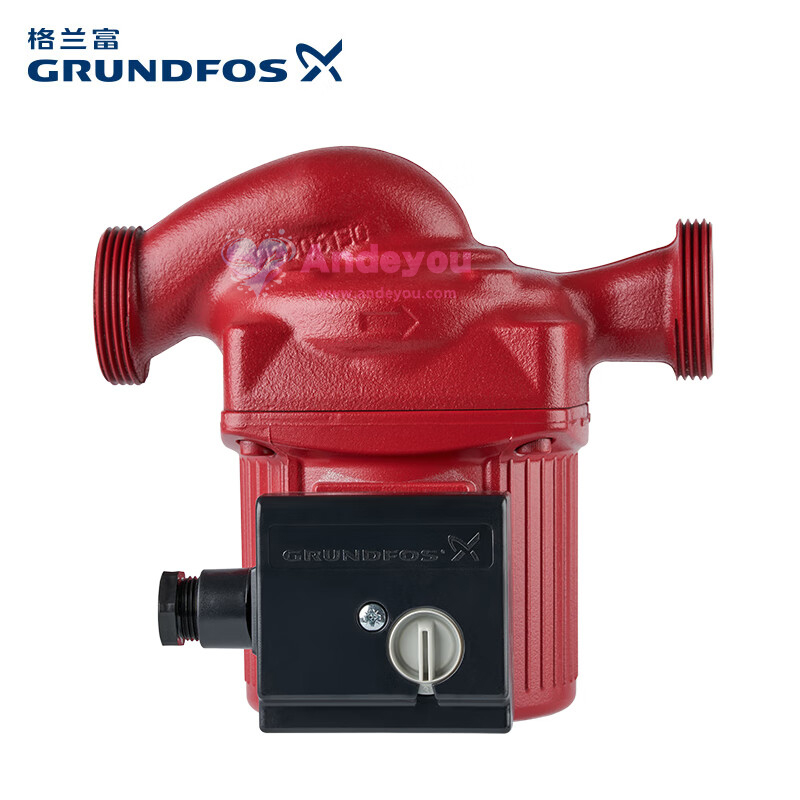

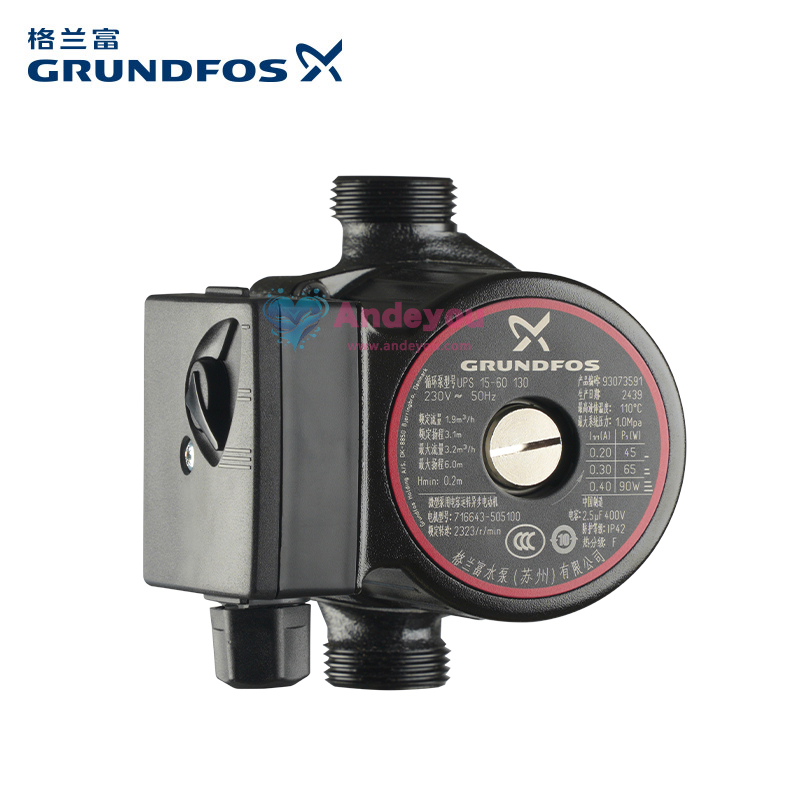

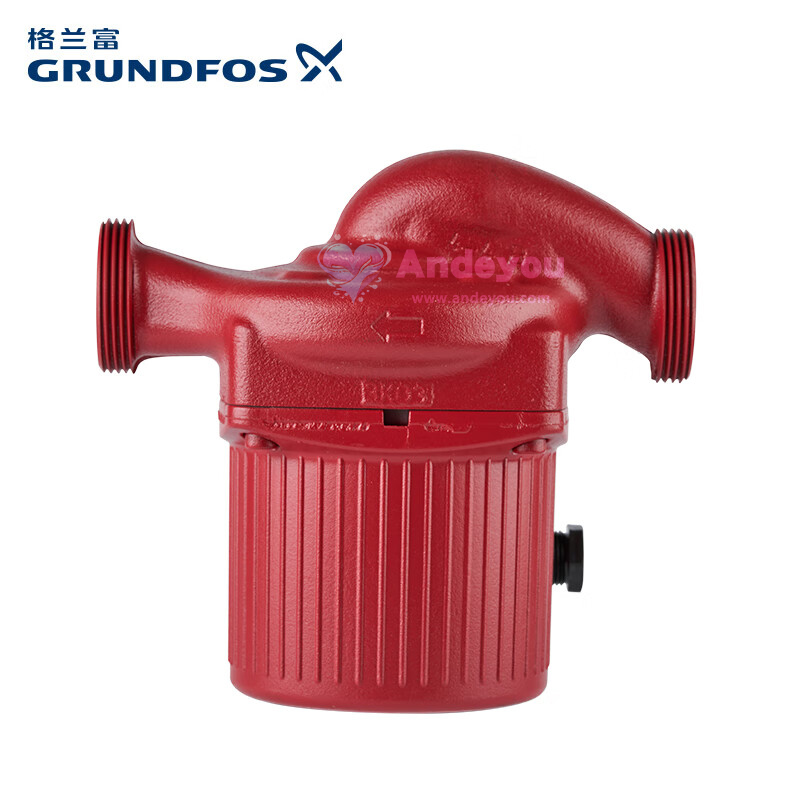

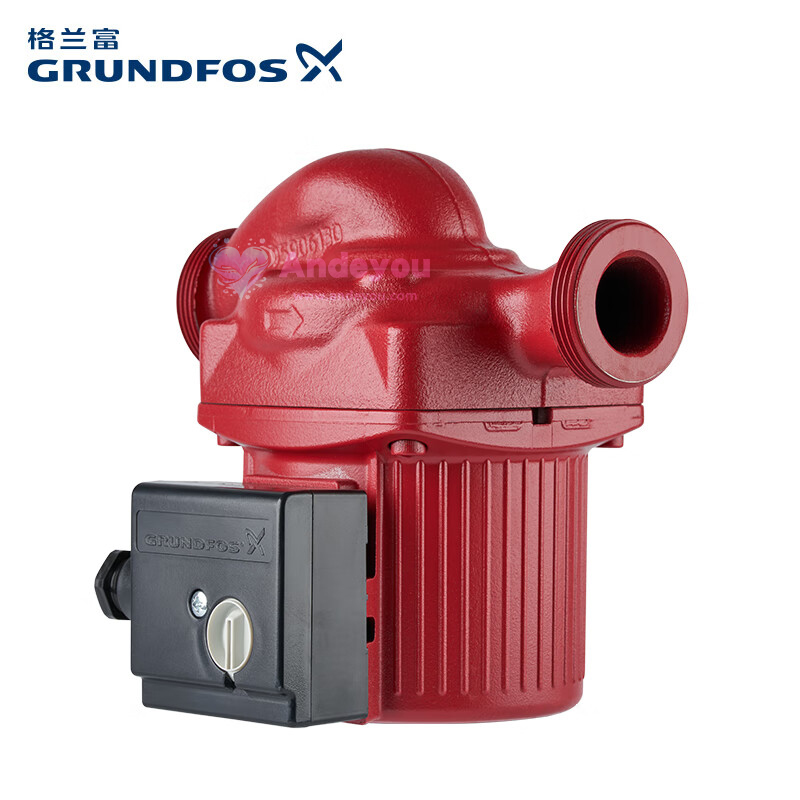

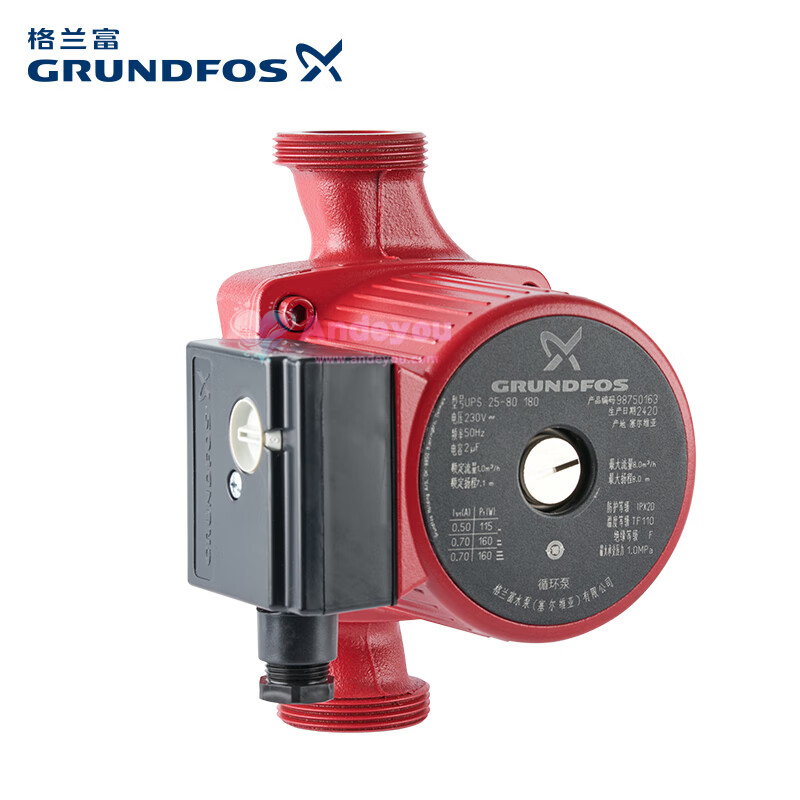

Grundfos UPS Domestic Hot Water Circulator Pump (Canned Rotor)

UPS15-20/130 UPS15-30/130 UPS15-40/130 UPS15-50/130 UPS15-60/130 UPS20-40/130 UPS20-40K/130 UPS20-50/130 UPS20-60/130 UPS25-20/180 UPS25-30/180 UPS25-40/130 UPS25-40/180 UPS25-50/130 UPS25-50/180 UPS25-55/180 UPS25-60/130 UPS25-60/180 UPS25-70/180 UPS25-80/180 UPS25-100/180 UPS25-120/180 UPS25-125/180 UPS32-20/180 UPS32-30/180 UPS32-40/180 UPS32-50/180 UPS32-50F/220 UPS32-70/180 UPS32-80/180 UPS32-80F/220 UPS32-100/180 UPS32-100F/220

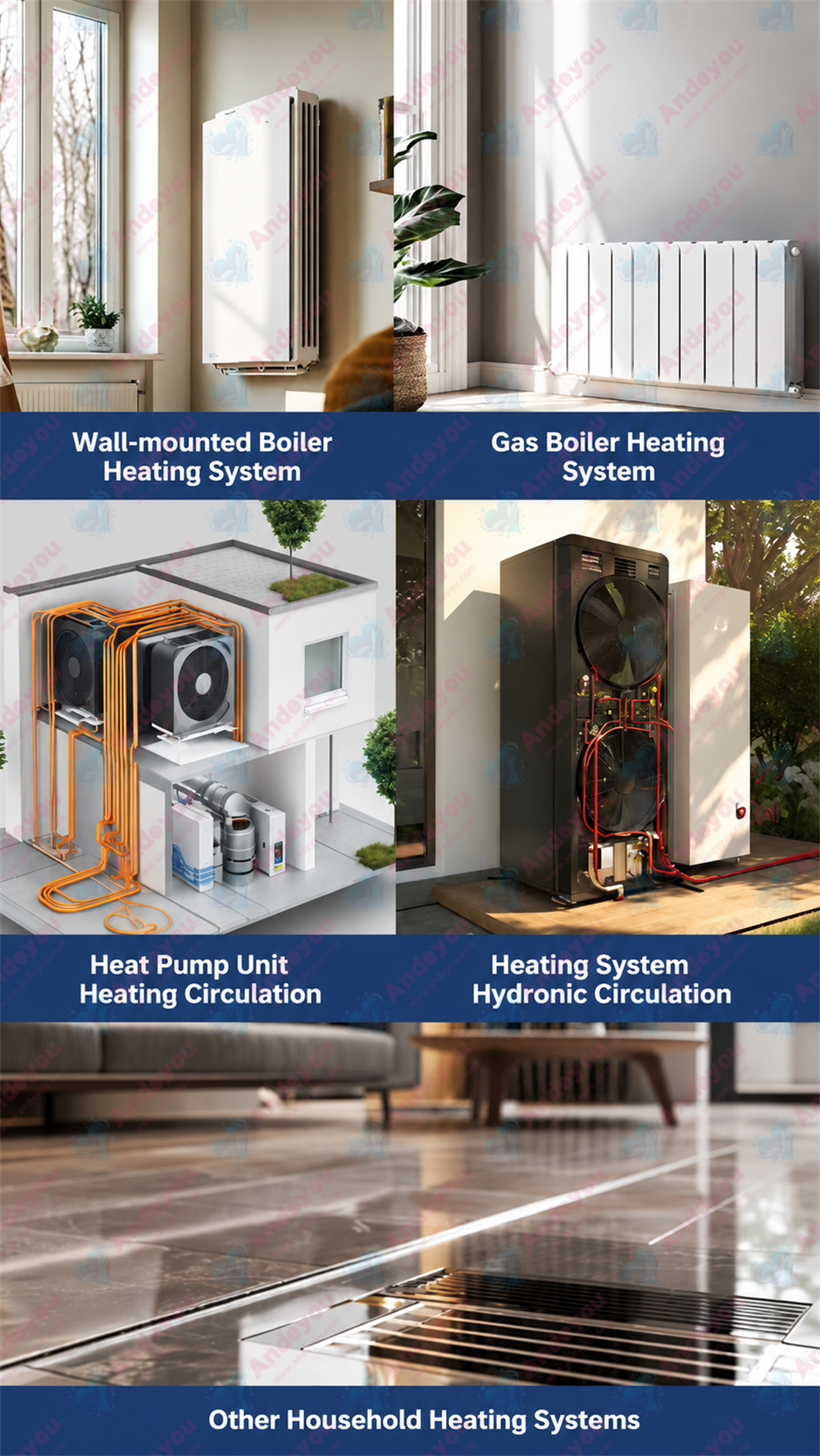

The Grundfos UPS series is a range of canned-rotor circulator pumps designed specifically for domestic hot water systems.Featuring high-efficiency,energy-saving canned-rotor technology,these pumps operate silently and without vibration,while intelligent temperature control ensures precise flow regulation.Suitable for underfloor heating and hot water circulation systems,they improve the efficiency of instant hot water delivery and reduce energy consumption
Function
Parameters
Size
Video Introduction

Function

1. High-Efficiency, Energy-Saving Design

Utilizes advanced canned motor technology and a seal-less design to minimize energy loss and maximize operational efficiency, significantly reducing energy consumption in household hot water systems.

2. Ultra-Quiet Operation

The canned pump design eliminates the mechanical friction and vibration associated with traditional pumps; operating noise levels remain below 35 decibels, making it ideal for noise-sensitive residential environments.

3. Intelligent Temperature Control

Automatically senses water temperature fluctuations and intelligently adjusts circulation flow to ensure instant hot water availability, eliminating the waste of cold water and enhancing user comfort.

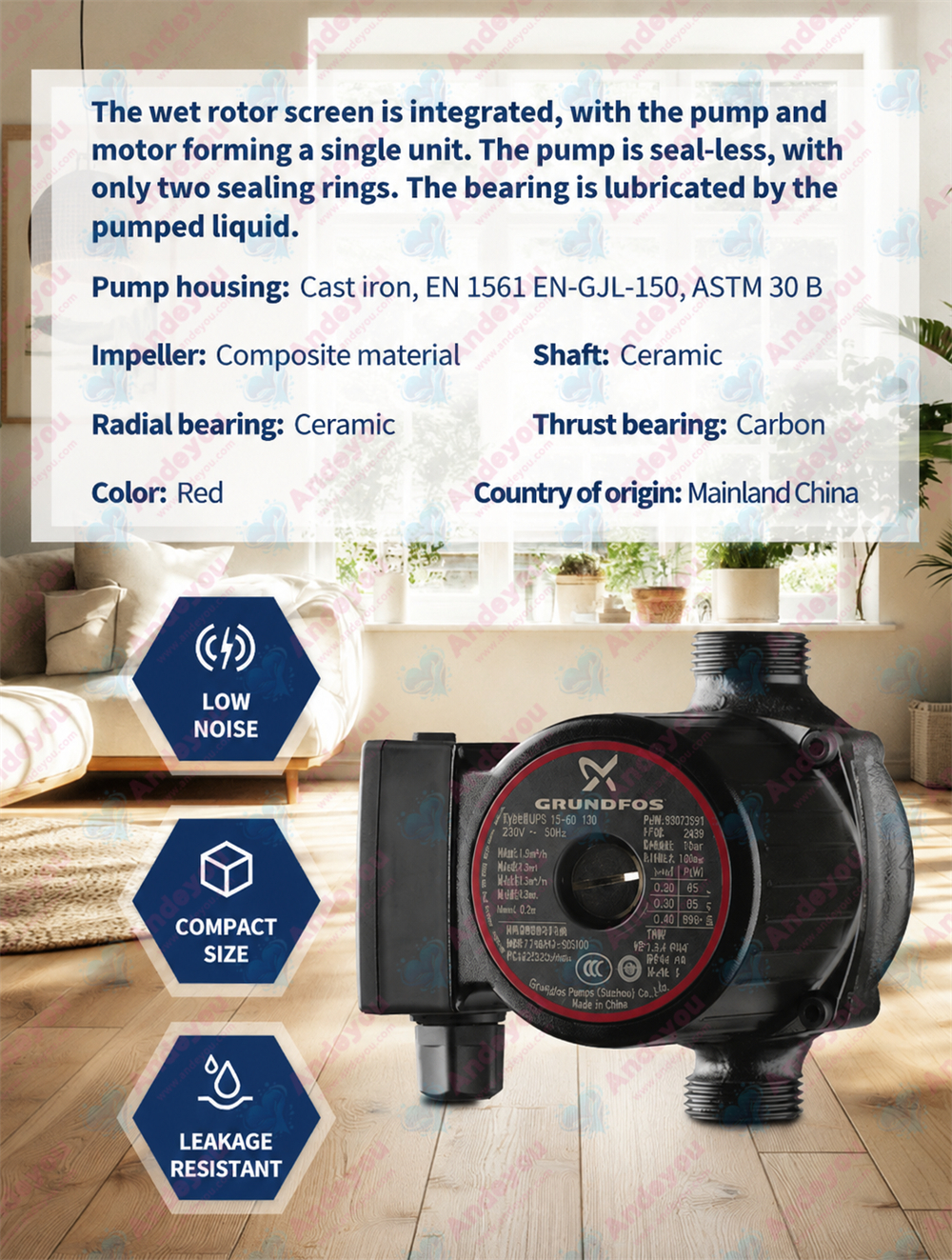

4. Durable, Corrosion-Resistant Materials

Key components are constructed from stainless steel and high-temperature resistant composite materials, offering superior corrosion resistance and a long service life across various water quality conditions.

5. Compact and Easy to Install

Features a compact design that supports both horizontal and vertical installation, integrating seamlessly with existing household hot water piping systems without the need for major modifications.

6. Safe and Reliable

Equipped with built-in overheat protection to prevent motor overload, ensuring stable and reliable long-term operation.

Parameters

model Voltage/Frequency Flow rate (m³/h) Head (m) Power (W) caliber
UPS15-20/130 230V/50Hz 1.28 0.86 25/40/65 G1 1/2
UPS15-30/130 230V/50Hz 1.51 1.55 25/35/55 G1
UPS15-40/130 230V/50Hz 1.67 2.05 25/35/45 G1
UPS15-50/130 230V/50Hz 1.77 2.531 35/45/50 G1

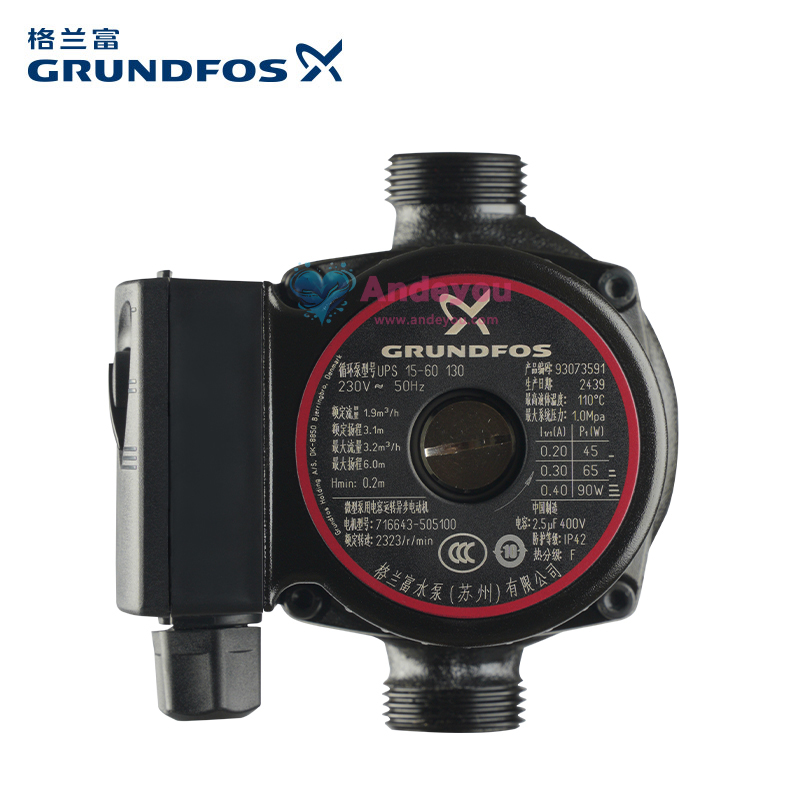

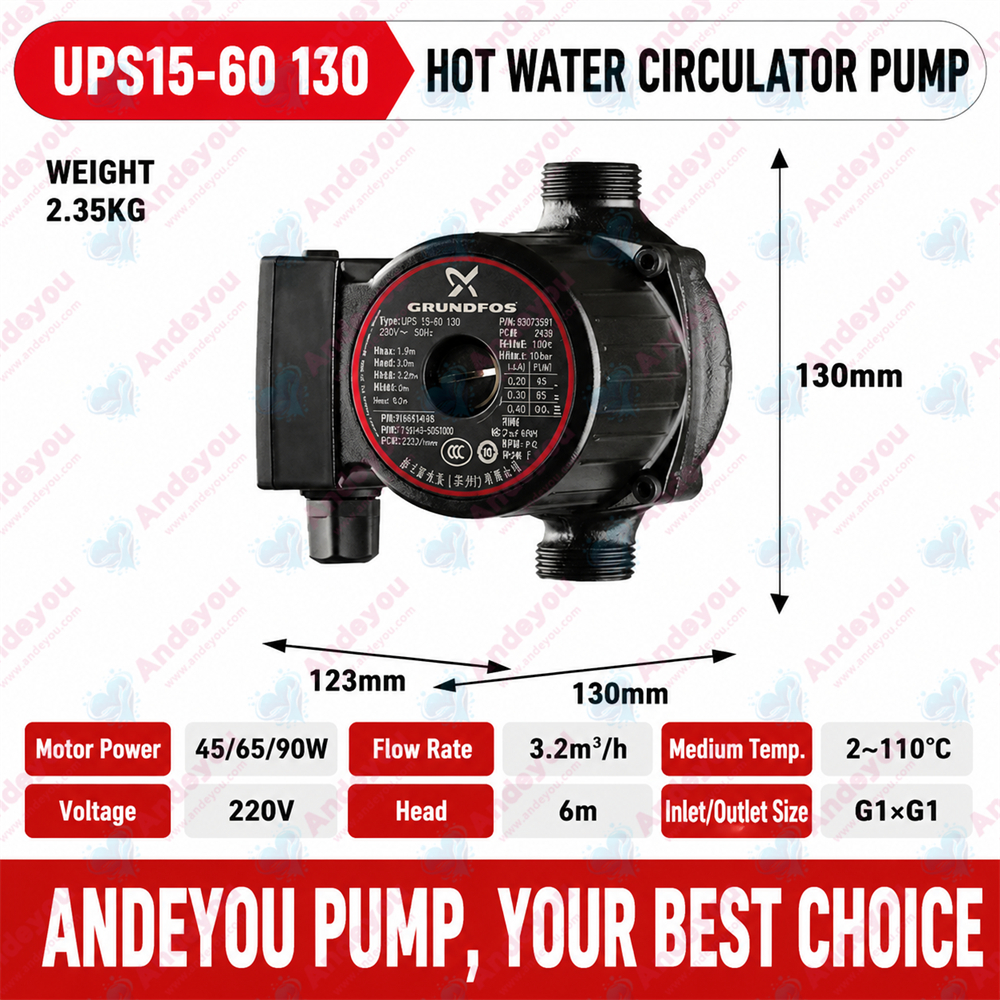

UPS15-60/130 230V/50Hz 1.9 3.109 50/60/70 G1
UPS20-40/130 230V/50Hz 1.67 2.05 25/35/45 G1 1/4
UPS20-40K/130 230V/50Hz 1.9 2.58 35/55/75 G1 1/4
UPS20-50/130 230V/50Hz 1.77 2.531 35/45/50 G1 1/4
UPS20-60/130 230V/50Hz 1.9 3.109 50/60/70 G1 1/4
UPS25-20/180 230V/50Hz 1.28 0.84 25/40/65 G1 1/2
UPS25-30/180 230V/50Hz 1.44 1.82 25/35/55 G1 1/2
UPS25-40/130 230V/50Hz 1.67 2.07 25/35/45 G1 1/2
UPS25-40/180 230V/50Hz 1.67 2.07 25/35/45 G1 1/2
UPS25-50/130 230V/50Hz 1.77 2.531 35/45/50 G1 1/2
UPS25-50/180 230V/50Hz 1.77 2.531 35/45/50 G1 1/2
UPS25-55/180 230V/50Hz 3.37 2.989 65/80/85 G1 1/2

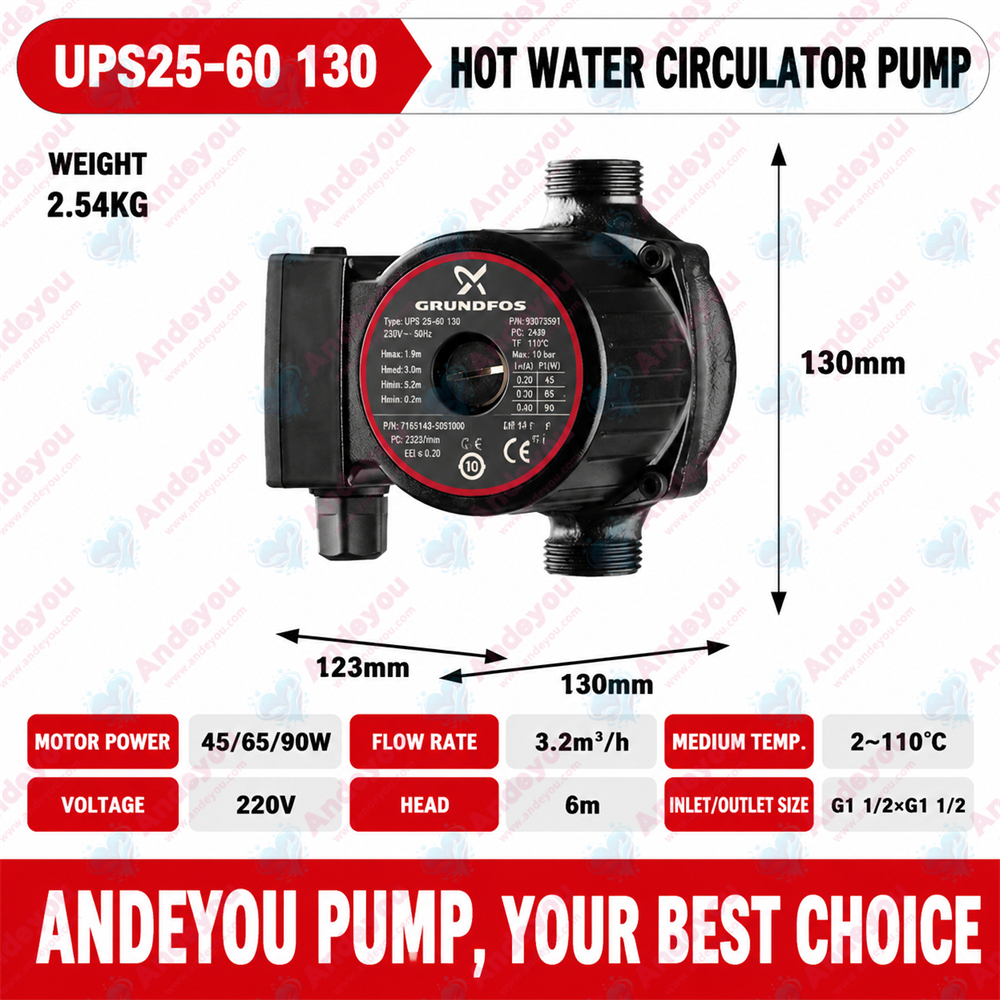

UPS25-60/130 230V/50Hz 1.9 3.109 50/60/70 G1 1/2
UPS25-60/180 230V/50Hz 2.17 3.17 50/55/60 G1 1/2
UPS25-70/180 230V/50Hz 2.17 5.18 95/125/149 G1 1/2

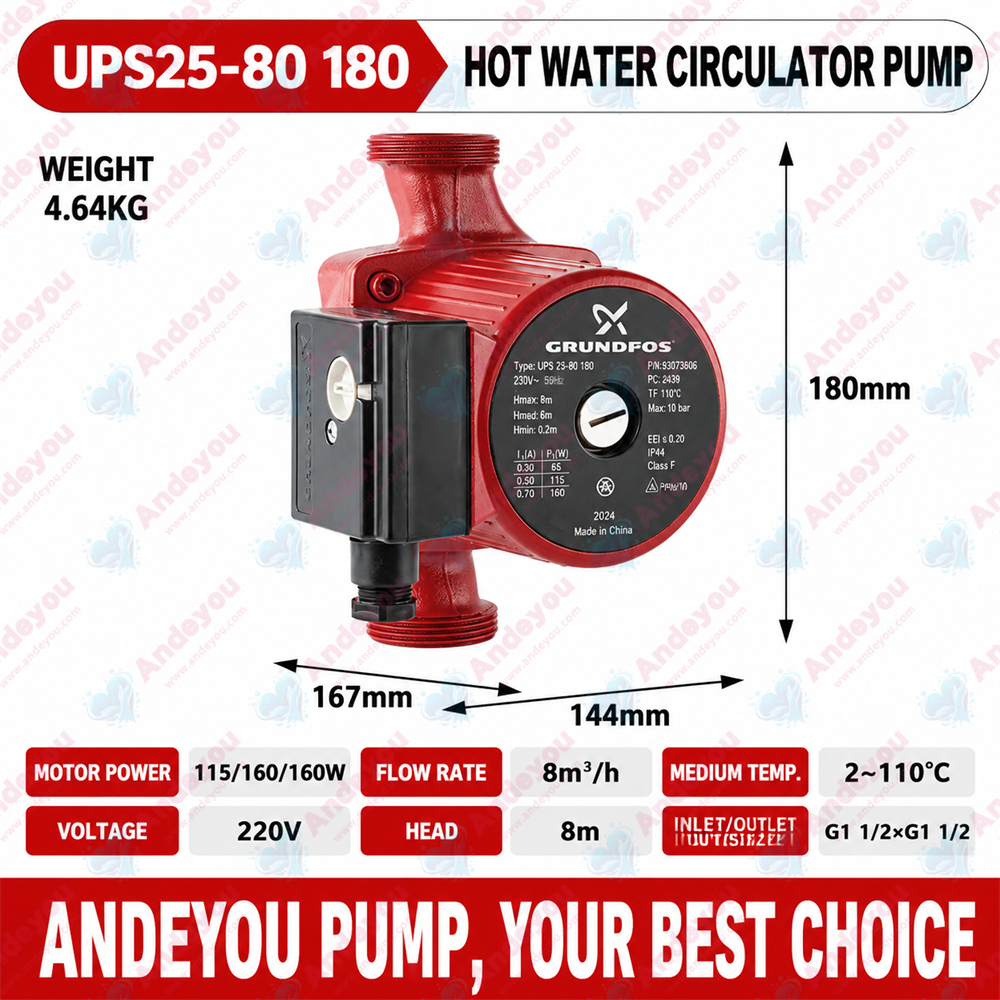

UPS25-80/180 230V/50Hz 4.8 4.676 110/155/165 G1 1/2

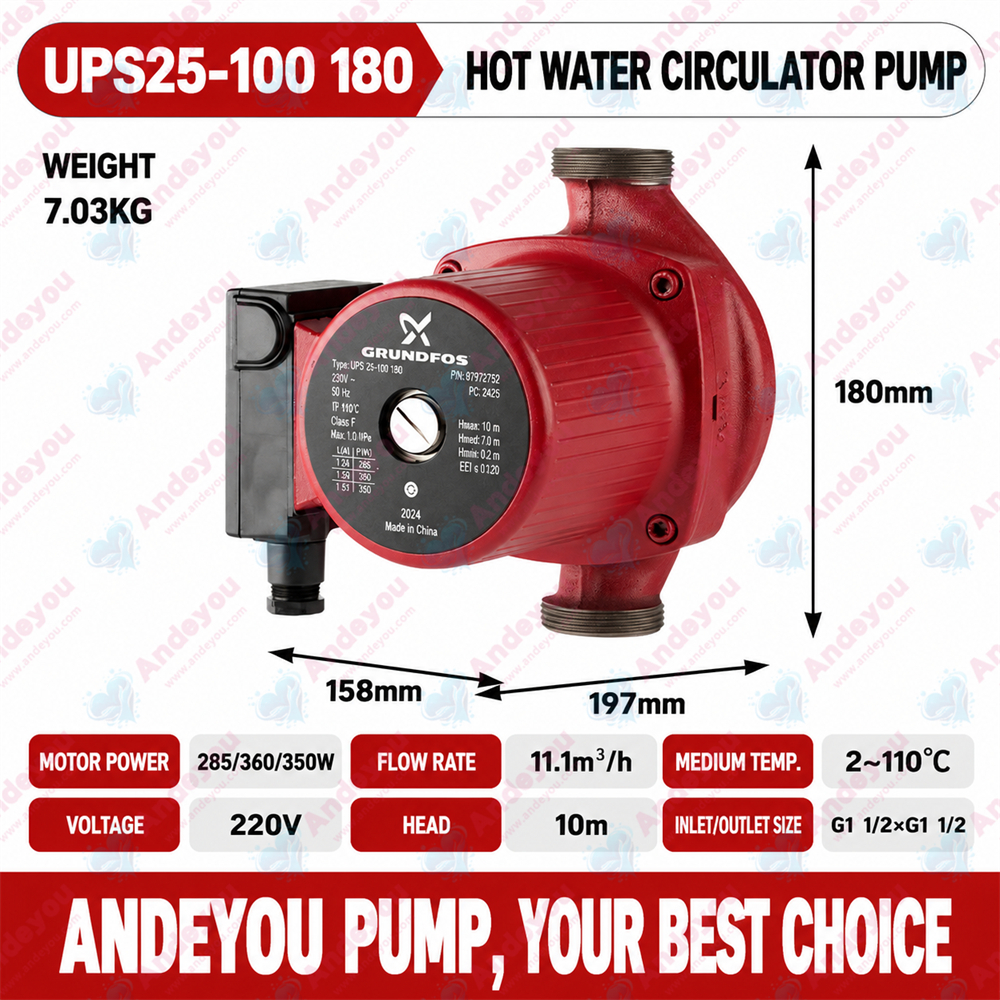

UPS25-100/180 230V/50Hz 6.66 7.072 280/340/345 G1 1/2

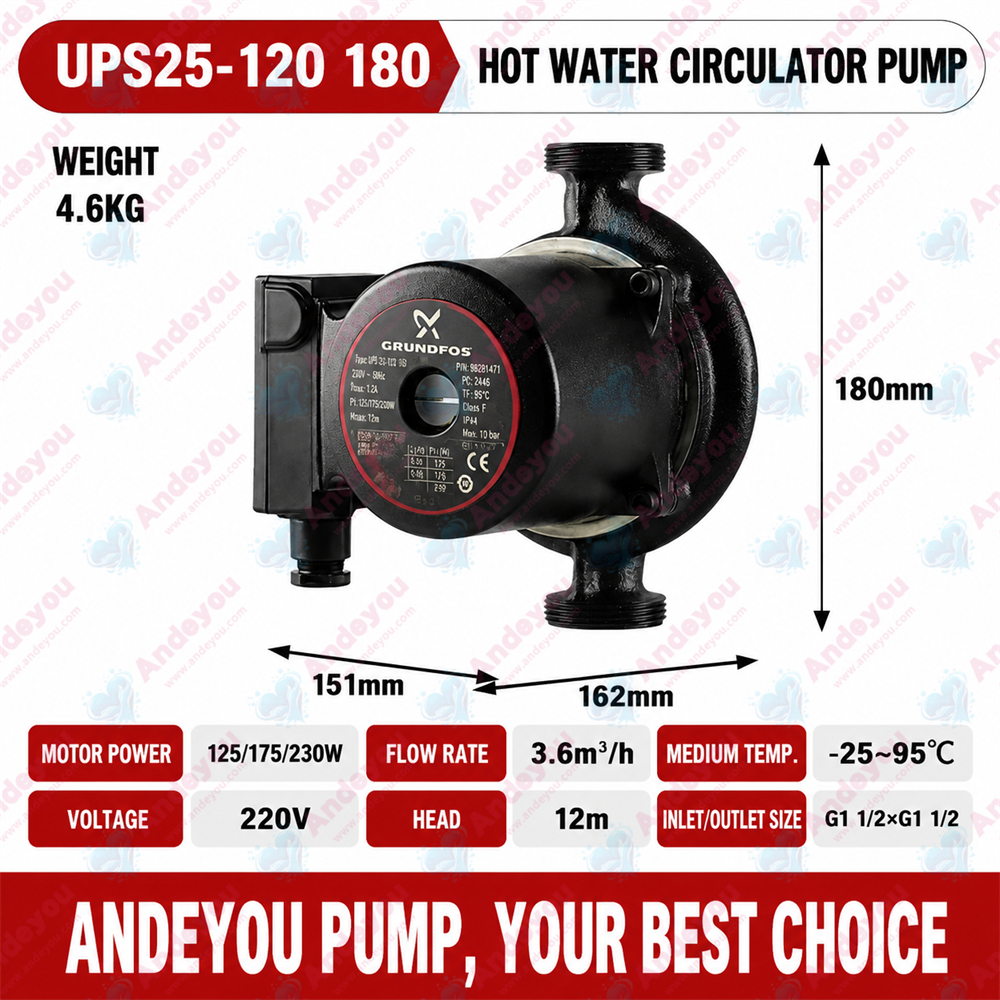

UPS25-120/180 230V/50Hz 2.04 7.94 125/175/230 G1 1/2
UPS25-125/180 230V/50Hz 1.93 9.58 140/215/275 G1 1/2
UPS32-20/180 230V/50Hz 1.46 0.86 25/40/65 G2
UPS32-30/180 230V/50Hz 1.51 1.552 25/35/55 G2
UPS32-40/180 230V/50Hz 1.67 2.05 25/35/45 G2
UPS32-50/180 230V/50Hz 1.77 2.531 35/45/50 G2
UPS32-50F/220 230V/50Hz 4 3.3 75/100/105 DN32
UPS32-70/180 230V/50Hz 2.17 5.18 95/120/140 G2

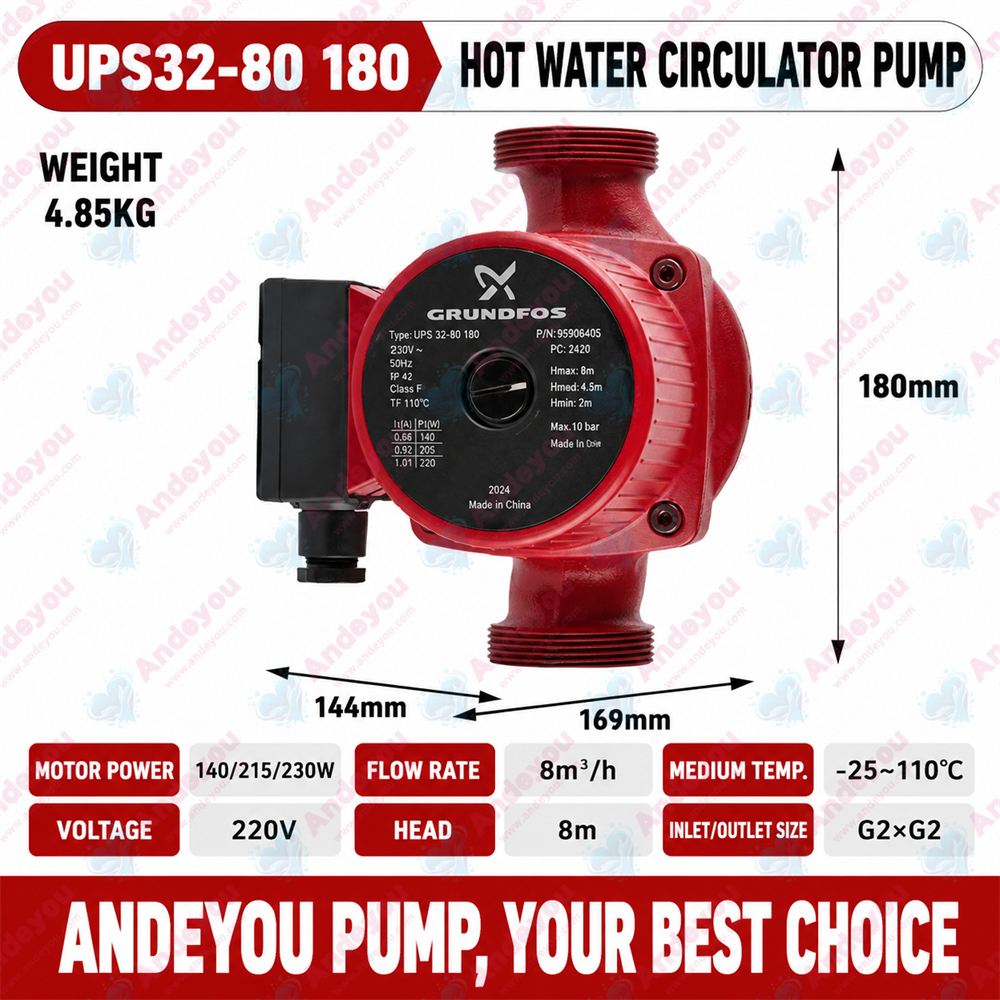

UPS32-80/180 230V/50Hz 5.16 5.21 135/200/220 G2
UPS32-80F/220 230V/50Hz 51.6 5.21 135/200/220 DN32

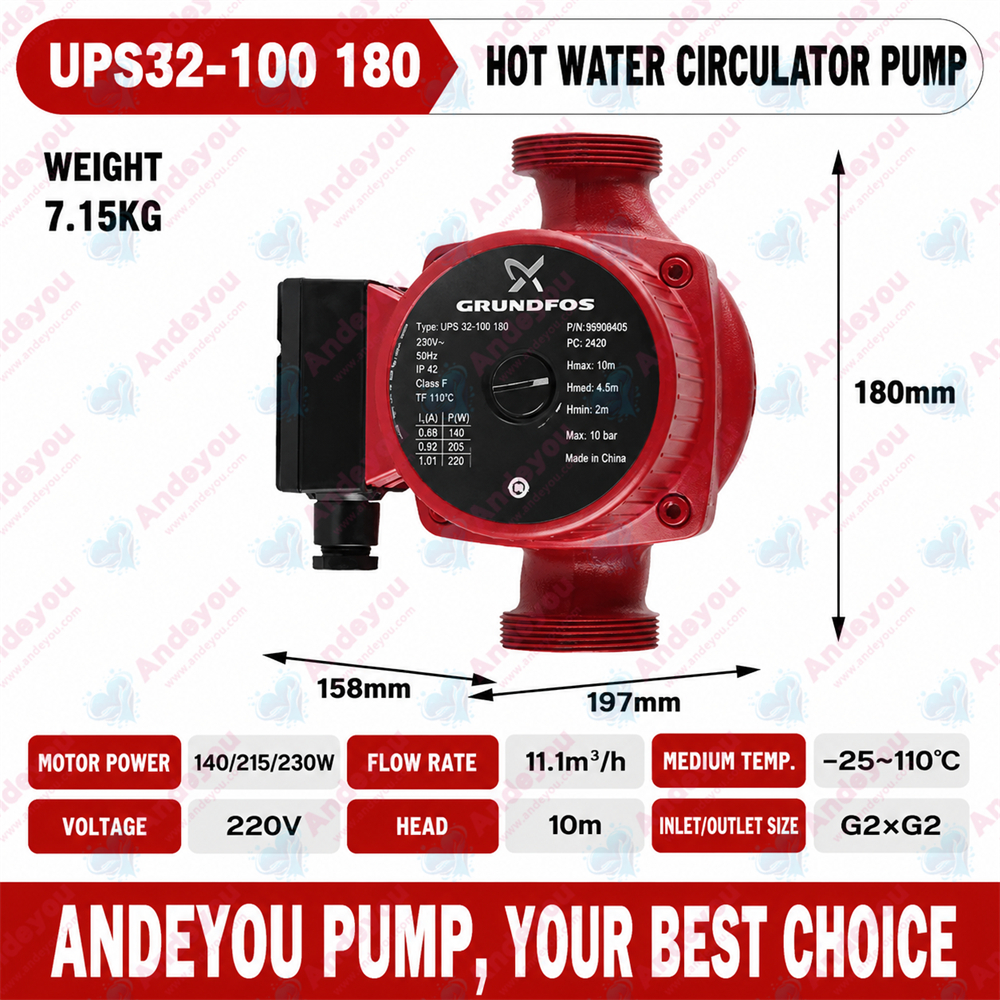

UPS32-100/180 230V/50Hz 6.83 7.13 280/340/345 G2
UPS32-100F/220 230V/50Hz 6.9 7.027 280/340/345 DN32
UPS36-50F/200 230V/50Hz 4 3.34 75/100/105 90
UPS36-80F/200 230V/50Hz 5.16 5.21 135/200/220 90
UPS40-50F/250 230V/50Hz 4 3.34 75/100/105 DN40
UPS40-80F/250 230V/50Hz 5.16 5.21 135/200/220 DN40
UPS40-100F/250 230V/50Hz 7.25 6.82 280/340/345 DN40

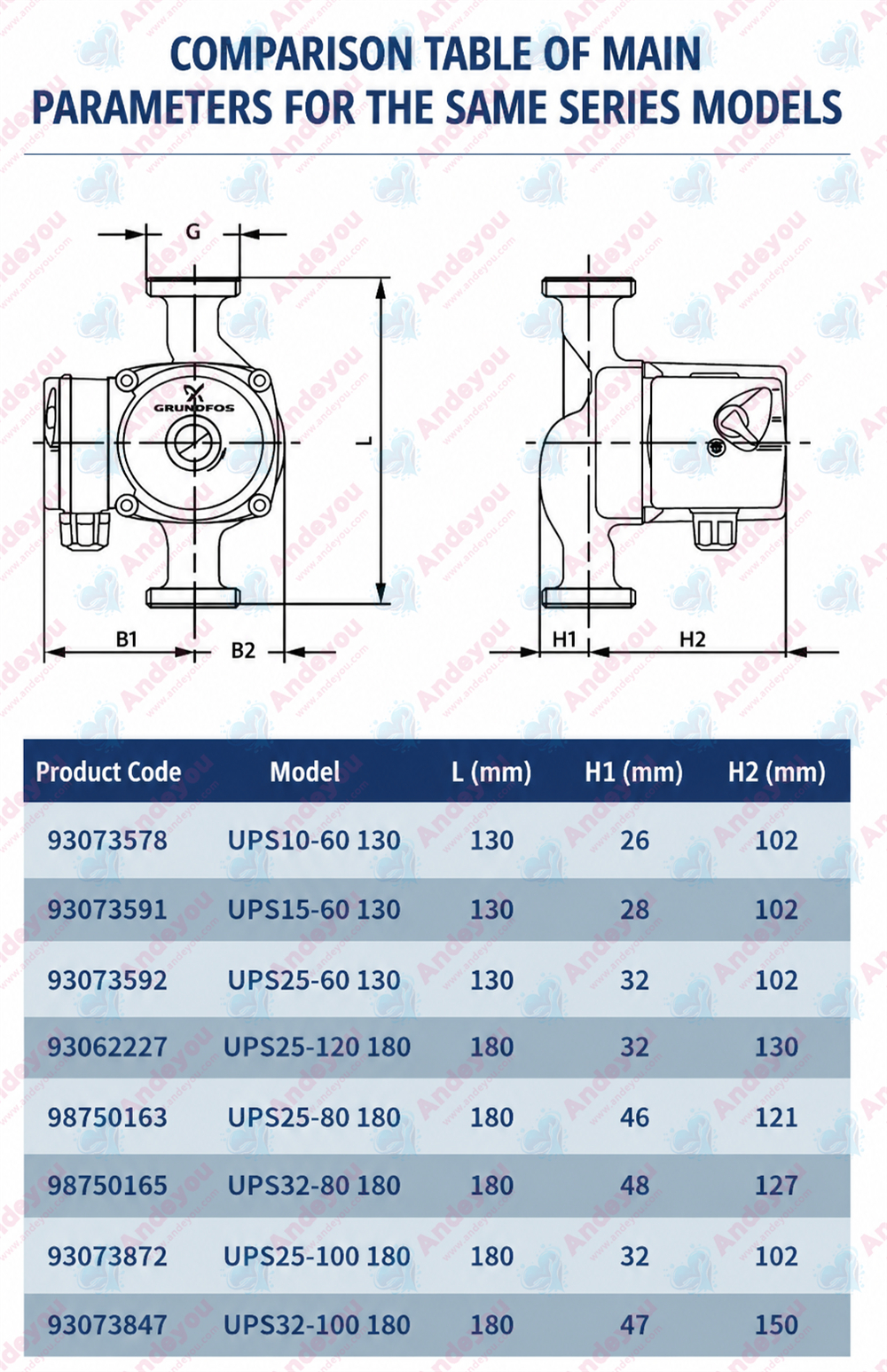

Size
