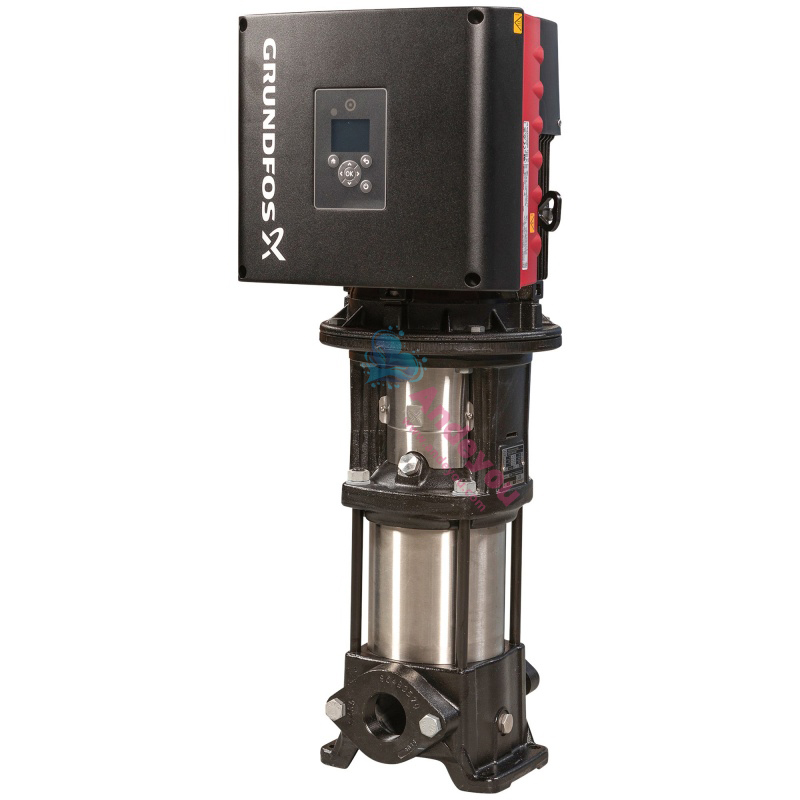

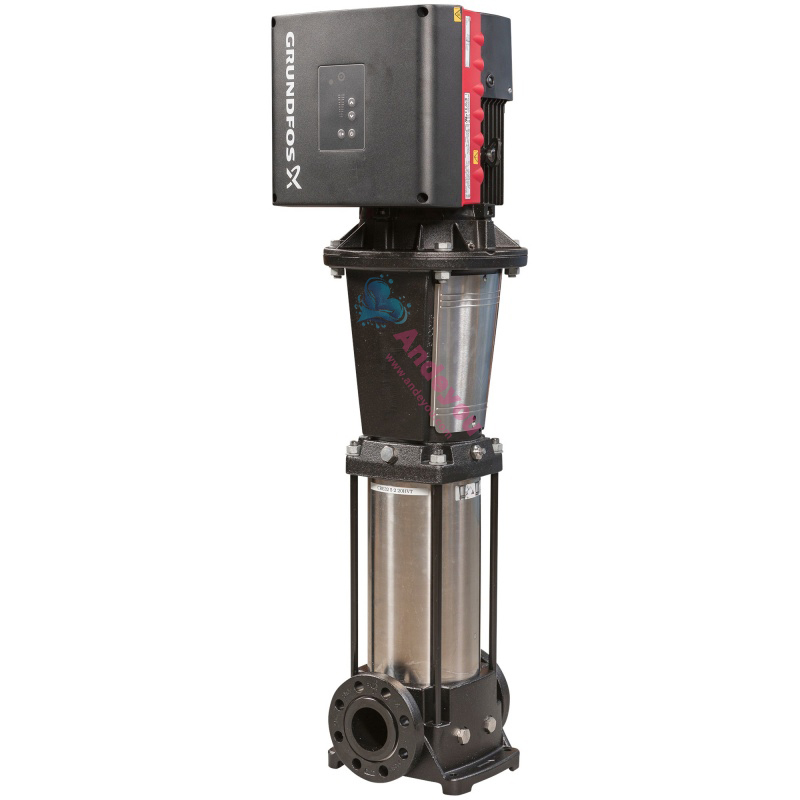

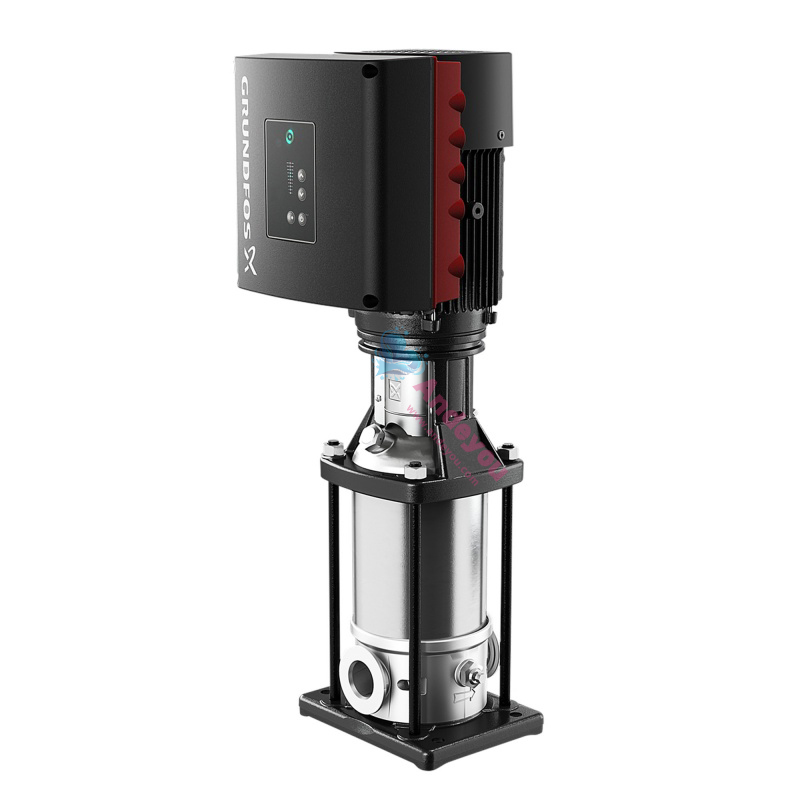

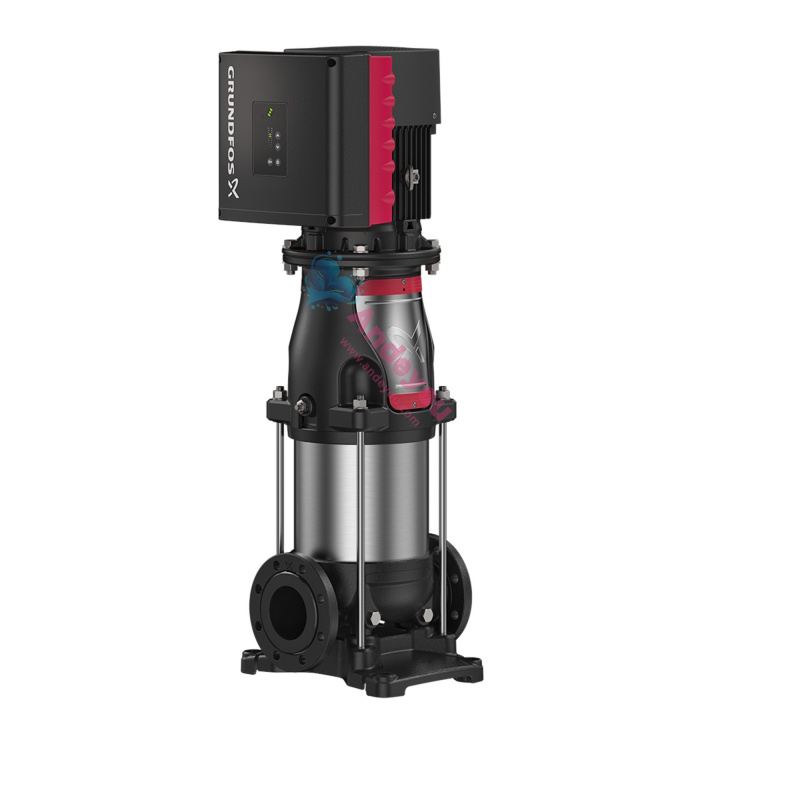

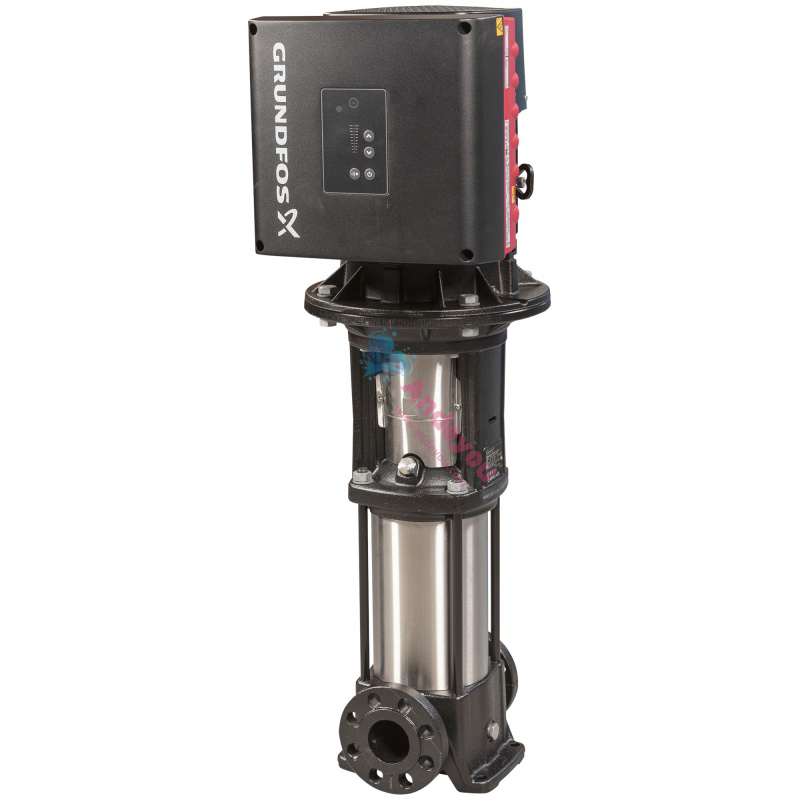

Grundfos CRE Variable-Speed ​​Stainless Steel Vertical Multistage Centrifugal Pump

CRE 1-13 CRE 1-25 CRE 3-4 CRE 3-11 CRE 5-3 CRE 5-9 CRE 5-16 CRE 10-1 CRE 10-5 CRE 10-9 CRE 10-17 CRE 15-2 CRE 15-8 CRE 20-4 CRE 20-10 CRE 32-2 CRE 32-7 CRE 45-2-2 CRE 64-1-1

The CRE-Grundfos China vertical multistage centrifugal pump features an integrated variable frequency drive and is designed for high energy efficiency.Constructed from premium cast iron and stainless steel,it ensures durability and safety.Variable frequency drive technology enables precise flow and pressure control,making it suitable for applications such as water supply,cleaning,and water treatment.With its compact design,low energy consumption,and high efficiency
Product Consultation By telephone
Function
Parameters
Size
Video Introduction

Function

CRE Vertical Multistage Centrifugal Pump

Material: Robust and Durable: The pump head and base are made of cast iron, with a stable structure that can withstand certain pressure and external impacts, ensuring the overall stability of the pump body.
Safety and hygiene: All parts in contact with liquids are made of stainless steel (EN 1.4301), which has good corrosion resistance and can prevent liquid contamination. It is suitable for scenarios with requirements such as water quality.
Features and Functions: Flexible Variable Frequency Control: Equipped with a built-in frequency converter, it can continuously adjust the pump performance according to requirements such as current, pressure, temperature or flow rate, adapt to various changes in flow and pressure, and can be widely used in different working conditions.
Compatible with high-efficiency motors: IE5 MGE motors are available, which are highly energy efficient and can meet the ever-changing pump speed requirements. Users can have complete control over the operation of the pump, and the maximum utilization of motor power output is optimized to give full play to the motor performance.
Design Advantages: Compact and High-Performance: The pump's compact design and smaller size reduce energy consumption and operating costs while maintaining excellent performance.
Intelligent monitoring: It can continuously monitor pump performance and issue an alarm immediately if a problem occurs, facilitating timely maintenance and ensuring stable equipment operation.

Wide range of applications

Suitable for multiple fields such as water supply, cleaning and sanitation, water treatment, boiler feedwater, chemical industry, temperature control and mining, it has strong versatility.

Parameters

model Voltage/Frequency Flow rate (m³/h) Head (m) Power (kW) caliber
CRE 1-4 220V/50Hz 2.14 27.09 0.37 1×1
CRE 1-4 220V/50Hz 2.14 27.09 0.37 25/32×25/32
CRE 1-6 220V/50Hz 2.14 40.54 0.55 1×1
CRE 1-6 220V/50Hz 2.14 40.54 0.55 25/32×25/32
CRE 1-9 220V/50Hz 2.13 60.29 0.75 1×1
CRE 1-9 220V/50Hz 2.13 60.29 0.75 25/32×25/32
CRE 1-13 220V/50Hz 2.14 87.14 1.1 1×1
CRE 1-13 220V/50Hz 2.14 87.14 1.1 25/32×25/32
CRE 1-17 220V/50Hz 2.17 117.5 1.5 1×1
CRE 1-17 380V/50Hz 2.17 117.5 1.5 25/32×25/32
CRE 1-23 380V/50Hz 2.14 161.2 2.2 25/32×25/32
CRE 1-25 380V/50Hz 2.14 174.6 2.2 25/32×25/32
CRE 3-2 220V/50Hz 3.53 14.72 0.37 25/32×25/32
CRE 3-2 220V/50Hz 3.53 14.72 0.37 1×1
CRE 3-4 220V/50Hz 3.56 28.43 0.55 1×1
CRE 3-4 220V/50Hz 3.56 28.43 0.55 25/32×25/32
CRE 3-5 220V/50Hz 3.58 35.69 0.75 25/32×25/32
CRE 3-5 220V/50Hz 3.58 35.69 0.75 1×1
CRE 3-8 220V/50Hz 3.57 56.66 1.1 25/32×25/32
CRE 3-8 220V/50Hz 3.57 56.66 1.1 1×1
CRE 3-11 380V/50Hz 3.62 79.94 1.5 25/32×25/32
CRE 3-11 220V/50Hz 3.62 79.96 1.5 1×1
CRE 3-17 380V/50Hz 3.62 123.2 2.2 25/32×25/32
CRE 3-23 380V/50Hz 3.62 166.5 3 25/32×25/32
CRE 3-25 380V/50Hz 3.64 182.6 4 25/32×25/32
CRE 5-2 220V/50Hz 6.21 15.06 0.55 1 1/4×1 1/4
CRE 5-2 380V/50Hz 6.2 15.56 0.55 25/32×25/32
CRE 5-3 220V/50Hz 6.6 22.74 1.1 1 1/4×1 1/4
CRE 5-4 220V/50Hz 6.65 29.9 1.1 1 1/4×1 1/4
CRE 5-4 220V/50Hz 6.65 29.9 1.1 25/32×25/32
CRE 5-5 380V/50Hz 6.86 38.32 1.5 1 1/4×1 1/4
CRE 5-5 380V/50Hz 6.86 38.32 1.5 25/32×25/32
CRE 5-9 380V/50Hz 7.05 68.04 2.2 1 1/4×1 1/4
CRE 5-9 380V/50Hz 7.05 68.04 2.2 25/32×25/32
CRE 5-12 380V/50Hz 7.16 90.3 3 1 1/4×1 1/4
CRE 5-12 380V/50Hz 7.16 90.3 3 25/32×25/32
CRE 5-16 380V/50Hz 7.27 119.7 4 1 1/4×1 1/4
CRE 5-16 380V/50Hz 7.27 119.7 4 25/32×25/32
CRE 5-22 380V/50Hz 7.27 165.1 5.5 25/32×25/32
CRE 5-24 380V/50Hz 7.3 181.6 7.5 25/32×25/32
CRE 10-1 220V/50Hz 10.43 11.56 0.75 40×40
CRE 10-1 220V/50Hz 10.43 11.56 0.75 1 1/2×1 1/2
CRE 10-2 380V/50Hz 11.23 24.07 1.5 40×40
CRE 10-2 380V/50Hz 11.23 24.07 1.5 1 1/2×1 1/2
CRE 10-3 380V/50Hz 11.72 34.67 2.2 1 1/2×1 1/2
CRE 10-3 380V/50Hz 11.72 34.67 2.2 40×40
CRE 10-5 380V/50Hz 12.14 57.56 3 1 1/2×1 1/2
CRE 10-5 380V/50Hz 12.14 57.56 3 40×40
CRE 10-6 380V/50Hz 12.18 69.86 4 1 1/2×1 1/2
CRE 10-6 380V/50Hz 12.18 69.86 4 40×40
CRE 10-9 380V/50Hz 12.15 104.5 5.5 1 1/2×1 1/2
CRE 10-9 380V/50Hz 12.15 104.5 5.5 40×40
CRE 10-12 380V/50Hz 12.31 138.6 7.5 40×40
CRE 10-17 380V/50Hz 12.03 181.8 11 40×40
CRE 15-1 380V/50Hz 19.36 15.15 1.5 50×50
CRE 15-2 380V/50Hz 20.81 30.27 3 50×50
CRE 15-3 380V/50Hz 21.05 46.1 4 50×50
CRE 15-4 380V/50Hz 20.45 62.8 5.5 50×50
CRE 15-5 380V/50Hz 21.41 76.88 7.5 50×50
CRE 15-8 380V/50Hz 21.66 122.8 11 50×50
CRE 20-1 380V/50Hz 20 16.88 2.2 50×50
CRE 20-2 380V/50Hz 22.86 33.97 4 50×50
CRE 20-3 380V/50Hz 23.88 50.28 5.5 50×50
CRE 20-4 380V/50Hz 24.25 67.06 7.5 50×50
CRE 20-6 380V/50Hz 24.26 102.4 11 50×50
CRE 20-10 380V/50Hz 25.3 172.4 18.5 50×50
CRE 32-1 380V/50Hz 36 20.6 3 65×65
CRE 32-1-1 380V/50Hz 36 15.6 2.2 65×65
CRE 32-2 380V/50Hz 36 43.1 7.5 65×65
CRE 32-2-1 380V/50Hz 36 37.9 5.5 65×65
CRE 32-4-2 380V/50Hz 36 78.2 11 65×65
CRE 32-7 380V/50Hz 36 153.8 22 65×65
CRE 45-1 380V/50Hz 54 28.1 7.5 80×80
CRE 45-1-1 380V/50Hz 54 22.1 5.5 80×80
CRE 45-2-1 380V/50Hz 54 51.7 11 80×80
CRE 45-2-2 380V/50Hz 54 46.4 11 80×80
CRE 45-4-2 380V/50Hz 54 104 22 80×80
CRE 64-1 380V/50Hz 77 30.8 11 100×100
CRE 64-1-1 380V/50Hz 77 20.8 7.5 100×100
CRE 95-1-1 380V/50Hz 114 23.6 11 100×100
