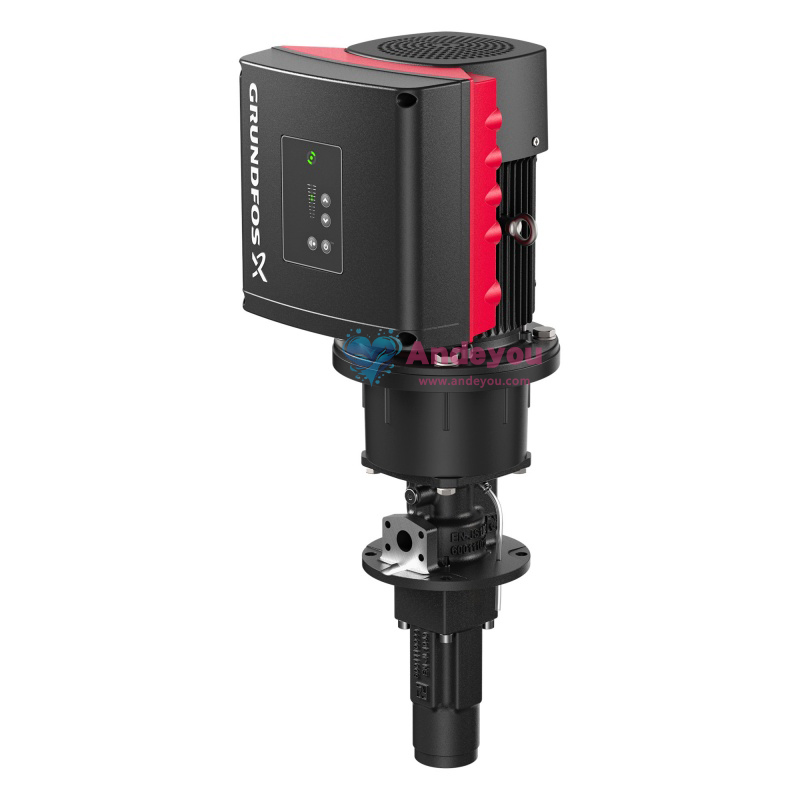

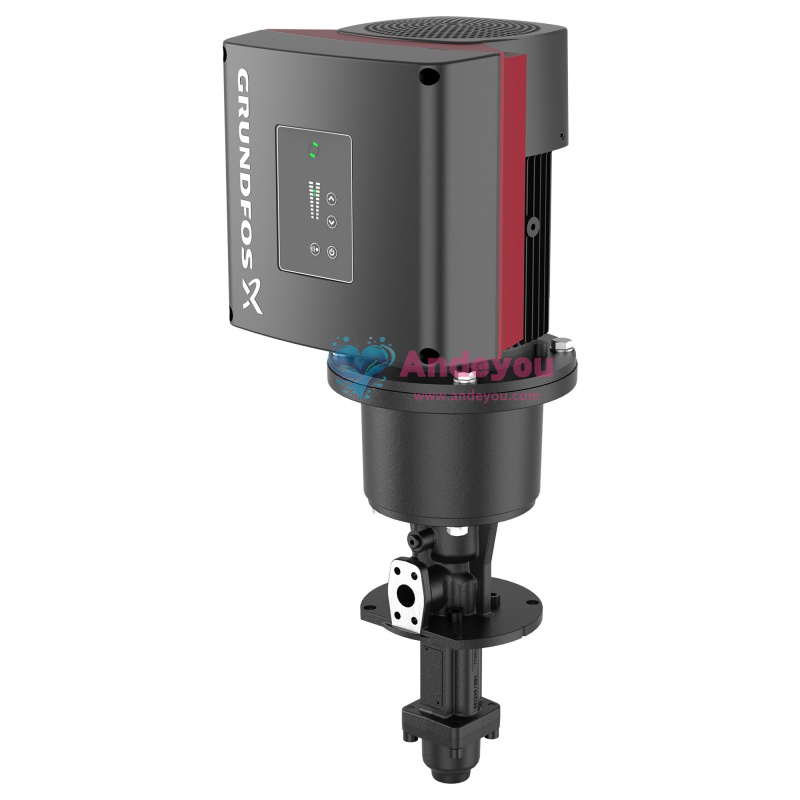

Grundfos MTSE Variable-Speed Immersion Centrifugal Screw Pump (Cutting Oil Pump)

MTSE 20-32 MTSE 20-36 MTSE 20-38 MTSE 20-39 MTSE 20-51 MTSE 20-54 MTSE 20-54 MTSE 20-55 MTSE 20-75 MTSE 20-78 MTSE 20-84 MTSE 20-100 MTSE 25-45 MTSE 25-50 MTSE 25-54 MTSE 25-65 MTSE 25-69 MTSE 25-76 MTSE 25-77 MTSE 25-90 MTSE 25-96 MTSE 32-46 MTSE 32-54 MTSE 32-79 MTSE 40-33 MTSE 40-35 MTSE 40-47 MTSE 40-66

Designed specifically for metal machining centers,the MTSE variable-speed screw pump features precision-hardened tool steel spindles (material 1.2379) and silicon carbide mechanical seals.It is compatible with emulsions (2–20% oil content),cutting oils,and inorganic solutions,offering a pressure range of 10–100 bar and a maximum flow rate of 113 l/min (at 60 Hz).The pump supports variable frequency drive (50/60 Hz) operation

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

GRUNDFOS MTSE Variable-Speed Screw-Spindle Immersion Centrifugal Pump (Cutting Oil Pump)

The MTSE variable-speed screw pump is designed for coolant and cutting oil delivery in metalworking centers, featuring the following core capabilities:

1. High-Efficiency Variable-Speed Drive

Supports 50/60Hz variable-speed regulation to meet varying flow and pressure requirements
Equipped with an IE5 high-efficiency motor for optimized energy consumption
Voltage range: 3×220-480V (50Hz) / 3×220-277V (60Hz), compatible with global power grids

2. Precision Hydraulic Design

Tool steel spindle (1.2379 material): Specially hardened for excellent wear resistance
Silicon carbide mechanical seal: Suitable for high-pressure conditions (up to 100 bar) with long service life
Modular screw angle options: Various specifications (R34–R76) available to precisely match flow requirements

3. Flexible Installation and Connection

Multiple installation methods:
Immersion type (T-model): Axial inlet, directly immersed in the fluid
Dry installation (D/H-model): SAE flange connection, supports side or horizontal mounting
Piping connections:
Outlet options: G3/4" thread or SAE flange (MTS 25 model)
Inlet options: G1/G1½" thread or SAE flange (MTS 32 model)

4. Low Noise and Long Service Life

Noise level ≤78 dB(A): Significantly lower than comparable lobe pumps and centrifugal pumps
Wear-resistant cast iron housing (EN GJL-250): Resistant to corrosion and mechanical impact
External main bearing design: Reduces internal wear and extends maintenance intervals

5. Safety and Compatibility

External safety valve required: Protects the system against overload (not included as standard; must be selected separately)
Media compatibility:
Emulsions (oil content 2–20%)
Cutting oils (containing EP additives)
Inorganic solutions
Filtration requirements: Compliant with ISO 4406 cleanliness standards (recommended filter mesh size ≤65 μm)

6. Intelligent Control Integration

Optional electronic proportional safety valve (E-type) available, supporting pressure control via 0–10V analog signals
Built-in PTC thermistor (for motors ≥3 kW) providing overheat protection

Typical Application Scenarios:

High-pressure cooling systems for CNC machine tools
Centralized fluid supply for automated machining lines
Lubricant circulation for grinding machines and deep-hole drilling equipment

Parameters

model	Voltage/ Frequency	Flow rate (L/min)	Head (m)	Power (kW)	caliber	Immersion depth (mm)
MTSE 20-32	380V/50Hz	17.2	320	1.5	G1 1/4*G 3/4	230
MTSE 20-36	380V/50Hz	25.3	360	2.2	G1 1/4*G 3/4	230
MTSE 20-38	380V/50Hz	43.9	380	4	G1 1/4*G 3/4	230
MTSE 20-39	380V/50Hz	32.8	390	3	G1 1/4*G 3/4	230
MTSE 20-51	380V/50Hz	24.1	510	3	G1 1/4*G 3/4	230
MTSE 20-54	380V/50Hz	31.1	540	4	G1 1/4*G 3/4	230
MTSE 20-54	380V/50Hz	41.3	540	5.5	G1 1/4*G 3/4	230
MTSE 20-55	380V/50Hz	14.5	550	2.2	G1 1/4*G 3/4	230
MTSE 20-75	380V/50Hz	38	750	7.5	G1 1/4*G 3/4	230
MTSE 20-78	380V/50Hz	13.2	780	3	G1 1/4*G 3/4	230
MTSE 20-84	220V/50Hz	27.3	840	5.5	G1 1/4*G 3/4	230
MTSE 20-100	380V/50Hz	40.8	1000	11	G1 1/4*G 3/4	230
MTSE 25-45	220V/50Hz	27.8	450	3	G1*G 3/4	181
MTSE 25-50	380V/50Hz	34	500	4	G1*G 3/4	181
MTSE 25-54	380V/50Hz	22	540	3	G1*G 3/4	181
MTSE 25-65	380V/50Hz	24.8	650	4	G1*G 3/4	181
MTSE 25-69	380V/50Hz	32.1	690	5.5	G1*G 3/4	181
MTSE 25-76	380V/50Hz	37.5	760	7.5	G1*G 3/4	181
MTSE 25-77	380V/50Hz	29	770	5.5	G1*G 3/4	181
MTSE 25-90	380V/50Hz	22.9	900	5.5	G1*G 3/4	181
MTSE 25-96	220V/50Hz	43.5	960	11	G1*G 3/4	181
MTSE 32-46	380V/50Hz	53.1	460	5.5	G1 1/2*G 3/4	237
MTSE 32-54	380V/50Hz	62.1	540	7.5	G1 1/2*G 3/4	237
MTSE 32-79	220V/50Hz	58.5	790	11	G1 1/2*G 3/4	237
MTSE 40-33	380V/50Hz	52.3	330	4	G1 1/4*G 3/4	280
MTSE 40-35	380V/50Hz	69.8	350	5.5	G1 1/4*G 3/4	280
MTSE 40-47	380V/50Hz	50	470	5.5	G1 1/4*G 3/4	280
MTSE 40-66	380V/50Hz	47.1	660	7.5	G1 1/4*G 3/4	280
