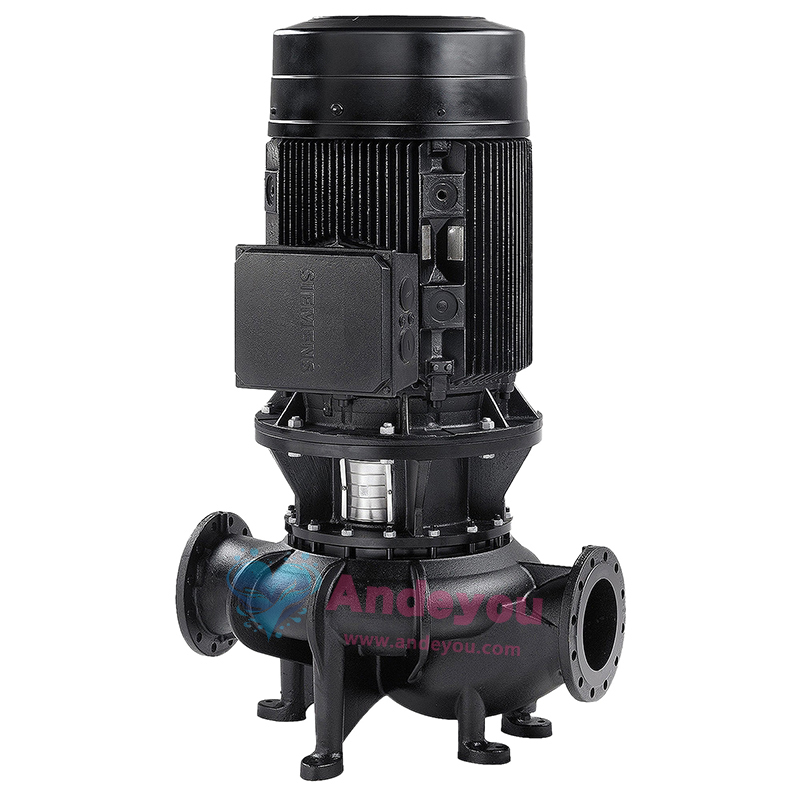

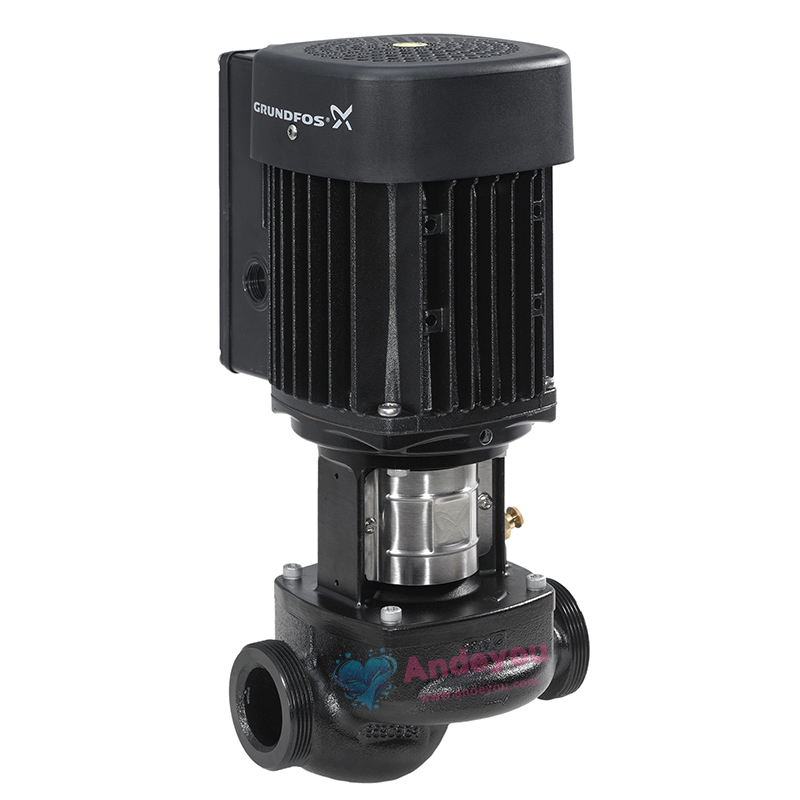

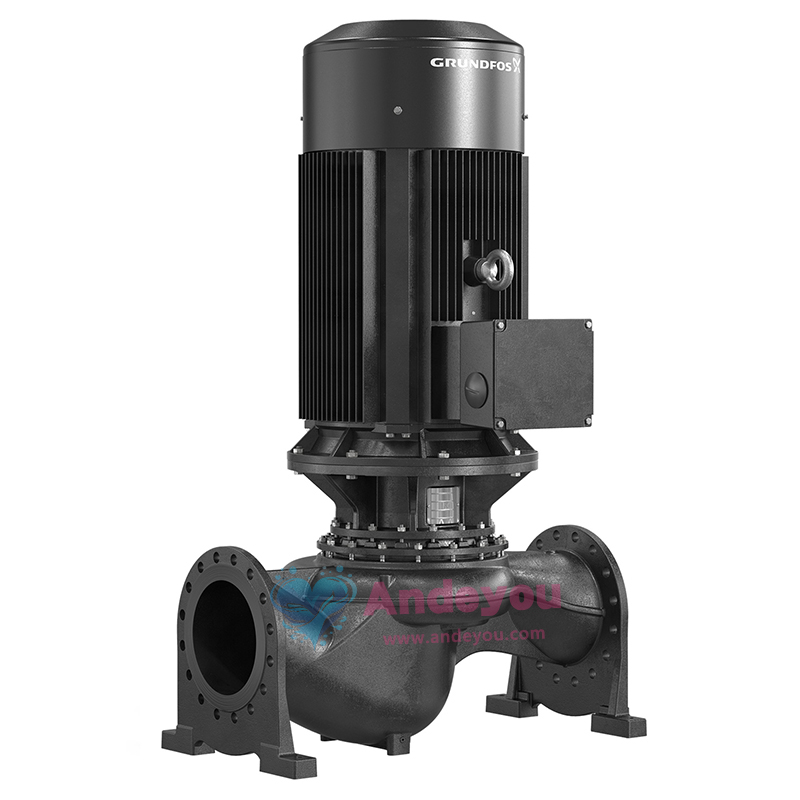

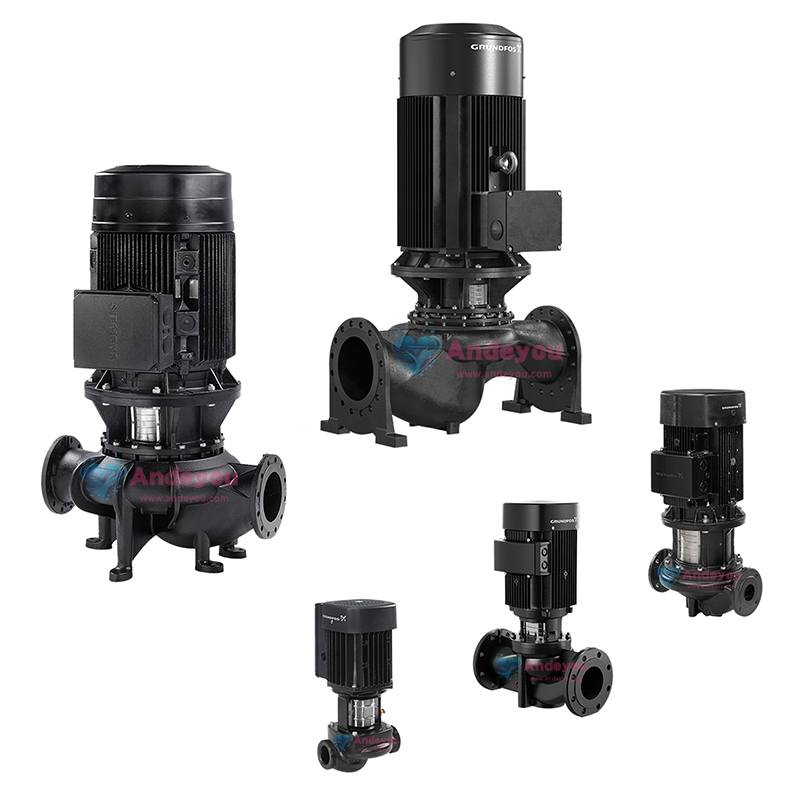

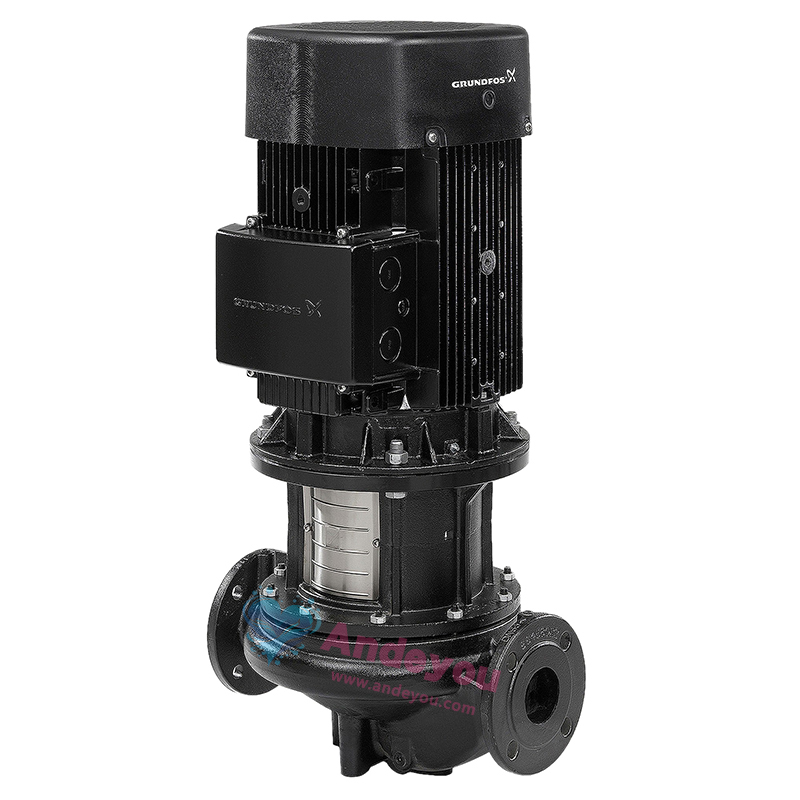

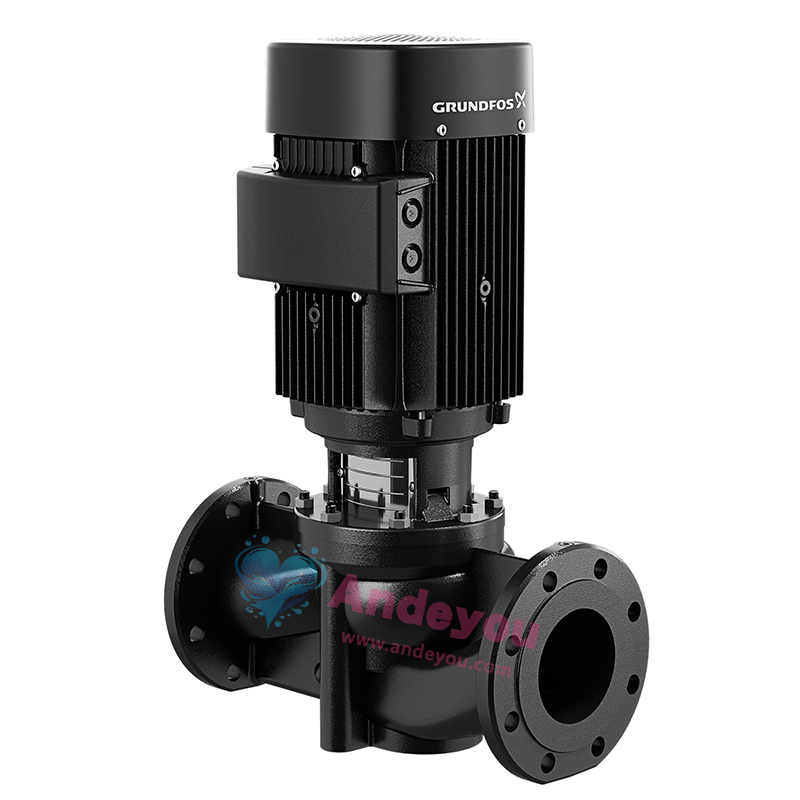

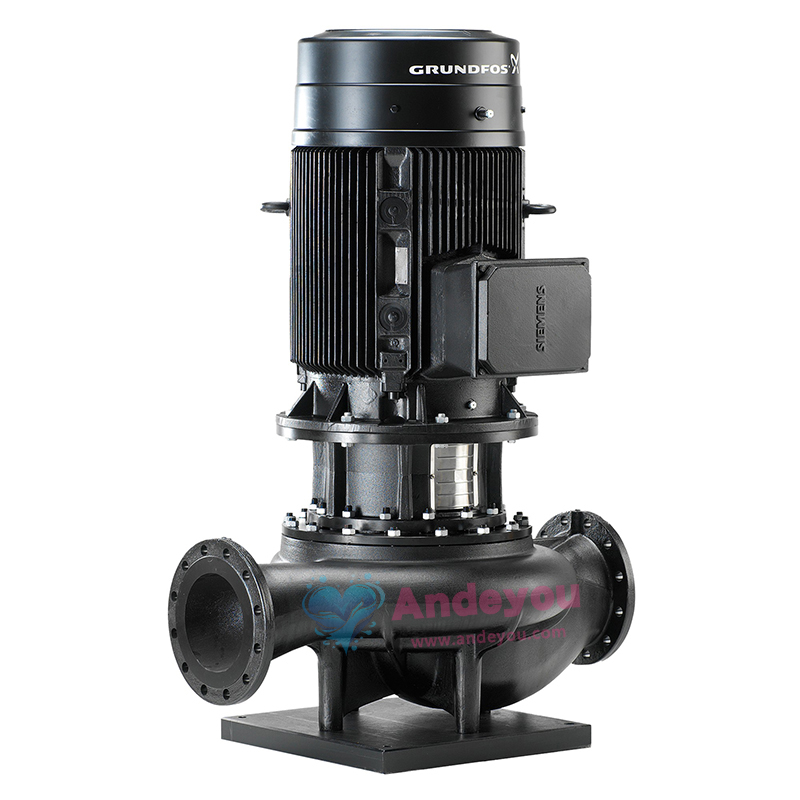

Grundfos TP Single-Stage Vertical In-Line Pump

TP 32-60/2、TP 32-230/2、TP 40-60/4、TP 40-230/2、TP 50-30/4、TP 50-190/4、TP 50-430/2、TP 50-900/2、TP 65-180/2、TP 65-550/2、TP 80-110/4、TP 80-240/2、TP 80-405/2、TP 100-360/2、TP 125-110/4、TP 150-70/6、TP 150-390/4、TP 200-290/4、TP 300-390/4、TP 350-530/4

The Grundfos TP single-stage vertical in-line pump is designed for heating,air conditioning,and industrial process applications,featuring high energy efficiency in compliance with IE3/IE4 motor standards.It offers flow rates up to 920 m³/h and heads up to 100 m.The "top-pull-out" design facilitates easy maintenance,while the in-line configuration saves space,making it ideal for district heating,water supply systems,and industrial circulation applications.

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

1. High-Efficiency and Energy-Saving Design

IE3/IE4 High-Efficiency Motors: Standard motors compliant with international energy efficiency standards (power range: 0.12–315 kW), significantly reducing energy consumption.
Optimized Hydraulic Performance: Flow rates up to 920 m³/h, heads up to 100 m, and a liquid temperature range of -25°C to +140°C.

2. Flexible Adaptation and Reliable Materials

Versatile Flange Connections: Supports DN32–DN350 flanges with a PN16 pressure rating to meet diverse piping system requirements.

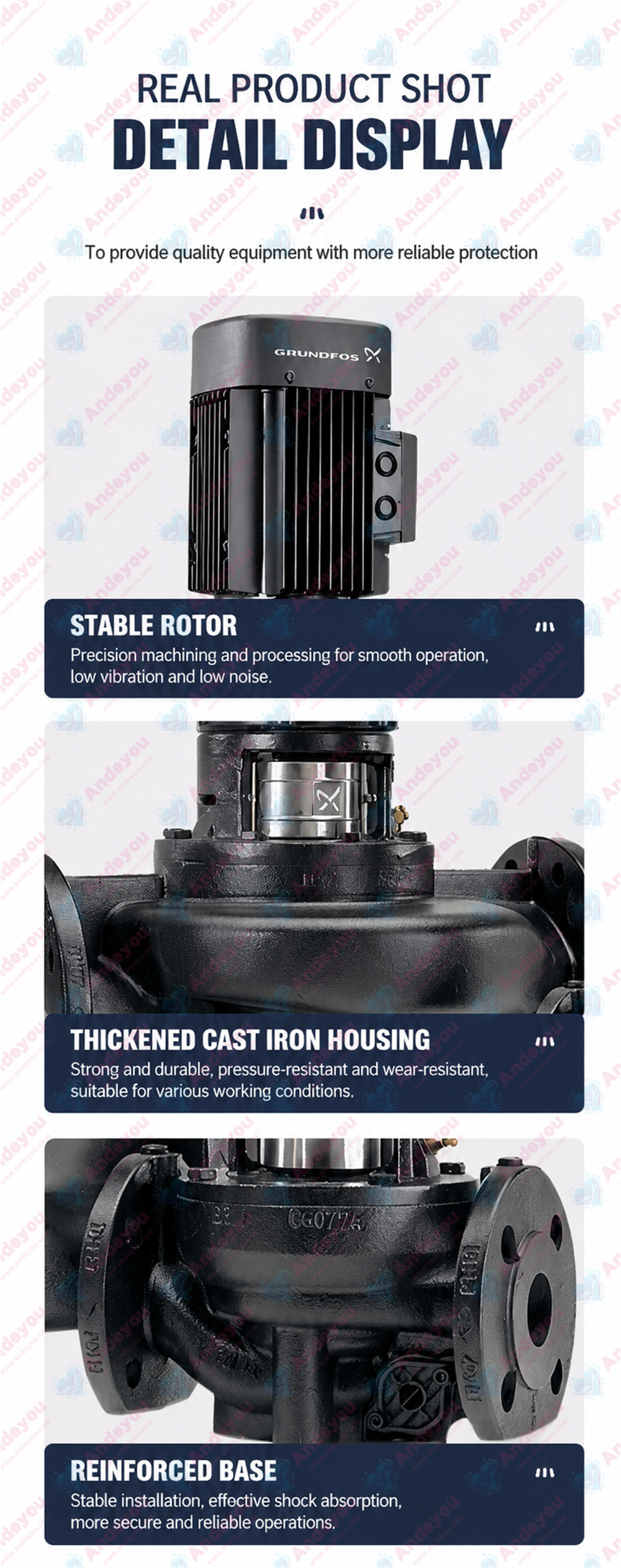

Material Options: Pump casings available in cast iron (EN-GJL-250) or stainless steel (1.4308/1.4408); impellers available in cast iron, bronze, or stainless steel to suit various liquid media.

3. Durability and Ease of Maintenance

Mechanical Shaft Seal: Standard BQQE-type silicon carbide/silicon carbide seal (EPDM); EPDM/FKM seal options available for special media such as glycol mixtures.
Top-Pull-Out Design: Allows for the removal of the motor and impeller assembly without disconnecting piping, minimizing downtime.
Wear Ring Design: Replaceable wear rings ensure sustained high-efficiency operation.

4. Wide Range of Applications

Typical Applications: District heating, HVAC systems, industrial circulation, water supply systems, and coolant transport.
Liquid Compatibility: Suitable for clean, non-corrosive liquids; supports the addition of antifreeze (requires selection of appropriate shaft seal).

5. Smart and Quiet Operation

Low-Noise Operation: Sound pressure level ≤70 dB(A), compliant with EN ISO 4871 standards.
VFD Compatibility: Supports variable frequency drive control to meet dynamic flow demands (consideration of motor insulation and cooling requirements is necessary).

6. Structural Advantages

In-Line Installation: Saves space and reduces piping stress.
Hydraulically Balanced Impeller: Reduces axial thrust, extending the service life of bearings and shaft seals.

7. Environmental Adaptability

Wide-temperature operation: Suitable for ambient temperatures ranging from -20°C to +55°C (standard motor); special versions can extend this range to -30°C.
Surface treatment: Electrophoretic coating (epoxy resin) enhances corrosion resistance, making it suitable for high-humidity environments.

Parameters

model	Voltage/ Frequency	Rated flow rate (m³/h)	Rated head (m)	Power (kW)	caliber	Rotational speed (r/min)
TP 25-50/2	220V/50Hz	3.72	2.7	0.12	DN25	2800
TP 25-50/2	380V/50Hz	3.72	2.7	0.12	DN25	2800
TP 25-80/2	380V/50Hz	6.32	4.04	0.18	DN25	2800
TP 25-80/2	220V/50Hz	6.32	4.04	0.18	DN25	2800
TP 25-90/2	380V/50Hz	7.88	7.93	0.37	DN25	2800
TP 32-30/4	380V/50Hz	5.9	1.8	0.12	DN32	1400
TP 32-40/4	380V/50Hz	3.41	2.94	0.25	DN32	1400
TP 32-50/2	220V/50Hz	4.91	3.29	0.12	DN32	2800
TP 32-50/2	380V/50Hz	4.91	3.29	0.12	DN32	2800
TP 32-60/2	380V/50Hz	7.5	3.6	0.25	DN32	2800
TP 32-60/2	220V/50Hz	7.5	3.6	1.1	DN32	2800
TP 32-60/2	220V/50Hz	7.5	3.6	0.25	DN32	2800
TP 32-60/4	380V/50Hz	3.8	4.3	0.25	DN32	1400
TP 32-80/2	220V/50Hz	7.71	5.51	0.25	DN32	2800
TP 32-80/2	380V/50Hz	7.71	5.51	0.25	DN32	2800
TP 32-80/4	380V/50Hz	8.65	5.87	0.25	DN32	1400
TP 32-80/4	380V/50Hz	8.65	5.87	0.25	DN32	1400
TP 32-90/2	380V/50Hz	8.78	7.35	0.37	DN32	2800
TP 32-100/4	380V/50Hz	9.96	7.2	0.37	DN32	1400
TP 32-100/4	380V/50Hz	9.96	7.2	0.37	DN32	1400
TP 32-120/2	380V/50Hz	8.6	7	0.37	DN32	2800
TP 32-120/2	380V/50Hz	8.6	7	0.37	DN32	2800
TP 32-120/4	380V/50Hz	9.73	9.28	0.55	DN32	1400
TP 32-150/2	380V/50Hz	6.2	10	0.37	DN32	2800
TP 32-150/2	380V/50Hz	6.2	10	0.37	DN32	2800
TP 32-180/2	380V/50Hz	6.5	12.17	0.55	DN32	2800
TP 32-180/2	380V/50Hz	6.5	12.17	0.55	DN32	2800
TP 32-200/2	220V/50Hz	13.23	16.62	1.1	DN32	2800
TP 32-200/2	380V/50Hz	13.23	16.62	1.1	DN32	2800
TP 32-200/2	380V/50Hz	13.23	16.62	1.1	DN32	2800
TP 32-230/2	220V/50Hz	9.66	17	0.75	DN32	2800
TP 32-230/2	380V/50Hz	9.69	17	0.75	DN32	2800
TP 32-230/2	380V/50Hz	7.1	17	0.75	DN32	2800
TP 32-250/2	380V/50Hz	14.96	19.44	1.5	DN32	2800
TP 32-250/2	220V/50Hz	14.69	19.44	1.5	DN32	2800
TP 32-250/2	380V/50Hz	14.69	19.44	1.5	DN32	2800
TP 32-320/2	380V/50Hz	17.37	24.66	2.2	DN32	2800
TP 32-320/2	380V/50Hz	17.37	24.66	2.2	DN32	2800
TP 32-320/2	220V/50Hz	17.37	24.66	2.2	DN32	2800
TP 32-380/2	380V/50Hz	18.64	31.45	3	DN32	2800
TP 32-380/2	220V/50Hz	18.64	31.45	3	DN32	2800
TP 32-380/2	380V/50Hz	18.64	31.45	3	DN32	2800
TP 32-460/2	380V/50Hz	20.27	35.21	4	DN32	2800
TP 32-460/2	380V/50Hz	20.27	35.21	4	DN32	2800
TP 32-460/2	380V/50Hz	20.27	35.21	4	DN32	2800
TP 32-580/2	380V/50Hz	23.59	44.45	5.5	DN32	2800
TP 32-580/2	380V/50Hz	23.59	44.45	5.5	DN32	2800
TP 32-580/2	380V/50Hz	23.59	44.45	5.5	DN32	2800
TP 40-30/4	380V/50Hz	8	2.15	0.12	DN40	1400
TP 40-50/2	220V/50Hz	5.61	2.95	0.12	DN40	2800
TP 40-50/2	380V/50Hz	5.61	2.95	0.12	DN40	2800
TP 40-60/2	220V/50Hz	10.4	4.6	1.1	DN40	2800
TP 40-60/2	380V/50Hz	10.4	4.6	0.25	DN40	2800
TP 40-60/2	380V/50Hz	10.4	4.6	0.25	DN40	2800
TP 40-60/4	380V/50Hz	10.6	4.4	0.25	DN40	1400
TP 40-75/4	380V/50Hz	12.05	6.31	0.37	DN40	1400
TP 40-80/2	380V/50Hz	8.01	5.49	0.25	DN40	2800
TP 40-80/2	220V/50Hz	8.01	5.49	0.25	DN40	2800
TP 40-90/2	380V/50Hz	9.48	7.01	0.37	DN40	2800
TP 40-90/4	380V/50Hz	6	5.1	0.25	DN40	1400
TP 40-95/4	380V/50Hz	13.83	8.25	0.55	DN40	1400
TP 40-100/4	380V/50Hz	13.59	7.54	0.55	DN40	1400
TP 40-105/4	220V/50Hz	15.16	9.27	0.75	DN40	1400
TP 40-105/4	380V/50Hz	15.16	9.27	0.75	DN40	1400
TP 40-110/4	220V/50Hz	17.12	8.81	0.75	DN40	1400
TP 40-110/4	380V/50Hz	17.12	8.81	0.75	DN40	1400
TP 40-120/2	380V/50Hz	11.4	7.4	0.37	DN40	2800
TP 40-120/2	380V/50Hz	11.4	7.4	0.37	DN40	2800
TP 40-120/2	220V/50Hz	11.4	7.4	0.37	DN40	2800
TP 40-140/4	380V/50Hz	19.26	11.65	1.1	DN40	1400
TP 40-140/4	220V/50Hz	19.26	11.65	1.1	DN40	1400
TP 40-180/2	380V/50Hz	12.5	10	0.55	DN40	2800
TP 40-180/2	380V/50Hz	12.5	10	0.55	DN40	2800
TP 40-180/2	220V/50Hz	12.5	10	0.55	DN40	2800
TP 40-190/2	220V/50Hz	10.8	13.3	0.75	DN40	2800
TP 40-190/2	380V/50Hz	10.8	13.3	0.75	DN40	2800
TP 40-190/2	380V/50Hz	10.8	13.3	0.75	DN40	2800
TP 40-205/2	220V/50Hz	17.08	17.52	1.5	DN40	2800
TP 40-205/2	380V/50Hz	17.08	17.52	1.5	DN40	2800
TP 40-230/2	220V/50Hz	12	17	1.1	DN40	2800
TP 40-230/2	380V/50Hz	12	17	1.1	DN40	2800
TP 40-230/2	380V/50Hz	12	17	1.1	DN40	2800
TP 40-240/2	380V/50Hz	20.5	19.5	2.2	DN40	2800
TP 40-240/2	380V/50Hz	20.5	19.5	2.2	DN40	2800
TP 40-240/2	220V/50Hz	20.5	19.5	2.2	DN40	2800
TP 40-245/2	220V/50Hz	21.13	21.14	2.2	DN40	2800
TP 40-245/2	380V/50Hz	21.13	21.14	2.2	DN40	2800
TP 40-270/2	380V/50Hz	12.5	19.9	1.5	DN40	2800
TP 40-270/2	380V/50Hz	12.5	19.9	1.5	DN40	2800
TP 40-270/2	220V/50Hz	12.5	19.9	1.5	DN40	2800
TP 40-300/2	380V/50Hz	23.7	24.6	3	DN40	2800
TP 40-300/2	380V/50Hz	23.7	24.6	3	DN40	2800
TP 40-300/2	220V/50Hz	23.7	24.6	3	DN40	2800
TP 40-305/2	220V/50Hz	24.08	26.2	3	DN40	2800
TP 40-305/2	380V/50Hz	24.08	26.2	3	DN40	2800
TP 40-355/2	380V/50Hz	27.3	31.22	4	DN40	2800
TP 40-355/2	380V/50Hz	27.3	31.22	4	DN40	2800
TP 40-360/2	380V/50Hz	26.37	29.48	4	DN40	2800
TP 40-360/2	380V/50Hz	26.37	29.48	4	DN40	2800
TP 40-360/2	380V/50Hz	26.37	29.48	4	DN40	2800
TP 40-425/2	380V/50Hz	30.41	38.11	5.5	DN40	2800
TP 40-425/2	380V/50Hz	30.41	38.11	5.5	DN40	2800
TP 40-430/2	380V/50Hz	33.5	34.71	5.5	DN40	2800
TP 40-430/2	380V/50Hz	33.5	34.71	5.5	DN40	2800
TP 40-430/2	380V/50Hz	33.5	34.71	5.5	DN40	2800
TP 40-530/2	380V/50Hz	36.94	41.82	7.5	DN40	2800
TP 40-530/2	380V/50Hz	36.94	41.82	7.5	DN40	2800
TP 40-530/2	380V/50Hz	36.94	41.82	7.5	DN40	2800
TP 40-630/2	380V/50Hz	44.6	49.9	11	DN40	2800
TP 40-630/2	380V/50Hz	44.6	49.9	11	DN40	2800
TP 50-30/4	380V/50Hz	11.9	2.26	0.25	DN50	1400
TP 50-30/4	380V/50Hz	11.9	2.26	0.25	DN50	1400
TP 50-60/2	380V/50Hz	16	4.6	0.37	DN50	2800
TP 50-60/2	380V/50Hz	16	4.6	0.37	DN50	2800
TP 50-60/4	380V/50Hz	17.1	4.2	0.37	DN50	1400
TP 50-65/4	380V/50Hz	21.24	5.91	0.55	DN50	1400
TP 50-80/4	380V/50Hz	20.2	7.58	0.75	DN50	1400
TP 50-80/4	220V/50Hz	20.2	7.58	0.75	DN50	1400
TP 50-85/4	380V/50Hz	23.62	7.33	0.75	DN50	1400
TP 50-85/4	220V/50Hz	23.62	7.33	0.75	DN50	1400
TP 50-90/4	380V/50Hz	15.8	7.1	0.55	DN50	1400
TP 50-95/4	220V/50Hz	28.7	8.7	1.1	DN50	1400
TP 50-95/4	380V/50Hz	28.7	8.7	1.1	DN50	1400
TP 50-105/4	380V/50Hz	28.63	8.74	1.1	DN50	1400
TP 50-105/4	220V/50Hz	28.63	8.74	1.1	DN50	1400
TP 50-115/4	220V/50Hz	26.03	9.76	1.1	DN50	1400
TP 50-115/4	380V/50Hz	26.03	9.76	1.1	DN50	1400
TP 50-120/2	380V/50Hz	17.3	8.1	0.75	DN50	2800
TP 50-120/2	220V/50Hz	17.3	8.1	0.75	DN50	2800
TP 50-120/2	380V/50Hz	17.3	8.1	0.75	DN50	2800
TP 50-120/4	220V/50Hz	22.5	10.08	1.1	DN50	1400
TP 50-120/4	380V/50Hz	22.5	10.08	1.1	DN50	1400
TP 50-125/4	380V/50Hz	31.4	10.85	1.5	DN50	1400
TP 50-125/4	220V/50Hz	31.4	10.85	1.5	DN50	1400
TP 50-135/4	380V/50Hz	29.54	11.82	1.5	DN50	1400
TP 50-135/4	220V/50Hz	29.54	11.82	1.5	DN50	1400
TP 50-140/4	380V/50Hz	25.67	12.41	1.5	DN50	1400
TP 50-140/4	220V/50Hz	25.67	12.41	1.5	DN50	1400
TP 50-145/4	380V/50Hz	37.18	13.73	2.2	DN50	1400
TP 50-145/4	220V/50Hz	37.18	13.73	2.2	DN50	1400
TP 50-155/2	220V/50Hz	19.16	12.15	1.1	DN50	2800
TP 50-155/2	380V/50Hz	19.16	12.15	1.1	DN50	2800
TP 50-160/2	380V/50Hz	19.62	12.32	1.1	DN50	2800
TP 50-160/2	220V/50Hz	19.62	12.32	1.1	DN50	2800
TP 50-160/2	380V/50Hz	19.62	12.32	1.1	DN50	2800
TP 50-180/2	380V/50Hz	18.3	10.2	0.75	DN50	2800
TP 50-180/2	380V/50Hz	18.3	10.2	0.75	DN50	2800
TP 50-180/2	220V/50Hz	18.3	10.2	0.75	DN50	2800
TP 50-185/4	380V/50Hz	32.2	15.34	2.2	DN50	1400
TP 50-185/4	220V/50Hz	32.2	15.34	2.2	DN50	1400
TP 50-190/2	220V/50Hz	22.15	15.5	1.5	DN50	2800
TP 50-190/2	380V/50Hz	22.15	15.5	1.5	DN50	2800
TP 50-190/2	380V/50Hz	22.15	15.5	1.5	DN50	2800
TP 50-190/4	380V/50Hz	26.33	16.05	2.2	DN50	1400
TP 50-190/4	220V/50Hz	26.33	16.05	2.2	DN50	1400
TP 50-195/2	380V/50Hz	23.02	14.92	1.5	DN50	2800
TP 50-195/2	220V/50Hz	23.02	14.92	1.5	DN50	2800
TP 50-225/4	380V/50Hz	36.15	18.42	3	DN50	1400
TP 50-225/4	220V/50Hz	36.15	18.42	3	DN50	1400
TP 50-230/4	380V/50Hz	30.31	19.4	3	DN50	1400
TP 50-230/4	380V/50Hz	30.31	19.4	3	DN50	1400
TP 50-235/2	380V/50Hz	25.99	19.56	2.2	DN50	2800
TP 50-235/2	220V/50Hz	25.99	19.56	2.2	DN50	2800
TP 50-240/2	380V/50Hz	24.1	19.1	2.2	DN50	2800
TP 50-240/2	380V/50Hz	24.1	19.1	2.2	DN50	2800
TP 50-240/2	220V/50Hz	24.1	19.1	2.2	DN50	2800
TP 50-245/2	380V/50Hz	41.72	21.85	4	DN50	2800
TP 50-245/2	380V/50Hz	41.72	21.85	4	DN50	2800
TP 50-275/2	220V/50Hz	28.87	22.63	3	DN50	2800
TP 50-275/2	380V/50Hz	28.87	22.63	3	DN50	2800
TP 50-290/2	220V/50Hz	27.4	24.1	3	DN50	2800
TP 50-290/2	380V/50Hz	27.4	24.1	3	DN50	2800
TP 50-290/2	380V/50Hz	27.4	24.1	3	DN50	2800
TP 50-305/2	380V/50Hz	47.69	27.52	5.5	DN50	2800
TP 50-305/2	380V/50Hz	47.69	27.52	5.5	DN50	2800
TP 50-360/2	380V/50Hz	30.6	28.2	4	DN50	2800
TP 50-360/2	380V/50Hz	30.6	28.2	4	DN50	2800
TP 50-360/2	380V/50Hz	30.6	28.2	4	DN50	2800
TP 50-395/2	380V/50Hz	53.86	34.09	7.5	DN50	2800
TP 50-395/2	380V/50Hz	53.86	34.09	7.5	DN50	2800
TP 50-405/2	380V/50Hz	61.57	40.03	11	DN50	2800
TP 50-405/2	380V/50Hz	61.57	40.03	11	DN50	2800
TP 50-420/2	380V/50Hz	44.15	35.63	7.5	DN50	2800
TP 50-420/2	380V/50Hz	44.15	35.63	7.5	DN50	2800
TP 50-420/2	380V/50Hz	44.15	35.63	7.5	DN50	2800
TP 50-430/2	380V/50Hz	34.96	33.9	5.5	DN50	2800
TP 50-430/2	380V/50Hz	34.96	33.9	5.5	DN50	2800
TP 50-430/2	380V/50Hz	34.96	33.9	5.5	DN50	2800
TP 50-435/2	380V/50Hz	55.64	39.17	11	DN50	2800
TP 50-435/2	380V/50Hz	55.64	39.17	11	DN50	2800
TP 50-515/2	380V/50Hz	73.23	49.39	15	DN50	2800
TP 50-515/2	380V/50Hz	73.23	49.39	15	DN50	2800
TP 50-540/2	380V/50Hz	51.09	45.98	11	DN50	2800
TP 50-540/2	380V/50Hz	51.09	45.98	11	DN50	2800
TP 50-540/2	380V/50Hz	51.09	45.98	11	DN50	2800
TP 50-585/2	380V/50Hz	73.06	57.19	18.5	DN50	2800
TP 50-585/2	380V/50Hz	73.06	57.19	18.5	DN50	2800
TP 50-630/2	380V/50Hz	55.9	53.9	15	DN50	2800
TP 50-630/2	380V/50Hz	55.9	53.9	15	DN50	2800
TP 50-655/2	380V/50Hz	27.5	55.17	15	DN50	2800
TP 50-655/2	380V/50Hz	64.43	55.17	15	DN50	2800
TP 50-710/2	380V/50Hz	53.17	58.21	15	DN50	2800
TP 50-710/2	380V/50Hz	53.17	58.21	15	DN50	2800
TP 50-710/2	380V/50Hz	53.17	58.21	15	DN50	2800
TP 50-775/2	380V/50Hz	68.56	64.6	18.5	DN50	2800
TP 50-775/2	380V/50Hz	68.56	64.6	18.5	DN50	2800
TP 50-830/2	380V/50Hz	56.62	68.17	18.5	DN50	2800
TP 50-830/2	380V/50Hz	56.62	68.17	18.5	DN50	2800
TP 50-830/2	380V/50Hz	56.62	68.17	18.5	DN50	2800
TP 50-885/2	380V/50Hz	75.9	71.52	22	DN50	2800
TP 50-885/2	380V/50Hz	75.9	71.52	22	DN50	2800
TP 50-900/2	380V/50Hz	60.67	74.67	22	DN50	2800
TP 50-900/2	380V/50Hz	60.67	74.67	22	DN50	2800
TP 50-900/2	380V/50Hz	60.67	74.67	22	DN50	2800
TP 65-30/4	380V/50Hz	21.4	2.01	0.25	DN65	1400
TP 65-60/2	380V/50Hz	26.7	3.85	0.55	DN65	2800
TP 65-60/2	220V/50Hz	26.7	3.85	0.55	DN65	2800
TP 65-60/2	380V/50Hz	26.7	3.85	0.55	DN65	2800
TP 65-60/4	380V/50Hz	25.1	4.52	0.55	DN65	1400
TP 65-60/4	220V/50Hz	25.1	4.52	0.55	DN65	1400
TP 65-90/4	380V/50Hz	25.09	7.33	0.75	DN65	1400
TP 65-90/4	220V/50Hz	25.09	7.33	0.75	DN65	1400
TP 65-95/4	220V/50Hz	35	7.95	1.1	DN65	1400
TP 65-95/4	380V/50Hz	35	7.95	1.1	DN65	1400
TP 65-110/4	380V/50Hz	26.46	9.5	1.1	DN65	1400
TP 65-110/4	220V/50Hz	26.46	9.5	1.1	DN65	1400
TP 65-120/2	380V/50Hz	25.7	8.3	1.1	DN65	2800
TP 65-120/2	220V/50Hz	25.7	8.3	1.1	DN65	2800
TP 65-120/2	380V/50Hz	25.7	8.3	1.1	DN65	2800
TP 65-125/4	380V/50Hz	40.31	9.61	1.5	DN65	1400
TP 65-125/4	220V/50Hz	40.31	9.61	1.5	DN65	1400
TP 65-130/4	220V/50Hz	29.8	10.6	1.5	DN65	1400
TP 65-130/4	380V/50Hz	29.8	10.6	1.5	DN65	1400
TP 65-145/2	220V/50Hz	34.31	10.93	1.5	DN65	2800
TP 65-145/2	380V/50Hz	34.31	10.93	1.5	DN65	2800
TP 65-150/4	220V/50Hz	33	12.9	2.2	DN65	1400
TP 65-150/4	380V/50Hz	33	12.9	2.2	DN65	1400
TP 65-155/4	220V/50Hz	46.04	12.32	2.2	DN65	1400
TP 65-155/4	380V/50Hz	46.04	12.32	2.2	DN65	1400
TP 65-165/4	220V/50Hz	45.12	15.41	3	DN65	1400
TP 65-165/4	380V/50Hz	45.12	15.41	3	DN65	1400
TP 65-170/2	220V/50Hz	41.7	13.3	2.2	DN65	2800
TP 65-170/2	380V/50Hz	41.7	13.3	2.2	DN65	2800
TP 65-170/2	380V/50Hz	41.7	13.3	2.2	DN65	2800
TP 65-170/4	220V/50Hz	35.7	14.2	3	DN65	1400
TP 65-170/4	380V/50Hz	35.7	14.2	3	DN65	1400
TP 65-175/4	380V/50Hz	49.76	13.89	3	DN65	1400
TP 65-175/4	220V/50Hz	49.76	13.89	3	DN65	1400
TP 65-180/2	380V/50Hz	28	11.4	1.5	DN65	2800
TP 65-180/2	220V/50Hz	28	11.4	1.5	DN65	2800
TP 65-180/2	380V/50Hz	28	11.4	1.5	DN65	2800
TP 65-185/2	380V/50Hz	40.1	14.35	2.2	DN65	2800
TP 65-185/2	220V/50Hz	40.1	14.35	2.2	DN65	2800
TP 65-205/4	380V/50Hz	50.31	18.5	4	DN65	1400
TP 65-205/4	380V/50Hz	50.31	18.5	4	DN65	1400
TP 65-210/2	380V/50Hz	46.3	16.8	3	DN65	2800
TP 65-210/2	380V/50Hz	46.3	16.8	3	DN65	2800
TP 65-210/2	220V/50Hz	46.3	16.8	3	DN65	2800
TP 65-215/2	220V/50Hz	45.52	17.58	3	DN65	2800
TP 65-215/2	380V/50Hz	45.52	17.58	3	DN65	2800
TP 65-235/4	380V/50Hz	55.54	21.3	5.5	DN65	1400
TP 65-235/4	380V/50Hz	55.54	21.3	5.5	DN65	1400
TP 65-240/4	380V/50Hz	46.43	19.99	4	DN65	1400
TP 65-240/4	380V/50Hz	46.43	19.99	4	DN65	1400
TP 65-250/2	380V/50Hz	51.88	20.33	4	DN65	2800
TP 65-250/2	380V/50Hz	51.88	20.33	4	DN65	2800
TP 65-250/2	380V/50Hz	51.88	20.33	4	DN65	2800
TP 65-255/2	380V/50Hz	50.09	20.89	4	DN65	2800
TP 65-340/2	380V/50Hz	48.29	28.12	5.5	DN65	2800
TP 65-340/2	380V/50Hz	48.29	28.12	5.5	DN65	2800
TP 65-340/2	380V/50Hz	48.29	28.12	5.5	DN65	2800
TP 65-345/2	380V/50Hz	66.94	28.6	7.5	DN65	2800
TP 65-345/2	380V/50Hz	66.94	28.6	7.5	DN65	2800
TP 65-410/2	380V/50Hz	56.41	33.92	7.5	DN65	2800
TP 65-410/2	380V/50Hz	56.41	33.92	7.5	DN65	2800
TP 65-410/2	380V/50Hz	56.41	33.92	7.5	DN65	2800
TP 65-445/2	380V/50Hz	80.81	35.48	11	DN65	2800
TP 65-445/2	380V/50Hz	80.81	35.48	11	DN65	2800
TP 65-460/2	380V/50Hz	55.94	40.21	11	DN65	2800
TP 65-460/2	380V/50Hz	55.94	40.21	11	DN65	2800
TP 65-460/2	380V/50Hz	55.94	40.21	11	DN65	2800
TP 65-535/2	380V/50Hz	86.42	44.78	15	DN65	2800
TP 65-535/2	380V/50Hz	86.42	44.78	15	DN65	2800
TP 65-550/2	380V/50Hz	63.8	47.4	15	DN65	2800
TP 65-550/2	380V/50Hz	63.8	47.4	15	DN65	2800
TP 65-550/2	380V/50Hz	63.8	47.4	15	DN65	2800
TP 65-615/2	380V/50Hz	97.31	50.13	18.5	DN65	2800
TP 65-615/2	380V/50Hz	97.31	50.13	18.5	DN65	2800
TP 65-635/2	380V/50Hz	90.8	58.65	22	DN65	2800
TP 65-635/2	380V/50Hz	90.8	58.65	22	DN65	2800
TP 65-660/2	380V/50Hz	70.36	57.11	18.5	DN65	2800
TP 65-660/2	380V/50Hz	70.36	57.11	18.5	DN65	2800
TP 65-660/2	380V/50Hz	70.36	57.11	18.5	DN65	2800
TP 65-675/2	380V/50Hz	103.4	54.56	22	DN65	2800
TP 65-675/2	380V/50Hz	103.4	54.56	22	DN65	2800
TP 65-720/2	380V/50Hz	77.2	61.5	22	DN65	2800
TP 65-720/2	380V/50Hz	77.2	61.5	22	DN65	2800
TP 65-720/2	380V/50Hz	77.2	61.5	22	DN65	2800
TP 65-775/2	380V/50Hz	97.61	73.81	30	DN65	2800
TP 65-775/2	380V/50Hz	97.61	73.81	30	DN65	2800
TP 65-930/2	380V/50Hz	85.35	78.78	30	DN65	2800
TP 65-930/2	380V/50Hz	85.35	78.78	30	DN65	2800
TP 65-945/2	380V/50Hz	111.8	85.79	37	DN65	2800
TP 65-945/2	380V/50Hz	111.8	85.79	37	DN65	2800
TP 80-30/4	380V/50Hz	34.9	1.85	0.37	DN80	1400
TP 80-30/4	380V/50Hz	34.9	1.85	0.37	DN80	1400
TP 80-30/4	220V/50Hz	34.9	1.85	0.37	DN80	1400
TP 80-45/4	220V/50Hz	41.98	4.04	0.75	DN80	1400
TP 80-45/4	380V/50Hz	41.98	4.04	0.75	DN80	1400
TP 80-55/4	220V/50Hz	46.99	5.63	1.1	DN80	1400
TP 80-55/4	380V/50Hz	46.99	5.63	1.1	DN80	1400
TP 80-60/4	220V/50Hz	39.1	4.97	0.75	DN80	1400
TP 80-60/4	380V/50Hz	39.1	4.97	0.75	DN80	1400
TP 80-65/4	380V/50Hz	28.63	4.47	0.55	DN80	1400
TP 80-70/4	220V/50Hz	45.8	5.9	1.1	DN80	1400
TP 80-70/4	380V/50Hz	45.8	5.9	1.1	DN80	1400
TP 80-75/4	220V/50Hz	32.35	5.77	0.75	DN80	1400
TP 80-75/4	380V/50Hz	32.35	5.77	0.75	DN80	1400
TP 80-85/4	380V/50Hz	56.4	6.91	1.5	DN80	1400
TP 80-85/4	220V/50Hz	56.4	6.91	1.5	DN80	1400
TP 80-90/4	380V/50Hz	53.34	7.7	1.5	DN80	1400
TP 80-90/4	220V/50Hz	53.34	7.7	1.5	DN80	1400
TP 80-95/4	380V/50Hz	36.98	7.46	1.1	DN80	1400
TP 80-95/4	220V/50Hz	36.98	7.46	1.1	DN80	1400
TP 80-105/4	380V/50Hz	61.85	8.41	2.2	DN80	1400
TP 80-105/4	220V/50Hz	61.85	8.41	2.2	DN80	1400
TP 80-110/4	380V/50Hz	59.4	8.9	2.2	DN80	1400
TP 80-110/4	220V/50Hz	59.4	8.9	2.2	DN80	1400
TP 80-115/4	380V/50Hz	41.09	8.97	1.5	DN80	1400
TP 80-115/4	220V/50Hz	41.09	8.97	1.5	DN80	1400
TP 80-120/2	380V/50Hz	42.5	7.91	1.5	DN80	2800
TP 80-120/2	380V/50Hz	42.5	7.91	1.5	DN80	2800
TP 80-120/2	220V/50Hz	42.5	7.91	1.5	DN80	2800
TP 80-125/4	380V/50Hz	51.01	10.24	2.2	DN80	1400
TP 80-125/4	220V/50Hz	51.01	10.24	2.2	DN80	1400
TP 80-140/2	220V/50Hz	51.75	10.83	2.2	DN80	2800
TP 80-140/2	380V/50Hz	51.75	10.83	2.2	DN80	2800
TP 80-140/2	380V/50Hz	51.75	10.83	2.2	DN80	2800
TP 80-145/4	380V/50Hz	58.29	12.83	3	DN80	1400
TP 80-145/4	220V/50Hz	58.29	12.83	3	DN80	1400
TP 80-150/4	380V/50Hz	59.14	12.5	3	DN80	1400
TP 80-150/4	220V/50Hz	59.14	12.5	3	DN80	1400
TP 80-155/4	380V/50Hz	89.71	14.51	5.5	DN80	1400
TP 80-155/4	380V/50Hz	89.71	14.51	5.5	DN80	1400
TP 80-170/4	380V/50Hz	67.9	14.4	4	DN80	1400
TP 80-170/4	380V/50Hz	67.9	14.4	4	DN80	1400
TP 80-180/2	220V/50Hz	56.63	13.86	3	DN80	2800
TP 80-180/2	380V/50Hz	56.63	13.86	3	DN80	2800
TP 80-180/2	380V/50Hz	56.63	13.86	3	DN80	2800
TP 80-185/4	380V/50Hz	60.83	16.46	4	DN80	1400
TP 80-185/4	380V/50Hz	60.83	16.46	4	DN80	1400
TP 80-195/4	380V/50Hz	67.74	15.87	4	DN80	1400
TP 80-195/4	380V/50Hz	67.74	15.87	4	DN80	1400
TP 80-210/2	380V/50Hz	61.93	17.05	4	DN80	2800
TP 80-210/2	380V/50Hz	61.93	17.05	4	DN80	2800
TP 80-210/2	380V/50Hz	61.93	17.05	4	DN80	2800
TP 80-225/4	380V/50Hz	99.75	18.26	7.5	DN80	1400
TP 80-235/2	380V/50Hz	53.91	18.42	4	DN80	2800
TP 80-235/2	380V/50Hz	53.91	18.42	4	DN80	2800
TP 80-240/2	380V/50Hz	67.85	20.34	5.5	DN80	2800
TP 80-240/2	380V/50Hz	67.85	20.34	5.5	DN80	2800
TP 80-240/2	380V/50Hz	67.85	20.37	5.5	DN80	2800
TP 80-240/4	380V/50Hz	66.41	18.7	5.5	DN80	1400
TP 80-240/4	380V/50Hz	66.41	18.7	5.5	DN80	1400
TP 80-250/2	380V/50Hz	89.6	21.63	7.5	DN80	2800
TP 80-250/2	380V/50Hz	89.6	21.63	7.5	DN80	2800
TP 80-250/2	380V/50Hz	89.6	21.63	7.5	DN80	2800
TP 80-265/2	380V/50Hz	60.95	22.25	5.5	DN80	2800
TP 80-265/2	380V/50Hz	60.95	22.25	5.5	DN80	2800
TP 80-265/4	380V/50Hz	70.16	19.95	5.5	DN80	1400
TP 80-270/4	380V/50Hz	78.93	22.65	7.5	DN80	1400
TP 80-270/4	380V/50Hz	78.93	22.65	7.5	DN80	1400
TP 80-275/4	380V/50Hz	112	22.02	11	DN80	1400
TP 80-285/4	380V/50Hz	73.03	22.94	7.5	DN80	1400
TP 80-315/2	380V/50Hz	102	26.56	11	DN80	2800
TP 80-315/2	380V/50Hz	102	26.56	11	DN80	2800
TP 80-330/2	380V/50Hz	102	27.4	11	DN80	2800
TP 80-330/2	380V/50Hz	102	27.4	11	DN80	2800
TP 80-330/2	380V/50Hz	102	27.4	11	DN80	2800
TP 80-335/2	380V/50Hz	68.61	27.3	7.5	DN80	2800
TP 80-335/2	380V/50Hz	68.61	27.3	7.5	DN80	2800
TP 80-340/4	380V/50Hz	88.85	28.9	11	DN80	1400
TP 80-340/4	380V/50Hz	88.85	28.9	11	DN80	1400
TP 80-395/2	380V/50Hz	77.36	34.43	11	DN80	2800
TP 80-400/2	380V/50Hz	115.3	34.19	15	DN80	2800
TP 80-400/2	380V/50Hz	115.3	34.19	15	DN80	2800
TP 80-400/2	380V/50Hz	115.3	34.19	15	DN80	2800
TP 80-405/2	380V/50Hz	124	32.2	15	DN80	2800
TP 80-405/2	380V/50Hz	124	32.2	15	DN80	2800
TP 80-425/2	380V/50Hz	79.93	37.24	15	DN80	2800
TP 80-455/2	380V/50Hz	104.1	43.92	18.5	DN80	2800
TP 80-455/2	380V/50Hz	104.1	43.92	18.5	DN80	2800
TP 80-520/2	380V/50Hz	112.9	42.28	18.5	DN80	2800
TP 80-520/2	380V/50Hz	112.9	42.28	18.5	DN80	2800
TP 80-520/2	380V/50Hz	112.9	42.28	18.5	DN80	2800
TP 80-535/2	380V/50Hz	117.8	48.47	22	DN80	2800
TP 80-535/2	380V/50Hz	117.8	48.47	22	DN80	2800
TP 80-570/2	380V/50Hz	118.9	48.01	22	DN80	2800
TP 80-570/2	380V/50Hz	118.9	48.01	22	DN80	2800
TP 80-570/2	380V/50Hz	118.9	48.01	22	DN80	2800
TP 80-700/2	380V/50Hz	128.5	59.95	30	DN80	2800
TP 80-700/2	380V/50Hz	128.5	59.95	30	DN80	2800
TP 80-715/2	380V/50Hz	138.4	59.87	30	DN80	2800
TP 80-715/2	380V/50Hz	138.4	59.87	30	DN80	2800
TP 80-795/2	380V/50Hz	143.2	64.37	37	DN80	2800
TP 80-795/2	380V/50Hz	143.2	64.37	37	DN80	2800
TP 100-30/4	220V/50Hz	46.1	2.8	0.55	DN100	1400
TP 100-30/4	380V/50Hz	46.1	2.8	0.55	DN100	1400
TP 100-55/4	220V/50Hz	76.98	3.75	1.1	DN100	1400
TP 100-55/4	220V/50Hz	76.98	3.75	1.1	DN100	1400
TP 100-65/4	220V/50Hz	65.39	4.57	1.1	DN100	1400
TP 100-70/4	220V/50Hz	79.1	4.75	1.5	DN100	1400
TP 100-70/4	380V/50Hz	79.1	4.75	1.5	DN100	1400
TP 100-75/4	220V/50Hz	86.24	4.85	1.5	DN100	1400
TP 100-75/4	380V/50Hz	86.24	4.85	1.5	DN100	1400
TP 100-85/4	220V/50Hz	95.38	6.74	2.2	DN100	1400
TP 100-85/4	380V/50Hz	95.38	6.74	2.2	DN100	1400
TP 100-90/4	380V/50Hz	80.38	7.7	2.2	DN100	1400
TP 100-90/4	220V/50Hz	80.38	7.7	2.2	DN100	1400
TP 100-105/4	220V/50Hz	100.4	7.97	3	DN100	1400
TP 100-105/4	380V/50Hz	100.4	7.97	3	DN100	1400
TP 100-110/4	380V/50Hz	85.9	8.7	3	DN100	1400
TP 100-110/4	220V/50Hz	85.9	8.7	3	DN100	1400
TP 100-120/2	380V/50Hz	72.8	7.8	2.2	DN100	2800
TP 100-120/2	380V/50Hz	72.8	7.8	2.2	DN100	2800
TP 100-120/2	220V/50Hz	72.8	7.8	2.2	DN100	2800
TP 100-125/4	380V/50Hz	97.51	10.9	4	DN100	1400
TP 100-125/4	380V/50Hz	97.51	10.9	4	DN100	1400
TP 100-130/4	380V/50Hz	78.57	12.19	4	DN100	1400
TP 100-130/4	380V/50Hz	78.57	12.19	4	DN100	1400
TP 100-140/4	380V/50Hz	97.76	13.39	5.5	DN100	1400
TP 100-140/4	380V/50Hz	97.76	13.39	5.5	DN100	1400
TP 100-145/4	380V/50Hz	109.1	13.23	5.5	DN100	1400
TP 100-145/4	380V/50Hz	109.1	13.23	5.5	DN100	1400
TP 100-160/2	380V/50Hz	75.24	13.29	4	DN100	2800
TP 100-160/2	380V/50Hz	75.24	13.29	4	DN100	2800
TP 100-160/2	380V/50Hz	75.24	13.29	4	DN100	2800
TP 100-170/4	380V/50Hz	90.8	15.5	5.5	DN100	1400
TP 100-170/4	380V/50Hz	90.8	15.5	5.5	DN100	1400
TP 100-175/4	380V/50Hz	125	15.16	7.5	DN100	1400
TP 100-175/4	380V/50Hz	125	15.16	7.5	DN100	1400
TP 100-200/2	380V/50Hz	81.79	16.87	5.5	DN100	2800
TP 100-200/2	380V/50Hz	81.79	16.87	5.5	DN100	2800
TP 100-200/2	380V/50Hz	81.79	16.87	5.5	DN100	2800
TP 100-200/4	380V/50Hz	115.6	16.32	7.5	DN100	1400
TP 100-200/4	380V/50Hz	115.6	16.32	7.5	DN100	1400
TP 100-225/2	380V/50Hz	172.8	17.06	11	DN100	2800
TP 100-225/2	380V/50Hz	172.8	17.06	11	DN100	2800
TP 100-225/4	380V/50Hz	145.3	20.39	11	DN100	1400
TP 100-225/4	380V/50Hz	145.3	20.39	11	DN100	1400
TP 100-240/2	380V/50Hz	92.01	20.44	7.5	DN100	2800
TP 100-240/2	380V/50Hz	92.01	20.44	7.5	DN100	2800
TP 100-240/2	380V/50Hz	92.01	20.44	7.5	DN100	2800
TP 100-245/4	380V/50Hz	115.5	22.29	11	DN100	1400
TP 100-245/4	380V/50Hz	115.5	22.29	11	DN100	1400
TP 100-250/2	380V/50Hz	135	21.3	11	DN100	2800
TP 100-250/2	380V/50Hz	135	21.3	11	DN100	2800
TP 100-250/2	380V/50Hz	135	21.3	11	DN100	2800
TP 100-250/4	380V/50Hz	129.9	20.69	11	DN100	1400
TP 100-250/4	380V/50Hz	129.9	20.69	11	DN100	1400
TP 100-285/4	380V/50Hz	160	25.48	15	DN100	1400
TP 100-285/4	380V/50Hz	160	25.48	15	DN100	1400
TP 100-295/2	380V/50Hz	185	23.28	15	DN100	2800
TP 100-295/2	380V/50Hz	185	23.28	15	DN100	2800
TP 100-310/2	380V/50Hz	149	26	15	DN100	2800
TP 100-310/2	380V/50Hz	149	26	15	DN100	2800
TP 100-310/2	380V/50Hz	149	26	15	DN100	2800
TP 100-330/4	380V/50Hz	151	25.28	15	DN100	1400
TP 100-330/4	380V/50Hz	151	25.28	15	DN100	1400
TP 100-335/4	380V/50Hz	135	27.76	15	DN100	1400
TP 100-335/4	380V/50Hz	135	27.76	15	DN100	1400
TP 100-345/2	380V/50Hz	192.4	28.22	18.5	DN100	2800
TP 100-345/2	380V/50Hz	192.4	28.22	18.5	DN100	2800
TP 100-345/4	380V/50Hz	172.3	29.36	18.5	DN100	1400
TP 100-345/4	380V/50Hz	172.3	29.36	18.5	DN100	1400
TP 100-355/4	380V/50Hz	151.2	31.26	18.5	DN100	1400
TP 100-360/2	380V/50Hz	160	31.1	18.5	DN100	2800
TP 100-360/2	380V/50Hz	160	31.1	18.5	DN100	2800
TP 100-360/2	380V/50Hz	160	31.1	18.5	DN100	2800
TP 100-365/4	380V/50Hz	155.8	33.4	22	DN100	1400
TP 100-365/4	380V/50Hz	155.8	33.4	22	DN100	1400
TP 100-370/4	380V/50Hz	162.6	29.42	18.5	DN100	1400
TP 100-370/4	380V/50Hz	162.6	29.42	18.5	DN100	1400
TP 100-375/4	380V/50Hz	182.4	32.92	22	DN100	1400
TP 100-375/4	380V/50Hz	182.4	32.92	22	DN100	1400
TP 100-385/2	380V/50Hz	193.7	33.32	22	DN100	2800
TP 100-385/2	380V/50Hz	193.7	33.32	22	DN100	2800
TP 100-390/2	380V/50Hz	171	34	22	DN100	2800
TP 100-390/2	380V/50Hz	171	34	22	DN100	2800
TP 100-390/2	380V/50Hz	171	34	22	DN100	2800
TP 100-410/4	380V/50Hz	169	32.74	22	DN100	1400
TP 100-410/4	380V/50Hz	169	32.74	22	DN100	1400
TP 100-410/4	380V/50Hz	169	32.74	22	DN100	1400
TP 100-455/2	380V/50Hz	195.4	41.27	30	DN100	2800
TP 100-455/2	380V/50Hz	195.4	41.27	30	DN100	2800
TP 100-480/2	380V/50Hz	153.4	49.26	30	DN100	2800
TP 100-480/2	380V/50Hz	153.4	49.26	30	DN100	2800
TP 100-515/2	380V/50Hz	202	48.17	37	DN100	2800
TP 100-515/2	380V/50Hz	202	48.17	37	DN100	2800
TP 100-530/2	380V/50Hz	201.9	54.07	45	DN100	2800
TP 100-530/2	380V/50Hz	201.9	54.07	45	DN100	2800
TP 100-585/2	380V/50Hz	233.7	53.19	45	DN100	2800
TP 100-585/2	380V/50Hz	233.7	53.19	45	DN100	2800
TP 100-650/2	380V/50Hz	212.4	63.1	55	DN100	2800
TP 100-650/2	380V/50Hz	212.4	63.1	55	DN100	2800
TP 100-675/2	380V/50Hz	243.2	61.22	55	DN100	2800
TP 100-675/2	380V/50Hz	243.2	61.22	55	DN100	2800
TP 100-800/2	380V/50Hz	251	72.61	75	DN100	2800
TP 100-800/2	380V/50Hz	251	72.61	75	DN100	2800
TP 100-950/2	380V/50Hz	270.1	83.46	90	DN100	2800
TP 100-950/2	380V/50Hz	270.1	83.46	90	DN100	2800
TP 100-1040/2	380V/50Hz	292	95.98	110	DN100	2800
TP 100-1040/2	380V/50Hz	292	95.98	110	DN100	2800
TP 100-1200/2	380V/50Hz	316.3	106.6	132	DN100	2800
TP 100-1200/2	380V/50Hz	316.3	106.6	132	DN100	2800
TP 100-1410/2	380V/50Hz	349.1	122.4	160	DN100	2800
TP 100-1410/2	380V/50Hz	349.1	122.4	160	DN100	2800
TP 125-60/4	220V/50Hz	114.5	5.17	2.2	DN125	1400
TP 125-60/4	380V/50Hz	114.5	5.17	2.2	DN125	1400
TP 125-60/6	380V/50Hz	87.78	4.4	1.5	DN125	970
TP 125-60/6	220V/50Hz	87.78	4.4	1.5	DN125	970
TP 125-70/6	220V/50Hz	110.9	5.83	2.2	DN125	970
TP 125-70/6	380V/50Hz	110.9	5.83	2.2	DN125	970
TP 125-80/4	220V/50Hz	125.1	7.07	3	DN125	1400
TP 125-80/4	380V/50Hz	125.1	7.07	3	DN125	1400
TP 125-80/6	380V/50Hz	112	7.44	3	DN125	970
TP 125-80/6	220V/50Hz	112	7.44	3	DN125	970
TP 125-95/4	380V/50Hz	128	7.56	4	DN125	1400
TP 125-95/4	380V/50Hz	128	7.56	4	DN125	1400
TP 125-100/6	380V/50Hz	123.2	9.18	4	DN125	970
TP 125-100/6	380V/50Hz	123.2	9.18	4	DN125	970
TP 125-105/4	380V/50Hz	110.9	9.46	4	DN125	1400
TP 125-105/4	380V/50Hz	110.9	9.46	4	DN125	1400
TP 125-110/4	380V/50Hz	121.5	8.39	4	DN125	1400
TP 125-110/4	380V/50Hz	121.5	8.39	4	DN125	1400
TP 125-130/4	380V/50Hz	140.4	10.45	5.5	DN125	1400
TP 125-130/4	380V/50Hz	140.4	10.45	5.5	DN125	1400
TP 125-130/6	380V/50Hz	121	12.4	5.5	DN125	970
TP 125-130/6	380V/50Hz	121	12.4	5.5	DN125	970
TP 125-135/4	380V/50Hz	121.7	11.84	5.5	DN125	1400
TP 125-135/4	380V/50Hz	121.7	11.84	5.5	DN125	1400
TP 125-150/4	380V/50Hz	145.6	13.03	7.5	DN125	1400
TP 125-160/4	380V/50Hz	155.2	12.88	7.5	DN125	1400
TP 125-160/4	380V/50Hz	155.2	12.88	7.5	DN125	1400
TP 125-160/6	380V/50Hz	138	15.1	7.5	DN125	970
TP 125-160/6	380V/50Hz	138	15.1	7.5	DN125	970
TP 125-165/4	380V/50Hz	132.5	14.92	7.5	DN125	1400
TP 125-165/4	380V/50Hz	132.5	14.92	7.5	DN125	1400
TP 125-185/4	380V/50Hz	141.2	16.33	11	DN125	1400
TP 125-185/4	380V/50Hz	141.2	16.33	11	DN125	1400
TP 125-190/4	380V/50Hz	171.7	17.04	11	DN125	1400
TP 125-190/4	380V/50Hz	171.7	17.04	11	DN125	1400
TP 125-195/4	380V/50Hz	157.3	17.94	11	DN125	1400
TP 125-195/4	380V/50Hz	157.3	17.94	11	DN125	1400
TP 125-225/4	380V/50Hz	168.9	21.12	15	DN125	1400
TP 125-225/4	380V/50Hz	168.9	21.12	15	DN125	1400
TP 125-230/4	380V/50Hz	191	20.9	15	DN125	1400
TP 125-230/4	380V/50Hz	191	20.9	15	DN125	1400
TP 125-295/4	380V/50Hz	211.9	27.02	22	DN125	1400
TP 125-295/4	380V/50Hz	211.9	27.02	22	DN125	1400
TP 125-300/4	380V/50Hz	176.4	27.72	18.5	DN125	1400
TP 125-300/4	380V/50Hz	176.4	27.72	18.5	DN125	1400
TP 125-310/2	380V/50Hz	243	25	22	DN125	2800
TP 125-310/2	380V/50Hz	243	25	22	DN125	2800
TP 125-340/4	380V/50Hz	191.8	30.76	22	DN125	1400
TP 125-340/4	380V/50Hz	191.8	30.76	22	DN125	1400
TP 125-340/4	380V/50Hz	191.8	30.76	22	DN125	1400
TP 125-355/4	380V/50Hz	238.4	33.25	30	DN125	1400
TP 125-360/2	380V/50Hz	272	33.1	30	DN125	2800
TP 125-360/2	380V/50Hz	272	33.1	30	DN125	2800
TP 125-375/4	380V/50Hz	255.7	35.27	37	DN125	1400
TP 125-400/4	380V/50Hz	208	36.2	30	DN125	1400
TP 125-400/4	380V/50Hz	208	36.2	30	DN125	1400
TP 125-475/2	380V/50Hz	235.6	41.68	37	DN125	2800
TP 125-475/2	380V/50Hz	235.6	41.68	37	DN125	2800
TP 125-535/2	380V/50Hz	237.4	49.29	45	DN125	2800
TP 125-535/2	380V/50Hz	237.4	49.29	45	DN125	2800
TP 125-605/2	380V/50Hz	265.4	54.87	55	DN125	2800
TP 125-605/2	380V/50Hz	265.4	54.87	55	DN125	2800
TP 125-745/2	380V/50Hz	265.3	66.83	75	DN125	2800
TP 125-745/2	380V/50Hz	265.3	66.83	75	DN125	2800
TP 150-60/6	380V/50Hz	133.1	4.1	2.2	DN150	970
TP 150-60/6	220V/50Hz	133.1	4.1	2.2	DN150	970
TP 150-70/4	380V/50Hz	213.7	6.54	5.5	DN150	1400
TP 150-70/4	380V/50Hz	213.7	6.54	5.5	DN150	1400
TP 150-70/6	220V/50Hz	146	5.37	3	DN150	970
TP 150-70/6	380V/50Hz	146	5.37	3	DN150	970
TP 150-90/6	380V/50Hz	156.6	6.63	4	DN150	970
TP 150-90/6	380V/50Hz	156.6	6.63	4	DN150	970
TP 150-110/4	380V/50Hz	238.5	9.49	7.5	DN150	1400
TP 150-110/4	380V/50Hz	238.5	9.49	7.5	DN150	1400
TP 150-110/6	380V/50Hz	183.3	8.33	5.5	DN150	970
TP 150-110/6	380V/50Hz	183.3	8.33	5.5	DN150	970
TP 150-130/4	380V/50Hz	204.5	9.34	7.5	DN150	1400
TP 150-130/4	380V/50Hz	204.5	9.34	7.5	DN150	1400
TP 150-135/4	380V/50Hz	191.7	10.74	7.5	DN150	1400
TP 150-135/4	380V/50Hz	191.7	10.74	7.5	DN150	1400
TP 150-155/4	380V/50Hz	260.2	12.57	11	DN150	1400
TP 150-155/4	380V/50Hz	260.2	12.57	11	DN150	1400
TP 150-160/4	380V/50Hz	225.3	12.59	11	DN150	1400
TP 150-160/4	380V/50Hz	225.3	12.59	11	DN150	1400
TP 150-170/4	380V/50Hz	280	13.6	15	DN150	1400
TP 150-170/4	380V/50Hz	280	13.6	15	DN150	1400
TP 150-185/4	380V/50Hz	179.1	16.94	11	DN150	1400
TP 150-185/4	380V/50Hz	179.1	16.94	11	DN150	1400
TP 150-195/4	380V/50Hz	213.4	14.88	11	DN150	1400
TP 150-195/4	380V/50Hz	213.4	14.88	11	DN150	1400
TP 150-200/4	380V/50Hz	249.2	16.39	15	DN150	1400
TP 150-200/4	380V/50Hz	249.2	16.39	15	DN150	1400
TP 150-215/4	380V/50Hz	212	20.09	15	DN150	1400
TP 150-215/4	380V/50Hz	212	20.09	15	DN150	1400
TP 150-220/4	380V/50Hz	272.8	18.26	18.5	DN150	1400
TP 150-220/4	380V/50Hz	272.8	18.26	18.5	DN150	1400
TP 150-225/4	380V/50Hz	228.3	22.92	18.5	DN150	1400
TP 150-235/4	380V/50Hz	235.4	18.56	15	DN150	1400
TP 150-235/4	380V/50Hz	235.4	18.56	15	DN150	1400
TP 150-245/4	380V/50Hz	243.2	20.06	18.5	DN150	1400
TP 150-245/4	380V/50Hz	243.2	20.06	18.5	DN150	1400
TP 150-250/4	380V/50Hz	298.6	20.31	22	DN150	1400
TP 150-250/4	380V/50Hz	298.6	20.31	22	DN150	1400
TP 150-250/4	380V/50Hz	298.6	20.31	22	DN150	1400
TP 150-255/4	380V/50Hz	227.5	25.51	22	DN150	1400
TP 150-260/4	380V/50Hz	233.7	21.6	18.5	DN150	1400
TP 150-260/4	380V/50Hz	233.7	21.6	18.5	DN150	1400
TP 150-280/4	380V/50Hz	250.2	24.38	22	DN150	1400
TP 150-280/4	380V/50Hz	250.2	24.38	22	DN150	1400
TP 150-280/4	380V/50Hz	250.2	24.38	22	DN150	1400
TP 150-285/4	380V/50Hz	240.5	27.36	30	DN150	1400
TP 150-285/4	380V/50Hz	240.5	27.36	30	DN150	1400
TP 150-340/4	380V/50Hz	274	29.61	30	DN150	1400
TP 150-340/4	380V/50Hz	274	29.61	30	DN150	1400
TP 150-365/4	380V/50Hz	305	32.13	37	DN150	1400
TP 150-365/4	380V/50Hz	305	32.13	37	DN150	1400
TP 150-390/4	380V/50Hz	296.1	33.57	37	DN150	1400
TP 150-390/4	380V/50Hz	296.1	33.57	37	DN150	1400
TP 150-405/4	380V/50Hz	319.8	36.83	45	DN150	1400
TP 150-405/4	380V/50Hz	319.8	36.83	45	DN150	1400
TP 150-450/4	380V/50Hz	291.7	40.78	45	DN150	1400
TP 150-450/4	380V/50Hz	291.7	40.78	45	DN150	1400
TP 150-455/4	380V/50Hz	357.3	41.66	55	DN150	1400
TP 150-455/4	380V/50Hz	357.3	41.66	55	DN150	1400
TP 150-495/4	380V/50Hz	355.6	47.37	75	DN150	1400
TP 150-495/4	380V/50Hz	355.6	47.37	75	DN150	1400
TP 150-520/4	380V/50Hz	310.6	46.46	55	DN150	1400
TP 150-520/4	380V/50Hz	310.6	46.46	55	DN150	1400
TP 150-660/4	380V/50Hz	361	57	75	DN150	1400
TP 150-660/4	380V/50Hz	361	57	75	DN150	1400
TP 150-660/4	380V/50Hz	361	57	75	DN150	1400
TP 200-50/4	380V/50Hz	212.9	3.89	4	DN200	1400
TP 200-50/4	380V/50Hz	212.9	3.89	4	DN200	1400
TP 200-70/4	380V/50Hz	318.7	4.33	5.5	DN200	1400
TP 200-70/4	380V/50Hz	318.7	4.33	5.5	DN200	1400
TP 200-90/4	380V/50Hz	333.4	5.79	7.5	DN200	1400
TP 200-90/4	380V/50Hz	333.4	5.79	7.5	DN200	1400
TP 200-130/4	380V/50Hz	379.5	8.7	11	DN200	1400
TP 200-130/4	380V/50Hz	379.5	8.7	11	DN200	1400
TP 200-150/4	380V/50Hz	396	9.6	15	DN200	1400
TP 200-150/4	380V/50Hz	396	9.6	15	DN200	1400
TP 200-160/4	380V/50Hz	412.4	10.15	15	DN200	1400
TP 200-160/4	380V/50Hz	412.4	10.15	15	DN200	1400
TP 200-175/4	380V/50Hz	366.8	12.38	15	DN200	1400
TP 200-175/4	380V/50Hz	366.8	12.38	15	DN200	1400
TP 200-190/4	380V/50Hz	419.9	12.46	18.5	DN200	1400
TP 200-190/4	380V/50Hz	419.9	12.46	18.5	DN200	1400
TP 200-200/4	380V/50Hz	439.9	14.36	22	DN200	1400
TP 200-200/4	380V/50Hz	439.9	14.36	22	DN200	1400
TP 200-200/4	380V/50Hz	439.9	14.36	22	DN200	1400
TP 200-205/4	380V/50Hz	392.6	14.56	18.5	DN200	1400
TP 200-205/4	380V/50Hz	392.6	14.56	18.5	DN200	1400
TP 200-215/4	380V/50Hz	413.5	16.44	22	DN200	1400
TP 200-225/4	380V/50Hz	312.3	19.45	22	DN200	1400
TP 200-225/4	380V/50Hz	312.3	19.45	22	DN200	1400
TP 200-235/4	380V/50Hz	478.2	18.54	30	DN200	1400
TP 200-240/4	380V/50Hz	490.6	17.91	30	DN200	1400
TP 200-240/4	380V/50Hz	490.6	17.91	30	DN200	1400
TP 200-245/4	380V/50Hz	405.4	19.37	30	DN200	1400
TP 200-270/4	380V/50Hz	521	24	45	DN200	1400
TP 200-270/4	380V/50Hz	521	24	45	DN200	1400
TP 200-275/4	380V/50Hz	515.6	21.5	37	DN200	1400
TP 200-285/4	380V/50Hz	342.2	24.58	30	DN200	1400
TP 200-285/4	380V/50Hz	342.2	24.58	30	DN200	1400
TP 200-290/4	380V/50Hz	519.4	21.05	37	DN200	1400
TP 200-290/4	380V/50Hz	519.4	21.05	37	DN200	1400
TP 200-295/4	380V/50Hz	372.7	26.21	37	DN200	1400
TP 200-295/4	380V/50Hz	372.7	26.21	37	DN200	1400
TP 200-305/4	380V/50Hz	568.1	24.41	45	DN200	1400
TP 200-320/4	380V/50Hz	550.2	27.67	55	DN200	1400
TP 200-320/4	380V/50Hz	550.2	27.67	55	DN200	1400
TP 200-325/4	380V/50Hz	427.2	28.87	45	DN200	1400
TP 200-325/4	380V/50Hz	427.2	28.87	45	DN200	1400
TP 200-330/4	380V/50Hz	354	28.6	37	DN200	1400
TP 200-330/4	380V/50Hz	354	28.6	37	DN200	1400
TP 200-335/4	380V/50Hz	355.7	28.36	37	DN200	1400
TP 200-335/4	380V/50Hz	355.7	28.36	37	DN200	1400
TP 200-360/4	380V/50Hz	382	31.88	45	DN200	1400
TP 200-360/4	380V/50Hz	382	31.88	45	DN200	1400
TP 200-365/4	380V/50Hz	458.7	33.05	55	DN200	1400
TP 200-365/4	380V/50Hz	458.7	33.05	55	DN200	1400
TP 200-385/4	380V/50Hz	373.6	32.84	45	DN200	1400
TP 200-385/4	380V/50Hz	373.6	32.84	45	DN200	1400
TP 200-400/4	380V/50Hz	422.9	35.23	55	DN200	1400
TP 200-400/4	380V/50Hz	422.9	35.23	55	DN200	1400
TP 200-410/4	380V/50Hz	617.6	34.08	75	DN200	1400
TP 200-410/4	380V/50Hz	617.6	34.08	75	DN200	1400
TP 200-410/4	380V/50Hz	617.6	34.08	75	DN200	1400
TP 200-445/4	380V/50Hz	511.9	39.62	75	DN200	1400
TP 200-445/4	380V/50Hz	511.9	39.62	75	DN200	1400
TP 200-455/4	380V/50Hz	589.5	41.43	90	DN200	1400
TP 200-455/4	380V/50Hz	589.5	41.43	90	DN200	1400
TP 200-470/4	380V/50Hz	481	41.95	75	DN200	1400
TP 200-470/4	380V/50Hz	481	41.95	75	DN200	1400
TP 200-470/4	380V/50Hz	481	41.95	75	DN200	1400
TP 200-495/4	380V/50Hz	522.5	46.39	90	DN200	1400
TP 200-495/4	380V/50Hz	522.5	46.39	90	DN200	1400
TP 200-515/4	380V/50Hz	633.4	47.38	110	DN200	1400
TP 200-530/4	380V/50Hz	523	46.73	90	DN200	1400
TP 200-530/4	380V/50Hz	523	46.73	90	DN200	1400
TP 200-585/4	380V/50Hz	671.1	53.1	132	DN200	1400
TP 200-590/4	380V/50Hz	570.8	52.12	110	DN200	1400
TP 200-590/4	380V/50Hz	570.8	52.12	110	DN200	1400
TP 200-655/4	380V/50Hz	673.7	59.18	160	DN200	1400
TP 200-655/4	380V/50Hz	673.7	59.18	160	DN200	1400
TP 200-660/4	380V/50Hz	619.5	57.83	132	DN200	1400
TP 200-660/4	380V/50Hz	619.5	57.83	132	DN200	1400
TP 300-190/4	380V/50Hz	721.2	12.41	30	DN300	1400
TP 300-190/4	380V/50Hz	721.2	12.41	30	DN300	1400
TP 300-220/4	380V/50Hz	736.9	15.75	37	DN300	1400
TP 300-220/4	380V/50Hz	736.9	15.75	37	DN300	1400
TP 300-250/4	380V/50Hz	739.1	19.08	45	DN300	1400
TP 300-250/4	380V/50Hz	739.1	19.08	45	DN300	1400
TP 300-290/4	380V/50Hz	776.5	20.83	55	DN300	1400
TP 300-290/4	380V/50Hz	776.5	20.83	55	DN300	1400
TP 300-390/4	380V/50Hz	811.4	28.23	75	DN300	1400
TP 300-390/4	380V/50Hz	811.4	28.23	75	DN300	1400
TP 300-420/4	380V/50Hz	839.5	31.95	90	DN300	1400
TP 300-420/4	380V/50Hz	839.5	31.95	90	DN300	1400
TP 300-430/4	380V/50Hz	819	36.88	110	DN300	1400
TP 300-430/4	380V/50Hz	819	36.88	110	DN300	1400
TP 300-500/4	380V/50Hz	944.9	40.88	132	DN300	1400
TP 300-500/4	380V/50Hz	944.9	40.88	132	DN300	1400
TP 300-550/4	380V/50Hz	991.6	45.97	160	DN300	1400
TP 300-550/4	380V/50Hz	991.6	45.97	160	DN300	1400
TP 350-280/4	380V/50Hz	1116	20.2	75	DN350	1400
TP 350-320/4	380V/50Hz	1172	23.6	90	DN350	1400
TP 350-360/4	380V/50Hz	1254	27.46	110	DN350	1400
TP 350-420/4	380V/50Hz	1326	31.52	132	DN350	1400
TP 350-480/4	380V/50Hz	1373	35.15	160	DN350	1400
TP 350-530/4	380V/50Hz	1246	44.9	200	DN350	1400
TP 350-650/4	380V/50Hz	1362	53.82	250	DN350	1400
TP 350-780/4	380V/50Hz	1383	66.11	315	DN350	1400
TP 400-760/4	380V/50Hz	3512	51	630	DN350	1400
