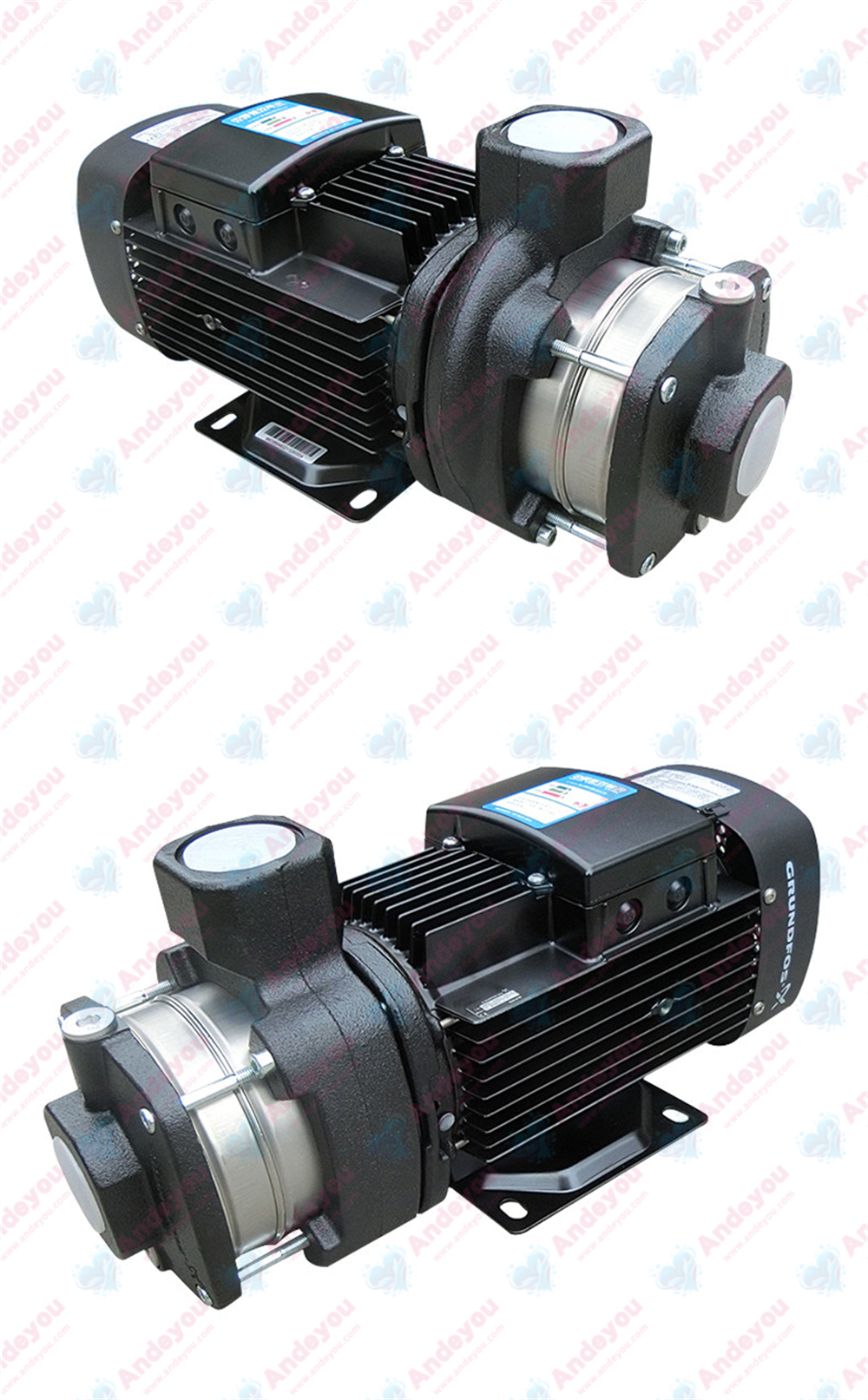

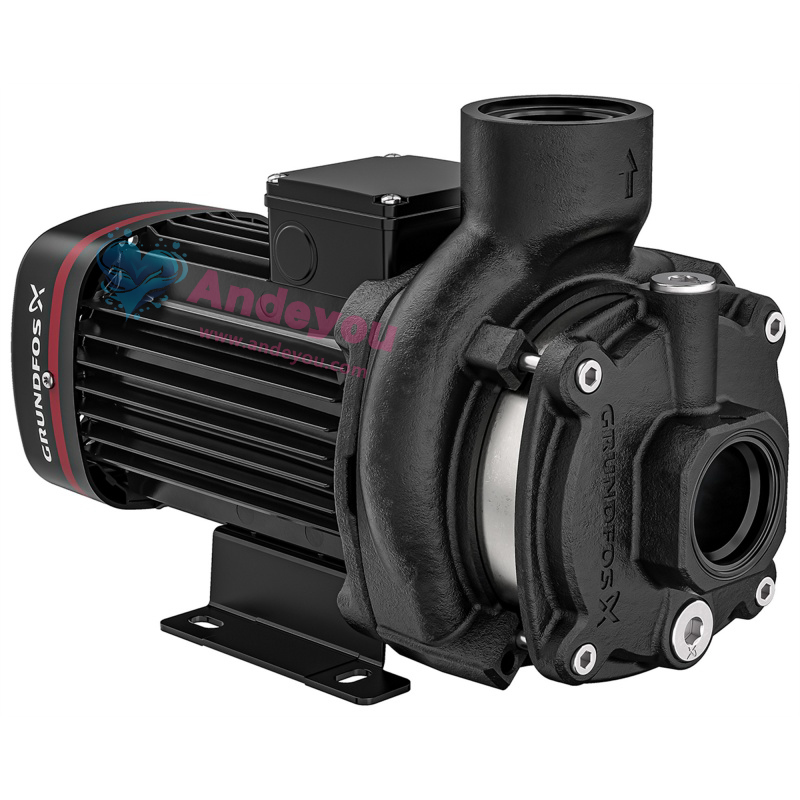

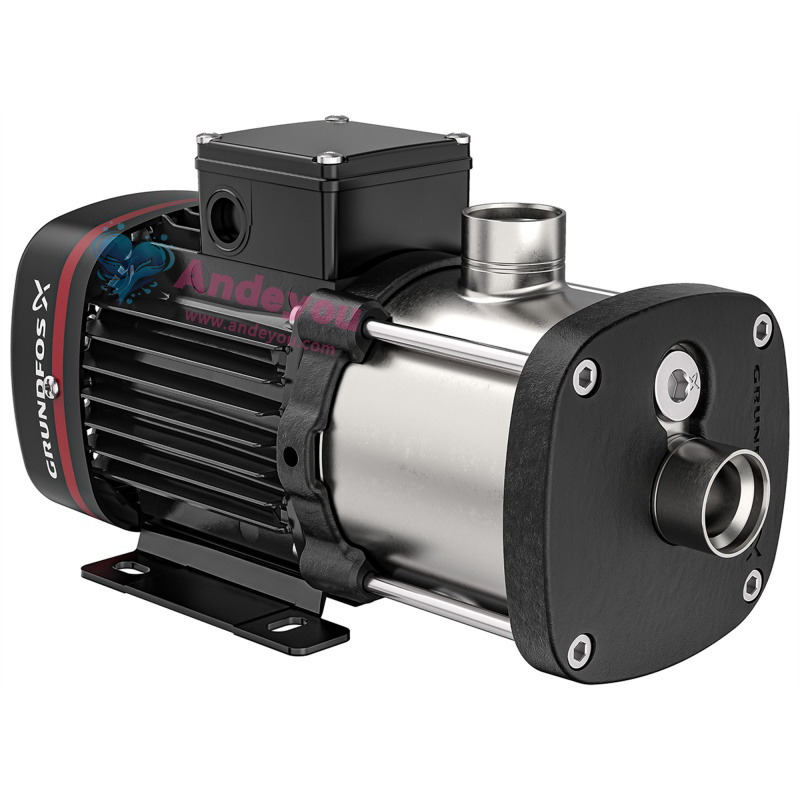

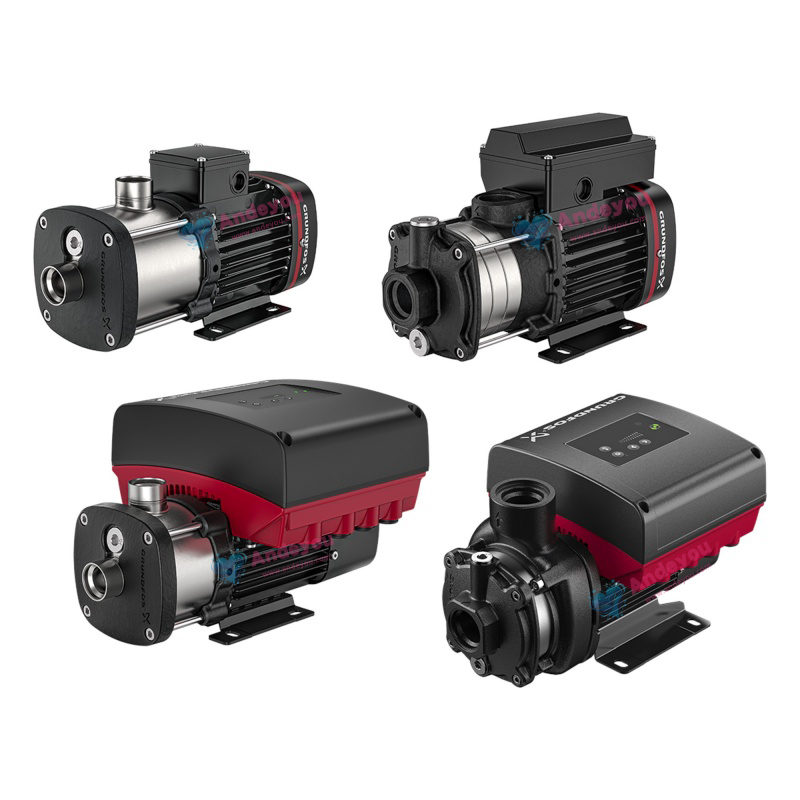

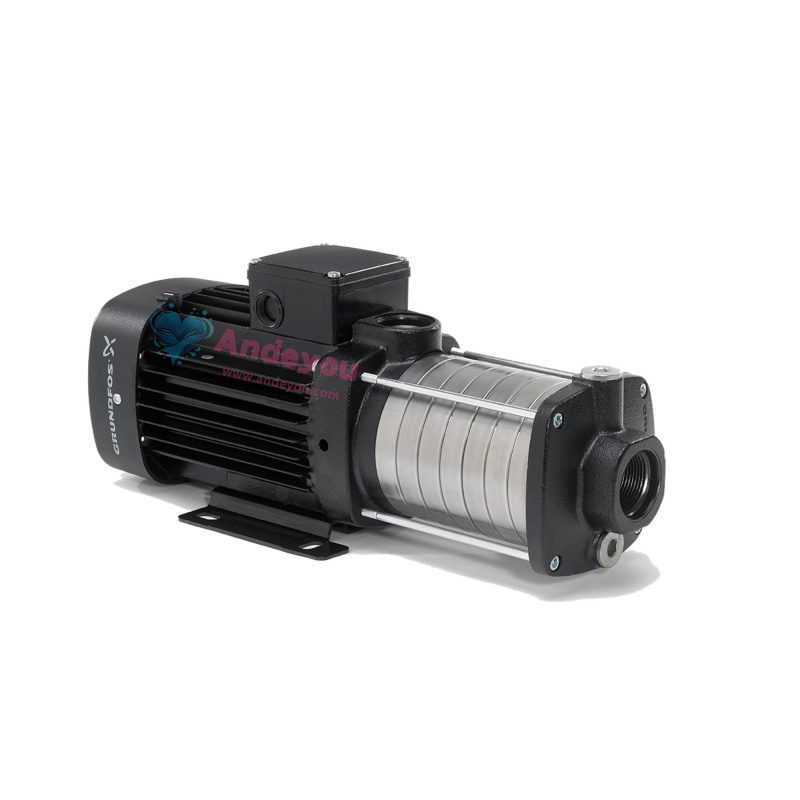

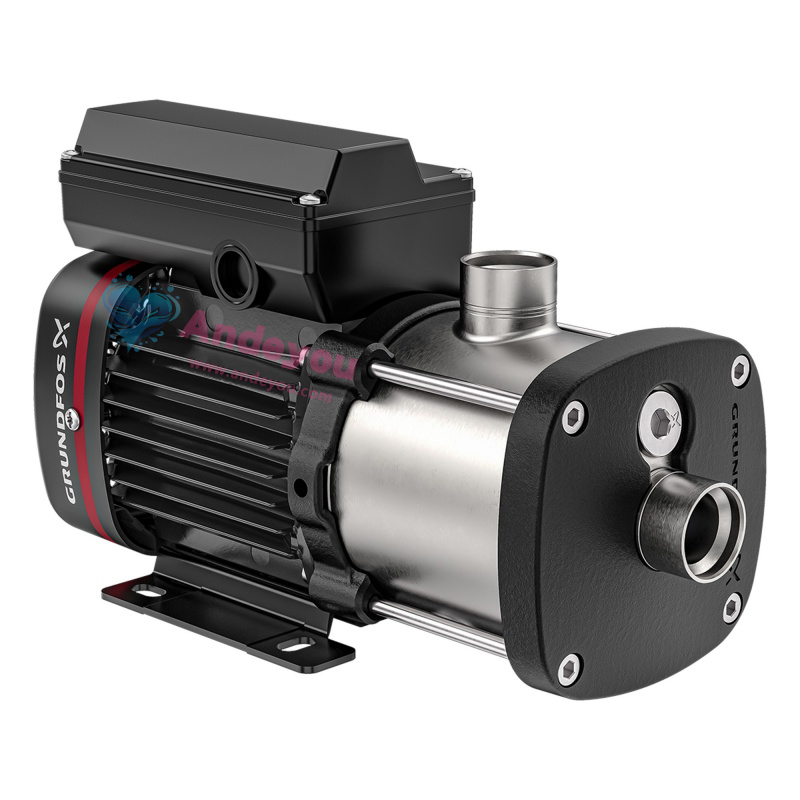

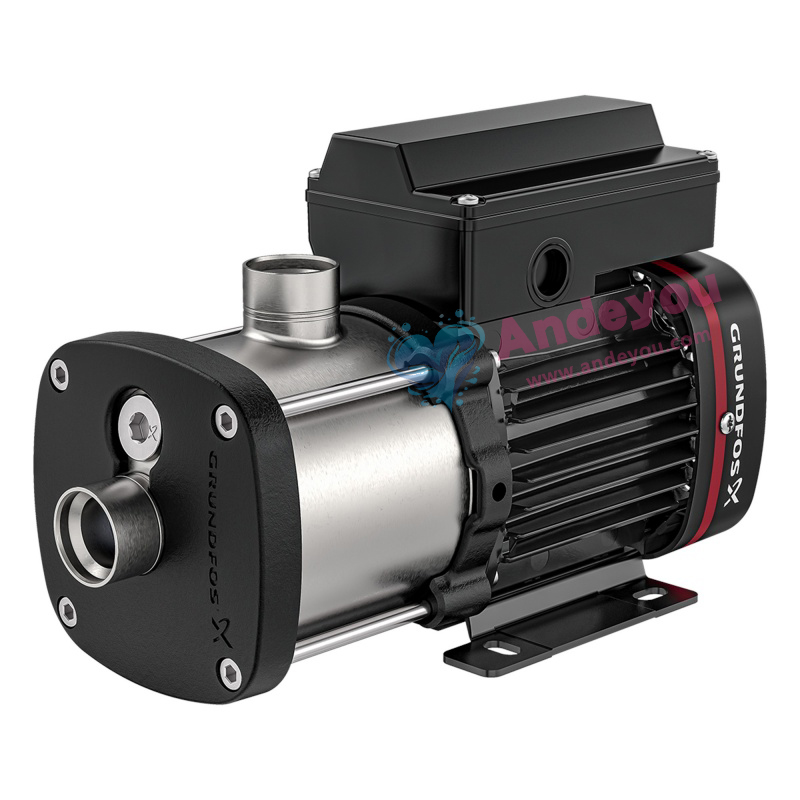

Grundfos CM Stainless Steel Horizontal Multistage Centrifugal Pump

CM 1-2 CM 1-2 CM 1-3 CM 1-3 CM 1-4 CM 1-4 CM 1-5 CM 1-5 CM 1-6 CM 1-6 CM 1-7 CM 1-7 CM 1-8 CM 1-9 CM 1-10 CM 1-11 CM 1-12 CM 1-13 CM 1-14 CM 3-2 CM 3-2 CM 3-3 CM 3-3 CM 3-3 CM 3-4 CM 3-4 CM 3-5 CM 3-5 CM 3-6 CM 3-6 CM 3-6 CM 3-7 CM 3-7 CM 3-7 CM 3-8 CM 3-8 CM 3-8 CM 3-9 CM 3-10 CM 3-11 CM 3-12 CM 3-13 CM 3-14 CM 5-2 CM 5-2 CM 5-3 CM 5-3 CM 5-3 CM 5-4 CM 5-4 CM 5-4 CM 5-5 CM 5-5 CM 5-5 CM 5-5 CM 5-6 CM 5-6 CM 5-6 CM 5-7

The Grundfos CM stainless steel horizontal multistage centrifugal pump is constructed from high-quality stainless steel,offering excellent corrosion resistance and a long service life.Featuring a horizontal multistage design,the pump operates smoothly with low noise levels and is suitable for a wide range of applications,including industrial water supply,boiler feed,and high-pressure cleaning.With advantages such as high energy efficiency,stable performance,and ease of maintenance

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

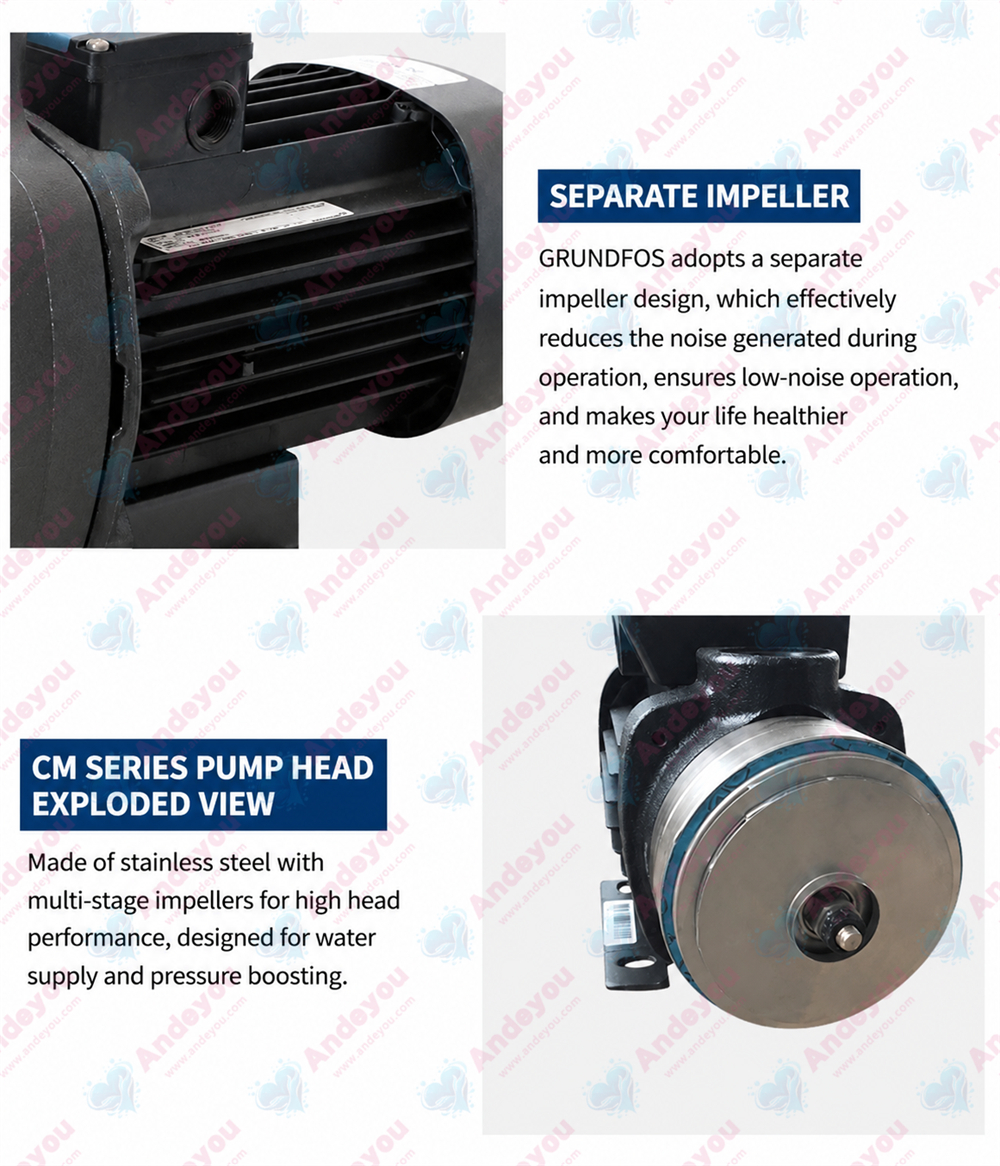

Structural Design

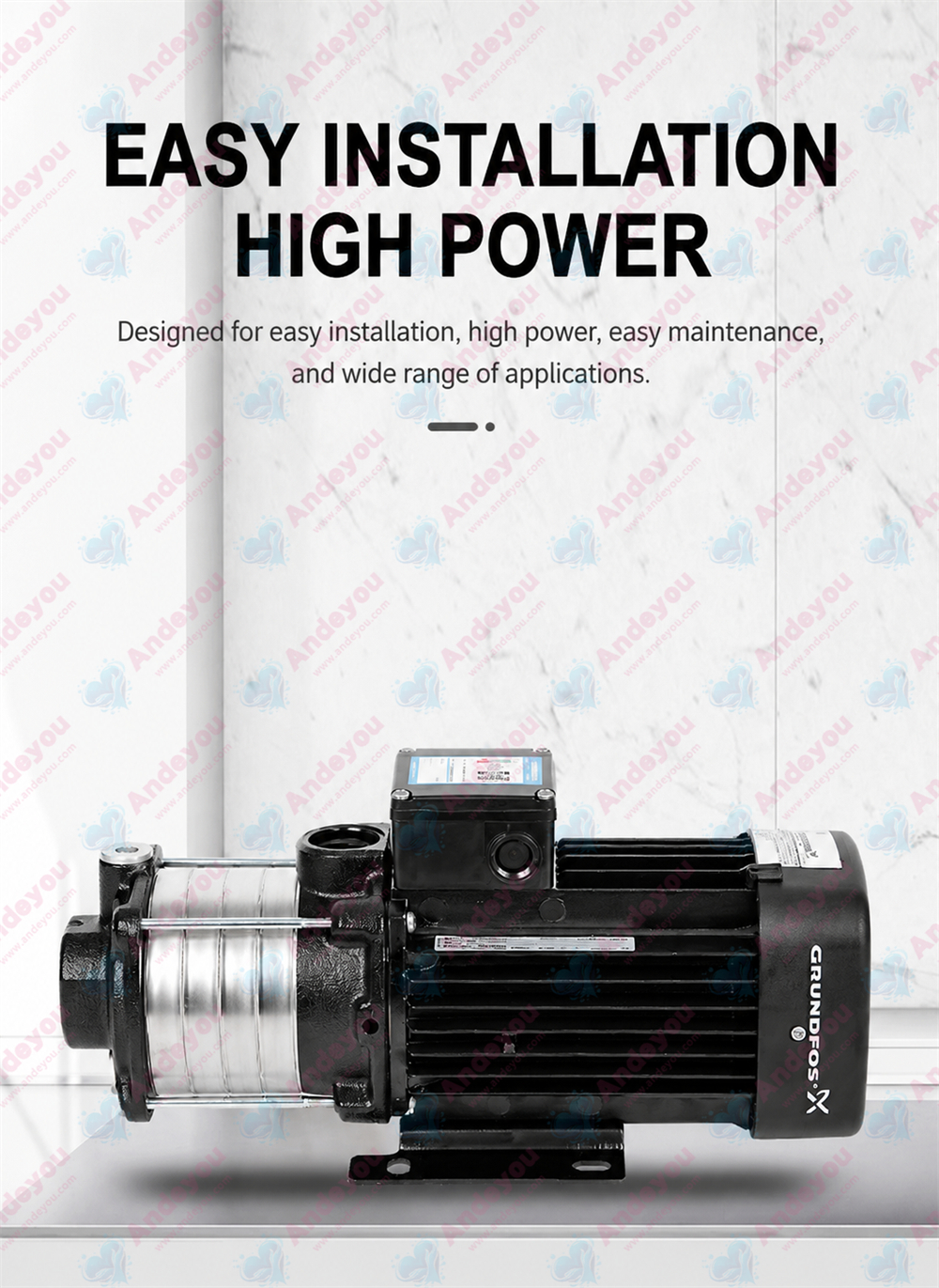

Features a horizontal, multistage, end-suction configuration; compact design minimizes footprint and facilitates installation and maintenance.
Optimized hydraulic components and outer sleeve design ensure smooth, low-noise operation.

Material Advantages

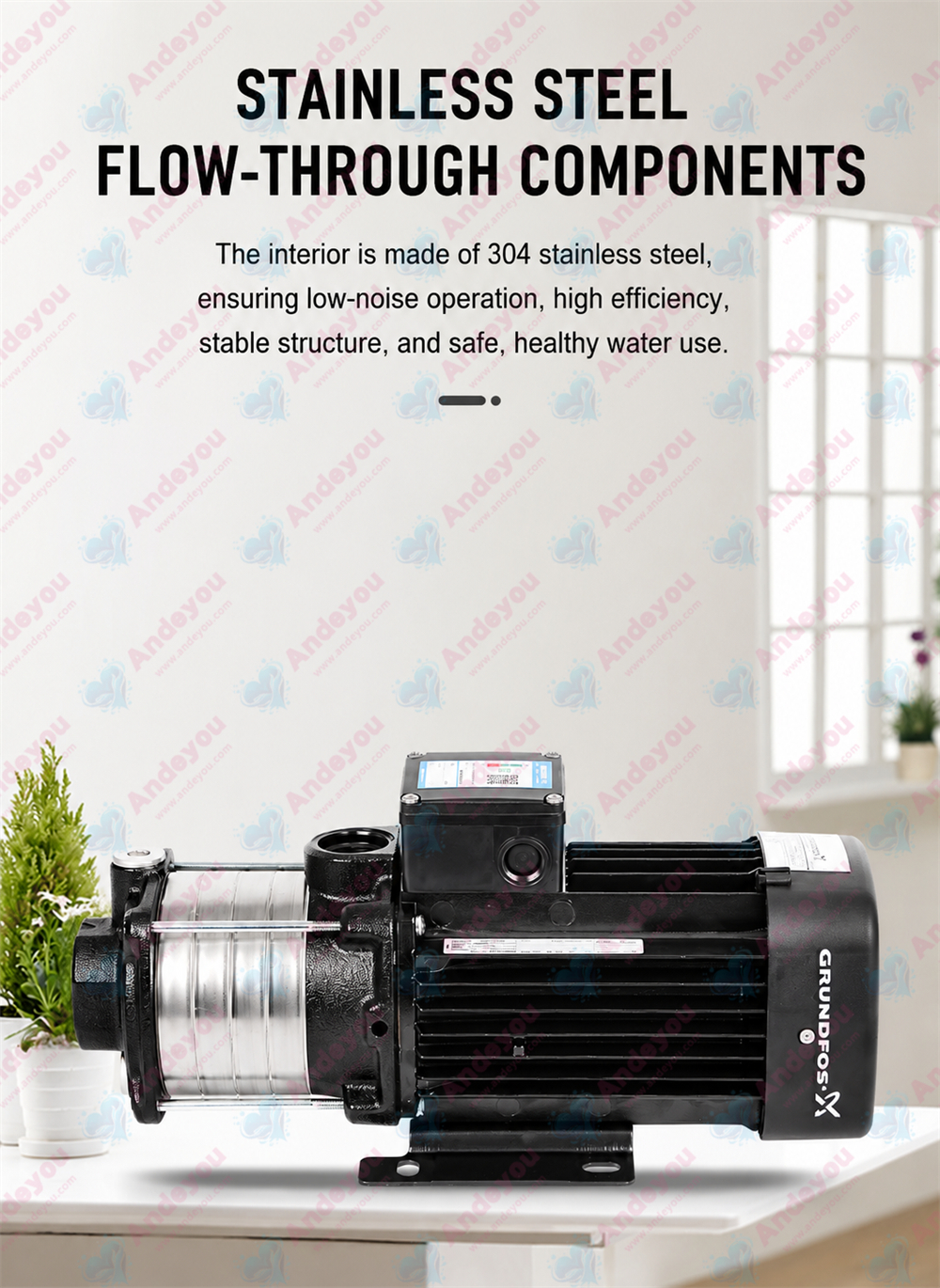

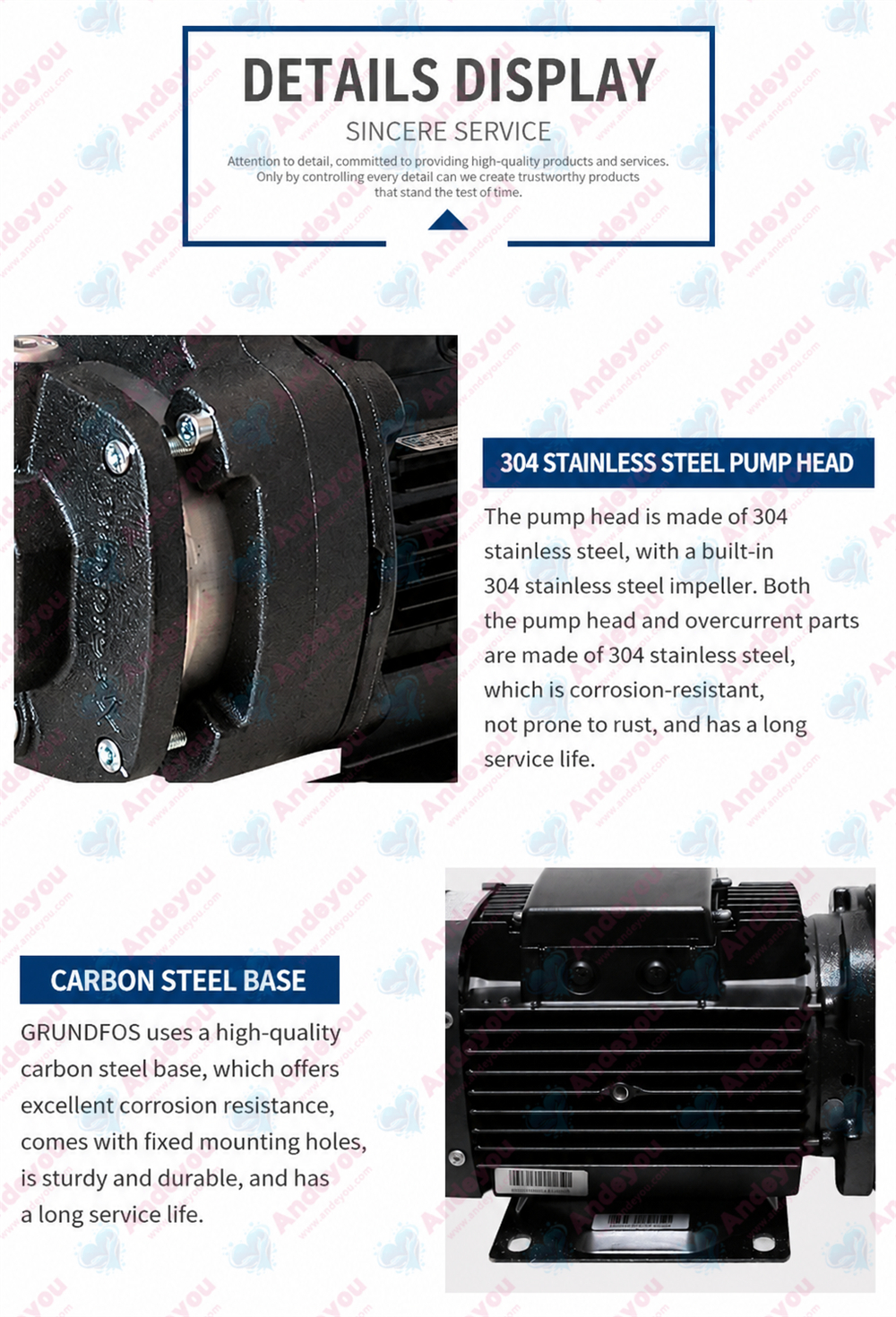

Key components (shaft, impeller, and casing) are constructed from stainless steel, offering excellent corrosion resistance and mechanical strength.

Performance

Multistage centrifugal design delivers stable flow at high heads, meeting the demands of complex operating conditions.
High-efficiency motor paired with precision-engineered impellers balances high flow and high head with low energy consumption.

Intelligence and Reliability

Optional intelligent control system enables real-time operational monitoring and automatic parameter adjustment.
Easy maintenance; fault early-warning functions help minimize downtime.

Applications

Widely used in industrial water supply, boiler feed, HVAC systems, high-pressure cleaning, and more.
Supports customized solutions to meet operational requirements across global regions.

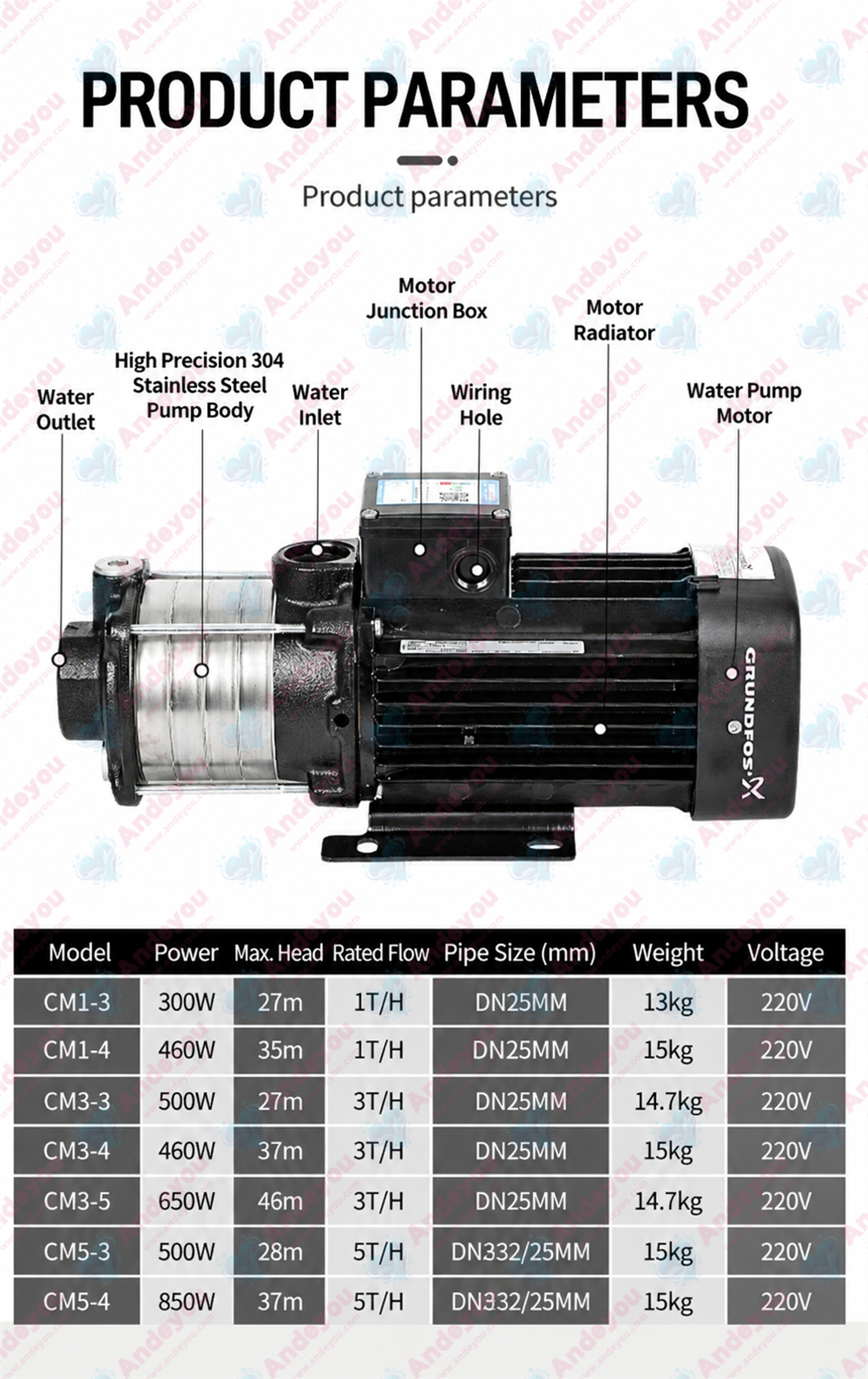

Parameters

model	Voltage/Frequency	Flow rate (m³/h)	Head (m)	Power (kW)	caliber
CM 1-2	380V/50Hz	1.7	11.98	0.43	1×1
CM 1-2	380V/50Hz	1.7	11.98	0.46	1×1
CM 1-3	380V/50Hz	1.7	18.29	0.46	1×1
CM 1-3	346V/50HZ	1.7	18.29	0.25	1×1
CM 1-4	380V/50Hz	1.7	24.6	0.46	1×1
CM 1-4	380V/50Hz	1.7	25.13	0.43	1×1
CM 1-5	380V/50Hz	1.7	31.45	0.43	1×1
CM 1-5	380V/50Hz	1.7	30.92	0.46	1×1
CM 1-6	380V/50Hz	1.7	37.76	0.43	1×1
CM 1-6	380V/50Hz	1.7	37.23	0.46	1×1
CM 1-7	380V/50Hz	1.7	44.08	0.43	1×1
CM 1-7	380V/50Hz	1.7	44.08	0.6	1×1
CM 1-8	380V/50Hz	1.7	50.39	0.6	1×1
CM 1-9	380V/50Hz	1.7	56.7	0.65	1×1
CM 1-10	380V/50Hz	1.7	63.02	1.1	1×1
CM 1-11	380V/50Hz	1.7	69.33	1.1	1×1
CM 1-12	380V/50Hz	1.7	75.64	1.1	1×1
CM 1-13	380V/50Hz	1.7	81.96	1.1	1×1
CM 1-14	380V/50Hz	1.7	88.27	1.1	1×1
CM 3-2	380V/50Hz	3.1	13.55	0.25	1×1
CM 3-2	380V/50Hz	3.1	13.55	0.46	1×1
CM 3-3	220V/50HZ	3.1	20.33	0.5	1×1
CM 3-3	380V/50Hz	3.1	20.61	0.46	1×1
CM 3-3	380V/50Hz	3.1	20.61	0.43	1×1
CM 3-4	380V/50Hz	3.1	27.64	0.43	1×1
CM 3-4	380V/50Hz	3.1	27.68	0.46	1×1
CM 3-5	220V/50HZ	3.1	34.75	0.5	1×1
CM 3-5	380V/50Hz	3.1	34.75	0.6	1×1
CM 3-6	380V/50Hz	3.1	41.53	0.65	1×1
CM 3-6	380V/50Hz	3.1	41.53	0.74	1×1
CM 3-6	380V/50Hz	3.1	41.53	1.27	1×1
CM 3-7	380V/50Hz	3.1	48.59	1	1×1
CM 3-7	380V/50Hz	3.1	48.88	1.1	1×1
CM 3-7	380V/50Hz	3.1	48.59	1.27	1×1
CM 3-8	380V/50Hz	3.1	55.66	1.1	1×1
CM 3-8	380V/50Hz	3.1	55.66	1.27	1×1
CM 3-8	380V/50Hz	3.1	55.66	1.45	1×1
CM 3-9	380V/50Hz	3.1	62.72	1.1	1×1
CM 3-10	380V/50Hz	3.1	69.79	1.5	1×1
CM 3-11	380V/50Hz	3.1	76.85	1.5	1×1
CM 3-12	380V/50Hz	3.1	83.92	1.5	1×1
CM 3-13	380V/50Hz	3.1	90.89	2.2	1×1
CM 3-14	380V/50Hz	3.1	98.05	2.2	1×1
CM 5-2	380V/50Hz	4.7	14.83	0.46	1 1/4×1
CM 5-2	346V/50HZ	4.7	14.84	0.43	1 1/4×1
CM 5-3	346V/50HZ	4.7	22.77	0.6	1 1/4×1
CM 5-3	220V/50HZ	4.7	22.76	0.5	1 1/4×1
CM 5-3	380V/50Hz	4.7	22.76	0.64	1 1/4×1
CM 5-4	380V/50Hz	4.7	30.69	1	1 1/4×1
CM 5-4	380V/50Hz	4.7	30.69	1.1	1 1/4×1
CM 5-4	380V/50Hz	4.7	30.69	1.27	1 1/4×1
CM 5-5	380V/50Hz	4.7	38.61	1.1	1 1/4×1
CM 5-5	380V/50Hz	4.7	38.61	1.27	1 1/4×1
CM 5-5	346V/50HZ	4.7	38.61	1.45	1 1/4×1
CM 5-5	220V/50HZ	4.7	38.61	0.9	1 1/4×1
CM 5-6	380V/50Hz	4.7	46.55	1.27	1 1/4×1
CM 5-6	380V/50Hz	4.7	46.55	1.45	1 1/4×1
CM 5-6	380V/50Hz	4.7	46.54	1.5	1 1/4×1
CM 5-7	380V/50Hz	4.7	54.47	1.5	1 1/4×1
CM 5-7	346V/50HZ	4.7	54.47	1.68	1 1/4×1
CM 5-8	380V/50Hz	4.7	62.39	2.2	1 1/4×1
CM 5-8	346V/50HZ	4.7	62.4	1.68	1 1/4×1
CM 5-9	380V/50Hz	4.7	70.32	2.2	1 1/4×1
CM 5-10	380V/50Hz	4.7	78.25	2.2	1 1/4×1
CM 5-11	380V/50Hz	4.7	86.18	2.2	1 1/4×1
CM 5-12	380V/50Hz	4.7	94.1	3	1 1/4×1
CM 5-13	380V/50Hz	4.7	102	3	1 1/4×1
CM 10-1	380V/50Hz	10	13.67	0.6	1 1/2×1 1/2
CM 10-1	380V/50Hz	10	13.67	0.64	1 1/2×1 1/2
CM 10-1	380V/50Hz	10	13.67	0.74	1 1/2×1 1/2
CM 10-2	346V/50HZ	10	27.09	1.27	1 1/2×1 1/2
CM 10-2	380V/50Hz	10	27.09	1.45	1 1/2×1 1/2
CM 10-2	380V/50Hz	10	27.09	1.5	1 1/2×1 1/2
CM 10-3	380V/50Hz	10	40.51	2.3	1 1/2×1 1/2
CM 10-3	380V/50Hz	10	40.51	2.2	1 1/2×1 1/2
CM 10-4	380V/50Hz	10	53.93	3	1 1/2×1 1/2
CM 10-4	380V/50Hz	10	51.45	3.18	1 1/2×1 1/2
CM 10-5	380V/50Hz	10	67.35	3	1 1/2×1 1/2
CM 10-6	380V/50Hz	10	78.3	4	1 1/2×1 1/2
CM 10-7	380V/50Hz	10	91.72	5.5	1 1/2×1 1/2
CM 10-8	380V/50Hz	10	105.1	5.5	1 1/2×1 1/2
CM 15-1	380V/50Hz	17	14.71	1.1	2×2
CM 15-2	380V/50Hz	17	26.82	2.2	2×2
CM 15-2	380V/50Hz	17	26.82	2.3	2×2
CM 15-3	380V/50Hz	17	44.62	4	2×2
CM 15-4	380V/50Hz	17	59.58	5.5	2×2
CM 25-1	380V/50Hz	22	16.18	2.2	2×2
CM 25-2	380V/50Hz	22	32.62	4	2×2
CM 25-2	380V/50Hz	22	29.68	3.7	2×2
CM 25-3	380V/50Hz	22	49.06	5.5	2×2
CM 25-4	380V/50Hz	22	65.49	7.5	2×2
