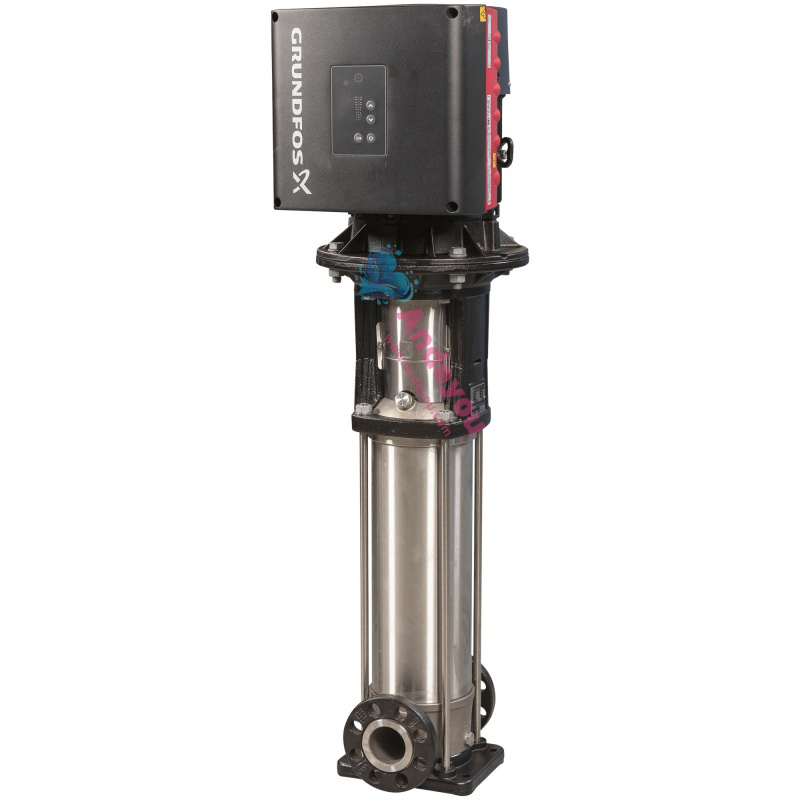

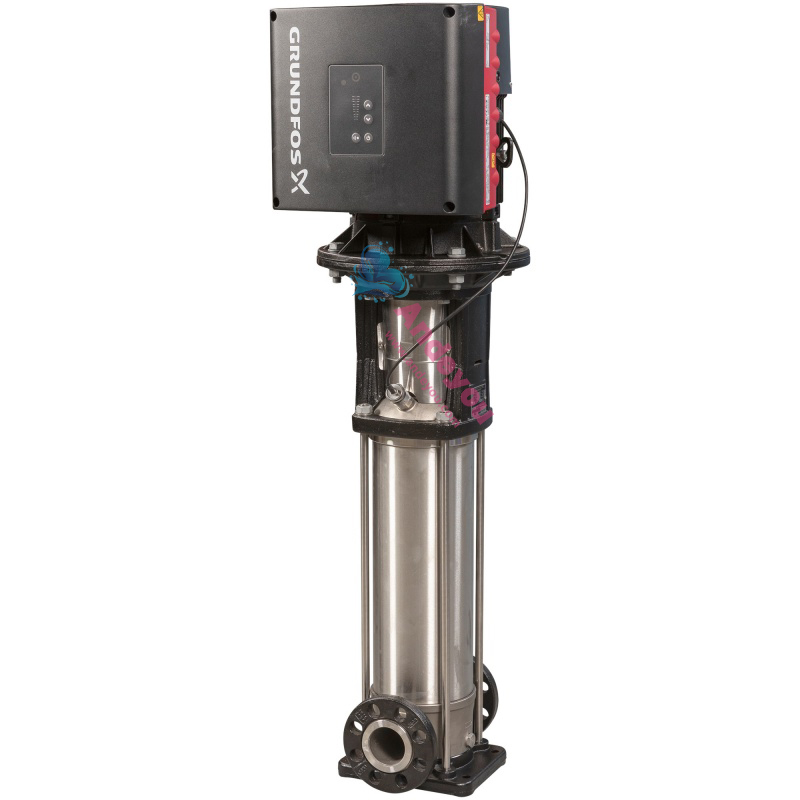

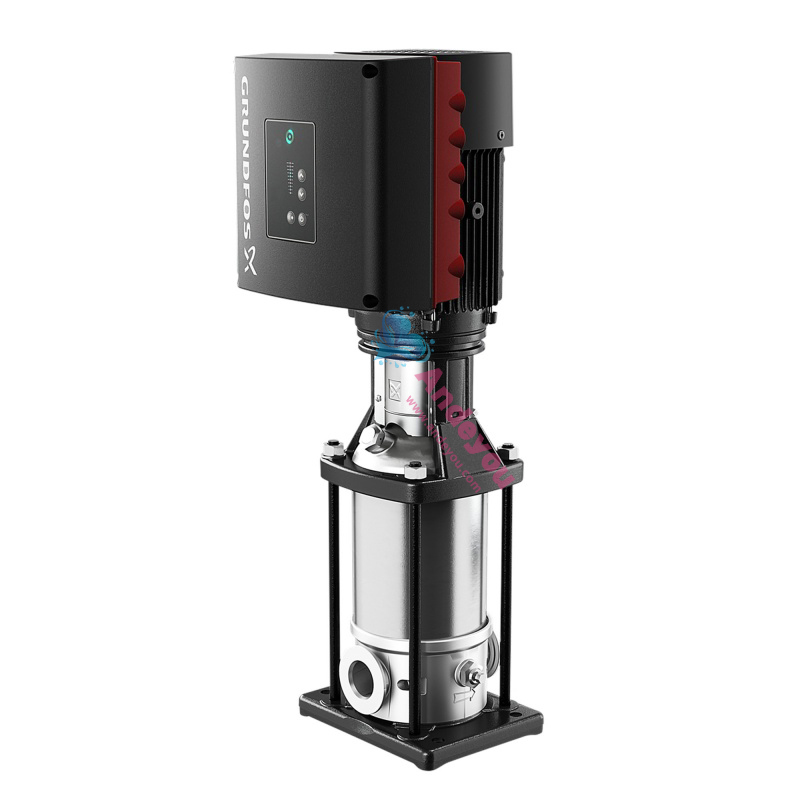

Grundfos CRIE Variable-Speed Stainless Steel Vertical Multistage Centrifugal Pump

CRIE 1-4 CRIE 1-6 CRIE 1-9 CRIE 1-13 CRIE 1-17 CRIE 1-25 CRIE 1-27 CRIE 3-2 CRIE 3-4 CRIE 3-5 CRIE 3-8 CRIE 3-11 CRIE 3-17 CRIE 3-23 CRIE 5-2 CRIE 5-4 CRIE 5-5 CRIE 5-9 CRIE 5-9 CRIE 5-12 CRIE 5-16 CRIE 5-22 CRIE 5-24 CRIE 10-1 CRIE 10-2 CRIE 10-3 CRIE 10-5 CRIE 10-6 CRIE 10-9 CRIE 10-12 CRIE 10-17 CRIE 15-1 CRIE 15-2 CRIE 15-3 CRIE 15-4 CRIE 15-5 CRIE 15-8 CRIE 15-10 CRIE 20-1 CRIE 20-2 CRIE 20-3 CRIE 20-4 CRIE 20-6

The Grundfos CRIE is a stainless steel vertical multistage centrifugal pump featuring integrated variable frequency drive (VFD) technology.Constructed from 304/316 stainless steel for superior corrosion resistance,it is suitable for applications such as industrial circulation,seawater desalination,and high-rise water supply.It delivers flow rates up to 120 m³/h and a maximum head of 240 m,handling liquid temperatures ranging from -30°C to +150°C.

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

CRIE-Grundfos China Vertical Multistage Centrifugal Pump (with Integrated Variable Frequency Drive)

1. High Efficiency and Energy Saving

Built-in or external variable frequency drive (VFD): Enables precise pump speed regulation, dynamically adjusting flow and pressure based on actual demand to enhance overall system efficiency.
Optional IE5 MGE motor: One of the highest energy-efficiency rated motors on the market, further reducing energy consumption and delivering superior energy control and savings.

2. High Pressure and Flow Capabilities

Maximum pressure up to 25 bar: Suitable for high-pressure liquid transfer and boosting applications.
Maximum flow up to 29.6 m³/h (e.g., CRIE 20 model): Meets flow requirements for small-to-medium-sized water supply or circulation systems.

3. Premium Materials and Strong Corrosion Resistance

Liquid-contact parts made of AISI 304 stainless steel (EN 1.4301): Suitable for non-corrosive or mildly corrosive liquids; offers excellent corrosion resistance and extended service life.
Compatible with various water qualities: Handles both cold and hot water, resisting corrosion under standard water conditions.

4. Compact Structure and Advanced Design

Vertical multistage centrifugal pump design: Compact footprint saves installation space and suits diverse installation environments.
Integrated VFD design: Simplifies system configuration, reduces the need for external control equipment, and enhances system integration and reliability.

5. Intelligent and Precise Control

Variable speed control: Automatically adjusts based on actual water demand to prevent energy waste and ensure on-demand supply.
Ideal for applications requiring high control precision and performance: Such as building water supply, industrial circulation, and pressure boosting systems.

6. Versatile Applications

Wide range of use cases:
Transfer, circulation, and boosting of cold and hot water
Small-scale water supply systems
Deep-well pumping (maximum depth up to 90 meters)
Suitable industries: Construction, residential, commercial, industrial, and other sectors requiring stable, efficient water supply. The CRIE series vertical multistage centrifugal pumps combine high efficiency and energy savings, stable high-pressure performance, premium materials, intelligent control, and versatile application, making them the ideal choice for those seeking high-performance, highly reliable, and energy-efficient pumping solutions.

Parameters

model	Voltage/Frequency	Flow rate (m³/h)	Head (m)	Power (kW)	caliber
CRIE 1-4	220V/50Hz	2.14	27.09	0.37	25/32×25/32
CRIE 1-6	220V/50Hz	2.14	40.54	0.55	25/32×25/32
CRIE 1-9	220V/50Hz	2.13	60.29	0.75	25/32×25/32
CRIE 1-13	220V/50Hz	2.14	87.14	1.1	25/32×25/32
CRIE 1-17	380V/50Hz	2.17	117.5	1.5	25/32×25/32
CRIE 1-25	380V/50Hz	2.14	174.6	2.2	25/32×25/32
CRIE 1-27	380V/50Hz	2.15	190.2	3	25/32×25/32
CRIE 3-2	220V/50Hz	3.53	14.72	0.37	25/32×25/32
CRIE 3-4	220V/50Hz	3.56	28.43	0.55	25/32×25/32
CRIE 3-5	220V/50Hz	3.58	35.69	0.75	25/32×25/32
CRIE 3-8	220V/50Hz	3.57	56.66	1.1	25/32×25/32
CRIE 3-11	380V/50Hz	3.62	79.94	1.5	25/32×25/32
CRIE 3-17	380V/50Hz	3.62	123.2	2.2	25/32×25/32
CRIE 3-23	380V/50Hz	3.62	166.5	3	25/32×25/32
CRIE 5-2	220V/50Hz	6.21	15.06	0.55	25/32×25/32
CRIE 5-4	220V/50Hz	6.65	29.9	1.1	25/32×25/32
CRIE 5-5	380V/50Hz	6.86	38.32	1.5	25/32×25/32
CRIE 5-9	380V/50Hz	7.05	68.04	2.2	1 1/4×1 1/4
CRIE 5-9	380V/50Hz	7.05	68.04	2.2	25/32×25/32
CRIE 5-12	380V/50Hz	7.16	90.3	3	25/32×25/32
CRIE 5-16	380V/50Hz	7.27	119.7	4	25/32×25/32
CRIE 5-22	380V/50Hz	7.27	165.1	5.5	25/32×25/32
CRIE 5-24	380V/50Hz	7.3	181.6	7.5	25/32×25/32
CRIE 10-1	220V/50Hz	10.43	11.56	0.75	40×40
CRIE 10-2	380V/50Hz	11.23	24.07	1.5	40×40
CRIE 10-3	380V/50Hz	11.72	34.67	2.2	40×40
CRIE 10-5	380V/50Hz	12.14	57.56	3	40×40
CRIE 10-6	380V/50Hz	12.18	69.86	4	40×40
CRIE 10-9	380V/50Hz	12.15	104.5	5.5	40×40
CRIE 10-12	380V/50Hz	12.31	138.6	7.5	40×40
CRIE 10-17	380V/50Hz	12.03	181.8	11	40×40
CRIE 15-1	380V/50Hz	19.36	15.15	1.5	50×50
CRIE 15-2	380V/50Hz	20.81	30.27	3	50×50
CRIE 15-3	380V/50Hz	21.05	46.1	4	50×50
CRIE 15-4	380V/50Hz	20.45	62.8	5.5	50×50
CRIE 15-5	380V/50Hz	21.41	76.88	7.5	50×50
CRIE 15-8	380V/50Hz	21.66	122.8	11	50×50
CRIE 15-10	380V/50Hz	20.5	163.4	15	50×50
CRIE 20-1	380V/50Hz	20	16.88	2.2	50×50
CRIE 20-2	380V/50Hz	22.86	33.97	4	50×50
CRIE 20-3	380V/50Hz	23.88	50.28	5.5	50×50
CRIE 20-4	380V/50Hz	24.25	67.06	7.5	50×50
CRIE 20-6	380V/50Hz	24.26	102.4	11	50×50
