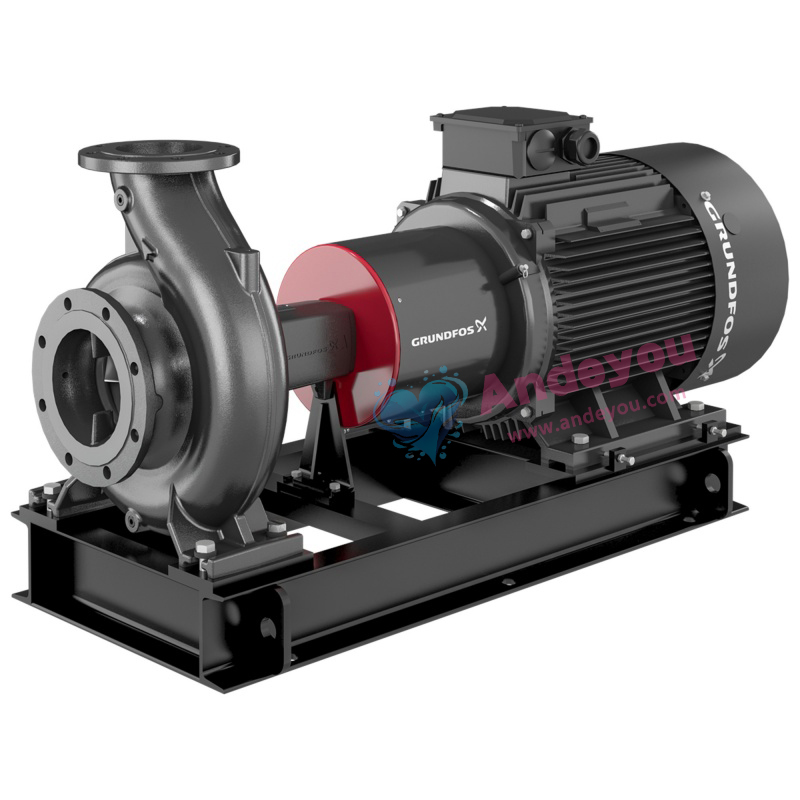

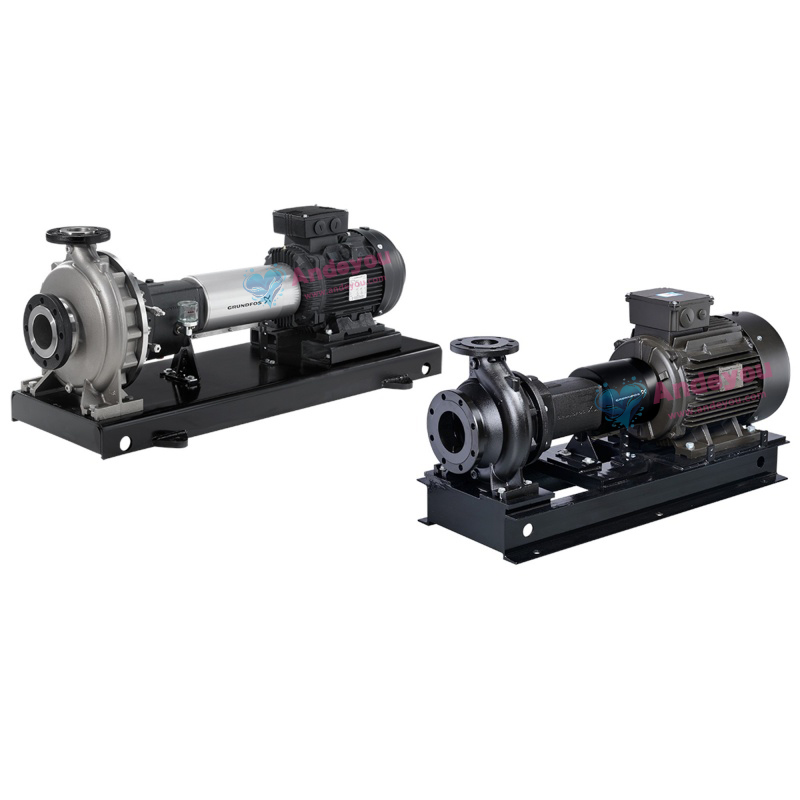

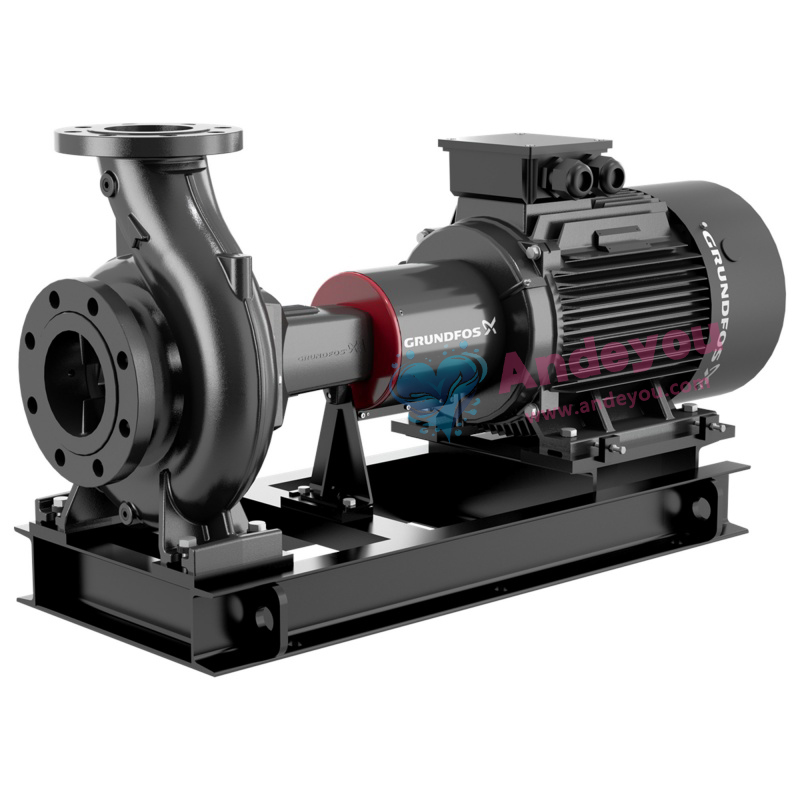

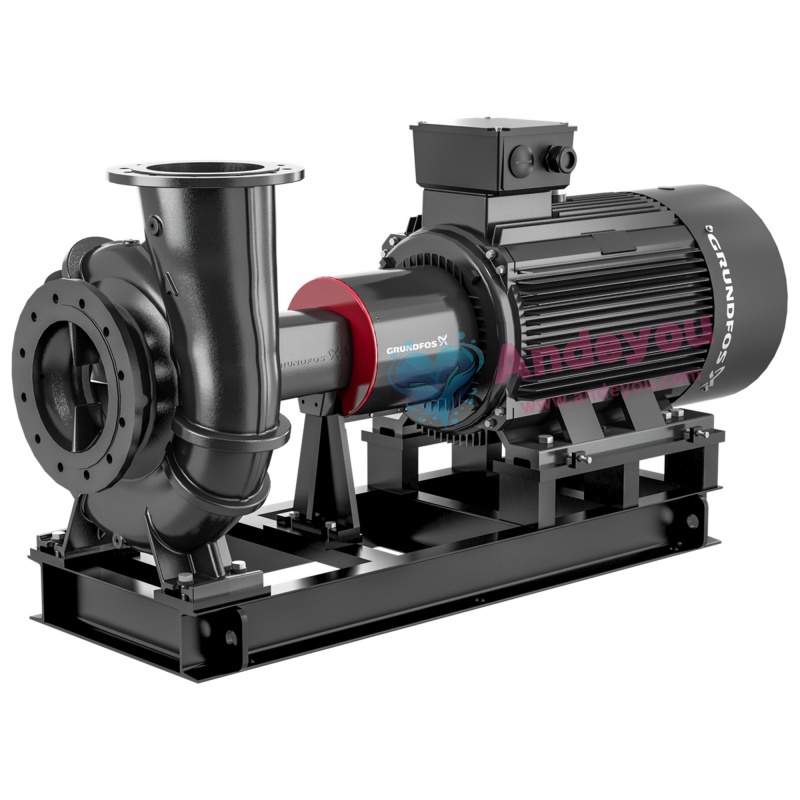

Grundfos NK Horizontal Single-Stage End-Suction Pump (Split-Coupled)

NK 32-130.1/114、NK 32-130/121、NK 32-165.1/168、NK 32-180/166、NK 32-205.1/205、NK 40-180/155、NK 40-220/190、NK 40-220/250、NK 40-225/246、NK 50-220/221、NK 50-225/172、NK 50-280/239、NK 65-180/113、NK 65-225/183、NK 80-180/137、NK 80-225/171、NK 80-225/225、NK 80-350/271、

The Grundfos NK is a highly efficient,energy-saving,multi-purpose horizontal end-suction centrifugal pump suitable for applications such as water supply,industrial pressure boosting,HVAC,and irrigation.Featuring a back-pull-out design for easy maintenance and compliance with ISO 5199 standards,it is equipped with IE3/IE4 high-efficiency motors and supports pressure ratings up to 25 bar.Options include cast iron or stainless steel construction
Product Consultation By telephone
Function
Parameters
Size
Video Introduction

Function

GRUNDFOS NK Horizontal Single-Stage End-Suction Pump (Split-Coupled)

1. Versatile Design

Wide Range of Applications: Suitable for five key areas: water supply, industrial pressure boosting, industrial liquid transfer, HVAC (heating, ventilation, and air conditioning), and irrigation. Specific applications include municipal waterworks, high-rise building pressure boosting, industrial cleaning systems, boiler feed, and district heating.

2. High Efficiency and Energy Saving

Optimized Hydraulic Performance: Features a hyperbolic closed impeller with a smooth surface to ensure efficient operation; impellers undergo both static and hydraulic balancing.
Energy Efficiency Ratings: Complies with the EU EuP Directive (EC No 547/2012); most pumps are classified by the Minimum Efficiency Index (MEI), with some models achieving the IE5 ultra-high efficiency rating (equipped with MGE permanent magnet motors).

3. Structural Features

Modular Design: Back-pull-out construction allows for maintenance without dismantling the pump casing or piping; a single person can perform maintenance with the aid of lifting equipment.
Double Volute Design (Selected Models): Extends the service life of seals and bearings, thereby reducing lifecycle costs.
Diverse Materials: Pump casings are available in cast iron (EN-GJL-250) or ductile iron (EN-GJS-500-7); impellers are available in stainless steel (1.4308/1.4408) or duplex stainless steel (1.4517) to suit various liquid media.

4. Flexible Configuration

Motor Options:
Standard Motors: IE3/IE4 efficiency; available in 2-pole, 4-pole, and 6-pole configurations.
Variable Frequency Motors (NKE Series): Integrated MGE permanent magnet motor (IE5) with a built-in frequency converter; supports constant pressure, proportional pressure, temperature, and flow control modes.
Flange Compatibility: Complies with EN 1092-2 standards; offers PN10/16/25 pressure ratings and supports DIN, ANSI, and JIS flange types.

5. Intelligent Control

Variable Frequency Function: Speed ​​regulation via Grundfos CUE or a built-in variable frequency drive (VFD) adapts to dynamic operating conditions, achieving energy savings of up to 70%.
Communication Interfaces: Supports LON, PROFIBUS, Modbus, and BACnet protocols; enables integration with central management systems or monitoring via the Grundfos GO mobile app.

6. Reliability and Ease of Maintenance

Mechanical Seal: Complies with EN 12756 standards; offers material options such as EPDM and FKM, suitable for liquid temperatures ranging from -25°C to +140°C.
Bearing Design: Features lifetime-lubricated bearings or re-greasable heavy-duty bearings; selected models are equipped with insulated bearings for compatibility with VFD operation.
Testing and Certification: Static high-pressure testing up to 1.5× PN; performance testing complies with ISO 9906:2012 Grade 2B tolerances.

7. Customized Services

Special Requirements: Custom solutions available, including bare-shaft pumps, extended couplings, explosion-proof certification (ATEX), and corrosion-resistant materials.

8. Environmental Protection and Compliance

Low Noise: Optimized sound pressure levels; minimum 55 dB(A) for 2-pole motors.
RoHS Certification: Complies with Chinese environmental regulations.

Typical Model Examples

NK 32-180: Cast iron pump casing, 1.1 kW motor, center discharge; suitable for small-to-medium flow water supply systems.
NKE 65-225: Variable frequency pump with built-in sensors and intelligent control capabilities; suitable for HVAC circulation systems.

Parameters

model Voltage/
Frequency		 Flow rate (m³/h) Head (m) Power (kW) caliber
NK 32-130.1/100 380V/50Hz 15.39 9.506 0.75 50×32
NK 32-130.1/100 380V/50Hz 15.45 9.573 0.75 50×32
NK 32-130.1/114 380V/50Hz 17.92 13.07 1.1 50×32
NK 32-130.1/114 380V/50Hz 17.92 13.07 1.1 50×32
NK 32-130.1/124 380V/50Hz 20.39 15.84 1.5 50×32
NK 32-130.1/124 380V/50Hz 20.43 15.89 1.5 50×32
NK 32-130.1/135 380V/50Hz 10.92 4.624 0.25 50×32
NK 32-130.1/135 380V/50Hz 10.53 4.299 0.25 50×32
NK 32-130.1/140 380V/50Hz 23.63 21.36 2.2 50×32
NK 32-130.1/140 380V/50Hz 23.63 21.36 2.2 50×32
NK 32-130.1/144 380V/50Hz 11.21 5.01 0.37 50×32
NK 32-130.1/144 380V/50Hz 11.62 5.388 0.37 50×32
NK 32-130.1/144 380V/50Hz 24.43 23.18 3 50×32
NK 32-130.1/144 380V/50Hz 24.3 22.94 3 50×32
NK 32-130/111 380V/50Hz 20.45 12.43 1.1 50×32
NK 32-130/111 380V/50Hz 20.45 12.43 1.1 50×32
NK 32-130/121 380V/50Hz 23.11 15.14 1.5 50×32
NK 32-130/121 380V/50Hz 23.07 15.08 1.5 50×32
NK 32-130/133 380V/50Hz 12.11 4.247 0.25 50×32
NK 32-130/133 380V/50Hz 12.56 4.568 0.25 50×32
NK 32-130/135 380V/50Hz 26.28 20.11 2.2 50×32
NK 32-130/135 380V/50Hz 26.28 20.11 2.2 50×32
NK 32-130/142 380V/50Hz 13.09 4.898 0.37 50×32
NK 32-130/142 380V/50Hz 13.58 5.267 0.37 50×32
NK 32-130/142 380V/50Hz 28.39 22.46 3 50×32
NK 32-130/142 380V/50Hz 28.24 22.23 3 50×32
NK 32-165.1/141 380V/50Hz 15.95 18.65 1.5 50×32
NK 32-165.1/141 380V/50Hz 15.97 18.71 1.5 50×32
NK 32-165.1/151 380V/50Hz 8.84 4.941 0.25 50×32
NK 32-165.1/151 380V/50Hz 9.17 5.314 0.25 50×32
NK 32-165.1/156 380V/50Hz 18.73 23.7 2.2 50×32
NK 32-165.1/156 380V/50Hz 18.73 23.7 2.2 50×32
NK 32-165.1/167 380V/50Hz 10.81 6.712 0.37 50×32
NK 32-165.1/167 380V/50Hz 10.43 6.241 0.37 50×32
NK 32-165.1/168 380V/50Hz 21.24 28.11 3 50×32
NK 32-165.1/168 380V/50Hz 21.35 28.4 3 50×32
NK 32-165.1/177 380V/50Hz 11.3 7.823 0.55 50×32
NK 32-165.1/177 380V/50Hz 11.3 7.823 0.55 50×32
NK 32-165.1/177 380V/50Hz 22.28 31.99 4 50×32
NK 32-165.1/177 380V/50Hz 22.44 32.43 4 50×32
NK 32-180/123 380V/50Hz 17.92 16.6 1.5 50×32
NK 32-180/123 380V/50Hz 17.89 16.55 1.5 50×32
NK 32-180/138 380V/50Hz 10.38 4.87 0.25 50×32
NK 32-180/138 380V/50Hz 10.01 4.528 0.25 50×32
NK 32-180/140 380V/50Hz 21.27 21.48 2.2 50×32
NK 32-180/140 380V/50Hz 21.27 21.48 2.2 50×32
NK 32-180/152 380V/50Hz 23.92 27.05 3 50×32
NK 32-180/152 380V/50Hz 23.8 26.77 3 50×32
NK 32-180/155 380V/50Hz 12.71 6.27 0.37 50×32
NK 32-180/155 380V/50Hz 12.25 5.83 0.37 50×32
NK 32-180/166 380V/50Hz 27.36 32.23 4 50×32
NK 32-180/166 380V/50Hz 27.55 32.67 4 50×32
NK 32-180/174 380V/50Hz 14.24 8.236 0.55 50×32
NK 32-180/174 380V/50Hz 14.24 8.236 0.55 50×32
NK 32-180/177 380V/50Hz 29.17 36.67 5.5 50×32
NK 32-180/177 380V/50Hz 29.17 36.67 5.5 50×32
NK 32-180/177 380V/50Hz 14.74 8.523 0.75 50×32
NK 32-180/177 380V/50Hz 14.74 8.523 0.75 50×32
NK 32-205.1/174 380V/50Hz 10.14 6.712 0.37 50×32
NK 32-205.1/174 380V/50Hz 9.78 6.241 0.37 50×32
NK 32-205.1/176 380V/50Hz 20.51 27.72 3 50×32
NK 32-205.1/176 380V/50Hz 20.4 27.44 3 50×32
NK 32-205.1/189 380V/50Hz 21.44 34.87 4 50×32
NK 32-205.1/189 380V/50Hz 21.29 34.39 4 50×32
NK 32-205.1/192 380V/50Hz 11.5 8.789 0.55 50×32
NK 32-205.1/192 380V/50Hz 11.5 8.789 0.55 50×32
NK 32-205.1/205 380V/50Hz 23.25 41.91 5.5 50×32
NK 32-205.1/205 380V/50Hz 23.25 41.91 5.5 50×32
NK 32-205.1/207 380V/50Hz 23.7 42.74 7.5 50×32
NK 32-205.1/207 380V/50Hz 23.7 42.74 7.5 50×32
NK 32-205.1/207 380V/50Hz 12.48 10.53 0.75 50×32
NK 32-205.1/207 380V/50Hz 12.48 10.53 0.75 50×32
NK 40-130/108 380V/50Hz 33.16 11.14 1.5 50×32
NK 40-130/108 380V/50Hz 33.1 11.1 1.5 65×40
NK 40-130/122 380V/50Hz 3.294 0.7 0.25 65×40
NK 40-130/122 380V/50Hz 18.83 3.542 0.25 65×40
NK 40-130/122 380V/50Hz 38.94 15.15 2.2 65×40
NK 40-130/122 380V/50Hz 38.94 15.15 2.2 65×40
NK 40-130/131 380V/50Hz 42.02 18.57 3 65×40
NK 40-130/131 380V/50Hz 41.8 18.38 3 65×40
NK 40-130/135 380V/50Hz 21.12 4.615 0.37 65×40
NK 40-130/135 380V/50Hz 20.36 4.291 0.37 65×40
NK 40-130/140 380V/50Hz 44.6 22.42 4 65×40
NK 40-130/140 380V/50Hz 44.91 22.73 4 65×40
NK 40-130/142 380V/50Hz 46.37 23.55 5.5 65×40
NK 40-130/142 380V/50Hz 46.37 23.55 5.5 65×40
NK 40-130/142 380V/50Hz 22.4 5.66 0.55 65×40
NK 40-130/142 380V/50Hz 22.4 5.66 0.55 65×40
NK 40-180/112 380V/50Hz 32.14 14.05 2.2 65×40
NK 40-180/125 380V/50Hz 36.2 17.8 3 65×40
NK 40-180/130 380V/50Hz 17.85 4.457 0.37 65×40
NK 40-180/140 380V/50Hz 40.91 22.53 4 65×40
NK 40-180/145 380V/50Hz 20.64 5.698 0.55 65×40
NK 40-180/155 380V/50Hz 44.98 28.08 5.5 65×40
NK 40-180/162 380V/50Hz 22.6 7.147 0.75 65×40
NK 40-180/173 380V/50Hz 49.42 35.5 7.5 65×40
NK 40-180/176 380V/50Hz 50.99 37.21 11 65×40
NK 40-180/176 380V/50Hz 24.56 8.948 11 65×40
NK 40-190/147 380V/50Hz 24.08 6.471 0.75 65×40
NK 40-190/147 380V/50Hz 24.08 6.471 0.75 65×40
NK 40-190/151 380V/50Hz 52.65 28.48 7.5 65×40
NK 40-190/151 380V/50Hz 52.65 28.48 7.5 65×40
NK 40-190/163 380V/50Hz 27.71 8.056 1.1 65×40
NK 40-190/163 380V/50Hz 27.91 8.17 1.1 65×40
NK 40-190/169 380V/50Hz 60.62 37.46 11 65×40
NK 40-190/169 380V/50Hz 60.83 37.72 11 65×40
NK 40-190/180 380V/50Hz 30.65 10.07 1.5 65×40
NK 40-190/180 380V/50Hz 30.87 10.21 1.5 65×40
NK 40-190/191 380V/50Hz 67.29 47.77 15 65×40
NK 40-190/191 380V/50Hz 67.52 48.1 15 65×40
NK 40-190/206 380V/50Hz 70.93 54.51 18.5 65×40
NK 40-190/206 380V/50Hz 71.17 54.88 18.5 65×40
NK 40-190/206 380V/50Hz 34.93 13.03 2.2 65×40
NK 40-190/206 380V/50Hz 35.42 13.39 2.2 65×40
NK 40-220/167 380V/50Hz 13.34 7.664 0.55 65×40
NK 40-220/167 380V/50Hz 13.34 7.664 0.55 65×40
NK 40-220/172 380V/50Hz 30.91 34.61 5.5 65×40
NK 40-220/172 380V/50Hz 30.91 34.61 5.5 65×40
NK 40-220/179 380V/50Hz 15.19 8.905 0.75 65×40
NK 40-220/179 380V/50Hz 15.19 8.905 0.75 65×40
NK 40-220/192 380V/50Hz 35.75 42 7.5 65×40
NK 40-220/192 380V/50Hz 35.75 42 7.5 65×40
NK 40-220/200 380V/50Hz 18.35 11.23 1.1 65×40
NK 40-220/200 380V/50Hz 18.22 11.07 1.1 65×40
NK 40-220/212 380V/50Hz 41.17 52.96 11 65×40
NK 40-220/212 380V/50Hz 41.31 53.32 11 65×40
NK 40-220/218 380V/50Hz 21.81 13.1 1.5 65×40
NK 40-220/218 380V/50Hz 21.96 13.29 1.5 65×40
NK 40-220/244 380V/50Hz 40.92 70.69 15 65×40
NK 40-220/244 380V/50Hz 41.06 71.18 15 65×40
NK 40-220/250 380V/50Hz 21.21 18.54 2.2 65×40
NK 40-220/250 380V/50Hz 20.92 18.03 2.2 65×40
NK 40-220/250 380V/50Hz 42.96 74.21 18.5 65×40
NK 40-220/250 380V/50Hz 43.11 74.72 18.5 65×40
NK 40-225/158 380V/50Hz 43.17 28.18 5.5 65×40
NK 40-225/162 380V/50Hz 21.82 7.05 0.75 65×40
NK 40-225/173 380V/50Hz 49.02 34.79 7.5 65×40
NK 40-225/182 380V/50Hz 24.95 9.24 1.1 65×40
NK 40-225/192 380V/50Hz 59 43.27 11 65×40
NK 40-225/199 380V/50Hz 28.8 11.09 1.5 65×40
NK 40-225/210 380V/50Hz 67.42 52.72 15 65×40
NK 40-225/226 380V/50Hz 31.47 14.79 2.2 65×40
NK 40-225/230 380V/50Hz 71.57 62.9 18.5 65×40
NK 40-225/246 380V/50Hz 67.94 73.63 22 65×40
NK 40-225/250 380V/50Hz 31.78 18.25 3 65×40
NK 50-130/113 380V/50Hz 65.15 11.49 3 65×50
NK 50-130/113 380V/50Hz 64.81 11.37 3 65×50
NK 50-130/113 380V/50Hz 30.29 2.427 0.37 65×50
NK 50-130/113 380V/50Hz 31.41 2.61 0.37 65×50
NK 50-130/123 380V/50Hz 75.69 14.17 4 65×50
NK 50-130/123 380V/50Hz 75.17 13.98 4 65×50
NK 50-130/129 380V/50Hz 39.3 3.96 0.55 65×50
NK 50-130/129 380V/50Hz 39.3 3.96 0.55 65×50
NK 50-130/135 380V/50Hz 81.26 19.06 5.5 65×50
NK 50-130/135 380V/50Hz 81.26 19.06 5.5 65×50
NK 50-130/138 380V/50Hz 41.72 4.781 0.75 65×50
NK 50-130/138 380V/50Hz 41.72 4.781 0.75 65×50
NK 50-130/142 380V/50Hz 85.51 21.53 7.5 65×50
NK 50-130/142 380V/50Hz 85.51 21.53 7.5 65×50
NK 50-130/142 380V/50Hz 41.97 5.174 1.1 65×50
NK 50-130/142 380V/50Hz 41.68 5.102 1.1 65×50
NK 50-220/147 380V/50Hz 30.76 5.215 0.75 65×50
NK 50-220/147 380V/50Hz 30.76 5.215 0.75 65×50
NK 50-220/147 380V/50Hz 60.62 21.57 5.5 65×50
NK 50-220/147 380V/50Hz 60.62 21.57 5.5 65×50
NK 50-220/162 380V/50Hz 68.59 26.76 7.5 65×50
NK 50-220/162 380V/50Hz 68.59 26.76 7.5 65×50
NK 50-220/171 380V/50Hz 34.57 7.289 1.1 65×50
NK 50-220/171 380V/50Hz 34.81 7.392 1.1 65×50
NK 50-220/181 380V/50Hz 77.56 34.74 11 65×50
NK 50-220/181 380V/50Hz 77.29 34.5 11 65×50
NK 50-220/187 380V/50Hz 37.9 9.015 1.5 65×50
NK 50-220/187 380V/50Hz 38.17 9.142 1.5 65×50
NK 50-220/199 380V/50Hz 86.79 43.08 15 65×50
NK 50-220/199 380V/50Hz 87.08 43.37 15 65×50
NK 50-220/210 380V/50Hz 43.95 12.28 2.2 65×50
NK 50-220/210 380V/50Hz 43.35 11.95 2.2 65×50
NK 50-220/211 380V/50Hz 92.45 49.51 18.5 65×50
NK 50-220/211 380V/50Hz 92.76 49.85 18.5 65×50
NK 50-220/221 380V/50Hz 98.51 55.48 22 65×50
NK 50-220/221 380V/50Hz 98.34 55.29 22 65×50
NK 50-220/221 380V/50Hz 46.28 13.41 3 65×50
NK 50-220/221 380V/50Hz 46.6 13.6 3 65×50
NK 50-225/139 380V/50Hz 44.28 22.99 5.5 65×50
NK 50-225/144 380V/50Hz 21.92 6.085 0.75 65×50
NK 50-225/151 380V/50Hz 48.11 28.18 7.5 65×50
NK 50-225/160 380V/50Hz 25.41 7.797 1.1 65×50
NK 50-225/172 380V/50Hz 60.73 37.1 11 65×50
NK 50-225/181 380V/50Hz 29.41 9.924 1.5 65×50
NK 50-225/193 380V/50Hz 64.38 46.56 15 65×50
NK 50-225/207 380V/50Hz 35.01 13.41 2.2 65×50
NK 50-225/208 380V/50Hz 75.32 54.27 18.5 65×50
NK 50-225/225 380V/50Hz 81.14 63.11 22 65×50
NK 50-225/237 380V/50Hz 42.06 16.78 3 65×50
NK 50-225/240 380V/50Hz 41 17.4 4 65×50
NK 50-225/240 380V/50Hz 83.98 72.16 30 65×50
NK 50-280/197 380V/50Hz 73.65 46.47 15 65×50
NK 50-280/197 380V/50Hz 73.91 46.78 15 65×50
NK 50-280/208 380V/50Hz 39.41 12.98 2.2 65×50
NK 50-280/208 380V/50Hz 38.86 12.62 2.2 65×50
NK 50-280/209 380V/50Hz 79.8 52.77 18.5 65×50
NK 50-280/209 380V/50Hz 80.07 53.13 18.5 65×50
NK 50-280/219 380V/50Hz 84.71 59.26 22 65×50
NK 50-280/219 380V/50Hz 84.86 59.46 22 65×50
NK 50-280/226 380V/50Hz 44.51 15.49 3 65×50
NK 50-280/226 380V/50Hz 44.2 15.28 3 65×50
NK 50-280/239 380V/50Hz 103 71.35 30 65×50
NK 50-280/239 380V/50Hz 102.7 70.87 30 65×50
NK 50-280/250 380V/50Hz 49.79 18.77 4 65×50
NK 50-280/250 380V/50Hz 49.96 18.9 4 65×50
NK 50-280/262 380V/50Hz 52.75 20.1 5.5 65×50
NK 50-280/262 380V/50Hz 53.3 20.52 5.5 65×50
NK 50-280/262 380V/50Hz 106.3 84.6 37 65×50
NK 50-280/262 380V/50Hz 106.6 85.18 37 65×50
NK 50-350/236 380V/50Hz 36.27 16.96 3 65×50
NK 50-350/236 380V/50Hz 36.02 16.73 3 65×50
NK 50-350/256 380V/50Hz 40.79 19.84 4 65×50
NK 50-350/256 380V/50Hz 40.93 19.98 4 65×50
NK 50-350/278 380V/50Hz 44.72 24.27 5.5 65×50
NK 50-350/278 380V/50Hz 44.26 23.77 5.5 65×50
NK 50-350/304 380V/50Hz 51.09 29.5 7.5 65×50
NK 50-350/304 380V/50Hz 51.09 29.5 7.5 65×50
NK 50-350/340-336 380V/50Hz 63.48 34.4 11 65×50
NK 50-350/340-336 380V/50Hz 64.13 35.12 11 65×50
NK 65-130/117-107 380V/50Hz 96.07 10.46 4 80×65
NK 65-130/117-107 380V/50Hz 96.74 10.61 4 80×65
NK 65-130/119 380V/50Hz 46.1 3.158 0.55 80×65
NK 65-130/119 380V/50Hz 46.1 3.158 0.55 80×65
NK 65-130/124 380V/50Hz 103.6 14.02 5.5 80×65
NK 65-130/124 380V/50Hz 103.6 14.02 5.5 80×65
NK 65-130/128 380V/50Hz 52.8 3.728 0.75 80×65
NK 65-130/128 380V/50Hz 52.8 3.728 0.75 80×65
NK 65-130/136 380V/50Hz 118.5 17.62 7.5 80×65
NK 65-130/136 380V/50Hz 118.5 17.62 7.5 80×65
NK 65-130/141 380V/50Hz 60.04 4.949 1.1 80×65
NK 65-130/141 380V/50Hz 60.46 5.019 1.1 80×65
NK 65-130/144 380V/50Hz 125.6 21.08 11 80×65
NK 65-130/144 380V/50Hz 126 21.22 11 80×65
NK 65-180/113 380V/50Hz 49.32 13.55 3 80×65
NK 65-180/113 380V/50Hz 49.07 13.41 3 80×65
NK 65-180/124 380V/50Hz 58.83 16.29 4 80×65
NK 65-180/124 380V/50Hz 59.23 16.51 4 80×65
NK 65-180/131 380V/50Hz 32.5 4.4 0.55 80×65
NK 65-180/131 380V/50Hz 32.5 4.4 0.55 80×65
NK 65-180/139 380V/50Hz 66.62 21.1 5.5 80×65
NK 65-180/139 380V/50Hz 66.62 21.1 5.5 80×65
NK 65-180/145 380V/50Hz 35.02 5.478 0.75 80×65
NK 65-180/145 380V/50Hz 35.02 5.478 0.75 80×65
NK 65-180/154 380V/50Hz 72.31 26.99 7.5 80×65
NK 65-180/154 380V/50Hz 72.31 26.99 7.5 80×65
NK 65-180/162 380V/50Hz 37.24 7.392 1.1 80×65
NK 65-180/162 380V/50Hz 37.51 7.497 1.1 80×65
NK 65-180/169 380V/50Hz 85.94 33.09 11 80×65
NK 65-180/169 380V/50Hz 86.23 33.32 11 80×65
NK 65-180/172 380V/50Hz 88.61 34.93 15 80×65
NK 65-180/172 380V/50Hz 88.91 35.17 15 80×65
NK 65-180/172 380V/50Hz 42.06 8.752 1.5 80×65
NK 65-180/172 380V/50Hz 41.77 8.63 1.5 80×65
NK 65-225/144 380V/50Hz 37.77 6.12 1.1 80×65
NK 65-225/144 380V/50Hz 38.04 6.206 1.1 80×65
NK 65-225/150 380V/50Hz 80.05 28.36 11 80×65
NK 65-225/150 380V/50Hz 80.32 28.56 11 80×65
NK 65-225/158 380V/50Hz 42.33 7.322 1.5 80×65
NK 65-225/158 380V/50Hz 42.62 7.426 1.5 80×65
NK 65-225/167 380V/50Hz 93.88 34.66 15 80×65
NK 65-225/167 380V/50Hz 94.2 34.89 15 80×65
NK 65-225/182 380V/50Hz 31.73 4.093 0.55 80×65
NK 65-225/182 380V/50Hz 31.04 3.919 0.55 80×65
NK 65-225/183 380V/50Hz 49.25 9.889 2.2 80×65
NK 65-225/183 380V/50Hz 49.93 10.17 2.2 80×65
NK 65-225/184 380V/50Hz 102.9 41.58 18.5 80×65
NK 65-225/184 380V/50Hz 103.2 41.86 18.5 80×65
NK 65-225/193 380V/50Hz 35.87 4.652 0.75 80×65
NK 65-225/193 380V/50Hz 36.06 4.702 0.75 80×65
NK 65-225/200 380V/50Hz 114.4 47.62 22 80×65
NK 65-225/200 380V/50Hz 114.6 47.78 22 80×65
NK 65-225/211 380V/50Hz 53.96 12.87 3 80×65
NK 65-225/211 380V/50Hz 53.59 12.69 3 80×65
NK 65-225/232 380V/50Hz 116.1 64.36 30 80×65
NK 65-225/232 380V/50Hz 115.7 63.93 30 80×65
NK 65-225/240 380V/50Hz 38.12 6.976 1.1 80×65
NK 65-225/240 380V/50Hz 38.53 7.126 1.1 80×65
NK 65-225/242 380V/50Hz 59.11 16.73 4 80×65
NK 65-225/242 380V/50Hz 59.31 16.84 4 80×65
NK 65-225/242 380V/50Hz 123.6 70.11 37 80×65
NK 65-225/242 380V/50Hz 124 70.58 37 80×65
NK 65-280/210 380V/50Hz 32.11 5.121 0.75 80×65
NK 65-280/210 380V/50Hz 32.28 5.176 0.75 80×65
NK 65-280/217 380V/50Hz 53.08 13.23 3 80×65
NK 65-280/217 380V/50Hz 52.71 13.04 3 80×65
NK 65-280/237 380V/50Hz 38.47 6.761 1.1 80×65
NK 65-280/237 380V/50Hz 38.07 6.618 1.1 80×65
NK 65-280/240 380V/50Hz 60.93 16.37 4 80×65
NK 65-280/240 380V/50Hz 60.72 16.26 4 80×65
NK 65-280/258 380V/50Hz 44.73 8.075 1.5 80×65
NK 65-280/258 380V/50Hz 44.73 8.075 1.5 80×65
NK 65-280/270 380V/50Hz 62.05 20.75 5.5 80×65
NK 65-280/270 380V/50Hz 62.69 21.19 5.5 80×65
NK 65-280/280 380V/50Hz 40.51 9.711 2.2 80×65
NK 65-280/280 380V/50Hz 40.94 9.919 2.2 80×65
NK 65-280/280 380V/50Hz 67.42 22.78 7.5 80×65
NK 65-280/280 380V/50Hz 67.42 22.78 7.5 80×65
NK 80-180/112 380V/50Hz 73.29 11.78 4 100×80
NK 80-180/112 380V/50Hz 72.78 11.62 4 100×80
NK 80-180/123 380V/50Hz 87.06 14.47 5.5 100×80
NK 80-180/123 380V/50Hz 87.06 14.47 5.5 100×80
NK 80-180/128 380V/50Hz 45.78 3.936 0.75 100×80
NK 80-180/128 380V/50Hz 45.78 3.936 0.75 100×80
NK 80-180/137 380V/50Hz 108.4 18.61 7.5 100×80
NK 80-180/137 380V/50Hz 108.4 18.61 7.5 100×80
NK 80-180/145 380V/50Hz 56.35 5.156 1.1 100×80
NK 80-180/145 380V/50Hz 56.75 5.229 1.1 100×80
NK 80-180/153 380V/50Hz 120.7 25.25 11 100×80
NK 80-180/153 380V/50Hz 121.2 25.42 11 100×80
NK 80-180/165 380V/50Hz 59.14 7.134 1.5 100×80
NK 80-180/165 380V/50Hz 58.73 7.035 1.5 100×80
NK 80-180/172 380V/50Hz 130.1 32.54 15 100×80
NK 80-180/172 380V/50Hz 130.5 32.76 15 100×80
NK 80-180/174 380V/50Hz 66.92 8.213 2.2 100×80
NK 80-180/174 380V/50Hz 66 7.989 2.2 100×80
NK 80-180/174 380V/50Hz 133.1 33.3 18.5 100×80
NK 80-180/174 380V/50Hz 133.6 33.53 18.5 100×80
NK 80-225/139 380V/50Hz 62.94 4.974 1.5 100×80
NK 80-225/139 380V/50Hz 62.5 4.905 1.5 100×80
NK 80-225/156 380V/50Hz 79.92 6.799 2.2 100×80
NK 80-225/156 380V/50Hz 78.83 6.613 2.2 100×80
NK 80-225/157 380V/50Hz 164.1 27.82 18.5 100×80
NK 80-225/157 380V/50Hz 164.7 28.02 18.5 100×80
NK 80-225/165 380V/50Hz 53.53 3.248 0.75 100×80
NK 80-225/165 380V/50Hz 53.81 3.283 0.75 100×80
NK 80-225/166 380V/50Hz 170.6 32.27 22 100×80
NK 80-225/166 380V/50Hz 170.9 32.38 22 100×80
NK 80-225/171 380V/50Hz 88.39 8.466 3 100×80
NK 80-225/171 380V/50Hz 87.78 8.35 3 100×80
NK 80-225/183 380V/50Hz 183.6 42.05 30 100×80
NK 80-225/183 380V/50Hz 184.2 42.34 30 100×80
NK 80-225/187 380V/50Hz 60.92 4.577 1.1 100×80
NK 80-225/187 380V/50Hz 60.27 4.48 1.1 100×80
NK 80-225/190 380V/50Hz 95.87 11.18 4 100×80
NK 80-225/190 380V/50Hz 95.54 11.1 4 100×80
NK 80-225/193 380V/50Hz 210.7 46.23 37 100×80
NK 80-225/193 380V/50Hz 211.4 46.54 37 100×80
NK 80-225/202 380V/50Hz 69.41 5.493 1.5 100×80
NK 80-225/202 380V/50Hz 69.41 5.493 1.5 100×80
NK 80-225/205 380V/50Hz 108.7 13.09 5.5 100×80
NK 80-225/205 380V/50Hz 109.9 13.36 5.5 100×80
NK 80-225/205 380V/50Hz 212.4 55.58 45 100×80
NK 80-225/205 380V/50Hz 212.8 55.77 45 100×80
NK 80-225/225 380V/50Hz 71.64 7.019 2.2 100×80
NK 80-225/225 380V/50Hz 107 16.59 7.5 100×80
NK 80-225/225 380V/50Hz 221 66.59 55 100×80
NK 80-225/225 380V/50Hz 221 66.59 55 100×80
NK 80-225/225 380V/50Hz 70.89 6.872 2.2 100×80
NK 80-225/225 380V/50Hz 107 16.59 7.5 100×80
NK 80-280/207-199 380V/50Hz 42.85 5.554 1.1 100×80
NK 80-280/207-199 380V/50Hz 43.3 5.674 1.1 100×80
NK 80-280/214-206 380V/50Hz 68.62 14.09 4 100×80
NK 80-280/214-206 380V/50Hz 68.86 14.18 4 100×80
NK 80-280/226-218 380V/50Hz 48.44 6.908 1.5 100×80
NK 80-280/226-218 380V/50Hz 48.44 6.908 1.5 100×80
NK 80-280/231-223 380V/50Hz 77.83 17.06 5.5 100×80
NK 80-280/231-223 380V/50Hz 77.03 16.71 5.5 100×80
NK 80-280/257-249 380V/50Hz 90.91 20.39 7.5 100×80
NK 80-280/257-249 380V/50Hz 90.91 20.39 7.5 100×80
NK 80-280/267-259 380V/50Hz 57.82 9.016 2.2 100×80
NK 80-280/267-259 380V/50Hz 58.44 9.209 2.2 100×80
NK 80-280/278-270 380V/50Hz 62.93 9.914 3 100×80
NK 80-280/278-270 380V/50Hz 62.93 9.914 3 100×80
NK 80-280/278-270 380V/50Hz 94.27 22.88 11 100×80
NK 80-280/278-270 380V/50Hz 95.25 23.35 11 100×80
NK 80-350/219 380V/50Hz 82.09 15.73 5.5 100×80
NK 80-350/219 380V/50Hz 81.25 15.41 5.5 100×80
NK 80-350/240 380V/50Hz 58.64 7.855 2.2 100×80
NK 80-350/240 380V/50Hz 59.26 8.023 2.2 100×80
NK 80-350/243 380V/50Hz 88.74 19.49 7.5 100×80
NK 80-350/243 380V/50Hz 88.74 19.49 7.5 100×80
NK 80-350/264 380V/50Hz 66.47 9.914 3 100×80
NK 80-350/264 380V/50Hz 66.47 9.914 3 100×80
NK 80-350/271 380V/50Hz 104.6 24.05 11 100×80
NK 80-350/271 380V/50Hz 105.7 24.55 11 100×80
NK 80-350/293 380V/50Hz 75.87 12.22 4 100×80
NK 80-350/293 380V/50Hz 75.87 12.22 4 100×80
NK 80-350/299 380V/50Hz 121.6 29.29 15 100×80
NK 80-350/299 380V/50Hz 122.9 29.9 15 100×80
NK 80-350/328 380V/50Hz 85.51 14.79 5.5 100×80
NK 80-350/328 380V/50Hz 85.95 14.95 5.5 100×80
NK 80-350/328 380V/50Hz 132.1 34.44 18.5 100×80
NK 80-350/328 380V/50Hz 132.6 34.67 18.5 100×80
NK 100-180/130-122 380V/50Hz 147 12.68 7.5 125×100
NK 100-180/130-122 380V/50Hz 147 12.68 7.5 125×100
NK 100-180/138 380V/50Hz 50.78 1.62 0.37 125×100
NK 100-180/138 380V/50Hz 51.9 1.692 0.37 125×100
NK 100-180/138-130 380V/50Hz 74.71 3.615 1.1 125×100
NK 100-180/138-130 380V/50Hz 75.24 3.66 1.1 125×100
NK 100-180/141 380V/50Hz 183.2 16.36 11 125×100
NK 100-180/141 380V/50Hz 183.9 16.48 11 125×100
NK 100-180/146 380V/50Hz 89.72 4.286 1.5 125×100
NK 100-180/146 380V/50Hz 90.36 4.347 1.5 125×100
NK 100-180/153 380V/50Hz 191.4 22.1 15 125×100
NK 100-180/153 380V/50Hz 192.1 22.25 15 125×100
NK 100-180/157 380V/50Hz 61.03 2.475 0.55 125×100
NK 100-180/157 380V/50Hz 59.71 2.37 0.55 125×100
NK 100-180/161 380V/50Hz 98.88 6.173 2.2 125×100
NK 100-180/161 380V/50Hz 100.2 6.347 2.2 125×100
NK 100-180/167 380V/50Hz 194.3 28.23 18.5 125×100
NK 100-180/167 380V/50Hz 194.9 28.42 18.5 125×100
NK 100-180/172 380V/50Hz 207.1 30.25 22 125×100
NK 100-180/172 380V/50Hz 206.8 30.15 22 125×100
NK 100-180/173 380V/50Hz 65.94 3.138 0.75 125×100
NK 100-180/173 380V/50Hz 66.29 3.171 0.75 125×100
NK 100-180/174 380V/50Hz 66.7 3.174 1.1 125×100
NK 100-180/174 380V/50Hz 67.42 3.242 1.1 125×100
NK 100-180/174 380V/50Hz 101.8 7.656 3 125×100
NK 100-180/174 380V/50Hz 101.1 7.551 3 125×100
NK 100-225.1/163 380V/50Hz 190 28.78 22 125×100
NK 100-225.1/163 380V/50Hz 190.3 28.88 22 125×100
NK 100-225.1/168 380V/50Hz 100.1 7.693 3 125×100
NK 100-225.1/168 380V/50Hz 100.8 7.8 3 125×100
NK 100-225.1/176 380V/50Hz 223 33.96 30 125×100
NK 100-225.1/176 380V/50Hz 223.8 34.19 30 125×100
NK 100-225.1/177 380V/50Hz 72.1 3.624 1.1 125×100
NK 100-225.1/177 380V/50Hz 72.87 3.702 1.1 125×100
NK 100-225.1/182 380V/50Hz 114.3 9.137 4 125×100
NK 100-225.1/182 380V/50Hz 114.7 9.2 4 125×100
NK 100-225.1/188 380V/50Hz 239.1 40.17 37 125×100
NK 100-225.1/188 380V/50Hz 238.3 39.9 37 125×100
NK 100-225.1/195 380V/50Hz 80.02 4.7 1.5 125×100
NK 100-225.1/195 380V/50Hz 80.02 4.7 1.5 125×100
NK 100-225.1/199 380V/50Hz 124.2 11.32 5.5 125×100
NK 100-225.1/199 380V/50Hz 125.5 11.4 5.5 125×100
NK 100-225.1/199 380V/50Hz 251.8 45.89 45 125×100
NK 100-225.1/199 380V/50Hz 252.2 46.04 45 125×100
NK 100-225.1/212 380V/50Hz 267.4 53.28 55 125×100
NK 100-225.1/212 380V/50Hz 267.4 53.28 55 125×100
NK 100-225.1/222 380V/50Hz 137.5 14.5 7.5 125×100
NK 100-225.1/222 380V/50Hz 88.57 6.01 2.2 125×100
NK 100-225.1/222 380V/50Hz 89.52 6.139 2.2 125×100
NK 100-225.1/222 380V/50Hz 137.5 14.5 7.5 125×100
NK 100-225/156 380V/50Hz 198.7 20.73 22 125×100
NK 100-225/156 380V/50Hz 198.3 22.65 22 125×100
NK 100-225/162 380V/50Hz 117.8 6.226 3 125×100
NK 100-225/162 380V/50Hz 117 6.14 3 125×100
NK 100-225/172 380V/50Hz 258.9 29.02 30 125×100
NK 100-225/172 380V/50Hz 259.8 29.22 30 125×100
NK 100-225/177 380V/50Hz 87.15 3.021 1.1 125×100
NK 100-225/177 380V/50Hz 88.08 3.086 1.1 125×100
NK 100-225/181 380V/50Hz 128.3 7.871 4 125×100
NK 100-225/181 380V/50Hz 128.8 7.926 4 125×100
NK 100-225/185 380V/50Hz 262.5 34.94 37 125×100
NK 100-225/185 380V/50Hz 261.6 34.71 37 125×100
NK 100-225/197 380V/50Hz 286.2 41.94 45 125×100
NK 100-225/197 380V/50Hz 285.7 41.8 45 125×100
NK 100-225/198 380V/50Hz 89.9 4.289 1.5 125×100
NK 100-225/198 380V/50Hz 89.9 4.289 1.5 125×100
NK 100-225/204 380V/50Hz 135.6 11.03 5.5 125×100
NK 100-225/204 380V/50Hz 137 11.26 5.5 125×100
NK 100-225/215 380V/50Hz 304.2 51.55 55 125×100
NK 100-225/215 380V/50Hz 304.2 51.55 55 125×100
NK 100-225/235 380V/50Hz 151.3 14.86 7.5 125×100
NK 100-225/235 380V/50Hz 151.3 14.86 7.5 125×100
NK 100-225/236 380V/50Hz 96.98 6.306 2.2 125×100
NK 100-225/236 380V/50Hz 98.02 6.441 2.2 125×100
NK 100-225/238 380V/50Hz 100.7 6.689 3 125×100
NK 100-225/238 380V/50Hz 100.7 6.689 3 125×100
NK 100-225/238 380V/50Hz 311.8 64.96 75 125×100
NK 100-225/238 380V/50Hz 311.8 64.96 75 125×100
NK 100-280/194 380V/50Hz 77.46 4.886 1.5 125×100
NK 100-280/194 380V/50Hz 77.46 4.886 1.5 125×100
NK 100-280/196 380V/50Hz 119.7 11.83 5.5 125×100
NK 100-280/196 380V/50Hz 118.5 11.59 5.5 125×100
NK 100-280/215 380V/50Hz 130.2 14.96 7.5 125×100
NK 100-280/215 380V/50Hz 130.2 14.96 7.5 125×100
NK 100-280/218 380V/50Hz 86.71 6.346 2.2 125×100
NK 100-280/218 380V/50Hz 87.64 6.481 2.2 125×100
NK 100-280/234 380V/50Hz 91.21 7.982 3 125×100
NK 100-280/234 380V/50Hz 91.21 7.982 3 125×100
NK 100-280/240 380V/50Hz 143 19.43 11 125×100
NK 100-280/240 380V/50Hz 144.5 19.83 11 125×100
NK 100-280/256 380V/50Hz 99.61 9.37 4 125×100
NK 100-280/256 380V/50Hz 148.4 21.32 15 125×100
NK 100-280/256 380V/50Hz 149.9 21.76 15 125×100
NK 100-280/256 380V/50Hz 99.61 9.37 4 125×100
NK 100-350/224 380V/50Hz 77.6 6.31 2.2 125×100
NK 100-350/224 380V/50Hz 78.43 6.445 2.2 125×100
NK 100-350/224 380V/50Hz 119.8 15.25 7.5 125×100
NK 100-350/224 380V/50Hz 119.8 15.25 7.5 125×100
NK 100-350/251 380V/50Hz 85.4 8.2 3 125×100
NK 100-350/251 380V/50Hz 85.4 8.2 3 125×100
NK 100-350/261 380V/50Hz 140.6 20.44 11 125×100
NK 100-350/261 380V/50Hz 139.2 20.03 11 125×100
NK 100-350/279 380V/50Hz 99.69 9.873 4 125×100
NK 100-350/279 380V/50Hz 99.69 9.873 4 125×100
NK 100-350/290 380V/50Hz 155.6 25.38 15 125×100
NK 100-350/290 380V/50Hz 154 24.86 15 125×100
NK 100-350/307 380V/50Hz 115.6 12.14 5.5 125×100
NK 100-350/307 380V/50Hz 116.2 12.27 5.5 125×100
NK 100-350/308 380V/50Hz 169.3 29.1 18.5 125×100
NK 100-350/308 380V/50Hz 169.9 29.2 18.5 125×100
NK 100-350/326 380V/50Hz 170.2 33.39 22 125×100
NK 100-350/326 380V/50Hz 116.1 14.21 7.5 125×100
NK 100-350/326 380V/50Hz 116.1 14.21 7.5 125×100
NK 100-350/326 380V/50Hz 169.6 33.17 22 125×100
NK 100-380/300 380V/50Hz 117.6 11.41 5.5 125×100
NK 100-380/300 380V/50Hz 117 11.29 5.5 125×100
NK 100-380/313 380V/50Hz 192.9 28.84 22 125×100
NK 100-380/313 380V/50Hz 193.5 29.04 22 125×100
NK 100-380/329 380V/50Hz 132.1 13.87 7.5 125×100
NK 100-380/329 380V/50Hz 132.1 13.87 7.5 125×100
NK 100-380/341 380V/50Hz 215.8 34.46 30 125×100
NK 100-380/341 380V/50Hz 215.8 34.46 30 125×100
NK 100-380/367 380V/50Hz 233 40.05 37 125×100
NK 100-380/367 380V/50Hz 233 40.05 37 125×100
NK 100-380/372 380V/50Hz 156.9 17.68 11 125×100
NK 100-380/372 380V/50Hz 156.9 17.68 11 125×100
NK 100-380/390 380V/50Hz 242.9 46.62 45 125×100
NK 100-380/390 380V/50Hz 242.9 46.62 45 125×100
NK 100-380/408 380V/50Hz 155.5 22.74 15 125×100
NK 100-380/408 380V/50Hz 156.3 22.98 15 125×100
NK 100-380/415 380V/50Hz 245.4 54.78 55 125×100
NK 100-380/415 380V/50Hz 245.4 54.78 55 125×100
NK 100-380/426 380V/50Hz 247.3 58.71 75 125×100
NK 100-380/426 380V/50Hz 165.4 25.56 18.5 125×100
NK 100-380/426 380V/50Hz 163.7 25.05 18.5 125×100
NK 100-380/426 380V/50Hz 247.3 58.71 75 125×100
NK 125-180/142-114 380V/50Hz 260.3 9.843 11 150×125
NK 125-180/142-114 380V/50Hz 261.2 9.91 11 150×125
NK 125-180/152-130 380V/50Hz 68.2 1.432 0.37 150×125
NK 125-180/152-130 380V/50Hz 69.7 1.495 0.37 150×125
NK 125-180/152-134 380V/50Hz 116.7 3.262 1.5 150×125
NK 125-180/152-134 380V/50Hz 117.5 3.308 1.5 150×125
NK 125-180/152-148 380V/50Hz 231.6 18.35 15 150×125
NK 125-180/152-148 380V/50Hz 232.3 18.48 15 150×125
NK 125-180/156 380V/50Hz 79.84 1.854 0.55 150×125
NK 125-180/156 380V/50Hz 81.59 1.936 0.55 150×125
NK 125-180/158 380V/50Hz 135.1 4.502 2.2 150×125
NK 125-180/158 380V/50Hz 137 4.629 2.2 150×125
NK 125-180/159 380V/50Hz 264.7 20.66 18.5 150×125
NK 125-180/159 380V/50Hz 265.6 20.8 18.5 150×125
NK 125-180/166 380V/50Hz 89.84 2.314 0.75 150×125
NK 125-180/166 380V/50Hz 90.32 2.339 0.75 150×125
NK 125-180/166 380V/50Hz 258.8 24.77 22 150×125
NK 125-180/166 380V/50Hz 259.3 24.85 22 150×125
NK 125-180/171 380V/50Hz 141.6 6.117 3 150×125
NK 125-180/171 380V/50Hz 140.6 6.033 3 150×125
NK 125-180/176 380V/50Hz 90.04 2.97 1.1 150×125
NK 125-180/176 380V/50Hz 91 3.033 1.1 150×125
NK 125-180/176 380V/50Hz 140.7 7.056 4 150×125
NK 125-180/176 380V/50Hz 141.2 7.105 4 150×125
NK 125-180/176 380V/50Hz 281.6 29.52 30 150×125
NK 125-180/176 380V/50Hz 282.5 29.72 30 150×125
NK 125-225/178 380V/50Hz 150.2 2.667 1.5 150×125
NK 125-225/178 380V/50Hz 150.2 2.667 1.5 150×125
NK 125-225/179 380V/50Hz 231 6.24 5.5 150×125
NK 125-225/179 380V/50Hz 233.4 6.37 5.5 150×125
NK 125-225/197 380V/50Hz 216.8 8.854 7.5 150×125
NK 125-225/197 380V/50Hz 216.8 8.854 7.5 150×125
NK 125-225/202 380V/50Hz 150.4 4.125 2.2 150×125
NK 125-225/202 380V/50Hz 148.8 4.039 2.2 150×125
NK 125-225/218 380V/50Hz 153 5.433 3 150×125
NK 125-225/218 380V/50Hz 153 5.433 3 150×125
NK 125-225/223 380V/50Hz 243.2 13.05 11 150×125
NK 125-225/223 380V/50Hz 245.7 13.32 11 150×125
NK 125-225/232 380V/50Hz 162.2 6.118 4 150×125
NK 125-225/232 380V/50Hz 162.2 6.118 4 150×125
NK 125-225/232 380V/50Hz 243.5 28.8 15 150×125
NK 125-225/232 380V/50Hz 246 14.5 15 150×125
NK 125-280/204 380V/50Hz 184.6 10.98 7.5 150×125
NK 125-280/204 380V/50Hz 184.6 10.98 7.5 150×125
NK 125-280/205 380V/50Hz 121 4.694 2.2 150×125
NK 125-280/205 380V/50Hz 122.3 4.794 2.2 150×125
NK 125-280/232 380V/50Hz 128.3 6.411 3 150×125
NK 125-280/232 380V/50Hz 128.3 6.411 3 150×125
NK 125-280/232 380V/50Hz 218.4 14.37 11 150×125
NK 125-280/232 380V/50Hz 220.7 14.67 11 150×125
NK 125-280/251 380V/50Hz 150.1 7.504 4 150×125
NK 125-280/251 380V/50Hz 150.1 7.504 4 150×125
NK 125-280/256 380V/50Hz 239.2 18.3 15 150×125
NK 125-280/256 380V/50Hz 236.7 17.93 15 150×125
NK 125-280/270 380V/50Hz 157 8.8 5.5 150×125
NK 125-280/270 380V/50Hz 240 20.38 18.5 150×125
NK 125-280/270 380V/50Hz 240.8 20.52 18.5 150×125
NK 125-280/270 380V/50Hz 156.2 8.709 5.5 150×125
NK 125-320/231 380V/50Hz 186.6 15.2 11 150×125
NK 125-320/231 380V/50Hz 188.6 15.52 11 150×125
NK 125-320/244 380V/50Hz 135.9 7.542 4 150×125
NK 125-320/244 380V/50Hz 135.9 7.542 4 150×125
NK 125-320/248 380V/50Hz 210.8 18.02 15 150×125
NK 125-320/248 380V/50Hz 213 18.4 15 150×125
NK 125-320/260 380V/50Hz 228.9 20.86 18.5 150×125
NK 125-320/260 380V/50Hz 229.7 21.01 18.5 150×125
NK 125-320/261 380V/50Hz 150.3 9.011 5.5 150×125
NK 125-320/261 380V/50Hz 151.1 9.105 5.5 150×125
NK 125-320/271 380V/50Hz 244.3 23.02 22 150×125
NK 125-320/271 380V/50Hz 245.2 23.18 22 150×125
NK 125-320/282 380V/50Hz 168.4 10.8 7.5 150×125
NK 125-320/282 380V/50Hz 168.4 10.8 7.5 150×125
NK 125-320/288 380V/50Hz 171.8 11.2 11 150×125
NK 125-320/288 380V/50Hz 171.8 11.2 11 150×125
NK 125-320/288 380V/50Hz 261.5 25.77 30 150×125
NK 125-320/288 380V/50Hz 261.5 25.77 30 150×125
NK 125-350/228 380V/50Hz 171.3 15.44 11 150×125
NK 125-350/228 380V/50Hz 173.1 15.76 11 150×125
NK 125-350/247 380V/50Hz 122.2 7.961 4 150×125
NK 125-350/247 380V/50Hz 122.2 7.961 4 150×125
NK 125-350/253 380V/50Hz 193.1 19.3 15 150×125
NK 125-350/253 380V/50Hz 195.1 19.7 15 150×125
NK 125-350/275 380V/50Hz 135.5 10.04 5.5 150×125
NK 125-350/275 380V/50Hz 136.2 10.14 5.5 150×125
NK 125-350/276 380V/50Hz 209 23.7 18.5 150×125
NK 125-350/276 380V/50Hz 209.7 23.87 18.5 150×125
NK 125-350/289 380V/50Hz 219.9 26.3 22 150×125
NK 125-350/289 380V/50Hz 220.7 26.48 22 150×125
NK 125-350/301 380V/50Hz 157.4 12.42 7.5 150×125
NK 125-350/301 380V/50Hz 157.4 12.42 7.5 150×125
NK 125-350/319 380V/50Hz 247.3 32.6 30 150×125
NK 125-350/319 380V/50Hz 247.3 32.6 30 150×125
NK 125-350/333-329 380V/50Hz 168.4 15.32 11 150×125
NK 125-350/333-329 380V/50Hz 254.4 34.81 37 150×125
NK 125-350/333-329 380V/50Hz 254.4 34.81 37 150×125
NK 125-350/333-329 380V/50Hz 168.4 15.32 11 150×125
NK 125-360/277 380V/50Hz 228.4 23.95 22 150×125
NK 125-360/277 380V/50Hz 229.2 24.11 22 150×125
NK 125-360/291 380V/50Hz 166.5 11.5 7.5 150×125
NK 125-360/291 380V/50Hz 166.5 11.5 7.5 150×125
NK 125-360/301 380V/50Hz 270.9 28.46 30 150×125
NK 125-360/301 380V/50Hz 270.9 28.46 30 150×125
NK 125-360/323 380V/50Hz 287.8 34.38 37 150×125
NK 125-360/323 380V/50Hz 287.8 34.38 37 150×125
NK 125-360/326 380V/50Hz 189.9 15.2 11 150×125
NK 125-360/326 380V/50Hz 189.8 15.2 11 150×125
NK 125-360/338 380V/50Hz 304.9 38.86 45 150×125
NK 125-360/338 380V/50Hz 304.9 38.86 45 150×125
NK 125-360/350 380V/50Hz 208 18.4 15 150×125
NK 125-360/350 380V/50Hz 209.1 18.59 15 150×125
NK 125-360/355 380V/50Hz 322.6 44.59 55 150×125
NK 125-360/355 380V/50Hz 322.6 44.59 55 150×125
NK 125-360/364 380V/50Hz 219.2 20.92 18.5 150×125
NK 125-360/364 380V/50Hz 332.2 48.14 75 150×125
NK 125-360/364 380V/50Hz 332.2 48.14 75 150×125
NK 125-360/364 380V/50Hz 217 20.5 18.5 150×125
NK 125-380/283 380V/50Hz 290.2 25.06 30 150×125
NK 125-380/283 380V/50Hz 290.2 25.06 30 150×125
NK 125-380/307 380V/50Hz 319 29.63 37 150×125
NK 125-380/307 380V/50Hz 319 29.63 37 150×125
NK 125-380/314 380V/50Hz 213.6 23.1 11 150×125
NK 125-380/314 380V/50Hz 213.6 13.24 11 150×125
NK 125-380/333 380V/50Hz 343.3 34.71 45 150×125
NK 125-380/333 380V/50Hz 343.3 34.71 45 150×125
NK 125-380/349 380V/50Hz 241.9 16.09 15 150×125
NK 125-380/349 380V/50Hz 243.1 16.26 15 150×125
NK 125-380/360 380V/50Hz 367.4 40.22 55 150×125
NK 125-380/360 380V/50Hz 367.4 40.22 55 150×125
NK 125-380/380 380V/50Hz 258 19.37 18.5 150×125
NK 125-380/380 380V/50Hz 255.4 18.98 18.5 150×125
NK 125-380/405 380V/50Hz 409 50.46 75 150×125
NK 125-380/405 380V/50Hz 409 50.46 75 150×125
NK 125-380/406 380V/50Hz 275.8 21.37 22 150×125
NK 125-380/406 380V/50Hz 278.7 21.81 22 150×125
NK 125-380/410 380V/50Hz 270.6 22.78 30 150×125
NK 125-380/410 380V/50Hz 270.6 22.78 30 150×125
NK 125-380/410 380V/50Hz 409.7 52.28 90 150×125
NK 125-380/410 380V/50Hz 409.7 52.28 90 150×125
NK 150-225/180 380V/50Hz 300.8 5.089 5.5 200×150
NK 150-225/180 380V/50Hz 297.7 4.985 5.5 200×150
NK 150-225/196 380V/50Hz 218.5 2.604 2.2 200×150
NK 150-225/196 380V/50Hz 220.8 2.66 2.2 200×150
NK 150-225/196 380V/50Hz 304.8 7.108 7.5 200×150
NK 150-225/196 380V/50Hz 304.8 7.108 7.5 200×150
NK 150-225/212 380V/50Hz 219.2 3.981 3 200×150
NK 150-225/212 380V/50Hz 219.2 3.981 3 200×150
NK 150-225/216 380V/50Hz 343.2 9.462 11 200×150
NK 150-225/216 380V/50Hz 346.7 9.658 11 200×150
NK 150-225/233 380V/50Hz 225.6 5.367 4 200×150
NK 150-225/233 380V/50Hz 225.6 5.367 4 200×150
NK 150-225/238 380V/50Hz 344.3 13.32 15 200×150
NK 150-225/238 380V/50Hz 347.9 13.6 15 200×150
NK 150-225/242 380V/50Hz 235.2 5.985 5.5 200×150
NK 150-225/242 380V/50Hz 236.5 6.047 5.5 200×150
NK 150-225/242 380V/50Hz 359.6 6.95 18.5 200×150
NK 150-225/242 380V/50Hz 360.9 6.89 18.5 200×150
NK 150-280/210 380V/50Hz 200.2 4.144 3 200×150
NK 150-280/210 380V/50Hz 200.2 4.144 3 200×150
NK 150-280/214 380V/50Hz 339.1 8.988 11 200×150
NK 150-280/214 380V/50Hz 335.6 8.805 11 200×150
NK 150-280/229 380V/50Hz 230.4 4.989 4 200×150
NK 150-280/229 380V/50Hz 230.4 4.989 4 200×150
NK 150-280/232 380V/50Hz 368.6 11.65 15 200×150
NK 150-280/232 380V/50Hz 372.4 11.89 15 200×150
NK 150-280/247 380V/50Hz 394.9 14.59 18.5 200×150
NK 150-280/247 380V/50Hz 396.2 14.69 18.5 200×150
NK 150-280/251 380V/50Hz 242.7 6.793 5.5 200×150
NK 150-280/251 380V/50Hz 244 6.864 5.5 200×150
NK 150-280/260 380V/50Hz 395.4 17.4 22 200×150
NK 150-280/260 380V/50Hz 394 17.29 22 200×150
NK 150-280/273 380V/50Hz 256.5 8.53 7.5 200×150
NK 150-280/273 380V/50Hz 389.2 19.81 30 200×150
NK 150-280/273 380V/50Hz 389.2 19.81 30 200×150
NK 150-280/273 380V/50Hz 256.5 8.53 7.5 200×150
NK 150-300/269 380V/50Hz 354 19.12 22 200×150
NK 150-300/269 380V/50Hz 355.2 19.25 22 200×150
NK 150-300/281 380V/50Hz 244.4 9.3 7.5 200×150
NK 150-300/281 380V/50Hz 244.4 9.3 7.5 200×150
NK 150-300/289 380V/50Hz 393.5 22.56 30 200×150
NK 150-300/289 380V/50Hz 393.5 22.56 30 200×150
NK 150-300/289 380V/50Hz 268.5 10.1 11 200×150
NK 150-300/289 380V/50Hz 268.5 10.1 11 200×150
NK 150-350.1/245 380V/50Hz 294.6 16.75 18.5 200×150
NK 150-350.1/245 380V/50Hz 295.6 16.87 18.5 200×150
NK 150-350.1/251 380V/50Hz 187.8 7.64 5.5 200×150
NK 150-350.1/251 380V/50Hz 188.8 7.72 5.5 200×150
NK 150-350.1/256 380V/50Hz 321.6 18.29 22 200×150
NK 150-350.1/256 380V/50Hz 322.7 18.42 22 200×150
NK 150-350.1/271 380V/50Hz 220.4 9.1 7.5 200×150
NK 150-350.1/271 380V/50Hz 220.4 9.1 7.5 200×150
NK 150-350.1/281 380V/50Hz 371.3 22.25 30 200×150
NK 150-350.1/281 380V/50Hz 371.3 22.25 30 200×150
NK 150-350.1/298 380V/50Hz 408.6 25.32 37 200×150
NK 150-350.1/298 380V/50Hz 408.6 25.32 37 200×150
NK 150-350.1/300 380V/50Hz 269.3 11.1 11 200×150
NK 150-350.1/300 380V/50Hz 269.3 11.1 11 200×150
NK 150-350.1/310 380V/50Hz 276.2 11.9 15 200×150
NK 150-350.1/310 380V/50Hz 277.6 12.02 15 200×150
NK 150-350.1/310 380V/50Hz 421.4 27.71 45 200×150
NK 150-350.1/310 380V/50Hz 421.7 27.71 45 200×150
NK 150-350/217 380V/50Hz 176.5 5.151 4 200×150
NK 150-350/217 380V/50Hz 176.5 5.151 4 200×150
NK 150-350/238 380V/50Hz 329.4 14.38 18.5 200×150
NK 150-350/238 380V/50Hz 328.2 14.28 18.5 200×150
NK 150-350/240 380V/50Hz 218 6.192 5.5 200×150
NK 150-350/240 380V/50Hz 219.1 6.257 5.5 200×150
NK 150-350/254 380V/50Hz 392.4 16.16 22 200×150
NK 150-350/254 380V/50Hz 393.8 16.27 22 200×150
NK 150-350/264 380V/50Hz 265.4 8.001 7.5 200×150
NK 150-350/264 380V/50Hz 265.4 8.001 7.5 200×150
NK 150-350/273 380V/50Hz 453.4 18.93 30 200×150
NK 150-350/273 380V/50Hz 453.4 18.93 30 200×150
NK 150-350/294 380V/50Hz 460 23.68 37 200×150
NK 150-350/294 380V/50Hz 460 23.68 37 200×150
NK 150-350/301 380V/50Hz 288.6 11.14 11 200×150
NK 150-350/301 380V/50Hz 288.6 11.14 11 200×150
NK 150-350/318-314 380V/50Hz 458.2 28.82 45 200×150
NK 150-350/318-314 380V/50Hz 458.2 28.82 45 200×150
NK 150-350/328-324 380V/50Hz 448.7 30.8 55 200×150
NK 150-350/328-324 380V/50Hz 448.7 30.8 55 200×150
NK 150-350/328-324 380V/50Hz 295.6 13.37 15 200×150
NK 150-350/328-324 380V/50Hz 294.1 13.23 15 200×150
NK 150-360/288-282 380V/50Hz 392.9 24.69 37 200×150
NK 150-360/288-282 380V/50Hz 392.9 24.69 37 200×150
NK 150-360/290-284 380V/50Hz 261.2 10.8 11 200×150
NK 150-360/290-284 380V/50Hz 261.2 10.8 11 200×150
NK 150-360/302-296 380V/50Hz 428.6 27.5 45 200×150
NK 150-360/302-296 380V/50Hz 428.6 27.5 45 200×150
NK 150-360/313-307 380V/50Hz 297.3 13.13 15 200×150
NK 150-360/313-307 380V/50Hz 295.8 13 15 200×150
NK 150-360/317-311 380V/50Hz 459.1 31.36 55 200×150
NK 150-360/317-311 380V/50Hz 459.1 31.36 55 200×150
NK 150-360/328-322 380V/50Hz 317.5 14.8 18.5 200×150
NK 150-360/328-322 380V/50Hz 320.8 15.11 18.5 200×150
NK 150-360/338-332 380V/50Hz 487.4 38.18 75 200×150
NK 150-360/338-332 380V/50Hz 487.4 38.18 75 200×150
NK 150-360/340-334 380V/50Hz 341.1 16.54 22 200×150
NK 150-360/340-334 380V/50Hz 337.6 16.2 22 200×150
NK 150-360/355-349 380V/50Hz 495 43.11 90 200×150
NK 150-360/355-349 380V/50Hz 495 43.11 90 200×150
NK 150-360/370-364 380V/50Hz 369.2 19.9 30 200×150
NK 150-360/370-364 380V/50Hz 369.2 19.9 30 200×150
NK 150-360/370-364 380V/50Hz 511.2 46.88 110 200×150
NK 150-360/370-364 380V/50Hz 513 47.2 110 200×150
NK 150-380/300 380V/50Hz 287 12.15 15 200×150
NK 150-380/300 380V/50Hz 288.5 12.28 15 200×150
NK 150-380/308 380V/50Hz 486.5 29.35 55 200×150
NK 150-380/308 380V/50Hz 486.5 29.35 55 200×150
NK 150-380/329 380V/50Hz 319.2 14.05 18.5 200×150
NK 150-380/329 380V/50Hz 322.4 14.34 18.5 200×150
NK 150-380/350 380V/50Hz 513.2 37.86 75 200×150
NK 150-380/350 380V/50Hz 513.2 37.86 75 200×150
NK 150-380/351 380V/50Hz 340.6 16.58 22 200×150
NK 150-380/351 380V/50Hz 337.1 16.25 22 200×150
NK 150-380/380 380V/50Hz 557.7 43.74 90 200×150
NK 150-380/380 380V/50Hz 557.7 43.74 90 200×150
NK 150-380/402 380V/50Hz 353.9 21.89 30 200×150
NK 150-380/402 380V/50Hz 353.9 21.89 30 200×150
NK 150-380/409 380V/50Hz 555.1 52.02 110 200×150
NK 150-380/409 380V/50Hz 557 52.37 110 200×150
NK 150-380/430 380V/50Hz 392.8 24.66 37 200×150
NK 150-380/430 380V/50Hz 394.8 24.92 37 200×150
NK 150-380/430 380V/50Hz 554.1 58.7 132 200×150
NK 150-380/430 380V/50Hz 555.9 59.1 132 200×150
NK 150-390/308 380V/50Hz 486.5 29.28 55 200×150
NK 150-390/308 380V/50Hz 486.5 29.28 55 200×150
NK 150-390/324 380V/50Hz 335.1 14.2 18.5 200×150
NK 150-390/324 380V/50Hz 338.6 14.49 18.5 200×150
NK 150-390/338 380V/50Hz 539.2 37.02 75 200×150
NK 150-390/338 380V/50Hz 539.2 37.02 75 200×150
NK 150-390/339 380V/50Hz 354.1 15.9 22 200×150
NK 150-390/339 380V/50Hz 357.8 16.23 22 200×150
NK 150-390/350 380V/50Hz 573.3 41.01 90 200×150
NK 150-390/350 380V/50Hz 573.3 41.01 90 200×150
NK 150-390/361 380V/50Hz 399.3 19.5 30 200×150
NK 150-390/361 380V/50Hz 399.3 19.5 30 200×150
NK 150-390/368 380V/50Hz 619.6 46.67 110 200×150
NK 150-390/368 380V/50Hz 621.7 46.99 110 200×150
NK 150-390/386 380V/50Hz 433 22.56 37 200×150
NK 150-390/386 380V/50Hz 435.2 22.79 37 200×150
NK 150-390/388 380V/50Hz 659.8 52.44 132 200×150
NK 150-390/388 380V/50Hz 662 52.8 132 200×150
NK 150-390/412 380V/50Hz 458.6 25.42 45 200×150
NK 150-390/412 380V/50Hz 460.9 25.68 45 200×150
NK 150-390/415 380V/50Hz 698.8 59.16 160 200×150
NK 150-390/415 380V/50Hz 701.1 59.56 160 200×150
NK 200-300/273 380V/50Hz 515.4 17.7 30 250×200
NK 200-300/273 380V/50Hz 515.4 17.7 30 250×200
NK 200-300/282 380V/50Hz 376.1 8.956 11 250×200
NK 200-300/282 380V/50Hz 376.1 8.956 11 250×200
NK 200-300/288 380V/50Hz 546 21.15 37 250×200
NK 200-300/288 380V/50Hz 546 21.15 37 250×200
NK 200-300/304 380V/50Hz 394.4 10.91 15 250×200
NK 200-300/304 380V/50Hz 580.8 23.65 45 250×200
NK 200-300/304 380V/50Hz 580.8 23.65 45 250×200
NK 200-300/304 380V/50Hz 392.4 10.8 15 250×200
NK 200-350/228 380V/50Hz 354 3.634 5.5 250×200
NK 200-350/228 380V/50Hz 355.8 3.672 5.5 250×200
NK 200-350/239 380V/50Hz 485.2 11.05 22 250×200
NK 200-350/239 380V/50Hz 486.8 11.12 22 250×200
NK 200-350/251 380V/50Hz 397.7 5.05 7.5 250×200
NK 200-350/251 380V/50Hz 397.7 5.05 7.5 250×200
NK 200-350/260 380V/50Hz 584.3 13.98 30 250×200
NK 200-350/260 380V/50Hz 584.3 13.98 30 250×200
NK 200-350/276 380V/50Hz 636.7 16.92 37 250×200
NK 200-350/276 380V/50Hz 636.7 16.92 37 250×200
NK 200-350/279 380V/50Hz 428.8 7.39 11 250×200
NK 200-350/279 380V/50Hz 428.8 7.39 11 250×200
NK 200-350/291 380V/50Hz 650.1 20.33 45 250×200
NK 200-350/291 380V/50Hz 650.1 20.33 45 250×200
NK 200-350/303 380V/50Hz 428.6 10.18 15 250×200
NK 200-350/303 380V/50Hz 430.8 10.28 15 250×200
NK 200-350/307 380V/50Hz 690.6 23.88 55 250×200
NK 200-350/307 380V/50Hz 690.6 23.88 55 250×200
NK 200-350/323 380V/50Hz 451.5 12.08 18.5 250×200
NK 200-350/323 380V/50Hz 456.1 12.33 18.5 250×200
NK 200-350/337 380V/50Hz 695.4 32.61 75 250×200
NK 200-350/337 380V/50Hz 695.4 32.61 75 250×200
NK 200-350/339 380V/50Hz 453.1 14.24 22 250×200
NK 200-350/339 380V/50Hz 457.8 14.54 22 250×200
NK 200-350/341 380V/50Hz 709.7 33.6 90 250×200
NK 200-350/341 380V/50Hz 709.7 33.6 90 250×200
NK 200-380/308 380V/50Hz 321.2 12.2 15 250×200
NK 200-380/308 380V/50Hz 322.9 12.33 15 250×200
NK 200-380/314 380V/50Hz 498.3 29.69 55 250×200
NK 200-380/314 380V/50Hz 498.3 29.69 55 250×200
NK 200-380/329 380V/50Hz 340.5 14.3 18.5 250×200
NK 200-380/329 380V/50Hz 344 14.6 18.5 250×200
NK 200-380/346 380V/50Hz 545.2 37.12 75 250×200
NK 200-380/346 380V/50Hz 545.2 37.12 75 250×200
NK 200-380/348 380V/50Hz 362.1 16 22 250×200
NK 200-380/348 380V/50Hz 365.8 16.33 22 250×200
NK 200-380/368 380V/50Hz 579.3 41.7 90 250×200
NK 200-380/368 380V/50Hz 579.3 41.7 90 250×200
NK 200-380/393 380V/50Hz 391.6 20.31 30 250×200
NK 200-380/393 380V/50Hz 391.6 20.31 30 250×200
NK 200-380/400 380V/50Hz 615.9 48.17 110 250×200
NK 200-380/400 380V/50Hz 617.9 48.5 110 250×200
NK 200-380/404 380V/50Hz 631.5 49.02 132 250×200
NK 200-380/404 380V/50Hz 633.6 49.35 132 250×200
NK 200-500/419 380V/50Hz 463.2 22.4 37 250×200
NK 200-500/419 380V/50Hz 465.6 22.63 37 250×200
NK 200-500/422 380V/50Hz 715.9 52.02 132 250×200
NK 200-500/422 380V/50Hz 718.3 52.37 132 250×200
NK 200-500/441 380V/50Hz 495.2 25.11 45 250×200
NK 200-500/441 380V/50Hz 497.8 25.37 45 250×200
NK 200-500/449 380V/50Hz 741.5 61.04 160 250×200
NK 200-500/449 380V/50Hz 744 61.46 160 250×200
NK 200-500/468 380V/50Hz 774.8 67.23 185 250×200
NK 200-500/468 380V/50Hz 777.4 67.68 185 250×200
NK 200-500/471 380V/50Hz 520.9 29.95 55 250×200
NK 200-500/471 380V/50Hz 518.3 29.65 55 250×200
NK 200-500/477 380V/50Hz 804.8 69.85 200 250×200
NK 200-500/477 380V/50Hz 807.5 70.32 200 250×200
NK 200-500/497 380V/50Hz 841.9 75.6 220 250×200
NK 200-500/497 380V/50Hz 841.9 75.6 220 250×200
NK 200-500/516 380V/50Hz 856.8 83.52 250 250×200
NK 200-500/516 380V/50Hz 859.6 84.08 250 250×200
NK 200-500/521 380V/50Hz 580.4 37.58 75 250×200
NK 200-500/521 380V/50Hz 574.6 36.83 75 250×200
NK 200-500/530 380V/50Hz 597.4 38.5 90 250×200
NK 200-500/530 380V/50Hz 903.9 88.06 280 250×200
NK 200-500/530 380V/50Hz 906.9 88.66 280 250×200
NK 200-500/530 380V/50Hz 600.4 38.89 90 250×200
NK 250-315/258-210 380V/50Hz 584.8 11.32 22 300×250
NK 250-315/258-210 380V/50Hz 586.8 11.39 22 300×250
NK 250-315/260-228 380V/50Hz 409.5 5.61 7.5 300×250
NK 250-315/260-228 380V/50Hz 409.5 5.61 7.5 300×250
NK 250-315/264 380V/50Hz 630.4 14.63 30 300×250
NK 250-315/264 380V/50Hz 630.4 14.63 30 300×250
NK 250-315/280 380V/50Hz 676.2 17.15 37 300×250
NK 250-315/280 380V/50Hz 676.2 17.15 37 300×250
NK 250-315/283 380V/50Hz 438.4 7.79 11 300×250
NK 250-315/283 380V/50Hz 438.4 7.79 11 300×250
NK 250-315/300-288 380V/50Hz 709.2 20.04 45 300×250
NK 250-315/300-288 380V/50Hz 709.2 20.04 45 300×250
NK 250-315/304-288 380V/50Hz 490.6 9.4 15 300×250
NK 250-315/304-288 380V/50Hz 493.1 9.497 15 300×250
NK 250-315/304-288 380V/50Hz 740 21.32 55 300×250
NK 250-315/304-288 380V/50Hz 740 21.32 55 300×250
NK 250-360/273 380V/50Hz 728.1 14.79 37 300×250
NK 250-360/273 380V/50Hz 728.1 14.79 37 300×250
NK 250-360/275 380V/50Hz 481.2 6.5 11 300×250
NK 250-360/275 380V/50Hz 481.2 6.5 11 300×250
NK 250-360/291 380V/50Hz 770 17.4 45 300×250
NK 250-360/291 380V/50Hz 770 17.4 45 300×250
NK 250-360/310 380V/50Hz 517.3 8.6 15 300×250
NK 250-360/310 380V/50Hz 520 8.689 15 300×250
NK 250-360/315 380V/50Hz 817.2 20.52 55 300×250
NK 250-360/315 380V/50Hz 817.2 20.52 55 300×250
NK 250-360/331 380V/50Hz 561.2 9.8 18.5 300×250
NK 250-360/331 380V/50Hz 567 10 18.5 300×250
NK 250-360/359 380V/50Hz 876.5 26.96 75 300×250
NK 250-360/359 380V/50Hz 876.5 26.96 75 300×250
NK 250-360/360 380V/50Hz 573.6 11.6 22 300×250
NK 250-360/360 380V/50Hz 579.5 11.84 22 300×250
NK 250-360/370 380V/50Hz 581.4 12.25 30 300×250
NK 250-360/370 380V/50Hz 872.3 28.53 90 300×250
NK 250-360/370 380V/50Hz 872.3 28.53 90 300×250
NK 250-360/370 380V/50Hz 581.4 12.25 30 300×250
NK 250-380/302 380V/50Hz 716.2 22.24 55 300×250
NK 250-380/302 380V/50Hz 716.2 22.24 55 300×250
NK 250-380/316 380V/50Hz 481.8 10.62 18.5 300×250
NK 250-380/316 380V/50Hz 486.7 10.84 18.5 300×250
NK 250-380/333 380V/50Hz 740.2 29.51 75 300×250
NK 250-380/333 380V/50Hz 740.2 29.51 75 300×250
NK 250-380/334 380V/50Hz 494.9 12.63 22 300×250
NK 250-380/334 380V/50Hz 500 12.9 22 300×250
NK 250-380/353 380V/50Hz 782.1 34.2 90 300×250
NK 250-380/353 380V/50Hz 782.1 34.2 90 300×250
NK 250-380/365 380V/50Hz 543.7 15.9 30 300×250
NK 250-380/365 380V/50Hz 543.7 15.9 30 300×250
NK 250-380/375 380V/50Hz 838.2 38.79 110 300×250
NK 250-380/375 380V/50Hz 841 39.06 110 300×250
NK 250-380/403 380V/50Hz 566.1 19.5 37 300×250
NK 250-380/403 380V/50Hz 569 19.7 37 300×250
NK 250-380/404 380V/50Hz 862.1 44.99 132 300×250
NK 250-380/404 380V/50Hz 865 45.29 132 300×250
NK 250-380/416 380V/50Hz 903.4 48.99 160 300×250
NK 250-380/416 380V/50Hz 594.2 21.19 45 300×250
NK 250-380/416 380V/50Hz 597.2 21.41 45 300×250
NK 250-380/416 380V/50Hz 900.4 48.66 160 300×250
NK 300-300/276-196 380V/50Hz 728.7 4.2 11 350×300
NK 300-300/276-196 380V/50Hz 728.7 4.2 11 350×300
NK 300-300/280-224 380V/50Hz 1134 11.25 45 350×300
NK 300-300/280-224 380V/50Hz 1134 11.25 45 350×300
NK 300-300/280-248 380V/50Hz 768 5.5 15 350×300
NK 300-300/280-248 380V/50Hz 772 5.557 15 350×300
NK 300-300/280-272 380V/50Hz 1195 13.44 55 350×300
NK 300-300/280-272 380V/50Hz 1195 13.44 55 350×300
NK 300-300/290 380V/50Hz 831.3 6.737 18.5 350×300
NK 300-300/290 380V/50Hz 822.8 6.6 18.5 350×300
NK 300-300/305 380V/50Hz 1318 18.14 75 350×300
NK 300-300/305 380V/50Hz 1318 18.14 75 350×300
NK 300-300/307 380V/50Hz 880.9 7.7 22 350×300
NK 300-300/307 380V/50Hz 890 7.86 22 350×300
NK 300-300/326 380V/50Hz 1349 21.4 90 350×300
NK 300-300/326 380V/50Hz 1349 21.4 90 350×300
NK 300-300/340 380V/50Hz 925.8 10.62 30 350×300
NK 300-300/340 380V/50Hz 925.8 10.62 30 350×300
NK 300-300/346-340 380V/50Hz 1448 24.33 110 350×300
NK 300-300/346-340 380V/50Hz 1453 24.5 110 350×300
NK 300-310/320-184 380V/50Hz 759.2 3.71 15 350×300
NK 300-310/320-184 380V/50Hz 763.1 3.744 15 350×300
NK 300-310/320-190 380V/50Hz 1191 8.824 55 350×300
NK 300-310/320-190 380V/50Hz 1191 8.824 55 350×300
NK 300-310/328 380V/50Hz 1648 18.43 110 350×300
NK 300-310/328 380V/50Hz 1642 18.3 110 350×300
NK 300-310/328-196 380V/50Hz 919.9 4.56 18.5 350×300
NK 300-310/328-196 380V/50Hz 929.3 4.653 18.5 350×300
NK 300-310/332-212 380V/50Hz 1518 11.2 75 350×300
NK 300-310/332-212 380V/50Hz 1518 11.2 75 350×300
NK 300-310/336-212 380V/50Hz 1006 4.99 22 350×300
NK 300-310/336-212 380V/50Hz 1016 5.091 22 350×300
NK 300-310/347 380V/50Hz 1133 10.12 37 350×300
NK 300-310/347 380V/50Hz 1127 10.01 37 350×300
NK 300-310/348-240 380V/50Hz 1633 13.67 90 350×300
NK 300-310/348-240 380V/50Hz 1633 13.67 90 350×300
NK 300-310/350 380V/50Hz 1776 22.81 132 350×300
NK 300-310/350 380V/50Hz 1782 22.97 132 350×300
NK 300-310/350-258 380V/50Hz 1159 6.318 30 350×300
NK 300-310/350-258 380V/50Hz 1159 6.323 30 350×300
NK 300-350/327 380V/50Hz 1172 23.22 90 350×300
NK 300-350/327 380V/50Hz 1172 23.22 90 350×300
NK 300-350/337 380V/50Hz 771.9 11.56 30 350×300
NK 300-350/337 380V/50Hz 771.9 11.56 30 350×300
NK 300-350/343 380V/50Hz 1212 27.35 110 350×300
NK 300-350/343 380V/50Hz 1216 27.54 110 350×300
NK 300-350/355 380V/50Hz 832.9 13.58 37 350×300
NK 300-350/355 380V/50Hz 828.7 13.45 37 350×300
NK 300-350/358 380V/50Hz 1258 31.52 132 350×300
NK 300-350/358 380V/50Hz 1262 31.73 132 350×300
NK 300-350/370 380V/50Hz 828.9 15.69 45 350×300
NK 300-350/370 380V/50Hz 833.1 15.85 45 350×300
NK 300-350/370 380V/50Hz 1249 35.9 160 350×300
NK 300-350/370 380V/50Hz 1253 36.15 160 350×300
NK 300-400/390 380V/50Hz 819.8 19.08 55 350×300
NK 300-400/390 380V/50Hz 815.6 18.88 55 350×300
NK 300-400/395 380V/50Hz 1269 44.58 200 350×300
NK 300-400/395 380V/50Hz 1273 44.88 200 350×300
NK 300-400/409 380V/50Hz 1328 47.94 220 350×300
NK 300-400/409 380V/50Hz 1328 47.94 220 350×300
NK 300-400/432 380V/50Hz 1379 53.66 250 350×300
NK 300-400/432 380V/50Hz 1384 54.02 250 350×300
NK 300-400/437 380V/50Hz 906 24.01 75 350×300
NK 300-400/437 380V/50Hz 915.2 24.5 75 350×300
NK 300-400/455 380V/50Hz 1414 59.45 280 350×300
NK 300-400/455 380V/50Hz 1419 59.85 280 350×300
NK 300-400/479 380V/50Hz 957.4 28.36 90 350×300
NK 300-400/479 380V/50Hz 962.2 28.65 90 350×300
NK 300-400/480 380V/50Hz 1450 65.36 315 350×300
NK 300-400/480 380V/50Hz 1454 65.8 315 350×300
NK 350-350/342-306 380V/50Hz 1066 7.655 30 400×350
NK 350-350/342-306 380V/50Hz 1066 7.655 30 400×350
NK 350-350/348-316 380V/50Hz 1637 20.23 110 400×350
NK 350-350/348-316 380V/50Hz 1643 20.37 110 400×350
NK 350-350/364-334 380V/50Hz 1168 9.738 37 400×350
NK 350-350/364-334 380V/50Hz 1174 9.837 37 400×350
NK 350-350/372-336 380V/50Hz 1715 24.68 132 400×350
NK 350-350/372-336 380V/50Hz 1720 24.84 132 400×350
NK 350-350/388-352 380V/50Hz 1208 11.86 45 400×350
NK 350-350/388-352 380V/50Hz 1202 11.74 45 400×350
NK 350-350/388-356 380V/50Hz 1722 30.21 160 400×350
NK 350-350/388-356 380V/50Hz 1728 30.41 160 400×350
NK 350-350/408-374 380V/50Hz 1840 33.12 185 400×350
NK 350-350/408-374 380V/50Hz 1846 33.34 185 400×350
NK 350-350/408-376 380V/50Hz 1232 14.49 55 400×350
NK 350-350/408-376 380V/50Hz 1232 14.64 55 400×350
NK 350-350/416-382 380V/50Hz 1930 34.91 250 400×350
NK 350-350/416-382 380V/50Hz 1917 34.45 200 400×350
NK 350-350/416-382 380V/50Hz 1924 34.68 200 400×350
NK 350-350/416-382 380V/50Hz 1924 34.68 220 400×350
NK 350-350/416-382 380V/50Hz 1930 34.91 315 400×350
NK 350-350/416-382 380V/50Hz 1930 34.91 280 400×350

Size

Video Introduction

Message Inquiry

*
*
*
*
*
Submit
