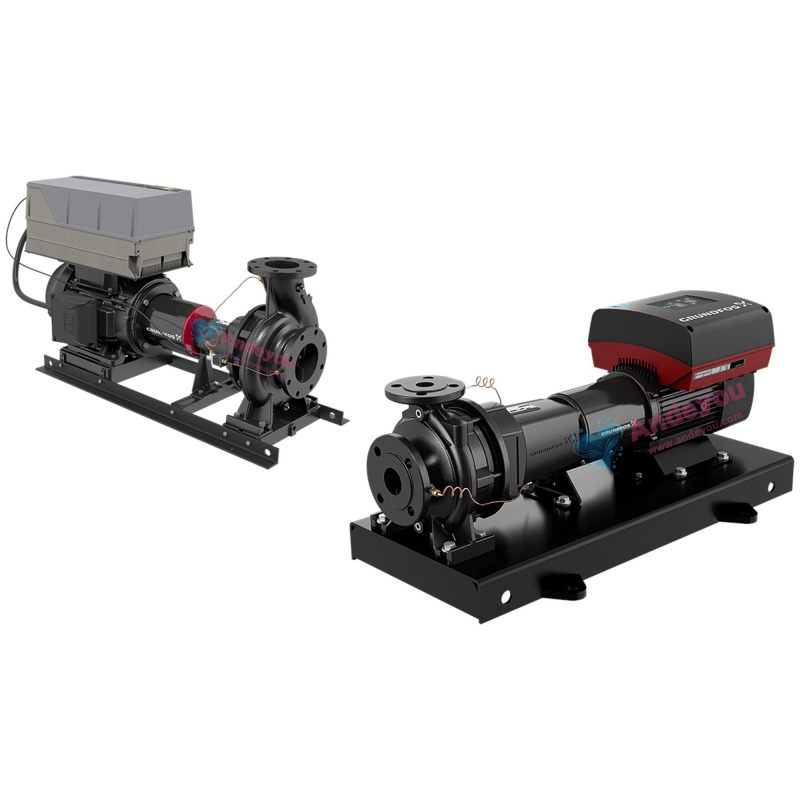

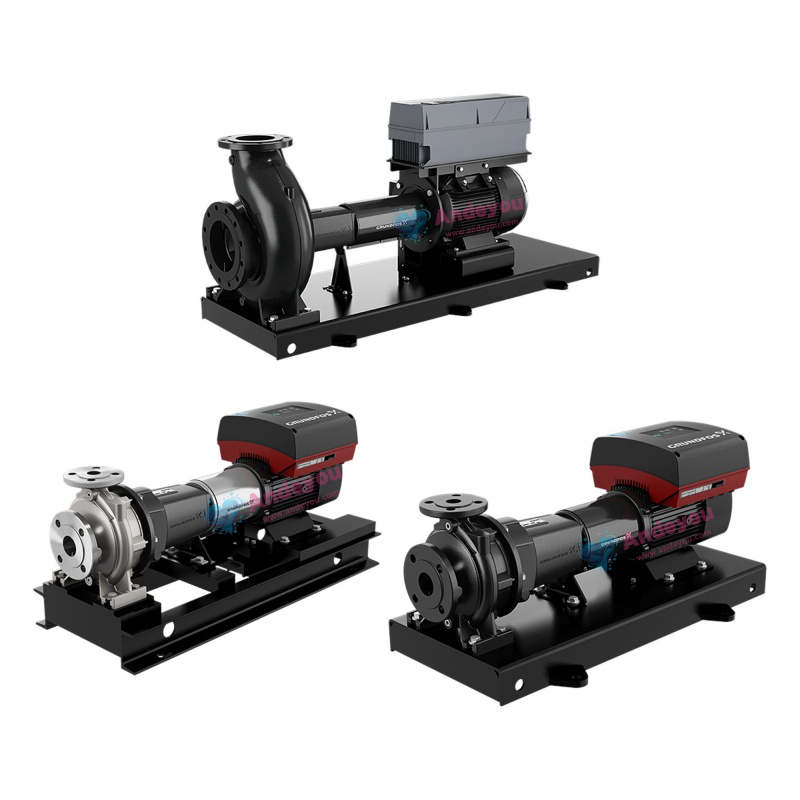

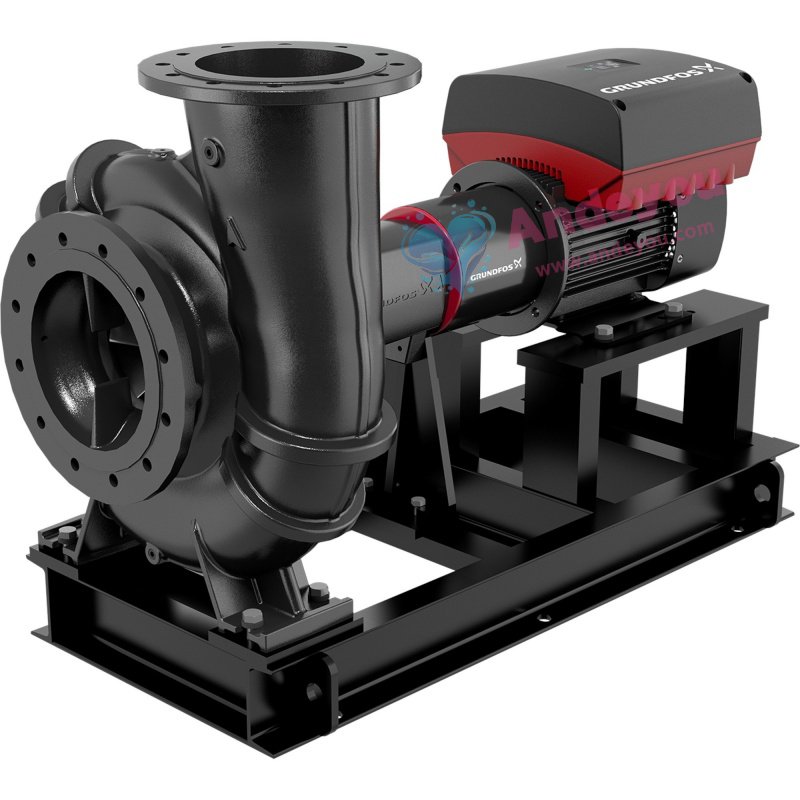

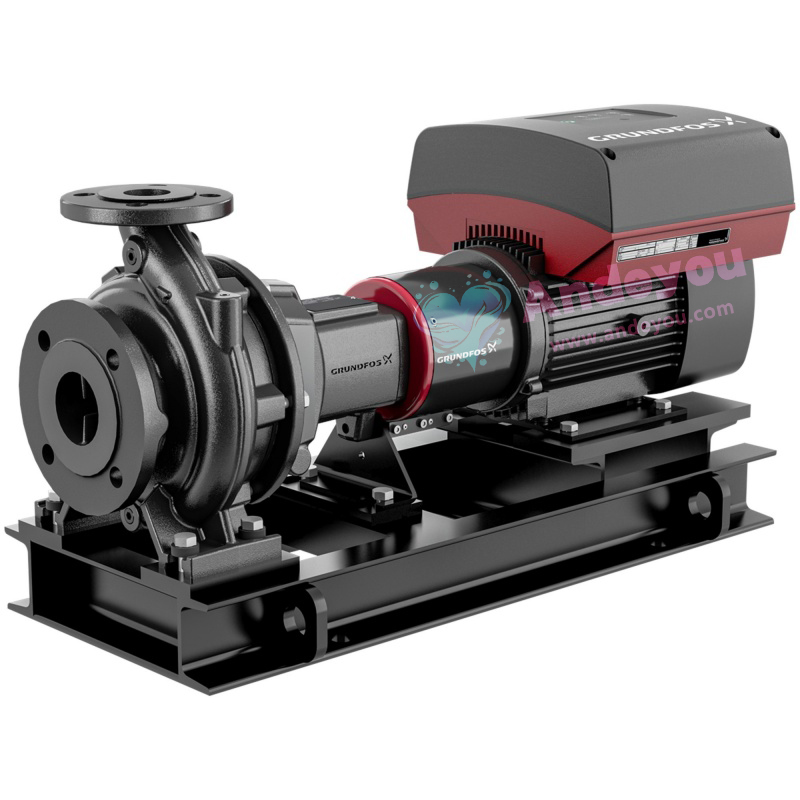

Grundfos NKE Variable-Speed ​​Horizontal Single-Stage End-Suction In-Line Pump (Split-Coupled)

NKE 32-130.1/142、NKE 32-130/142、NKE 32-165.1/177、NKE 32-180/177、NKE 32-205.1/205、NKE 40-130/140、NKE 40-220/192、NKE 40-220/250、NKE 50-130/142、NKE 50-280/251、NKE 50-350/256、NKE 65-130/141、NKE 65-180/139、NKE 65-225/242、NKE 65-280/280、NKE 80-180/174、NKE 80-225/225、NKE 80-350/328、NKE 100-180/174、NKE 125-180/176、NKE 200-350/239、NKE 250-315/260-210

The Grundfos NKE series is a variable-speed,horizontal,single-stage,end-suction pump featuring a split-coupling design and a high-efficiency permanent magnet motor (IE5).Suitable for applications such as water supply,industrial pressure boosting,HVAC,and irrigation,the series complies with ISO 5199 standards and offers flange sizes ranging from DN32 to DN350 with pressure ratings up to 25 bar.Integrated smart control functions enable energy savings of up to 50%
Product Consultation By telephone
Function
Parameters
Size
Video Introduction

Function

Grundfos NKE Variable-Speed ​​Horizontal End-Suction Pump (Back-Pull-Out Design)

1. Variable-Speed ​​Control and High Energy Efficiency

Integrated Variable-Speed ​​Technology: The NKE series features MGE permanent-magnet motors (IE5 efficiency class) with built-in frequency converters. This allows for continuous speed adjustment to match demand, resulting in significant energy savings compared to fixed-speed pumps.
E-Pump Solution: Variable-speed control adapts to application requirements such as constant pressure, proportional pressure, temperature, or flow, optimizing overall system efficiency.

2. Flexible Application Adaptability

Versatile Use: Suitable for water supply, industrial boosting, HVAC, irrigation, and more. Supports a liquid temperature range of -25°C to +140°C (extendable to -40°C to +220°C with special configurations).
Sensor Integration: The NKE 2000 series offers optional built-in differential pressure sensors, enabling closed-loop control (e.g., constant pressure or temperature regulation).

3. Structural Design and Reliability

Back-Pull-Out Design: Features a back-pull-out structure that allows for motor and impeller maintenance without disconnecting the piping; a single technician can perform the service.
Material Durability: Pump casings are available in cast iron (EN-GJL-250) or ductile iron (EN-GJS-500-7); impellers are made of stainless steel (1.4308/1.4408) or duplex steel (1.4517); shaft seals utilize materials such as silicon carbide/EPDM to suit various pumped media.

4. Intelligent Control and Communication

User Interface: Equipped with an advanced control panel or the Grundfos GO mobile app, supporting wireless commissioning, parameter setting, and real-time monitoring.
Communication Protocols: Supports LON, PROFIBUS, Modbus, BACnet, and others, allowing for integration into building management systems.

5. Performance Range and Customization

Wide Operating Range: Flow rates up to 2,000 m³/h, heads up to 300 m, and power ratings from 0.55 to 250 kW (medium-speed motors at 4,000 RPM; low-speed motors at 2,000/2,200 RPM).
Customization Options: Available options include heavy-duty bearings, specialized shaft seals (e.g., double mechanical seals), and extended couplings to meet requirements for high-pressure or corrosive fluids.

6. Environmental Protection and Compliance

Low-Noise Design: Sound pressure levels comply with ISO 3743 standards; maximum 72 dB(A) for 2-pole motors.
Energy Efficiency Certification: Complies with EU MEI ≥ 0.4 standards (MEI ≥ 0.7 for select models) and meets EuP Directive and ISO 5199 mechanical standards.

7. Ease of Installation and Maintenance

Modular Baseplate: Supports grouted installation; vibration-dampening designs available; flanges comply with EN 1092-2/ASME standards.
Maintenance-Friendly: Long service life for mechanical seals; bearings are lubricated for life (re-lubrication options available for select models).

Parameters

model

Voltage/

Frequency

 Flow rate (m³/h) Head (m) Power (kW) caliber
NKE 32-130.1/142 380V/50Hz 30.46 35.03 4 50×32
NKE 32-130.1/142 380V/50Hz 27.68 28.91 3 50×32
NKE 32-130.1/142 380V/50Hz 20.95 16.57 1.5 50×32
NKE 32-130.1/142 380V/50Hz 17.91 12.11 1.1 50×32
NKE 32-130.1/144 380V/50Hz 24.42 24.28 2.2 50×32
NKE 32-130.1/144 380V/50Hz 32.9 44.06 5.5 50×32
NKE 32-130/121 380V/50Hz 21.46 12.78 1.1 50×32
NKE 32-130/142 380V/50Hz 17.11 8.76 0.55 50×32
NKE 32-130/142 380V/50Hz 18.97 10.78 0.75 50×32
NKE 32-130/142 380V/50Hz 23.23 14.73 1.5 50×32
NKE 32-130/142 380V/50Hz 27.97 21.36 2.2 50×32
NKE 32-130/142 380V/50Hz 31.24 26.66 3 50×32
NKE 32-130/142 380V/50Hz 34.39 32.3 4 50×32
NKE 32-130/142 380V/50Hz 38.24 39.94 5.5 50×32
NKE 32-130/142 380V/50Hz 39.27 42.11 7.5 50×32
NKE 32-165.1/177 380V/50Hz 24.14 37.93 4 50×32
NKE 32-165.1/177 380V/50Hz 30.67 61.24 11 50×32
NKE 32-165.1/177 380V/50Hz 29.76 57.67 7.5 50×32
NKE 32-165.1/177 380V/50Hz 26.84 46.9 5.5 50×32
NKE 32-165.1/177 380V/50Hz 16 15.36 1.1 50×32
NKE 32-165.1/177 380V/50Hz 21.57 30.3 3 50×32
NKE 32-165.1/177 380V/50Hz 18.66 22.66 2.2 50×32
NKE 32-165.1/177 380V/50Hz 15.33 15.3 1.5 50×32
NKE 32-165.1/177 380V/50Hz 14.14 11.99 0.75 50×32
NKE 32-165.1/177 380V/50Hz 12.75 9.75 0.55 50×32
NKE 32-180/142 380V/50Hz 18.73 16.9 1.5 50×32
NKE 32-180/177 380V/50Hz 39.58 68.82 11 50×32
NKE 32-180/177 380V/50Hz 35.59 55.64 7.5 50×32
NKE 32-180/177 380V/50Hz 28.86 36.59 4 50×32
NKE 32-180/177 380V/50Hz 32.09 45.25 5.5 50×32
NKE 32-180/177 380V/50Hz 21.5 20.31 2.2 50×32
NKE 32-180/177 380V/50Hz 15.29 8.99 0.55 50×32
NKE 32-180/177 380V/50Hz 19.27 14.27 1.1 50×32
NKE 32-180/177 380V/50Hz 24.97 27.4 3 50×32
NKE 32-180/177 380V/50Hz 16.96 11.06 0.75 50×32
NKE 32-205.1/176 380V/50Hz 21.13 28.81 3 50×32
NKE 32-205.1/204 380V/50Hz 11.73 8.99 0.55 50×32
NKE 32-205.1/205 380V/50Hz 21.72 35.82 4 50×32
NKE 32-205.1/205 380V/50Hz 24.75 46.5 5.5 50×32
NKE 32-205.1/205 380V/50Hz 27.45 57.18 7.5 50×32
NKE 32-205.1/205 380V/50Hz 31.18 73.81 11 50×32
NKE 32-205.1/207 380V/50Hz 13.29 11.76 0.75 50×32
NKE 32-205.1/207 380V/50Hz 15.1 15.18 1.1 50×32
NKE 32-205.1/207 380V/50Hz 16.74 18.67 1.5 50×32
NKE 32-205.1/207 380V/50Hz 19.02 24.1 2.2 50×32
NKE 40-130/130 380V/50Hz 28.43 8.63 1.1 65×40
NKE 40-130/130 380V/50Hz 27.3 7.95 0.75 65×40
NKE 40-130/130 380V/50Hz 24.62 6.47 0.55 65×40
NKE 40-130/140 380V/50Hz 36.21 14.48 2.2 65×40
NKE 40-130/140 380V/50Hz 41.81 19.3 3 65×40
NKE 40-130/140 380V/50Hz 47.46 24.87 4 65×40
NKE 40-130/140 380V/50Hz 52.77 30.75 5.5 65×40
NKE 40-130/140 380V/50Hz 58.52 37.81 7.5 65×40
NKE 40-130/140 380V/50Hz 62.13 42.61 11 65×40
NKE 40-130/142 380V/50Hz 31.69 11.1 1.5 65×40
NKE 40-220/172 380V/50Hz 32.12 38.6 5.5 65×40
NKE 40-220/179 380V/50Hz 14.3 7.83 0.55 65×40
NKE 40-220/192 380V/50Hz 37.14 45.63 7.5 65×40
NKE 40-220/200 380V/50Hz 16.46 9.12 0.75 65×40
NKE 40-220/218 380V/50Hz 19.99 11.23 1.1 65×40
NKE 40-220/224 380V/50Hz 41.36 60.55 11 65×40
NKE 40-220/244 380V/50Hz 51.94 114.6 26 65×40
NKE 40-220/250 380V/50Hz 43.83 78.32 15 65×40
NKE 40-220/250 380V/50Hz 47 90.08 18.5 65×40
NKE 40-220/250 380V/50Hz 19.56 16.05 1.5 65×40
NKE 40-220/250 380V/50Hz 22.84 21.87 2.2 65×40
NKE 40-220/250 380V/50Hz 49.8 101.1 22 65×40
NKE 40-220/250 380V/50Hz 25.33 26.89 3 65×40
NKE 40-220/250 380V/50Hz 27.88 32.58 4 65×40
NKE 50-130/134 380V/50Hz 38.67 4.07 0.55 65×50
NKE 50-130/135 380V/50Hz 63.25 11.27 3 65×50
NKE 50-130/138 380V/50Hz 62.33 10.8 2.2 65×50
NKE 50-130/138 380V/50Hz 54.86 8.37 1.5 65×50
NKE 50-130/138 380V/50Hz 49.47 6.8 1.1 65×50
NKE 50-130/138 380V/50Hz 43.54 5.27 0.75 65×50
NKE 50-130/142 380V/50Hz 69.93 14.09 4 65×50
NKE 50-130/142 380V/50Hz 81.11 18.95 5.5 65×50
NKE 50-130/142 380V/50Hz 92.18 24.46 7.5 65×50
NKE 50-130/142 380V/50Hz 104.7 31.58 11 65×50
NKE 50-130/142 380V/50Hz 116.1 38.83 15 65×50
NKE 50-280/219 380V/50Hz 77.61 47.75 15 65×50
NKE 50-280/239 380V/50Hz 86.76 50.82 18.5 65×50
NKE 50-280/241 380V/50Hz 40.87 12.56 2.2 65×50
NKE 50-280/250 380V/50Hz 46.7 16.3 3 65×50
NKE 50-280/251 380V/50Hz 90.05 59.93 22 65×50
NKE 50-280/262 380V/50Hz 53.63 20.38 4 65×50
NKE 50-280/262 380V/50Hz 66.13 30.99 7.5 65×50
NKE 50-280/262 380V/50Hz 75.13 40.01 11 65×50
NKE 50-280/262 380V/50Hz 59.63 25.2 5.5 65×50
NKE 50-350/236 380V/50Hz 37.95 19.12 3 65×50
NKE 50-350/256 380V/50Hz 43.15 22.39 4 65×50
NKE 50-350/304 380V/50Hz 48.38 26.36 5.5 65×50
NKE 50-350/304 380V/50Hz 54.65 33.64 7.5 65×50
NKE 50-350/340-336 380V/50Hz 69.77 38.98 11 65×50
NKE 65-130/131 380V/50Hz 45.99 2.99 0.55 80×65
NKE 65-130/133 380V/50Hz 53.01 3.98 0.75 80×65
NKE 65-130/141 380V/50Hz 61.32 5.42 1.1 80×65
NKE 65-130/141 380V/50Hz 68 6.67 1.5 80×65
NKE 65-130/141 380V/50Hz 77.26 8.61 2.2 80×65
NKE 65-130/141 380V/50Hz 85.68 10.59 3 80×65
NKE 65-130/144 380V/50Hz 162.2 34.39 18.5 80×65
NKE 65-130/144 380V/50Hz 171.8 38.6 22 80×65
NKE 65-130/144 380V/50Hz 100.4 13.2 5.5 80×65
NKE 65-130/144 380V/50Hz 116.6 17.79 7.5 80×65
NKE 65-130/144 380V/50Hz 136.4 24.31 11 80×65
NKE 65-130/144 380V/50Hz 85.8 9.63 4 80×65
NKE 65-130/144 380V/50Hz 151.2 29.9 15 80×65
NKE 65-180/139 380V/50Hz 60.15 17.29 4 80×65
NKE 65-180/141 380V/50Hz 31.97 4.63 0.55 80×65
NKE 65-180/159 380V/50Hz 66.27 21.21 5.5 80×65
NKE 65-180/172 380V/50Hz 75.82 25.63 7.5 80×65
NKE 65-180/172 380V/50Hz 100.5 45.07 15 80×65
NKE 65-180/172 380V/50Hz 90.67 36.65 11 80×65
NKE 65-180/172 380V/50Hz 51.03 13.16 2.2 80×65
NKE 65-180/172 380V/50Hz 56.59 16.19 3 80×65
NKE 65-180/172 380V/50Hz 32.81 5.44 0.75 80×65
NKE 65-180/172 380V/50Hz 44.92 10.2 1.5 80×65
NKE 65-180/172 380V/50Hz 39.59 7.92 1.1 80×65
NKE 65-225/173 380V/50Hz 39.42 6.41 1.1 80×65
NKE 65-225/181 380V/50Hz 88.49 29.53 11 80×65
NKE 65-225/193 380V/50Hz 44.41 7.87 1.5 80×65
NKE 65-225/200 380V/50Hz 103.3 36.62 15 80×65
NKE 65-225/216 380V/50Hz 104.1 46.86 18.5 80×65
NKE 65-225/234 380V/50Hz 48.24 10.99 2.2 80×65
NKE 65-225/242 380V/50Hz 62.07 18.76 4 80×65
NKE 65-225/242 380V/50Hz 69.02 23.2 5.5 80×65
NKE 65-225/242 380V/50Hz 76.54 28.53 7.5 80×65
NKE 65-225/242 380V/50Hz 107.2 51.96 22 80×65
NKE 65-225/242 380V/50Hz 54.8 14.63 3 80×65
NKE 65-280/240 380V/50Hz 55.88 13.36 3 80×65
NKE 65-280/240 380V/50Hz 63.8 17.41 4 80×65
NKE 65-280/270 380V/50Hz 65.71 23.24 5.5 80×65
NKE 65-280/280 380V/50Hz 93.14 44.72 15 80×65
NKE 65-280/280 380V/50Hz 83.99 36.36 11 80×65
NKE 65-280/280 380V/50Hz 73.93 28.17 7.5 80×65
NKE 80-180/141 380V/50Hz 94.55 14.5 5.5 100×80
NKE 80-180/145 380V/50Hz 48.79 3.91 0.75 100×80
NKE 80-180/153 380V/50Hz 103.7 19.02 7.5 100×80
NKE 80-180/174 380V/50Hz 117.1 25.72 11 100×80
NKE 80-180/174 380V/50Hz 153.8 44.4 22 100×80
NKE 80-180/174 380V/50Hz 145.2 39.56 18.5 100×80
NKE 80-180/174 380V/50Hz 135.4 34.4 15 100×80
NKE 80-180/174 380V/50Hz 72.37 9.61 2.2 100×80
NKE 80-180/174 380V/50Hz 88.33 14.31 4 100×80
NKE 80-180/174 380V/50Hz 80.25 11.81 3 100×80
NKE 80-180/174 380V/50Hz 61.94 7.04 1.5 100×80
NKE 80-180/174 380V/50Hz 53.36 5.22 1.1 100×80
NKE 80-225/157 380V/50Hz 69.43 5.14 1.5 100×80
NKE 80-225/171 380V/50Hz 79.7 7.04 2.2 100×80
NKE 80-225/183 380V/50Hz 155.6 30.81 18.5 100×80
NKE 80-225/183 380V/50Hz 168.7 36.2 22 100×80
NKE 80-225/190 380V/50Hz 87.87 9.27 3 100×80
NKE 80-225/191 380V/50Hz 100 12.04 4 100×80
NKE 80-225/225 380V/50Hz 106 15.87 5.5 100×80
NKE 80-225/225 380V/50Hz 134.4 25.49 11 100×80
NKE 80-225/225 380V/50Hz 149 31.35 15 100×80
NKE 80-225/225 380V/50Hz 118.3 19.75 7.5 100×80
NKE 80-280/247-239 380V/50Hz 73.83 13.83 4 100×80
NKE 80-280/278-270 380V/50Hz 82.94 17.42 5.5 100×80
NKE 80-280/278-270 380V/50Hz 96.13 23.41 7.5 100×80
NKE 80-280/278-270 380V/50Hz 109.2 30.21 11 100×80
NKE 80-350/250 380V/50Hz 83.82 16.52 5.5 100×80
NKE 80-350/284 380V/50Hz 96.02 19.35 7.5 100×80
NKE 80-350/284 380V/50Hz 114.8 27.66 11 100×80
NKE 80-350/328 380V/50Hz 149.1 43.07 22 100×80
NKE 80-350/328 380V/50Hz 140.7 38.37 18.5 100×80
NKE 80-350/328 380V/50Hz 130.9 33.18 15 100×80
NKE 100-180/141 380V/50Hz 154.4 11.93 7.5 125×100
NKE 100-180/144 380V/50Hz 80.78 3.45 1.1 125×100
NKE 100-180/146 380V/50Hz 178.3 17.68 11 125×100
NKE 100-180/160 380V/50Hz 86.44 4.65 1.5 125×100
NKE 100-180/172 380V/50Hz 182.6 22.78 15 125×100
NKE 100-180/172 380V/50Hz 202.5 28.02 18.5 125×100
NKE 100-180/172 380V/50Hz 215.9 31.84 22 125×100
NKE 100-180/174 380V/50Hz 130.7 13.09 5.5 125×100
NKE 100-180/174 380V/50Hz 117.5 10.59 4 125×100
NKE 100-180/174 380V/50Hz 106.8 8.74 3 125×100
NKE 100-180/174 380V/50Hz 94.3 6.78 2.2 125×100
NKE 100-225/181 380V/50Hz 118.1 6.43 3 125×100
NKE 100-225/204 380V/50Hz 124.6 8.88 4 125×100
NKE 100-225/210 380V/50Hz 140.6 12.1 5.5 125×100
NKE 100-225/235 380V/50Hz 155.4 15.19 7.5 125×100
NKE 100-225/235 380V/50Hz 176.5 19.61 11 125×100
NKE 100-225/235 380V/50Hz 195.8 24.12 15 125×100
NKE 125-180/144-116 380V/50Hz 269 10.2 11 150×125
NKE 125-180/152-136 380V/50Hz 119.6 3.38 1.5 150×125
NKE 125-180/154 380V/50Hz 243 18.63 15 150×125
NKE 125-180/160 380V/50Hz 266.8 21.37 18.5 150×125
NKE 125-180/176 380V/50Hz 117.7 4.87 2.2 150×125
NKE 125-180/176 380V/50Hz 170 10.15 5.5 150×125
NKE 125-180/176 380V/50Hz 136.6 6.56 3 150×125
NKE 125-180/176 380V/50Hz 152.9 8.21 4 150×125
NKE 125-180/176 380V/50Hz 188.5 12.48 7.5 150×125
NKE 125-180/176 380V/50Hz 260.6 24.46 22 150×125
NKE 125-225/185 380V/50Hz 228.1 6.7 5.5 150×125
NKE 125-225/207 380V/50Hz 231.4 9.85 7.5 150×125
NKE 125-225/232 380V/50Hz 312.2 22.92 22 150×125
NKE 125-225/232 380V/50Hz 294.6 20.42 18.5 150×125
NKE 125-225/232 380V/50Hz 247.8 14.44 11 150×125
NKE 125-225/232 380V/50Hz 274.7 17.76 15 150×125
NKE 150-225/186 380V/50Hz 293.1 5.33 5.5 150×125
NKE 150-225/202 380V/50Hz 307.1 7.22 7.5 150×125
NKE 150-225/224 380V/50Hz 331.7 10.41 11 150×125
NKE 150-225/242 380V/50Hz 352.5 13.9 15 150×125
NKE 150-225/242 380V/50Hz 378 15.99 18.5 150×125
NKE 150-225/242 380V/50Hz 400.5 17.94 22 150×125
NKE 200-350/239 380V/50Hz 501.8 11.82 22 150×125
NKE 200-350/239 380V/50Hz 281.4 3.72 11 150×125
NKE 200-350/239 380V/50Hz 376.8 6.67 15 150×125
NKE 200-350/239 380V/50Hz 464.9 10.15 18.5 150×125
NKE 250-315/260-210 380V/50Hz 315.1 3.24 11 150×125
NKE 250-315/260-210 380V/50Hz 424.9 5.89 15 150×125
NKE 250-315/260-210 380V/50Hz 593.9 11.51 22 150×125
NKE 250-315/260-210 380V/50Hz 522.5 8.91 18.5 150×125
NKE 32-130.1/142 380V/50Hz 30.46 35.03 4 50×32
NKE 32-130.1/142 380V/50Hz 17.91 12.11 1.1 50×32
NKE 32-130.1/142 380V/50Hz 20.95 16.57 1.5 50×32
NKE 32-130.1/142 380V/50Hz 27.68 28.91 3 50×32
NKE 32-130.1/144 380V/50Hz 24.42 24.28 2.2 50×32
NKE 32-130.1/144 380V/50Hz 32.9 44.06 5.5 50×32
NKE 32-130/121 380V/50Hz 21.46 12.78 1.1 50×32
NKE 32-130/142 380V/50Hz 34.39 32.3 4 50×32
NKE 32-130/142 380V/50Hz 39.27 42.11 7.5 50×32
NKE 32-130/142 380V/50Hz 38.24 39.94 5.5 50×32
NKE 32-130/142 380V/50Hz 27.97 21.36 2.2 50×32
NKE 32-130/142 380V/50Hz 31.24 26.66 3 50×32
NKE 32-130/142 380V/50Hz 23.23 14.73 1.5 50×32
NKE 32-130/142 380V/50Hz 18.97 10.78 0.75 50×32
NKE 32-130/142 380V/50Hz 17.11 8.76 0.55 50×32
NKE 32-165.1/177 380V/50Hz 24.14 37.93 4 50×32
NKE 32-165.1/177 380V/50Hz 30.67 61.24 11 50×32
NKE 32-165.1/177 380V/50Hz 29.76 57.67 7.5 50×32
NKE 32-165.1/177 380V/50Hz 26.84 46.9 5.5 50×32
NKE 32-165.1/177 380V/50Hz 14.14 11.99 0.75 50×32
NKE 32-165.1/177 380V/50Hz 21.57 30.3 3 50×32
NKE 32-165.1/177 380V/50Hz 18.66 22.66 2.2 50×32
NKE 32-165.1/177 380V/50Hz 15.33 15.3 1.5 50×32
NKE 32-165.1/177 380V/50Hz 16 15.36 1.1 50×32
NKE 32-165.1/177 380V/50Hz 12.75 9.75 0.55 50×32
NKE 32-180/142 380V/50Hz 18.73 16.9 1.5 50×32
NKE 32-180/177 380V/50Hz 28.86 36.59 4 50×32
NKE 32-180/177 380V/50Hz 39.58 68.82 11 50×32
NKE 32-180/177 380V/50Hz 35.59 55.64 7.5 50×32
NKE 32-180/177 380V/50Hz 32.09 45.25 5.5 50×32
NKE 32-180/177 380V/50Hz 16.96 11.06 0.75 50×32
NKE 32-180/177 380V/50Hz 24.97 27.4 3 50×32
NKE 32-180/177 380V/50Hz 21.5 20.31 2.2 50×32
NKE 32-180/177 380V/50Hz 19.27 14.27 1.1 50×32
NKE 32-180/177 380V/50Hz 15.29 8.99 0.55 50×32
NKE 32-205.1/176 380V/50Hz 21.13 28.81 3 50×32
NKE 32-205.1/204 380V/50Hz 11.73 8.99 0.55 50×32
NKE 32-205.1/205 380V/50Hz 21.72 35.82 4 50×32
NKE 32-205.1/205 380V/50Hz 24.75 46.5 5.5 50×32
NKE 32-205.1/205 380V/50Hz 27.45 57.18 7.5 50×32
NKE 32-205.1/205 380V/50Hz 31.18 73.81 11 50×32
NKE 32-205.1/207 380V/50Hz 19.02 24.1 2.2 50×32
NKE 32-205.1/207 380V/50Hz 16.74 18.67 1.5 50×32
NKE 32-205.1/207 380V/50Hz 15.1 15.18 1.1 50×32
NKE 32-205.1/207 380V/50Hz 13.29 11.76 0.75 50×32
NKE 40-130/130 380V/50Hz 24.62 6.47 0.55 65×40
NKE 40-130/130 380V/50Hz 27.3 7.95 0.75 65×40
NKE 40-130/130 380V/50Hz 28.43 8.63 1.1 65×40
NKE 40-130/140 380V/50Hz 36.21 14.48 2.2 65×40
NKE 40-130/140 380V/50Hz 41.81 19.3 3 65×40
NKE 40-130/140 380V/50Hz 47.46 24.87 4 65×40
NKE 40-130/140 380V/50Hz 52.77 30.75 5.5 65×40
NKE 40-130/140 380V/50Hz 62.13 42.61 11 65×40
NKE 40-130/140 380V/50Hz 58.52 37.81 7.5 65×40
NKE 40-130/142 380V/50Hz 31.69 11.1 1.5 65×40
NKE 40-220/179 380V/50Hz 14.3 7.83 0.55 65×40
NKE 40-220/200 380V/50Hz 16.46 9.12 0.75 65×40
NKE 40-220/218 380V/50Hz 19.99 11.23 1.1 65×40
NKE 40-220/250 380V/50Hz 19.56 16.05 1.5 65×40
NKE 40-220/250 380V/50Hz 22.84 21.87 2.2 65×40
NKE 40-220/250 380V/50Hz 25.33 26.89 3 65×40
NKE 40-220/250 380V/50Hz 27.88 32.58 4 65×40
NKE 50-130/134 380V/50Hz 38.67 4.07 0.55 65×50
NKE 50-130/135 380V/50Hz 63.25 11.27 3 65×50
NKE 50-130/138 380V/50Hz 54.86 8.37 1.5 65×50
NKE 50-130/138 380V/50Hz 62.33 10.8 2.2 65×50
NKE 50-130/138 380V/50Hz 49.47 6.8 1.1 65×50
NKE 50-130/138 380V/50Hz 43.54 5.27 0.75 65×50
NKE 50-130/142 380V/50Hz 69.93 14.09 4 65×50
NKE 50-130/142 380V/50Hz 81.11 18.95 5.5 65×50
NKE 50-130/142 380V/50Hz 92.15 24.46 7.5 65×50
NKE 50-130/142 380V/50Hz 104.7 31.58 11 65×50
NKE 50-130/142 380V/50Hz 116.1 38.83 15 65×50
NKE 50-280/241 380V/50Hz 40.87 12.56 2.2 65×50
NKE 50-280/250 380V/50Hz 46.7 16.3 3 65×50
NKE 50-280/262 380V/50Hz 53.63 20.38 4 65×50
NKE 50-280/262 380V/50Hz 66.13 30.99 7.5 65×50
NKE 50-280/262 380V/50Hz 59.63 25.2 5.5 65×50
NKE 50-280/262 380V/50Hz 75.13 40.01 11 65×50
NKE 50-350/236 380V/50Hz 37.95 19.12 3 80×50
NKE 50-350/256 380V/50Hz 43.15 22.39 4 80×50
NKE 50-350/304 380V/50Hz 48.38 26.36 5.5 80×50
NKE 50-350/304 380V/50Hz 54.65 33.64 7.5 80×50
NKE 50-350/340-336 380V/50Hz 69.77 38.98 11 80×50
NKE 65-130/131 380V/50Hz 45.99 2.99 0.55 80×65
NKE 65-130/133 380V/50Hz 53.01 3.98 0.75 80×65
NKE 65-130/141 380V/50Hz 77.26 8.61 2.2 80×65
NKE 65-130/141 380V/50Hz 85.68 10.59 3 80×65
NKE 65-130/141 380V/50Hz 68 6.67 1.5 80×65
NKE 65-130/141 380V/50Hz 61.32 5.42 1.1 80×65
NKE 65-130/144 380V/50Hz 85.8 9.63 4 80×65
NKE 65-130/144 380V/50Hz 100.4 13.2 5.5 80×65
NKE 65-130/144 380V/50Hz 116.6 17.79 7.5 80×65
NKE 65-130/144 380V/50Hz 136.4 24.31 11 80×65
NKE 65-130/144 380V/50Hz 151.2 29.9 15 80×65
NKE 65-130/144 380V/50Hz 162.2 34.39 18.5 80×65
NKE 65-130/144 380V/50Hz 171.8 38.6 22 80×65
NKE 65-180/139 380V/50Hz 60.15 17.29 4 80×65
NKE 65-180/141 380V/50Hz 31.97 4.63 0.55 80×65
NKE 65-180/159 380V/50Hz 66.27 21.21 5.5 80×65
NKE 65-180/172 380V/50Hz 32.81 5.44 0.75 80×65
NKE 65-180/172 380V/50Hz 90.67 36.65 11 80×65
NKE 65-180/172 380V/50Hz 39.59 7.92 1.1 80×65
NKE 65-180/172 380V/50Hz 100.5 45.07 15 80×65
NKE 65-180/172 380V/50Hz 51.03 13.16 2.2 80×65
NKE 65-180/172 380V/50Hz 75.82 25.63 7.5 80×65
NKE 65-180/172 380V/50Hz 44.92 10.2 1.5 80×65
NKE 65-180/172 380V/50Hz 56.59 16.19 3 80×65
NKE 65-225/173 380V/50Hz 39.42 6.41 1.1 80×65
NKE 65-225/193 380V/50Hz 44.41 7.87 1.5 80×65
NKE 65-225/234 380V/50Hz 48.24 10.99 2.2 80×65
NKE 65-225/242 380V/50Hz 54.8 14.63 3 80×65
NKE 65-225/242 380V/50Hz 62.07 18.76 4 80×65
NKE 65-225/242 380V/50Hz 69.02 23.2 5.5 80×65
NKE 65-225/242 380V/50Hz 76.54 28.53 7.5 80×65
NKE 65-280/240 380V/50Hz 55.88 13.36 3 80×65
NKE 65-280/240 380V/50Hz 63.8 17.41 4 80×65
NKE 65-280/270 380V/50Hz 65.71 23.24 5.5 80×65
NKE 65-280/280 380V/50Hz 73.93 28.17 7.5 80×65
NKE 65-280/280 380V/50Hz 93.14 44.72 15 80×65
NKE 65-280/280 380V/50Hz 83.99 36.36 11 80×65
NKE 80-180/141 380V/50Hz 94.55 14.5 5.5 100×80
NKE 80-180/145 380V/50Hz 48.79 3.91 0.75 100×80
NKE 80-180/153 380V/50Hz 103.7 19.02 7.5 100×80
NKE 80-180/174 380V/50Hz 153.8 44.4 22 100×80
NKE 80-180/174 380V/50Hz 117.1 25.72 11 100×80
NKE 80-180/174 380V/50Hz 145.2 39.56 18.5 100×80
NKE 80-180/174 380V/50Hz 135.4 34.4 15 100×80
NKE 80-180/174 380V/50Hz 88.3 14.31 4 100×80
NKE 80-180/174 380V/50Hz 80.25 11.81 3 100×80
NKE 80-180/174 380V/50Hz 72.37 9.61 2.2 100×80
NKE 80-180/174 380V/50Hz 61.94 7.04 1.5 100×80
NKE 80-180/174 380V/50Hz 53.36 5.22 1.1 100×80
NKE 80-225/157 380V/50Hz 69.43 5.14 1.5 100×80
NKE 80-225/171 380V/50Hz 79.7 7.04 2.2 100×80
NKE 80-225/183 380V/50Hz 155.6 30.81 18.5 100×80
NKE 80-225/183 380V/50Hz 168.7 36.2 22 100×80
NKE 80-225/190 380V/50Hz 87.87 9.27 3 100×80
NKE 80-225/191 380V/50Hz 100 12.04 4 100×80
NKE 80-225/225 380V/50Hz 134.4 25.49 11 100×80
NKE 80-225/225 380V/50Hz 149 31.35 15 100×80
NKE 80-225/225 380V/50Hz 106 15.87 5.5 100×80
NKE 80-225/225 380V/50Hz 118.3 19.75 7.5 100×80
NKE 80-280/247-239 380V/50Hz 73.83 13.83 4 100×80
NKE 80-280/278-270 380V/50Hz 82.94 17.42 5.5 100×80
NKE 80-280/278-270 380V/50Hz 96.13 23.41 7.5 100×80
NKE 80-280/278-270 380V/50Hz 109.2 30.21 11 100×80
NKE 80-350/250 380V/50Hz 83.82 16.52 5.5 100×80
NKE 80-350/284 380V/50Hz 96.02 19.35 7.5 100×80
NKE 80-350/284 380V/50Hz 114.8 27.66 11 100×80
NKE 80-350/328 380V/50Hz 149.1 43.07 22 100×80
NKE 80-350/328 380V/50Hz 140.7 38.37 18.5 100×80
NKE 80-350/328 380V/50Hz 130.9 33.18 15 100×80
NKE 100-180/141 380V/50Hz 154.4 11.93 7.5 100×80
NKE 100-180/144 380V/50Hz 80.78 3.45 1.1 125×100
NKE 100-180/146 380V/50Hz 178.3 17.68 11 125×100
NKE 100-180/160 380V/50Hz 86.44 4.65 1.5 125×100
NKE 100-180/172 380V/50Hz 182.6 22.78 15 125×100
NKE 100-180/172 380V/50Hz 202.5 28.02 18.5 125×100
NKE 100-180/172 380V/50Hz 215.9 31.84 22 125×100
NKE 100-180/174 380V/50Hz 130.7 13.09 5.5 125×100
NKE 100-180/174 380V/50Hz 117.5 10.59 4 125×100
NKE 100-180/174 380V/50Hz 106.8 8.74 3 125×100
NKE 100-180/174 380V/50Hz 94.03 6.78 2.2 125×100
NKE 100-225/181 380V/50Hz 118.1 6.43 3 125×100
NKE 100-225/204 380V/50Hz 124.6 8.88 4 125×100
NKE 100-225/210 380V/50Hz 140.6 12.1 5.5 125×100
NKE 100-225/235 380V/50Hz 155.4 15.19 7.5 125×100
NKE 100-225/235 380V/50Hz 176.5 20.2 11 125×100
NKE 100-225/235 380V/50Hz 195.8 24.12 15 125×100
NKE 125-180/144-116 380V/50Hz 269 10.2 11 150×125
NKE 125-180/152-136 380V/50Hz 119.6 3.38 1.5 150×125
NKE 125-180/154 380V/50Hz 243 18.63 15 150×125
NKE 125-180/160 380V/50Hz 266.8 21.37 18.5 150×125
NKE 125-180/176 380V/50Hz 117.7 4.87 2.2 150×125
NKE 125-180/176 380V/50Hz 170 10.15 5.5 150×125
NKE 125-180/176 380V/50Hz 136.6 6.56 3 150×125
NKE 125-180/176 380V/50Hz 152.9 8.21 4 150×125
NKE 125-180/176 380V/50Hz 188.5 12.48 7.5 150×125
NKE 125-180/176 380V/50Hz 260.6 24.46 22 150×125
NKE 125-225/185 380V/50Hz 228.1 6.7 5.5 150×125
NKE 125-225/207 380V/50Hz 231.4 9.85 7.5 150×125
NKE 125-225/232 380V/50Hz 312.2 22.92 22 150×125
NKE 125-225/232 380V/50Hz 294.6 20.42 18.5 150×125
NKE 125-225/232 380V/50Hz 247.8 14.44 11 150×125
NKE 125-225/232 380V/50Hz 274.7 17.76 15 150×125
NKE 150-225/186 380V/50Hz 293.1 5.33 5.5 200×150
NKE 150-225/202 380V/50Hz 307.1 7.22 7.5 200×150
NKE 150-225/224 380V/50Hz 331.7 10.41 11 200×150
NKE 150-225/242 380V/50Hz 352.5 13.9 15 200×150
NKE 150-225/242 380V/50Hz 378 15.99 18.5 200×150
NKE 150-225/242 380V/50Hz 400.5 17.94 22 200×150
NKE 200-350/239 380V/50Hz 501.8 11.82 22 250×200
NKE 200-350/239 380V/50Hz 281.4 3.72 11 250×200
NKE 200-350/239 380V/50Hz 376.8 6.67 15 250×200
NKE 200-350/239 380V/50Hz 464.9 10.15 18.5 250×200
NKE 250-315/260-210 380V/50Hz 315.1 3.24 11 300×250
NKE 250-315/260-210 380V/50Hz 424.9 5.89 15 300×250
NKE 250-315/260-210 380V/50Hz 593.9 11.51 22 300×250
NKE 250-315/260-210 380V/50Hz 522.5 8.91 18.5 300×250

Size

Video Introduction

Message Inquiry

*
*
*
*
*
Submit
