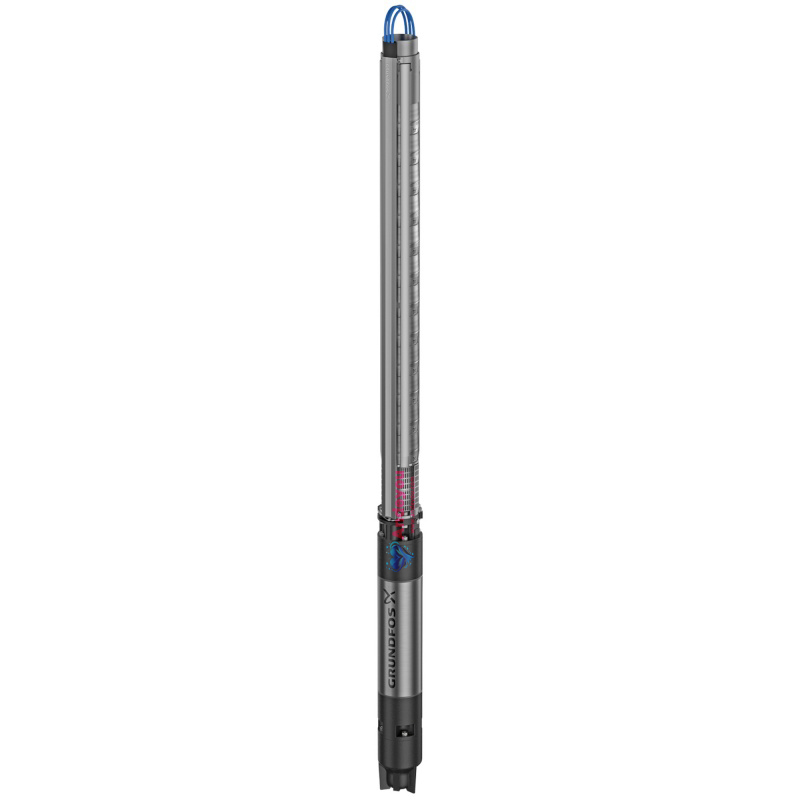

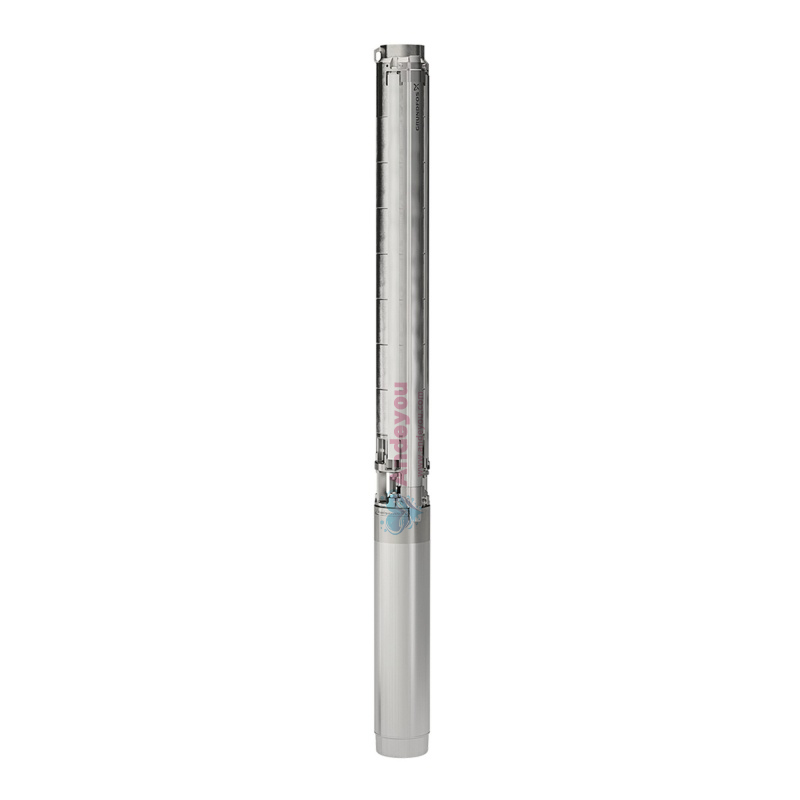

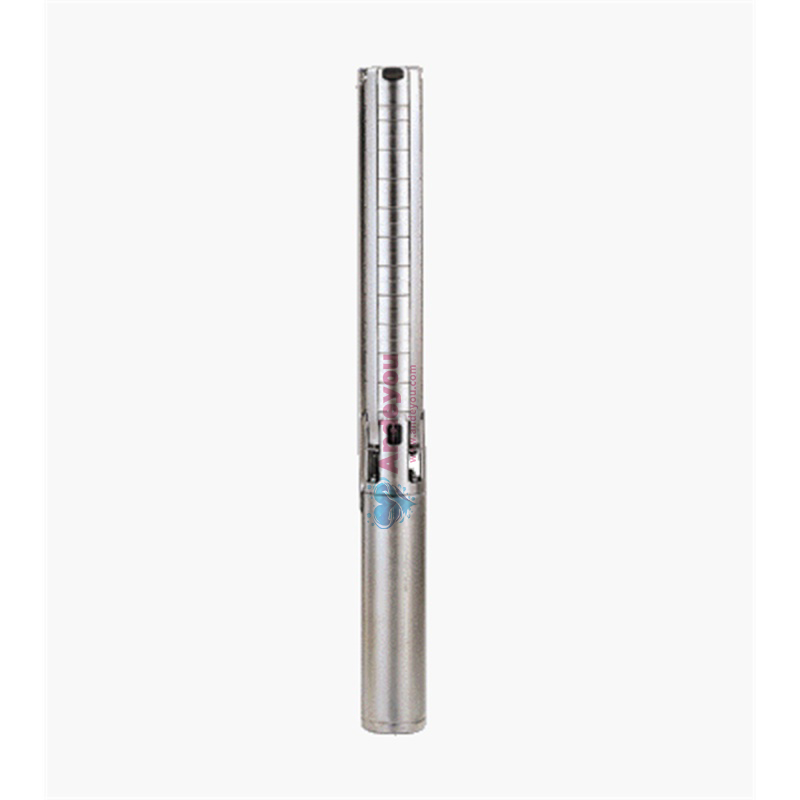

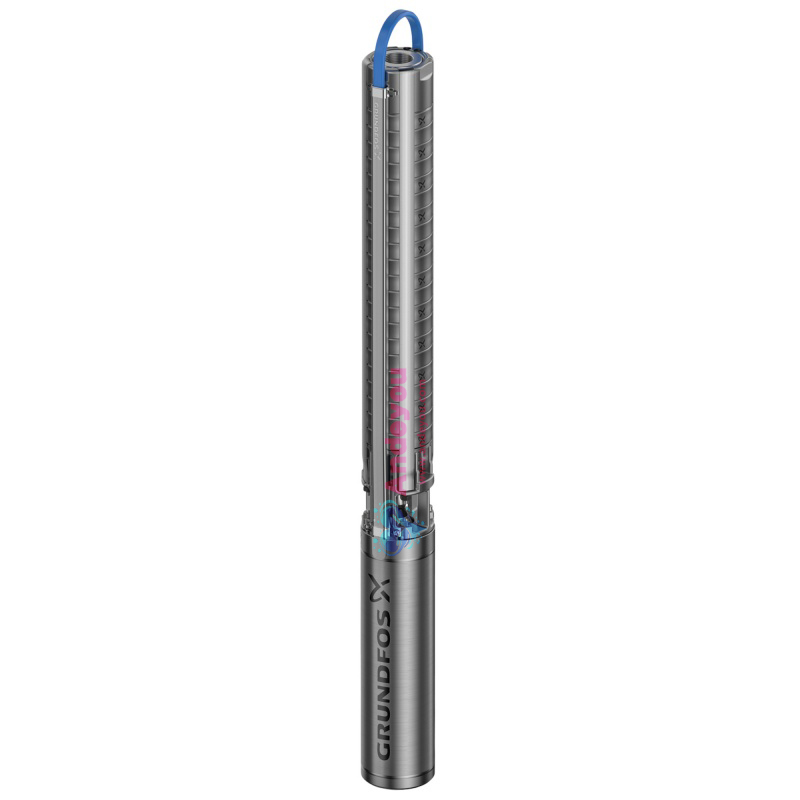

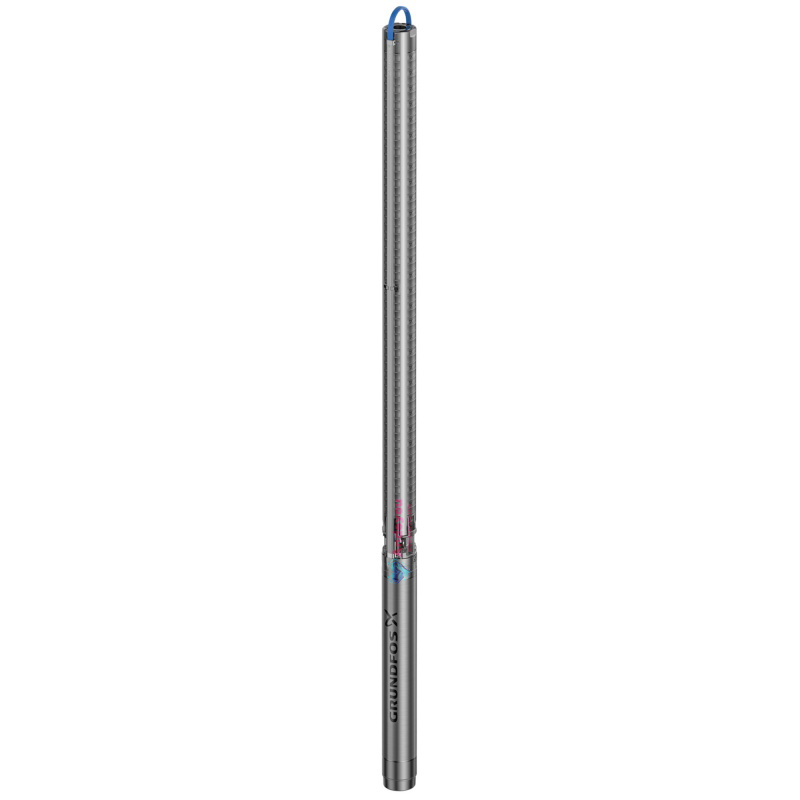

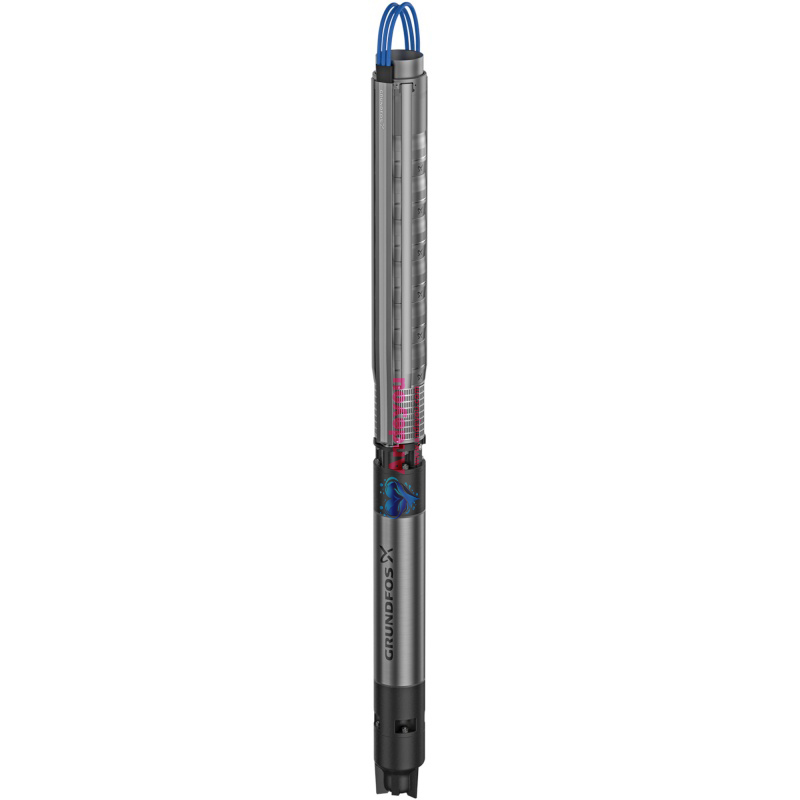

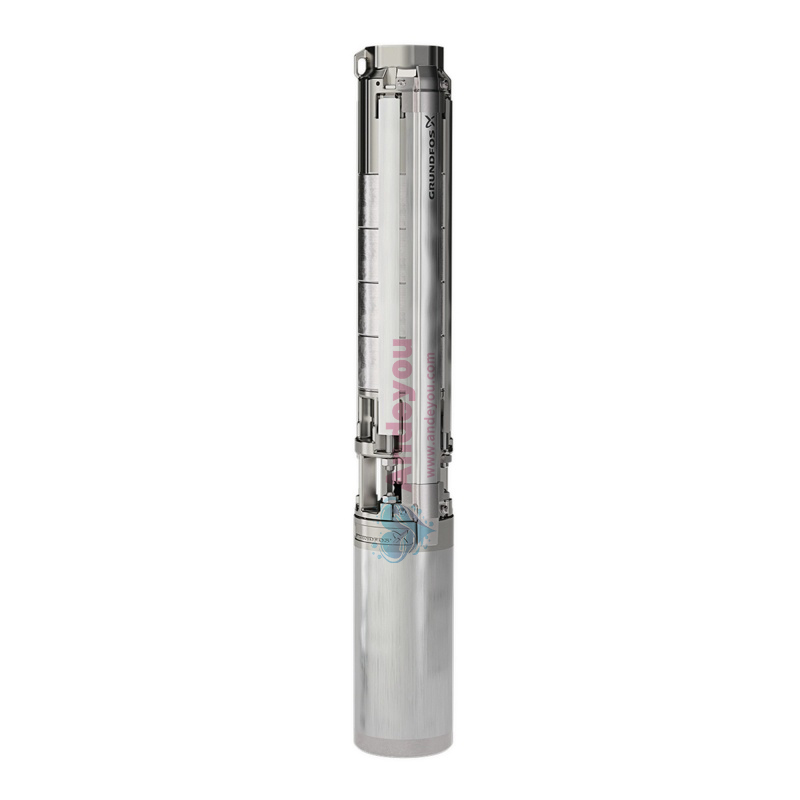

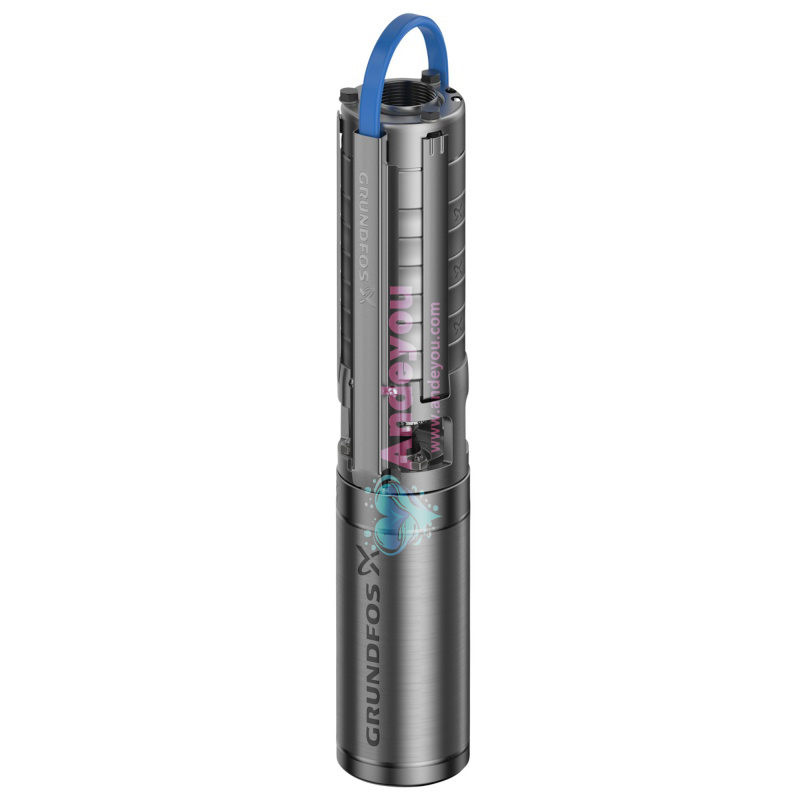

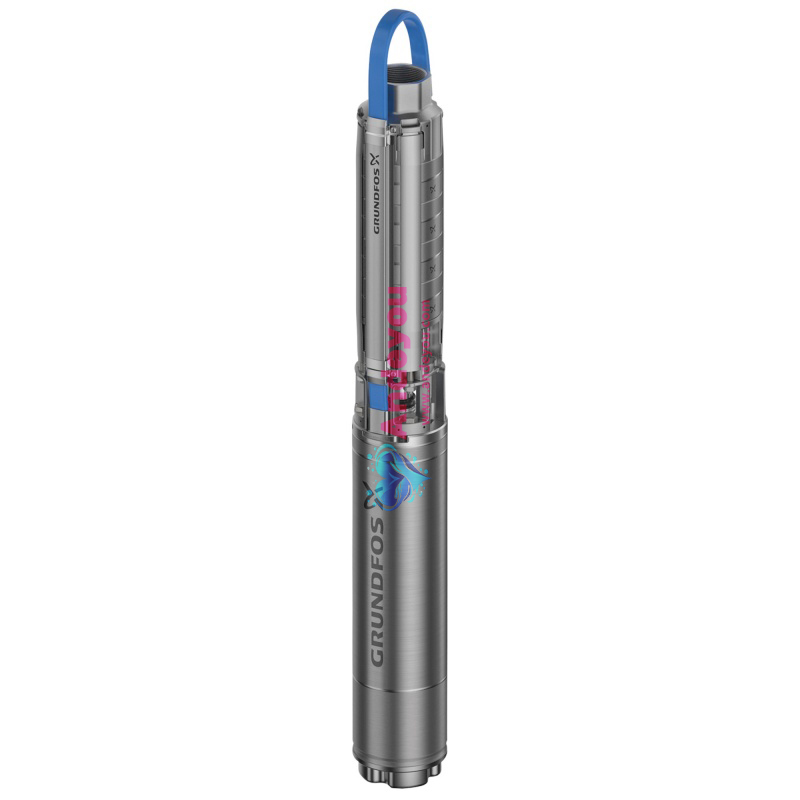

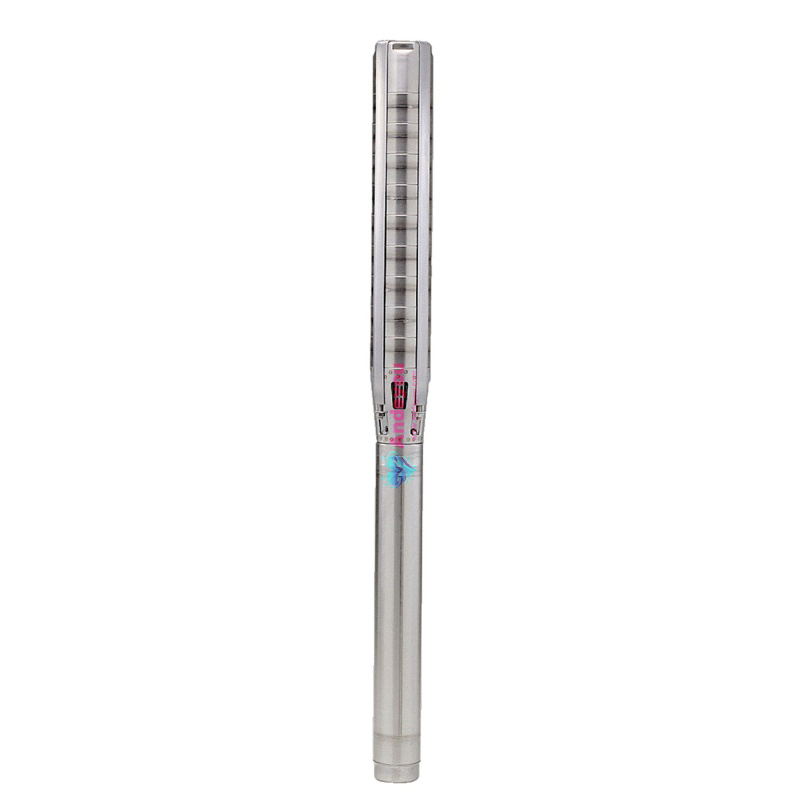

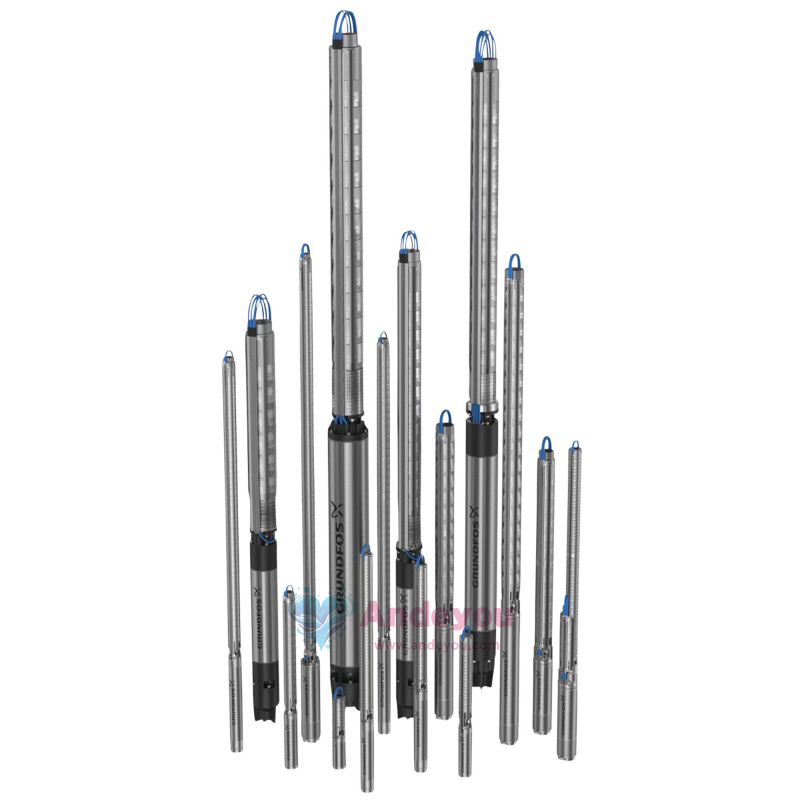

Grundfos SP Series Submersible Deep-Well Pumps

SP 1A-28、SP 1A-42、SP 1A-57、SP 2A-18、SP 2A-23、SP 2A-28、SP 2A-48、SP 3A-12、SP 3A-18、SP 3A-25、SP 3A-33、SP 3A-45、SP 5A-8、SP 5A-12、SP 5A-17、SP 5A-25、SP 5A-33、SP 5A-38、SP 7-42、SP 9-21、SP 9-40、SP 11-37、SP 14-17、SP 18-16、SP 30-12、

The Grundfos SP series of submersible deep-well pumps is designed for groundwater extraction,these pumps are highly energy-efficient,meeting international standards (MEI ≥ 0.4–0.7),and are suitable for applications such as raw water supply,irrigation,and industrial pressure boosting.Featuring an all-stainless steel construction (EN 1.4301/1.4401/1.4539) for superior corrosion resistance,they are capable of handling demanding operating conditions.
Product Consultation By telephone
Function
Parameters
Size
Video Introduction

Function

Product Overview

The Grundfos SP series consists of submersible multistage centrifugal pumps designed specifically for deep-well applications. Primarily used for extracting raw water from underground sources, they are suitable for a wide range of industrial and civil applications. Constructed from stainless steel and equipped with high-efficiency motors, these pumps offer outstanding performance and reliability.

Key Features

1. High Efficiency and Energy Savings

Optimized for energy efficiency in compliance with EU directives.
Features high-efficiency hydraulics and premium motors; selected models achieve an MEI (Minimum Efficiency Index) ≥ 0.70.
Significant energy savings compared to standard pumps; for example, a pump operating at a 100m head and 200m³/h flow rate for 10 years can save approximately €34,000 in electricity costs (at €0.10/kWh).

2. Materials and Construction

Available in various stainless steel grades:
SP Standard: EN 1.4301 stainless steel
SP N version: EN 1.4401 stainless steel (enhanced corrosion resistance)
SP R version: EN 1.4539 stainless steel (highest corrosion resistance)
Equipped with water-lubricated bearings and sand-flushing channels to prevent particle accumulation.
Built-in reliable check valve to prevent backflow and water hammer effects.
Start-up screw design prevents dry running and ensures continuous bearing lubrication.

3. Wide Range of Applications

Raw water supply
Agricultural irrigation
Groundwater level control
Pressure boosting systems
Fountain applications
Mining and offshore applications

4. Motor Features

Comprehensive motor range with power ratings from 0.37 kW to 250 kW.
High-efficiency design; some models exceed 80% efficiency.
Rewindable motor design for easy maintenance.
Industrial-grade T60 motors capable of handling liquids up to 60°C.
Built-in thermal protection to prevent overheating damage.

5. Operating Characteristics

Maximum operating pressure up to 6 MPa (60 bar).
Suitable for continuous or intermittent operation.
Low sound pressure levels; most models <70 dB(A).
Flow range: minimum 0.1x nominal flow to maximum 1.3x nominal flow.

Environmentally friendly models

Grundfos also offers the SP... The NE series of environmental pumps is specifically designed for corrosive and mildly contaminated liquids, featuring:

Check-valve-free design

FKM rubber components and ceramic/tungsten carbide seals
Suitability for special media, such as oil-contaminated liquids
Maximum sand content of 50 g/m³

Accessories and selection

Wide range of electrical accessories: variable frequency drives (VFDs), motor protection units, communication interfaces, etc.
Mechanical accessories: connection adapters, zinc anodes, flow sleeves, etc.
Precise model selection available via the Grundfos Product Center online tool

Renowned for their efficiency, reliability, and durability, SP series deep-well pumps are the ideal choice for groundwater extraction and transfer applications.

Parameters

model

Voltage/

Frequency

 Rated flow rate (m³/h) Rated head (m) Power (kW) caliber Rotational speed (r/min)
SP 1A-9 380V/50Hz 1 35 0.37 1 1/4 2800
SP 1A-14 380V/50Hz 1 55 0.37 1 1/4 2800
SP 1A-18 380V/50Hz 1 70 0.55 1 1/4 2800
SP 1A-21 380V/50Hz 1 82 0.55 1 1/4 2800
SP 1A-28 380V/50Hz 1 110 0.75 1 1/4 2800
SP 1A-42 380V/50Hz 1 146 1.1 1 1/4 2800
SP 1A-50 380V/50Hz 1 174 1.5 1 1/4 2800
SP 1A-57 380V/50Hz 1 199 1.5 1 1/4 2800
SP 2A-6 380V/50Hz 2 24 0.37 1 1/4 2800
SP 2A-9 380V/50Hz 2 36 0.37 1 1/4 2800
SP 2A-13 380V/50Hz 2 52 0.55 1 1/4 2800
SP 2A-18 380V/50Hz 2 72 0.75 1 1/4 2800
SP 2A-23 380V/50Hz 2 91 1.1 1 1/4 2800
SP 2A-28 380V/50Hz 2 111 1.5 1 1/4 2800
SP 2A-33 380V/50Hz 2 131 1.5 1 1/4 2800
SP 2A-40 380V/50Hz 2 159 2.2 1 1/4 2800
SP 2A-48 380V/50Hz 2 191 2.2 1 1/4 2800
SP 2A-55 380V/50Hz 2 219 3 1 1/4 2800
SP 3A-6 380V/50Hz 3 27 0.37 1 1/4 2800
SP 3A-6 N 380V/50Hz 3 28 0.75 1 1/4 2800
SP 3A-9 380V/50Hz 3 40 0.55 1 1/4 2800
SP 3A-12 380V/50Hz 3 53 0.75 1 1/4 2800
SP 3A-15 380V/50Hz 3 67 1.1 1 1/4 2800
SP 3A-18 380V/50Hz 3 80 1.1 1 1/4 2800
SP 3A-22 380V/50Hz 3 98 1.5 1 1/4 2800
SP 3A-25 380V/50Hz 3 111 1.5 1 1/4 2800
SP 3A-29 380V/50Hz 3 129 2.2 1 1/4 2800
SP 3A-33 380V/50Hz 3 147 2.2 1 1/4 2800
SP 3A-39 380V/50Hz 3 182 3 1 1/4 2800
SP 3A-45 380V/50Hz 3 210 3 1 1/4 2800
SP 5A-3 380V/50Hz 5 12 0.37 1 1/2 2800
SP 5A-4 380V/50Hz 5 16 0.37 1 1/2 2800
SP 5A-6 220V/50Hz 5 25 0.55 1 1/2 2800
SP 5A-8 220V/50Hz 5 33 0.75 1 1/2 2800
SP 5A-12 380V/50Hz 5 49 1.1 1 1/2 2800
SP 5A-17 380V/50Hz 5 70 1.5 1 1/2 2800
SP 5A-21 380V/50Hz 5 86 2.2 1 1/2 2800
SP 5A-25 380V/50Hz 5 102 2.2 1 1/2 2800
SP 5A-33 380V/50Hz 5 135 3 1 1/2 2800
SP 5A-38 220V/50Hz 5 155 4 1 1/2 2800
SP 5A-44 380V/50Hz 5 180 4 1 1/2 2800
SP 5A-60 380V/50Hz 5 245 5.5 1 1/2 2800
SP 7-3 380V/50Hz 7 13 0.55 1 1/2 2800
SP 7-5 380V/50Hz 7 22.3 0.75 1 1/2 2800
SP 7-8 380V/50Hz 7 36.2 1.1 1 1/2 2800
SP 7-12 380V/50Hz 7 54.7 1.5 1 1/2 2800
SP 7-17 380V/50Hz 7 77.8 2.2 1 1/2 2800
SP 7-23 380V/50Hz 7 105.5 3 1 1/2 2800
SP 7-27 380V/50Hz 7 124 4 1 1/2 2800
SP 7-31 380V/50Hz 7 142.5 4 1 1/2 2800
SP 7-37 380V/50Hz 7 170.2 5.5 1 1/2 2800
SP 7-42 380V/50Hz 7 193.4 5.5 1 1/2 2800
SP 7-51 380V/50Hz 7 235 7.5 1 1/2 2800
SP 9-4 380V/50Hz 9 20.2 0.75 2 2800
SP 9-5 380V/50Hz 9 25.5 1.1 2 2800
SP 9-8 220V/50Hz 9 41.5 1.5 2 2800
SP 9-10 380V/50Hz 9 52.2 2.2 2 2800
SP 9-11 380V/50Hz 9 57.5 2.2 2 2800
SP 9-13 380V/50Hz 9 68.2 3 2 2800
SP 9-16 380V/50Hz 9 84.1 3 2 2800
SP 9-18 380V/50Hz 9 94.8 4 2 2800
SP 9-21 380V/50Hz 9 110.8 4 2 2800
SP 9-23 380V/50Hz 9 121.4 5.5 2 2800
SP 9-25 380V/50Hz 9 132.1 5.5 2 2800
SP 9-29 380V/50Hz 9 153.4 5.5 2 2800
SP 9-32 380V/50Hz 9 169.4 7.5 2 2800
SP 9-36 380V/50Hz 9 190.7 7.5 2 2800
SP 9-40 380V/50Hz 9 212 7.5 2 2800
SP 9-44 380V/50Hz 9 233.4 9.2 2 2800
SP 9-48 380V/50Hz 9 254.7 9.2 2 2800
SP 9-52 380V/50Hz 9 276 11 2 2800
SP 9-65 380V/50Hz 9 345.3 13 2 2800
SP 11-3 380V/50Hz 11 13.3 0.75 2 2800
SP 11-5 380V/50Hz 11 22.7 1.1 2 2800
SP 11-7 380V/50Hz 11 32.1 1.5 2 2800
SP 11-11 380V/50Hz 11 50.8 2.2 2 2800
SP 11-15 380V/50Hz 11 69.6 3 2 2800
SP 11-20 380V/50Hz 11 93 4 2 2800
SP 11-24 380V/50Hz 11 111.7 5.5 2 2800
SP 11-27 380V/50Hz 11 125.8 5.5 2 2800
SP 11-33 380V/50Hz 11 153.9 7.5 2 2800
SP 11-33 380V/50Hz 11 153.9 7.5 2 2800
SP 11-37 380V/50Hz 11 172.6 7.5 2 2800
SP 14-4 380V/50Hz 14 16.5 1.1 2 2800
SP 14-6 380V/50Hz 14 25.3 1.5 2 2800
SP 14-8 380V/50Hz 14 34.1 2.2 2 2800
SP 14-11 380V/50Hz 14 47.3 3 2 2800
SP 14-13 380V/50Hz 14 56.2 3 2 2800
SP 14-15 380V/50Hz 14 65 4 2 2800
SP 14-17 220V/50Hz 14 73.8 4 2 2800
SP 14-20 380V/50Hz 14 87 5.5 2 2800
SP 14-23 380V/50Hz 14 100.3 5.5 2 2800
SP 14-27 380V/50Hz 14 117.9 7.5 2 2800
SP 14-31 380V/50Hz 14 135.5 7.5 2 2800
SP 18-1 380V/50Hz 18 7 0.55 2 1/2 2800
SP 18-2 380V/50Hz 18 15 1.1 2 1/2 2800
SP 18-2 N 380V/50Hz 18 15 1.1 2 1/2 2800
SP 18-3 380V/50Hz 18 22 2.2 2 1/2 2800
SP 18-3 N 380V/50Hz 18 22 2.2 2 1/2 2800
SP 18-3 R 380V/50Hz 18 22 2.2 2 1/2 2800
SP 18-4 380V/50Hz 18 30 2.2 2 1/2 2800
SP 18-5 380V/50Hz 18 38 3 2 1/2 2800
SP 18-6 380V/50Hz 18 45 4 2 1/2 2800
SP 18-7 380V/50Hz 18 53 4 2 1/2 2800
SP 18-8 380V/50Hz 18 61 5.5 2 1/2 2800
SP 18-8 R 380V/50Hz 18 61 5.5 2 1/2 2800
SP 18-9 380V/50Hz 18 68 5.5 2 1/2 2800
SP 18-10 380V/50Hz 18 76 5.5 2 1/2 2800
SP 18-11 380V/50Hz 18 84 7.5 2 1/2 2800
SP 18-12 380V/50Hz 18 91 7.5 2 1/2 2800
SP 18-12 R 380V/50Hz 18 91 7.5 2 1/2 2800
SP 18-13 380V/50Hz 18 99 7.5 2 1/2 2800
SP 18-14 380V/50Hz 18 107 7.5 2 1/2 2800
SP 18-15 380V/50Hz 18 114 9.2 2 1/2 2800
SP 18-15 N 380V/50Hz 18 114 9.2 2 1/2 2800
SP 18-16 380V/50Hz 18 122 9.2 2 1/2 2800
SP 18-17 380V/50Hz 18 130 9.2 2 1/2 2800
SP 18-17 N 220V/50Hz 18 130 9.2 2 1/2 2800
SP 18-18 380V/50Hz 18 137 9.2 2 1/2 2800
SP 18-19 380V/50Hz 18 145 11 2 1/2 2800
SP 18-20 380V/50Hz 18 153 11 2 1/2 2800
SP 18-21 380V/50Hz 18 160 11 2 1/2 2800
SP 18-22 380V/50Hz 18 168 13 2 1/2 2800
SP 18-23 380V/50Hz 18 176 13 2 1/2 2800
SP 18-24 380V/50Hz 18 183 13 2 1/2 2800
SP 18-24 380V/50Hz 18 183 13 2 1/2 2800
SP 18-25 380V/50Hz 18 191 13 2 1/2 2800
SP 18-27 380V/50Hz 18 206 15 2 1/2 2800
SP 18-29 380V/50Hz 18 222 15 2 1/2 2800
SP 18-31 380V/50Hz 18 237 18.5 2 1/2 2800
SP 18-31 N 380V/50Hz 18 237 18.5 2 1/2 2800
SP 18-33 380V/50Hz 18 252 18.5 2 1/2 2800
SP 18-36 380V/50Hz 18 275 18.5 2 1/2 2800
SP 18-40 380V/50Hz 18 306 22 2 1/2 2800
SP 18-48 380V/50Hz 18 367 26 3 2800
SP 18-53 380V/50Hz 18 406 30 3 2800
SP 30-1 380V/50Hz 30 7 1.1 3 2800
SP 30-2 220V/50Hz 30 15 2.2 3 2800
SP 30-2 N 380V/50Hz 30 15 2.2 3 2800
SP 30-3 380V/50Hz 30 22 3 3 2800
SP 30-4 380V/50Hz 30 30 4 3 2800
SP 30-5 380V/50Hz 30 38 5.5 3 2800
SP 30-5 N 380V/50Hz 30 38 5.5 3 2800
SP 30-6 380V/50Hz 30 46 5.5 3 2800
SP 30-7 380V/50Hz 30 53 7.5 3 2800
SP 30-7 N 380V/50Hz 30 53 7.5 3 2800
SP 30-8 380V/50Hz 30 61 7.5 3 2800
SP 30-9 380V/50Hz 30 69 9.2 3 2800
SP 30-9 380V/50Hz 30 69 9.2 3 2800
SP 30-10 380V/50Hz 30 77 9.2 3 2800
SP 30-11 380V/50Hz 30 85 9.2 3 2800
SP 30-12 380V/50Hz 30 92 11 3 2800
SP 30-13 380V/50Hz 30 100 11 3 2800
SP 30-14 380V/50Hz 30 108 13 3 2800
SP 30-15 380V/50Hz 30 116 13 3 2800
SP 30-16 380V/50Hz 30 124 15 3 2800
SP 30-16 N 380V/50Hz 30 124 15 3 2800
SP 30-17 380V/50Hz 30 131 15 3 2800
SP 30-18 380V/50Hz 30 139 18.5 3 2800
SP 30-19 380V/50Hz 30 147 18.5 3 2800
SP 30-20 380V/50Hz 30 155 18.5 3 2800
SP 30-21 380V/50Hz 30 163 18.5 3 2800
SP 30-22 380V/50Hz 30 170 22 3 2800
SP 30-23 380V/50Hz 30 178 22 3 2800
SP 30-24 380V/50Hz 30 186 22 3 2800
SP 30-25 380V/50Hz 30 194 22 3 2800
SP 30-26 380V/50Hz 30 202 22 3 2800
SP 30-26 N 380V/50Hz 30 202 22 3 2800
SP 30-27 380V/50Hz 30 209 26 3 2800
SP 30-35 380V/50Hz 30 272 30 3 2800
SP 32-1 380V/50Hz 32 6 2.2 3 2800
SP 32-1 380V/50Hz 32 6 1.1 3 2800
SP 32-2 380V/50Hz 32 13 2.2 3 2800
SP 32-3 380V/50Hz 32 21 3 3 2800
SP 32-4 380V/50Hz 32 28 4 3 2800
SP 32-5 380V/50Hz 32 36 5.5 3 2800
SP 32-6 380V/50Hz 32 43 5.5 3 2800
SP 32-7 380V/50Hz 32 51 7.5 3 2800
SP 32-8 380V/50Hz 32 58 7.5 3 2800
SP 32-9 380V/50Hz 32 66 7.5 3 2800
SP 32-9 N 380V/50Hz 32 66 7.5 3 2800
SP 32-10 380V/50Hz 32 73 9.2 3 2800
SP 32-11 380V/50Hz 32 81 9.2 3 2800
SP 32-12 380V/50Hz 32 88 11 3 2800
SP 32-13 380V/50Hz 32 96 11 3 2800
SP 32-14 380V/50Hz 32 103 13 3 2800
SP 32-15 380V/50Hz 32 111 13 3 2800
SP 32-16 380V/50Hz 32 118 15 3 2800
SP 32-17 380V/50Hz 32 126 15 3 2800
SP 32-18 380V/50Hz 32 133 15 3 2800
SP 32-19 380V/50Hz 32 141 18.5 3 2800
SP 32-20 380V/50Hz 32 148 18.5 3 2800
SP 32-21 380V/50Hz 32 156 18.5 3 2800
SP 32-22 380V/50Hz 32 163 18.5 3 2800
SP 32-23 380V/50Hz 32 171 22 3 2800
SP 32-24 380V/50Hz 32 178 22 3 2800
SP 32-25 380V/50Hz 32 186 22 3 2800
SP 32-27 380V/50Hz 32 201 26 3 2800
SP 32-29 380V/50Hz 32 216 26 3 2800
SP 32-31 380V/50Hz 32 231 26 3 2800
SP 32-33 380V/50Hz 32 246 30 3 2800
SP 32-35 380V/50Hz 32 361 30 3 2800
SP 32-39 380V/50Hz 32 291 37 3 2800
SP 32-43 380V/50Hz 32 321 37 3 2800
SP 32-46 380V/50Hz 32 344 45 3 2800
SP 32-49 380V/50Hz 32 366 45 3 2800
SP 32-52 380V/50Hz 32 389 45 3 2800
SP 32-54 380V/50Hz 32 404 55 3 2800
SP 46-1 380V/50Hz 46 8 2.2 3 2800
SP 46-1 380V/50Hz 46 8 2.2 3 2800
SP 46-1B 380V/50Hz 46 5 1.1 3 2800
SP 46-1B 380V/50Hz 46 5 1.1 4 2800
SP 46-2 380V/50Hz 46 17 3 3 2800
SP 46-2BB 380V/50Hz 46 10 2.2 3 2800
SP 46-3 380V/50Hz 46 25 5.5 3 2800
SP 46-3C 380V/50Hz 46 21 4 4 2800
SP 46-3C 380V/50Hz 46 21 4 3 2800
SP 46-3C N 380V/50Hz 46 21 4 4 2800
SP 46-4 380V/50Hz 46 34 7.5 4 2800
SP 46-4 380V/50Hz 46 34 7.5 3 2800
SP 46-4C 380V/50Hz 46 30 5.5 3 2800
SP 46-4C N 380V/50Hz 46 30 5.5 4 2800
SP 46-5 380V/50Hz 46 43 7.5 4 2800
SP 46-5 380V/50Hz 46 43 7.5 3 2800
SP 46-6 380V/50Hz 46 52 9.2 3 2800
SP 46-7 380V/50Hz 46 61 11 3 2800
SP 46-8 380V/50Hz 46 69 13 3 2800
SP 46-8C 380V/50Hz 46 66 11 4 2800
SP 46-8C 380V/50Hz 46 66 11 3 2800
SP 46-9 380V/50Hz 46 78 15 3 2800
SP 46-9C 380V/50Hz 46 74 13 3 2800
SP 46-10 380V/50Hz 46 87 15 4 2800
SP 46-10 380V/50Hz 46 87 15 3 2800
SP 46-11 380V/50Hz 46 96 18.5 3 2800
SP 46-12 380V/50Hz 46 105 18.5 3 2800
SP 46-13 380V/50Hz 46 114 22 3 2800
SP 46-14 380V/50Hz 46 122 22 3 2900
SP 46-15 380V/50Hz 46 131 22 3 2900
SP 46-16 380V/50Hz 46 140 26 3 2800
SP 46-17 380V/50Hz 46 149 26 3 2800
SP 46-18 380V/50Hz 46 158 30 3 2800
SP 46-19 380V/50Hz 46 166 30 3 2800
SP 46-20 380V/50Hz 46 175 30 3 2800
SP 46-24 380V/50Hz 46 21 37 4 2800
SP 60-1 380V/50Hz 60 6 2.2 4 2800
SP 60-1 380V/50Hz 60 6 2.2 3 2800
SP 60-1A 380V/50Hz 60 4 1.5 4 2800
SP 60-2 380V/50Hz 60 14 4 3 2800
SP 60-2 380V/50Hz 60 14 4 4 2800
SP 60-2 N 380V/50Hz 60 14 4 4 2800
SP 60-2B 380V/50Hz 60 11 3 4 2800
SP 60-2B 380V/50Hz 60 11 3 3 2800
SP 60-3 380V/50Hz 60 22 5.5 4 2800
SP 60-3 N 380V/50Hz 60 22 5.5 4 2800
SP 60-3 R 380V/50Hz 60 22 5.5 4 2800
SP 60-4 380V/50Hz 60 31 7.5 4 2800
SP 60-4 R 380V/50Hz 60 31 7.5 4 2800
SP 60-5 380V/50Hz 60 39 9.2 4 2800
SP 60-5 R 380V/50Hz 60 39 9.2 4 2800
SP 60-6 380V/50Hz 60 47 11 3 2800
SP 60-6 380V/50Hz 60 47 11 4 2800
SP 60-6 N 380V/50Hz 60 47 11 3 2800
SP 60-6 N 380V/50Hz 60 47 11 4 2800
SP 60-7 380V/50Hz 60 55 13 4 2800
SP 60-7 R 380V/50Hz 60 55 13 4 2800
SP 60-8 380V/50Hz 60 63 15 4 2800
SP 60-8 380V/50Hz 60 63 15 3 2800
SP 60-8 N 380V/50Hz 60 63 15 4 2800
SP 60-8B 380V/50Hz 60 60 13 4 2800
SP 60-9 380V/50Hz 60 71 18.5 4 2800
SP 60-9 N 380V/50Hz 60 71 18.5 4 2800
SP 60-9B 380V/50Hz 60 67 15 4 2800
SP 60-10 380V/50Hz 60 79 18.5 4 2800
SP 60-11 380V/50Hz 60 87 22 4 2800
SP 60-12 380V/50Hz 60 95 22 3 2800
SP 60-12 380V/50Hz 60 95 22 4 2800
SP 60-12 N 380V/50Hz 60 95 22 4 2800
SP 60-13 380V/50Hz 60 103 26 4 2800
SP 60-13 380V/50Hz 60 103 26 3 2800
SP 60-14 380V/50Hz 60 111 26 4 2800
SP 60-15 380V/50Hz 60 119 26 4 2800
SP 60-16 380V/50Hz 60 127 30 3 2800
SP 60-16 380V/50Hz 60 127 30 4 2800
SP 60-17 380V/50Hz 60 135 30 4 2800
SP 60-17 380V/50Hz 60 135 30 3 2800
SP 60-18 380V/50Hz 60 143 37 4 2800
SP 60-19 380V/50Hz 60 151 37 4 2800
SP 60-19 N 380V/50Hz 60 151 37 4 2800
SP 60-20 380V/50Hz 60 160 37 3 2800
SP 60-21 N 380V/50Hz 60 168 37 4 2800
SP 60-22 380V/50Hz 60 176 45 4 2800
SP 60-24 380V/50Hz 60 192 45 4 2800
SP 60-26 380V/50Hz 60 208 55 4 2800
SP 60-28 380V/50Hz 60 224 55 4 2800
SP 60-30 380V/50Hz 60 240 55 4 2800
SP 77-1 380V/50Hz 77 12 5.5 5 2800
SP 77-2 380V/50Hz 77 24 7.5 5 2800
SP 77-2 R 380V/50Hz 77 24 7.5 5 2800
SP 77-2B 380V/50Hz 77 18 5.5 5 2800
SP 77-2B N 380V/50Hz 77 18 5.5 5 2800
SP 77-3 380V/50Hz 77 37 11 5 2800
SP 77-3 N 380V/50Hz 77 37 11 5 2800
SP 77-3B 380V/50Hz 77 31 9.2 5 2800
SP 77-4 380V/50Hz 77 49 15 5 2800
SP 77-4 R 380V/50Hz 77 49 15 5 2800
SP 77-4B 380V/50Hz 77 43 13 5 2800
SP 77-5 380V/50Hz 77 61 18.5 5 2800
SP 77-6 380V/50Hz 77 84 22 5 2800
SP 77-6 R 380V/50Hz 77 74 22 5 2800
SP 77-7 380V/50Hz 77 86 26 5 2800
SP 77-7 N 380V/50Hz 77 86 26 5 2800
SP 77-7 R 380V/50Hz 77 86 26 5 2800
SP 77-8 380V/50Hz 77 98 30 5 2800
SP 77-8 N 380V/50Hz 77 98 30 5 2800
SP 77-8B 380V/50Hz 77 92 26 5 2800
SP 77-9 380V/50Hz 77 111 30 5 2800
SP 77-9 N 380V/50Hz 77 111 30 5 2800
SP 77-10 380V/50Hz 77 123 37 5 2800
SP 77-11 380V/50Hz 77 135 37 5 2800
SP 77-12 380V/50Hz 77 148 45 5 2800
SP 77-13 380V/50Hz 77 160 55 5 2800
SP 77-14 380V/50Hz 77 172 55 5 2800
SP 77-15 380V/50Hz 77 185 55 5 2800
SP 77-16 380V/50Hz 77 197 63 5 2800
SP 77-17 380V/50Hz 77 209 63 5 2800
SP 77-18 380V/50Hz 77 222 63 5 2800
SP 77-19 380V/50Hz 77 234 75 5 2800
SP 77-20 380V/50Hz 77 246 75 5 2800
SP 77-21 380V/50Hz 77 259 75 5 2800
SP 77-22 380V/50Hz 77 271 92 5 2800
SP 95-1 380V/50Hz 95 12 5.5 5 2800
SP 95-2 380V/50Hz 95 24 9.2 5 2800
SP 95-2A 380V/50Hz 95 21 7.5 5 2800
SP 95-2BB 380V/50Hz 95 13 5.5 5 2800
SP 95-3 380V/50Hz 95 36 13 5 2800
SP 95-3 N 380V/50Hz 95 36 13 5 2800
SP 95-3B 380V/50Hz 95 30 11 5 2800
SP 95-3B N 380V/50Hz 95 30 11 5 2800
SP 95-3BB 380V/50Hz 95 24 9.2 5 2800
SP 95-4 380V/50Hz 95 48 18.5 5 2800
SP 95-4B 380V/50Hz 95 42 15 5 2800
SP 95-5 380V/50Hz 95 61 22 5 2800
SP 95-5AB 380V/50Hz 95 51 18.5 5 2800
SP 95-6 380V/50Hz 95 73 26 5 2800
SP 95-6 N 380V/50Hz 95 73 26 5 2800
SP 95-7 380V/50Hz 95 85 30 5 2800
SP 95-8 380V/50Hz 95 97 37 5 2800
SP 95-8 N 380V/50Hz 95 97 37 5 2800
SP 95-9 380V/50Hz 95 109 37 5 2800
SP 95-10 380V/50Hz 95 121 45 5 2800
SP 95-11 380V/50Hz 95 133 55 5 2800
SP 95-11 N 380V/50Hz 95 133 55 5 2800
SP 95-12 380V/50Hz 95 146 55 5 2800
SP 95-13 380V/50Hz 95 158 55 5 2800
SP 95-14 380V/50Hz 95 170 63 5 2800
SP 95-15 380V/50Hz 95 182 75 5 2800
SP 95-16 380V/50Hz 95 194 75 5 2800
SP 95-17 380V/50Hz 95 207 75 5 2800
SP 95-18 380V/50Hz 95 219 92 5 2800
SP 95-19 380V/50Hz 95 231 92 5 2800
SP 95-20 380V/50Hz 95 243 92 5 2800
SP 95-20 N 380V/50Hz 95 243 92 5 2800
SP 125-1 380V/50Hz 125 20 11 6 2800
SP 125-1 R 380V/50Hz 125 20 11 6 2800
SP 125-1A 380V/50Hz 125 13 7.5 6 2800
SP 125-2 380V/50Hz 125 40 22 6 2800
SP 125-2A 380V/50Hz 125 33 18.5 6 2800
SP 125-2A N 380V/50Hz 125 33 18.5 6 2800
SP 125-2AA 380V/50Hz 125 26 13 6 2800
SP 125-3 380V/50Hz 125 61 30 6 2800
SP 125-3A 380V/50Hz 125 53 26 6 2800
SP 125-3AA 380V/50Hz 125 46 22 6 2800
SP 125-4 380V/50Hz 125 81 37 6 2800
SP 125-4A 380V/50Hz 125 74 37 6 2800
SP 125-4AA 380V/50Hz 125 66 37 6 2800
SP 125-5 380V/50Hz 125 102 55 6 2800
SP 125-5A 380V/50Hz 125 94 45 6 2800
SP 125-5AA 380V/50Hz 125 87 45 6 2800
SP 125-6 380V/50Hz 125 122 63 6 2800
SP 125-6A 380V/50Hz 125 115 55 6 2800
SP 125-6AA 380V/50Hz 125 107 55 6 2800
SP 125-7 380V/50Hz 125 143 75 6 2800
SP 125-7A 380V/50Hz 125 135 63 6 2800
SP 125-7AA 380V/50Hz 125 128 63 6 2800
SP 125-8 380V/50Hz 125 163 75 6 2800
SP 125-8A 380V/50Hz 125 156 75 6 2800
SP 125-8AA 380V/50Hz 125 148 75 6 2800
SP 125-9 380V/50Hz 125 184 92 6 2800
SP 125-9A 380V/50Hz 125 176 92 6 2800
SP 125-9AA 380V/50Hz 125 169 92 6 2800
SP 125-10 380V/50Hz 125 205 92 6 2800
SP 125-10A 380V/50Hz 125 197 92 6 2800
SP 125-10AA 380V/50Hz 125 189 92 6 2800
SP 125-11 380V/50Hz 125 225 110 6 2800
SP 125-12 380V/50Hz 125 246 132 6 2800
SP 125-13 380V/50Hz 125 266 132 6 2800
SP 125-14 380V/50Hz 125 287 147 6 2800
SP 125-15 380V/50Hz 125 307 147 6 2800
SP 125-16 380V/50Hz 125 328 170 6 2800
SP 125-17 380V/50Hz 125 348 170 6 2800
SP 160-1 380V/50Hz 160 20 13 6 2800
SP 160-1 R 380V/50Hz 160 20 13 6 2800
SP 160-1A 380V/50Hz 160 13 9.2 6 2800
SP 160-2 380V/50Hz 160 40 26 6 2800
SP 160-2A 380V/50Hz 160 34 22 6 2800
SP 160-2A N 380V/50Hz 160 34 22 6 2800
SP 160-2AA 380V/50Hz 160 26 18.5 6 2800
SP 160-3 380V/50Hz 160 61 37 6 2800
SP 160-3A 380V/50Hz 160 54 37 6 2800
SP 160-3A N 380V/50Hz 160 54 37 6 2800
SP 160-3AA 380V/50Hz 160 47 30 6 2800
SP 160-4 380V/50Hz 160 81 55 6 2800
SP 160-4A 380V/50Hz 160 74 45 6 2800
SP 160-4AA 380V/50Hz 160 67 45 6 2800
SP 160-5 380V/50Hz 160 101 63 6 2800
SP 160-5A 380V/50Hz 160 95 55 6 2800
SP 160-5AA 380V/50Hz 160 88 55 6 2800
SP 160-6 380V/50Hz 160 122 75 6 2800
SP 160-6A 380V/50Hz 160 115 75 6 2800
SP 160-6AA 380V/50Hz 160 108 63 6 2800
SP 160-7 380V/50Hz 160 142 92 6 2800
SP 160-7A 380V/50Hz 160 135 92 6 2800
SP 160-7AA 380V/50Hz 160 128 75 6 2800
SP 160-8 380V/50Hz 160 162 92 6 2800
SP 160-8 N 380V/50Hz 160 162 92 6 2800
SP 160-8A 380V/50Hz 160 156 92 6 2800
SP 160-8AA 380V/50Hz 160 149 92 6 2800
SP 160-9 380V/50Hz 160 183 100 6 2800
SP 160-9A 380V/50Hz 160 176 110 6 2800
SP 160-9AA 380V/50Hz 160 169 110 6 2800
SP 160-10 380V/50Hz 160 203 132 6 2800
SP 160-10A 380V/50Hz 160 196 132 6 2800
SP 160-10AA 380V/50Hz 160 189 110 6 2800
SP 160-11 380V/50Hz 160 223 132 6 2800
SP 160-12 380V/50Hz 160 244 147 6 2800
SP 160-13 380V/50Hz 160 264 170 6 2800
SP 160-14 380V/50Hz 160 285 170 6 2800
SP 160-15 380V/50Hz 160 305 190 6 2800
SP 215-1 380V/50Hz 215 23 18.5 6 2800
SP 215-1A 380V/50Hz 215 14 15 6 2800
SP 215-1A N 380V/50Hz 215 14 15 6 2800
SP 215-2 380V/50Hz 215 48 45 6 2800
SP 215-2 R 380V/50Hz 215 48 45 6 2800
SP 215-2A 380V/50Hz 215 41 37 6 2800
SP 215-2A N 380V/50Hz 215 41 37 6 2800
SP 215-2AA 380V/50Hz 215 32 30 6 2800
SP 215-2AA N 380V/50Hz 215 32 30 6 2800
SP 215-2AA R 380V/50Hz 215 32 30 6 2800
SP 215-3 380V/50Hz 215 73 63 6 2800
SP 215-3 R 380V/50Hz 215 73 63 6 2800
SP 215-3A 380V/50Hz 215 67 55 6 2800
SP 215-3AA 380V/50Hz 215 60 55 6 2800
SP 215-3AA N 380V/50Hz 215 60 55 6 2800
SP 215-4 380V/50Hz 215 98 75 6 2800
SP 215-4A 380V/50Hz 215 92 75 6 2800
SP 215-4AA 380V/50Hz 215 85 75 6 2800
SP 215-5 380V/50Hz 215 123 92 6 2800
SP 215-5A 380V/50Hz 215 117 92 6 2800
SP 215-5AA 380V/50Hz 215 110 92 6 2800
SP 215-6 380V/50Hz 215 149 110 6 2800
SP 215-6A 380V/50Hz 215 142 110 6 2800
SP 215-6AA 380V/50Hz 215 135 110 6 2800
SP 215-7 380V/50Hz 215 174 132 6 2800
SP 215-7A 380V/50Hz 215 167 132 6 2800
SP 215-7AA 380V/50Hz 215 161 132 6 2800
SP 215-8 380V/50Hz 215 199 147 6 2800
SP 215-8A 380V/50Hz 215 192 147 6 2800
SP 215-8AA 380V/50Hz 215 186 147 6 2800
SP 215-9 380V/50Hz 215 224 170 6 2800
SP 215-9A 380V/50Hz 215 217 170 6 2800
SP 215-9AA 380V/50Hz 215 211 170 6 2800
SP 215-10 380V/50Hz 215 249 190 6 2800
SP 215-10A 380V/50Hz 215 243 190 6 2800
SP 215-10AA 380V/50Hz 215 236 190 6 2800
SP 215-11 380V/50Hz 215 274 220 6 2800
SP 215-11 N 380V/50Hz 215 274 220 6 2800

Size

Video Introduction

Message Inquiry

*
*
*
*
*
Submit
