Application Scope:
Motor speed: 1480/2960 r/min
Liquid temperature: <80°C (clean water)
Flow rate range: 5–100 L/s
Pressure range: 0.32–2.4 MPa
Maximum permissible inlet pressure: 0.4 MPa
Product Overview:

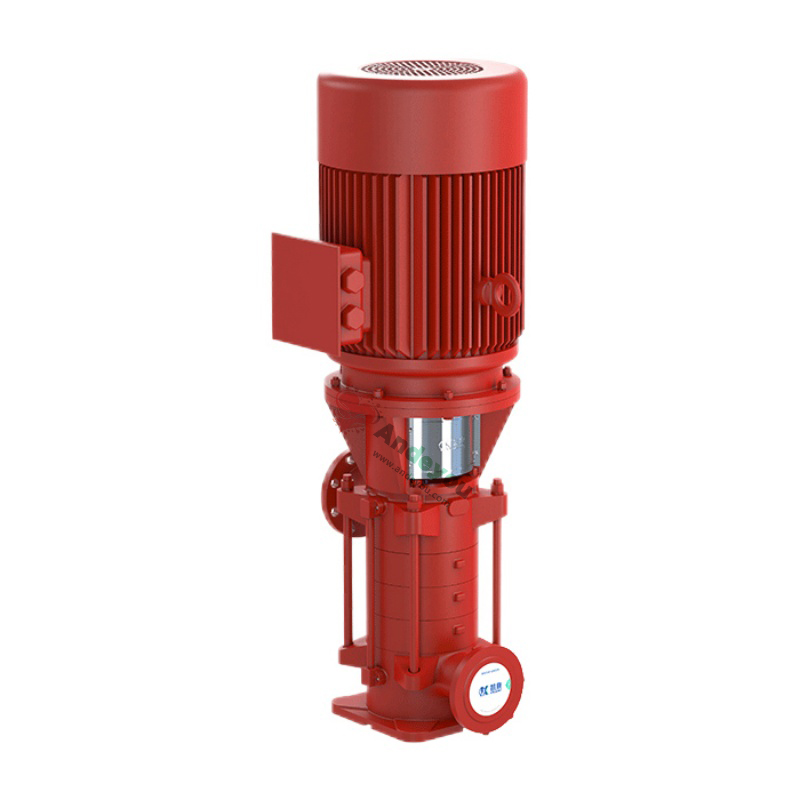

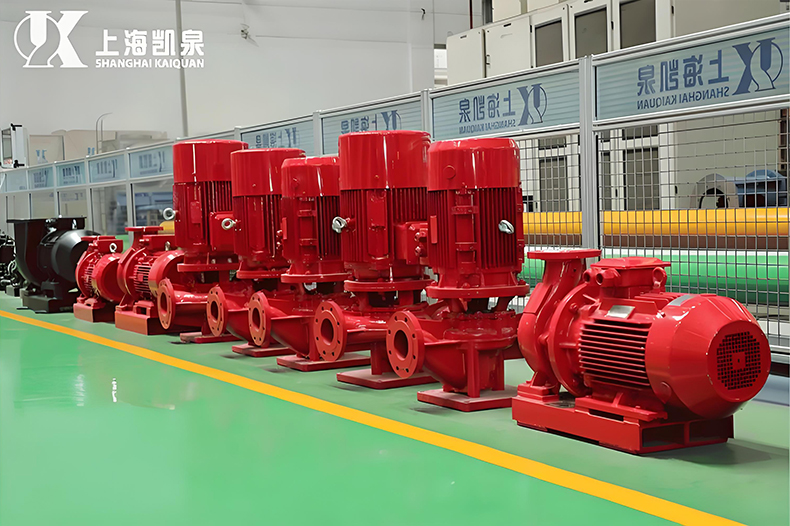

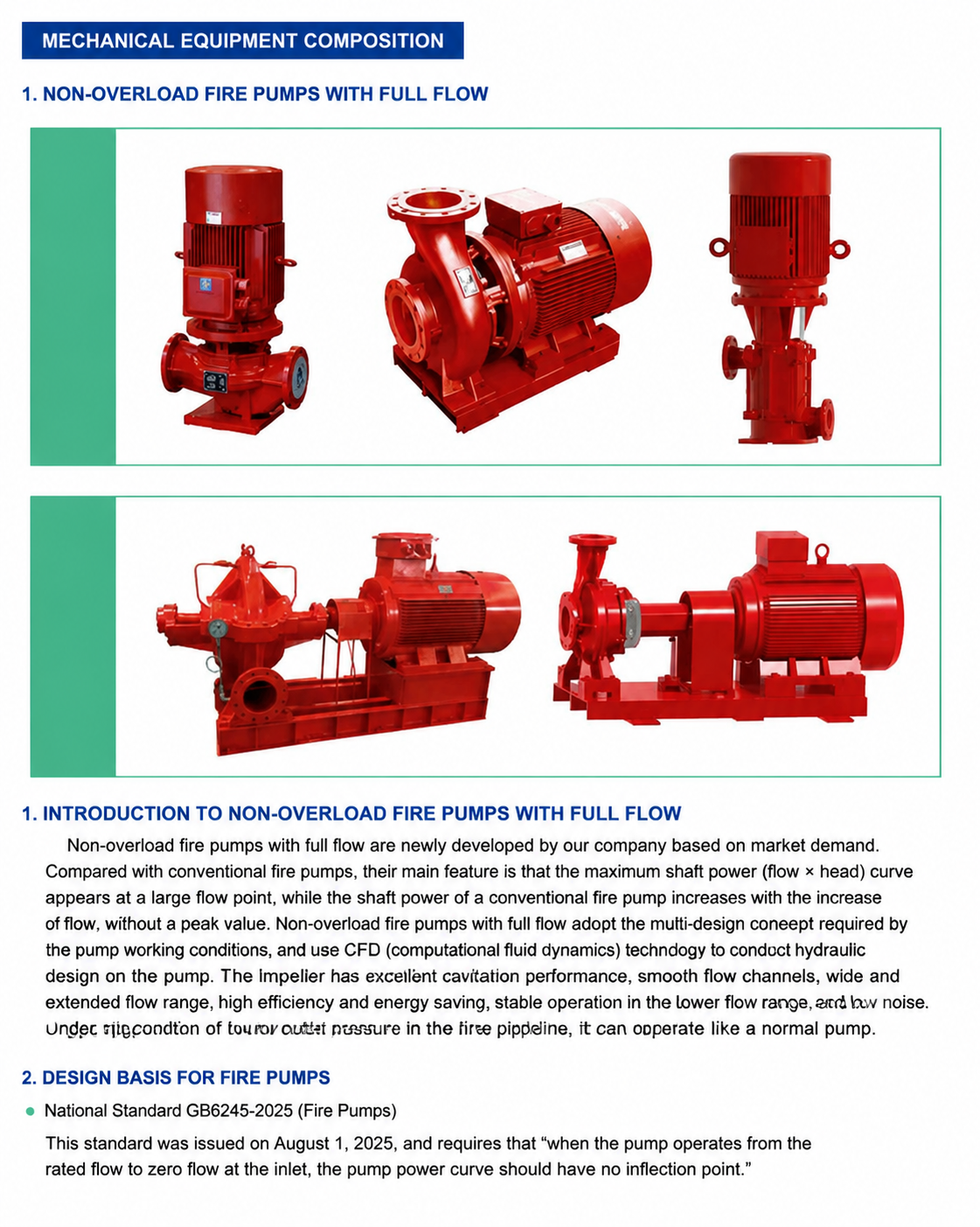

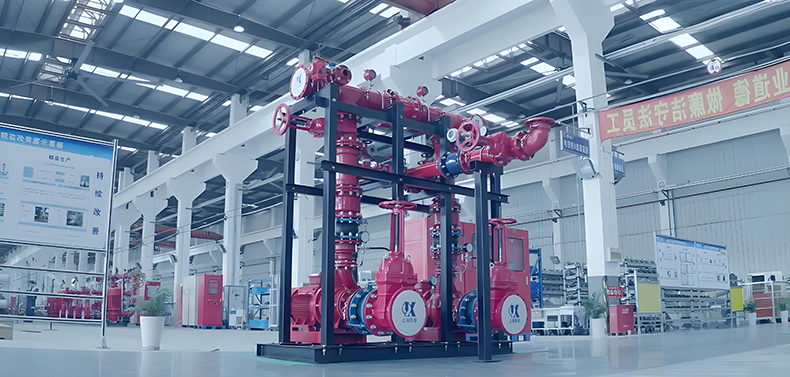

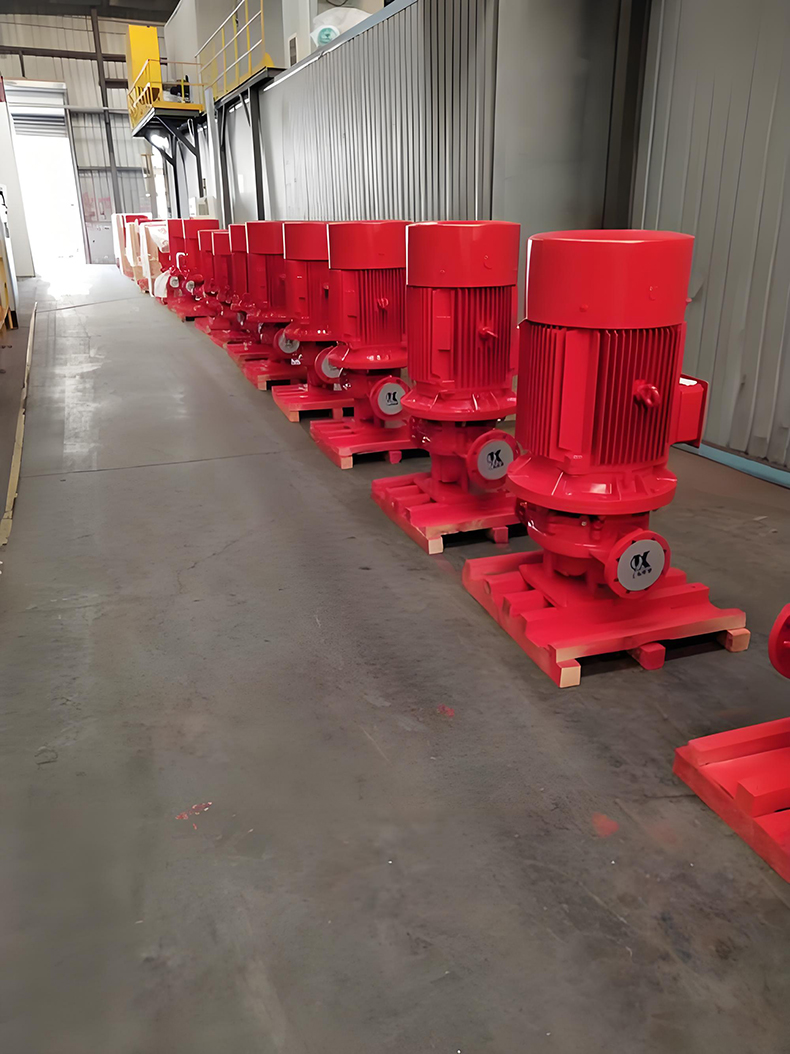

The XBD series electric motor fire pump unit is a new product developed by Kaiquan to meet market demands. Representing the forefront of domestic technology, this series offers excellent performance, reliable operation, low vibration, and low noise. Additionally, the pumps feature a compact structure, lightweight design, aesthetic appeal, and a small footprint; they are easy to install and maintain, and help reduce civil engineering costs for pump stations.
The XBD series features optimized model specifications and a more rational range distribution, allowing for better adaptation to fire-fighting requirements across different building heights and varying pipeline resistance levels, thereby satisfying diverse design and selection needs.
