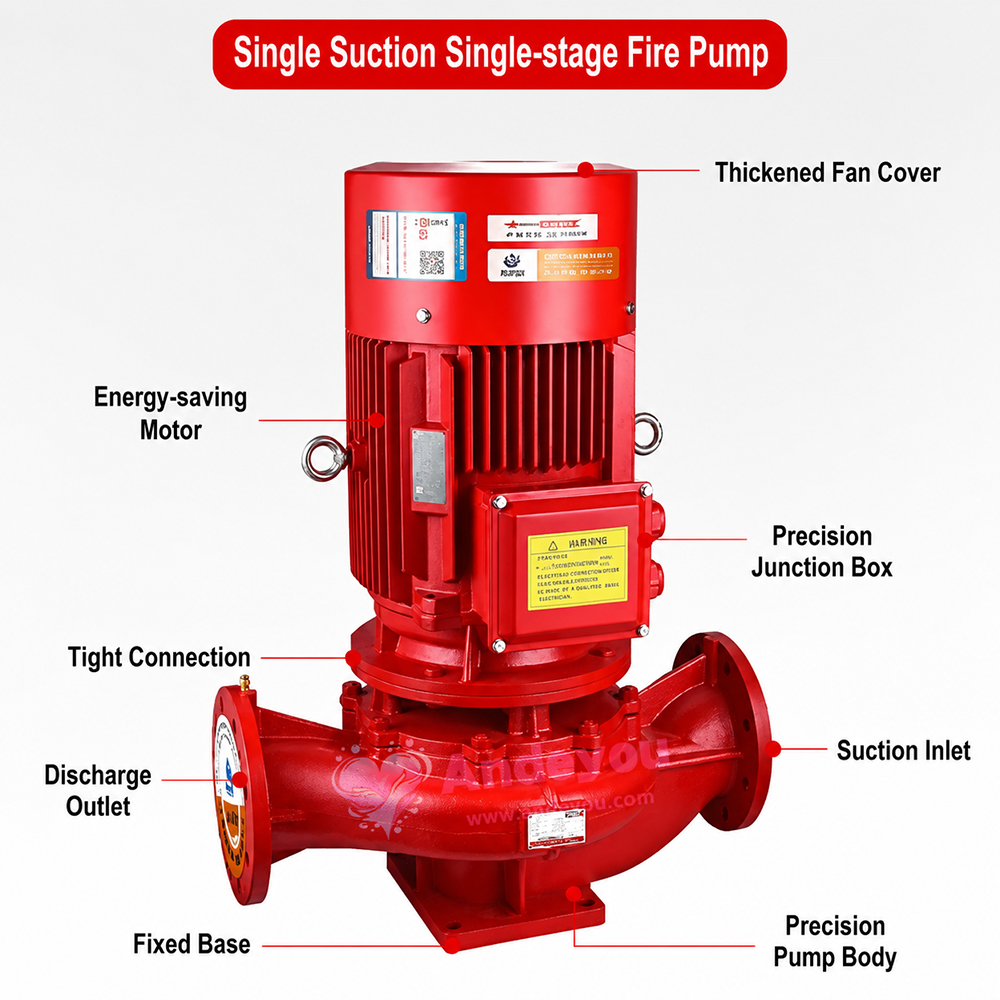

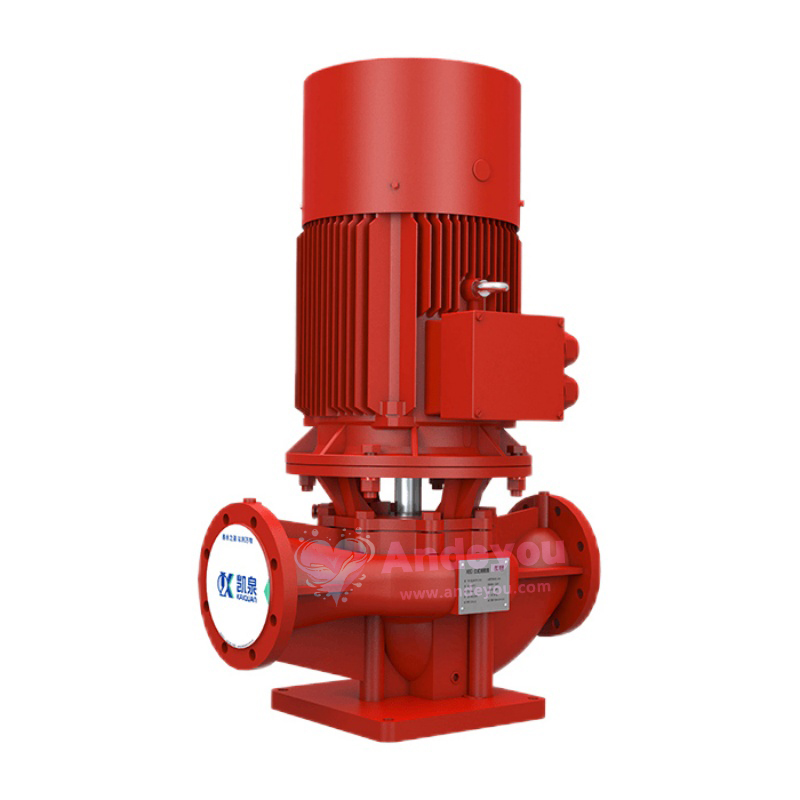

Kaiquan XBD Vertical Fire Pump

XBD Vertical Fire Pump

Kaiquan Pump Industry’s XBD vertical fire-fighting pump features a vertical design characterized by high efficiency,a compact footprint,stable operation,and low noise levels.Offering a wide flow range and strong pressure-boosting capabilities,it is suitable for fire-fighting water supply in various settings,including residential complexes,hotels,and office buildings.
Product Consultation By telephone
Function
Parameters
Size
Video Introduction

Function

Application Scope:

Motor speed: 1480/2960 r/min

Liquid temperature: <80°C (clean water)

Flow rate range: 5–100 L/s

Pressure range: 0.32–2.4 MPa

Maximum permissible inlet pressure: 0.4 MPa

Product Overview:

The XBD series electric fire pump unit is a new product developed by Kaiquan to meet market demands. Representing the forefront of domestic technology, this series offers excellent performance, reliable operation, low vibration, and low noise. Additionally, the pumps feature a compact structure, lightweight design, attractive appearance, and a small footprint; they are easy to install and maintain, and help reduce civil engineering costs for pump stations.

The XBD series features optimized model specifications and a more rational range distribution, allowing for better adaptation to fire-fighting requirements across different building heights and varying pipeline resistance levels, thereby satisfying diverse design selection needs.

Parameters

model Flow rate (L/s) Pressure (MPa) Rotational speed (r/min) Power (kW)
XBD6.5/5-65L-KQ-VI 5 0.65 2960 11
XBD7/5-65L-KQ-VI 5 0.7 2960 11
XBD8/5-65L-KQ-VI 5 0.8 2960 11
XBD8.5/5-65L-KQ-VI 5 0.85 2960 15
XBD9/5-65L-KQ-VI 5 0.9 2960 15
XBD10/5-65L-KQ-VI 5 1 2960 18.5
XBD10.5/5-65L-KQ-VI 5 1.05 2960 18.5
XBD11/5-65L-KQ-VI 5 1.1 2960 22
XBD4.5/10-80L-KQ-VI 10 0.45 2960 11
XBD5/10-80L-KQ-VI 10 0.5 2960 11
XBD5.5/10-80L-KQ-VI 10 0.55 2960 11
XBD6/10-80L-KQ-VI 10 0.6 2960 15
XBD7/10-80L-KQ-VI 10 0.7 2960 15
XBD7.5/10-80L-KQ-VI 10 0.75 2960 18.5
XBD8/10-80L-KQ-VI 10 0.8 2960 18.5
XBD9/10-80L-KQ-VI 10 0.9 2960 22
XBD9.5/10-80L-KQ-VI 10 0.95 2960 22
XBD10/10-80L-KQ-VI 10 1 2960 30
XBD11/10-80L-KQ-VI 10 1.1 2960 30
XBD3.5/15-80L-KQ-VI 15 0.35 2960 11
XBD4/15-80L-KQ-VI 15 0.4 2960 11
XBD4.5/15-80L-KQ-VI 15 0.45 2960 15
XBD5/15-80L-KQ-VI 15 0.5 2960 15
XBD5.5/15-80L-KQ-VI 15 0.55 2960 18.5
XBD6/15-80L-KQ-VI 15 0.6 2960 18.5
XBD6.5/15-80L-KQ-VI 15 0.65 2960 18.5
XBD7/15-80L-KQ-VI 15 0.7 2960 22
XBD7.5/15-80L-KQ-VI 15 0.75 2960 22
XBD8/15-80L-KQ-VI 15 0.8 2960 30
XBD8.5/15-80L-KQ-VI 15 0.85 2960 30
XBD9/15-80L-KQ-VI 15 0.9 2960 30
XBD3/20-100L-KQ-VI 20 0.3 2960 11
XBD3.5/20-100L-KQ-VI 20 0.35 2960 15
XBD4/20-100L-KQ-VI 20 0.4 2960 15
XBD4.5/20-100L-KQ-VI 20 0.45 2960 15
XBD5/20-100L-KQ-VI 20 0.5 2960 18.5
XBD5.5/20-100L-KQ-VI 20 0.55 2960 22
XBD6/20-100L-KQ-VI 20 0.6 2960 22
XBD6.4/20-100L-KQ-VI 20 0.65 2960 22
XBD7/20-100L-KQ-VI 20 0.7 2960 30
XBD7.5/20-100L-KQ-VI 20 0.75 2960 30
XBD8/20-100L-KQ-VI 20 0.8 2960 30
XBD9/20-100L-KQ-VI 20 0.9 2960 37
XBD10/20-100L-KQ-VI 20 1 2960 45
XBD10.5/20-100L-KQ-VI 20 1.05 2960 45
XBD11.5/20-100L-KQ-VI 20 1.15 2960 55
XBD12/20-100L-KQ-VI 20 1.2 2960 55
XBD3/25-100L-KQ-VI 25 0.3 2960 11
XBD3.7/25-100L-KQ-VI 25 0.37 2960 15
XBD4/25-100L-KQ-VI 25 0.4 2960 18.5
XBD4.5/25-100L-KQ-VI 25 0.45 2960 18.5
XBD5/25-100L-KQ-VI 25 0.5 2960 22
XBD5.5/25-100L-KQ-VI 25 0.55 2960 30
XBD6/25-100L-KQ-VI 25 0.6 2960 30
XBD6.6/25-100L-KQ-VI 25 0.66 2960 30
XBD7.5/25-100L-KQ-VI 25 0.75 2960 37
XBD8/25-100L-KQ-VI 25 0.8 2960 37
XBD9/25-100L-KQ-VI 25 0.9 2960 45
XBD9.5/25-100L-KQ-VI 25 0.95 2960 45
XBD10.5/25-100L-KQ-VI 25 1.05 2960 55
XBD11/25-100L-KQ-VI 25 1.1 2960 55
XBD11.5/25-100L-KQ-VI 25 1.15 2960 55
XBD12/25-100L-KQ-VI 25 1.2 2960 75
XBD12.5/25-100L-KQ-VI 25 1.25 2960 75
XBD13/25-100L-KQ-VI 25 1.3 2960 75
XBD14/25-100L-KQ-VI 25 1.4 2960 75
XBD3/30-125L-KQ-VI 30 0.3 2960 15
XBD3.5/30-125L-KQ-VI 30 0.35 2960 18.5
XBD4/30-125L-KQ-VI 30 0.4 2960 22
XBD4.5/30-125L-KQ-VI 30 0.45 2960 22
XBD5/30-125L-KQ-VI 30 0.5 2960 22
XBD5.5/30-125L-KQ-VI 30 0.55 2960 30
XBD6/30-125L-KQ-VI 30 0.6 2960 30
XBD6.5/30-125L-KQ-VI 30 0.65 2960 37
XBD7/30-125L-KQ-VI 30 0.7 2960 37
XBD7.5/30-125L-KQ-VI 30 0.75 2960 37
XBD9/30-125L-KQ-VI 30 0.9 2960 55
XBD9.5/30-125L-KQ-VI 30 0.95 2960 55
XBD10/30-125L-KQ-VI 30 1 2960 55
XBD11.5/30-125L-KQ-VI 30 1.15 2960 75
XBD12/30-125L-KQ-VI 30 1.2 2960 75
XBD12.5/30-125L-KQ-VI 30 1.25 2960 75
XBD13/30-125L-KQ-VI 30 1.3 2960 75
XBD3/35-125L-KQ-VI 35 0.3 2960 18.5
XBD4/35-125L-KQ-VI 35 0.42 2960 22
XBD5/35-125L-KQ-VI 35 0.5 2960 30
XBD6/35-125L-KQ-VI 35 0.55 2960 37
XBD6.5/35-125L-KQ-VI 35 0.65 2960 37
XBD7/35-125L-KQ-VI 35 0.7 2960 45
XBD7.6/35-125L-KQ-VI 35 0.76 2960 45
XBD8/35-125L-KQ-VI 35 0.8 2960 55
XBD8.5/35-125L-KQ-VI 35 0.85 2960 55
XBD9/35-125L-KQ-VI 35 0.9 2960 55
XBD10/35-125L-KQ-VI 35 1 2960 75
XBD10.8/35-125L-KQ-VI 35 1.08 2960 75
XBD11.8/35-125L-KQ-VI 35 1.18 2960 75
XBD13/35-125L-KQ-VI 35 1.3 2960 90
XBD3/40-125L-KQ-VI 40 0.3 2960 18.5
XBD3.4/40-125L-KQ-VI 40 0.34 2960 22
XBD3.8/40-125L-KQ-VI 40 0.38 2960 22
XBD4/40-125L-KQ-VI 40 0.4 2960 30
XBD4.5/40-125L-KQ-VI 40 0.45 2960 30
XBD5/40-125L-KQ-VI 40 0.5 2960 30
XBD5.5/40-125L-KQ-VI 40 0.55 2960 37
XBD6/40-125L-KQ-VI 40 0.6 2960 37
XBD7/40-125L-KQ-VI 40 0.7 2960 45
XBD8/40-125L-KQ-VI 40 0.8 2960 55
XBD8.5/40-125L-KQ-VI 40 0.85 2960 55
XBD9.5/40-125L-KQ-VI 40 0.95 2960 45
XBD10.5/40-125L-KQ-VI 40 1.05 2960 75
XBD11/40-125L-KQ-VI 40 1.1 2960 75
XBD12/40-125L-KQ-VI 40 1.2 2960 90
XBD12.6/40-125L-KQ-VI 40 1.26 2960 90
XBD3.8/45-150L-KQ-VI 45 0.38 2960 30
XBD5/45-150L-KQ-VI 45 0.5 2960 37
XBD6/45-150L-KQ-VI 45 0.6 2960 45
XBD7/45-125L-KQ-VI 45 0.7 2960 55
XBD7.5/45-125L-KQ-VI 45 0.75 2960 55
XBD8/45-125L-KQ-VI 45 0.8 2960 55
XBD8.5/45-150L-KQ-VI 45 0.85 2960 75
XBD9.2/45-150L-KQ-VI 45 0.92 2960 75
XBD10/45-150L-KQ-VI 45 1 2960 75
XBD11/45-150L-KQ-VI 45 1.1 2960 90
XBD4.5/50-150L-KQ-VI 50 0.45 2960 37
XBD5/50-150L-KQ-VI 50 0.5 2960 37
XBD5.5/50-150L-KQ-VI 50 0.55 2960 45
XBD6.5/50-150L-KQ-VI 50 0.65 2960 55
XBD7/50-150L-KQ-VI 50 0.7 2960 55
XBD8/50-150L-KQ-VI 50 0.8 2960 75
XBD8.5/50-150L-KQ-VI 50 0.85 2960 75
XBD9/50-150L-KQ-VI 50 0.9 2960 75
XBD10/50-150L-KQ-VI 50 1 2960 90
XBD10.5/50-150L-KQ-VI 50 1.05 2960 90
XBD11/50-150L-KQ-VI 50 1.15 2960 110
XBD12/50-150L-KQ-VI 50 1.2 2960 110
XBD12.5/50-150L-KQ-VI 50 1.25 2960 110
XBD13/50-150L-KQ-VI 50 1.3 2960 110
XBD6/55-150L-KQ-VI 55 0.6 2960 55
XBD6.5/55-150L-KQ-VI 55 0.65 2960 55
XBD7/55-150L-KQ-VI 55 0.7 2960 75
XBD7.5/55-150L-KQ-VI 55 0.75 2960 75
XBD8/55-150L-KQ-VI 55 0.8 2960 75
XBD8.5/55-150L-KQ-VI 55 0.85 2960 75
XBD9/55-150L-KQ-VI 55 0.9 2960 75
XBD10/55-150L-KQ-VI 55 1 2960 90
XBD10.5/55-150L-KQ-VI 55 1.05 2960 90
XBD11/55-150L-KQ-VI 55 1.1 2960 110
XBD11.5/55-150L-KQ-VI 55 1.15 2960 110
XBD12/55-150L-KQ-VI 55 1.2 2960 110
XBD7/60-150L-KQ-VI 60 0.7 2960 75
XBD8/60-150L-KQ-VI 60 0.8 2960 75
XBD8.5/60-150L-KQ-VI 60 0.85 2960 75
XBD9.5/60-150L-KQ-VI 60 0.95 2960 90
XBD10/60-150L-KQ-VI 60 1 2960 90
XBD11/60-150L-KQ-VI 60 1.1 2960 110
XBD11.5/60-150L-KQ-VI 60 1.15 2960 110
XBD12/60-150L-KQ-VI 60 1.2 2960 132
XBD12.5/60-150L-KQ-VI 60 1.25 2960 132
XBD13/60-150L-KQ-VI 60 1.3 2960 132
XBD6.5/65-200L-KQ-VI 65 0.65 2960 75
XBD7/65-200L-KQ-VI 65 0.7 2960 75
XBD7.5/65-200L-KQ-VI 65 0.75 2960 75
XBD8.5/65-200L-KQ-VI 65 0.85 2960 90
XBD9/65-200L-KQ-VI 65 0.9 2960 90
XBD9.5/65-200L-KQ-VI 65 0.96 2960 110
XBD10/65-200L-KQ-VI 65 1 2960 110
XBD10.5/65-200L-KQ-VI 65 1.05 2960 110
XBD11/65-200L-KQ-VI 65 1.1 2960 132
XBD11.5/65-200L-KQ-VI 65 1.15 2960 132
XBD12/65-200L-KQ-VI 65 1.2 2960 132
XBD12.5/65-200L-KQ-VI 65 1.25 2960 132
XBD13/65-200L-KQ-VI 65 1.3 2960 132
XBD6/70-200L-KQ-VI 70 0.6 2960 75
XBD7/70-200L-KQ-VI 70 0.7 2960 75
XBD8.2/70-200L-KQ-VI 70 0.82 2960 90
XBD9.5/70-200L-KQ-VI 70 0.95 2960 110
XBD10/70-200L-KQ-VI 70 1 2960 110
XBD11.5/70-200L-KQ-VI 70 1.15 2960 110
XBD12.70-200L-KQ-VI 70 1.2 2960 132
XBD6.75-200L-KQ-VI 75 0.6 2960 75
XBD6.5/75-200L-KQ-VI 75 0.65 2960 75
XBD7/75-200L-KQ-VI 75 0.7 2960 90
XBD7.5/75-200L-KQ-VI 75 0.75 2960 90
XBD8/75-200L-KQ-VI 75 0.8 2960 90
XBD9/75-200L-KQ-VI 75 0.85 2960 110
XBD9.5/75-200L-KQ-VI 75 0.95 2960 110
XBD10.5/75-200L-KQ-VI 75 1.1 2960 132
XBD11/75-200L-KQ-VI 75 1.15 2960 132
XBD11.5/75-200L-KQ-VI 75 1.2 2960 132
XBD5/80-200L-KQ-VI 80 0.6 2960 75
XBD7/80-200L-KQ-VI 80 0.7 2960 75
XBD7.5/80-200L-KQ-VI 80 0.75 2960 90
XBD8/80-200L-KQ-VI 80 0.8 2960 90
