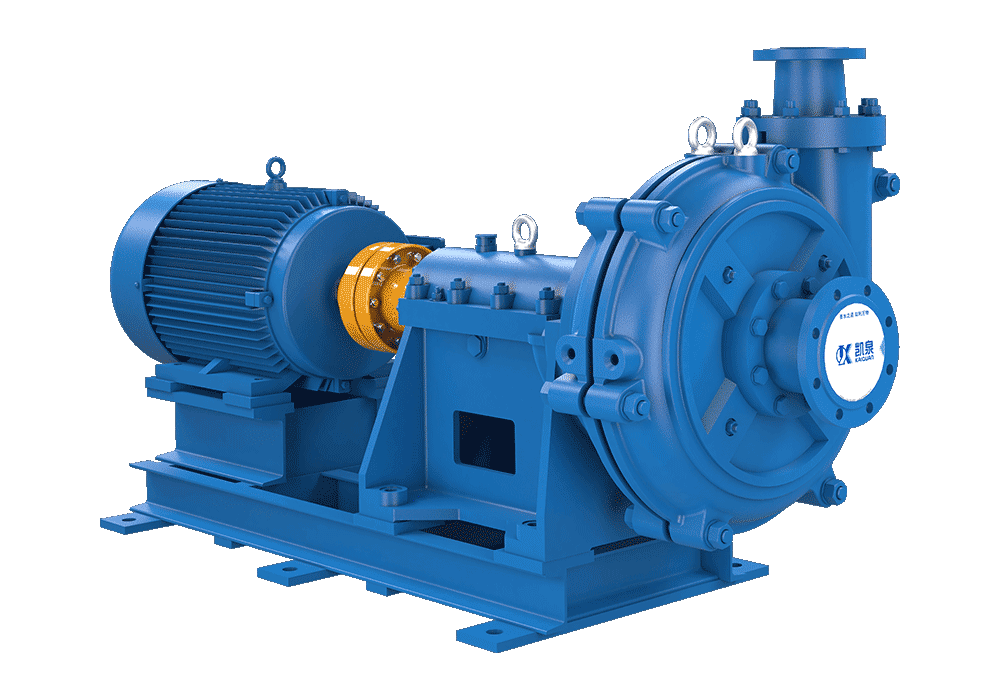

Kaiquan KSH Slurry Pump

150S-KSH

Kaiquan Pump Industry’s KSH slurry pump is a single-stage,horizontal centrifugal pump specifically developed for key industries such as coal,electric power,metallurgy,chemicals,and building materials.The pump offers numerous advantages,including high efficiency,energy conservation,low vibration and noise,reliable operation,a long service life,and ease of maintenance.Its hydraulic model,structural design
Product Consultation By telephone
Function
Parameters
Size
Video Introduction

Function

Product Applications:

Widely used in sectors such as electric power, metallurgy, steel manufacturing, coal preparation, mineral processing, alumina production, and flue-gas desulfurization (FGD) projects, as well as their auxiliary systems. They are primarily designed to transport abrasive slurries containing solid particles—such as feed slurries in mining operations and the transport of various concentrates and tailings—and are suitable for similar operating conditions in environmental protection projects, municipal engineering, new building material plants, the paper industry, and agricultural irrigation.

Scope of Application:

Flow rate: 4–2800 m³/h

Head: 9–130 m

Working medium: Abrasive slurries containing solid particles

Product Overview:

Kaiquan’s single-stage, horizontal centrifugal slurry pump is a new type of wear- and corrosion-resistant pump developed to meet the rapidly growing demand from key industries—including coal, power, metallurgy, chemicals, and building materials—while addressing the specific complexities and characteristics of their operating environments. Incorporating advanced technologies and research achievements from both domestic and international sources alongside proprietary innovations in hydraulic modeling, structural design, and wear-resistant materials, this series offers numerous advantages: high efficiency, energy conservation, low vibration and noise, reliable operation, long service life, and ease of maintenance.

Parameters

model Rotational speed (r/min) Flow rate (m³/h) Head (m) Power (kW) Inlet and outlet diameters
KZJ40-17 2900 9 44.5 5.5 40×40
18 42.5 7.5 40×40
23 39.2 7.5 40×40
1400 4 10.4 0.55 40×40
9 9.8 1.1 40×40
11 9 1.1 40×40
KZJ40-19 2930 16.3 57.1 11 56×40
30 54.9 11 56×40
34.9 53.7 11 56×40
1430 8 13.6 1.5 56×40
14.6 13.1 1.5 56×40
17 12.8 2.2 56×40
KZJ50-33 1480 26 42.5 15 80×50
40 40 18.5 80×50
54 34.5 18.5 80×50
960 17 17.9 4 80×50
26 16.8 5.5 80×50
35 14.5 5.5 80×50
KZJ50-46 1480 48 85.8 45 80×50
77 82.3 55 80×50
94 79.9 55 80×50
970 31 36.9 15 80×50
50 35.4 15 80×50
62 34.3 18.5 80×50
KZJ50-50 1480 57 110.7 75 80×50
91 105.5 75 80×50
111 99.8 90 80×50
980 38 48.5 22 80×50
60 46.3 30 80×50
74 43.8 30 80×50
KZJ65-30 1480 48 35.8 11 100×65
63 34.8 11 100×65
80 32.9 15 100×65
980 32 15.7 4 100×65
42 15.3 5.5 100×65
53 14.4 5.5 100×65
KZJ80-36 1480 98 51.5 30 125×80
145 48.6 37 125×80
190 44.7 45 125×80
980 63 22.6 11 125×80
96 21.3 11 125×80
126 19.6 15 125×80
KZJ80-42 1480 130 70.6 55 125×80
170 67.2 75 125×80
204 64.2 75 125×80
980 85 31 18.5 125×80
112 29.6 22 125×80
135 28.1 22 125×80
KZJ80-52 1480 107 109.8 110 125×80
182 105.5 132 125×80
242 99 160 125×80
980 71 48.1 30 125×80
121 46.3 37 125×80
160 43.4 35 125×80
KZJ100-36 1480 130 48.6 37 150×100
210 43.3 45 150×100
245 40.6 55 150×100
980 85 21.3 15 150×100
140 19 15 150×100
160 17.8 18.5 150×100
KZJ100-42 1480 140 71 75 150×100
245 67 90 150×100
275 65.5 90 150×100
980 95 31 22 150×100
160 29.4 30 150×100
180 28.7 30 150×100
KZJ100-B42 1480 176 66.8 75 220×100
309 60.5 90 220×100
365 56.9 90 220×100
980 117 29.3 22 220×100
205 26.5 30 220×100
242 24.9 30 220×100
KZJ100-50 1480 180 101.6 110 150×100
300 95 132 150×100
360 90.2 160 150×100
980 120 44.6 30 150×100
195 41.5 45 150×100
240 39.6 55 150×100
KZJ150-50 980 230 43.1 55 200×200
380 40.5 75 200×200
460 37 75 200×200
730 171 23.9 30 200×200
280 22 30 200×200
343 21.1 37 200×200
KZJ150-60 980 270 64.5 110 200×150
270 61.7 132 200×150
360 59.2 160 200×150
730 200 35.5 45 200×150
350 34.2 55 200×150
410 32.9 75 200×150
KZJ150-65 980 300 78.5 132 200×150
500 75 185 200×150
600 72.5 200 200×150
730 225 43.5 75 200×150
370 41.6 75 200×150
450 40.2 90 200×150
KZJ150-70 980 186 91.2 132 200×150
285 87.1 160 200×150
400 80 185 200×150
730 140 50.6 55 200×150
212 48.3 75 200×150
300 44.3 75 200×150
KZJ200-60 980 435 64 132 250×200
760 59 185 250×200
870 56.3 200 250×200
730 325 35.5 75 250×200
565 32.7 90 250×200
650 31.2 90 250×200
KZJ200-65 980 470 72 185 250×200
820 68 250 250×200
950 66 250 250×200
730 350 40 75 250×200
610 37.8 110 250×200
705 36.6 110 250×200
KZJ200-70 980 409 86.4 200 250×200
738 82.3 280 250×200
976 77.6 315 250×200
730 305 47.9 90 250×200
550 45.7 132 250×200
727 43.7 132 250×200
KZJ200-75 980 450 103 250 250×200
750 95.7 355 250×200
900 91 355 250×200
730 335 57.5 110 250×200
560 53.1 132 250×200
670 51.1 160 250×200
KZJ200-85 980 441 133.7 400 250×200
858 128.2 560 250×200
907 127.9 560 250×200
730 329 74.2 160 250×200
639 71.1 220 250×200
676 71 220 250×200
KZJ250-65 980 597 69 220 300×250
846 64.5 280 300×250
1049 59.3 315 300×250
730 845 38 90 300×250
705 35.8 132 300×250
930 32.9 132 300×250
KZJ250-75 980 600 98.4 315 300×250
1100 91.9 450 300×250
1480 84 560 300×250
730 440 54.4 132 300×250
820 51 185 300×250
1100 46.2 220 300×250
KZJ250-85 980 752 129.8 560 300×250
1262 126.2 710 300×250
1504 120.7 800 300×250
730 560 72 220 300×250
940 70 315 300×250
1120 67 315 300×250
KZJ250-96 730 736 93.7 355 300×250
1076 90 450 300×250
1466 84.5 560 300×250
590 595 61.2 185 300×250
870 58.8 250 300×250
1185 55.2 280 300×250
KZJ250-103 730 734 110.5 450 300×250
1067 106.7 560 300×250
1573 98.9 710 300×250
590 593 72.2 250 300×250
862 69.7 280 300×250
1271 64.6 355 300×250
KZJ300-56 980 789 46 185 350×300
1415 40.8 250 350×300
1568 38.5 250 350×300
730 588 26.6 75 350×300
1054 22.6 110 350×300
1168 21.4 110 350×300
KZJ300-70 980 1268 76.8 450 350×300
2118 66.7 630 350×300
2333 64 630 350×300
730 945 42.6 185 350×300
1578 37 250 350×300
1738 35.5 250 350×300
KZJ300-90 730 922 80 355 350×300
1648 73.5 500 350×300
1844 70.5 560 350×300
590 1345 52 185 350×300
1332 48 280 350×300
1491 46.1 280 350×300
KZJ300-100 590 913 65.2 315 400×300
1785 59.6 450 400×300
1826 59.1 450 400×300
490 758 45 185 400×300
1482 41.2 250 400×300
1517 40.8 250 400×300
50KXZ-28 1480 25.2 30.2 7.5
42 28 11
50.4 26.3 11
980 16.7 13.2 3
27.8 12.3 3
33.4 11.5 3
50KXZ-33 1480 27 42.3 15
45 38 18.5
54 34.5 18.5
980 18 18.5 4
30 16.7 5.5
36 15.2 5.5
50KXZ-36 1480 33 50.2 22
55 47 30
66 40.6 30
980 21.8 22 5.5
36.4 20.6 7.5
43.7 17.8 7.5
50KXZ-42 1480 39 70.4 37
65 68 45
78 64.8 45
980 25.8 30.9 11
43 29.8 15
51.6 28.4 15
50KXZ-47 1480 42 98.6 45
70 92 55
84 89.2 55
980 27.8 43.2 15
46.4 40.3 18.5
55.7 39.1 18.5
80KXZ-30 1480 48 33.8 15
80 30 18.5
96 28.8 18.5
980 91.8 14.8 4
83 13.2 5.5
63.5 11.7 5.5
80KXZ-33 1480 60 44.1 18.5
100 40 30
120 37.4 30
980 39.7 19.3 5.5
66.2 17.5 7.5
79.4 16.4 7.5
80KXZ-38 1480 66 58.8 30
110 55 37
132 52.3 37
980 43.7 25.8 7.5
72.8 24.1 11
87.5 22.7 11
80KXZ-42 1480 72 73.2 45
120 70 55
144 68.3 55
980 48 32 15
79.5 30.5 18.5
95.5 29.6 18.5
80KXZ-48 1480 90 92 75
150 90 90
180 88.2 110
980 59.6 40.7 22
99.3 39.5 30
119.2 38.6 30
100KXZ-33 1480 132 40.8 45
220 38 55
264 35.7 75
980 87.4 17.9 15
145.7 16.7 18.5
174.8 15.5 18.5
100KXZ-38 1480 150 54.5 55
250 50 75
300 47.2 90
980 99.3 23.9 18.5
165.5 21.9 22
198.6 20.5 30
100KXZ-42 1480 180 69.2 90
300 65 110
360 62.7 132
980 119.2 30.3 30
198.6 28.5 37
138.3 27.5 45
100KXZ-50 1480 204 93.7 160
340 90 200
408 87.3 200
980 135 41 45
225 39.4 55
270 38.2 55
150KXZ-46 980 240 35.2 55
400 32 75
480 30.1 90
730 178.8 19.5 30
298 17.7 37
357.6 16.5 37
150KXZ-54 980 270 49.7 90
450 47 132
540 44.8 132
740 204 28.3 37
339.8 26.8 55
407.8 25.5 55
150KXZ-62 980 330 64.8 160
550 62 200
660 59.3 220
740 249.2 37 75
415.3 35.3 90
498.4 33.8 110
150KXZ-74 980 360 90.3 280
600 88 315
720 85.2 355
740 271.8 51.5 132
453.1 50.2 160
543.7 48.6 160
200KXZ-52 980 384 41.3 110
640 38 132
768 35.7 160
740 290 23.5 45
483.2 21.7 55
580 20.3 75
200KXZ-60 980 420 55.8 160
700 52 200
840 49 220
740 117.1 31.8 75
528.6 29.6 90
634.3 27.5 110
200KXZ-65 980 510 71.8 250
850 68.5 315
1020 64 355
740 385 40.9 110
641.8 39 160
770.2 36.4 160
200KXZ-74 980 540 91.3 355
900 90 560
1080 85.6 560
740 407.8 52 160
679.6 51.3 200
815.5 48.8 220
250KXZ-52 980 510 40.5 132
850 35 160
1020 33 185
740 385 23.1 55
641.8 20 75
434.2 18.7 90
250KXZ-56 980 582 49.3 200
970 45 250
1164 41.2 280
740 439.5 28.1 90
732.4 25.6 110
879 23.5 132
250KXZ-65 980 660 70 315
1100 64 400
1320 59.8 450
740 498.4 40 132
830.6 36.5 185
996.7 34.1 200
250KXZ-74 980 750 89.2 450
1250 86 560
1500 80 630
740 566.3 50.8 185
943.9 49 250
1132.7 45.6 280
300KXZ-52 980 780 39.2 185
1300 32 220
1550 27.1 250
740 989 22.3 90
981.6 18.2 110
1178 15.4 110
300KXZ-58 980 900 48.3 280
1500 43 355
1800 38.5 400
740 679.6 27.5 110
1132.7 24.5 160
1359.2 21.7 160
300KXZ-66 980 1080 68.5 450
1800 60 560
2160 54 630
740 815.5 39 200
1359.2 34.2 250
1631 30.7 280
300KXZ-75 980 1200 87.8 630
2000 80 710
2400 74.5 800
740 906 50 280
1510.2 45.6 355
1812.2 42.4 400
350KXZ-67 740 1200 36.4 250
2000 30 315
2400 26 355
590 956.8 23.1 132
1594.6 19.1 160
1913.5 16.5 185
350KXZ-74 740 1350 44.8 355
2250 40 450
2700 36.3 500
590 1076.4 28.5 185
1793.9 25.4 250
2352.7 23.1 280
350KXZ-84 740 1440 60.7 500
2400 53 630
2880 48.5 710
590 1148 38.5 280
1913.5 33.6 355
2296.2 30.5 355
KD25-15 2900 9.2 34.4 2-5.5 40×25
17.1 29.5 2-5.5 40×25
19.3 27.1 2-5.5 40×25
1390 4.4 7.9 4-0.55 40×25
8.2 6.8 4-0.75 40×25
9.3 6.2 4-0.75 40×25
KD25-25 1440 9.6 216 4-3 40×25
17.8 16.6 4-4 40×25
19.9 13.9 4-4 40×25
910 12.5 8.6 6-0.75 40×25
11.2 6.6 6-1.1 40×25
12.5 5.5 6-1.1 40×25
KD40-25 [a] 2950 35.5 88.6 2-30 65×40
58.8 73.5 2-37 65×40
74.7 60.8 2-37 65×40
1440 17.3 21.1 4-4 65×40
28.7 17.5 4-5.5 65×40
36.5 14.5 4-5.5 65×40
KD45-21 2930 21.7 69.1 2-15 60×45
40 65.5 2-18.5 60×45
46.5 65.1 2-22 60×45
1440 10.6 16.5 4-3 60×45
19.5 15.9 4-3 60×45
22.7 15.5 4-3 60×45
KD50-30 1460 34 36.3 4-11 80×50
55 31.9 4-15 80×50
78 26.4 4-18.5 80×50
960 22 15.7 6-4 80×50
36 13.8 6-4 80×50
51 11.4 6-5.5 80×50
KD50-D40 1470 33 51.7 4-18.5 80×50
58 43.4 4-30 80×50
76 40.8 4-30 80×50
970 22 22.5 6-5.5 80×50
45 18.9 6-7.5 80×50
50 17.7 6-7.5 80×50
KD50-46 1480 48 85.8 4-45 80×50
77 82.3 4-55 80×50
94 79.9 4-55 80×50
970 31 36.9 6-15 80×50
50 35.4 6-15 80×50
62 34.3 6-18.5 80×50
KD50-50 1480 87 10.7 4-75 80×50
91 105.5 4-75 80×50
111 99.8 4-90 80×50
980 38 48.5 6-22 80×50
30 46.3 6-30 80×50
54 43.8 6-30 80×50
KD65-30 1470 8.4 35.6 4-15 100×65
99 32.6 4-18.5 100×65
99 30.7 4-22 100×65
960 29 15.2 6-5.5 100×65
51 13.9 6-5.5 100×65
54 13.1 6-7.5 100×65
KD65-40 1480 71 63.2 4-37 100×65
141 57.5 4-45 100×65
159 54.6 4-55 100×65
970 47 27.1 6-11 100×65
92 24.7 6-15 100×65
104 23.5 6-15 100×65
KD80-36 1480 86 47.1 30 100×80
151 42 37 100×80
167 39.9 37 100×80
970 56 20.2 11 100×80
99 18 15 100×80
109 17.1 15 100×80
KD80-52 1480 107 39.8 110 125×80
182 105.5 132 125×80
242 99 160 125×80
980 71 48.1 30 125×80
121 46.3 37 125×80
160 43.4 45 125×80
KD100-35 1480 163 45.9 45 150×100
278 41.5 55 150×100
323 45.2 75 150×100
970 207 19.7 15 150×100
182 17.8 18.5 150×100
212 16.8 18.5 150×100
KD100-B40 1480 129 61 55 150×100
219 56.1 75 150×100
268 53.6 75 150×100
970 85 26.2 15 150×100
144 21.1 22 150×100
176 23 22 150×100
KD100-42 1480 140 71 75 150×100
245 67 90 150×100
275 65.6 90 150×100
980 95 31 22 150×100
160 29.4 30 150×100
180 28.7 30 150×100
KD100-45 1480 100 83.5 55 125×100
195 45.6 75 125×100
228 66.1 90 125×100
980 66 36.6 18.5 125×100
129 31.4 30 125×100
151 29 30 125×100
KD100-52 1480 248 108.6 160 150×100
324 103.3 185 150×100
389 98.7 185 150×100
980 162 47.7 45 150×100
214 45.5 55 150×100
257 43.2 55 150×100
KD150-40 1490 260 61.2 90 200×150
440 53.8 110 200×150
503 50.7 132 200×150
980 171 26.5 30 200×150
339 23.3 37 200×150
421 29.9 37 200×150
KD150-B55 990 590 53.7 90 200×150
617 48 110 200×150
630 45.9 132 200×150
740 209 30 37 200×150
387 28.8 55 200×150
471 25.7 55 200×150
KD150-65 980 300 78.5 132 200×150
500 75 185 200×150
600 72.5 200 200×150
730 225 43.5 75 200×150
370 41.6 75 200×150
450 40.2 90 200×150
KD150-70 980 186 91.2 132 200×150
285 87.1 160 200×150
400 80 185 200×150
730 140 50.6 55 200×150
212 48.3 75 200×150
300 44.3 75 200×150
KD200-B45 990 279 31 55 250×200
557 26.1 75 250×200
645 23.3 75 250×200
730 206 16.9 22 250×200
410 14.2 30 250×200
475 12.7 30 250×200
KD200-70 980 409 86.4 200 250×200
738 82.3 280 250×200
976 77.6 315 250×200
730 305 47.9 90 250×200
550 45.7 132 250×200
727 43.1 132 250×200
KD200-75 980 450 103 250 250×200
750 95.7 355 250×200
900 91 355 250×200
730 335 57.5 110 250×200
560 53.1 132 250×200
670 51.1 160 250×200
KD250-65 980 597 69 220 300×250
946 64.5 280 300×250
1249 59.3 315 300×250
730 445 38 90 300×250
705 35.8 132 300×250
930 32.9 132 300×250
KD250-75 980 600 98.4 315 300×250
1100 91.9 450 300×250
1480 84 560 300×250
730 440 54.5 132 300×250
820 51 185 300×250
1100 46.2 220 300×250
KD300-56 980 789 46 185 350×300
1415 40.8 250 350×300
1568 38.5 250 350×300
730 588 26.6 75 350×300
1054 22.6 110 350×300
1168 21.4 110 350×300
KD300-60 989 1170 53.1 315 350×300
1779 47.1 355 350×300
2403 36.1 400 350×300
742 878 29.9 132 350×300
1335 26.5 160 350×300
1803 20.3 160 350×300
KD300-70 980 1268 76.8 450 350×300
2118 66.7 630 350×300
2333 64 630 350×300
730 945 42.6 185 350×300
1578 37 250 350×300
1738 35.5 250 350×300

Size

Video Introduction

Message Inquiry

*
*
*
*
*
Submit
