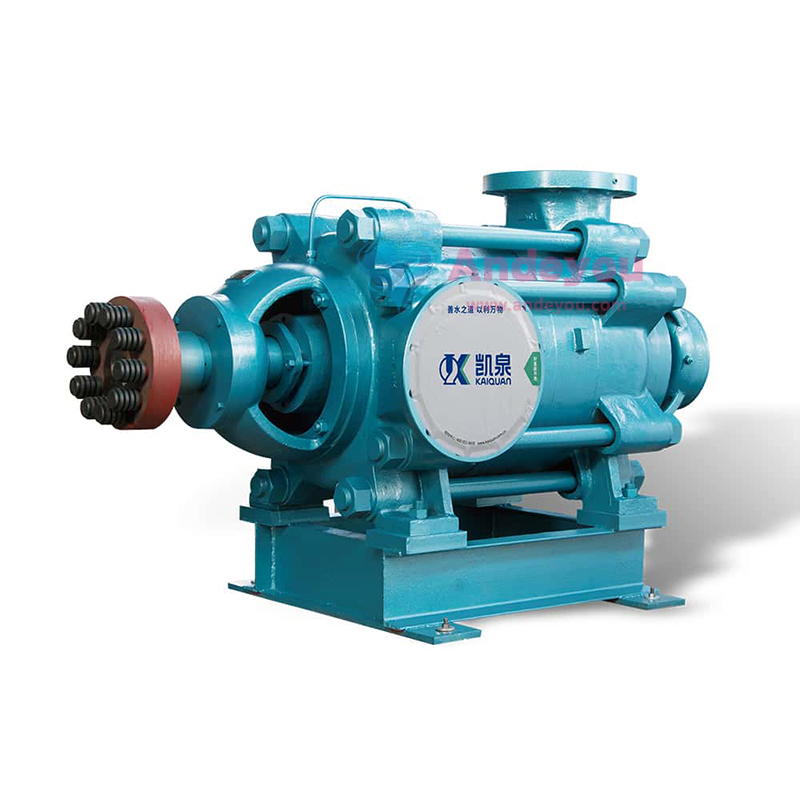

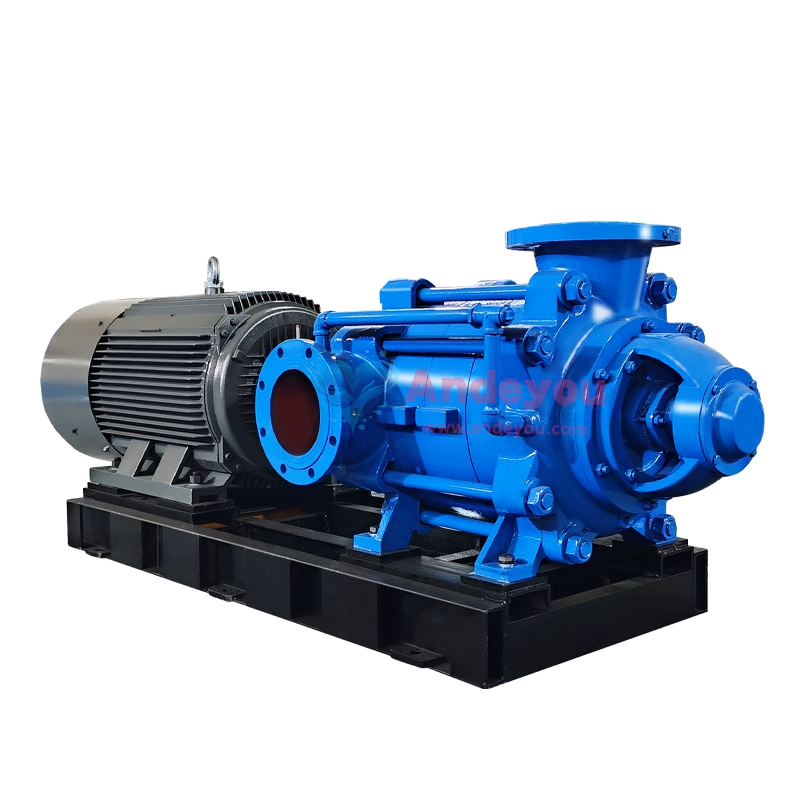

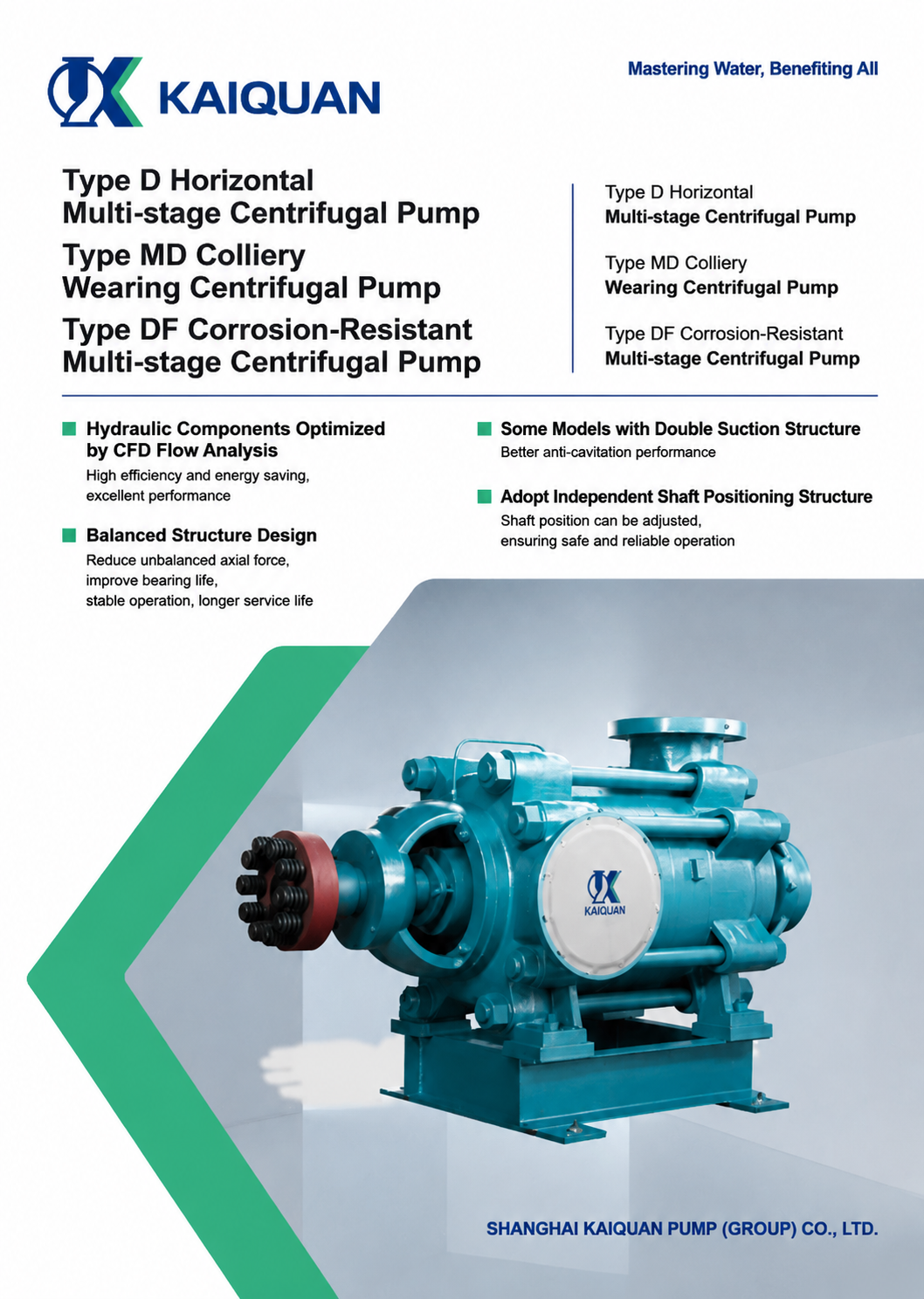

Kaiquan Type D Multistage Mine Pump

D15-50x7

Kaiquan Pump Industry’s Model D mining multistage pump is a sectional,multistage centrifugal pump featuring foot-mounted support and tie-bolt assembly,resulting in a compact structure that is easy to maintain.Designed primarily for transporting clear water or liquids with similar properties—free of solid particles—it offers a flow rate range of 3.75–1,200 m³/h,a head range of 50–1,550 m,and an operating temperature range of 0–80°C.
Product Consultation By telephone
Function
Parameters

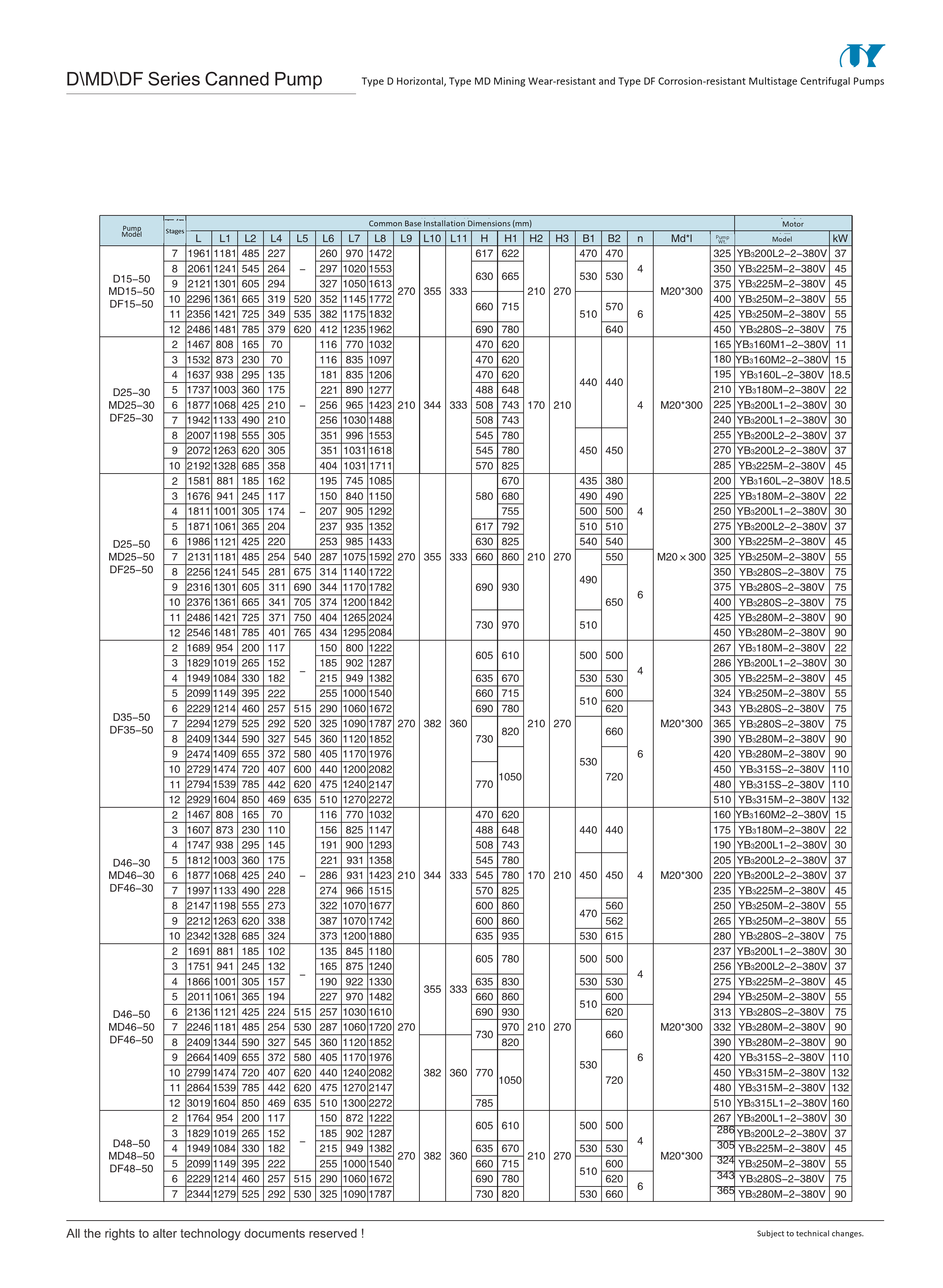

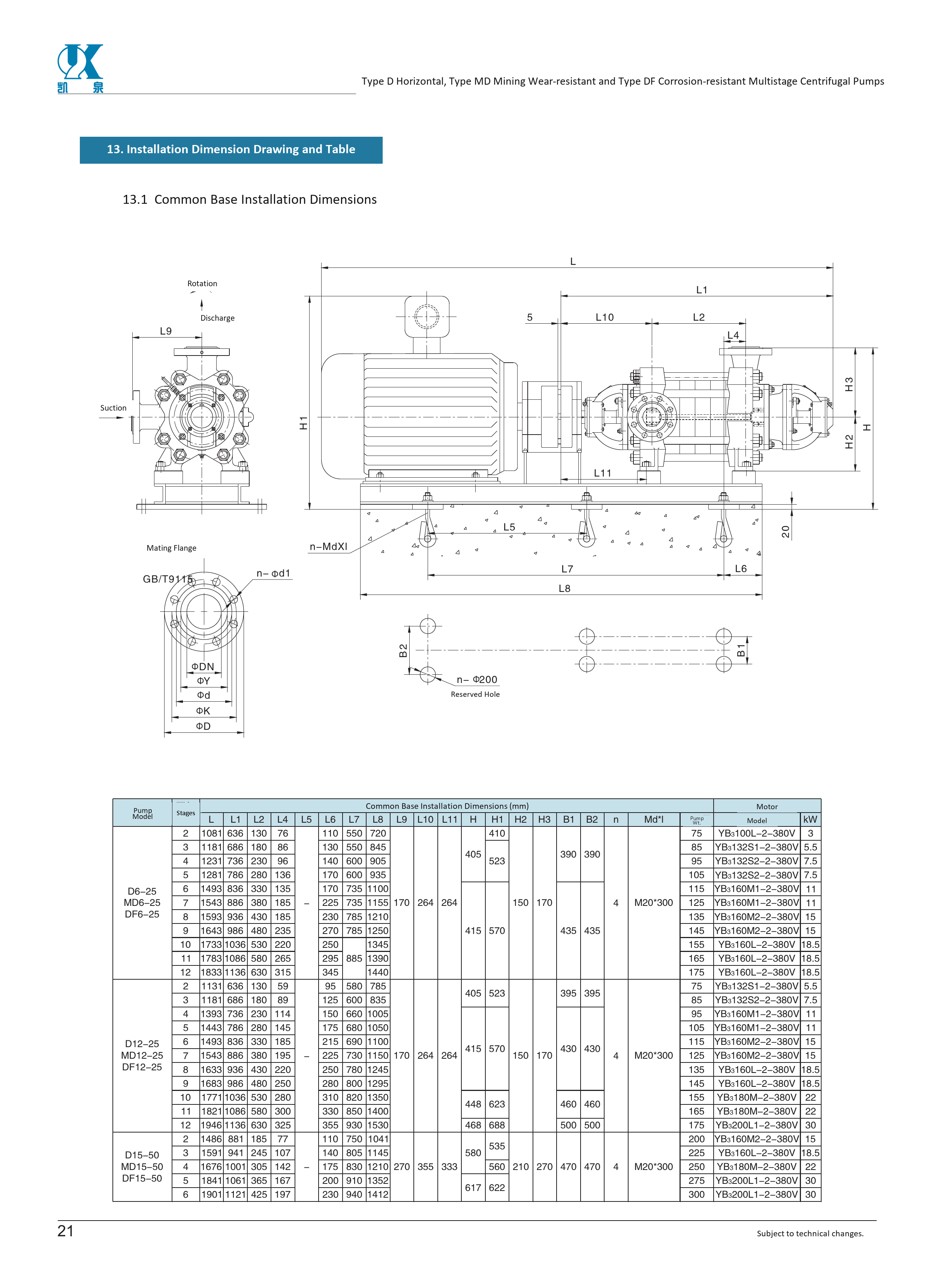

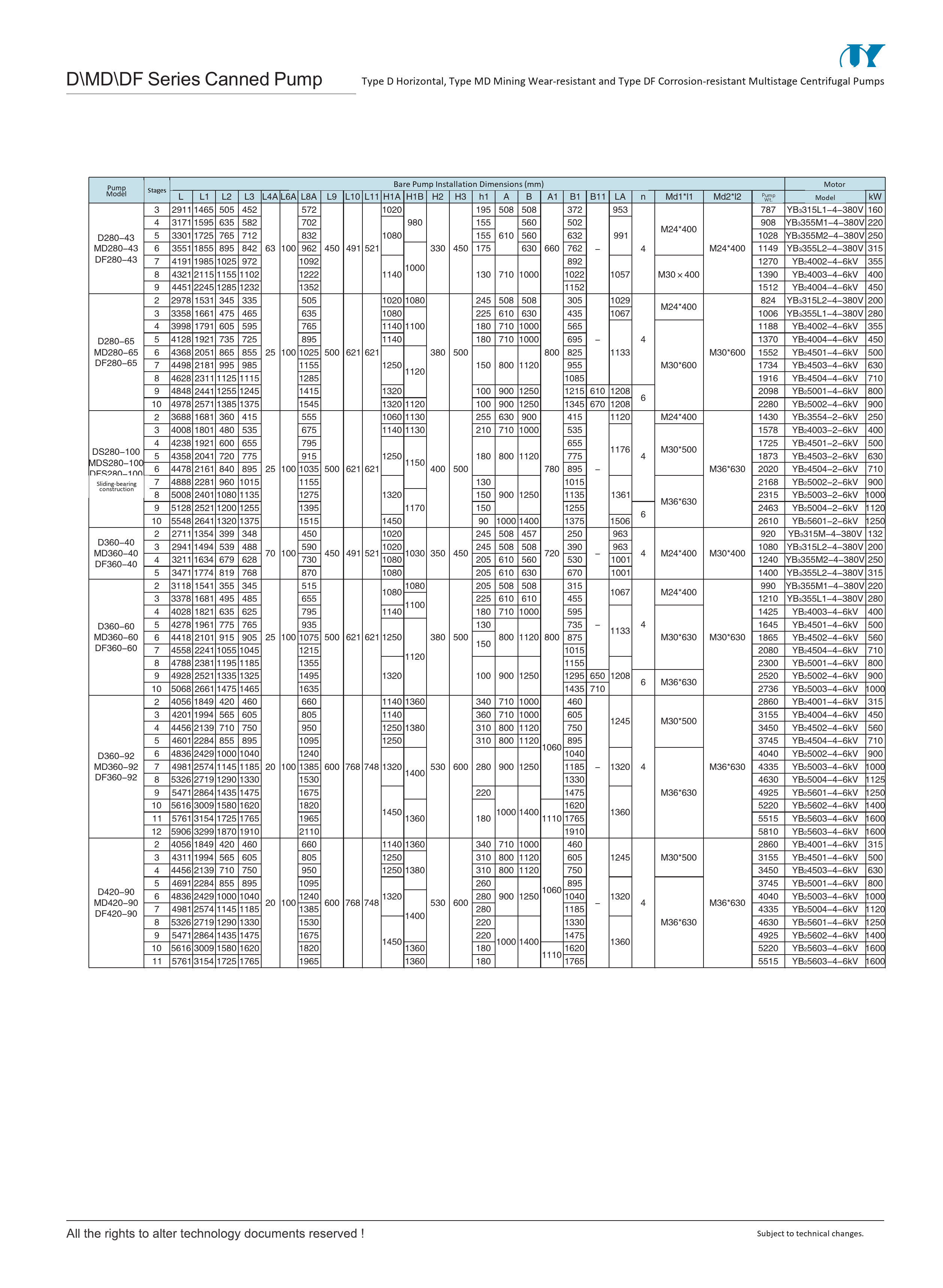

Size
Video Introduction

Function

Product Applications:

Type D horizontal multistage centrifugal pumps are primarily used for water supply and drainage in factories, municipalities, and mines.

Type MD wear-resistant centrifugal pumps for coal mines are mainly used to transport neutral mine water and similar types of wastewater.

Type DF corrosion-resistant multistage centrifugal pumps are primarily used to transport moderately corrosive media in sectors such as metallurgy, mining, brine extraction, and the chemical industry; when flow-path components are made of materials like duplex stainless steel, they can also be used to transport seawater and highly corrosive media.

Scope of Application:

Nominal speed: 2980/1480 r/min

Transported media: Type D horizontal multistage centrifugal pumps are used for clean water (free of solid particles) or liquids with physical and chemical properties similar to clean water.

Type MD wear-resistant multistage centrifugal pumps for coal mines are used for neutral mine water or similar wastewater with a solid particle content (by volume) of no more than 1.5% (particle size < 0.5 mm) and a temperature not exceeding 80°C.

Type DF corrosion-resistant multistage centrifugal pumps are primarily used for acidic or alkaline mine water or similar mildly corrosive chemical wastewater.

Liquid temperature: 0–80°C

Flow rate range: 3.75–1200 m³/h

Head range: 50–1550 m

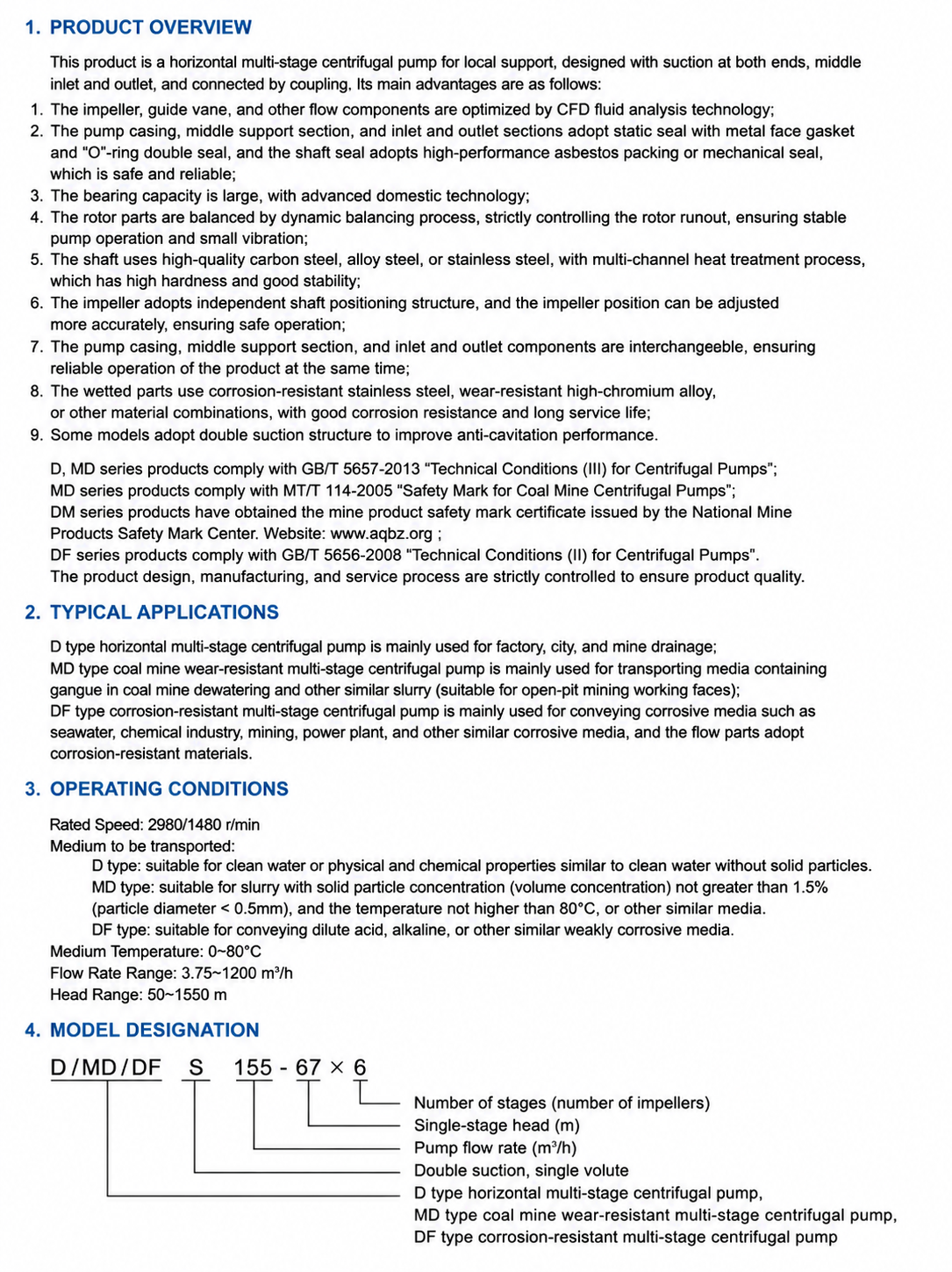

Product Overview:

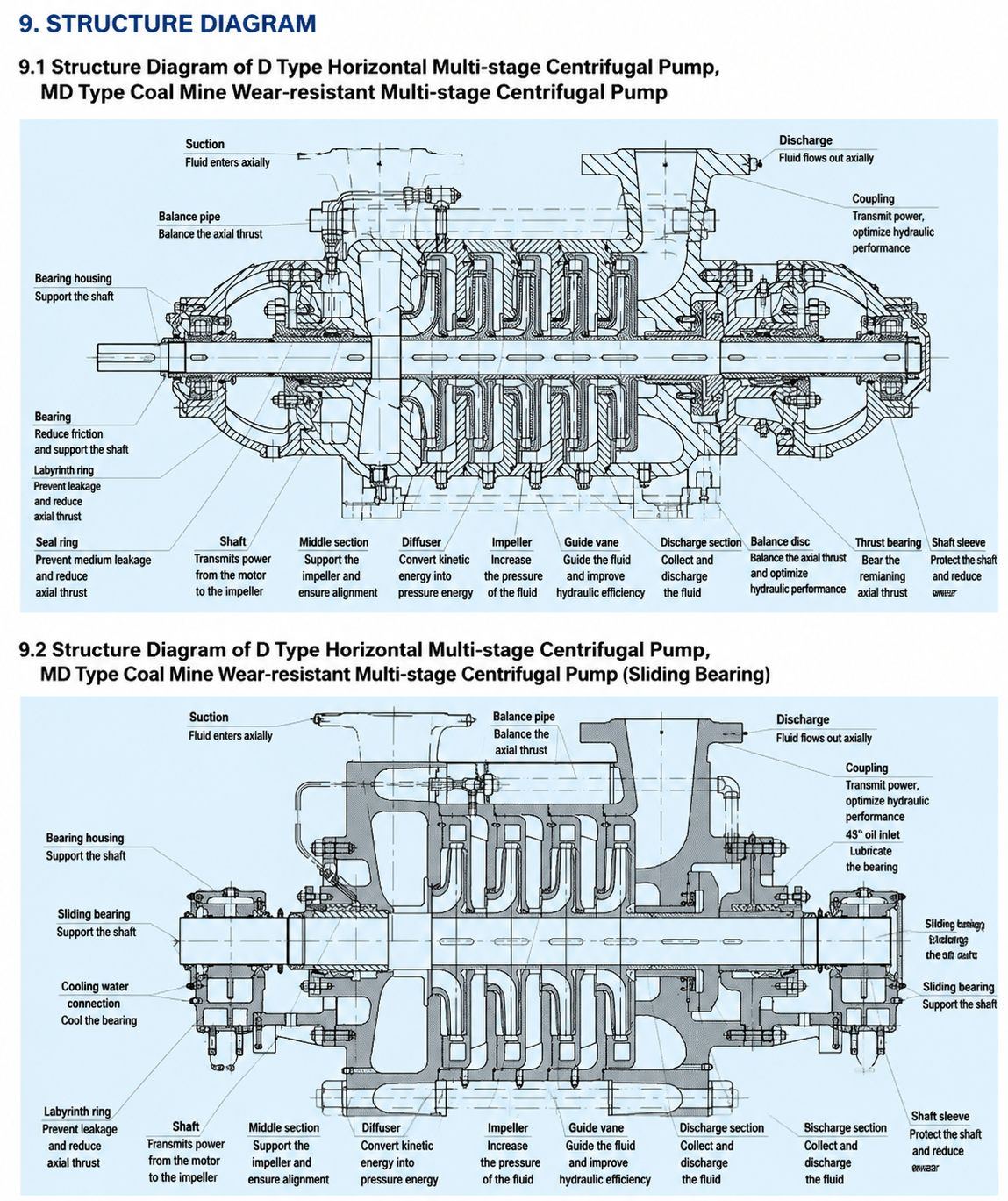

This product is a segmental multistage centrifugal pump featuring foot mounting, with the suction section, intermediate sections, and discharge section connected by tie bolts.

The D and MD series products comply with the GB/T 5657-2013 standard (Technical Specifications for Centrifugal Pumps – Class III); the MD series also complies with the MT/T 114-2005 standard (Wear-resistant Multistage Centrifugal Pumps for Coal Mines); the DF series complies with the GB/T 5656-2008 standard (Technical Specifications for Centrifugal Pumps – Class II). Strict control systems govern the design, production, and service processes to ensure high product quality.

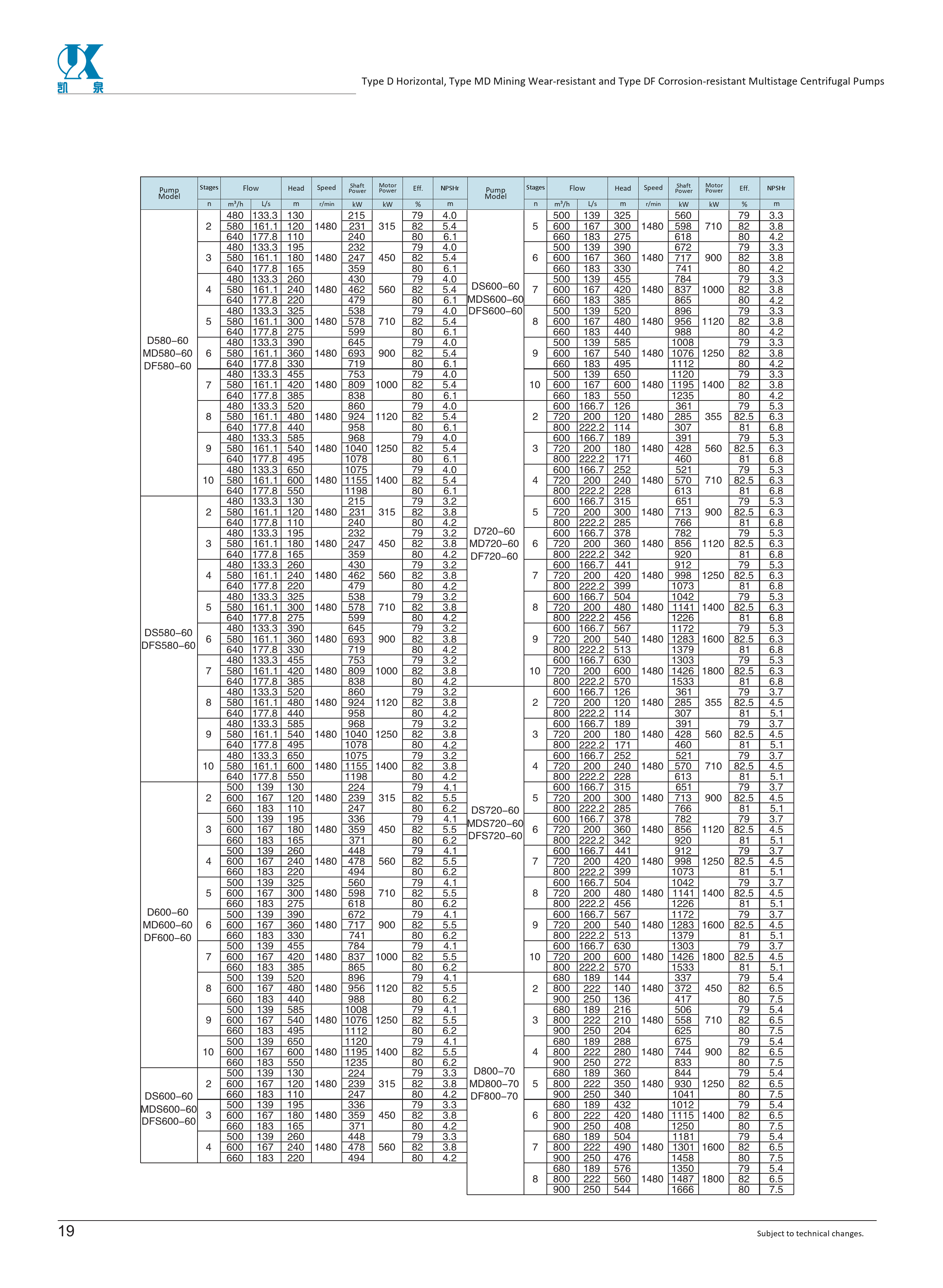

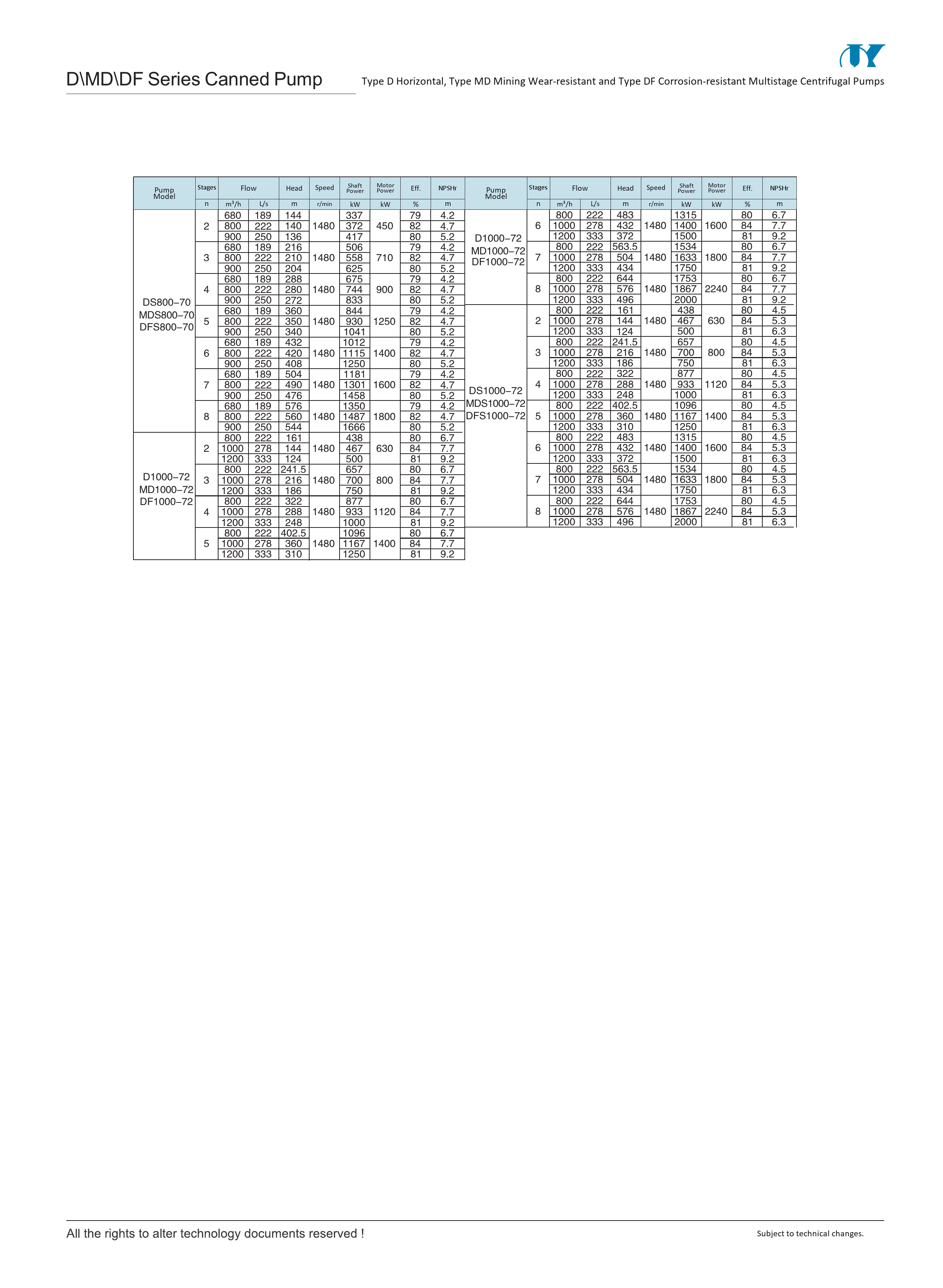

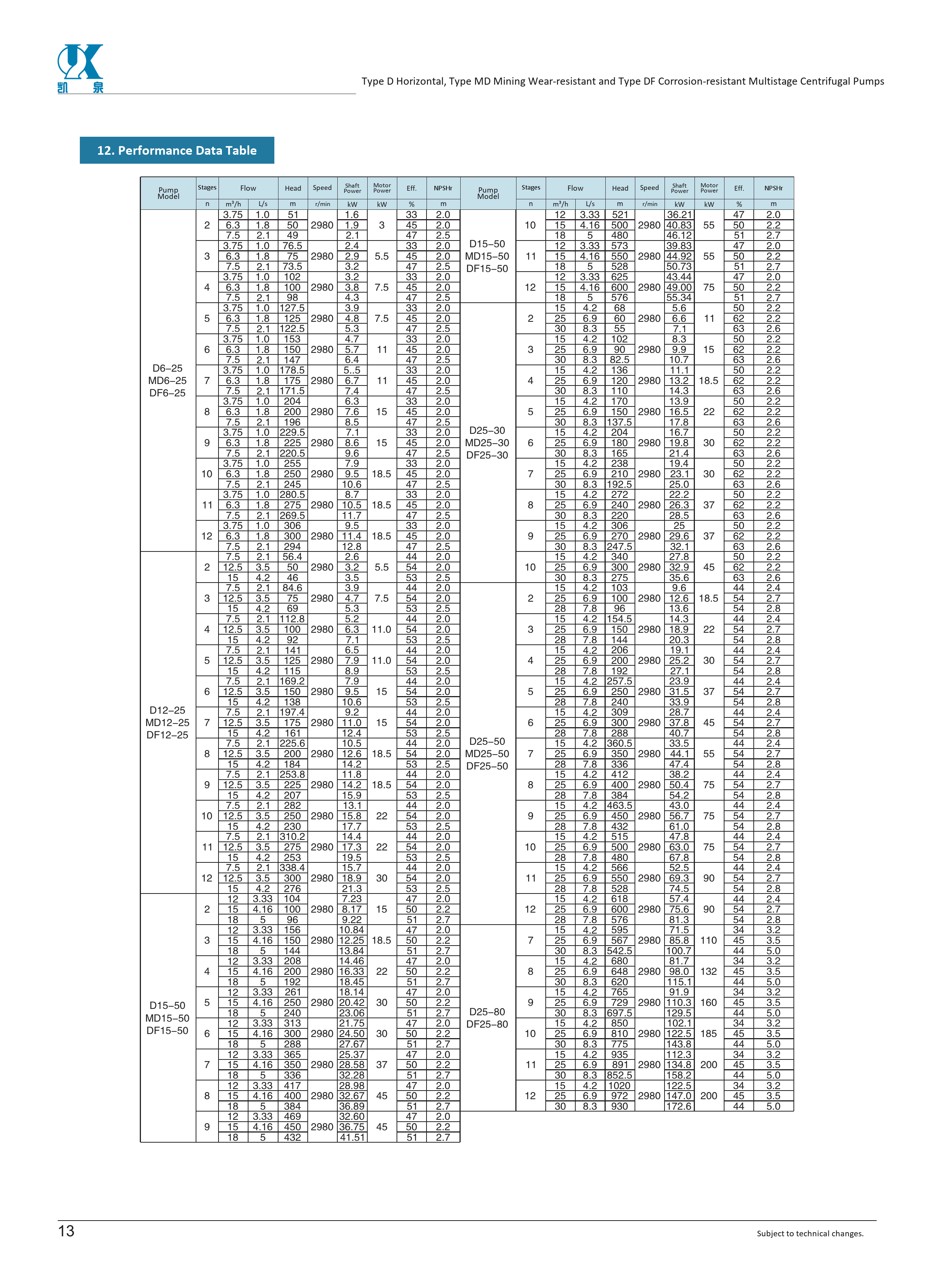

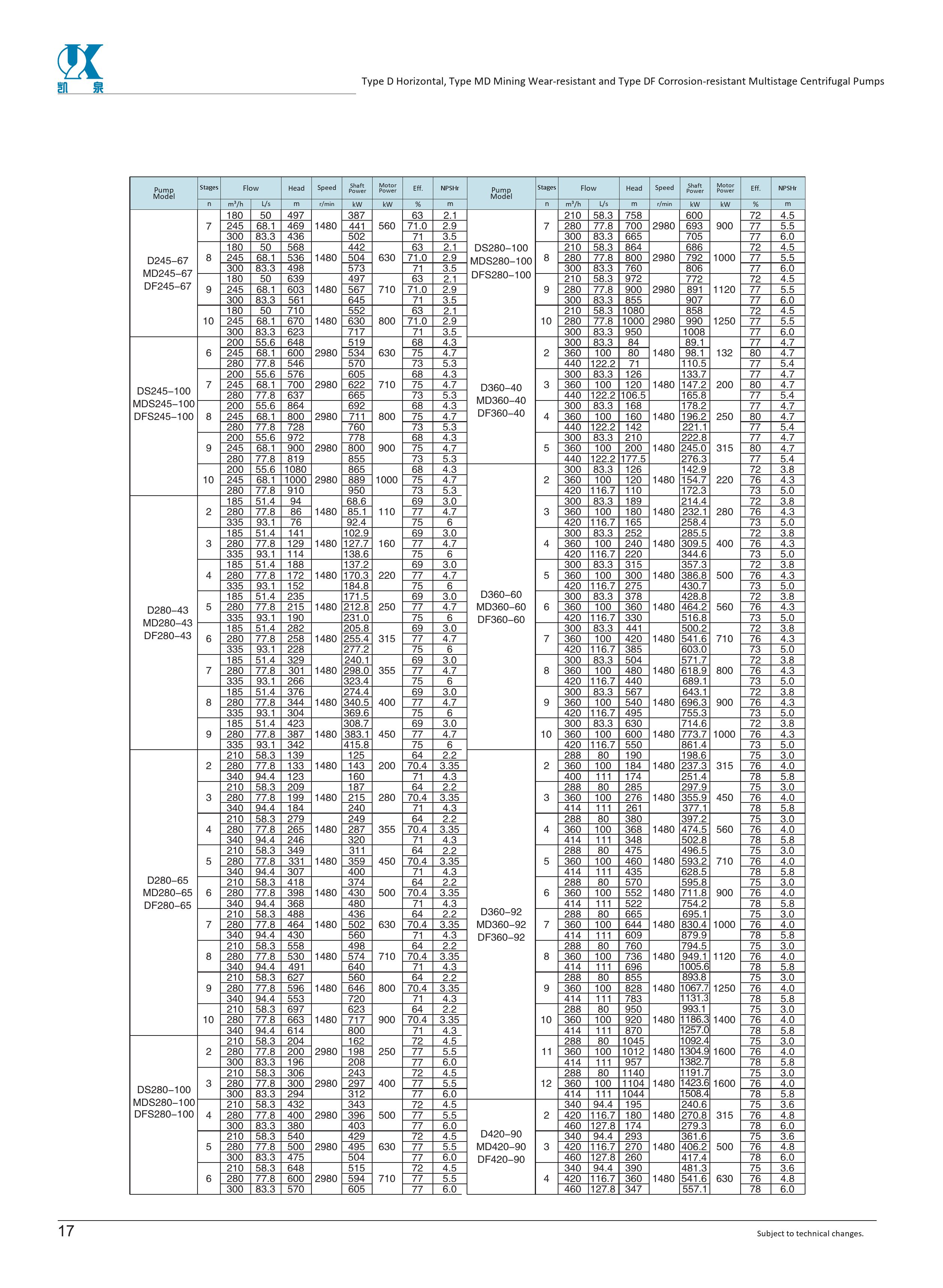

Parameters

model series Flow rate
(m³/h)		 Head
(m)		 Rotational speed
(r/min)		 Power
(kW)		 Inlet and outlet diameters
D6-25
MD6-25
DF6-25		 2 6.3 50 2980 3 40×40
3 6.3 75 2980 5.5 40×40
4 6.3 100 2980 7.5 40×40
5 6.3 125 2980 7.5 40×40
6 6.3 150 2980 11 40×40
7 6.3 175 2980 11 40×40
8 6.3 200 2980 15 40×40
9 6.3 225 2980 15 40×40
10 6.3 250 2980 18.5 40×40
11 6.3 275 2980 18.5 40×40
12 6.3 300 2980 18.5 40×40
D12-25
MD12-25
DF12-25		 2 12.5 50 2980 5.5 50×40
3 12.5 75 2980 7.5 50×40
4 12.5 100 2980 11 50×40
5 12.5 125 2980 11 50×40
6 12.5 150 2980 15 50×40
7 12.5 175 2980 15 50×40
8 12.5 200 2980 18.5 50×40
9 12.5 225 2980 18.5 50×40
10 12.5 250 2980 22 50×40
11 12.5 275 2980 22 50×40
12 12.5 300 2980 30 50×40
D15-50
MD15-50
DF15-50		 2 15 100 2980 15 65×65
3 15 150 2980 18.5 65×65
4 15 200 2980 22 65×65
5 15 250 2980 30 65×65
6 15 300 2980 30 65×65
7 15 350 2980 37 65×65
8 15 400 2980 45 65×65
9 15 450 2980 45 65×65
10 15 500 2980 55 65×65
11 15 550 2980 55 65×65
12 15 600 2980 75 65×65
D25-30
MD25-30
DF25-30		 2 25 60 2980 11 65×65
3 25 90 2980 15 65×65
4 25 120 2980 18.5 65×65
5 25 150 2980 22 65×65
6 25 180 2980 30 65×65
7 25 210 2980 30 65×65
8 25 240 2980 37 65×65
9 25 270 2980 37 65×65
10 25 300 2980 45 65×65
D25-50
MD25-50
DF25-50		 2 25 100 2980 18.5 65×65
3 25 150 2980 22 65×65
4 25 200 2980 30 65×65
5 25 250 2980 37 65×65
6 25 300 2980 45 65×65
7 25 350 2980 55 65×65
8 25 400 2980 75 65×65
9 25 450 2980 75 65×65
10 25 500 2980 75 65×65
11 25 550 2980 90 65×65
12 25 600 2980 90 65×65
D25-80
DF25-80		 7 25 567 2980 110
8 25 648 2980 132
9 25 729 2980 160
10 25 810 2980 185
11 25 891 2980 200
12 25 972 2980 200
D35-50
DF35-50		 2 35 100 2980 22 80×80
3 35 150 2980 30 80×80
4 35 200 2980 45 80×80
5 35 250 2980 55 80×80
6 35 300 2980 75 80×80
7 35 350 2980 75 80×80
8 35 400 2980 90 80×80
9 35 450 2980 90 80×80
10 35 500 2980 110 80×80
11 35 550 2980 110 80×80
12 35 600 2980 132 80×80
D36-80
DF36-80		 7 36 560 2980 132
8 36 640 2980 132
9 36 720 2980 160
10 36 800 2980 185
11 36 880 2980 200
12 36 960 2980 200
D45-80
MD45-80
DF45-80		 6 45 480 2980 160 80×65
7 45 560 2980 160 80×65
8 45 640 2980 200 80×65
9 45 720 2980 220 80×65
10 45 800 2980 220 80×65
11 45 880 2980 250 80×65
12 45 960 2980 280 80×65
D46-30
MD46-30
DF46-30		 2 46 60 2980 15 80×65
3 46 90 2980 22 80×65
4 46 120 2980 30 80×65
5 46 150 2980 37 80×65
6 46 180 2980 37 80×65
7 46 210 2980 45 80×65
8 46 240 2980 55 80×65
9 46 270 2980 55 80×65
10 46 300 2980 75 80×65
D46-50
MD46-50
DF46-50		 2 46 100 2980 30 80×80
3 46 150 2980 37 80×80
4 46 200 2980 45 80×80
5 46 250 2980 55 80×80
6 46 300 2980 75 80×80
7 46 350 2980 90 80×80
D48-50
MD48-50
DF48-30		 2 48 100 2980 30 80×80
3 48 150 2980 37 80×80
4 48 200 2980 45 80×80
5 48 250 2980 55 80×80
6 48 300 2980 75 80×80
7 48 350 2980 90 80×80
8 48 400 2980 90 80×80
9 48 450 2980 110 80×80
10 48 500 2980 132 80×80
11 48 550 2980 132 80×80
12 48 600 2980 160 80×80
D65-80
DF65-80		 7 65 560 2980 220
8 65 640 2980 250
9 65 720 2980 280
10 65 800 2980 315
11 65 880 2980 315
12 65 960 2980 355
D65-120
DF65-120		 7 65 840 2980 400
8 65 960 2980 450
9 65 1080 2980 500
10 65 1200 2980 560
11 65 1320 2980 630
12 65 1440 2980 630
D85-45
MD85-45
DF85-45		 2 85 90 2980 37 100×100
3 85 135 2980 55 100×100
4 85 180 2980 75 100×100
5 85 225 2980 90 100×100
6 85 270 2980 110 100×100
7 85 315 2980 132 100×100
8 85 360 2980 132 100×100
9 85 405 2980 160 100×100
D85-67
MD85-67
DF85-67		 2 85 134 2980 75 100×100
3 85 201 2980 90 100×100
4 85 268 2980 110 100×100
5 85 335 2980 132 100×100
6 85 402 2980 160 100×100
7 85 469 2980 200 100×100
8 85 536 2980 220 100×100
9 85 603 2980 250 100×100
D85-80
MD85-80
DF85-80		 7 85 560 2980 250 100×100
8 85 640 2980 280 100×100
9 85 720 2980 355 100×100
10 85 800 2980 355 100×100
11 85 880 2980 400 100×100
12 85 960 2980 450 100×100
D85-120
DF85-120		 7 85 840 2980 400
8 85 960 2980 450
9 85 1080 2980 500
10 85 1200 2980 560
11 85 1320 2980 630
12 85 1440 2980 710
D100-50
MD100-50
DF100-50		 2 100 100 2980 55 150×100
3 100 150 2980 75 150×100
4 100 200 2980 90 150×100
5 100 250 2980 132 150×100
6 100 300 2980 132 150×100
7 100 350 2980 160 150×100
8 100 400 2980 200 150×100
9 100 450 2980 200 150×100
10 100 500 2980 250 150×100
11 100 550 2980 250 150×100
12 100 600 2980 280 150×100
D125-70
DF125-70		 2 125 140 2980 90 150×150
3 125 210 2980 132 150×150
4 125 280 2980 160 150×150
5 125 350 2980 200 150×150
6 125 420 2980 250 150×150
7 125 490 2980 280 150×150
8 125 560 2980 315 150×150
9 125 630 2980 355 150×150
DS150-100
MDS150-100
DFS150-100		 6 150 591 2980 400 200×150
7 150 690 2980 500 200×150
8 150 788 2980 560 200×150
9 150 886 2980 630 200×150
10 150 985 2980 710 200×150
D155-50
MD155-50
DF155-50		 2 155 60 1480 55
3 155 90 1480 75
4 155 120 1480 90
5 155 150 1480 110
6 155 180 1480 132
7 155 210 1480 160
8 155 240 1480 200
9 155 270 1480 200
10 155 300 1480 220
D155-67
MD155-67
DF155-67		 2 155 134 2980 90 150×150
3 155 201 2980 132 150×150
4 155 268 2980 185 150×150
5 155 335 2980 220 150×150
6 155 402 2980 280 150×150
7 155 469 2980 315 150×150
8 155 536 2980 355 150×150
9 155 603 2980 450 150×150
D160-120
DF160-120		 7 160 840 2980 800
8 160 960 2980 800
9 160 1080 2980 1000
10 160 1200 2980 1000
11 160 1320 2980 1000
12 160 1440 2980 1000
D180-52
DF180-52		 2 180 104 1480 110 200×200
3 180 156 1480 160 200×200
4 180 208 1480 200 200×200
5 180 260 1480 250 200×200
6 180 312 1480 280 200×200
7 180 364 1480 315 200×200
8 180 416 1480 400 200×200
9 180 468 1480 400 200×200
10 180 520 1480 450 200×200
11 180 572 1480 500 200×200
12 180 624 1480 560 200×200
D200-50
MD200-50
DF200-50		 2 200 100 1480 110 200×200
3 200 150 1480 160 200×200
4 200 200 1480 200 200×200
5 200 250 1480 250 200×200
6 200 300 1480 315 200×200
7 200 350 1480 355 200×200
8 200 400 1480 400 200×200
9 200 450 1480 450 200×200
10 200 500 1480 500 200×200
11 200 550 1480 560 200×200
12 200 600 1480 630 200×200
DS200-100
MDS200-100
DFS200-100		 6 200 600 2980 560 200×150
7 200 700 2980 630 200×150
8 200 800 2980 710 200×150
9 200 900 2980 800 200×150
10 200 1000 2980 900 200×150
D245-45
MD245-45
DF245-45		 2 245 90 1480 110 200×200
3 245 135 1480 160 200×200
4 245 180 1480 220 200×200
5 245 225 1480 250 200×200
6 245 270 1480 315 200×200
7 245 315 1480 355 200×200
8 245 360 1480 400 200×200
9 245 405 1480 450 200×200
D245-67
MD245-67
DF245-67		 2 245 134 1480 160 200×200
3 245 201 1480 250 200×200
4 245 268 1480 315 200×200
5 245 335 1480 400 200×200
6 245 402 1480 450 200×200
7 245 469 1480 560 200×200
8 245 536 1480 630 200×200
9 245 603 1480 710 200×200
10 245 670 1480 800 200×200
DS245-100
MDS245-100
DFS245-100		 6 245 600 2980 630 200×150
7 245 700 2980 710 200×150
8 245 800 2980 800 200×150
9 245 900 2980 900 200×150
10 245 1000 2980 1000 200×150
D280-43
MD280-43
DF280-43		 2 280 86 1480 110 200×200
3 280 129 1480 160 200×201
4 280 172 1480 220 200×202
5 280 215 1480 250 200×203
6 280 258 1480 315 200×204
7 280 301 1480 355 200×205
8 280 344 1480 400 200×206
9 280 387 1480 450 200×200
D280-65
MD280-65
DF280-65		 2 280 133 1480 200 200×200
3 280 199 1480 280 200×200
4 280 265 1480 355 200×200
5 280 331 1480 450 200×200
6 280 398 1480 500 200×200
7 280 464 1480 630 200×200
8 280 530 1480 710 200×200
9 280 596 1480 800 200×200
10 280 663 1480 900 200×200
DS280-100
MDS280-100
DFS280-100		 2 280 200 2980 250 200×150
3 280 300 2980 400 200×150
4 280 400 2980 500 200×150
5 280 500 2980 630 200×150
6 280 600 2980 710 200×150
7 280 700 2980 900 200×150
8 280 800 2980 1000 200×150
9 280 900 2980 1120 200×150
10 280 1000 2980 1250 200×150
D360-40
MD360-40
DF360-40		 2 360 80 1480 132 200×200
3 360 120 1480 200 200×200
4 360 160 1480 250 200×200
5 360 200 1480 315 200×200
D360-60
MD360-60
DF360-60		 2 360 120 1480 220 200×200
3 360 180 1480 280 200×200
4 360 240 1480 400 200×200
5 360 300 1480 500 200×200
6 360 360 1480 560 200×200
7 360 420 1480 710 200×200
8 360 480 1480 800 200×200
9 360 540 1480 900 200×200
10 360 600 1480 1000 200×200
D360-92
MD360-92
DF360-92		 2 360 184 1480 315 200×200
3 360 276 1480 450 200×200
4 360 368 1480 560 200×200
5 360 460 1480 710 200×200
6 360 552 1480 900 200×200
7 360 644 1480 1000 200×200
8 360 736 1480 1120 200×200
9 360 828 1480 1250 200×200
10 360 920 1480 1400 200×200
11 360 1012 1480 1600 200×200
12 360 1104 1480 1600 200×200
D420-90
MD420-90
DF420-90		 2 420 180 1480 315 200×200
3 420 270 1480 500 200×200
4 420 360 1480 630 200×200
5 420 450 1480 800 200×200
6 420 540 1480 1000 200×200
7 420 630 1480 1120 200×200
8 420 720 1480 1250 200×200
9 420 810 1480 1400 200×200
10 420 900 1480 1600 200×200
11 420 990 1480 16001 200×200
D450-60
MD450-60
DF450-60		 2 450 120 1480 250 250×250
3 450 180 1480 355 250×250
4 450 240 1480 500 250×250
5 450 300 1480 630 250×250
6 450 360 1480 710 250×250
7 450 420 1480 800 250×250
8 450 480 1480 900 250×250
9 450 540 1480 1000 250×250
10 450 600 1480 1120 250×250
DS450-60
MDS450-60
DFS450-60		 2 450 120 1480 250 250×250
3 450 180 1480 355 250×250
4 450 240 1480 500 250×250
5 450 300 1480 630 250×250
6 450 360 1480 710 250×250
7 450 420 1480 800 250×250
8 450 480 1480 900 250×250
9 450 540 1480 1000 250×250
10 450 600 1480 1120 250×250
D500-57
MD500-57
DF500-57		 2 500 114 1480 250 250×250
3 500 171 1480 355 250×250
4 500 228 1480 500 250×250
5 500 285 1480 630 250×250
6 500 342 1480 710 250×250
7 500 399 1480 800 250×250
8 500 456 1480 900 250×250
9 500 513 1480 1120 250×250
10 500 570 1480 1250 250×250

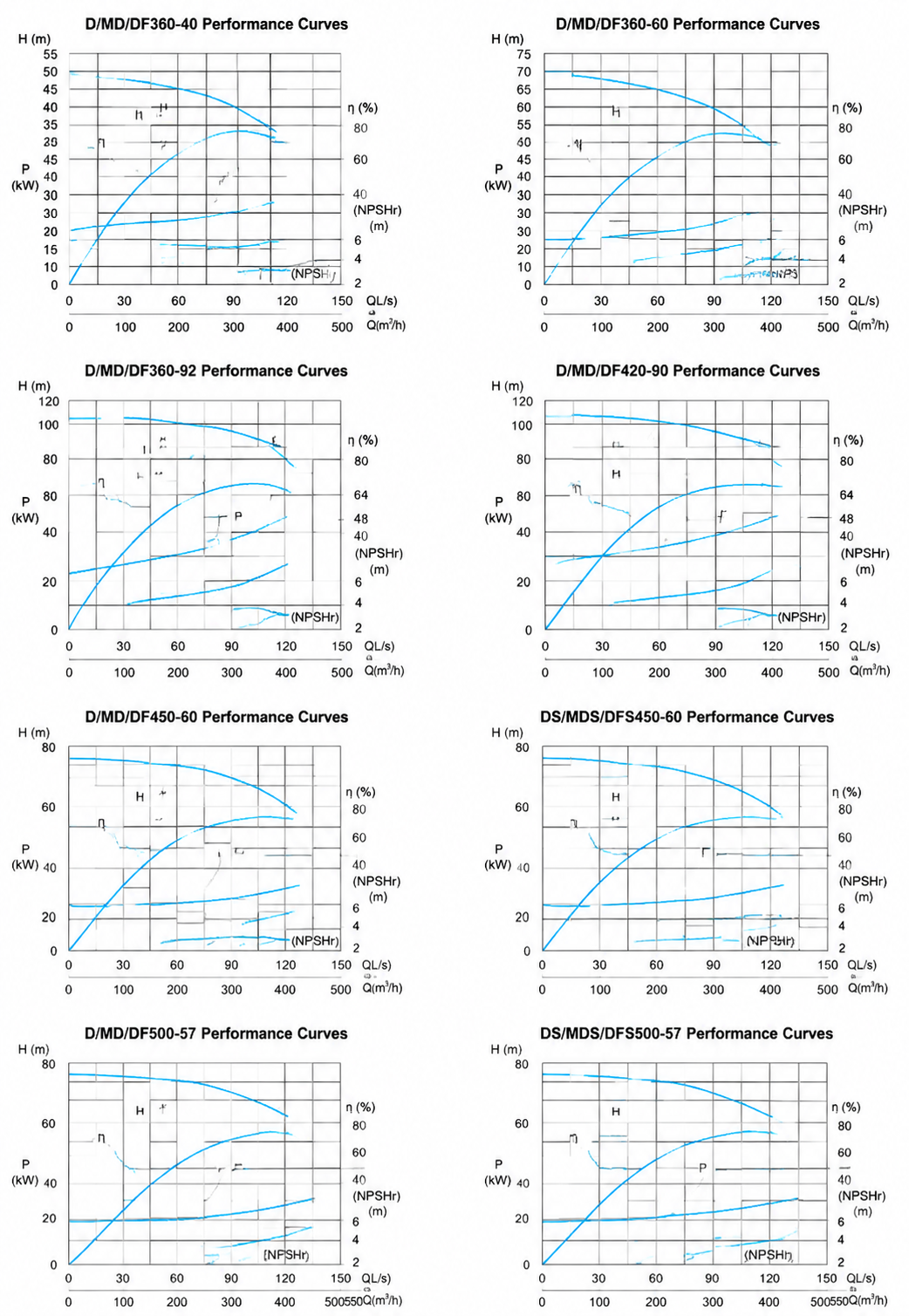

DS500-57
MDS500-57
DFS500-57		 2 500 114 1480 250 250×250
3 500 171 1480 355 250×250
4 500 228 1480 500 250×250
5 500 285 1480 630 250×250
6 500 342 1480 710 250×250
7 500 399 1480 800 250×250
8 500 456 1480 900 250×250
9 500 513 1480 1120 250×250
10 500 570 1480 1250 250×250

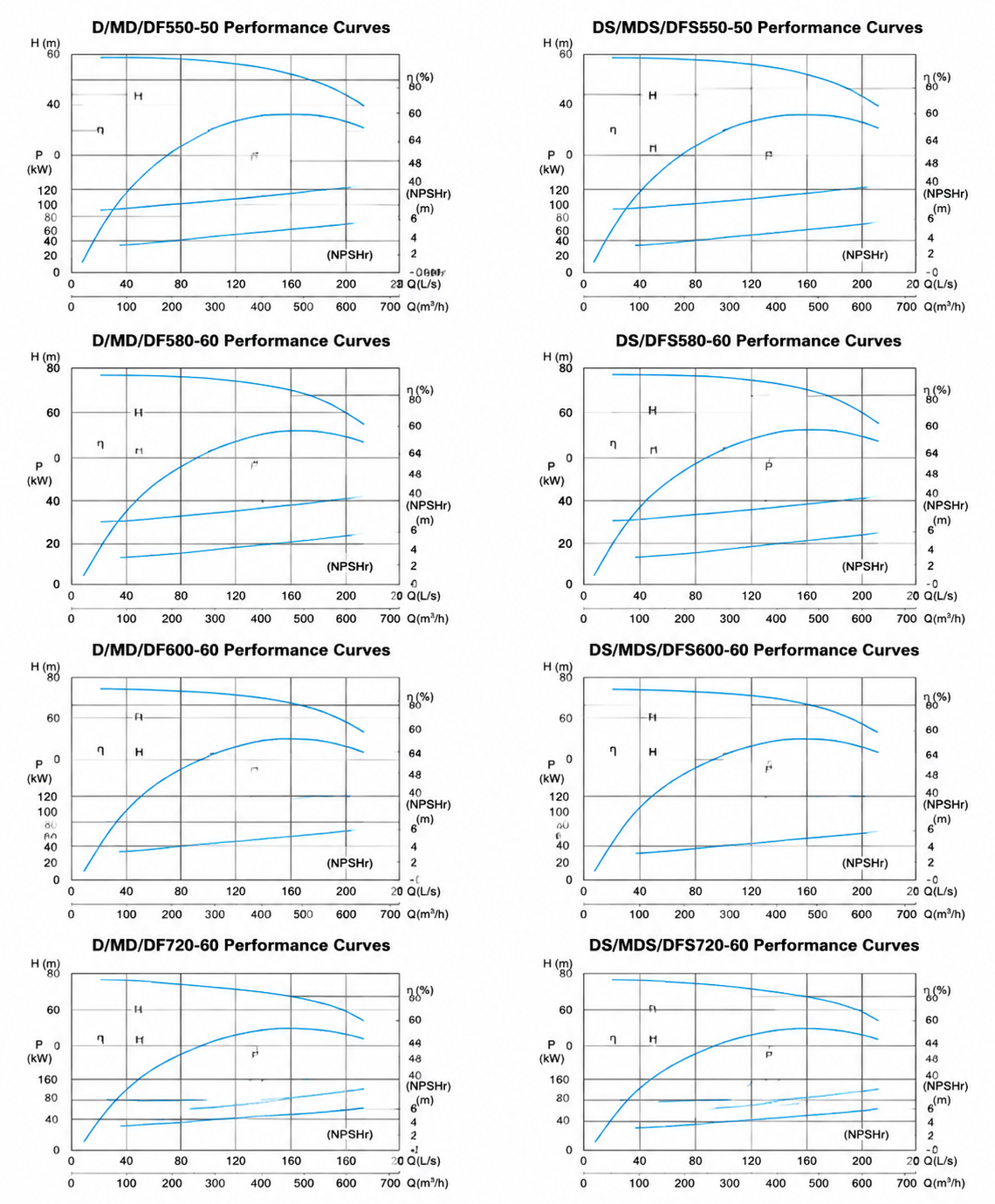

D550-50
MD550-50
DF550-50		 2 550 100 1480 250 250×250
3 550 150 1480 355 250×250
4 550 200 1480 500 250×250
5 550 250 1480 630 250×250
6 550 300 1480 710 250×250
7 550 350 1480 800 250×250
8 550 400 1480 1000 250×250
9 550 450 1480 1120 250×250
10 550 500 1480 1250 250×250
DS550-50
MDS550-50
DFS550-50		 2 550 100 1480 250 250×250
3 550 150 1480 355 250×250
4 550 200 1480 500 250×250
5 550 250 1480 630 250×250
6 550 300 1480 710 250×250
7 550 350 1480 800 250×250
8 550 400 1480 1000 250×250
9 550 450 1480 1120 250×250
10 550 500 1480 1250 250×250
D580-60
MD580-60
DF580-60		 2 580 120 1480 315 300×250
3 580 180 1480 450 300×250
4 580 240 1480 560 300×250
5 580 300 1480 710 300×250
6 580 360 1480 900 300×250
7 580 420 1480 1000 300×250
8 580 480 1480 1120 300×250
9 580 540 1480 1250 300×250
10 580 600 1480 1400 300×250
DS580-60
DFS580-60		 2 580 120 1480 315 300×250
3 580 180 1480 450 300×250
4 580 240 1480 560 300×250
5 580 300 1480 710 300×250
6 580 360 1480 900 300×250
7 580 420 1480 1000 300×250
8 580 480 1480 1120 300×250
9 580 540 1480 1250 300×250
10 580 600 1480 1400 300×250
D600-60
MD600-60
DF600-60		 2 600 120 1480 315 300×250
3 600 180 1480 450 300×250
4 600 240 1480 560 300×250
5 600 300 1480 710 300×250
6 600 360 1480 900 300×250
7 600 420 1480 1000 300×250
8 600 480 1480 1120 300×250
9 600 540 1480 1250 300×250
10 600 600 1480 1400 300×250
DS600-60
MDS600-60
DFS600-60		 2 600 120 1480 315 300×250
3 600 180 1480 450 300×250
4 600 240 1480 560 300×250
5 600 300 1480 710 300×250
6 600 360 1480 900 300×250
7 600 420 1480 1000 300×250
8 600 480 1480 1120 300×250
9 600 540 1480 1250 300×250
10 600 600 1480 1400 300×250
D720-60
MD720-60
DF720-60		 2 720 120 1480 355 300×250
3 720 180 1480 560 300×250
4 720 240 1480 710 300×250
5 720 300 1480 900 300×250
6 720 360 1480 1120 300×250
7 720 420 1480 1250 300×250
8 720 480 1480 1400 300×250
9 720 540 1480 1600 300×250
10 720 600 1480 1800 300×250
DS720-60
MDS720-60
DFS720-60		 2 720 120 1480 355 300×250
3 720 180 1480 560 300×250
4 720 240 1480 710 300×250
5 720 300 1480 900 300×250
6 720 360 1480 1120 300×250
7 720 420 1480 1250 300×250
8 720 480 1480 1400 300×250
9 720 540 1480 1600 300×250
10 720 600 1480 1800 300×250

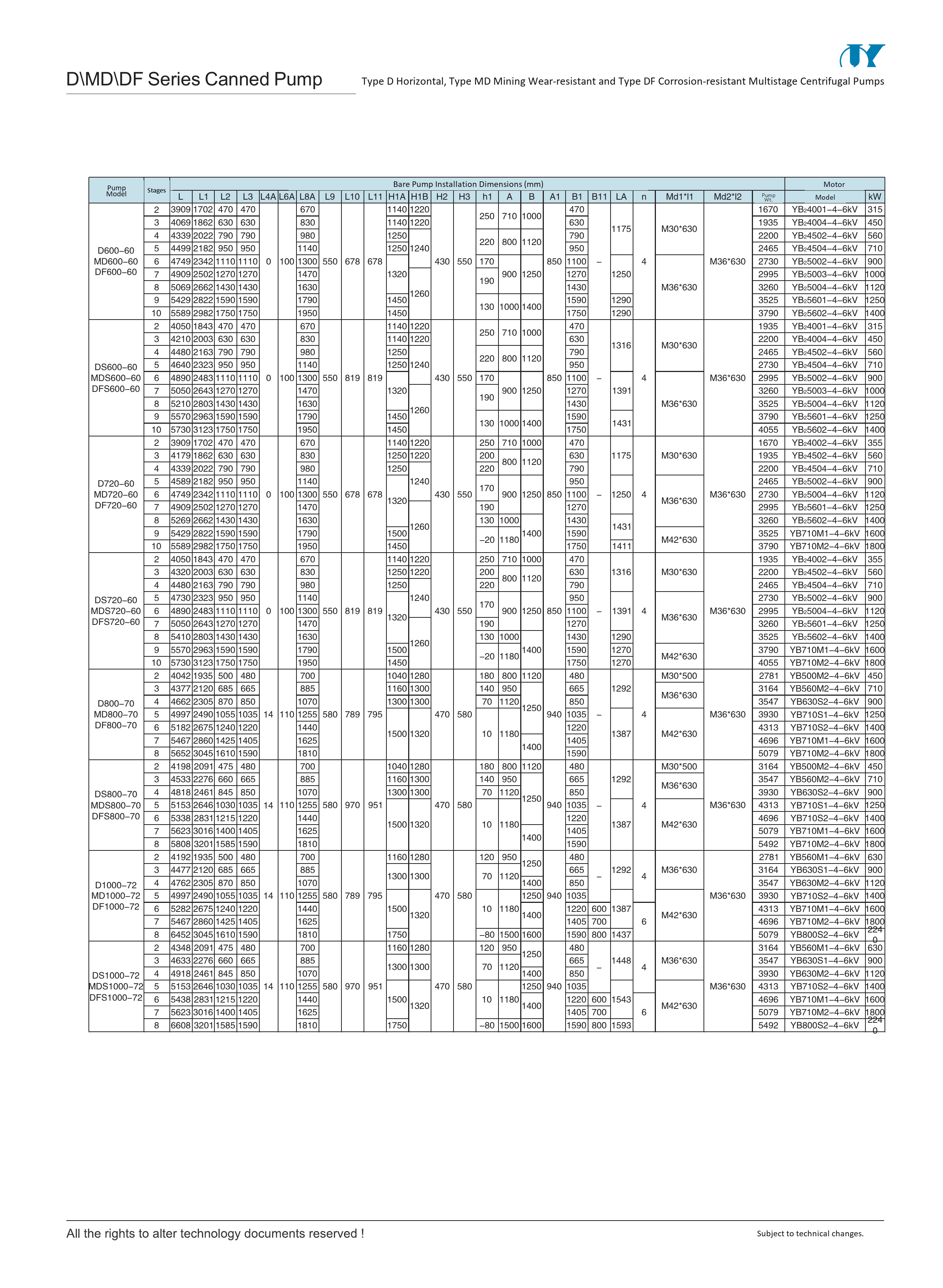

D800-70
MD800-70
DF800-70		 2 800 140 1480 450 300×300
3 800 210 1480 710 300×300
4 800 280 1480 900 300×300
5 800 350 1480 1250 300×300
6 800 420 1480 1400 300×300
7 800 490 1480 1600 300×300
8 800 560 1480 1800 300×300
DS800-70
MDS800-70
DFS800-70		 2 800 140 1480 450 300×300
3 800 210 1480 710 300×300
4 800 280 1480 900 300×300
5 800 350 1480 1250 300×300
6 800 420 1480 1400 300×300
7 800 490 1480 1600 300×300
8 800 560 1480 1800 300×300
D1000-72
MD1000-72
DF1000-72		 2 1000 144 1480 630 300×300
3 1000 216 1480 800 300×300
4 1000 288 1480 1120 300×300
5 1000 360 1480 1400 300×300
6 1000 432 1480 1600 300×300
7 1000 504 1480 1800 300×300
8 1000 576 1480 2240 300×300
DS1000-72
MDS1000-72
DFS1000-72		 2 1000 144 1480 630 300×300
3 1000 216 1480 800 300×300
4 1000 288 1480 1120 300×300
5 1000 360 1480 1400 300×300
6 1000 432 1480 1600 300×300
7 1000 504 1480 1800 300×300
8 1000 576 1480 2240 300×300

Size

Video Introduction

Message Inquiry

*
*
*
*
*
Submit
