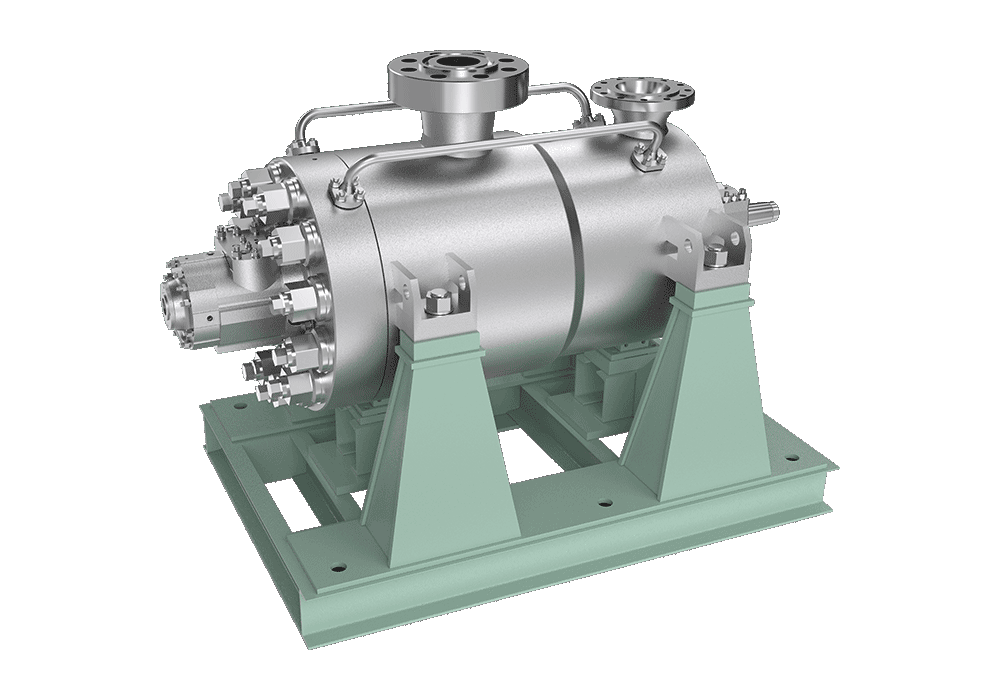

Kaiquan KTDZ High-Pressure Water Pump

KTDZ High-Pressure Water Pump

The KTDZ series represents Kaiquan Pump Industry's line of high-pressure water pumps.Designed and manufactured in accordance with the API 610 (11th edition) standard,these pumps correspond to the API 610 BB5 configuration.They are horizontal,multistage,between-bearing centrifugal pumps featuring an axially split inner casing and a radially split outer casing.The first-stage impeller can be configured as either a single-suction or double-suction type.

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

Product Application:

The high-pressure multistage coke-cutting pump is designed by incorporating advanced domestic and international technologies. It is suitable for transporting coke-cutting water in high-pressure hydraulic decoking systems within refinery coking units.

Operating Range:

Flow rate (Q): 150–400 m³/h

Head (H): 1500–3800 m

Temperature: 20–70°C

Rotational speed: 2980–4800 r/min

Product Overview:

Designed and manufactured in accordance with API 610 (11th Edition) standards, this pump corresponds to the API 610 BB5 configuration. It features a horizontal, multistage, between-bearings design with an axially split inner casing and a radially split outer casing. The first-stage impeller can be configured as either a single-suction or double-suction type.

It is suitable for handling high-pressure and corrosive media, offering high safety and reliability.

Materials for the pump's wetted parts can be selected based on operating conditions in accordance with API standards or customized to meet specific user requirements.
