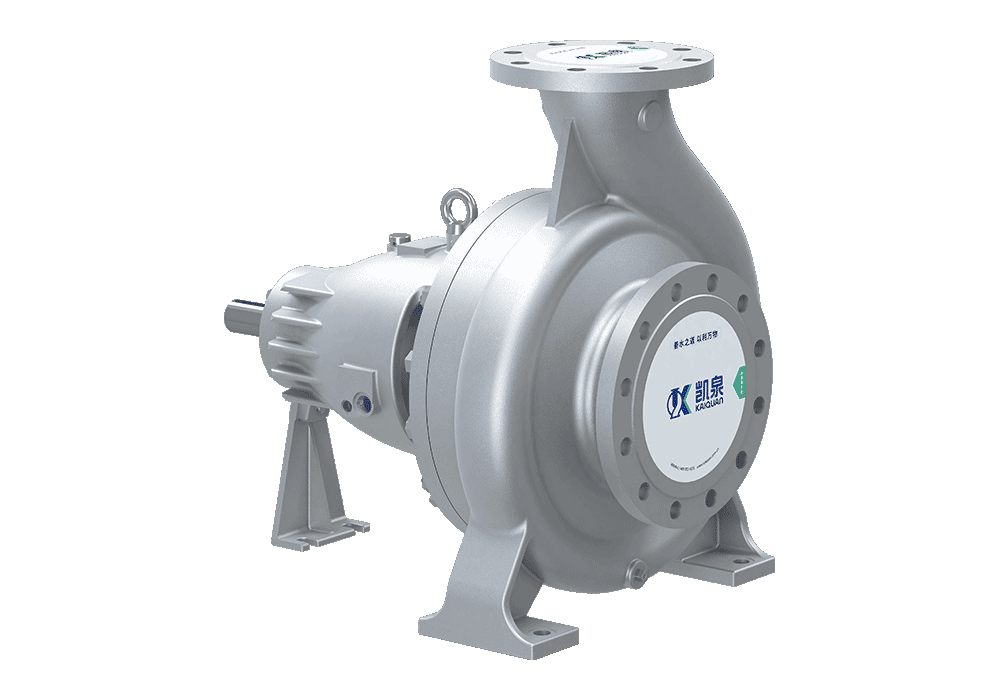

Kaiquan KCZ Chemical Process Pump

KCZ Chemical Process Pump

Kaiquan Pump Industry’s KCZ chemical process pump is a horizontal,single-stage,single-suction centrifugal pump.It features a standard nozzle size range of DN32–300 mm,a flow rate of up to 2,000 m³/h,a head of up to 160 m,and an operating temperature range of -30°C to 150°C,with rotational speeds of 1,450 r/min and 2,900 r/min.Designed in compliance with international standards such as DIN,ISO,and GB,the pump offers high efficiency,excellent cavitation resistance,and low maintenance costs
Product Consultation By telephone
Function
Parameters
Size
Video Introduction

Function

Product Applications:

Suitable for transporting low- and high-temperature liquids, as well as neutral or corrosive fluids—whether clean or containing small amounts of solid particles. Key application areas include the chemical and petrochemical industries, coal-to-chemical processing, seawater desalination, environmental engineering, chemical plants, refineries, thermal power plants, metallurgy, sugar refining, pharmaceuticals, pulp and paper, synthetic fibers, water supply, and HVAC systems.

Specifications:

Standard Bore: DN32–300 mm

Flow Rate: Up to 2,000 m³/h

Head: Up to 160 m

Operating Temperature: -30°C to 150°C

Product Overview:

The KCZ series chemical process pump is a horizontal, single-stage, single-suction centrifugal pump; its dimensions and performance comply with DIN 24256, ISO 5199, and GB/T 5656 standards. Designed with high reliability in mind, the KCZ series incorporates relevant design standards such as ASME/ANSI B73.1M and API 610, while integrating advanced technologies from similar domestic and international products and practical application insights.

Parameters

model Impeller specifications Flow rate (m³/h) Head (m) Power (kW) Rotational speed (r/min) Inlet and outlet diameters
KCZ32/160 169 20 36 4 2900 50×32
110 13 14 1.5 2900 50×32
KCZ32/200 209 20 50 7.5 2900 50×32
160 15 31 4 2900 50×32
KCZ32/250 259 20 85 15 2900 50×32
200 15 48 7.5 2900 50×32
KCZ40/160 169 30 34 7.5 2900 65×40
130 20 20 3 2900 65×40
KCZ40/200 209 34 50 11 2900 65×40
160 22 30 5.5 2900 65×40
KCZ40/250 259 36 85 22 2900 65×40
200 24 50 11 2900 65×40
KCZ40/315 324 46 140 45 2900 65×40
260 30 80 22 2900 65×40
KCZ50/160 169 55 34 11 2900 80×50
130 40 18 4 2900 80×50
KCZ50/200 209 65 56 18.5 2900 80×50
160 35 33 7.5 2900 80×50
KCZ50/250 259 65 85 30 2900 80×50
200 45 50 15 2900 80×50
KCZ50/315 324 85 138 75 2900 80×50
260 65 85 37 2900 80×50
KCZ65/160 169 105 32 18.5 2900 100×65
136/124 73 16 7.5 2900 100×65
KCZ65/200 209 106 52 30 2900 100×65
160 70 30 11 2900 100×65
KCZ65/250 259 115 85 45 2900 100×65
200 80 48 22 2900 100×65
KCZ65/315 324 135 131 90 2900 100×65
240 75 70 30 2900 100×65
KCZ80/160 169 175 30 30 2900 125×80
142/124 120 16 11 2900 125×80
KCZ80/200 209 150 50 37 2900 125×80
160 115 26 15 2900 125×80
KCZ80/250 259 190 80 75 2900 125×80
200 130 47 30 2900 125×80
KCZ80/315 324 200 130 110 2900 125×80
250 140 80 55 2900 125×80
KCZ100/200 209 220 45 45 2900 125×100
160 150 25 18.5 2900 125×100
KCZ100/250 259 280 75 90 2900 125×100
200 170 45 37 2900 125×100
KCZ100/315 324 270 135 160 2900 125×100
260 190 85 75 2900 125×100
KCZ32/160 169 11 9 1.1 1450 50×32
110 6 3 0.75 1450 50×32
KCZ32/200 209 10 13 1.5 1450 50×32
160 8 8 0.75 1450 50×32
KCZ32/250 259 11 20 2.2 1450 50×32
200 8 11 1.5 1450 50×32
KCZ40/160 169 15 8 1.1 1450 65×40
130 12 4 0.75 1450 65×40
KCZ40/200 209 16 13 1.5 1450 65×40
160 12 7 1.1 1450 65×40
KCZ40/250 259 20 21 4 1450 65×40
200 13 12 1.5 1450 65×40
KCZ40/315 324 22 36 1.1 1450 65×40
260 18 18 4 1450 65×40
KCZ50/160 169 30 8 1.5 1450 80×50
130 20 4 0.75 1450 80×50
KCZ50/200 209 36 14 3 1450 80×50
160 24 7 1.5 1450 80×50
KCZ50/250 259 34 21 5.5 1450 80×50
200 24 12 2.2 1450 80×50
KCZ50/315 324 42 36 11 1450 80×50
260 36 20 5.5 1450 80×50
KCZ65/160 169 50 8 2.2 1450 100×65
136/124 38 4 2.2 1450 100×65
KCZ65/200 209 50 13 4 1450 100×65
160 25 7 2.2 1450 100×65
KCZ65/250 259 27 21 7.5 1450 100×65
200 40 10 4 1450 100×65
KCZ80/160 169 75 8 4 1450 125×80
142/124 60 4 2.2 1450 125×80
KCZ80/200 209 80 12 5.5 1450 125×80
160 60 6 3 1450 125×80
KCZ80/250 259 90 20 11 1450 125×80
200 70 11 5.5 1450 125×80
KCZ80/315 324 100 32 15 1450 125×80
250 70 18 7.5 1450 125×80
KCZ80/400 409 105 52 30 1450 125×80
320 75 30 15 1450 125×80
KCZ100/200 209 115 11 5.5 1450 125×100
160 80 6 3 1450 125×100
KCZ100/250 259 130 20 15 1450 125×100
200 100 10 7.5 1450 125×100
KCZ100/315 324 130 32 22 1450 125×100
260 90 21 11 1450 125×100
KCZ100/400 409 155 50 37 1450 125×100
320 90 32 15 1450 125×100
KCZ125/250 259 210 20 18.5 1450 150×125
210 160 10 11 1450 150×125
KCZ125/315 324 200 30 30 1450 150×125
260 150 20 15 1450 150×125
KCZ125/400 409 220 50 55 1450 150×125
320 140 32 22 1450 150×125
KCZ150/250 259 330 17 30 1450 200×150
230/210 240 11 15 1450 200×150
KCZ150/315 324 380 30 45 1450 200×150
260 300 17 30 1450 200×150
KCZ150/400 409 400 48 75 1450 200×150
320 260 28 37 1450 200×150
KCZ150/500 509 420 80 132 1450 200×150
400 300 45 75 1450 200×150
KCZ200/250 259 600 12 30 1450 200×200
250/230 520 10 22 1450 200×200
KCZ200/315 324 650 24 75 1450 250×200
280 500 13 30 1450 250×200
KCZ200/400 409 650 52 132 1450 250×200
450 450 30 7.5 1450 250×200
KCZ200/500 509 700 75 220 1450 250×200
380 450 40 75 1450 250×200
KCZ250/315 324 950 22 75 1450 300×250
300/270 800 16 55 1450 300×250
KCZ250/400 409 1000 44 160 1450 300×250
340 770 26 90 1450 300×250
KCZ250/500 509 1200 80 355 1450 300×250
400 650 45 160 1450 300×250
KCZ300/400 409 1600 38 220 1450 350×300
340 1200 24 110 1450 350×300
KCZ300/500 509 1750 70 450 1450 350×300
400 1100 40 185 1450 350×300
