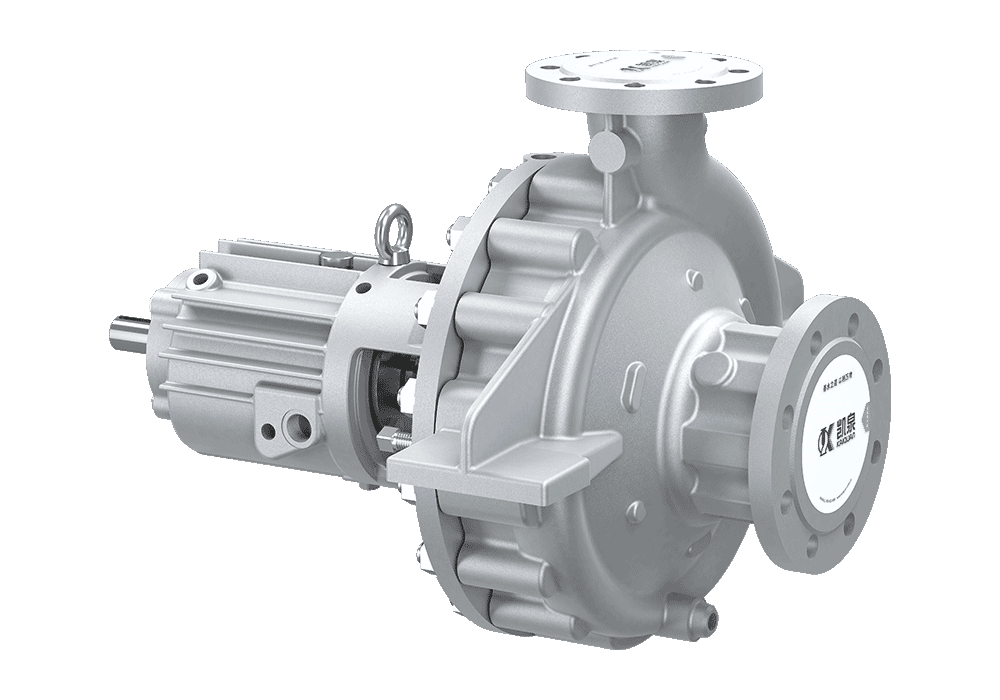

Kaiquan KZE Petrochemical Process Pump

KZE Petrochemical Process Pump

The KZE petrochemical process pump is a horizontal,single-stage,single-suction centrifugal pump manufactured by Kaiquan Pump Industry.It features a flow rate range of 5–2,600 m³/h,a head of 8–230 m,an operating temperature range of -40°C to 400°C,and standard speeds of 2,950 rpm and 1,475 rpm.Designed using an advanced hydraulic model,the pump offers high efficiency and excellent cavitation resistance while complying with API 610 standards.
Product Consultation By telephone
Function
Parameters
Size
Video Introduction

Function

Product Applications:

Suitable for transporting clean or slightly contaminated, neutral or mildly corrosive liquids—free of solid particles—at low or high temperatures.

Widely used in industries such as oil refining, petrochemicals, general chemicals, coal chemicals, environmental engineering, papermaking, marine engineering, non-ferrous metals, power generation, food processing, and pharmaceuticals.

Operating Range:

Flow rate (Q): 5–2600 m³/h
Head (H): 8–230 m
Operating temperature (T): -40°C to 400°C
Standard rotational speed (n): 2950 r/min and 1475 r/min

Product Overview:

The KZE series petrochemical process pump is a horizontal, single-stage, single-suction, radially split, centerline-supported, overhung centrifugal pump. This series utilizes an excellent hydraulic model design, offering high efficiency and superior cavitation performance.

1. Designed and manufactured in accordance with API 610 specifications; complies with the API 610 OH2 pump configuration.

2. Axial force is balanced using a structure featuring balance holes and wear rings.

3. The impeller is securely fastened to the pump shaft using an impeller nut equipped with a wire thread insert.

4. The pump casing features a volute structure; for discharge sizes larger than DN80, a double-volute design is employed to better balance radial forces and ensure rotor rigidity.

5. The pump cover features a rigid design, offering high pressure-bearing capacity and reliability. It includes cooling/heating chambers, making it suitable for various media and operating conditions.

6. The pump casing, cover, and impeller are equipped with replaceable wear rings; clearances and hardness meet API 610 standards, ensuring a long service life and easy replacement.

7. The seal chamber dimensions comply with API 682 standards, allowing for the configuration of various mechanical seals, dry gas seals, and auxiliary systems.

8. Bearings utilize oil-ring-lubricated oil bath systems (oil mist lubrication is also optional); oil levels are regulated by constant-level oilers. Bearing housing cooling options include air cooling and water cooling (via jackets or cooling coils). 9. Features a safe and reliable labyrinth-type dust guard; bearing isolators and magnetic oil seals can also be configured to effectively prevent lubricant leakage and the ingress of external contaminants, thereby extending bearing service life.

10. Materials for flow-path components can be selected based on operating conditions—configured to API standards or chosen according to specific user requirements.

Parameters

model Impeller specifications Flow rate (m³/h) Head (m) Power (kW) Rotational speed (r/min) Inlet and outlet diameters
KZE25/200 A 11.5 55 5.5 2950 48.3×33.7
L 11 50 5.5 2950 48.3×33.7
B 10.5 46 5.5 2950 48.3×33.7
M 10 42 4 2950 48.3×33.7
C 9 38 3 2950 48.3×33.7
N 8.5 34 3 2950 48.3×33.7
D 8 28 2.2 2950 48.3×33.7
X 7.5 23 2.2 2950 48.3×33.7
E 7 17 1.5 2950 48.3×33.7
KZE25/250 A 16 72 15 2950 60.3×33.7
B 15.5 64 15 2950 60.3×33.7
M 15 54 11 2950 60.3×33.7
C 14.5 44 11 2950 60.3×33.7
N 14 36 11 2950 60.3×33.7
D 13.5 25 5.5 2950 60.3×33.7
KZE25/315 A 20 130 30 2950 60.3×33.7
L 19 125 30 2950 60.3×33.7
B 18.5 117 30 2950 60.3×33.7
M 17.5 108 22 2950 60.3×33.7
C 17 100 22 2950 60.3×33.7
N 16 95 18.5 2950 60.3×33.7
D 15.5 90 18.5 2950 60.3×33.7
X 15 85 15 2950 60.3×33.7
E 14 80 15 2950 60.3×33.7
Y 13.5 72 15 2950 60.3×33.7
F 13 65 11 2950 60.3×33.7
KZE40/160 A 28 33 7.5 2950 88.9×48.3
B 25 29 5.5 2950 88.9×48.3
C 22 22 4 2950 88.9×48.3
D 20 16 2.2 2950 88.9×48.3
KZE40/200 A 34 52 11 2950 88.9×48.3
R 31 47 11 2950 88.9×48.3
M 30 42 7.5 2950 88.9×48.3
C 29 37 7.5 2950 88.9×48.3
N 22 32 5.5 2950 88.9×48.3
D 22 28 5.5 2950 88.9×48.3
KZE40/250 A 36 78 18.5 2950 88.9×48.3
B 34 74 15 2950 88.9×48.3
M 32 65 15 2950 88.9×48.3
C 30 55 11 2950 88.9×48.3
N 28 47 11 2950 88.9×48.3
D 26 40 11 2950 88.9×48.3
KZE40/315 A 42 115 37 2950 88.9×48.3
B 40 108 37 2950 88.9×48.3
M 38 100 30 2950 88.9×48.3
N 36 92 30 2950 88.9×48.3
C 34 82 22 2950 88.9×48.3
X 32 71 18.5 2950 88.9×48.3
D 30 61 15 2950 88.9×48.3
KZE40/400 A 43 157 55 2950 88.9×48.3
L 42 147 55 2950 88.9×48.3
M 40.5 137 45 2950 88.9×48.3
B 40 128 45 2950 88.9×48.3
N 39 120 37 2950 88.9×48.3
C 38 112 37 2950 88.9×48.3
X 37.5 102 37 2950 88.9×48.3
Y 37 92 30 2950 88.9×48.3
D 36 82 30 2950 88.9×48.3
KZE50/160 A 50 34 11 2950 88.9×60.3
L 47 32 7.5 2950 88.9×60.3
B 45 29 7.5 2950 88.9×60.3
M 41 26 7.5 2950 88.9×60.3
C 37 22 5.5 2950 88.9×60.3
N 34 20 4 2950 88.9×60.3
D 32 17 4 2950 88.9×60.3
KZE50/200 A 61 52 18.5 2950 88.9×60.3
B 56 46 15 2950 88.9×60.3
M 52 42 11 2950 88.9×60.3
C 49 37 11 2950 88.9×60.3
N 46 33 11 2950 88.9×60.3
D 42 29 7.5 2950 88.9×60.3
KZE50/250 A 70 82 30 2950 88.9×60.3
B 66 75 30 2950 88.9×60.3
M 62 70 30 2950 88.9×60.3
C 49 60 22 2950 88.9×60.3
N 52 52 18.5 2950 88.9×60.3
D 87 45 15 2950 88.9×60.3
KZE50/315 A 87 115 75 2950 114.3×60.3
L 83 108 55 2950 114.3×60.3
B 80 100 55 2950 114.3×60.3
M 75 90 45 2950 114.3×60.3
C 70 80 37 2950 114.3×60.3
N 62 70 30 2950 114.3×60.3
D 57 60 30 2950 114.3×60.3
KZE50/400 A 82 194 110 2950 114.3×60.3
L 81 185 110 2950 114.3×60.3
B 79 175 110 2950 114.3×60.3
M 75 160 90 2950 114.3×60.3
C 70 140 75 2950 114.3×60.3
N 65 120 75 2950 114.3×60.3
D 60 100 45 2950 114.3×60.3
KZE80/160 A 100 34 15 2950 114.3×89
B 92 28 11 2950 114.3×89
C 83 23 11 2950 114.3×89
D 75 17 7.5 2950 114.3×89
KZE80/200 A 103 54 30 2950 114.3×88.9
L 100 52 30 2950 114.3×88.9
B 95 48 22 2950 114.3×88.9
M 90 44 18.5 2950 114.3×88.9
C 84 38 15 2950 114.3×88.9
N 80 34 15 2950 114.3×88.9
D 75 30 11 2950 114.3×88.9
KZE80/250 A 120 82 45 2950 114.3×89
B 115 75 45 2950 114.3×89
M 110 67 37 2950 114.3×89
C 105 58 30 2950 114.3×89
N 100 50 30 2950 114.3×89
D 95 41 22 2950 114.3×89
KZE80/315 A 135 120 75 2950 114.3×89
B 128 115 75 2950 114.3×89
M 124 107 75 2950 114.3×89
N 117 98 75 2950 114.3×89
C 110 90 55 2950 114.3×89
X 105 82 55 2950 114.3×89
Y 100 75 45 2950 114.3×89
D 95 65 37 2950 114.3×89
KZE80/400 A 171 187 185 2950 114.3×89
L 165 180 160 2950 114.3×89
B 160 170 160 2950 114.3×89
M 150 160 132 2950 114.3×89
N 145 145 110 2950 114.3×89
C 135 130 110 2950 114.3×89
X 130 120 90 2950 114.3×89
Y 120 110 90 2950 114.3×89
D 115 100 75 2950 114.3×89
KZE100/160 A 162 29 22 2950 114.3×114.3
B 150 24 18.5 2950 114.3×114.3
C 130 18 11 2950 114.3×114.3
D 110 12 11 2950 114.3×114.3
KZE100/200 A 178 50 37 2950 114.3×114.3
L 170 46 37 2950 114.3×114.3
B 165 43 30 2950 114.3×114.3
M 160 39 30 2950 114.3×114.3
C 150 34 22 2950 114.3×114.3
N 140 30 22 2950 114.3×114.3
D 135 24 18.5 2950 114.3×114.3
KZE100/250 A 230 80 75 2950 168.3×114.3
B 220 73 75 2950 168.3×114.3
M 205 65 55 2950 168.3×114.3
C 190 57 45 2950 168.3×114.3
N 180 50 37 2950 168.3×114.3
D 170 45 37 2950 168.3×114.3
KZE100/315 A 250 126 132 2950 168.3×114.3
B 240 120 132 2950 168.3×114.3
M 230 113 110 2950 168.3×114.3
N 220 105 110 2950 168.3×114.3
C 210 95 90 2950 168.3×114.3
X 195 88 90 2950 168.3×114.3
Y 185 80 75 2950 168.3×114.3
D 170 70 75 2950 168.3×114.3
KZE100/400 A 300 194 280 2950 168.3×114.3
B 295 180 250 2950 168.3×114.3
M 290 170 220 2950 168.3×114.3
N 270 160 200 2950 168.3×114.3
L 260 145 185 2950 168.3×114.3
Y 250 135 160 2950 168.3×114.3
X 240 120 132 2950 168.3×114.3
D 230 110 132 2950 168.3×114.3
KZE150/200 A 310 46 75 2950 168.3×168.3
B 290 39 55 2950 168.3×168.3
M 285 36 45 2950 168.3×168.3
C 260 31 37 2950 168.3×168.3
N 245 26 30 2950 168.3×168.3
D 230 22 30 2950 168.3×168.3
KZE150/250 A 390 74 110 2950 168.3×168.3
L 370 70 110 2950 168.3×168.3
B 350 63 90 2950 168.3×168.3
M 320 55 75 2950 168.3×168.3
C 300 50 75 2950 168.3×168.3
KZE150/315 A 442 125 220 2950 168.3×168.3
B 430 120 200 2950 168.3×168.3
M 400 110 185 2950 168.3×168.3
C 370 95 160 2950 168.3×168.3
N 340 80 110 2950 168.3×168.3
D 310 70 90 2950 168.3×168.3
KZE150/400 A 520 205 450 2950 168.3×168.3
B 500 190 400 2950 168.3×168.3
M 480 170 355 2950 168.3×168.3
C 460 150 280 2950 168.3×168.3
N 430 130 250 2950 168.3×168.3
D 400 110 200 2950 168.3×168.3
KZE200/250 A 610 72 185 2950 219.1×219.1
B 580 65 160 2950 219.1×219.1
M 550 55 132 2950 219.1×219.1
C 520 47 110 2950 219.1×219.1
N 500 40 90 2950 219.1×219.1
D 460 34 75 2950 219.1×219.1
KZE200/315 A 710 121 355 2950 219.1×219.1
B 675 115 315 2950 219.1×219.1
M 650 105 280 2950 219.1×219.1
N 620 98 220 2950 219.1×219.1
C 590 90 200 2950 219.1×219.1
X 560 80 185 2950 219.1×219.1
Y 530 72 160 2950 219.1×219.1
D 500 65 132 2950 219.1×219.1
KZE200/400 A 850 205 630 2950 219.1×219.1
B 825 190 560 2950 219.1×219.1
M 800 180 500 2950 219.1×219.1
N 770 165 500 2950 219.1×219.1
C 730 150 450 2950 219.1×219.1
X 710 138 450 2950 219.1×219.1
Y 680 120 355 2950 219.1×219.1
D 650 110 315 2950 219.1×219.1
KZE25/200 A 5.8 13.5 1.1 1475 48.3×33.7
B 5.2 12 1.1 1475 48.3×33.7
C 4.6 9 1.1 1475 48.3×33.7
D 4 7 1.1 1475 48.3×33.7
KZE25/250 A 8 18 2.2 1475 60.3×33.7
B 7.5 16 2.2 1475 60.3×33.7
C 7 11 1.5 1475 60.3×33.7
D 6.5 7 1.1 1475 60.3×33.7
KZE25/315 A 10 32 5.5 1475 60.3×33.7
B 9.5 30 4 1475 60.3×33.7
C 8.5 25 4 1475 60.3×33.7
D 7.5 22 3 1475 60.3×33.7
E 7 20 3 1475 60.3×33.7
F 6.5 16 2.2 1475 60.3×33.7
KZE40/160 A 14 8 1.1 1475 88.9×48.3
B 13 7 1.1 1475 88.9×48.3
C 11 5.5 1.1 1475 88.9×48.3
D 10 4 1.1 1475 88.9×48.3
KZE40/200 A 17 13 1.5 1475 88.9×48.3
B 16 11 1.5 1475 88.9×48.3
C 14 9 1.1 1475 88.9×48.3
D 12 7 1.1 1475 88.9×48.3
KZE40/250 A 18 20 3 1475 88.9×48.3
B 17 18 2.2 1475 88.9×48.3
C 14 14 1.5 1475 88.9×48.3
D 12 10 1.1 1475 88.9×48.3
KZE40/315 A 21 29 5.5 1475 88.9×48.3
B 20 27 5.5 1475 88.9×48.3
M 19 24 5.5 1475 88.9×48.3
N 18 22 4 1475 88.9×48.3
C 17 20 4 1475 88.9×48.3
X 16 18 3 1475 88.9×48.3
D 15 15 3 1475 88.9×48.3
KZE40/400 A 21.5 39 7.5 1475 88.9×48.3
L 21 37 7.5 1475 88.9×48.3
M 20.5 34 7.5 1475 88.9×48.3
B 20 32 7.5 1475 88.9×48.3
C 19.5 28 5.5 1475 88.9×48.3
X 19 25 5.5 1475 88.9×48.3
Y 18.5 23 5.5 1475 88.9×48.3
D 18 20 4 1475 88.9×48.3
KZE50/160 A 25 8.5 1.5 1475 88.9×60.3
B AA 7.5 1.1 1475 88.9×60.3
C 19 5.5 1.1 1475 88.9×60.3
D 16 4 1.1 1475 88.9×60.3
KZE50/200 A 31 13 3 1475 88.9×60.3
B 28 12 2.2 1475 88.9×60.3
C 25 9 1.5 1475 88.9×60.3
D 21 7 1.1 1475 88.9×60.3
KZE50/250 A 35 20 5.5 1475 88.9×60.3
B 33 19 4 1475 88.9×60.3
M 32 17 4 1475 88.9×60.3
C 30 15 3 1475 88.9×60.3
N 28 13 3 1475 88.9×60.3
D 26 11 2.2 1475 88.9×60.3
KZE50/315 A 44 28 11 1475 114.3×60.3
B 39 25 7.5 1475 114.3×60.3
C 33 20 5.5 1475 114.3×60.3
D 28 16 4 1475 114.3×60.3
KZE50/400 A 41 48 15 1475 114.3×60.3
B 39 44 15 1475 114.3×60.3
M 37 39 11 1475 114.3×60.3
C 15 35 11 1475 114.3×60.3
N 38 30 7.5 1475 114.3×60.3
D 3 25 7.5 1475 114.3×60.3
KZE80/160 A 50 8.5 2.2 1475 114.3×89
B 46 7 2.2 1475 114.3×89
C 41 5.5 1.5 1475 114.3×89
D 35 4.5 1.5 1475 114.3×89
KZE80/200 A 51 13.5 4 1475 114.3×88.9
B 47 12 3 1475 114.3×88.9
C 40 9.5 2.2 1475 114.3×88.9
D 34 8 1.5 1475 114.3×88.9
KZE80/250 A 60 20 7.5 1475 114.3×89
B 57 18.5 7.5 1475 114.3×89
C 52 15 5.5 1475 114.3×89
D 46 10 4 1475 114.3×89
KZE80/315 A 65 30 11 1475 114.3×89
B 62 28 11 1475 114.3×89
M 60 26 11 1475 114.3×89
N 56 25 7.5 1475 114.3×89
C 53 23 7.5 1475 114.3×89
X 50 21 7.5 1475 114.3×89
Y 45 19 7.5 1475 114.3×89
D 43 17 5.5 1475 114.3×89
KZE80/400 A 85 46 22 1475 114.3×89
B 80 42 22 1475 114.3×89
M 75 39 18.5 1475 114.3×89
N 70 36 15 1475 114.3×89
C 66 33 15 1475 114.3×89
X 63 30 15 1475 114.3×89
Y 59 27 11 1475 114.3×89
D 55 24 11 1475 114.3×89
KZE100/160 A 81 7.2 3 1475 114.3×114.3
B 72 6 2.2 1475 114.3×114.3
C 60 4.5 1.5 1475 114.3×114.3
D 52 3.5 1.1 1475 114.3×114.3
KZE100/200 A 88 12.5 5.5 1475 114.3×114.3
B 82 11 5.5 1475 114.3×114.3
C 75 8.5 4 1475 114.3×114.3
D 65 6.5 3 1475 114.3×114.3
KZE100/250 A 115 20 11 1475 168.3×114.3
B 110 18 11 1475 168.3×114.3
C 100 14 7.5 1475 168.3×114.3
D 90 10 5.5 1475 168.3×114.3
KZE100/315 A 125 32 18.5 1475 168.3×114.3
B 120 30 18.5 1475 168.3×114.3
M 115 28 15 1475 168.3×114.3
N 110 26 15 1475 168.3×114.3
C 105 24 15 1475 168.3×114.3
X 100 22 11 1475 168.3×114.3
Y 95 20 11 1475 168.3×114.3
D 88 17 7.5 1475 168.3×114.3
KZE100/400 A 150 48 37 1475 168.3×114.3
B 145 45 30 1475 168.3×114.3
M 140 42 30 1475 168.3×114.3
N 135 39 30 1475 168.3×114.3
C 130 39 30 1475 168.3×114.3
X 125 33 22 1475 168.3×114.3
Y 120 30 18.5 1475 168.3×114.3
D 115 26 18.5 1475 168.3×114.3
KZE100/500 A 180 75 75 1475 168.3×114.3
B 170 68 55 1475 168.3×114.3
M 155 60 55 1475 168.3×114.3
C 140 55 45 1475 168.3×114.3
N 130 46 30 1475 168.3×114.3
D 120 40 30 1475 168.3×114.3
KZE150/200 A 155 11.5 7.5 1475 168.3×168.3
B 145 9.7 7.5 1475 168.3×168.3
C 130 7.5 5.5 1475 168.3×168.3
D 115 5.2 4 1475 168.3×168.3
KZE150/250 A 195 18.5 15 1475 168.3×168.3
B 180 16 15 1475 168.3×168.3
C 160 12 11 1475 168.3×168.3
KZE150/315 A 220 32 30 1475 168.3×168.3
B 215 29 30 1475 168.3×168.3
M 205 26 22 1475 168.3×168.3
C 195 23 22 1475 168.3×168.3
N 185 20 18.5 1475 168.3×168.3
D 175 17 15 1475 168.3×168.3
KZE150/400 A 260 51 75 1475 168.3×168.3
B 250 48 55 1475 168.3×168.3
M 230 44 45 1475 168.3×168.3
C 210 40 37 1475 168.3×168.3
N 195 35 30 1475 168.3×168.3
D 180 30 30 1475 168.3×168.3
KZE150/500 A 300 77 110 1475 168.3×168.3
B 280 72 90 1475 168.3×168.3
M 260 65 75 1475 168.3×168.3
C 240 60 75 1475 168.3×168.3
N 220 52 55 1475 168.3×168.3
D 200 45 45 1475 168.3×168.3
KZE150/560 A 330 104 160 1475 168.3×168.3
B 310 97 132 1475 168.3×168.3
M 280 90 110 1475 168.3×168.3
C 260 80 90 1475 168.3×168.3
N 230 70 75 1475 168.3×168.3
D 200 62 75 1475 168.3×168.3
KZE150/630 A 360 115 220 1475 168.3×168.3
B 340 105 185 1475 168.3×168.3
M 310 94 160 1475 168.3×168.3
C 280 80 132 1475 168.3×168.3
N 250 70 110 1475 168.3×168.3
D 230 60 90 1475 168.3×168.3
KZE200/250 A 305 17.5 22 1475 219.1×219.1
B 290 16 18.5 1475 219.1×219.1
C 265 12 15 1475 219.1×219.1
D 240 8 11 1475 219.1×219.1
KZE200/315 A 340 31 45 1475 219.1×219.1
B 325 29 45 1475 219.1×219.1
C 300 23 30 1475 219.1×219.1
D 260 16 18.5 1475 219.1×219.1
KZE200/400 A 425 50 90 1475 219.1×219.1
B 415 48 90 1475 219.1×219.1
M 400 46 75 1475 219.1×219.1
N 385 40 75 1475 219.1×219.1
C 370 37 75 1475 219.1×219.1
X 360 34 55 1475 219.1×219.1
Y 350 30 45 1475 219.1×219.1
D 340 27 45 1475 219.1×219.1
KZE200/500 A 500 81 160 1475 219.1×219.1
B 485 76 160 1475 219.1×219.1
M 470 73 132 1475 219.1×219.1
C 460 70 132 1475 219.1×219.1
N 445 65 110 1475 219.1×219.1
D 430 60 110 1475 219.1×219.1
X 400 52 90 1475 219.1×219.1
E 370 45 75 1475 219.1×219.1
KZE200/560 A 540 105 220 1475 219.1×219.1
N 516 98 220 1475 219.1×219.1
M 480 90 185 1475 219.1×219.1
C 440 80 160 1475 219.1×219.1
N 400 70 132 1475 219.1×219.1
D 360 60 110 1475 219.1×219.1
KZE200/630 A 580 132 315 1475 219.1×219.1
B 550 125 280 1475 219.1×219.1
M 520 118 250 1475 219.1×219.1
N 480 110 220 1475 219.1×219.1
C 460 102 220 1475 219.1×219.1
X 420 95 185 1475 219.1×219.1
Y 400 86 160 1475 219.1×219.1
D 360 76 132 1475 219.1×219.1
KZE250/315 A 545 27 55 1475 273×273
B 525 26 55 1475 273×273
C 480 19 45 1475 273×273
D 430 13 30 1475 273×273
KZE250/400 A 700 50 132 1475 273×273
B 670 46 132 1475 273×273
M 640 42 110 1475 273×273
C 600 36 90 1475 273×273
N 560 31 75 1475 273×273
D 510 26 55 1475 273×273
KZE250/500 A 800 82 250 1475 273×273
B 775 76 220 1475 273×273
M 745 67 200 1475 273×273
C 700 58 160 1475 273×273
N 675 52 160 1475 273×273
D 625 42 110 1475 273×273
KZE250/560 A 860 106 355 1475 273×273
B 825 98 315 1475 273×273
M 800 90 280 1475 273×273
C 750 80 250 1475 273×273
N 710 68 220 1475 273×273
D 670 55 160 1475 273×273
KZE250/630 A 855 128 450 1475 273×273
B 800 120 400 1475 273×273
M 750 108 355 1475 273×273
C 700 95 280 1475 273×273
N 650 85 250 1475 273×273
D 600 70 185 1475 273×273
KZE300/400 A 1050 48 185 1475 325×325
B 1000 44 185 1475 325×325
M 950 40 160 1475 325×325
C 870 35 132 1475 325×325
N 840 31 110 1475 325×325
D 760 26 90 1475 325×325
KZE300/500 A 1200 79 355 1475 325×325
B 1160 75 315 1475 325×325
M 1100 65 280 1475 325×325
C 1000 58 220 1475 325×325
N 950 50 185 1475 325×325
D 880 42 160 1475 325×325
KZE300/560 A 1400 104 500 1475 325×325
B 1350 95 450 1475 325×325
M 1300 84 400 1475 325×325
C 1250 70 355 1475 325×325
N 1180 62 280 1475 325×325
D 1120 52 220 1475 325×325
KZE300/630 A 1450 132 710 1475 325×325
B 1400 123 630 1475 325×325
M 1300 110 560 1475 325×325
C 1200 100 450 1475 325×325
N 1100 85 355 1475 325×325
D 1000 70 280 1475 325×325
KZE400/500 A 1870 74 500 1475 426×426
B 1800 70 450 1475 426×426
M 1650 62 355 1475 426×426
C 1500 52 280 1475 426×426
N 1400 45 250 1475 426×426
D 1300 38 185 1475 426×426
KZE400/560 A 2040 98 710 1475 426×426
B 1950 90 630 1475 426×426
M 1870 60 500 1475 426×426
C 1800 74 450 1475 426×426
N 1700 64 400 1475 426×426
D 1580 52 315 1475 426×426
KZE400/630 A 2400 125 1000 1475 426×426
B 2280 118 900 1475 426×426
M 2100 105 800 1475 426×426
C 1950 94 630 1475 426×426
N 1800 83 560 1475 426×426
D 1600 70 400 1475 426×426

Size

Video Introduction

Message Inquiry

*
*
*
*
*
Submit
