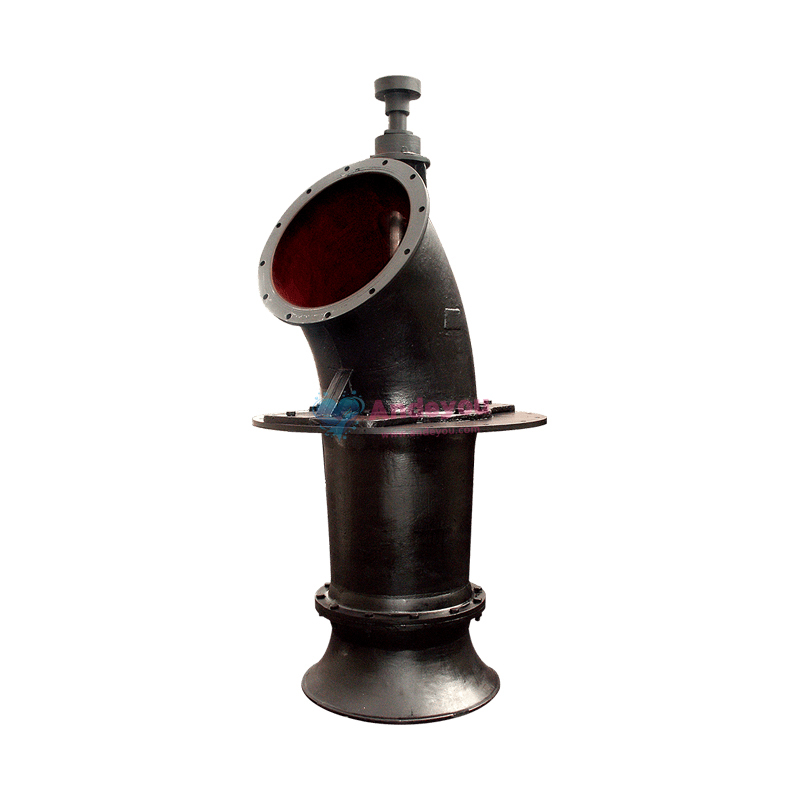

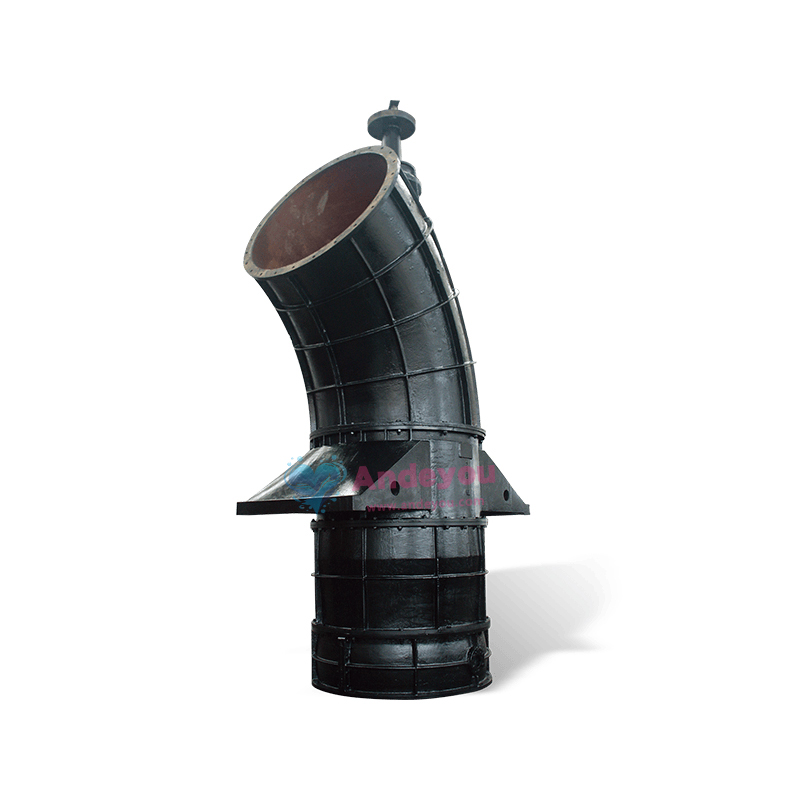

Kaiquan ZLB and ZLQ Axial-Flow Pumps

500ZLB-60

Kaiquan Pump Industry’s KQHS light-duty multistage centrifugal pump features a non-self-priming horizontal structure,with flow-passage components formed from stamped and welded stainless steel sheets,it is characterized by a compact design,energy efficiency,environmental friendliness,low noise levels,and high reliability.The pump is suitable for conveying clean water or liquids with physicochemical properties similar to water (free of solid particles or fibers)
Product Consultation By telephone
Function
Parameters
Size
Video Introduction

Function

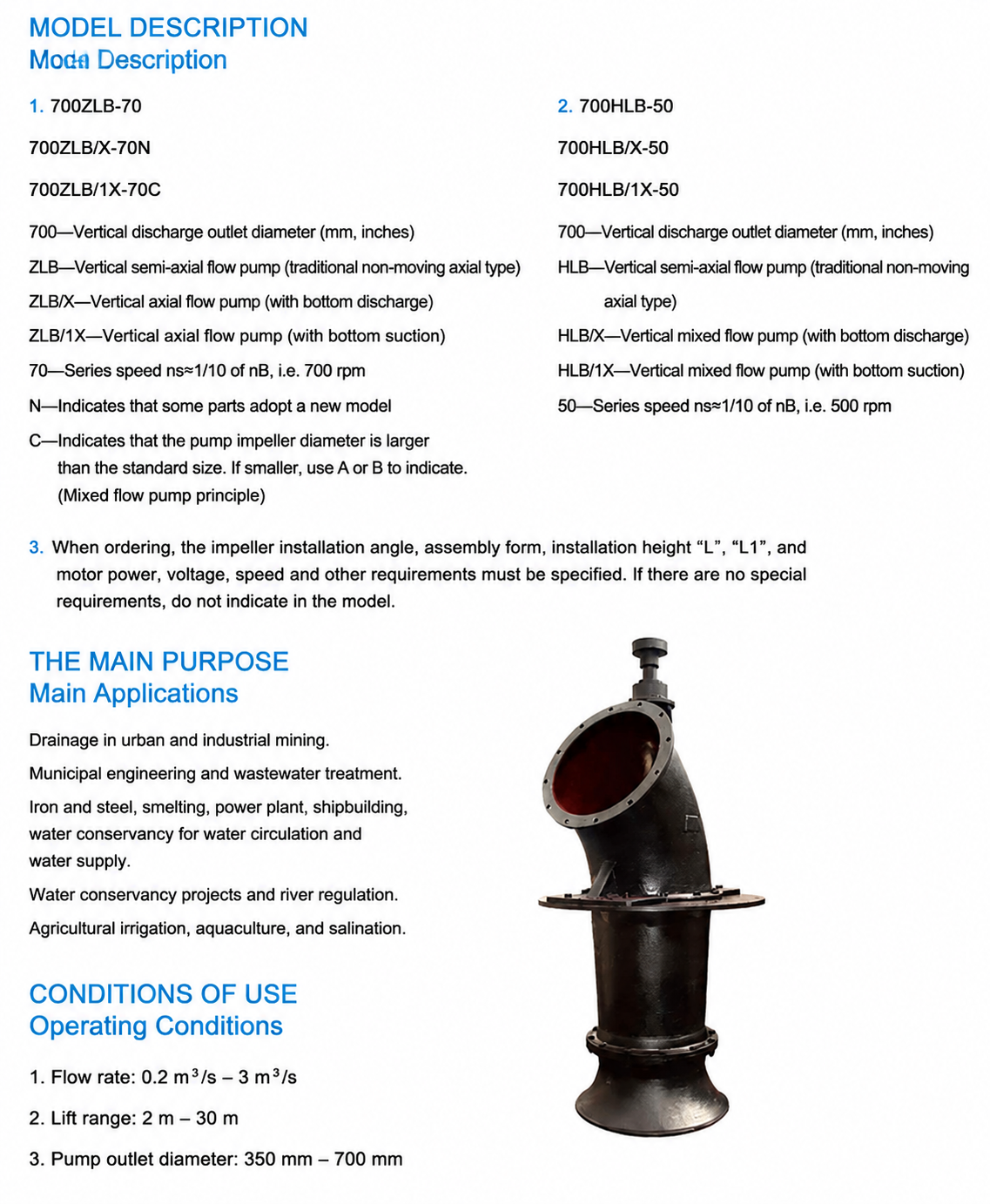

Product Applications:

Water supply and drainage for urban areas and industrial/mining sites; municipal engineering; sewage treatment.
Water projects involving circulating water and water lifting for the iron and steel, metallurgical, power generation, shipbuilding, and water treatment industries; river management.
Agricultural irrigation, aquaculture, saltworks, etc.

Applicable Range:

Single-unit flow rate: 0.2–12 m³/s

Head: 2–30 m

Pump discharge diameter: DN350–1600 mm

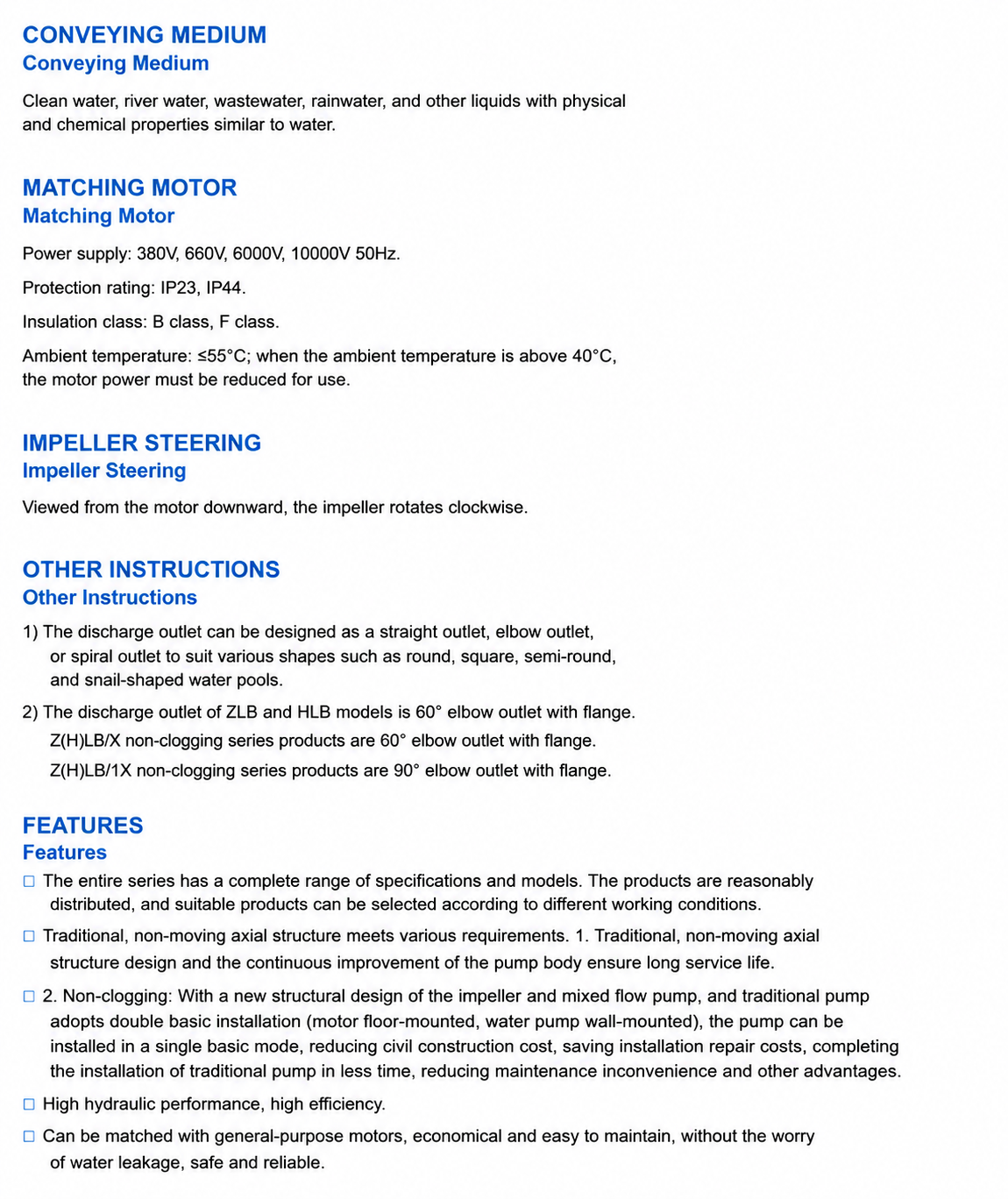

Working medium: Clean water, river water, wastewater, rainwater, sewage, and other liquids with physical and chemical properties similar to water.

Product Overview:

Features advanced technology, excellent hydraulic performance, and high efficiency; offers a broad product spectrum and a comprehensive range of models and specifications.

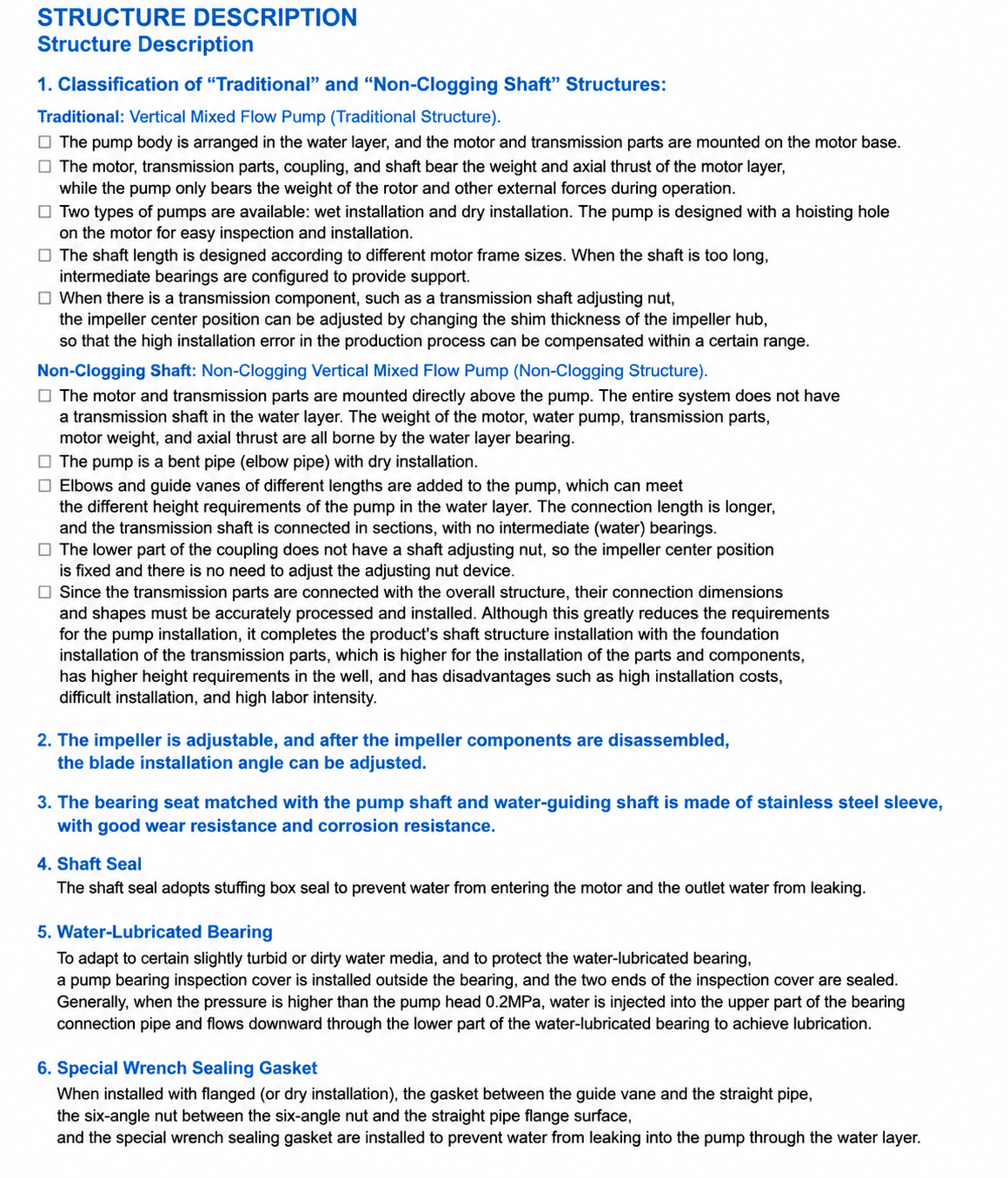

Available in traditional and shaftless (direct-drive) structural configurations; utilizes standard motors, ensuring cost-effectiveness and ease of maintenance.

Parameters

model Blade setting angle Flow rate (m³/h) Head (m) Rotational speed (r/min) Power (kW)
350ZLB-50 -6 929 8.53 1450 30
-4 1010 8.79 1450 37
-2 1040 9.05 1450 37
0 1156 9.1 1450 45
+4 1216 9.33 1450 45
+4 1279 9.59 1450 55
350ZLB-60 -4 1185 8.26 1450 37
-2 1266 8.36 1450 45
0 1306 8.79 1450 45
+2 1356 9.29 1450 55
+4 1446 9.33 1450 55
350ZLB-70 -6 1152 6.6 1450 37
-4 1181 7 1450 37
-2 1242 7.3 1450 37
0 1292 7.62 1450 37
+2 1325 7.7 1450 37
+4 1375 8.2 1450 45
350ZLB-70N -4 1214 6.55 1450 30
-2 1290 6.74 1450 37
0 1323 7.26 1450 37
+2 1391 7.53 1450 45
+4 1486 7.68 1450 45
350ZLB-85 -6 892 4.24 1450 18.5
-4 964 5.2 1450 22
-2 1097 5.1 1450 30
0 1203 5.29 1450 30
+2 1285 5.65 1450 30
+4 1213 6.39 1450 37
350ZLB-100 -6 900 4.03 1450 18.5
-4 1008 4.1 1450 22
-2 1098 4.2 1450 22
0 1188 4.21 1450 30
+2 1260 4.43 1450 30
+4 1350 4.45 1450 30
350ZLB-125 -4 893 3.03 1450 15
-2 1105 3.14 1450 18.5
0 1303 3.42 1450 22
+2 1447 3.58 1450 30
+4 1642 4.2 1450 30
500ZLB-50 -6 2199 8.77 980 75
-4 2303 9.04 980 90
-2 2372 9.31 980 90
0 2636 9.35 980 110
+2 2775 9.59 980 110
+4 2917 9.85 980 110
500ZLB-60 -4 2702 8.49 980 90
-2 2887 8.6 980 90
0 2980 9.23 980 110
+2 3093 9.55 980 110
+4 3299 9.59 980 132
500ZLB-70 -6 2628 6.78 980 75
-4 2693 7.19 980 75
-2 2833 7.5 980 90
0 2948 7.83 980 90
+2 3022 7.91 980 90
+4 3137 8.43 980 110
500ZLB-70A -6 1987 5.63 980 55
-4 2037 5.97 980 55
-2 2143 6.23 980 55
0 2230 6.5 980 55
+2 2286 6.57 980 55
+4 2628 5.7 980 75
500ZLB-70N -4 2768 6.73 980 75
-2 2942 6.92 980 75
0 3018 7.46 980 90
+2 3174 7.74 980 90
+4 3390 7.89 980 110
500ZLB-85 -6 2034 4.36 980 45
-4 2200 5.34 980 55
-2 2502 5.24 980 55
0 2743 5.44 980 75
+2 2930 5.81 980 75
+4 2995 6.57 980 90
500ZLB-100 -6 2053 4.14 980 37
-4 2299 4.21 980 45
-2 2505 4.32 980 55
0 2710 4.33 980 55
+2 2874 4.55 980 75
+4 3079 4.57 980 75
500ZLB-125 -4 2037 3.11 980 30
-2 2521 3.23 980 45
0 2973 3.51 980 55
+2 3301 3.68 980 75
+4 3745 4.32 980 75
600ZLB-50 -6 2901 7.37 735 95
-4 3154 7.59 735 95
-2 3249 7.82 735 95
0 3609 7.86 735 110
+2 3800 8.05 735 132
+4 3995 8.28 735 132
600ZLB-60 -4 3700 7.13 735 110
-2 2953 7.22 735 110
0 4080 7.59 735 110
+2 4235 8.02 735 132
+4 4512 8.06 735 132
600ZLB-70 -6 3598 5.7 735 95
-4 3688 6.05 735 95
-2 3879 6.3 735 95
0 4037 6.58 735 110
+2 4138 6.65 735 110
+4 4295 7.08 735 110
600ZLB-70N -4 3791 5.66 735 90
-2 4029 5.82 735 90
0 4132 6.27 735 110
+2 4346 6.5 735 110
+4 4642 6.63 735 110
600ZLB-85 -6 2785 3.66 735 45
-4 3012 4.49 735 55
-2 3426 4.4 735 75
0 3756 4.57 735 75
+2 4013 4.88 735 90
+4 4101 5.52 735 90
600ZLB-100 -6 2811 3.48 735 45
-4 3149 3.54 735 55
-2 3430 3.63 735 55
0 3711 3.64 735 75
+2 3936 3.83 735 75
+4 4217 3.84 735 75
600ZLB-125 -4 3791 5.66 735 90
-2 4029 5.82 735 90
0 4132 6.27 735 110
+2 4346 6.5 735 110
+4 4642 6.63 735 110
700ZLB-50 -6 3767 8.77 735 132
-4 4094 9.04 735 160
-2 4218 9.31 735 160
0 4686 9.35 735 185
+2 4933 9.59 735 185
+4 5186 9.85 735 200
700ZLB-60 -4 4804 8.49 735 160
-2 5133 8.6 735 185
0 5297 9.03 735 185
+2 5498 9.55 735 200
+4 5864 9.59 735 220
700ZLB-70 -6 4672 6.78 735 132
-4 4788 7.19 735 132
-2 5037 7.5 735 160
0 5241 7.83 735 160
+2 5372 7.91 735 160
+4 5577 8.43 735 185
700ZLB-70C -6 5939 7.96 735 185
-4 6088 8.44 735 200
-2 6403 8.81 735 220
0 6663 9.19 735 220
+2 6830 9.29 735 250
+4 7090 9.89 735 250
700ZLB-70N -4 4921 6.73 735 132
-2 5231 6.92 735 132
0 5365 7.46 735 160
+2 5642 7.74 735 185
+4 6027 7.89 735 185
700ZLB-85 -6 3616 4.36 735 75
-4 3910 5.34 735 90
-2 4448 5.24 735 110
0 4877 5.44 735 110
+2 5210 5.81 735 132
+4 5325 6.57 735 132
700ZLB-85C -6 4597 5.12 735 110
-4 4972 6.27 735 132
-2 5655 6.15 735 160
0 6200 6.38 735 160
+2 6624 6.82 735 185
+4 6770 7.71 735 200
700ZLB-100 -6 3650 4.14 735 75
-4 4088 4.21 735 90
-2 4453 4.32 735 90
0 4818 4.33 735 110
+2 5100 4.55 735 110
+4 5474 4.57 735 110
700ZLB-100C -6 4640 4.86 735 110
-4 5197 4.95 735 132
-2 5661 5.07 735 132
0 6125 5.08 735 160
+2 6496 5.34 735 160
+4 6960 5.37 735 160
700ZLB-125 -4 3620 3.11 735 55
-2 4482 3.23 735 75
0 5285 3.51 735 90
+2 5869 3.68 735 110
+4 6657 4.32 735 132
700ZLB-125C -4 4572 3.61 735 75
-2 5659 3.74 735 110
0 6673 4.07 735 132
+2 7411 4.26 735 160
+4 8406 5 735 185
700ZLB-50 -6 3024 5.65 590 75
-4 3287 5.82 590 75
-2 3386 6 590 90
0 3762 6.02 590 9
+2 3960 6.18 590 110
+4 4163 6.35 590 110
350HLB-40 -4 1224 14.37 1450 75
-2 1379 14.44 1450 75
0 1440 16.45 1450 90
+2 1584 16.72 1450 110
+4 1717 17.17 1450 100
+6 1793 18.15 1450 132
350HLB-50 -4 1152 9.8 1450 45
-2 1260 10.7 1450 55
0 1379 11.3 1450 75
+2 1476 12 1450 75
+4 1584 12.5 1450 75
350HLB-50C -4 1533 11.86 1450 75
-2 1677 12.95 1450 90
0 1835 13.67 1450 110
+2 1965 14.52 1450 110
+4 2108 15.13 1450 132
350HLB-60 -6 1116 8.17 1450 37
-4 1251 9.07 1450 45
-2 1388 9.63 1450 55
0 1562 11.1 1450 75
+2 1722 11.08 1450 75
500HLB-40 -4 2792 14.77 980 155
-2 3145 14.84 980 185
0 3285 16.91 980 200
+2 3613 17.18 980 220
+4 3917 17.65 980 250
+6 4089 18.65 980 280
500HLB-50 -4 2628 10.07 980 110
-2 2874 11 980 132
0 3145 11.61 980 132
+2 3367 12.33 980 160
+4 3613 12.85 980 185
500HLB-60 -6 2546 8.4 980 90
-4 2853 9.32 980 110
-2 3166 9.9 980 132
0 3563 11.41 980 160
+2 3928 11.39 980 160
600HLB-40 -4 3823 12.41 735 185
-2 4307 12.47 735 200
0 4498 14.21 735 220
+2 4948 14.44 735 250
+4 5364 14.83 735 280
+6 5600 15.67 735 315
600HLB-50 -4 3598 8.46 735 132
-2 3936 9.24 735 160
0 4307 9.76 735 160
+2 4610 10.36 735 185
+4 4948 10.8 735 200
600HLB-60 -6 3486 7.06 735 110
-4 3906 7.83 735 132
-2 4335 8.32 735 132
0 4879 9.59 735 185
+2 5378 9.57 735 185
700HLB-40 -4 4964 14.77 735 280
-2 5591 14.84 735 315
0 5839 16.91 735 355
+2 6423 17.18 735 400
+4 6964 17.65 735 450
+6 7270 18.65 735 450
700HLB-50 -4 4672 10.07 735 185
-2 5110 11 735 200
0 5591 11.61 735 250
+2 5985 12.33 735 280
+4 6423 12.85 735 280
700HLB-60 -6 4526 8.4 735 155
-4 5072 9.32 735 185
-2 5628 9.9 735 220
0 6334 11.41 735 280
+2 6983 11.39 735 280
700HLB-40C -4 6311 17.33 735 400
-2 7109 17.42 735 450
0 7424 19.84 735 500
+2 8167 20.17 735 560
+4 8854 20.71 735 630
+6 9243 21.89 735 710
700HLB-50C -4 5899 11.66 735 250
-2 6452 12.73 735 315
0 7060 13.45 735 355
+2 7558 14.28 735 400
+4 8111 14.87 735 450
700HLB-60C -6 5754 9.85 735 220
-4 6448 10.94 735 280
-2 7156 11.62 735 315
0 8054 13.39 735 400
+2 8878 13.36 735 450
800HLB-40 -4 6327 12.95 590 315
-2 7127 13.02 590 350
0 7443 14.83 590 400
+2 8188 15.07 590 450
+4 8876 15.48 590 500
+6 9867 16.36 590 500
800HLB-50 -4 5955 8.83 590 200
-2 6513 9.65 590 220
0 7127 10.19 590 280
+2 7630 10.82 590 315
+4 8188 11.27 590 355
800HLB-60 -6 5769 7.36 590 160
-4 6465 8.18 590 200
-2 7174 8.68 590 220
0 8074 10.01 590 280
+2 8901 9.99 590 315
800ZLB-50 -6 4801 7.69 590 155
-4 5219 7.93 590 155
-2 5376 8.16 590 160
0 5973 8.2 590 180
+2 6288 8.41 590 200
+4 6611 8.64 590 210
800ZLB-60 -4 6123 7.44 590 160
-2 6542 7.54 590 180
0 6452 7.92 590 200
+2 7008 8.37 590 220
+4 7475 8.41 590 220
800ZLB-70 -6 5955 5.95 590 132
-4 6104 6.31 590 155
-2 6420 6.58 590 155
0 6681 6.87 590 180
+2 6848 6.94 590 180
+4 7109 7.39 590 180
800ZLB-70N -4 6273 5.9 590 155
-2 6668 6.07 590 155
0 6839 6.55 590 185
+2 7192 6.78 590 185
+4 7683 6.92 590 200
800ZLB-85 -6 4609 3.82 590 80
-4 4985 4.68 590 90
-2 5670 4.6 590 115
0 6216 4.77 590 132
+2 6641 5.1 590 155
+4 6787 5.76 590 155
800ZLB-100 -6 4652 3.63 590 75
-4 5210 3.7 590 90
-2 5676 3.79 590 110
0 6141 3.79 590 110
+2 6513 3.99 590 132
+4 6978 4.01 590 132
800ZLB-100A -6 3313 2.26 490 37
-4 3710 2.3 490 45
-2 4041 2.36 490 45
0 4373 2.36 490 45
+2 5638 2.49 490 55
+4 4969 2.5 490 55
800ZLB-125 -4 4615 2.73 580 65
-2 5713 2.83 580 90
0 6736 3.08 580 115
+2 7481 3.23 580 132
+4 8486 3.79 580 155
900HLB-40C -4 9408 13.17 490 450
-2 10598 13.24 490 500
0 11068 15.08 490 560
+2 12175 15.33 490 630
+4 13199 15.74 490 710
+6 13780 16.64 490 800
900HLB-50C -4 8855 8.98 490 280
-2 9685 9.81 490 355
0 10598 10.36 490 400
+2 11345 11 490 450
+4 12175 11.46 490 500
900HLB-60C -6 8578 7.49 490 250
-4 9613 8.31 490 315
-2 10668 8.83 490 355
0 12006 10.18 490 450
+2 13235 10.16 490 500
900ZLB-50 -6 6024 8.94 590 200
-4 6549 9.22 590 220
-2 6746 9.49 590 250
0 7495 9.54 590 250
+2 7890 9.78 590 280
+4 8294 10.05 590 315
900ZLB-50C -6 7140 7.82 590 220
-4 7761 8.06 590 220
-2 7995 8.3 590 250
0 8882 8.34 590 280
+2 9350 8.55 590 310
+4 9830 8.79 590 310
900ZLB-60 -4 7532 8.54 590 250
-2 8047 8.65 590 280
0 8305 9.09 590 280
+2 8620 9.61 590 315
+4 9194 9.66 590 315
900ZLB-70 -6 7324 6.83 590 200
-4 7507 7.24 590 220
-2 7896 7.55 590 220
0 8217 7.89 590 250
+2 8523 7.97 590 250
+4 8743 8.49 590 250
900ZLB-70 -6 6205 4.77 490 132
-4 6360 5.06 490 132
-2 6690 5.28 490 132
0 6961 5.51 490 160
+2 7136 5.57 490 160
+4 7407 5.93 490 160
900ZLB-70C -6 8855 6.05 490 220
-4 9076 6.42 490 220
-2 9546 6.69 490 250
0 9934 6.99 490 250
+2 10183 7.06 490 280
+4 10570 7.52 490 280
900ZLB-70N -4 7716 6.78 590 200
-2 8201 6.97 590 220
0 8411 7.51 590 250
+2 8846 7.79 590 250
+4 9450 7.95 590 280
900ZLB-85 -6 5783 4.45 590 132
-4 6254 5.45 590 132
-2 7114 5.35 590 160
0 7800 5.55 590 185
+2 8332 5.93 590 200
+4 8516 6.7 590 220
900ZLB-85C -6 6854 3.89 490 132
-4 7412 4.76 490 160
-2 8431 4.67 490 160
0 9244 4.85 490 185
+2 9875 5.18 490 200
+4 10093 5.86 490 220
900ZLB-100 -6 5837 4.23 590 110
-4 6538 4.3 590 132
-2 7121 4.4 590 160
0 7705 4.41 590 160
+2 8172 4.65 590 185
+4 8756 4.67 590 185
900ZLB-100C -6 6918 3.69 490 110
-4 7748 3.76 490 132
-2 8440 3.85 490 160
0 9131 3.86 490 160
+2 9685 4.06 490 185
+4 10377 4.08 490 185
900ZLB-125 -4 5790 3.18 590 90
-2 7168 3.29 590 132
0 8452 3.59 590 160
+2 9386 3.75 590 185
+4 10647 4.4 590 200
900ZLB-125C -4 6862 2.78 490 90
-2 8495 2.88 490 132
0 10017 3.14 490 160
+2 11124 3.28 490 185
+4 12618 3.85 490 220
900ZLB-100C -6 8330 5.36 590 200
-4 9329 5.45 590 220
-2 10162 5.58 590 250
0 10995 5.6 590 280
+2 11661 5.89 590 280
+4 12494 5.91 590 315
1000HLB-40 -4 11168 14.77 490 630
-2 12580 14.84 490 710
0 13139 16.91 490 800
+2 14453 17.18 490 900
+4 15668 17.65 490 1000
+6 16358 18.65 490 1000
1000HLB-50 -4 10511 10.07 490 400
-2 11496 11 490 450
0 12580 11.61 490 500
+2 13467 12.33 490 560
+4 14453 12.85 490 630
1000HLB-60 -6 10183 8.4 490 315
-4 11411 9.32 490 400
-2 12663 9.9 490 450
0 14252 11.41 490 540
+2 15711 11.39 490 630
1000ZLB-50 -6 8475 8.77 490 280
-4 9213 9.04 490 315
-2 9490 9.31 490 315
0 10544 9.35 490 355
+2 11099 9.59 490 400
+4 11669 9.85 490 450
1000ZLB-60 -4 10809 8.49 490 315
-2 11548 8.6 490 355
0 11918 9.03 490 400
+2 12370 9.55 490 400
+4 13194 9.59 490 450
1000ZLB-70 -6 10511 6.78 490 280
-4 10774 7.19 490 315
-2 11332 7.5 490 315
0 11792 7.83 490 355
+2 12088 7.91 490 355
+4 12548 8.43 490 355
1000ZLB-70N -4 11073 6.73 490 280
-2 11769 6.92 490 315
0 12071 7.46 490 355
+2 12695 7.74 490 355
+4 13561 7.89 490 400
1000ZLB-85 -6 8136 4.36 490 160
-4 8798 5.34 490 185
-2 10008 5.24 490 220
0 10973 5.44 490 250
+2 11722 5.81 490 280
+4 11981 6.57 490 315
1000ZLB-100 -6 8212 4.14 490 160
-4 9197 4.21 490 185
-2 10018 4.32 490 185
0 10839 4.33 490 220
+2 11496 4.55 490 220
+4 12318 4.57 490 250
1000ZLB-125 -4 8146 3.11 490 132
-2 10084 3.23 490 160
0 11891 3.51 490 200
+2 13204 3.68 490 250
+4 14978 4.32 490 250
1200ZLB-50 -6 10610 10.18 490 400
-4 11534 10.5 490 450
-2 11881 10.81 490 450
0 13200 10.86 490 500
+2 13896 11.13 490 560
+4 14608 11.45 490 630
1200ZLB-60 -4 13532 9.86 490 500
-2 14458 9.98 490 560
0 14921 10.49 490 560
+2 15487 11.09 490 630
+4 16519 11.14 490 710
1200ZLB-70 -6 13159 7.88 490 400
-4 13488 8.36 490 450
-2 14187 8.72 490 450
0 14763 9.1 490 500
+2 15133 9.19 490 500
+4 15709 9.79 490 560
1200ZLB-70N -4 13863 7.82 490 400
-2 14734 8.04 490 450
0 15113 8.67 490 500
+2 15893 8.99 490 560
+4 16978 9.17 490 560
1200ZLB-85 -6 10186 5.06 490 250
-4 11015 6.2 490 280
-2 12530 6.09 490 315
0 13737 6.32 490 355
+2 14675 6.75 490 400
+4 14999 7.63 490 450
1200ZLB-100 -6 10281 4.81 490 220
-4 11514 4.89 490 250
-2 12542 5.01 490 280
0 13571 7.94 490 315
+2 14393 5.29 490 355
+4 15421 5.31 490 355
1200ZLB-125 -4 10198 3.62 490 185
-2 12625 3.75 490 250
0 14886 4.08 490 315
+2 16531 4.27 490 355
+4 18752 5.01 490 400
1400ZLB-50 -6 15169 8.89 370 500
-4 16489 9.16 370 560
-2 16986 9.43 370 630
0 18872 9.48 370 630
+2 19866 9.72 370 710
+4 20885 9.99 370 800
1400ZLB-60 -4 19346 8.6 370 630
-2 20670 8.71 370 710
0 21332 9.16 370 710
+2 22142 9.68 370 800
+4 23616 9.72 370 800
1400ZLB-70 -6 18813 6.88 370 500
-4 19284 7.29 370 560
-2 20283 7.61 370 560
0 21106 7.94 370 630
+2 21635 8.02 370 630
+4 22458 8.54 370 630
1400ZLB-70N -4 19820 6.82 370 500
-2 21065 7.02 370 560
0 21606 7.57 370 630
+2 22722 7.84 370 630
+4 24273 8 370 700
1400ZLB-85 -6 14562 4.42 370 315
-4 15748 5.41 370 355
-2 17913 5.31 370 400
0 19640 5.51 370 450
+2 20980 5.89 370 500
+4 21444 6.66 370 560
1400ZLB-100 -6 14698 4.2 370 280
-4 16462 4.27 370 315
-2 17931 4.38 370 355
0 19401 4.39 370 400
+2 20577 4.62 370 400
+4 22047 4.64 370 450
1400ZLB-125 -4 14580 3.16 370 200
-2 18049 3.27 370 280
0 21283 3.56 370 355
+2 23634 3.73 370 400
+4 26809 4.38 370 500
1600ZLB-50 -6 21699 8.53 300 710
-4 23588 8.79 300 710
-2 24298 9.05 300 800
0 26996 9.1 300 900
+2 28418 9.33 300 1000
+4 29876 9.59 300 1000
1600ZLB-60 -4 27674 8.26 300 900
-2 29568 8.36 300 1000
0 30515 8.79 300 1000
+2 31673 9.29 300 1200
+4 33782 9.33 300 1200
1600ZLB-70 -6 26912 6.6 300 710
-4 27585 7 300 710
-2 29015 7.3 300 800
0 30192 7.62 300 800
+2 30949 7.7 300 900
+4 32126 8.2 300 900
1600ZLB-70N -4 28352 6.55 300 710
-2 30133 6.74 300 800
0 30907 7.26 300 900
+2 32503 7.53 300 900
+4 34722 7.68 300 1000
1600ZLB-85 -6 20831 4.24 300 400
-4 22527 5.2 300 450
-2 25624 5.1 300 560
0 28094 5.29 300 630
+2 30012 5.65 300 710
+4 30675 6.39 300 710
1600ZLB-100 -6 21025 4.03 300 400
-4 23548 4.1 300 450
-2 25651 4.2 300 500
0 27753 4.21 300 560
+2 29435 4.43 300 630
+4 31538 4.45 300 630
1600ZLB-125 -4 20857 3.03 300 280
-2 25819 3.14 300 400
0 30444 3.42 300 500
+2 33808 3.58 300 560
+4 38350 4.2 300 710
1200HLB-40 -4 13982 17.16 490 900
-2 15750 17.24 490 1000
0 16449 19.64 490 1250
+2 18094 19.96 490 1250
+4 16120 20.5 490 1400
+6 20479 21.67 490 1600
1200HLB-50 -4 13159 11.7 490 560
-2 14393 12.77 490 710
0 15750 13.49 490 800
+2 16860 14.33 490 900
+4 18094 14.92 490 900
1200HLB-60 -6 12748 9.75 490 450
-4 14286 10.83 490 560
-2 15854 11.5 490 710
0 17843 13.25 490 800
+2 19669 13.23 490 900
1400HLB-40 -4 19989 14.97 370 1120
-2 22517 15.04 370 1250
0 23517 17.14 370 1400
+2 25868 17.42 370 1600
+4 28044 17.89 370 1800
+6 29278 18.91 370 1800
1400HLB-50 -4 19068 10.49 370 710
-2 20855 11.45 370 800
0 22822 12.09 370 1000
+2 24430 12.84 370 1120
+4 26218 13.38 370 1250
1400HLB-60 -6 18225 8.51 370 560
-4 20424 9.45 370 710
-2 22665 10.03 370 800
0 25510 11.56 370 1000
+2 28120 11.54 370 1200
1600HLB-40 -4 28594 14.37 300 1600
-2 32210 14.44 300 1800
0 33640 16.45 300 2000
+2 37004 16.72 300 2300
+4 40116 17.17 300 2500
+6 41882 18.15 300 2800
1600HLB-50 -4 26912 9.8 300 1000
-2 29435 10.7 300 1120
0 32210 11.3 300 1250
+2 34481 12 300 1400
+4 37004 12.5 300 1600
1600HLB-60 -6 26071 8.17 300 800
-4 29216 9.07 300 1000
-2 32422 9.63 300 1250
0 36491 11.1 300 1400
+2 40225 11.08 300 1600

Size

Video Introduction

Message Inquiry

*
*
*
*
*
Submit
