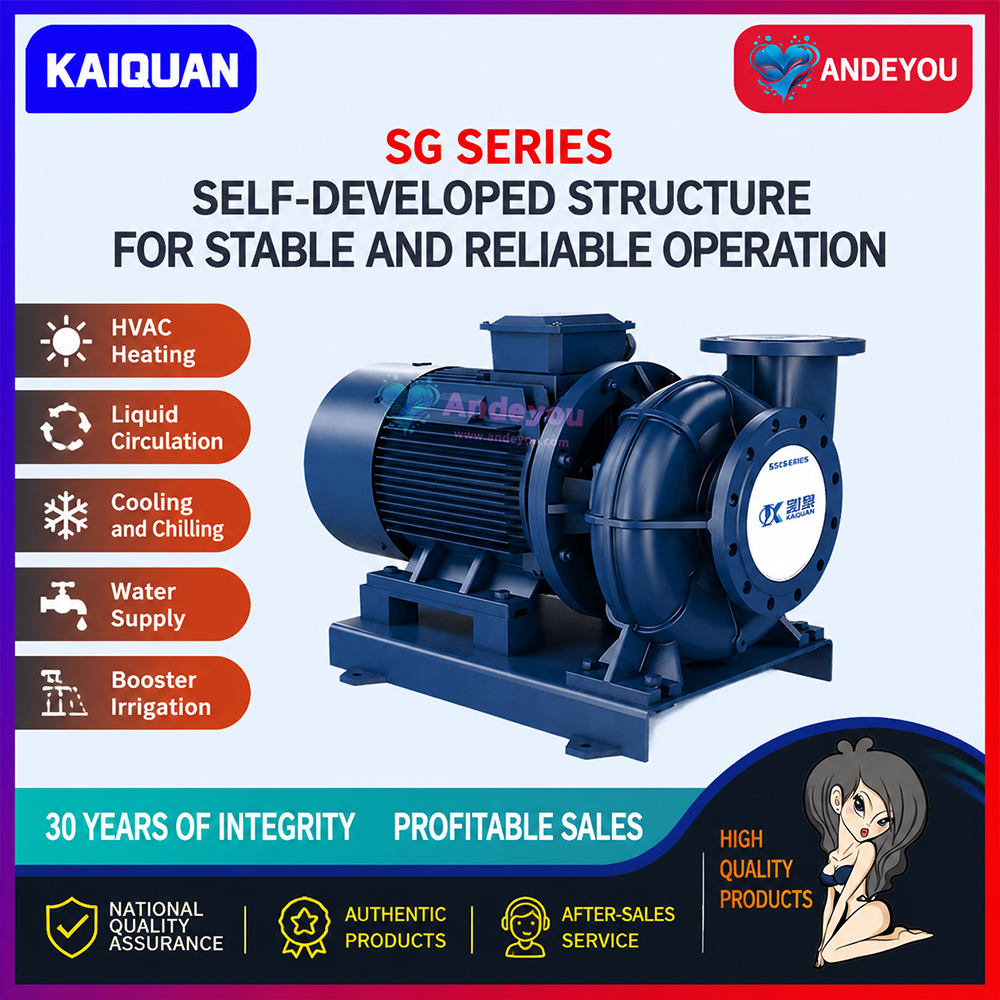

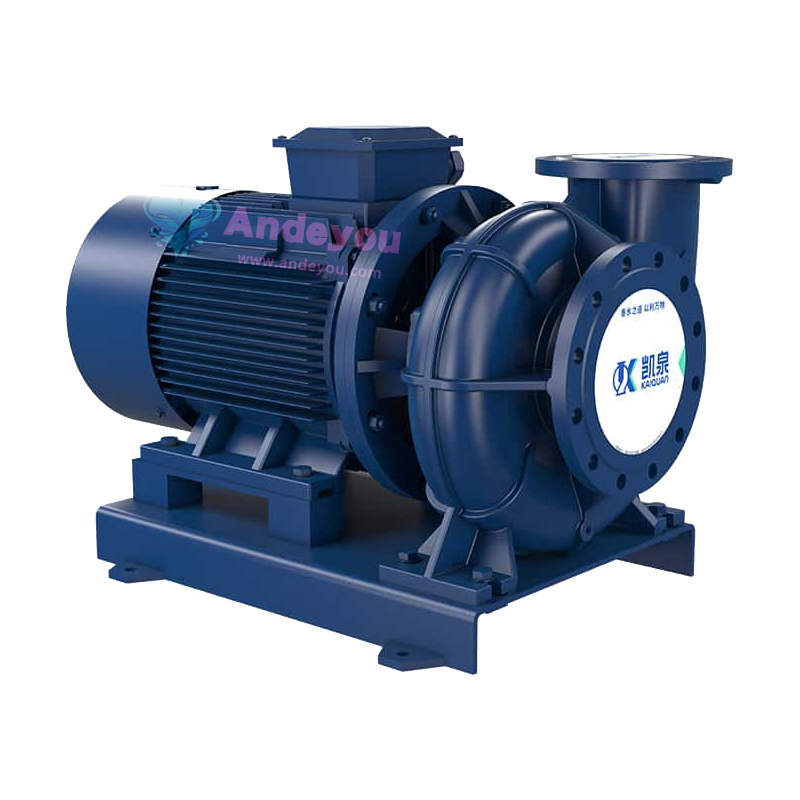

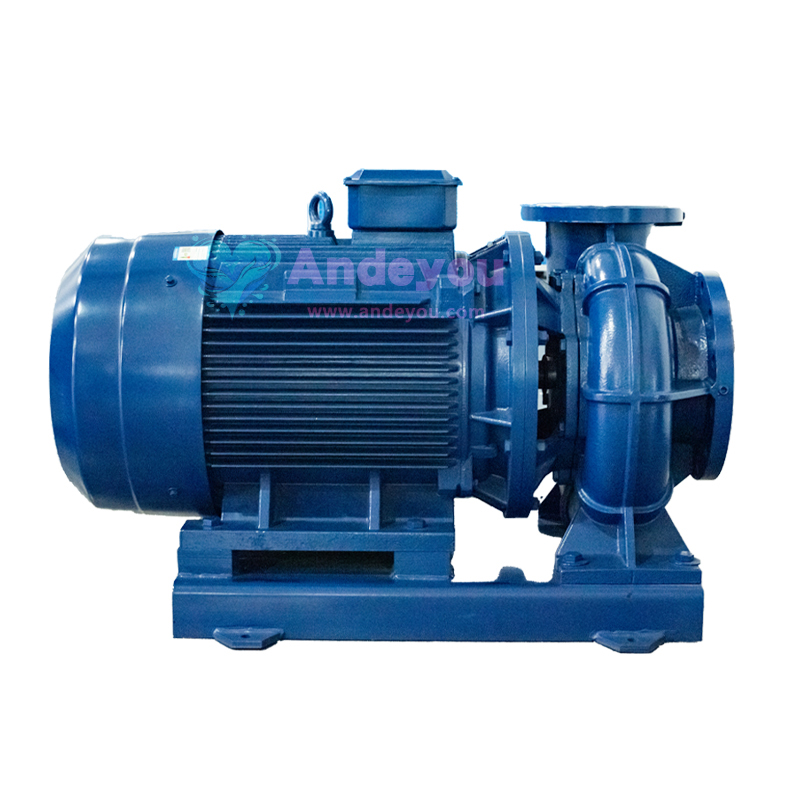

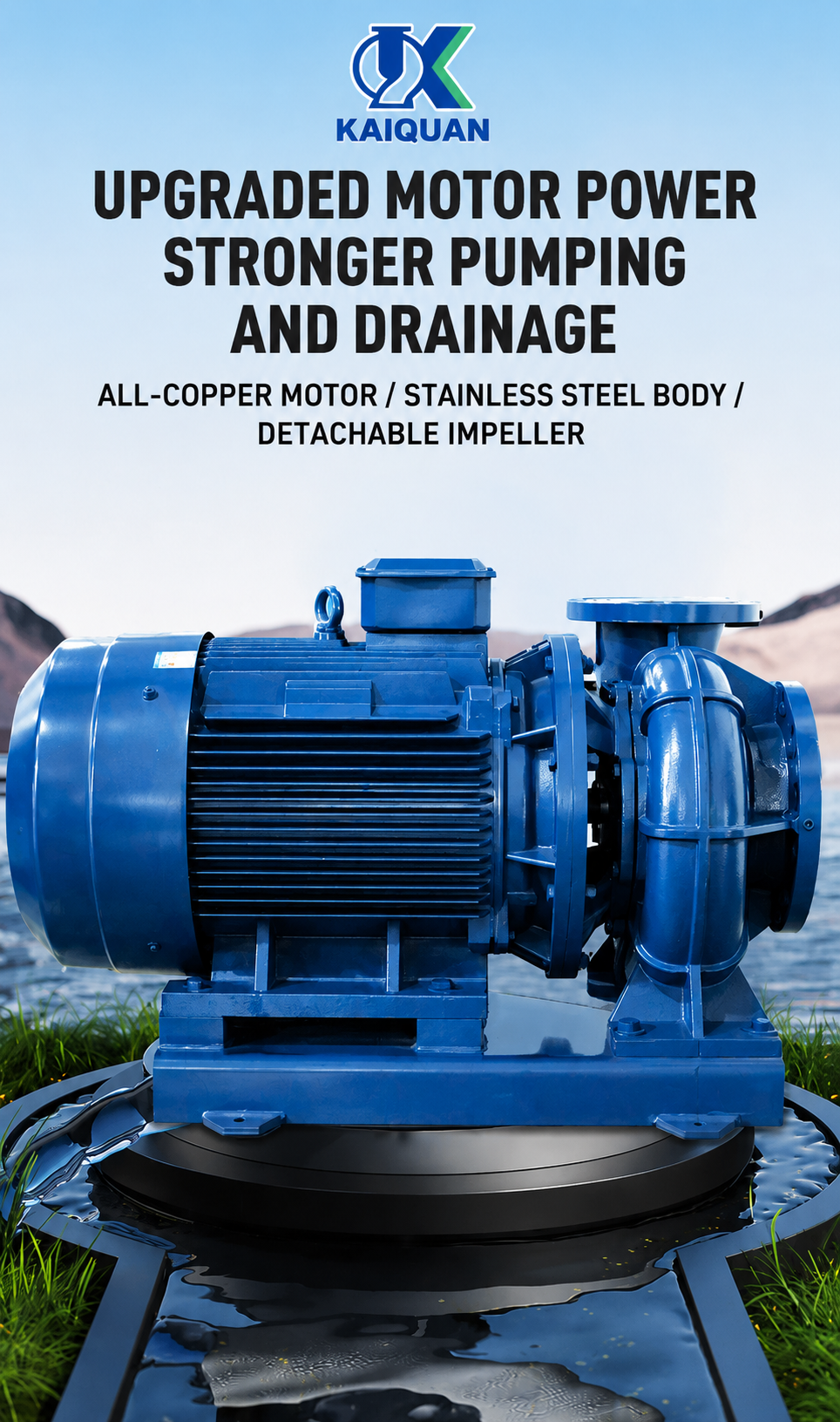

Kaiquan SGL(W) Single-stage Centrifugal Pipeline Pump

125SGL100-12.5-5.5/4

The Kaiquan SGL(W) single-stage centrifugal pipeline pump is a high-efficiency,energy-saving product manufactured by Kaiquan Pump Group.Utilizing advanced manufacturing processes and premium materials,the pump ensures stable operation,low noise levels,and a long service life.Suitable for a wide range of applications—including water supply and drainage,pressure boosting,and industrial circulation—the SGL(W) pump meets the diverse needs of various customers.

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

Product Applications:

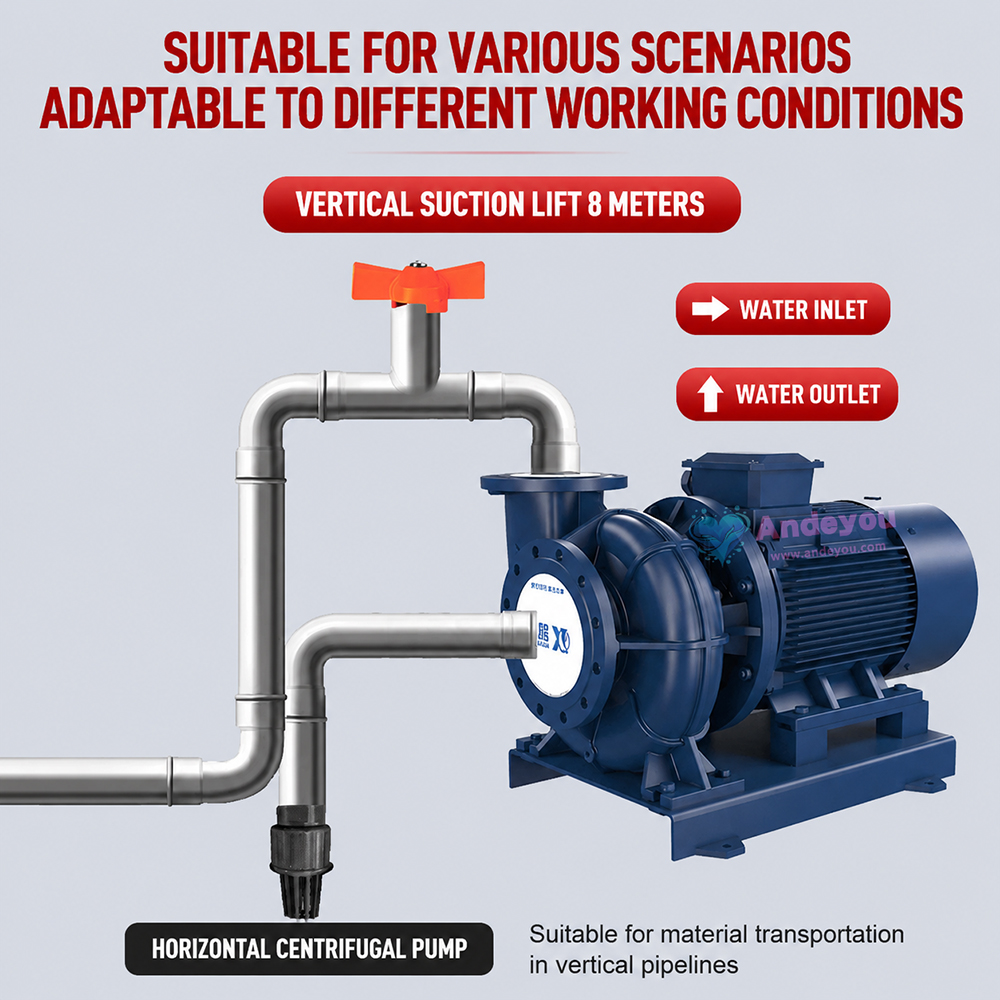

Used for transporting non-corrosive cold and hot water in sectors such as air conditioning, heating, sanitary water supply, water treatment, cooling and refrigeration systems, liquid circulation, water supply, pressure boosting, and irrigation. Suitable for media containing insoluble solids with a volume fraction not exceeding 0.1% and a particle size of less than 0.2 mm.

Operating Range:

Rotational speed: 2900 r/min, 1480 r/min

Flow rate: 40–1600 m³/h

Head: <55 m

Medium temperature: -10°C to 80°C (or 80°C to 120°C with high-temperature mechanical seals, O-rings, and flushing systems)

Ambient temperature: Max. +40°C

Product Overview:

The SG series single-stage pump—featuring eight major advantages—was successfully developed in the 1980s, becoming one of the first products of its kind introduced to the heating and air conditioning engineering sectors in China. Following the evolution through the SG series, ISG series, and the third through sixth generations of the KQL/W series, the product line returned to the high-quality, high-efficiency SG series in 2021.

Parameters

model	Flow rate (m³/h)	Head (m)	Rotational speed (r/min)	Motor power (kW)	Nominal Diameter (DN)
100SGL60-16-4/2	60	16	2960	4	100×100
100SGL70-20-5.5/2	70	20	2960	5.5	100×100
100SGL70-26-7.5/2	70	26	2960	7.5	100×100
100SGL75-32-11/2	75	32	2960	11	100×100
100SGL68-38-11/2	68	38	2960	11	100×100
100SGL72-44-15/2	72	44	2960	15	100×100
100SGL75-50-18.5/2	75	50	2960	18.5	100×100
100SGL89-10-4/2	89	10	2960	4	100×100
100SGL100-12.5-5.5/2	100	12.5	2960	5.5	100×100
100SGL85-16-5.5/2	85	16	2960	5.5	100×100
100SGL95-20-7.5/2	95	20	2960	7.5	100×100
100SGL80-24-7.5/2	80	24	2960	7.5	100×100
100SGL94-28-11/2	94	28	2960	11	100×100
100SGL100-32-15/2	100	32	2960	15	100×100
100SGL115-34-15/2	115	34	2960	15	100×100
100SGL115-42-18.5/2	115	42	2960	18.5	100×100
100SGL94-44-18.5/2	94	44	2960	18.5	100×100
100SGL100-50-22/2	100	50	2960	22	100×100
125SGL143-10-7.5/2	143	10	2960	7.5	125×125
125SGL160-12.5-11/2	160	12.5	2960	11	125×125
125SGL143-16-11/2	143	16	2960	11	125×125
125SGL160-20-15/2	160	20	2960	15	125×125
125SGL138-24-15/2	138	24	2960	15	125×125
125SGL150-28-18.5/2	150	28	2960	22	125×125
125SGL160-32-22/2	160	32	2960	22	125×125
125SGL138-38-22/2	138	37.5	2960	22	125×125
125SGL150-44-30/2	150	44	2960	30	125×125
125SGL160-50-37/2	160	50	2960	37	125×125
125SGL100-12.5-5.5/4	100	12.5	1480	5.5	125×125
125SGL87-15-5.5/4	87	15	1480	5.5	125×125
125SGL93-17-7.5/4	93	17.4	1480	7.5	125×125
125SGL120-16-7.5/4	120	16	1480	7.5	125×125
125SGL100-20-11/4	100	20	1480	11	125×125
125SGL87-38-18.5/4	87	38	1480	18.5	125×125
125SGL94-44-22/4	94	44	1480	22	125×125
125SGL100-50-30/4	100	50	1480	30	125×125
125SGL91-27-11/4	91	27	1480	11	125×125
125SGL100-32-15/4	100	32	1480	15	125×125
125SGL150-28-18.5/4	150	28	1480	18.5	125×125
125SGL120-34-18.5/4	120	34	1480	18.5	125×125
125SGL160-32-22/4	160	32	1480	22	125×125
125SGL138-38-22/4	138	38	1480	22	125×125
150SGL140-20-11/4	140	20	1480	11	150×150
150SGL160-24-15/4	160	24	1480	15	150×150
150SGL150-44-30/4	150	44	1480	30	150×150
150SGL160-50-37/4	160	50	1480	37	150×150
150SGL179-10-11/4	179	10	1480	11	150×150
150SGL200-12.5-11/4	200	12.5	1480	11	150×150
150SGL180-16-11/4	180	16	1480	11	150×150
150SGL200-20-15/4	200	20	1480	15	150×150
150SGL240-20-18.5/4	240	20	1480	18.5	150×150
150SGL173-24-18.5/4	173	24	1480	18.5	150×150
150SGL200-28-22/4	200	28	1480	22	150×150
150SGL200-32-30/4	200	32	1480	30	150×150
150SGL240-32-30/4	240	32	1480	30	150×150
150SGL200-38-30/4	200	38	1480	30	150×150
150SGL187-44-37/4	187	44	1480	37	150×150
150SGL200-50-45/4	200	50	1480	45	150×150
200SGL280-10-11/4	280	10	1480	11	200×200
200SGL300-12.5-15/4	300	12.5	1480	15	200×200
200SGL280-16-18.5/4	280	16	1480	18.5	200×200
200SGL300-20-22/4	300	20	1480	22	200×200
200SGL245-24-22/4	245	24	1480	22	200×200
200SGL280-28-30/4	280	28	1480	30	200×200
200SGL300-32-37/4	300	32	1480	37	200×200
200SGL260-38-45/4	260	38	1480	45	200×200
200SGL270-44-45/4	270	44	1480	45	200×200
200SGL300-48-55/4	300	48	1480	55	200×200
200SGL358-10-15/4	358	10	1480	15	200×200
200SGL400-12.5-18.5/4	400	12.5	1480	18.5	200×200
200SGL358-16-22/4	358	16	1480	22	200×200
200SGL400-20-30/4	400	20	1480	30	200×200
200SGL340-24-30/4	340	24	1480	30	200×200
200SGL360-28-37/4	360	28	1480	37	200×200
200SGL400-32-45/4	400	32	1480	45	200×200
200SGL440-32-55/4	440	32	1480	55	200×200
200SGL340-36-45/4	340	36	1480	45	200×200
200SGL370-40-55/4	370	40	1480	55	200×200
200SGL374-44-75/4	374	44	1480	75	200×200
200SGL400-50-75/4	400	50	1480	75	200×200
250SGL490-17-30/4	490	17	1480	30	250×250
250SGL520-20-37/4	520	20	1480	37	250×250
250SGL500-25-45/4	500	25	1480	45	250×250
250SGL500-28-55/4	500	28	1480	55	250×250
250SGL550-32-75/4	550	32	1480	75	250×250
250SGL630-32-75/4	630	32	1480	75	250×250
250SGL500-41-75/4	500	41	1480	75	250×250
250SGL500-44-90/4	500	44	1480	90	250×250
250SGL500-50-90/4	500	50	1480	90	250×250
250SGL600-50-110/4	600	50	1480	110	250×250
150SGW180-16-11/4	180	16	1480	11	150×125
150SGW200-20-15/4	200	20	1480	15	150×125
150SGW240-20-18.5/4	240	20	1480	18.5	150×125
150SGW200-28-22/4	200	28	1480	22	150×125
150SGW200-32-30/4	200	32	1480	30	150×125
150SGW240-32-30/4	240	32	1480	30	150×125
150SGW200-44-37/4	200	44	1480	37	150×125
150SGW240-48-45/4	240	48	1480	45	150×125
150SGW300-16-18.5/4	300	16	1480	18.5	150×125
150SGW300-20-22/4	300	20	1480	22	150×125
150SGW245-24-22/4	245	24	1480	22	150×125
150SGW280-28-30/4	280	28	1480	30	150×125
150SGW300-32-37/4	300	32	1480	37	150×125
150SGW270-36-37/4	270	36	1480	37	150×125
150SGW300-40-45/4	300	40	1480	45	150×125
150SGW300-48-55/4	300	48	1480	55	150×125
200SGW358-16-22/4	358	16	1480	22	200×150
200SGW400-20-30/4	400	20	1480	30	200×150
200SGW340-24-30/4	340	24	1480	30	200×150
200SGW360-28-37/4	360	28	1480	37	200×150
200SGW400-32-45/4	400	32	1480	45	200×150
200SGW440-32-55/4	440	32	1480	55	200×150
200SGW340-36-45/4	340	36	1480	45	200×150
200SGW370-40-55/4	370	40	1480	55	200×150
200SGW400-50-75/4	400	50	1480	75	200×150
250SGW490-17-30/4	490	17	1480	30	250×200
250SGW520-20-37/4	520	20	1480	37	250×200
250SGW500-25-45/4	500	25	1480	45	250×200
250SGW550-28-55/4	550	28	1480	55	250×200
250SGW550-32-75/4	550	32	1480	75	250×200
250SGW500-41-75/4	500	41	1480	75	250×200
250SGW550-45-90/4	550	45	1480	90	250×200
250SGW500-50-90/4	500	50	1480	90	250×200
250SGW660-18-45/4	660	18	1480	45	250×200
250SGW630-20-45/4	630	20	1480	45	250×200
250SGW720-20-55/4	720	20	1480	55	250×200
250SGW600-24-55/4	600	24	1480	55	250×200
250SGW630-32-75/4	630	32	1480	75	250×200
250SGW700-28-75/4	700	28	1480	75	250×200
250SGW720-34-90/4	720	34	1480	90	250×200
250SGW660-38-90/4	660	38	1480	90	250×200
250SGW700-44-110/4	700	44	1480	110	250×200
250SGW720-50-132/4	720	50	1480	132	250×200
250SGW650-60-160/4	650	60	1480	160	250×200
250SGW700-70-200/4	700	70	1480	200	250×200
250SGW720-80-250/4	720	80	1480	250	250×200
300SGW820-18-55/4	820	18	1480	55	300×250
300SGW900-20-75/4	900	20	1480	75	300×250
300SGW900-28-90/4	900	28	1480	90	300×250
300SGW900-32-110/4	900	32	1480	110	300×250
300SGW800-36-110/4	800	36	1480	110	300×250
300SGW900-40-132/4	900	40	1480	132	300×250
300SGW900-50-160/4	900	50	1480	160	300×250
300SGW900-60-200/4	900	60	1480	200	300×250
300SGW1100-18-75/4	1100	18	1480	75	300×300
300SGW1200-20-90/4	1200	20	1480	90	300×300
300SGW1100-28-110/4	1100	28	1480	110	300×250
300SGW1200-32-132/4	1200	32	1480	132	300×250
300SGW1200-36-160/4	1200	36	1480	160	300×250
300SGW1100-40-160/4	1100	40	1480	160	300×250
300SGW1200-48-200/4	1200	48	1480	200	300×250
350SGW1400-18-90/6	1400	18	900	90	350×300
350SGW1500-21-110/6	1500	21	900	110	350×300
350SGW1400-26-132/4	1400	26	1480	132	350×300
350SGW1500-30-160/4	1500	1480	1480	160	350×300
350SGW1500-38-200/4	150	38	1480	200	350×300
350SGW1500-46-250/4	1500	45	1480	250	350×300
