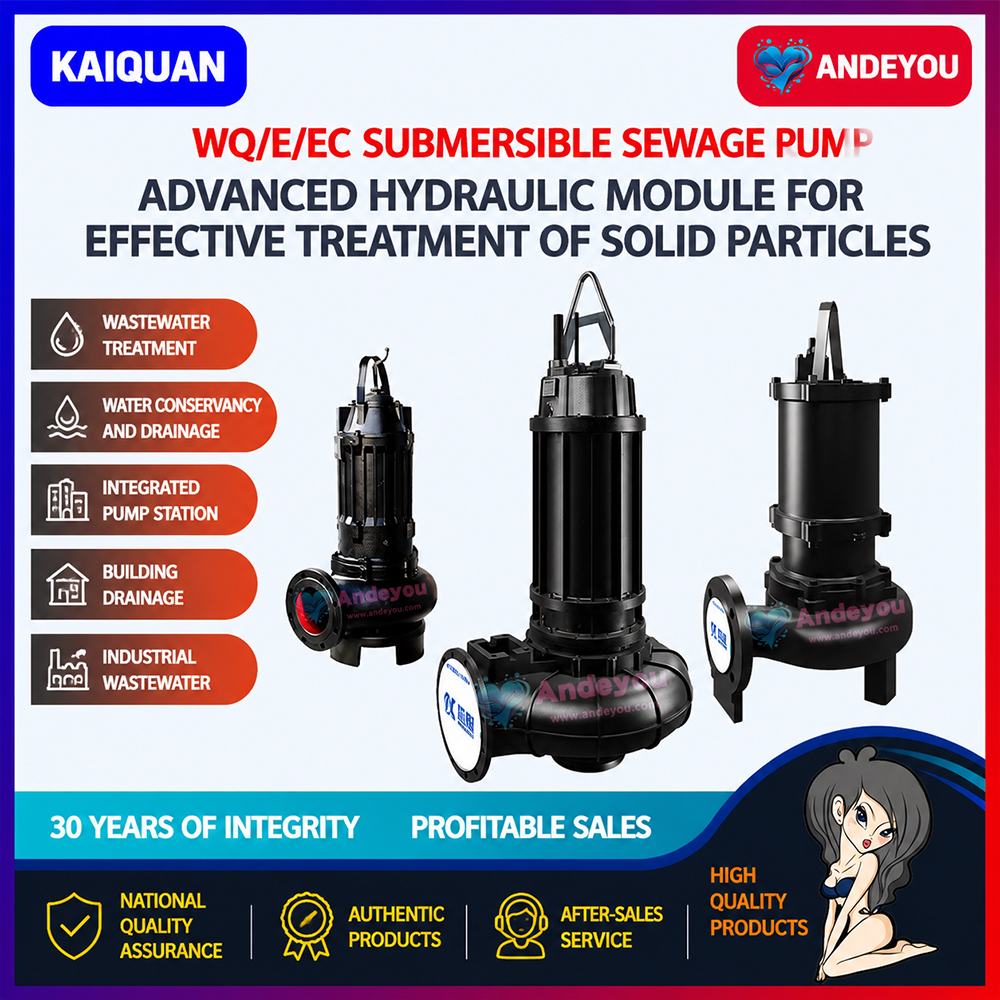

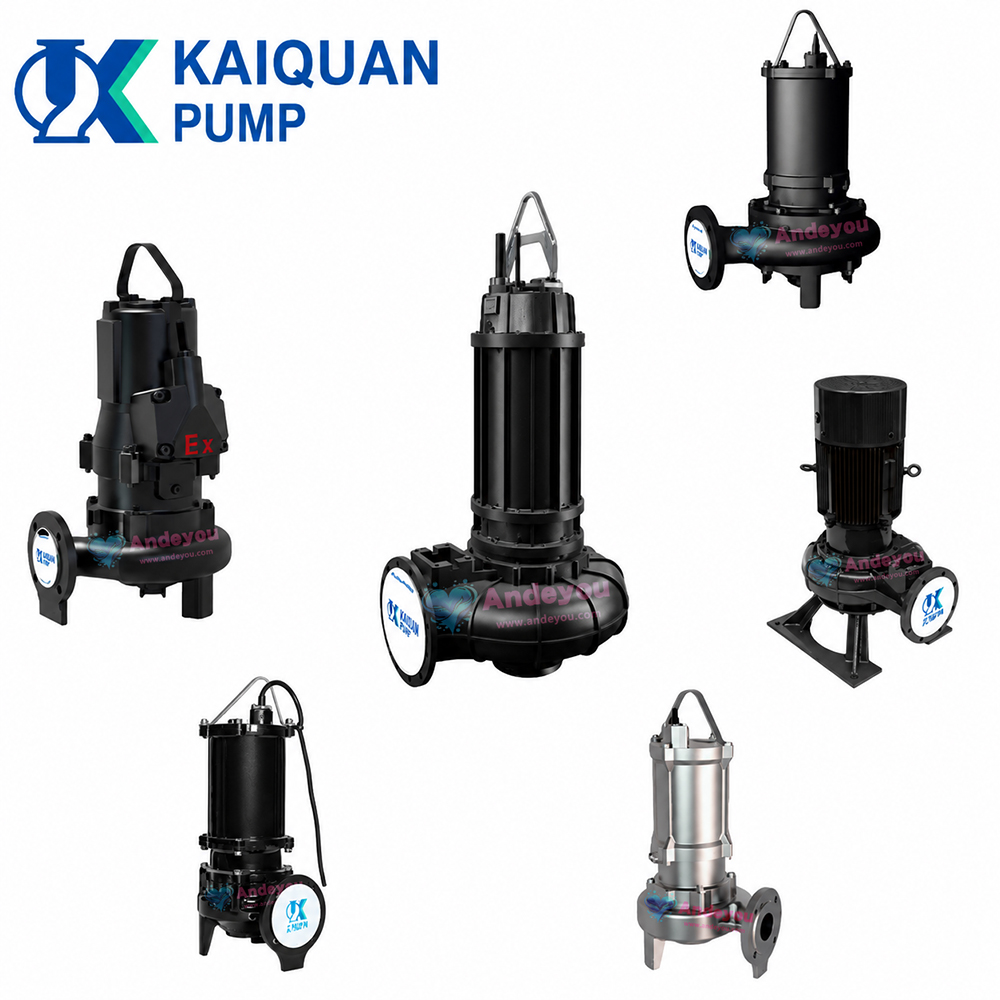

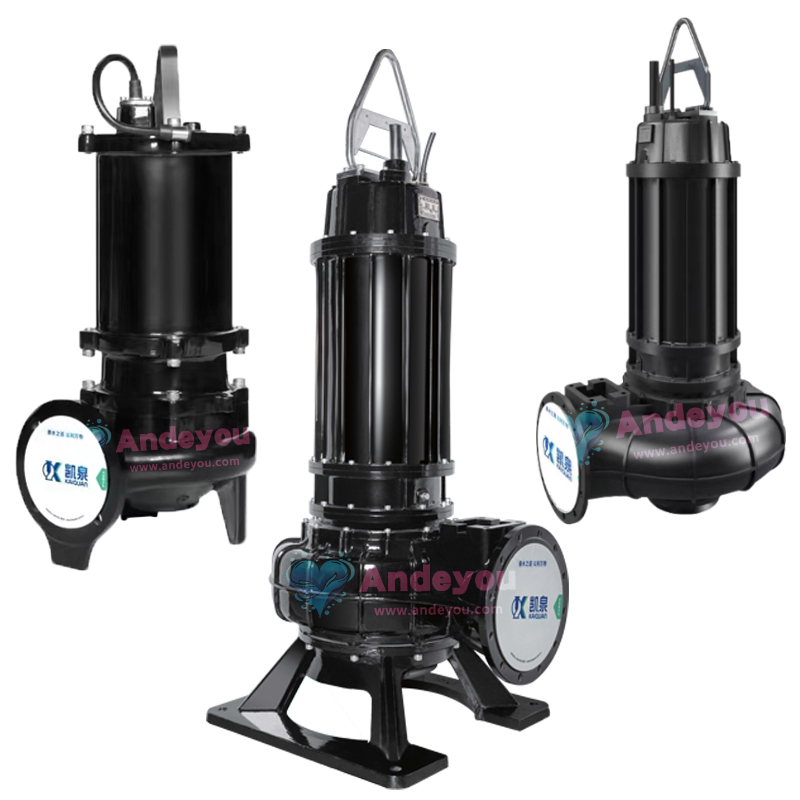

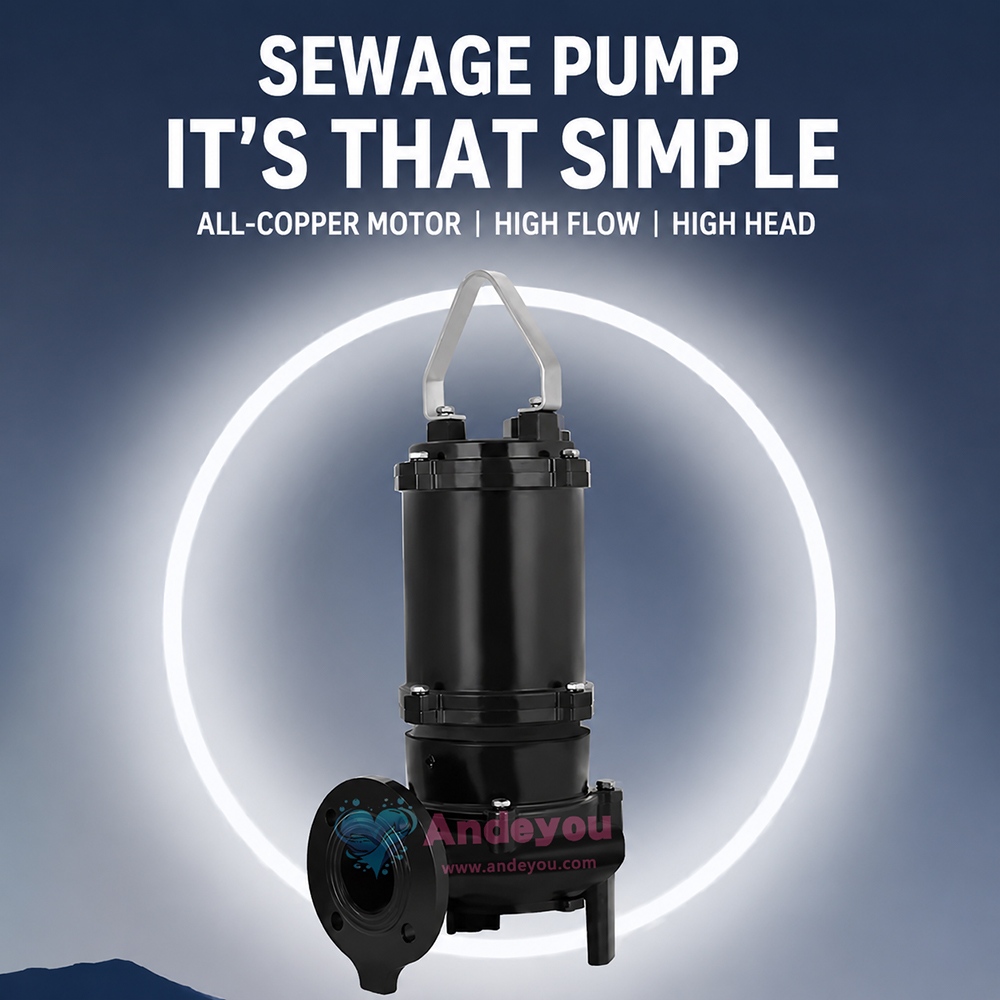

Kaiquan WQ Series Submersible Sewage Pump

WQ2210-2111-65,WQ2210-2112-65,WQ2210-2115-80,WQ2210-2118-80,WQ2260-2117-80,WQ2260-2118-80,WQ2210-2121-100,WQ2210-2122-100,WQ2260-2122-100,WQ2260-2124-100,WQ2260-4123-150,WQ2260-4138-150

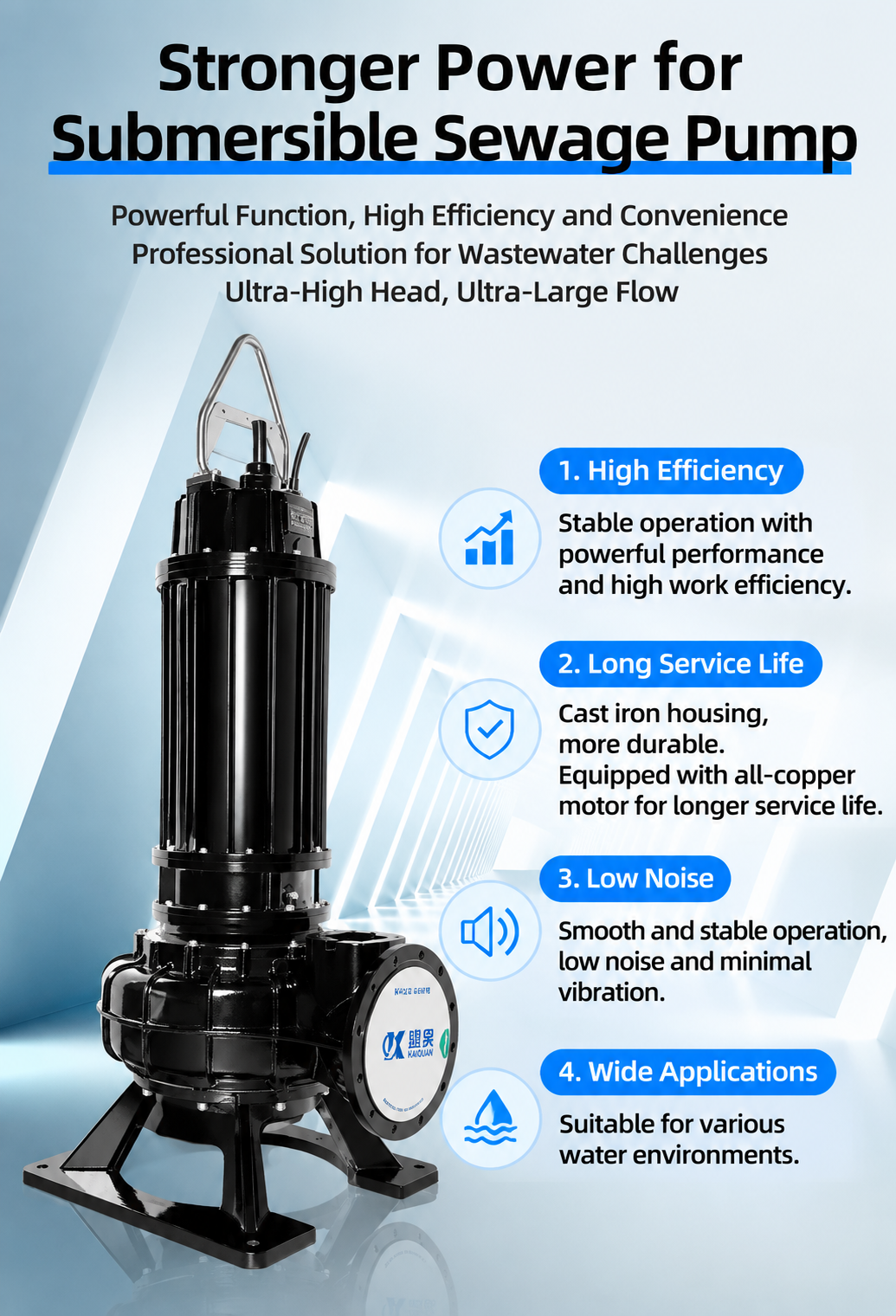

Kaiquan Pump Industry’s WQ series submersible sewage pumps feature a unique impeller design and advanced mechanical seals,enabling the efficient handling of media containing solid particles and long fibers.These pumps offer high operating efficiency,low vibration,and quiet operation,their compact,space-saving design facilitates easy maintenance and eliminates the need for a dedicated pump house.Additionally
Product Consultation By telephone
Function
Parameters
Size
Video Introduction

Function

Product Applications:

Primarily used in wastewater treatment plants, municipal sewage lifting stations, waterworks, water conservancy drainage and irrigation projects, water diversion projects, and integrated pumping stations to transport sewage, wastewater, and stormwater containing solids and long fibers.

Operating Range:

Flow rate: 4–2800 m³/h

Head: 9–130 m

Medium temperature: Max. +40°C

Environmental conditions: pH 4–10; medium density ≤ 1050 kg/m³

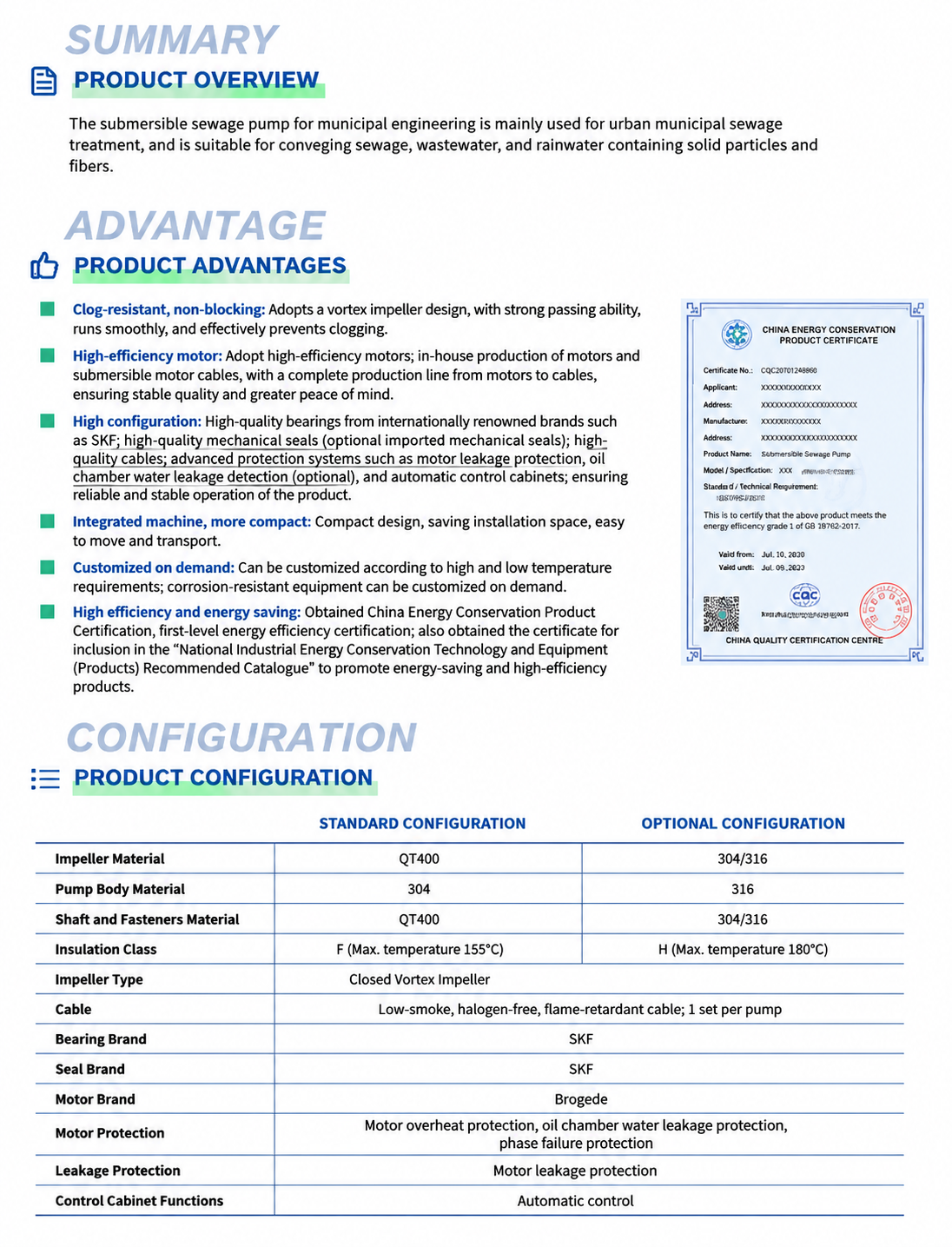

Product Overview:

This IoT-enabled smart submersible sewage pump embraces the era of the Internet of Things by integrating IoT technology into the pump design. It enables online monitoring, fault pre-warning, remote supervision, energy efficiency management, full lifecycle maintenance, and operational maintenance management. Featuring an independently developed, innovative non-overload hydraulic model, it is a true non-overload submersible pump capable of operating across the entire head range.

Parameters

model Nominal Diameter (DN) Flow rate (m³/h) Head (m) Rotational speed (r/min) Power (kW) Maximum particle size (mm)
WQ2210-2111-65 65 40 40 2940 11 30
WQ2210-2112-65 65 50 46 2940 15 30
WQ2210-2115-80 80 70 30 2935 11 36
WQ2210-2118-80 80 80 34 2935 15 36
WQ2260-2117-80 80 70 48 2940 18.5 40
WQ2260-2118-80 80 80 53 2940 22 40
WQ2210-2121-100 100 90 25 2940 11 42
WQ2210-2122-100 100 100 30 2940 15 42
WQ2260-2122-100 100 120 31 2940 18.5 44
WQ2260-2124-100 100 130 33 2940 22 44
WQ2260-4123-150 150 160 15 1480 11 60
WQ2260-4138-150 150 200 16 1480 15 60
WQ2260-4127A-150 150 200 20 1460 18.5 65
WQ2260-4127-150 150 200 25 1480 22 65
WQ2260-4122-200 200 280 11 1480 11 70
WQ2260-4129-200 200 300 13 1480 15 70
WQ2260-4130-200 200 300 18 1470 18.5 70
WQ2260-4131-200 200 300 18 1470 22 70
WQ2260-4154-200 200 380 7 1460 11 80
WQ2260-4155-200 200 400 8 1460 15 80
WQ2260-4156-200 200 500 8 1470 18.5 80
WQ2260-4157-200 200 520 10 1470 22 80
WQ2260-4158A-250 250 370 8 1470 11 100
WQ2260-4158-250 250 400 10 1470 15 100
WQ2260-4158A-250 250 500 10 1470 18.5 100
WQ2260-4159-250 250 500 12 1470 22 100
WQ2330-6155-300 300 600 6 980 15 90
WQ2330-6156-300 300 700 7 980 18.5 90
WQ2330-6157-300 300 750 8 980 22 90
WQ2368-8152-350 350 900 4 730 15 70
WQ2368-8153-350 350 1050 4 730 18.5 70
WQ2368-8154-350 350 1150 5 730 22 70
WQ2290-2135-80 80 60 70 2945 30 35
WQ2290-2136-80 80 80 70 2945 37 35
WQ2290-2133-80 80 90 78 2945 45 40
WQ2290-2134-80 100 120 80 2945 55 40
WQ2290-2125-100 100 120 50 2945 30 40
WQ2290-2126-100 100 135 56 2945 37 40
WQ2290-2131-100 100 165 39 2945 30 40
WQ2290-2132-100 100 185 42 2945 37 40
WQ2290-2139-100 100 150 62 2945 45 40
WQ2290-2140-100 100 180 68 2945 55 40
WQ2368-4176A-100 100 150 78 1485 75 40
WQ2368-4176-100 150 150 90 1485 90 40
WQ2290-4135B-150 150 160 38 1470 30 62
WQ2290-4135A-150 150 160 40 1470 30 62
WQ2290-4135-150 150 160 42 1470 30 62
WQ2290-4134A-150 150 250 26 1470 30 60
WQ2290-4134-150 150 250 28 1475 30 60
WQ2290-4136-150 150 250 30 1475 37 60
WQ2290-4170-150 150 220 45 1475 45 60
WQ2290-4171-150 150 245 48 1475 55 60
WQ2368-4165-150 150 295 56 1485 75 60
WQ2368-4166-150 150 330 60 1485 90 60
WQ2445-4178A-150 150 250 78 1485 110 50
WQ2445-4178-150 150 300 92 1485 132 50
WQ2445-4179-150 200 300 100 1485 160 50
WQ2290-4172A-200 200 330 20 1470 30 90
WQ2290-4172-200 200 360 22 1470 30 90
WQ2290-4173-200 200 400 24 1470 37 90
WQ2290-4174-200 200 400 28 1470 45 90
WQ2290-4175-200 200 440 31 1470 55 90
WQ2368-4145-200 200 600 33 1485 75 80
WQ2368-4146-200 200 570 39 1485 90 80
WQ2445-4147A-200 200 450 55 1485 110 80
WQ2445-4147-200 200 480 60 1485 132 80
WQ2445-4148-200 200 520 67 1485 160 80
WQ2520-4185B-200 200 600 98 1485 250 90
WQ2520-4185A-200 200 650 100 1485 280 90
WQ2520-4185-200 200 660 106 1485 315 90
WQ2290-4109-250 250 650 12 1470 30 100
WQ2290-4110-250 250 650 15 1470 37 100
WQ2290-4112-250 250 650 18 1470 45 100
WQ2290-4168-250 250 650 22 1470 55 100
WQ2368-4149-250 250 600 30 1485 75 100
WQ2368-4150-250 250 600 34 1485 90 100
WQ2445-4151A-250 250 600 40 1485 110 100
WQ2445-4151-250 250 650 40 1485 110 100
WQ2445-4152A-250 250 675 42 1485 110 100
WQ2445-4152-250 250 770 43 1485 132 100
WQ2445-4153-250 250 880 46 1485 160 100
WQ2520-4165-250 250 550 70 1485 185 60
WQ2520-4166-250 250 600 75 1485 200 60
WQ2520-4167-250 250 650 80 1485 220 60
WQ2368-6215-300 300 700 11 980 30 100
WQ2368-6216-300 300 750 13 980 37 100
WQ2368-6217-300 300 800 15 980 45 100
WQ2368-6218-300 300 850 17 980 55 100
WQ2368-4120A-300 300 950 20 1485 75 120
WQ2368-4120-300 300 950 24 1485 90 120
WQ2368-4121-300 300 1000 22 1485 90 120
WQ2445-4139-300 300 1200 24 1485 110 120
WQ2445-4140A-300 300 1200 27 1485 132 120
WQ2445-4140-300 300 1300 30 1485 160 120
WQ2368-4145-200 200 600 33 1485 75 80
WQ2368-4146-200 200 570 39 1485 90 80
WQ2445-4147A-200 200 450 55 1485 110 80
WQ2445-4147-200 200 480 60 1485 132 80
WQ2445-4148-200 200 520 67 1485 160 80
WQ2520-4185B-200 200 600 98 1485 250 90
WQ2520-4185A-200 200 650 100 1485 280 90
WQ2520-4185-200 200 660 106 1485 315 90
WQ2290-4109-250 250 650 12 1470 30 100
WQ2290-4110-250 250 650 15 1470 37 100
WQ2290-4112-250 250 650 18 1470 45 100
WQ2290-4168-250 250 650 22 1470 55 100
WQ2368-4149-250 250 600 30 1485 75 100
WQ2368-4150-250 250 600 34 1485 90 100
WQ2445-4151A-250 250 600 40 1485 110 100
WQ2445-4151-250 250 650 40 1485 110 100
WQ2445-4152A-250 250 675 42 1485 110 100
WQ2445-4152-250 250 770 43 1485 132 100
WQ2445-4153-250 250 880 46 1485 160 100
WQ2520-4165-250 250 550 70 1485 185 60
WQ2520-4166-250 250 600 75 1485 200 60
WQ2520-4167-250 250 650 80 1485 220 60
WQ2368-6215-300 300 700 11 980 30 100
WQ2368-6216-300 300 750 13 980 37 100
WQ2368-6217-300 300 800 15 980 45 100
WQ2368-6218-300 300 850 17 980 55 100
WQ2368-4120A-300 300 950 20 1485 75 120
WQ2368-4120-300 300 950 24 1485 90 120
WQ2368-4121-300 300 1000 22 1485 90 120
WQ2445-4139-300 300 1200 24 1485 110 120
WQ2445-4140A-300 300 1200 27 1485 132 120
WQ2445-4140-300 300 1300 30 1485 160 120
WQ2445-4141A-300 300 1000 35 1485 132 120
WQ2445-4141-300 300 1050 40 1485 160 120
WQ2520-4160-300 300 1200 37 1485 185 80
WQ2520-4161-300 300 1400 37 1485 200 80
WQ2520-4162-300 300 1400 42 1485 220 80
WQ2520-4163-300 300 1400 49 1485 250 80
WQ2520-4164-300 300 1400 52 1485 280 80
WQ2520-4184A-300 300 900 75 1485 280 50
WQ2520-4184-300 300 1000 80 1485 315 50
WQ2368-6158-350 350 900 9 980 30 91
WQ2368-6159-350 350 1200 8 980 37 91
WQ2368-6160-350 350 1200 10 980 45 91
WQ2368-6161-350 350 1300 12 980 55 91
WQ2445-6121-350 350 1150 16 990 75 105
WQ2445-6122-350 350 1400 15 990 90 105
WQ2445-6123-350 350 1750 16 990 110 105
WQ2445-6124-350 350 1800 20 990 132 105
WQ2590-6113-350 350 1600 38 990 220 140
WQ2590-6114-350 350 1600 40 990 250 140
WQ2590-6115-350 350 1900 40 990 280 140
WQ2740-6173-350 350 1750 50 990 355 130
WQ2740-6171-350 350 2000 45 990 355 120
WQ2740-6172C-350 350 1500 55 990 355 100
WQ2740-6172B-350 350 1500 60 990 400 100
WQ2740-6172A-350 350 1600 65 990 420 100
WQ2740-6172-350 350 1600 70 990 450 100
WQ2368-8155-400 400 1300 6 735 30 80
WQ2368-8156-400 400 1350 7 735 37 80
WQ2368-8157-400 400 1500 8 735 45 80
WQ2368-8158-400 400 1500 10 735 55 80
WQ2445-6162-400 400 1650 13 990 75 110
WQ2445-6163-400 400 1800 13 990 90 110
WQ2445-6164-400 400 2100 14 990 110 110
WQ2445-6165-400 400 2400 15 990 132 110
WQ2520-6101-400 400 1600 25 990 160 130
WQ2520-6102-400 400 1800 28 990 185 130
WQ2520-6103-400 400 1800 31 990 200 130
WQ2520-6104-400 400 2200 18 990 160 130
WQ2520-6125-400 400 2400 20 990 185 130
WQ2520-6126-400 400 2500 22 990 200 130
WQ2590-6105-400 400 2250 23 990 220 150
WQ2590-6106-400 400 2500 26 990 250 150
WQ2590-6107-400 400 2500 30 990 280 150
WQ2590-6127-400 400 2600 31 990 315 150
WQ2520-8159-500 500 2300 8 735 75 140
WQ2520-8160-500 500 2300 10 735 90 140
WQ2520-8161-500 500 2900 10 735 110 140
WQ2520-8162-500 500 3000 11 745 132 140
WQ2520-8163-500 500 3300 13 745 160 140
WQ2520-6108-500 500 3000 13 990 160 130
WQ2520-6109-500 500 3050 15 990 185 130
WQ2520-6110-500 500 3050 18 990 200 130
WQ2590-6117-500 500 2500 20 990 220 150
WQ2590-6118-500 500 2500 22 990 250 150
WQ2590-6119-500 500 3000 26 990 280 150
WQ2520-1054-600 600 3000 6 590 75 160
WQ2520-1055-600 600 3200 7 590 90 160
WQ2520-1056-600 600 3600 8 590 110 160
WQ2520-1057-600 600 3800 9 590 132 160
WQ2740-6170C-600 600 3200 30 980 355 100
WQ2740-6170B-600 600 3400 32 980 400 100
WQ2740-6170A-600 600 3600 33 980 420 100
WQ2740-6170-600 600 3600 36 980 450 100
WQ2850-8175-800 600 4200 35 745 580 100
WQ2590-8164-600 600 3900 12 745 185 150
WQ2590-8165-600 600 4100 13 745 200 150
WQ2590-8166-600 600 4300 14 745 220 150
WQ2590-8167-600 600 4600 15 745 250 150
WQ2590-8168-600 600 4800 16 745 280 150
WQ2590-8169-600 600 5000 16 745 315 150
WQ2590-1058-700 700 5000 8 590 160 170
WQ2590-1059-700 700 5000 10 590 185 170
WQ2590-1250-700 700 5400 10 495 185 176
WQ2590-1251-700 700 5700 10 495 200 176
WQ2590-1252-700 700 6000 10 495 220 176
WQ2670-1661-800 800 6500 7 370 200 240
WQ2670-1662-800 800 6800 8 370 220 240
WQ2670-1663-800 800 7200 9 370 250 240
WQ2650-1253-800 800 6500 11 495 250 200
WQ2650-1254-800 800 6900 12 495 280 200
WQ2650-1255-800 800 7300 12 495 315 200
WQ2850-8173A-800 800 5500 20 745 450 220
WQ2850-8173-800 800 6000 22 745 500 220
WQ2850-8174A-800 800 6500 23 745 560 220
WQ2850-8174-800 800 7200 25 745 630 220
WQ2850-8170-900 900 8400 12 745 450 200
WQ2850-8171-900 900 8500 15 745 500 200
WQ2850-8172-900 900 9000 15 745 560 200
WQ2850-1062-1000 1000 10000 15 590 630 250
